Miele DA 419-4 Specification sheet

Operating and installation instructions
Cooker hood
DA 416-4,
DA 419-4
To avoid the risk of accidents
or damage to this appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 200 600
en-GB

Caring for the environment..........................................3
Warning and Safety instructions .....................................4

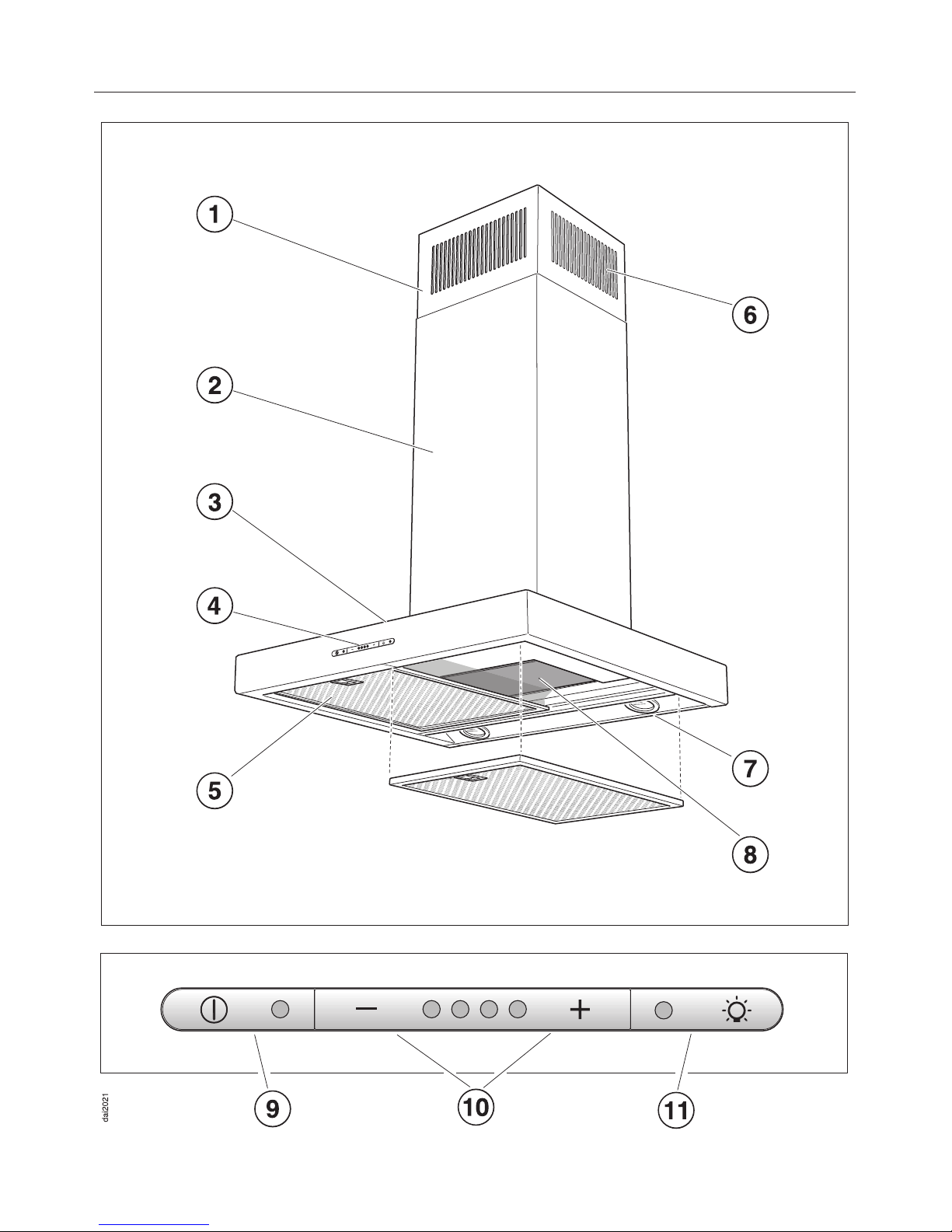

Guide to the appliance ............................................10
Modes of operation ...............................................12
Operation .......................................................13
To switch the fan on s.............................................13
To select a power level -/+.........................................13
Hob lighting I....................................................14
Cleaning and care ................................................15
Housing .........................................................15
Grease filters .....................................................16
Fitting and replacing the charcoal filter .................................18
Changing a halogen lamp ...........................................19
Appliance dimensions.............................................20
Safety distance between hob and cooker hood (S) .....................21
Installation ......................................................23
Installation instructions .............................................23
Protective foil .....................................................23
Dismantling ......................................................23
Assembly parts ...................................................24
Connection for air extraction .......................................26
Condensate trap ..................................................27
Silencer .........................................................28
Electrical connection .............................................29
Operation with Control module DSM 400 .............................30
Potential free connection .........................................30
Connection to a light switch .......................................30
After Sales Service ...............................................31
Technical data ...................................................32
Contents
2

Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on the safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and for use by residents in
establishments such as
–Hostels
~It must only be used as a domestic
appliance to extract vapours and
remove odours from cooking.
~The cooker hood is not intended for
outdoor use.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience or knowledge, unless
they are supervised whilst using it or
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To
prevent the risk of injury do not let
children play with the appliance or its
controls.
~Children under 8 years of age must
be kept away from the cooker hood
unless they are constantly supervised.
~Children 8 years and older may use
the cooker hood only if they have been
shown how to use it in a safe way and
understand the hazards involved.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
4

Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
use a damaged appliance. It could be
dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
on-site electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly, and where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised person in accordance
with current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply.
Warning and Safety instructions
5

~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.

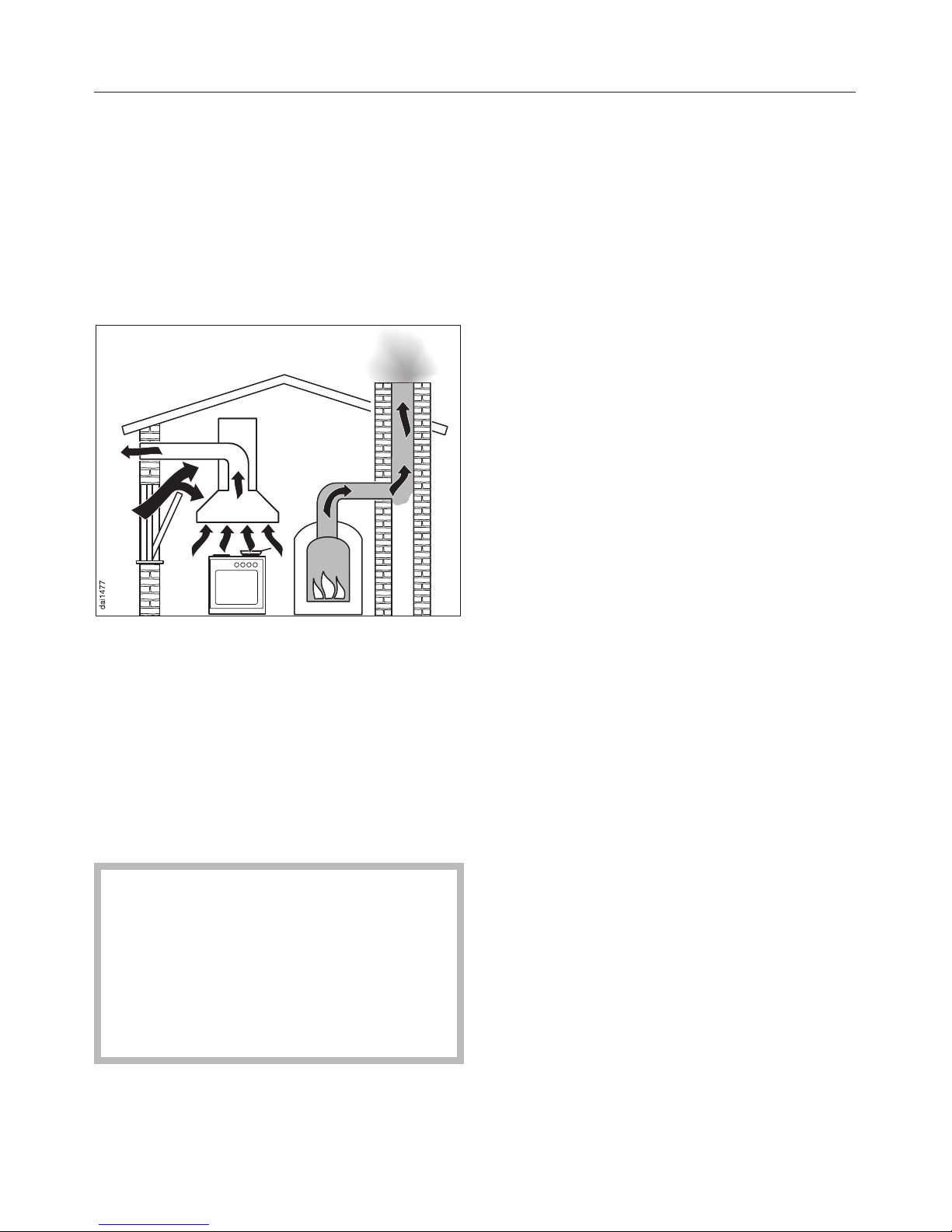

Using at the same time as other
heating appliances that depend on
the air from the room
Warning - danger of toxic fumes
~Great care should be taken when
using the cooker hood at the same time
and in the same room or area of the
house as another heating appliance
which depends on the air in the room.
Such appliances include gas, oil, wood
or coal-fired boilers and heaters,
continuous flow or other water heaters,
gas hobs, cookers or ovens which draw
air in from the room and duct exhaust
gases out through a chimney or
extraction ducting.
When used in extraction mode, the
appliance draws air in from the room in
which it is installed and from
neighbouring rooms.
If there is insufficient air, an
underpressure will occur. The heating
appliance may be starved of oxygen,
impairing combustion.
Harmful gases could be drawn out of
the chimney or extraction ducting back
into the room, with potentially fatal
consequences.
Warning and Safety instructions
6

In order to ensure safe operation, and
to prevent gases given off by the
heating appliances from being drawn
back into the room when the cooker
hood and the heater are in operation
simultaneously, an underpressure of
0.04 mbar (4 pa) is the maximum
permissible in the room.
Ventilation can be maintained by air
inlets which must not be blocked, in
windows, doors and outside wall vents,
or by other technical measures, such
as ensuring that the cooker hood can
only be switched on when the heating
appliance is switched off or vice versa.
A ventilation brick alone is not generally
sufficient to ensure safe ventilation.
,The overall ventilation condition
of the dwelling must be taken into
account. If in any doubt, the advice
of a competent builder or, for gas, a
qualified gas fitter (GasSafe
registered in the UK) must be
sought.
If the hood is being operated in
recirculation mode, the above
restrictions do not apply.
Warning and Safety instructions
7

Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame under the cooker hood.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The cooker hood can get very hot
during cooking due to heat rising from
the hob.
Do not touch the housing or the grease
filters until the cooker hood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Steam could reach the
electrical components and cause a
short circuit.
Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one appliance is fitted
beneath the cooker hood, and they
have different minimum safety
distances to the cooker hood, select
the greater distance.
Warning and Safety instructions
8

~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
~All ducting, pipework and fittings
must be of non-flammable material.
These can be obtained from the Miele
Spare Parts department or from
builders' merchants.
~The appliance must not be
connected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
~If exhaust air is to be extracted into
a chimney or ventilation duct no longer
used for other purposes, seek
professional advice.
Accessories
~Only use genuine Miele original
spare parts and accessories with this
appliance. If spare parts or accessories
from other manufacturers are used, this
will invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
9

Guide to the appliance
10

aTelescopic extension piece
bTower
cCanopy
dTouch controls
eGrease filters
fRecirculation grille
(only for recirculation mode)
gHob lighting
hCharcoal filter
(special accessory for recirculation
mode)
iOn/Off control for the fan
jControls to select fan power level
kOn/Off control for hob lighting
Guide to the appliance
11

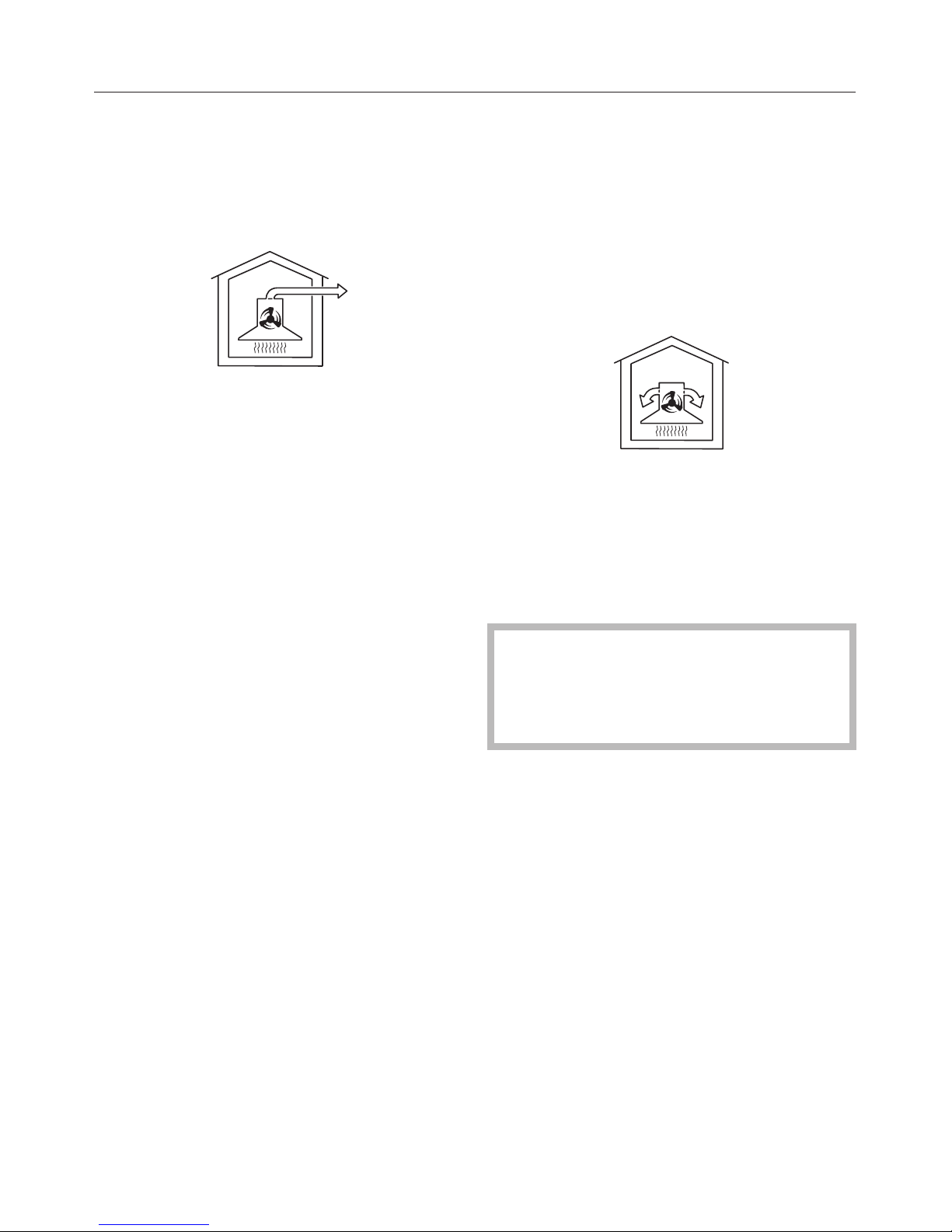

The cooker hood works with
. . . air extraction:
The air is drawn in and cleaned by the
grease filters and directed outside.
If the on-site ventilation system does
not have a non-return flap, the
non-return flap supplied with the
appliance must be fitted in the exhaust
socket in the motor unit.
Having a non-return flap fitted in the
ducting ensures that air, once ducted
to the outside, cannot get back into the
room again.
The flap is closed when the cooker
hood is switched off.
When the cooker hood is switched on,
the non-return flap opens for the
cooking vapours to be ducted away.
. . . air recirculation:
(available as an optional extra with a
conversion kit and charcoal filter: see
"Technical Data")
The air is drawn in and cleaned first by
the grease filters and then by a
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through grilles in the top of the cooker
hood extension piece.
Before using the cooker hood in
recirculation mode, ensure that the
charcoal filter is in place. See
"Cleaning and care".
Modes of operation
12

To switch the fan on s
^Press the On/Off control s.
The fan will come on at power level lI.
To select a power level -/+
^To select a lower power level, press
the –symbol, or to select a higher
power level, press the +symbol.
Depending on the intensity of the
cooking vapours, levels "I" to "III" are
usually sufficient for normal cooking.
Intensive setting
For short periods of cooking food with
intensive vapours and a strong aroma,
e.g. when searing meat, you may wish
to select the Intensive Setting "IV".
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it only runs for 10 minutes before
reverting automatically to level III.
^To set this option, both the fan and
the hob lighting must be switched off.
^Press the –and +controls at the
same time for approx. 10 seconds
until the first power level indicator
lamp lights up in the display.
^Then press in turn:
– the Hob lighting control I,
– the –symbol, and
– the Hob lighting control Iagain.
The indicator lamps for fan power levels
I and IV will flash if the automatic
switch-off for the Intensive setting is not
activated.
^Press the +control to activate auto-
matic switch-off.
The indicator lamps for fan power
levels I and IV will now light up
constantly.
Press the –control to deactivate the
automatic switch-off function.
^Press the On/Off scontrol to
confirm.
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
Operation
13

To switch the fan off s
^Press the On/Off control sto switch
the fan off.
The ssymbol goes out.
It is advisable to run the fan for a few
minutes after cooking has finished to
neutralise any lingering odours in the
air, whether you are using air extraction
or recirculation mode.
Hob lighting I
^The hob lighting can be switched on
and off independently of the fan by
pressing the hob lighting control I.
Safety switch-off
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours. The lighting will remain on.
Pressing the On/Off control swill
switch the fan back on again.
Operation
14

A range of Miele branded cleaning and
conditioning products is available to
order from Miele (see back page for
details) or the via the internet at
www.miele-shop.com.
,Before any cleaning or
maintenance work is carried out,
disconnect the cooker hood from the
mains supply.
,Halogen lamps get very hot
during use and remain hot for some
time after being switched off. The
hot lamps are also susceptible to
damage from damp cleaning. Wait a
few minutes after switching off
before commencing cleaning.
Housing
General
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using a Miele E-Cloth or
with warm water and a little
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
Only use a damp cloth as water
could get into the appliance and
cause damage.
^Wipe dry using a soft cloth.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents.
These will damage the surface
material.
Important for appliances with
stainless steel housing
(This infomation does not apply to the
controls).
^Stainless steel surfaces can be
cleaned using the Miele E-Cloth or
with a suitable, non-abrasive,
proprietary cleaning agent for
stainless steel, following the
manufacturer's instructions on the
packaging.
^To help prevent re-soiling, a
conditioning agent for stainless steel
can also be used. Follow the
manufacturer's instructions on the
packaging.
Important for appliances with
lacquered housing
(Special order finish)
It is very difficult to clean this type of
surface without causing minor marks to
the surface material. This can become
particularly noticeable with darker
colours and if there is halogen lighting
in the kitchen.
Cleaning and care
15

Controls
The controls may suffer
discolouration or damage if soiling is
left on them for too long.
Remove soiling straight away.
^Observe the General notes on
cleaning earlier in this section.
Do not use stainless steel cleaning
agents on the controls.
Grease filters
The re-usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the
cooker hood.
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a build-up of grease.
,An oversaturated filter is a fire
hazard.

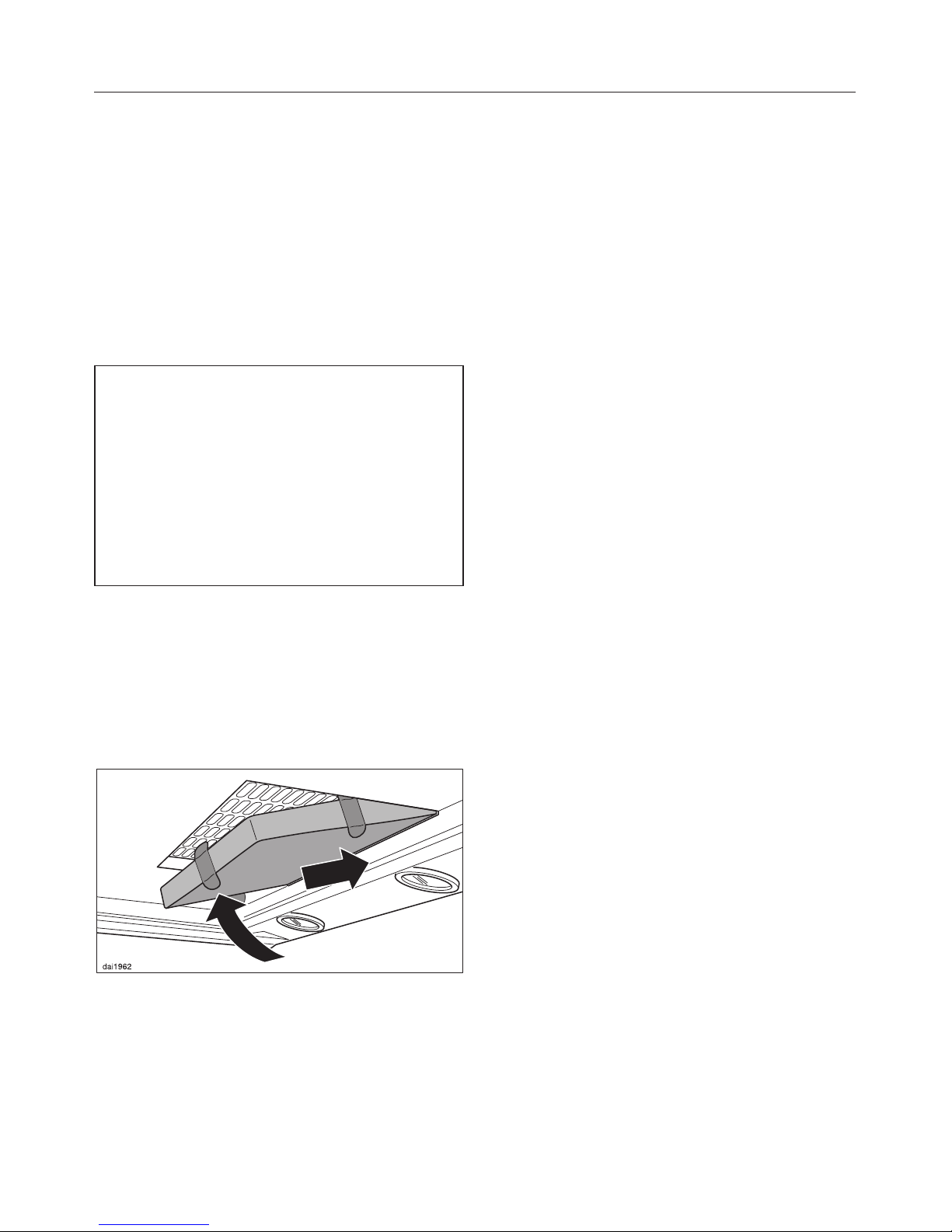

^To take out the grease filters, release
the locking clip on the filters, lower
the filters 45°, unhook them at the
back and remove them.
To avoid damaging the filters or the
hob below, make sure you hold the
filters securely at all times when
handling them.
Cleaning and care
16

Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing up liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaners.
–oven sprays.
Cleaning the grease filters in the
dishwasher
^Place the filters as upright as
possible in the lower basket, with the
short sides upright. Make sure that
the spray arm can move freely.
^Do not wash at more than 65° C. If a
Miele dishwasher is being used,
select the Sensor wash programme.
^Use a mild dishwasher detergent.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
^After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
^When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
housing to prevent the risk of these
catching fire.
When putting the grease filters back in
position, ensure that the locking clips
are facing down towards the hob.

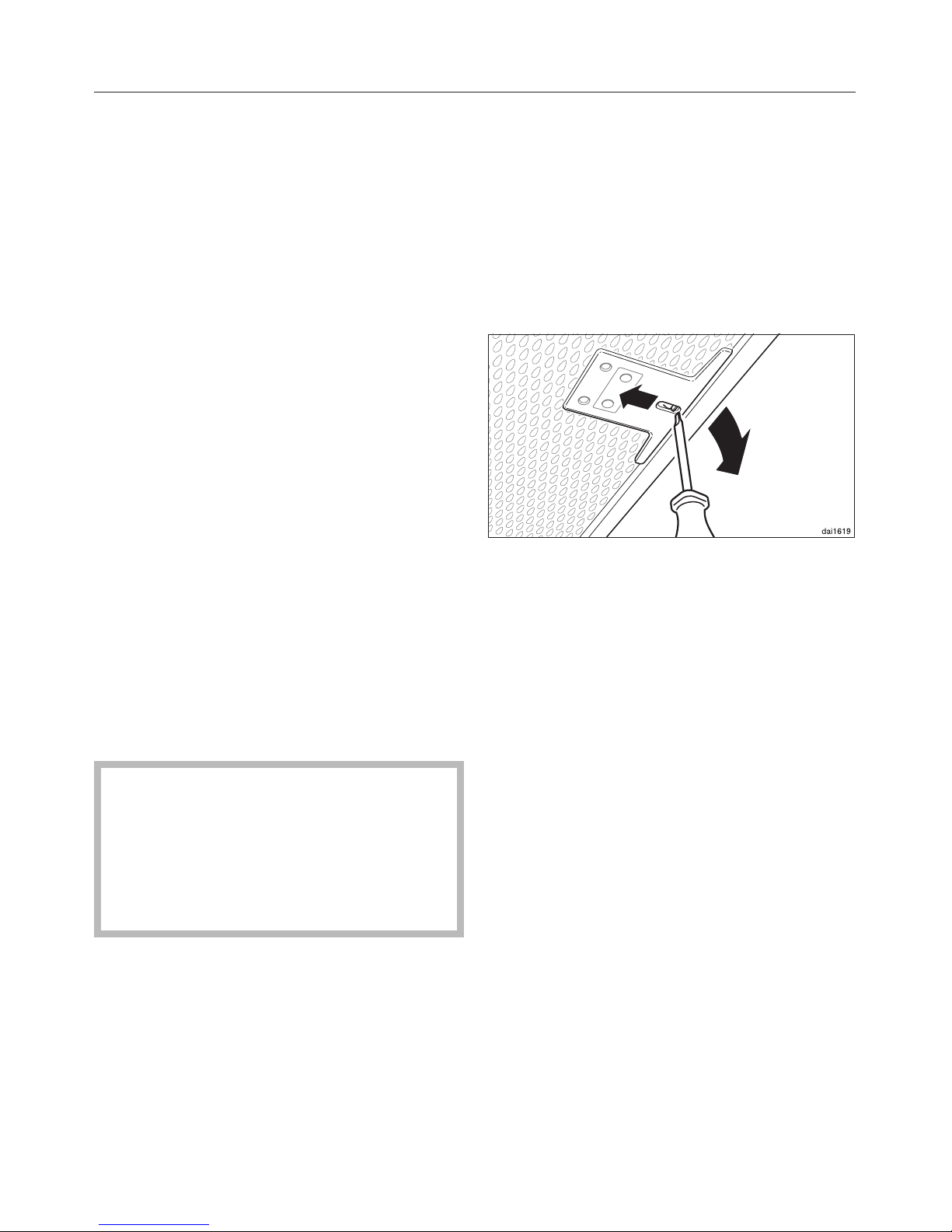

^If a grease filter is inadvertently
replaced upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Cleaning and care
17

Fitting and replacing the
charcoal filter
If the cooker hood is connected for
recirculation, a charcoal filter must be
inserted in addition to the grease filters.
This is designed to absorb cooking
odours.
It is fitted in the canopy above the
grease filters.
New charcoal filters can be
purchased from your Miele dealer,
from the Miele Spare Parts
Department or via the internet at
www.miele.shop.com.
See back cover for contact details,
and "Technical data" for the model
number of the filter.
^Before fitting or replacing a charcoal
filter, the grease filters must first be
taken out (see previous section for
instructions on how to do this).
^Take the charcoal filter out of its
packaging.
^Insert the charcoal filter into the back
of the charcoal filter frame, then push
up into the frame at the front.
^Replace the grease filters.
Replace the charcoal filter when it no
longer absorbs kitchen odours
effectively.
It should, however, be replaced at least
every 6 months.
^Used charcoal filters can be
disposed of with the normal
household waste.
Cleaning and care
18

Changing a halogen lamp
^Before any cleaning or maintenance
work, disconnect the cooker hood
from the mains supply.
,Exercise caution when changing
halogen lamps. They get very hot
during use and remain hot for some
time after being switched off. Let
them cool down before you change
them.
^To access the halogen lamp press
and release the lamp cover.
^Pull the old halogen lamp out of the
connection socket.
^Using a cloth or glove, push the new
lamp (12 V, 20 W, G4 cap) carefully
into the connection socket. Please
follow the manufacturer's instructions.
^Push the cover back up and make
sure it clicks into place.
Cleaning and care
19

The diagram is not drawn to scale.
Appliance dimensions
20
