Miele DA 7000 D User manual

Operating and Installation instructions
Rangehood
DA 7000 D
To avoid the risk of accidents
or damage to the appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 734 320
en - AU, NZ

Caring for the environment..........................................3
Warning and Safety instructions .....................................4

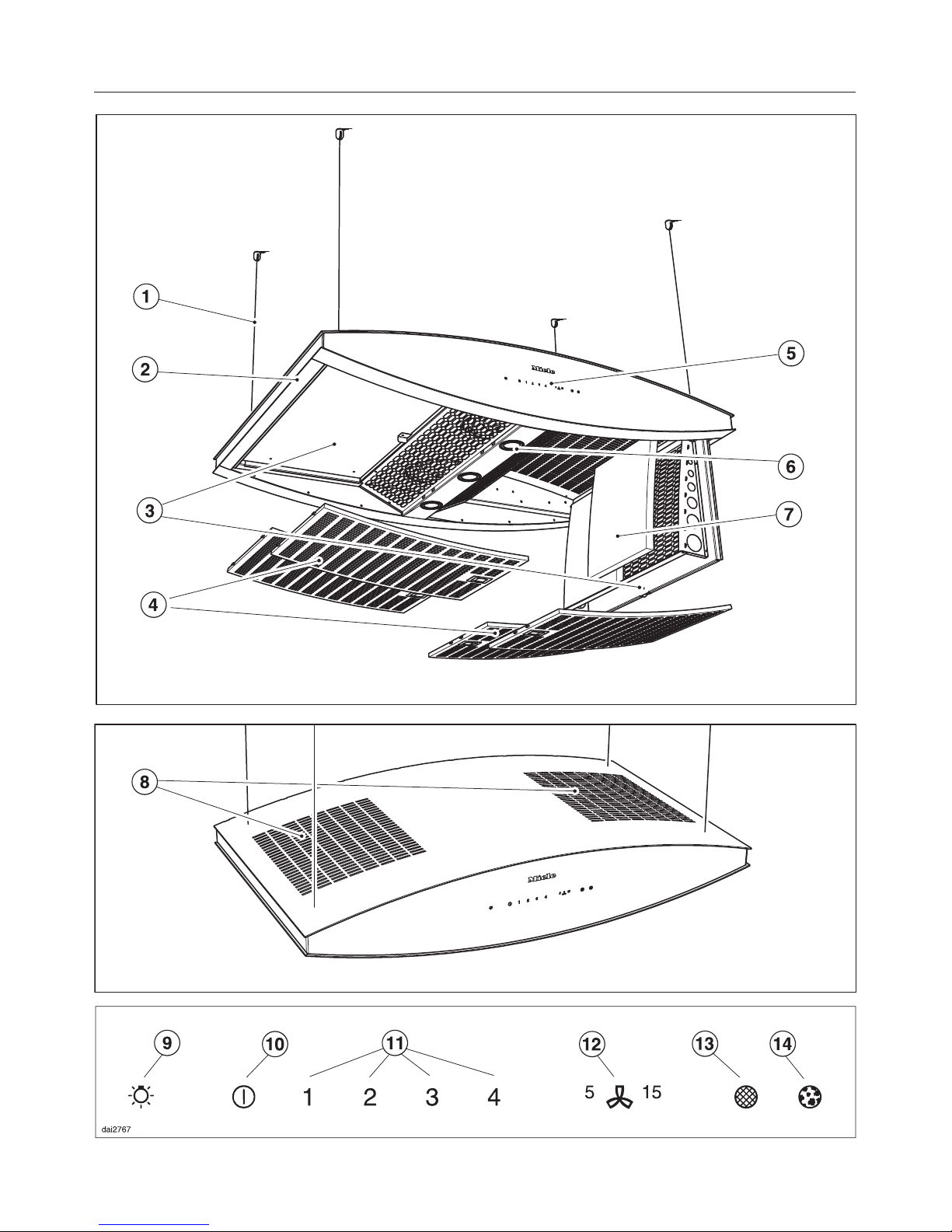

Description of the appliance.........................................8
Description of the functions ........................................10
Miele|home .....................................................11
Con|ctivity ......................................................11
Operation .......................................................12
To switch the fan on s.............................................12
To select a power setting............................................12
Run-on option "5m15"..............................................13
To switch the fan off s.............................................13
Cooktop lighting n................................................13
Operating hours counter l| ........................................14
Sensor tones .....................................................16
Safety switch-off after 10 hours ....................................16
Cleaning and care ................................................17
Housing .........................................................17
Grease filters .....................................................18
Resetting the operating hours counter for the grease filters ..............19
Fitting and replacing the charcoal filters ................................20
Resetting the operating hours counter for the charcoal filters ............21
Changing a halogen lamp ...........................................22
After sales service ................................................23
Appliance dimensions.............................................24
Safety distances between cooktop and rangehood (S) ..................24
Installation ......................................................26
Assembly parts ...................................................26
Installation instructions .............................................26
Electrical connection..............................................27
Technical data ...................................................28
Contents
2

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal
injury and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time. They
contain important information on the
safety, installation, use and
maintenance of the appliance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This rangehood is designed for
domestic use and for use in similar
environments by guests in hotel or motel
rooms, bed & breakfasts and other
typical living quarters. This does not
include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~It must only be used to extract
vapours and remove odours from
cooking.
~This appliance is not suitable for
outdoor use.
Any other usage is at the owner's risk.
Miele cannot be held liable for damage
resulting from incorrect or improper use
or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience or knowledge, unless they
have been given supervision or
instruction concerning its use by a
person responsible for their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
rangehood only when its operation has
been clearly explained to them and
they are able to use it safely. They must
be aware of the potential dangers
caused by incorrect operation.
~Please be aware that on
rangehoods with halogen lighting, the
lamps will get very hot during use and
remain hot for some time after switching
off. To safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
4

Technical safety
~Before installation, check the
rangehood for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond to the on-site
electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with current
local and national safety regulations. It
is most important that this basic safety
requirement is present and tested
regularly and, where there is any doubt,
the household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
suitably qualified and competent
person in strict accordance with current
national and local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
~The connection must not be pulled
on or used to secure additional
components (e.g. an interim shelf).
~A damaged connection cable must
only be replaced by an approved and
suitably qualified technician.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
Warning and Safety instructions
5

~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply. It is only completely isolated
from the electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable).
~This rangehood must not be
installed and operated in mobile
installations (e.g. on a ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the warranty.
Correct use
~Never use an open flame beneath
the rangehood. To avoid the danger of
fire, do not flambé or grill over an open
flame.
When switched on, the rangehood
could draw flames into the filter. Fat
particles drawn into the rangehood
present a fire hazard.
~When using the rangehood over a
gas cooktop, ensure that any burners in
use are always covered by a pan.
Switch the cooking zone off when a pan
is removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The rangehood can become damaged
when exposed to excessive heat.
~Always switch the rangehood on
when a cooking zone is in use,
otherwise condensation may collect in
the rangehood, which could cause
corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc., do not
leave the pans unattended. Never leave
even an electric open grill unattended
when grilling. Overheated oil and fat
can ignite and could set the rangehood
on fire.
Warning and Safety instructions
6

~Do not use the rangehood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The rangehood can get very hot
during cooking due to heat rising from
the cooktop.
Do not touch the housing or the grease
filters until the rangehood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Pressurised steam
could reach the electrical components
and cause a short circuit.
~As the rangehood is suspended
from cables, it will move if bumped or
pushed. Be careful not to let this occur
as the appliance may come into
contact with persons standing directly
next to it.
Correct installation
~Refer to the rangehood or cooktop
manufacturer's instructions as to
whether a rangehood may be operated
above the cooktop.
~The minimum safety distances
between the top of the cooktop and the
bottom of the rangehood given in the
"Appliance dimensions" section of this
booklet must be maintained, unless the
cooktop manufacturer states that a
greater safety distance is required.
If more than one cooking appliance is
fitted beneath the rangehood, and they
have different minimum safety
distances to the rangehood, select the
greater distance.
~Safety regulations prohibit the fitting
of a rangehood over solid fuel stoves.
Accessories
~Only use genuine Miele spare parts
and accessories with this rangehood. If
spare parts or accessories from other
manufacturers are used, this will
invalidate the warranty, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
7

Description of the appliance
8

aSuspension cables
bCanopy
cHolders for the charcoal filters
dGrease filters
eControls
The symbols act as touch controls.
Touch the sensors to select the function
you require.
An audible tone sounds briefly to
confirm selection.
fCooktop lighting
gCharcoal filters (4)
hAir outlet grilles
iSensor for cooktop lighting
This control switches the cooktop
lighting on and off, and is also a
dimmer switch.
jSensor for switching the fan on
and off
kSensors for selecting the fan
power setting
lSensor for the run-on option
This sensor activates the run-on option.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
mSensor for the grease filters
The sensor lights up when the grease
filters need to be cleaned.
It is used to reset the operating hours
counter every time the grease filters are
cleaned (see "Cleaning and care").
It can also be used to check and alter
the operating hours counter.
nSensor for the charcoal filters
The sensor lights up when the charcoal
filters need to be replaced. For this to
happen, the operating hours counter
needs to be activated before the
appliance is used for the first time.
The sensor is used to reset the
operating hours counter every time the
charcoal filters are replaced (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Description of the appliance
9

The rangehood works in recirculation
mode:
The air is drawn in and cleaned first by
the grease filters and then by
4charcoal filters. The cleaned air is
then recirculated back into the kitchen
through grilles in the top of the
rangehood.
Before using the rangehood for the
first time, ensure that the charcoal
filters are in place. See "Cleaning
and care".
Description of the functions
10

Con|ctivity

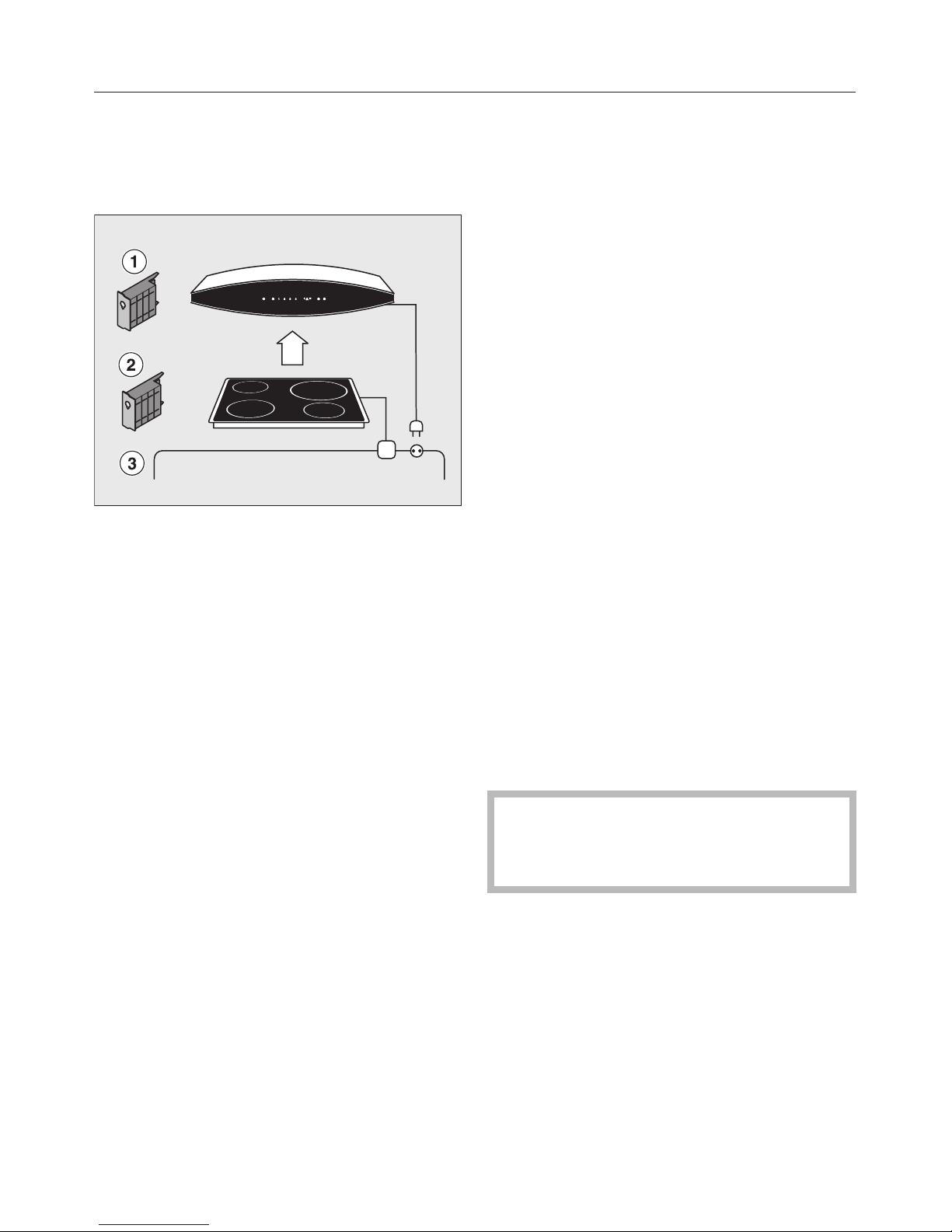

This rangehood is communication
enabled.
Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the rangehood
to be automatically controlled by the
operating status of a Miele electric
cooktop with onset controls.
For communication to take place, the
cooktop must be fitted with a
communication module b.
The cooktop transmits information
about its operating status to the
rangehood via the household power
supply (Powerline) c.
–When the cooktop is switched on,
the cooktop lighting and the
rangehood fan also switch on.
–During cooking the rangehood
automatically sets the fan's power
level according to the number of
cooking zones in operation and their
power levels.
–After switching the cooktop off, the
fan and the cooktop lighting will
switch off automatically after a period
of time.
The communication module is fitted to
the rangehood in the area of the motor
and is connected to the controls of the
rangehood.
To do this, a control cable kit specific to
this appliance is necessary.
For detailed information about function
and installation, please read the
separate operating instructions
supplied with the XKM 2000 DA
communication module and the
installation instructions of the control
cable kit.
This module must be installed by a
Miele service technician or suitably
qualified electrician.
Communication module
XKM 2000 DA .......M.-Nr. 7 209 000
Control cable kit
DA 7090 W, 7000 D . . M.-Nr. 7 944 580
Miele|home
11

To switch the fan on s
^Touch the On/Off sensor s.
The fan will come on at power setting 2.
The On/Off sensor ssymbol and the 2
will light up.
To select a power setting
Depending on the intensity of the
cooking vapours, settings 1to 3are
usually sufficient for normal cooking.
^Select the setting you require by
touching the 1,2or 3sensors.
Intensive setting
^For short periods of cooking food
with intensive vapours and a strong
aroma, e.g. when searing meat, you
may wish to select setting 4, the
Intensive setting.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it always only runs for 10 minutes
before reverting automatically to setting
3.
^To set this option, both the fan and
the cooktop lighting must be
switched off.
^Touch the Run-on sensor mfor
approx. 10 seconds until the 1sensor
lights up.
^Touch in turn
– the cooktop lighting sensor n,
– the 1sensor, and
– the cooktop lighting sensor nagain.
If Automatic switch-off is not activated,
the 1and 4sensors will flash.
^Touch the 4sensor to activate Auto-
matic switch-off.
The 1and 4sensors will now light up
constantly.
Touch the 1sensor to deactivate the
Automatic switch-off function.
^Touch the Run-on sensor mto
confirm your selection.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Operation
12

Run-on option "5m15"
It is advisable to leave the fan running
for a few minutes after cooking has
finished to neutralise any lingering
odours in the air.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
^After cooking has finished, touch the
Run-on option sensor mwhilst the
fan is still running:
–Touch once: The fan will switch off
after 5 minutes (5mlights up).
– Touch twice: The fan will switch off
after 15 minutes (m15 lights up).
^If you touch the Run-on sensor m
again, the fan remains on (5m15
goes out).
To switch the fan off s
^Touch the On/Off sensor sto switch
the fan off.
Cooktop lighting n
The cooktop lighting can be switched
on and off independently of the fan.
To switch the cooktop lighting on
^Touch the cooktop lighting sensor n
briefly.
The lighting will switch on at maximum
brightness.
To dim the cooktop lighting
The brightness of the lighting can be
adjusted.
^With the cooktop lighting switched
on, touch and hold the cooktop
lighting sensor n.
The brightness will gradually dim until
you release the sensor.
^To increase the brightness, touch the
cooktop lighting sensor nagain to
the level required, then release it.
If you keep your finger on the cooktop
lighting sensor n, the lighting will
continue to change between bright and
dim.
To switch the cooktop lighting off
^Touch the cooktop lighting sensor n
briefly.
Operation
13

Operating hours counter l|
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counter tells you
when the grease filters or charcoal
filters need to be cleaned or replaced.
Grease filter operating hours counter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), the Grease filter sensor
lwill light up.
The grease filters must then be cleaned
and the operating hours counter reset
(see "Cleaning and Care").
Altering the operating hours counter
for the grease filters
You can set the operating hours
counter to suit the type of cooking you
do.
The operating hours counter is set at
the factory for 30 hours.
Select a shorter time of 20 hours if you
fry a lot.
If you only cook occasionally, we still
recommend 20 hours because grease
which has built up gradually over a long
period of time will harden on the grease
filters and make cleaning more difficult.
If you use very little fat or oil for
cooking, select a longer time of 40 or
50 hours.
To alter the operating time:
^Press the On/Off sensor sto switch
the fan off.
^Touch the Run-on sensormand the
Grease filter sensor lat the same
time.
The Grease filter sensor land one of
the fan power setting sensors 1to 4will
flash.
The 1to 4sensors indicate the time set:
1= 20 hours
2= 30 hours
3= 40 hours
4= 50 hours
^Touch the 1sensor to select a shorter
time and the 4sensor to select a
longer time, until the time required
has been set.
^Touch the Grease filter sensor lto
confirm your selection.
All the lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Checking the operating hours
counter for the grease filters
To check the percentage of time set
already used:
^Press the On/Off sensor sto switch
the fan on.
^Touch and keep your finger on the
Grease filter sensor l.
Operation
14

One or more of the 1to 4sensors will
flash.
The number of flashing sensors
indicates the percentage of the
operating time which has already been
used up.
Sensor 1=25%
Sensors 1and 2=50%
Sensors 1to 3=75%
Sensors 1to 4= 100 %
^When you take your finger off the
Grease filter sensor l, the current
fan setting will appear.
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Operating hours counter for the
charcoal filters
On delivery, the operating hours counter
for the charcoal filters is switched off.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do:
The Charcoal filter sensor |will light
up after the rangehood has operated
for the number of hours set.
^The charcoal filters must then be
replaced with new ones.
Afterwards, the grease filter operating
hours counter must be reset (See
"Cleaning and Care").
Activating and altering the operating
hours counter for the charcoal filters
^Press the On/Off sensor sto switch
the fan off.
^Touch the Run-on sensormand the
Charcoal filter sensor |at the same
time.
The Charcoal filter sensor |and one of
the fan power setting sensors 1to 4will
flash.
Sensors 1to 4indicate the time set:
1= 120 hours
2= 180 hours
3= 240 hours
4= deactivated
^Touch the 1sensor to select a shorter
time and the 4sensor to select a
longer time, until the time required
has been set.
Operation
15

^Confirm the selection by pressing the
Charcoal filter sensor |.
All the lamps will go out.
If you do not confirm your selection
within 4 minutes, the rangehood will
automatically revert to the original
setting.
Checking the operating hours
counter for the charcoal filters
To check the percentage of time set
already used:
^Press the On/Off sensor sto switch
the fan on.
^Touch and keep your finger on the
Charcoal filter sensor |.
One or more of the 1to 4sensors will
flash.
The number of flashing sensors
indicates the percentage of the
operating time which has already been
used up.
Sensor 1=25%
Sensors 1and 2=50%
Sensors 1to 3=75%
Sensors 1to 4= 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Sensor tones
When selecting a function with the
sensors, an audible tone will sound
briefly to confirm.
The audible tone can be deactivated.
^Press the On/Off sensor sto switch
the fan off.
^Touch the 4sensor and the Grease
filter sensor lat the same time for
approx. 5 seconds until a tone
sounds briefly. The audible tone is
now switched off for all functions.
^To reactivate the audible tone, repeat
the above process.
After the rangehood has been
disconnected from the mains electricity
supply or after a power cut, the audible
tone is activated regardless of the last
setting.
Safety switch-off after 10 hours
If the rangehood hasn't been operated
for 10 hours, the fan will switch off
automatically.
The cooktop lighting will remain on.
^You can switch the fan on again by
touching the On/Off sensor s.
Operation
16

,Before any cleaning or
maintenance work is carried out,
disconnect the rangehood from the
mains supply. Ensure that
– the mains fuse is withdrawn, or
– the screw-out fuse is removed
(in countries where this is
applicable).
,Exercise caution when changing
halogen lamps. They get very hot
during use, and remain hot for some
time after being switched off. Do not
touch the surface directly when
changing a lamp, as grease particles
from your fingers will adhere to the
surface and damage it.
The halogen lamps can also be
damaged if water is used to clean
them.
Wait several minutes after switching
off before beginning cleaning.
Housing
The surfaces and controls are
susceptible to scratches and
abrasion. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using warm water with a
small amount of washing-up liquid
applied with a well wrung-out soft
sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
^Glass surfaces can also be cleaned
with a proprietary glass cleaner.
Do not use:
– cleaning agents containing soda,
acids, chlorides or solvents,
– abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
–sharp metal tools,
–oven sprays.
Cleaning and care
17

Grease filters
The grease filters should be cleaned at
the latest when the Grease filter sensor
llights up.
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a built-up of grease as this will
make cleaning difficult.
,An oversaturated filter is a fire
hazard.

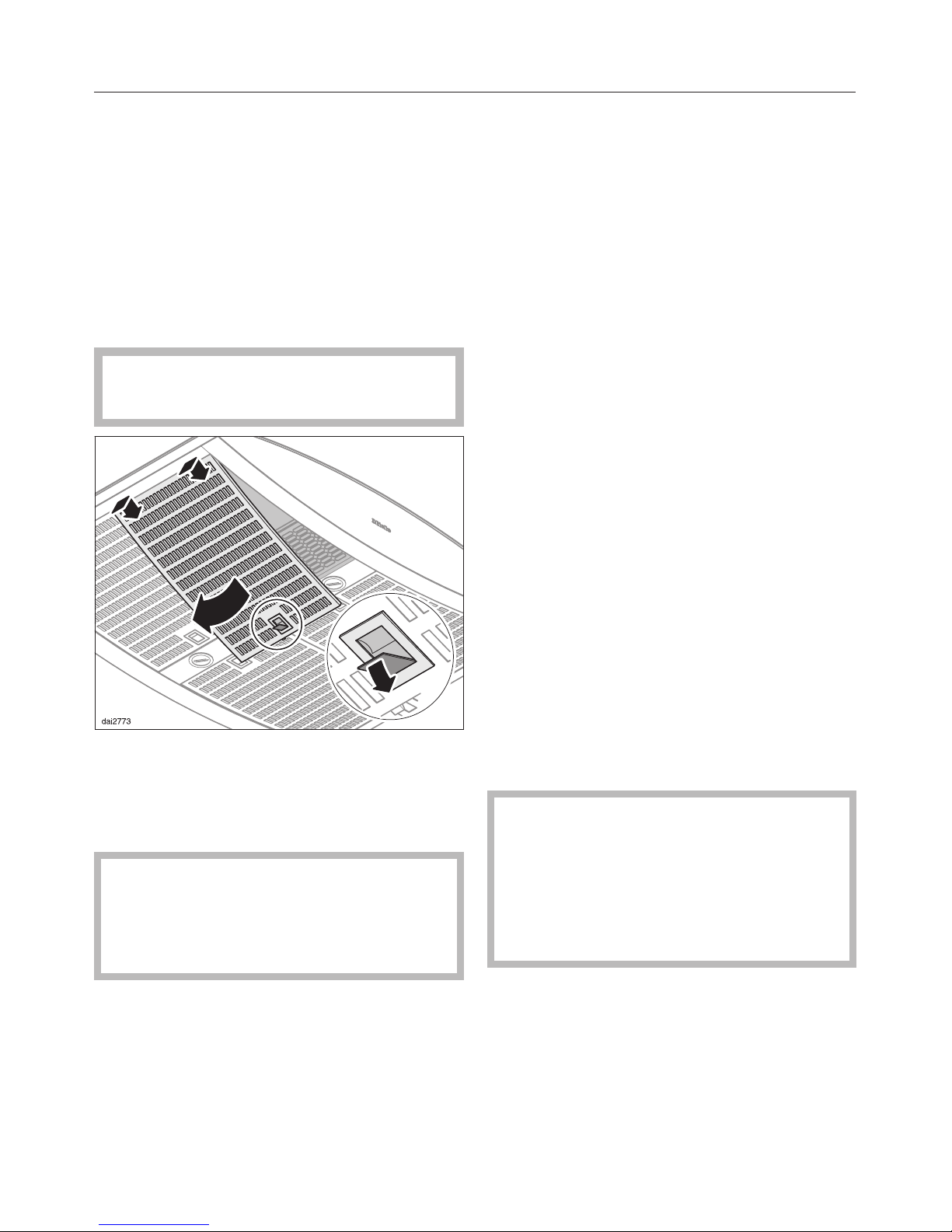

^To take out the grease filters, release
the locking clip on the filter, lower the
filter approx. 45°, unhook it at the
back and remove it.
To avoid damaging the filters or the
cooktop below, make sure you hold
the filters securely at all times when
handling them.
Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use undiluted washing up
liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaning
agents,
– oven sprays.
Cleaning the grease filters in the
dishwasher
^Place the grease filters in the lower
basket of the dishwasher, ensuring
the spray arm is not obstructed.
^Do not wash at more than 65 °C. If a
Miele dishwasher is being used,
select the Sensor wash programme.
^Use a mild dishwasher detergent.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
^After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
Cleaning and care
18

^When removing the filters for
cleaning, also clean off any residues
of oil or fat from the now accessible
areas of the housing to prevent the
risk of these catching fire.
^Replace the grease filters.
Resetting the operating hours
counter for the grease filters
After cleaning, the operating hours
counter needs to be reset.
^Whilst the fan is switched on, touch
the Grease filter sensor lfor
approx. 3 seconds until only the 1is
flashing.
The Grease filter sensor lwill go
out.
If the grease filters are cleaned before
the operating hours counter has
reached its maximum:
^Touch the Grease filter sensor lfor
approx. 6 seconds until only the 1is
flashing.
Cleaning and care
19

Fitting and replacing the
charcoal filters
The rangehood uses four charcoal
filters in addition to the grease filters.
The charcoal filters absorb normal
kitchen odours and are fitted in the
canopy below the air outlet grilles.
Replacement charcoal filters can be
obtained from your Chartered Agent
or Miele or via the internet at
www.miele-shop.com (depending on
country).
See back cover for contact details,
and "Technical data" for type and
reference number.
^Before fitting or replacing the
charcoal filters, the grease filters
must first be taken out (see previous
section for instructions on how to do
this).

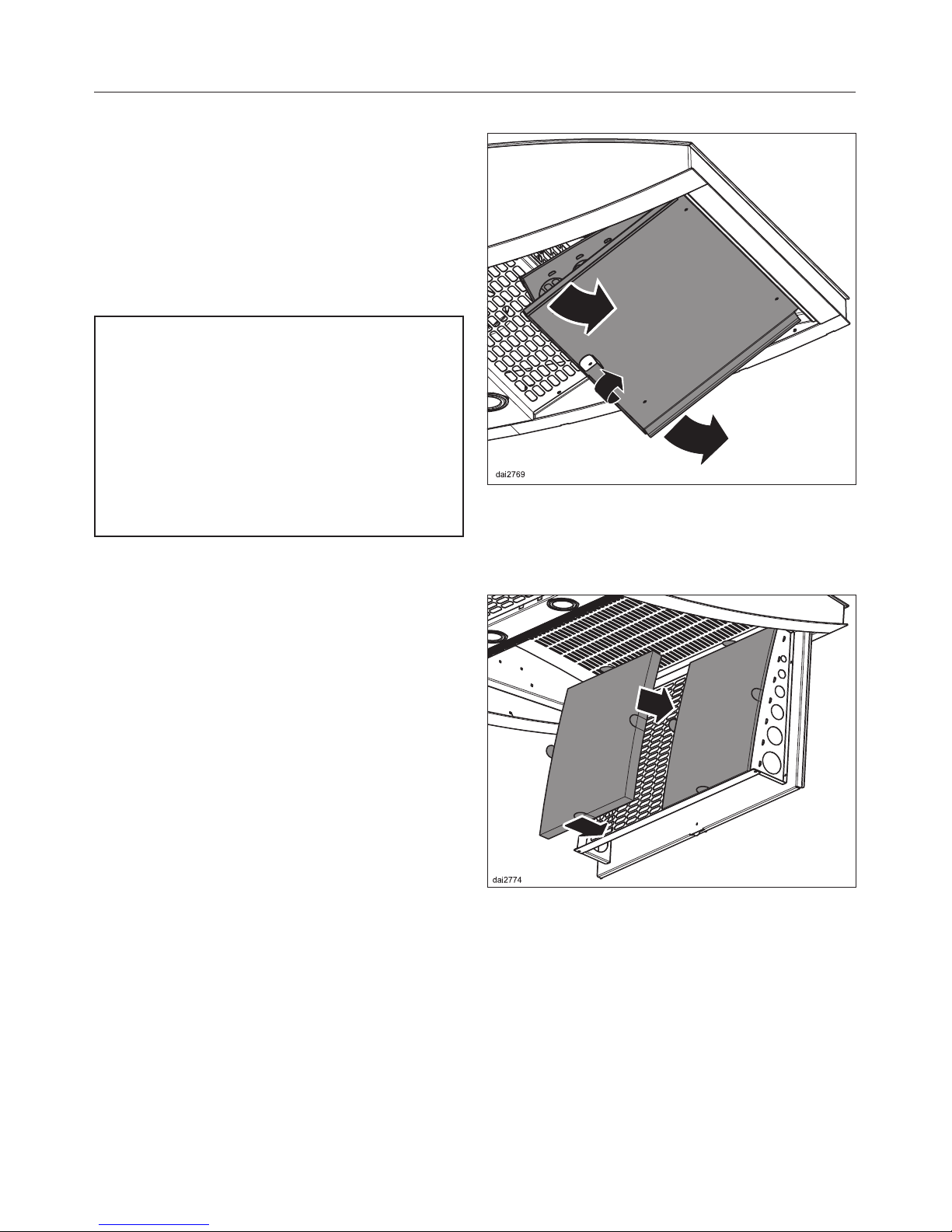

The holders for the charcoal filters are
located on the left and right-hand sides
of the housing.
Carry out the following steps for both
sides:
^Open the clip and pull the holder
downwards.
^Unwrap the charcoal filters.
^Place two charcoal filters beside one
another in the holder.
^Close the holder again.
When fitting for the first time:
^Activate the operating hours counter
(see "Operation").
Cleaning and care
20
