Miele DA 7090 W User manual

Operating and installation instructions
Cooker hood
DA 7090 W
To avoid the risk of accidents
or damage to this appliance,
it is essential to read these
instructions before it is installed
and used for the first time. M.-Nr. 09 315 850
en-GB

Caring for the environment..........................................3
Warning and Safety instructions .....................................4
Guide to the appliance .............................................8
Mode of operation ................................................10
Miele|home .....................................................11
Con|ctivity ......................................................11
Operation .......................................................12
To switch the fan on s.............................................12
To select a power level .............................................12
Run-on option "5m15"..............................................13
To switch the fan off s.............................................13
Hob lighting n...................................................13
Operating hours counter l| ........................................14
Sensor tones .....................................................16
Safety switch-off after 10 hours ....................................16
Cleaning and care ................................................17
Housing .........................................................17
Grease filters .....................................................17
Resetting the Grease filter operating hours counter ....................18
Fitting and replacing the charcoal filters ................................19
Resetting the Charcoal filter operating hours counter ...................20
Changing a halogen lamp ...........................................21
After Sales Service ...............................................22
Appliance dimensions.............................................23
Safety distance between hob and cooker hood (S on the installation drawing) . . 23
Installation ......................................................24
Installation accessories .............................................24
Installation instructions .............................................24
Electrical connection .............................................25
Technical data ...................................................26
Contents
2

Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for
disposal, and should be recycled.
Packaging e.g. cling film, polystyrene
and plastic wrappings must be kept out
of the reach of babies and young
children. Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Caring for the environment
3

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important information
on safety, installation, use and
maintenance.
Keep these instructions in a safe
place and ensure that all users are
familiar with the contents. Pass them
on to any future owner of the
appliance.
Correct application
~This appliance is not designed for
commercial use. It is intended for use in
domestic households and in similar
working and residential environments
such as:
–Shops
–Offices and showrooms
and by residents in establishments
such as:
–Hostels and guest houses.
~It must only be used as a domestic
appliance to extract vapours and
remove odours from cooking.
~The cooker hood is not intended for
outdoor use.
Any other usage is not supported by
the manufacturer and could be
dangerous. Miele cannot be held liable
for damage resulting from incorrect or
improper use or operation of the
appliance.
~This appliance is not intended for
use by people with reduced physical,
sensory or mental capabilities, or lack
of experience or knowledge, unless
they are supervised whilst using it or
have been shown how to use it
correctly by a person responsible for
their safety.
Safety with children
~This appliance is only intended for
use by adults who have read these
instructions.
~This appliance is not a toy! To
prevent the risk of injury do not let
children play with the appliance or its
controls.
~Children under 8 years of age must
be kept away from the cooker hood
unless they are constantly supervised.
~Children 8 years and older may use
the cooker hood only if they have been
shown how to use it in a safe way and
understand the hazards involved.
~Please be aware that on cooker
hoods with halogen lighting, the lamps
will get very hot during use and remain
hot for some time after switching off. To
safeguard against burning, keep
children well away from the lamps at all
times.
Warning and Safety instructions
4

Technical safety
~Before installation, check the cooker
hood for visible signs of damage.
Under no circumstances should you
install or use a damaged appliance. It
could be dangerous.
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond with the
household electricity supply, otherwise
the appliance could be damaged.
Consult a qualified electrician if in any
doubt.
~The electrical safety of this
appliance can only be guaranteed if
correctly earthed. It is most important
that this basic safety requirement is
observed and tested regularly, and
where there is any doubt, the
household wiring system should be
inspected by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
~Do not connect the appliance to the
mains electricity supply by a
multi-socket adapter or an extension
lead. These do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
~For safety reasons, this appliance
may only be used when it has been
fully installed.
~Only open the housing as described
in the instructions given in the
installation sheet and in the Cleaning
and care section of this booklet. Under
no circumstances should any other
parts of the housing be opened.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user, and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
service technician authorised by the
manufacturer in strict accordance with
current national and local safety
regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
~Faulty components must only be
replaced by genuine Miele original
parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~During installation, maintenance and
repair work, the appliance must be
disconnected from the mains electricity
supply.
Warning and Safety instructions
5

~This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage which may be
caused by cockroaches or other vermin
will not be covered by the guarantee.
Correct use
~Never use an open flame beneath
the cooker hood. To avoid the danger
of fire, do not flambé or grill over an
open flame.
When switched on, the cooker hood
could draw flames into the filter. Fat
particles drawn into the cooker hood
present a fire hazard.
~When using the cooker hood over a
gas hob, ensure that any burners in use
are always covered by a pan. Switch
the cooking zone off when a pan is
removed, even for a short time.
Regulate the flame so that it does not
burn up the sides of the pan.
Do not allow the pans to overheat
excessively (e.g. when using a wok).
The cooker hood can become
damaged when exposed to excessive
heat.
~Always switch the cooker hood on
when using the hob, otherwise
condensation may collect in the hood,
which could cause corrosion.
~When cooking with oil or fat, chip
pans and deep fat fryers etc, do not
leave the pans unattended. Never leave
an open grill unattended when grilling.
Overheated oil and fat can ignite and
could set the cooker hood on fire.
Warning and Safety instructions
6

~Do not use the cooker hood without
the filters in place. This way you will
avoid the risk of grease and dirt getting
into the appliance and hindering its
smooth operation.
~The filters should be regularly
cleaned or changed as appropriate.
Saturated filters are a fire hazard. See
"Cleaning and care".
~The cooker hood can get very hot
during cooking due to heat rising from
the hob.
Do not touch the housing or the grease
filters until the cooker hood has cooled
down.
~Do not use a steam-cleaner to clean
this appliance. Steam could reach the
electrical components and cause a
short circuit.
Correct installation
~Refer to the cooker or hob
manufacturer's instructions as to
whether a cooker hood may be
operated above the cooker/hob.
~The minimum safety distances
between the top of the cooker or hob
and the bottom of the cooker hood
given in the "Appliance dimensions"
section of this booklet must be
maintained, unless the hob
manufacturer states that a greater
safety distance is required.
If more than one cooking appliance is
fitted beneath the cooker hood, and
they have different minimum safety
distances to the cooker hood, select
the greater distance.
~Safety regulations prohibit the fitting
of a cooker hood over solid fuel stoves.
Accessories
~Only use genuine Miele original
spare parts and accessories with this
appliance. Using spare parts or
accessories from other manufacturers
will invalidate the guarantee, and Miele
cannot accept liability.
The manufacturer cannot be held
liable for damage caused by
non-compliance with these Warning
and Safety instructions.
Warning and Safety instructions
7

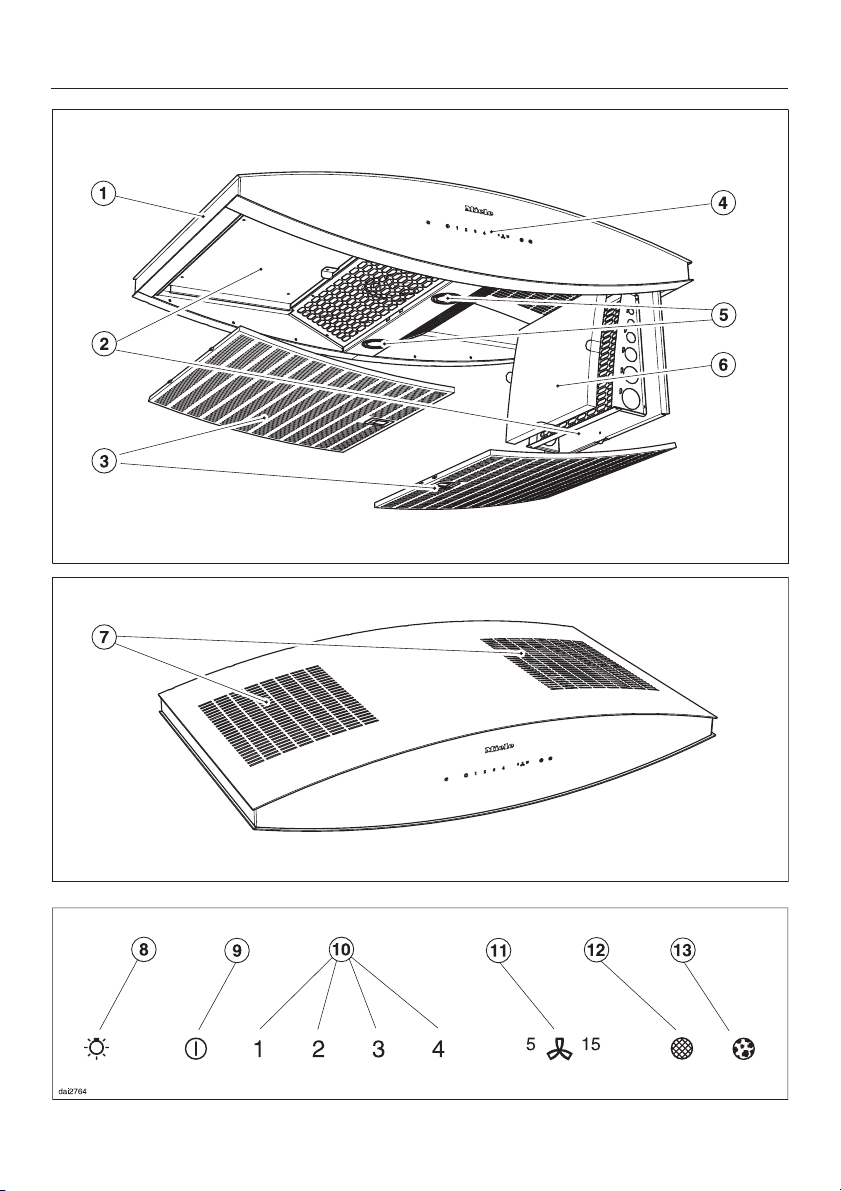

Guide to the appliance
8

aCanopy
bHolders for the charcoal filters
cGrease filters
dControls
The symbols act as sensors. Touch the
sensors to select the function you
require.
An audible tone sounds briefly to
confirm selection.
eHob lighting
fCharcoal filters (2)
gAir outlet grilles
hSensor for the hob lighting
This sensor can be used to switch the
hob lighting on and off and is also a
dimmer switch.
iSensor for switching the fan on
and off
jSensors for selecting the fan
power level
kSensor for the run-on option
This sensor activates the run-on option.
The fan can be set to switch off
automatically after either 5 or 15
minutes.
lSensor for the grease filters
The sensor lights up when the grease
filters need to be cleaned.
It is used to reset the operating hours
counter every time the grease filters are
cleaned (see "Cleaning and care").
It can also be used to check and alter
the operating hours counter.
mSensor for the charcoal filters
The sensor lights up when the charcoal
filters need to be cleaned. For this to
happen, the operating hours counter
needs to be activated before the
appliance is used for the first time.
The sensor is used to reset the
operating hours counter every time the
charcoal filters are replaced (see
"Cleaning and care").
It can also be used to check and alter
the operating hours counter.
For information about using the
appliance, see "Operation".
Guide to the appliance
9

The cooker hood works with air
recirculation.
The air is drawn in and cleaned first by
the grease filters and then by
two charcoal filters. The cleaned air is
then recirculated back into the kitchen
through the grilles in the top of the
cooker hood.
Before using the cooker hood for the
first time, ensure that the active
charcoal filters are in place, see
"Cleaning and care".
Mode of operation
10

Con|ctivity
This cooker hood is communication
enabled.
Communication module XKM 2000 DA
a, available as an optional extra,
enables the operation of the cooker
hood to be automatically controlled by
the operating status of a Miele electric
hob with onset controls.
For communication to take place, the
hob must be fitted with the relevant hob
communication module b.
The hob transmits information about its
operating status to the cooker hood via
the household power supply
(Powerline) c.
–When the hob is switched on, the
cooker hood hob lighting switches on
and after a short time the cooker
hood fan switches on.
–During cooking, the cooker hood
automatically sets its power level
according to the number of cooking
zones in operation and their power
levels.
–After the hob has been switched off,
the cooker hood fan and hob lighting
will switch off automatically after a
period of time.
The communication module is fitted to
the cooker hood in the area of the
motor and is connected to the controls
of the cooker hood.
The appliance specific control cabling
set is also required.
For detailed information about this
function and fitting instructions, please
read the operating instructions for the
XKM 2000 DA and the installation
instructions for the control cabling set.
Installation must be carried out by a
Miele service technician or suitably
qualified electrician.
Communication module
XKM 2000 DA .......M.-Nr. 7 209 000
Control cabling set
DA 7090 W, 7000 D . . M.-Nr. 7 944 580
Miele|home
11

To switch the fan on s
^Touch the On/Off sensor s.
The fan will come on at power level 2.
The On/Off sensor sand the 2sensor
will light up.
To select a power level
Depending on the intensity of the
cooking vapours, levels 1to 3are
usually sufficient for normal cooking.
^Select the level you require by
touching the 1,2or 3sensor.
Intensive setting
^For short periods of cooking food
with intensive vapours and a strong
aroma, e.g. when searing meat, you
may wish to select level 4, the
Intensive setting.
Automatic switch-off of the Intensive
setting
You can set the Intensive setting so that
it always only runs for 10 minutes
before reverting automatically to level 3.
^To set this option, both the fan and
the hob lighting must be switched off.
^Touch the Run-on sensor mfor
approx. 10 seconds until the 1sensor
lights up.
^Touch in turn
– the Hob lighting sensor n,
– the 1sensor, and
– the Hob lighting sensor nagain.
If Automatic switch-off is not activated,
the 1and 4sensors will flash.
^Touch the 4sensor to activate Auto-
matic switch-off.
The 1and 4sensors will now light up
constantly.
Touch the 1sensor to deactivate the
Automatic switch-off function.
^Touch the Run-on sensor mto
confirm your selection.
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
Operation
12

Run-on option "5m15"
It is advisable to leave the fan running
for a few minutes after cooking has
finished to neutralise any lingering
odours in the air.
The fan can be set to switch off
automatically after 5 or 15 minutes.
^After cooking has finished, touch the
Run-on option sensor mwhilst the
fan is still running
–Touch once = The fan will switch off
after 5 minutes (5mwill light up).
– Touch twice = The fan will switch off
after 15 minutes (m15 will light up).
^If you touch the Run-on sensor m
again, the fan remains on (5m15
goes out).
To switch the fan off s
^Touch the On/Off sensor sto switch
the fan off.
Hob lighting n
The hob lighting can be switched on
and off independently of the fan.
To switch the hob lighting on
^Touch the Hob lighting sensor n
briefly.
The lighting will switch on at maximum
brightness.
To dim the hob lighting
The brightness of the hob lighting can
be adjusted.
^With the hob lighting switched on,
touch and keep your finger on the
Hob lighting sensor n.
The brightness will gradually dim until
you release the sensor.
^To increase the brightness, touch
and keep your finger on the Hob
lighting sensor nagain until the
level required is reached, then
release it.
If you keep your finger on the Hob
lighting sensor n, the lighting will
continue to change between bright and
dim.
To switch the hob lighting off
^Touch the Hob lighting sensor n
briefly.
Operation
13

Operating hours counter l|
The number of hours the appliance has
been in operation is stored in memory.
The operating hours counters tell you
when the grease filters or charcoal
filters need to be cleaned or replaced.
Grease filter operating hours counter
After 30 hours of operation (or another
time if the operating hours counter has
been altered), the Grease filter sensor
lwill light up.
The grease filters must then be cleaned
and the operating hours counter reset
(see "Cleaning and Care").
Altering the grease filter operating
hours counter
You can set the operating hours
counter to suit the type of cooking you
do.
The operating hours counter is set at
the factory for 30 hours.
Select a shorter time of 20 hours if you
fry a lot.
If you only cook occasionally, we still
recommend 20 hours because grease
which has built up gradually over a long
period of time will harden on the grease
filters and make cleaning more difficult.
If you use very little fat for cooking,
select a longer time of 40 or 50 hours.
To alter the operating time:
^Touch the On/Off sensor sto switch
the fan off.
^Touch the Run-on sensor mand the
Grease filter sensor lat the same
time.
The Grease filter sensor land one of
the fan power level sensors 1to 4will
flash.
Sensors 1to 4indicate the time set:
Sensor 1= 20 hours
Sensor 2= 30 hours
Sensor 3= 40 hours
Sensor 4= 50 hours
^Touch the 1sensor to select a shorter
time and the 4sensor to select a
longer time, until the time required
has been set.
^Touch the Grease filter sensor lto
confirm your selection.
All the sensors will go out.
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
Checking the grease filter operating
hours counter
To check the percentage of time set
already used:
^Touch the On/Off sensor sto switch
the fan on.
^Touch and keep your finger on the
Grease filter sensor l.
Operation
14

One or more of sensors 1to 4will flash.
The number of flashing sensors
indicates the percentage of the
operating time which has already been
used up.
Sensor 1=25%
Sensors 1and 2=50%
Sensors 1to 3=75%
Sensors 1to 4= 100 %
^When you take your finger off the
Grease filter sensor l, the current
fan setting will show.
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Charcoal filter operating hours
counter
On delivery, the operating hours counter
for the charcoal filter is deactivated.
For recirculation mode, the operating
hours counter needs to be set to suit
the type of cooking you do.
The Charcoal filter sensor |will light
up after the cooker hood has operated
for the number of hours set.
^The charcoal filters must be replaced
with new ones.
Afterwards, the operating hours counter
will need to be reset (see "Cleaning and
care").
Activating and altering the charcoal
filter operating hours counter
^Touch the On/Off sensor sto switch
the fan off.
^Touch the Run-on sensor mand the
Charcoal filter sensor |at the same
time.
The Charcoal filter sensor |and one of
the fan power level sensors 1to 4will
flash.
Sensors 1to 4indicate the time set:
Sensor 1= 120 hours
Sensor 2= 180 hours
Sensor 3= 240 hours
Sensor 4= Deactivated
^Touch the 1sensor to select a shorter
time and the 4sensor to select a
longer time, until the time required
has been set.
Operation
15

^Confirm the selection by touching the
Charcoal filter sensor |.
All the sensors will go out.
If you do not confirm within 4 minutes,
the cooker hood will automatically
revert to the original setting.
Checking the charcoal filter
operating hours counter
To check the percentage of time set
already used:
^Touch the On/Off sensor sto switch
the fan on.
^Touch and keep your finger on the
Charcoal filter sensor |.
One or more of sensors 1to 4will flash.
The number of flashing sensors
indicates the percentage of the
operating time which has already been
used up.
Sensor 1=25%
Sensors 1and 2=50%
Sensors 1to 3=75%
Sensors 1to 4= 100 %
The number of operating hours used
remains in the memory, even when the
appliance is switched off or there is a
power cut.
Sensor tones
When selecting a function with the
sensors, an audible tone will sound
briefly to confirm.
The audible tone can be deactivated.
^Touch the On/Off sensor sto switch
the fan off.
^Touch the 4sensor and the Grease
filter sensor lat the same time for
approx. 5 seconds until a tone
sounds briefly. The audible tone is
now switched off for all functions.
^To reactivate the audible tone, repeat
the above process.
After the cooker hood has been
disconnected from the mains electricity
supply or after a power cut, the audible
tone is activated regardless of the last
setting.
Safety switch-off after 10 hours
Should the cooker hood be left on, the
fan will switch off automatically after 10
hours.
The hob lighting will remain on.
^You can switch the fan on again by
touching the On/Off sensor s.
Operation
16

A range of Miele branded cleaning and
conditioning products is available to
order from Miele (see back page for
contact details) or from
www.miele-shop.com.
,Before any cleaning or
maintenance work is carried out,
disconnect the cooker hood from the
mains supply.
,Halogen lamps get very hot
during use and remain hot for some
time after being switched off. The
hot lamps are also susceptible to
damage from damp cleaning. Wait a
few minutes after switching off
before commencing cleaning.
Housing
The surfaces and controls are
susceptible to scratches and
abrasions. Please observe the
following cleaning instructions.
^All external surfaces and controls can
be cleaned using a Miele E-Cloth or
with warm water and a little
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
^Wipe the surfaces dry using a soft
cloth.
^Glass surfaces can be cleaned with a
proprietary cleaning agent for glass.
Do not use:
–cleaning agents containing soda,
acids, chlorides or solvents,
–abrasive cleaning agents, e.g.
powder cleaners or cream cleaners
and abrasive sponges, as well as pot
scourers or sponges which have
been used previously with abrasive
cleaning agents. These will damage
the surface material.
–sharp metal tools,
–oven sprays.
Grease filters
The grease filters should be cleaned
regularly (at least every 3-4 weeks) to
avoid a build-up of grease, but always
clean immediately if the Grease filter
sensor llights up.
,An oversaturated filter is a fire
hazard.

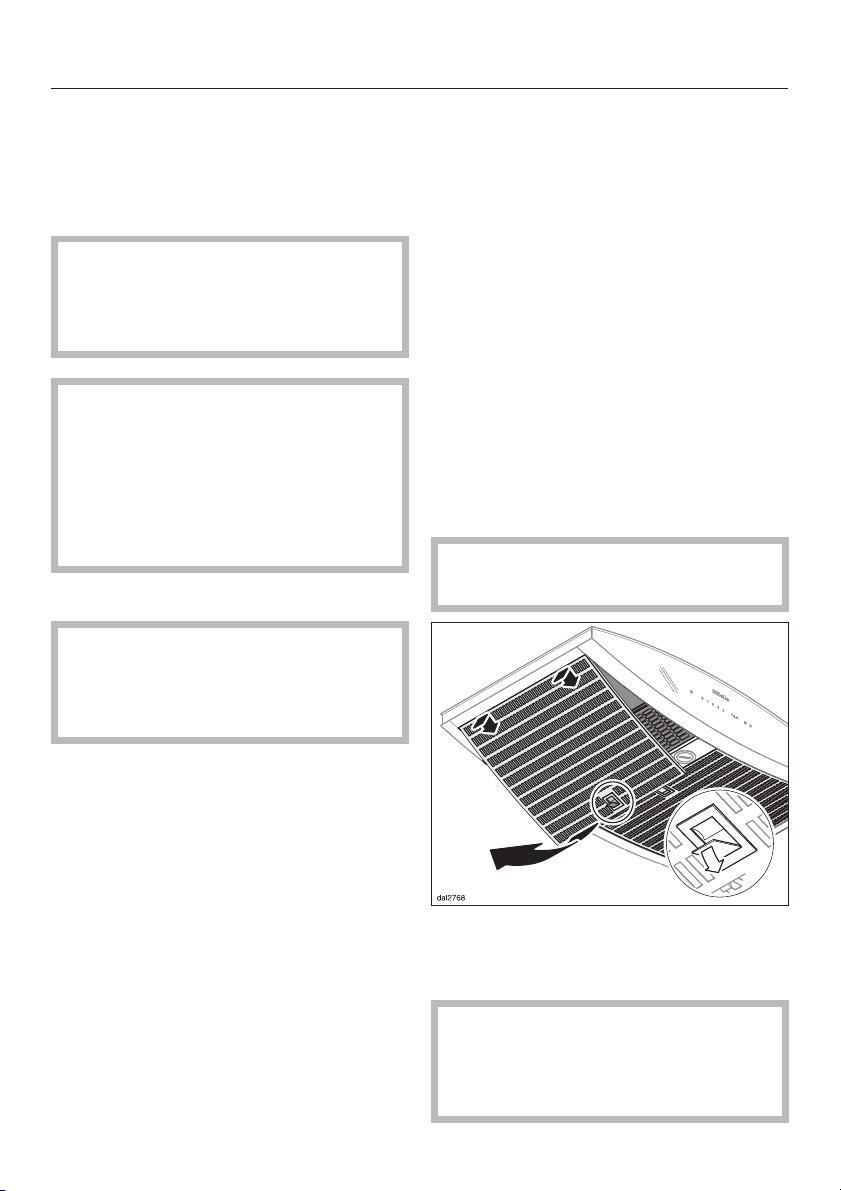

^To take out the filter, release the
locking clip on the filter, lower the
filter 45°, unhook and remove it.
To avoid damaging the filters or the
hob below, make sure you hold the
filters securely at all times when
handling them.
Cleaning and care
17

Cleaning the grease filters by hand
^Clean the filters with a soft nylon
brush in a mild solution of hot water
and a little washing-up liquid.
Do not use "neat" washing-up liquid.
Do not use:
–cleaning agents containing
descaling agents,
–powder cleaners, cream cleaners or
abrasive all-purpose cleaners.
–oven sprays.
Cleaning the grease filters in the
dishwasher
^Place the filters with the short side
upright in the lower basket, ensuring
the spray arm is not obstructed.
^Do not wash at more than 65° C. If a
Miele dishwasher is being used,
select the Sensor wash programme.
^Use a mild dishwasher detergent.
Depending on the cleaning agent
used, cleaning the filters in a
dishwasher can cause permanent
discolouration to the surface.
However, this will not affect the
functioning of the filters in any way.
^After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
^When removing the filters for
cleaning, also clean the now
accessible areas of the housing to
prevent the risk of these catching fire.
to prevent the risk of these catching
fire.
^Replace the grease filters.
Resetting the Grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset.
^Whilst the fan is switched on, touch
the Grease filter sensor lfor
approx. 3 seconds until only the 1
sensor is flashing.
The Grease filter sensor lwill go
out.
If you want to clean the grease filters
before the operating hours counter has
reached its maximum:
^Touch the Grease filter sensor lfor
approx. 6 seconds until only the
1sensor is flashing.
Cleaning and care
18

Fitting and replacing the
charcoal filters
The cooker hood uses two charcoal
filters in addition to the grease filters.
The charcoal filters absorb normal
kitchen odours and are fitted in the
canopy below the air outlet grilles.
New charcoal filters can be
purchased from your Miele dealer,
from the Miele Spare Parts
Department or www.miele-shop.com.
See back cover for contact details,
and "Technical data" for the model
number of the filter.
^Before fitting or replacing the
charcoal filters, the grease filters
must first be taken out (see previous
section for instructions on how to do
this).
The holders for the charcoal filters are
located on the left and right hand sides
of the housing.
Carry out the following steps for both
sides:
^Open the clip and pull the holder
downwards.
^Unwrap the charcoal filter.
^Place the charcoal filter in the holder.
^Close the holder again.
When fitting for the first time:
^Activate the operating hours counter
(see "Operation").
Cleaning and care
19

Always replace the charcoal filters im-
mediately if
–the Charcoal filter sensor |lights up
or
–they are no longer effective at
absorbing kitchen odours.
They should, however, be replaced at
least every 12 months.
Used charcoal filters can be disposed
of with normal household waste.
Resetting the Charcoal filter
operating hours counter
After replacing the charcoal filter, the
operating hours counter needs to be
reset.
^Whilst the fan is switched on, touch
the Charcoal filter sensor |for
approx. 3 seconds until only the 1
sensor is flashing.
The Charcoal filter sensor |will go
out.
If you want to change the charcoal filter
before the operating hours counter has
reached its maximum:
^Touch the Charcoal filter sensor |
for approx. 6 seconds until only the 1
sensor is flashing.
Cleaning and care
20
