Miele ESW 6214 User manual

Operating and Installation Instructions
Warming Drawer
To prevent accidents and machine damages, read these instructions
before installation or use.
M.-Nr. 09 781 150en - US, CA

IMPORTANT SAFETY INSTRUCTIONS.................................3
Guide to the appliance .............................................6
Warming drawer ...................................................6
Control panel ......................................................7
Standard accessories ...............................................8
Before using for the first time........................................9
Operation .......................................................10
Operating modes..................................................10
Temperature settings...............................................11
Duration .........................................................12
Keeping food warm ...............................................13
Warming dishes ..................................................15
Capacity.........................................................16
Other uses ......................................................17
Cleaning and care ................................................18
Frequently asked questions ........................................19
Optional accessories..............................................20
IMPORTANT SAFETY INSTRUCTIONS................................22
Installation dimensions ............................................23
Installation ......................................................25
Electrical connection..............................................26
Technical Service.................................................27
Help protect our environment.......................................28
Contents
2

WARNING- When using your
appliance follow basic precautions,
including the following:
Read all instructions before
installation or use to prevent injury
and appliance damage.
This appliance conforms to all
uniform safety codes and
regulations.
Keep these operating instructions in
a safe place and pass them on to
any future user.
SAVE THESE INSTRUCTIONS
Proper use
~This gourmet warming drawer is
intended for domestic use and similar
installation conditions. Use only as
described in this manual. Any other use
is prohibited.
~This gourmet warming drawer is not
designed for outdoors use.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
Children
~Close supervision is necessary
when any appliance is used by or near
children.
~The appliance becomes hot during
use and remains hot for some time after
turning off. Keep children away from
the warming drawer until it has cooled
to a safe temperature.
~Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Technical safety
~Installation, repair and maintenance
work should be performed by a Miele
authorized service technician in
accordance with local building and
safety codes. Work by unqualified
persons could be dangerous and may
void the warranty.
~Before installing the appliance,
check for externally visible damage. Do
not operate a damaged appliance.
~Do not operate any appliance with a
damaged cord. Contact Miele’s
Technical Service Department.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
IMPORTANT SAFETY INSTRUCTIONS
3

~Before installation, make sure that
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~Power bars and extension cords are
not safe for use with this appliance.
Risk of fire. Do not use them to connect
the gourmet warming drawer to the
electrical power supply.
~Do not use the appliance until it has
been properly installed in the cabinetry.
~This gourmet warming drawer must
not be operated in mobile installations
(boats).
~Under no circumstance open the
outer casing of the appliance. This is a
safety hazard and may damage the
appliance.
~Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually "tripping" the circuit
breaker.
Proper use
~Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns.
~Do not store plastic containers or
flammable objects in the drawer. They
can melt or catch fire when the
appliance is turned on. Fire hazard!
~The use of accessories not
recommended by Miele may cause
injury.
~Make certain that the power cords of
small appliances do not come in
contact with the appliance. The
insulation of the cable could become
damaged. Danger of electric shock!
~Objects in the vicinity of the
activated drawer may burn due to the
high temperatures. Never use the
appliance to heat rooms.
~Do not replace the non-slip mat with
kitchen towels or similar objects.
~Do not overload the appliance or sit
or stand on the opened drawer as this
would damage the drawer.
The drawer can be loaded with
maximum 55 lbs (25 kg).
~If the appliance is installed in a
closed kitchen cabinet, only use it when
the cabinet door is open.
IMPORTANT SAFETY INSTRUCTIONS
4

~Do not heat unopened food
containers. Pressure can build up
causing an explosion that will damage
the cooking compartment. There is also
a danger of personal injury and
scalding.
~Before serving, be sure food is at a
safe temperature.
This is particularly important when
preparing food for babies and children.
~Be aware of loose fitting or hanging
clothing while using the warming
drawer. They may present a fire hazard.
~The floor of the drawer becomes hot
during use. Caution, do not touch. Use
the handle for opening and closing the
appliance.
~Do not use plastic containers or
plastic wrap in the warming drawer.
These items may melt and cause
damage to the warming drawer or
injury.
~Never warm undiluted alcohol in the
warming drawer, this can easily ignite.
~Exercise caution when warming
food with a high sugar content. If
heated for too long the sugar may
caramelize or ignite.
~Be sure that the vents are not
covered. Food and tableware may not
warm evenly otherwise.
~Do not leave the warming drawer
unattended while in use.
~Do not use water on grease fires!
A violent steam explosion may result.
Smother the fire with a dry chemical or
foam fire extinguisher.
~Never add water to food in a hot
drawer. The steam created could cause
serious burns or scalds.
~Liquids entering the appliance
interior through the air vents may cause
a short-circuit.
Open and close the loaded drawer
carefully to prevent liquids from spilling.
~The "Keep food warm" operating
mode must be only used for keeping
hot food warm, but not for heating cold
food. Ensure that the food is sufficiently
heated before you place it in the
appliance.
~It is possible that some bacterial
growth may occur in foods kept for
lengthy period of time at low
temperature levels.
~Do not use a steam cleaner to clean
the drawer. Steam could penetrate
electrical components and cause a
short circuit.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
5

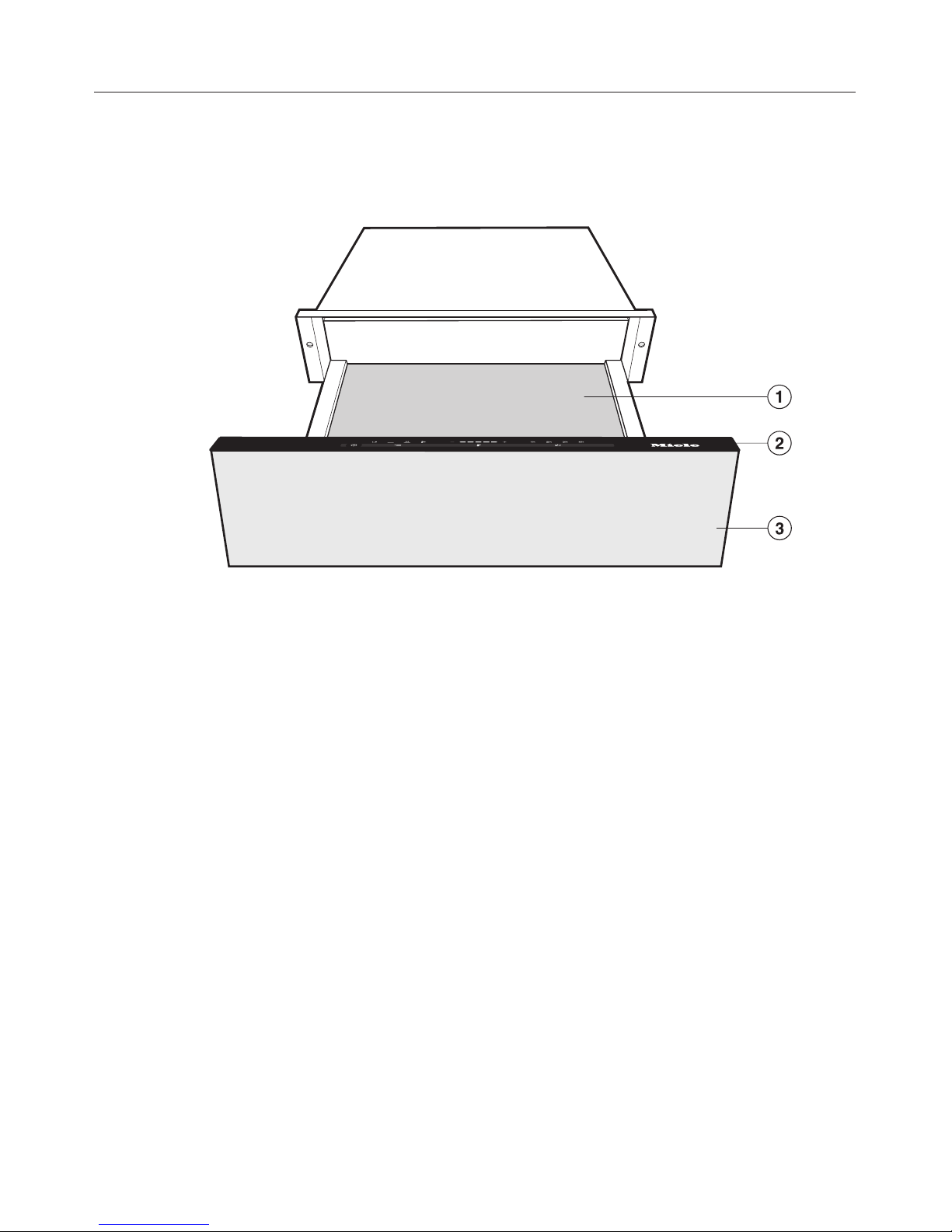

Warming drawer
aNon-slip mat
bControl panel
cDrawer with push/pull mechanism
A gentle push on the center of the drawer opens and closes it.
Guide to the appliance
6

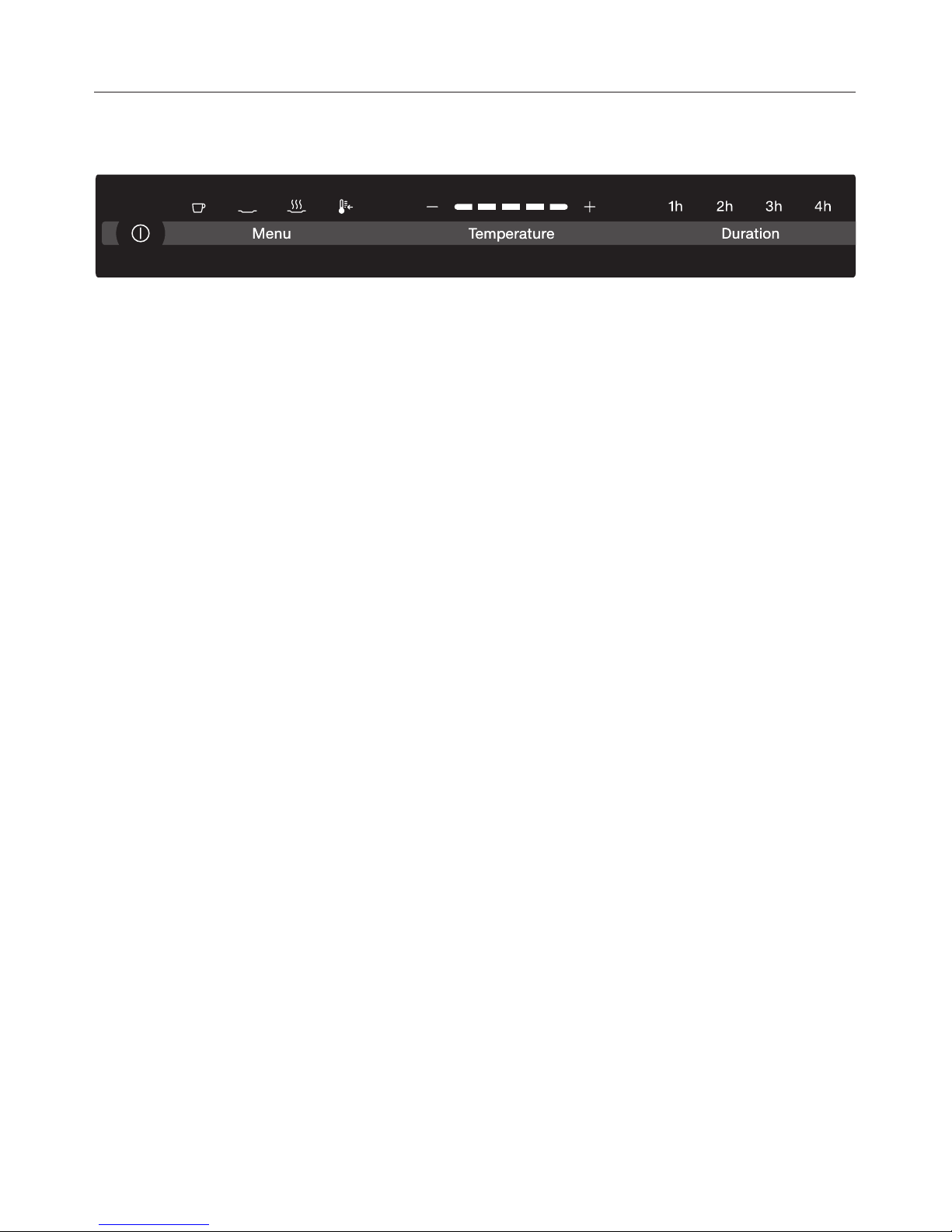

Control panel
Sensor fields
sAppliance On/Off
Menu To set the Operating mode
Temperature To set the Temperature
Duration To set the Duration
Indicators
Operating modes:
HWarming cups and glasses
HWarming dishes and plates
2Keeping food warm
¯Low temperature
Temperature:
Q Q Q Q Q
Duration:
1h 1 hour
2h 2 hours
3h 3 hours
4h 4 hours
Guide to the appliance
7

Standard accessories
All standard and additional accessories can be reordered if
necessary (see "Optional accessories") from Miele.
Non-slip mat
Keeps dishes securely in place
Guide to the appliance
8

Clean and heat the appliance
^Remove any protective wrapping.
^Remove the non-slip mat and the
rack, if provided, from the appliance
and clean both with a sponge cloth,
warm water and liquid dish soap.
Then dry with a cloth.
^Wipe your appliance inside and
outside with a damp cloth and then
dry.
^Reinsert the non-slip mat and the
rack, if provided.
Heat the empty drawer for at least 2
hours.
^Touch the ON/OFF sensor sto turn
the appliance on.
^Tap "Menu" until the ssymbol is
illuminated.
^Tap "Temperature" until the LED on
the far right is illuminated.
^Tap "Duration" until 2h is illuminated.
^Close the drawer.
The heater and the fan of the
appliance will only turn on when the
drawer is closed.
The appliance will turn off automatically
after two hours.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated. The smell will dissipate after a
short time and does not indicate a
faulty connection.
Ensure proper ventilation of the area
during this time.
Before using for the first time
9

Operating modes
Touch the "Menu" sensor to select the
operating mode; the corresponding
symbol will be illuminated:
–H
Warming cups and glasses
–H
Warming dishes and plates
–2
Keeping food warm
–¯
Low temperature
The last selected operating mode is
automatically set when the appliance is
turned on the next time and will be
displayed on the control panel.
The appliance is fitted with a fan
distributing the warmed air within the
drawer. The fan runs continuously in the
"Cups/glasses" and "Warming
dishes/plates" modes. It works
intermittently in the "Keeping food
warm" and "Low temperature" modes.
The appliance lets you keep food warm
while simultaneously warming dishes.
For this purpose, use the "Keeping food
warm" operating mode.
Caution! The dishes need more time
to warm up but may become very
hot!
Operation
10

Temperature settings
Every operating mode has its own temperature range. The
factory settings for recommended temperatures are shown in
bold. By touching the 6sensor, you can change the
temperature in 5 degree increments.
The last selected temperature is automatically set when the
appliance is turned on the next time and will be displayed on
the control panel (Exception: Low temperature).
Temperature
Display
Temperature °F / °C *
HH2¯
] ^ ^ ^ ^ 104/40 140/60 150/65 150/65
^ ] ^ ^ ^ 113 / 45 150 / 65 158 / 70 158 / 70
^ ^ ] ^ ^ 122/50 158/70 167/75 167/75
^ ^ ^ ] ^ 131/55 167/75 176/80 176/80
^ ^ ^ ^ ] 140/60 176/80 185/85 185/85
* Approximate temperatures, measured in the center of an
empty drawer
Operation
11

Duration
The appliance is set to continuous
operation (Exception: Low
temperature).
You can select a limited duration by
touching the "Duration" sensor: 1 touch:
1 hour (1h), 2 touches 2 hours, (2h),
and so on, up to a maximum of 4 hours.
A fifth touch returns the appliance to
continuous operation.
Do not leave the appliance
unattended for longer periods of
time when in continuous mode.
Long warming times cause food to
dry out and possibly burn.
Your appliance is fitted with a safety
device that will turn the warming
drawer off after 12 hours (max.) of
continuous use.
Operating principle
^Open the drawer.
^Touch the ON/OFF sensor sto turn
the appliance on.
^Tap "Menu" until the desired
operating mode is illuminated.
^If you want to change the
temperature, tap "Temperature" until
the LED with the desired temperature
is illuminated.
^Tap "Duration" until the desired
number of hours is illuminated.
^Close the drawer.
Keep the ON/OFF sensor sclean
and dry. The sensor key may not
respond otherwise, or cause
uncontrolled switching actions.
Operation
12

Select only the 2operating mode
to ensure that the required minimum
temperature (150 °F / 65 °C) for
keeping food warm is maintained.
This mode is for keeping food that has
just been cooked warm, that is, food
that is still hot. It is not intended for
reheating food that is cold.
^Select 2.
^Select the desired duration.
^Preheat the appliance for 15 minutes
to ensure that the interior has
reached the required temperature.
Put the dishes into the drawer during
preheating.
^Remove the warmed dishes from the
drawer. Use pot holders when
removing the dishes.
^Place hot food on warmed dishes.
^Replace the dishes in the drawer,
and carefully close the drawer to
prevent liquid food from spilling.
Tips
–Fill the hot food into pre-warmed
dishes. Put the dishes into the
drawer during preheating.
–Do not cover roasted or fried food
that should be crispy. Keep these
foods warm at a higher temperature.
–Moist and liquid foods, and those
that may generate a skin, should be
covered with aluminum foil or a plate.
–Do not overfill dishes to prevent
spilling.
– Freshly prepared food is hotter than
food kept warm. Serve food kept
warm on warmed plates.
– Loss of nutrients begins with the
preparation of the food and
continues while it is being kept warm.
The longer food is kept warm, the
greater the loss of nutrients.
– It is not recommended to keep food
warm over a longer period of time, as
it will continue to cook.
–Do not use force when opening or
closing the drawer. Liquid may spill
from the containers and enter the
ventilation slots.
–The food may cool down if the
drawer is opened frequently.
Keeping food warm
13

Settings
Food Dishes Cover
dishes
Temperature at
setting 2
Position
Bottom Rack*
Steak, rare Plate no ] ^ ^ ^ ^ xx
Casserole, soufflé,
gratin
Gratin dish yes ^ ^ ^ ] ^ x
Roast Plate yes ^ ^ ] ^ ^ x
Stew Pot yes ^ ^ ^ ] ^ x
Meat in gravy Pot yes ^ ^ ^ ] ^ x
Vegetable in sauce Pot yes ^ ^ ^ ] ^ x
Mashed potatoes Pot yes ^ ^ ] ^ ^ x
Plated meal Plate yes ^ ^ ^ ] ^ x
Baked potato/
Boiled potato
Plate/pot yes ^ ^ ] ^ ^ x
Breaded poultry /
meat
Pan no ^ ^ ^ ^ ] x
Pancakes Plate no ^ ^ ^ ^ ] xx
Pizza Plate no ^ ^ ^ ^ ] x
Sauce Pot yes ^ ^ ^ ] ^ x
Strudel Plate no ^ ^ ^ ] ^ x
Warming bread loaf - no ] ^ ^ ^ ^ xx
Warming rolls - no ] ^ ^ ^ ^ xx
* Depending on the appliance mode
Keeping food warm
14

–Try to distribute the dishes over the
entire surface. High stacks of plate
will warm up slower than individual
dishes. If you cannot avoid plate
stacks, place them in the front of the
appliance. Use the rack (if provided
with your model).
–Do not place large platters vertically
in front of the venting slots. They will
cover the outlets for the warm air.
The dishes won't be warmed up
evenly.
–For cups and glasses, use only the
Hmode to ensure that the maximum
temperature (140 °F / 60 °C) is not
exceeded.
– Warmed dishes will quickly lose their
heat. Remove them only immediately
prior to use.
Warming times
Various factors can affect the heating
time:
–Material and thickness of your dishes
–Load size
–Load distribution
–Temperature setting
Use the following values as guidelines:
When set to H, even warming requires
the times shown in the list below:
–Place settings for 6 persons
approx. 30 - 35 minutes
– Place settings for 12 persons
approx. 40 - 45 minutes
– With time you will get to know the
optimum settings for your household.
Warming dishes
15

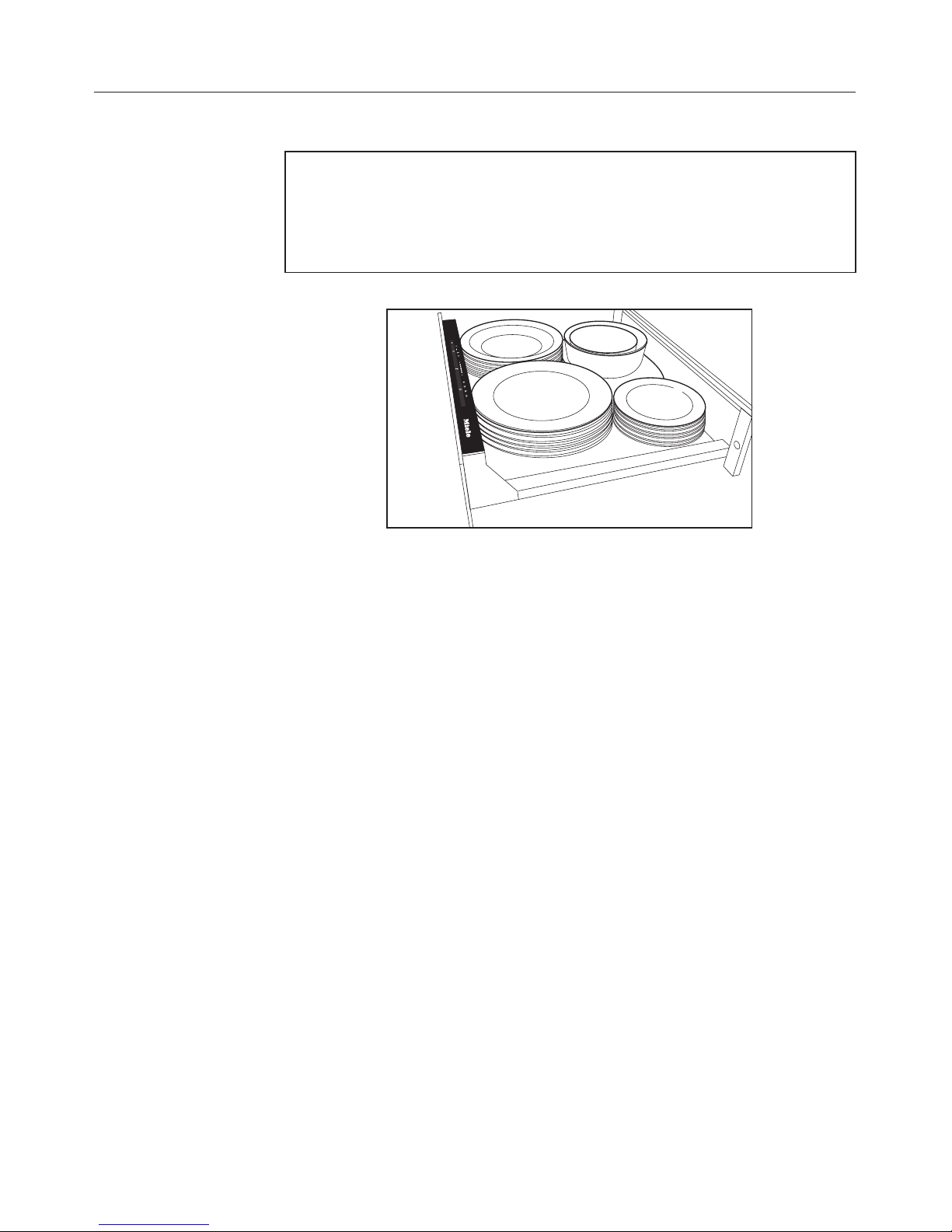

Capacity
The holding capacity is determined by the dimensions and
the weight of your dishes.
Do not overload the drawer. The drawer can hold maximum
55 lbs (25 kg).
The following examples are provided as guidelines:
– Place settings for 6 persons:
6 dinner plates C10 1/4" (26 cm)
6 soup plates C9 1/16" (23 cm)
6 dessert plates C7 1/2 (19 cm)
1 oval platter 12 5/8" (32 cm)
1 serving dish C6 5/16 (16 cm)
1 serving dish C5 1/8" (13 cm)
or alternatively
- 12 dinner plates C10 1/4" (26 cm)
- 18 soup plates C9 1/16" (23 cm)
- 16 soup bowls C4" (10 cm)
- 6 dinner plates C10 1/4" (26 cm)
- 6 soup plates C9 1/16" (23 cm)
- 6 pizza plates C14 3/16" (36 cm)
- 72 espresso cups C2 5/16" (5.9 cm)
- 30 cappuccino cups C2 11/16" (8.8 cm)
- 30 tea glasses C2 5/8" / 3 1/8"
(6.7 cm/8 cm) height
Warming dishes
16

Food Dishes Cover
dishes
Temp. at
setting
¯
Temp. at
setting
H
Position Duration
in hours:
min.
Bottom Rack*
Defrosting
berries
Bowl/plate no ] ^ ^ ^ ^ x 0:50
Dissolving
gelatin
Bowl no ^ ^ ^ ^ ] x x 0:15
Proofing
yeast dough
Bowl yes
with plate
] ^ ^ ^ ^ x 0:30
Preparing
yogurt
Yogurt
glasses
with lid
-^ ] ^ ^ ^ x 5:00
Soaking
rice pudding
Pot yes
with lid
^ ^ ^ ^ ] x x 0:40
Melting
chocolate
Bowl no ^ ^ ^ ^ ] x x 0:20
Defrosting
vegetables
Bowl no ^ ^ ] ^ ^ x 1:00
* Depending on appliance model
Other uses
17

Allow the appliance to cool before
cleaning.
Do not use a steam cleaner to clean
this appliance. Pressurized steam
could penetrate electrical
components and cause a short
circuit.
Do not use commercial cleaning
agents. Only use agents
recommended for domestic use.
Appliance front / interior
Remove spills as soon as possible.
Otherwise the soiling may become
hard to remove.
If spills are allowed to sit for an
extended period of time or if
unsuitable cleaning agents are used
the surfaces may discolor or
change.
^Clean the appliance with a solution of
warm water and liquid soap applied
with a soft sponge. Dry with a soft
cloth.
All surfaces of the appliance are
susceptible to scratching.
Breakages can occur on glass
surfaces.
Glass cleaners may be used to
clean the exterior. However do not
allow them to sit or "puddle", this can
cause damage to the surface.
Remove the cleaner promptly.
To better maintain your appliance
avoid the following:
–cleaners containing soda, ammonia,
thinners, or chlorides
–cleaners containing descaling
agents or lime removers,
– abrasive cleaners,
– stainless steel cleaners,
– dishwasher soap (powder),
– caustic (oven) cleaners,
– scouring pads, steel wool, hard
brushes,
– metal scrapers.
Non-slip mat
The mat can be removed to clean the
bottom of the drawer.
^Clean the mat by hand with warm
water and liquid dish soap.
^Dry thoroughly. Do not return the mat
until it is completely dry.
Never clean in the washing
machine.
Cleaning and care
18

,Repairs should only be carried out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
What if the drawer does not heat?
Possible fault Solution
There is no power to the warming
drawer.
Insert the plug into the outlet.
The circuit breaker has tripped. Reset the circuit breaker. If in doubt
contact an electrician.
What if the food is not warm enough?
Adjust the temperature setting. Check that the vents have not been blocked by
large plates or dishes.
What if the food or dishes are too hot?
Check the temperature setting and make sure the food is not too close to the
heating element.
What if the dishes are not warm enough?
Possible fault Solution
The wrong temperature was selected. Check the temperature setting.
The vents were blocked by dishes. Reload the dishes.
The dishes need more time to warm. See "Warming times".
A noise is heard during use.
This is not a fault. This is the circulation fan which distributes the heated air. The
fan works in intervals during the "2Keep food warm" mode.
Frequently asked questions
19

Miele offers a variety of additional accessories for its
appliances including Miele cleaning and conditioning
products.
These products can be easily ordered from Miele.
Non-slip mat
Keeps dishes securely in place
Optional accessories
20
