To avoid the risk of personal injury or
damage to the appliance, it is
essential that you read these
operating instructions before
installation and use. This maschine
is not approved for use in the
United States. M.-Nr. 07 264 960
en-CA

Disposal of packing materials
The packing materials protect the
washer from damage during shipping.
They have been selected with an eye to
environmental compatibility and
efficient disposal, and should be
recycled.
Returning packaging to the materials
cycle helps conserve raw materials and
reduces waste. The packing materials
can be returned to your dealer.
Disposing of your old
appliance
Old electric and electronic equipment
often contains valuable materials.
However, they may also contain harmful
substances that were necessary for
safe use. Improperly disposing of these
items in your household waste can be
detrimental to health and the
environment. This is why it is important
NEVER to dispose of your old
appliance with the regular household
garbage.
Instead, please contact your local
community waste collection point to
return and recycle electric and
electronic appliances. Your dealer
should be able to provide you with
details.
If the appliance is being stored for
disposal, please make sure it has been
child-proofed.
Caring for the environment
2

Caring for the environment..........................................2
Important safety instructions ........................................6
Operating the washing machine.....................................10
Control panel .....................................................10
Before using for the first time.......................................12
Environmentally friendly use .......................................13
Energy and water consumption ....................................13
Detergent consumption ..........................................13
How to wash correctly.............................................14
Brief instructions ..................................................14
Spin cycles ......................................................19
Final spin cycle speed..............................................19
Rinse cycle spins ...............................................19
De-select final spin (Rinse hold)....................................19
De-select the rinse spin(s) and final spin (none u).....................19
Program overview ................................................20
Extra options ....................................................22
Garment care label symbols ........................................23
Program sequence................................................24
Changing a program sequence .....................................26
Canceling a program...............................................26
Interrupting a program..............................................26
Changing a program ...............................................26
Loading or removing laundry.........................................27
Childproof lock....................................................27
Contents
3

Detergent .......................................................28
Selecting the right detergent .........................................28
Water softener ....................................................29
Washing with several components ....................................29
Fabric softener, fabric shaper, and liquid starch .........................30
Automatic dispensing of fabric softener, fabric shaper, or liquid starch .....30
Dyes and dye removers.............................................30
Cleaning and care ................................................31
Cleaning the drum .................................................31
Cleaning the housing and control panel ................................31
Cleaning the dispenser drawer .......................................31
Cleaning the water inlet filters ........................................33
Troubleshooting..................................................34
What to do if......................................................34
No wash program will start ..........................................34
Fault messages in the display ........................................35
General problems .................................................36
Unsatisfactory wash results ..........................................37
The loading door cannot be opened with the Door button ..................38
Opening the loading door (blocked drain outlet and/or power outage) ........39
Customer service.................................................41
Repairs .......................................................41
Program updates (PC) ...........................................41
Warranty conditions and warranty period.............................41
Additional accessories ...........................................41
Installation and connection ........................................42
Front view........................................................42
Rear view ........................................................43
Installation surface.................................................44
Transporting the washer to the installation site ........................44
Removing the transport fittings .......................................44
Re-fitting the shipping rods ..........................................46
Contents
4

Levelling the machine ..............................................47
Screw out and adjust the feet ......................................47
Installing under a countertop ......................................48
Washer-dryer stack..............................................48
The Miele water protection system ....................................49
Connecting to the water supply.......................................49
Tap water line (cold water) ........................................50
Hot water connection ............................................50
Drainage system ..................................................51
Electrical connection ...............................................52
ELECTRICAL INSTRUCTIONS........................................52
Electrical connection ...............................................52
Technical data ...................................................53
Programmable functions...........................................55
To access programmable functions .................................55
To select a programmable function .................................55
To change a programmable function ................................55
To exit a programmable function ...................................55
Language !......................................................55
Water plus .......................................................56
Gentle wash ......................................................56
Suds cooldown ...................................................56
Pin code.........................................................57
Temperature unit ..................................................58
Buzzer ..........................................................58
Keypad tone .....................................................58
Brightness .......................................................58
Contrast .........................................................58
Standby display ...................................................59
Memory .........................................................59
Anti-crease.......................................................59
Contents
5

This washer complies with all
applicable safety laws and
regulations. Inappropriate use can,
however, lead to personal injury and
property damage.
Please thoroughly read these
instructions before first using the
appliance. They contain important
information on the safe installation,
operation, and care of your
appliance. They are intended to
help prevent personal injury and
damage to the appliance.
Keep these operating instructions in
a safe place and pass them on to
any future owner.
The W 1612 meets all CSA
requirements. This machine is not
approved for use in the United
States.
Proper use
~The washing machine is designed
for household use only and only for
washing textiles whose fabric care label
states that they can be washed. Other
uses may be dangerous. Miele will not
be held liable for damage caused by
improper use or incorrect operation.
~Individuals who are incapable of
using the appliance safely because of
reduced physical, sensory or mental
capabilities, or because of a lack of
experience or knowledge, must not use
this appliance without supervision or
instruction by a responsible person.
Children around the appliance
~Supervise any children in the vicinity
of the appliance. Never allow children
to play with the appliance.
~Children must not use the washer
unsupervised unless they have
received sufficient instruction to
operate it safely. They must be able to
recognize the potential hazards of
improper operation.
~Remember that high wash
temperatures will make the porthole
glass hot.
Teach children not to touch the glass
while the washer is in operation.
Important safety instructions
6

Technical safety
~Check the washer for externally
visible damage before installation.
Do not install or operate a damaged
washer.
~Before plugging in the appliance,
you must make sure that the electrical
rating (fuse amperage, voltage and
connected load in watts, indicated on
the data plate) matches the household
electrical supply. If in any doubt,
consult a qualified electrician.
~The washer can only be considered
safe if it has been connected to a
properly installed grounding system, as
per code.
It is crucial to have this essential safety
requirement tested, and to have the
household wiring checked by a
professional if there is any doubt.
Miele will not be held liable for any
damage or harm caused by a missing
or incomplete grounding system.
~For safety reasons, do not use
extension cords (danger of fire from
overheating).
~Use only genuine Miele replacement
parts to replace defective components.
Only these parts are guaranteed to
meet applicable safety requirements.
~Unauthorized repairs may create
unforeseeable risks for the user, for
which Miele assumes no liability.
Repairs should be carried out only by
authorized Miele technicians -
otherwise, associated damage will not
be covered by the warranty.
~If the power cord is damaged it
must be replaced by an authorized
Miele technician to prevent danger to
the user.
~In the event of a fault, or for care
and cleaning, the washer is only
considered disconnected from the
power supply, when
– the plug is completed removed from
the socket, or
– the circuit breaker for the house
wiring system is completely shut off,
or
– the screw-out fuse in the house
wiring system is unscrewed and
removed.
~Use only a new hose kit to attach the
washer to the household water supply.
Old hosing should not be re-used.
Important safety instructions
7

~The appliance is not designed for
use in non-stationary locations (for
example, on ships). However, this use
may be possible if a qualified specialist
determines that the appliance can be
used safely in the location in question.
~Make no modifications to the washer
that are not expressly authorized by
Miele.
Proper use
~Do not place the washer in a room
where there is a risk of frost occurring.
Frozen hoses can split or burst, and the
reliability of the electronics can be
reduced below the freezing point.
~Before using the washer for the first
time, remove the shipping rods on the
back of the appliance (see "Installation
and connection" under "Removing the
transport fittings"). Failure to remove the
shipping rods can damage the washer
and any surrounding furniture or
devices during spinning.
~For extended absences (e.g., a
vacation), close the taps, especially if
there is no gully near the washer.
~Danger of flooding!
Before hanging the drain hose in the
washbasin, make sure the water will
drain away quickly enough.
Secure the hose from slipping. The
force of the water exiting the hose can
cause an unsecured hose to pop out of
the basin.
~Ensure that no foreign bodies (e.g.,
nails, needles, coins, paper clips) are in
the wash. Foreign bodies can damage
the appliance components (e.g., suds
container, washer drum). Damaged
components, in turn, can damage
laundry items.
~Proper dosing of the detergent will
eliminate the need to remove lime
deposits. However, if heavy limescale
nonetheless forms on your washer, be
sure to select a special descaling agent
with corrosion protection. This special
product can be obtained from your
Miele dealer or from Miele Customer
Service. Closely follow the instructions
on the product package.
Important safety instructions
8

~Textiles that have been pre-treated
with solvent-based cleaners must be
rinsed thoroughly in water before you
wash them.
~NEVER use solvent-based cleaners
(e.g., benzine) in the washing machine.
The use of such products can damage
the appliance and generate noxious
fumes. Fire hazard and danger of
explosion!
~NEVER use solvent-based cleaners
(e.g., benzine) on or around the
washing machine. Splatters can
damage the plastic surfaces of the
appliance.
~Do not use dyes unless they are
recommended for use in washing
machines. Dyes are to be used in
reasonable (household) quantities only.
Closely follow the manufacturer's
instructions.
~Colour removers contain sulphur
compounds, which can lead to
corrosion. Therefore, do not use colour
removers in the washer.
~If liquid detergent comes into
contact with the eyes, immediately flush
with copious amounts of lukewarm
water. If accidentally swallowed, imme-
diately seek medical attention. Persons
with sensitive or damaged skin should
avoid contact with liquid detergents.
Accessories
~Only use accessories that are
expressly authorized by Miele.
If other parts are used, the appliance
warranty and any associated
performance and/or product liability
claims become null and void.
The manufacturer will not be held
liable for damage caused by failure
to comply with the safety instructions
and warnings.
Important safety instructions
9

Control panel
aDisplay
See the following page for more
information.
bTemperature button
For selecting a temperature.
cSpin speed button
For selecting the final spin speed or
Rinse hold orNo u(de-select spin).
dPC / Optical interface
Used by Customer Service for
diagnostic checks and programming
updates.
eStart/Stop button
Starts the selected wash program or
stops a started program.
fExtra option buttons
Various extras can be added to the
wash programs.
gProgram selector
For selecting a program. The
indicator light next to the selected
program comes on. The program dial
can be turned right or left.
hDoor button
Opens the drum door.
iI-On/0-Off button
For switching the machine on or off.
Operating the washing machine
10

The following functions are selected
from the display:
– wash temperature
– spin speed
– programmable functions
– program cancel
– childproof (safety) lock
The display also shows:
– program duration
–program sequence
program duration
Once a program starts, the estimated
program duration (in hours and
minutes) is displayed.
During the first 8 minutes of the
program, the washer calculates the
quantity and absorbency of the laundry.
This can cause an increase or
decrease in program times.
Programmable functions
The programmable functions can be
used to adapt the washer to your
personal requirements. In programming
mode, the display will show the function
selected.
Operating the washing machine
11

Before the washer is used for the
first time, it needs to be properly
installed and connected. See
"Installation and connection".
Because the washer was put through
a complete operational test in the
factory, there will be some water left
in the drum.
For safety reasons, the washer will not
spin until it has been prepared for use.
To activate the spinning function, you
will need to run a wash programwithout
laundry and without detergent.
If you use detergent, it will cause
excessive sudsing.
This preparation step also activates the
ball valve in the drain. Once activated,
the ball valve helps prevent detergent
escaping from the suds container into
the drain during a wash program, thus
ensuring maximum use of the
detergent.
^Press the I-On/0-Off button in.
If the washer is being switched on for
the first time, the welcome screen will
appear.
The welcome screen will appear in
the display every time the washer is
switched on, until a program lasting
longer than 1 hour has been
completed.
Setting the language
You will be prompted to select the
desired display language. You can
change the language at any time
through the programmable functions.
!deutsch
^Turn the program selector to select
the desired display language. Use
the Start/Stop button to confirm your
selection.
Reminder to remove the shipping
rods
The shipping rods must be removed
before the washer is used for the
first time, to help prevent damage to
the appliance.
^After removing the shipping rods,
press the Start/Stopbutton.
Running the washer for the first time
Run aCotton 60°C with no laundry and
no detergent. (This program is
automatically selected.)
^Open the faucets.
^Press the Start/Stopbutton.
^Once the program is finished, switch
the washer off.
The washer is now ready for regular
use.
Before using for the first time
12

Energy and water consumption
–To make the most out of each wash
load, load the maximum dry weight
for the program you have selected.
–Use the Colours and Express
programs for small loads.
–When smaller amounts of laundry are
washed using the Normal program,
the automatic load recognition
system will automatically reduce the
water, energy, and time for that load.
This may cause a correction in the
remaining time displayed for the
wash.
– Using the Normal 60°C program
instead of the Normal 95°C program
will result in energy savings of 35%
to 45%. This setting is quite sufficient
for most levels of soiling.
– To save energy, all wash programs
with a temperature setting of 40°C or
above will draw from the hot water
supply. The only exception is the
Wool program, which protects
garments by avoiding the use of hot
water.
Detergent consumption
–Do not exceed the maximum
detergent dose listed on the
package.
–Adjust the detergent dose to suit how
soiled the laundry is.
–For smaller loads, reduce the amount
(approx. 1/3less detergent for a half
load).
Choosing the right extra options
(Short and Pre-wash)
Select:
– a wash program together with the
Short option for lightly soiled items
with no obvious staining
– a wash program with NO extra
options for moderate to heavy soiling
with visible staining.
– The Heavy Soil extra option for
laundry with large amounts of dirt
(e.g., dust, sand).
When drying with a tumble dryer
To help save energy when using a
dryer, select the highest possible spin
speed for the wash program in
question.
Environmentally friendly use
13

Brief instructions
The bold headings numbered(A,B,
C, ...) show the overall sequence of
steps, and may be used as short-cut
instructions.
APrepare the laundry

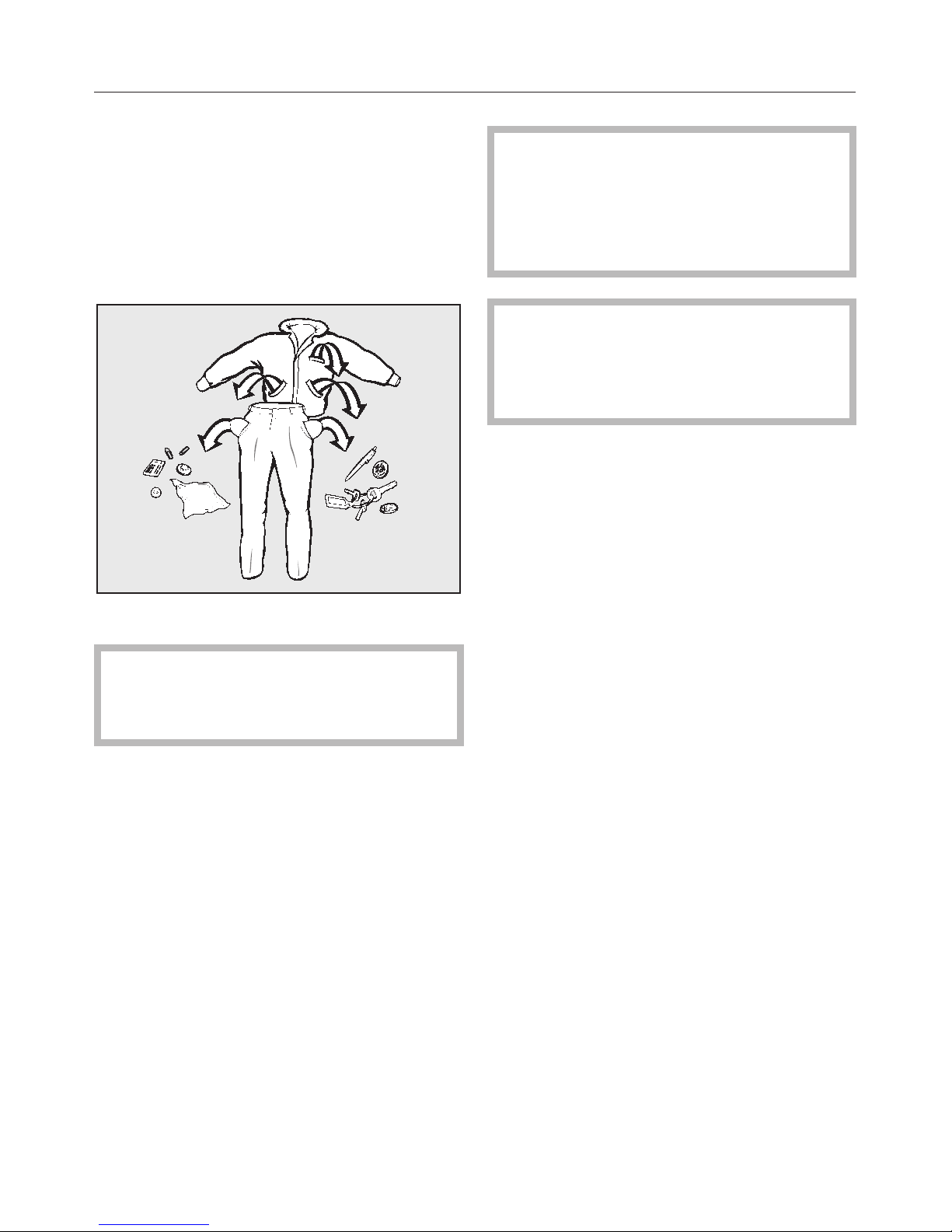

^Empty all pockets.
,Foreign objects (e.g., nails,
coins, paper clips) can damage
garments and the washer itself.
Pre-treat stains
^Before washing, treat fabrics to
loosen stains; it is best to do so while
the stains are still fresh. Blot stains
with a colourfast cloth to remove. Do
not rub.
Common stains (blood, egg, coffee,
tea, etc.) can typically be addressed
with the help of the Miele laundry care
guide. For a copy, contact Miele
directly, or visit the Miele Website.
,When pre-treating fabrics with
solvent-based products (gasoline,
for example), make sure that the
product does NOT come into
contact with any plastic parts.
,NEVER use solvent-based
cleaners (e.g., gasoline, cleaner's
solvent) on or around the washing
machine.
Sort the laundry
^Sort garments by colour and care
requirements (see collar or side
seam for garment tags).
Dark items may bleed colour for the first
few washes. To avoid staining, take
care to wash light and dark items
separately.
General information:
– Curtains: Remove any curtain
hardware or weights, or tie the
curtains in a laundry bag.
–Stitch down or remove any loose
underwires in bras.
–Close any zippers, hooks and eyes
before washing.
–Close duvet covers and pillowcases
to prevent small items from getting
inside.
Do not wash items that are labelled Do
not wash (Care symbol h).
How to wash correctly
14

BSwitch the washer on
CLoad the washer
^Press theDoor button to open the
drum door.
^Unfold the laundry and load it loosely
into the drum. Mixing both large and
small items in a load gives better
wash results and helps distribute the
load evenly during the spin cycle(s).
Loading to the maximum listed amount
helps keep energy and water
consumption as low as possible,
proportionate to other load sizes.
However, overloading diminishes wash
performance and leads to creasing.
Check that no items are trapped
between the drum door and the door
seal.
^Gently swing the loading door shut.

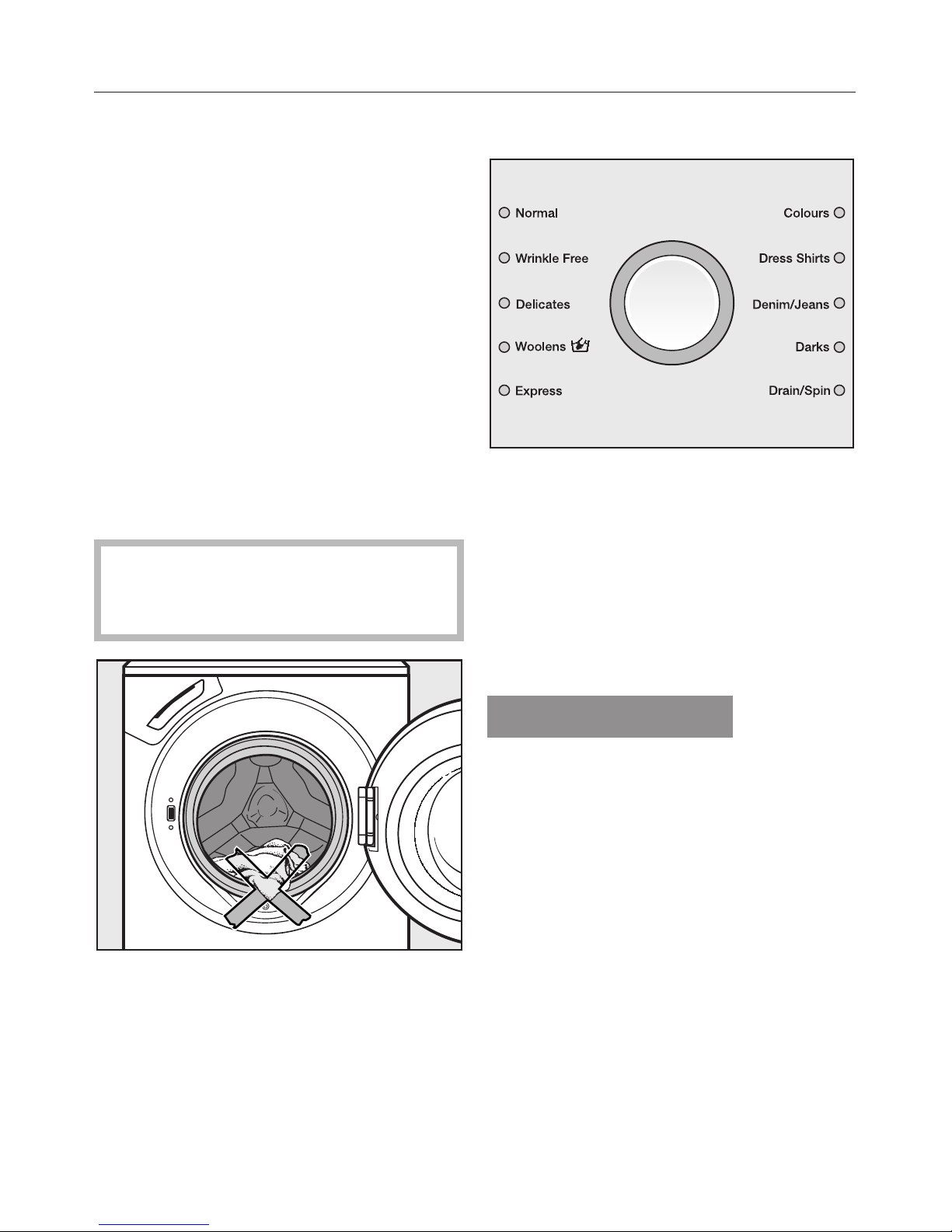

DSelect program
^Turn the program selector right or left
to select the desired program. A
program is selected when the
indicator light next to the program
name is on.
ESelect a temperature / spin speed
You can modify the suggested
temperature and/or spin speed.
1:49 60° 1200
^Press the Temperature button to
change the temperature, and press
the Spin button to alter the spin
speed.
How to wash correctly
15

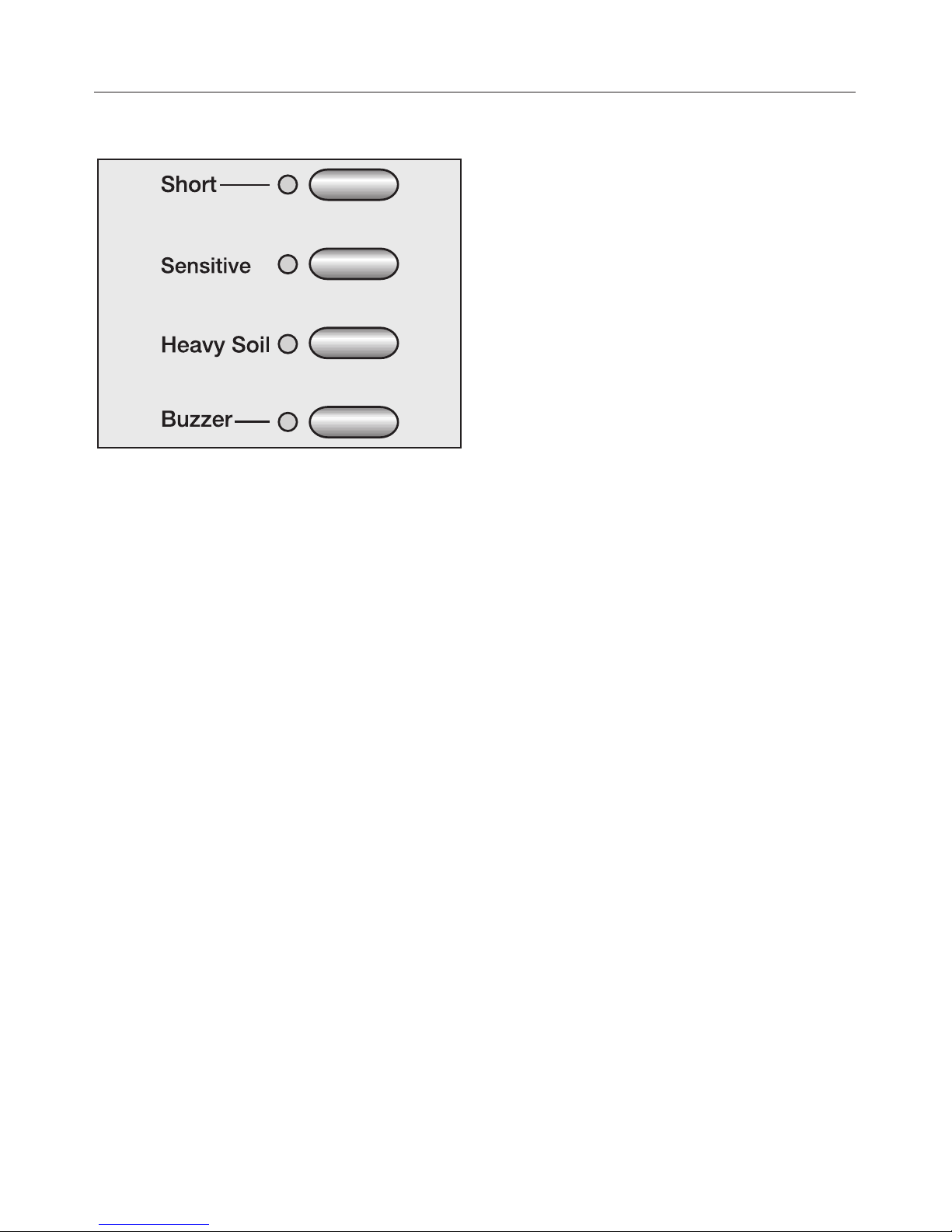

FSelect extra options
^Use the corresponding button to
select any desired extras. When an
extra is selected, the matching
indicator light comes on.
Not all extras can be selected in every
wash program.
If an extra cannot be selected, it is not
compatible with the program you wish
to run.
Short
For lightly soiled textiles without visible
stains.
The main wash is shortened.
Sensitive
The water level for washing and rinsing
is increased.
You can also select other settings like
Water plus, as described in the section
on "Programmable functions".
Heavy Soil
For more heavily soiled items (dust,
sand, etc.).
Buzzer
You will hear a buzzer sound at the end
of a program and when Rinse hold is
reached. The buzzer continues to ring
until the washer is turned off. You can
adjust the volume of the buzzer as
described in the section on
"Programmable functions".
How to wash correctly
16

GAdd detergent
It is important to use the right amount,
because...
. . . too little detergent results in:
–the laundry not getting clean, and
turning grey and stiff over time
–greasy deposits on the laundry
–limescale deposits on the heating
element
. . . too much detergent results in:
–excessive sudsing, which interferes
with proper agitation and leads to
poor wash, rinse, and spin results
– increased water consumption
because of an automatic additional
rinse cycle
– a burden to the environment
^Pull out the detergent drawer and fill
with product, as follows:
i
Detergent for the pre-wash (we
recommend dividing the total
detergent amount as follows: 1/3in
compartmentiand 2/3in
compartment j)
j
Detergent for the main wash
§
Fabric softener or liquid starch
^Close the detergent drawer.
Additional information regarding
laundry products and doses can be
found in the "Detergent" section.
How to wash correctly
17

HHow to start a program
^Press the flashing Start/Stopbutton.
The estimated program duration will
appear in the display as soon as the
program has started. During the first 8
minutes of the program, the washer
calculates how much water is needed,
based on the absorbency of the
laundry. This can result is shorter or
longer program times.
The program sequence will also appear
in the display. The washer will show
which program step is currently
running.
IRemove the laundry when the
program is finished
In crease-free mode, the display
alternates between:
0:00 Anti-crease
and
0:00 Finish
^Press theDoor button to open the
drum door.
^Remove the laundry.
Check that all items have been
removed from the drum. Items left
behind could shrink or bleed colour
during the next load.
^Check the folds in the door seal for
foreign objects.
^Use the I-On/0-Off button to switch
the washer off.
^Close the door. If it is left open,
objects may inadvertently be placed
in the drum. They could be washed in
the next load and damage the
laundry.
How to wash correctly
18

Final spin cycle speed
Program RPM
Normal 1200
Wrinkle Free 1200
Delicates 600
Woolens 1200
Express 1200
Colours 1200
Dress Shirts 600
Denim/Jeans 900
Darks 1200
Drain/Spin 1200
You can reduce the final spin cycle
speed. Exception: In the Normal
program, the final spin cycle speed can
only be reduced to 1000 RPM or above.
It is not possible to select a higher final
spin cycle speed than indicated above.
Rinse cycle spins
The laundry is spun after the main wash
and between the rinse cycles. If you
reduce the final spin cycle speed, the
rinse cycle spin speed is reduced
along with it.
De-select final spin (Rinse hold)
^Use the Spin speed button to select
the Rinse hold feature. After the last
rinse cycle, the laundry remains in
the water. This helps reduce creasing
if the laundry cannot be immediately
removed from the drum upon
program completion.
–Start the final spin:
The washer automatically offers you
the highest possible spin speed.
However, you can select a lower
speed (RPM). Use the Start/Stop
button to start the final spin.
– End the program:
Press the Door button. The water is
pumped away. Next, press the Door
button again to open the loading
door.
De-select the rinse spin(s) and final
spin (none u)
^Use the Spin speed button to select
the none ufeature. After the last
rinse cycle, the water is pumped
away and wrinkle protection is
activated. If this setting is used in the
Wrinkle free,,Express or Colours
programs, an extra rinse cycle will be
added.
Spin cycles
19

Normal 95°C to 30°C
Fabric T-shirts, underwear, table linens and other such textiles made of
cotton, linen, or mixed fibres
Note for test institutes:
Short program: 3.0 kg load and Short extra option
Wrinkle Free 60°C to 30°C
Fabric Synthetic fabrics, mixed fibres and easy-care cottons
Note: For fabrics that crease easily, reduce the final spin cycle speed.
Delicates 60°C to cold
Fabric For delicate garments made of synthetic fibres, mixed fibres, and
rayon
Curtains labelled by the manufacturer as machine-washable.
Note: – The fine dust typically found in curtains makes it advisable to use
a program with pre-wash.
– For curtains that crease easily, reduce the final spin cycle speed
or deselect the final spin altogether.
Woolens /40°C to cold
Fabric Textiles made of wool or wool blends, and hand-washable garments
Note: For fabrics that crease easily, reduce the final spin cycle speed.
Express 40°C to cold
Fabric Small load of items to be refreshed. (Items suited to the Normal
program.)
Note: If you want to rinse individual items, select this program with the
temperature setting cold, and do not add any detergent.
Program overview
20
