Miele PW 5064 MopStar 60 User manual

Operating and installation instructions
for washer-extractor
PW 5064 MopStar 60
To avoid the risk of accidents or
damage to the machine it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 757 270
en-GB

Disposal of the packing
material
The packaging is designed to protect
the machine from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites.
Disposing of your old machine
Electrical and electronic machines
often contain valuable materials. They
also contain materials which, if handled
or disposed of incorrectly could be
potentially hazardous to human health
and to the environment. They are,
however, essential for the correct
functioning of your machine. Please do
not therefore dispose of it with your
household waste.
Please dispose of it at your local
community waste collection/recycling
centre or contact your dealer for
advice. Ensure that it presents no
danger to children while being stored
for disposal.
Energy saving tips
Energy and water consumption
–Water consumption and energy
usage are determined by the size of
the load.
To make the most out of your
machine load the maximum dry load
for the programme you are using.
Detergent
–Do not exceed the amounts of
detergent recommended by the
manufacturer on the packaging.
– Reduce the amount of detergent for
smaller loads.
When drying with a tumble dryer
Selecting the highest possible spin
speed for the wash programme will
save energy when drying in a tumble
dryer afterwards.
Caring for the environment
2

Caring for the environment..........................................2
Warning and Safety instructions .....................................6
Operating the washer-extractor .....................................13
Control panel .....................................................13
Display ..........................................................14
Before using for the first time.......................................15
How to wash correctly.............................................16
Brief instructions ..................................................16
Spinning ........................................................21
Maximum final spin speed...........................................21
Rinse and interim spin ...........................................21
To omit the final spin (Rinse hold) ..................................21
To omit the spin between rinses and the final spin .....................21
Delay start.......................................................22
Programme chart .................................................23
Programme sequence .............................................29
Pre-spin .........................................................30
Pre-wash/Pre-rinse.................................................30
Anti-crease.......................................................30
Changing the programme sequence .................................31
To cancel a programme ............................................31
To interrupt a programme ...........................................31
To alter a programme ..............................................31
Adding or removing laundry after a programme has started ................32
Detergent .......................................................33
Water softeners ...................................................33
Fabric conditioner or liquid starch.....................................33
Colour run and dye removers/dyes ....................................34
External dispensing system..........................................35
Empty sensor ..................................................37
Cleaning and care ................................................38
Cleaning the machine ..............................................38
Cleaning the water inlet filters ........................................40
Problem solving guide ............................................41
The programme does not start .......................................41
Fault messages in the display ........................................42
Contents
3

General problems .................................................43
An unsatisfactory wash result ........................................44
The drum door cannot be opened by pressing the Door button..............45
To continue a programme after an interruption to the power supply ..........45
Opening the drum door in the event of a blocked drain outlet and/or
power failure .....................................................46
After sales service ................................................47
PC / Optical interface...............................................47
Optional accessories ...............................................47
Installation and connection ........................................48
Front view........................................................48
Rear view ........................................................49
Installing the machine ..............................................50
Installation surface.................................................51
Removing the transit bars ...........................................51
Re-fitting the transit bars ............................................53
Levelling the machine ..............................................53
Screwing out and adjusting the feet .................................53
Securing the machine to prevent it slipping ...........................54
Washer-dryer stack ................................................55
Installation on a raised plinth .........................................55
Plumbing ........................................................56
Connection to the cold water supply ................................56
Connection to the hot water supply .................................57
Connection to drainage .............................................57
Electrical connection ...............................................58
Single phase AC 230 V - country variant .............................59
Technical data ...................................................60
Settings menu J..................................................62
Suds cooling .....................................................62
Display contrast ...................................................62
Display brightness .................................................62
Settings/Supervisor level menu .....................................63
Enter code .......................................................63
Change code .....................................................63
Time of day ......................................................64
Language J......................................................64
Contents
4

Standby .........................................................64
Memory .........................................................65
Auto load control ..................................................65
Pre-wash water ...................................................65
Main wash water ..................................................65
Rinse water ......................................................65
Low water pressure ................................................65
Standard plus temp. ...............................................66
Pre-spin mops ....................................................66
Chemo thermal dis. ................................................66
Thermal disinfection................................................66
Hygiene disinfection ...............................................67
Microfibre mops...................................................67
Finish Standard ...................................................67
Finish Disinfection .................................................67
Finish Cleaning cloths ..............................................67
Spin-treat, std, disin. ...............................................68
Spin-treat, standard + ..............................................68
Spin-treat cloths...................................................68
Empty sensor .....................................................68
Further programmes ...............................................69
Cottons level .....................................................69
Minimum iron level .................................................69
Pre-wash temp. cottons .............................................69
Pre-wash duration .................................................70
Cottons duration ..................................................70
Minimum iron duration ..............................................70
Pre-wash Cott/M-iron ...............................................70
List special progs. .................................................70
No. rinses Cottons .................................................71
No. rinses Minimum iron ............................................71
No. rinse disinfection ...............................................71
Pre-rinse Cottons ..................................................71
Pre-rinse Minimum iron .............................................72
Temperature unit ..................................................72
Energy usage control...............................................72
Contents
5

This machine complies with current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the machine,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, use and
maintenance.
Keep these instructions in a safe place and ensure that they are
made available to new users. They must be made aware of these
warning and safety instructions.
Pass them on to any future users/owners of the machine.
Correct application
~Only use the machine to wash items which are specified by the
manufacturer to be machine-washable on the wash-care label, and
textiles composed of hand-washable wool or wool blend fabrics as
well as satin, lace, silk and other hand-washable garments. Any
other applications may be dangerous. The manufacturer cannot be
held liable for damage resulting from incorrect or improper use of
the machine.
~This machine must be used as described in these operating
instructions and must be checked on a regular basis to make sure it
is functioning correctly. Maintenance must be carried out when
necessary.
~This machine is not intended for outdoor use.
Warning and Safety instructions
6

~This machine can only be used by people with reduced physical,
sensory or mental capabilities, or lack of experience or knowledge, if
they are supervised whilst using it or have been shown how to use it
in a safe way and recognise and understand the consequences of
incorrect operation.
~Children 8 years and older may use the machine unsupervised
only if they have been shown how to do so in a safe way and recog-
nise and understand the consequences of incorrect operation.
~Children must not be allowed to clean or maintain the machine
unsupervised.
~Please supervise children in the vicinity of the machine and do
not let them play with it.
~It is the operator's responsiblity to ensure that the standard of
disinfection in thermal as well as chemo thermal procedures is
maintained (in accordance with local authority regulations) by
carrying out suitable validation tests. Disinfection programmes must
not be interrupted, as this can have a limiting effect on the
disinfection result.
Warning and Safety instructions
7

Technical safety
~Before setting up the machine, check it for any externally visible
damage.
Do not install or use a damaged machine.
~The electrical safety of this machine can only be guaranteed
when correctly earthed. It is most important that this standard safety
requirement is met. If in any doubt, please have the electrical
installation tested by a qualified electrician. Miele cannot be held
liable for the consequences of an inadequate earthing system (e.g.
electric shock).
~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele authorised service technician. If this is not
done, any resultant damage will not be covered by the guarantee.
Ensure current is not supplied to the machine until after
maintenance or repair work has been carried out.
~Do not make any alterations to the machine, unless authorised to
do so by Miele.
~The machine must be isolated from the electricity supply in the
event of a fault and during installation, maintenance and repair work.
Warning and Safety instructions
8

~This machine must only be connected to the on-site water supply
using a new hose kit. Old hoses must not be re-used. Check the
hose regularly for signs of wear. Change in good time to avoid the
risk of leaks and subsequent damage.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can the safety
standards of the machine be guaranteed.
~Do not connect the machine to the mains electricity supply by an
extension lead or a multi-socket adapter. These do not guarantee
the required safety of the machine (e.g. danger or overheating).
~If this machine is being used in a commercial environment please
ensure that all relevant health and safety regulations are obeyed.
~This machine must not be used in a non-stationary location (e.g.
on a ship).
~Please observe the instructions in "Installation and connection"
and "Technical data".
~The socket must be easily accessible after installation in order to
disconnect the washing machine from the electricity supply.
~For hard-wired machines, the all-pole isolator provided on-site
must be easily accessible after installation in order to disconnect the
washing machine from the electricity supply.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the machine and its
surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
Warning and Safety instructions
9

Correct use
~The maximum load of dry laundry for this machine is 6.5 kg. See
the "Programme chart" for the maximum recommended loads in
individual programmes.
~Do not install your machine in rooms where temperatures below
freezing may occur. Frozen hoses may burst or split. The reliability
of the electronic control unit may be impaired at temperatures below
freezing point.
~Before using the machine for the first time, check that the transit
bars at the rear of the machine have been removed (see section on
"Installation and connection"). During spinning, a transit bar which is
still in place may result in damage to both the machine and adjacent
furniture or appliances.
~Turn off the stopcock if the machine is to be left for any length of
time (e.g. holiday), especially if there is no floor drain (gully) in the
immediate vicinity.
~Take care to ensure that foreign objects (e.g. nails, pins, coins,
paper clips) do not find their way into the machine with the laundry.
Soiling such as metal shavings etc. on cloths must be shaken out
before washing.
These may damage components of the machine (e.g. suds
container, drum), which in turn can result in damage to the laundry.
Warning and Safety instructions
10

~If the correct amount of detergent is dispensed, the machine
should not need to be descaled. If, however, you do wish to descale
the machine only use proprietary non-corrosive descaling agents
and strictly observe the instructions on the packaging. A special
descaling agent is available to order from the Miele Spare Parts
Department or your Miele dealer.
~Textiles which have been pre-treated in solvent based cleaning
agents must be thoroughly rinsed in clean water before being
washed in the machine.
~Never use solvent based cleaning agents, e.g. those containing
benzine, in this machine, as this may result in damage to component
parts and create toxic fumes. Such agents also pose a fire and
explosion hazard.
~Benzine, petrol, paraffin, or any easily flammable liquid must not
be stored or used near the machine. Fire and explosion risk!
~Only use dyes specified by the manufacturer as being suitable for
use in a washing machine. Always observe the manufacturer's
instructions carefully.
~Colour run and dye removers contain sulphur compounds which
can cause damage such as corrosion. Do not use these products in
this machine.
Warning and Safety instructions
11

~Avoid contact of stainless steel surfaces (front, lid, casing) with
liquid cleaning and disinfecting agents which contain chlorine or
sodium hypochlorite. These agents can have a corrosive effect on
stainless steel.
Aggressive vapours containing chlorine bleach can also be
corrosive. Do not store open containers of these agents near the
machine.
~Do not use a high pressure cleaner or hose to clean the machine.
~It is particularly important to observe the manufacturer's
instructions when using a combination of cleaning agents and
special application products. Products must only be used for
applications approved by the manufacturer to avoid any material
damage or the occurrence of strong chemical reactions
Accessories
~Accessory parts may only be fitted when expressly approved by
Miele. If other parts are used, guarantee, performance and product
liability claims will be invalidated.
~A Miele tumble dryer can be stacked on top of a Miele washing
machine using the appropriate stacking kit (available as an optional
accessory).
~If installing the machine on a Miele plinth, (available as an
optional accessory), please make sure you order the right one for
this washing machine.
Miele cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and Safety instructions
12

Control panel
aStart button
Starts the selected programme.
bDisplay with –, OK and + buttons
See the following pages for more
information.
cmbutton
For selecting delay start.
dPC/Optical interface
This is used by service technicians
to run diagnostic checks on your
machine and can also be used to
update programming data in the
future.
ePre-wash/Pre-rinse button with
indicator light
fProgramme selector
For selecting a programme. The
programme selector can be turned
clockwise or anti-clockwise.
gOn-Off button s
To save energy, the machine will
switch itself off automatically 15
minutes after the end of the
programme/anti-crease phase or
after being switched on, if no other
selection is made.
hDoor button
Opens the machine door.
Operating the washer-extractor
13

Display
- / + buttons
For altering the values highlighted in
the display:
-decreases the value or moves the
highlighting upwards
+increases the value or moves the
highlighting downwards.
OK button
For confirming the value selected and
choosing the next value.
The following are selected via the
display:
–Further programmes
–The temperatures for some
programmes
–Final spin speed
–Delay start.
The display also shows the duration of
the programmes and the current time of
day.
The Settings Jmenu is also operated
via the display.
Operating the washer-extractor
14

Before using the machine for the first
time ensure that it is correctly
installed and connected. See
"Installation and connection". Also
check that the drain filter is securely
tightened to prevent the risk of leaks
during use.
For safety reasons, spinning is not
possible until the machine has been
prepared for using for the first time. To
activate the spinning function you must
run a wash programme without laundry.
^Switch the machine on with the K
button.
If the machine is being switched on for
the first time, the welcome screen will
appear:
Miele Professional Willkommen
The welcome screen will not appear
again after the first programme has
been completed.
The display for setting the language will
then appear.
^Use the -and +buttons to select the
language you want, and confirm your
choice by pressing the OK button.
Reminder to remove transport bars
To avoid the risk of damage, the
transport bars must be removed
before the machine is used for the
first time. See "Installation and
connection" for instructions on how
to do this.
^After removing the transport bars (if
this has not already been done by
your fitter) press the OK button.
The display for setting the time will then
appear.
Setting the time of day
12:00
Set the time of day
^Set the hour with the -and +buttons,
and confirm your setting by pressing
the OK button. Then do the same to
set the minutes. After you have
confirmed the minute setting, the
main menu will appear in the display.
Running your first programme
Your machine is now ready for the first
programme to be run.
^Turn the programme selector to the
Cleaning cloths Hygiene position.
^Open the stopcocks.
^Press the Start button.
When the programme has finished,
your machine is ready to use for the
first time.
Before using for the first time
15

Brief instructions
The headings numbered A,B,C,...
show the operating sequence and can
be used as brief instructions.
ASort the items to be washed
,Foreign objects (e.g. nails,
coins, paper clips, etc.) can cause
damage to textiles and to
components in the machine.
,Do not use solvent-based
cleaning agents in this machine.
Preparing mops, cloths etc
^Shake mops, cloths and pads out
well to get rid of coarse soiling before
placing them in the drum.
Sorting laundry
^Empty all pockets.
^Badly soiled areas, stains etc. should
be treated as soon as possible,
preferably whilst still fresh. Spillages
should be carefully dabbed off using
a soft, colourfast cloth. Do not rub!
^Sort the laundry by colour and by
care label. Most garments have a
textile care label in the collar or side
seam.
Dark textiles often contain excess dye
and should be washed separately
several times before being included in
a mixed load. Always wash whites and
coloureds separately.
Do not wash any items in this machine
which are specified by the
manufacturer as not washable on the
care label. (hsymbol)
How to wash correctly
16

BLoad the drum
^Switch the machine on with the K
button.
^Press the Door button and open the
drum door.
^Place mops, cloths and pads loosely
in the drum.
^Unfold the laundry and load loosely
in the drum. Mixing both large and
small items gives better wash results
and also helps distribute the load
evenly during spinning.
The most efficient use of energy and
water is achieved when a full load is
washed. However, do not overload as
this causes creases and reduces
cleaning efficiency.
^Shut the door with a gentle swing.
Make sure that no items are caught
between the drum door and seal.
How to wash correctly
17

CSelect a programme
^Turn the selector to the wash
programme you require.
The programme selected will appear in
the display.
Cleaning cloths
The display will switch to show the
menu for the programme selected.
40°C 1400 rpm
Duration: 0:51 h
^You can then alter the spin speed
which is shown highlighted with the -
or +buttons. Confirm your selection
by pressing the OK button.
When you turn the programme selector
to Further programmes, a list of these
programmes will appear in the display.
ENew mops
Treat mops
Finish cleaning cloths H
^Use the –or +button to highlight the
programme you wish to select and
confirm your selection by pressing
the OK button.
The display will switch to show the
menu for the programme selected.
Curtains
30°C 600 rpm
Duration: 0:38 h
^You can then alter the spin speed
which is shown highlighted with the –
or +buttons. Press OK to confirm.
For some programmes you can now
alter the temperature with +or –.
Pre-wash/Pre-rinse
^An additional Pre-wash or Pre-rinse
can be selected for loads which are
particularly dirty. If these additional
options do not come up in the
display, they are not available to
select in conjunction with your
chosen programme.
Delay start
^Select Delay start, if required (see
"Delay start").
How to wash correctly
18

DAdd detergent
Take the level of soiling and water
hardness into account when
determining the amount of detergent to
dispense.
Too little detergent results in:
–Laundry not getting properly clean,
and with time maybe becoming grey
and hard to the touch.
–Greasy particles clinging to laundry.
–Limescale deposits on the heater
elements.
Too much detergent results in:
– Excessive foam which causes a low
level of agitation and poor wash,
rinse and spin results.
– A burden to the environment.
See "Detergent" for further information.

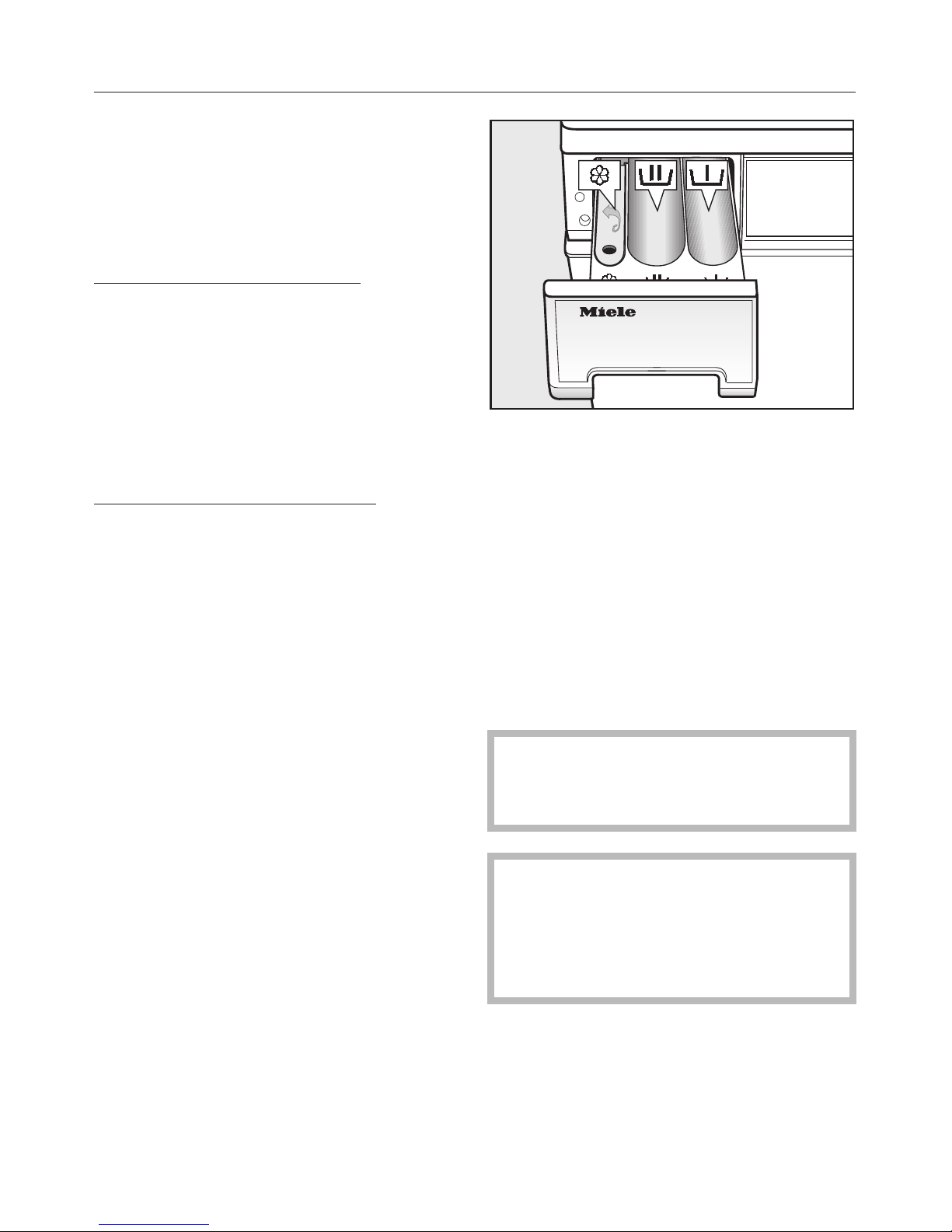

^Pull out the detergent drawer and
add detergent to the compartments
as follows:
i= Detergent for the pre-wash
(1/4of the total amount
recommended).
j= Detergent for the main wash
§= Fabric conditioner or liquid
starch
^Close the detergent drawer.
The §compartment is not used
during Disinfection programmes. Do
not put anything in it.
This machine can be connected to
an external dispensing system for
dispensing liquid agents (see
"Detergent - External dispensing
system").
How to wash correctly
19

EStart the programme
The Start button will flash as soon as a
programme can be started.
^Press the Start button.
The Start button will now light up.
If delay start has not been selected, the
estimated programme duration will
appear in the display. This will count
down in one minute steps. During the
first 10 minutes the machine measures
how much water is being absorbed by
the laundry. The programme duration
may be shorter depending on this
absorbency rate.
The programme sequence is also
shown in the display. The machine lets
you know which section of the
programme has been reached.
FUnload the drum
At the end of the programme, the drum
continues to turn at intervals for up to
30 minutes to maintain uniform residual
moisture throughout the load and to
help prevent creasing (anti-crease
phase). The door can be opened and
items removed at any time during the
anti-crease phase.
The machine will switch off
automatically 15 minutes after the
end of the anti-crease phase. You will
need to press the Kbutton to switch
it back on again.
^Press the Door button to open the
drum door.
^Remove the laundry.
Check that all items have been
removed from the drum. Items left in
the drum could discolour other items
in the next wash or become
discoloured themselves.

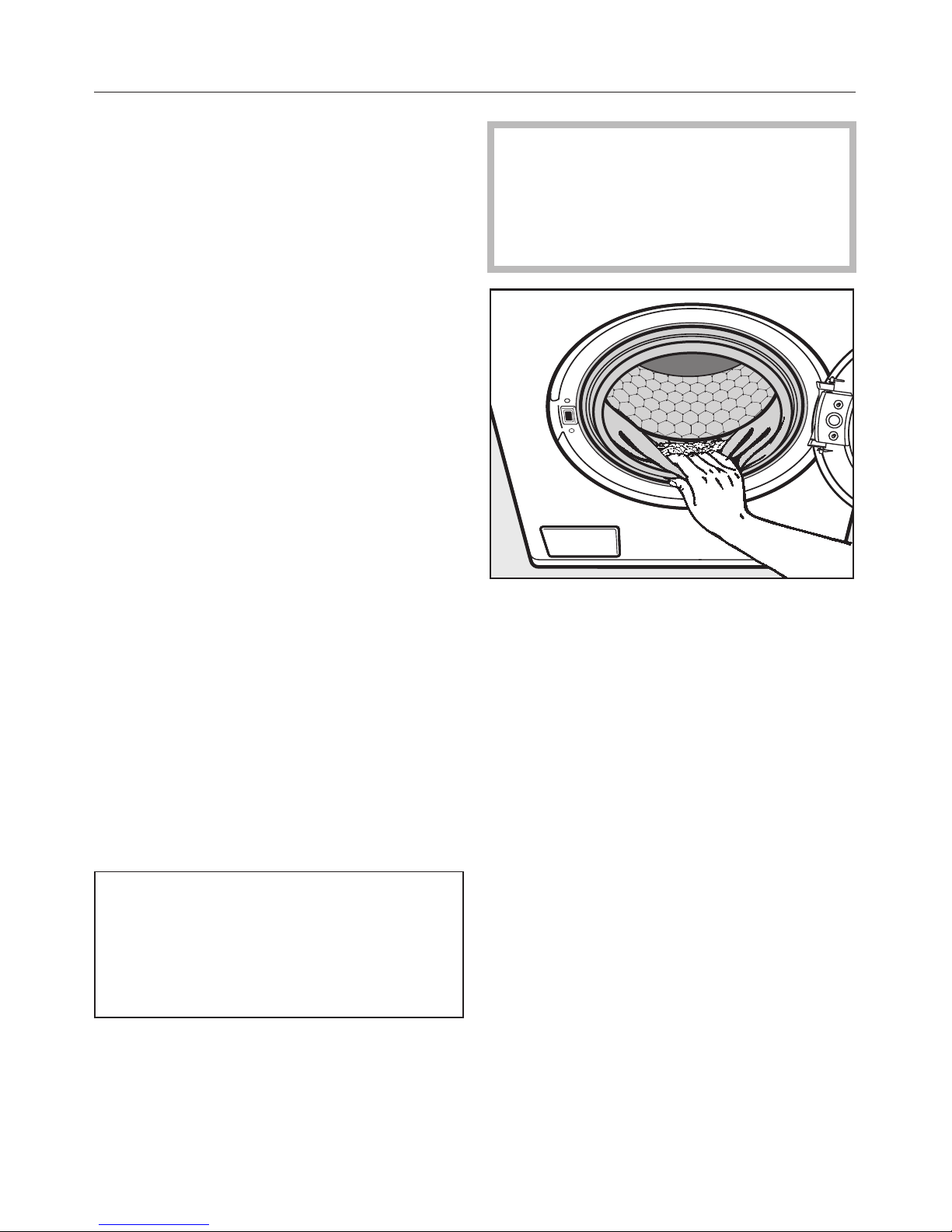

^Check the folds in the door seal for
any small articles, e.g. buttons, which
might be lodged there.
^Turn the programme selector to
Finish.
^Close the drum door. Otherwise there
is the danger of objects being placed
inadvertently in the drum. If these
remained unnoticed and were
washed in the next load, they could
damage the laundry.
^Switch the machine off with the K
button.
