Miele WS 5240 User manual

Operating Instructions
Washer-Extractor
WS 5240
WS 5320
To prevent accidents
and machine damage read these UV
instructions before installing or
using the machine. M.-Nr. 05 649 900

Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Guide to the washer-extractor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Special options buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Language selection* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting current time and date* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Start up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Program selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Changing temperaure and spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Program end display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Program end - opening the drum door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Delayed Start W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Prewash T. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Starch U. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Without spin V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Skipping program cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Program cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Li uid dispensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Peak load cut-out / PC- Printer connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Power failure - Emergency door release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Fault messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
After each use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the dispenser box and siphon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the cooling fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cleaning the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Maintaining the drum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Guide to the symbols on the data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Steam connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Contents
2

WARNING
Read all instructions before installation or
use to prevent injury and machine dam-
age.
This washer-extractor is only intended for
laundry not impregnated with dangerous
or flammable substances.
Dry cleaning solvents must not be used
in this machine. Such solvents could
cause a fire or explosion.
This appliance conforms to all uniform
safety codes and regulations. The manu-
facturer cannot be held responsible for
damage or injury caused by improper use
of this appliance.
All personnel working with this machine
must be fully trained in its use and safety.
SAVE THESE INSTRUCTIONS AND RE-
VIEW THEM PERIODICALLY
Electrical Safety
Installation, repair and maintenance
work should be by a Miele authorized
service technician. Work by unqualified per-
sons could be dangerous.
Before installation make sure that the
voltage and frequency listed on the
data plate correspond with the site electrical
supply. This data must correspond to pre-
vent injury and machine damage. Consult a
qualified electrician if in doubt.
Be certain your appliance is properly in-
stalled and grounded by a qualified
technician.
To guarantee the electrical safety of this ap-
pliance, continuity must exist between the
appliance and an effective grounding sys-
tem. It is imperative that this basic safety re-
quirement be met. If there is any doubt, have
the electrical system of the house checked
by a qualified electrician. The manufacturer
cannot be held responsible for damages
caused by the lack, or inadequacy of, an ef-
fective grounding system.
The appliance is only completely iso-
lated from the electrical supply when
the fuse is withdrawn, the circuit breaker has
been tripped, or the unit has been un-
plugged.
Do not damage, remove or bypass the
safety features and controls of the ma-
chine.
If there is any damage to the machine
or to the cable insulation, the machine
must not be used until it has been repaired.
Any removable outer panels must be in
place, and all moving or electrical parts
shielded before the machine is operated.
Use
Never use or store gasoline or gasoline
based substances or any easily flam-
mable substances near the machine. Do not
use the machine lid as a storage area.
Danger of fire or explosion.
Only machine wash articles with a care
label stating they are suitable for ma-
chine washing.
Never attempt to force open the door of
the washer extractor. As a safety feature
the door handle has been designed with a
break line.
Never allow children to play in, on or
near the washer extractor, or to operate
it themselves. Please supervise its use by
the elderly or infirm.
The door porthole glass can become
hot during use of the machine. Do not
allow children to touch the glass.
Always make sure the drum is station-
ary before reaching in to remove laun-
dry. Reaching into a moving drum is ex-
tremely dangerous.
Waste water from washing and rinsing
must not be used as drinking water. It
must be discharged into a proper sewage
system.
The machine should only be operated
unsupervised if there is a floor drain
(gully) in the direct vicinity of the machine.
Warning and Safety Instructions
3

Only use genuine Miele accessories. If
unapproved parts are used, guarantee,
performance and product liability claims
may become void.
Chlorine or agents containing chlorine
are corrosive, and can under certain
conditions lead to permanent damage to
components.
Disinfecting and cleaning agents often
contain chloride (salts). If these sub-
stances dry on steel surfaces the residual
chlorides can attack the steel and cause
rusting.
To protect your machine from rust damage,
only use chloride free disinfecting and
cleaning agents for washing and disinfect-
ing, and for cleaning the machine. If you ac-
cidentally spill an agent containing chloride
on the machine it should be rinsed off with
water and dried using a soft cloth.
Always follow the instructions of the
chemical manufacturer when using
cleaning agents and special application
chemicals. Only use such chemicals for the
purpose and in the situation specified by the
manufacturer in order to avoid the danger of
adverse chemical reactions and material
damage. If in doubt check the suitability of
the product for use in this machine with the
manufacturer before using it.
Where a chemical cleaning agent is
recommended on technical application
grounds, this does not imply that the manu-
facturer of the machine takes responsibility
for the effect of the chemical on the material
of the items being cleaned or on the ma-
chine. Please be aware that changes in for-
mulation, storage conditions etc., which may
not be published by the chemical producer,
can have a negative effect on the cleaning
result.
Dyes, dye removers and descaling
agents may only be used in this ma-
chine if the manufacturer expressly states
that they are suitable for use in a washing
machine. There may be the danger of fire or
explosion.
Do not use high pressure cleaners to
hose down the machine.
Maintenance
Faulty components should only be re-
placed with genuine Miele spare parts.
The safety standards of the machine can
only be guaranteed when Miele spare parts
are used.
Over time deterioration of parts can oc-
cur, especially rubber components
such as hoses. Check the inlet hoses regu-
larly for signs of deterioration or leaks, to
prevent water or machine damage.
Local regulations regarding regular in-
spection and maintenance of this ma-
chine must be observed.
Noise level
Wash cycle Spin cycle
WS 5240 60.3 dB 82.2 dB
WS 5320 60.0 dB 80.3 dB
Disposal of an old appliance
When disposing of an appliance first
make it unusable. Disconnect it from
electricity, cut off the power cord and re-
move the plug.
Disable the door lock, so children cannot ac-
cidentally shut themselves in. Make appro-
priate arrangements for the safe disposal of
the appliance.
KEEP THESE INSTRUCTIONS
IN A SAFE PLACE.
Warning and Safety Instructions
4

Disposal of the packing material
The transport and protective packing materi-
als are environmentally friendly for disposal
and can normally be recycled. Please recy-
cle.
Ensure that any plastic wrappings, bags etc.
are disposed of safely and kept out of the
reach of babies and young children.
Danger of suffocation!
Disposal of an old appliance
Old appliances contain materials that may
be recyclable. Please contact your local re-
cycling authority about potential recycling,
before disposing of the appliance.
Caring for the environment
5

1Detergent dispenser
2Control panel
3Emergency Stop button
4Drum door
5Service panel with plinth
Guide to the washer-extractor
6

Control panel
6 Display
7 Program selector
8YPower on button
9ZPower off button

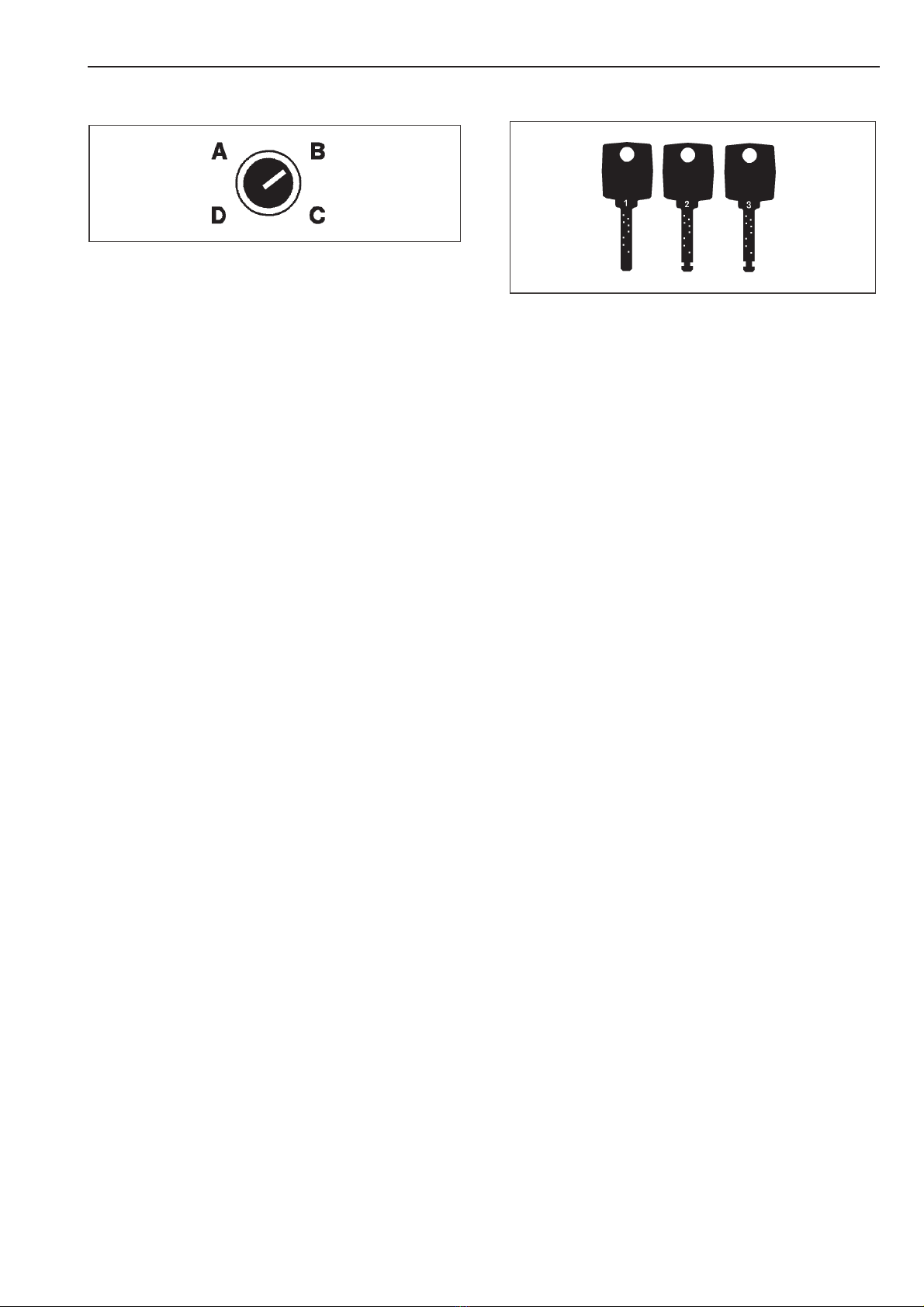

10 Access lock
11 Special options buttons
12 Cursor and input buttons
13 Delay Start button
14 XStart
15 7End
16 Optic interface
Guide to the washer-extractor

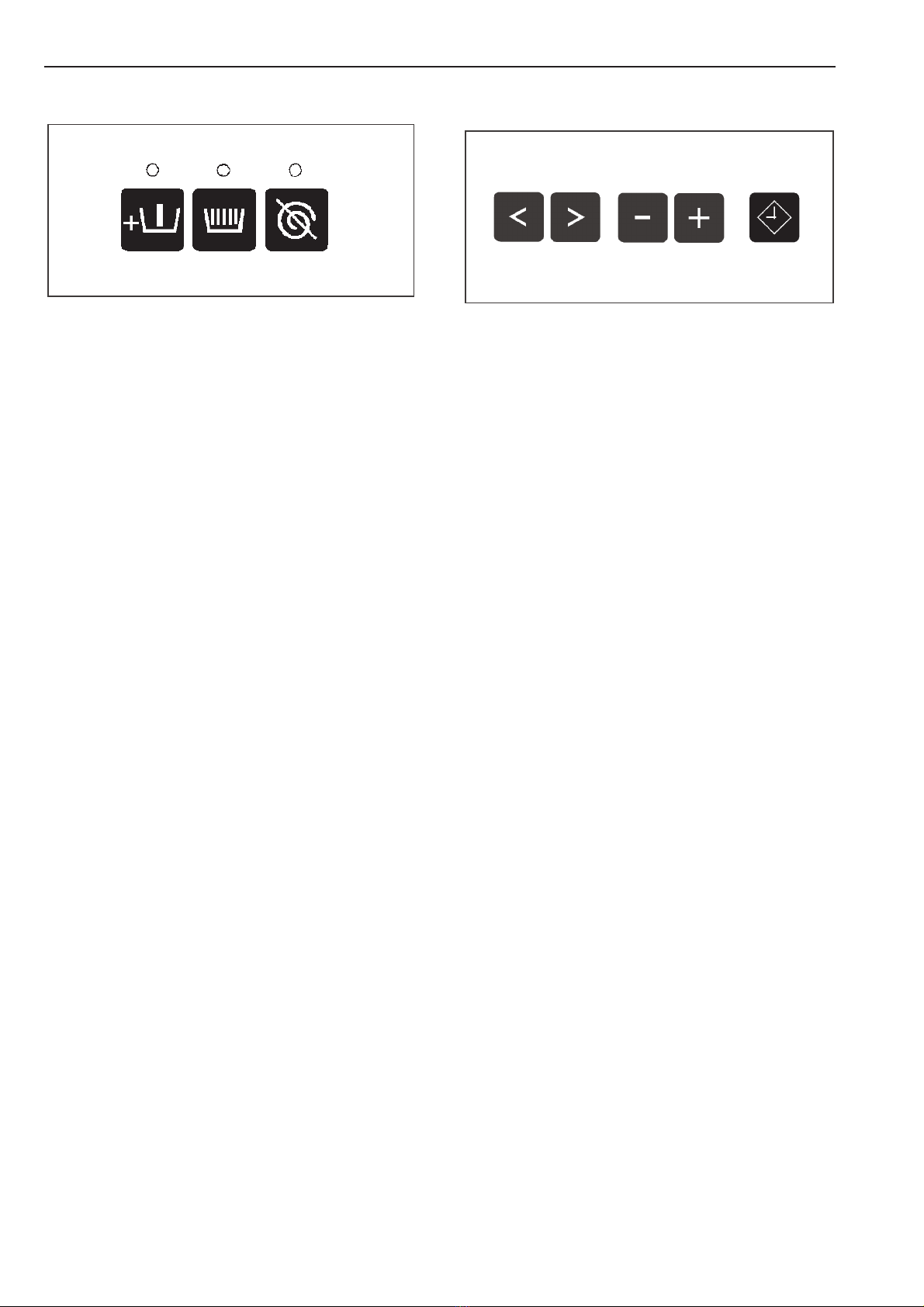

7

Display
The display content will appear once the
machine is turned on. It is up to four lines
and 40 digits long, showing which program
has been selected.

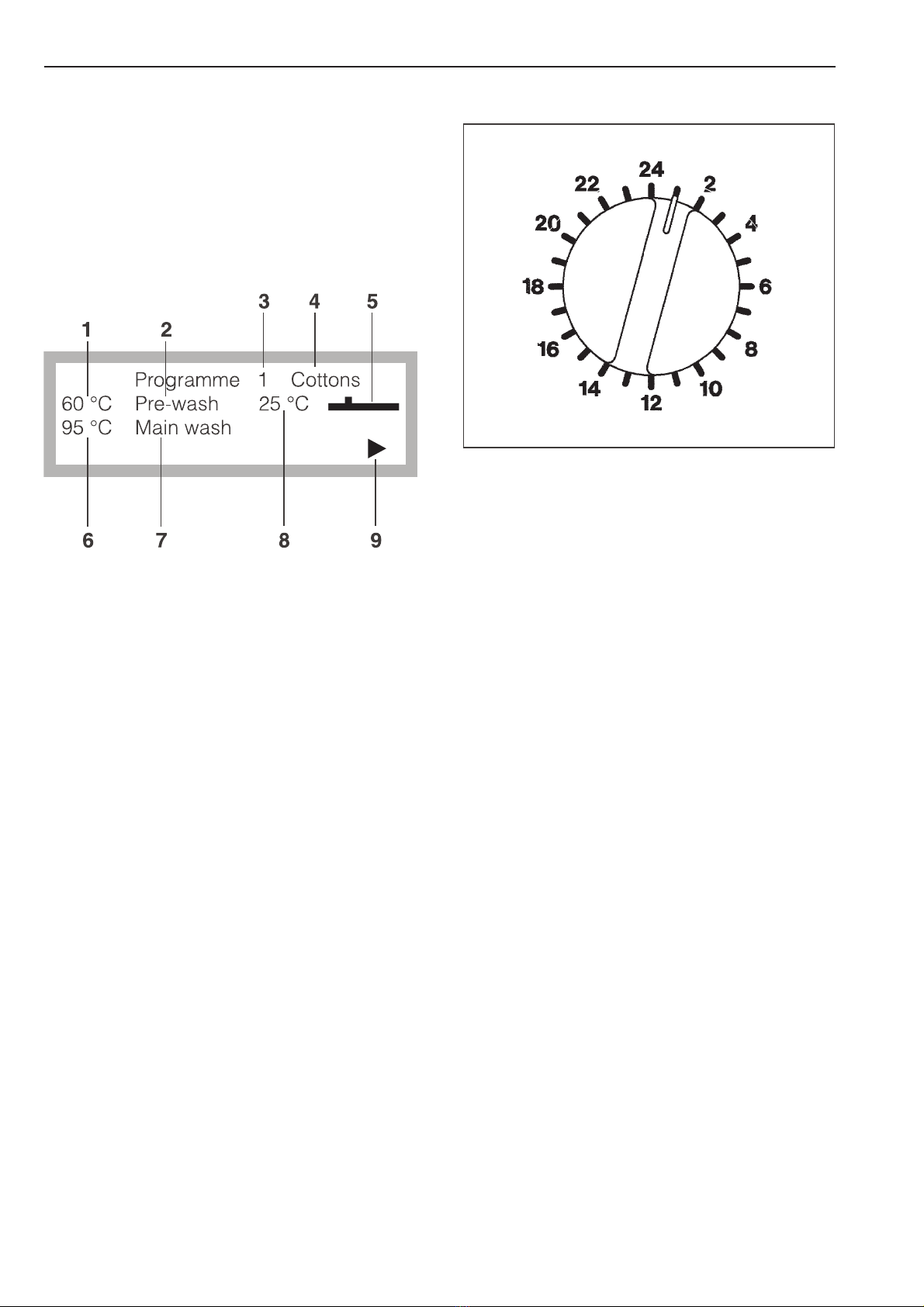

Display during a program
1Planned temperature for the current cycle
2Name of the current cycle
3Program number
4Program name
5Time line for the current cycle
6Planned temperature of the next cycle
7Name of the next cycle
8Actual temperature
9Points to a further display line

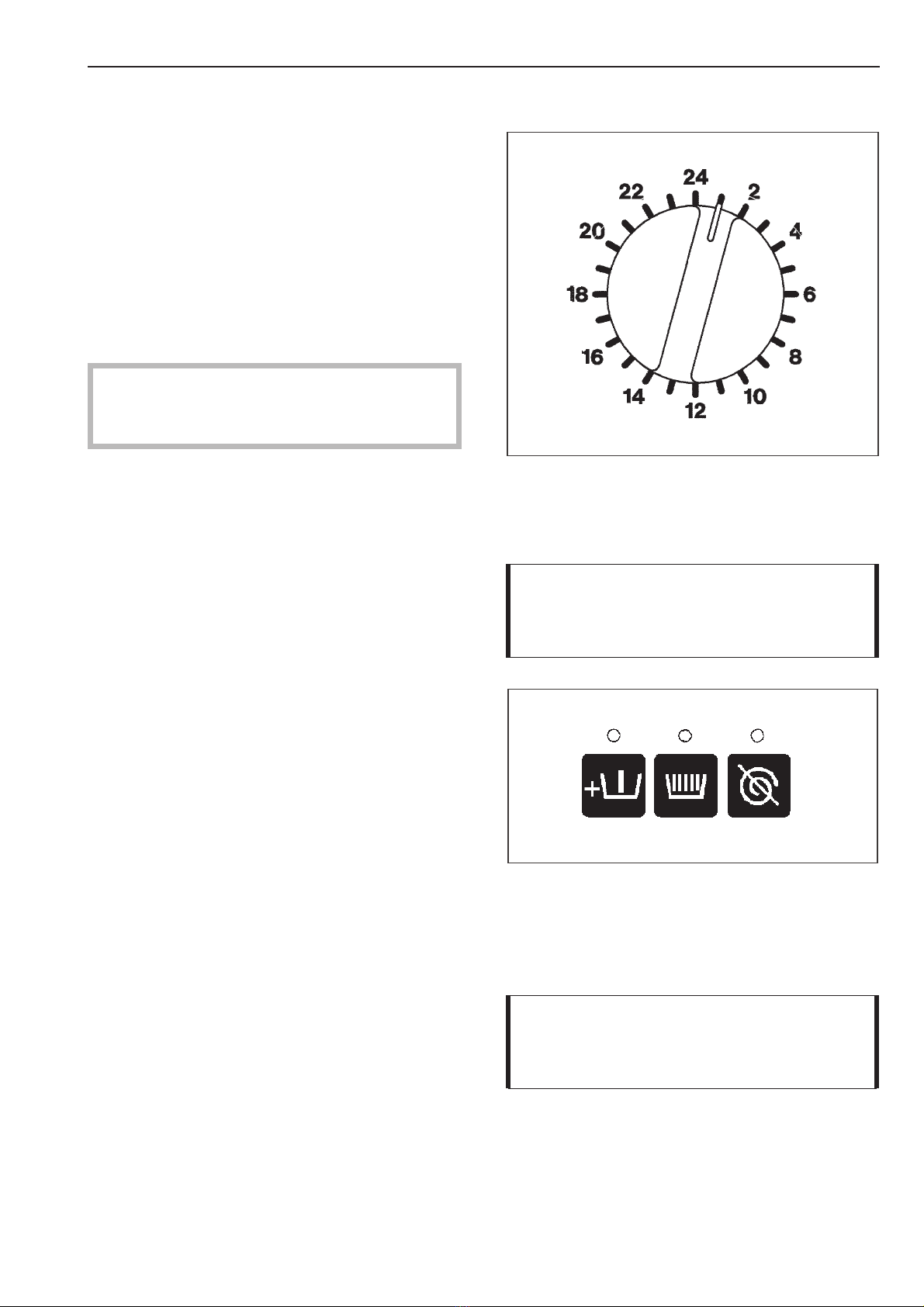

Program selector
Program numbers 1 - 24 can be selected di-
rectly.
Program numbers 25 - 99 can be selected
using selector position 24 and the 4"Plus"
button.
The name of the selected program and its
corresponding number appear in the dis-
play. Program positions 1 - 10 are standard
programs.
The subsequent program positions vary ac-
cording to the version of the model, and are
set out in the Programming Instruction. If the
program selector switch is turned to another
position after the start of the program, the
first line of the display flashes. The program
does not however change.
Main buttons
Y"Power on" button
Z"Power off" button
Guide to the washer-extractor
8

Key access lock
Position A - Free access
Programs which have been allocated free
access can be run.
See Programming Instructions for allocation
of free access.
Position B - Operation
All programs can be started in this position.
The display will show the selected program
information.
Position C - Programming
At this position, programming, copying, de-
leting, printing, altering, giving or barring
free access, and creating new program se-
quences can be done. See Programming In-
structions.
Position D - Unlocking
At this operating level barred programs can
be unlocked. Locked Programs (e.g. Disin-
fection programs) can not be cancelled
once they have started. If the key switch is
turned to position Din such a program, the
program running is unlocked and can be
cancelled. See Programming Instructions.
Access keys
Key 1(2 supplied) for operating levels
Aand B.
Key 2for operating levels A,B,C.
Key 3for operating levels A,B,C,D.
Guide to the washer-extractor
9

Special options buttons
The indicator above each button will light
when a special option is selected.
T"Prewash"
Press this button to add a cycle to a pro-
gram. A Prewash is added to the program.
Press the button a second time to deselect
the function.
U"Starch"
Press this button for starched laundry.
V"Spin-stop"
Press this button if a final spin is not required
after the final rinse.
Cursor buttons and Delay Start
1 2 "Cursor"
The cursor buttons are used to pass back-
wards or forwards into the input fields or into
the next display, (this appears as > <
flashing in the display).
Pressing continuously on the button runs
quickly through the display screens.
3 4 "Minus-/-Plus"
The Minus/Plus buttons allow you to modify
an input field. Pressing continuously on the
buttons makes rapid changes.
W"Delay start"
The display indicates that a start time should
be selected. If the button is pressed again
the Delay start option is cancelled.
If the button is pressed after the start of a
program the current time of day and date
are shown.
^Press this button to delay the start of a pro-
gram.
Guide to the washer-extractor
10

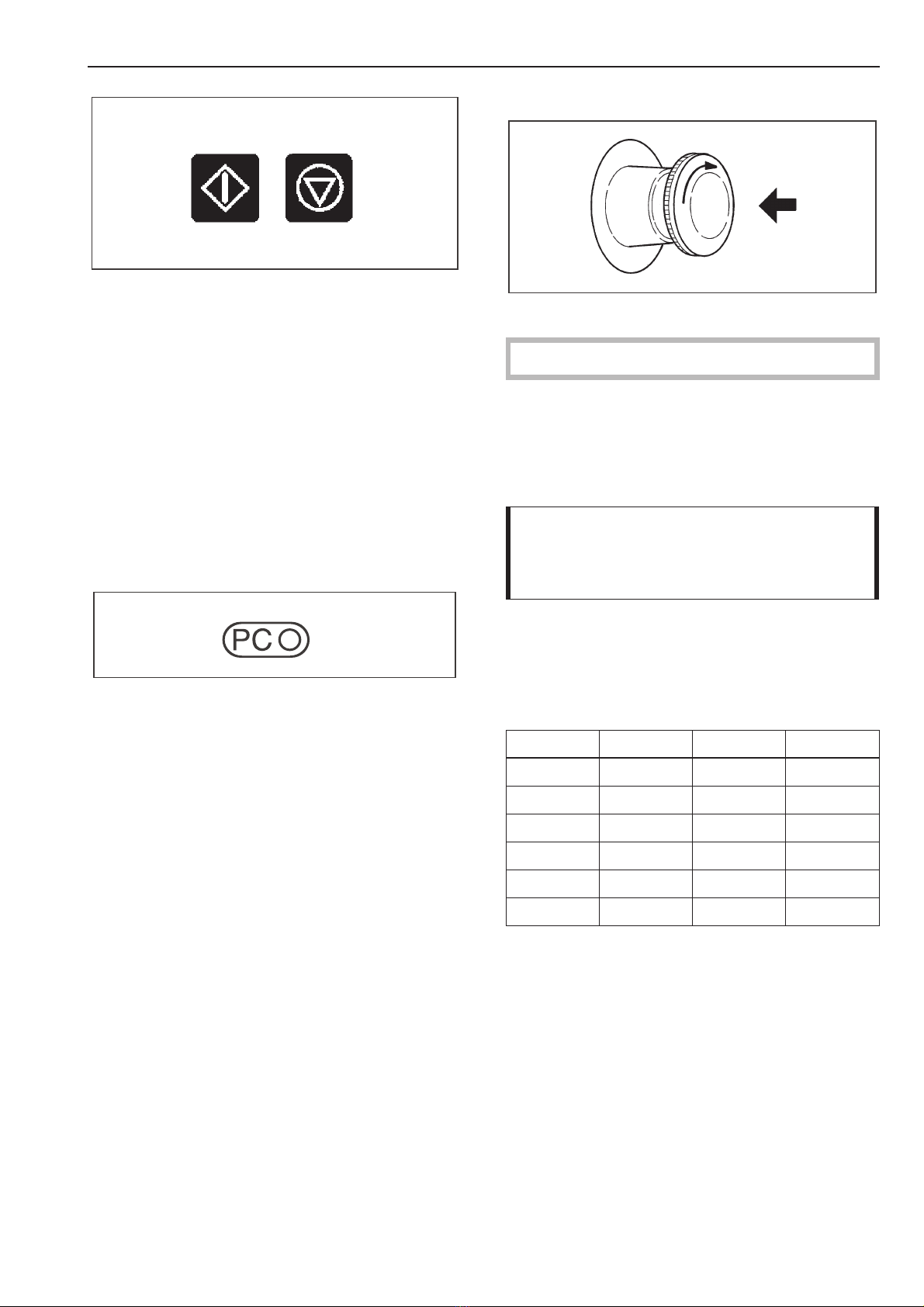

X"Start"
Press this button to start the selected pro-
gram.
7"End"
Press this button to stop a program. Immedi-
ately press once again to terminate a pro-
gram. A stopped program can be restarted
by pressing the Start button.
9Optic interface
Data transfer to and from the machine’s con-
trols and a PC can take place using relevant
software. The optic interface on the ma-
chine’s control panel provides the connec-
tion point.
Emergency Stop Switch
Only to be used in an emergency.
The switch can be reset by turning the
ribbed disc clockwise.
After resetting the following appears in the
display:
PROGRAMME 1 COTTONS
PROGRAMME STOP
THROUGH POWER CUT
Please press the Start button.
^Press X"Start" to continue the program.
Conversion of °C to °F
°C °F °C °F
10 50 70 158
20 68 80 176
30 86 90 194
40 104 100 212
50 122 110 230
60 140 120 248
Guide to the washer-extractor
11

Language selection*
(if necessary)
^Turn the unit on at the wall switch.
^Turn the key to position B"Operation".
Press the "OFF" Zbutton to turn off the
machine.
^Press the X"Start" button and the Y"ON"
button at the same time and hold pressed
in, until the display shows the following:
SETTING LOCAL LANGUAGE
DEUTSCH >ENGLISH<
After selection press Start button.
^Select the desired language with the 1 2
"Cursor" buttons.
The display content being shown is immedi-
ately converted into the selected language.
^Confirm the selected language by press-
ing the X"Start" button.
Setting current time and date*
^Turn off the machine with the Z"Power off"
button.
^Turn the key to position B"Operation".
^Press the W"Delay start" button and the Y
"ON " button at the same time and hold
pressed in, until the display shows the fol-
lowing:
SETTING TIME AND DATE
Time of the day >14< : 30 hrs
Date 23. 03. 1995
After selection press Start.
^Use the 2"Cursor" to position the cursor
on the input field to be changed and set
the change with the 3 4 "Minus or Plus"
buttons.
^Position the 2"Cursor" on the hours and
set the hours.
^Position the cursor on the minutes and set
the minutes.
^Position the cursor on Day and set the day.
^Position the cursor on Month and set the
month.
^Position the cursor on Year and set the
year.
^Store the changes by pressing the X
"Start" button.
*If pauses between programming steps
lasts longer than 25 seconds, the display
will return to the basic stage and the
changes will be lost.
Operation
12

Start up
^Open the on-site water valves, (and the
supply valves for steam, if relevant).
^Turn on the electricity supply at the mains
(on site).
^Turn the key to position B"Operation".
The functions described below are re-
stricted only to the "Operation" condition.
^Empty all pockets.
Foreign objects, (eg nails, coins, paper
clips etc) can cause damage to textiles
and components in the machine.
^Load the laundry.
^Close the drum door.
^Press the Y"Power on" button.
Program selection
^Select a program (e.g. Program 1COT-
TONS).
The display shows the following (example):
PROGRAMME 1 COTTONS
>95 °C< Main wash 1
Rinses 3 1000 RPM
^Use the button T"Prewash" to select a
"Prewash" if required.
When T"Prewash" has been pressed the
following shows in the display:
PROGRAMME 1 COTTONS
>60 °C< Prewash 1
95 °C Main wash 1
Rinses 3 1000 RPM
Operation
13
-

Changing temperaure and spin
speed
The following parameters can be changed
before the start of a program:
–the temperature in 1 °C steps from cold,
15 °C to maximum 95 °C .
–the spin speed in 100 rpm steps.
WS 5240 300 - 1100 rpm
WS 5320 300 - 1000 rpm
PROGRAMME 1 COTTONS
>60°< Prewash 1
95 °C Main wash 1
Rinses 3 1000 rpm
^Use the 2"Cursor" to position the cursor
on the input field for the Prewash tempera-
ture, and set the temperature required
(here 60 °C) with the 3 4 "Minus or Plus".
^Position the cursor on the input field for the
Main wash temperature, and set the tem-
perature required with 3 4 """.
^Position the cursor on the input field for the
Spin speed, and set the spin speed re-
quired with the 3 4 "Minus or Plus".
Adding detergent
^For the standard programs add detergent
to compartment:
2= for the main wash
1= for the Prewash (if required)
3= fabric softener
4= liquid bleach
5= liquid detergent
Detergent use
^Only use low sudsing detergents.
^Do not oversuds the unit with too much de-
tergent.
^Take into account the water hardness, and
the detergent manufacturer’s instructions
when filling the dispenser.
^Do not fill fabric softener or bleaching
agent higher than the level marker in the
relevant dispenser compartment. Other-
wise they will be siphoned into the suds
container.
^Press X"Start" to begin washing.
Operation
14

The program sequence is shown in the dis-
play after the start of the program.
PROGRAMME 1 COTTONS
60 °C Prewash 20 °C ^
^^^^^^^^^
95 °C Main wash
~
In the second display line, here Prewash, the
actual suds temperature is shown, and the
time line extending off to the right, under-
neath the next cycle of the program is
shown, here Main wash.
PROGRAMME 1 COTTONS
95 °C Main wash 20 °C ^
^^^^^^^^^
Rinse 1
~
When the Prewash cycle has finished, the
Main wash appears in the display, with the
actual suds temperature, and the time line
extending off to the right. Underneath the
next cycle of the program is shown, here
Rinse 1.
When an arrow appears at the right of the
last line (~), this indicates that there is a fol-
lowing display line.
Press the 2"Cursor", and further information
on the program appears in the lower lines.
Program end display
PROGRAMME 1 COTTONS
Rinse 1 ^
^^^^^^^^^
Rinse 2
Program end 11 : 25 hrs ~
After water from the last heating phase has
drained away, or after the last "Cool Down"
the program end time is shown in hours and
minutes.
Program end - opening the drum
door
At the end of the program, with a stationary
drum and no more water in the machine the
following display is shown (for example):
PROGRAMME 1 COTTONS
PROGRAM END
DOOR IS UNLOCKED
^Pull the handle to open the door.
^If the door can not be opened, press
against the door, and once again pull on
the handle.
Never use force to open the door.
^Remove the laundry.
If the program is interrupted during a cycle,
the following display messages will appear:
PROGRAMME 1 COTTONS
PROGRAMME END
DOOR IS LOCKED
THERE IS WATER IN THE MACHINE
or:
PROGRAMME 1 COTTONS
PROGRAMME END
DOOR IS LOCKED
DRUM NOT YET STATIONARY
^Select the separate drain or separate spin
program and start it. At the end of the pro-
gram open the door.
If this was the last load of wash for the day,
or longer:
^Leave the drum door open.
^Turn off the machine.
^Switch off the main power supply (at the
wall switch).
^Turn off the on site water and steam (if ap-
plicable) valves.
Operation
15

Delayed Start W
Use the "Delay start" button to program the
unit to start automatically at a later time.
^Turn the key to position B"Operation".
^Turn on the machine and select the re-
quired program with the program selector.
The display shows the following (example):
PROGRAMME 1 COTTONS
>95 °C< Main wash 1
Rinses 3 1000 RPM
^Press W"Delay start".
Here the display shows the following:
PROGRAMME 1 COTTONS
Start time >14< : 30 hrs
After the time has been set
press the Start button
The current time of day (military time) is al-
ways displayed first.
The cursor points to the input field for
‘hours’.
^Select the start time with 3 4 "Minus or
Plus" buttons.
^Position the cursor on the input field for
minutes and select the minutes with 3 4
"Minus or Plus".
Before pressing the X"Start" button the
start time can be deleted by pressing
again on the W"Delay start" button, or by
turning the machine off and then on
again.
^Press X"Start" to confirm the delayed
start, and the following will appear in the
display:
PROGRAMME 1 COTTONS
95 °C Main wash 1
Start time 18 : 30 hrs
When the start time is reached the program
begins and the display shows the program
sequence. If W"Delay start" is pressed dur-
ing the program, the actual time of day and
date are shown.
If 7"End" is pressed the delay start function
will be cancelled.
Operation
16

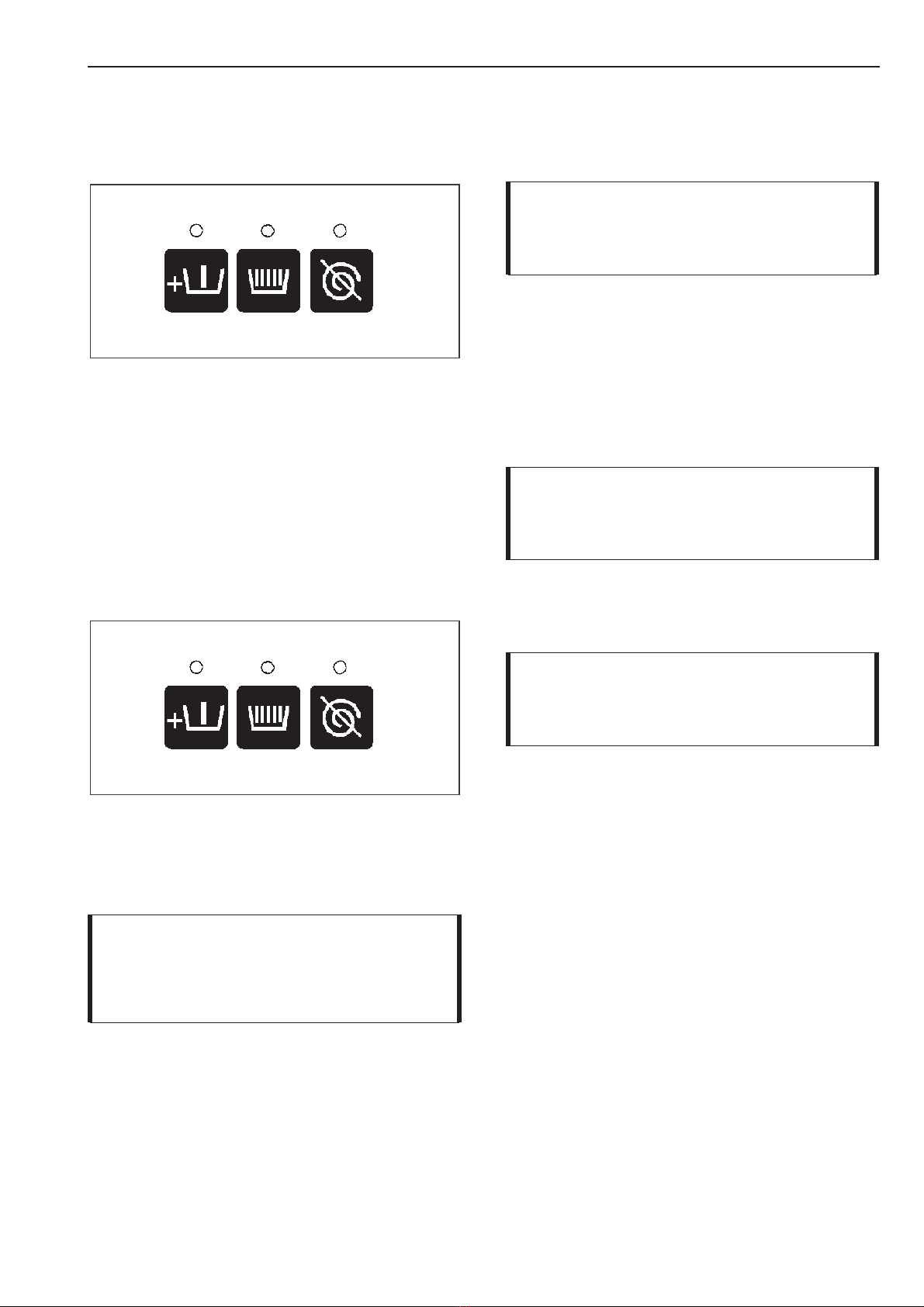

Prewash T
A Prewash should be selected when the
load is heavily soiled.
^A Prewash can be selected before the
start, in Programs 1to 6, by pressing T
"Prewash". The indicator light above the
button lights up.
Starch U
Starching can be selected in all programs
(except "Separate spin" and "Separate
drain").
"Starch hold" flashes in the display when it is
time to add starch to the laundry.
Li uid starch
PROGRAMME 1 COTTONS
Rinse 3 ^
^^^^^^^^^
STARCH HOLD
Press the Starch and Starch hold button.
^Add liquid starch into compartment 3, 4 or
5. The wash time is automatically extended
by 4 minutes.
^Press U"Starch" to continue the program.
Powder and low viscosity starches
When the "Starch" point is reached in the se-
quence, "Starch hold" flashes in the Display.
PROGRAMME 1 COTTONS
Rinse 3
STARCH HOLD
Press the Starch and Starch hold button.
^Open the drum door and add the starch
formulation, prepared according to the
manufacturer’s instructions.
^Shut the drum door.
The message "PROGRAM STOP POWER
CUT" appears in the display.
PROGRAMME 1 COTTONS
PROGRAMME STOP
THROUGH POWER CUT
Please press the Start button.
^Press X"Start".
This message appears again:
PROGRAMME 1 COTTONS
Rinse 3
STARCH HOLD
Press the Starch and Starch hold button.
^Press the U"Starch" button, (the indicator
light goes out) and the program continues.
Notes
17
-
-

Without spin V
Without spin can be selected in all programs
(except "Separate spin").
When the "Spin" program is reached, "Spin
stop" flashes in the display.
PROGRAMME 2 COTTONS
Rinse 3 ^
^^^^^^^^^
WITHOUT SPIN
Press without spin or End button.
^Either press V"Without spin" again to con-
tinue the program with a spin, or press 7
"End", for the program to finish with water
in the machine.
Bleaching agents
Only use bleaching agents on textiles with
the symbol yon the wash care label.
Liquid bleaching agents must only be added
to compartment 4. The agent will then be
dispensed automatically during the second
rinse (cold bleaching).
Liquid bleaching agents should only be
used with colored fabrics if the textile manu-
facturer’s wash care label states that the ma-
terial is color fast and suitable for bleaching.
For cold bleaching the 4th rinse must be
programmed, (see Programming Instruc-
tions).
Notes
18
-

Skipping program cycles
Cycles of a program in progress can be
skipped or repeated.
^Press 7"End" and the program is
stopped.
PROGRAMME 2 COTTONS
Main wash
PROGRAMME STOP
PROGRAMME STOP flashes in the display.
^Use the 1or 2"Cursor" to skip ahead or
move back to a cycle in the program.
^At the position required press X"Start" to
continue the program again.
Program cancellation
^To cancel a program, press 7"End" twice
in succession.
If the program was cancelled while there
was water in the machine, or during a spin,
the following may appear in the display (ex-
ample):
PROGRAMME 2 COTTONS
PROGRAMME END
DOOR IS LOCKED
WATER IS IN THE MACHINE
or:
PROGRAMME 2 COTTONS
PROGRAMME END
DOOR IS LOCKED
DRUM IS NOT YET STATIONARY
^Run the Separate Drain or Separate Spin
program. On completion the door can be
opened.
Rinsing with hot water
Standard programs
1Cottons 200 °F (95°C) and
2Cottons 140 °F (60°C)
are programmed to rinse with hot water.
If a hot water supply is available it is an ad-
vantage to run the final rinse with hot water.
This reduces the residual moisture content of
the laundry after spinning.
If the laundry is dried or ironed immediately
after washing, drying times will be shortened
and ironing easier.
Notes
19

Dispenser pump and Suction pipe
1= Hose connection socket (suction side)
2= Hose connection socket (pressure side)
3= Leakage outlet
4= Suction inlet opening
5= Level indicator
When the dispenser container is empty
the pump and the machine will shut off.
PROGRAMME - - - - - - - - - - -
PROGRAMME STOP
DISPENSING SYSTEM FAULT
Dispensing container 1 empty.
The display will indicate that the detergent
dispenser is empty.
The program will continue automatically
once the container has been refilled.
Amount to be dispensed
^Follow the detergent manufacturer’s guide-
lines.
Always follow the instructions of the chemi-
cal manufacturer when using cleaning
agents and special application chemicals.
Only use such chemicals for the purpose
and in the situation specified by the manu-
facturer to prevent adverse chemical reac-
tions and material damage.
If in doubt, contact the detergent manu-
facturer to verify its safety in this machine.
Correct dosage also depends on the viscos-
ity of the liquid detergent. It should stand at
normal room temperature before being used.
Maintenance of the dispensing system
^Rinse the dispensing system through with
hot water every 2 weeks, or before shutting
the dispenser pumps down for any length
of time, to prevent the system clogging.
^Rinse out the suction pipes with water.
^Put the suction pipes in a container with
warm water, 104 - 122 °F (40 - 50 °C) .
^In Service-Operation turn on each pump,
until the dispensing system is rinsed
through.
^Check the connection points, hoses and
washers for leaks.
Li uid dispensing
20
