Miele WS 5425 MC 7 Professional User manual

Operating Instructions
for Washer-extractor
WS 5425 MC 7
It is essential to read these
operating instructions before Q
installing or using the machine,
to avoid the risk of accident
or damage to the machine. M.-Nr. 04 386 930

Contents
Page
Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Use of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Preparing for Use
Help to protect our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Operation
Washing environmentally and economically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Preparing the wash load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wash care symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Adding detergent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
– fabric conditioner/starch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Selecting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
– changing a programme sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
– programmes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
programme end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Maintenance
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Problem solving guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installation and connection
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
2

Guide to the machine
1Machine lid
2Detergent dispenser / Control panel
3Drum door
4Access panel - drainage system
(and/or pump and filter),
emergency door opener
5Height-adjustable feet
6Cable entry for extra equipment
7Inlet hose (cold water)
8Inlet hose (hot water)
9Transit fitting (remove before
commissioning)
10 Supply power cable
Drain pump or drain valv
(as ordered)
11 Drain hose (for drain pump)
12 Drain hose (for drain valve)
13 Height-adjustable feet
3

Guide to the machine
Pushbutton switches
aDoor
opens the drum door, releases the
“with pre-wash” button if this was
pushed in.
+iWith Pre-wash
Can be selected with programmes
A, B, Cand E
hStart
Starts the programme
Additional display and indica-
tor lights
(above the pushbutton switches)
&°C Temperature
jmin Time left
Programme sequence indica-
tor lights
I/hOn/Start
iPre-wash
j Main wash
nRinse
nRinse
nRinse
qDrain
uFinal spin
rEnd
pq Water inlet/Drain
Programmes
ACottons
BMinimum iron
CDelicates/Synthetics
DWoollens
EShort
FSeparate spin
4

Guide to the machine
Detergent dispener drawer
Compartment i- for the pre-wash
Compartment j- for the main wash
Compartment p- (with extra lid), for
fabric conditioner or
liquid starch
formulation
Control panel
A small panel is provided with the ma-
chine to explain the symbols on the
control panel. This is to be inserted into
the front of the detergent dispenser
drawer.
Set the small panel into the lower
guide, press downwards and at the
same time slot it in at the top.
Use of the appliance
This automatic washing machine is
particularly suitable for use in commu-
nal laundry rooms, laundrettes etc.,
where considerable amounts of soiled
laundry occur.
5

Warning and Safety Instructions
Please read the operating instruc-
tions before using this machine for
the first time. They contain import-
ant information about the safety, use
and maintenance of the machine.
This will avoid the risk of accidents
and damage to the machine.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on any future owner of
the machine.
Correct usage
Only use the washer-extractor to
wash items which are declared by
the manufacturer to be machine-wash-
able on the wash-care label.
Any other applications may be dan-
gerous. The manufacturer is not liable
for damage resulting from improper
use or operation.
Do not let small children play with
the machine and its controls or
operate it. Please supervise its use by
the elderly or infirm.
Technical safety
Before setting up the machine
check it for any externally visible
damage.
Do not install or use a damaged ma-
chine.
Before connecting the machine, en-
sure that the connection data on
the data plate (fusing, voltage and fre-
quency) matches the mains electricity
supply. If in any doubt, consult a quali-
fied electrician.
The electrical safety of this ma-
chine can only be guaranteed
when continuity is complete between
the machine and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
regularly tested by a qualified electri-
cian.
The manufacturer can not be held re-
sponsible for the consequences of an
inadequate earthing system.
The machine is built in accordance
with current safety requirements.
Unauthorised repairs could result in un-
foreseen dangers for the user, for
which the manufacturer can not accept
responsibility. Repairs should only be
undertaken by a Miele approved engin-
eer.
The machine is only completely iso-
lated from the electricity supply
when:
– the plug is withdrawn, or:
– it is switched off at the mains, or
– the mains fuse is withdrawn.
6

Warning and Safety Instructions
The best materials are used in the
manufacture of this machine, and
every care is taken to check all parts.
However, with time, deterioration of
parts can occur, especially with such
components as hoses, giving rise to
leaks. This should be borne in mind if
operating the machine without supervi-
sion. Check the hose regularly for signs
of wear, and change in good time, to
avoid leaks and subsequent damage.
Faulty components must only be
exchanged for Miele original spare
parts. Only when these parts are fitted
can the safety standards of the ma-
chine be guaranteed.
Use
Do not install your washing ma-
chine in rooms where sub-zero
temperatures may occur. Frozen hoses
may burst under pressure. The relia-
bility of the electronic control system
may be impaired at temperatures
below freezing point.
In countries where there are areas
which may be subject to infesta-
tion by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any dam-
age which may be caused by cock-
roaches or other vermin will not be
covered by the appliance guarantee.
Before using the machine for the
first time, check that the transit fit-
ting at the rear of the machine has
been removed (see “Installation”). Dur-
ing spinning, a transit fitting which is
still in place may result in damage to
both the machine and adjacent furni-
ture or appliances.
Turn off the stopcock if the ma-
chine will be left for any length of
time (e.g. holiday), especially if there is
no floor drain (gully) in the immediate
vacinity.
Flooding danger.
If hooking the drain hose into a
wash basin, check that the water can
drain off quickly enough to prevent the
sink from overflowing.
Make sure the drain hose is secure, so
that the force of the water flowing out of
the hose does not dislodge it. Other-
wise this will result in flooding.
Take care to ensure that foreign ob-
jects (e.g. nails, needles, coins,
paper clips, etc.) do not find their way
into the machine with the washing (e.g.
in pockets). Foreign objects can dam-
age components of the machine, which
in turn, can result in damage to the
washing.
7

Warning and Safety Instructions
If the correct amount of detergent
is dispensed, the machine should
not need to be descaled. If however,
you do wish to descale the machine,
only use proprietary non-corrosive de-
scaling agents and strictly observe the
instructions. Consult the Miele Cus-
tomer Service Department.
Textiles which have been pre-
treated in detergents containing
solvents must be thoroughly rinsed in
clean water before being washed in the
machine.
Never use detergents containing
solvents in this machine, as this
may result in damage to component
parts and create toxic fumes. Such
detergents also pose a fire and explo-
sion hazard.
Dye removers may contain sulphur
compounds which may damage
washing machines. Only use dyes or
dye removers specified by the manu-
facturer as being suitable for use in a
washing machine. Always observe the
manufacturer’s instructions carefully.
If washing at very high tempera-
tures remember that the porthole
glass will be hot. Do not let children
touch it during a hot wash programme.
Always make sure the drum is sta-
tionary before reaching in to
remove washing. Reaching into a mov-
ing drum is extremely dangerous.
Accessories
Accessory parts may only be fitted
when expressly approved by
Miele. If other parts are used, guaran-
tee, performance and product liability
claims may be invalidated.
Disposal of your old machine:
Before discarding an old machine
unplug it. Render the plug useless.
Cut off the cable directly behind the ap-
pliance to prevent misuse.
8

Help to protect our environment
Disposal of the packing material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
– Corrugated paper / card
– Polystyrene - CFC free
– Polyethylene foil (transparent) PE
– Fibre board - solvent free
– Wood - untreated
– Packaging straps: Polypropylene PP
Rather than just throwing these ma-
terials away, please ensure they are
offered for recycling.
Disposal of your old machine
Old machines contain materials which
can be reclaimed or recycled. Please
contact your dealer, your local waste
collection centre or scrap merchant
about potential recycling schemes.
Ensure that the machine presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
9

Washing environmentally and economically
Washing environmentally
Caring for the environment means sav-
ing water, energy and detergent when
washing. This machine is equipped
with the Hydromatic System and Miele
“wash system” with ball valve. These
systems contain a variety of technical
features, such as the drum ribs, which
are designed to enable economical
washing without compromising on
results.
The automatic load control facility en-
ables loads of between 1 and 5 kg to
be washed using only as much water
and electricity as is required for an ef-
fective wash.
Spinning at the high speed of 1200
rpm reduces drying times and energy
consumption if laundry is dried in a
tumble dryer after washing.
Economy tips
To help you wash most economically,
remember the following tips:
Always wash with the maximum
laundry load specified for each pro-
gramme. This uses the energy to the
best advantage.
Only use the correct amount of deter-
gent required for the water hardness
level in your area, as recommended
by the manufacturer.
If laundry is not heavily soiled, select
a lower temperature setting than indi-
cated on the laundry care label.
Use the SHORT programme for
laundry that just needs freshening
up, or is only very lightly soiled.
10

Before using for the first time
Important: the appliance must be
properly installed and connected to
the water and electricity supply ac-
cording to local and national regula-
tions.
Check that the transit fitting at the
rear has been removed.
For further information read the instruc-
tions on pages 35-43.
Washing out the machine
Any residual lubricants and water from
testing still in the machine should be
flushed out as follows:
Do not load any laundry in the ma-
chine.
Add a little detergent to compart-
ment j.
Turn the programme selector switch
to the “A” Cottons 60°C programme.
Press the Start hbutton.
Water hardness reminder
The amount of detergent will depend
on various factors including water hard-
ness. Your local water authority can ad-
vise on water hardness in your area.
The dial in the detergent box can be
set as a water hardness reminder (1-4,
see Chart p.14). Use the spatula (sup-
plied for opening the drain filter panel).
11

Preparing the wash load
Empty all pockets.
Foreign objects (e.g. nails, coins,
paper clips etc.) can cause dam-
age to textiles and components in
the machine.
Sort the laundry
Most garments have a textile care label
in the collar or side seam. Sort the
laundry by care label symbols.
Only wash items in this machine which
are declared by the manufacturer as
being machine washable on the textile
care label.
Dark textiles often contain excess dye,
and should be washed separately sev-
eral times before being included in a
mixed load.
Delicate textiles should be washed sep-
arately in a delicates programme.
Only wash textiles made from wool or
wool mixtures if they are declared as
being suitable for machine washing on
the textile care label.
Pre-treating the washing
Badly soiled areas, e.g. collars and
cuffs, and water soluble stains, can be
pre-treated with bar soap, liquid deter-
gent or detergent mixed into a solution
or paste.
With particularly stubborn stains ask
your Dry Cleaner for advice.
Do not use detergents containing sol-
vents in this machine.
Loading the drum
Unfold laundry and load loosely in the
drum. To achieve best results it is advis-
able to make up mixed loads consist-
ing of both large and small items. This
improves the washing effect and helps
distribute the load evenly to keep the
machine stable and reduce the noise
level during spinning. Overloading re-
duces the wash result and causes
more creasing.
It is advisable to weigh the load first to
make best use of the machine’s capac-
ity. (See pp. 21-23 for max. suggested
loads).
With curtains: Remove lead weights
and strips or place in a laundry bag.
Woollens and knitted garments should
be turned inside out if the manufacturer
recommends it.
Close the drum door
Make sure that there is no obstruction
between the drum door and seal.
12

Textile care symbols
Washing
987 Cottons
54321 Minimum iron
21 Delicates/Synthetics
a@ Machine washable
Woollens
The significance of the bar beneath the
wash tub:
eno bar,
normal (maximum) agitation, eg Cot-
tons programme
fbar,
reduced overall action, eg Minimum
iron and Delicates programme
gbroken bar,
much reduced (minimum) agitation,
Woollens programme
Machine washable woollens
Use the special “Wool” programme,
and only wash woollens bearing the
label shown here:
This symbol is registered by the IWS
(International Wool Secretariat).
/Hand wash
hdo not wash
ABCdry clean
Ddo not dry clean
ysuitable for chlorine bleaching
znot suitable for chlorin
bleaching
Tumble dry
qat normal temperature
rat the lower temperature
sdo not tumble dry
Ironing
Ihot iron
Hmedium hot iron
Gcool iron
Jdo not iron
N.B. If you have any textiles with the
older wash care labels, select a pro-
gramme according to the table below.
[:] Cottons
?;\ Minimum iron
={ Delicates/Synthetics
#Woollens
13

Adding detergent
All modern detergents produced for
automatic washing machines are suit-
able, including liquid, compact (con-
centrated) and special application
detergents. Use dispensing aids, e.g.
balls, if these are supplied with the
detergent. Woollens and knitware con-
taining wool mixtures should be
washed using a detergent specifically
designed for washing woollens.
Add the right amount of detergent as
recommended on the packaging.
The amount dispensed will depend on
the following:
– the quantity of laundry
– the water hardness level
– the level of soiling
It is important to dispense the
correct amount, because . . .
. . . too little detergent results in the
following:
– The laundry will not be properly
clean and will in time become grey
and hard to the touch.
– Greasy particles cling to the laundry.
– Lime deposits on the heater ele-
ments.
. . . too much detergent results in the
following:
– Excessive foam.
– Low level of agitation.
– Poor washing and rinsing results.
Water Softeners
A water softener can be used to cut
down on the use of detergents in water
hardness ranges 2 - 4. Dispense ac-
cording to the amount specified on the
packaging. First add detergent and
then the water softener. Use a quantity
of detergent as for soft water.
We recommend:
if you wash using several components
(e.g. special application detergents),
dispense the agents in the following
order into compartment iand / or j.
1. Detergent
2. Water softener
3. Stain salts
This way the agents are distributed bet-
ter.
Water hardness
Hardness
range
water mg/litre Clarke’s
scale
°dH
(German)
1
2
3
4
soft
medium
hard
very hard
up to 135
up to 250
up to 380
over 380
up to 10°
10° to 20°
20° to 25°
over 25°
0 - 7°
7 - 14°
14° - 21°
over 21°
14

Fabric conditioners / starch formulations
Fabric conditioners make garments
soft and fluffy to handle and help pre-
vent static cling when tumble drying.
Dispense according to the manufac-
turer’s recommendations.

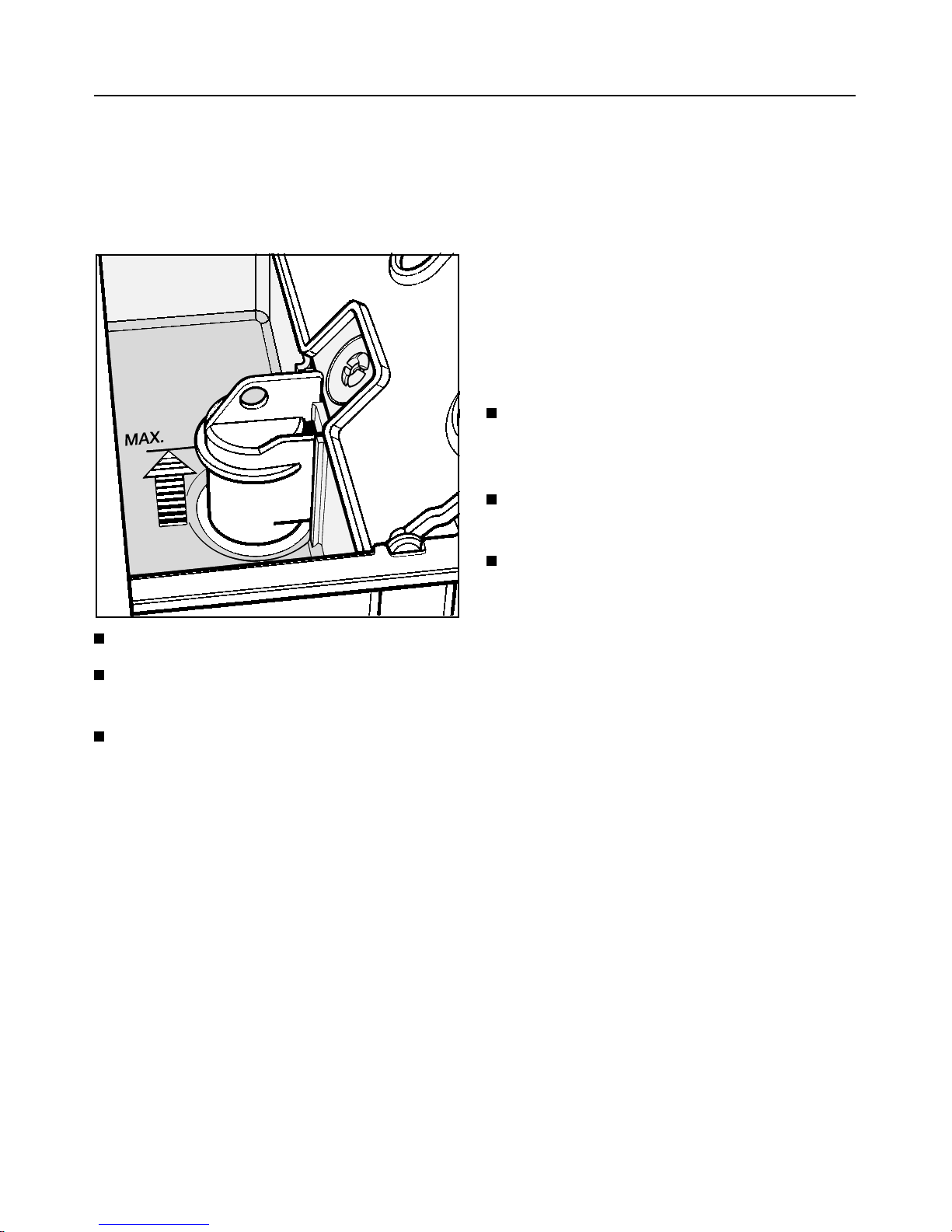

Open the lid of compartment p
Add fabric conditioner, but do not ex-
ceed the max. level mark.
Close the compartment lid and push
in the dispenser drawer.
The conditioner is automatically dis-
pensed in the last rinse. At the end of
the programme a small amount of
water remains in the fabric conditioner
compartment.
Texturiser and liquid starch for-
mulations
These synthetic starch formulations
give body to items e.g. shirts, table-
cloths and bed linen. Add starch formu-
lations to the fabric conditioner com-
partment following the same procedure
as for fabric conditioner.
Liquid starch
Prepare and dispense the starch sol-
ution in accordance with the manu-
facturer’s instructions.
Add to compartment pbut do not
exceed the marker level.
Close the compartment lid.
15

Programme selection
The following basic programmes are
available:
ACottons
Low water level for washing, high water
level for rinsing; 3 rinses; final spin
max. 1200 rpm.
BMinimum iron
Low water level for washing, medium
water level for rinsing; 3 rinses; final
spin max. 900 rpm.
CDelicates/Synthetics
High water level for washing and rins-
ing; 3 rinses; final spin max. 600 rpm.
DWoollens
Mediium water level for washing, high
water level for rinsing; 3 rinses; final
spin max. 900 rpm. Reduced drum
agitation.
See p. 23 for descriptions of settings
Eand F.
The following function can be chosen
additionally;
+i With pre-wash
for heavily soiled and stained laundry
items.
Selecting a programme
Open the stopcock
Load the drum and close the door.
Add detergent and fabric condi-
tioner or liquid starch if required.
Turn the programme selector switch
to the required position.
Select “with pre-wash” if required.
Press “Start” button.
16

Programme selection
Machines with coin-box / time
counter (see p. 37)
Proceed as above under “Selecting a
programme” as far as “Turn the pro-
gramme selector switch to the required
position”.
Select “with pre-wash” if required.
Insert coins / tokens.
Press the “Start” button.
Note:
If the above procedure is not followed
coins / tokens might be ’swallowed’.
This will happen if, for example, after in-
serting the coins / tokens and before
pressing the “Start” button, the pro-
gramme selector switch is turned be-
yond the End position to a different pro-
gramme. It will also happen on
machines with a time counter if a pro-
gramme is interrupted for longer than
20 seconds.
Coins and tokens should be emptied
on a regular basis to ensure the coin
box does not get jammed full.
17

Programme selection
Additional displays
There is a display field above the push-
button switches for the following:
– Temperature display
– Time left display
&°C Temperature display
After a programme has started the ac-
tual suds temperature is displayed in
5°C steps until the temperature set for
the main wash is reached.
The “&°C Temperature” indicator light
illuminates.
j min Time left display
Once the temperature set for the main
wash has been reached the time left for
the programme to run shows in the dis-
play in hours and minutes.
The “jmin Time” indicator lights up.
The time left counts down in one min-
ute intervals.
18

Changing the programme sequence
A programme can be changed at any
time, as long as the programme se-
quence allows the change.
Turn the programme selector switch
to the required programme. The new
programme will continue in the same
stage as in the previously selected
programme.
Except:
If the programme selector switch was
turned past the rEnd position.
When changing from or to:
–FSeparate spin or
the previous programme is cancelled.
Press “Start” and the programme
chosen will start as new.
When using a coin box / time counter
the programme is locked after 3
minutes and no more changes are
possible.
To cancel a programme:
Turn the programme selector switch
to the rEnd position.
The indicator lights flash through the
other programme stages until the
rEnd position is reached.
To omit a programme stage
A programme stage must first be
reached before it can be omitted:
Turn the programme selector to
rEnd.
As soon as the programme sequence
light for the stage at which the pro-
gramme should continue starts
flashing:
turn the programme selector switch
to the appropriate programme with-
in 3 seconds.
To repeat a programme stage:
A programme stage must have fini-
shed before it can be repeated:
Turn the programme selector switch
to rEnd.
When rEnd illuminates in the se-
quence display:
Select the new programme required.
Press the “Start” button.
After approx. 5 seconds, turn the pro-
gramme selector switch to rEnd
again.
Once the indicator light of the pro-
gramme stage to be repeated starts
flashing:
turn the programme selector switch
to the appropriate programme with-
in a period of 3 seconds.
19

Changing the programme sequence
Additional programmable func-
tions
It is possible to have additional pro-
grammable functions and / or pro-
gramme sequence changes carried
out by a Service Dealer or Service En-
gineer. Any changes to the standard
machine version must be noted on a
card left with the machine as a record
for any subsequent servicing work.
20
