Mikado LOGO 10 3D User manual

www.mikado-heli.de
LOGO 10 3D
© Mikado Modellhubschrauber, V2.0
Mikado Modellhubschrauber • Friedrich-Klausing-Straße 2 • 14469 Potsdam • Germany
Phone [phone] • Fax [phone] • www.mikado-heli.de
Manual

Manual LOGO 10 3D Page2 ©MikadoModellhubschrauber
Index
1 Main Frame .........................................5
1.1 Motorplate 5
1.2 Main Frame 6
1.3 Bearing Case 7
2 Landing Gear.....................................8
3 Motor Installation ...............................9
3.1 Motor Adaptor Plate 9
3.2 Motor Attachment 10
4 Main Gear ..........................................11
4.1 Hub 11
4.2 Adjusting Gear Backlash 12
5 Tail Rotor............................................13
5.1 Tail Rotor Shaft 14
5.2 Vertical Fin 14
5.3 Pitch Slider 15
5.4 Tail Rotor Lever 16
5.5 Tail Rotor Hub 17
5.6 Final Assembly 18
6 Tail Boom...........................................19
6.1 Tail Boom Assembly 19
6.2 Tail Boom Holder 20
6.3 Tail Drive Pulley 21
6.4 Tail Control Rod 22
6.5 Installation 23
6.6 Horizontal Fin 24
6.7 Tail Rotor Blades 24
7 Finished Main Frame & Tail Boom.25
8 Canopy ..............................................26
8.1 Canopy Mounting 26
8.2 Decals 27
9 Swash Plate ......................................28
10 Preparation for Servo Installation29
10.1 120° CCPM 29
10.2 Servo Arms 29
10.3 Servo Centering 30
10.4 Linkage 30
11 Servo Installation ...........................31
11.1 Tail Rotor Servo 31
11.2 Elevator Servo 32
11.3 Elevator Linkage/Swashplate 33
11.4 Canopy Fixing Bolts 33
11.5 Aileron Servo left 34
11.6 Aileron Servo right 35
11.7 Aileron Linkage 36
12 Wash-Out .........................................37
12.1 Assembly 37
12.2 Installation 38
13 Main Rotor Head ............................39
13.2 Head Adjustment 39
13.2 Blade Grips 40
13.3 Mixing Arms 40
13.4 Yoke 41
13.5 Seesaw 42
13.6 Flybar Control Bridge 43
13.7 Ball Bolts 43
13.8 Flybar 44
13.9 Flybar Paddles 44
13.10 Final Assembly 45
13.11 Rotor Head Linkage 46
14 Logo 10 assembled.......................48
15 RC Installation................................49
15.1 Receiver, Gyro, Speed Controller 49
15.2 Battery 50
16 RC Programming ...........................51
17 Rotor Blades...................................57
18 Final Pre-Flight Check ..................58
18.1 Direction of Main and Tail Rotation 58
18.2 Blade Tracking Adjustment 58
19 Control Movements.......................59
19.1 Pitch/Throttle 59
19.2 Rudder 59
19.3 Elevator 60
19.4 Aileron 60
20 Overview .........................................61
20.1 Chassis 61
20.2 Rotor Head 62
20.3 Tail Boom/Tail Rotor 63
21 Tuning/Accessories.......................64
All parts shown in the boxes are displayed in real size.

Manual LOGO 10 3D Page3 ©MikadoModellhubschrauber
Safety Instructions
OPERATING YOUR MODEL SAFELY
Operate the helicopter in spacious areas with no people nearby.
! Warning: Do NOT operate the helicopter in the following places and situations
(or else you risk severe accidents):
in places where children gather or people pass through
in residential areas and parks
indoors and in limited space
in windy weather or when there is any rain, snow, fog or other precipitation
If you do not observe these instructions you may be held reliable for personal injury or property damage!
Always check the R/C system prior to operating your helicopter.
When the R/C system batteries get weaker, the operational range of the R/C system decreases. Note that you
may lose control of your model when operating it under such conditions.
Keep in mind that other people around you might also be operating a R/C model.
Never use a frequency which someone else is using at the same time. Radio signals will be mixed and you will
lose control of your model.
If the model shows irregular behavior, bring the model to a halt immediately. Turn off all power switches and
disconnectthebatteries.Investigate the reason and fix theproblem.Donotoperatethe model again as long asthe
problem is not solved, as this may lead to further trouble and unforeseen accidents.
! Warning: In order to prevent accidents and personal injury, be sure to observe the following:
Before flying the helicopter, ensurethatallscrewsaretightened.Asingle loosescrewmaycausea major accident.
Replace all broken or defective parts with new ones, as damaged parts lead to crashes.
Never approach a spinning rotor. Keep at least 10 meters/yards away from a spinning rotor blades.
Do not touch the motor immediately after use. It may be hot enough to cause burns.
Perform all necessary maintenance.
PRIOR TO ADJUSTING AND OPERATING YOUR MODEL, OBSERVE THE FOLLOWING
!Warning:Operate the helicopter only outdoors and out of people’s reach as the main rotor operates at high rpm!
! Warning: While adjusting, stand at least 10 meters/yards away from the helicopter!
Novice R/C helicopter pilots should always seek advice from experienced pilots to obtain hints with assembly
and for pre-flight adjustments. Note that a badly assembled or insufficiently adjusted helicopter is a safety hazard!
In the beginning, novice R/C helicopter pilots should always be assisted by an experienced pilot and never fly
alone!
Throttle channel should be in motor OFF position while powering up.
When switching the R/C system ON or OFF, always proceed in the following order:
When switching ON:
Position the throttle control stick (on transmitter) to a position where the LOGO 10 motor does not operate.
Turn on the transmitter.
Turn on the receiver.
Connect the motor battery.
Operate your model.
When switching OFF:
Turn off the motor (move throttle control to a position where motor does not operate).
Wait until the rotor head has stopped spinning.
Disconnect the motor battery.
Turn off receiver.
Turn off transmitter.

Manual LOGO 10 3D Page4 ©MikadoModellhubschrauber
Speed-
controller

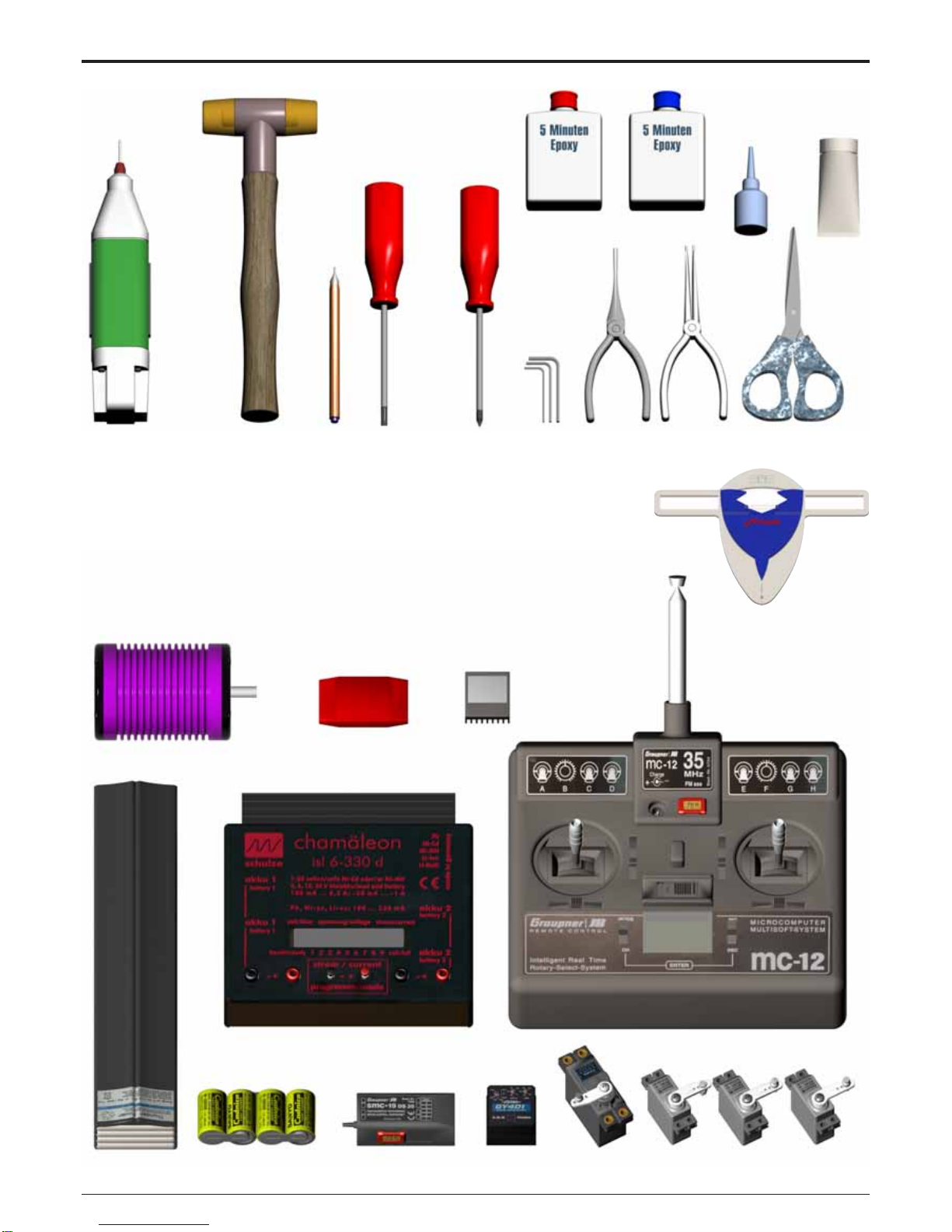

Tools for Assembly & R/C Equipment
Radio with Heli-Software
4x Mini Servos (Graupner DS361
or Graupner C341)
Receiver Battery
(Sanyo AR500)
Battery
Receiver (Graupner DS 19
or SMC 19 SPCM)
Gyro (Futaba GY240
or GY401)
Fast Charger
(Schulze isl 6-330d or isl 6-636+)
Motor + Speed Controller (check the Mikado
webpages for recommended motors)
Alle shown products are examples.You may use different brands.
BEC, replaces
receiver battery
Scissors
Rubber Hammer
Drill with
1.5mm bit
(.059 in)
Marker
Screwdrivers
(plus and minus)
Hex Wrenches
1.5/2.0/2.5/3.0mm
(.055/.079/.098/.118in)
Ball
link
pliers
Threadlock
Ball
link
pliers
Grease
Pitch Gauge

Manual LOGO 10 3D Page5 ©MikadoModellhubschrauber
#2379
1x 10x19x5 #1329
6x M3 #2072
1 Main Frame
1.1 Motorplate
Bag 1 • Bag 10
All parts shown in the
boxes are displayed
in real size.

Manual LOGO 10 3D Page6 ©MikadoModellhubschrauber
#2720
#2721
6x M3x10 #1953
1x 38 mm #2370
1x M3x35 #1961
1 Main Frame
1.2 Main Frame
Bag 1

Manual LOGO 10 3D Page7 ©MikadoModellhubschrauber
#2380
1x 10x19x5 #1329
2x 19 mm #2370
6x M3x10 #1953
1 Main Frame
1.3 Bearing Case
Bag 1 • Bag 10

Manual LOGO 10 3D Page8 ©MikadoModellhubschrauber
#2495
#2775
4x M3x12 #1954
4x M3 #2074
4x 3x7x0,5 #2012
2 Landing Gear
Bag 8
Align the skids and secure them
with superglue.

Manual LOGO 10 3D Page9 ©MikadoModellhubschrauber
#2499 2x M3x8 #1915
3 Motor Installation
3.1 Motor Adaptor Plate
Bag 1
Some electric motors (e.g. Kontro-
nik, Plettenberg, Speed 700 Neody-
me motors) are constructed such
that they cannot be moved along the
motor plate. If you are using one of
these motors, please use the motor
adaptor plate #2499.The plate is not
needed for Hacker motors.
Please check from the Mikado
website which pinion works best with
the motorset you have (on
www.mikado-heli.com go to LOGO
10 and click“Motorization”). When a
wrong pinion is chosen, the perfor-
mance of your electric helicopter will
deteriorate and the motor or speed
controller can be damaged.
Donottightenthesetscrewfullyuntil
the final position of the pinion on the
motor shaft is determined. This is
done after installing the main gear.
There are two options for attaching
thepinion:
1. For securing the pinion, you may
flatten the motor shaft where the set
screwmeetsthemotor shaft - without
making a flat surface on the motor
shaft.
2. Alternatively, you may screw the
set screw directly onto the motor
shaft. For this it is required that the
set screw has an appropriate rim for
engaging the motorshaft (all Mikado
pinionshavethisrim).Note,however,
that after attaching the set screw
once,therim becomes bluntandmay
not be used again.

Manual LOGO 10 3D Page10 ©MikadoModellhubschrauber
2x M3x12 #1964
2x 3x7x0.5 #2012

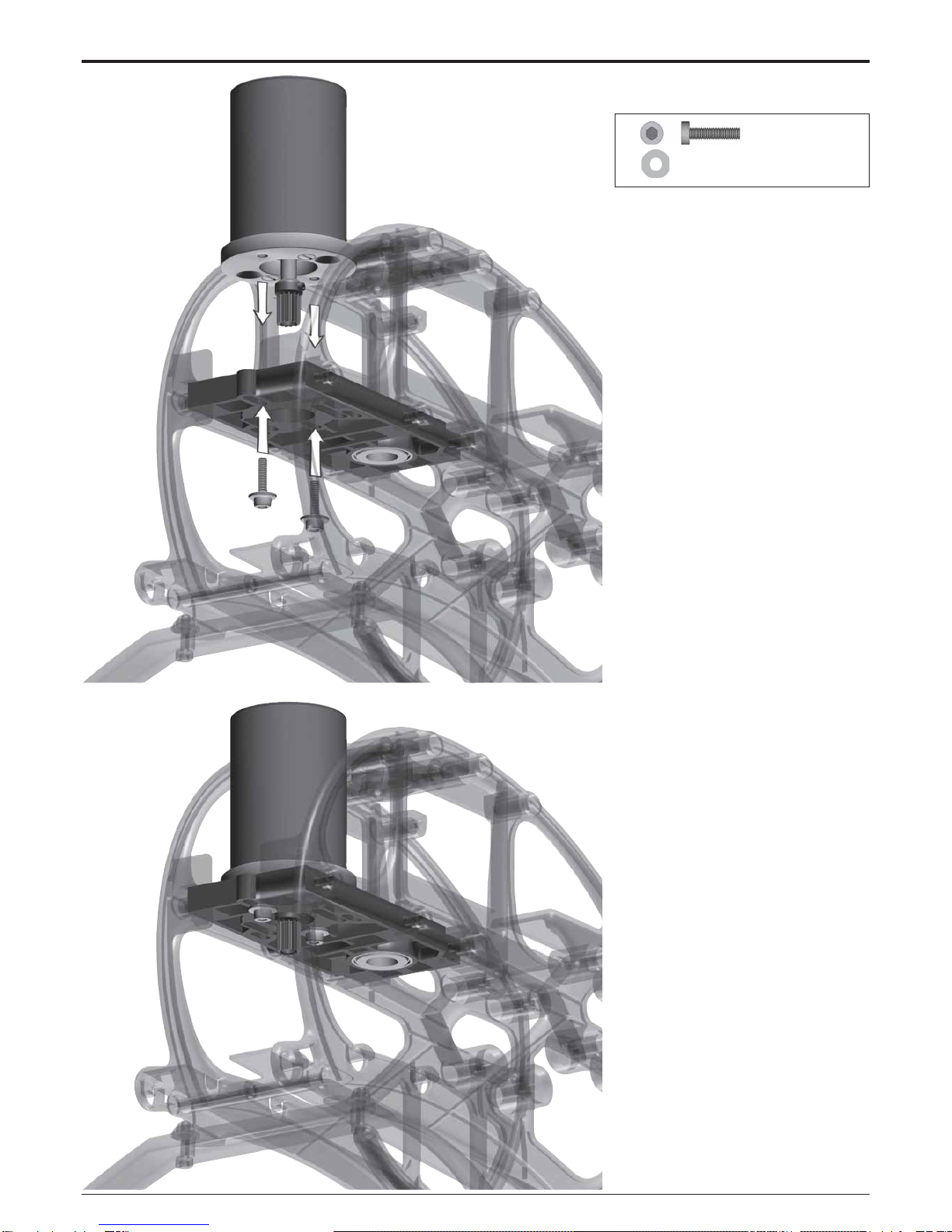

3 Motor Installation
3.2 Motor Attachment
Bag 1
When installing the motor, tighten
the socket head cap screws only
slightly, making sure that the motor
can still be moved on the motor pla-
te.

Manual LOGO 10 3D Page11 ©MikadoModellhubschrauber
#2731
#2725
#2386
4x M3x8 #1915
3x M4x5 #1922
2x 10x16x0.5 #2010
1x #1344
#2740

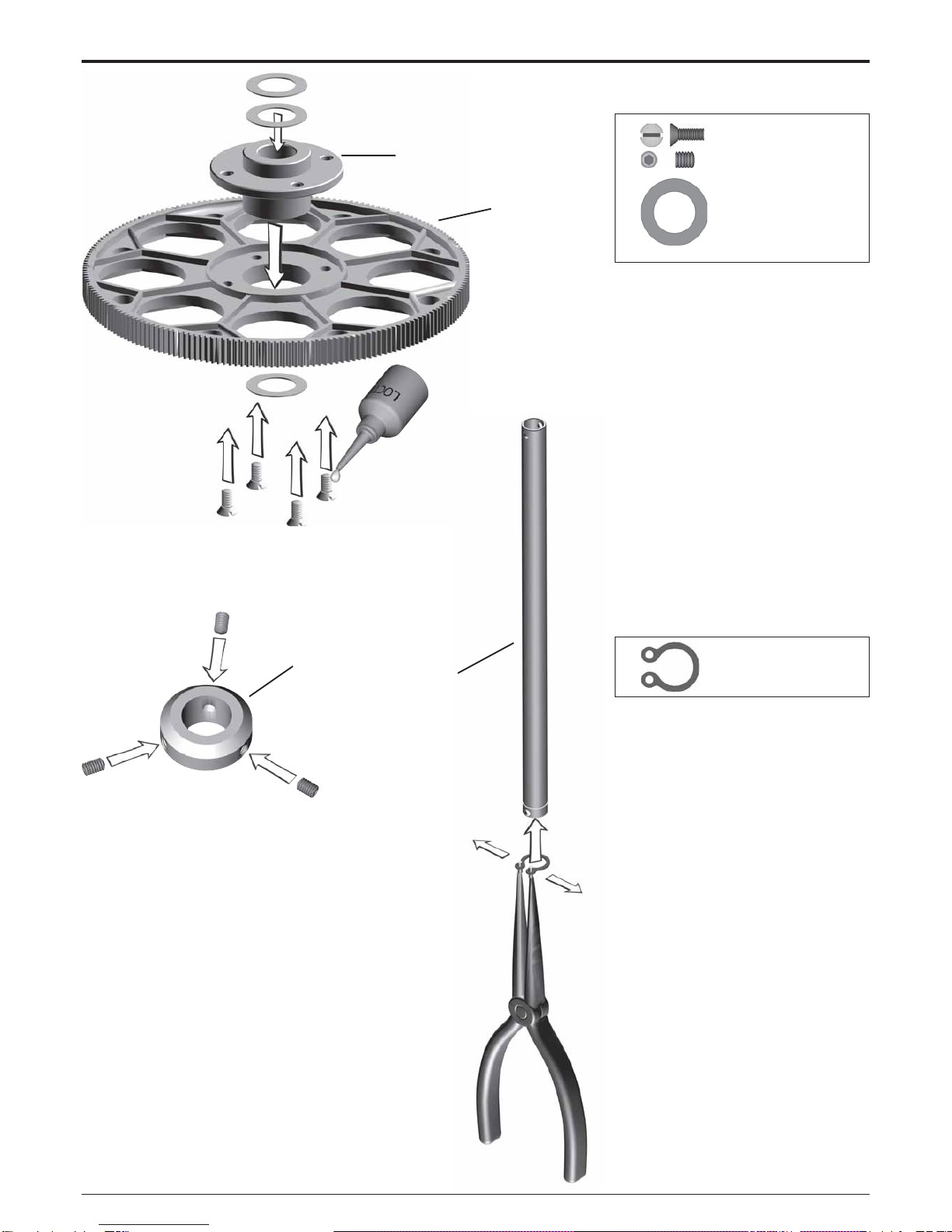

4 Main Gear
4.1 Hub
Bag 2
Do not yet tighten the three M4x5
set screws on the mainshaft collar.

Manual LOGO 10 3D Page12 ©MikadoModellhubschrauber
4 Main Gear
Bag 2
After having attached the freeway
hubof themaingeartotherotorshaft,
pullthe rotorshaftslightlyupward and
simultaneously push the main shaft
collar down onto ball bearing. Next
tightenthesetscrews.Therotorshaft
should turn easily and it should not
have any axial play.

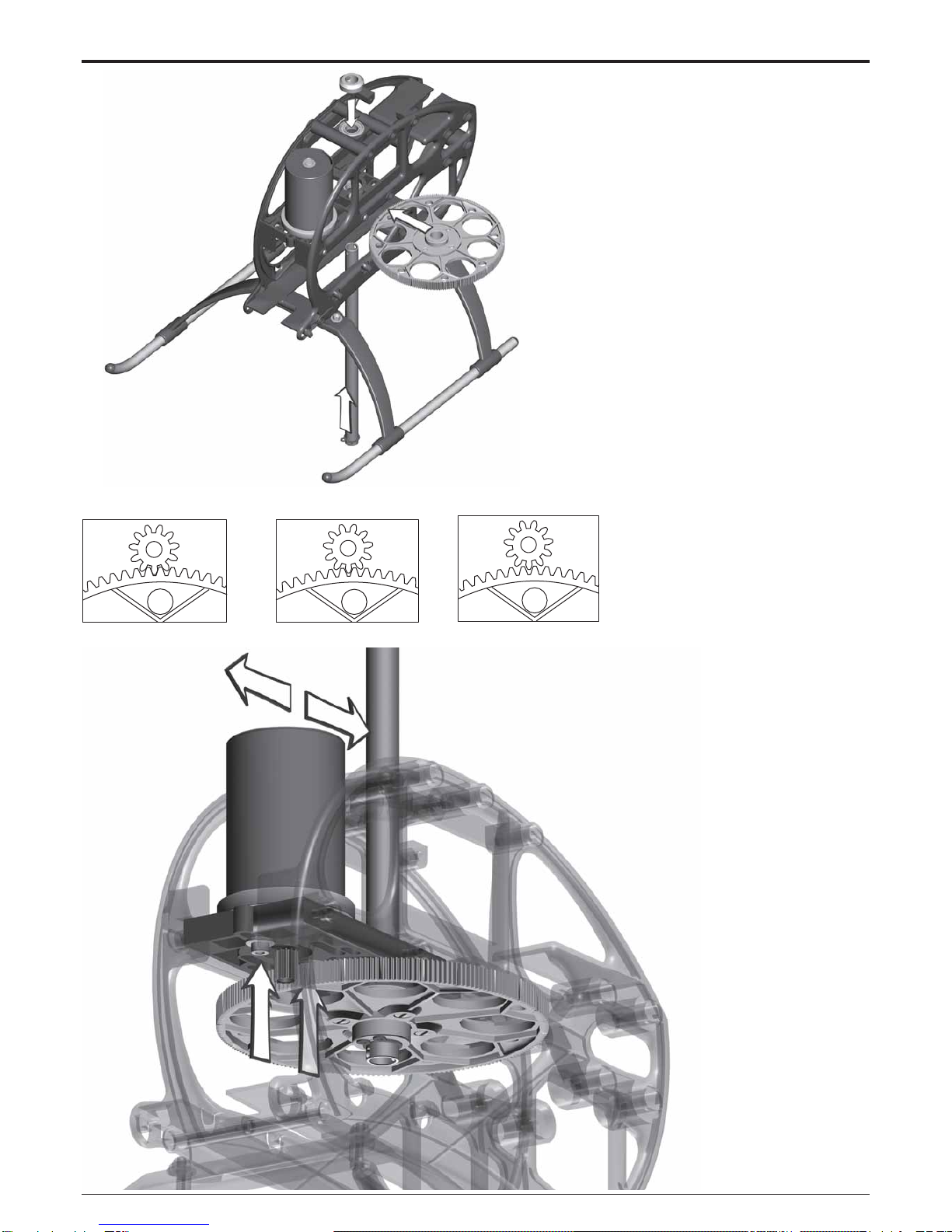

4.2 Adjusting Gear Backlash
The gear backlash must be adju-
sted (see drawings). Excess back-
lashcan cause prematurewearofthe
maingearandwillleadtoshorterflight
times.
too much backlash correct backlash too little backlash

Manual LOGO 10 3D Page13 ©MikadoModellhubschrauber
# 2442
#2467
#2476
#2466
#2442
#2765
1x 2x8mm #2468
2x 5x10x4 #2470
2x 5x10x0.1 #2004

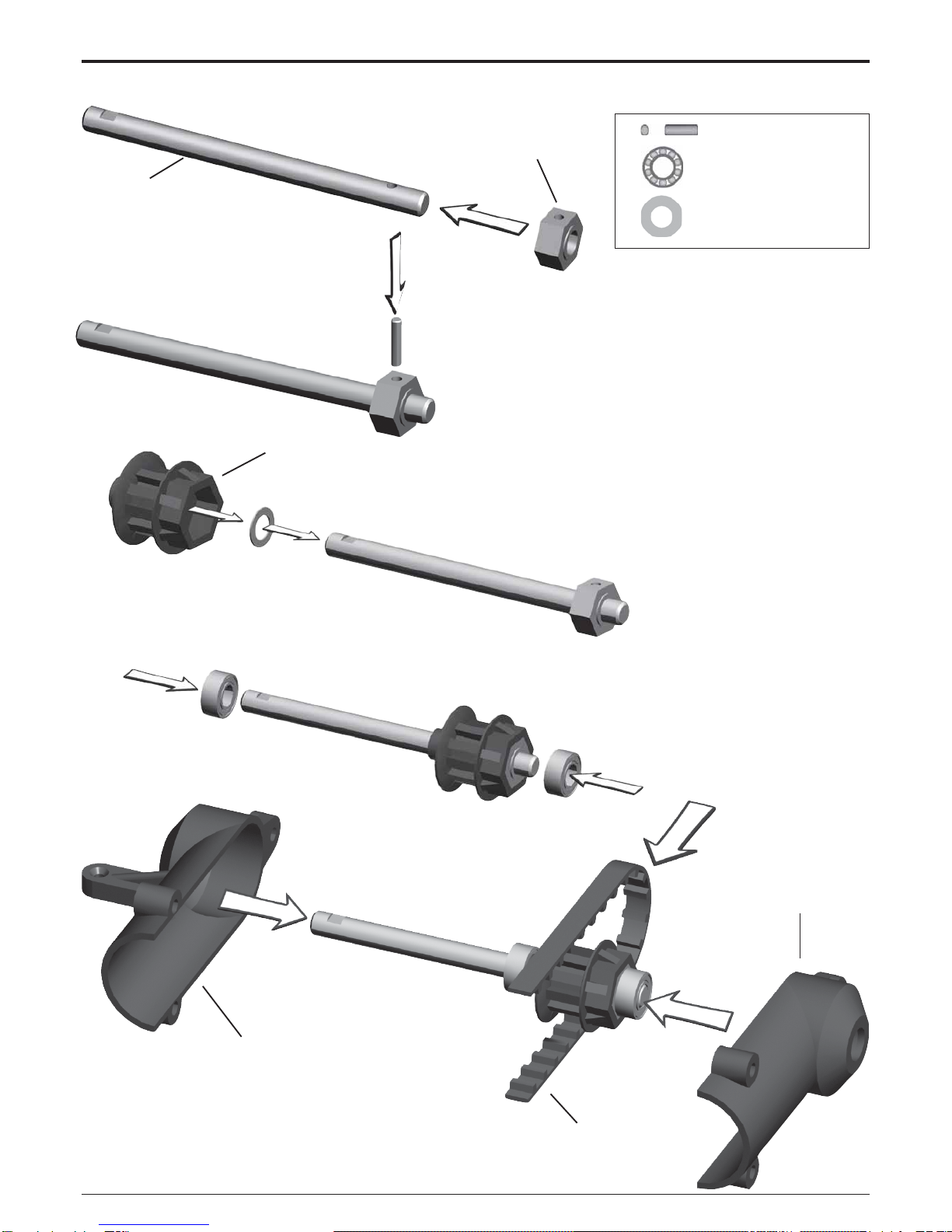

5 Tail Rotor
5.1 Tail Rotor Shaft
Bag 5 • Bag 10
Shouldyouhave difficulty mounting
the 2x8 mm pin, carefully tap it with a
rubber hammer, or use a vice. The
5x10x4 bearings can also be moun-
tedontherotorshaftusing a vice and
tapping the shaft softly with a rubber
hammer. If the tail rotor shaft shows
axial play after closing the two hal-
ves of the tail rotor case, use one or
two of the 5x10x0.1 washers which
are included in the bag.

Manual LOGO 10 3D Page14 ©MikadoModellhubschrauber
#2490
2x M3x25
#1958
1x M3x20 #1957
3x M3 #2074

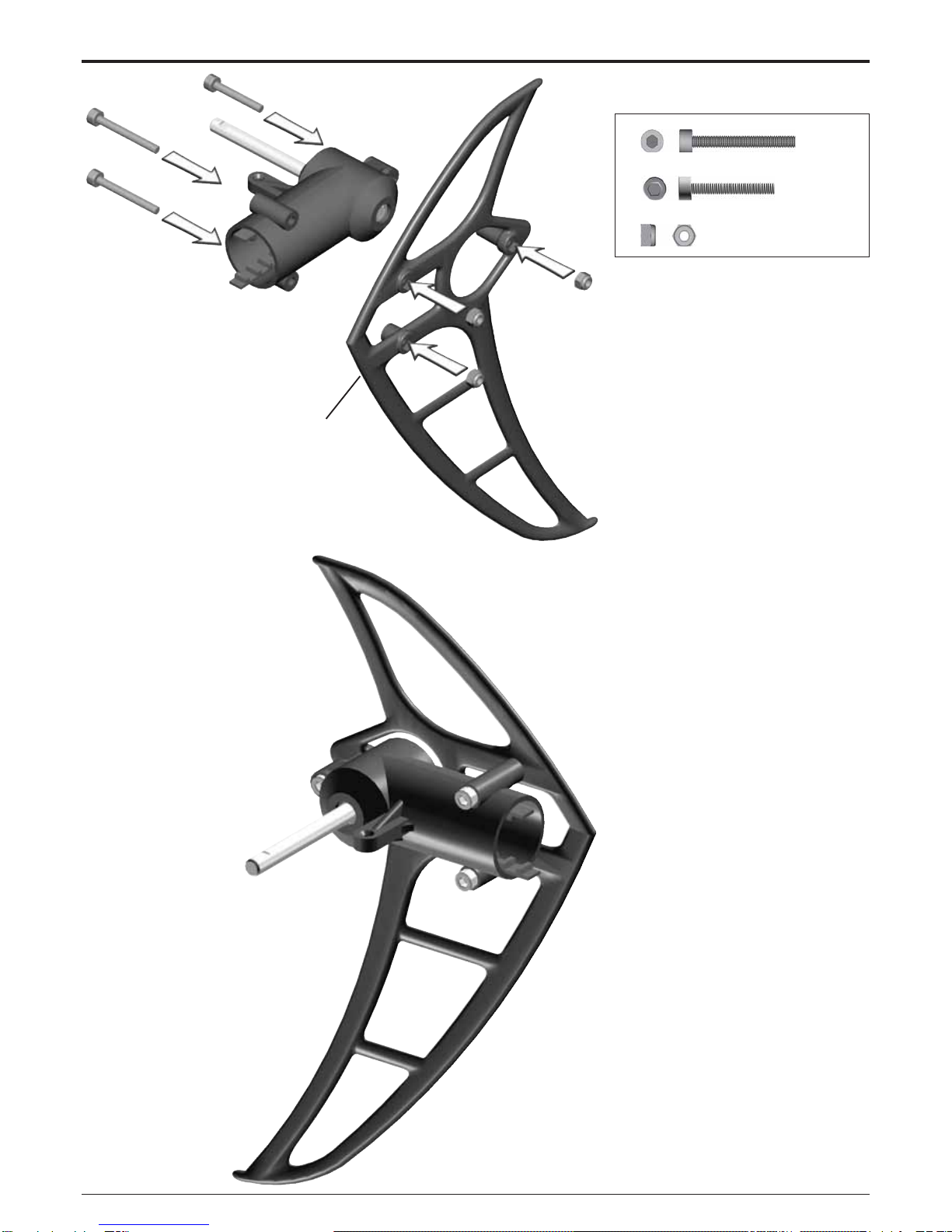

5 Tail Rotor
5.2 Vertical Fin
Bag 5

Manual LOGO 10 3D Page15 ©MikadoModellhubschrauber
#2455
#2452
2x 6x10x2,5 #1440
#3030
2x7mm
5 Tail Rotor
5.3 Pitch Slider
Bag 5 • Bag 10
It is important that the tail pitch pla-
te #3030 is aligned properly on the
control sleeve #2455. In the case of
misalignment,thecontrolsleeve may
becomedeformed.
Themounted tail pitchplate should
beableto move on thetailrotorshaft
with little resistance.

Manual LOGO 10 3D Page16 ©MikadoModellhubschrauber
#2449
#2446
2x 3x6x2,5 #2330
1x M3x14 #1955
1x M2x8 #1902
1x #1570
1x 3x5x5 #2448
1x 3x5x0,5 #2002

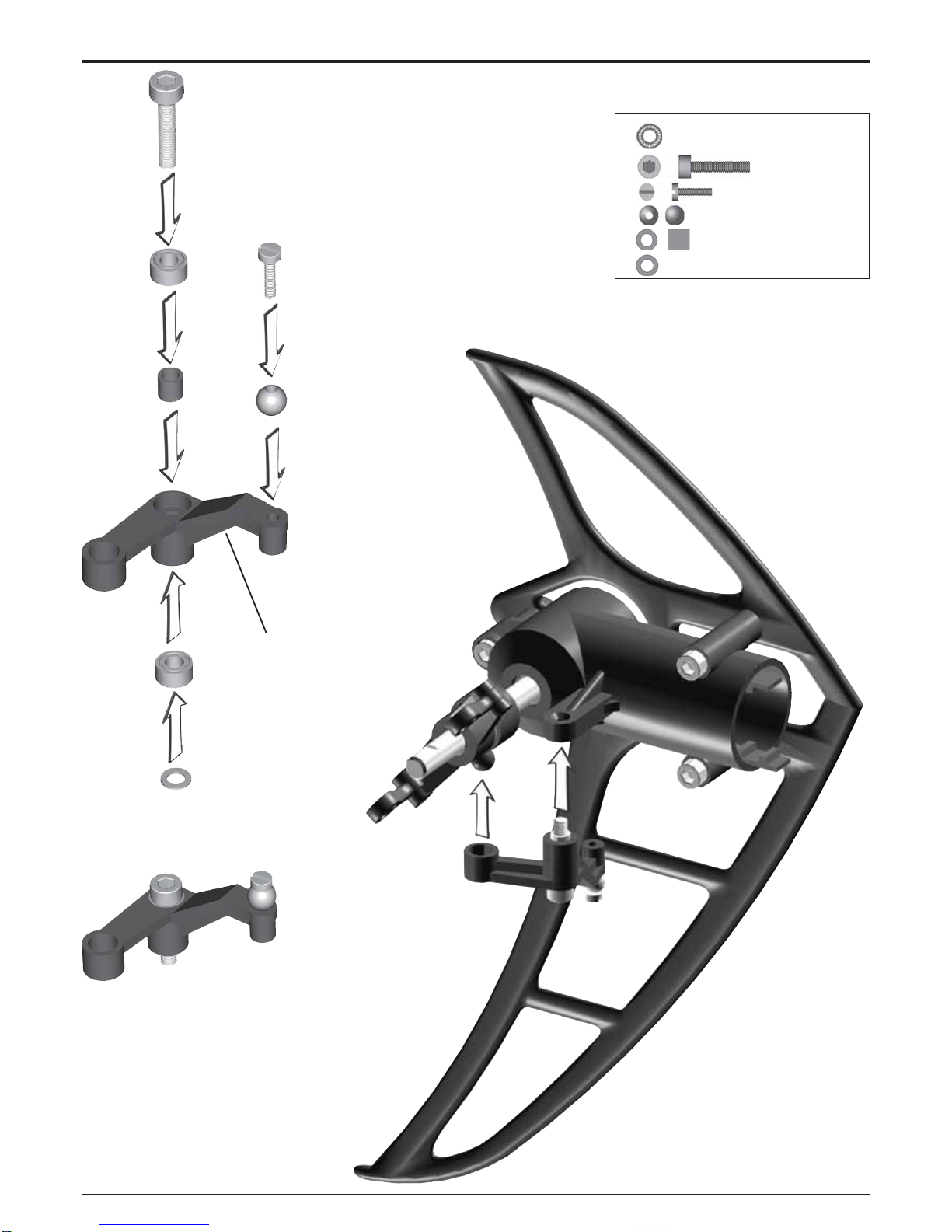

5 Tail Rotor
5.4 Tail Rotor Lever
Bag 5
The mounted tail rotor lever should
be able to move with little resistance.

Manual LOGO 10 3D Page17 ©MikadoModellhubschrauber
#2462
#2458
2x M3x12 #1954
2x 3x5x2 #2463
4x 3x8x3 #2423
1x M3x3 #1920
5 Tail Rotor
5.5 Tail Rotor Hub
Bag 5 • Bag 10

Manual LOGO 10 3D Page18 ©MikadoModellhubschrauber
5 Tail Rotor
5.6 Final Assembly
All movable parts of the tail rotor
bladeholdersshouldbe able to move
with little resistance. When there is
toomuchresistance,the tail rotor will
notreact tosubtleinputand thegyro’s
maximum sensitivity cannot be fully
exploited.

Manual LOGO 10 3D Page19 ©MikadoModellhubschrauber
#2760
#2763
6 Tail Boom
6.1 Tail Boom Assembly
Bag 6 • Bag 11
Note that the two tail rotor pushrod
guides are different in height.
The tail boom has two round cut-
outs on one end.These should be fit-
ted into the matching shapes in the
tail rotor case.

Manual LOGO 10 3D Page20 ©MikadoModellhubschrauber
#2485
6 Tail Boom
6.2 Tail Boom Holder
Bag 6
Turn the tail drive belt 90° degrees
(clockwise).
