Mikado LOGO 14 Carbon User manual

© Mikado Modellhubschrauber, V2.0
www.mikado-heli.de
LOGO 14Carbon
Mikado Modellhubschrauber • Friedrich-Klausing-Straße 2 • 14469 Potsdam • Germany
Phone [phone] • Fax [phone] • www.mikado-heli.de
Manual

Manual LOGO 14 Carbon Page2 ©MikadoModellhubschrauber
Index
1 Main Frame .........................................5
1.1 Motorplate 5
1.2 Main Frame 6
1.3 Bearing Case 7
1.4 Mounts for Landing Bow 8
2 Landing Gear .....................................8
3 Motor Installation .............................10
3.1 Motor Adaptor Plate 10
3.2 Motor Attachment 11
4 Main Gear ..........................................12
4.1 Main Gear Hub for 2-Pole Motors 12
4.2 Main Gear Hub for 4-10 Pole Motors 14
4.3 Adjusting Gear Backlash 16
5 Tail Rotor............................................17
5.1 Tail Rotor Shaft 17
5.2 Vertical Fin 18
5.3 Tail Pitch Slider 19
5.4 Tail Rotor Lever 20
5.5 Tail Rotor Hub 21
6 Tail Boom ...........................................23
6.1 Tail Boom Assembly 23
6.2 Tail Boom Holder 24
6.3 Tail Drive Pulley 25
6.4 Tail Control Rod 26
6.5 Installation 27
6.6 Tail Rotor Blades 27
6.7 Tail Boom Brace 28
7 Finished Main Frame & Tail Boom .29
8 Preparation for Servo Installation..30
8.1 120° CCPM 30
8.2 Servo Arms 30
8.3 Servo Centering 31
8.4 Linkage 31
9 Servo Installation .............................32
9.1 Tail Rotor Servo 32
9.2 Aileron Servo right 33
9.3 Aileron Servo left + Elevator Servo 34
10 Canopy............................................36
10.1 Trimming and Taping 36
10.2 Decals 37
11 Swashplate .....................................38
11.1 Swashplate Assembly 38
11.2 Swashplate Guide 39
12 Wash-Out .........................................40
12.1 Assembly 40
12.2 Installation 41
13 Main Rotor Head ............................42
13.1 Blade Grips 42
13.2 Mixing Arms 42
13.3 Yoke 43
13.4 Seesaw 44
13.5 Flybar Control Bridge 45
13.6 Flybar 46
13.7 Flybar Paddles 47
13.8 Final Assembly 48
13.9 Rotor Head Linkage 49
14 RC Installation ................................50
14.1 Battery 50
14.2 Receiver, Gyro, Speed Controller 51
15 RC Programming ...........................52
16 Final Pre-Flight Check...................58
16.1 Direction of Main and Tail Rotation 58
16.2 Blade Tracking Adjustment 58
17 Control Movements .......................59
17.1 Pitch/Throttle 59
17.2 Rudder 59
17.3 Elevator 60
17.4 Aileron 60
18 Overview ........................................61
18.1 Chassis 61
18.2 Rotor Head 62
18.3 Tail Boom/Tail Rotor 63
19 Tuning/Accessories.......................64
All parts shown in the boxes are displayed in real size.

Manual LOGO 14 Carbon Page3 ©MikadoModellhubschrauber
Safety Instructions
OPERATING YOUR MODEL SAFELY
Operate the helicopter in spacious areas with no people nearby.
! Warning: Do NOT operate the helicopter in the following places and situations
(or else you risk severe accidents):
in places where children gather or people pass through
in residential areas and parks
indoors and in limited space
in windy weather or when there is any rain, snow, fog or other precipitation
If you do not observe these instructions you may be held reliable for personal injury or property damage!
Always check the R/C system prior to operating your helicopter.
When the R/C system batteries get weaker, the operational range of the R/C system decreases. Note that you
may lose control of your model when operating it under such conditions.
Keep in mind that other people around you might also be operating a R/C model.
Never use a frequency which someone else is using at the same time. Radio signals will be mixed and you will
lose control of your model.
If the model shows irregular behavior, bring the model to a halt immediately. Turn off all power switches and
disconnectthebatteries.Investigate thereasonandfix the problem.Donotoperate the modelagainaslong as the
problem is not solved, as this may lead to further trouble and unforeseen accidents.
! Warning: In order to prevent accidents and personal injury, be sure to observe the following:
Before flyingthehelicopter, ensure thatallscrewsare tightened.A single loosescrewmaycausea major accident.
Replace all broken or defective parts with new ones, as damaged parts lead to crashes.
Never approach a spinning rotor. Keep at least 10 meters/yards away from a spinning rotor blades.
Do not touch the motor immediately after use. It may be hot enough to cause burns.
Perform all necessary maintenance.
PRIOR TO ADJUSTING AND OPERATING YOUR MODEL, OBSERVE THE FOLLOWING
!Warning:Operate the helicopter only outdoors and out of people’s reach as the main rotor operates at high rpm!
! Warning: While adjusting, stand at least 10 meters/yards away from the helicopter!
Novice R/C helicopter pilots should always seek advice from experienced pilots to obtain hints with assembly
and for pre-flight adjustments. Note that a badly assembled or insufficiently adjusted helicopter is a safety hazard!
In the beginning, novice R/C helicopter pilots should always be assisted by an experienced pilot and never fly
alone!
Throttle channel should be in motor OFF position while powering up.
When switching the R/C system ON or OFF, always proceed in the following order:
When switching ON:
Position the throttle control stick (on transmitter) to a position where the LOGO 14 Carbon motor does not operate.
Turn on the transmitter.
Turn on the receiver.
Connect the motor battery.
Operate your model.
When switching OFF:
Turn off the motor (move throttle control to a position where motor does not operate).
Wait until the rotor head has stopped spinning.
Disconnect the motor battery.
Turn off receiver.
Turn off transmitter.

Manual LOGO 14 Carbon Page4 ©MikadoModellhubschrauber
Speed-
controller

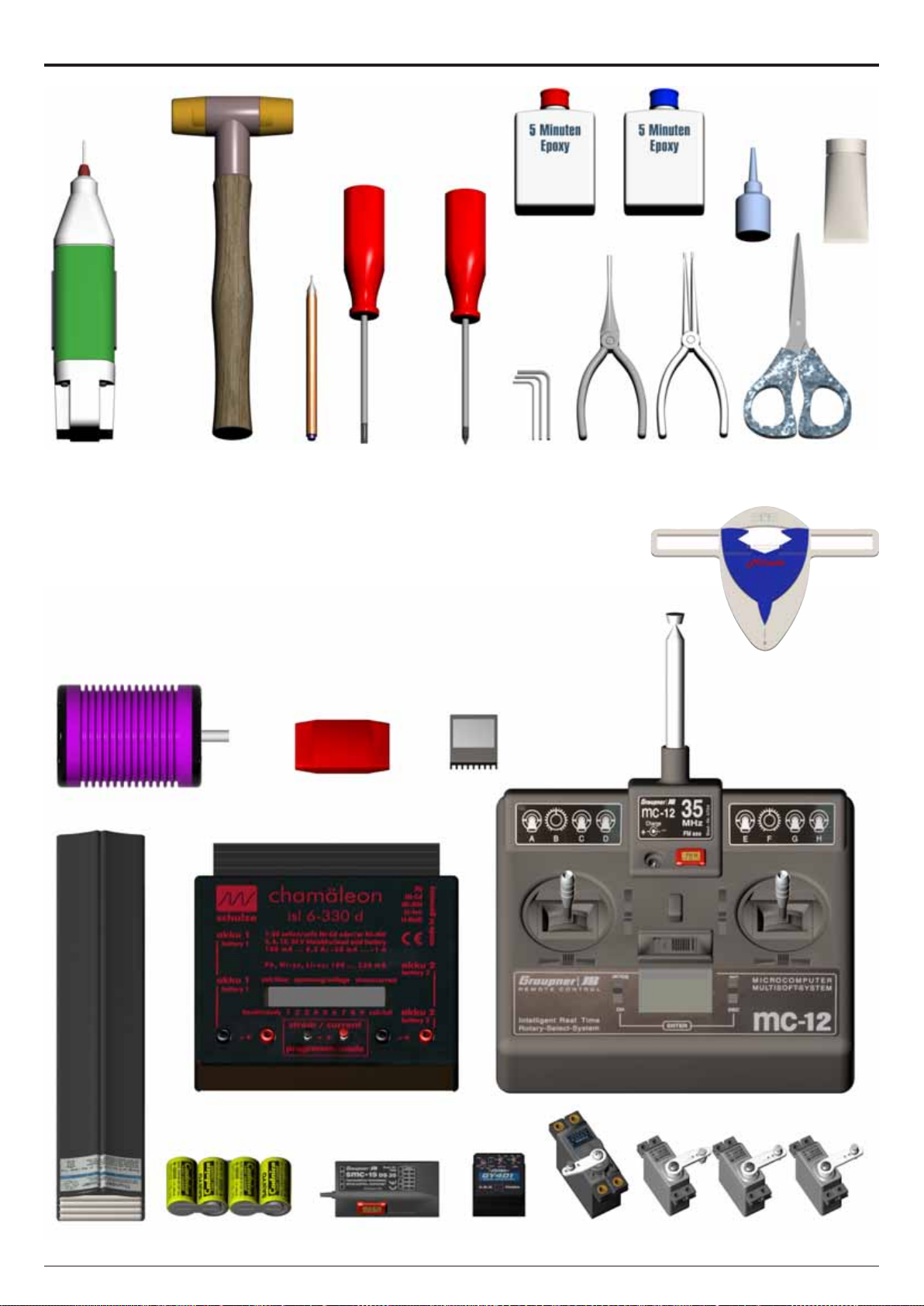

Tools for Assembly & R/C Equipment
Scissors
Rubber Hammer
Drill with
1.5mm bit
(.059 in)
Marker
Screwdrivers
(plus and minus)
Hex Wrenches
1.5/2.0/2.5/3.0mm
(.055/.079/.098/.118in)
Radio with Heli-Software
4x Servos
Receiver Battery
(>1,000 mAh)
Battery Pack
Receiver (Graupner DS 19
or SMC 19 SPCM)
Gyro (Futaba GY240
or GY401)
Fast Charger
(Schulze isl 6-330d or isl 6-636+)
Motor + Speed Controller (check the Mikado
webpages for recommended motors)
Alle shown products are examples.You may use different brands.
Ball link pliers
Threadlock
BEC, replaces
receiver battery
Grease
Pitch Gauge

Manual LOGO 14 Carbon Page5 ©MikadoModellhubschrauber
#2379
1x 10x19x5 #1329
6x M3 #2072
1 Main Frame
1.1 Motorplate
Bag 1 • Bag 10

Manual LOGO 14 Carbon Page6 ©MikadoModellhubschrauber
#730
4x M3x10 #1953
2x M3x14 #1955
#710
#733
#703
#732 #737
#706
#741
#742
M3x14

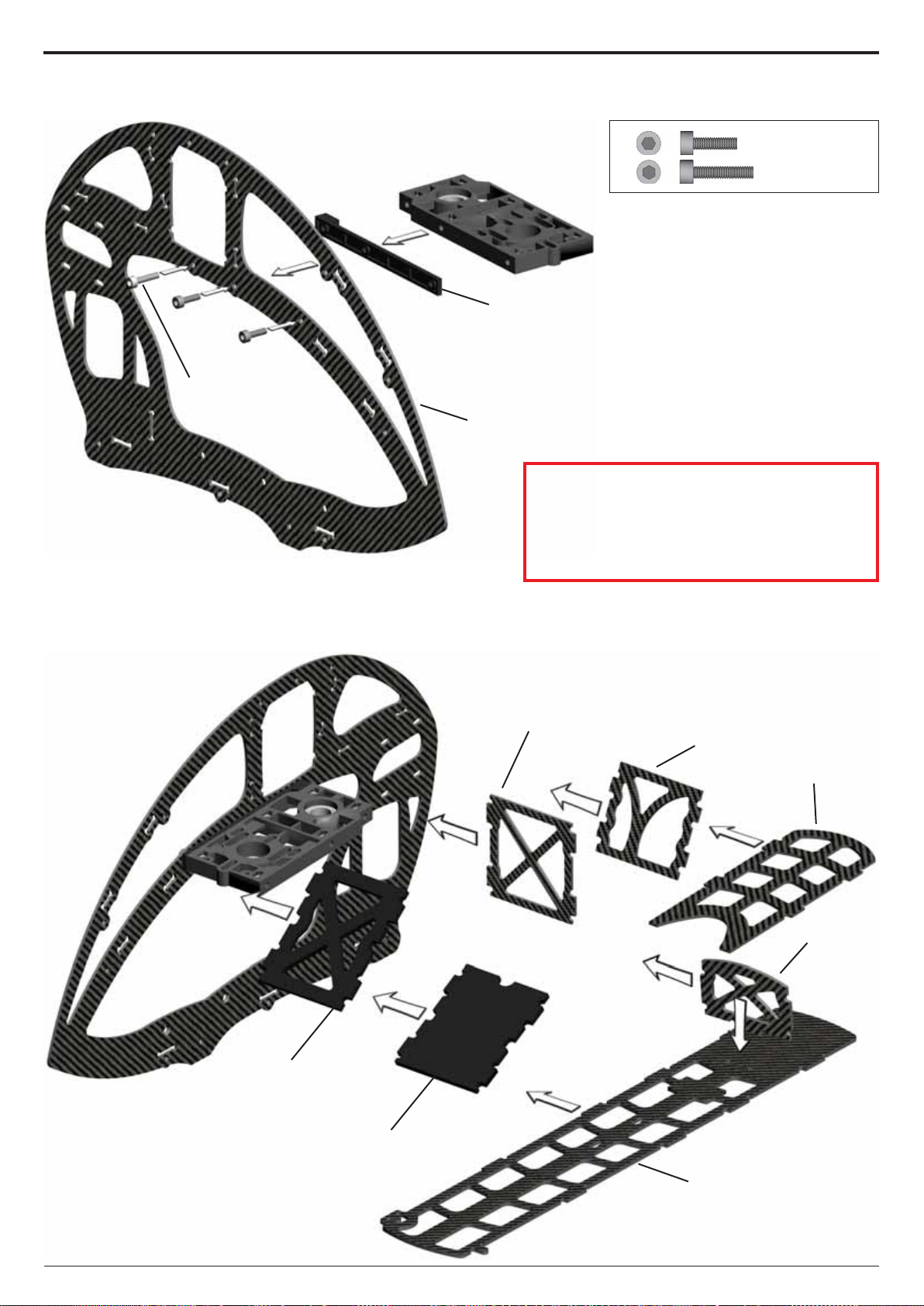

1 Main Frame
1.2 Main Frame
Bag 1 • Bag 4 • Bag 12
Note: Because the individual parts
of the chassis must fit very tightly to-
gether, they may be slightly difficult
to assemble. The reason is that the
finished chassis of LOGO 24 will be
veryrigid foroptimalflying properties.
Where necessary, please remove a
small amount of excess material at
the edges of braces #807 to #811
with a file or a sharp knife.
Note:Themainframeshaveaninsideand
anoutsidesurface!Whenassembling,the
countersinksin holesofthe leftandright
mainframesmust point inwards.

Manual LOGO 14 Carbon Page7 ©MikadoModellhubschrauber
#2380
1x 10x19x5 #1329
6x M3x10 #1953
3x 48 mm #716
2x 19 mm #2371
4x M3x22 #1916
#731
#718
#717
10x
M3x14
1 Main Frame
1.3 Bearing Case
Bag 1 • Bag 10 • Bag 12
Note:The mainframes have
an inside and an outside
surface! When assembling,
the countersunks in holes of
theleftandrightmainframes
must point inward.
Note: The two
countersunks in
the battery plate
must point up-
ward.

Manual LOGO 14 Carbon Page8 ©MikadoModellhubschrauber
#2495
#2775
4x M3x10 #1953
2x M3x12 #1954
2x M3x14 #1955
2x
50 mm #715
2x 44 mm #728
2x 4,8 mm #1574
#814
M3x14
M3x12
1 Main Frame
1.4 Mounts for Landing Bow
Bag 1 • Bag 12

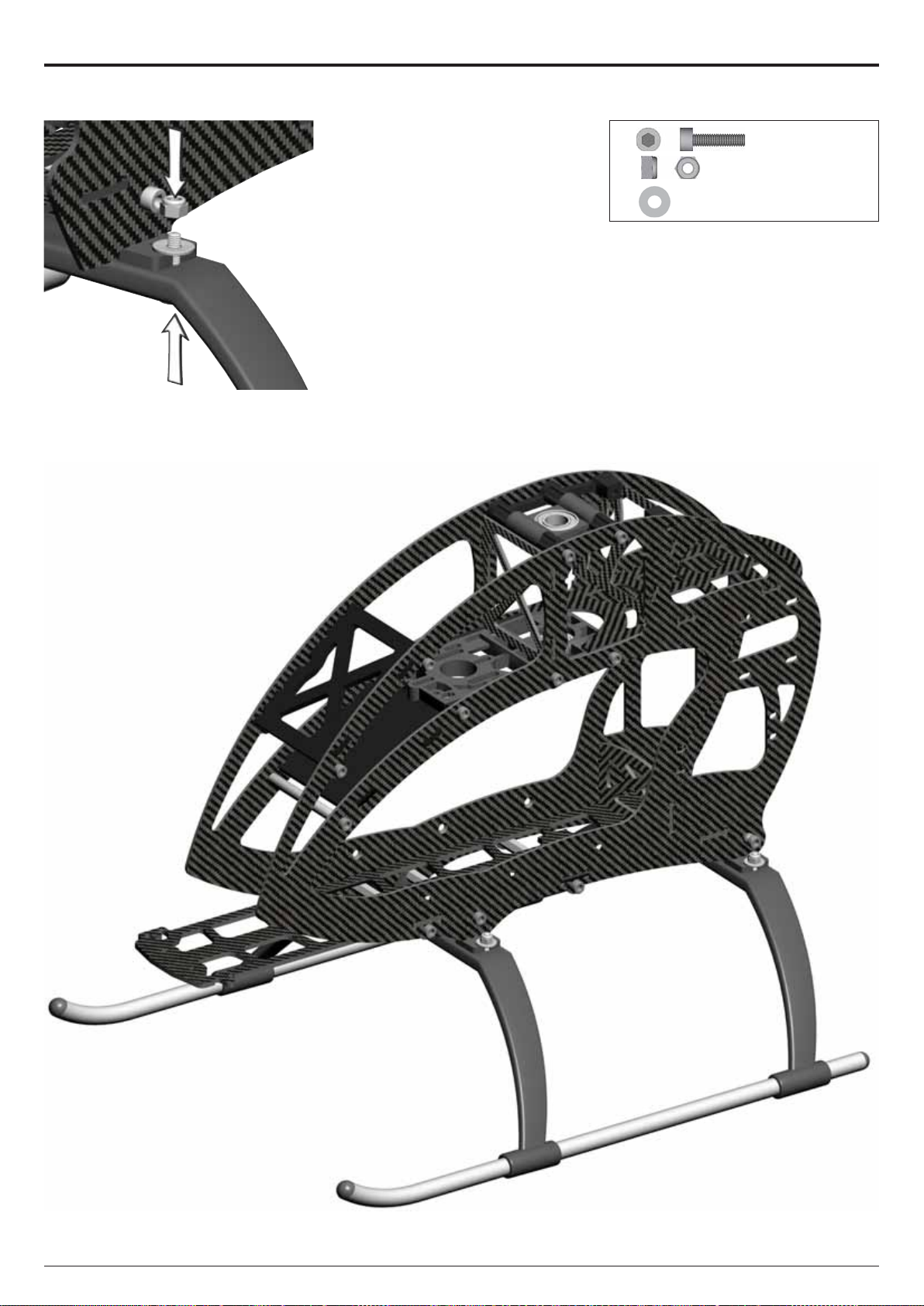

Align the skids and secure them
with superglue.
2 Landing Gear
Bag 8

Manual LOGO 14 Carbon Page9 ©MikadoModellhubschrauber
4x M3x12 #1954
4x M3 #2074
4x 3x7x0,5 #2012
2 Landing Gear
Bag 8 • Bag 12

Manual LOGO 14 Carbon Page10 ©MikadoModellhubschrauber
2x M3 #2072
2x M3x8 #1915
#2499

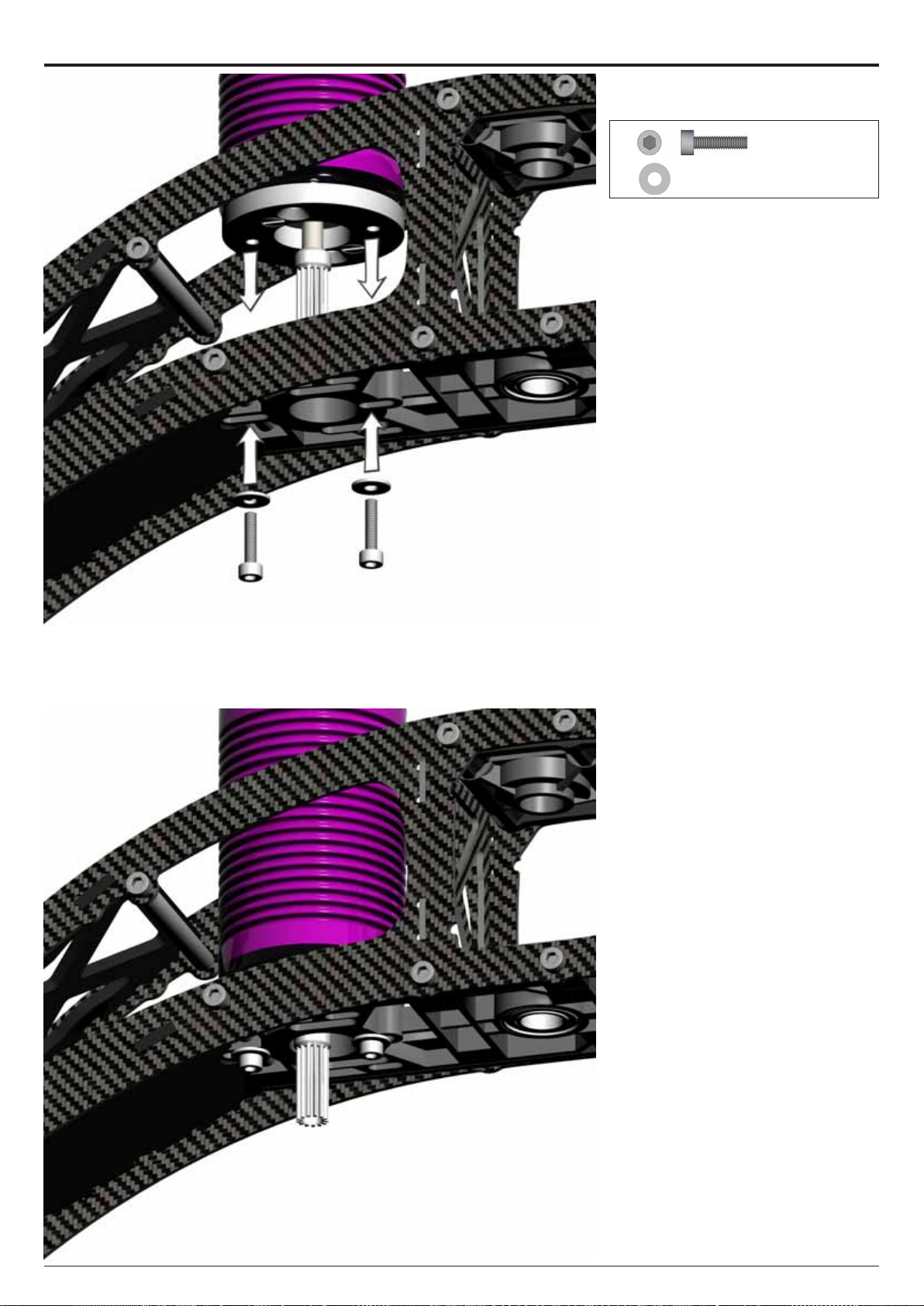

3 Motor Installation
3.1 Motor Adaptor Plate
Bag 1
Some electric motors (e.g. Kontro-
nik,Plettenberg motors)areconstruc-
ted such that they cannot be moved
alongthemotorplate.If youareusing
one of these motors, please use the
motoradaptorplate#2499.Theplate
is not needed for Hacker motors.
Please check from the Mikado
website which pinion works best with
the motorset you have (on
www.mikado-heli.com go to LOGO
14 Carbon and click “Motorization”).
When a wrong pinion is chosen, the
performance of your electric helicop-
ter will deteriorate and the motor or
speed controller can be damaged.
Donottighten thesetscrewfully until
the final position of the pinion on the
motor shaft is determined. This is
done after installing the main gear.
There are two options for attaching
thepinion:
1. For securing the pinion, you may
flatten the motor shaft where the set
screwmeetsthemotorshaft-without
making a flat surface on the motor
shaft.
2. Alternatively, you may screw the
set screw directly onto the motor
shaft. For this it is required that the
set screw has an appropriate rim for
engaging the motorshaft (all Mikado
pinionshavethis rim).Note,however,
that after attaching the set screw
once,therimbecomesblunt andmay
not be used again.
Pinion not
included in kit.

Manual LOGO 14 Carbon Page11 ©MikadoModellhubschrauber
2x M3x12 #1954
2x 3x7x0.5 #2012
3 Motor Installation
3.2 Motor Attachment
Bag 1 • Bag 12
When installing the motor, tighten
the socket head cap screws only
slightly, making sure that the motor
can still be moved on the motor pla-
te.

Manual LOGO 14 Carbon Page12 ©MikadoModellhubschrauber
4x M3x8 #1915
4x M3x14 #1913
1x
10x18x5.5 #738
1x 10x16x0.5 #2010
#2731
#2725
#2732
#2725

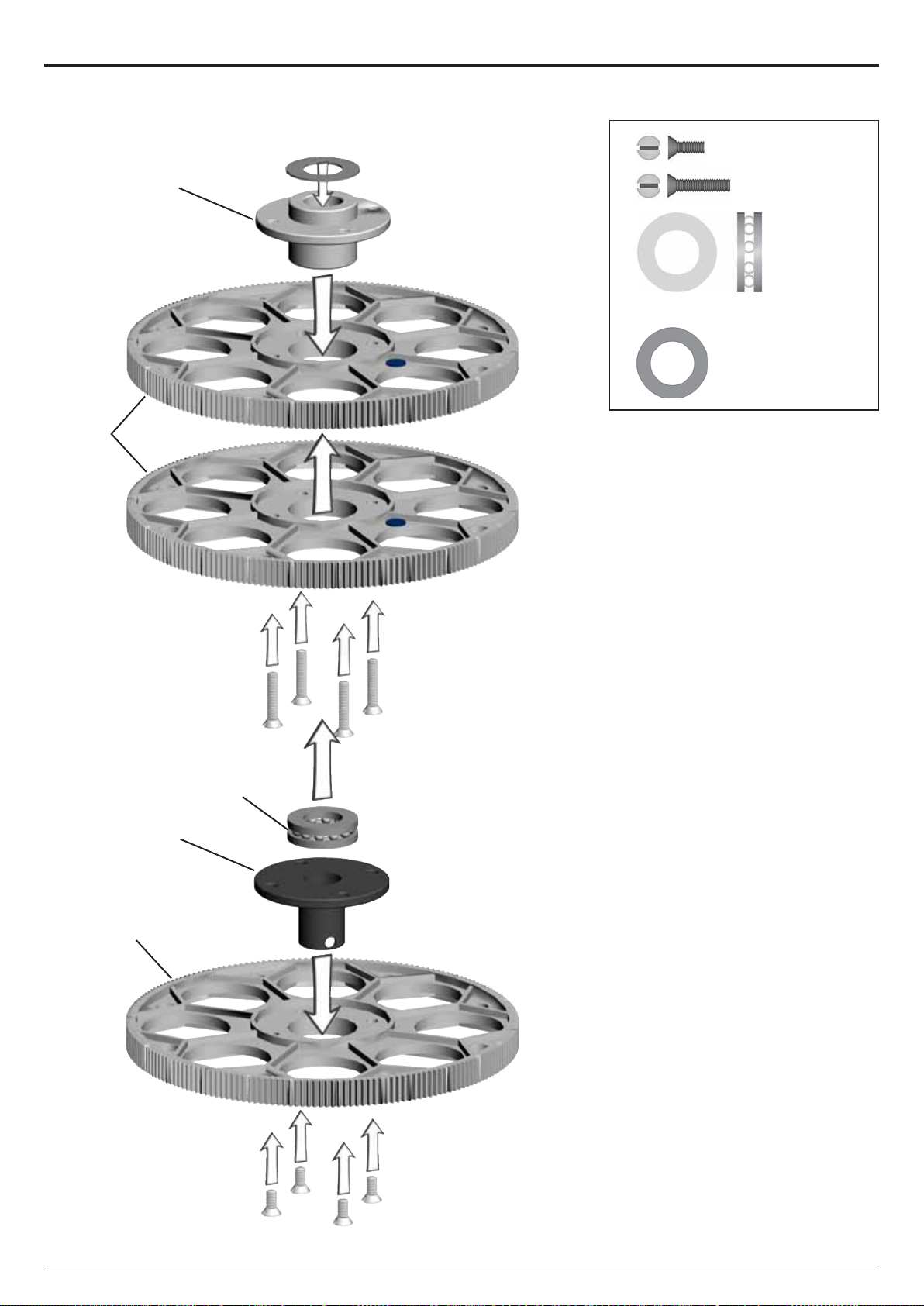

4 Main Gear
4.1 Main Gear Hub for Hacker 2-Pole Motors
Bag 2
Itisessential that thetwogearsare
perfectly aligned. There is only one
position which allows for this align-
ment. In order to find the correct po-
sition, you must proceed as follows:
Place the gears on top of each other
and fasten them with two screws in
opposite position. Now check the
alignment of the teeth. If the teeth of
the two gears are not perfectly alig-
ned,turnthetopgear90degrees and
check again. When you have found
the correct position, fasten all four
screws. Very important: Do not fas-
ten the screws too tightly, as this will
warp the gears. Any such distortion
would be seen in a gap between the
gears.This has to be avoided.
Forthedoublemain gear,you must
use special motor pinions (not inclu-
ded in the kit):
#3053 - 13 teeth, module (pitch) 0.5
#3054 - 14 teeth, module (pitch) 0.5
apply grease

Manual LOGO 14 Carbon Page13 ©MikadoModellhubschrauber
#2385
#3040
1x M2,5x8 #1940
1x M3x18#1965
1x M3 #2074
4 Main Gear
4.1 Main Gear Hub for Hacker 2-Pole Motors
Bag 2

Manual LOGO 14 Carbon Page14 ©MikadoModellhubschrauber
8x M3x8 #1915
1x
10x18x5.5 #738
1x 10x16x0.5 #2010
#2731
#3000
#2732
#2725
4 Main Gear
4.2 Main Gear Hub for 4-10 Pole Motors
(Plettenberg, Kontronik, all outrunner motors)
Bag 2
For the main gear with 138 teeth,
module (pitch) 0.7, the following mo-
torpinionsareavailable(notincluded
in the kit).
#3010 - 10 teeth, module (pitch) 0.7
#3011 - 11 teeth, module (pitch) 0.7
#3012 - 13 teeth, module (pitch) 0.7
#3013 - 14 teeth, module (pitch) 0.7
#3014 - 15 teeth, module (pitch) 0.7
#3015 - 16 teeth, module (pitch) 0.7
#3017 - 17 teeth, module (pitch) 0.7
#3018 - 18 teeth, module (pitch) 0.7
apply grease

Manual LOGO 14 Carbon Page15 ©MikadoModellhubschrauber
1x M2,5x8 #1940
1x M3x18#1965
1x M3 #2074
#2385
#3040
4 Main Gear
4.2 Main Gear Hub for 4-10 Pole Motors
(Plettenberg, Kontronik, all outrunner motors)
Bag 2

Manual LOGO 14 Carbon Page16 ©MikadoModellhubschrauber
4 Main Gear
4.3 Adjusting Gear Backlash
The gear backlash must be adju-
sted (see drawings). Excess back-
lashcancauseprematurewearofthe
maingearandwillleadtoshorterflight
times.
too much backlash correct backlash too little backlash

Manual LOGO 14 Carbon Page17 ©MikadoModellhubschrauber
# 2442
#2465
#2475
#2466
#2442
#2444
1x 2x8mm #2468
2x 5x10x4 #2470
2x 5x10x0.1 #2004
5 Tail Rotor
5.1 Tail Rotor Shaft
Bag 5 • Bag 10
Shouldyouhavedifficultymounting
the 2x8 mm pin, carefully tap it with a
rubber hammer, or use a vice. The
5x10x4 bearings can also be moun-
tedonthe rotorshaftusing aviceand
tapping the shaft softly with a rubber
hammer. If the tail rotor shaft shows
axial play after closing the two hal-
ves of the tail rotor case, use one or
two of the 5x10x0.1 washers which
are included in the bag.

Manual LOGO 14 Carbon Page18 ©MikadoModellhubschrauber
#2493
2x M3x25 #1958
1x M3x10 #1953
3x M3 #2074
2x 3x5x4 #924

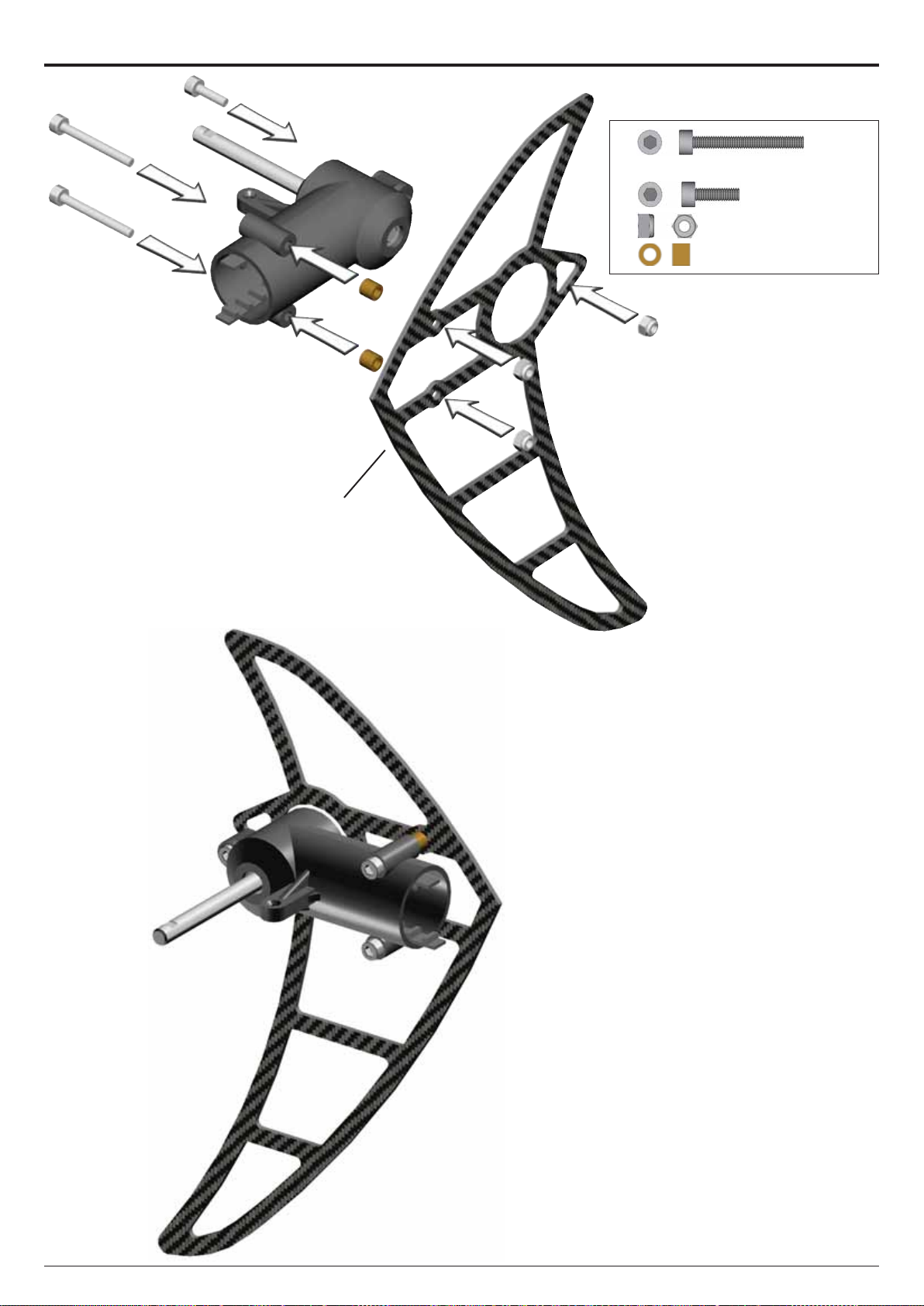

5 Tail Rotor
5.2 Vertical Fin
Bag 5 • Bag 12

Manual LOGO 14 Carbon Page19 ©MikadoModellhubschrauber
#2455
#2452
2x 6x10x2,5 #1440
#3030
2x7mm

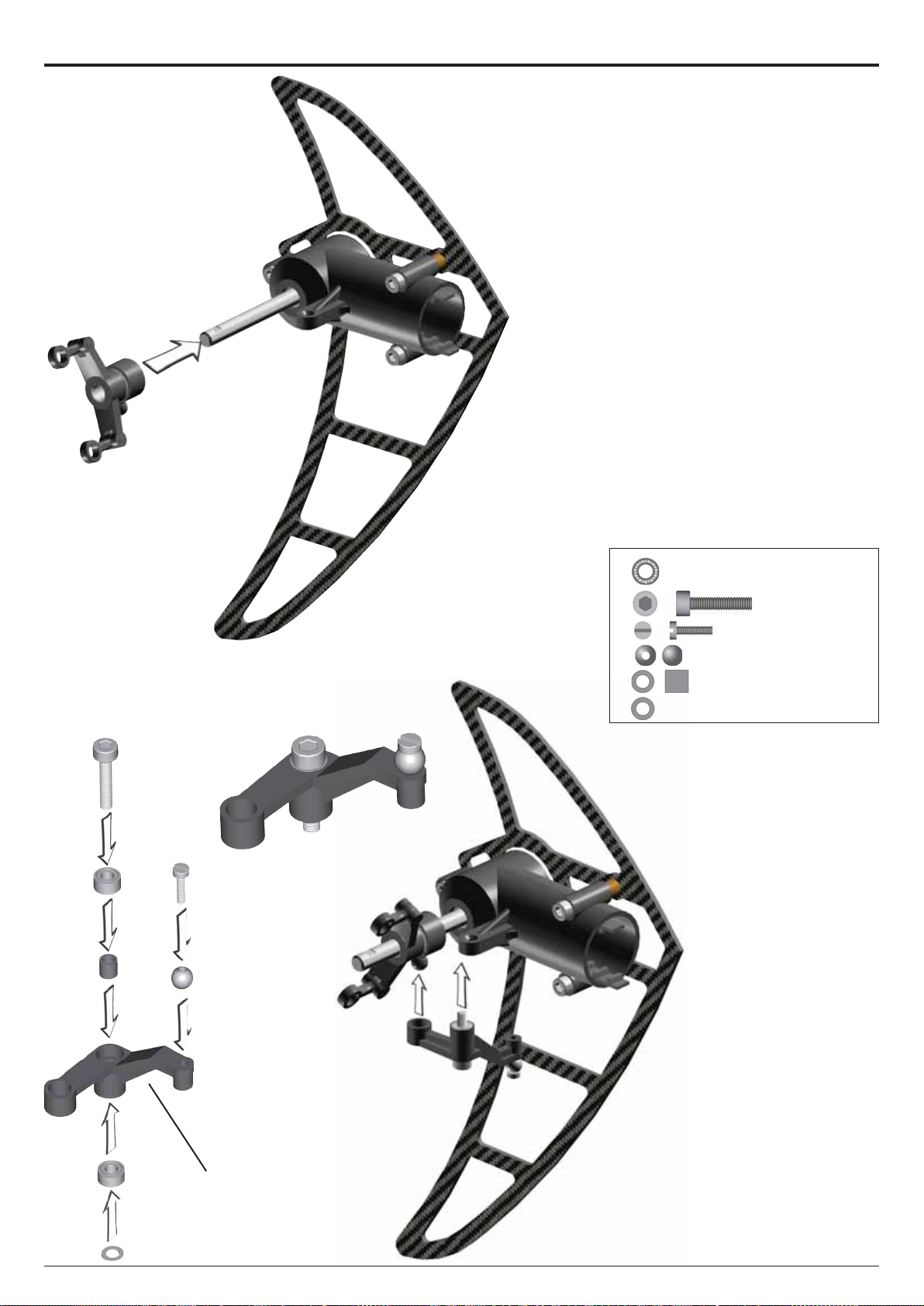

5 Tail Rotor
5.3 Tail Pitch Slider
Bag 5 • Bag 10
It is important that the tail pitch pla-
te #2450 is aligned properly on the
control sleeve #2455. In the case of
misalignment,thecontrol sleevemay
becomedeformed.
Themountedtailpitchplateshould
beabletomove on the tailrotorshaft
with little resistance.

Manual LOGO 14 Carbon Page20 ©MikadoModellhubschrauber
2x 3x6x2,5 #2330
1x M3x14 #1955
1x M2x8 #1902
1x #1570
1x 3x5x5 #2448
1x 3x5x0,5 #2002
#2449
5 Tail Rotor
5.3 Tail Pitch Slider
Bag 5 • Bag 12
The mounted tail rotor lever should
be able to move with little resistance.
5.4 Tail Rotor Lever
Bag 5 • Bag 10 • Bag 12
