mikroElektronika EasyMx PRO v7 User manual

USER'S GUIDE
EasyMx PRO v7
Easy-add extra boards
mikroBUS™sockets
Two connectors for each port
Amazing Connectivity
Fast USB 2.0 programmer and
In-Circuit Debugger
Many on-board modules
Multimedia peripherals
microcontrollers supported
The ultimate Tiva™board
55
for Tiva™C Series

From day one, we in MikroElektronika set ourselves the highest possible goals in pursuit of excellence.
That same day, the idea for Easy development boards was born. In its each and tiniest piece we had put all
our energy, creativity, and sense of what's best for an engineer.
We present you with the 7th generation of our boards, which bring us some exciting new features. We hope
that you like it as much as we do.
Use it wisely and have fun.
To our valued customers
Nebojsa Matic,
Owner and General Manager
of MikroElektronika

Table of contents
page 3
DS1820 - Digital temperature sensor . . . . . . . . . . . . . .
TFT display 320x240px . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I2C EEPROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

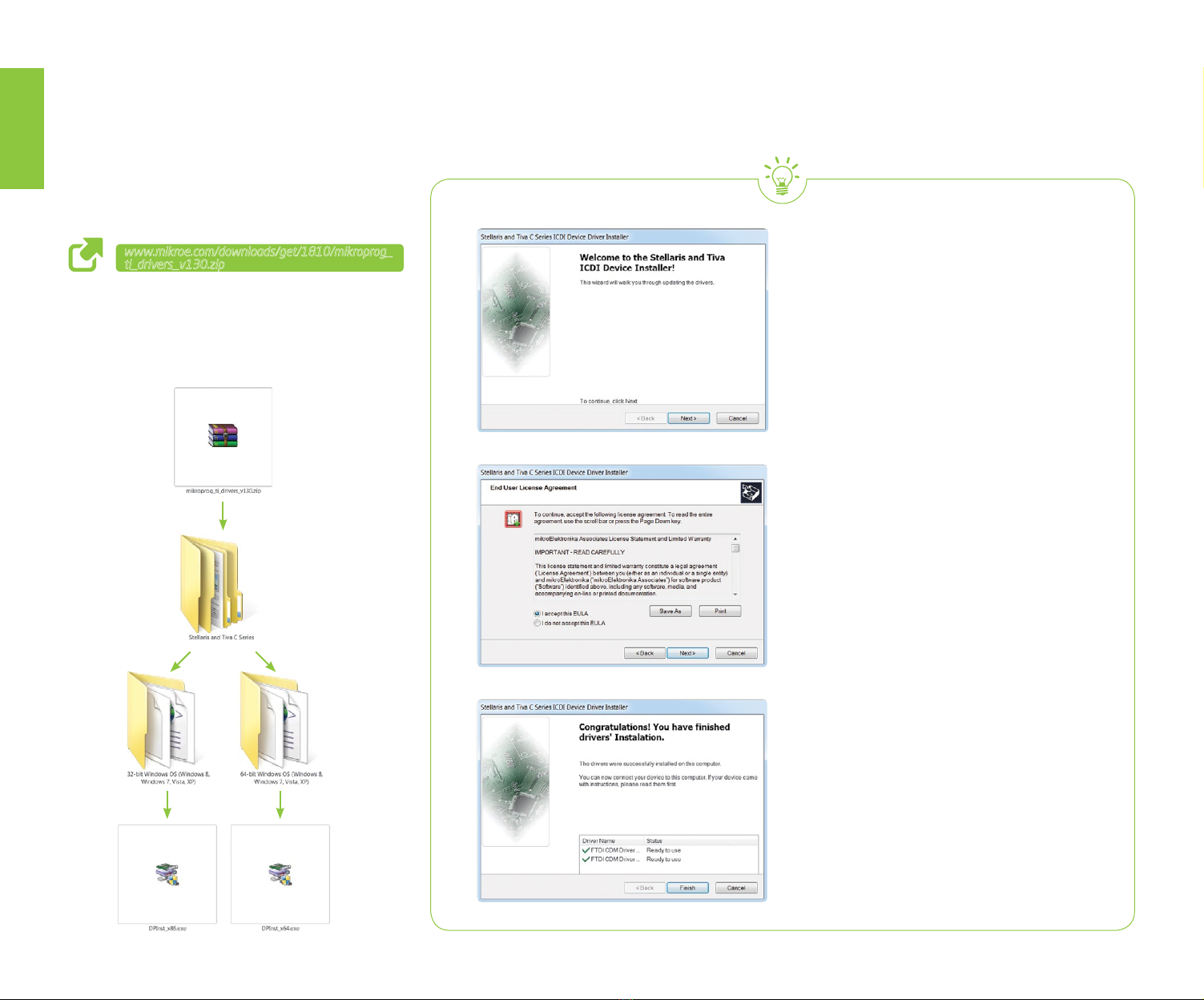

Installing programmer drivers . . . . . . . . . . . . . . . . . . . . . .
Navigation switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LM35 - Analog temperature sensor . . . . . . . . . . . . . . . .
Touch panel controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
microSD card slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
It's good to know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ADC inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programming software . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial ash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On-board programmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List of MCUs supported with mikroProg™. . . . . . . . . .
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Default MCU card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Other supported MCU cards . . . . . . . . . . . . . . . . . . . . . . .
GLCD 128x64 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piezo buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Power Supply
Supported MCUs
Programmer/debugger
Multimedia
Other Modules
Communication
34
30
28
04
37
14
33
35
31
29
05
38
15
Hardware Debugger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
36
12
13
06
08
11
32
39
Input/Output group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
mikroBUS™sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
click™boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connectivity
18
20
21
USB-UART A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB-UART B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB Host communication . . . . . . . . . . . . . . . . . . . . . . . . .
USB Device communication . . . . . . . . . . . . . . . . . . . . . . . .
Ethernet communication . . . . . . . . . . . . . . . . . . . . . . . . . .
CAN communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
23
24
25
26
27
Additional GNDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

EasyMx PROv7
Introduction
introduction
page 4
ARM®Cortex™-M4 are increasingly popular microcontrollers. They are rich
with modules, with high performance and low power consumption, so
creating a development board the size of EasyMx PRO™ v7 for Tiva™C
Series was really a challenge. We wanted to put as many peripherals
on the board as possible, to cover many internal modules. We have
gone through a process of ne tuning the board's performance,
and used 4-layer PCB to achieve maximum eciency. Finally, it
had met all of our expectations, and even exceeded some. We
present you the board which is powerful, well organized, with
on-board programmer and debugger and is ready to be your
strong ally in development.
EasyMx PRO™v7 development Team
EasyMx PRO™v7 for Tiva™C
Series is all about connectivity.
Having two dierent connectors
for each port, you can connect
accessory boards, sensors and
your custom electronics easier
than ever before.
Powerful on-board mikroProg™
programmer and hardware
debugger can program and
debug over 55 Tiva™C Series
microcontrollers. You will
need it, whether you are a
professional or a beginner.
Two connectors for each port Everything is already here
Amazing connectivity mikroProg™on board
TFT 320x240 with touch panel,
stereo mp3 codec, audio input
and output, navigation switch
and microSD card slot make a
perfect set of peripherals for
multimedia development.
Ready for all kinds of development
Multimedia peripherals
Just plug in your click™board,
and it’s ready to work. We picked
up a set of the most useful pins
you need for development and
made a pinout standard you will
enjoy using.
For easier connections
mikroBUS™support

EasyMx PROv7
It's good to know
Package contains
introduction
page 5
System specication
TM4C129XNCZAD is the default microcontroller
power supply
7–23V AC or 9–32V DC
or via USB cable (5V DC)
board dimensions
266 x 220mm (10.47 x 8.66 inch)
weight
~500g (1.1 lbs)
power consumption
~76mA when all peripheral
modules are disconnected
Damage resistant
protective box
1EasyMx PRO™v7 for Tiva™C Series
board in antistatic bag
2USB cable 3
TM4C129XNCZAD is the default chip of
EasyMx PRO™v7 for Tiva C Series. It belongs to
ARM®Cortex™-M4 family. It operates at 120MHz,
has 1024 KB of Flash memory, 256 KB of
single-cycle System SRAM, integrated Ethernet
controller with PHY, USB 2.0 (OTG, Host, Device),
140 General purpose I/O pins, 7x16/32-bit
timers, 2x12-bit A/D (24 channels), a 12-bit
D/A , 8xUARTs, internal Real time clock (RTC),
10xI2C, 4xSPI and 2xCAN controllers. It has
Serial wire debug (SWD) and JTAG interfaces for
programming and debugging.
- Great choice for both beginners
and professionals
- Rich with modules
- Comes with examples for mikroC,
mikroBasic and mikroPascal compilers
User Manuals and
Board schematics
4

EasyMx PROv7
Power supply
Board contains a switching power
supply that creates stable voltage
and current levels necessary
for powering each part of
the board. The power supply
section contains a specialized
MC34063A power regulator which
creates a VCC-3.3V power supply, thus
making the board capable of supporting 3.3V
microcontrollers. Power supply unit can be powered in
three dierent ways: with USB power supply (CN6), using
external adapters via adapter connector (CN34) or additional
screw terminals (CN35). External adapter voltage levels must be in
range of 9-32V DC and 7-23V AC. Use jumper J1 to specify which power
source you are using. Upon providing the power using either external adapters
or a USB power source you can turn on the power supply by using SWITCH 1 (Figure
3-1). Power LED ON (Green) will indicate the presence of power supply. Figure 3-1: Power supply unit of
EasyMx PRO™v7 for Tiva™C Series
power supply
page 6
1
2
3
4
VCC
GND
D-
D+
CN6
USB B
VCC-USB
FP1
C19
100nF
VCC-5V
POWER
R88
2K2
LD73
J1
D6
1N4007
D5
1N4007
D4
1N4007
D3
1N4007
CN34 CN35
E19
220uF/35V/LESR
E18
220uF/35V/LESR
1
2
3
4
8
7
6
5
SWC
SWE
CT
GND
DRVC
IPK
VIN
CMPR
U15
MC34063A
R93
0.22
R94
3K
VCC-SWC53
220pF
D7
MBRS140T3
L1 220uH
VCC-EXT
R96
1K
VCC-5V
2
1 3
SWITCH1
VCC-USB
VCC-SW
+ -
5V SWITCHING POWER SUPPLY
C55
100nF
VCC-5V
2
1
3
GND
Vout
Vin
REG1
MC33269DT3.3
E16
10uF
3.3V VOLTAGE REGULATOR
VCC-3.3V
C52
100nF
E17
220uF/35V/LESR

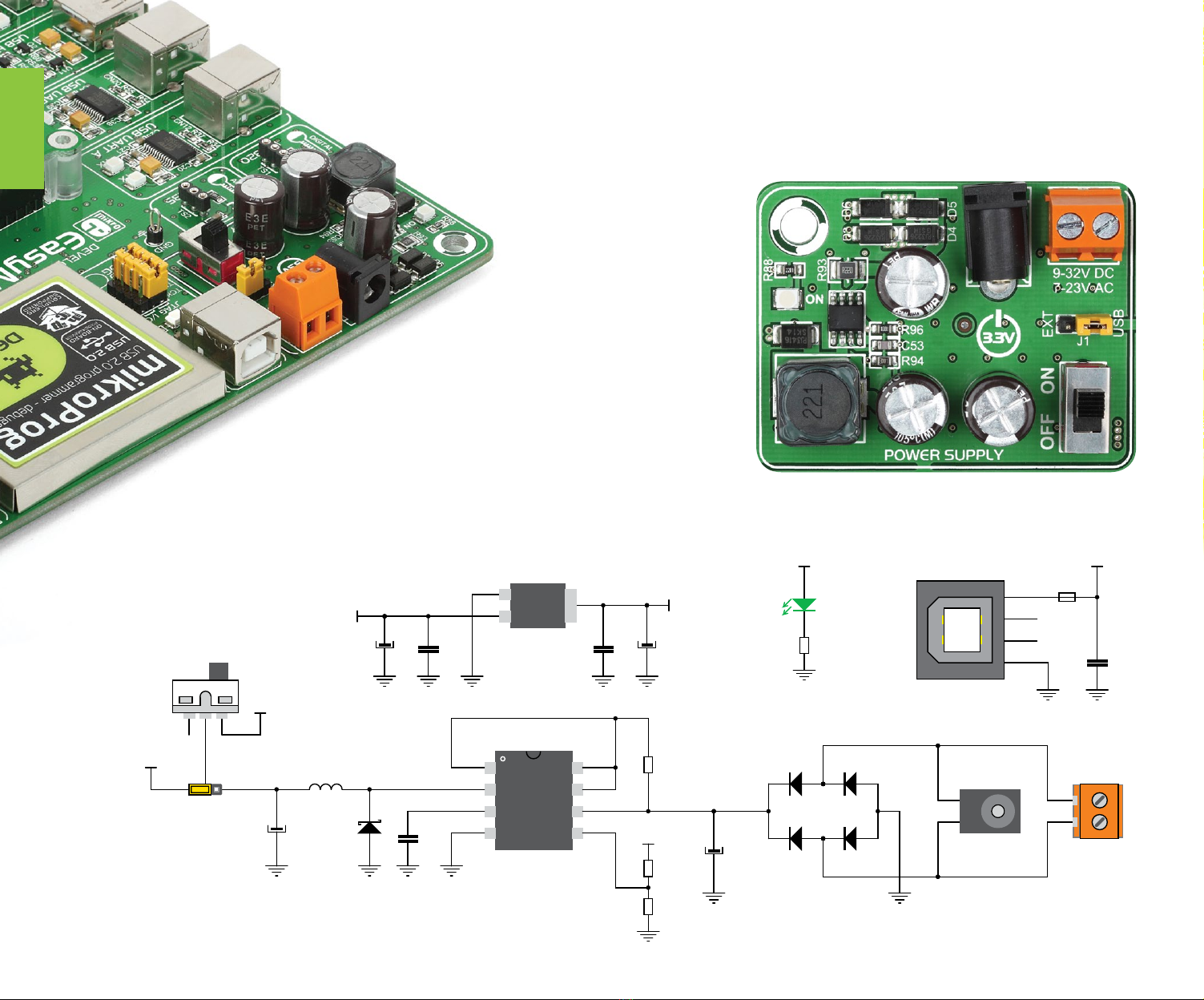

Figure 3-2:
Power supply
unit schematic

EasyMx PROv7
How to power the board?
To power the board with a USB cable, place jumper J1
in USB position. You can then plug in the USB cable
as shown on images 1and 2, and turn the power
switch ON.
To power the board with an adapter connector, place
jumper J1 in EXT position. You can then plug in the
adapter cable as shown on images 3and 4, and turn
the power switch ON.
To power the board using screw terminals, place
jumper J1 in EXT position. You can then screw-on the
cables in the screw terminals as shown on images 5
and 6, and turn the power switch ON.
The board's power supply unit creates a stable 3.3V voltage
necessary for the operation of the microcontroller and all
on-board modules.
Power supply: via DC connector or screw terminals
(7V to 23V AC or 9V to 32V DC),
or via USB cable (5V DC)
Power capacity: up to 500mA with USB, and up to 600mA
with external power supply
Set J1 jumper to
USB position
1. With USB cable
3. With laboratory power supply
Set J1 jumper to
EXT position
Set J1 jumper to
EXT position
2. With adapter
1
3
5
2
4
6
power supply
page 7

EasyMx PROv7
supported MCUs
page 8
Default MCU card
Microcontrollers are supported using specialized 104-pin
MCU cards that can be inserted into the on-board MCU socket.
There are several types of cards which cover all microcontroller
families of Tiva™C Series Cortex™-M4. The Default MCU card
that comes with the EasyMx PRO™v7 for Tiva™C Series package
is shown on Figure 4-1. It contains the TM4C129XNCZAD
microcontroller with on-chip peripherals and is a great choice
for both beginners and professionals. After testing and building
the final program, this card can also be taken out of the board
socket and used in your final device.
2
3
1

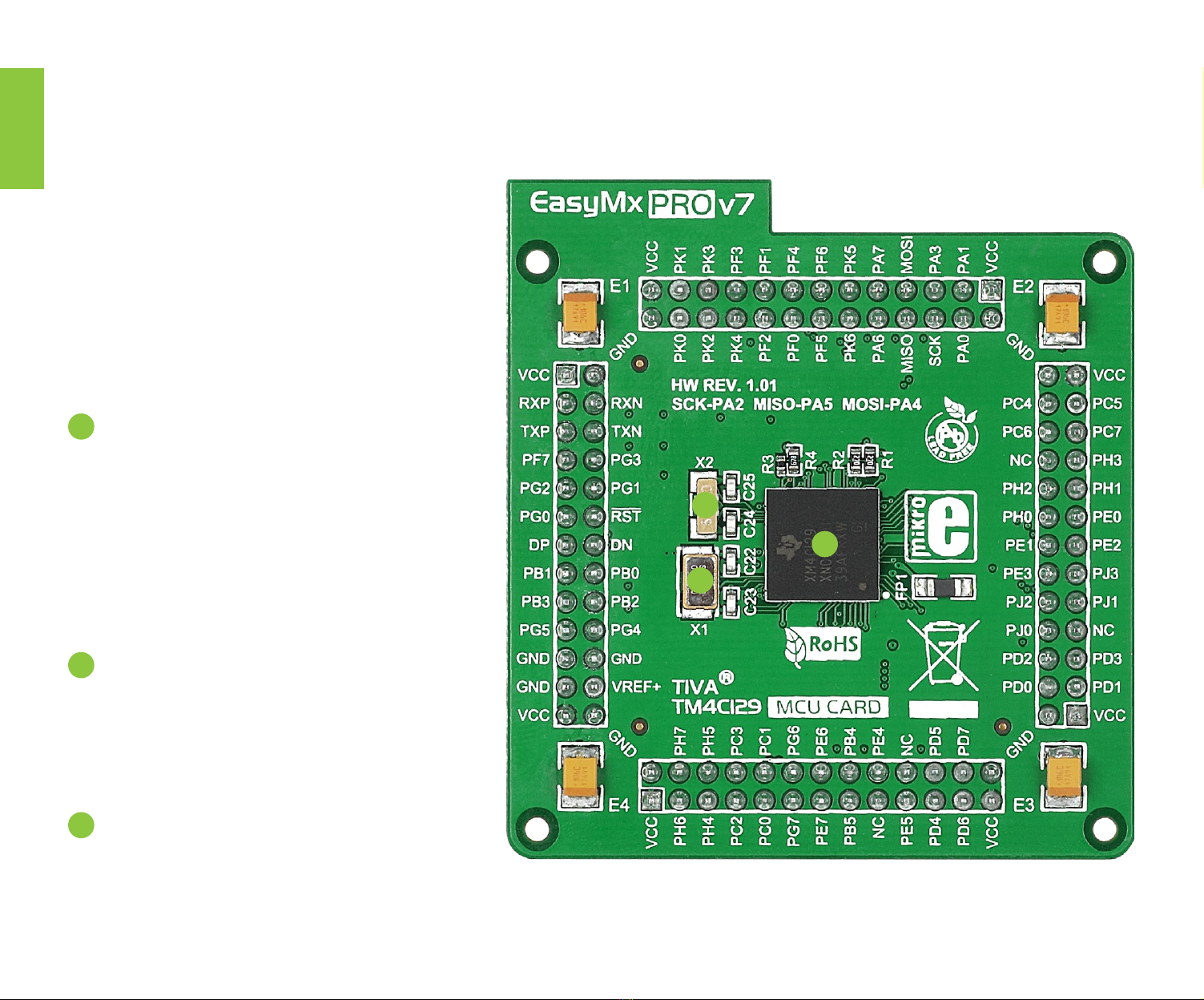

Figure 4-1: Default MCU card
with TM4C129XNCZAD
TM4C129XNCZAD is the default chip of EasyMx PRO™v7
for Tiva™C Series. It belongs to ARM®Cortex™-M4F family.
It operates at 120MHz, has 1024 KB of Flash memory,
256 KB of single-cycle System SRAM, integrated Ethernet
controller with PHY, USB 2.0 (OTG, Host, Device), 140
General purpose I/O pins, 7x16/32-bit timers, 2x12-bit
A/D (24 channels), a 12-bit D/A , 8xUARTs, internal Real
time clock (RTC), 10xI2C, 4xSPI and 2xCAN controllers.
It has Serial wire debug (SWD) and JTAG interfaces for
programming and debugging.
25MHz crystal oscillator. We carefully chose the most
convenient crystal value that provides clock frequency
which can be used directly, or with the PLL multipliers
to create higher MCU clock value. MCU card also contains
32.768 kHz crystal oscillator which provides external
clock for RTCC module.
1
2
332.768-kHz external crystal oscillator which provides
external clock for the internal hibernation module.

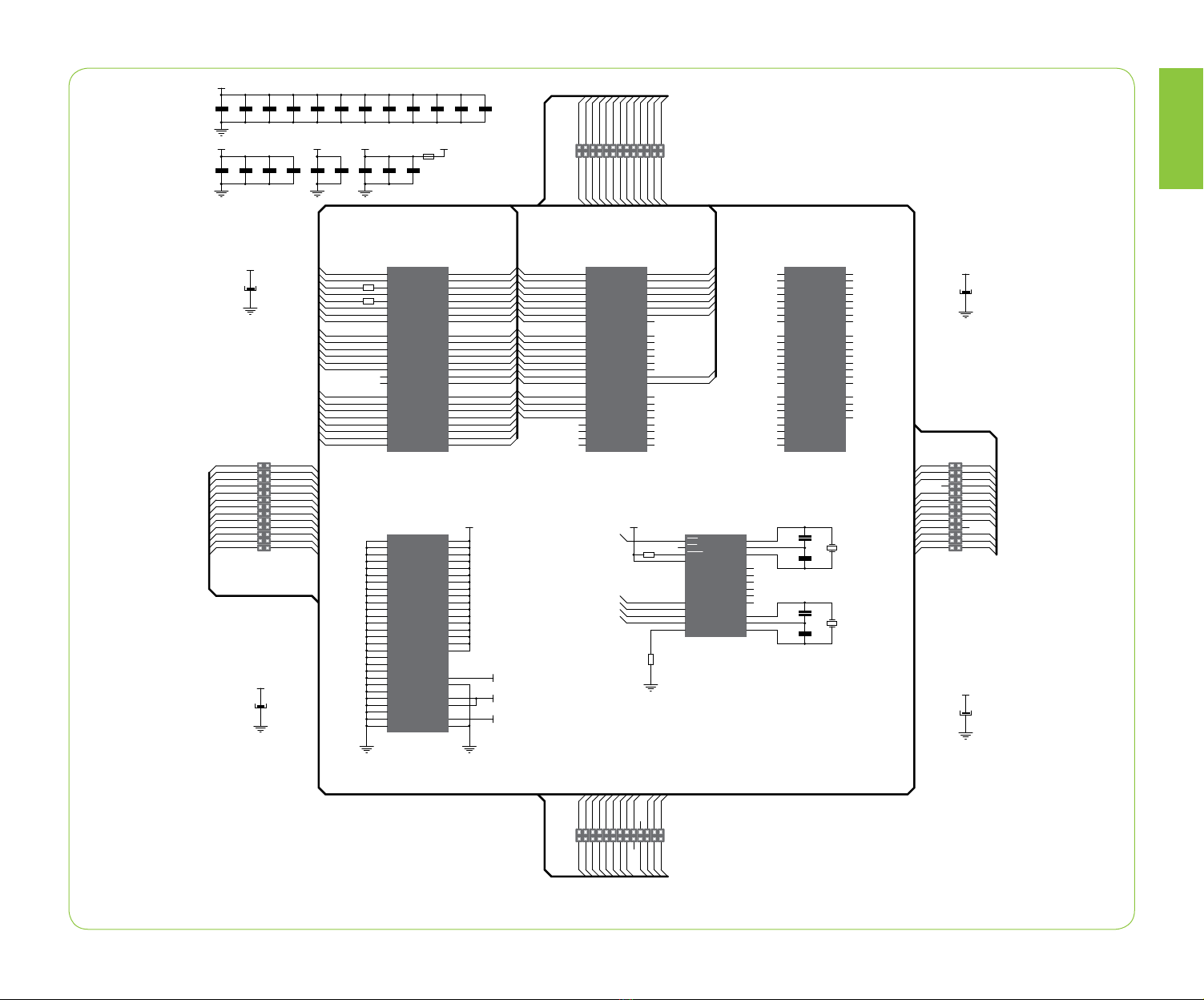

EasyMx PROv7
X1
25MHz
C23
22pF
C22
22pF
X2
32.768KHz
C24
10pF
C25
10pF
C1
100nF
C2
100nF
C3
100nF
C4
100nF
C5
100nF
C6
100nF
C19
1uF
C15
1uF
C16
2.2uF
VCC-CORE
C14
100nF
C13
10nF
C21
10nF
C7
100nF
C17
100nF
VREF
C18
10nF
FP1
VCC-ADC
C20
100nF
C8
100nF
C9
100nF
C10
100nF
C11
10nF
C12
10nF
PJ0
C8
PJ1
E7
PJ2
H17
PJ3
F16
PJ4
F18
PJ5
E17
PJ6
N1
PJ7
K5
PK0 J1
PK1 J2
PK2 K1
PK3 K2
PK4 U19
PK5 V17
PK6 V16
PK7 W16
PL0G16
PL1H19
PL2G18
PL3J18
PL4H18
PL5G19
PL6C18
PL7B18
PM0 K18
PM1 K19
PM2 L18
PM3 L19
PM4 M18
PM5 G15
PM6 N19
PM7 N18
PORT J
PORT KPORT LPORT M
PG0
N15
PG1
T14
PG2
V11
PG3
M16
PG4
K17
PG5
K15
PG6
V12
PG7
U14
PH0
P4
PH1
R2
PH2
R1
PH3
T1
PH4
R3
PH5
T2
PH6
U2
PH7
V2
PORT GPORT H
U1C
TM4C129XNCZAD
EN0RXIN
V13 EN0RXIP
W13EN0TXON
V14 EN0TXOP
V15
GNDX R18
GNDX2D18 HIB
M17
NC C5
NC E13
NC V18
NC V19
NC W18
NC W19
OSC0 E19
OSC1 D19
RBIAS
W15
RST
P18
VBAT
P19WAKE
U18
XOSC0 T18
XOSC1 T19
SYSTEM
U1A
TM4C129XNCZAD
PA0
V3
PA1
W3
PA2
T6
PA3
U5
PA4
V4
PA5
W4
PA6
V5
PA7
R7
PB0
A16
PB1
B16
PB2
A17
PB3
B17
PB4
C6
PB5
B6
PB6
F2
PB7
F1
PC0
B15
PC1
C15
PC2
D14
PC3
C14
PC4
M2
PC5
M1
PC6
L2
PC7
K3
PD0C2
PD1C1
PD2D2
PD3D1
PD4A4
PD5B4
PD6B3
PD7B2
PE0H3
PE1H2
PE2G1
PE3G2
PE4A5
PE5B5
PE6A7
PE7B7
PF0U6
PF1V6
PF2W6
PF3T7
PF4V7
PF5W7
PF6T8
PF7U8
PORT APORT BPORT C PORT DPORT EPORT F
U1B
TM4C129XNCZAD
GND
A1
GND
A2
GND
A18
GND
A19
GND
B1
GND
B19
GND
F10
GND
H10
GND
H11
GND
H12
GND
J11
GND
J12
GND
K6
GND
K9
GND
K10
GND
K13
GND
K14
GND
L8
GND
L9
GND
M8
GND
M9
GND
M10
GND
N10
GND
P16
GND
R17
GND
V1
GND
W1
GND
W2 GNDAG4
VDD G10
VDD H9
VDD J8
VDD J9
VDD J10
VDD K7
VDD K8
VDD K11
VDD K12
VDD L10
VDD L11
VDD L12
VDD M11
VDD M12
VDD N16
VDD P10
VDD P17
VDDA F3
VDDC E10
VDDC H16
VREFA- G5
VREFA+ F4
POWER
U1E
TM4C129XNCZAD
PQ0
E3
PQ1
E2
PQ2
H4
PQ3
M4
PQ4
A13
PQ5
W12
PQ6
U15
PQ7
M3
PR0N5
PR1N4
PR2N2
PR3V8
PR4P3
PR5P2
PR6W9
PR7R10
PS0D12
PS1D13
PS2B14
PS3A14
PS4V9
PS5T13
PS6U10
PS7R13
PT0W10
PT1V10
PT2E18
PT3F17
PORT Q
PORT RPORT S
PORT N
PN0
C10
PN1
B11
PN2
A11
PN3
B10
PN4
A10
PN5
B9
PN6
T12
PN7
U12
PP0
D6
PP1
D7
PP2
B13
PP3
C12
PP4
D8
PP5
B12
PP6
B8
PP7
A8
PORT P
PORT T
U1D
TM4C129XNCZAD
VCC-CORE
VREF
VCC-ADC
LAN-TX_P
LAN-TX_N
LAN-RX_P
LAN-RX_N
RST#
XOSC0
XOSC1
OSC1
OSC0
GNDX
GNDX2
±1%
R4
4K87
R1 27
R2 27
27 28
29 30
31 32 33 34
35 36
37 38
39 40
41 42
45
44
43
46
47 48 49 50
51 52
HD2
VCC GND
VCC GND
USB-D_NUSB-D_P
RST#
GND
GNDGND
PF7 PG3
PG2 PG1
PG0
PB2PB3
PG5 PG4
VREF
PB1 PB0
79
80
8182 8384
85
86
87
88
8990
9192
9394 95
96
97
98
99
100
101
102
103
104
HD3
VCC GND
VCC GND
PH6
PH5PH4
PC3PC2
PC1PC0
PG6 PE6PE7
PB5 PB4
PE4
PE5 PD4 PD6 PD7
PH7
PD5
PG7
5354
5556
5758
5960
6162
6364
6566
6768
6970
7172
7374
7576
7778
HD4
VCCGND
VCCGND
PD0PD1
PD2PD3
PJ2
PE3
PE2PE1
PE0PH0
PH1PH2
PH3
PC7PC6
PC5PC4
PJ1
PJ0
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
HD1
VCCGND
VCCGND
PA0 PA1 PA2 PA3
PA4PA5
PA6 PA7
PF6 PF4PF0
PF1PF2
PF3
PK2
PK1PK0
PF5
PK3
LAN-TX_PLAN-TX_N
LAN-RX_P LAN-RX_N
PJ3
PK4 PK6 PK5
PF7
PG3
PG2
PG1
PG0
PB1
PB0
PB3
PB2
PG5
PG4
PH6
PH7
PH5
PH4
PC3
PC2
PC1
PC0
PG7
PG6
PE7
PE6
PB5
PB4 PE4
PE5
PD5
PD4
PD6
PD7
PC4
PC5
PC6
PC7
PH3
PH2
PH1
PH0PE0
PE1
PE2
PE3
PJ3
PJ2
PD2
PD3
PD0
PD1
PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PK6
PK5
PF5
PF6
PF4
PF0
PF2
PF1
PF3
PK4
PK3
PK2
PK1
PK0
USB-D_N
USB-D_P
PJ1
PJ0
R3 100K
E1
10uF
VCC
E2
10uF
VCC
E3
10uF
VCC
E4
10uF
VCC
VCC
VCC
VCCVCC
page 9
Figure 4-2: Default MCU card and boot conguration schematic
supported MCUs

EasyMx PROv7
page 10
1 2 3
Before you plug the microcontroller card into
the socket, make sure that the power supply is
turned o. Images below show how to correctly
plug in the card. First make sure that the MCU
card orientation matches the silkscreen outline
on the EasyMx PRO™v7 Tiva™C Series board MCU
socket. Hold the MCU card over the socket, so
each header is properly aligned with the socket,
as shown in Figure 4-4. Then put the MCU card
slowly down until all the pins slide into the socket.
Check again if everything is placed correctly and
press the MCU card until it is completely plugged
into the socket as shown in Figure 4-5. If done
correctly all pins should be fully inserted. Only now
you can turn on the power supply.
How to properly insert your MCU card into the socket?
supported MCUs
Figure 4-3: On-board MCU
socket has silkscreen
markings which will help
you to correctly orient the
MCU card before inserting.
Figure 4-4:
Place the
MCU card on
the socket
so that pins
are aligned
correctly.
Figure 4-5 Properly
placed MCU card.

EasyMx PROv7 page 11
MikroElektronika currently oers a total of
three populated MCU cards for the EasyMX for
Tiva™ C Series: TM4C129XNCZAD microcontroller
(default), TM4C123GH6PZ microcontroller and
TM4C123GH6PM microcontroller. You can also pur-
chase empty PCB cards that you can populate on
your own and solder any supported microcontroller
you need in your development. There are a total
of three empty PCB cards available. This way your
EasyMx PRO™v7 for Tiva™C Series board becomes
truly exible and reliable tool for almost any of your
Tiva™ C Series projects. MCU cards can also be used
in your nal devices. For a complete list of currently
available MCU cards, please visit the board webpage:

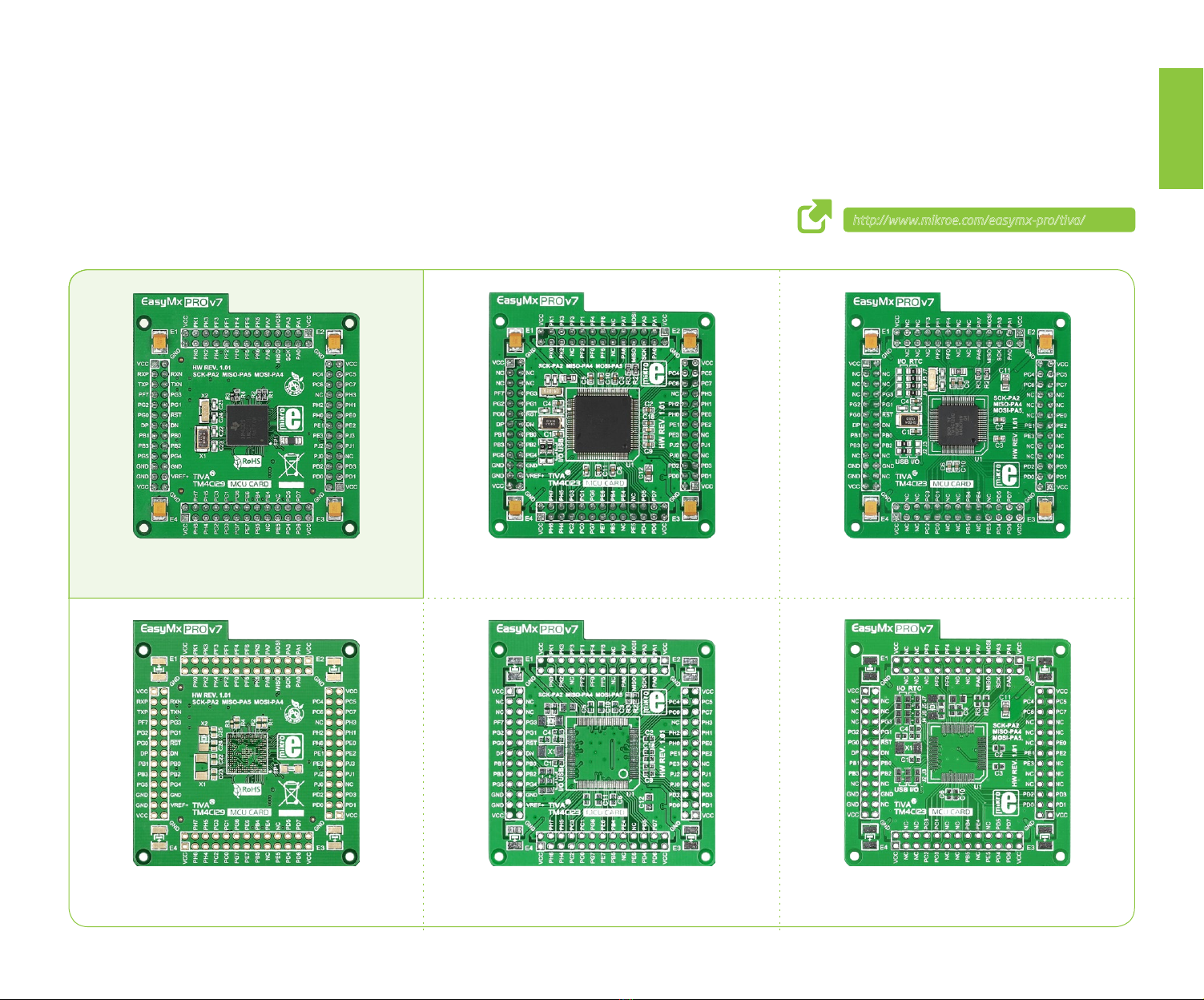

Other supported MCU cards
http://www.mikroe.com/easymx-pro/tiva/
supported MCUs
Empty MCU card for 100-pin
TM4C123 MCUs
Empty MCU card for 212-pin
TM4C129 MCUs
Empty MCU card for 64-pin
TM4C123 MCUs
Standard 100-pin MCU card with
TM4C123GH6PZ
Default 212-pin MCU card with
TM4C129XNCZAD
Standard 64-pin MCU card with
TM4C123GH6PM

EasyMx PROv7
On-board
programmer
What is mikroProg™?
mikroProg™is a fast programmer and debugger which is based on TI ICDI debugger. Smart engineering allows mikroProg™
to support over 55 ARM®Cortex™-M4 devices from Tiva™C Series in a single programmer. It also features a powerful debugger
which will be of great help in your development. Outstanding performance and easy operation are among its top features.
In order to start using
mikroProg™and program
your microcontroller, you
just have to follow two
simple steps:
1. Install the necessary
software
- Install programmer
drivers
- Install mikroProg Suite™
for ARM® software
2. Power up the board,
and you are ready to go
- Plug in the programmer
USB cable
- LINK LED should light up
How do I start? Enabling mikroProg™
Five jumpers below the programmer USB
connector are used to specify whether
programming lines should be connected to
programmer, or used as general purpose I/
Os. If placed in JTAG/SWD position, jumpers
connect PC0-PC3 pins to TCK, TMS, TDI and TDO programming lines respectively
and are cut o from the rest of the board.
programming
page 12
VCC- USB
USB- PROG_N
USB- PROG_P
VCC-3.3V
GND
PROG- L ED
TCK-SWCL K
TMS-SWDI O
TDI
TDO- SWO
RST#
VCC- 5V
EXT -PROG#
1
2
3
4
VCC
GND
D-
D+
CN6
USB B
VCC-USB
FP1
C19
100nF
USB-PROG_N
USB-PROG_P
VCC-3.3V
LINK
R16
2K2
LD14
PROG-LED
J2
J3
J4
J5
TCK-SWCLK
TMS-SWDIO
TDI
TDO-SWO
PC0
PC1
PC2
PC3
PC0-MCU
PC1-MCU
PC2-MCU
PC3-MCU
RST#
VCC-3.3V
VCC-USB
VCC-3.3V
RST#
R63
10K
R65 100
C46
100nF
T46
RESET
VCC-5V
EXT-PROG#
DATA BUS
12
34
56
78
910
CN13
EXT-PROG
VCC-3.3V
R27
100K
PC0-MCU
PC1-MCU
PC3-MCU
PC2-MCU
RST#
Figure 5-1:
mikroProg™block
schematic
Cortex Debug
In addition to the
on-board mikroProg
programmer,
there's also a
Cortex Debug
connector that supports JTAG
debug, Serial Wire debug and
Serial Wire Viewer operations.

EasyMx PROv7 page 13
programming
Tiva™C Series ARM® Cortex™-M4 microcontrollers supported with mikroProg™
TM4C1230C3PM
TM4C1230D5PM
TM4C1230E6PM
TM4C1230H6PM
TM4C1231C3PM
TM4C1231D5PM
TM4C1231D5PZ
TM4C1231E6PM
TM4C1231E6PZ
TM4C1231H6PM
TM4C1231H6PZ
TM4C1232C3PM
TM4C1232D5PM
TM4C1232E6PM
TM4C1232H6PM
TM4C1233C3PM
TM4C1233D5PM
TM4C1233D5PZ
TM4C1233E6PM
TM4C1233E6PZ
TM4C1233H6PM
TM4C1233H6PZ
TM4C1236D5PM
TM4C1236E6PM
TM4C1236H6PM
TM4C1237D5PM
TM4C1237D5PZ
TM4C1237E6PM
TM4C1237E6PZ
TM4C1237H6PM
TM4C1237H6PZ
TM4C123AE6PM
TM4C123AH6PM
TM4C123BE6PM
TM4C123BE6PZ
TM4C123BH6PM
TM4C123BH6PZ
TM4C123FE6PM
TM4C123FH6PM
TM4C123GE6PM
TM4C123GE6PZ
TM4C123GH6PM
TM4C123GH6PZ
TM4C1290NCZAD
TM4C1292NCZAD
TM4C1294NCZAD
TM4C1297NCZAD
TM4C1299KCZAD
TM4C1299NCZAD
TM4C129CNCZAD
TM4C129DNCZAD
TM4C129ENCZAD
TM4C129LNCZAD
TM4C129XKCZAD
TM4C129XNCZAD
Building on more than 20 years of experience developing leading microcontroller technology and ARM®-based processors, Texas Instruments launched the
Tiva™ARM® MCU platform in 2013, with Tiva™C Series TM4C123x ARM Cortex-M4 MCUs.
These are the rst Cortex-M-based MCUs to be built on 65 nanometer ash process technology, setting the roadmap to higher speeds, larger memory and
lower power. The Tiva™C Series TM4C123x MCUs are ideal for home, building and industrial automation.
The ARM Cortex-M4 oating-point core Tiva™C Series MCUs strike a perfect balance between performance and power consumption. They eliminate performance
tradeos with 12-bit ADC accuracy, achievable at the full 1 MSPS rating without any hardware averaging. And with low-power standby currents as low as
1.6 uA, they enable longer battery life and support constrained power budgets.
About Texas Instruments Tiva™C Series

EasyMx PROv7
programming
page 14
On-board mikroProg™requires drivers in order to work.
Drivers are located on the link below:
When you locate the drivers, please extract the setup
le from the ZIP archive. You should be able to locate
the driver setup le. Double click the setup le to
begin the installation of the programmer drivers.
Installing programmer drivers
Step 1 - Start installation
Welcome screen of the installation.
Just click Next to proceed.
Step 2 - Accept EULA
Make sure to understand and acept End User
License Agreement before moving to next step.
Step 3 - Finish installation
You will be informed if the drivers are
installed correctly. Click Finish to end the
installation process.
www.mikroe.com/downloads/get/1810/mikroprog_
ti_drivers_v130.zip

EasyMx PROv7
programming
page 15
Step 1 - Start installation
Step 3 - Install for all users or
current user
Step 5 - Installation in progress
Step 2 - Accept EULA and continue
Step 4 - Choose destination folder
Step 6 - Finish installation
Programming software
mikroProg Suite™for ARM®
Quick guide
Installation wizard - 6 simple steps
On-board mikroProg™for Tiva™C Series programmer requires special
programming software called mikroProg Suite™for ARM®. This software
is used for programming all Tiva™C Series microcontrollers. It features an
intuitive interface and Single Click™programming technology. Software
installation is available on following link:
Click the Detect MCU button in
order to recognize the device ID.
Click the Read button to read the
entire microcontroller memory.
You can click the Save button to
save it to target HEX le.
If you want to write the HEX
le into the microcontroller, rst
make sure to load the target HEX
le using the Load button. Then
click the Write button to begin
programming.
Click the Erase button to clear
the microcontroller memory.
After downloading, extract the package and double click the executable setup
le to start the installation.
http://www.mikroe.com/downloads/get/1809/mikroprog_suite_for_arm_v130.zip
1
2
3
4
Figure 5-2: mikroProg Suite™for ARM®window

EasyMx PROv7
programming
page 16
Hardware debugger
What is debugging?
Every developer comes to a point when it's necessary to
monitor code execution in order to nd errors in the code, or
simply to see if everything is going as planned. This hunt for
bugs or errors in the code is called debugging. There are two
ways to do this: one is software simulation, which enables
you to simulate what is supposed to be happening on the
microcontroller as your code lines are executed, and the other,
more reliable one, is monitoring the code execution on the
chip itself. And this latter one is called hardware debugging.
"Hardware" means that it is the real deal - code executes
right on the target device.
What is a hardware debugger?
The on-board mikroProg™programmer supports hardware
debugger - a highly eective tool for Real-Time debugging
on hardware level. The debugger enables you to execute
your program on the host Tiva™C Series microcontroller and
view variable values, Special Function Registers (SFR), RAM,
CODE and EEPROM memory along with the code execution on
hardware. Whether you are a beginner or a professional, this
powerful tool, with an intuitive interface and a convenient
set of commands will enable you to track down bugs quickly.
mikroProg debugger is one of the fastest, and most reliable
debugging tools on the market.
Supported compilers
All MikroElektronika compilers, mikroC™, mikroBasic™and
mikroPascal™for ARM®, natively support mikroProg™for
Tiva™C Series, as well as other compilers, including KEIL®,
IAR®. Specialized DLL module allows compilers to exploit
the full potential of fast hardware debugging. Along with
compilers, make sure to install the appropriate programmer
drivers and mikroProg Suite™for ARM®programming
software, as described on pages 14 and 15.
When you build your project for debugging, and program the microcontroller with this HEX le, you
can start the debugger using [F9] command. The compiler layout will switch to Debugging View,
and a blue line will mark where code execution is currently paused. Use the debugging toolbar in
the Watch Window to guide the program execution, and stop anytime. Add the desired variables
to the Watch Window and monitor their values.
How do I use the debugger?
Figure 5-3: mikroC PRO for ARM®compiler in debugging view, with SFR registers in Watch Window

EasyMx PROv7
programming
page 17
Here is a short overview of which debugging commands are supported in MikroElektronika compilers. You can see what each command does,
and what are their shortcuts when you are in debugging mode. It will give you a general picture of what your debugger can do.
Toolbar
Icon Command Name Shortcut Description
Start Debugger [F9] Starts Debugger.
Run/Pause Debugger [F6] Run/Pause Debugger.
Stop Debugger [Ctrl + F2] Stops Debugger.
Step Into [F7]
Executes the current program line, then halts. If the executed
program line calls another routine, the debugger steps into the
routine and halts after executing the rst instruction within it.
Step Over [F8]
Executes the current program line, then halts. If the executed program
line calls another routine, the debugger will not step into it. The whole
routine will be executed and the debugger halts at the rst instruction
following the call.
Step Out [Ctrl + F8] Executes all remaining program lines within the subroutine. The
debugger halts immediately upon exiting the subroutine.
Run To Cursor [F4] Executes the program until reaching the cursor position.
Toggle Breakpoints [F5] Toggle breakpoints option sets new breakpoints or removes those
already set at the current cursor position.
Show/Hide breakpoints [Shift+F4] Shows/Hides window with all breakpoints
Clears breakpoints [Shift+Ctrl+F5] Delete selected breakpoints
Jump to interrupt [F2] Opens window with available interrupts (doesn't work in hardware
debug mode)
Debugger commands

EasyMx PROv7
PE0 PE1 PE2 PE3 PE4 PE5 PE6 PE7
PE0 PE1 PE2 PE3
PE4
PE5
PE6
PE7
PORTE LED
PORTE LEVEL
12345678 O
N
SW12
PORTE
LED
LD40LD39LD38LD37LD36LD35LD34LD33
RN66
10K
RN65
10K
RN64
10K
RN63
10K
RN62
10K
RN61
10K
RN60
10K
RN59
10K
VCC-3.3V VCC-3.3V
VCC-3.3V
PE0 PE1 PE2
PE3 PE4 PE5 PE6 PE7
PE0PE1
PE2PE3
PE4PE5
PE6PE7
PE0PE1
PE2PE3
PE4PE5
PE6PE7
UP
DOWN
PULL
12345678
+
_
SW7CN18 CN19
T37T36T35T34T33T32T31T30
PORTE LEVEL
VCC
GND
BUTTON PRESS LEVEL
R41
220
J7
R40
220
VCC-3.3V
J6
1 2 3 4 5 6 7 8
+
_
SW8
DATA BUS
page 18
One of the most distinctive features of EasyMx PRO™
v7 for Tiva™C Series are its Input/Output PORT groups.
They add so much to the connectivity potential of the board.
Everything is grouped together
PORT headers, PORT buttons and PORT LEDs are next to each other and
grouped together. This layout givest the EasyMX PRO for Tiva™C Series a
clean, well organized look and it makes development easier. We have also provided
additional PORT headers on the right side of the board, so you can access any pin
you want from that side of the board too.
Figure 6-1: I/O group contains PORT header, tri-state pull
up/down DIP switch, buttons and LEDs all in one place
Input/Output group
connectivity
Button press level tri-state
DIP switch is used to
determine which logic level
will be applied to port pins
when buttons are pressed
Figure 6-2:
Tri-state DIP
switch on PORTE

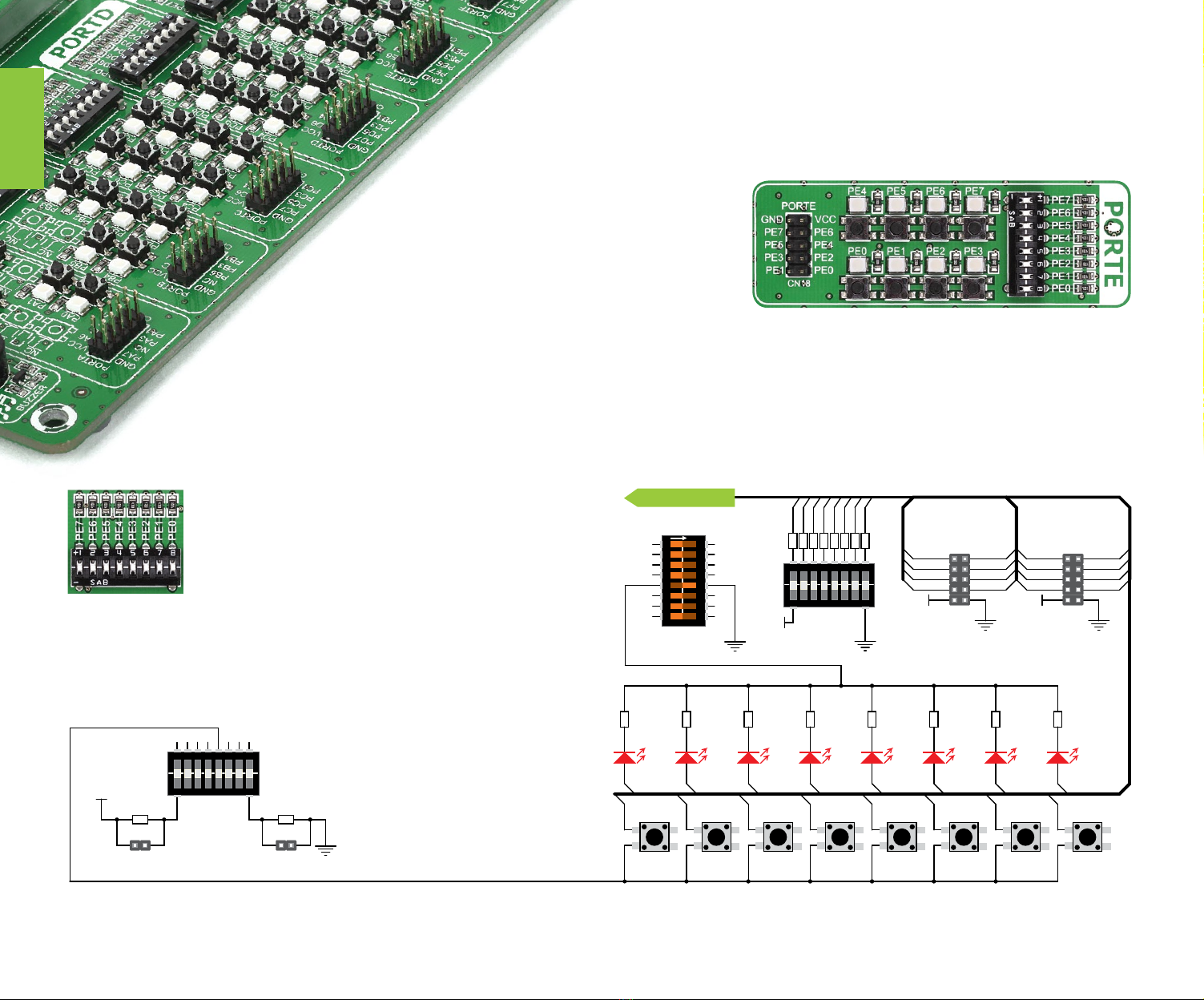

Figure 6-3: Schematic of the single I/O group connected to microcontroller PORTE
Tri-state pull-up/down DIP switches
Tri-state DIP switches, like SW7 on Figure 6-2, are used to
enable 4K7 pull-up or pull-down resistor on any desired port pin.
Each of these switches has three states:
1. middle position disables both pull-up and pull-down feature
from the PORT pin
2. up position connects the resistor in pull-up state to the
selected pin
3. down position connects the resistor in pull-down state to the
selected PORT pin.

EasyMx PROv7
Figure 6-4: IDC10 headers enable easy connection
with MikroElektronika accessory boards
connectivity
page 19
Headers Buttons LEDs
LED (Light-Emit-
ting Diode) is a
highly ecient
electronic light
source. When con-
necting LEDs, it is
necessary to place
a current limiting
resistor in series so
that LEDs are pro-
vided with the current value specied by the manu-
facturer. The current varies from 0.2mA to 20mA,
depending on the type of LED and the manufacturer.
The EasyMx PRO™v7 for Tiva™C Series board uses
low-current LEDs with typical current consumption of
0.2mA or 0.3mA. Board
contains 67 LEDs which
can be used for visual in-
dication of the logic state
on PORT pins. An active
LED indicates that a logic
high (1) is present on the
pin. In order to enable
PORT LEDs, it is neces-
sary to enable the corre-
sponding DIP switch on
SW12 (Figure 6-6).
Figure 6-6: SW12.1
through SW12.8
switches are used to
enable PORT LEDs
The logic state of
all microcontroller
digital inputs may be
changed using push
buttons. Tri-state
DIP switch SW8 is
available for select-
ing which logic state
will be applied to corresponding MCU pin when but-
ton is pressed, for each I/O port separately. If you, for
example, place SW8.5 in VCC position, then pressing
of any push button in PORTE I/O group will apply logic
one to the appropriate microcontroller pin. The same
goes for GND. If DIP switch is in the middle position
neither of two logic states will be applied to the ap-
propriate microcontroller pin. You can disable pin pro-
tection 220ohm resistors by placing jumpers J6 and
J7, which will connect your push buttons directly to
VCC or GND. Be aware that by doing so you may ac-
cidentally damage MCU in case of wrong usage.
Reset button
In the far upper right section of the
board, there is a RESET button, which
can be used to manually reset the mi-
crocontroller.
Figure 6-5: Button press
level DIP switch (tri-state)
Enhanced connectivity is one of the key features of
EasyMx PRO™v7 for Tiva™C Series. That's why we have
provided two connection headers for each PORT.
I/O PORT group contains one IDC10 header (like CN18
Figure 6-3). There is one more IDC10 header available
on the right side of the board, next to DIP switches (like
CN19 on Figure 6-3). These headers can be used to
connect accessory boards with IDC10 sockets.
53
55
57
59
61
63
65
67
69
71
73
75
77
54
56
58
60
62
64
66
68
70
72
74
76
78
PC5
SMD LED
SMD resistor
limiting current
through the LED

EasyMx PROv7

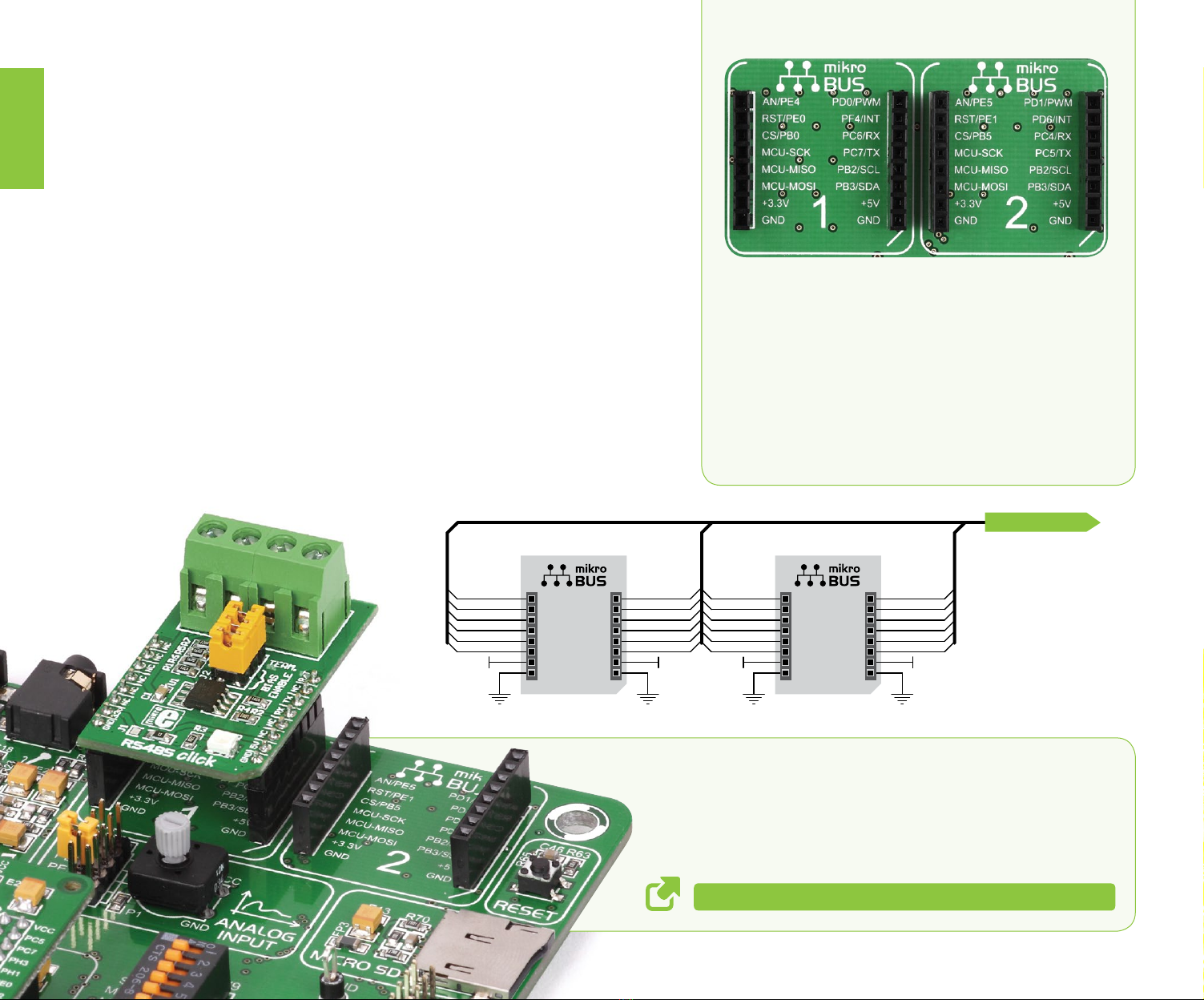

mikroBUS™sockets
mikroBUS™pinout explained
Easier connectivity and simple conguration
are imperative in modern electronic devices.
Success of the USB standard comes from its
simplicity of usage and high and reliable data
transfer rates. As we in MikroElektronika see it,
plug-and-play devices with minimum settings
are the future in the embedded world too. That
is why our engineers came up with a simple,
but brilliant pinout with lines that most of
today’s accessory boards require, which almost
completely eliminates the need for additional
hardware settings. We called this new standard
the mikroBUS™.EasyMx PRO™v7 for Tiva™C
Series supports mikroBUS™with two on-board
sockets. As you can see, there are no additional
DIP switches, or jumper selections. Everything
is already routed to the most appropriate pins
of the microcontroller sockets.
mikroBUS™host connector
Each mikroBUS™host connector consists of two
1x8 female headers containing pins that are
most likely to be used in the target accessory
board. There are three groups of communication
pins: SPI, UART and I2Ccommunication. There
are also single pins for PWM, Interrupt,
Analog input, Reset and Chip Select. Pinout
contains two power groups: +5V and GND on
one header and +3.3V and GND on the other
1x8 header.
AN - Analog pin
RST - Reset pin
CS - SPI Chip Select line
SCK - SPI Clock line
MISO - SPI Slave Output line
MOSI - SPI Slave Input line
+3.3V - VCC-3.3V power line
GND - Reference Ground
PWM - PWM output line
INT - Hardware Interrupt line
RX - UART Receive line
TX - UART Transmit line
SCL - I2C Clock line
SDA - I2C Data line
+5V - VCC-5V power line
GND - Reference Ground
connectivity
page 20
DATA BUS
AN
RST
CS
SCK
MISO
MOSI
3.3V
GND
PWM
INT
RX
TX
SCL
SDA
5V
GND
AN
RST
CS
SCK
MISO
MOSI
3.3V
GND
PWM
INT
RX
TX
SCL
SDA
5V
GND21
VCC-3.3V VCC-5V VCC-3.3V VCC-5V
PB2
PB3
PD6
PD1
PC4
PC5
MCU-MOSI
MCU-MISO
MCU-SCK
PB0
PE0
PE4
MCU-MOSI
MCU-MISO
MCU-SCK
PB5
PE1
PE5
PB2
PB3
PD0
PC6
PC7
PF4
Figure 7-1:
mikroBUS™
connection
schematic
http://www.mikroe.com/mikrobus/
mikroBUS™is not made only to be a part of our development boards. You can
freely place mikroBUS™ host connectors in your nal PCB designs, as long as
you clearly mark them with the mikroBUS™ logo and footprint specications.
For more information, logo artwork and PCB les visit our website:
Integrate mikroBUS™in your design
