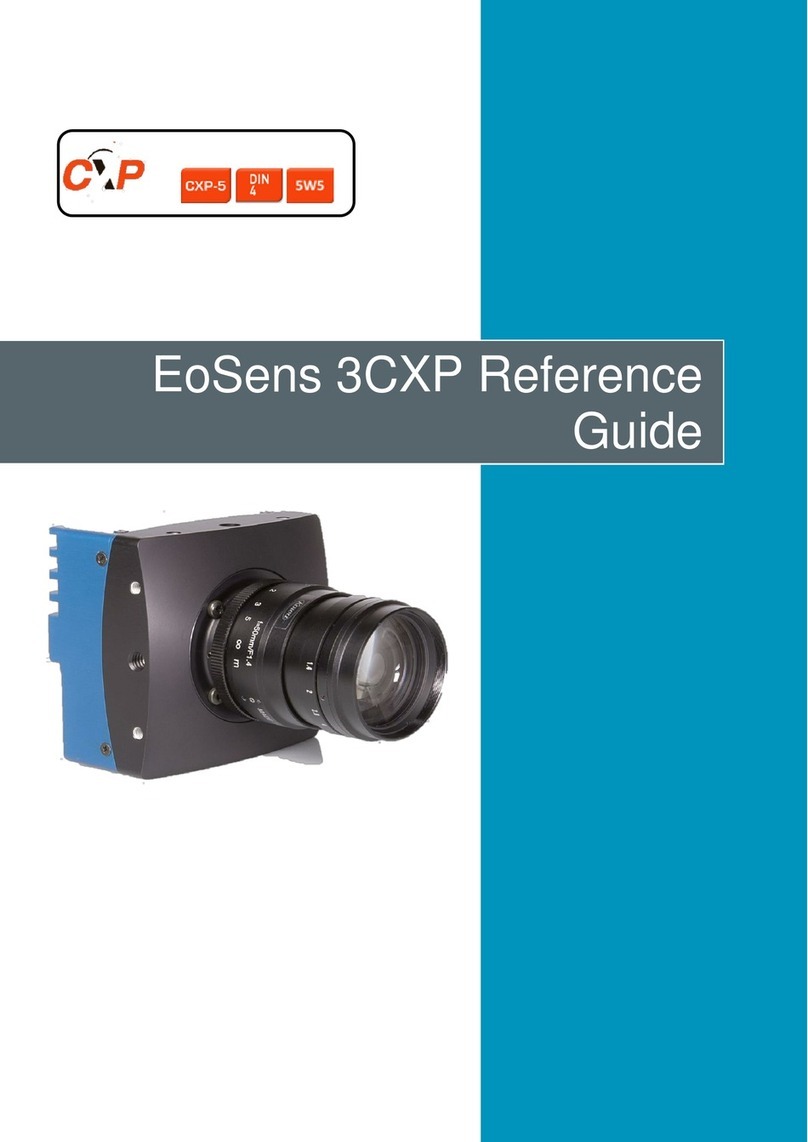

Mikrotron EoSens 3CXP User manual

EoSens 3CXP Camera
Reference Guide V2.3

Table of Content
MIKROTRON GmbH TOC-1
Table of Content
Before You Start
About This Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Tips, Remarks, Notes and Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Registered Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Conformity and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Supplements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
For customers in Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Pour les utilisateurs au Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Life Support Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Warranty and Non-Warranty Clause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
EU Declaration of Conformity
EU-Konformitätserklärung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Introduction
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Scope of Delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
The 3CXP Camera
Camera Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Operating Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Additional Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Interfaces of the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Connecting a Frame Grabber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
DIN Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Connecting an External Power Supply or I/O Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
12 Pin Hirose Connector and I/O Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
6 Pin Hirose and I/O Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
Status LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Resolution and Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Cleaning Sensor and Lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
First Steps
Connect Camera and Image Processing System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Power-up Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Configuring the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Reading the XML File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Table of Content
MIKROTRON GmbH TOC-2
Acquisition Control
Acquistion Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
AcquisitionMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
AcquisitionStart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
AcquisitionStop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
TriggerSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
TriggerMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
TriggerSource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
TriggerSoftware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
TriggerActivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
ExposureMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
ExposureTime. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
ExposureTimeMax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
AcquisitionFrameRate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
AcquisitionFrameRateMax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
TestImageSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
DualSlopeEnable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
DualSlope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Bootstrap CoaXPress
Bootstrap Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
XmlManifestSize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
XmlManifestSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
XmlVersion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
XmlSchemeVersion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Iidc2Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
XmlUrlAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
DeviceVendorName . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
DeviceModelName . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
DeviceManufacturerInfo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
DeviceVersion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
DeviceSerialNumber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
DeviceUserID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Manufacturer-specific Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
WidthAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
HeightAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
AcquisitionModeAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
AcquisitionStartAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
AcquisitionStopAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
PixelFormatAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
DeviceTapGeometryAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Table of Content
MIKROTRON GmbH TOC-3
Image1StreamIAddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-9
DeviceConnectionID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
ConnectionReset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
MasterHostConnectionID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
ControlPacketSizeMax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
StreamPacketSizeMax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
ConnectionConfig . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
ConnectionConfigDefault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
TestMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
TestErrorCountSelector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
TestErrorCount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
TestPacketCountTx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
TestPacketCountRx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
HsUpConnection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Device Control
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
DeviceReset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2
Image Format Control
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
OffsetX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
OffsetY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
SensorWidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
SensorHeight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
WidthMax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
HeightMax. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
PixelFormat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
TapGeometry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Image1StreamID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
DeviceScanType. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7
Analog Control
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
BlackLevel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Gain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Table of Content
MIKROTRON GmbH TOC-4
User Set Control
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
UserSetSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
UserSetLoad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2
UserSetSave. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
UserSetDefaultSelector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
Custom Features
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2
DeviceInformationSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3
DeviceInformation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4
InfoFieldFrameCounterEnable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5
FixedPatternNoiseReduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
FilterMode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-6
Digital I/O Control
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
LineSelector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2
LineSource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
LineInverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
Technical Data
Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Spectral Response
Monochrome and Color Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
Bayer Pattern
Color Filter Array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Example for BayerRG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Conclusions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Camera Dimensions
MC3086 and 3087 With DIN Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3
Side View without adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-3
Side View with C mount adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-4
Side View with F mount adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .D-4

Table of Content
MIKROTRON GmbH TOC-5
MC3082 and 3083 With 5W5 Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-5
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-5
Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-5

CHAPTER
1Before You Start
Please, read this chapter carefully. It provides important informa‐
tion on
• how to use this reference guide
• conformity and use of the product
• the warranty and non‐warranty clause and how to ask for
repair service
• the EU Declaration of conformity

Legal Information
MIKROTRON GmbH 1 ‐2
About This Reference Guide
This reference guide contains helpful information to install and oper‐
ate the here described camera. It has been produced with care. Nev‐
ertheless, information might be erroneous or incomplete.
MIKROTRON GmbH cannot be held responsible for any problems
resulting from incomplete or erroneous information.
In case you detect errors or need further information, please inform
us via mail:
[e-mail]
or call [phone]
In case you need support, visit:
www.mikrotron.de/en/services/support.html
and send your request.
We highly recommend to read this reference guide carefully.
This reference guide is subject to change without notice.
Tips, Remarks, Notes and Warnings
This reference guide contains tips, remarks, notes, and warnings that are
helpful and often important in order to avoid data loss or camera damage.
They are emphasized as follows:
Tip: Gives hints.
Remark: Important infor‐
mation.
Note: Information concerning frame quality, timeouts,
or other...
WARNING! Important information concerning data loss or
camera damage.

Legal Information
MIKROTRON GmbH 1 ‐3
Registered Trademarks
In this reference guide the following registered trademarks are used:
1. CoaXPress®
2. EoSens®
3. GenICam®
4. Microsoft® and Windows®
In the following, these trademarks are not specially marked as regis‐
tered trademarks. This in no way implies that these trademarks can be
used in another context without the trade mark sign!
Conformity and Use
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
requirements are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commer‐
cial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruc‐
tions given in this reference guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will
have to correct the interference at its own expense.
Note: You are herewith cautioned that any changes or modifi‐
cations not expressly approved in this description could
void your authority to operate this equipment.
制造说明：
此设备的生产与测试依照 FCC 条例第 15 条条例，符合 A类电子设备标
准。产品提供在商用使用环境中的合理保护，以防止使用过程中可能涉及
到的损害。
此设备会产生、使用并可发射出无线电波，如果未按照本手册中所述安装
和使用，可能会对无线通信设备产生干扰。如本设备在居民区操作出现干
扰等情况，用户需要自费处理。
备注：请注意，如未按照此使用说明操作而自行更改设备，那么您将无权
使用本设备。

Legal Information
MIKROTRON GmbH 1 ‐4
規制適合宣言とご使用について（米国 FCC)
この機器は、FCC 規則のパート 15 に定められたクラス Aデジタル
装置に関する規制要件に基づいて所定の試験が実施され、その適合
が認証されています。 これらの規制要件は、商業環境において機
器を使用する際、有害な干渉に対する妥当な保護を提供するために
設けられています。この機器は、無線周波数エネルギーを生成かつ
利用するとともに、放射することもあります。 このリファレンス
ガイドの指示に従って設置および使用が行われない場合は、無線通
信に有害な干渉を引き起こす恐れがあります。 この機器を住宅地
で利用すると有害な干渉を起こすこともあり、その場合、使用者は
自己負担において適切な対策を講じる必要があります。
注意事項： このリファレンスガイドに明示的に承認していない
変更や修正を行った場合には、本製品を使用する権利が無効となる
ことがあります
Supplements
For customers in Canada
This apparatus complies with the Class A limits for radio noise emis‐
sions set out in Radio Interference Regulations.
Pour les utilisateurs au Canada
Cet appareil est conforme aux normes Classe A pour bruits radioélec‐
triques, spécifiées dans le Règlement sur le brouillage radioélec‐
trique.
Life Support Applications
The products described in this reference guide are not designed for
use in life support appliances or devices and systems where malfunc‐
tion of these products can reasonably be expected to result in per‐
sonal injury.
DANGER! MIKROTRON customers using or selling these prod-
ucts for use in such applications do so at their own
risk and agree to fully indemnify MIKROTRON for any
damages resulting from such improper use or sale.

Legal Information
MIKROTRON GmbH 1 ‐5
Warranty and Non-Warranty Clause
Warranty is described in §8 of our General Terms and Conditions
which can be downloaded on MIKROTRONS’ web‐page:
www.mikrotron.de/en/terms.html
In addition, take the following non‐warranty clauses into account.
Note The camera does not contain serviceable parts. Do not
open the body of the camera. If the camera has been
opened, the warranty will be void.
WARNING! The camera has to be used with a supply voltage accord‐
ing to the camera’s specification. Connecting a lower or
higher supply voltage, AC voltage, reversal polarity or
using wrong pins of the power connector may damage
the camera. Doing so will void warranty.
Note Our warranty does not protect against accidental dam‐
age, loss, or acts of nature.
Note MIKROTRON cannot be held responsible for the loss of
data. We recommend a backup plan.
In case of warranty, please, make a note of the camera type and its
serial number.
You find all necessary information on the identification plate of the
camera.
Before sending back the camera, ask for a RMA (return merchandise
authorization) number and RMA form either by:
phone: +49 ‐89 ‐7263 4250 or
e‐mail: [email protected]
Then send the camera back to your distributor. If no distributor is
available, send it back to MIKROTRON.

MIKROTRON GmbH 1-6
EU Declaration of Conformity
EU-Konformitätserklärung
MIKROTRON GmbH Phone: [phone]
Landshuter Str. 20‐22 Fax: [phone]‐99
D‐85716 Unterschleissheim Mail: [email protected]
www.mikrotron.de
We herewith declare under our sole responsibility that the products mentioned below:
Hiermit erklären wir in alleiniger Verantwortung, dass die folgenden Produkte:
Product type: Camera
Produkt: Kamera
are in conformity with the following EU directives:
den folgenden EU‐Richtlinien entsprechen:
During conformity‐testing the following standards were consulted:
Die Konformitätsvermutung wurde nach folgenden Standards überprüft:
Models: MC3082 and 3083, MC3086 and 3087
Modelle: MC3082 and 3083, MC3086 and 3087
Title / Titel EU Directive
RoHS Directive on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic Equipment
RoHS‐Richtlinie zur Beschränkung der Verwendung bestimmter gefährlicher Stoffe
in Elektro‐und Elektronikgeräten
2011/65/EU
Approximation of the laws of the Member States relating to electromagnetic com‐
patibility and repealing Directive 89/336/EEC
Angleichung der Rechtsvorschriften der Mitgliedstaaten über die elektromag‐
netische Verträglichkeit und zur Aufhebung der Richtlinie 89/336/EWG
2004/108/EC2014/30/EU
Title / Titel EU Standard
Information technology equipment ‐Immunity characteristics ‐Limits and meth‐
ods of measurement
Einrichtungen der Informationstechnik – Störfestigkeitseigenschaften ‐
Grenzwerte und Prüfverfahren
EN55024:2011‐09
Information technology equipment ‐Radio disturbance characteristics ‐Limits and
methods of measurement
Einrichtungen der Informationstechnik – Funkstöreigenschaften ‐Grenzwerte und
Messverfahren
EN55022:2011‐12

CHAPTER
2Introduction
This chapter describes the camera in general, which means, it
informs about:
• the most important camera features and its sensor
• where it can be used
• what is part of the delivery
• system requirements

Introduction
MIKROTRON GmbH 2 ‐2
Overview
All cameras of the EoSens 3CXP family are CoaXPress compliant.
These high‐speed CMOS cameras come with a 3 Mega pixel sensor of
1696 (H) x 1710 (V). They are widely configurable and scalable to fit to
your needs and are available in monochrome and color (Bayer Filter).
The CoaXPress high speed interface technology allows transfer rates
of up to 6.25 Gbps. Your CXP camera supports CoaXPress Link Speeds
from 1.25 Gbps to 5.00 Gbps.
In addition they offer a very high frame rate of over 560 fps at full res‐
olution. By defining a Region of Interest (ROI) the frame rate can be
increased to several 1000ths of frames.
Another important feature of 3CXP cameras is the high photo sensi‐
tivity of 1270 V.m²/W.s at 600 nm with micro lens.
The camera electronic is enclosed in a compact and solid full metal
housing making it robust enough to comply with the requirements in
heavy industrial surroundings. Shielded coaxial cables as recom‐
mended by the CoaXPress standard will support this.
3CXP cameras can be equipped with standard C‐Mount or F‐Mount
lenses made for industrial purpose.
The most important features of the CXP camera are:
• 3 Mega pixel high speed CMOS sensor
• max. 560 fps
• more than 17,236 frames/s with reduced resolution
• 1” optical format (20.35 mm diagonal)
• active sensor area of 16.35 (H) x 12.10 (V) mm
•8µm
2pixels
•max.3ROI
• resolution of 1696 x 1710 pixels
• speed raise will be reached by lines
• 11V/lux.s@550nm
• 8 bit pixel output (256 gray levels)
• dynamic range of 60dB
• fill factor 0.4
• dual slope (up to 80 DB optical dynamic range)
• asynchronous trigger
• trigger IN; strobe OUT

Introduction
MIKROTRON GmbH 2 ‐3
• trigger frequency of 150 (one edge) and 300 kHz in AnyEdge
mode
• horizontal and vertical decimation
• FPN correction (5x5 matrix)
•CoaXPress
link speeds: CXP1, CXP2, CXP3 and CXP5
• wide power supply range of 12 – 24V
This high‐speed camera comes with an electronically readable man‐
ual, describing all available GenICAM commands. For more informa‐
tion see "Configuring the Camera" on page 4‐4.

Introduction
MIKROTRON GmbH 2 ‐4
Scope of Delivery
The following components are part of delivery. Please, check whether
the delivery is complete, before you start installing the camera:
• Camera MC308x
•F‐Mount or C‐Mount lens adapter as ordered
• MIKROTRON’s Support CD with
– VCAM2 software
– GenICam XML file
– product documentation
Remark: In case you need a
firmware update, inform
MIKROTRON via mail:
[e-mail]
Firmware can be updated remotely via a special updating software.
Optional Accessories
Lenses: To find lenses or other accessories, visit
www.mikrotron.de/en
Cables
• The four bundle cable KKRDDINDINxx/6Gx4 with DIN 1.0/2.3
connector at both ends (4x) is available in lengths of 5, 10, 15,
or 20 m. It is used to connect the frame grabber and camera
when both are equipped with DIN 1.0/2.3 connectors.
Tip: The triangle on the con‐
nector indicates connection
number 1.

Introduction
MIKROTRON GmbH 2 ‐5
• The cable KKRDDINBNCxx/6Gx4 with DIN 1.0/2.3 at one end
and 4 BNC connectors at the other is available lengths of 5,
10, 15, 20 or 25m. It is used to connect a frame grabber with
BNC sockets with the camera.
• 5W5: there are several cables (KKRD5W5BNCxx) for 6 GHz
with a length of 5, 10, 15, 20 m or longer available. Please,
contact your sales representative

Introduction
MIKROTRON GmbH 2 ‐6
•Power Supply: If you do not use power over CXP, you need an
external power supply unit, e.g.:
– MC3086/MC3087: NTCAM132x (12 V/2.5 A) with 12 pin
Hirose connector and 5 m cable or
– MC3082/MC3083: NTCAM13xx with 6 pin Hirose connec‐
tor and 5/10 m cable
– MC3082/MC3083: NTCAM13xx with 6 pin Hirose connec‐
tor and a strobe output and 5/10 m cable
•F‐mount adapter

Introduction
MIKROTRON GmbH 2 ‐7
System Requirements
In order to use the MC308x camera you need:
• an image processing system, e.g.: PC and operating system
according to the requirements of the frame grabber
• a completely installed frame grabber with device driver and
software
Tip: Read more about frame
grabbers that were tested
with MIKROTRON cameras
in the Application Note
AN0036.
• CoaXPress cable with DIN 1.0/2.3 or 5W5 connector
• if wanted, an external power supply (NTCAM132x or
NTCAM13xx)
Note All cables, connectors and the frame grabber have to be
CoaXPress V1.1 compliant.

CHAPTER
3The 3CXP Camera
The chapter describes the camera in general which means:
• the camera types and its differences
• its operating temperature and additional cooling
• how to connect frame grabber and an external power sup‐
ply including pinning and internal circuit
• LED to verify the camera status
• correlation between transfer speed and resolution
• how to clean lens and sensor
