LEGRAND DPX3 250 User manual

87045 LIMOGES Cedex
Phone :[phone] – Fax :[phone]
DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s) :
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
1/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
CONTENTS PAGES
1. USE 1
2. RANGE 1
3. DIMENSIONS 1
3. DIMENSIONS (NEXT) 2
4. ELECTRICAL AND MECHANICAL
CHARACTERISTICS 3
5. NAVIGATION 4
6. CONFORMITY 4
7. MARKING 4
8. EQUIPMENTS AND ACCESSORIES 4
9. CURVES 6
1. USE
DPX3"moulded case" offers optimal solutions to answer protection
requirements of tertiary and industrial installations.
2. RANGE
DPX3
In
25 kA
36 kA
50 kA
70 kA
(A)
4P
4P
4P
4P
100 420225 420255 420285 420625
160 420227 420257 420287 420627
200 420228 420258 420288 420628
250 420229 420259 420289 420629
DPX3-I
In
4P
250 420298

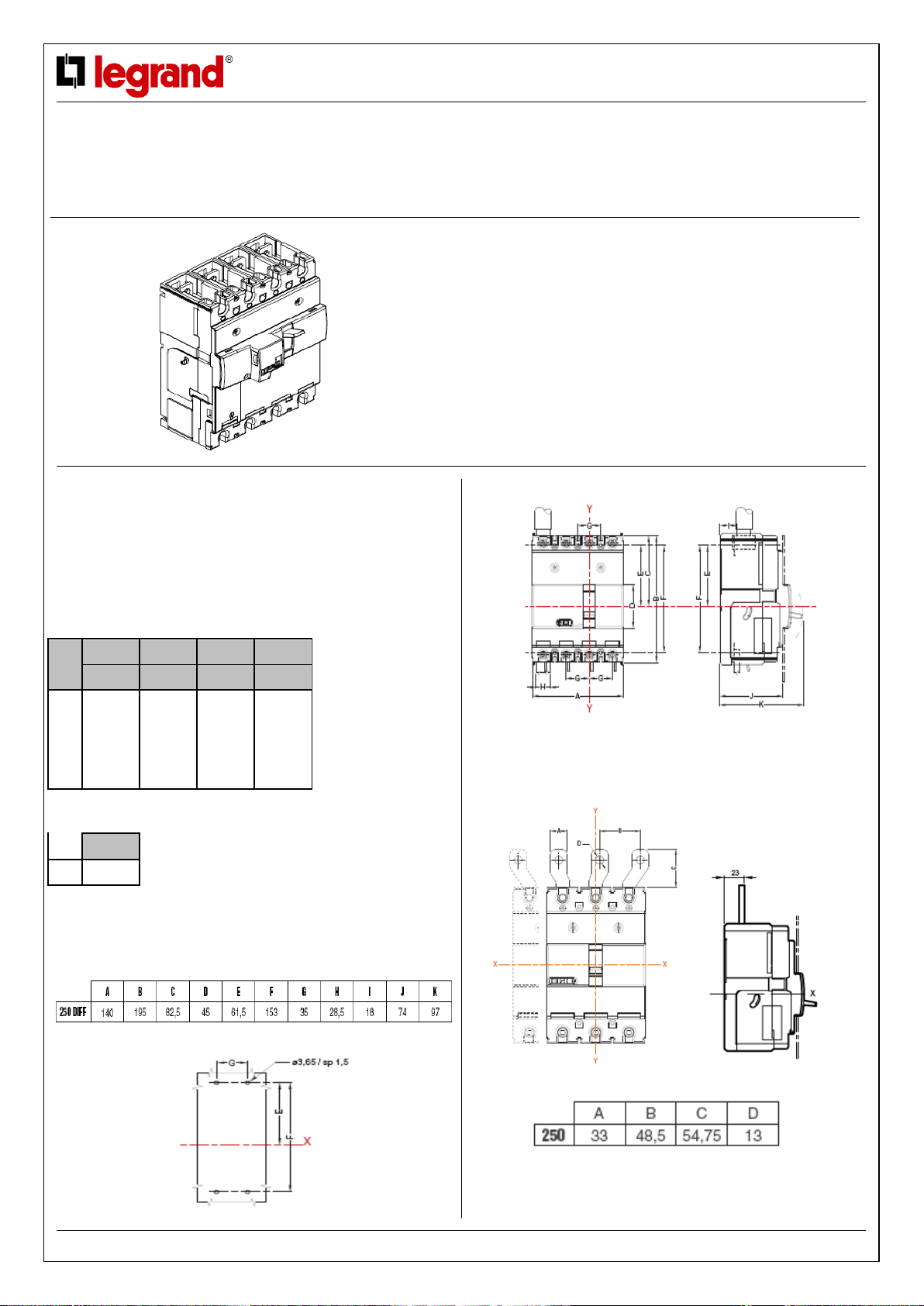

3. DIMENSIONS
3.1 Fixed version
3.2 Fixed version, front terminals

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
2/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011

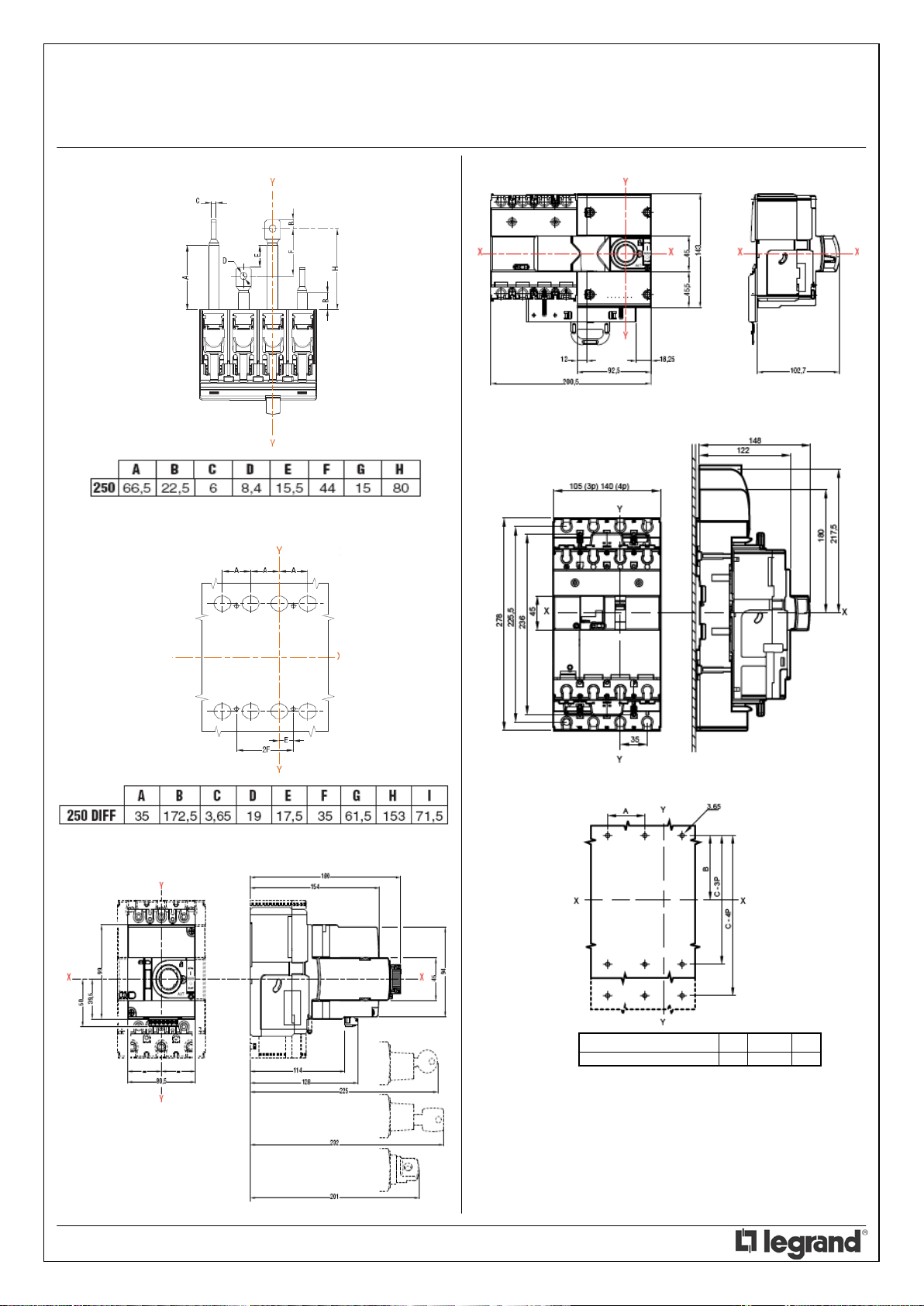

3.3 Fixed version, rear terminals
3.4 Fixed version, front motor operator
3.5 Fixed version, side motor operator
3.6 Plug-in version
A
B
C
DPX3 250 + earth leakage
35
103
236

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
3/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
4. ELECTRICAL AND MECHANICAL CHARACTERISTICS
4.1 Breaker technical characteristics
Circuit breaker
DPX3250 + earth leakage
Rated current Iu (A) 100-250
Rated insulation voltage Ui (V) 500
Rated operational voltage Ue (V) 500 V (ac)
500 V (dc)
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature (°C) 40
Endurance electrical / mechanical 8000/20000
Utilization category A
Releases type thermal-mag + earth leakage
Nominal frequency (Hz) 50-60
Thermal adjustement 0,8 ÷ 1 In
Magnetic threshold 5 ÷ 10 x In
4.2 Switches technical characteristics
Switches
DPX3 -I 250
Rated current Iu (A) 250
Rated insulation voltage Ui (V) 800
Rated operational voltage Ue (V) 690 V (ac)
500 V (dc)
Rated impulse withstand voltage Uimp (kV) 8
Ambient temperature (°C) 40
Endurance electrical / mechanical 8000/20000
Rated short-time withstand current Icw (1 s) (kA) 1,7
Rated short-circuit making capacity Icm (kA) 2,4
AC 22, AC 23, DC 22, DC 23 (A) 250
4.3 Breaking capacity (KA)
Breaking capacity Icu and Ics in AC (kA)
Ue
25 kA
36 kA
50 kA
70 kA
Icu
(kA)
220/240V 40 60 80 100
380/415V 25 36 50 70
440V 20 30 40 60
480/500V 8 16 18 20
Ics
(%Icu) - 100 100 100 100
4.4 Derating temperature Ta (°C)
Influence of ambient temperature Ta(°C)
In (A)
-25
-20
-10
-5
0
10
20
30
40
50
60
70
100
135 132 128 126 123 120 112 102 100 94 90 84
160
216 211 205 201 197 192 179 163 160 151 143 134
200 270 264 256 251 246 240 224 203 200 189 179 168
250
338 330 320 314 308 300 280 254 250 236 224 210
4.5 Power loss (W)
4.5.1 Breaker power loss (W)
Power loss DPX3 250 + earth leakage (W)
In (A) ----> 100 1 16 60 0 200 250
Cage terminals 9,2 17,4 25,6 37,5
Lugs 9,2 17,4 25,6 37,5
External terminals 9,2 17,4 25,6 37,5
Spreaders 9,2 17,4 25,6 37,5
Rear terminals 9,2 17,4 25,6 37,5
Plugin version 11,2 22,5 33,6 50,0
4.5.2 Switches power loss (W)
Power loss DPX3-I 250 (W)
In (A) ----> 250
Cage terminals 18,8
Lugs 18,8
External terminals 18,8
Spreaders 18,8
Rear terminals 18,8
Plugin version 31,3
4.6 Short-circuit breaking capacity in D.C. current
Short-circuit breaking capacity in D.C. current
Breaking capacity Icu (kA)
2 p. in ser.
2 p. in ser.
3 p. in ser.
3 p. in ser.
110-125V
250V
400V
500V
250 25 kA 50 25 30 25
250 36 kA 72 36 45 36
250 50 kA 80 40 50 40
250 70 kA 90 45 55 45
* Earth leakage protection not available
+
-
+
-
2 poles in series 3 poles in series

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
4/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
4.7 Protection in DC
Protection in D.C. current
thermal magnetic
250 25 kA like AC 1,5 Im AC
250 36 kA like AC 1,5 Im AC
250 50 kA like AC 1,5 Im AC
250 70 kA like AC 1,5 Im AC
4.8 Altitude
Altitude (m)
Altitude (m) ≤2000 3000 4000
DPX³ 250
Rated current (A) 1 x In 0,96 x In 0,93 x In
Rated voltage (V) 500 500 400
4.9 Loads operation
Loads operation
Rated current (A) In=250
Opening (N) 45
Closing (N) 78
Reset (N) 75

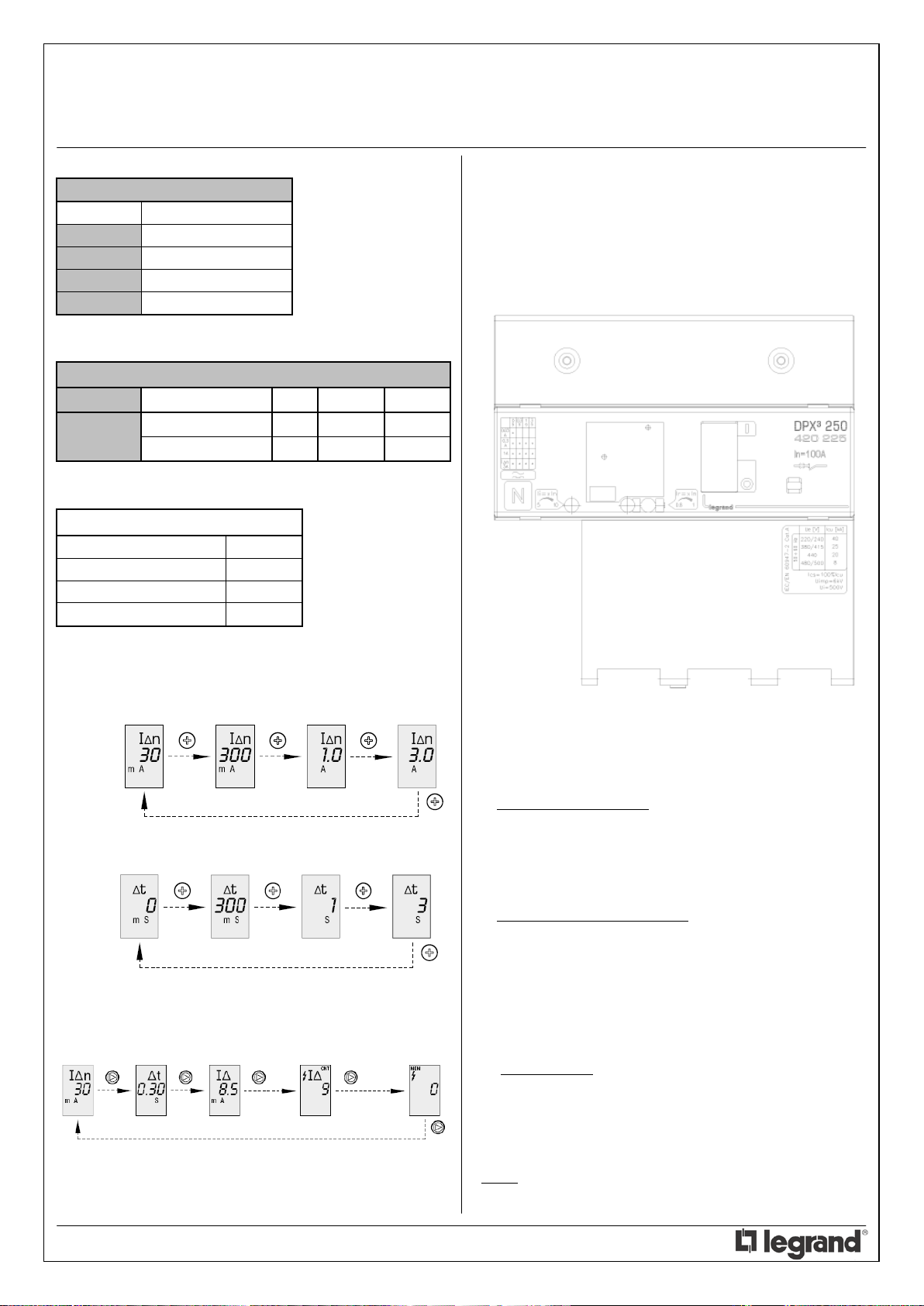

5. NAVIGATION
Setup mode
Setting IΔn:
Setting t:
ATTENTION: after 5’’ of permanence on display of the new protection
value IΔn or time Δt, it is automatically set.
IΔn value Δt value IΔmeasured History of interventions
set set value present for differential intervention
6.CONFORMITY
IEC 60947-2
(for switches IEC 60947-3)
EN 60947-2
(for switches EN 60947-3)
7. MARKING
8. EQUIPMENTS AND ACCESSORIES
8.1 Releases
•Shunt releases with voltage:
12 Vac/dc ref. 421 012
24 Vac/dc ref. 421 013
48 Vac/dc ref. 421 014
110-130 Vac ref. 421 015
200-277 Vac ref. 421 016
380-480 Vac ref. 421 017
•undervoltage releases with voltage:
12 Vac/dc ref. 421 018
24 Vac/dc ref. 421 019
48 Vac/dc ref. 421 020
110 Vac ref. 421 021
200-240 Vac ref. 421 022
277 Vac ref. 421 023
380-415 Vac ref. 421 024
440-480 Vac ref. 421 025
•auxiliary contact:
set of connectors for aux contacts ref. 421 044
aux contacts and fault signal ref. 421 011
aux contacts (1NC and 1 NO) for all rotary handles ref. 421 010
inserted device signal ref. 421 048
8.2 Rotary handles :
Direct:
•DPX3direct rotary handle ele/earth leakage ref. 421 001
• DPX3emergency direct rotary handle ele/earth leakage
ref. 421 003

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
5/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
Vari-depht:
•DPX3vari depth rotary handle ref. 421 004
• DPX3emergency vari depth rotary handle ref. 421 005
Locking accessories
•locking acc. for direct rotary handle - ronis ref. 421 006
•locking acc. for direct rotary handle - profalux ref. 421 007
•locking acc. for vari depth rotary handle - ronis ref. 421 008
locking acc. for vari depth rotary handle – profalux ref. 421 009
8.3 Mechanical accessories :
Insulated shields
• Set of 3 ref. 421 070
Sealable terminal shields
•sealable terminal shield for rear terminals 250 4P ref. 421 053
sealable terminal shield for front spreaders 250 4P ref. 421 057
Padlocks
•DPX3padlock accessory for handle (off) ref. 421 049
Interlock:
DPX3interlock mounting plate ref. 421 058
DPX3interlock for plug-in / draw-out version ref. 421 059
8.4 Connection’s accessories :
Cage terminals
cage terminals for al or cu cables kit (4) - flex 1x120mm², rigid
1x150mm², bar/cable lug 18mm ref. 421 031
Front spreaders
•DPX3front spreaders for 4P DPX3250 (4) ref. 421 035
Rear terminals
DPX3flat rear terminals for 4P DPX3250 (4) ref. 421 039
8.5 Plug-in version
Bases
•front/rear terminals plug-in base 4P DPX3250 ref. 421 043
Locking accessories
locking accessory for plug-in base – ronis ref. 421 045
locking accessory for plug-in base – profalux ref. 421 046
padlock accessory for plug-in base ref. 421 047
8.6 Motor operator
side motor operator 24-230 Vac - 24-230 Vdc ref. 421 060
front motor operator 24-230 Vac - 24-230 Vdc ref. 421 061
Locking accessories for front motor operator:
locking acc. for front motor operator - ronis ref. 421 062
locking acc. for front motor operator – profalux ref. 421 063
padlock selector for front motor operator ref. 421 064
Locking accessories for side motor operator:
locking acc. for side motor operator - ronis ref. 421 065
locking acc. for side motor operator – profalux ref. 421 066
padlock selector for side motor operator ref. 421 067
Din plate:
DPX3din plate for motor operator DPX3250 ref. 421 069
8.7 Mounting on rail fixing plate
DPX3din rail fixing plate DPX3250 4P+earth leakage ref. 421 074
8.8 Supply
Lithium battery CR1616 3V x 2 ref. 421 082

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
6/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
9.3 Courbe de limitation en courant DPX125 1P
9. CURVES
9.1 TRIPPING CURVE

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
7/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
9.2 Energy curve

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
8/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011

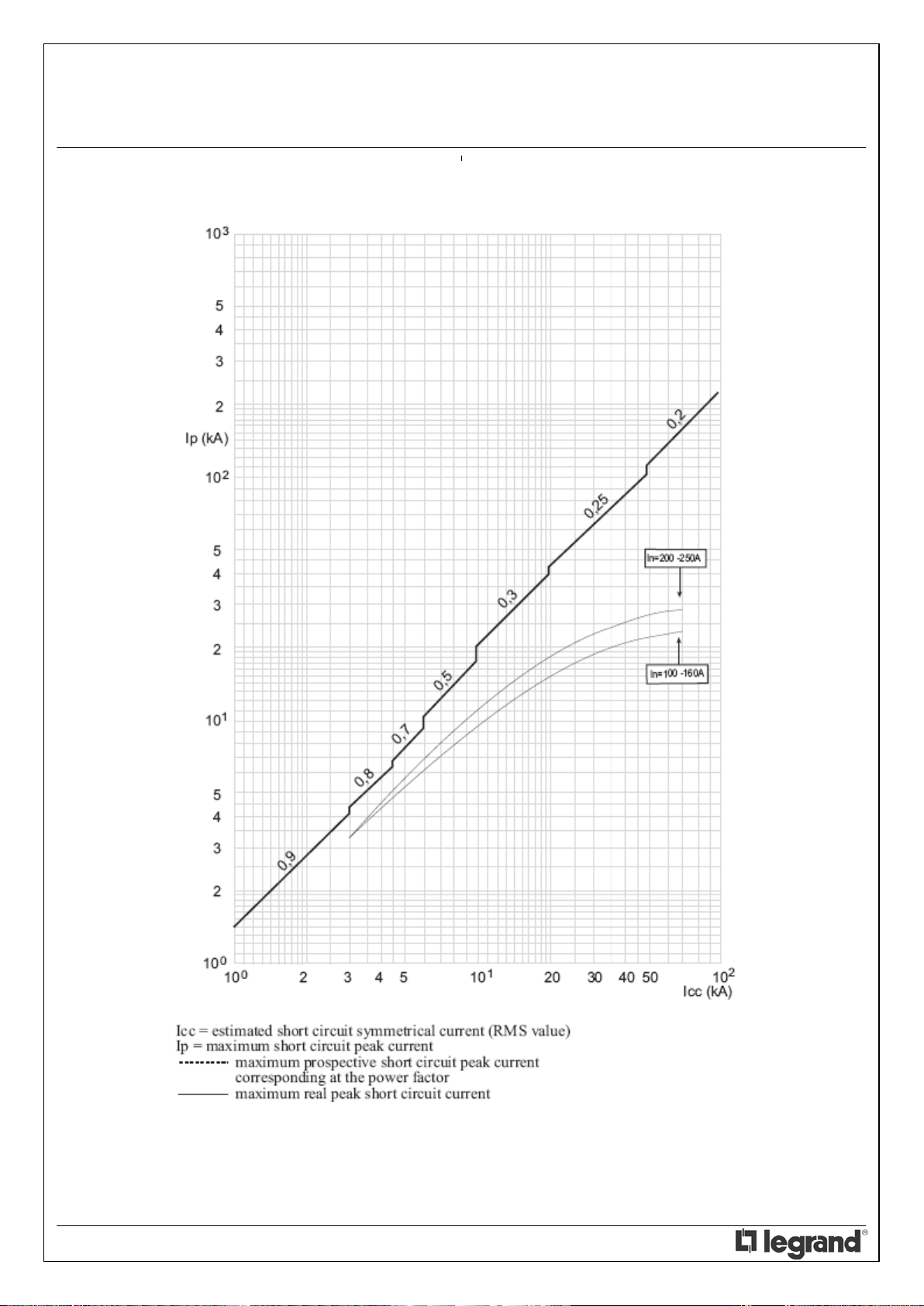

9.3 Restricted current curve

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
9/10
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011
9.4 Earth leakage curve, instantaneous
9.4 Earth leakage curve, time delay = 0.3 s

DPX3250 + earth leakage
DPX3-I 250 + earth leakage
Reference(s)
420 225/ 227/ 228/229/ 255/ 257/ 258/ 259/ 285/ 287/
288/ 289/ 625/ 627/ 628/ 629/ 298
10/1
0
Technical sheet : F01365EN/01 Update : 17/10/2011 Create : 07/06/2011

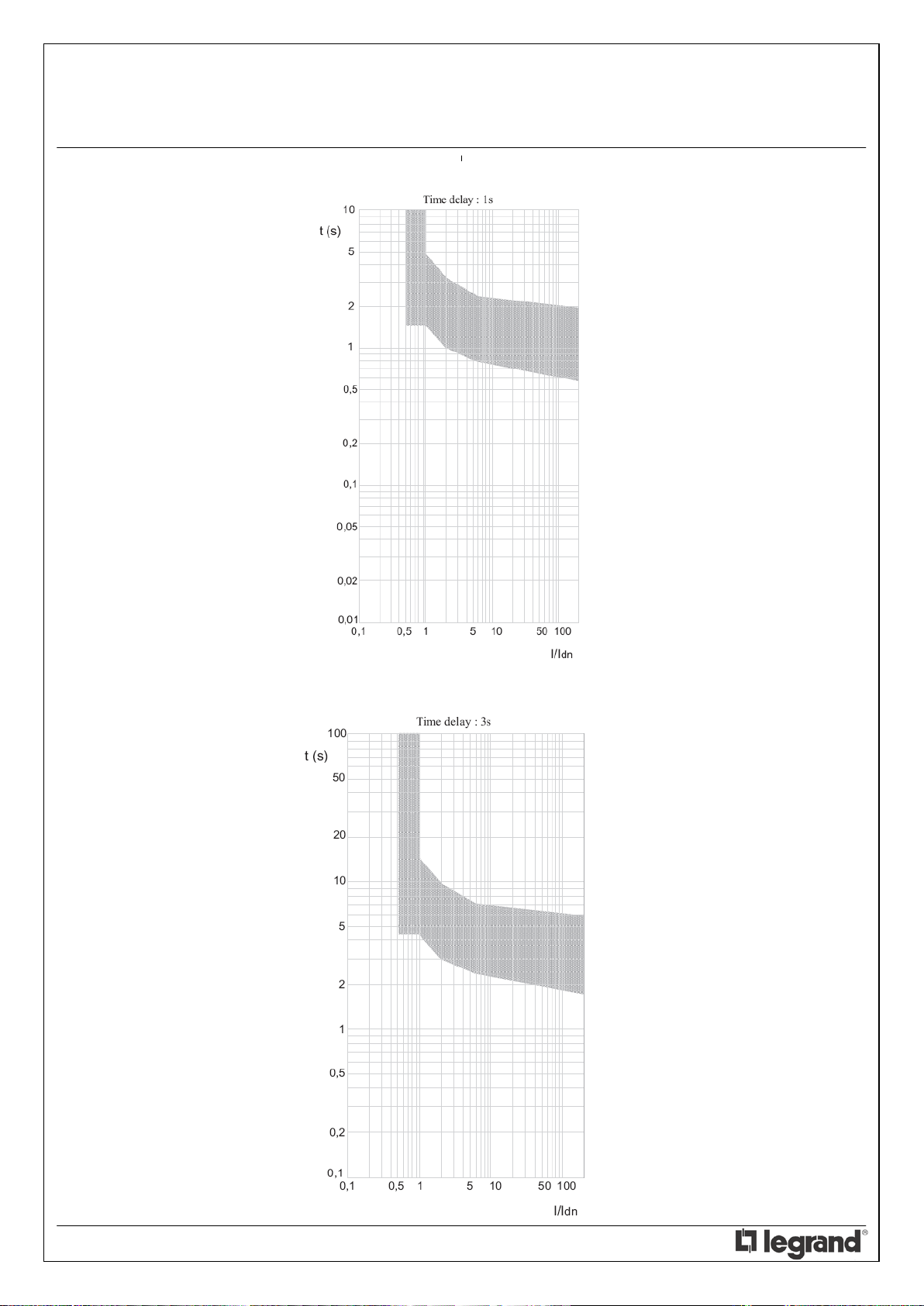

9.4 Earth leakage curve, time delay = 1 s
9.4 Earth leakage curve, time delay = 3 s

®
X
A
Y
X
250 3P
250 4P
250 DIFF
A
A1 - -
3P 4P DIFF
B- 1 -
C- - 1
D23 3
E2 4 4
F6 8 8
B
C D
E
Y
D
E
C
B
F
G G G G
A H
A
E
F
F
E
J
K
B C D E F G H I J K
105
140
140
165 82,5 45 61,5 123 35 28,5 18 74 97
45 123 18 74 97
45 153 18 74 97
F
165 82,5 61,5 35 28,5
195 82,5 61,5 35 28,5
Y
G
Y
G GI ø3,65
1
08/2011-01 GF
Y4263B

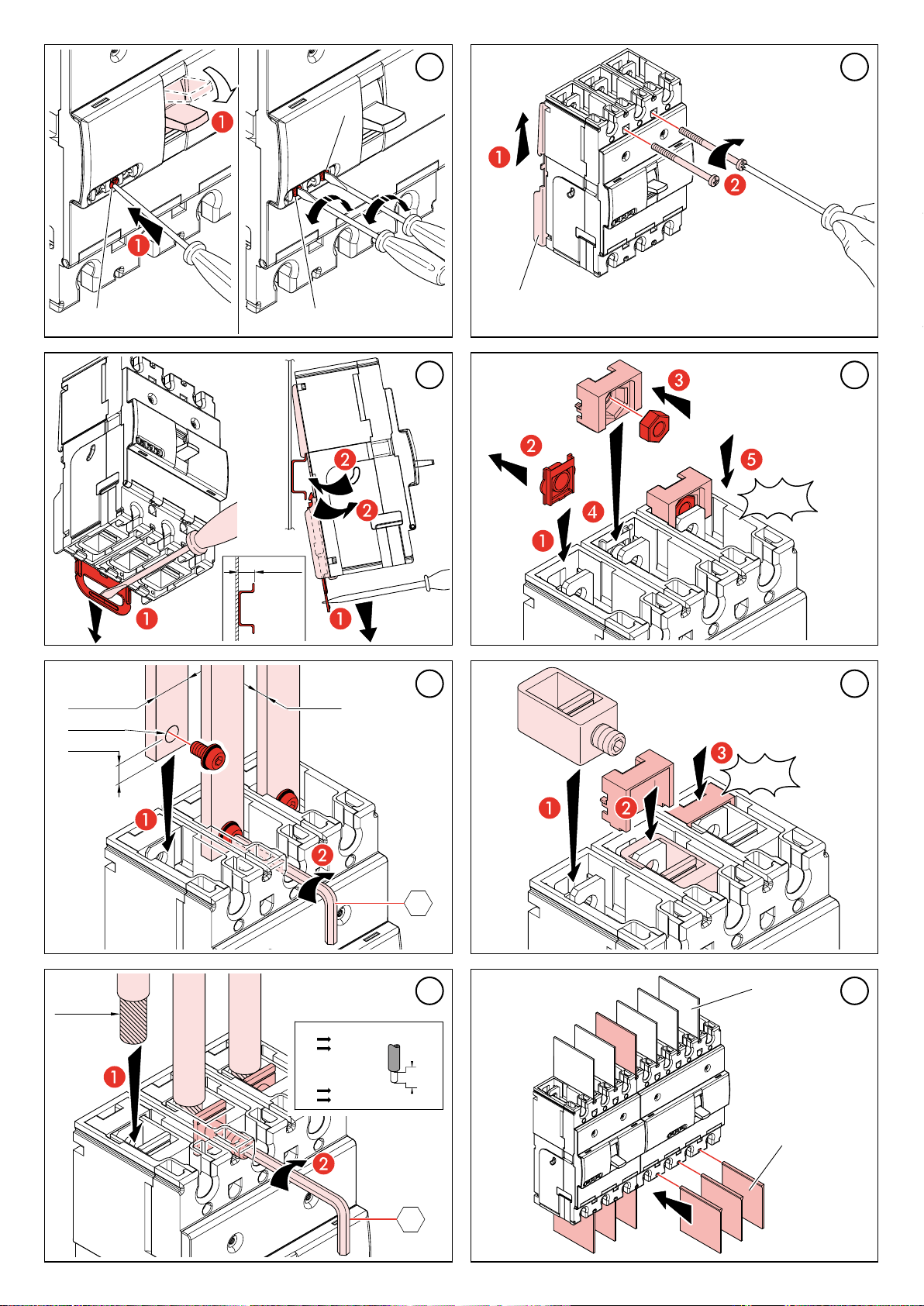

F
A
max 28,5
5
10Nm
3P
4P
TEST
Ir
Im
1Nm
E
F
F
F
ø 8,5
max 10
F
1÷8
CLAC
CLAC
4210 30 3P
4210 31 4P
max ø18
5
10Nm
4210 70
D
Flexible
1,5
#16
120 mm²
250 kcmil
23
(0.90")
Solid
1,5
#16
150 mm²
300 kcmil
or
10 mm
MIN
2 3
4 5
6 7
8 9
4210 72 3P
4210 74 4P

44
EX-EP2
BAT
Date :
Nom chef de Pub :
Signature : 44
DPX3-I rozłączniki izolacyjne
160 do 1600 A
DPX3-I rozłączniki izolacyjne
160 do 1600 A
4202 99
Rozłączniki izolacyjne do rozłączania obwodów pod obciążeniem i tworzenia
bezpiecznej przerwy izolacyjnej w instalacjach elektrycznych niskiego
napięcia.
Wbudowane zabezpieczenie różnicowoprądowe (do 250 A) oraz możliwość
współpracy z przekaźnikami różnicowoprądowymi (630 A do 1600 A).
Montaż rozłączników do 250 A na wsporniku TH 35 z adapterem
o nr ref. 4210 71 (DPX3-I 160) i nr ref. 4210 72 (DPX3-I 250).
Zgodność z normą IEC/EN 60947-3.
Kategoria użytkowania AC 23.
Przyłączanie identyczne jak w przypadku wyłączników DPX3.
nWymiary
Wymiary DPX3-I identyczne jak dla odpowiadającego DPX3
nDane techniczne
1: 500 V dla DPX3-I z zabezpieczeniem różnicowoprądowym
2: Do 1250 A
3: In= 400 A
4: In= 630 A
5: In= 800 A
6: In= 1250 A
7: In= 1600 A
DPX3-I Wymiary
DPX3-I 160 DPX3160 (str. 45)
DPX3-I 250 DPX3250 (str. 46)
DPX3-I 630 DPX3630 (str. 48)
DPX3-I 1600 DPX31600 (str. 49)
DPX3-I 160 DPX3-I 250 DPX3-I 630 DPX3-I 1600
Napięcie
znamionowe
robocze Ue(V)
AC 50/60Hz 690(1) 690(1) 690 690
DC 250 250 250 250
Napięcie znamionowe
izolacji Ui(VA) 800 800 690 690
Napięcie znamionowe
udarowe Uimp (kV) 8 8 8 8
Znamionowa zdolność
łączeniowa zwarciowa
400 V (kA)
3 3 6.5(3) / 13(4) 40
Prąd krótkotrwały t = 1 s
Icw (kA) 1.7 1.7 4(3) / 7.6(4)
10(5) / 15(6) / 20(7)
Trwałość (licz-
ba cykli)
mechaniczna
25000 25000 20000 10000
łączeniowa 8000 8000 5000 4000(2)
Prąd termiczny umowny (A) 160 250 630 1600
Prąd roboczy znam. (A)
AC 23 A (690 V±)160 250 630 1600
DC 23 A (250 V±)160 250 630 -
Pak. Nr ref. DPX3-I 160
3P 4P In(A)
1
4201 98 4201 99 160
4P z zab.
różnicowoprądowym
1
4201 97 160
DPX3-I 250
3P 4P In(A)
1
4202 99 4203 00 250
4P z zab.
różnicowoprądowym
1
4 202 98 250
DPX3-I 630
3P 4P In(A)
1
4222 16 4222 18 400
1
4222 17 4222 19 630
DPX3-I 1600
3P 4P In (A)
1
4224 90 4224 94 630
1
4224 91 4224 95 800
1
4224 92 4224 96 1250
1
4224 93 4224 97 1600
Wymiary str. 45
