Miles Industries H4 Operating instructions

4001955-19
© 2012, Miles Industries Ltd. All rights reserved.
H4 SERIES
Manufactured by
MILES INDUSTRIES LTD., British Columbia, Canada
www.valorfireplaces.com
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the fire department.
Installation & Owner’s Manual
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
DV Gas Fireplace Heater
650ILN/ILP (Logs) & 650IRN/IRP (Rocks)
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Ce guide est disponible en français sur demande.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Massachusetts: The piping and final
gas connection must be performed by a
licensed plumber or gas fitter in the State of
Massachusetts. Also, see Carbon Monoxide
Detector requirements on page 16.
Please read this manual BEFORE installing
and operating this appliance.

22
Table of Contents
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
© Copyright Miles Industries Ltd., 2012
FOR THE OWNER
FOR THE QUALIFIED INSTALLER
The information contained in this installation
manual is believed to be correct at the time of
printing. Miles Industries Ltd. reserves the right
to change or modify any information or specifica-
tions without notice. Miles Industries Ltd. grants
no warranty, implied or stated, for the installation
or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
Warranty Card at the
back of this manual.
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
Safety Precautions ............................................3
Safety and Your Fireplace .................................4
Owner’s Information .......................................... 5

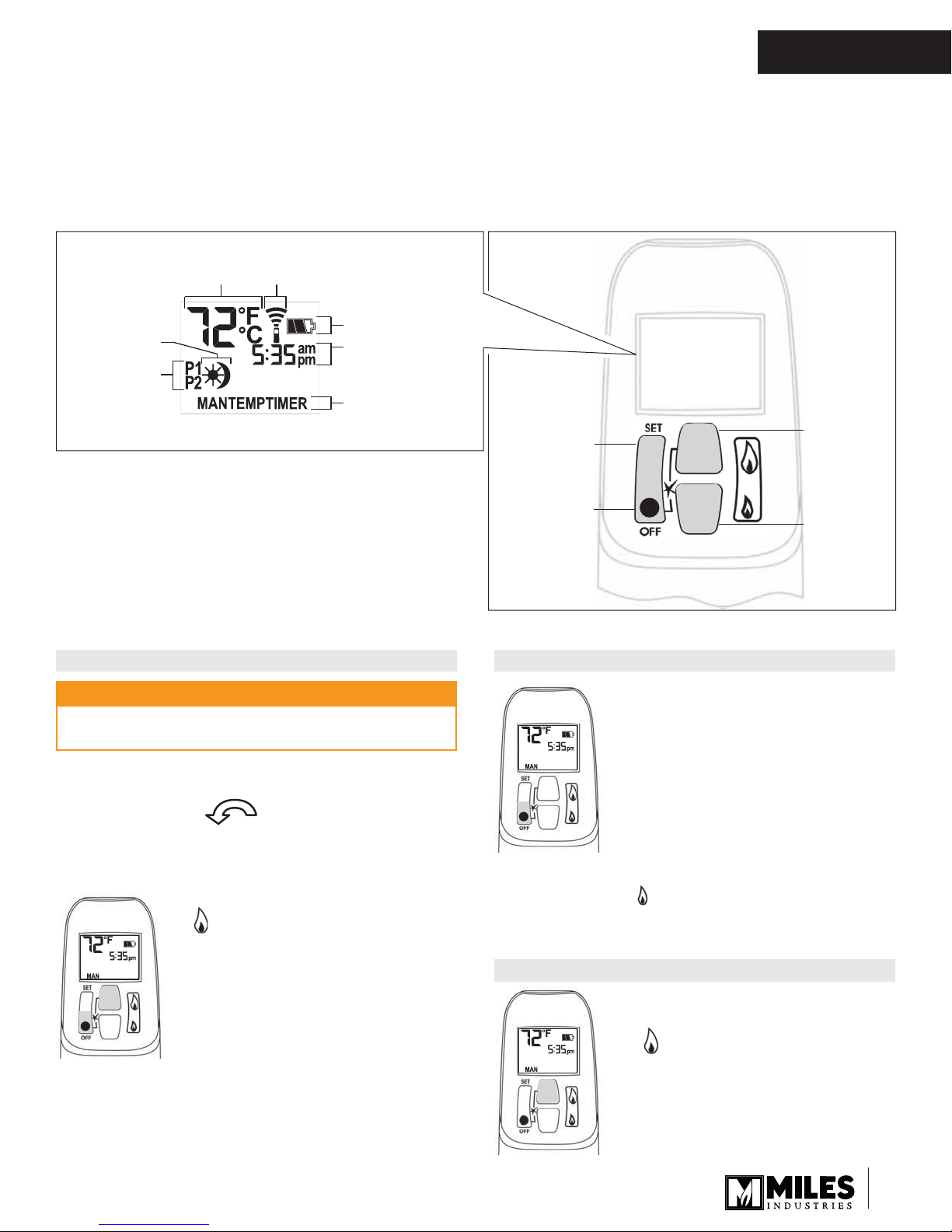

Remote Control Operation.................................9
Wall Switch Operation ..................................... 13
Options ............................................................14
Lighting Instructions.........................................15
Warranty ..........................................................45
Commonwealth of Massachusetts...................16
Specifications ..................................................18
Overview..........................................................19

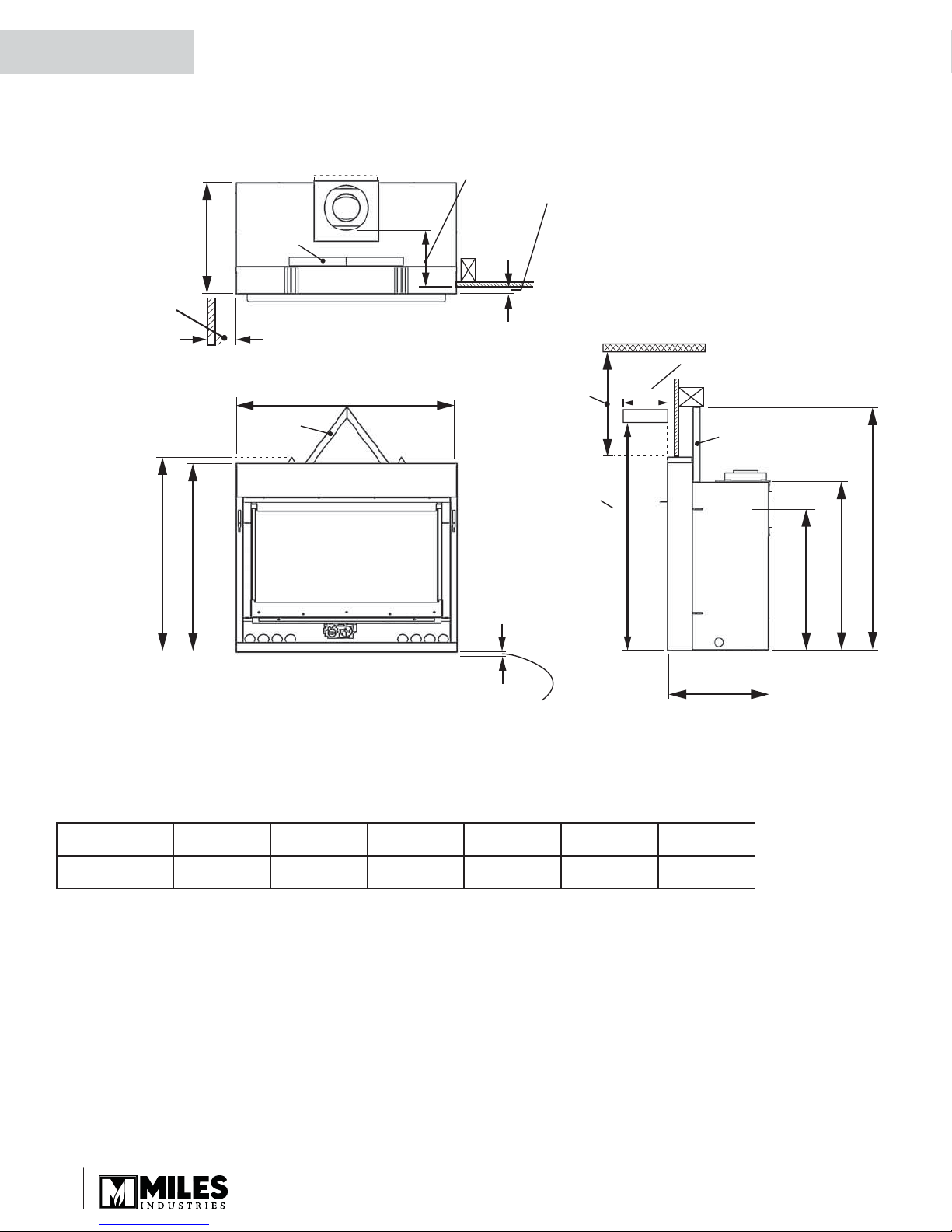

Dimensions...................................................... 20

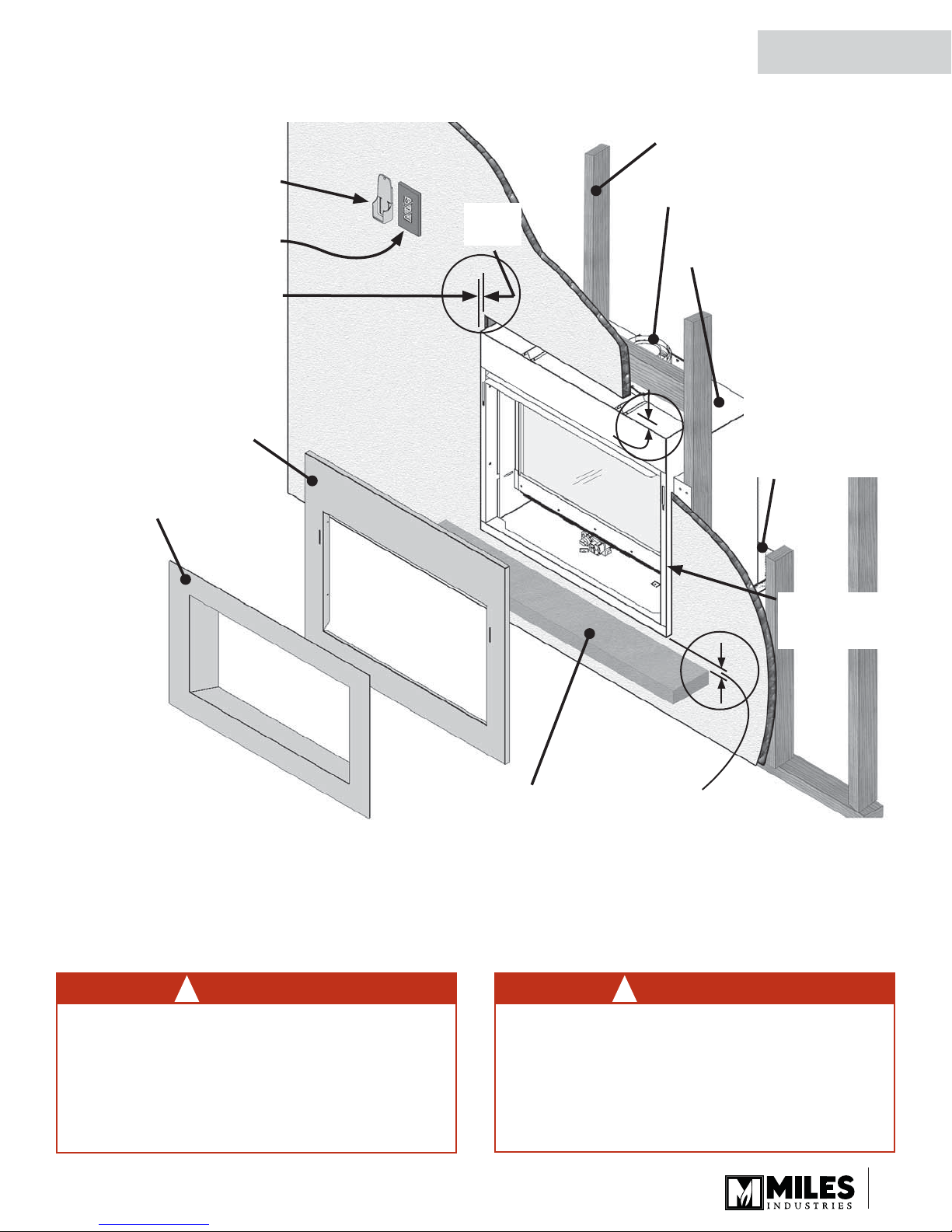

Framing ...........................................................21
Location........................................................... 22
Venting............................................................. 22
Co-Axial Venting ..............................................23
Co-Linear Venting............................................29
Appliance Preparation .....................................30
Gas Supply Installation....................................33
Liner Panels Installation ..................................34
Ceramic Logs Installation (650IL)....................35
Ceramic Rocks Installation (650IR)................. 36
Window Refitting & Baffle Installation..............38
Wall Switch Kit Installation (required) ..............39
Remote Control Initial Set-up ..........................40
Operation Check & Aeration Settings
Adjustment.......................................................40
Remote Control Handset Wall Holder
Installation .......................................................41
Wiring Diagram................................................ 42
Approved Venting Components.......................43
Warranty ..........................................................45
Replacement Parts.......................................... 46

33
Safety Precautions
!
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as
the appliance. Toddlers, young children and others
may be susceptible to ACCIDENTAL CONTACT
BURNS. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access
to a fireplace or stove, INSTALL AN ADJUSTABLE
SAFETY GATE to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.
DO NOT place furniture or any other combustible
household objects within 36” of the fireplace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies. Clothing or flammable material SHOULD
NOT BE PLACED on or near the appliance.
Clothing or flammable material SHOULD NOT BE
PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air flow.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualified
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fireplace
manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualified service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen or guard removed for servicing
MUST BE REPLACED prior to operating this appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fireplace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.

44
Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fireplace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fireplace has been turned off.
Ensure that children are prevented
from touching the fireplace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fireplace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response reflexes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fireplace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fireplace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see page 8 of
Owner’s Information section.
• If the fireplace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 7.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owners Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfireplaces.com).
Safety and Your Fireplace
!

55
Operating Your Fireplace for the First Time
When operating your new fireplace for the first time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the flames to be the full height of the firebox, or
even slightly higher, for the first few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the flames will be at their normal height.
Flame Supervision Device
For your safety, this appliance is fitted with a flame
supervision device which will shut-off the gas supply
if, for any reason, the pilot flame goes out. This device
incorporates a fixed probe, which senses the heat
from the pilot flame. If the probe is cool, the device will
prevent any gas flow unless manually lighting the pilot.
See full lighting instructions on page 15 of this manual.
Owner’s Information
Performance of LPG appliances may be affected
by the quality of commercial gas supplied in
your area.

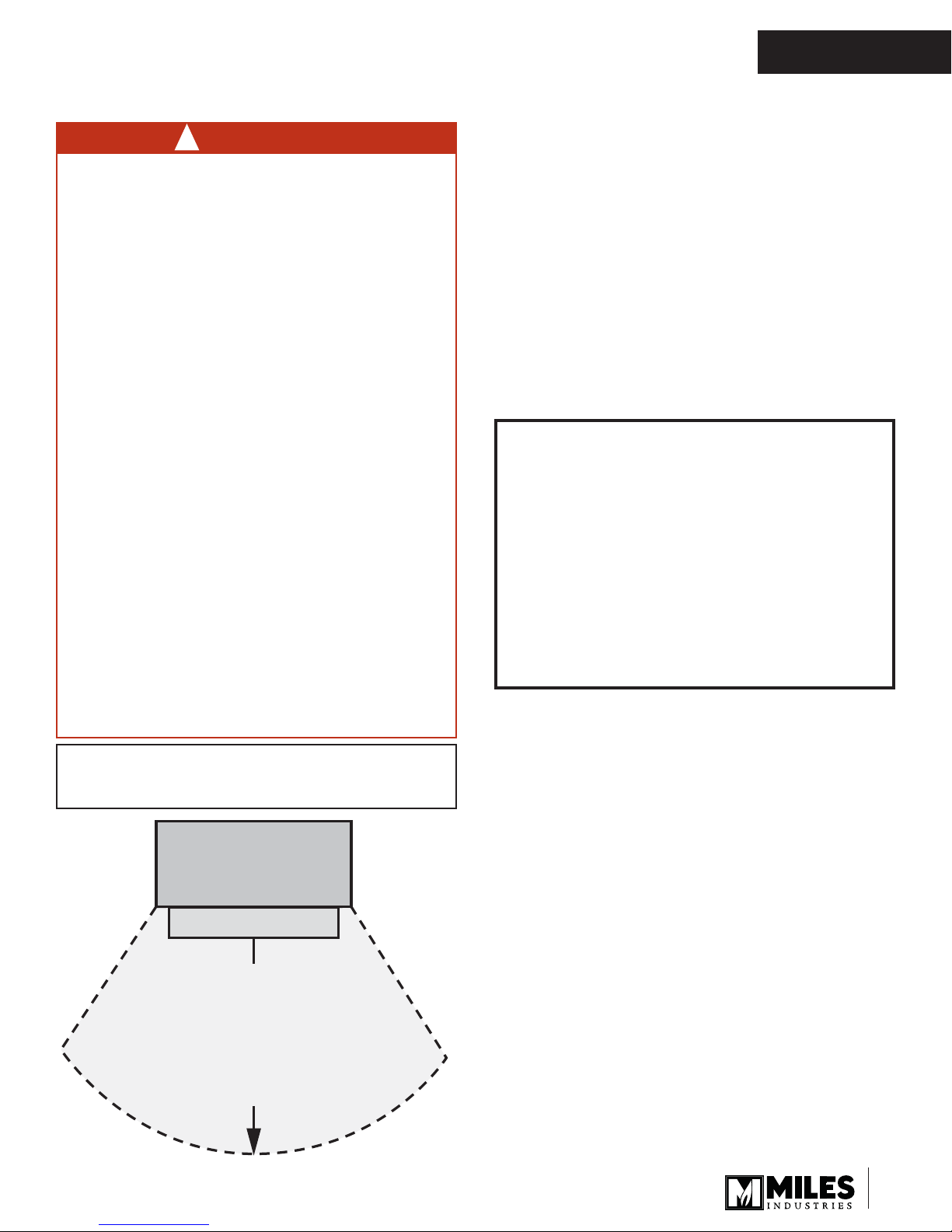

Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
WARNING
EXTREMELY HOT!!!
• READ the SAFETY information on pages
3 and 4 of this manual BEFORE operating
your gas heater.
• Some parts of your fireplace are EXTREMELY
HOT, particularly the GLASS window.
• DO NOT LET CHILDREN touch the glass or
any parts of your fireplace even after it is
turned off as it is still hot.
• USE A SAFETY SCREEN or a GATE to reduce
the risk of burns.
• Keep the remote control handset OUT OF
REACH of children.
•
•
HOT HEARTH / FLOOR!
HOT HEARTH / FLOOR!
The hearth or floor
The hearth or floor
in front of the fireplace may become very hot
in front of the fireplace may become very hot
when the fireplace heats. Do not use the hearth
when the fireplace heats. Do not use the hearth
as a seat or shelf.
as a seat or shelf.
•
•
Some materials or items, although safe, may
Some materials or items, although safe, may
discolor, shrink, warp, crack, peel, and so on
discolor, shrink, warp, crack, peel, and so on
because of the heat produced by the fireplace.
because of the heat produced by the fireplace.
AVOID PLACING
AVOID PLACING
candles, paintings, photos,
candles, paintings, photos,
and other items
and other items
SENSITIVE TO HEAT
SENSITIVE TO HEAT within
36 inches (0.9 m) around the fireplace.
•
•
Solid wood flooring in front of the fireplace (if
Solid wood flooring in front of the fireplace (if
allowed) may shrink during the heating season
allowed) may shrink during the heating season
due to heat.
due to heat.
This manual and particularly the preceeding
and following pages contain very important
information regarding the safe operation of your
fireplace as well as maintenance instructions.
Read carefully BEFORE operating your fireplace
and pay special attention to the SAFETY
WARNINGS.
A heating gas appliance does require safe handling
and for this reason, we very strongly recommend that
no children be allowed to touch the fireplace and its
controls at all times. Do install a screen or barrier
in front of the fireplace to protect your children
against severe burns.
Thank You ...
For purchasing a Valor by Miles Industries. Your new
radiant gas heater is a technical appliance that must
be installed by a qualified dealer. Each Valor fireplace
is fully tested during the production process for your
safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ________________________________
Phone Number :_______________________________
Should you encounter an operational problem, call
your dealer immediately.
Do not try to repair the unit as you may cause an
injury or damage the fireplace.
!
OWNER’S
INFORMATION

66
Cleaning
Important - Glass cleaning - Mineral deposits
One of the by-products of the combustion process in
a gas appliance is a mineral which can show up as a
white film on the ceramic glass viewing door.
The composition of the deposit varies widely with loca-
tion and time. It believed to be associated with the vary-
ing sulfur content of the gas. You may have the problem
intermittently.
We have consulted with ceramic glass manufactur-
ers and they cannot give us a definitive solution to this
problem. Dealers have tried various cleaning products
with varying results. The following are recommenda-
tions only and are not meant to guarantee results.
NOTE: This is a problem beyond Miles Industries’
control and is not covered under warranty.
• Clean the glass regularly as soon as you notice
the buildup (white film). If the film is left for a longer
period of time, it will bake on. It is then much harder,
if not impossible, to remove.
• NEVER use an abrasive cleaner on the ceramic
glass. Any abrasion of the surface has the
immediate effect of compromising the strength of the
glass. An emulsion type cleaner is recommended.
• Use a soft damp cloth to apply the cleaner. Dry the
glass with a soft, dry, preferably cotton cloth. Most
paper towels and synthetic materials are abrasive to
ceramic glass and should be avoided.
• Our dealers have had good results from the
products listed below. We cannot, however,
guarantee the results of these products.
• BRASSO, POLISH PLUS by KELKEM, COOK TOP CLEAN
CREME by ELCO, WHITE OFF by RUTLAND, TURTLE WAX
DO NOT CLEAN THE GLASS WHILE IT IS HOT!
Always securely replace the window before lighting.
If broken, the glass pane may only be replaced
as a complete window unit as supplied by the
manufacturer.
To remove the window for cleaning:
1. Unhook the window
baffle located on top
of the window frame.
2. Turn the top two
spring-loaded window
bolts through 90
degrees to release
the window from the
firebox.
3. Remove the bottom
two spring-loaded
window bolts.
4. Carefully lift the window away. Keep the window,
window baffle, and bolts in a safe place.
To refit the window:
1. Slide the window inside the appliance case and rest
it on the firebox front bottom tabs. Refit the bottom
two bolts. The bolts should be screwed in securely.
2. Refit the top two bolts securing by turning them
through 90 degrees.
3. Hook the window baffle to the top of the window
frame. Be careful not to hook it onto the firebox
frame—see image below and page 38.
4. Grab the top of the window and baffle and pull them
forward and release to check that the window opens
slightly and returns confirming the good function of
the spring-loaded mechanism.
5. Similarly check the bottom of the window by pulling
it forward and releasing.
6. Apply light hand pressure against the window frame
sides to bed in the window seal.
Owner’s Information
IMPORTANT: To ensure a safe operation, ensure that
the spring-loaded mechanism functions properly.
WARNING
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
Let the fireplace cool first before cleaning it.
Let the fireplace cool first before cleaning it.
!
firebox
frame
window
frame
(appliance shown without its front frame for clarity)
OWNER’S
INFORMATION

7
Rock fuel bed
A black discoloration may form over time at the front
bottom of the 6-rock original fuel bed; this deposit
can be burned off by running the fireplace on a low
to medium setting fire for 30 to 45 minutes. This
discoloration is unavoidable and will re-form again.
7
Owner’s Information
Safety warning plate
CAUTION
DO NOT USE a screwdriver or other metallic object to
remove the batteries from the receiver or the handset!
This could cause a short circuit to the receiver.
WARNING
DO NOT ATTEMPT TO CHANGE THE BATTER-
IES WHILE THE FIREPLACE IS STILL HOT! Let
the fireplace cool first before touching it.
!

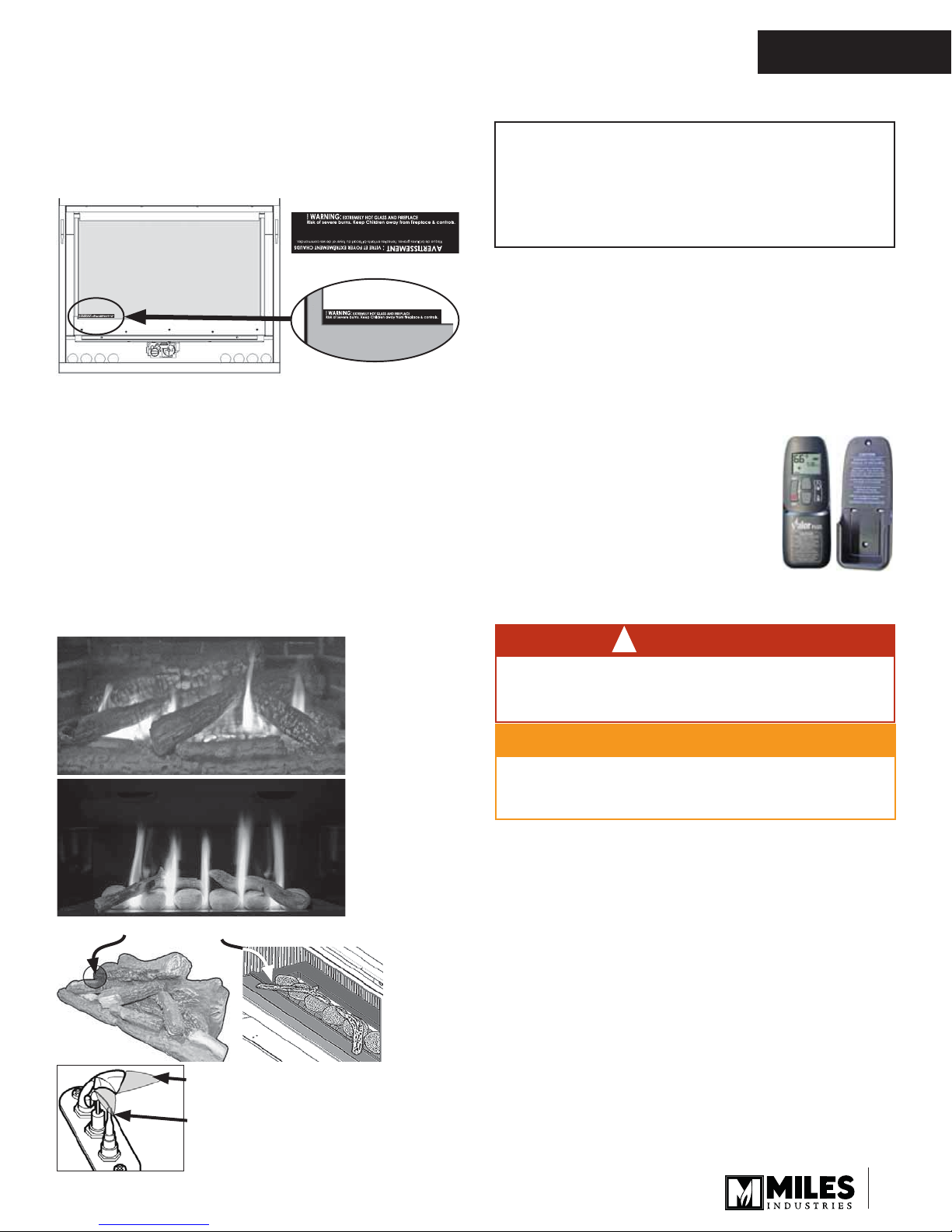

7. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
Soot or dust can be brushed from the ceramic rocks
and firebox walls using a soft brush. Dust can also
be removed from the burner using a soft brush after
removing the ceramic logs. When cleaning, make sure
that no particles are brushed into the slots of the burner.
Checks
A periodic check of the pilot and burner flames should
be made. Check after the fire has been on for at least
30 minutes. The pilot flame must cover the tip of the
thermocouple probe. The main burner flame pattern will
vary from appliance to appliance depending on the type
of installation and climatic conditions.
Correct Flame
Picture—Logs
Pilot Flame can be seen between logs or left of first rock
Correct Flame
Picture—Rocks
The appliance area must always be kept clear and free
from combustible materials, gasoline and other flam-
mable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure that snow, trees, bushes, leaves, or other objects
do not obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.
Remote Control Handset Wall
Holder
Your fireplace equipment includes
a wall holder to store the handset.
If it hasn’t be installed, refer to the
instructions further on in this manual
for the installation.
Batteries
Low battery signal: see page 13.
BEFORE changing the batteries, turn off the valve
using the wall switch’s On/Off button.
The appliance uses four 1.5 V AA alkaline batteries for
its remote control receiver and one 9 V alkaline battery
for its handset. The batteries should last one to two
seasons, depending on usage. Removing the batteries
in the off-season will extend the battery life. Should the
batteries loose power, the control may be operated by
manually turning the control knob at the valve or by
turning off the valve at the switch.
To replace the batteries in the remote control
receiver:
1. The receiver is located to the left of the valve and it
is retained to the firebox by a Velcro tab. Grab the
receiver and pull it out from its location.
Pilot flame
Thermocouple
probe must be
in flame
Thermocouple
probe must be
in flame
OWNER’S
INFORMATION

88
Owner’s Information
2. Slide and remove the receiver cover.
3. Replace the 4 AA batteries.
4. Replace the cover.
5. Put the receiver back in its position pushing it in so it
attaches to the Velcro tab.
Lighting, Operation and Rating Information
The Lighting, Operation and Rating information is
located on a plate under the firebox.
To access the plate, remove any fret or access panel
and grab the plate and slide it out to read it. There is
important information on both sides of the plate.
Servicing
If any attention is required for your appliance, contact
your supplier quoting the model number. It will be helpful
if the appliance’s serial number can also be quoted. This
number is on the rating plate, which is located under the
burner. The replacement parts are shown at the end of
this manual. Please always quote the part number and
description when requesting spare parts.
Fireplace Control Devices
There are two ways to control your fireplace.
1. Thermostatic Remote Control;
2. Wall Switch.
The Thermostatic Remote Control can be programmed
to function automatically—see pages 9–13.
The Wall Switch can be used to turn on, off and to
increase or decrease the flame height—see page 13.
NOTE: The remote control in the AUTO mode will
override the wall switch.
Thermostatic
Remote Control
Wall Switch
Wall SwitchRemote control
handset
Gas valve
How to Turn Your Fireplace OFF
(including pilot)
Familiarize yourself with each of these methods before
operating your fireplace.
Handset and Wall Switch: Press and hold the OFF
button for a second (either on the handset or the wall
switch).
If the flames are on, they go down and you hear the
valve motor wind down. You hear a clunk and a beep
indicating that the valve has received the signal from
the remote control.
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently
You can use one of the two following methods to
ensure that your fireplace will not turn on when you
don’t want it on.
First, ensure your fireplace is turned off—including
the pilot—and cold BEFORE going ahead.
• Turn the dial on the gas valve from the ON position
to the MAN position as shown. Turning the dial to
MAN (arrow up) will ensure that the main burner can
not come on. The pilot will remain on if it is lit.
• Alternately, remove all batteries from the receiver
as well as the battery from the handset.
Automatic Shut-Off (in certain conditions)
Your fireplace’s remote control is equipped with an
automatic shut-off mechanism which is activated in
certain conditions. See page 13 in the Remote Control
Operation section for a description of this feature.
WARNING
DO NOT ATTEMPT TO TOUCH THE DATA PLATE
WHILE THE FIREPLACE IS STILL HOT! Let the
fireplace cool first before touching it.
!
OWNER’S
INFORMATION

99
Remote Control Operation
When the pilot is off, it will take 2
minutes before it can be lit again.
TO TURN ON APPLIANCE TO TURN OFF APPLIANCE
FLAME HEIGHT ADJUSTMENT
• On the valve, turn MAN knob on the ON, full
counterclockwise position.
• Place ON/OFF switch (if equipped) in I (ON
position). STANDBY MODE (Pilot Flame)
• Press and hold (small flame) to set appliance at
pilot flame.
• Simultaneously press the OFF and
(large flame) buttons until a short
beep confirms the start sequence
has begun; release buttons.
• Continuing beeps confirm the
ignition is in process.
• Once pilot ignition is confirmed,
there is main gas flow.
• After main burner ignition the
handset will automatically go into
manual (MAN) control mode.
• Press OFF button.
When the pilot is off, it will take 2
minutes before it can be lit again.
• In standby mode: Press and hold
(large flame) button to increase
flame height.
CAUTION
When pilot ignition is confirmed, motor turns
automatically to maximum flame height.
NOTE: Before using the remote control system for
the first time, the receiver and the handset must be
synchronized. See the section Remote Control Initial
Set-up on page 40 of this manual.
Set (scrolls
through
modes and
settings)
OFF (returns
to set mode,
turns the burner
and the pilot o)
Large ame
button (ames
up, sets hours,
temperature)
Small ame
button (ames
down and o,
sets minutes,
temperature)
Current
temperature
(F or C)
Current time
(12 or 24 hour clock)
Modes (Manual,
Temperature, Timer)
Handset
sensor
Battery status
Current
programmed
period (Timer)
Period
start or end
(Temp, Timer)
Display Overview
Handset Overview
Note: In the TEMP or TIMER modes, the remote
handset senses the room temperature and adjusts the
flame accordingly.
To communicate, the handset should be within 15 feet
(4.5 meters) of the fireplace.
Do not leave the handset on the mantel or hearth.
IMPORTANT: BEFORE YOU BEGIN, please note that
on this system, the settings of time, temperature and
automatic ON/OFF can only be programmed when
the function display is flashing. Be patient when
programming as it can take a few seconds to set.
OWNER’S
INFORMATION

1010
Remote Control Operation
SETTING THE TIME
SETTING ºC/24-HOUR OR ºF/12-HOUR CLOCK
MODES OF OPERATION
NOTE: Manual mode can also be reached by pressing
either the (large flame) or the (small
flame) buttons.
• Press and hold (small flame)
button to decrease flame height or
to set the appliance at pilot flame.
• For fine adjustment tap the
(large flame) or (small flame)
buttons.
• Briefly pressing the SET button
changes the mode of operation in
the following order:
→→
→→and back to .
• Double-click (small flame)
button. “LO” will be displayed.
NOTE: Flame goes to high fire first
before going to designated low fire.
• In MAN mode, press OFF and
(small flame) buttons until display
changes from Farenheit/12-hour
clock to Celsius/24-hour clock and
vice versa.
• The time display will flash after
either:
• Installing the battery or
• Simultaneously pressing the
(large flame) and (small flame)
buttons.
• Press (large flame) button to
set the hour.
• Press (small flame) button to
set the minute.
• Press OFF or simply wait to return
to MAN mode.
• Double-click (large flame)
button. Flame automatically goes
to high fire. “HI” will be displayed.
• - Manual Mode - Manual
Flame Height Adjustment.
Express Low and High Fire
• - Daytime Tempera-
ture Mode (Appliance must be in
standby mode; pilot ignited) - The
room temperature is measured and
compared to the set temperature.
The flame height is then auto-
matically adjusted to achieve the
Daytime Set Temperature.
• - Nighttime Setback
Temperature Mode (Appliance
must be in standby mode; pilot
ignited) - The room temperature
is measured and compared to the
Nighttime Setback temperature.
The flame height is then automati-
cally adjusted to achieve the Night-
time Setback Temperature.
• - Timer Mode (Appliance
must be in standby mode; pilot
ignited) - The timers P1 and P2
(Program 1, Program 2) each can
be programmed to go ON and OFF
at specific times. For instructions
see Timer Programming Mode.
NOTE: The display shows the set temperature every
30 seconds.
x 2
x 2
MAN
MAN
MAN
TEMP
TEMP
TEMP
TIMER
TEMP
TIMER
OWNER’S
INFORMATION

1111
Remote Control Operation
SETTING THE ON / OFF TEMPERATURES
• Briefly press SET button to scroll to
TEMP (sun) mode. Hold
the SET button until the TEMP
flashes.
• Press (large flame) button
to increase the Daytime Set
Temperature.
• Press (small flame) button
to decrease Daytime Set
Temperature.
• Press OFF or simply wait to
complete programming.
SETTING THE “DAYTIME” TEMPERATURE SETTING THE “NIGHTTIME SETBACK” TEMPERA-
TURE
Default Settings: (sun), 23ºC / 74ºF Default Settings: (moon), “--” (OFF)
• Press (large flame) button to
increase Nighttime Setback
Temperature.
• Press (small flame) button to
decrease Nighttime Setback
Temperature.
• Press OFF or simply wait to
complete programming.
• Briefly press SET button to scroll to
TEMP (moon) mode. Hold
the SET button until the TEMP
flashes.
Tip
Set the different parameters when they are flashing.
TEMP
TEMP
TEMP
TEMP
OWNER’S
INFORMATION

1212

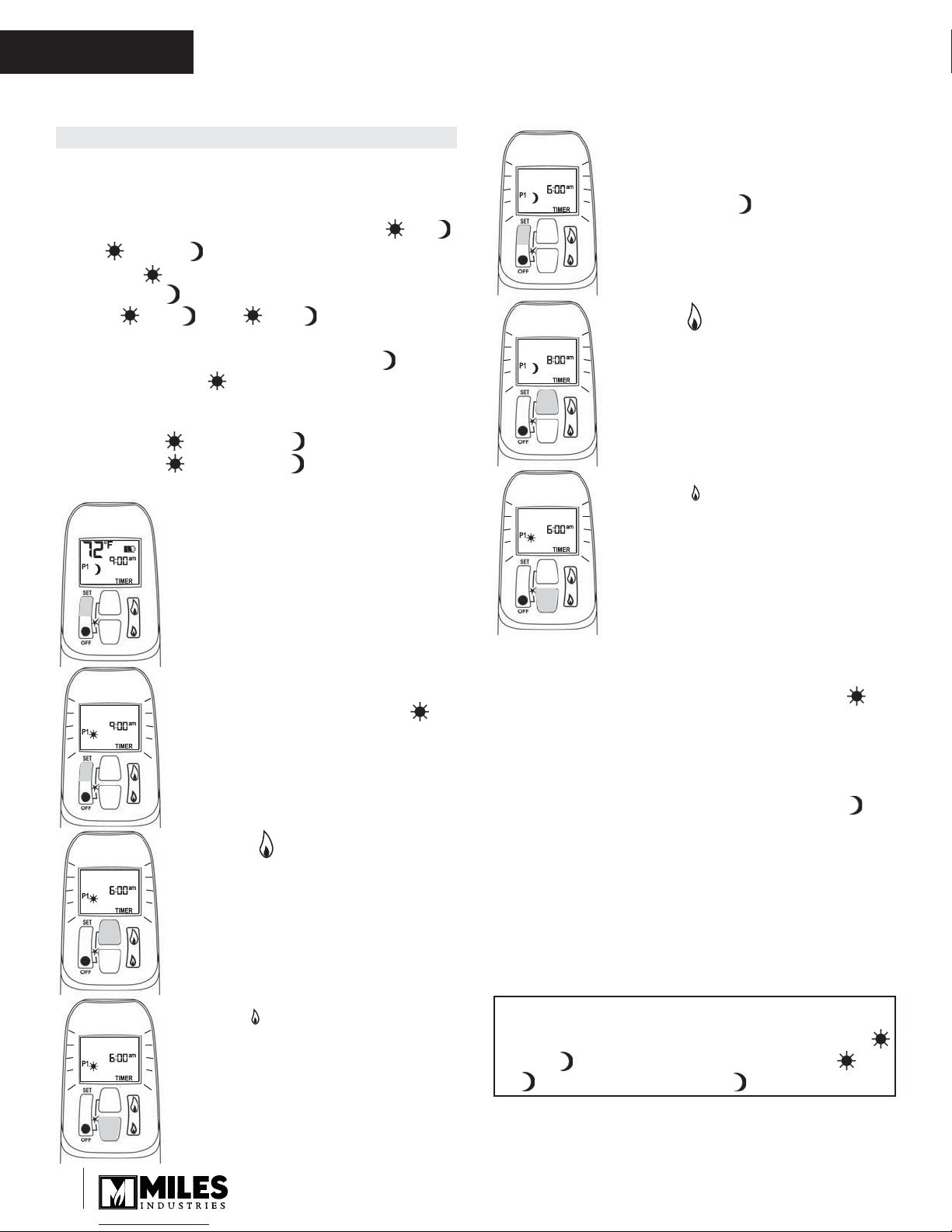

SETTING PROGRAM TIMERS
• You can program two periods of time between 12:00
am and 11:50 pm in each 24-hour cycle.
• The Programs P1 and P2 must be set in the
following order during a 24-hour cycle: , ,
and .
• The icon indicates the beginning of the period (ON)
and the icon indicates the end of the period (OFF).
• If = or = , the programming
is cancelled.
• To keep the fireplace ON all night, set at
11:50 am and at 12:00 am.
Default settings:
Program 1: 6:00 am 8:00 am
Program 2: 11:50 pm 11:50 pm
• Briefly press SET button to scroll to
TIMER mode.
• Hold the SET button until
(sun) is displayed and the time
flashes.
• Briefly press SET button to scroll
to TIMER (moon) while the
time flashes.
• Press (large flame) button to
set the hour.
• Press (large flame) button to set
the hour.
• Press (small flame) button to
set the minutes.
• Press (small flame) button to
set the minutes.
SETTING P1 ON TIME SETTING P2 ON TIME
• Briefly press SET to scroll to TIMER mode
(sun) while the time flashes.
• Follow the instructions given to set P1 ON time.
SETTING P2 OFF TIME
• Briefly press SET to scroll to TIMER mode
(moon) while the time flashes.
• Follow the instructions given to set P1 OFF time.
Press OFF button to save these settings. The timers
are programmed. See the diagram on programming
sequences on the following page.
Tip
If you want to program only one period, program
and with desired times and program and
with the same time as .
SETTING P1 OFF TIME
P1
P1
P1
P1
P1 P1
P2
P2
P2
P2
P2
P2
P1
P1
P1
P1
P1
P1
P2
P2
P2
P2
P2
Remote Control Operation
OWNER’S
INFORMATION

1313
Remote Control Operation
Wall Switch Operation
AUTOMATIC TURN DOWN
AUTOMATIC SHUT OFF
LOW BATTERY INDICATION
HANDSET / RECEIVER MATCH
Remote handset: The battery icon will show when
the battery needs to be replaced.
Replace with one 9 V alkaline battery.
Receiver: Three short ‘beeps’ will sound when the motor
turns when the batteries need to be replaced. Replace
with four 1.5 V alkaline batteries.
The remote control handset and receiver are program-
med to function together. In case of a replacement of the
handset or the receiver, you will need to reset the receiver
to allow them to function together. Contact your dealer for
details.
• No communication. If there is no communication
between the receiver and the handset for a period of 6
hours, the appliance goes into pilot mode.
• No change in flame height. If there is no change
in flame height for a period of 6 hours, the appliance
goes into pilot mode.
NOTE: In TEMP or TIMER modes, the flame height
will vary according to room temperature. The appliance
will continue to work normally. However, if the room
temperature remains the same for 6 hours, the appli-
ance will go into pilot mode.
• Low batteries in the receiver. With low battery power
in the receiver the system shuts off completely.
NOTE: This does not apply when the power supply is
interrupted.
• No change in pilot. The appliance shuts off
completely when it is continually in pilot position—
without any change—for a period of 5 days.
Timer Programming Example (default temperatures shown)
6:00 a.m.—
P1
Start time
4:00 p.m.—
P2
Start time
6:00 a.m.—
P1
Start time
8:00 a.m.—
P1
End time
10:00 p.m.—
P2
End time
Set temp 74˚F Set temp 40˚FSet temp 74˚F
Set temp 40˚F
☼☼☼
☼☼
☽☽
☽☽
CAUTION
DO NOT USE a screwdriver or other metallic object
to remove the batteries from the battery box or the
handset! This could cause a short circuit.
TO TURN APPLIANCE ON and OFF
TO ADJUST FLAME HEIGHT
• Press ON-OFF button once to light
pilot. Press again to shut of pilot.
• Press and hold large flame
button to gradually increase
flame height.
• Press and hold small flame
button to gradually decrease
flame height.
The Wall Switch can be used to
control your fireplace. You can
turn the pilot on or off and you can
increase or decrease the flame
height.
Note that the thermostat and
programming functions are not
available with the wall switch.
OWNER’S
INFORMATION

1414
Options
Required Kits
Liners (choose one)
618EBL—Enamel Black Liner (Steel)
620FBL—Fluted Black Liner (Ceramic)
621VRL—Valor Red Brick Liner (Ceramic)
622LSL—Ledgestone Liner (Ceramic)
Surrounds (choose one)
660LSV—Landscape Surround Vintage Iron
660LSB—Landscape Surround Black
662SSV—Square Surround Vintage Iron
Inner Bezel (choose one—required with Surround)
661BSB—Inner Bezel Black
661BSN—Inner Bezel Nickel
661BSC—Inner Bezel Copper
661BSP—Inner Bezel Polished
Optional Kits
619RSK—Rock Set Kit, to convert from logs to rocks.
671RGK—Rock and Glass Kit, to convert existing rocks.
755CFK—Circulating Fan Kit
Having variable speed and temperature control, it is
designed to boost the natural convection process through
the appliance. It may be fitted before the fireplace is
installed or retrofitted at a later date provided power is
available.
NOTE: The power supply to the fan should be controlled
by a wall switch to allow convenient ON/OFF control of
the fan.
650NGK—Natural Gas Conversion Kit
For conversion from propane to natural gas. Intended
primarily for post installation conversion in areas where
natural gas was not available at the time of initial
installation.
650PGK—Propane Gas Conversion Kit
For conversion from natural gas to propane gas.
Hearth Gate (optional)
Hearth gates such as Cardinal’s VersaGates are available
at retail stores carrying safety products for children.
OWNER’S
INFORMATION

1515
Lighting Instructions
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand, remote control, or wall switch. Follow these instructions
exactly. To save gas, turn the pilot off when not using the appliance for a prolonged period of time.
B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because
some gases are heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the control knobs. Never use tools. If the knobs will not push in or turn by
hand, don’t try to repair them; call a qualified service technician. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control, which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. TO CLEAR ANY GAS, turn main valve off by pressing OFF (red dot) button on remote
handset (1).
• Wait five (5) minutes to clear out any gas, then smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell
gas, go to the next step.
3. AUTOMATIC IGNITION: MAN-knob (2) in ON position. Ensure Flame Adjustment
knob (3) is set to lowest setting ()(Fig. 1). Locate the pilot (Fig. 3.) inside of
firebox at left hand side.
• On the remote control handset, press the OFF button (red dot) and large flame
button () simultaneously; a short acoustic signal confirms the start has begun.
• Further short acoustic signals indicate the ignition process is in progress.
• When the pilot is lit, the Flame Adjustment knob (3) will automatically rotate to
the highest setting.
• Press the small flame button () on the remote control handset to reduce the
flame height.
4. MANUAL IGNITION: MAN-knob (2) in MAN position (Fig. 2). With the window
off, locate the pilot (Fig. 3) inside of firebox at left hand side.
• Set Flame Adjustment knob (3) to the lowest setting ().
• Push down the metallic core (4) with a pen or similar instrument; this will establish
the pilot gas flow.
• Light gas at the pilot (5) with a match.
• Continue holding down metal core (4) for about 10 seconds; after release, pilot
should remain lit.
• If the pilot will not stay lit after several tries, turn the gas control knob (3) to OFF () and call your local
service technician or gas supplier.
• Reinstall the window and set the MAN-knob (2) to ON; turn Flame Adjustment knob (3) up () or down ()
manually or use the flame buttons ()() buttons on the remote control handset to adjust the flame height.
TO TURN OFF GAS TO APPLIANCE
AUTOMATIC SHUT-OFF (using the remote control handset):
• Press and hold the small flame button () on the remote control handset to shut-off the main burner gas flow.
• Press OFF button (red dot) on remote handset to shut-off the appliance, including pilot flame.
Fig 3
5
Fig 1
Fig 2
1
OFF
OWNER’S
INFORMATION

1616
State of Massachusetts Carbon Monoxide
Detector/Vent Terminal Signage
Requirements
For all side wall horizontally vented gas fueled
equipment installed in every dwelling, building or
structure used in whole or in part for residential
purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust
vent termination is less than seven (7) feet above
finished grade in the area of the venting, including
but not limited to decks and porches, the following
requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing
plumber or gas fitter shall observe that a hard wired
carbon monoxide detector with an alarm and battery
back-up is installed on the floor level where the gas
equipment is to be installed. In addition, the installing
plumber or gas fitter shall observe that a battery
operated or hard wired carbon monoxide detector
with an alarm is installed on each additional level of
the dwelling, building or structure served by the side
wall horizontal vented gas fueled equipment. It shall
be the responsibility of the property owner to secure
the services of qualified licensed professionals for the
installation of hard wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the next
adjacent floor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days
to comply with the above requirements; provided,
however, that during said thirty (30) day period, a
battery operated carbon monoxide detector with an
alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and be ANSI/UL 2034 listed and IAS
certified.
3. SIGNAGE. A metal or plastic identification plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight (8) feet above
grade directly in line with the exhaust vent terminal for
the horizontally vented gas fueled heating appliance
or equipment. The sign shall read, in print size no less
than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of
the side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or structure
separate from the dwelling, building or structure used in
whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED.
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
Commonwealth of Massachusetts
QUALIFIED
INSTALLER

1717
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does
not provide the parts for venting the flue gases, but
identifies “special venting systems”, the following
requirements shall be satisfied by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the appliance or
equipment at the completion of the installation.
Commonwealth of Massachusetts
QUALIFIED
INSTALLER

1818
Specifications
Approvals & codes
These appliances are certified by ANSI Z21.88-2009/CSA
2.33-2009 American National Standard / CSA Standard
for Vented Gas Fireplace Heaters for use in Canada and
USA. These appliances are for installation directly venting
through an outside wall or through the roof.
Models 650ILN/IRN are for use with natural gas.
Models 650ILP/IRP are for use with propane gas.
Conversion between fuels may only be done using the
approved conversion kits listed in the section Options.
These appliances comply with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform with local codes or, in
the absence of local codes with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualified
licensed or trained personnel should install these
appliances.
These appliances, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70 or the Canadian Electrical Code,
CSA C22.1.
Ratings
*Tested to CGA - 2.17-91 High Altitude Standard in
Canada. In the USA, installations may require deration
over 2000 feet—check local codes.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Model ILN/IRN ILP/IRP
Gas Natural Propane
Altitude (Ft.) 0-4,500 *
Input Max. (Btu/h) 24,000 24,000
Input Min. (Btu/h) 6,500 13,000
Manifold pressure (in w.c..) 3.95 10.5
Min. Supply pressure (in. w.c.) 5.0 11.0
Max. Supply pressure (in. w.c.) 11.0 14.0
Supply Gas
Heater engine units 650ILN/IRN are used with natural gas
installations.
Heater engine units 650ILP/IRP are used with propane
gas installations.
The supply pressure must
be between the limits shown
in the table above.
The supply connection is ⅜
inch NPT.
The opening for the gas
supply line is at the left side
of the appliance.
Wall Thickness
The vent system (when horizontally terminated) is appro-
ved to pass through combustible wall construction of up
to 14 inches (36 cm) thick.
A non-combustible wall can be any thickness up to the
maximum horizontal run of vent pipe allowed for the
particular installation—see Venting section.
Venting options
Direct vent installations (solid piping)
A list of all approved venting accessories is shown on
pages 43–44 of this manual.
NOTE: An 817VAK Vent Adapter is required in all cases
when using vent components other than Valor’s 551DVK
Standard Vent Terminal.
Direct Vent Co-Linear Installations (flexible piping)
Converts the appliance outlet collars to accept two 3-inch
diameter flex liners for installation into existing solid-fuel
burning fireplaces and chimneys. Requires a co-linear
adapter at the appliance and either a co-linear terminal or
co-linear-to-co-axial adapter and terminal at the top of the
chimney. A list of approved venting accessories is shown
on pages 43–44 of this manual.
Floor/Hearth
This appliance is approved for installation directly on
combustible material such as plywood and so on. Vinyl,
carpet, and soft flooring require sheet metal extending
the whole width and depth under the appliance. This
appliance does not require a hearth. Combustible flooring
may extend up to the front of the unit.
XX
QUALIFIED
INSTALLER

1919
Overview
Fire On/Off Wall Switch
(supplied, required)
Hearth (if used) may be
combustible material. Minimum 1/2” (13 mm) gap
required below backing plate
to surface of hearth or floor
in front for air flow. Raise
enrtire unit accordingly.
Note: Unit
projects forward
of finished wall.
Allow for tile, etc.
Backing Plate required
(sold separately)
Bezel required
(sold separately)
650IL or
650IR
Field convertible
from top to rear
outlet
Framing—See Framing section
Remote Handset Wall Holder
Wall Finish
May be combustible material.
NOTE: Finished wall surface,
including tiles, etc., MUST be
minimum 3/4” (19 mm) set back
from the front face of the heater.
Combustible framing
allowed beneath
fireplace. When
the appliance is
installed directly on
carpeting, tile or
other combustible
material other than
wood flooring, the
appliance shall be
installed on a metal or
wood panel extending
the full width and
recessed depth of the
appliance.
Min.
3/4”
(19 mm)
Min. 1” (25 mm) for
combustible material
WARNING
HOT HEARTH / FLOOR! The hearth or floor
HOT HEARTH / FLOOR! The hearth or floor
in front of the fireplace may become very
in front of the fireplace may become very
hot when the fireplace heats. Do not use the
hot when the fireplace heats. Do not use the
hearth as a seat or shelf. Solid wood flooring
hearth as a seat or shelf. Solid wood flooring
in front of the fireplace (if allowed) may
in front of the fireplace (if allowed) may
shrink during the heating season due to heat.
shrink during the heating season due to heat.
WARNING
Some materials or items, although safe,
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel, and
may discolor, shrink, warp, crack, peel, and
so on because of the heat produced by the
so on because of the heat produced by the
fireplace. Avoid placing candles, paintings,
fireplace. Avoid placing candles, paintings,
photos, and other items sensitive to heat
photos, and other items sensitive to heat
around the fireplace.
around the fireplace.
! !
QUALIFIED
INSTALLER

2020
Mantel depth “A” 0–2”
(0–51 mm)
2–4”
(51–102 mm)
4–6”
(102–152 mm)
6–8”
(152–203 mm)
8–10”
(203–254 mm)
10–12”
(254–305 mm)
Mantel height “B” 31-1/4”
(794 mm)
34”
(864 mm)
35”
(889 mm)
36”
(914 mm)
37”
(940 mm)
38”
(965 mm)
Dimensions
Mantel
36”
(914 mm)
min.
See table
Stand-off Stand-off
See
table
A
B
23-1/8” (587 mm)
to rear vent center
16”
(406 mm)
26-3/4” (679 mm)
38-5/8” (981 mm)
32-3/16” (817 mm)
29-3/4” (756 mm)
30-3/4” (781 mm)
3” (76 mm) min.
To side wall from
inner frame
in front of
the appliance
8-1/4” (210 mm)
From finished
wall surface
to top vent
MINIMUM
3/4” (19 mm)
from finished
wall surface
to front of
appliance
Stand-off
16” (406 mm)
NOTE: Backing plate requires a MINIMUM of 1/2” (13 mm) space
to floor/hearth in front for air flow. Raise the appliance accordingly.
For fronts and trims dimensions, refer to instructions provided with the fronts and trims.
QUALIFIED
INSTALLER
