Miles Industries DV ZC 1100IN Operating instructions

H5 SERIES
DV ZC Gas Fireplace
1100IN (NG) & 1100IP (LPG)
1150ILN (NG) & 1150ILP (LPG)
4003682-04
©2015, Miles Industries Ltd.
Ce guide est disponible en français sur demande.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Please read this manual
BEFORE installing and
operating this appliance.
This manual contains instructions to install the
ENGINE ONLY. Atrim kit is REQUIRED to
complete the installation. A barrier screen is
provided with the trim kit. Refer to the manual
supplied with the trim for installation.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
Installation & Owner’s Manual
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
!WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.

2
Table of Contents
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
The information contained in this installation manual is
believed to be correct at the time of printing. Miles In-
dustries Ltd. reserves the right to change or modify any
information or specifications without notice. Miles Indus-
tries Ltd. grants no warranty, implied or stated, for the
installation or maintenance of your heater, and assumes
no responsibility for any consequential damage(s).
Massachusetts: The piping and final gas connection
must be performed by a licensed plumber or gas fit-
ter in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements on page 18.
FOR THE OWNER FOR THE QUALIFIED INSTALLER
Warranty Card at the
back of this manual.
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
© Copyright Miles Industries Ltd., 2015. All rights reserved.
Safety Precautions ................................................. 3
Safety and Your Fireplace......................................4
Owner’s Information...............................................5
Operating Your Fireplace for the First Time...............5
Cleaning Your Fireplace ............................................6
Checking Pilot and Burner Flames............................8
Replacing Batteries ...................................................8
Using Handset Wall Holder........................................9
Locating Lighting, Operation and Rating
Information Card.....................................................9
Servicing Your Fireplace............................................9
Operating Your Fireplace...........................................9
How to Turn Your Fireplace OFF
(including pilot) .....................................................10
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently.................................10
Remote Control Operation................................... 11
Options.................................................................. 16
Lighting Instructions............................................ 17
Warranty ................................................................67
Commonwealth of Massachusetts......................18
Specifications .......................................................20
Overview................................................................21
Dimensions & Location........................................22
Mantel & Hearth Clearances................................ 23
Hearth Requirements ........................................... 25
Framing Requirements ........................................ 28
Venting................................................................... 32
Co-axial Venting.................................................... 33
Co-linear Venting ..................................................37
Installation Planning ............................................ 39
Appliance Height in Framing ...................................39
Appliance Depth in Framing....................................39
Plan Wall Finish.......................................................40
Installation.............................................................42
Unpack Appliance....................................................42
Convert from Top to Rear Outlet
(if required) ...........................................................42
Remove Window .....................................................43
Install Appliance for 1130 Fixed Framing Kit ...........44
Install Appliance for 3 and 4-Sided Trim, Doors
or Cast Mantel ......................................................47
Install Electrical Wiring (if necessary) .....................50
Connect Gas Supply................................................51
Install Liners ............................................................52
Install Driftwood Kit 1101DWK (1100 models).........53
Install Decorative Glass Murano 1103DGM
(1100 models).......................................................55
Install Decorative Glass Set 1104DGS
(1100 models).......................................................56
Install Traditional Logs (1150 models).....................57
Refit and Check Window.........................................60
Remote Control Initial Pairing..................................61
Check Operation......................................................62
Adjust Aeration if needed.........................................62
Install Trim and Barrier Screen................................62
Install Remote Control Handset Wall Holder...........63
Wiring Diagram ..................................................... 64
Approved Venting Components.......................... 65
Warranty ................................................................67
Spare Parts............................................................68

3
Safety Precautions
!
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as the
appliance. Toddlers, young children and others may
be susceptible to ACCIDENTAL CONTACT BURNS.
A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a fireplace
or stove, INSTALL AN ADJUSTABLE SAFETY GATE
to keep toddlers, young children and other at-risk
individuals out of the room and away from hot surfaces.
DO NOT place furniture or any other combustible
household objects within 36” of the fireplace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies.
Clothing or flammable material SHOULD NOT BE
PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air flow.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualified
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fireplace
manufacturer. NO SUBSTITUTE material may be used.
A BARRIER DESIGNED TO REDUCE THE RISK OF
BURNS from the hot viewing glass is provided with
this appliance and SHALL BE INSTALLED for the
PROTECTION OF CHILDREN and other AT-RISK
INDIVIDUALS.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
If the barrier becomes damaged, the barrier SHALL BE
REPLACED with the MANUFACTURER’S BARRIER
for this appliance.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualified service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen, guard or barrier removed for ser-
vicing the appliance, MUST BE REPLACED prior to
operating the appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fireplace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.

4
Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fireplace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fireplace has been turned off.
Ensure that children are prevented
from touching the fireplace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fireplace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response reflexes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fireplace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fireplace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see pages 9–10 of
Owner’s Information section.
• If the fireplace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 8.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owner’s Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfireplaces.com).
Safety and Your Fireplace
!

5
Operating Your Fireplace for the First Time
When operating your new fireplace for the first time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the flames to be the full height of the firebox, or
even slightly higher, for the first few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the flames will be at their normal height.
Flame Supervision Device
For your safety, this appliance is fitted with a flame
supervision device which will shut-off the gas supply
if, for any reason, the pilot flame goes out. This device
incorporates a fixed probe, which senses the heat
from the pilot flame. If the probe is cool, the device will
prevent any gas flow unless manually lighting the pilot.
See full lighting instructions on page 17 of this manual.
Owner’s Information
This manual and particularly the preceeding
and following pages contain very important
information regarding the safe operation of your
fireplace as well as maintenance instructions.
Read carefully BEFORE operating your fireplace
and pay special attention to the SAFETY
WARNINGS.
A heating gas appliance does require safe handling
and for this reason, we very strongly recommend that
no children be allowed to touch the fireplace and its
controls at all times. Do install a screen or barrier
in front of the fireplace to protect your children
against severe burns.
Thank You ...
For purchasing a Valor by Miles Industries. Your new
radiant gas heater is a technical appliance that must
be installed by a qualified dealer. Each Valor fireplace
is fully tested during the production process for your
safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ________________________________
Phone Number :_______________________________
Should you encounter an operational problem, call
your dealer immediately.
Do not try to repair the unit as you may cause an
injury or damage the fireplace.
!WARNING
EXTREMELY HOT!!!
• READ the SAFETY information on pages
3 and 4 of this manual BEFORE operating
your gas heater.
• Some parts of your fireplace are EXTREMELY
HOT, particularly the GLASS window.
• DO NOT LET CHILDREN touch the glass or
any parts of your fireplace even after it is
turned off as it is still hot.
• USE THE BARRIER SCREEN provided with
the trim or a GATE to reduce the risk of severe
burns.
• Keep the remote control handset OUT OF
REACH of children.
• HOT WALL SURFACES! The wall directly above
the fireplace is VERY HOT when the fireplace
heats. It is constructed of non-combustible
materials and although safe, it may reach
temperatures in excess of 200º F depending
on choice of trims. DO NOT TOUCH IT!
• HOT HEARTH/FLOOR SURFACE! The
hearth or floor directly in front of the fireplace
is VERY HOT when the fireplace heats. Even
if constructed of non-combustible materials,
and although safe, it may reach temperatures
in excess of 200º F depending on choice of
materials. DO NOT STEP ON IT!
•
•
Some materials or items, although safe, may
Some materials or items, although safe, may
discolor, shrink, warp, crack, peel, and so on
discolor, shrink, warp, crack, peel, and so on
because of the heat produced by the fireplace.
because of the heat produced by the fireplace.
AVOID PLACING
AVOID PLACING
candles, paintings, photos,
candles, paintings, photos,
and other items
and other items
SENSITIVE TO HEAT
SENSITIVE TO HEAT within
36 inches (0.9 m) around the fireplace.
•
•
Solid wood flooring in front of the fireplace (if
Solid wood flooring in front of the fireplace (if
allowed) may shrink during the heating season
allowed) may shrink during the heating season
due to heat.
due to heat.
Performance of LPG appliances may be affected by
the quality of commercial gas supplied in your area.
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
OWNER’S
INFORMATION

6
WARNING
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
Let the fireplace cool first before cleaning it.
!
Spring Loaded
Window Levers
WARNING
CHOKING HAZARD! Ensure that the fireplace
area is clear of fireglass or shale particles as
these could be ingested by small children. Vacuum
thoroughly around the fireplace area after cleaning.
a
b
Cleaning Your Fireplace
Important - Glass cleaning - Mineral deposits
One of the by-products of the combustion process in
a gas appliance is a mineral which can show up as a
white film on the ceramic glass of the viewing door.
The composition of the deposit varies with location and
time. It is believed to be associated with the varying
sulfur content of the gas. You may have the problem
intermittently.
We have consulted with ceramic glass manufacturers
and they cannot offer a definitive solution to this prob-
lem. Dealers have tried various cleaning products with
varying results. The following are recommendations
only and are not meant to guarantee results.
NOTE: This is a problem beyond Miles Industries’
control and is not covered under warranty.
• Clean the glass regularly as soon as you notice
the buildup (white film). If the film is left for a longer
period of time, it will etch into the glass. It is then
much harder, if not impossible, to remove.
• NEVER use an abrasive cleaner on the
ceramic glass. Any abrasion of the surface
has the immediate effect of compromising the
strength of the glass. An emulsion type cleaner is
recommended.
• Use a soft damp cloth to apply the cleaner. Dry the
glass with a soft, dry, preferably cotton cloth. Most
paper towels and synthetic materials are abrasive to
ceramic glass and should be avoided.
• Our dealers have had good results from the
products listed below. We cannot, however,
guarantee the results of these products.
•Brasso, Polish Plus by Kelkem, Cook Top Clean
Creme by Elco, White Off by Rutland, Turtle Wax
Do not clean the glass while it is hot!
Always securely replace the window and the barrier
screen before lighting.
If broken, the glass pane may only be replaced
as a complete window unit as supplied by the
manufacturer.
If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance.
Owner’s Information
To remove the window for cleaning:
1. Remove the barrier
screen. Slide the screen
up to disengage the
bottom tabs then unhook
the top tabs.
2. Remove the side panels
by pulling them sideways
towards the center,
sliding them out of their
slots behind the trim
face.
3. Find the levers on each
side of the window
towards the top. Using
your finger, pull the
levers towards you and
unhook them from the
window frame brackets.
4. Gently pull the top of the
window outward.
5. Lift the window out of its
bottom railing and set it aside in a safe place to
avoid damage.
Clean the window following the guidelines in this section.
Clean the steel trims with mild soap and warm water.
Any alcohol/solvent base cleaner will weaken the coat-
ing and damage it.
Clean the cast iron trims dusting with a soft brush.
Clean the barrier screens dusting with a soft brush.
Clean the firebox ceramic logs/rocks and walls dust-
ing them with a soft brush. Dust can also be removed
from the burner using a soft brush after removing the
ceramic logs. When cleaning, make sure that no par-
ticles are brushed into the slots of the burner.
!
OWNER’S
INFORMATION

7
WARNING
FOR SAFETY PURPOSE, ensure the barrier
screen is re-installed on the fireplace front after
maintenance.
!
Window
frame
Bottom
railing
Convection baffle or
heatshield
Trim
Barrier screen’s top tabs
coming through slots in
baffle/heatshield (behind
the face of the trim)

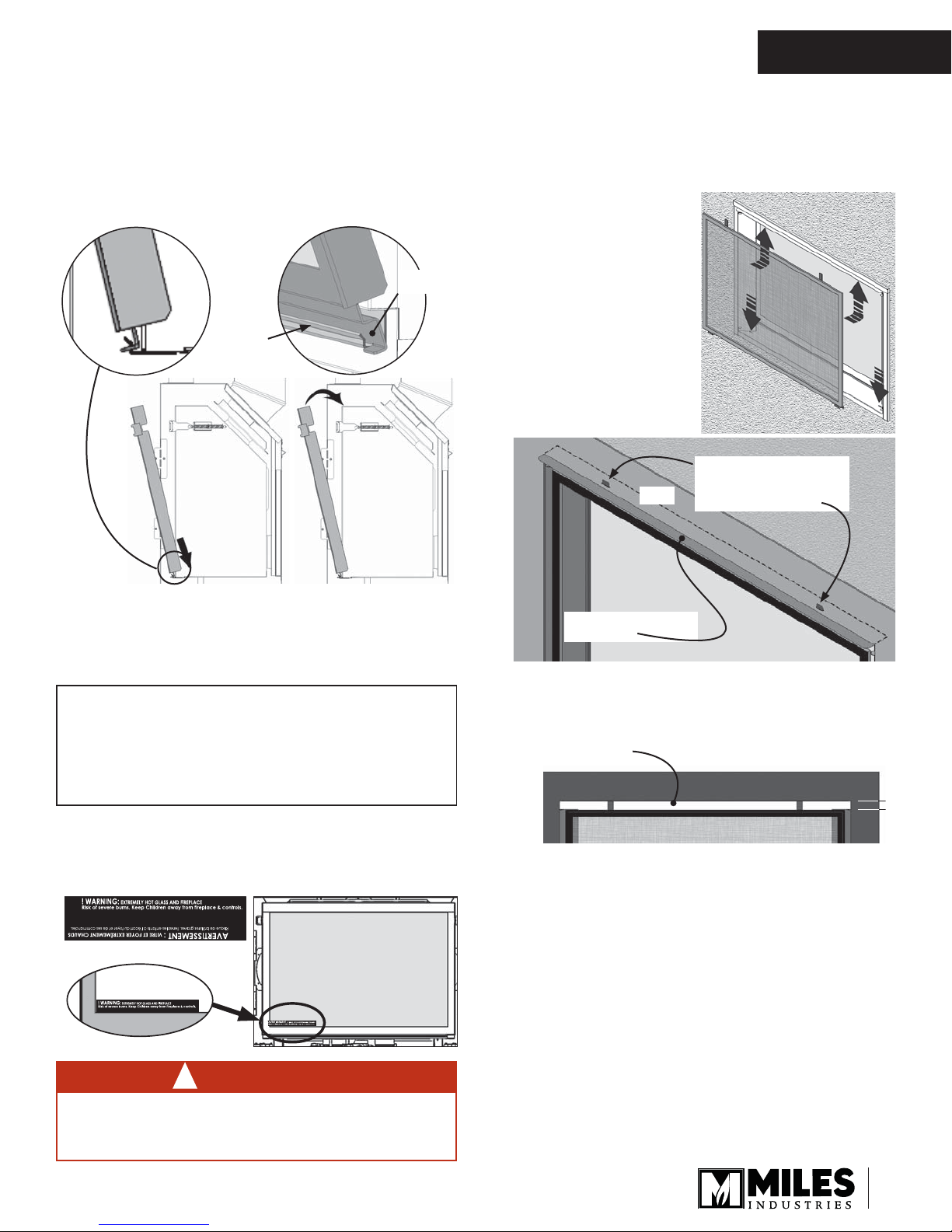

To refit the window:
1. Place it in its bottom railing and push its top against
the firebox.
Note: Ensure to remove any shale or glass particles
in the railing before installing the window.
2. While you hold it, pull the side levers back into the
window brackets on each side.
3. Apply light hand pressure against the window frame
sides to bed-in the window seal.
4. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
Owner’s Information
IMPORTANT: To ensure a safe operation, verify that
the levers are hooked properly to the window tabs;
then, pull out the top of the window and release it to
insure the springs return it.
Also, double-check that the bottom of the window
frame is correctly installed in its the bottom railing.
5. Reinstall the side doors sliding them sideways to
insert their tabs behind the front face of the trim.
6. Reinstall the barrier screen on the trim.
a) 1130, 1135, 1140,
1145 trims: Insert
the screen’s top
tabs in the slots on
the underside of the
convection baffle or
heatshield, then insert
the screen’s bottom
tabs in the slots of the
removable panel at
the bottom to lock it in
position.
Ensure the screen is secure and seated all the
way down into the bottom slots. There should be
a 1” gap between the top of the barrier screen
and the trim.
b) 1135 Edgemont trims: Hook the top of the
screen to the top of the trim. While hooking the
top hooks, direct the bottom tabs into the slots
of the removable panel at the bottom to lock it in
position. Ensure the screen is secure and seated
all the way down into the bottom slots.
7. Verify that the screen is properly hooked and
secure.
Hot Glass Warning Plate
OWNER’S
INFORMATION

8
WARNING
DO NOT ATTEMPT TO CHANGE THE BATTER-
IES WHILE THE FIREPLACE IS STILL HOT! Let
the fireplace cool first before touching it.
CAUTION
DO NOT USE a screwdriver or other metallic
object to remove the batteries from the receiver or
the handset! This could cause a short circuit.
!
1100 Driftwood Kit—Correct Flame Picture
1100 Decorative Glass Murano—Correct Flame Picture
1100 Decorative Glass Set—Correct Flame Picture
1150 Log Set—Correct Flame Picture
Pilot Flame can be seen at
the back of the fire bed
Pilot Flame can be seen
under the right rear logs
Pilot Flame
Thermocouple
Probe must be in
Flame
Removable
panel
Receiver
Gas valve
Pilot Flame can be seen
behind the rear log
The appliance area must always be kept clear and
free from combustible materials, gasoline and other
flammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure that snow, trees, bushes, leaves, or other objects
do not obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.
Replacing Batteries
Low batteries signal: see page 15.
The appliance uses four 1.5 V AA alkaline batteries
for its receiver and two AAAalkaline battery for its
handset. Batteries should last one to two seasons,
depending on usage. Removing the batteries in the off-
season will extend the battery life.
To replace the batteries in the receiver:
The receiver is located to the left side of the gas valve
under the removable panel in front of the appliance.
1. Remove the barrier screen and the removable
panel. It is not necessary to remove the side doors.
Note: If it is difficult to pull out the panel from its
front edge, use your finger and pull from the notches
in the panel at the bottom of the window.
2. Pull the receiver out.
Checking Pilot and Burner Flames
A periodic check of the pilot and burner flames should
be made. Check after the fire has been on for at least
30 minutes. The pilot flame must cover the tip of the
thermocouple probe. The main burner flame pattern will
vary from appliance to appliance depending on the type
of installation and climatic conditions.
Owner’s Information
OWNER’S
INFORMATION

9
WARNING
DO NOT ATTEMPT TO TOUCH THE INFORMA-
TION CARD WHILE THE FIREPLACE IS STILL
HOT! Let the fireplace cool first before touching it.
Thermostatic
Remote Control
Wall Switch
(optional)
!
3. Slide the receiver battery compartment’s cover off.
4. Replace the batteries with 4 AA alkaline batteries
orienting them as indicated inside the compartment.
5. Replace the cover.
6. Put the receiver back in its location at the left of the
gas valve.
7. Reinstall the removable panel sliding it back under
the side doors until it is flush with the sides of the
trim.
8. Reinstall the barrier screen.
Using Handset Wall Holder
Your fireplace equipment includes
a wall holder to store the handset.
If it hasn’t be installed, refer to the
instructions further on in this manual
for the installation.
Locating Lighting, Operation and Rating
Information Card
The Lighting, Operation and Rating Information card is
rolled up and clipped located at the right-hand side of
the firebox.
To access the information card, remove the barrier
screen and the right-hand side door. Pull it out and
read the important information on both sides.
Servicing Your Fireplace
If any attention is required for your appliance, contact
your supplier quoting the model number. It will be
helpful if the appliance’s serial number can also
be quoted. This number is on the rating plate. The
replacement parts are shown at the end of this manual.
Please always quote the part number and description
when requesting spare parts.
Operating Your Fireplace
There are two ways to control your fireplace.
1. Thermostatic Remote Control;
2. Wall Switch (optional).
The Thermostatic Remote Control can be programmed
to function automatically—see pages 11–15.
The Wall Switch can be used to turn on, off and to
increase or decrease the flame height—see the
1265WSK—Wall Switch Kit.
Owner’s Information OWNER’S
INFORMATION

10
Gas valve
ON
Receiver Gas valve
ON: parallel to pipe OFF:
perpendicular
to pipe
Wall Switch
(optional)
Remote control handset
AM
How to Turn Your Fireplace OFF
(including pilot)
Familiarize yourself with each of the following methods
before operating your fireplace.
Press and hold for 4 seconds the button on the
handset or OFF button on the optional wall switch.
NOTE: The first tap on the button “wakes up” the
handset. Tap again to use the function.
If the flames are on, they go down and you hear the
valve motor wind down. You hear a clunk and a beep
indicating that the valve has received the signal from
the remote control.
As well, familiarize yourself with the gas shut-off valve
location in your house. As indicated below, the gas is
running when the handle is parallel with the pipe. The
gas is off when the handle is perpendicular with the
pipe.
Owner’s Information
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently
You can use one of the two following methods to
ensure that your fireplace will not turn on when you
don’t want it on.
First, ensure your fireplace is turned off—including
the pilot—and cold BEFORE going ahead.
• Turn the dial on the gas valve from the ON position
to the MAN position as shown. Turning the dial to
MAN (arrow up) will ensure that the main burner
can not come on. The pilot will remain on if it is lit.
• Alternately, remove all batteries from the receiver
as well as the battery from the handset.
Automatic Shut-Off (in certain conditions)
Your fireplace’s remote control is equipped with an
automatic shut-off mechanism which is activated in
certain conditions. See page 15 in the Remote Control
Operation section for a description of this feature.
OWNER’S
INFORMATION

11
Remote Control Operation
SETTI
DEACTIVATING OR ACTIVATING FUNCTIONS
CHOOSING ONE-BUTTON OR TWO-BUTTON IGNITION
NG CELSIUS OR FAHRENHEIT
ON
AM
PM
OFF
To change between °C and °F, press
and buttons simultaneously.
NOTE: Choosing °F results in a 12 hour
clock. Choosing °C results in a
24 hour clock.
SETTING THE TIME
ON
AM
PM
OFF
Handset Display
Program
Mode
Temperature
Time
Countdown
Timer
Battery
Status
Signal Indicator
Child
Proof
Eco
Mode
Thermostatic Mode
°F or °C
Fan
ON
AM
PM
OFF
Some functions can be deactivated or activated.
On this remote control handset, you can choose a one-button or
two-button ignition. You can also choose to activate or disactivate
some of the functions. By default, the handset is set to a one-but-
ton ignition.
To change from 1-button ignition to 2-button ignition, remove
the batteries, wait 10 seconds, reinsert them and immediately
when the display flashes, press and hold the button for 10
seconds. is displayed and is flashing. When change is
complete changes to .
To change from two-button ignition to one-button ignition, proceed
the same way as above. is displayed and is flashing. When
change is complete changes to .
Deactivate Functions .gnihsaÀdnadeyalpsiderasnocillA.seirettabllatsnI.1 nottubnoitcnuftnavelerehtsserp,gni
hsaÀerasnociehtelihW.2 and hold for 10 sec. -eD.etelpmocsinoitavitcaedlitnuhsaÀlliwnocinoitcnufehT.3 activation is complete when the function icon and two horizon-
tal bars are displayed.
NOTE: ,
noitcnufonsiereht,desserpsinottubdetavitcaedafIand two horizontal bars are displayed.
NOTE: .seirettabfoegnahcretfatceffenisniam
ernoitavitcaeD
Activate Functions .gnihsaÀdnadeyalpsiderasnocill
A.seirettabllatsnI.1 rofdlohdnanottubtna
velerehtsserp,noitcnufaetavitcaoT.2 10 sec. -mocsinoitavitcalitnuhsaÀoteunitnoclliwnocinoitc
nufehT.3 plete. Activation is complete when the function icon is dis-
played.
The following Functions can be Deactivated/Activated
ƒ
ƒ
CHILD PROOF
ON
AM
PM
OFF
ON:
To activate press and buttons si-
multaneously. displayed and the
handset is rendered inoperable,
except for the OFF function.
OFF:
To deactivate press and buttons
simultaneously. disappears.
ƒ
ƒ
ƒ
ƒ
CHILD PROOF
PROGRAM MODE
THERMOSTATIC MODE (also deactivates Program Mode)
ECO MODE
CIRCULATING FAN OPERATION
COUNTDOWN TIMER
1. Press and buttons simultane-
ously. Day flashes.
2. Press or button to select a
number to correspond with the day
of the week.
= Monday
= Tuesday
= Wednesday
= Thursday
= Friday
= Saturday
= Sunday
3. Press and buttons simultane-
ously. Hour flashes.
4. To select hour press or button.
5. Press and buttons simultane-
ously. Minutes flash.
6. To select minutes press or
button.
7. To confirm press and buttons
simultaneously or wait.
IMPORTANT: If the display on the handset indicates OFF,
it may not mean that the fire is off. Always check the fire
and pilot visually to ensure they are off.
NOTE: Before using the remote control system for
the first time, the receiver and the handset must be
paired. See the section Remote Control Initial Pairing
on page 61 of this manual.
OWNER’S
INFORMATION

12

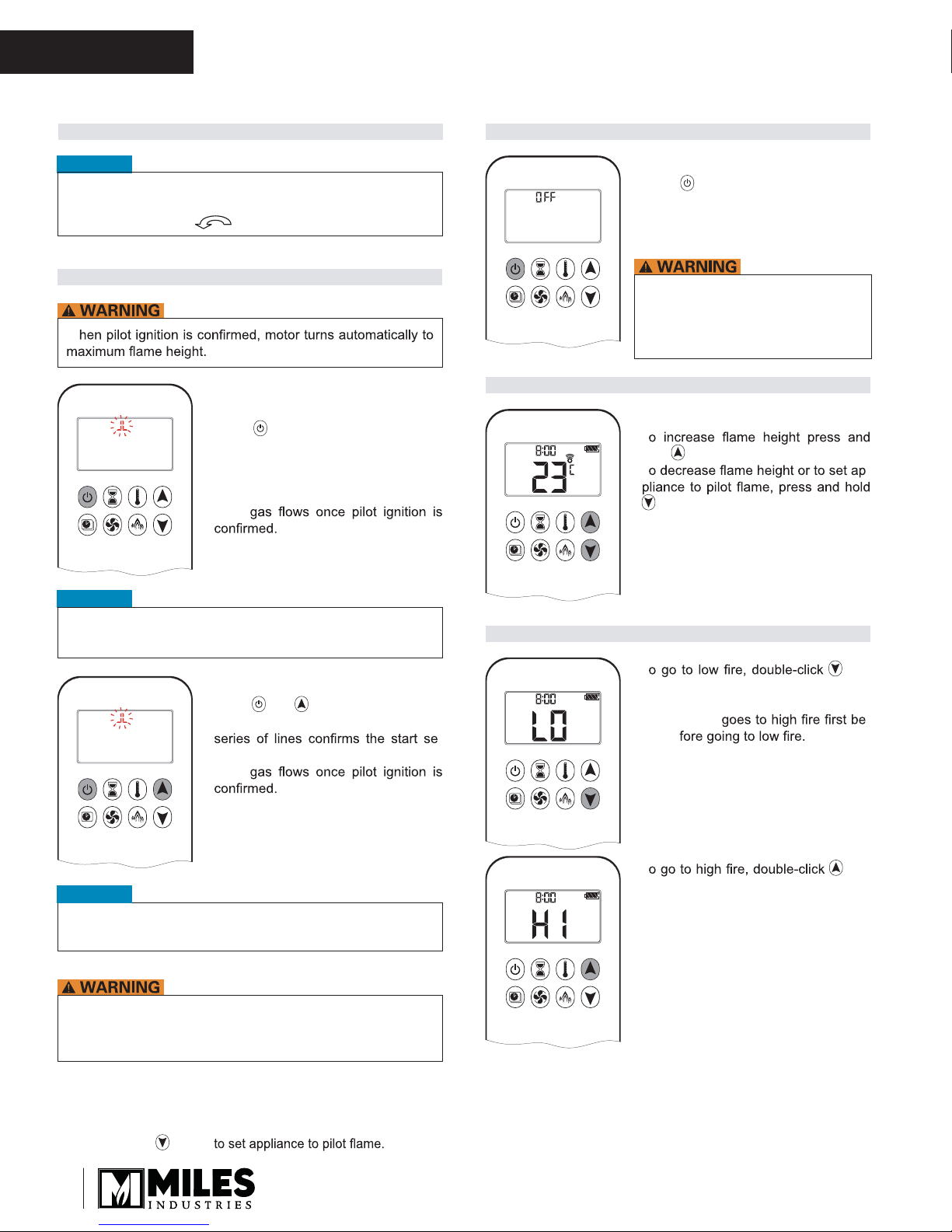

Remote Control Operation
MANUAL MODE (HANDSET))
TO TURN ON FIRE
W
ON
AM
PM
OFF
Handset One-Button Operation
(Default Setting)
ƒ
ƒMain
ƒHandset automatically goes into man-
ual mode after main burner ignition.
NOTICE
To change from one-button to two-button ignition operation,
go to page 1 for instructions.
ON
AM
PM
OFF
Handset Two-Button Operation
ƒPress and button simultaneously
until two short beeps and a blinking
-
quence has begun; release buttons.
ƒMain
ƒHandset automatically goes into man-
ual mode after main burner ignition.
To change from two-button to one-button ignition operation,
go to page 1 for instructions.
NOTICE
Ifthepilot doesnot staylitafterseveraltries,turnthe gas control
knob to OFF (3) and call your local service technician or gas
supplier. See page 17 for more information.
OFF
STANDBY MODE (PILOT FLAME)
Handset
ƒ
Press and hold button
TO TURN OFF FIRE
ON
AM
PM
OFF
Handset
ƒ
NOTE: There is a 5 sec delay before
the next ignition is possible.
NOTICE
BEFORE OPERATING
Make sure MANUAL knob on the GV60 Valve is in the ON,
full counterclockwise position.
FLAME HEIGHT ADJUSTMENT
ON
AM
PM
OFF
Handset
ƒ
T
hold button.
ƒT -
button.
DESIGNATED LOW FIRE AND HIGH FIRE
AM
ƒT but-
ton. “LO” is displayed.
NOTE: Flame -
AM
ƒT but-
ton. “HI” is displayed.
IMPORTANT: If the display on the
handset indicates OFF, it may not
mean that the fire is off. Always
check the fire and pilot visually
to ensure they are off.
Press button and hold for four
seconds until two short beeps and
a blinking series of lines confirms
the start sequence has begun;
release button.
Press button and hold for four
seconds to turn OFF.
OWNER’S
INFORMATION

13
Remote Control Operation
PROGRAM MODE
NOTE: The set temperature for Thermostatic Mode is the tem-
perature for the ON time in Program Mode. Changing
the Thermostatic Mode set temperature also changes
the ON time temperature in Program Mode.
ON
AM
PM
OFF
ON:
Press button. , or
, ON or OFF
displayed.
ON
AM
PM
OFF
OFF:
1. Press or or button to enter
Manual Mode.
2. Press button to enter Thermostatic
Mode.

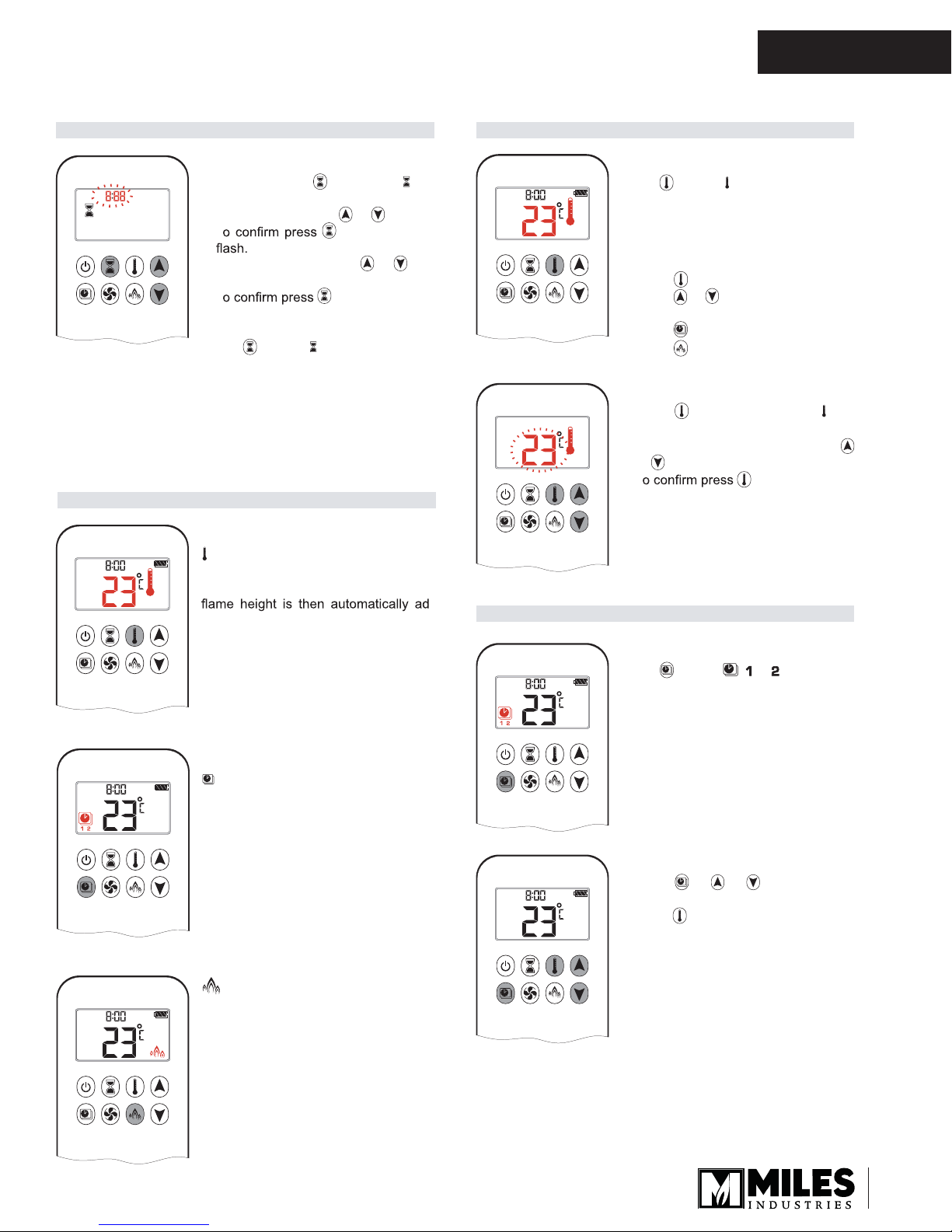

THERMOSTATIC MODE
ON
AM
PM
OFF
ON:
played.
OFF:
1. Press button.
2. Press or button to enter Manual
Mode.
3. Press button to enter Program Mode.
4. Press button to enter Eco mode.
ON
AM
PM
OFF
SETTING:
1.
2. To adjust SET temperature press
or button.
3. T button or wait.
COUNTDOWN TIMER
ON
AM
PM
OFF
ON/SETTING:
1.
2. To select hour press or button.
3. Tbutton. Minutes
4. To select minutes press or but-
ton.
5. T button or wait.
OFF:
NOTE:
Press and hold button until
displayed, and hour flashes.
Press button, and countdown
time disapear.
At end of countdown time period, the fire turns off. The
CountdownTimer only works in Manual, Thermostatic, and
Eco Modes. Maximum countdown time is 9 hours and 50
minutes.
Press button. displayed, preset
temperature displayed briefly, and then
room temperature displayed.
Press button and hold until dis-
played, temperature flashes.
AM
Eco Mode
MODES OF OPERATION
ON
AM
PM
OFF
Thermostatic Mode
The room temperature is measured and
compared to the set temperature. The
-
justed to achieve the set temperature.
ON
AM
PM
OFF
Program Mode
Programs 1 and 2, each can be
programmed to go on and off at specific
times at a set temperature.
Flame height modulates between high
and low. If the room temperature is
lower than the set temperature, the
flame height stays on high for a longer
period of time. If the room temperature
is higher than the set temperature, the
flame height stays on low for a longer
period of time. One cycle lasts approxi-
mately 20 minutes.
OWNER’S
INFORMATION

14
ECO MODE
AM
ON:
Press button. displayed.
OFF:
Press button. disappears.
ON
AM
PM
OFF
TEMPERATURE SETTING:
1. Press button and hold until
.
and set temperature (set-
ting in Thermostatic Mode) displayed.
2. To continue press button or wait.
, displayed, temperature flashes.
3. Select off temperature by pressing
the or button.
NOTE: The ON (Thermostatic) and OFF set temperatures are the
same for each day.
Default settings:
ON TIME (Thermostatic) TEMPERATURE: 21°C (70°F)
OFF TIME TEMPERATURE: “ ” (pilot flame only)
ON
AM
PM
OFF
DAY SETTING:
4. Àashes. Press or button to
choose between , , , , , ,
, , .sserpmr¿nocoT.5 button.
selected
ON
AM
PM
OFF
ON TIME SETTING (PROGRAM 1):
6. , , displayed, day is displayed
shortly, and hour Àashes.
sserpruohtcelesoT.7 or button.
sserpmr¿nocoT.8 button. , ,
displayed, minutes Àash.
sserpsetunimtcelesoT.9 or but-
ton.
10. To con¿rm press button.
OFF TIME SETTING
(PROGRAM 1):
ON
AM
PM
OFF
11. , , displayed, day isdisplayed
shortly, and hour Àashes.
sserp,ruohtcelesoT.21 or button.
sserpmr¿nocoT.31 button. , ,
displayed, minutes Àash.
sserpsetunimtcelesoT.41 or but-
ton.
15.To con¿rm press button.
NOTE: Either continue to PROGRAM 2 and set on and off times
or stop programming at this point, and PROGRAM 2 re-
mains deactivated.
NOTE: PROGRAM 1 and 2 use the same on (Thermostatic) and
off temperatures for , and “Daily Timer” ( , , , ,
, , ). Once a new on (Thermostatic) and/or off temper-
ature has been set, that temperature becomes the new
default setting.
NOTE: fI , or “Daily Timer” are programmed for PRO-
GRAM 1 and PROGRAM 2 on and off times, these be-
come the new default times. The batteries must be re-
moved to clear the PROGRAM 1 and PROGRAM 2 on
and off times and temperatures.
or “Daily Timer” ( , , , , , , ) selected
teSƒon time and off time using same procedure as “ se-
lected” (above).
ƒ
: Set on time and off time for both Saturday and Sunday.
ƒUnique on and off times may be set for a single day of the week,
for multiple days of the week, or for every day of the week.
.gnitteshsin¿ottiaWƒ

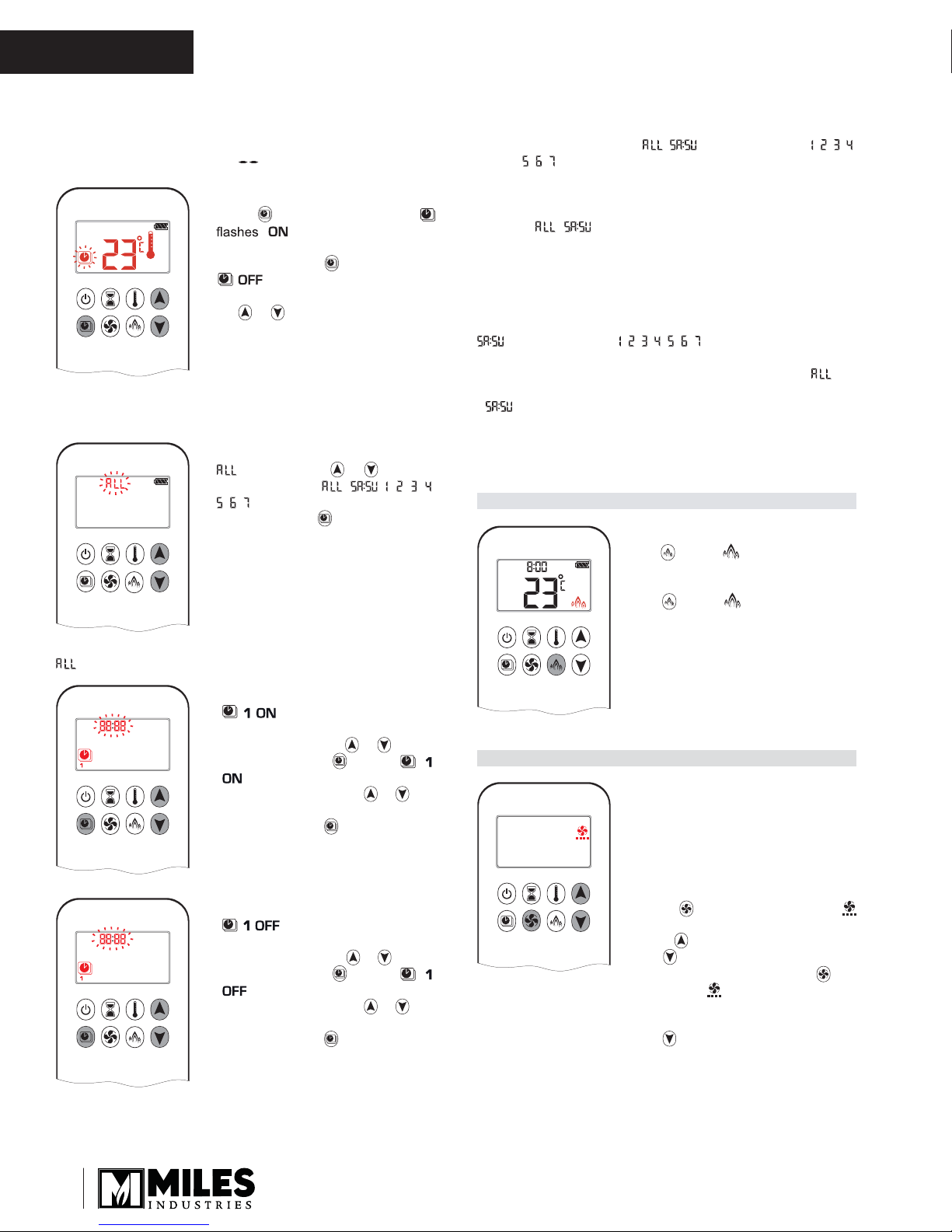

CIRCULATING FAN OPERATION
AM
NOTE: SETTING only. Fan is switched
on automatically when gas
opens. Circulating fan has 4
speed levels from low (1 bar) to
high (4 bars).
SETTING:
sserP.1 button and hold until
Àashes.
sserP.2 button to increase fan speed
and button to decrease fan speed.
sserprehtiegnittesmr¿nocoT.3 but-
ton or wait ( displayed).
:FFO sserP button until all 4 speed level
bars disappear.
Remote Control Operation
OWNER’S
INFORMATION

15
Remote Control Operation
AUTOMATIC TURN DOWN
3Hour No Communication Function
ƒ
Receiver Overheating
RQO\LIRSWLRQDOFLUFXODWLQJIDQFRQWUROPRGXOHLVFRQQHFWHG
ƒ
AUTOMATIC SHUT OFF
Countdown Timer
ƒ
Low Battery Receiver
ƒ
Five Day Shut Off
ƒ
$WHQGRIFRXQWGRZQWLPHSHULRGWKHILUHWXUQVRII7KH
&RXQWGRZQ7LPHURQO\ZRUNVLQ0DQXDO7KHUPRVWDWLFDQG(FR
0RGHV0D[LPXPFRXQWGRZQWLPHLVKRXUVDQGPLQXWHV
7KHYDOYHZLOOWXUQWRSLORWIODPHLIWKHUHLVQRFRPPXQLFDWLRQ
EHWZHHQKDQGVHWDQGUHFHLYHUIRUDKRXUSHULRG7KHILUHZLOO
FRQWLQXHWRIXQFWLRQQRUPDOO\ZKHQFRPPXQLFDWLRQLVUHVWRUHG
9DOYHWXUQVWRSLORWIODPHLIWKHWHPSHUDWXUHLQWKHUHFHLYHULV
KLJKHUWKDQ°)°&7KHPDLQEXUQHUWXUQVEDFNRQ
PDQXDOO\RULQ7KHUPRVWDWLF0RGHRQO\ZKHQWKHWHPSHUDWXUH
LVEHORZ°)°&
:LWKORZEDWWHU\SRZHULQWKHUHFHLYHUWKHV\VWHPVKXWVRIIWKH
ILUHFRPSOHWHO\7KLVZLOOQRWKDSSHQLIWKHSRZHUVXSSO\LV
LQWHUUXSWHG
7KHV\VWHPVKXWVRIIWKHILUHFRPSOHWHO\LIWKHUHLVQRFKDQJH
LQIODPHKHLJKWIRUGD\V
LOW BATTERY INDICATION
Handset
ƒ7KHEDWWHU\LFRQZLOOVKRZZKHQWKHEDWWHU\QHHGVWREH
UHSODFHG5HPSODFHZLWKWZR9$$$alkaline EDWWHULHV
'RQRWXVHDVFUHZGULYHURURWKHUPHWDOOLFREMHFWWRUHPRYH
WKHEDWWHULHVIURPWKHUHFHLYHURUWKHKDQGVHW7KLVFRXOG
FDXVHDVKRUWFLUFXLWRIWKHUHPRWHFRQWUROV\VWHP
Receiver
ƒ7KUHHVKRUWEHHSVZLOOVRXQGZKHQWKHPRWRUWXUQVZKHQWKH
EDWWHULHVQHHGWREHUHSODFHG5HSODFHZLWKIRXU9alkaline
EDWWHULHV
OWNER’S
INFORMATION

16
Options
Required Kits
Fuel Beds (choose one)—1100 units only
1101DWK Driftwood Kit
1103DGM Murano Glass Kit
1104DGS Decorative Glass Set
Ceramic Liners (choose one)—1100 and 1150 units
1110VRL Valor Red Liners
1115LSL Ledgestone Liners
1125FBL Fluted Black Liners
1160BLS Black Liners
Trims (choose one)—1100 and 1150 units Barrier Screen Number
1130FFK Fixed Framing Kit 4003810
1135TSB Three-Sided Trim Black 4003810
1135TSBEN Three-Sided Trim Edgemont Nickel 4004423
1135TSBEZ Three-Sided Trim Edgemont Bronze 4004423
1140FSB Four-Sided Trim Black 4003810
1140FSN Four-Sided Trim Nickel 4003810
1140FSZ Four-Sided Trim Bronze 4003810
1145CBP+1145BDK Cast Backing Plate w Barrier and Door Kit 4003810
1149EDV Edgemont Double Doors
Optional Accessories
Trim Optional Accessories—1100 and 1150 units
1147CMS Cast Mantel Surround
1148CIR Cast Inlay Reeds
1148CIS Cast Inlay Sheffield
1148CIT Cast Inlay Tatch
Conversion Kits—1100 and 1150 units
1100PGK From NG to LPG—1100 units only
1100NGK From LPG to NG—1100 units only
1150PGK From NG to LPG—1150 units only
1150NGK From LPG to NG—1150 units only
Other Accessories—1100 and 1150 units
1105RGL Reflective Liner for 1125FBL or 1160BLS
1156CLA Co-Linear Adapter
1195CFK Circulating Fan Kit
1265WSK Wall Switch Kit
1270RBK Remote Blower Kit
1506DRK Decorative Rock Kit—1100 units only
GV60PAK Power Kit
Hearth Gate Hearth gates such as Cardinal’s VersaGates are available at retail stores carrying safety
products for children.
*Information accurate at the time of printing and subject to change without notice.
OWNER’S
INFORMATION

17
Lighting Instructions
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand, remote control, or wall switch. Follow these instructions
exactly. To save gas, turn the pilot off when not using the appliance for a prolonged period of time.
B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because
some gases are heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the control knobs. Never use tools. If the knobs will not push in or turn by
hand, don’t try to repair them; call a qualified service technician. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control, which has been under water.

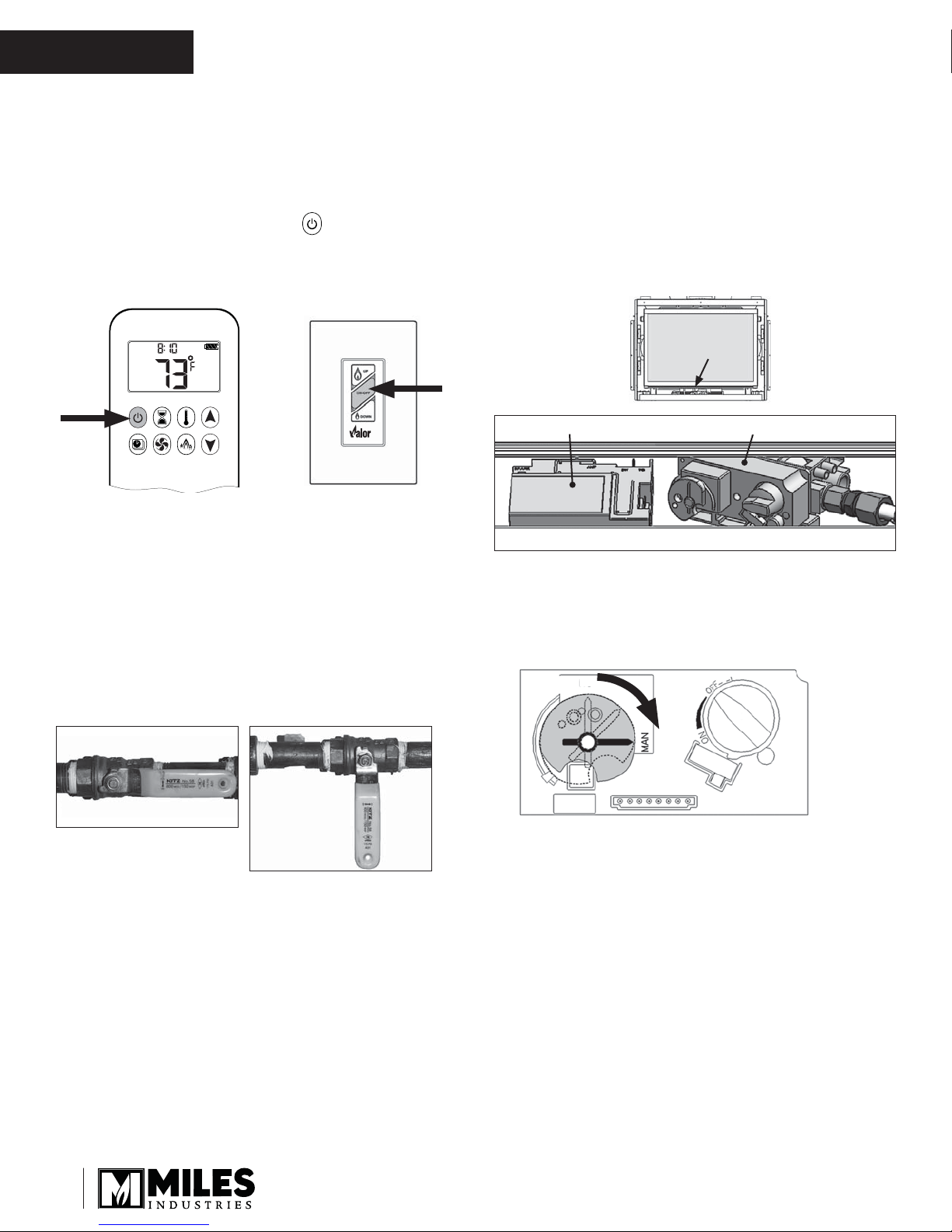

LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. TO CLEAR ANY GAS, turn main valve off by pressing the button on remote handset (1).
• Wait five (5) minutes to clear out any gas, then smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell
gas, go to the next step.
3. AUTOMATIC IGNITION: MAN-knob (2) in ON position. Ensure Flame Adjustment
knob (3) is set to lowest setting ()(Fig. 1). Locate the pilot (Fig. 3.) inside the
firebox.
• On the remote control handset, press the button; a short acoustic signal
confirms the start has begun.
• Further short acoustic signals indicate the ignition process is in progress.
• When the pilot is lit, the Flame Adjustment knob (3) will automatically rotate to
the highest setting.
• Press the button on the remote control handset to reduce the flame height.
4. MANUAL IGNITION: MAN-knob (2) in MAN position (Fig. 2). With the window
off, locate the pilot (Fig. 3) inside the firebox.
• Set Flame Adjustment knob (3) to the lowest setting ().
• Push down the metallic core (4) with a pen or similar instrument; this will establish
the pilot gas flow.
• Light gas at the pilot (5) with a match.
• Continue holding down metal core (4) for about 10 seconds; after release, pilot
should remain lit.
• If the pilot will not stay lit after several tries, turn the gas control knob (3) to OFF () and call your local
service technician or gas supplier.
• Reinstall the window and set the MAN-knob (2) to ON; turn Flame Adjustment knob (3) up () or down ()
manually or use the and buttons on the remote control handset to adjust the flame height.
TO TURN OFF GAS TO APPLIANCE
AUTOMATIC SHUT-OFF (using the remote control handset):
• Press and hold the button on the remote control handset to shut-off the main burner gas flow.
• Press the button on remote handset to shut-off the appliance, including pilot flame.
Spark
Fig 3
5
Fig 1
Fig 2
AM
1
OFF
Pilot
OWNER’S
INFORMATION

18
State of Massachusetts Carbon Monoxide
Detector/Vent Terminal Signage
Requirements
For all side wall horizontally vented gas fueled
equipment installed in every dwelling, building or
structure used in whole or in part for residential
purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust
vent termination is less than seven (7) feet above
finished grade in the area of the venting, including
but not limited to decks and porches, the following
requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS.At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing
plumber or gas fitter shall observe that a hard wired
carbon monoxide detector with an alarm and battery
back-up is installed on the floor level where the gas
equipment is to be installed. In addition, the installing
plumber or gas fitter shall observe that a battery
operated or hard wired carbon monoxide detector
with an alarm is installed on each additional level of
the dwelling, building or structure served by the side
wall horizontal vented gas fueled equipment. It shall
be the responsibility of the property owner to secure
the services of qualified licensed professionals for the
installation of hard wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the next
adjacent floor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days
to comply with the above requirements; provided,
however, that during said thirty (30) day period, a
battery operated carbon monoxide detector with an
alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and beANSI/UL 2034 listed and IAS
certified.
3. SIGNAGE. Ametal or plastic identification plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight (8) feet above
grade directly in line with the exhaust vent terminal for
the horizontally vented gas fueled heating appliance
or equipment. The sign shall read, in print size no less
than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of
the side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or structure
separate from the dwelling, building or structure used in
whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED.
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. Acomplete parts list for the venting system design or
venting system.
Commonwealth of Massachusetts
QUALIFIED
INSTALLER

19
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does
not provide the parts for venting the flue gases, but
identifies “special venting systems”, the following
requirements shall be satisfied by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
(e) Acopy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the appliance or
equipment at the completion of the installation.
Commonwealth of Massachusetts QUALIFIED
INSTALLER

20
X
Ratings
Model 1100IN 1100IP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 28,000 28,000
Input Minimum (Btu/h) 13,000 13,000
Manifold Pressure (in w.c.) 3.5” 9”
Minimum Supply Pressure (in w.c.) 5” 11”
Maximum Supply Pressure (in w.c.) 10” 14”
Main Burner Injector Marking 850 300
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 185 125
Model 1150ILN 1150ILP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 30,000
Input Minimum (Btu/h) 16,000 16,000
Manifold Pressure (in w.c.) 4” 9”
Minimum Supply Pressure (in w.c.) 5” 11”
Maximum Supply Pressure (in w.c.) 10” 14”
Main Burner Injector Marking 850 360
Pilot Injector Marking 51 30
Min. Rate By-Pass Screw 195 135
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88-2014/
CSA 2.33-2014American National Standard / CSA
Standard for Vented Gas Fireplace Heaters for use in
Canada and USA, and to CGA 2.17-91 High Altitude
Standard in Canada. This appliance is for direct vent
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualified
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
*High Altitude Installations
Input ratings are shown in BTU
per hour and are certified without
deration for elevations up to
4,500 feet (1,370 m) above sea
level.
For elevations above 4,500 feet
(1,370 m) in USA, installations
must be in accordance with the current ANSI Z223.1
and/or local codes having jurisdiction. Heating value
of gas in some areas is reduced to compensate for
elevation—consult your local gas utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engines 1100IN and 1150ILN are used with
natural gas.
Heater engines 1100IP and 1150ILP are used with
propane gas.
The supply pressure must be between the limits shown
in the Ratings section.
The supply connection is 3/8” NPT male and located on
the right hand side of the firebox. A shut-off valve (not
supplied) is required on the supply line to isolate the
unit during service. See Supply Gas Installation section
for details.
Conversion Kits
The 1100 and 1150 are supplied as natural gas or
propane gas and are field convertible between fuels.
See instructions packaged with the conversion kits for
further information.
Electrical
The 1100 and 1150 are designed to run on battery
power and do not require an electrical power source to
operate as a heater. However, they require electrical
power to operate optional 1195CFK Circulating Fan
Kit, 1270RBK Remote Blower Kit or GV60PAK Power
Adapter.
QUALIFIED
INSTALLER
