Miles Industries Valor Legend G3 Operating instructions

4006175-02
©2017, Miles Industries Ltd.
DV Gas Insert
739MN (Natural Gas) & 739MP (Propane Gas)
Installation & Owner’s Manual
This manual contains instructions to install the
ENGINE ONLY. A front is also REQUIRED to
complete this installation. A barrier screen is pro-
vided with the front. Refer to the manual sup-
plied with the front for installation.
— Do not store or use gasoline or other
fl ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
▪ Do not try to light any appliance.
▪ Do not touch any electrical switch; do
not use any phone in your building.
▪ Leave the building immediately.
▪ Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪ If you cannot reach your gas supplier,
call the fi re department.
— Installation and service must be
performed by a qualifi ed installer, service
agency or the gas supplier.
Ce guide est disponible en français sur demande.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certifi ed kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
! WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Please read this manual
BEFORE installing and
operating this appliance.
Legend G3

Safety Precautions .................................................3
Safety and Your Fireplace ......................................4
Owner’s Information ...............................................5
Operating Your Fireplace for the First Time ...............5
Cleaning Your Fireplace ............................................ 6
Checking pilot and burner fl ames .............................. 7
Replacing Batteries ...................................................8
Using Handset Wall Holder ........................................ 8
Locating Lighting, Operation and Rating
Information Card ..................................................... 8
Servicing Your Fireplace ............................................8
Operating Your Fireplace ...........................................8
How to Turn Your Fireplace OFF (including pilot) ...... 9
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently ...................................9
Remote Control Operation ...................................10
Options ..................................................................15
Lighting Instructions ............................................ 16
Warranty ................................................................40
Specifi cations .......................................................17
Overview................................................................18
Dimensions ...........................................................19
Cavity .....................................................................19
Clearances ............................................................20
Venting ...................................................................21
Installation Planning ............................................22
Existing Fireplace Preparation ............................ 22
Installation .............................................................23
Unpack the appliance ..............................................23
Remove Window .....................................................24
Install Fan (if used) ..................................................24
Connect Venting ...................................................... 25
Connect Gas Supply ................................................26
Change Fuel Bed Support (if necessary) ................27
Install Liner Panels .................................................. 27
Install 739LSK Ceramic Logs .................................. 29
Install 739RSK Ceramic Rocks ............................... 31
Install 739DWK Driftwood Kit ..................................33
Refi t and Check Window .........................................35
Synchronize Remote Control ...................................36
Check Operation ......................................................36
Adjust Aeration (if necessary) ..................................36
Install Front, Trim and Barrier Screen ......................37
Install Handset Wall Holder ..................................... 37
Wiring Diagram .....................................................38
Approved Venting Components .......................... 39
Warranty ................................................................40
Spare Parts............................................................41
2
Table of Content
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfi replaces.com
© Copyright Miles Industries Ltd., 2017
The information contained in this installation
manual is believed to be correct at the time of
printing. Miles Industries Ltd. reserves the right
to change or modify any information or speci-
fi cations without notice. Miles Industries Ltd.
grants no warranty, implied or stated, for the
installation or maintenance of your heater, and
assumes no responsibility for any consequential
damage(s).
FOR THE OWNER FOR THE QUALIFIED INSTALLER
Warranty Card at the
back of this manual.
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
Massachusetts: The piping and fi nal
gas connection must be performed by a
licensed plumber or gas fi tter in the State
of Massachusetts.

3
Safety Precautions
!
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as the
appliance. Toddlers, young children and others may
be susceptible to ACCIDENTAL CONTACT BURNS.
A physical barrier is recommended if there are at-risk
individuals in the house. To restrict access to a fi replace
or stove, INSTALL AN ADJUSTABLE SAFETY GATE
to keep toddlers, young children and other at-risk
individuals out of the room and away from hot surfaces.
DO NOT place furniture or any other combustible
household objects within 36” of the fi replace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fi re
hazard and will void the warranty.
Prior to the fi rst fi ring of the fi replace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualifi ed service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualifi ed service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other fl ammable
vapors and liquids.
NEVER OBSTRUCT the fl ow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffi c areas and away from furniture
and draperies.
Clothing or fl ammable material SHOULD NOT BE
PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fi replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air fl ow.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualifi ed
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fi replace
manufacturer. NO SUBSTITUTE material may be used.
A BARRIER DESIGNED TO REDUCE THE RISK OF
BURNS from the hot viewing glass is provided with
this appliance and SHALL BE INSTALLED for the
PROTECTION OF CHILDREN and other AT-RISK
INDIVIDUALS.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
If the barrier becomes damaged, the barrier SHALL BE
REPLACED with the MANUFACTURER’S BARRIER
for this appliance.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualifi ed service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen, guard or barrier removed for ser-
vicing the appliance, MUST BE REPLACED prior to
operating the appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fi replace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fi red appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.

4
Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fi replace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fi replace has been turned off .
Ensure that children are prevented
from touching the fi replace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fi replace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response refl exes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fi replace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fi replace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see pages 8–9 of
Owner’s Information section.
• If the fi replace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 8.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owner’s Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfi replaces.com).
Safety and Your Fireplace

5
Operating Your Fireplace for the First Time
When operating your new fi replace for the fi rst time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the fl ames to be the full height of the fi rebox, or
even slightly higher, for the fi rst few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the fl ames will be at their normal height.
Flame Supervision Device
For your safety, this appliance is fi tted with a fl ame
supervision device which will shut-off the gas supply
if, for any reason, the pilot fl ame goes out. This device
incorporates a fi xed probe, which senses the heat
from the pilot fl ame. If the probe is cool, the device will
prevent any gas fl ow unless manually lighting the pilot.
See full lighting instructions on page 16 of this manual.
Owner’s Information
Performance of propane gas appliances may be
aff ected by the quality of commercial gas sup-
plied in your area.
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
WARNING
EXTREMELY HOT!!!
• READ the SAFETY information on pages
3 and 4 of this manual BEFORE operating
your gas heater.
• Some parts of your fi replace are EXTREMELY
HOT, particularly the GLASS window.
• DO NOT LET CHILDREN touch the glass or
any parts of your fi replace even after it is
turned off as it is still hot.
• USE THE BARRIER SCREEN provided with
the appliance, front or trim or a GATE to
reduce the risk of burns.
• Keep the remote control handset OUT OF
REACH of children.
• HOT HEARTH/FLOOR SURFACE! The
hearth or fl oor directly in front of the fi replace
is VERY HOT when the fi replace heats. Even
if constructed of non-combustible materials,
and although safe, it may reach temperatures
in excess of 200º F depending on choice of
materials. DO NOT STEP ON IT!
•
•
Some materials or items, although safe, may
Some materials or items, although safe, may
discolor, shrink, warp, crack, peel, and so on
discolor, shrink, warp, crack, peel, and so on
because of the heat produced by the fi replace.
because of the heat produced by the fi replace.
AVOID PLACING
AVOID PLACING
candles, paintings, photos,
candles, paintings, photos,
and other items
and other items
SENSITIVE TO HEAT
SENSITIVE TO HEAT within
36 inches (0.9 m) around the fi replace.
•
•
Solid wood fl ooring in front of the fi replace (if
Solid wood fl ooring in front of the fi replace (if
allowed) may shrink during the heating season
allowed) may shrink during the heating season
due to heat.
due to heat.
!
This manual and particularly the preceeding and
following pages contain very important information
regarding the safe operation of your fi replace as
well as maintenance instructions.
Read carefully BEFORE operating your fi replace and
pay special attention to the SAFETY WARNINGS.
A heating gas appliance does require safe handling
and for this reason, we very strongly recommend that
no children be allowed to touch the fi replace and its
controls at all times. Do install a screen or barrier in
front of the fi replace to protect your children against
severe burns.
Thank You ...
For purchasing a Valor by Miles Industries. Your new radiant
gas heater is a technical appliance that must be installed by
a qualifi ed dealer. Each Valor fi replace is fully tested during
the production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ________________________________
Phone Number :_______________________________
Should you encounter an operational problem, call
your dealer immediately.
Do not try to repair the unit as you may cause an
injury or damage the fi replace.
This appliance is designed and approved as a
supplemental heater and provides the potential
for most energy conservation when used while
attended. The use of an alternate primary heat
source is advisable.
OWNER’S
INFORMATION

Bottom
of window
(wider frame)
Owner’s Information
Cleaning Your Fireplace
Important - Glass cleaning - Mineral deposits
One of the by-products of the combustion process in a
gas appliance is a mineral which can show up as a white
fi lm on the ceramic glass of the viewing door.
The composition of the deposit varies with location and
time. It is believed to be associated with the varying sulfur
content of the gas. You may have the problem intermit-
tently.
We have consulted with ceramic glass manufacturers
and they cannot off er a defi nitive solution to this problem.
Dealers have tried various cleaning products with varying
results. The following are recommendations only and are
not meant to guarantee results.
NOTE: This is a problem beyond Miles Industries’
control and is not covered under warranty.
• Clean the glass regularly as soon as you notice the
buildup (white fi lm). If the fi lm is left for a longer pe-
riod of time, it will etch into the glass. It is then much
harder, if not impossible, to remove.
• NEVER use an abrasive cleaner or ammonia-based
cleaner on the ceramic glass. Any abrasion of the
surface has the immediate eff ect of compromising
the strength of the glass. An emulsion type cleaner is
recommended.
• Use a soft damp cloth to apply the cleaner. Dry the
glass with a soft, dry, preferably cotton cloth. Most
paper towels and synthetic materials are abrasive to
ceramic glass and should be avoided.
• Our dealers have had good results from the products
listed below. We cannot, however, guarantee the re-
sults of these products.
• B, P P by K, C T C C
by E, W O by R, T W
Do not clean the glass while it is hot!
Always securely replace the window and the barrier
screen before lighting.
If broken, the glass pane may only be replaced
as a complete window unit as supplied by the
manufacturer.
If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance.

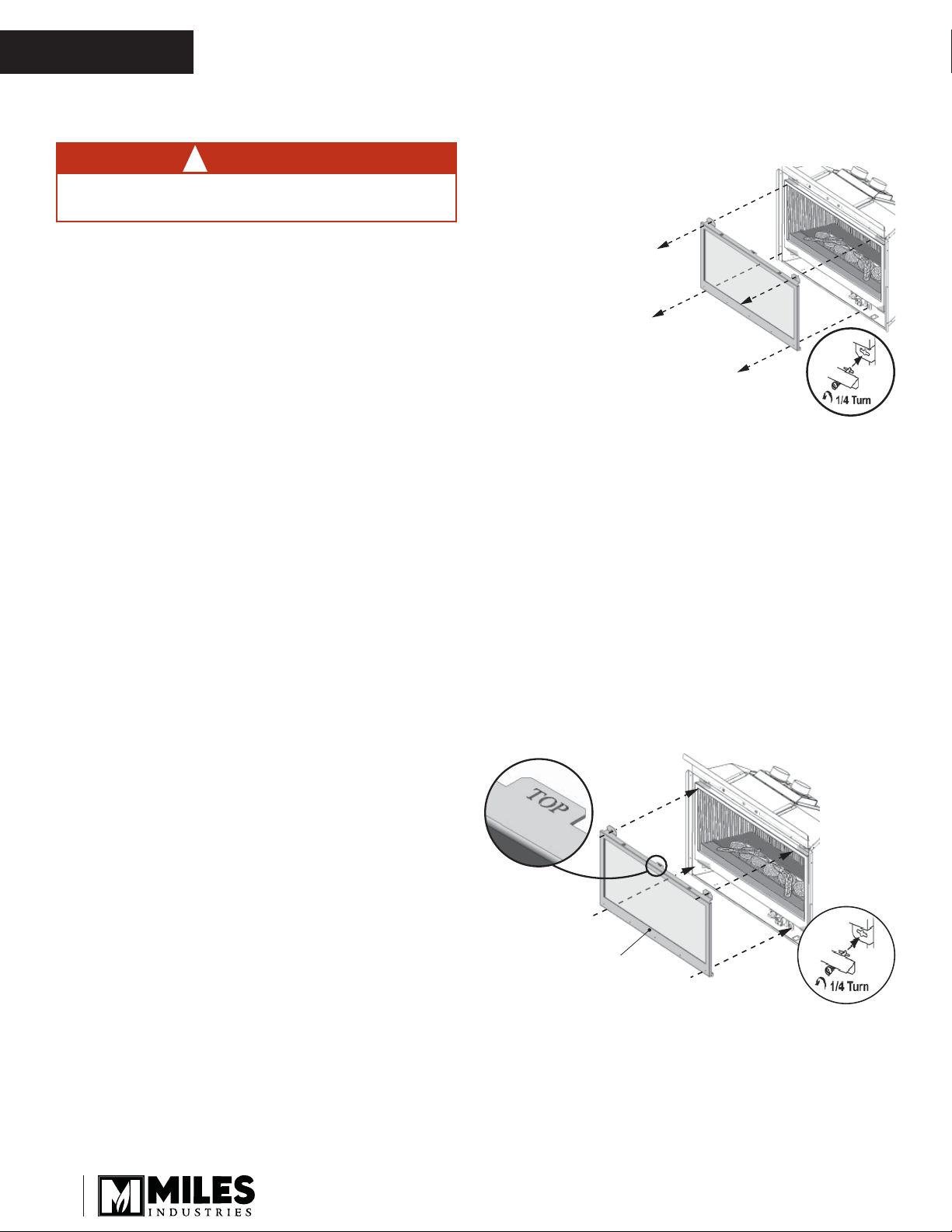

To remove the window for cleaning:
1. Unhook the front with barrier screen.
2. On the window,
turn each bolt a
quarter turn to
disengage the
bolt pin.
3. Gently pull the
bottom of the
window outward
and unhook it
from the fi rebox’s
opening frame.
4. Set the window
aside in a safe place to avoid damage.
Clean the window following the guidelines in this section.
Clean the trim and front with mild soap and water. Any
alcohol/solvent base cleaner will weaken the coating
and damage it.
Dust the barrier screen with a soft brush.
Dust the fi rebox ceramic logs/rocks and walls with
a soft brush. Dust can also be removed from the burner
using a soft brush after removing the ceramic logs. When
cleaning, make sure that no particles are brushed into
the slots of the burner.
To refi t the window:
1. To refi t the window, place the window to the fi rebox’s
opening frame. Make sure that the wider part of
the window frame is at the bottom. The top of the
window is marked.
2. While you hold it, push in and turn the two
bottom spring-loaded bolts a quarter turn to engage
their pin.
3. Push in the top of the window against the fi rebox and
fasten the two top spring-loaded bolts a quarter turn.
4. Then, pull out the top and bottom of the window and
release it to insure the springs return it.
WARNING
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
Let the fi replace cool fi rst before cleaning it.
WARNING
!
6
OWNER’S
INFORMATION

Owner’s Information
5. Apply fi rm hand pressure around the window frame
to ensure the window is sealed tight against the
fi rebox.
6. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
7. Replace the front or trim with the barrier screen
attached.
Hot Glass Plate
Correct Flame
Picture—Rocks
Correct Flame
Picture—
Driftwood
Thermocouple
probe must be
in flame
Correct Flame
Picture—Logs
Pilot Flame can be seen on the
left side of the fuel bed
Pilot fl ame
Thermocouple
probe must be
in fl ame
WARNING
FOR SAFETY PURPOSE, ensure the barrier
screen is re-installed on the fi replace front after
maintenance.
!
WARNING
Failure to install the window correctly can
leak carbon monoxide, aff ect the performance
of the fi replace, damage components, cause
overheating resulting in dangerous conditions.
Damage caused by incorrect window installa-
tion is not covered by the Valor warranty.
!
DANGER
The window unit must be correctly installed,
fastened and sealed after servicing or serious
bodily injury and/or damage to the appliance
may result.
To ensure a safe operation:
• Double-check that the bottom of the window
frame is correctly installed in the bottom
support railing/tabs;
• Verify that the bolts are hooked properly to
the window tabs then;
• Pull out the top of the window and release it
to insure the springs return it;
• Ensure the window is sealed before operation.
!
Checking pilot and burner fl ames
A periodic check of the pilot and burner fl ames should
be made. Check after the fi re has been on for at least
30 minutes. The pilot fl ame must cover the tip of the
thermocouple probe. The main burner fl ame pattern will
vary from appliance to appliance depending on the type
of installation and climatic conditions.
Rock fuel bed
A black discoloration may form over time at the front
bottom of the 6-rock original fuel bed; this deposit
can be burned off by running the fi replace on a low
to medium setting fi re for 30 to 45 minutes. This
discoloration is unavoidable and will re-form again.
7
OWNER’S
INFORMATION

Owner’s Information
Receiver
The appliance area must always be kept clear and free
from combustible materials, gasoline and other fl ammable
vapors and liquids.
Inspect the vent terminal outdoors regularly to make sure
that snow, trees, bushes, leaves, or other objects do not
obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.
Replacing Batteries
Low battery signal: see page 14.
BEFORE changing the batteries, turn off the valve
using the manual On/Off switch —see instructions
next page.
The appliance uses four 1.5 V AA alkaline batteries for
its remote control receiver and one 9 V alkaline battery
for its handset. Batteries should last one to two seasons,
depending on usage. Removing the batteries in the off -
season will extend the battery life. Should the batteries
loose power, the control may be operated by manually
turning the control knob at the valve or by turning off the
valve at the switch.
To replace the batteries in the remote control
receiver:
1. The receiver is located to the left
of the valve and it is retained to
the fi rebox by a Velcro tab. Grab
the receiver and pull it out from
its location.
2. Slide and remove the receiver
cover.
3. Replace the batteries with 4 AA
alkaline batteries.
4. Replace the cover.
5. Put the receiver back in its
position pushing it in so
it attaches to the Velcro tab.
Using Handset Wall Holder
Your fi replace equipment includes a wall
holder to store the handset. If it hasn’t be
installed, refer to the instructions further on
in this manual for the installation.
Locating Lighting, Operation and
Rating Information Card
The Lighting, Operation and Rating information is located
on a card under the burner. To access the card, remove the
fret or access panel, grab the card and take it out to read it.
There is important information on both sides of the plate.
Servicing Your Fireplace
If any attention is required for your appliance, contact
your supplier quoting the model number. It will be helpful
if the appliance’s serial number can also be quoted. This
number is on the rating plate, which is located under the
burner. The replacement parts are shown at the end of
this manual. Please always quote the part number and
description when requesting spare parts.
Operating Your Fireplace
There are three ways to control your fi replace.
1. Thermostatic Remote Control;
2. Wall Switch (optional);
3. Manual On/Off Switch.
The manual On/Off switch must be ON for the fi replace to
function. It can be used to shut off the fi replace in case of
emergency—see next sub-section.
The Thermostatic Remote Control can be programmed to
function automatically—see pages 10–14.
The Wall Switch (optional) can be used to turn on, off
and to increase or decrease the fl ame height—see
1265WSK—Wall Switch Kit.
NOTE: The remote control in the AUTO mode will
override the wall switch.
ON
OFF
Wall Switch
(optional)
Manual On/Off Switch
Thermostatic Remote
Control
WARNING
DO NOT ATTEMPT TO TOUCH THE INFORMA-
TION PLATE WHILE THE FIREPLACE IS STILL
HOT! Let the fi replace cool fi rst before touching it.
WARNING
!
CAUTION
DO NOT USE a screwdriver or other metallic object to
remove the batteries from the receiver or the handset!
This could cause a short circuit to the receiver.
WARNING
DO NOT ATTEMPT TO CHANGE THE BATTER-
IES WHILE THE FIREPLACE IS STILL HOT! Let
the fi replace cool fi rst before touching it.
WARNING
!
8
OWNER’S
INFORMATION

ON
OFF
Manual On/Off Switch
Wall Switch
(optional)
Remote control
handset
Owner’s Information

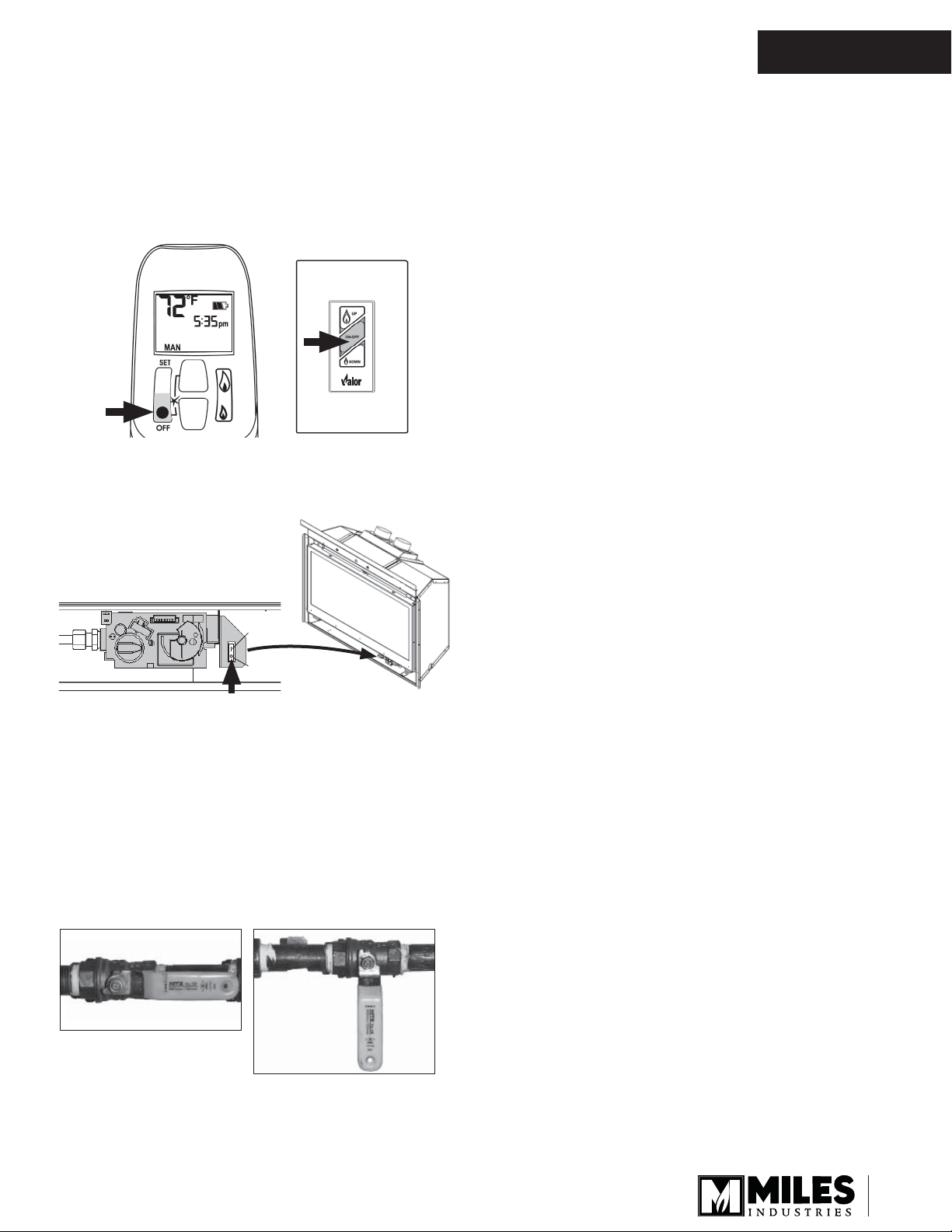

How to Turn Your Fireplace OFF (including pilot)
Familiarize yourself with each of these methods before
operating your fi replace.
Handset and Wall Switch: Press and hold the OFF button
for a second.
Manual ON/OFF Switch: Press the O button.
If the fl ames are on, they go down and you hear the valve
motor wind down. You hear a clunk and a beep indicating
that the valve has received the signal from the remote
control.
As well, familiarize yourself with the gas shut-off valve
location in your house. As indicated below, the gas is
running when the handle is parallel with the pipe. The
gas is off when the handle is perpendicular with the
pipe.
ON: parallel to pipe OFF:
perpendicular
to pipe
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently
You can use one of the two following methods to ensure
that your fi replace will not turn on when you don’t want it on.
First, ensure your fi replace is turned off —including
the pilot—and cold BEFORE going ahead.
• You can prevent your fi replace from lighting by
pressing the O button on the manual ON/OFF switch
on the gas valve—see image above.
• Alternately, you can remove all batteries from the
receiver as well as the battery from the handset.
Automatic Shut-Off (in certain conditions)
Your fi replace’s remote control is equipped with an
automatic shut-off mechanism which is activated in certain
conditions. See page 14 in the Remote Control Operation
section for a description of this feature.
9
OWNER’S
INFORMATION

Remote Control Operation
When the pilot is off , it will take 2
minutes before it can be lit again.
TO TURN ON APPLIANCE TO TURN OFF APPLIANCE
FLAME HEIGHT ADJUSTMENT
• On the valve, turn MAN knob on the ON, full
counterclockwise position.
• Place ON/OFF switch (if equipped) in I (ON
position). STANDBY MODE (Pilot Flame)
• Press and hold (small fl ame) to set appliance at
pilot fl ame.
• Simultaneously press the OFF and
(large fl ame) buttons until a short
beep confi rms the start sequence
has begun; release buttons.
• Continuing beeps confi rm the
ignition is in process.
• Once pilot ignition is confi rmed,
there is main gas fl ow.
• After main burner ignition the
handset will automatically go into
manual (MAN) control mode.
• Press OFF button.
When the pilot is off , it will take 2
minutes before it can be lit again.
• In standby mode: Press and hold
(large fl ame) button to increase
fl ame height.
CAUTION
When pilot ignition is confi rmed, motor turns
automatically to maximum fl ame height.
NOTE: Before using the remote control system for
the fi rst time, the receiver and the handset must be
synchronized. See the section Remote Control Initial
Set-up on page 36 of this manual.
Set (scrolls
through
modes and
settings)
OFF (returns
to set mode,
turns the burner
and the pilot o)
Large ame
button (ames
up, sets hours,
temperature)
Small ame
button (ames
down and o,
sets minutes,
temperature)
Current
temperature
(F or C)
Current time
(12 or 24 hour clock)
Modes (Manual,
Temperature, Timer)
Handset
sensor
Battery status
Current
programmed
period (Timer)
Period
start or end
(Temp, Timer)

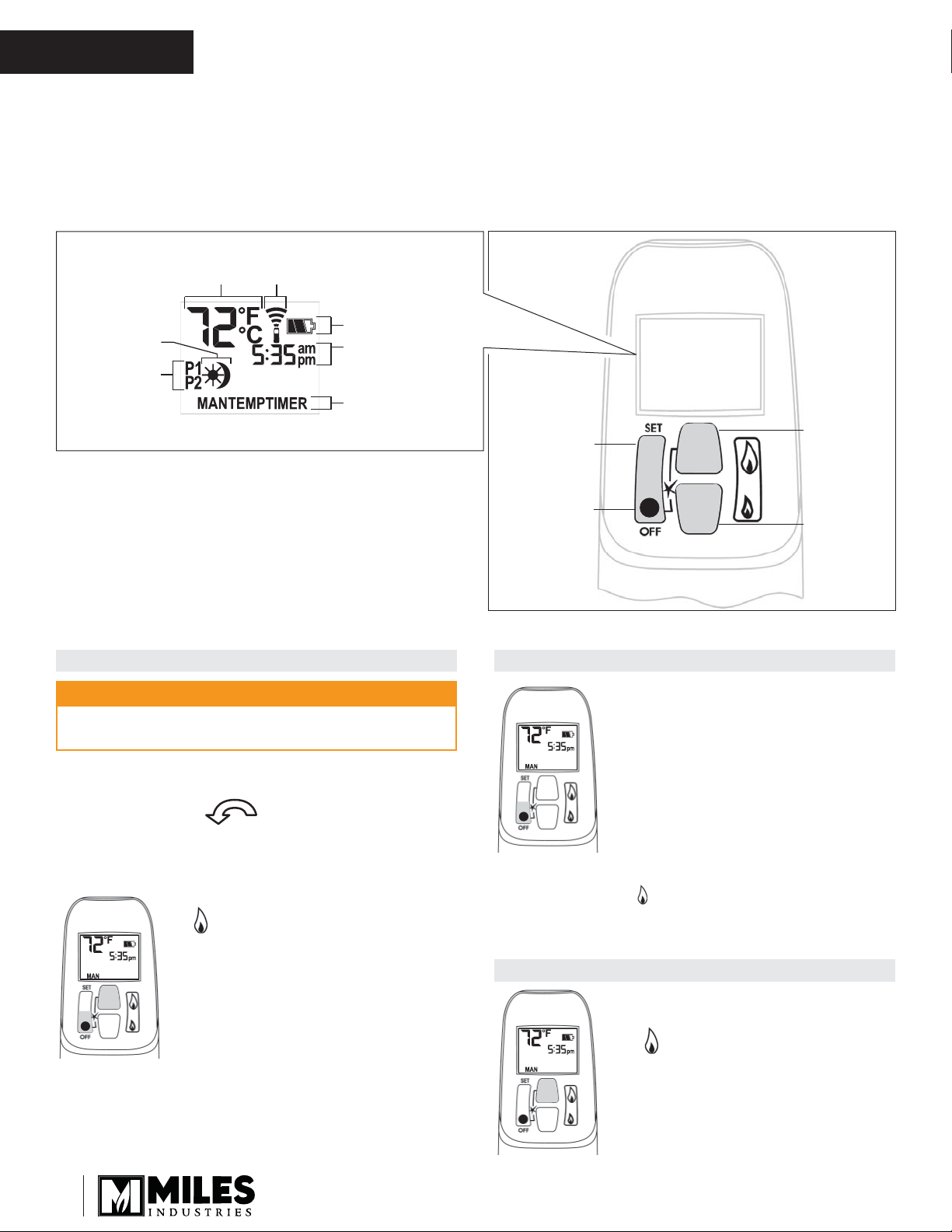

Display Overview
Handset Overview
Note: In the TEMP or TIMER modes, the remote
handset senses the room temperature and adjusts the
fl ame accordingly.
To communicate, the handset should be within 15 feet
(4.5 meters) of the fi replace.
Do not leave the handset on the mantel or hearth.
IMPORTANT: BEFORE YOU BEGIN, please note that
on this system, the settings of time, temperature and
automatic ON/OFF can only be programmed when
the function display is flashing. Be patient when
programming as it can take a few seconds to set.
10
OWNER’S
INFORMATION

Remote Control Operation
SETTING THE TIME
SETTING ºC/24-HOUR OR ºF/12-HOUR CLOCK
MODES OF OPERATION
NOTE: Manual mode can also be reached by pressing
either the (large fl ame) or the (small
fl ame) buttons.
• Press and hold (small fl ame)
button to decrease fl ame height or
to set the appliance at pilot fl ame.
• For fi ne adjustment tap the
(large fl ame) or (small fl ame)
buttons.
• Briefl y pressing the SET button
changes the mode of operation in
the following order:
→ →
→ → and back to .
• Double-click (small fl ame)
button. “LO” will be displayed.
NOTE: Flame goes to high fi re fi rst
before going to designated low fi re.
• In MAN mode, press OFF and
(small fl ame) buttons until display
changes from Farenheit/12-hour
clock to Celsius/24-hour clock and
vice versa.
• The time display will fl ash after
either:
• Installing the battery or
• Simultaneously pressing the
(large fl ame) and (small fl ame)
buttons.
• Press (large fl ame) button to
set the hour.
• Press (small fl ame) button to
set the minute.
• Press OFF or simply wait to return
to MAN mode.
• Double-click (large fl ame)
button. Flame automatically goes
to high fi re. “HI” will be displayed.
• - Manual Mode - Manual
Flame Height Adjustment.
Express Low and High Fire
• - Daytime Tempera-
ture Mode (Appliance must be in
standby mode; pilot ignited) - The
room temperature is measured and
compared to the set temperature.
The fl ame height is then auto-
matically adjusted to achieve the
Daytime Set Temperature.
• - Nighttime Setback
Temperature Mode (Appliance
must be in standby mode; pilot
ignited) - The room temperature
is measured and compared to the
Nighttime Setback temperature.
The fl ame height is then automati-
cally adjusted to achieve the Night-
time Setback Temperature.
• - Timer Mode (Appliance
must be in standby mode; pilot
ignited) - The timers P1 and P2
(Program 1, Program 2) each can
be programmed to go ON and OFF
at specifi c times. For instructions
see Timer Programming Mode.
NOTE: The display shows the set temperature every
30 seconds.
x 2
x 2
MAN
MAN
MAN
TEMP
TEMP
TEMP
TIMER
TEMP
TIMER
11
OWNER’S
INFORMATION

Remote Control Operation

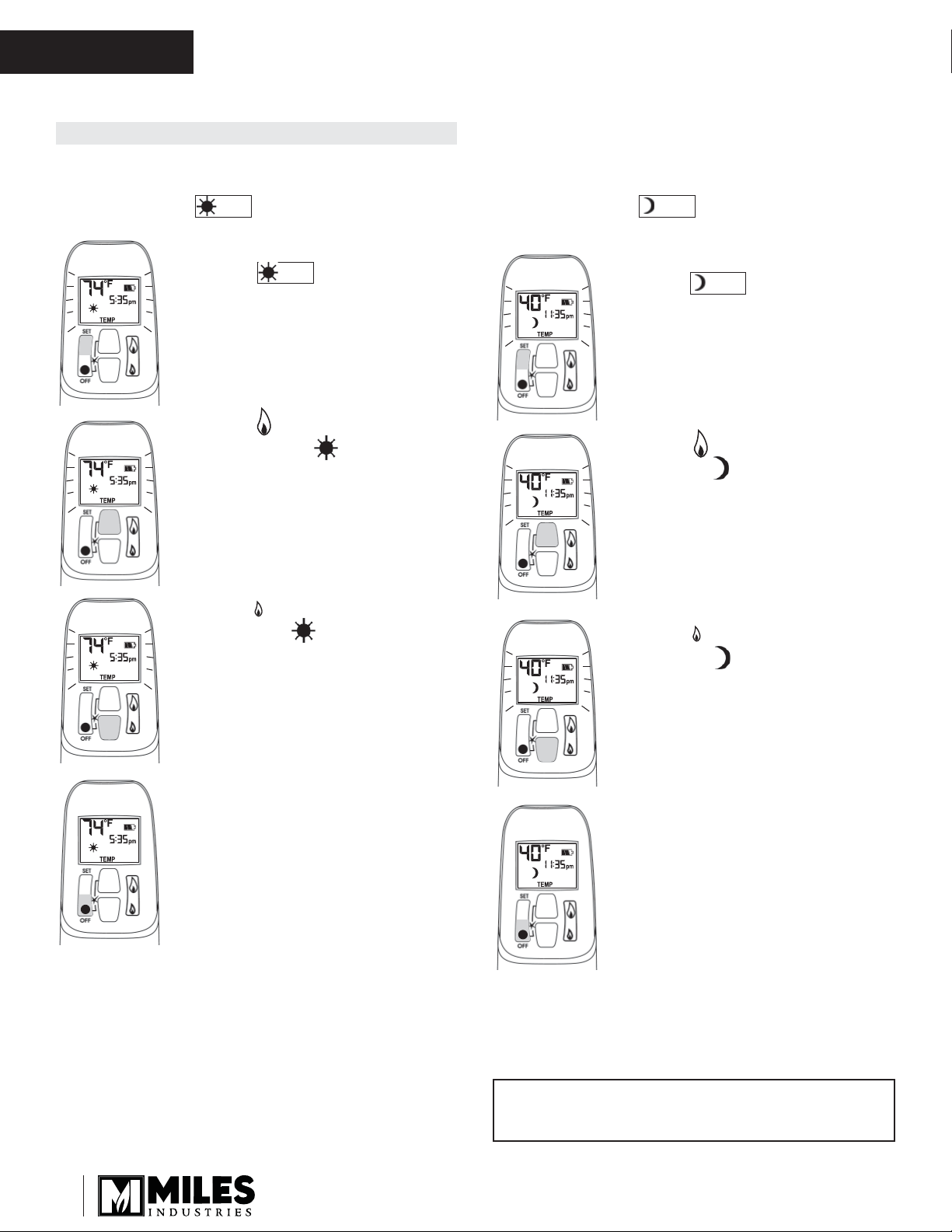

SETTING THE ON / OFF TEMPERATURES
• Briefl y press SET button to scroll to
TEMP (sun) mode. Hold
the SET button until the TEMP
fl ashes.
• Press (large fl ame) button
to increase the Daytime Set
Temperature.
• Press (small fl ame) button
to decrease Daytime Set
Temperature.
• Press OFF or simply wait to
complete programming.

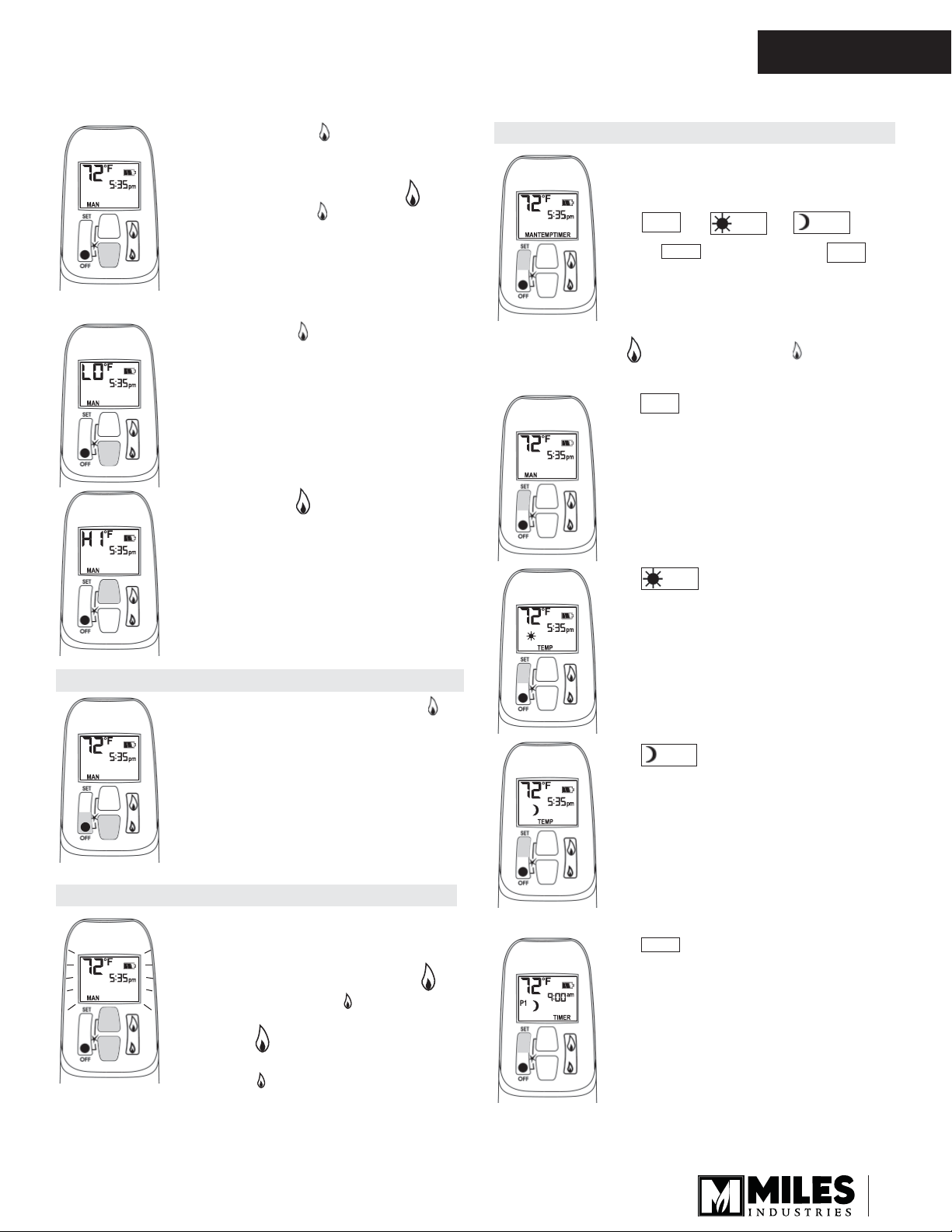

SETTING THE “DAYTIME” TEMPERATURE
SETTING THE “NIGHTTIME SETBACK” TEMPERA-
TURE
Default Settings: (sun), 23ºC / 74ºF Default Settings: (moon), “--” (OFF)
• Press (large fl ame) button to
increase Nighttime Setback
Temperature.
• Press (small fl ame) button to
decrease Nighttime Setback
Temperature.
• Press OFF or simply wait to
complete programming.
• Briefl y press SET button to scroll to
TEMP (moon) mode. Hold
the SET button until the TEMP
fl ashes.
Tip
Set the diff erent parameters when they are fl ashing.
TEMP
TEMP
TEMP
TEMP
12
OWNER’S
INFORMATION

SETTING PROGRAM TIMERS
• You can program two periods of time between 12:00
am and 11:50 pm in each 24-hour cycle.
• The Programs P1 and P2 must be set in the
following order during a 24-hour cycle: , ,
and .
• The icon indicates the beginning of the period (ON)
and the icon indicates the end of the period (OFF).
• If = or = , the programming
is cancelled.
• To keep the fi replace ON all night, set at
11:50 am and at 12:00 am.
Default settings:
Program 1: 6:00 am 8:00 am
Program 2: 11:50 pm 11:50 pm
• Briefl y press SET button to scroll to
TIMER mode.
• Hold the SET button until
(sun) is displayed and the time
fl ashes.
• Briefl y press SET button to scroll
to TIMER (moon) while the
time fl ashes.
• Press (large fl ame) button to
set the hour.
• Press (large fl ame) button to set
the hour.
• Press (small fl ame) button to
set the minutes.
• Press (small fl ame) button to
set the minutes.
SETTING P1 ON TIME SETTING P2 ON TIME
• Briefl y press SET to scroll to TIMER mode
(sun) while the time fl ashes.
• Follow the instructions given to set P1 ON time.
SETTING P2 OFF TIME
• Briefl y press SET to scroll to TIMER mode
(moon) while the time fl ashes.
• Follow the instructions given to set P1 OFF time.
Press OFF button to save these settings. The timers
are programmed. See the diagram on programming
sequences on the following page.
Tip
If you want to program only one period, program
and with desired times and program and
with the same time as .
SETTING P1 OFF TIME
P1
P1
P1
P1
P1 P1
P2
P2
P2
P2
P2
P2
P1
P1
P1
P1
P1
P1
P2
P2
P2
P2
P2
Remote Control Operation
13
OWNER’S
INFORMATION

Remote Control Operation
AUTOMATIC TURN DOWN
AUTOMATIC SHUT OFF
LOW BATTERY INDICATION
HANDSET / RECEIVER MATCH
Remote handset: The battery icon will show when
the battery needs to be replaced.
Replace with one 9 V alkaline battery.
Receiver: Frequent ‘beeps’ for 3 seconds when the valve
motor turns indicate the batteries need to be replaced.
Replace with four 1.5 V alkaline batteries.
The remote control handset and receiver are program-med
to function together. In case of a replacement of the handset
or the receiver, you will need to reset the receiver to allow
them to function together. Contact your dealer for details.
• No communication. If there is no communication
between the receiver and the handset for a period of 6
hours, the appliance goes into pilot mode.
• No change in fl ame height. If there is no change
in fl ame height for a period of 6 hours, the appliance
goes into pilot mode.
NOTE: In TEMP or TIMER modes, the fl ame height
will vary according to room temperature. The appliance
will continue to work normally. However, if the room
temperature remains the same for 6 hours, the appli-
ance will go into pilot mode.
• Low batteries in the receiver. With low battery power
in the receiver the system shuts off completely.
NOTE: This does not apply when the power supply is
interrupted.
• No change in pilot. The appliance shuts off
completely when it is continually in pilot position—
without any change—for a period of 5 days.
CAUTION
DO NOT USE a screwdriver or other metallic object
to remove the batteries from the battery box or the
handset! This could cause a short circuit.

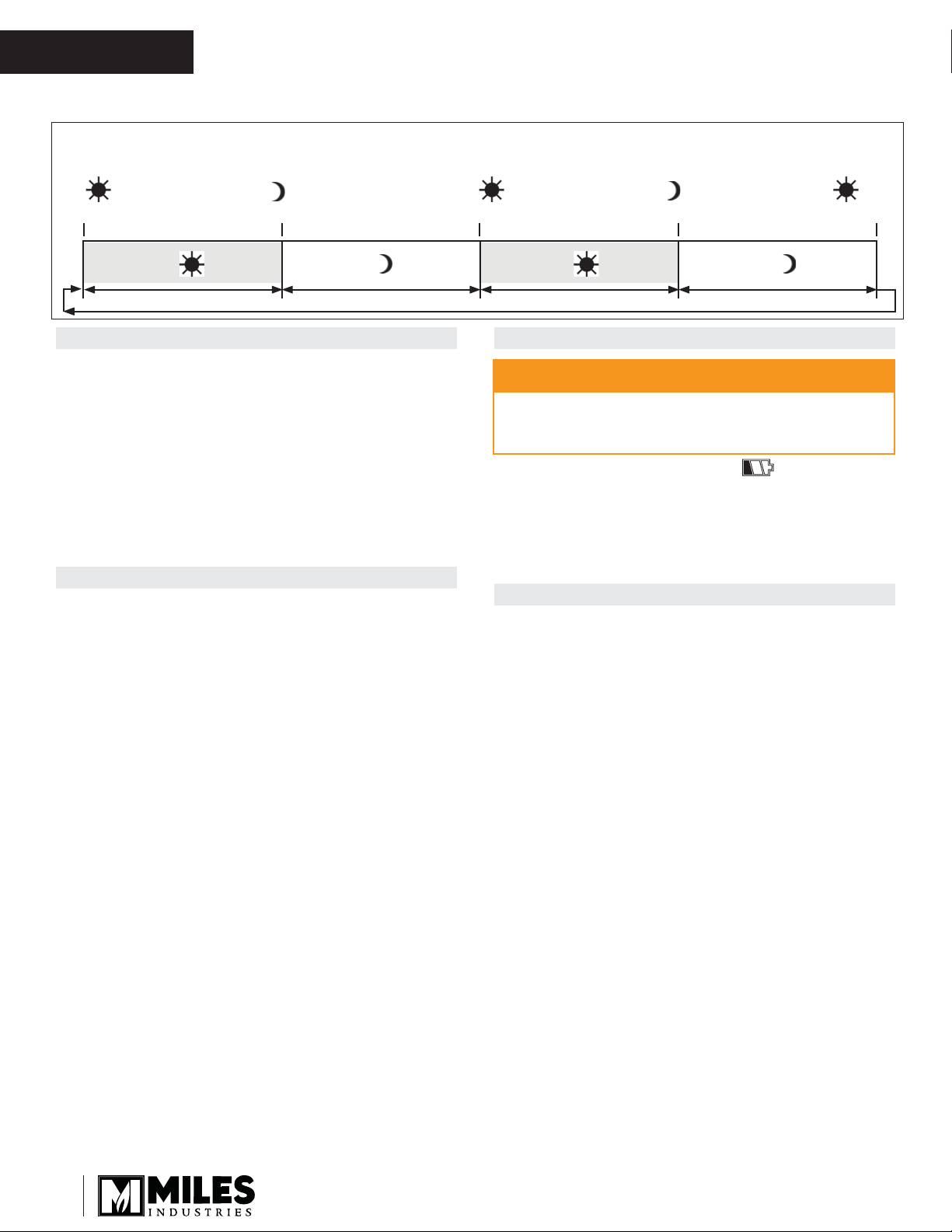

Timer Programming Example (default temperatures shown)
6:00 a.m.—
P1
Start time
4:00 p.m.—
P2
Start time
6:00 a.m.—
P1
Start time
8:00 a.m.—
P1
End time
10:00 p.m.—
P2
End time
Set temp 74˚F Set temp 40˚FSet temp 74˚F
Set temp 40˚F
14
OWNER’S
INFORMATION

Options
Required Kits*
Fuel Beds (choose one)
739LSK Log Set
739RSK Rock Set
739DWK Driftwood Kit
Liners (choose one)
739RGL Refl ective Glass Liners
739FBL Fluted Black Liners
739VRL Valor Red Brick Liners
Inner Fronts (choose one) Barrier
Screen
741 Contemporary Steel Front 4003360
742 Traditional Cast Front 4003293
743 FenderFire Double Door w doors
744 FenderFire Single Door w door
745 Clearview Front 4003313
765 Contemporary Surround 4003426
772MBF2 Matte Black Front 4004666
Optional Accessories*
Outer Surrounds, Trims & Frets
See your dealer for your choice of Outer Surrounds,
Trims & Frets.
Conversion Kits
739NGK From propane to natural gas
739PGK From natural to propane gas
Other Accessories
755CFK Circulating Fan Kit
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
Hearth
Gate
Hearth gates such as Cardinal’s
VersaGates are available at retail stores
carrying safety products for children.
*Information accurate at the time of printing and subject to
change without notice.
15
OWNER’S
INFORMATION

Lighting Instructions
WARNING: If you do not follow these instructions exactlyD¿UHRUH[SORVLRQPD\UHVXOWFDXVLQJ
SURSHUW\GDPDJHSHUVRQDOLQMXU\RUORVVRIOLIH
)LJ )LJ )LJ$
FOR YOUR SAFETY, READ BEFORE LIGHTING
A. This appliance has a pilot which must be lighted by hand or by remote control. Follow these instructions exactly. To
save gas, turn the pilot off when not using the appliance for a prolonged period of time.
%%()25(/,*+7,1*VPHOODOODURXQGWKHDSSOLDQFHDUHDIRUJDV%HVXUHWRVPHOOQH[WWRWKHÁRRUEHFDXVHVRPHJDV
DUHKHDYLHUWKDQDLUDQGZLOOVHWWOHRQWKHÁRRr.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplierFDOOWKHÀUHGHSDUWPHQW
C. Use only your hand to push in or turn the control knobs. Never use tools. If the knobs will not push in or turn by hand,
GRQ·WWU\WRUHSDLUWKHPFDOODTXDOLÀHGVHUYLFHWHFKQLFLDQ)RUFHRUDWWHPSWHGUHSDLUPD\UHVXOWLQDÀUHRUH[SORVLRQ
D. Do not use this appliance if any part has been under water,PPHGLDWHO\FDOODTXDOLÀHGVHUYLce technician to inspect
the appliance and to replace any part of the control system and any gas control, which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.Dependent on model, switch #1 may be mounted directly to valve see Fig 2A.
TO TURN OFF GAS TO APPLIANCE
2. SET ON/OFF SWITCH (1) TO “OFF” POSITION.
WDLWÀYHPLQXWHVWRFOHDURXWDQ\JDVWKHQVPHOOIRUJDVLQFOXGLQJQHDUWKHÁRRr. If you smell gas, STOP! Follow
“B” in the safety information above on this label. If you don’t smell gas, go to the next step.
3. AUTOMA7,&,*1,7,21ÀJ/RFDWHWKHSLORWÀJLQVLGHRIÀUHER[DW/HIW+DQGVLGH
ON/OFF switch (1) in ON position, MAN-knob (2) in ON position; set Flame Adjustment knob (3) to lowest setting
(3);
On the remote control handset, press and hold the ‘off ’ button and (large flame) simultaneously; a short
DFRXVWLFVLJQDOFRQÀUPVWKHVWDUWKDVEHJXQ
Further short acoustic signals indicate the ignition process is in progress;
When the pilot is lit, the Flame Adjustment knob (3) will automatically rotate to the highest setting.
Press the (small flame)RQWKHUHPRWHFRQWUROKDQGVHWWRUHGXFHWKHÁDPHKHLJKW
4. MANUAL,*1,7,21ÀJWLWKWKHZLQGRZRIIORFDWHWKHSLORWÀJ
LQVLGHRIÀUHER[DW/HIW+DQGVLGH
ON/OFF switch (1) in ON position, MAN-knob (2) in MAN position;
Set Flame Adjustment knob (3) to the lowest setting (3);
Push down the metallic core (4) with a pen or similar instrument; this will establish the pilRWJDVÁRZ
/LJKWJDVDWWKHSLORWZLWKDPDWFK
Continue holding down metal core (4) for about 10 seconds; after release, pilot should remain lit;
If the pilot will not stay lit after several tries, turn the gas control knob (3) to “OFF” (3)and call your local
service technician or gas supplier.
Reinstall the window and set the MAN-knob (2) to “ON”; turn Flame Adjustment knob (3) up (4)or down
manually or use the up/down ‘flame’buttons on the remote control handset to adjust theÁDPHKHLJKW
•
•
•
•
•
•
•
•
•
•
)LJ
1. AUTOMATIC SHUT2))XVLQJWKHUHPRWHFRQWUROKDQGVHW
Press and hold the (small flame) RQWKHUHPRWHFRQWUROKDQGVHWWRVKXWRIIWKHPDLQEXUQHUJDVÁRZ
3UHVV´2))µEXWWRQRQUHPRWHKDQGVHWWRVKXWRIIWKHDSSOLDQFHLQFOXGLQJSLORWÁDPH
2. MANUAL SHUT-OFF (using only the ON/OFF switch (1))
Press “O” the ON/OFF switch (1) to shut-off the appliance.
•
•
•
5
16
OWNER’S
INFORMATION

XX

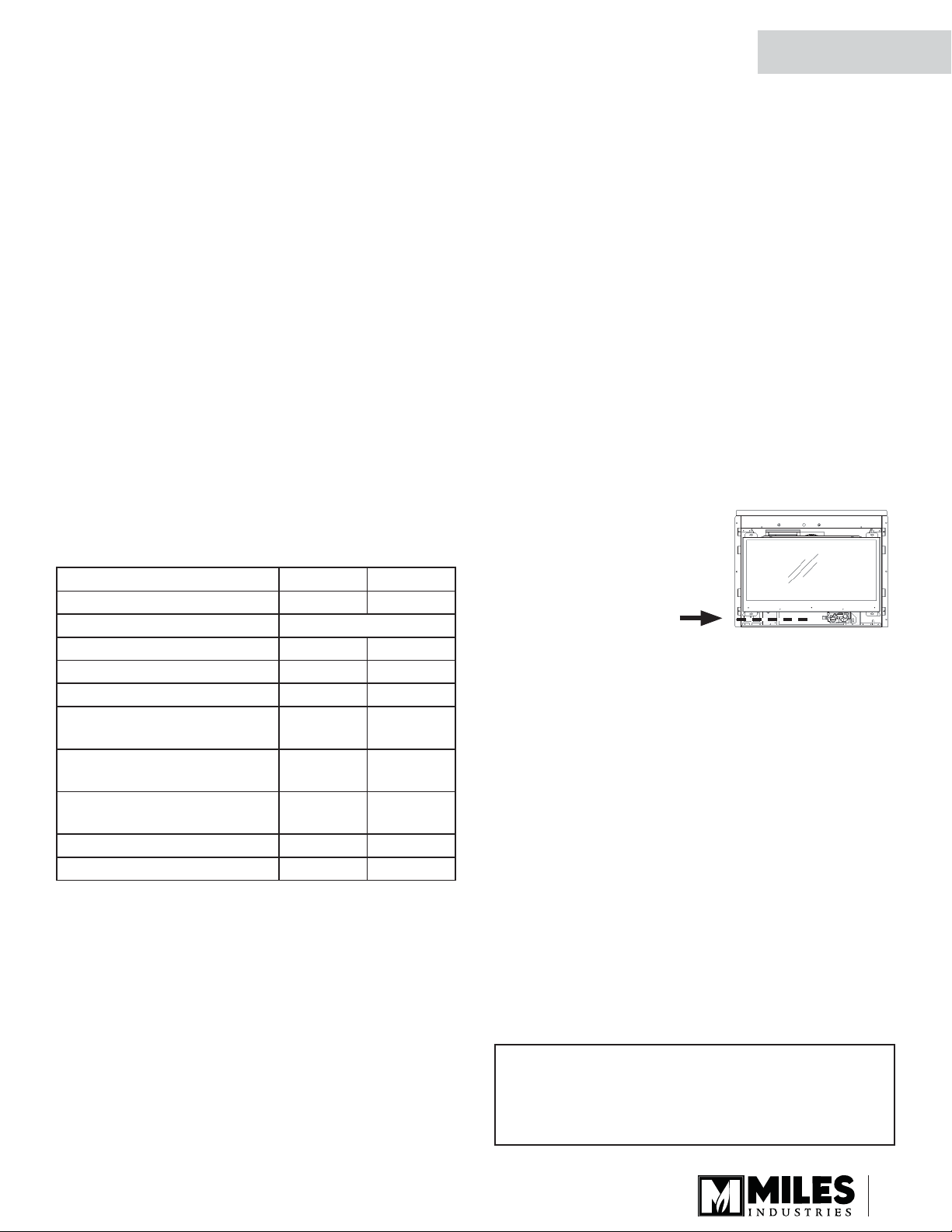

Ratings
Model MN MP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 24,000 24,000
Input Minimum (Btu/h) 6,500 13,000
Manifold Pressure (in w.c.) 3.2 10.0
Minimum Supply Pressure
(in w.c.) 5.0 11.0
Maximum Supply Pressure
(in w.c.) 10.0 14.0
Main Burner Injector
Marking 82-750 92-260
Pilot Injector Marking 35 27
Min. Rate By-Pass Screw 125 125
Specifi cations
Approval & Codes
This appliance is certifi ed to ANSI Z21.88-2014 / CSA
2.33-2014 American National Standard / CSA Standard
for Vented Gas Fireplace Heaters for use in Canada
and USA, and to CGA 2.17-91 High Altitude Standard
in Canada. This appliance is for direct vent insert
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualifi ed
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certifi ed without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confi rm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 739MN are used with natural gas.
Heater engine 739MP are used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection
is 3/8” NPT female and
located on the left hand
side of the control valve.
The gas line entry point
is on the left hand side
on the fi replace.
Conversion Kits
The 739 Legend G3 is supplied as natural gas or
propane gas and is fi eld convertible between fuels. See
instructions packaged with the conversion kit for further
information.
Electrical
The 739 does not require an electrical power source to
operate as a heater. However, if the appliance is fi tted
with a fan, a grounded power source is required.
Floor/Hearth
This appliance is approved for installation into existing
solid-fuel burning fi replaces only. Combustible material
such as plywood and so on may be used for leveling
and shiming beneath the unit. This appliance does not
require a hearth other than to support the weight of
certain fronts.
This appliance is designed and approved as a
supplemental heater and provides the potential
for most energy conservation when used while
attended. The use of an alternate primary heat
source is advisable.
QUALIFIED
INSTALLER
17

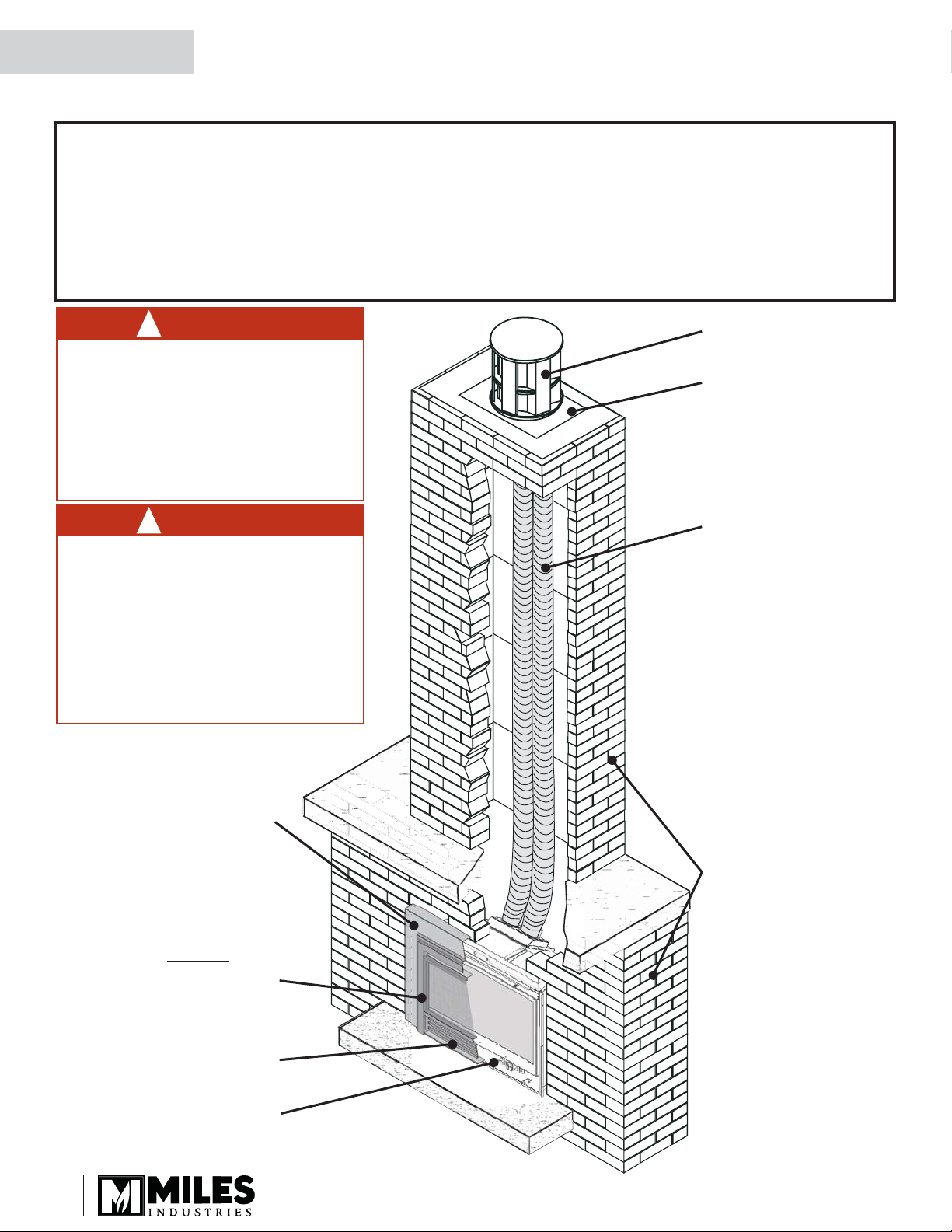

Overview
This appliance may ONLY be installed in an existing unaltered,
functioning solid-fuel burning fi replace with a working fl ue and
constructed of non-combustible material.
DO NOT install into combustible construction. This appliance
is NOT APPROVED for installation with a zero clearance kit.
739 fi replace
Chimney Terminal Cap
Flashing
Existing unaltered,
functioning solid-fuel
burning fi replace &
chimney
Outer trim
(optional, sold
separately)
Inner Front with
Barrier Screen
(required, sold
separately)
Fret
(optional, sold
separately)
2 x 3” approved
fl ex chimney liners
running full length
WARNING
HOT HEARTH / FLOOR! The
hearth or fl oor in front of the
fi replace may become very hot
when the fi replace heats. Do not use
the hearth as a seat or shelf. Solid
wood fl ooring in front of the fi replace
(if allowed) may shrink during the
heating season due to heat.
WARNING
Some materials or items, although
safe, may discolor, shrink, warp,
crack, peel, and so on because of
the heat produced by the fi replace.
Avoid placing candles, paintings,
photos, and other items sensitive to
heat around the fi replace.
WARNING
!
WARNING
!
QUALIFIED
INSTALLER
18

28-5/8” (727 mm)
19-1/2” (495 mm)
12 - 14” (305 - 357 mm)
Varies with outer
trim options
9-3/4” (248 mm)
(11-3/4” (298 mm)
with 763 plate)
AutoFire slider
assembly
20” (508 mm)
to top of rebox
Gas inlet Gas connection Electrical inlet
Optional Outer Trim or
Surround sold separately
X
Y
Dimensions
Cavity
Check that masonry step does not interfere with install dimensions
or vent pipe.
If mantel is combustible, see section Clearances for allowable
clearances.
Minimum width of fi replace opening at front:
28” (711 mm);
30-1/2” (775 mm) with 763—Backing Plate
X = 12–14” (305–357 mm)—varies with outer trim options
Y = 20” (508 mm); 24” (610 mm) when using 763—Backing Plate
QUALIFIED
INSTALLER
19

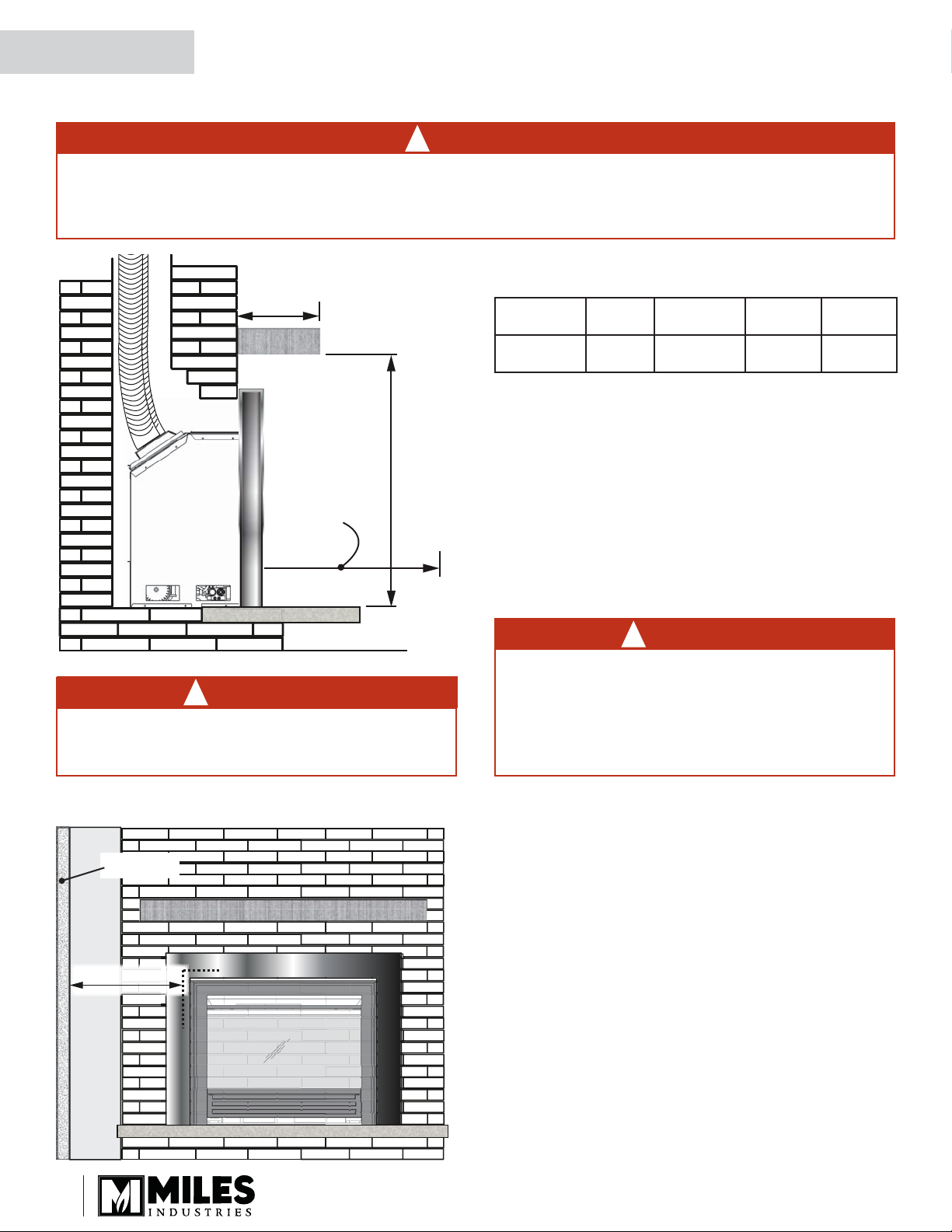

A
B
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
9” (229 mm)
Sidewall Clearances
Minimum distance from side of appliance (liner box) to
combustible wall: 9” (229 mm).
Mantel legs projecting forward less than 6” (152 mm)
may be located within 5” (127 mm) of the side of the
appliance (liner box).
Floor/Hearth Clearances
Combustible shims/supports may be used beneath
the appliance to level or raise the appliance within the
existing fi replace cavity.
Combustible fl ooring/hearths in front of the appliance
are allowed provided they are no higher than the
base of the appliance (note—may be subject to local
authority approval).
sidewall
WARNING
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
and so on because of the heat produced by the fi replace. Avoid placing candles,
paintings, photos, and other items sensitive to heat around the fi replace.
Combustible Mantel Clearances
*Measure taken from the underside of the mantel to fi nished
hearth or surface that the unit is sitting on.
Finishing Materials
Combustible materials: Material such as wood,
compressed paper, plant fi bers, plastics or any material
capable of igniting and burning, whether fl ame-proofed
or not, plastered or un-plastered.
Non-combustible materials: Material such as steel,
iron brick, tile, concrete or materials that bear the UL
mark for zero (0) fi re rating.
WARNING
HOT GLASS! The use of a screen in front of
the glass is highly recommended particularly in
households with children.
WARNING
HOT HEARTH / FLOOR! The hearth or fl oor in
front of the fi replace may become very hot when
the fi replace heats. Do not use the hearth as a seat
or shelf. Solid wood fl ooring in front of the fi replace
(if allowed) may shrink during the heating season
due to heat.
WARNING
!
WARNING
!
WARNING
!
Mantel Pro-
jection A
1”
(25 mm)
1”– 6”
(25–152 mm)
9”
(229 mm)
12”
(305 mm)
Mantel
Height B*
36”
(914 mm)
39”
(991 mm)
42”
(1067 mm)
45”
(1143 mm)
QUALIFIED
INSTALLER
20
Clearances
