Miller Edge RBand RB-TX10 User manual

www.milleredge.com [e-mail] 800-220-3343 1/5
IMAGE 1. RBAND INSTALLATION WITH GATE EDGE
RBAND RECEIVER
MOUNTED INSIDE OPERATOR
WITH EXTERNAL ANTENNA
OPERATOR
ANTENNA
WIRING
RBAND TRANSMITTER
MOUNTED NEAR SENSING
EDGE
SENSING EDGE
IMPORTANT: THIS DEVICE MUST BE PROFESSIONALLY INSTALLED
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION
The Miller Edge RBand Monitored Gate Edge Transmitter/Receiver system is intended to provide a wireless connection between a
monitored sensing edge and a motorized operator that controls the associated gate. The RBand Receiver is compatible with up to 3
RBand Transmitters on 2 channels; 6 total transmitters. RBand meets the 2016 UL 325 requirements for monitored devices and has
been certified as a UL 325 Recognized Component. It is designed for use with operators that comply with 2016 UL 325 using a Miller
Edge 10K Sensing Edge.
1. PARTS LIST
RB-G-K10 Contents:
• RBand Gate Edge Transmitter/Receiver System:
• RBand Edge Transmitter (RB-TX10)
• RBand Gate Edge Receiver (RB-G-RX10)
• Receiver antenna
• (2) 3.6V AA lithium batteries*
• (4) #6 pan head transmitter mounting screws
RB-TX10 Contents:
• RBand Gate Edge Transmitter (RB-TX10)
• (2) 3.6V AA lithium batteries*
• (4) #6 pan head transmitter mounting screws
*Replacement 3.6V AA lithium batteries can be purchased
at your local electronics store or via Miller Edge.
Required:
• 1/8” flat blade screwdriver
• 1/4” flat blade screwdriver
• Miller Edge 10K (T2/blue band) Sensing Edge
• Coaxial cable for exterior mounted antenna
• Coaxial bulkhead adapter, female/female
Recommended:
• Multi-meter capable of reading 10K1
• Mounting screws as required for receiver
2. RECEIVER: INSTALLATION
1. Remove the operator cover and turn off the power to the gate operator.
2. Determine where to place the external mounted antenna so it is in line of sight with the Transmitter(s) for the entire range of
travel [IMAGE 1]. Prepare the antenna coax as necessary.
3. Remove the Receiver cover and mount the base inside the operator, positioning it for optimum ease of wiring.
4. Connect power to the terminals marked 12/24 AC/DC (polarity sensitive) on the removable 8-pin connector [IMAGE 2].
INSTALLATION INSTRUCTIONS
Models: RB-G-K10, RB-TX10
RB-G-K10_Inst_20190301

www.milleredge.com [e-mail] 800-220-3343 2/5
5. Determine which monitored interface your operator uses:
• 10K Operator [Table 1]: Connect the COM (C1/C2) and the correct output connections (BS1/BS2) to your operator. Set
DIP switch 4 to off.
• N.C. Operator [Table 2]: Connect the COM (C1/C2) and the correct output connections (CS1/CS2) to your operator. The
A Test terminals must be used for operators requiring N.C. inputs. Set DIP switch 4 to on.
6. Turn on power to the operator. Note: it takes ~5 seconds for the Receiver to initialize.
TABLE 1. REMOVABLE CONNECTORS
ON
1234
12/24 AC/DC
CS1 C1 BS1 CS2 C2 BS2 NO3 C3
COM.A TEST
+-
8-PIN CONNECTOR
Power
+12/24 AC/DC fConstant power source
-12/24 AC/DC fConstant power source (ground)
Relay Output 1
CS1 fN.C. monitored input
C1 fMonitored input Common
BS1 f10K monitored input
Relay Output 2
CS2 fN.C. monitored input
C2 fMonitored input Common
BS2 f10K monitored input
4-PIN CONNECTOR
Relay Output 3
NO3 fLow battery alarm (optional)
C3 fLow battery alarm (optional)
N.C. Power Cycling
COM fCOM: Switched power Common
A TEST f+12/24VDC: Switched power source

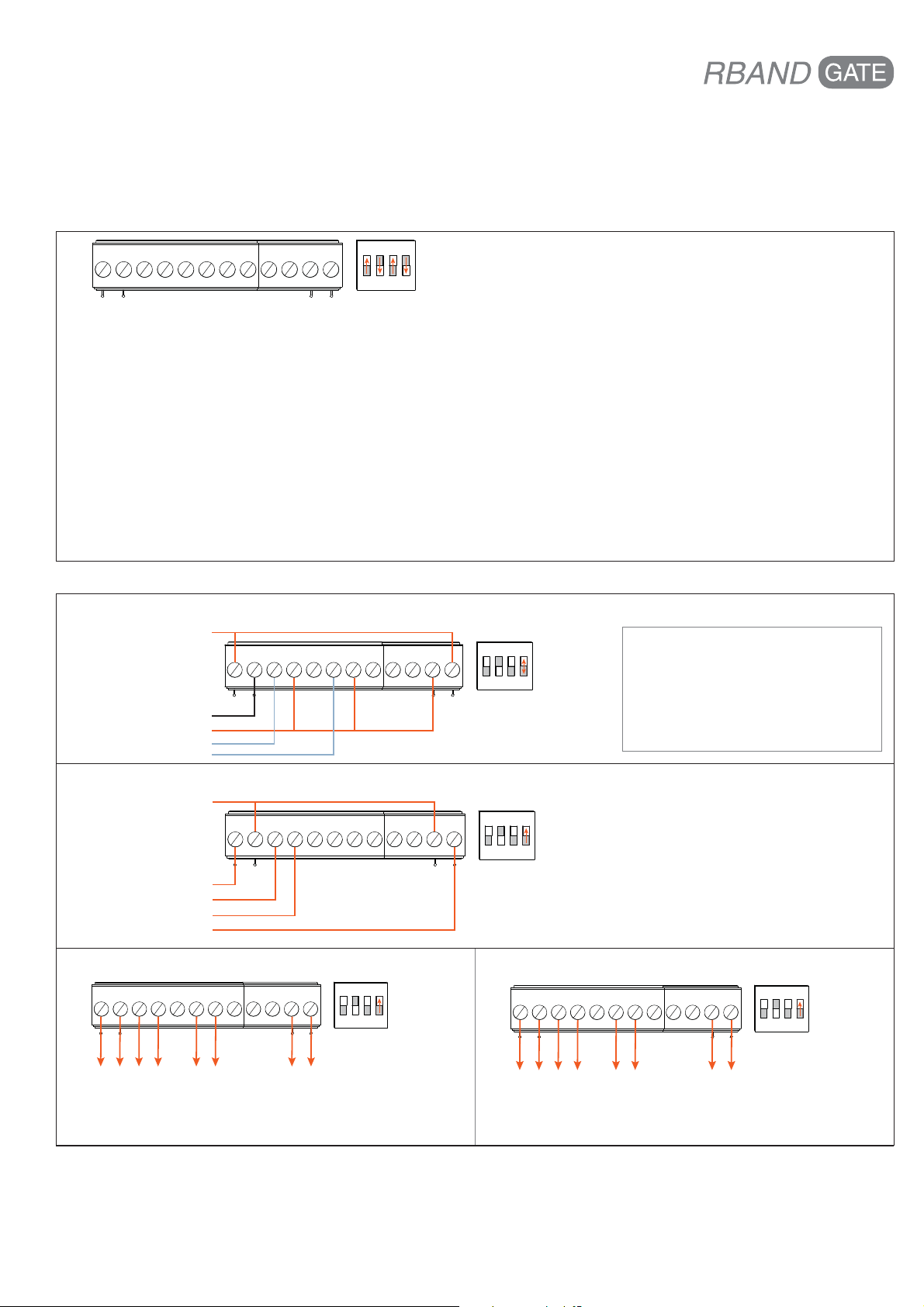

TABLE 2. NORMALLY CLOSED OPERATORS: Removable Connector Assignments by Manufacturer
HySecurity
ON
1234
DIP Switch #4
• Onto run
• Off to test
CS1 C1 BS1 CS2 C2 BS2 NO3 C3
COM. A TEST
12/24 AC/DC
+-
SENSOR COMMON
COMMON (not sensor common)
24 VDC
S1
S2
Ramset
ON DIP Switch #4
• Turn to on
CS1 C1 BS1 CS2 C2 BS2 NO3 C3
COM.A TEST
12/24 AC/DC
+-
24 VAC on terminal strip
NC (JP13, PIN 1)
COM (JP13, PIN 3)
VS (JP13, PIN 5)
1234
VS (JP13, PIN 4)
All-O-Matic
ON DIP Switch #4
• Turn to on
CS1 C1 BS1 CS2 C2 BS2 NO3 C3
COM.A TEST
12/24 AC/DC
+-
+12 or 24 VDC
GROUND
MON_CLOSE
COMMON
MON_OPEN
COMMON COMMON
MON-12 VDC
1234
Maximum Controls
CS1 C1 BS1 CS2 C2 BS2 NO3 C3
COM.A TEST
12/24 AC/DC
+-
12 or 24 VDC*
GND*
EDGE 1**
GND**
EDGE 2**
GND** GND**
+12 VDC**
ON
1234
DIP Switch #4
• Turn to on
NOTE
For operator software at these versions
or higher, leave DIP switch 4 in the on
position:
• Smart Touch Controllers (STC): h4.56
• Smat DC Controllers (SDC): h5.57
• S.T.A.R.T.: v3.03

www.milleredge.com [e-mail] 800-220-3343 3/5
IMAGE 2. RBAND GATE EDGE RECEIVER PCB & CONNECTIONS
LED INDICATORS
R1 & R2 RELAY LEDS
• On: No transmitters programmed
• Off: Programmed
• On (transmitters programmed):
Fault condition
R3 RELAY LED
• On when battery is low
A TEST LED
• On when in test mode
CHECK LED
(both channels programed)
• Programmed: Check LED flashes
every 5 seconds
DIP SWITCH SETTINGS
ON
1234
Switch 1-3: Leave switches in factory
default settings
Switch 4: Used to enable Normally
Closed cycle testing:
• 10K Operator: Set to off
• N.C. Operator: Set to on and
connect the switched power to the
A Test and Common pins shown
above [TABLE 2]
GND ANT
R2
R1
R3 A TEST
CHECK
PROG
ON
1234
12/24 AC/DC
CS1 C1
+- BS1 CS2 C2 BS2 NO3 C3
COM. A TEST
MR
PROGRAM
BUTTON
CHECK LED
& BUTTON
REMOVABLE
8-PIN CONNECTOR
DIP
SWITCHES
RELAY
LEDS
ANTENNA
TERMINAL
BLOCK
REMOVABLE
4-PIN CONNECTOR
COAXIAL CABLE
PROVIDED BY
INSTALLER
ANTENNA
F-CONNECTOR
COAX EXTENDER
MR

www.milleredge.com [e-mail] 800-220-3343 4/5
PROGRAM BUTTON
REMOVABLE
SENSING EDGE
TERMINAL BLOCK
(4) CORNER
MOUNTING HOLES
GREEN LED
ALIGNMENT PIN
STRAIN RELIEF FITTING
ALIGNMENT PIN
(2) 3.6V AA LITHIUM
BATTERIES

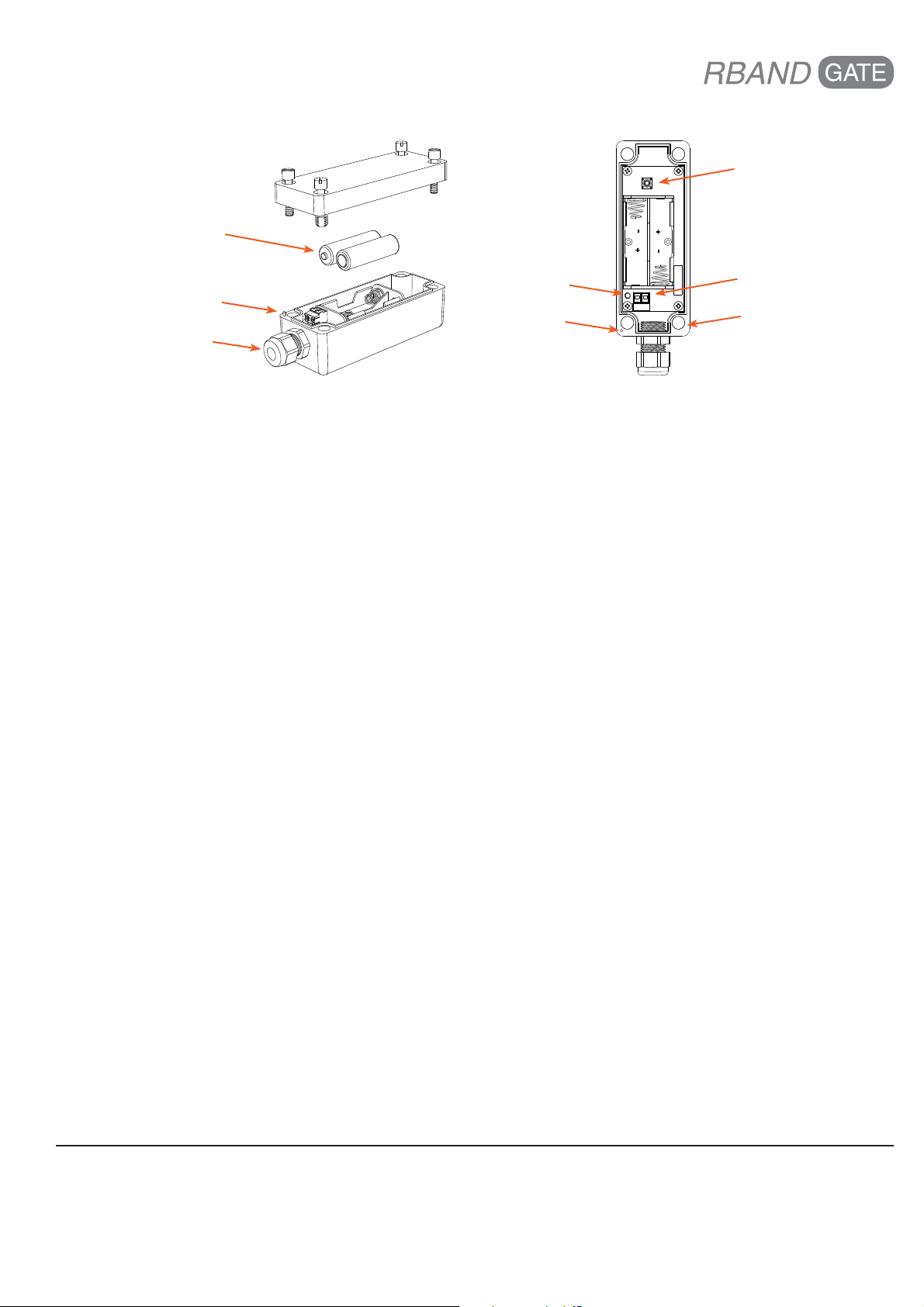

IMAGE 3. RBAND EDGE TRANSMITTER PCB & CONNECTIONS
3. PROGRAM MODE
For best performance, turn on all other wireless devices (e.g. card readers, etc.) prior to starting the programming process. The
RBand Receiver will search for the quietest RF channel.
1. Confirm the Receiver is powered up. Prior to mounting the Transmitter, remove the cover and insert the batteries, noting their
polarity. The green LED on the Transmitter may blink to indicate that it has not been associated with the Receiver yet [IMAGE
3].
2. To enter learn mode, press and hold the Receiver program button until you hear a beep and only the R1 LED is on, then
release the button [IMAGE 2].
3. Within 10 seconds, press the Transmitter program button for ~2 seconds [IMAGE 3]. The Receiver should beep. Wait 10
seconds for 2 additional beeps to indicate that programming is complete.
4. To program a Transmitter to Channel 2, press and hold the Receiver program button until the second beep and the R2 LED is
on, then release the button. Repeat 3-3.
5. To associate up to 2 additional (3 total) transmitters per channel, repeat steps 3-1 to 3-4.
6. The R1 and R2 LEDs will stay on until a 10K sensing edge is connected to the Transmitter(s) [SECTION 4].
7. Replace the cover on the Receiver.
4. TRANSMITTER: INSTALL & TEST
1. Strip back approximately 2 inches of outer covering of sensing edge cable, then feed through the Transmitter strain relief
fitting. Connect the two sensing edge wires to the removable terminal. Dress the wires with a small service loop and tighten
the strain relief. Mount unit utilizing the mounting holes at the 4 corners of the Transmitter box. Affix lid to the Transmitter, noting
the alignment pin [IMAGE 3].
• Note: Altering the NEMA 4 Transmitter enclosure (such as drilling) and/or removal of the PCB is not advised and will
void the manufacturer warranty.
2. Test the sensing edge for functionality.
5. TROUBLESHOOTING
1. To verify proper Transmitter function, press the Transmitter program button. The LED will blink and then turn off. Test the
sensing edge and note that the LED turns on.
2. If the Receiver beeps 4 times every 4 seconds, replace the transmitter batteries.
3. If the Receiver does not react to the Transmitter and shows intermittent faults (R1 or R2 on and off randomly), follow these
steps to check the RF signal strength:
a) Press the check button on the Receiver for ~2 seconds [IMAGE 2]; 4 beeps will be heard. You will then hear a
beep every 1.5 seconds during the check process. Wait about 30 seconds; if no other beeps occur, your system is
functioning. 3 quick beeps indicate a communication error.
b) Press the sensing edge and observe the check LED; 3-5 flashes is ideal. Less than 3 flashes means there is a weak
signal. Press the other edge to check the signal strength for that Transmitter.
c) Check the antenna position for the best line-of-sight alignment. Check the coax cable to the antenna.
d) To exit the check function, press the check button or the system will time out after 5 minutes. There will be a series of
beeps heard upon exiting.

www.milleredge.com [e-mail] 800-220-3343 5/5
6. ERASING THE RBAND RECEIVER
If you encounter intermittent performance or you have any other programming issues, erase the RBand Receiver and reprogram
the Transmitters. The Receiver will search for a clear RF channel.
1. To erase all Transmitters programmed into the Receiver, use a screwdriver to short the two pins marked MR next to the DIP
switches [IMAGE 2].
2. While shorting the pins, press and hold the program button; you will hear a series of 10 beeps followed by a rapid chirping
sound. Release the program button and the MR pin short when your hear the chirping
3. Wait ~10 seconds and you will hear 2 beeps. The Receiver is now ready to be reprogrammed.
7. SPECIFICATIONS & CONTROLS
RBAND EDGE TRANSMITTER (RB-TX10)
Transmitter Frequency: 916 MHz, FSK modulation
Mounting: 4 corner screws (provided)
Power Source: Batteries: 2 AA, 3.6V lithium, 2 year life expectancy
Dimensions: 1.80”L x 4.78”W x 1.75”H
Program Button: Momentary push button is used to associate the Transmitter
to the Receiver
TX Indicator Lights:
• Green LED: Normally off
• Press program button for status:
1. Green LED off: Good edge
2. Green LED on: Active or damaged edge
RBAND GATE EDGE RECEIVER (RB-G-RX10)
Power: 12-24 VAC/DC nominal (11-30 V max); 100 mA max current draw.
Power may be supplied from the operator or alternatively from an external supply.
Dimensions: 4.12”L x 3.65”W x 1.65”H
Cable Connections: Screw clamp type terminal blocks for 18-26 AWG wire
External Antenna: Monopole antenna supplied (gain: 5dBi +/-2dB)
Program Button: Used to associate a Transmitter with the desired receiver channel
Check Button: Used to determine signal strength
RX Indicator Lights:
• Check LED:
1. Blinks every ~5 seconds to indicate working properly if both channels are
programmed
2. After check button is pressed, blinks to indicate signal strength; 4 or 5
blinks is ideal
• R1 and R2 LEDs:
1. Off when the associated edge is learned and has no faults
2. On solid: No Transmitters learned or edge activated
3. Blink rapidly: Edge termination fault (RB-RX10C version only)
• R3 LED: On when low battery relay is active
• A TEST LED: On when in test mode
Connections:
• Power (2): Positive and ground, or AC
• Relay Output 1:
1. CS1: Normally Closed
2. C1: Common
3. BS1: 10K termination
• Relay Output 2:
1. CS2: Normally Closed
2. C2: Common
3. BS2: 10K termination
• Relay Output 3 (2): Relay closes when low battery is detected
• A TEST (2): Connect to switched DC power (+ and Com) for N.C. monitoring
8. FCC COMPLIANCE
RBAND EDGE TRANSMITTER
Model: RB-TX105%7;%5%7;&
FCC ID: U5Z-RB-TX10, U5Z-RB-TX10B, U5Z-RB-TX10C
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference
that may cause undesired operation.
This device complies with FCC radiation exposure limits for an uncontrolled
environment. This device shall be installed and operated with a minimum
distance of 0.4” between users or bystanders and the device.
RBAND GATE EDGE RECEIVER
Model: RB-G-RX105%*5;&
FCC ID: U5Z-RB-G-RX10, U5Z-RB*-RX10C
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference
that may cause undesired operation.
This device complies with FCC radiation exposure limits for an uncontrolled
environment. This device shall be installed and operated with a minimum
distance of 0.8” between users or bystanders and the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules:
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which may be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
1. Re-orient or relocate the receiver antenna
2. Increase the separation between the equipment and the receiver
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
4. Consult the dealer or an experienced radio/TV technician for help
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
