Miltenyi Biotec MACSxpress User manual

MACSxpress® Separator | User manual
MACSxpress® Separator
User manual

Copyright © 2021 Miltenyi Biotec and/or its affiliates.
All rights reserved. No part of this user manual may be reproduced, stored in a retrieval system, transmitted,
published, or distributed in any form or by any means, electronically, mechanically, by photocopying,
microfilming, recording, or otherwise, without the prior written consent of Miltenyi Biotec; however,
notwithstanding the foregoing, the owners of the MACSxpress® Separator may make copies solely for purposes
of training personnel in the use and servicing of the unit within their business or organization. Maximal care has
been taken by Miltenyi Biotec in the preparation of this user manual. However, Miltenyi Biotec shall not be liable
for any technical or editorial errors or omissions contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this document. The information in this document is
provided “as is” without warranty of any kind, and is subject to change without notice. MACS, MACSxpress and
the Miltenyi Biotec logo are either registered trademarks or trademarks of Miltenyi Biotec and/or its affiliates in
various countries worldwide. All other trademarks mentioned in this document are the property of their
respective owners and are used for identification purposes only. Unless otherwise specifically indicated,
Miltenyi Biotec products and services are for research use only and not for therapeutic or diagnostic use.

MACSxpress® Separator
User manual
Original instructions
Miltenyi Biotec B.V. & Co. KG
Friedrich-Ebert-Straße 68
51429 Bergisch Gladbach
Germany
Phone [phone]
Fax [phone]
[e-mail]
www.miltenyibiotec.com

Read the chapter Important safety information and
all other information in this user manual before
using the instrument
Before using the MACSxpress Separator, read the chapter Important safety
information and all other information contained in this user manual, including
any safety and operating instructions. Pay special attention to all warnings
displayed on the instrument. Failure to read and follow these guidelines could
lead to improper or incorrect usage and result in damage to the instrument.
Improper usage could also cause severe personal injury, death, unpredictable
results, instrument malfunction, and premature wear to components shortening
the lifetime of the instrument. Such actions may void your warranty. Keep the user
manual and any other safety and operating instructions provided with the
instrument in a safe place accessible to all users for future reference.
If you have a serious concern regarding the safe use of your instrument, contact
your authorized Miltenyi Biotec service provider or call Miltenyi Biotec Technical
Support.

Content
1 Important safety information 5
2 Introduction 13
2.1 Intended use 13
2.2 Separation principle 13
3 Installation 15
3.1 Included components 15
3.2 Consumables 15
3.3 Assemble the instrument 16
4 Operate the instrument 17
4.1 Charge the instrument 17
4.2 Switching the light on or off 17
4.3 Perform a separation 18
5 Maintenance 19
6 Technical data and specification 21
7 Technical support 23
8 Limited warranty 25

Important safety information
5
General safety instructions
THIS CHAPTER DESCRIBES POTENTIALLY HAZARDOUS SITUATIONS
ASSOCIATED WITH THIS INSTRUMENT AND PROVIDES IMPORTANT SAFETY
INFORMATION TO MINIMIZE THE RISKS AND PROTECT YOURSELF AND
OTHERS.
The instrument can be used safely, if the following is ensured:
The instrument is installed correctly.
The instrument is only operated by professional laboratory personnel.
General safety practices are followed.
All instructions in this user manual are followed.
• Use this instrument only as indicated in this user manual to avoid injury to
personnel and damage of the equipment.
• Keep this user manual in a place that is always accessible to all users.
• Follow local working area safety instructions and laboratory policies and
standards for health, safety, and prevention of accidents.
• In case of severe accidents, damages to the instrument, or if smoke or flames
appear, cut the power supply immediately.
• Ensure that the power switch and the plug of the power cable of the
instrument are easily accessible.
• To entirely disconnect the instrument from the power supply, unplug the
power cable.
• Ensure that the power cable plug is close to the user.
• If it is necessary to cut the power supply, unplug the cable from the power
outlet and contact an authorized Miltenyi Biotec service provider or
Miltenyi Biotec Technical Support.
1
IMPORTANT SAFETY INFORMATION
1

1
IMPORTANT SAFETY INFORMATION
6
• Read the instructions in the chapter Important safety information before
using the instrument.
• Check the instrument before each use for visible damage.
Hazard levels
Signal words are used to warn against hazardous situations and property
damages. The following signal words are used in this user manual.
or WARNING! indicates a hazardous situation that could result in
serious injury or death.
or CAUTION! indicates a hazardous situation that could result in minor
or moderate injury. It is also used to warn against unsafe practices.
or NOTICE indicates a situation that can damage the instrument, but
does not result in injury.
Safety symbols
SAFETY WARNING: THE DOCUMENTATION MUST BE
CONSULTED IN ALL CASES WHERE THIS SAFETY SYMBOL IS
USED ON THE INSTRUMENT
ELECTRICITY
BIOLOGICAL HAZARD
CHEMICAL HAZARD
STRONG MAGNETIC FIELD
PERSONS WEARING A PACEMAKER OR OTHER ELECTRONIC
IMPLANTS MUST MAINTAIN DISTANCE
CRUSH HAZARD
SHARP ELEMENT

7
1
IMPORTANT SAFETY INFORMATION
ENVIRONMENTAL HAZARD
READ THE USER MANUAL BEFORE USING THE INSTRUMENT
ORDER NUMBER
SERIAL NUMBER
DIRECT CURRENT
WEEE (WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT)
MANUFACTURER
EUROPEAN CONFORMITY APPROVAL
NRTL CERTIFICATION MARK: PRODUCT MEETS CONSENSUS-
BASED STANDARDS OF SAFETY, REQUIRED BY THE
OCCUPATIONAL SAFETY/HEALTH ADMINISTRATION (OSHA),
DETERMINED BY THE NATIONALLY RECOGNIZED TESTING
LABORATORIES (NRTL) TÜV SÜD
Safety labels

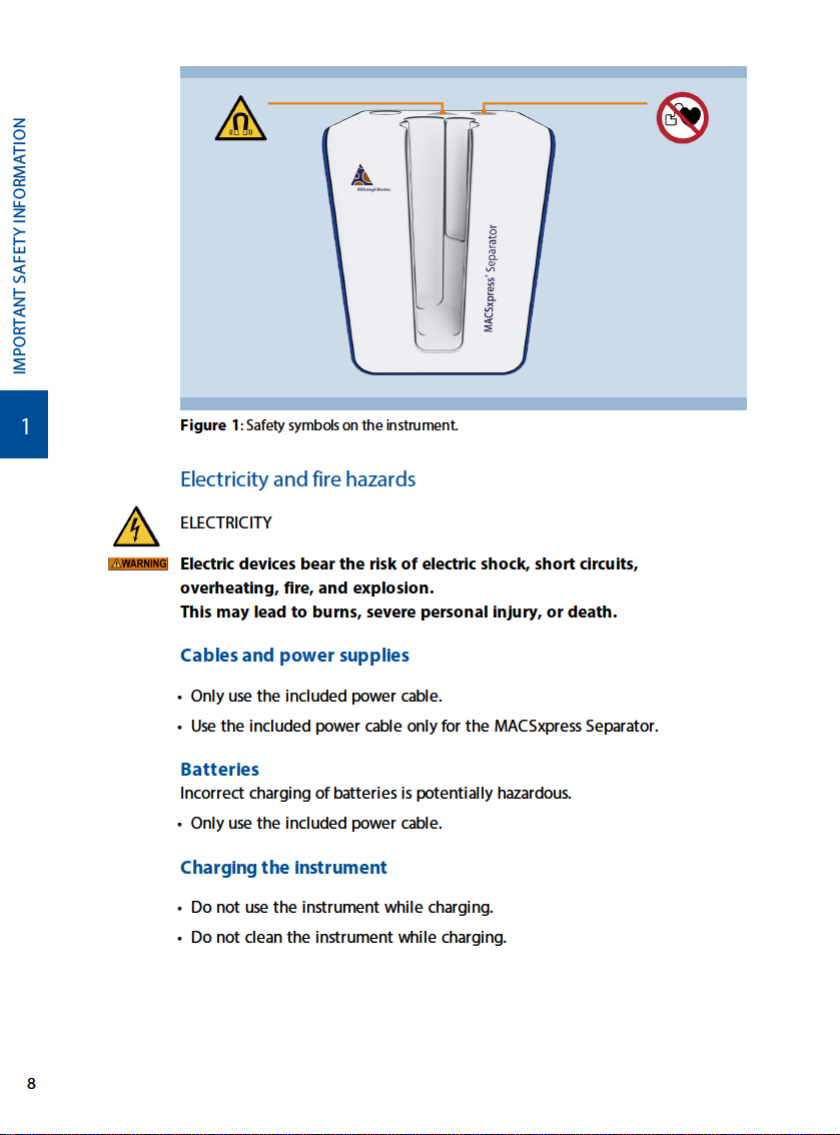

Notice the hazard points and safety symbols of the instrument.
• Keep safety labels and safety markings clean and legible.
• Inspect the safety labels and safety markings regularly and replace them if
they are not legible or identifiable from a safe viewing distance.
• Contact Miltenyi Biotec for replacement labels.

9
1
IMPORTANT SAFETY INFORMATION
Liquids inside the instrument
Liquids inside the instrument can cause short circuits.
• Do not allow liquids to enter the inside of the instrument.
• Do not use or clean the instrument without sealing the USB connection
with the blind plug.
• Use only small amounts of cleaning agents on a soft cloth to wipe the
instrument. Do not spray or pour liquid cleaning agents onto or into the
instrument.
• Protect the external power supply against spilled liquids.
• Clean up spilled liquids immediately.
• Do not use the instrument if liquids have entered the inside of it.
• Do not use the external power supply if liquids have entered it.
Humid and dusty environments
Humidity, condensation, or dust inside the instrument can cause short circuits.
• Do not use or clean the instrument without sealing the USB connection
with the blind plug.
Biological hazards
BIOLOGICAL HAZARD
Contamination or infection may lead to severe personal injury or
death, depending on the used material.
Biological material
All biological material must be considered potentially infectious.
• Follow local working area safety instructions and laboratory policies and
standards for health, safety, and prevention of accidents.
• Wear personal protective equipment (such as gloves, safety glasses, etc.) as
indicated in the documentation for the particular substance.
• Decontaminate the instrument after processing hazardous or potentially
infectious material.
• If hazardous or potentially infectious material has been spilled or leaked
from the system, decontaminate the affected area.
• Use a disinfectant or cleaning agent that is appropriate for the specific
pathogen or substance.

1
IMPORTANT SAFETY INFORMATION
10
• Do not use bleach.
Sample processing
Incorrect sample processing may lead to contamination or infection.
• Use only specified sample container.
• Follow the protocol in the respective data sheet.
• Process maximal 30 mL of blood product sample in one isolation step.
• Do not pour off the supernatant, as the tube will fall out of the MACSxpress
Separator.
Equipment damage
Defective or inadequate equipment can cause a biological hazard.
• If parts of the instrument are damaged, unplug and do not use the
instrument until damaged parts are replaced. Contact Miltenyi Biotec
Technical Support, if necessary.
Waste
All liquid and solid waste must be considered hazardous.
• Follow local regulations regarding waste disposal.
• Autoclave or decontaminate waste with an appropriate disinfectant.
• Follow the general laboratory safety regulations when handling liquid and
solid waste.
Chemical hazards
CHEMICAL HAZARD
Substances and reagents can be hazardous.
• All safety measures in section Biological hazards also apply to any
hazardous substances and reagents that may be present in the sample.
• Use any substances and reagents only as stated in the respective data sheet.
• Operate the instrument in a fume hood if hazardous substances and reagents
are processed.
• Only use reagents provided by Miltenyi Biotec if not otherwise stated in this
manual.

11
1
IMPORTANT SAFETY INFORMATION
Magnetic field hazards
STRONG MAGNETIC FIELD
Strong magnetic fields can influence the functioning of pacemakers or
electronic medical implants.
• If wearing pacemakers or electronic medical implants keep a distance of at
least 30cm.
Magnetizable objects can suddenly move towards the magnet.
• Keep all magnetic storage devices, electronic equipment, and magnetizable
objects at a distance of at least 30cm.
Mechanical hazards
CRUSH HAZARD
Risk of crushing.
The instrument may fall if it is not placed on a flat and even surface. This may
cause injury.
• Place the instrument only onto stable, even, and vibration free tables or
laboratory benches.
SHARP ELEMENTS
Risk of cutting.
Tubes
Unspecified sample containers (e.g. made of glass) may break. This may lead to
injury.
• Do not use sample containers made of glass.
• Do not pour off the supernatant, as the tube will fall out of the MACSxpress
Separator.
• Follow the protocol in the respective data sheet.

1
IMPORTANT SAFETY INFORMATION
12
Environmental hazards
ENVIRONMENTAL HAZARD
Illegible safety labels increase the risk for accidents and injuries.
Lighting
• Provide for sufficient light.
Disposal
WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) CUSTOMER
INFORMATION
Dispose of your end-of-life Miltenyi Biotec products in accordance with the
applicable WEEE and hazardous waste disposal legislation, which may differ by
country or region. Electrical equipment may contain hazardous substances
that may have a serious detrimental effect on the environment and/or human
health. All equipment must be specifically collected and treated by
designated waste facilities and by qualified WEEE compliance schemas. By
ensuring that you dispose of your unwanted electrical and electronic
equipment according to the applicable WEEE and hazardous waste disposal
legislation, you are helping to preserve our natural resources and protect
human health. Miltenyi Biotec is committed to protecting the environment.
Miltenyi Biotec offers product end-of-life return programs in many countries,
and partners with licensed WEEE compliance schemes throughout the world.
Miltenyi Biotec takes back your end-of-life Miltenyi Biotec equipment for
recycling free of charge. The terms and availability of this offer vary by
geography because of differences in regulatory requirements. Note that,
depending on the type and use of your equipment, additional requirements
may apply. Before shipping the instrument back to the manufacturer for
disposal, decontaminate the instrument to remove any hazardous material.
For more information, or if you wish to dispose of your end-of-life Miltenyi
Biotec equipment, contact your local Miltenyi Biotec representative or
Miltenyi Biotec Technical Support.

2
13
2
INTRODUCTION
2.1 Intended use
The MACSxpress Separator is a laboratory equipment for manual separation of
magnetically labeled cells. The device contains a permanent magnet for cell
separation and uses LEDs with a rechargeable battery for illuminating of the
target cell fraction. The MACSxpress Separator is used for untouched isolation
of leukocytes from blood products without density gradient centrifugation.
Erythrocytes are sedimented, while non-target cells are removed. Up to 30 mL
of prepared sample can be processed at a time. The instrument is for research
use only and not for therapeutic or diagnostic use. It is to be used by
professional laboratory personnel only.
2.2 Separation principle
The MACSxpress Separator is developed for the untouched isolation of
leukocytes from up to 30 mL anticoagulated whole blood without density
gradient centrifugation. Erythrocytes are aggregated and sedimented, while
non-target cells are removed by immunomagnetic depletion with
MACSxpress Beads. The tube containing the labeled sample is placed in the
magnetic field of the MACSxpress Separator. The magnetically labeled cells
will adhere to the wall of the tube while the aggregated erythrocytes
sediment to the bottom. While the tube is still inside the MACSxpress
Separator, the supernatant containing the non-labeled target cells can be
carefully pipetted into a new tube (Figure 2.1).
Introduction

3
15
3
3.1 Included components
Component
MACSxpress Separator
USB cable
USB power supply
Table 3.1: Components included in the delivery of the MACSxpress Separator.
The power supply is only for charging the battery for the light, not for the
magnet itself.
3.2 Consumables
Consumable
5 mL round bottom tubes
15 mL conical tubes
50 mL conical tubes
Table 3.2: Standard laboratory consumables for use with the MACSxpress Separator.
Installation
INSTALLATION

16
INSTALLATION
3
3.3 Assemble the instrument
The instrument has powerful magnets.
Strong magnetic fields can damage equipment susceptible for magnetic
fields.
• Keep all magnetic storage devices, electronic equipment, and
magnetizable objects at a distance of at least 30cm.
1Connect the USB cable with the power supply.
2To attach the power supply for charging, remove the blind plug from the
MACSxpress Separator USB port at the rear side of the instrument.
3Connect the USB cable to the USB port.
4After charging, unplug the power supply from the electrical outlet.
5Disconnect the MACSxpress Separator from the USB cable and re-attach
the blind plug to the USB port.
The blind plug provides protection against spillages and splashes.

4
17
4
OPERATE THE INSTRUMENT
4.1 Charge the instrument
Overloading of batteries can lead to leakage of battery fluid.
• Only use the included power cable.
1Before using the MACSxpress Separator fully charge the integrated NiMH
battery.
2Connect the MACSxpress Separator to the power supply using the
provided cable (refer to Assemble the instrument on page16).
3Plug the power supply into an appropriate electrical outlet. The LED on
the MACSxpress Separator indicates the battery charge status (Table 4.1).
4After charging, unplug the power supply from the electrical outlet.
5Disconnect the MACSxpress Separator from the USB cable and re-attach
the blind plug to the USB port.
LED status Battery charge status
Green, blinking while charging Battery is being charged.
Green, permanent on while charging Battery is fully charged.
Red, flashing while light is on Battery poweris low.
Table 4.1: Overview of battery charge status.
4.2 Switching the light on or off
1Press the button labeled IO for a few seconds to switch on the light.
2The light will turn off automatically after 4 minutes.
3Alternatively,pressthe button again for a few secondsto switch offthe light.
Operate the instrument

18
OPERATE THE INSTRUMENT
4
4.3 Perform a separation
Insufficient light can lead to handling faults and impair experiment
results.
• Provide for sufficient light.
1Position the MACSxpress Separator stable on a laboratory bench.
2Open the tube containing the labeled sample.
3If necessary, remove air bubbles on top of the sample with a pipette.
4Place the open tube in the magnetic field of the MACSxpress Separator
for 15 minutes. The magnetically labeled cells will adhere to the wall of
the tube while the aggregated erythrocytes sediment to the bottom.
5Switch on the light.
Do not pour off the supernatant, as the tube will fall out of the
MACSxpress Separator.
6While the tube is still inside the MACSxpress Separator, carefully pipette
supernatant containing the non-labeled target cells into a new tube.
For further details on the separation process, refer to the respective
MACSxpress Isolation Kit data sheet. All protocols and data sheets are
available at www.miltenyibiotec.com.
