TireMinder® TPMS App Instruction Guide
Table of Contents
Thank You & Contact Information
RV Adapter Key
Initial Setup
Alerts - How the Alerts Work
Alerts - What to do
TireMinder® Signal Booster
Installing Signal Booster
Locations for Signal Booster
Change Unit of Pressure (PSI, kPa, BAR)
Change Unit of Temperature (F° and C°)
Start Over - Reset Everything to Factory Defaults
About Disconnect and Reconnect Mode
How to use Disconnect and Reconnect
About Auto-Scroll
How to use Auto-Scroll
About Auto-Search
How to use Auto-Search
Stop your Phone from Turning Off While Using the App
How to Close the App
Add a Transmitter
Remove a Transmitter
Adjust Baseline
Charging the Bluetooth Adapter
Turn the Adapter On and Off
Accuracy of Pressure Gauges and TPMS
Locking Nut Instructions

“O”hhhh! Rings
Transmitter Caps
Where to put the TireMinder® Adapter
Transmitters and Friction
Tire Rotation
Valve Extenders
Brass VS Aluminum Transmitters
iOS 11 Connectivity Issues
CR1632 Battery Installation
Technical Specifications
Limited Warranty
Thank you for purchasing the TireMinder® SMART TPMS
This book is designed to be a complete resource for any information you may need when using
the TireMinder® TPMS. We highly recommend reading this entire book. We know it’s a lot, but
a safety device like a TPMS, is only good when you know how to use it.
Now for the good part. This TPMS is easy to use. It’s by far the easiest TPMS we’ve ever made.
If you have any questions, please look through the book (specifically the Table of Contents
page), the answer is most likely here. Also, we have a lot of great resources on our websites,
www.MinderResearch.com and www.TireMinder.com, including videos and tutorials on how to
do anything and everything regarding this system.
Also, if you prefer having an actual human walk you through this setup, give us a call! We’ve
got TireMinder Experts standing by ready to help.
Thanks again for using a TireMinder® TPMS and we hope you enjoy this product!
Best Regards,
The Minder Team
Minder Research, Inc.
3000 SE Waaler Street
Stuart, FL 34997 USA
[phone]
www.MinderResearch.com
[email protected]
RV Adapter Key

1. Antenna
2. Power Button - Press and release to turn on; press ad hold for 3 seconds to turn off
3. Bluetooth Light - Blinking when connected; Solid when not connected
4. Alert Light - Blinks when tire issue occurs
5. Battery Light - Blinks on low battery; solid while charging; dissapears when fully
charged
Initial Setup –Get Up and Running with the TireMinder®
TPMS App
Note: Images may not be the same as your specific brand of phone or tablet.
1. Get everything ready for install.
A. Plug the TireMinder® Bluetooth Adapter into a USB charger and charge for 6
hours.
B. Install the TireMinder® Signal Booster. Please refer to the directions inside the
booster pouch for detailed information on installing the booster.

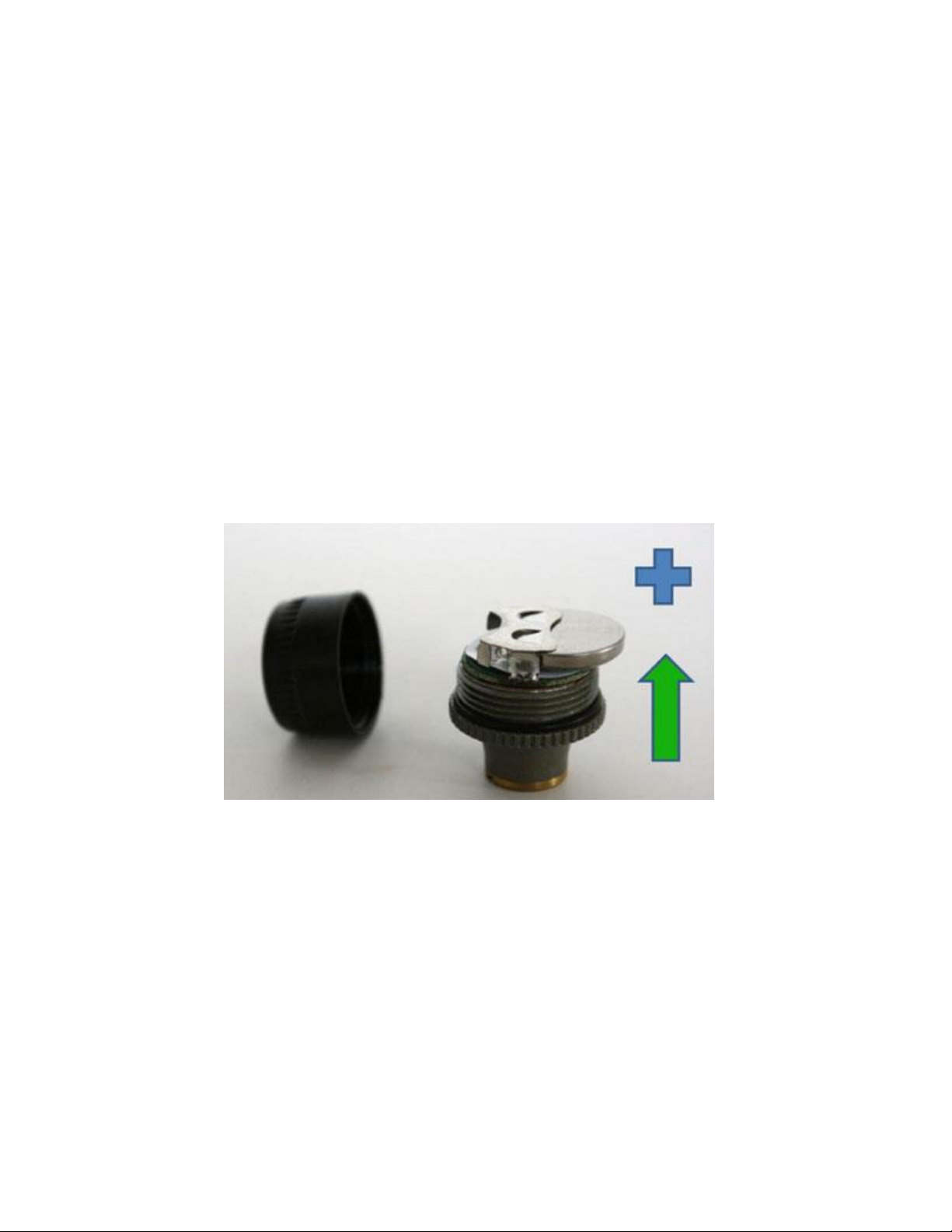

C. Insert the provided CR1632 batteries into each transmitter.
D. Download the TireMinder® TPMS App from the Apple App store or Google Play
Store. If you have a QR Code Reader, simply scan the appropriate QR Code on
the quick start guide. If not, go to your app store and type in “TireMinder TPMS”.
2. Once everything is ready, it’s time to connect your phone to the TireMinder® Bluetooth
Adapter.
A. Turn on the TireMinder® Bluetooth Adapter by pressing the top power button.

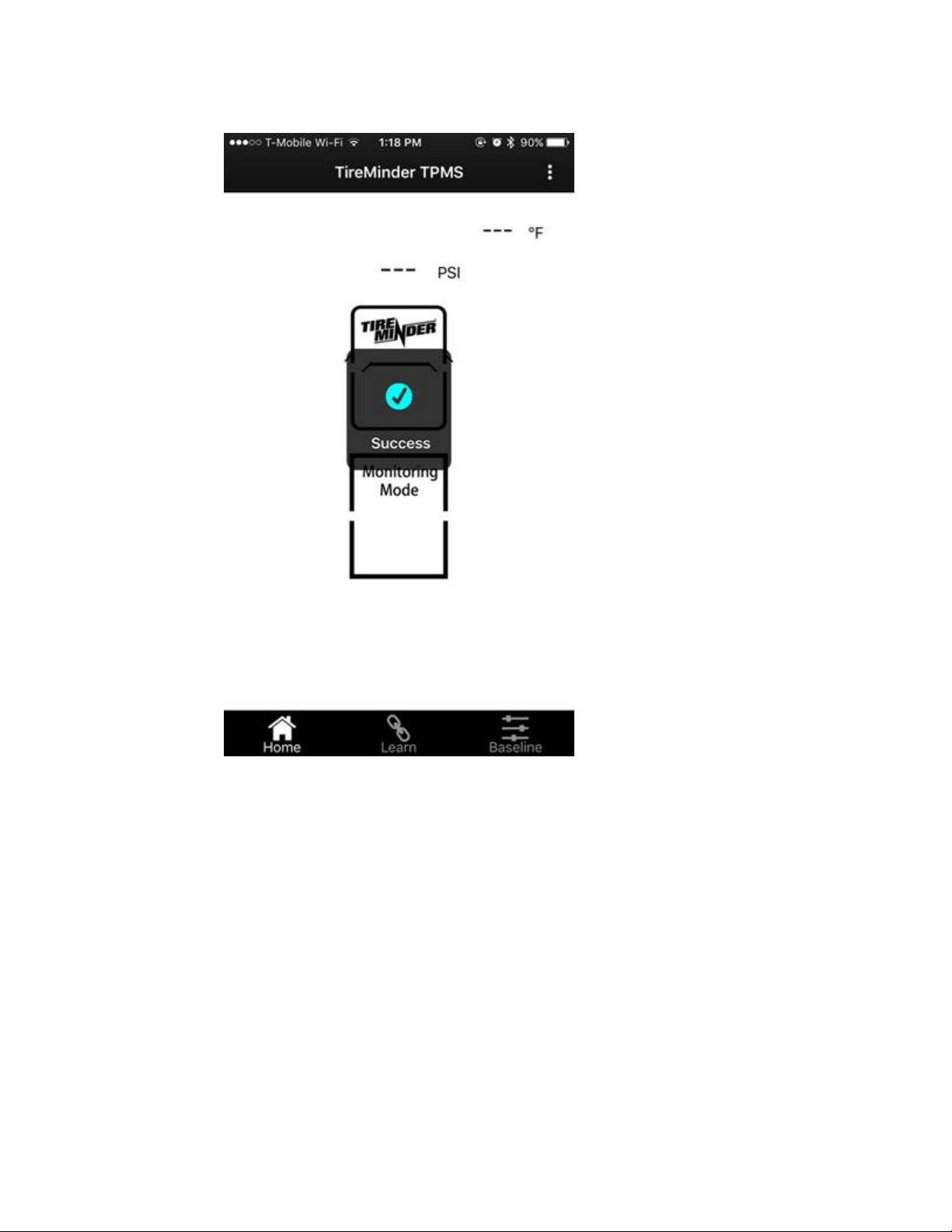

B. Open the TireMinder® TPMS App. Once open, the App will automatically
connect to the TireMinder® Bluetooth Adapter (it will look like the image

below).
3. Adding transmitters to your setup.
A. Touch “Learn” on the bottom bar of the TireMinder® TPMS App. This will take
you to where you can add and remove transmitters.
B. By default, you will be in Learn Mode (note how “Learning Mode” is highlighted
near the center of the screen). This is mode where you can add transmitters to
your system.
C. Touch the tire position that you would like to add a transmitter to.

D. Once touched, the display will show “Learning”. Screw a transmitter onto the
corresponding tire.

E. Once the transmitter is on the valve stem, you will see a pressure reading on the
display and the tire position will turn green.
F. Press the next tire position you would like to add and follow steps D & E until all
of your transmitters have been added to the system.
4. Setting the baseline pressures.
A. Once all of your transmitters have been added to the app, press “Baseline” on the
bottom bar of the TireMinder® TPMS App.
B. In “Baseline” you will be able to adjust the desired pressures of your system.
C. Touch the tire position in which you would like to adjust the baseline pressure.

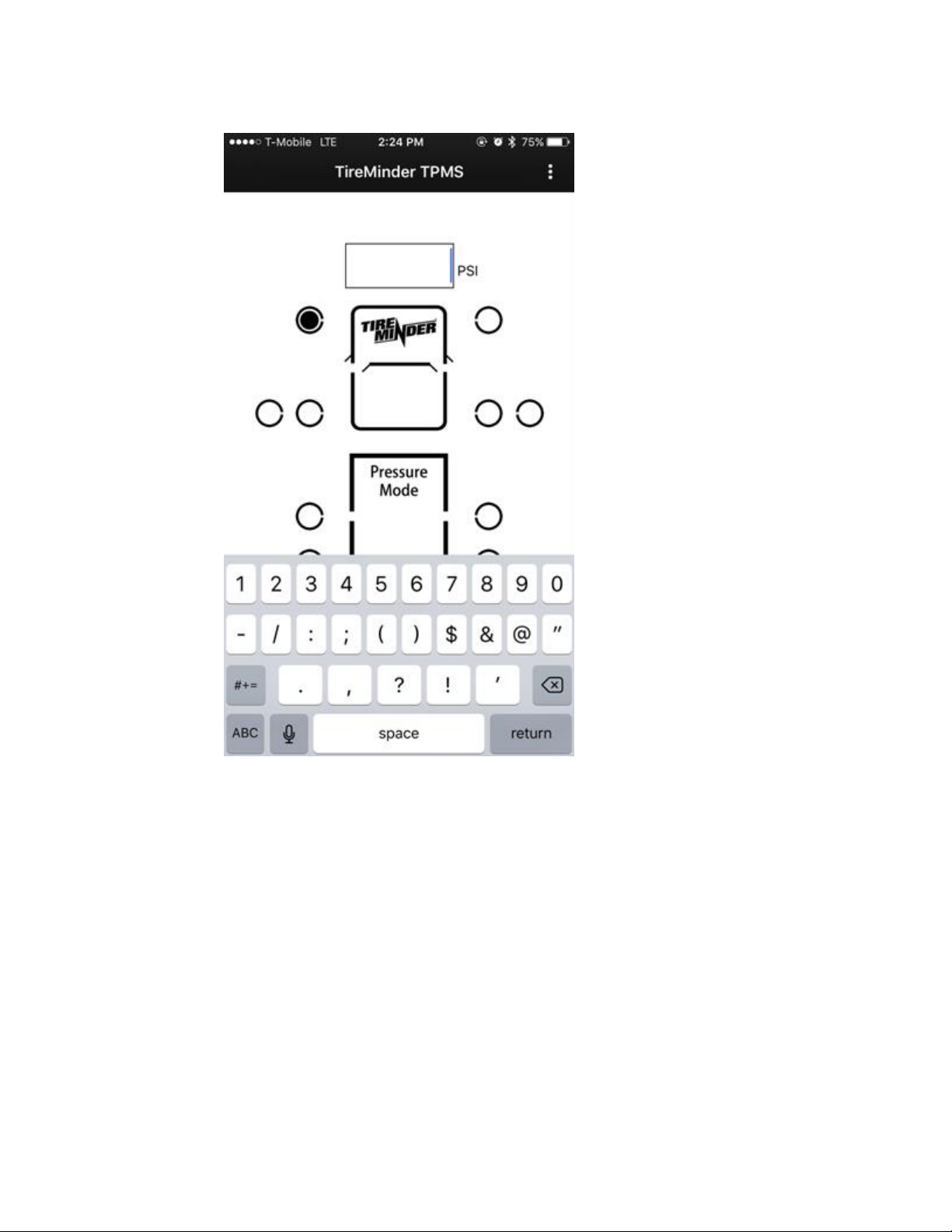

D. Once pressed, type in the cold pressure of your tire (e.g. if your tire uses 100PSI,
type in 100).

E. After typing in the pressure, press Done on the keyboard.
F. Touch the next tire position you would like to adjust. Continue to adjust each tire
position until all the tire positions are set to your correct baseline pressures.
5. The system is now setup.
A. Press the Home button. You are now completely setup and ready to monitor all of
your tire positions. You may exit the app without disrupting the ability to monitor
and receive alerts.
B. Do not close the App. Both Apple and Android Apps are able to run in the
background, however, if they are closed the App will no longer monitor your
tires. A similar circumstance would be no longer having the ability to receive
phone calls if your phone is turned off.
C. Before going on a trip, make sure the App is running (if you’re not sure how to
check, just open the app).
Alerts –How the TireMinder® TPMS Alerts Work and
What to do if an Alert Occurs

The system will check for the following alerts every 6 seconds (please note, if no issue is found,
the transmitters will provide updated tire data every 4 minutes):
1. Rapid Leak - Pressure loss of 3 PSI or more in less than 2 minutes.
2. Slow Leak - Pressure loss of 6 PSI or more in 2 to 10 minutes.
3. Low Pressure - Pressure loss of 15% or more of the baseline pressure.
4. High Pressure - Pressure increase of 20% or more of the baseline pressure.
5. High Temperature - Internal tire temperature at or above 167°F (75°C).
6. High Temperature - Internal tire temperature that exceeds 185°F (85°C).

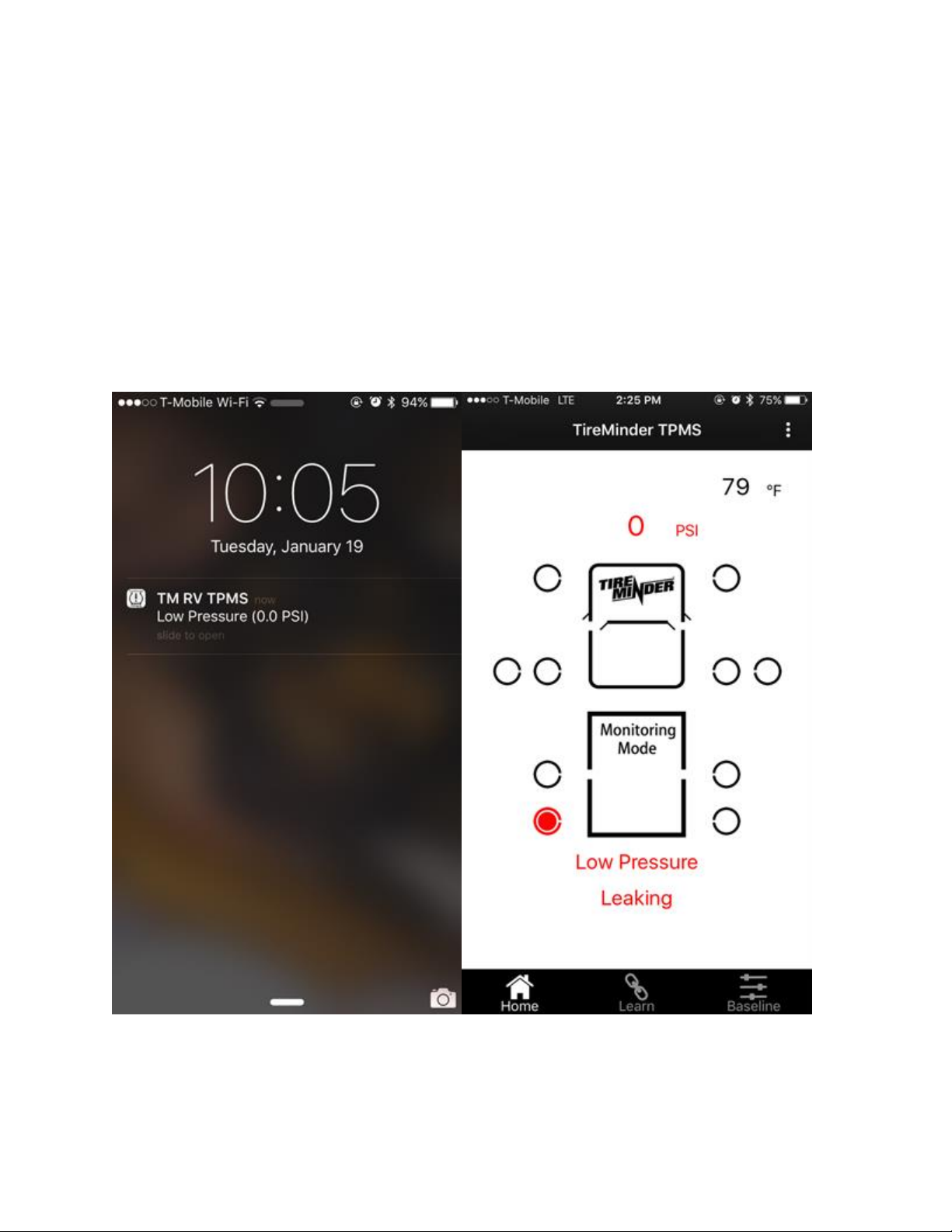

In the event of a tire issue, the appropriate alert will be displayed in both the app and a push
notification on your phone. Also, the Bluetooth Adapter will blink red and beep.
If an alert occurs, don’t panic.

If an alert does appear on your display, please remain calm. Remember, DO NOT PANIC! Also,
the DRIVER SHOULD NEVER try to figure out what the problem is. Let your husband (or
wife), co-pilot, navigator, partner, etc., look at the monitor and try to determine the cause of the
alert.
What to do if an alert occurs.
If you receive a leaking alert, please note how much air is left in your tire. If you are running
110 psi (normal) and the alert has come on at 95 psi, you may decide to drive to the next rest
stop. If the pressure drops significantly or more rapidly, cautiously bring the vehicle to a safe,
off-road location to check the offending tire.
If you receive a high pressure alert, cautiously bring the vehicle to a stop and check the
offending tire. If the high pressure is “within reason” you may need to adjust your baseline
pressures. Not sure what to do, call us!
If you receive a high temperature alert, cautiously “get off the road” & determine the cause of
the overheating. In most cases, this will be due to a brake caliper that is sticking or a bearing
which has overheated.
The TireMinder® Hard Wired Booster
In today's world, the TireMinder® booster helps our 433MHz transmitters avoid signal
interference from the ever more prevalent wireless devices. As we all know, you can't throw a
stone anymore without hitting a wireless device. This creates a lot of electronic noise, which
limits the potential range of other devices operating in the same vicinity. This is why the booster
is crucial for operating a tire pressure monitoring system on a multi-wheel vehicle (RVs, 5th
Wheels, MotorHomes, Motor Coaches, Boat Trailers, Travel Trailers, etc.).
Installing the TireMinder® Booster

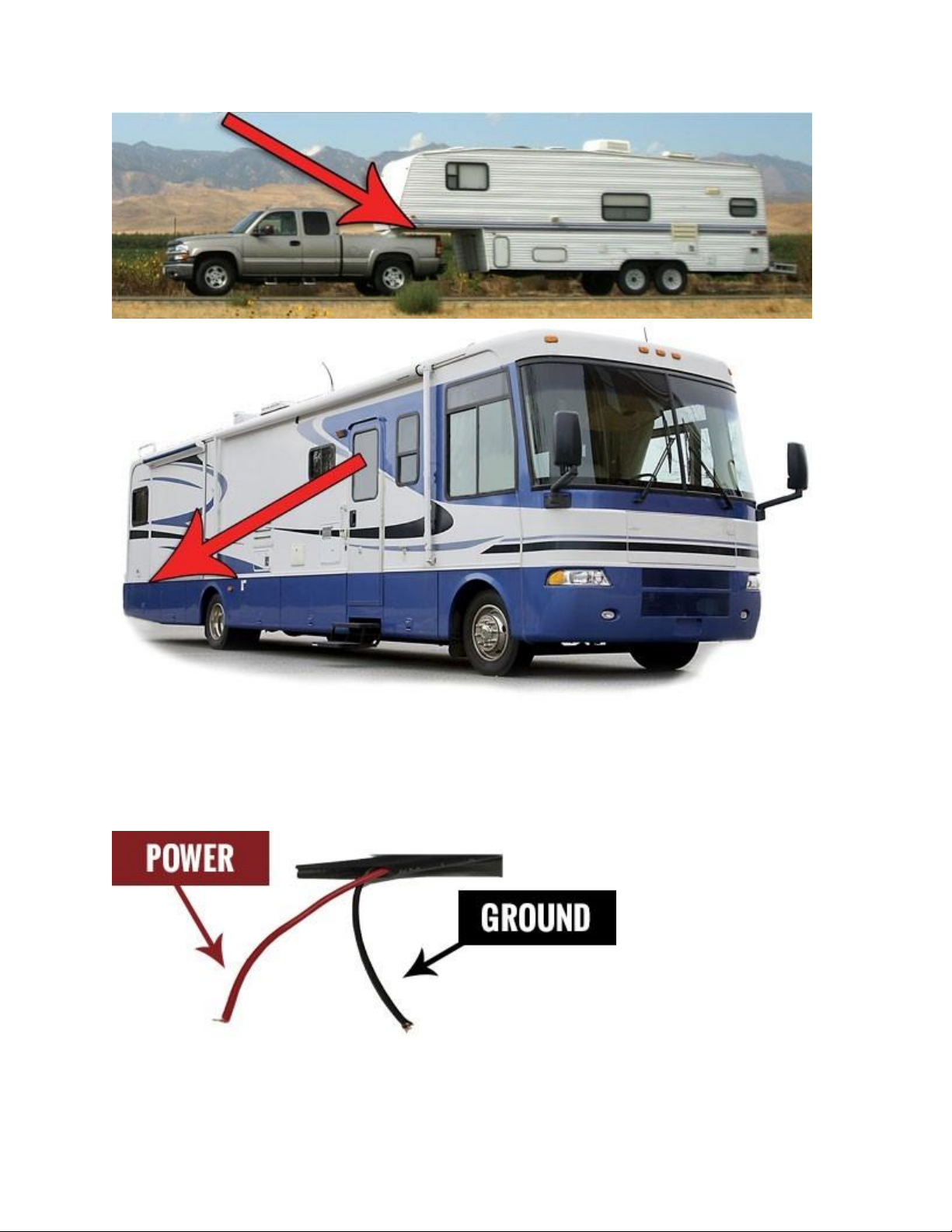

While the booster is fully weather proof, it is recommended to install the booster in a relatively
protected area. The best place to put the booster is 50-75% from the start of the longest point. An
example would be at the front of a 5th Wheel or towards the rear of a MotorHome, especially if
you have an additional tow.
Once you have chosen a good location, connect the booster's red (positive: +) and black
(negative: -) wires to a 12v or 24v power supply line. Please mount the booster as securely as

possible to minimize vibration. You may use the provided wire ties to secure the booster and
wires. If you have any uncertainty, please contact your local RV dealer for help on the
installation.

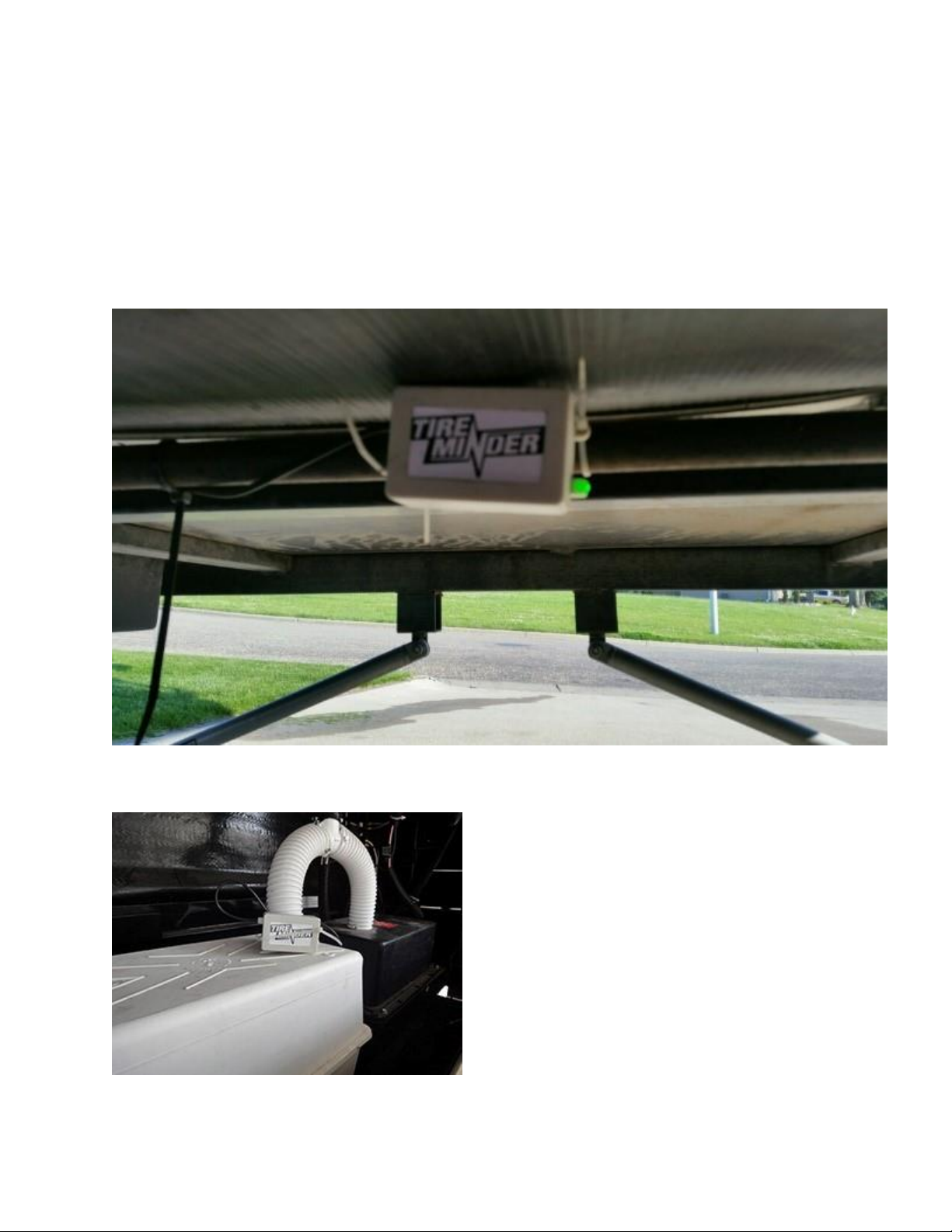

An Ideal Location
The ideal booster location is underneath the vehicle. This allows the booster to easily
communicate with all of the transmitters.
More Locations
Inside Battery Compartment

Front of Car Hauler
Attached to License Plate Light
Units of Pressure –How to switch between PSI, kPa and
BAR
The TireMinder® TPMS App is able to read units of pressure in PSI (Pressure per Square Inch),
kPa (Kilopascal) and BAR (Barometric).
To change the unit of pressure, please refer to the following:
1. Touch the ellipse ( ) on the top right of the screen. This will pull up the main menu.
2. Touch on the button labeled “Settings”.

3. When in Settings, touch the unit of pressure (PSI, kPa or BAR).
4. Once you have selected the appropriate unit of pressure, click the Home button on the
bottom of the screen to exit Settings.
Units of Temperature –How to switch between Fahrenheit
and Celsius.
The TireMinder® TPMS App is able to read units of temperature in Fahrenheit and Celsius.
To change the unit of temperature, please refer to the following:
1. Touch the ellipse ( ) on the top right of the screen. This will pull up the main menu.
2. Touch on the button labeled “Settings”.

3. When in Settings, touch the unit of temperate (Fahrenheit or Celsius).
4. Once you have selected the appropriate unit of pressure, touch the Home button on the
bottom of the screen to exit Settings.
Start Over –Reset Everything to Factory Defaults
If you would like to start over from scratch, the TireMinder® TPMS App allows you to simply
reset everything and start over.
To reset the TireMinder® TPMS App and Bluetooth Adapter, please refer to the following:
1. Touch the ellipse ( ) on the top right of the screen. This will pull up the main menu.
2. Touch on the button labeled “Settings”.
3. When in Settings, touch the button labeled “Restore to Factory Defaults”.

4. A menu will pop up, allowing you to confirm or cancel the restoration process.
Click “Yes” to confirm and your TireMinder® TPMS App and Bluetooth Adapter will be
restored to factory defaults.
About Disconnect and Reconnect Mode
Disconnect and Reconnect Mode allows the TireMinder® TPMS to stop monitoring either the
top or bottom section of the display. An example of disconnecting would be if you monitored
both a truck and a 5th Wheel Trailer and wanted to drive off from the 5th Wheel. You can simply
disconnect the 5th Wheel’s portion and not have to worry about receiving alerts because you are
not near the 5th Wheel. Another example would be if you monitored both a MotorHome and tow
vehicle and wanted to drive away from the MotorHome while still monitoring your tow vehicle.
You can simply disconnect the MotorHome and continue monitoring the tow car without
receiving alert notifications.

How to Disconnect and Reconnect Sections of your
TireMinder® TPMS.
1. Touch the ellipse ( ) on the top right corner of the screen to bring up the main menu.
2. Touch the button labeled “Disconnect”.
3. From here, touch on the section you want to disconnect. Touching the top section
disconnects the top, touching the bottom section disconnects the bottom. Click the Home
button to confirm selection.
Reconnect a Section
To reconnect a section, touch the section you wish to reconnect and it will reappear. Press Home
to confirm.
About Auto-Scroll

Auto-Scroll allows the TireMinder® TPMS App to scroll between of all your transmitters so you
can view the pressure and temperature reading of each tire automatically.
How to use Auto-Scroll
1. Touch the ellipse ( ) on the top right corner of the screen to bring up the main menu.
2. Touch the button labeled “Auto-Scroll”.
3. Once touched, the display will cycle through all of your available tire positions, at a rate
of 6 seconds per tire.
4. To stop Auto-Scroll, touch any tire position.
About Auto-Search
Auto-Search allows the TireMinder® TPMS App to completely “erase” all previous tire pressure
and temperature readings and actively find new, updating readings. This process should
generally take between 4 to 6 minutes. If a reading is not received from a transmitter within 20
minutes of initiating Auto-Search, the App will signal a warning at the problematic tire position.
This is useful for getting the system ready after your MotorHome, 5th Wheel, etc. has been in
storage for some time and you would like to make sure all of your tires and transmitters are in
good working order. After initiating Auto-Search, wait until you have received an updated
reading from all of your transmitters. If a transmitter does not update, go to the transmitter and
check for any issues.
How to use Auto-Search
1. Touch the ellipse ( ) on the top right corner of the screen to bring up the main menu.
2. Touch the button labeled “Auto-Search”.
3. All of your tire positions will go to 0.0 and 32°F.
4. After a few minutes, the updated tire pressures and temperatures return.
Disable Sleep –Stop Your Phone from Turning off While
Using the App
The TireMinder® TPMS App has a feature that will allow the App to stop your phone from
going to sleep or dimming the screen. We call this “Disable Sleep”.
To disable the sleep mode of your phone while using the App, please refer to the following:
1. Touch the ellipse ( ) on the top right of the screen. This will pull up the main menu.
2. Touch on the button labeled “Settings”.
3. Touch on the button labeled “Disable Sleep” under Advanced Settings.
4. A menu will pop up, allowing you to choose enable or disable. Choose “On” to disable
sleep mode or “Off to enable sleep mode.
5. Once you have enabled or disabled sleep mode, touch the Home button to exit Settings.

Note: Using the Disable Sleep feature may cause significant battery usage. If you are
experiencing significant battery drain, turn this feature off.
How to Close the TireMinder® TPMS App
1. Touch the ellipse ( ) on the top right of the screen.
2. Touch the button labeled “Close App”.
3. The App will now be closed.
Note: Once closed, the app will still run in the background. To fully close the app, refer to your
device's close method. If you are unsure of how to close an app, please Google "how to close app
YOUR_DEVICE_NAME".
Adding a Transmitter –How to Add a Transmitter to the
TireMinder® TPMS App
Use the following directions to add a transmitter to the TireMinder® TPMS App. Please make
sure there is a CR1632 battery in the transmitter before starting the process below.
1. Open the TireMinder® TPMS App.
2. Touch “Learn” on the bottom bar.
3. Towards the center of the screen you will see two buttons labeled “Learning Mode” and
“Delete Mode”, make sure “Learning Mode” is highlighted. If “Learning Mode” is not
highlighted, press on “Learning Mode”.
4. Touch the tire position you would like to add a transmitter to. Once touched, you will see
“Learning” on the display.
5. Attach the transmitter to valve stem of the corresponding tire position (if you clicked the
driver’s front, add the transmitter to your driver’s front tire).
6. Once the transmitter is on the tire, allow up to 20 seconds for the TireMinder® TPMS
App to find the sensor and display it on the screen. Once found, the tire position will turn

green and display the tire’s pressure and temperature on the screen.
7. You may add as many transmitters using the same directions as above (up to 22 in total).
Removing a Transmitter –How to Remove a Transmitter
from the TireMinder® TPMS App
Use the following directions to remove a transmitter from the TireMinder® TPMS App.
1. Open the TireMinder® TPMS App.
2. Touch “Learn” on the bottom bar.
