Mine Site Technologies MP70 MinePhone User manual

MP70 MinePhone
User Guide
Revision D

Contents
Revision History............................................................................................................................................5
Contact Information.......................................................................................................................................7
About this Guide............................................................................................................................................9
Chapter 1: Product Overview..................................................................11
1.1 Inside the Box............................................................................................................................12
1.2 Hardware Features ....................................................................................................................13
1.3 Display.......................................................................................................................................14
1.4 Charging the Phone....................................................................................................................15
Chapter 2: User Basics..............................................................................17
2.1 Switching the MinePhone On and Off.......................................................................................18
2.2 Accessing Menu Features..........................................................................................................18
2.3 Changing the Speaker Volume...................................................................................................19
2.4 Changing the Backlight Time and Brightness...........................................................................20
2.5 Writing a Text Message.............................................................................................................22
2.6 Sending a Text Message............................................................................................................22
Chapter 3: Voice Communications..........................................................25
3.1 Using Push To Talk ...................................................................................................................26
3.1.1 Push To Talk...............................................................................................................26
3.1.2 Broadcast Push To Talk..............................................................................................27
3.1.3 Emergency "Man Down" Call....................................................................................27
3.2 Phone Calls................................................................................................................................28
3.2.1 Make a Call.................................................................................................................28
3.2.2 Receive a Call.............................................................................................................29
3.2.3 Hold a Call..................................................................................................................30
3.2.4 Mute a Call.................................................................................................................31
3.2.5 Transfer a Call............................................................................................................32
3.2.6 Call Waiting................................................................................................................33
3.2.7 Handsfree....................................................................................................................34
Chapter 4: Remote Speaker Microphone...............................................37
4.1 Attaching a Remote Speaker Microphone ................................................................................38
4.2 Using the RSM on PTT Calls....................................................................................................39
Chapter 5: Other Phone Functions.........................................................41
5.1 Keypad Lock..............................................................................................................................42
5.2 Managing Messages..................................................................................................................43
MP70 MinePhone User Guide3Revision D

5.3 Viewing Network Details..........................................................................................................44
5.4 Locator App...............................................................................................................................45
Chapter 6: Call Logs.................................................................................47
6.1 Viewing Call Logs.....................................................................................................................48
Appendix A: Troubleshooting Guide.......................................................51
Appendix B: MP70 MinePhone Speci cation........................................53
Appendix C: Acronyms............................................................................55
Appendix D: Hardware Warranty..........................................................57
Appendix E: Firmware End User License Agreement..........................59
Revision D4MP70 MinePhone User Guide

Revision History
DateChangeRevision
May 2011User guide for MinePhone hardware Rev D (main PCB)
and rmware 1.4.0
A
September 2011Updated to reflect the functionality of rmware 1.4.4.2.B
November 2011Updated version and formatting to MST standardC
June 2012Firmware 1.4.7.14, updated screenshotsD
Copyright ©2012 Mine Site Technologies Pty Ltd. All rights reserved. Mine Site Technologies Pty Ltd
reserves the right to make changes to speci cations and information in this manual without prior notice.
Mine Site Technologies Pty Ltd accepts no responsibility for any errors or omissions contained in this
guide.
MP70 MinePhone User Guide5Revision D

Contact Information
AUSTRALIA - Sydney
113 Wicks Road
North Ryde NSW 2113 AUSTRALIA
Tel: [phone]
CANADA - Sudbury
1085 Kelly Lake Road
Sudbury Ontario P3E 5P5 CANADA
Tel: [phone]
CHINA - Hangzhou
Building 5
1413 Moganshan Road
Hangzhou CHINA 310011
Tel: [phone]x206
UNITED STATES - Denver
13301 W 43rd Drive
Golden Colorado 80403 USA
Tel: [phone]
MP70 MinePhone User Guide7Revision D

About this Guide
This manual describes the features and operation of the MP70 Minephone. The Table of Contents and
Index will help nd the information you need. You will get the most out of the MinePhone if you read
each section.
Conventions used in this manual
This publication uses speci c formatting for certain data types. These may differ or appear similar in
certain languages. In this document, they appear as follows:
• User interface elements such as menu options, text elds and buttons (including physical buttons) look
like this.
• Non-interactive elements such as message folders and hardware components look like this.
• Text entered and speci c settings or options chosen by the user look like this.
• System messages and output in response to commands look like this.
•References to external documents look like this.
Icons
The following icons may appear in this document to highlight speci c information:
Table 1: Icons
DescriptionIcon
The Note icon indicates important or useful
information and references.
Note:
The Important icon contains information to prevent
damage to the product and injury to the user.
Important:
The Caution icon indicates to stop and pay attention
or an action not to be performed.
Caution:
Related Documentation
The following documents, available from MST, include information relevant to the con guration and
operation of the MP70 MinePhone:
•MP70 MinePhone Administrator Guide
•ICA Administration Console User Manual
•MineDash User Manual
Additional Support
For additional support please visit our website: http://www.minesite.com.au/
Note: The information provided in this document ("Information") is presented in good faith and
believed to be correct as at the date of this document. MST makes no representations as to the
accuracy or completeness of the Information. The Information is supplied on the condition that the
recipient will make their own determination as to the suitability of the Information for their purposes
MP70 MinePhone User Guide9Revision D

prior to use. Under no circumstances will MST be responsible for any damages whatsoever resulting
from the use of, or reliance upon, the Information.
Revision D10MP70 MinePhone User Guide
About this Guide

Chapter
1
Product Overview
This chapter describes the features of the MP70 MinePhone and the
charging dock.
Topics:
•Inside the Box
The Mine Site Technologies’ MP70 MinePhone is a Voice over WLAN
(VoWLAN) phone designed for use in hazardous mining environments.
•Hardware Features
•Display It provides two way voice and text communication over the
underground wireless network. It has the following features:
•Charging the Phone
• Intrinsically Safe design built to an IP54 rating
• Colour 320x240 pixel TFT LCD screen
• Push To Talk function
• Text messaging
• Noise and echo cancellation
• Emergency "Man Down" mode
• Battery life of 48 hours standby, 4 hours talk time.
MP70 MinePhone User Guide11Revision D

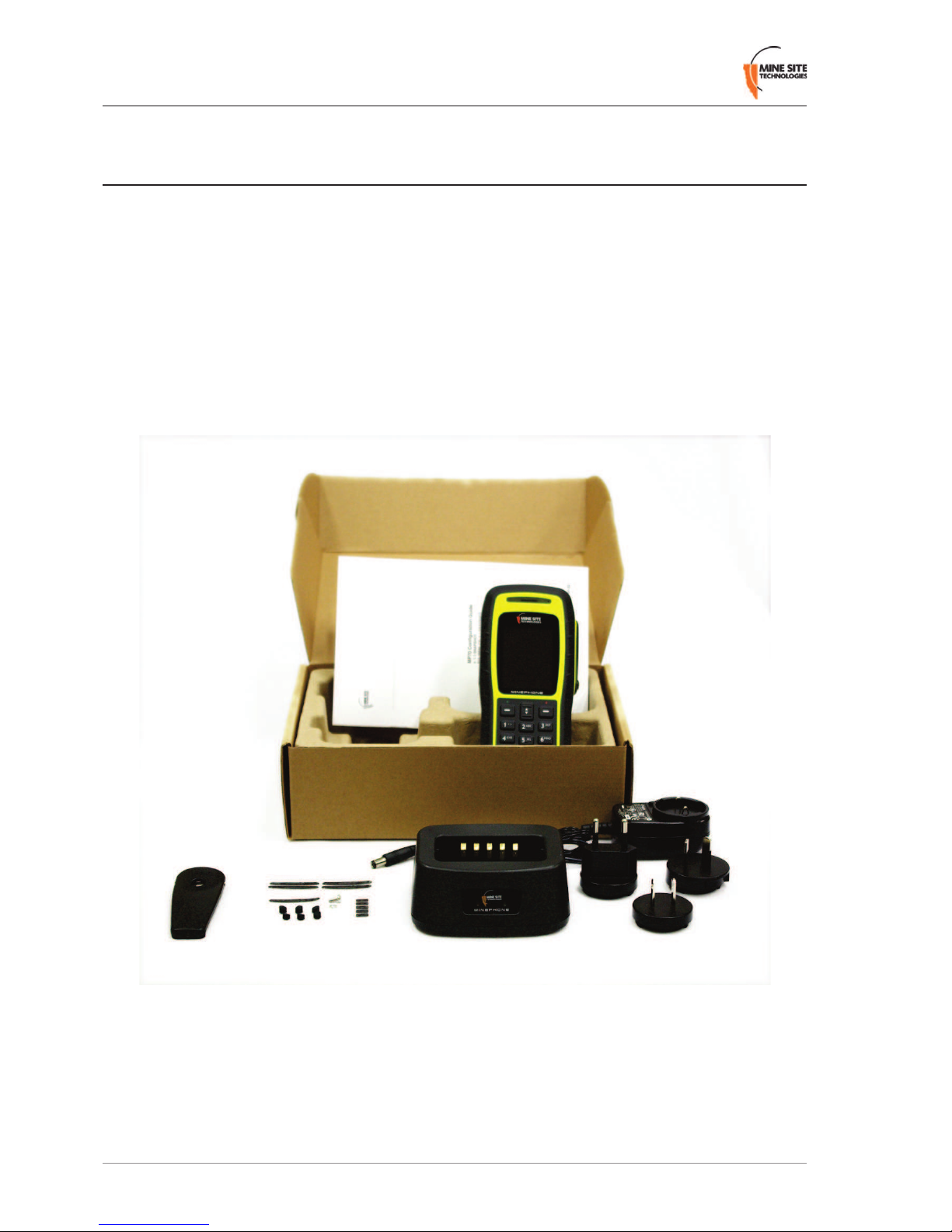

1.1 Inside the Box
When you open the MinePhone packaging it will contain the following:
• MinePhone handset
• MinePhone User Guide
• Charging dock
• Power adaptor and three wall plug connectors
• Belt clip
• Screw and washer for attaching the belt clip
• Spare adhesive speaker grill pads
• Spare adhesive microphone grill pads
• Spare rubber stoppers to cover mounting screws
Revision D12MP70 MinePhone User Guide
Product Overview

1.2 Hardware Features
FunctionDescriptionKey
TFT display.Display1
Phone speaker.Speaker2
Microphone for Push To Talk (PTT) calls.Top microphone3
Microphone for phone calls.Lower microphone4
Emergency override button broadcasting to all MinePhone users.Emergency / Man Down
button
5
Button for Push To Talk (PTT) communication.Push to talk (PTT) button6
Changes the PTT group channel.PTT Channel Up7
Changes the PTT group channel.PTT Channel Down8
Removable cover for attaching an external Remote speaker
microphone. (only applicable in Hard Rock mining environments)
External headset jack cover9
Handset identi cation label.Serial number / MAC address
label
10
MP70 MinePhone User Guide13Revision D
Product Overview

FunctionDescriptionKey
Mounting hole for a attaching the included beltclip or optional
metal beltclip.
Beltclip mounting hole11
IEC / MSHA approvals label.Approvals label12
Button to answer a call or left selection on the display.Left selection key / Call key13
Keypad for entering contact numbers and text messaging.Keypad14
Navigation key when accessing the phone menu.Navigation key15
Button to end a call or right selection on the display.Right selection key / End key16
Contacts for charging the handset in the charging dock.Charging contacts17
LED on top of the phone will flash when receiving a call.Receive call LED18
Button to switch the phone on or off.Power button19
1.3 Display
When the phone is switched on, the Home screen is displayed.
1. Network signal strength
2. Handset Extension number
3. PTT channel indicator
4. Battery level
5. Time display
6. Function of the left softkey
7. Function of the right softkey
Revision D14MP70 MinePhone User Guide
Product Overview

1.4 Charging the Phone
The MinePhone has an internal battery providing up to 48 hours standby and 4 hours talk time. It can be
charged using the supplied charging dock and power adaptor, which can operate at 110-240v AC. The
charger should be placed in a well ventilated, non-hazardous area with access to power.
Caution: Use only charging docks and power adaptors approved by Mine Site Technologies. Use
of any other type may be dangerous, breach Intrinsic Safety requirements and will void the warranty.
PictureProcedureStep
Connect the power adaptor to a wall socket.1
Connect the lead from the power adaptor to the charging
dock.
2
Place phone into the charger.3
MP70 MinePhone User Guide15Revision D
Product Overview

PictureProcedureStep
The charging indicator will be red if the battery is flat or
less than fully charged. If the handset is flat, charging time
will take about 3 hours.
4
The fully charged indicator will be green when the handset
is fully charged.
5
Revision D16MP70 MinePhone User Guide
Product Overview

Chapter
2
User Basics
This chapter describes the most commonly used functions of the phone.
Topics:
•Switching the MinePhone On
and Off
•Accessing Menu Features
•Changing the Speaker Volume
•Changing the Backlight Time
and Brightness
•Writing a Text Message
•Sending a Text Message
MP70 MinePhone User Guide17Revision D

2.1 Switching the MinePhone On and Off
To turn on the phone:
1. Press and hold down the Power button for 3 seconds. A splash screen briefly displays the hardware
(HW), rmware (FW) and resource le (RES) version.
2. The Home screen will then be displayed and the phone will connect to the network.
To turn off the phone, press and hold down the Power button for 3 seconds. The phone will beep and
turn off.
2.2 Accessing Menu Features
To access the menu:
1. Press the left softkey below the Menu option on the Home screen.
2. Use the vertical Navigation keys to scroll up and down the phone menu.
Revision D18MP70 MinePhone User Guide
User Basics

2.3 Changing the Speaker Volume
There are three options for changing the speaker volume as described below.
1. Adjusting speaker volume during a call:
a) Use the vertical Navigation keys to adjust the volume.
2. Changing the speaker volume for phone calls:
a) Select Menu on the Home screen, scroll to the Sound option and press Select.
b) Select Phone Call Volume.
c) Adjust the volume level using the vertical Navigation keys, and select OK.
MP70 MinePhone User Guide19Revision D
User Basics

3. Changing speaker volume for Push To Talk (PTT) calls:
a) Select Menu on the Home screen, scroll to the Sound option and press Select.
b) Select PTT Speaker Volume.
c) Adjust the volume level with the vertical Navigation keys, and select OK.
2.4 Changing the Backlight Time and Brightness
Context for the current task
1. To change the Backlight Time:
a) Select Menu on the Home screen, scroll to the Settings option and press Select.
Revision D20MP70 MinePhone User Guide
User Basics
