MING JONG M6820 User manual

Wireless/Wired MPEG-4 Pan & Tilt
Surveillance Camera
User’s Guide

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
2
Table of ConTenTs
1. OVERVIEW
1.1 PRODUCT DESCRIPTION
1.2 PRODUCT FEATURE
1.3 PRODUCT SPECIFICATION
1.4 PRODUCT ACCESSORIES INCLUDE
1.5 SYSTEM REQUIREMENT
1.6 EXTERIOR FUNCTION INTRODUCE
1.7 PRODUCT SET-UP
2. UTILITIES AND TOOLS
2.1 IPCAMFINDER
2.2 USE IP-CAM AND TEST THE IMAGE FUNCTION FOR THE FIRST TIME
2.3 HOW TO SET UP IP CAM
2.4 SETTING THE WAY TO OBTAIN THE IP ADDRESS OF IP-CAM
2.5 IP-CAM NETWORK FRAMEWORK INSTALLATION
2.6 INSTALLATION FOR IP SHARE
2.7 INSTALLATION FOR WIRELESS IP SHARE
3. GETTING STARTED
3.1 SYSTEM LOGIN
3.2 LIVEVIEW
3.3 TAKE A SHOT
4. ADVANCED FUNCTION WITH LIVEVIEW
5. CONFIGURATION
5.1 IMAGE CONTROL
5.2 ADUIO CONTROL
5.3 MOTION DETECTION
5.4 NETWORK SETUP
5.5 WIRELESS LAN SETUP
5.6 FTP – FTP SERVER
5.7 E-MAIL
5.8 NTP
5.9 ACCOUNT MANAGER
5.10 UPGADE
5.11 REBOOT/RESTORE
APPENDIX A. OPERATION EXAMPLE FOR USING UPNP
APPENDIX B. OPERATION EXAMPLE FOR USING A PPPOE DIALUP CONNECTION AND DDNS
APPENDIX C. FAQ
3
3
3
3
4
4
5
5
6
6
7
8
8
12
19
20
22
22
22
23
24
26
26
27
27
29
30
30
30
31
31
32
32
33
34
37

User’s Guide
3
overview
1.1 PRODUCT DESCRIPTION
This device is the most simple and effective IP Camera product for remote monitoring and management. The
installation is easy and the built-in Web server allows users to carry out the work of remote monitoring and
management through web browser (i.e., Microsoft IE) by typing IP address of the IP-Cam device. Meanwhile,
the motor inside the camera can be controlled remotely to change the direction/angle for monitoring. It can assist
users to handle the real-time image for the area of monitoring. In addition, the image compression uses MP-4 le
format and the image can be transmitted with high quality up to 30 screen for every second. This device alos has
the function of wireless data transmisstion. Users can install it through wireless network to avoid the environmental
damage due to the cable material.
In addition, many network protocols are supported, such as PPPoE, DHCP, STATIC IP, DDNS, SMTP, FTP, NTP and
3GPP. Moreover, IR LED lightening illumination is also included to strengthen the night vision capability. The further
recording and real-time photographing capabilities can reach professional security and have great fun for the family
use remote monitoring.
1.2 PRODUCT FEATURE
• Use standard Web Browser IE to monitor, record, and shoot remotely
• Support MPEG-4 and M-JPEG modes displaying and transmission for images
• Support bi-directional voice transmission
• Simple installation and function configurations for IP-Cam
• User friendly interface
• Big angle motor Pan/Tilt monitoring and digitizingooming
• Function of day and night monitoring by infared rays illumination
• Allow on-line image viewing remotely for multi-user simultaneously
• Remote real-time recoding to the device and trigger to sending images to FTP & E-Mail & SD Card
• Support private IP and functions of NAT & Port of IP switch
• Use functional authority setting, name registration and password protection
• Support the dynamic IP network function of DHCP
• Support ADSL network of PPPoE user
• Support 3GPP image transmission of mobile
1.3 PRODUCT SPECIFICATION
• Image Size: VGA 、 QVGA 、 QQVGA adjustable
• Image Speed / Quality: Standard 、 good 、 hight adjustable
• Upstreem:512K, 1M, 1.5M, 2M
• MAX Frame rate: 5 、 10 、 15 、 20 、 25 、 30 fps/sec
• Video Frequency: 50 Hz for PAL 、 60 Hz for NTSC
• Image Compression Format : Motion-JPEG&MPEG-4 compliant
• Focal Distance Range : From 30mm to infinity adjustable
• Image Recording : Images sent to user defined path on PC
• Image capture : Images sent to FTP & E-Mail & PC & SD Card
• Support protocols for TCP/IP,UDP,ARP,ICMP,DHCP,SMTP, HTTP,FTP,NTP,DNS,DDNS,PPPoE,UPnP,3GPP
• Network DHCP or manual setting network IP, and support ADSL network of PPPoE user
• Build-in web server and the functions of Active-X
• Remote single picture captured with JPG file format, remote continuous screen recorded with AVI format
• Night vision lightening illumination : Auto and Manual selection, IR LED x 6/ 5φ/850λ
• Microphone audio in and speaker audio out
• Monitoring angle : Up/Down Tilt +180 to –35 degrees
Horizontal angle: Left / Right Pan +/- 175 degrees
• Standard RJ-45 network connector, support 10/100 Base-T/TX Fast Ethernet network transmission
• Standard wireless IEEE 802.11 b/g network transmission
• 5V/ 2A exterior switching power adaptor
• Power Consumption : 700mA(max) / 5.5W(max)
• Operating environment : 5˚C~40˚C

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
4
• Storage temperture : -0˚C~55˚C
• Humidity : 5 %~85%
1.4 PRODUCT ACCESSORIES INCLUDE
1.P-Camera
2.Power adaptor, 5V/ 2A Switching Power adaptor
3.Ethernet Cable(red), used to connect to the network card of PC for testing and conguring the product
4.Ethernet Cable (blue), used to connect to Hub, ADSL modem, IP Share
5.Setup CD
6.This User’s Guide
7Accessory for hanging and fastening
1.5 SYSTEM REQUIREMENT
PC ：
• Processor ： Intel Pentium 4 ® 2.0GHz or above is recommended
• RAM ： 256MB or above
• Operation System ： Windows 2000® or Windows XP® or Vista 32 / 64 Bit
• Adobe Flash Player 9.0 must be installed
• Hard Disk ： Minimum 100MB or above
• Read only CD-ROM (Search Tool program must be intalled into any PC which will be used to view IP-CAM
image)
Network ：
• Network Card : 10/100 base-T/TX Fast Ethernet
• Wireless Network : I EEE 802.11 b/g
• Network Setup : Accessing Internet normally
• Web Browser : ActiveX Enabled and Compliant (Microsoft Internet Explorer 6.0 or above)
• Connect Network Equipment : ADSL modem, Wireless IP Share or Hub

User’s Guide
5
1.6 Exterior Function introduce
※ Description for power-on
After plugging DC5V/2A power adapter into the power socket, please wait for IP-CAM to nish motor homing.
When the Status LED lights on, the initialization for the device will be done.
※ Usage of Reset Switch:
During system normal operation, press and hold the Reset Switch for a short time (approximately 5 seconds)
until the front Status Light goes out, the system will restart and return to the factory default settings.
Anchor
Frame
Screw (P head
M3.5X25)
1.7 Product SET-UP

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
6
UTiliTies and Tools
Wired connection Mode
Change the name of
IP Cam
Wireless mode
setting
Swift to wireless
mode
Setting for Identifying
of wireless connection
Receipt mode for
wirelesss signal
2.1 IP SEARCH TOOL
Search Tool is the IP search application provided by this product. It can search all the IP CAMs connected in LAN.
Through sending out the inquiry of broadcasting packets and receiving responses from IP CAMs, the window will
display a list of all IP CAMs in the network. Furthermore, it also provides modify functions for changing specied IP
CAM’s network settings, e.g. IP Address change function.
Search Tool in detail (1),(2):
Figure (1)
Serach available
Access Point(s)
Set the encryption
mode
※ When Status LED of IP-CAM lights on and the Search tool has not found IP-CAM yet, please press "Rescan" to
send out inquiry broadcast packets to make IP-CAM to response.
※ Set “on” for WiFi Raido while using wireless mode.
※ It takes 10 - 20 minutes to search IP cam address
Rescan
IP address
Progress of
broadcasted packet
transmission
Swift the
connection mode
IP CAM List:
(click once to show the
information of IP-CAM;
double click to connect
browser)
Figure (2)
MAC address

User’s Guide
7
Step 1.
Display cuurent available IP-CAM list.
Step 2.
Click MP4_IPCam to connect IE
automatically. Type the username
and password for browsing IP-CAM
screen.
(Default=> username:admin)
password: password
2.2 USE IP-CAM AND TEST THE IMAGE FUNCTION FOR THE FIRST TIME
T he following connection is suitable for IP-CAM test / DHCP& xed IP&PPPoE setting / program code upgrade
(strongly recommended):
The operation steps are listed below:
Installing the Product for the rst time :
•You computer must be equipped with network card and RJ-45 network connector.
•Connect the RJ-45 terminator on the rear of IP-Cam to the red test network cable. One end is connected to the
network card of computer; the other end is connected to the rear side of
the IP- Cam.
•Connect the power adaptor to the power port (on the rear) of IP-Cam.
Now, the status LED on the top of IP-Cam will light up.
•Install Serach Tool (the program must be intalled into any PC which will
be used to view IP-CAM image). The default setting for connection is
that DHCP Client can use the built-in IP Address (based on the card of
client) of the network card directly and congure with the same subnet
automatically.
(Figure1)
(Figure 2)
※ Note: For IP-CAM must connect with PC directly to obtain the default IP address of network card for conguring
IP-CAM address, it will take more time (about one minute) to search. If IP-
CAM list is not shown after one minute, please press "Rescan" to search
again or make sure if the bottom right corner appears network connection
status (stop searching with symbol "!")as shown below. If yes, please press
“Rescan” to search again.
※ Note: If PC and IP-CAM in LAN connect
through IP-Hub or Wireless IP switch, it will take
30 seconds to locate because PC and IP-CAM
are in the same subnet which will save more
time of searching.
※ Note: For search correct IP address, the connection type for PC network must be DHCP.
※ Note :If you can not see video , please download ash player 9 from web-site:http://www.adobe.com/products/
ashplayer/

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
8
2.3 HOW TO SET UP IP CAM
Before you set up IP CAM, you have to know the network environment and if the IP address is xed or oat that
provided by your ISP. If you do not know, please contact with your ISP. Section 2.5 will list the common network
structure (1 ~ 7 types). Users can refer to the structure to nd out what type is suitable for his/her computer and
nish the setting up according to the instructions. To set up IP-CAM and IP address, the common way that people
use is to change the obtaining of IP address of IP-CAM. Detailed information is listed as 2.4-1 ~ 2.4.3.
2.4 SETTING THE WAY TO OBTAIN THE IP ADDRESS OF IP-CAM
2.4.1 STATIC - IP Address Setting:
• You computer must be equipped with network card and RJ-45
network connector.
• Connect the RJ-45 terminator on the rear of IP-Cam to the red test
network cable. One end is connected to the network card of
computer; the other end is connected to the rear side of the IP-Cam.
• Connect the power adaptor to the power port (on the rear) of IP-
Cam. Now, the status LED on the top of IP- Cam will light up.
• Open and execute Search Tool (as shown in Figure 3) , The system will scan the IP-Cam that you just installed
automatically. Then, you will nd MP4_IPCam in the column of IP Cam List. You can see the default settings for
IP-CAM. (as below).
Step 1.
Display cuurent available IP-CAM list.
Step 2.
After clicking MP4_IPCam, the text color
will be changed into blue indicating that you
can modify IP-CAM settings.
( Figure 3)
• Fill in Fixed IP Address as below. (If you do not know your xed IP address, please contact with your ISP. Below is
an example of Fixed IP Address modication.)
Step 1.
Connection mode is set to STATIC IP.
Step 2.
Fill in the Fixed IP.
IP Address : 211.78.174.94
Net Mask : 255.255.255.248
GateWay : 211.78.174.89
Step 3.
Click OK to nish the conguration.

User’s Guide
9
Example:
1.Set up the IP CAM with xed
IP address.
2.Turn on your computer
and open IE browser. Type
211.78.174.94 in the Address
line. Now you can access
into the monitoring screen of
network.
2.4.2 DHCP - IP Address Setting:
• Use RJ-45 Ethernet cable (red) to connect ADSL host and switching hub. Then use RJ-45 Ethernet cable (blue) to
connect PC and IP CAM (as shown below).
• Connect the power adaptor to the power port (on the rear) of IP-Cam. Now, the status LED on the top of IP-Cam
will light up.
• Set up the connection way inside the PC network: Please go to
Control Panel ---> Network Connections ---> Choose Activated LAN connection ---> right click your mouse --->
Select Properties(P)---> Select Internet Protocol (TCP/IP)---> Select Properties(R) --->Click Obtain an IP address
automatically(O), Obtain DNS server address automatically(B).
Obtain an IP address automatically (O)
Obtain DNS server address automatically

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
10
Step 1.
The default connection mode is
DHCP
Step 2.
Click MP4_IPCam to connect IE
automatically. Type the username
and password for browsing IP-CAM
screen.
( Figure 5)
• The default connection type is DHCP. It is not necessary for you to modify any configuration. The system will assign
one set of IP address automatically. Please open a browser and type the assigned IP address for accessing into
network monitoring page. (as shown in Figure 6)
Example :
1.Now, IP-CAM is set up with the IP
address in LAN.
2.Use Search Tool to access into
monitoring screen of network
according to the instructions in
Figure 5.
3.Or, turn on your PC and open
IE Browse. Type 192.168.24.17,
in Address lint to access into
monitoring screen of network.
(Figure 6).
2.4.3 PPPoE - IP Address Setting:
• Install IP-CAM according to the method stated in 2.4.2 DHCP-IP Address Setting. Open Conguration/Network
Setup, choose PPPoE as LAN settings and enable DDNS. (Refer to the following gure)
※ Note: For applying for DDNS server, please refer to Appendix B for more details.
• Open and execute Search Tools (as below) , The system will scan the IP-CAM that you just installed automatically.
Then, you will nd MP4_ IPCam 192.168.24.17 in the column of IP Cam List. (as shown in Figure 5) .

User’s Guide
11
Example :
1. IP-CAM had been installed on
to Hub in LAN (also the PC has
been installed here). Refer to 2.5
(the sixth network framework)
2. Turn on your PC and open any
browser for typing DDNS
website, such as

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
12
2.5 IP-CAM NETWORK FRAMEWORK INSTALLATION
I. IP-CAM Network Framework Installation 1
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns several physical IP addresses
IP Share or LAN Hub General model is OK
Network Setup for IP -CAM LAN Enable / Manually
Suitable Objects Users with several physical xed IP addresses and several IP-CAMs
installed
1.Connect the RJ-45 terminator on the rear of IP-Cam to the red test network cable. One end is connected to the
network card of computer.
2.Refer to 2.4-1 STATIC – IP Address Settings to type the IP address properly.
3.Set a physical IP address for each IP-Cam.
4.Set up the IP-CAM with xed IP address.
5.For viewing images in IP-CAM from remote computer: Open IP browser and type in the physical IP address of the
IP-CAM, e.g., http://211.78.174.03.

User’s Guide
13
II. IP-CAM Network Framework Installation 2
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns one physical IP address
IP Share or LAN Hub Must be equipped with DHCP & NAT function
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be adjusted
Suitable Objects Users with one physical xed IP addresses, IP Share and several IP-
CAMs installed
1. Set a real physical IP address (e.g., 211.78.174.01) for the public IP of IP Share. Then, set another private IP
address and activate the DHCP server function of IP Share.
2. In the IP conguration for each IP-Cam, please assign different virtual IP address internally and respectively. In
the Http Port setting, please specify different port parameters. (Please refer to 2.6 Installation for IP Share)
3.For the port transformation in IP Share, please refer to IP and port settings of camera to congure accordingly.
4. For viewing images in IP-Cam from remote computer: Open IP browser and type in the physical IP address of the
IP Share and the port number of IP-Cam, e.g., http:// 211.78.174.01:1025.

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
14
III. IP-CAM Network Framework Installation 3
Way to access Internet Use dial-up ADSL or Cable Modem
Physical IP Address Owns one oat IP address (dispatched by ISP dynamically)
IP Share or LAN Hub Must be equipped with DHCP and NAT functions
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be adjusted
Suitable Objects Users with dial-up ADSL, one oat IP address and several IP-CAMs
installed
1. Activate PPPoE function of IP share. Then, set another private IP address and activate the DHCP server function
of IP Share. When the dial-up of ADSL is successful, you will get a oat IP address from your ISP.
2. In the IP conguration for each IP-CAM, please assign different virtual IP address internally and respectively. In
the Http Port setting, please specify different port parameters. (Please refer to 2.6 Installation for IP Share)
3. For the port transformation in IP Share, please refer to IP and port settings of camera to congure accordingly.
4. For viewing images in IP-CAM from remote computer: Open IP browser and type in the oat IP address of ADSL
and the port number of IP-CAM, e.g., http:// 211.78.174.01:1025.
(Please follow the steps listed in 2.4.3 to congure PPPoE and apply DDNS server for using IP-CAM)

User’s Guide
15
IIII. IP-CAM Network Framework Installation 4
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns one physical IP address
IP Share or LAN Hub Not necessary
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, no need to be
adjusted
Suitable Objects Users with permanent ADSL, one xed physical IP address and one
IP-CAM installed
1. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is connected to the
network card of computer.
2. Refer to 2.4-1 STATIC – IP Address Settings to typing the IP address properly.
3. Set up the IP-CAM with xed IP address.
4. For viewing images in IP-CAM from remote computer: Open IP browser and type in the physical IP address of the
IP-CAM, e.g., http://211.78.174.94.

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
16
V. IP-CAM Network Framework Installation 5
Way to access Internet Use dial-up ADSL or Cable Modem
Physical IP Address Owns one oat IP address (dispatched by ISP dynamically)
IP Share or LAN Hub Not necessary
Network Setup for IP -CAM PPPoE function should be set, LAN Enable Web Server Port Number,
no need to be adjusted
Suitable Objects Users with dial-up ADSL, and one IP-CAM installed
1. Please acquire the necessary information of ADSL dial-up from your ISP.
ISP relational information: ADSL dial-up account name and password
2. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is connected to the
network card of computer.
3. Refer to 2.4-3 PPPoE - IP Address Settings for typing account name and password & DDNS.
4. Set up the IP-CAM to Dial up ADSL Modem.
5. Turn on PC and open web browser. Type in DDNS name such as myipcam.gotdns.com to access the network
monitoring web page.

User’s Guide
17
VI. IP-CAM Network Framework Installation 6
Way to access Internet Use dial-up ADSL or Cable Modem
Physical IP Address Owns several oat IP addresses(dispatched by ISP dynamically)
IP Share or LAN Hub Must be equipped with DHCP and NAT functions
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be adjusted
Suitable Objects Users with several oat IP addresses and several IP-CAMs installed
1. Please acquire the necessary information of ADSL dial-up from your ISP.
ISP relational information: ADSL dial-up account name and password.
2. Connect the RJ-45 terminator on the rear of IP-CAM to the red test network cable. One end is connected to the
network card of computer.
3. Refer to 2.4-3 PPPoE - IP Address Settings for typing account name and password & DDNS.
4. Install IP-CAM on LAN Hub.
5. Turn on PC and open web browser. Type in DDNS name such as myipcam.gotdns.com to access the network
monitoring web page.
6. Follow the steps above to congure for each IP-Cam.

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
18
VII. IP-CAM Network Framework Installation 7
Way to access Internet Use Permanent ADSL or Cable Modem
Physical IP Address Owns one physical IP address
IP Share or LAN Hub Must be equipped with DHCP and NAT functions
Network Setup for IP -CAM LAN Enable / Manually Web Server Port Number, need to be congured
Suitable Objects Users with one xed physical IP, IP Share and several IP-CAMs installed
1. Set a real physical IP address (e.g., 211.78.174.01) for the public IP of IP Share. Then, set another private IP
address and activate the DHCP server function of IP Share.
2. In the IP conguration for each IP-Cam, please assign different virtual IP address internally and respectively. In
the Http Port setting, please specify different port parameters. ( Please refer to 2.6 Installation for IP Share)
3. For the port transformation in IP Share, please refer to IP and port settings of camera to congure accordingly.
4. For viewing images in IP-CAM from remote computer: Open IP browser and type in the IP address of IP Share
and the port number of IP-CAM, e.g., http:// 211.78.174.01:1025.

User’s Guide
19
2.6 INSTALLATION FOR IP SHARE
When IP-CAM is installed under IP Share, it can obtain a dynamic IP address from DHCP server. If you want to
install the IP-CAM in WAN interface, you have to set a xed IP address for the device. No matter whether your IP
Share has the function of virtual server, it is necessary for IP-CAM to set a xed IP address.
(A) Please use Search to set a xed IP address for IP-CAM (e.g., 192.168.24.17) and access into IP CAM
web page for modifying RTSP Port, Control Port and HTTP port. Please refer to Figure 1-1 and
Figure 1-2 for changing the port number if required.
(Figure 1-1)
(Figure 1-2)
(B) Type admin to access into ADSL router’s web conguration.
(Refer to Figure 2. It depends on the router you have).
(C) Enable the DHCP function of IP Share. (Refer to Figure
3. The range of available IP address is 192.168.24.100~
192.168.24.199)
(Figure 2)
(Figure 3)
(D) Access into the web page of Virtual Server. Add
the xed IP address specied by Search Tools
in step (1) and enable it. (Refer to Figure 4.1)
(Figure 4.1)

Wireless/Wired MPEG-4 Pan & Tilt Surveillance Camera
20

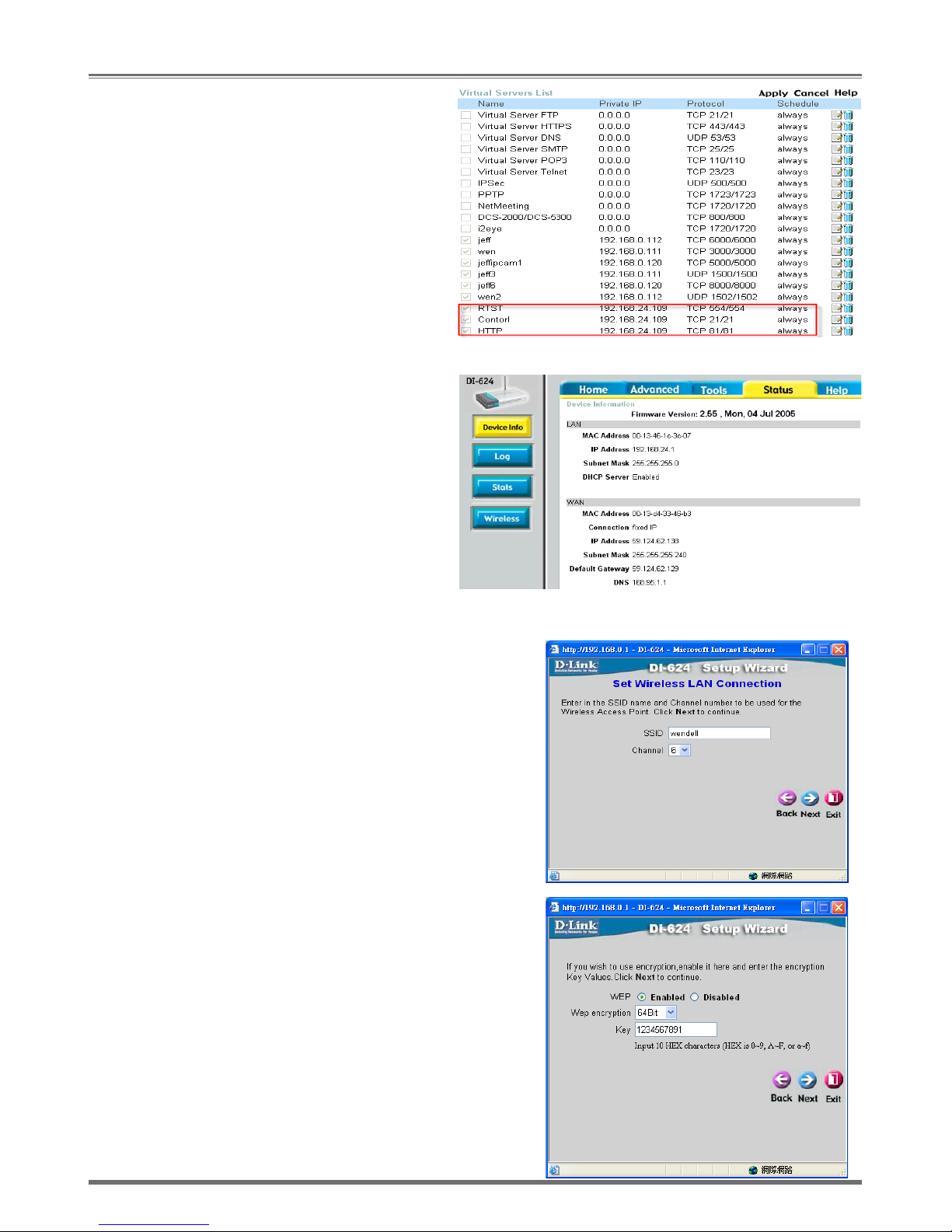

(E) Three sets of virtual servers with the same
IP address should be added with RTST Por:
t554 Contorl Port:21 and HTTP Port:81. From
the virtual servers list, the IP address for these
three servers must be set with the same value.
(Refer to Figure 4.2)
(F) Restart PC and IP Shareing After restarting, if
you want to connect IP-CAM from WAN
interface, please go to Status\WAN\IP Address
of the router’s web congurator. (http://59.124.
62.138:81, refer to Figure 5)
2.7 INSTALLATION FOR WIRELESS IP SHARE
((A) Congure the settings according to section above 2.6,
Installation for IP Share. Next, set SSID for wireless router
with the name of "wendell" (based on the name specied by
the user)
(Figure 4.2)
(Figure 5)
(B) Set up wireless network password.
