MINN KOTA TERROVA User manual

TERROVA
BOW-MOUNT TROLLING MOTOR
Installation Instructions

2 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
INTRODUCTION
Made by Minn Kota
Johnson Outdoors
Marine Electronics, Inc.
121 Power Drive
Mankato, MN 56001 USA
Trolling Motors
Produced in 2012
TERROVA 55-54"_BT
MODEL 1358803
SER NO R365 MK12345
NOTICE: The serial number on your Terrova is located
inside the mount below the motor rests.
EXAMPLE
THANK YOU
Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That’s why
we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out
and rethought until it’s good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage
that can truly take you “Anywhere. Anytime.” We don’t believe in shortcuts. We are Minn Kota. And we are never done helping you
catch more fish.
REGISTRATION
Remember to keep your receipt and immediately register
your trolling motor. A registration card is included with your
motor or you can complete registration on our website at
minnkotamotors.com.
SERIAL NUMBER
Your Minn Kota 11-character serial number is very important. It
helps to determine the specific model and year of manufacture.
When contacting Consumer Service or registering your product,
you will need to know your product’s serial number. We
recommend that you write the serial number down so that you
have it available for future reference.
NOTICE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may
obtain service by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending
or taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at
minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any of the above
options.
MOTOR INFORMATION (For Consumer Reference Only)
Model:__________________________________________________________________________________________________________________
Serial Number: __________________________________________________________________________________________________________
Purchase Date: __________________________________________________________________________________________________________
Store Where Purchased:___________________________________________________________________________________________________

minnkotamotors.com | 3
©2018 Johnson Outdoors Marine Electronics, Inc.
SAFETY CONSIDERATIONS
Please thoroughly read the user manual. Follow all instructions and heed all safety and cautionary notices. Use of this motor is only
permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.
WARNING
You are responsible for the safe and prudent operation of your vessel. We have designed your Minn Kota product to be an accurate
and reliable tool that will enhance boat operation and improve your ability to catch fish. This product does not relieve you from the
responsibility for safe operation of your boat. You must avoid hazards to navigation and always maintain a permanent watch so you can
respond to situations as they develop. You must always be prepared to regain manual control of your boat. Learn to operate your Minn
Kota product in an area free from hazards and obstacles.
WARNING
Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from
the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure
that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor
make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts
of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the
complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the
lower unit considerable damage to the motor can occur. This damage will not be covered by warranty.
WARNING
Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects.
The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for
floating objects. Persons who lack the ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other
substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level
of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2,5 m/sec2.
WARNING
When stowing or deploying the motor, keep fingers clear of all hinge and pivot points and all moving parts. In the event of unexpected
operation, remove power leads from the battery.
WARNING
It is recommended to only use Johnson Outdoors approved accessories with your Minn Kota motor. Using non-approved accessories
including to mount or control your motor may cause damage, unexpected motor operation and injury. Be sure to use the product and
approved accessories, including remotes, safely and in the manner directed to avoid accidental or unexpected motor operation. Keep
all factory installed parts in place including motor and accessory covers, enclosures and guards.

4 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
KNOW YOUR BOAT
Keel
Bow
Hull
Bow
Stern
Stern
Port
Port Starboard
Starboard
Gunwale
Gunwale
Transom
Inboard
Outboard

minnkotamotors.com | 5
©2018 Johnson Outdoors Marine Electronics, Inc.

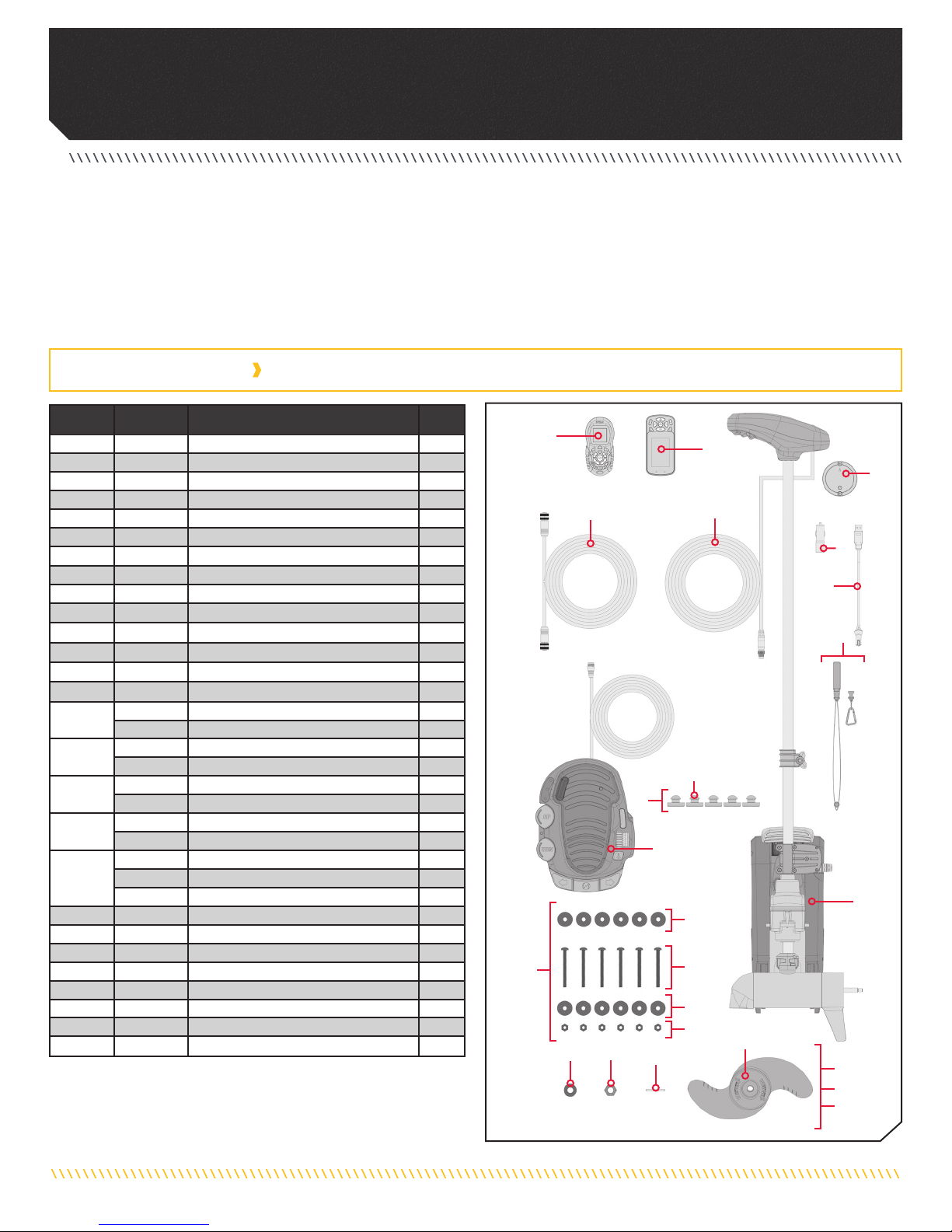

INSTALLATION
Item /
Assembly Part # Description Qty.
AA 2994864 BAG ASSEMBLY - (BOLT, NUT, WASHERS) 1
12263462 BOLT-MOUNTING-1/4X2 W/STG 6
22261713 WASHER-1/4 6
32263103 NUT NYLOK 1/4-20 MTG 6
42301720 WASHER-MOUNTING RUBBER 6
5✖MOTOR ASSEMBLY 1
62390800 tÂLANYARD, REMOTE W/ CARABEENER 1
72994075 tREMOTE ASY, IPILOT 1
p2397106 tMANUAL, QUICK REF., IPILOT 1.6 1
82994076 ÂREMOTE ASSEMBLY LINK TOUCHSCREEN 1
92373241 ÂCABLE, USB REMOTE CHARGER LINK 1
10 2375901 ÂADAPTER, USB DC POWER LINK 1
11 2996400 tÂHEADING SENSOR ASSEMBLY 1
12 490389-1 ÂCABLE, ETH (M12-M-M12-F, 30' 1
13 2211415 ÌCABLE-EXTENSION, PD/AP 110" *PRE-INSTALLED* 1
490507-1 âCABLE, ADP-INT MDI 14 M12-120" *PRE-INSTALLED* 1
14 2092600 PIN-DRIVE 1.06" LG (SS) 1
2262658 PIN-DRIVE 1" X 3/16" S/S 1
15 2151726 WASHER-5/16 STD (S/S) 1
2091701 WASHER-PROP (LARGE) 1
16 2053101 NUT-PROP,NYLOC (MED) 5/16 SS 1
2093101 NUT-PROP,NYLOC,LG, 3/8 SS 1
17
2091160 PROP-WW2 (3-5/8") REAMED 1
2341160 PROP-WW2 (4.5) W/ADP.RING 1
2331160 PROP-WW2 (4") W/ADP.RING 1
BB 1378131 PROP IND 2091160 WDLS WDG II 1
CC 1378160 PROP KIT 2341160 112# WW2 1
DD 1378132 PROP IND 233160 WDLS WDG II 1
EE 2994722 FT PED ASY, TRV, W/SPOT LCK 1
FF 2994859 BAG, ASY-TERROVA/V2, RUB BUMPERS 1
18 2325110 PAD, FOOT PEDAL 5
p2327132 INSTALLATION INSTRUCTIONS TERROVA 1
p2397107 ÂMANUAL, QUICK REF., IPILOT LINK 3.0 1
13
10
11
9
12
2
3
15 16 14 17
EE
5
18
8
7
4
FF
1
6
AA
BB
CC
DD
pNot shown on Parts Diagram.
✖This part is included in an assembly and cannot be ordered individually.
tOnly available with models factory installed with i-Pilot.
ÂOnly available with models factory installed with i-Pilot Link.
ÌOnly available with models factory installed with Universal Sonar.
âOnly available with models factory installed with Built-in MEGA Down Imaging.
INSTALLING THE TERROVA
Your new Terrova comes with everything you’ll need to directly install it to the boat. This motor can be directly mounted to the boat or
coupled with a Minn Kota quick release bracket for ease of mounting and removal. For installation with a quick release bracket, refer to
the installation instructions provided with the bracket. For compatible quick release mounting brackets and to locate your nearest dealer,
visit minnkotamotors.com. To install the motor directly to the boat, please follow the instructions provided in this manual. Please review
the parts list, mounting considerations and tools needed for installation prior to getting started. For additional product support, please
visit minnkotamotors.com.
INSTALLATION PARTS LIST

6 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
• #3 Phillips Screw Driver
• Drill
• 9/32” Drill Bit
• 7/16” Box End Wrench
• A second person to help with the installation
It is recommended that the motor be mounted as close to the centerline of the boat as
possible. Make sure the area under the mounting location is clear to drill holes and install
nuts and washers. Make sure the motor rest is positioned far enough beyond the edge of the
boat. The motor must not encounter any obstructions as it is lowered into the water or raised
into the boat when stowed and deployed. Consider a quick release or adapter bracket with
the installation of your motor. To view a list of accessories, please visit minnkotamotors.com.
INSTALLING THE TERROVA
a. Place the mount on an elevated, level surface such
as a workbench or the tailgate of a pickup. The
motor, as removed from the box, should be in the
stowed position.
b. Remove the four sideplate screws using a #3 Phillips
screwdriver. Two of these screws will be located on
each side of the mount.
NOTICE: This motor weighs approximately
65lbs. We recommend having a second person help
with the installation.
Deployed Stowed
Sideplate Screw
View accessories
available for your
trolling motor at
minnkotamotors.com.
MOUNTING CONSIDERATIONS
TOOLS AND RESOURCES REQUIRED
INSTALLATION
1
1b

minnkotamotors.com | 7
©2018 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
c. Remove the Right Sideplate.
d. Swing the Left Sideplate out and away from the Base
Extrusion.
e. Make sure that the Power Cables from the battery are
disconnected, or that the breaker,
if equipped, is "off".
f. Place the mount as close to the centerline or keel of
the boat as possible. The motor can be installed on
either the Port or Starboard side of the boat based
on personal preference. Check
placement with the
motor in the stowed and deployed positions.
Review
the mounting considerations at the beginning of the
installation.
Deck of
Boat
Keel
Right Sideplate
Power Cables
Left Sideplate
Base Extrusion
2c
2d
2
WARNING
Make sure the motor is mounted on a level surface and is not
connected to a power source.
4
3

8 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
g. When the motor is in the deployed position, make
sure that the Shaft is 1-1/2" out past the Gunwale of
the boat. The lower unit, when stowed and deployed
must not encounter any obstructions.
h. Check to be sure that the mount is level. Use the
Rubber Washers (Item #4) provided to create a level
surface if necessary.
i. It is recommended to mark at least 4 of the 6 holes
in the Base Extrusion and to have a minimum of two
bolts on each side that are located the farthest apart.
Ideal installation would allow for 6 bolts to be used,
with a minimum of 4.
j. Drill through the deck of the boat using a 9/32" Drill
Bit on the marked locations.
ITEM(S) NEEDED
#4 x 6
Drilling Locations
Drilling Locations
1-1/2"
Minimum
Gunwale
Shaft
Base Extrusion
5
6

minnkotamotors.com | 9
©2018 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
k. Put a 1/4-20 x 2" (Item #1) screw in each of the
drilled locations. The screw should pass through
the Base Extrusion and the boat deck. If the rubber
washers (Item #4) are used, they should sit between
the Base Extrusion and boat deck. Make sure to
secure the motor with screws on each side of the
Base Extrusion.
l. Place a Flat Washer (Item #2) and then a Nylock Nut
(Item #3) at the end of each screw as shown and
secure. Make sure all hardware is secure.
ITEM(S) NEEDED
#4 x 6#3 x 6
Screw
Rubber Washer
Boat Deck
Nylock Nut Flat Washer
m. Replace the Right Sideplate.
n. Swing the Left Sideplate back into its correct
position on the Base Extrusion.
Right Sideplate
Left Sideplate
Base Extrusion
NOTICE: To prevent seizing of the stainless steel
hardware, do not use high speed installation tools.
Wetting the screws or applying an anti-seize may help
prevent seizing.
7
8m
88n
#1 x 6
#2 x 6

10 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE TERROVA
NOTICE: The pads are recommended when using
the Foot Pedal on non-carpeted surfaces.
Foot Pedal
Bottom
Foot Pedal
Pad Placement
ITEM(S) NEEDED
#18 x 5 #EE x 1
p. Take the Foot Pedal (Item #EE) and turn it over.
Put a Foot Pedal Pad (Item #18) in each of the pad
locations.
o. Replace the four sideplate screws using a #3 or
#2 Phillips screwdriver. Two of these screws will be
located on each side of the mount.
Sideplate Screw
9
10

minnkotamotors.com | 11
©2018 Johnson Outdoors Marine Electronics, Inc.
IDENTIFYING TROLLING MOTOR FEATURES BY THEIR ASSOCIATED CABLES
IDENTIFYING TROLLING MOTOR FEATURES BY THEIR ASSOCIATED CABLES
Four Pin Connector
Universal Sonar
Cable from
Control Head
i-Pilot Link Ethernet Cable
from Control Head
Locking Collar
Eight Pin Connector
Fourteen Pin Connector
Your trolling motor may be pre-installed with Built-In MEGA Down Imaging OR Universal Sonar, and may include i-Pilot Link. All of these
features require cables to be connected to an output device. These connections are present on the trolling motor and have cables that exit
below the Control Head. To better identify cables present, refer to the diagrams below that detail what the Built-In MEGA Down Imaging,
Universal Sonar and i-Pilot Link cable connectors look like.
Built-In MEGA
Down Imaging from
Control Head
Built-In MEGA Down Imaging Universal Sonar i-Pilot Link
NOTICE: The i-Pilot system does not have an external
wired connection.
Control Head
Coil Cord
i-Pilot
Link
Control Head
Coil Cord
Built-in MEGA
Down Imaging or
Universal Sonar
One Connection Two Connections
Built-in MEGA
Down Imaging or
Universal Sonar
If two connections below the Control Head are present, the motor may be equipped with either:
1. i-Pilot Link and Universal Sonar or
2. i-Pilot Link and Built-in MEGA Down Imaging
If one connection below the Control Head is present, the motor may be equipped with:
1. i-Pilot and Universal Sonar,
2. i-Pilot and Built-in MEGA Down Imaging,
3. ONLY Universal Sonar, or
4. ONLY Built-in MEGA Down Imaging.
Please follow these instructions for routing any and all of the cables present for any of the pre-installed features that may come with your
trolling motor. This routing should be followed whether there are one or two connection cables present. If you are unsure of the cables
present, please review the “Identifying Trolling Motor Features By Their Associated Cables” section of these Installation Instructions.
ROUTING CONNECTION CABLES
Locking Collar

12 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
ROUTING CONNECTION CABLES
a. Place the motor in the deployed position.
b. Locate the Built-in MEGA Down Imaging, i-Pilot Link
and/or Universal Sonar cable(s), at the base of the
Control Head.
c. The cable(s) should be fed all the way through the
Coil Cord. It/they should exit the Coil Cord at the
bottom of the Coil Cord, where it connects to the
Mount.
NOTICE: After the cable(s) exit(s) the Coil Cord, it/they
should be routed through an established routing system on
the boat, in an area with minimal interference. Power cables
or other elements that may produce interference for the sonar
signals. Inspect the selected route carefully to ensure that
there are no sharp edges, obstacles, or obstructions that may
damage the cables.
CAUTION
Not following the recommended wire routing for the Built-in
MEGA Down Imaging, i-Pilot Link and/or Universal Sonar
cable(s), if equipped, may cause damage to the product and
void your product warranty. Route cables away from pinch
points or other areas that may cause them to bend in sharp
angles. Routing the cables in any way other than directed may
cause damage to the cables by being pinched or severed.
1
2
Control Head
Coil
Cord
Mount
i-Pilot
Link
Control
Head
Coil Cord
Mount
Built-in MEGA
Down Imaging or
Universal Sonar
One Connection
Two Connections
Built-in MEGA
Down Imaging or
Universal Sonar
Control Head
Coil Cord
i-Pilot
Link
Control Head
Coil Cord
Built-in MEGA
Down Imaging or
Universal Sonar
One Connection
Two Connections
Built-in MEGA
Down Imaging or
Universal Sonar
NOTICE: Universal Sonar connector shown for
illustration purposes.
Universal Sonar
Connector

minnkotamotors.com | 13
©2018 Johnson Outdoors Marine Electronics, Inc.
FEATURE OVERVIEW AND CONNECTING THE CABLES
NOTICE: You can only view MEGA Down Imaging with a MEGA DI or MEGA SI HELIX G2N or G3N Series model and a required
adapter, or with any SOLIX Series model. The built-in transducer cannot supply MEGA Down Imaging to Humminbird models that do
not already have the capability. f you have a G2/G2N or a G3/G3N HELIX that is not a MEGA SI or MEGA DI model, you will still get
2D CHIRP Digital Sonar from the transducer. Built-In MEGA DI is not supported by HELIX G1 models or other brands of fish finders.
Built-In MEGA Down Imaging delivers nearly 3X the output of standard Side Imaging®, and takes fishfinding into the megahertz frequency
for the very first time. The Minn Kota flagship families of trolling motors, including Ultrex, Ulterra, Terrova, and Fortrex, now include
Built-In MEGA Down Imaging sonar, the clearest imaging available only from Humminbird. With Humminbird MEGA imaging sonar built
right into the trolling motor, you now have a crystal clear view of what’s directly beneath the boat, without having to manage all of the
cables that come with external transducers. The Built-In MEGA DI transducer is only available on new models equipped from the factory
and cannot be added to an existing trolling motor.
The Built-in MEGA DI transducer will provide both MEGA Down Imaging and 2D CHIRP Digital Sonar to select Humminbird models. All
Built-In MEGA DI trolling motors, will come “Solix Ready” out of the box. An adapter cable accessory (MKR-MDI-1 1852085 or MKR-
MDI-2 1852086) is available for purchase that will allow the connection of any compatible Humminbird Helix fish finder. The MKR-MDI-1
is used on Helix 8, 9, 10 and 12 models. The MKR-MDI-2 is used for Humminbird Helix 7 models only. See the Built-In MEGA Down
Imaging Compatibility chart online.
Built-In MEGA Down Imaging
FEATURE OVERVIEW AND CONNECTING THE CABLES
The cable(s) from the Control Head for each feature installed on the trolling motor is connected to an output device separately. Once the
features that may be installed are identified, follow the instructions below to ensure the cables are connected correctly.
a. Place the motor in the deployed position.
b. The Built-In MEGA Down Imaging connector from the
Control Head is a 14 pin connector. Built-In MEGA
Down Imaging may be installed on its own, or in
conjunction with an i-Pilot or i-Pilot Link system. It will
never be installed with Universal Sonar. Locate and
identify the correct connection for Built-in MEGA Down
Imaging cable(s), at the base of the Control Head.
1Control Head
Coil
Cord
Mount
i-Pilot
Link
Built-in MEGA
Down Imaging
NOTICE: Built-in MEGA Down Imaging is
always paired with either i-Pilot or i-Pilot Link
on Terrova, Ulterra and Ultrex motors. It may be
pre-installed on a Fortrex motor without other
features that require external connections.
Fourteen Pin
Connector
Built-in MEGA Down
Imaging cable from
Control Head
NOTICE: Critical cable routing for 60" and 72" motors with
i-Pilot Link and Built-in MEGA Down Imaging. Accessory
Cables must exit the Coil Cord leaving three or more open
coils between where the cables exit and the motor base; as
assembled by the factory. Routing the cables in any other
manner will not allow the motor to stow properly.

14 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
FEATURE OVERVIEW AND CONNECTING THE CABLES
Locking Collar
Fourteen Pin Connector
Built-In MEGA
Down Imaging from
Trolling Motor
Humminbird Helix Fish Finder
c. When installing with a Solix, the Built-In MEGA
Down Imaging cable can be plugged directly into
the Solix fish finder. Plug the Built-in MEGA Down
Imaging cable into the corresponding connection on
the Solix fish finder.
d. When installing with a Helix, first attach the Adapter
Cable and then plug the Adapter Cable into the
Helix fish finder. The Adapter Cable will only have
one connection that is keyed on the back of the
Helix fish finder. Plug the Adapter Cable into the
only matching keyed connection.
2
Solix Fish Finder
Connection
Plug directly into
Solix Fish Finder
Locking Collar
Fourteen Pin Connector
Built-In MEGA Down Imaging
from Trolling Motor
Humminbird Solix Fish Finder
NOTICE: Check for compatibility or any required
adapter cables online at minnkotamotors.com. The
cable from the trolling motor can be extended with a
10’ Extension Cable #720081-1 or the 30’ Extension
Cable #720081-2 found at humminbird.com.
NOTICE: If any cables need to be routed, please
follow the guidelines in the Routing Connection
Cables section of these installation instructions.
Keyed Adapter Cable
for Helix Fish Finder
NOTICE: The connectors are keyed to prevent
reversed installation.
Universal Sonar
Your trolling motor may be pre-installed with a Universal Sonar transducer system. Universal Sonar is a 2D sonar transducer with a
temperature sensor that is integrated into the lower unit of the trolling motor. It has an operating frequency of 83/200 kHz. Connecting
this transducer to a compatible fish finder gives you a 2D sonar view of what is happening directly below your trolling motor. The
integrated design protects the transducer from underwater hazards, and prevents tangles and damage to the transducer cables.
All Universal Sonar motors are equipped with an internal bonding wire, incorrect rigging will cause sonar interference and can damage
your trolling motor, electronics and other boat accessories. To minimize trolling motor interference, ensure that the fish finder and trolling
motor are powered by separate batteries. Please refer to the Battery & Wiring Installation and Motor Wiring Diagram sections of this
manual for correct rigging instructions.
Adapter Cable
(Helix ONLY)
Plug into
Helix Fish
Finder
Adapter
Cable Keyed
Connection

minnkotamotors.com | 15
©2018 Johnson Outdoors Marine Electronics, Inc.
FEATURE OVERVIEW AND CONNECTING THE CABLES
The Universal Sonar Cables are shielded to minimize interference. To protect this shielding the cables should not be pulled tight against
sharp angles or hard objects. If using cable ties, do not over-tighten. Any excess cable should be bundled in a loose loop of no less than
4” in diameter. In certain situations, air bubbles may adhere to the surface of the Universal Sonar transducer, and effect the performance.
If this happens simply wipe the surface of the transducer with your finger.
Four Pin
Connector Universal Sonar
Cable from
Control Head
NOTICE: Your fish finder should be turned
off until this procedure is complete.
NOTICE: If the cable length does not reach the desired
fish finder installation location, a 14.5’ extension cable is
available (MKR-US2-11) (sold separately).
a. Place the motor in the deployed position.
b. Locate the Universal Sonar, if equipped, at the base
of the Mount.
c. Locate the Universal Sonar four pin connector at
the end of Universal Sonar Extension Cable. The
connector is black with a stainless steel threaded
locking collar.
Control Head
Coil Cord
Mount
Universal
Sonar
1
The connector for Universal Sonar exits the trolling motor below the Control Head and consists of a 4 pin plug. An adapter cable (MKR-
US2) that is sold separately is required for all installations. For a current list of compatible fish finders and the correct adapter cable, or
more information on Universal Sonar, please visit minnkotamotors.com.
NOTICE: Universal Sonar does not support imaging screens that require higher frequencies such as 455 kHz or 800 kHz (Down
Imaging, Side Imaging, etc.). Down Imaging (DI) specific units are not compatible with Universal Sonar. See compatibility chart
for a list of compatible fish finders at minnkotamotors.com.

16 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
FEATURE OVERVIEW AND CONNECTING THE CABLES
d. Take the Universal Sonar Extension Cable, if needed,
and attach it to the Universal Sonar Cable exiting
the Control Head. Firmly push the plug together and
twist the locking collar until it is snug.
NOTICE: The connectors are keyed to prevent reversed
installation.
Four Pin Connector
Universal Sonar
Cable from
Control Head
Universal Sonar Cable from
Control Head OR Universal
Sonar Extension Cable
Universal Sonar
Extension Cable
Universal Sonar
Adapter Cable to
fish finder
Locking Collar
Locking Collar
2
NOTICE: If any cables need to be routed, please
follow the guidelines in the Routing Connection
Cables section of these installation instructions.
NOTICE: The Universal Sonar Cable may not be
long enough to reach the fish finder. If the cable
length does not reach the desired fish finder
installation location, a 14.5’ extension cable is
available to purchase. Minn Kota recommends
using the MKR-US2-11.
e. Install the Universal Sonar Cable that exists the
Control Head or the Universal Sonar Extension
Cable (if used) to the appropriate Universal Sonar
Adapter Cable. Install the Adapter Cable to your fish
finder. Refer to your fish finder manual for complete
installation instructions.
2d
2e
i-Pilot Link
i-Pilot Link allows your Minn Kota trolling motor and Humminbird to communicate with each other to change the way you fish. i-Pilot Link
delivers a large array of GPS capabilities including controlling speed, steering, Spot-Lock, and the ability to record and retrace paths on
the water, all at your fingertips. To learn more about the GPS capabilities available with your i-Pilot Link navigation system, please refer to
the Owner’s Manual by visiting minnkotamotors.com.
The i-Pilot Link remote and controller make up the i-Pilot Link
navigation system. The i-Pilot Link remote comes paired to the
controller from the factory. The i-Pilot Link controller contains a
very sensitive compass and is where all GPS satellite and i-Pilot Link remote signals are received. The i-Pilot Link controller is
contained in the trolling motor Control Head and is connected to a fish finder from a connection cable that exits the Control Head.
NOTICE: The i-Pilot Link system needs an external wired
connection. The i-Pilot system does not need an external
wired connection.
The Ethernet cable for the i-Pilot Link system has an 8 pin connector. The i-Pilot Link system can be connected directly to the Humminbird
or to the Humminbird Ethernet Switch (optional). If you purchase an Ethernet Switch, install it using the instructions included in the
Ethernet Installation Guide. The Ethernet Extension Cable is optional for your installation. To purchase Ethernet switches, Ethernet cables,
and extension cables, visit the web site humminbird.com or call Humminbird Customer Service at 1-800-633-1468. Depending on the
shape of the Ethernet port on your Humminbird fish finder, an additional ethernet adapter cable (Ethernet Adaptor Cable AS EC QDE
#720074-1 for Helix fish finders) may be required for the installation. Refer to your fish finder operations manual or see the i-Pilot Link
Compatibility Chart on our web site with a list of all compatible Humminbird Units and SC Cards.

minnkotamotors.com | 17
©2018 Johnson Outdoors Marine Electronics, Inc.
FEATURE OVERVIEW AND CONNECTING THE CABLES
a. Place the motor in the deployed position.
b. The i-Pilot Link connector from the Control Head is
an 8 pin connector. Locate and identify the correct
connection for i-Pilot Link, at the base of the Control
Head.
c. If necessary, to reach the installed fish finder, take the
i-Pilot Link Ethernet Cable (Item #12) and attach it to
the i-Pilot Link cable exiting the Control Head.
d. Install the i-Pilot Link Ethernet Cable directly into
the Humminbird fish finder, or refer to your fish
finder installation manual for complete installation
instructions. If an Adapter Cable is needed (Ethernet
Adaptor Cable AS EC QDE for Helix fish finders),
install it on the end of the i-Pilot Link Ethernet Cable
and refer to your fish finder installation manual for
complete installation instructions.
1
2
Control Head
Coil
Cord
Mount
i-Pilot
Link
Built-in MEGA
Down Imaging or
Universal Sonar
NOTICE: i-Pilot Link will be paired with either
Built-in MEGA Down Imaging or Universal Sonar
on Ultrex, Ulterra or Terrova. i-Pilot Link is not a
feature offered on Fortrex motors.
i-Pilot Link Ethernet
Cable from Control Head
i-Pilot Link Ethernet
Extension Cable OR
Ethernet Extension Cable
Locking Collar
Eight Pin
Connector
#12 x 1
ITEM(S) NEEDED
NOTICE: If any cables need to be routed, please
follow the guidelines in the Routing Connection
Cables section of these installation instructions.
NOTICE: The connectors are keyed to prevent reversed
installation.
NOTICE: Paired with a Universal Sonar connector
for illustration purposes. A Built-in MEGA Down
Imaging connector may be present instead.
NOTICE: Critical cable routing for 60" and 72" motors with i-Pilot Link and Built-in MEGA Down Imaging. Accessory Cables
must exit the Coil Cord leaving three or more open coils between where the cables exit and the motor base; as assembled by the
factory. Routing the cables in any other manner will not allow the motor to stow properly.

18 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
INSTALLING THE PROP
INSTALLING THE PROP
#14 x 1#16 x 1
#15 x 1
#17 x 1
a. Take the Drive Pin (Item #14) and slide it through
the Hole in the Armature Shaft. Position the Drive
Pin horizontal by grasping the Armature Shaft and
rotating it with the Drive Pin in place.
b. Align the Propeller (Item #17) so it is also horizontal
and parallel with the Drive Pin. Slide the Propeller
onto the Armature Shaft and Drive Pin until it is
seated against the lower unit.
c. Install the Prop Washer (Item #15) and the Prop Nut
(Item #16) onto the end of the Armature Shaft.
d. Holding the end of the Armature Shaft with a Flat
Blade Screwdriver, tighten the Prop Nut with a 9/16"
Open End Wrench.
e. Tighten the Prop Nut 1/4 turn past snug to 25-35
in-lbs.
Propeller
Propeller
Prop Nut
Prop Washer
Drive Pin
Propeller
Prop Nut
Prop Washer
Drive Pin Armature Shaft
1ITEM(S) NEEDED
CAUTION
Disconnect the motor from the battery before beginning any
prop work.
CAUTION
Do not over tighten as this can damage the prop.
1a
1b
1d

minnkotamotors.com | 19
©2018 Johnson Outdoors Marine Electronics, Inc.
BATTERY & WIRING INSTALLATION
BOAT RIGGING & PRODUCT INSTALLATION
For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging
your boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for general
guidelines only:
CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE
This conductor and circuit breaker sizing table is only valid for the following assumptions:
1. No more than 2 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105° C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.
NOTICE: Wire Extension Length refers to the distance from the batteries to the trolling motor leads. Consult website for
available thrust options. Maximum Amp Draw values only occur intermittently during select conditions and should not be used
as continuous amp load ratings.
Reference
United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment ABYC E-11: AC and DC Electrical Systems on Boats
Motor Thrust / Model Max
Amp Draw Circuit Breaker Wire Extension Length
5 feet 10 feet 15 feet 20 feet 25 feet
30 lb. 30 50 Amp @ 12 VDC 10 AWG 10 AWG 8 AWG 6 AWG 4 AWG
40 lb., 45 lb. 42 10 AWG 8 AWG 6 AWG 4 AWG 4 AWG
50 lb., 55 lb. 50 60 Amp @ 12 VDC 8 AWG 6 AWG 4 AWG 4 AWG 2 AWG
70 lb. 42 50 Amp @ 24 VDC 10 AWG 10 AWG 8 AWG 8 AWG 6 AWG
80 lb. 56 60 Amp @ 24 VDC 8 AWG 8 AWG 8 AWG 6 AWG 6 AWG
101 lb. 46 50 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
Engine Mount 101 50 60 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
112 lb. 52 60 Amp @ 36 VDC 8 AWG 8 AWG 8 AWG 8 AWG 8 AWG
Engine Mount 160 116 (2) x 60 Amp @ 24 VDC 6 AWG 6 AWG 4 AWG 2 AWG 2 AWG
E-Drive 40 50 Amp @ 48 VDC 10 AWG 10 AWG 10 AWG 10 AWG 10 AWG
CAUTION
These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices
from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than
that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more
than 25 feet, we recommend that you contact a qualified marine technician.
CAUTION
An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded
current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating)
of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for
circuit breaker sizing.

20 | minnkotamotors.com ©2018 Johnson Outdoors Marine Electronics, Inc.
SELECTING THE CORRECT BATTERIES
Using Alternator Chargers
Additional Accessories Connected to Trolling Motor Batteries
Your Minn Kota trolling motor may be designed with an internal bonding wire to reduce sonar interference. Most alternator charging
systems do not account for this bonding wire, and connect the negative posts of the trolling motor batteries to the negative posts of
the crank/starting battery. These external connections can damage connected electronics and the electrical system of your trolling
motor, voiding your warranty. Review your charger’s manual carefully or consult the manufacturer prior to use to ensure your charger is
compatible.
Minn Kota recommends using Minn Kota brand chargers to recharge the batteries connected to your Minn Kota trolling motor, as they
have been engineered to work with motors that include a bonding wire.
Significant damage to your Minn Kota motor, your boat electronics, and your boat can occur if incorrect connections are made between
your trolling motor batteries and other battery systems. Minn Kota recommends using an exclusive battery system for your trolling motor.
Where possible, accessories should be connected to a separate battery system. Radios and sonar units should not be connected to any
trolling motor battery systems as interference from the trolling motor is unavoidable. If connecting any additional accessories to any
trolling motor battery system, or making connections between the trolling motor batteries and other battery systems on the boat, be sure
to carefully observe the information below.
ADDITIONAL CONSIDERATIONS
SELECTING THE CORRECT BATTERIES
The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine battery
with at least a 105 amp-hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and
will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature
battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers to fit your charging needs. If you
are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/batteries for your
Minn Kota trolling motor. For more information on battery selection and rigging, please visit minnkotamotors.com.
WARNING
Never connect the (+) and the (–) terminals of the same battery together. Take care that no metal object can fall onto the battery and
short the terminals. This would immediately lead to a short and extreme fire danger.
CAUTION
Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for
your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.
CAUTION
Please read the following information before connecting your motor to your batteries in order to avoid damaging your motor and/or
voiding your warranty.
The negative (-) connection must be connected to the negative terminal of the same battery that the trolling motor negative lead connects
to. In the diagrams below this battery is labeled “Low Side” Battery. Connecting to any other trolling motor battery will input positive
voltage into the “ground” of that accessory, which can cause excess corrosion. Any damage caused by incorrect connections between
battery systems will not be covered under warranty.
