Parts & Instruction Manual
28” Mirage Propane Burnisher - M220028K13H

Parts And Instruction Manual
28” Mirage Propane Burnisher
Table of Contents
Safety Instructions ............................................................................................................................. 1
Transport & Preparation..................................................................................................................... 1
Preparation.......................................................................................................................................... 2
Starting the Engine............................................................................................................................. 2
Operation............................................................................................................................................. 3
Stopping the Engine........................................................................................................................... 3
Procedures.......................................................................................................................................... 3
Maintenance........................................................................................................................................ 3
Machine & Engine Maintenance ........................................................................................................... 3
Engine Maintenance Meter................................................................................................................... 3
Troubleshooting the electrical system................................................................................................... 3
Belt Inspection & Replacement............................................................................................................. 4
Adjusting Pad Pressure ........................................................................................................................ 4
Honda Engines ................................................................................................................................... 5

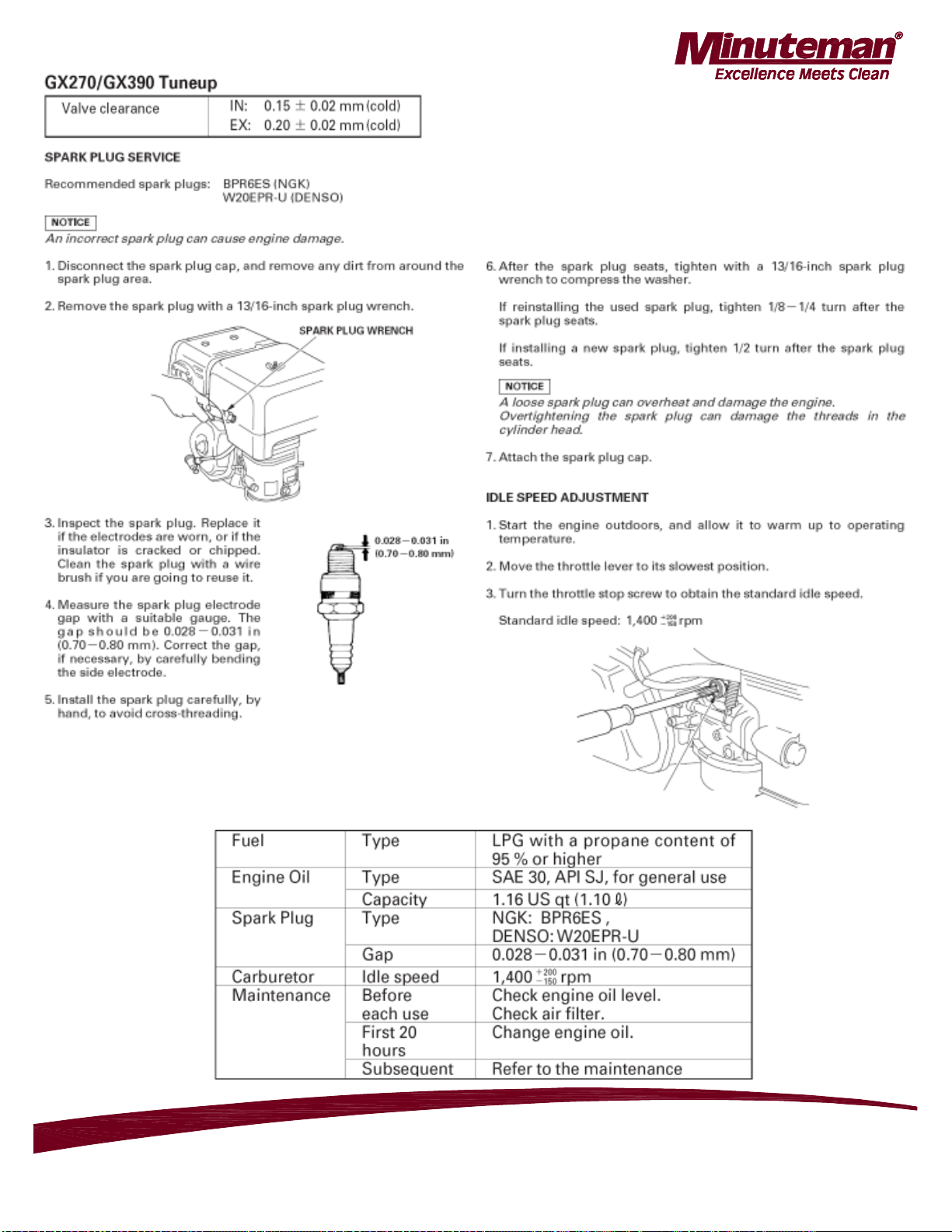

Tune-up Specifications ......................................................................................................................... 5
Quick Reference Information................................................................................................................ 5
Engine Oil Change ............................................................................................................................... 6

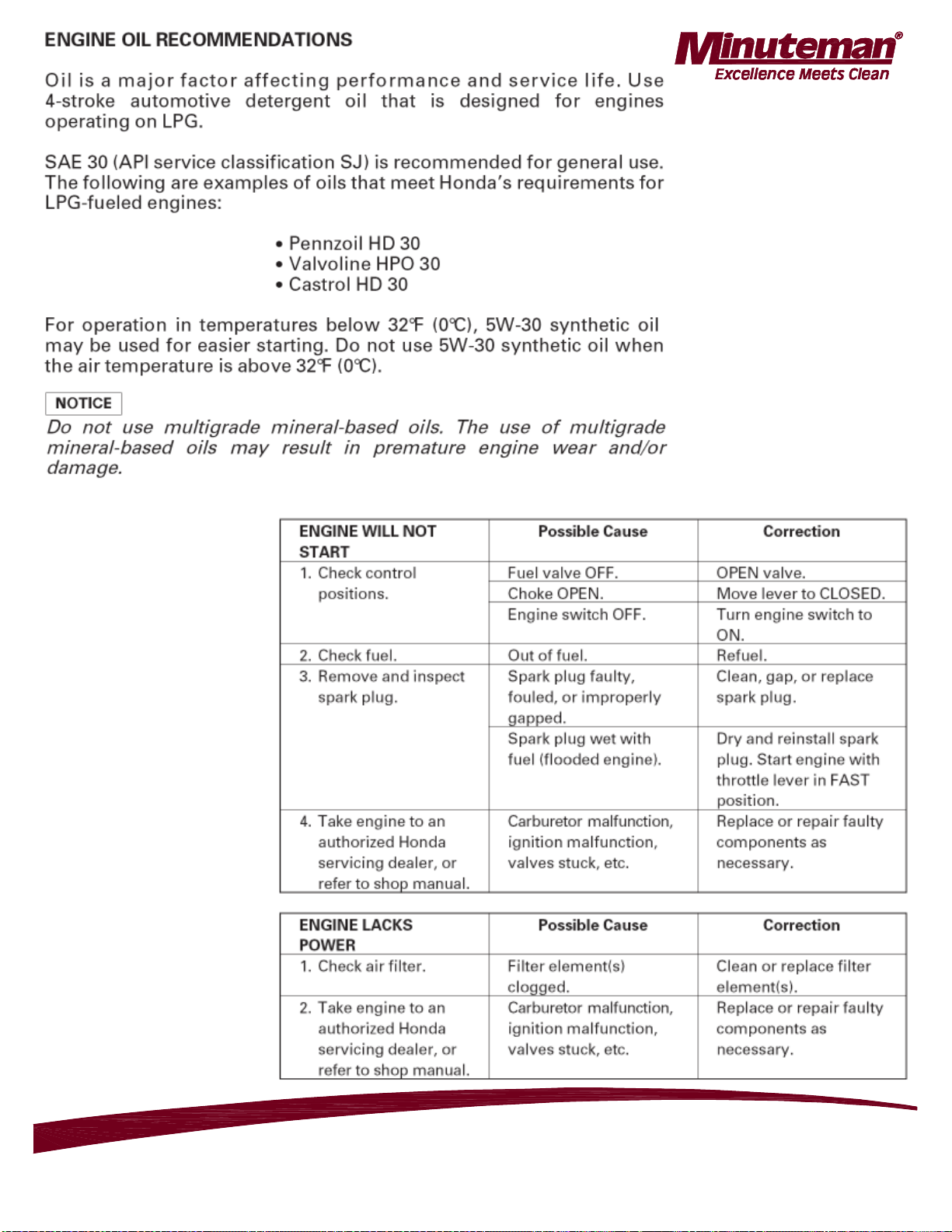

Engine Oil Recommendations .............................................................................................................. 7
Engine Troubleshooting........................................................................................................................ 7
Maintenance Schedule ......................................................................................................................... 8
Replacement Parts ............................................................................................................................. 9
BODYASSEMBLY................................................................................................................................ 9
BODYASSEMBLY BOM .................................................................................................................... 10

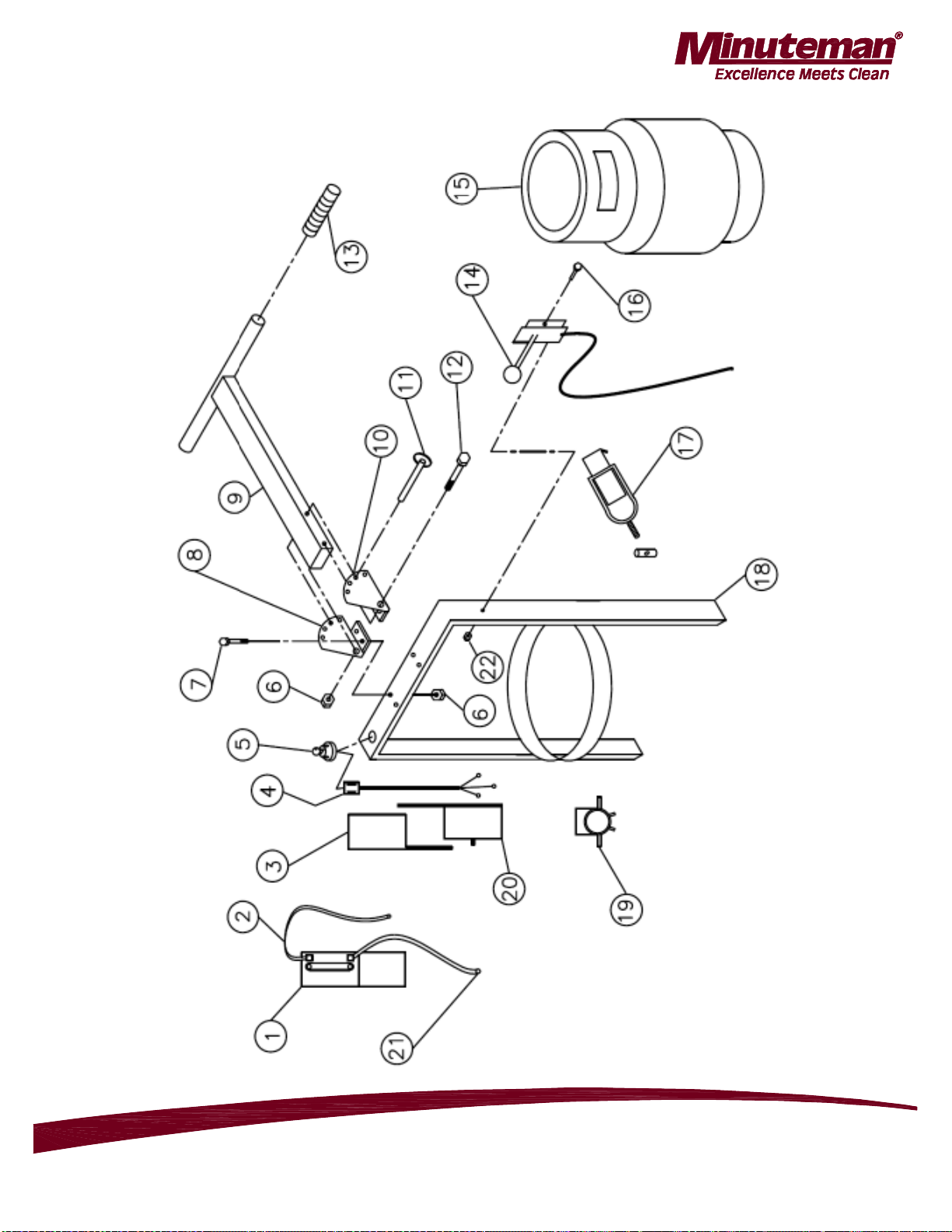

HANDLE ASSEMBLY ......................................................................................................................... 11
HANDLE ASSEMBLY BOM ................................................................................................................ 12
FUEL SYSTEM ASSEMBLY............................................................................................................... 13

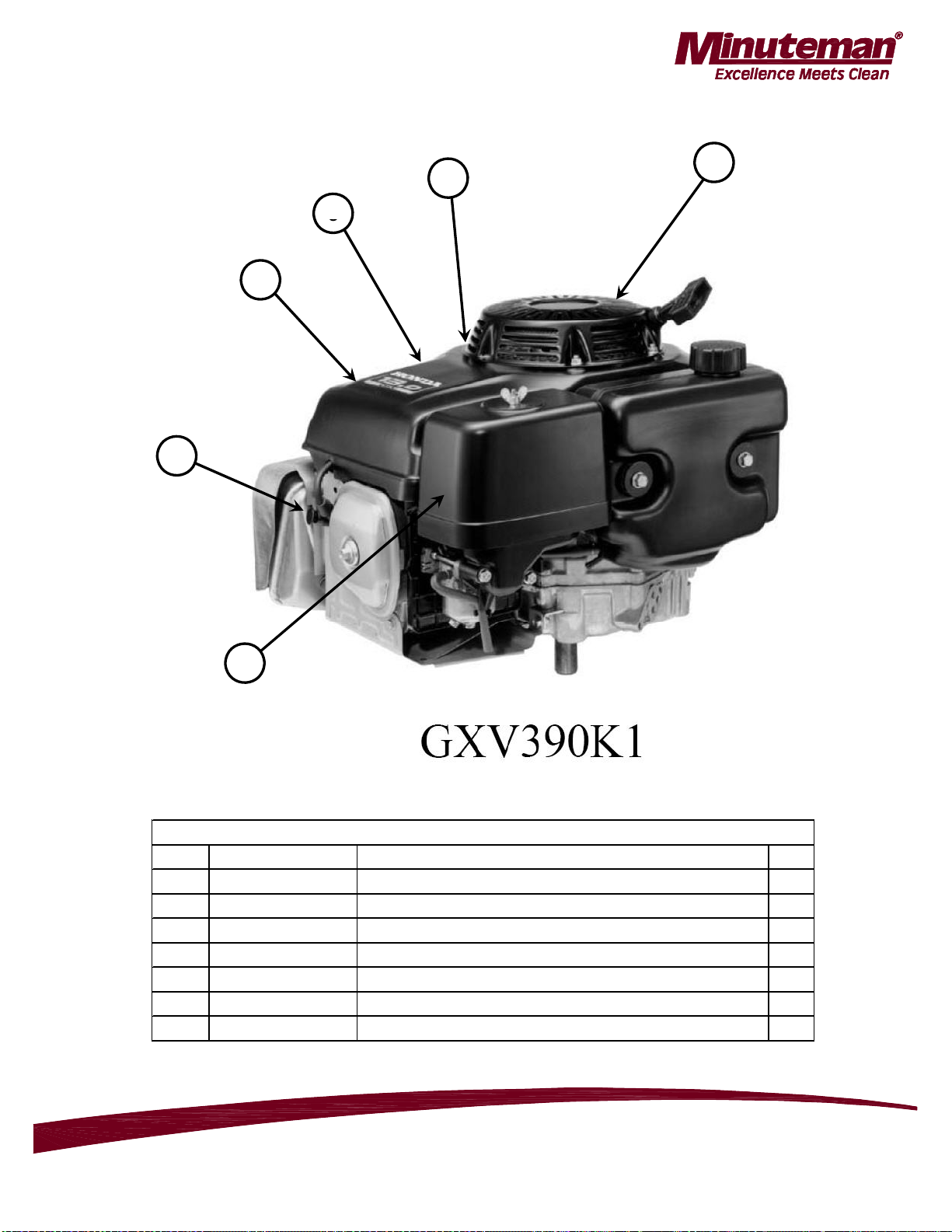

HONDA 13HP ENGINE ASSEMBLY .................................................................................................. 14
ENGINE BATTERY START WIRING DIAGRAM ................................................................................ 15
Warranty ............................................................................................................................................ 16

Page 1
Parts And Instruction Manual
28” Mirage Propane Burnisher
IMPORTANT SAFETY INSTRUCTIONS
READ and UNDERSTAND all instructions and
warnings before operating this machine!
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this machine. Always store equipment
away from heater rooms, boilers, gas-fired
water heaters or any other source of open
flame. Propane is highly flammable.
Always store LPG tanks (full or empty)
outside in a secure, well ventilated area.
NO SMOKING, NO SPARKS, NO FLAMES
NEAR UNIT OR LPG TANK.
Operate only in well ventilated areas. Buildings
must be provided with:
A. A continuous mechanical ventilation that
removes the products of combustion to the
outdoors of not less than 300 CFM for each
10,000 BTUH or fraction thereof; or
B. Natural ventilation of not less than 300 CFM for
each 10,000 BTUH input or fraction thereof,
based on a maximum of one-quarter air
exchange per hour for the net building volume.
If you smell LPG gas, stop the unit and check
for leaks. Also open windows, don’t touch
electrical switches, extinguish any open flames.
Call your gas supplier if no leaks are found.
Do not adjust the fuel system without the proper
analysis equipment.
Never tilt the equipment on its side for pad, belt
or brush replacement. It is designed to tilt back
on its rear wheel and handle for maintenance
and repair. A second person should aid in
lifting and securing equipment for repair.
Never tilt & transport while engine is running.
Keep hands and feet clear of all moving parts.
Never try to replace parts or repair equipment
with machine running.
Turn the gas off at the tank to kill the engine.
Remove the LPG tank and store it in an
approved area when not in use. A “NO
SMOKING” sign should be permanently
displayed at the storage area.
Always vent an over-full bottle using the tank’s
bleed valve, out of doors away from all closed
places and away from any fire or flame
producing device. Vent until the white vapor
turns clear.
Keep all objects clear of the exhaust system
during and after operation.
Do not leave this machine unattended while
the engine is running.
Do not operate equipment in one location for
more than a few seconds. Damage to floor
surface can occur.
Always store equipment away from possible
damage by falling objects in warehouse-type
areas. Always store LPG tanks outside in a
secure, well-ventilated area.
When the LPG tank is attached to the machine
and not running, the operator should not
leave the machine unattended except for
short periods of time such as rest stops,
washroom or meal stops.
The operator must completely understand all
instructions, warnings and operating
procedures before using this machine.
This machine must be maintained in
accordance with this manual’s recommended
maintenance instructions and the engine
manufacturer’s recommended maintenance
procedures. Failure to do so may cause
damage to the machine, equipment,
furniture, buildings or personal injury!
A maintenance record should be kept
indicating date of service, hours on engine,
and work done.
TRANSPORT & PREPARATION
Follow the instructions given in this booklet,
the Engine’s Owners Manual and the
training given by your supervisor for the safe
operation of this machine. Failure to do so
can result in personal injury and/or damage
to the machine or property.
DO NOT OPERATE THIS MACHINE IN AN
EXPLOSIVE ENVIRONMENT!
THIS PROPANE MACHINE IS INTENDED
FOR COMMERCIAL USE.
WARNING
!
WARNING
!
WARNING
!

Page 2
Parts And Instruction Manual
28” Mirage Propane Burnisher

Page 3
Parts And Instruction Manual
28” Mirage Propane Burnisher
•Propane tanks should be removed &
stored in a protected off site area.
III. OPERATION
Provide and use ear protection during
operation.
Never let an untrained person operate or
perform repairs on the machine. They may hurt
themselves, damage the floor or the
equipment.
Engine speed not to exceed 3400 RPM.
This machine is not suitable for picking up
hazardous dust.
Do not use on surfaces with a gradient
exceeding 2%.
IV. STOPPING THE ENGINE
Turn the propane tank valve clockwise to a closed
position and turn the key OFF.
NOTE: The exhaust system will be very hot and
takes several minutes to cool, so keep yourself
and all materials clear.
V. PROCEDURES
Follow machine (straight ahead) at moderate
walking speed. Keep moving.
•Do not operate the machine in one location
for more than a few seconds — it will
damage — “burn” the finish.
•When operation is completed remove tank
and store in a secure, protected off site
(preferably outdoor) location.
•Do not use for scrubbing operations.
•Never tilt back machine to maintenance
position while engine is running.
•Never reach under protective shroud when
engine is running.
VI. MAINTENANCE
A. Machine & engine maintenance
1. Refer to engine manufacturer’s owners
manual and comply completely with the
instructions. Change the oil and filter
according to the Engine Owners Manual.
2. Keep a good service log on each machine
with the date, hour meter reading, type(s) of
service performed and the name of the person
who performed them.
3. Clean the entire unit after each use. When
cleaning the unit, check for possible loose nuts
and bolts.
B. Engine maintenance meter
This multi-function meter acts as a preventive
maintenance tool, which benefits you with
increased fuel economy, less down-time and
longer engine life.
The meter’s displays are:
Hour Meter: Displays total run hours when
machine is off.
Tachometer: Indicates engine RPM during
operation.
Service Alert: The display flashes to alert you to
lube and change the oil at 25 hour intervals. The
service alert only flashes during operation and it
warns you to change the oil for only two hours.
After the two hours is reached, the alert will
automatically reset to the next 25 hour interval.
Therefore, it is recommended that a separate
maintenance log be kept to track oil changes.
Remember that being safe is a full-time, every
day job. Follow all information posted on the
machine and the LPG tank.
Never allow anyone to operate this machine
who has not read or cannot understand the
given instructions.
C. Troubleshooting the electrical system
1. Check all wire connections for obvious
problems. Remove LPG tank, then remove
battery box cover. Check all connections
visibly and physically. If any “loose”, damaged
or unconnected wires are noticed, replace or
repair as needed.
2. Check the battery posts and wires. Always
wear a face shield, safety glasses and
protective clothing when working around a
battery! The gases can be explosive and the
acid is highly corrosive to metals, cloth and
ALL HUMAN TISSUE (skin, eyes, etc.) If the
battery post(s) are corroded, remove the wires
and clean posts and wires. Applying some axle
grease on the posts of the battery after they are
cleaned will slow down the battery corrosion
process.
If nothing obvious is noted, a more detailed
investigation is warranted. Before any such
troubleshooting begins, the following things
should be done:
a. Replace propane LPG tank with one from
a machine that runs.

Page 4
Parts And Instruction Manual
28” Mirage Propane Burnisher
b. Charge the battery or provide an absolute
source of 12 volt DC power capable of 50
amperes total output. (A pair of good
jumper cables from your car or truck
battery will suffice.) Equip yourself with an
inexpensive 12 volt test light.
c. If the trouble seems to be in the electrical
control equipment, you may wish to
disconnect the starter from the system so
as to check the system without spinning
the engine.
d. Battery rundown. A common problem
is letting the battery run down. What
usually happens is that it takes the crew a
few jobs to get used to the whole system,
so the machine is stopped and started
quite often. Key left in on position, when
engine is turned off, will result in battery
running down – dying.
D. Belt Inspection & Replacement
Inspection
•Fold T-Handle to forward position
•Tilt machine back on rear of body & handle
•If belt is worn, cracked or shredding, belt
needs to be replaced.
Replacement
•Place 3/4" wrench on end of the shaft on the
top of the buffer body.
•Turn pad driver counter-clockwise to
remove.
•Take belt off by turning 3/4" wrench on shaft
and removing belt from pad driver pulley
and engine crank pulley.
•Check pad driver pulley & engine crank
pulley for correct alignment.
•Install new belt on engine crank pulley &
pad driver pulley, using 3/4" wrench.
•Install belt on tension pulley
•Install pad drive onto shaft, and return
buffer to operating position.
E. Adjusting Pad Pressure
The pad pressure may be adjusted by moving
the wheels:
• Forward to reduce weight on the buffer pad
or
• Backward to increase the weight
This adjustment may be required to adjust to
different floor finishes or to the weight variance
of aluminum or steel propane tanks.

Page 5
Parts And Instruction Manual
28” Mirage Propane Burnisher
Honda Engines
Quick Reference Information

Page 6
Parts And Instruction Manual
28” Mirage Propane Burnisher

Page 7
Parts And Instruction Manual
28” Mirage Propane Burnisher
Engine Troubleshooting

Page 8
Parts And Instruction Manual
28” Mirage Propane Burnisher

Page 9
Parts And Instruction Manual
28” Mirage Propane Burnisher
BODY ASSEMBLY
Replacement Parts

Page 10
Parts And Instruction Manual
28” Mirage Propane Burnisher
BODY ASSEMBLY BOM
ITEM PART NUMER DESCRIPTION QTY
1 271120 POLYWHEEL 2
2 271121 1 3/4"SHOULDER BOLT 2
3 271054 BOLT 3/8-16 X 2 2
4 271060 5"WHEEL 2
5 271122 TENSION SPRING 1
6 271123 BELT TENSION IDLER 1
7 271124 NYLON BUSHINGS 2
8 271125 5/16 FLAT WASHER 2
9 271126 3/8-16 HEX NUT 2
10 271118 BELT TENSION PULLEY 2
11 271092 28"MIGHTY 1
12 271127 WASHER PLATE 1
13 271128 3/8-16 X 3/4"BOLT 4
14 REF ONLY 28"BEIGE PAD 1
15 271129 DRAWN CUP 1
16 271116 PAD DRIVER 1
17 271117 BELT 2
18 271130 DRIVESHAFT 1
19 271119 BODY FRAME 1
20 271100 3/8-16 STOVER LOK NUT 1
PARTS LIST FOR 28" BUFFER BODYASSEMBLY

Page 11
Parts And Instruction Manual
28” Mirage Propane Burnisher
HANDLE ASSEMBLY

Page 12
Parts And Instruction Manual
28” Mirage Propane Burnisher
HANDLE ASSEMBLY BOM
ITEM PARTNUMBER DESCRIPTION QTY
1 REF ONLY 12V BATTERY (NOT ALL MODELS) 1
2 271030 (-) BATTERY CABLE 26" 1
3 REF ONLY BATTERY BOX TOP COVER (NOT ALL MODELS) 1
4 REF ONLY WIREHARNESS (NOT ALL MODELS) 1
5 REF ONLY KEYSWITCH (NOT ALL MODELS) 1
6 271100 3/8-16 STOVER LOK NUT 5
7 271073 3/8-16 X 1"HEX BOLT 4
8 271072 RIGHT HANDLE BRACKET 1
9 271070 T-HANDLE 1
10 271071 LEFT HANDLE BRACKET 1
11 271080 LOCK PIN 1
12 271074 3/8-16 X 3"HEX BOLT 1
13 271101 HANDLE GRIP 2
14 271011 THROTTLE CABLE 1
15 271076 20# LP CYLINDER 1
16 271012 1/4-20 X 1 1/2"HEX BOLT 1
17 271115 TOGGLE & NUT 1
18 271113 HANDLE FRAME 1
19 REF ONLY STARTER SOLENOID (NOT ALL MODELS) 1
20 REF ONLY BATTERY BOX BOTTOM COVER (NOT ALL MODELS) 1
21 REF ONLY (+) BATTERY CABLE 16.5"(NOT ALL MODELS) 1
PARTS LIST FOR BUFFER HANDLE ASSEMBLY

Page 13
Parts And Instruction Manual
28” Mirage Propane Burnisher
FUEL SYSTEM ASSEMBLY
ITEM PARTNUMBER DESCRIPTION QTY
1 271043 QUICKCOUPLER 1
2 271042 LPG HOSE 14" 1
8 271044 FUEL HOSE FITTING 1
9 REF ONLY FUEL LOK-OUT(12VOLT) (NOT ALL MODELS) 1
10 271131 FUEL REGULATOR( T60-E) 1
PARTS LIST FOR BUFFER FUEL SYSTEM

Page 14
Parts And Instruction Manual
28” Mirage Propane Burnisher
6
1
2
3
6
5
4
HONDA 13HP ENGINE ASSEMBLY
ITEM PARTNUMBER DESCRIPTION QTY
1 271106 OIL FILTER (NOT SHOWN) 1
2 271109 FOAM BAND (PULL START) 1
2A 271110 FOAM HAT (NON-PULL START) (NOTSHOWN) 1
3 271108 IGNITION COIL (NOT SHOWN - UNDER COVER) 1
4 271107 AIR/PRE-FILTER 1
5 271105 SPARK PLUG 1
6 271111 110 VOLT STARTER (NOT SHOWN) 1
HONDA 13HPENGINE

Page 15
Parts And Instruction Manual
28” Mirage Propane Burnisher
ENGINE BATTERY START WIRING DIAGRAM

Minuteman International Made Simple Commercial Limited Warranty
REVISION E
EFFECTIVE 1/1/2009
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in
workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts
that fail under normal use and service when operated and maintained in accordance with the applicable operation
and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repai
r
stations.
This warranty does not apply to normal wear, or to items whose life is dependenton their use and care, such asbelts,
cords, switches, hoses, rubber parts, electrical motor components or adjustments. Parts manufactured by Minuteman
are covered by and subject to the warranties and/or guarantees of their manufacturers. Please contactMinuteman fo
r
procedures in warranty claims against these manufacturers.
Special warning to purchaser -- Use of replacement filters and/or prefilters not manufactured by Minuteman or its
designated licensees, will void all warranties expressed or implied. A potential health hazard exists without original
equipment replacement.
A
ll warranted items become the sole property of Minuteman or its original manufacturer, whichever the case may be.
Minuteman disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a
particular purpose. Minuteman assumes no responsibility for any special, incidentalor consequential damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchase
r
of this product. Customers outside the U.S.A. and Canada should contact their local distributor for export warranty
policies. Minuteman is not responsible for costs or repairs performed by persons other than those specifically
authorized by Minuteman. This warranty does not apply to damage from transportation, alterations by unauthorized
persons, misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of
income due to malfunctions ofthe product.
If a difficulty develops with this machine, youshould contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some
states do not allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how
long an impliedwarranty lasts,so the above exclusions and limitations maynot apply to you.
Cord Electric Group………. Three years parts, two years labor, ninety days travel (Not to exceed two hours)
Exceptions………. Port-A-Scrub, one year parts, six months labor
MPV 13, oneyear parts
V Series Upright Vacuums, One year parts, one year labor
MPV 14 and 18, two years parts,one year labor
RapidAir blower, one year parts, one year labor
Explosion-Proof Vacuum, one year parts, one year labor
X12 and X12H, one year parts, one year labor
TRS 14, one year parts, one year labor
E17/E20 electric scrubbers, one year parts, six months labor
Battery Operated Group…..Three years parts, two years labor, ninety days travel
(Not to exceed two hours)
Exceptions……Sweepers, one year parts, one year labor, ninety days travel
(Not to exceed two hours)
Internal Combustion Group….One year parts, one year labor, ninety day travel
(Not to exceed two hours)
Exceptions………..Mirage propane burnisher, one year parts, one year labor
Battery Chargers………………. ..One year replacement
Replacement Parts……………..Ninety days
Batteries………………………….0-3 months replacement, 4-12 months pro-rate
Polypropylene Plastic Tanks…Ten years,no additional labor
14N845 U.S. Route 20 Pingree grove, IL 60140
Phone: [phone]
E-Mail: www.minutemanintl.com
999379
Rev * 03/10
