Minuteman m12110 User manual

M12110
M12230
Port A Scrub
Floor Scrubbing Machine
Rev-D

Contents
Instruction Manual
Spare Parts Manual
Product information................................................................................................
Important safety instructions...................................................................................
Technical specification............................................................................................
Know your machine................................................................................................
Working principle....................................................................................................
Preparing for use...................................................................................................
Assembly...............................................................................................................
Brush selection guide............................................................................................
Controls..................................................................................................................
Operating the machine...........................................................................................
Electrical diagram..................................................................................................
Accessories...........................................................................................................
Upkeep of your PORTA SCRUB...........................................................................

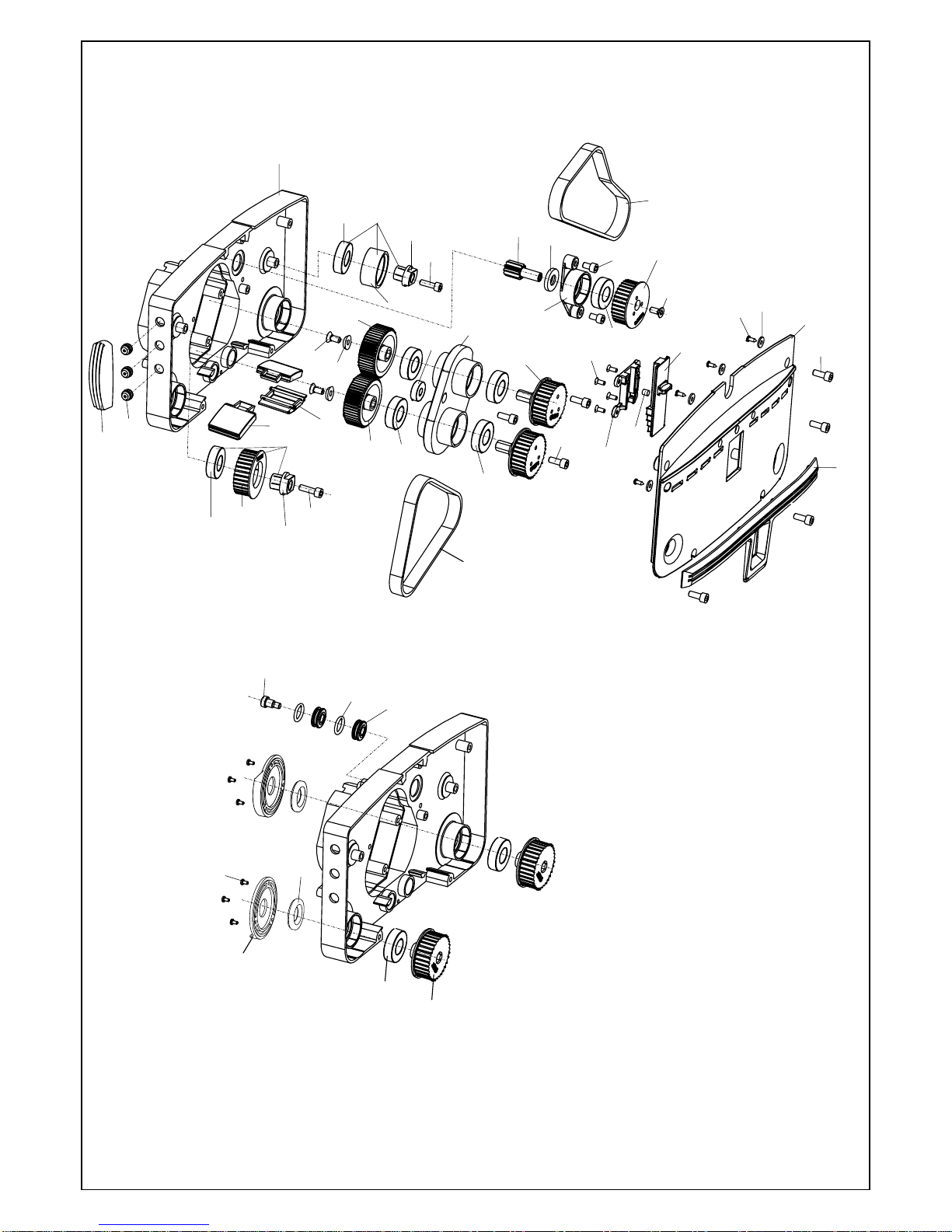

Housing - Drive Side...............................................................................................

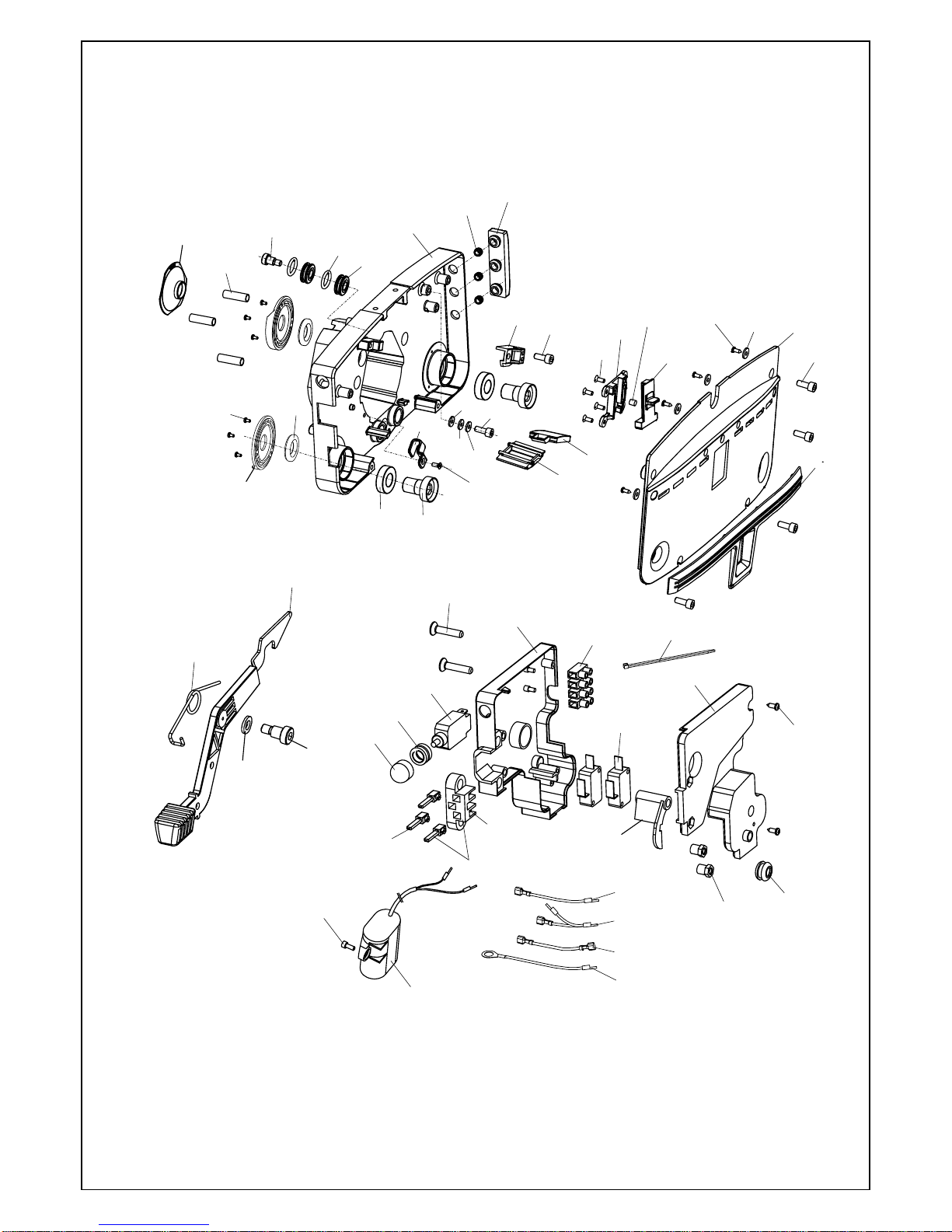

Housing-Idle Side..................................................................................................
Pump housing........................................................................................................
Lever and guide link mechanism............................................................................
Handle group..........................................................................................................
Motor,drum and bridge assembly...........................................................................
Accessories...........................................................................................................
3
3
4
5
5
5
6
6
7
7,8
8
9
9
11
13,15
17
19
21
23
25

The Minuteman Machine is an ideal machine to clean floors in small and
medium areas like offices, hospitals, restaurants, shopping complexes and many commercial applications. It
sprays plain water / detergent solution, scrubs and picks up the dirty water - all in a single pass. The Port A
Scrub has different optional brushes to suit a variety of applications.This machine can be used only on smooth
evenfloorslikeMosaic,alltypeofstonefloors,PVC,Short-pilecarpet,Woodand ProfiledRubber.It shouldnot
beusedonroughunevensurfaces..
PORT A SCRUB
Product Information
Important Safety Instructions
Instruction Manual
Please read the following instructions completely before operating the machine. Any violation of the
samewillnotonlyinvalidatethewarranty,butalsomayresultinasafetyhazard.
Themachinemustbeunpacked andassembledinaccordancewiththeseinstructionsbeforeconnectingto
the electricalsupply.
This machine should always be connected to a fully grounded power supply of the right voltage and
frequency.
Keep the power supply cord away from moving parts. During operation, hazard may occur when running
machineoverthesupplycord.
The machine must be disconnected from the mains supply (by pulling the plug out) before changing the
brushes,cleaningthemachineand,formaintenance.
Warning! Use only the brushes/accessories strictly as per the instruction manual. Usage of any other
brushes/accessoriescancausesafetyproblems.
Periodicallyinspectthecordforpossibledamage.Thedamagedcordmustbereplacedwiththespecialcord
availablefromthemanufactureroranauthorizedserviceagent.
DO NOT leave the machine connected to the power supply when not in use; always remove the plug from
themainssocket.
DONOTusewherehazardousdustispresent.
DONOTusemachinenearflammableliquids.
DONOTuseinanexplosiveatmosphere.
DONOTuseingradientsurface.
DONOTkeepthemachinewithhandlelowered,whenthemachineisinworkingmode.
Operators must be fully trained in accordance with these instructions, able to perform routine upkeep of the
machineandcorrectselectionofbrushes.
Operatorsshouldbe physicallycapabletomaneuvertransportandoperatethemachine.
DONOTrunthemachinedry,asthis coulddamagethefloorsurfaceorthemachineitself.
Takeadequatecaretoholdthemachinefirmlywhileinstallingandremovingthebrush.
Neveruseexcessivefoamingorhighlycorrosivecleaningsolutions.
Whileoperatingonafloodedfloor,alwaysensurethatthewaterleveldoesnotexceed1/4”.
DONOToperatethismachineonroughunevensurfacelikeindustrialconcretefloor.
Donotcleanthemachineusingwater jet.
Ensureallpartsarefittedproperlybeforeoperation.
·
·
·
·
·
·
·····Guidelinesfortheoperator
·
········
3

Technical Specification
Model
Mains supply
Power
Brush Speed
Cleaning Capacity
Cleaning width
Fresh water tank capacity
Height with handle
Height without handle
Width
Length
Weight
Overall dimensions
Description
--
--
W
rpm
ft /hr
inch
gallon
2
inch
inch
inch
inch
lbs
Units M12110
100-110 VAC 10% 60Hz, Single Phase
750+26
780
3,800
12.5
1
±
43.75
8.25
17.32
14.88
54
Specification
Model
Mains supply
Power
Brush Speed
Cleaning Capacity
Cleaning width
Fresh water tank capacity
Height with handle
Height without handle
Width
Length
Weight
Overall dimensions
Description
--
--
W
rpm
ft /hr
inch
gallon
2
inch
inch
inch
inch
lbs
Units M12230
230 VAC 10% 50Hz, Single Phase
600+26
650
3,800
12.5
1
±
43.75
8.25
17.32
14.88
54
Specification
4

10
9
8
6
7
13
5
11 4
1
2
3
12

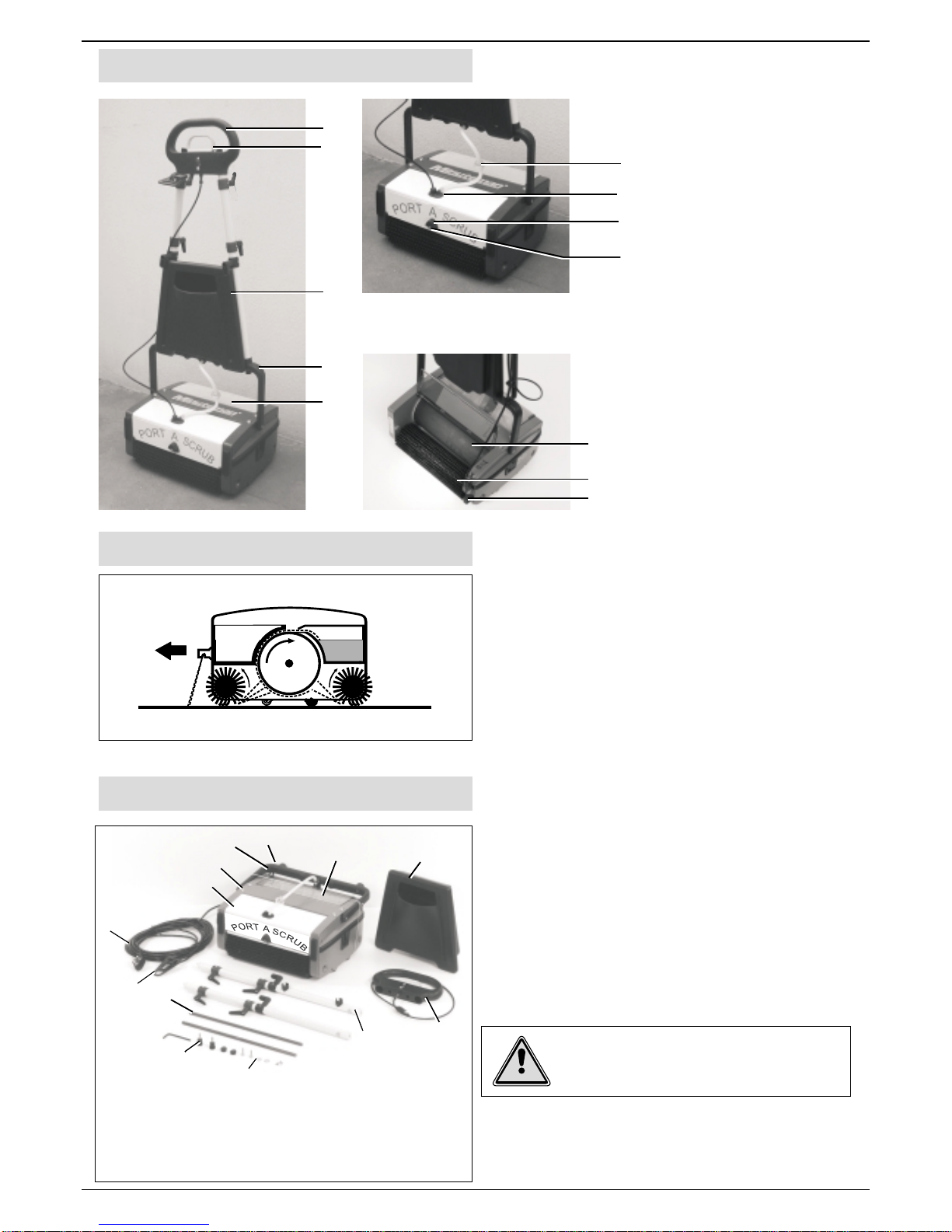

Know your machine
Working Principle
Preparing for use
(1)
(2)
(3) Tank
(4) Bottom handle
(5) Dirty water tank
(6) Filter
(7) Lid Cap
(8) Boot
(9) Nozzle
(10) Conveyor drum
(11) Brush
(12) Pedal
Top handle
Liquid discharge control
handle
1. Cleaning liquid in the fresh water tank is made to
sprayonthefloortobewashed. .
2. The counter rotating brushes scrubs the floor and
alsothrows thedirty wateron theConveyor drum.The
frontbrushdoesmostofthescrubbinganddrying.The
rear brush completes the scrubbing and collects the
remainingwater offthefloor.
3.Ablade fitted to the dirty water tank wipes the drum.
1. To save packing space and to ensure the safety of
themachine during transporting, the PORTASCRUB
comes to you with its handle dismantled. Ensure that
the listed parts are present as shown and identify
them in order to understand the assembly
instructions.
2. Remove the hook which holds the bottom handle
with the machine body while holding the bottom
handle.
5
Front
1. Bottom handle
2. Machine body
3. Pump Housing
4. Auxillary Tank
5. Top handle &
pull cable
7. Brush shafts (2)
8. Screws & washers
9. Cable retainer
10. Power cord
6. Handle LH & RH 11. Dirty water tank
12. Hook
13. Knob
Warning! Since the bottom handle is spring
loaded, the casual removal of the hook may
result in sudden springing back leading to
possibleinjurytopersonnel.
(10)
(11)
(12)
(7)
(8)
(9)
(6)
(2)
(3)
(4)
(5)
(1)

Assembly
Brush Selection Guide
LEFT
BOTTOM
REAR
RIGHT
BOTTOM
REAR
1. Insert the two tubular handles into the bottom handle and secure them using
knob(2Nos)bytighteninglightly.Ensurethatthehandlesareassembledaccording
totheirmarkedpositionandthecableholdinghooks arepointingtowardstherear.
2.SlidetheelectriccableretainerintothetopportionofRHhandle.
3. Fit the top handle over the tubular handles and secure them with washer and
screw (2 sets). Ensure that the label on the top handle is facing the front of the
machine. Now tighten firmly both the knobs and screws alternately. Insert the
dummycapsprovidedtocoverthescrews(2nos)inthetophandle.
4.PassthefreeendofthepullcablethroughtheplasticguideinRHHandle.
5.Fixtheauxillarytankfirmlyintothebottomhandlebyholdingthetophandle.
6.Rotatetheknobtoholdtheauxillarytank.
7. The brushes are only loosely packed in the machine for transit, therefore the
brush shafts must be fitted before operating the machine. Push the shafts through
thebrushes from the sideof the machine.Toremove brushes,pushthe brush shaft
out from the side of the machine using the fingers and withdraw the shaft. Normally
standard brush type will be supplied with the machine. Brushes shall be selected
according to the type of floor surface to be cleaned, and the degree of dirt to be
removed,pleasereferBrushSelectionGuide.
8.Nowmachineisreadyforuse.
6
All natural stone floors,
Ceramic, Mosaic, Wood,
Profiled rubber, Vinyl, PVC,
Standard Soft
Short pile carpet
Marble Granite
Smooth concrete
Escalator
Others
Soft
Soft
Hard
Escalator
To suit individual floor conditions
Soft
Soft
Standard
Escalator
Type of floor First time cleaning Maintenance cleaning
Refer Page 25 for Brush Selection
Brush identification
Thisisapplicablewhenthecustomerhasmorethanonesetofbrushesofsametype.
Example:2ormoresetsofStandardBrush
Customersmaynotinterestedtousesame brushesinBedroom/Kitchen/ germfree
area which is already been used in other areas like Corridor / Bathroom / Oil or
chemical deposited areas. It is difficult for the customers to identify the particular
brush which is used in certain area.To make this easy, Brush buttons of colors RED,
BLUE,WHITEandYELLOW arepackedwiththe machine.Customers shallplugthe
buttons on the hole provided in the brush as shown. This helps the customer to
identifytheparticularbrushbykeepingthebutton(color)asreference.
(a) (b)
(a) Hole provided for plugging button.
(b) Brush with button plugged.

Bypressing the pedal lightly with your foot, pull back the handle a littleto start the motor.The
brushes and the drum starts rotating. Pulling the handle further without pressing the pedal,
lowersthemachineandengages therotatingbrushesontothefloor.Tostopworking,takethe
handletotheverticalposition.
By pulling, the liquid discharge control handle up, the cleaning liquid is made to spray on the
floor. The spraying stops once the liquid discharge control handle is released.
Brush contact with the floor is adjustable in 4 steps, contact is MINIMUM when the knob is
fullydownandMAXIMUMwhenitisfullyraised. Thishelpsyoutocompensateforthewear
ofbrushes and also tocontrolthe scrubbing effect.If there isno machine movement, when
the handle lower down fully (working mode), change the knob position to one step up.
In the event of motor getting overloaded due to improper power supply or unexpected
obstruction to the brush/drum rotation, the over load protector trips and protects the motor
fromdamage.Ifthishappens,identifythecause,correctitand,resettheprotectorbuttonafter
minimum30secondsfrom trippingbypressingthe overloadprotectormanually andcontinue
working.
SlidethisknobtoTOPpositiontooperatethemachine.SlidethisknobtoBOTTOMpositionto
movethemachinefromoneplacetootherplaceandtoparkthemachine.Bykeepingtheknob
totopposition(workingmode)andmovingthemachinewilldamagethebrushes.
Controls
Operating the machine
Before the washing operation starts
Recommended washing sequence
On/Off Control
Transport/Working Model Control
Brush Contact Control
Cleaning Liquid Discharge Control
Motor Overload Protector
1
2
OFFON
BEFORE
RESET
WAIT
SECONDS
30
!
PRESS
Warning! should the machine fail to operate, contact the supplier from whom you purchased the
machine.
Warning!PrecleaningoffloorismustbeforeusingthePORTASCRUB.
1. Fill cleaning liquid in fresh water tank (Fig-i)
2. Insert the plug into mains 3-pin socket.
3.Ensure that the brushes are fitted properly.
4.Slide the transport/working mode control knob to TOP
(working) position (Fig-ii).
1. Start the machine by pressing the pedal and pulling the handle back.
2. Move forward, while sparingly pulling the liquid discharge control handle (Fig-iii). This handle should not
be kept pulled all the time. The duration and frequency of pulling and releasing has to be adjusted suitable
to match with the type of floor, extent of dirt. etc. For ceramic & granite floors, apply very little water.
ON
3
2
1
OFF
(i) (ii)
7

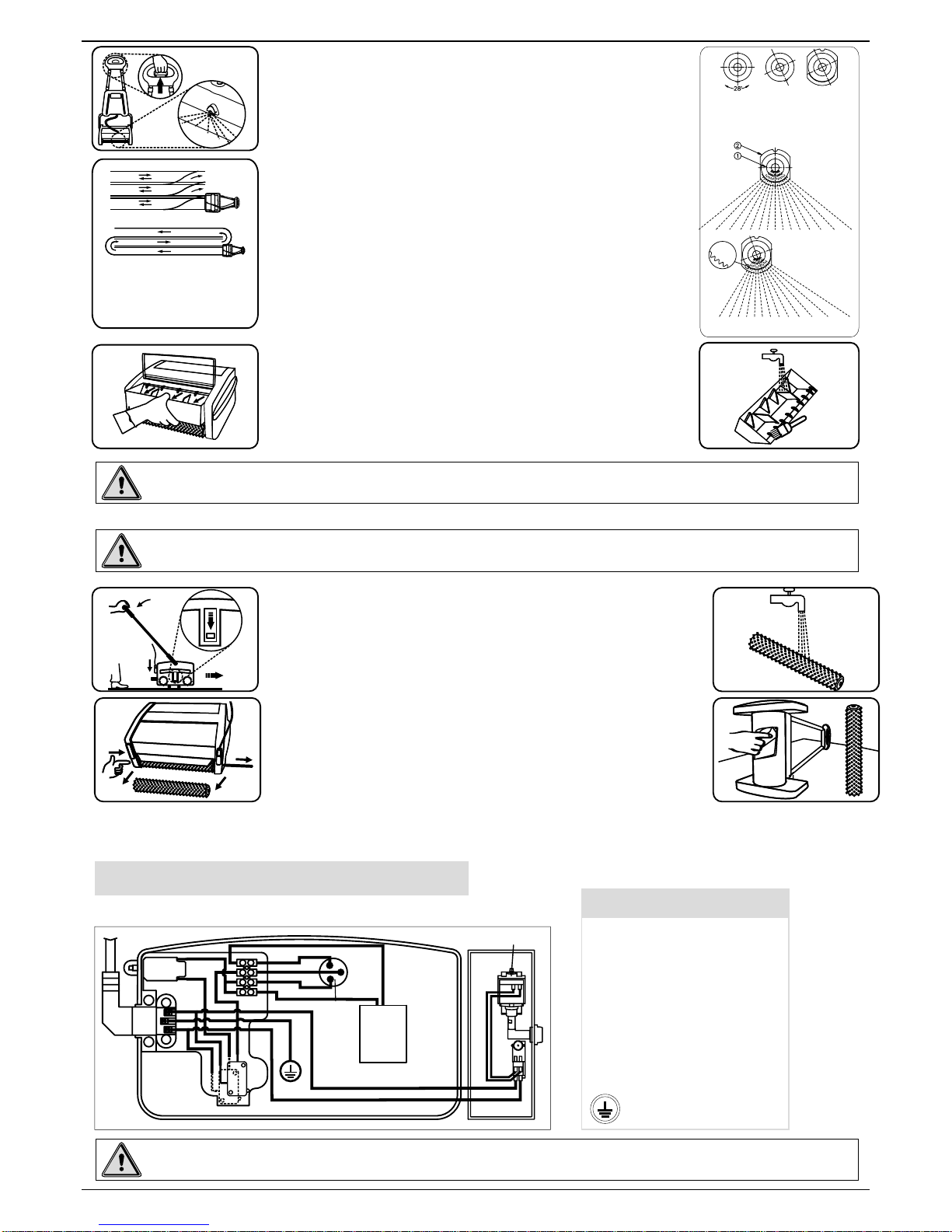

Care of the machine
3.Stoptheliquiddischargeapproximatelyonefoot beforetheend
offorwardmotion.continue to move forward up to the wall without
pullingthepullhandle.
Sprayangle/areacan be controlled by the user according totheir
requirements. It also prevents water / solutions sprayed in the
cleaned area. Spray angle of the solution is made to adjust using
the serrations provided in the nozzle and the nozzle holder.
Nozzle can be rotated about 28 degrees either clockwise or
counterclockwise@theincrement of4degree(Fig-iv).
4. Pull the machine backwards in the same track, but without
discharging any liquid. When you are reaching the starting point,
change the track and repeat steps 2 through 4. When you are
changing the track allow some overlap with the cleaned area. In
case of large halls take a U-turn and move forward. If quick drying
is desired, move on the same track, without discharging the liquid
(Fig-v)
5. When the dirty water tank is full, lift and pull the tank out of the
machine (Fig vi). Empty the tank and wash it in running water or
dip it in a bucket of water (Fig-vii). Clean the blades and push the
tankintoitsplace.
1.Move the Transport / Working mode control knob to BOTTOM
(Transport)position(Fig-viii).
2. Disconnect the power supply by unplugging the electrical plug
andwindthecableovercableholdersinthehandle.
3.Pulloutthedirtywatertank andwashitcompletely.
4.Topreventpossiblecloggingoffilter,draincleaningliquid
5.Removethebrushesbypushingthebrushshaftout(Fig-ix).
6. Wash the brushes either by dipping in a bucket/sink or in
runningwater(Fig-x).
7. Turn the machine sideways and wipe clean the conveyor and
machinebodywithadampcloth(Fig-xi).
8. Re-install the brushes after washing. It is easier to push the
brush shaft form the right hand side (identified by the electrical
cable).
9.Keepthemachineinthesaferplace.
(a)
(b)
(v)
(a) Recommended pattern for
small rooms
(b) Recommended pattern for
large halls
Electrical Diagram
Abbreviations given in the diagram as listed: Abbreviation/
Symbol
CBE
BR
BL
W
BK
R
G/Y
SC
RC
N
Circuit Breaker
Brown
Blue
White
Black
Red
Green / Yellow
Starting coil
Running coil
Normal
Ground
Description
Warning! Before undertaking the cleaning operations switch off the machine and unplug from the
electricalsupply.
Warning!Any service or attempt to service by persons other than authorised servicing agent is not
recommended.
Warning!Avoidtouchingthesharpedgeofdirtywatertank.itmaycauseinjurytohands.
(iii)
(vi) (vii)
(viii)
3
2
1
(ix)
(x)
(xi)
8
CAPACITOR
928748
SC
BK
R
W
BR
BR
MOTOR
BR
BL
BL
BR/W
BL/BK
G/Y
N
RC
CBE
BR/W
BL/BK
PUMP
BR/W
BL/BK
(iv)
1. Nozzle
2. Nozzle holder
(a)
(a) Nozzle at normal position
(b) Nozzle at rotated position
(c) Nozzle inserted inside the holder
at rotated position
(b) (c)

Warning!Donotusesidebrushinaroomwithnowallskirting,otherwise,thewallwillgetdirty.

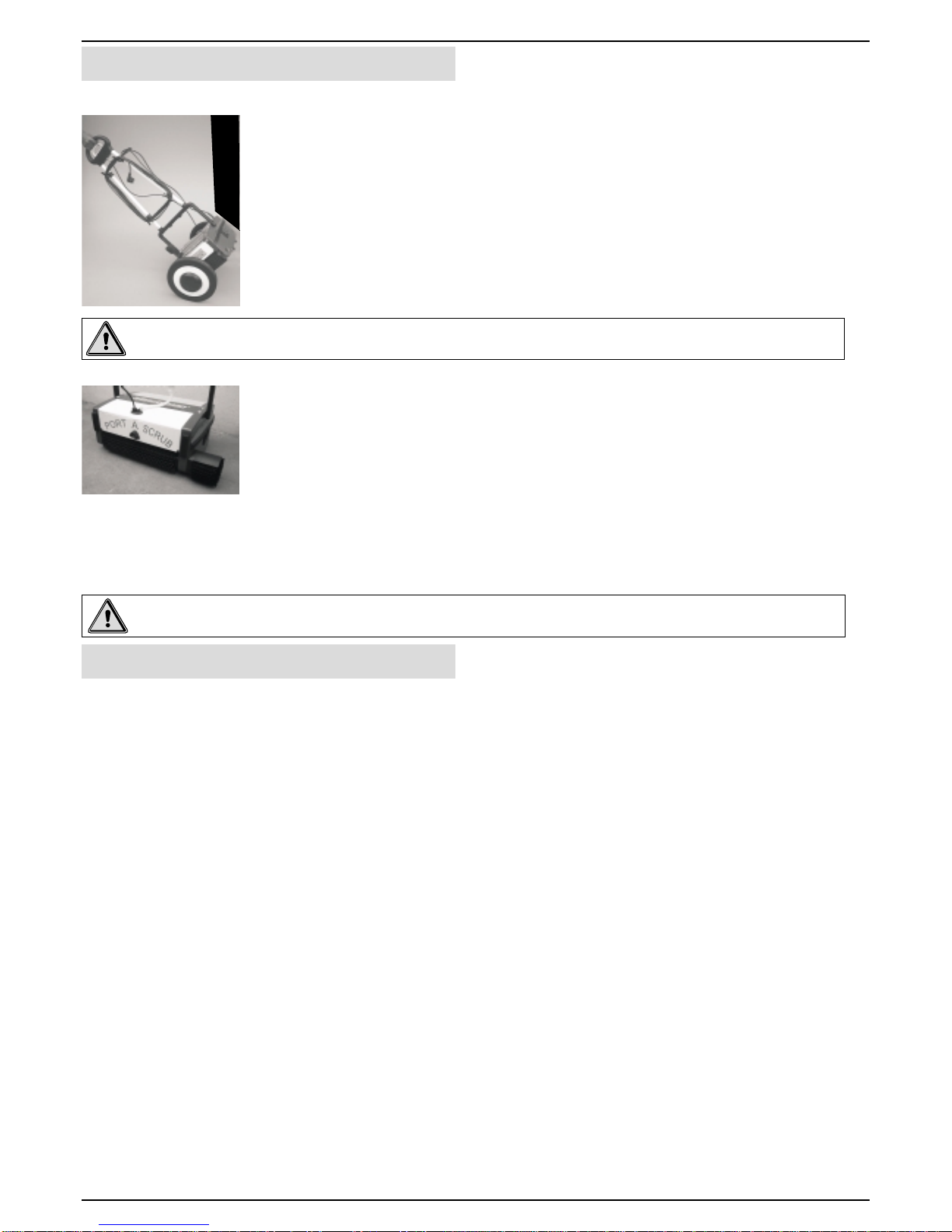

Accessories
Transporter
Side Brush
Upkeep of your PORT A SCRUB
Togetthemaximumlifeofthemachineensurethefollowing.
Regularlyinspectsheath,plugandcordanchoragefordamageorlooseconnection.
For maximum life wash the brushes regularly. Ensure machine is in Transport mode when not in use. Store
additionalbrushes ina verticalposition toavoid bendingof bristles.Check forpermanent bendingof bristles
in a particular direction. This may occur if the machine is operated for several days without removing the
brushes, which is not recommended. If this occurs, reverse the brush so that the bent bristles are
automaticallystraightened.
This may wear out after years of use. If this occurs the water collection performance will decrease. It should
bereplacedbyanauthorizedServiceAgent.
The filter prevents clogging of the spray nozzle and should be periodically cleaned. Use pressurized air/
waterforcleaning.
Ifthe spray ofthe nozzle becomeblocked, slide thenozzle cover offandremove nozzle washin clean water
andcleanusingapinandrefit.
·Supplycord
Brushes
WiperBlade
Solutionfeedfilter
Nozzlemaintenance
·
·
·
·
9
Warning!Emptyallliquidfromthemachinebeforeusingthetransporter.
Thesimplyfittedtrolleyprovidesforeaseofmovementwhentransportingthemachine.
Installing the Transporter
1.With the machine handle in the upright position place the transporter centrally
alongside the machine.
2.By holding the machine firmly, strap the velcro with the machine to fix the transporter.
3.Ensure that the velcro strap properly wrapped around the bottom handle.
4.Now the transporter is ready to use. The machine can then be maneuvered easily
whilst holding the top handle.
To wash the edges, the side brush shall be used. Switch off and unplug the machine
beforefittingthesidebrush.
1.Removethefrontbrushandbrushshaft.
2.Fixtheshieldassemblyandscrewitintothesideplateandtighten.
3.Insertthesidebrushthroughtheshieldand mainbrush.
Fittingthesidebrush
Usingthesidebrush
1.Tiltthe machine at ananglemove forward.This way, thedirty water thrown bythe sidebrush will be collected by
therearbrush.
2.Usesidebrushonlyforwashingtheedges.

10
32
25
24
105
116
116a
11
115b
19
49 84
83 19
53
9
7
87
20
88 80
114
10
19
19
728
115a 115b
11
19
1
4359
42
73 13 V8
10
34
92
115 63
V7
19 111
93
62
212
2
77
46

Housing-Drive Side
Spare Parts Manual
Ref.
No Part
No Description Size Qty
11
1 925032 CSK SCREW M4x10 4
2 925003 CRPH SCREW M3x6 6
7 925051 CSK SCREW M6x14 3
9 925114 ALLEN SCREW M6x10 2
10 925027 ALLEN SCREW M6x16 7
11 925031 ALLEN SCREW M6x20 2
13 925033 WASHER 4.2x12x1.6 4
19 925056 BEARING 6003 2RS 9
20 925062 BEARING 608 2Z 1
24 925001 BELT 500 5 M 1
25 925002 BELT 425 5 M 1
28 925012 WASHER 2
32 925018 BUMPER 1
34 925026 BUMPER 1
42 925047 BRUSH SLIDER 1
43 925048 SLIDER HOUSING 1
46 925054 SEAL 2
49 925064 PINION 1
53 925073 DRUM SPROCKET 1
59 925092 PIN 1
62 925099 O' RING 2
63 925102 SHIELD 1
73 925186 SELF TAPPING SCREW 4
77 925130 CAP 2
80 925227 GEAR HOUSING 1
83 925181 HOUSING SPROCKET 1
84 925182 SEAL 1
87 925193 GEAR – LH 1
88 925194 GEAR - RH 1
92 925219 SHIELD 2
93 925220 ROLLER 2
105 925249 BUMPER SLEEVE 3
111 925804 BRUSH SPROCKET 2
114 925813 GEAR SPROCKET 2
115 925815 IDLER ASSY 1
115a 925075 SPROCKET 1
115b 925046 HUB 2
116 925816 IDLER ASSY 1
116a 925061 SLEEVE 1
212 925221 STUB AXLE 1
V7 925150 DRIVE HOUSING 1
V8 925319 COVER 1

V2
V3
133
75
10
94b 94a
94 129
86
131
132 89 21
72
73
6
81
16
100
39 90
12
95
96
99
98
93
62
212
33
188
68
17
106
15
242 18 9
19
79
2
77
46
32
105
V5
910
V8
34
13
73
58
59
43
1
92
63

Housing-Idle Side
Ref.
No Part
No Description Size Qty
13
1 925032 CSK SCREW M4x10 4
2 925003 CRPH SCREW M3x6 6
6 925039 CSK SCREW M5x25 2
9 925114 ALLEN SCREW M6x10 2
10 925027 ALLEN SCREW M6x16 5
13 925033 WASHER 4.2x12x1.6 4
15 925100 WASHER 6.4x12x1.6 1
16 925151 WASHER 9x17x1.6 1
17 925110 SPRING WASHER M6 1
18 925059 TOOTHED WASHER M6 1
19 925056 BEARING 6003 2RS 2
21 925063 WIRE TIE 3
32 925018 BUMPER 1
33 925019 BUSH 2
34 925026 BUMPER 1
39 925040 STUB AXLE 1
43 925048 SLIDER HOUSING 1
46 925054 SEAL 2
58 925083 TRANSPORT SLIDER 1
59 925092 PIN 1
62 925099 O' RING 2
63 925102 SHIELD 1
68 925109 FAN COVER 1
72 925116 GROMMET 2
73 925186 SELF TAPPING SCREW 6
75 925124 CAP 1
77 925130 CAP 2
79 925147 STOPPER 1
81 925500 PEDAL 1
86 925192 NUT 2
89 925199 CONNECTOR 1
90 925200 SWITCH 2
92 925219 SHIELD 2
93 925220 ROLLER 2
94 925529 SOCKET ASSY 1
94a 925074 SOCKET 1
94b 925076 TERMINAL 3
95 925501 CABLE 1
96 925502 CABLE 1
98 925504 CABLE 1
99 925505 CABLE 1

V2
V3
133
75
10
94b 94a
94 129
86
131
132 89
72
73
6
81
16
100
39 90
14
95
96
99
98
21
93
62
212
33
188
68
17
106
15
242 18 9
19
79
2
77
46
32
105
V5
910
V8
34
13
73
58
59
43
1
92
63

Housing-Idle Side
Ref.
No Part
No Description Size Qty
15
100 925152 SPRING-PEDAL 1
105 925249 BUMPER SLEEVE 3
106 925161 CSK SCREW M4x8 1
129 925015 LEVER SWITCH ACT 1
131 925041 INSULATION TOP 1
132 925044 INSULATION BOTTOM 1
133 925101 NUT 1
188 925207 SLEEVE TIE ROD 3
212 925221 STUB AXLE 1
242 925347 CLAMP WIRE 1
V2 925534 CAPACITOR (M12230) 1
V3 925173 CIRCUIT BREAKER (M12110) 1
925166 CIRCUIT BREAKER (M12230) 1
V5 925153 IDLE HOUSING (M12110) 1
925154 IDLE HOUSING (M12230) 1
V8 925319 COVER 1

245
16
165
187 184
1
183
M12110
185
247
180
159 1
106
245
168
106
181
164 72
246
244 V2
165
155 101
176 V9
169
186
182
163
167
158 154
174
173
121
123
123a
122b
162
170
102
72
175
177
248

Pump Housing
Ref.
No Part
No Description Size Qty
17
1 925032 CSK SCREW M4x10 5
72 925116 GROMMET 2
101 925160 O-RING-PUMP 1
102 925077 FILTER 1
106 925161 CSK SCREW M4x8 8
121 925832 DIRTY WATER TANK 1
122b 925162 LID PAD 2
123 925836 LID-DIRTY WATER 1
123a 925132 LID-DIRTY WATER 1
154 925128 HOSE-275(10.8) 1
155 925163 INSULATION 1
158 925164 HOSE CLIP 1
159 925165 NOZZLE 1
162 925167 BOOT 1
163 925168 SCREW M3X30 2
164 925169 HEX NUT M3 2
165 925170 HEX NUT M4 3
167 925187 SWITCH 2
168 925204 STRIP LID 2
169 925224 EXTENSION BUSH 1
170 925233 HOSE-165(6.5) 2
173 925261 HOSE CONNECTOR 1
174 925262 BOOT-LID 1
175 925506 CABLE 1
176 925511 ADAPTOR NOZZLE 1
177 925573 CABLE 1
180 925171 SEAL NOZZLE 1
181 925173 BASE SWITCH 1
182 925174 LEVER 1
183 925175 CLAMP 1
184 925176 SUPPORT RING 2
185 925177 PUMP HOUSING 1
186 925178 LID 1
187 925179 SPACER 1
V9 925210 PUMP (M12230) 1
for M12110
165 925170 HEX NUT M4 2
244 925011 CLAMP CAPACITOR (M12110) 1
245 925013 CSK SCREW M4x12 8
246 925016 GROMMET (M12110) 2
247 925020 PUMP HOUSING (M12110) 1
248 925021 CABLE (M12110) 1
V2 925536 CAPACITOR (M12110) 1
V9 925203 PUMP (M12110) 1

18
119a
118a
119
64
118
76
26
4
128
120120a
119a 82
119
29
78
41
47
76
91
26
76
113
45

Lever and Guide Link Mechanism
Ref.
No Part
No Description Size Qty
19
4 925104 CRPH SCREW M4x12 2
26 925008 CLEVIS PIN 5
29 925014 CLEVIS PIN 1
41 925043 LINK 1
45 925053 SHIELD 8
47 925055 LEVER 2
64 925105 LEVER BUTTON 4
76 925129 CIRCLIP 6
78 925139 LINK GUIDE 1
82 925180 SPRING 1
91 925212 BUSH 1
113 925810 WHEEL 4
118 925822 LEVER ASSY 1
118a 925085 LEVER 1
119 925823 LEVER ASSY 2
119a 925086 LEVER 2
120 925824 LEVER ASSY 1
120a 925087 LEVER 1
128 925050 LEVER SWITCH 1

20
V4
23
35
57
189
3
60
104
153
44
71
12
117
48
11
4
135
126
12
4172
160
160a
160c
160b
179
161d
161
161c
161b
161a
152
224
231
73
229
225
73
230
65
4
52
225
227 228
66
224
226
