Minuteman Tsunami T16WD Parts list manual

Parts and Instruction Manual
Tsunami Wet/Dry Vacuum
Minuteman International, Inc.
A Member of the Hako Group
988792 Rev A 01/23

Page 2 Tsunami 988792 Rev A 01/23
PREFACE
Thank you for your purchase of the new industry standard for wet dry vacuums. Minuteman
International takes great pride in off ering the most dependable, reliable and best value in industrial
vacuums, power sweepers and sweeper / scrubbers. We set the standard.
Our Customer Service Department would like to hear from you. If you see any errors, omissions
or something that needs clarifi cation in this Parts Catalog please let us know. We are working hard
towards continually improving our processes to bring you the best you deserve. Please copy the form
below, fi ll out and comment on how you found our catalog.
Thank you!
The Minuteman International Team
Name: ______________________________________________________________________
Title: ______________________________________________________________________
Company Name: _____________________________________________________________
Address: ____________________________________________________________________
Country: ____________________________________________________________________
Type of equipment or model number: ______________________________________________
Comments: __________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Please return to:
Customer Service Manager
Minuteman International, Inc.
14N845 U.S. Route 20
Pingree Grove, Illinois 60140 USA
Phone: [phone]
Email: [email protected]

Page 3
• Stop on level surface.
• Disconnect the power to the machine.
• Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
• Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
For Safety When Servicing or Maintaining Machine
Tsunami 988792 Rev A 01/23
Model Tsunami
Models: T16WD, T16W, T16D
Technical Specifi cations
TSUNAMI T16WD
Vacuum Motor 1.3 HP
Primothene Squeegee 24"
Water Lift 95"
CFM 125
Tank Size 16 Gallons
Decible Rating 74
Weight 65 lbs. / 240 lbs. full
Warranty Parts 5 years / 3 year labor / 12 year body
Voltage 115v
Electric Draw 13 amps

Page 4 Tsunami 988792 Rev A 01/23
Table of Contents
Technical Specifi cations ...................................................................... 3
Important Safety Instructions .............................................................. 6
Machine Overview .............................................................................. 8
Operating Instructions ......................................................................... 9
Squeegee Blade Replacement ........................................................... 9
Exploded Views .....................................................................10
Recovery Tank Group ....................................................................... 10
Tank Cover Assembly ....................................................................... 14
Squeegee Assembly ......................................................................... 16
Wet/Dry Tool Kit ................................................................................ 18

Page 5
Tsunami 988792 Rev A 01/23

Page 6 Tsunami 988792 Rev A 01/23
Important Safety Instructions
COMMERCIAL USE ONLY
When using an electrical appliance, basic precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING
WARNING: To reduce the risk of fire, electric shock, or injury:
•Do not leave appliance when plugged in. Unplug from outlet when not in use and before
servicing.
WARNING
To reduce the risk of electrical shock – Do not expose to rain. Store indoors.
•Do not allow to be used as a toy. Close attention is necessary when used near children.
•Use only as described in this manual. Use only the manufacturer’s recommended attachments.
•Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water, return it to an authorized service center.
•Do not pull or carry by cord, use cord as handle, close a door on a cord, or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
•Do not unplug by pulling on the cord. To unplug grasp the plug, not the cord.
•Do not handle the appliance with wet hands.
•Do not put any object into the openings. Do not use if any opening is blocked; keep free of dust,
lint, hair, and anything that may reduce air flow.
•Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
•Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
•Do not use without dust bag and/or filters in place.
•Turn off all controls before unplugging.
•Use extra care when cleaning on stairs.
•Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where
they may be present.
•Connect to a properly grounded outlet only. See grounding instructions.
SAVE THESE INSTRUCTIONS

Page 7
Tsunami 988792 Rev A 01/23
Inspection
Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly
inspected before shipment, and any damage is the responsibility of the delivery carrier who should be
notified immediately.
WARNING
•Read Instructions Manual before operating this piece of equipment.
•To reduce the risk of fire use only commercially available floor cleaners and waxes intended for
machine application
•Electrical motors and components can cause an explosion when operated near volatile materials
and vapors. Do not use this machine near flammable materials such as solvents, thinners, fuels,
grain dust, ect.
Electrical – 115V
This machine is designed to operate on a standard 15 amp. 1-Volt, 60hz, AC circuit. Voltages
below105-Volt AC or above 125-Volts AC could cause serious damage to the motor.

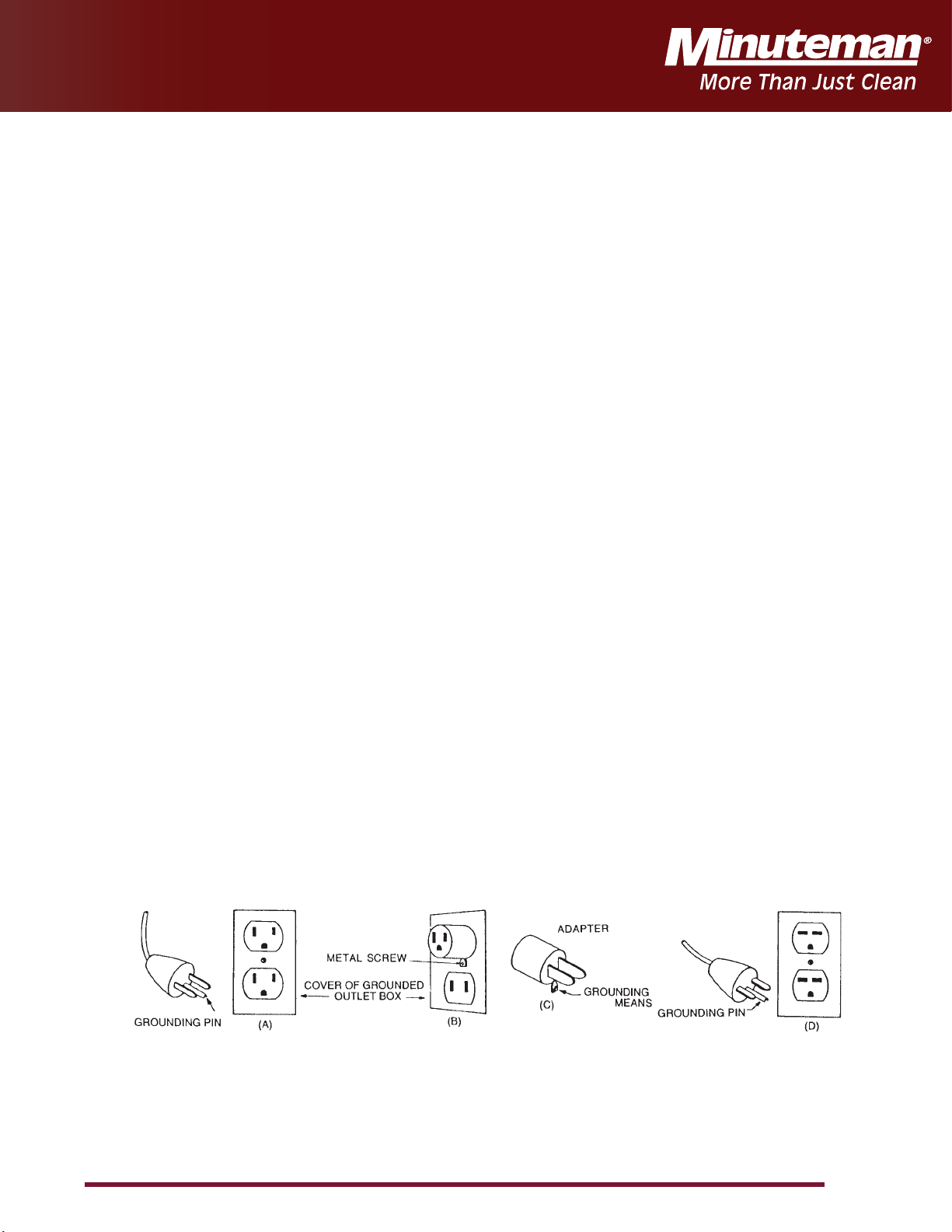

Grounding Instructions
•This machine should be grounded while in use to protect the operator from electricshock. The
machine is equipped with a three-conductor cord and three prong grounding typeattachment
plug to fit the proper grounding type receptacle. The green (green and yellow) conductorin the cord
is the grounding wire. Never connect this wire to anything other than the grounding blade.
•:KHQ SOXJJLQJ LQ WKH PDFKLQH, it is intended for use on a 1-Volt (noPLQDO) circuit. If a properly
groundedreceptacle, as shown in Sketch A, is not available, an adapter as shown in Sketch C, is
available andbe installed as shown in Sketch B if the outlet box that houses the receptacle is
grounded. Be sureto fasten the grounding tab with the faceplate screw.

Page 8 Tsunami 988792 Rev A 01/23
Machine Overview








ϭ dKW KsZ
Ϯ ZKsZzdE<
ϯ ^Yh' ^^D>z
ϰ KEK&&^t/d,
ϱ KZ
ϲ hDW,K^
ϳ ^Yh' >/&d W>
ϴ t,>^




ϭ sEdKsZ
Ϯ dKW KsZ >d,
ϯ ZKsZz,K^
ϰ ^Yh' ^^D>z

Page 9
Tsunami 988792 Rev A 01/23

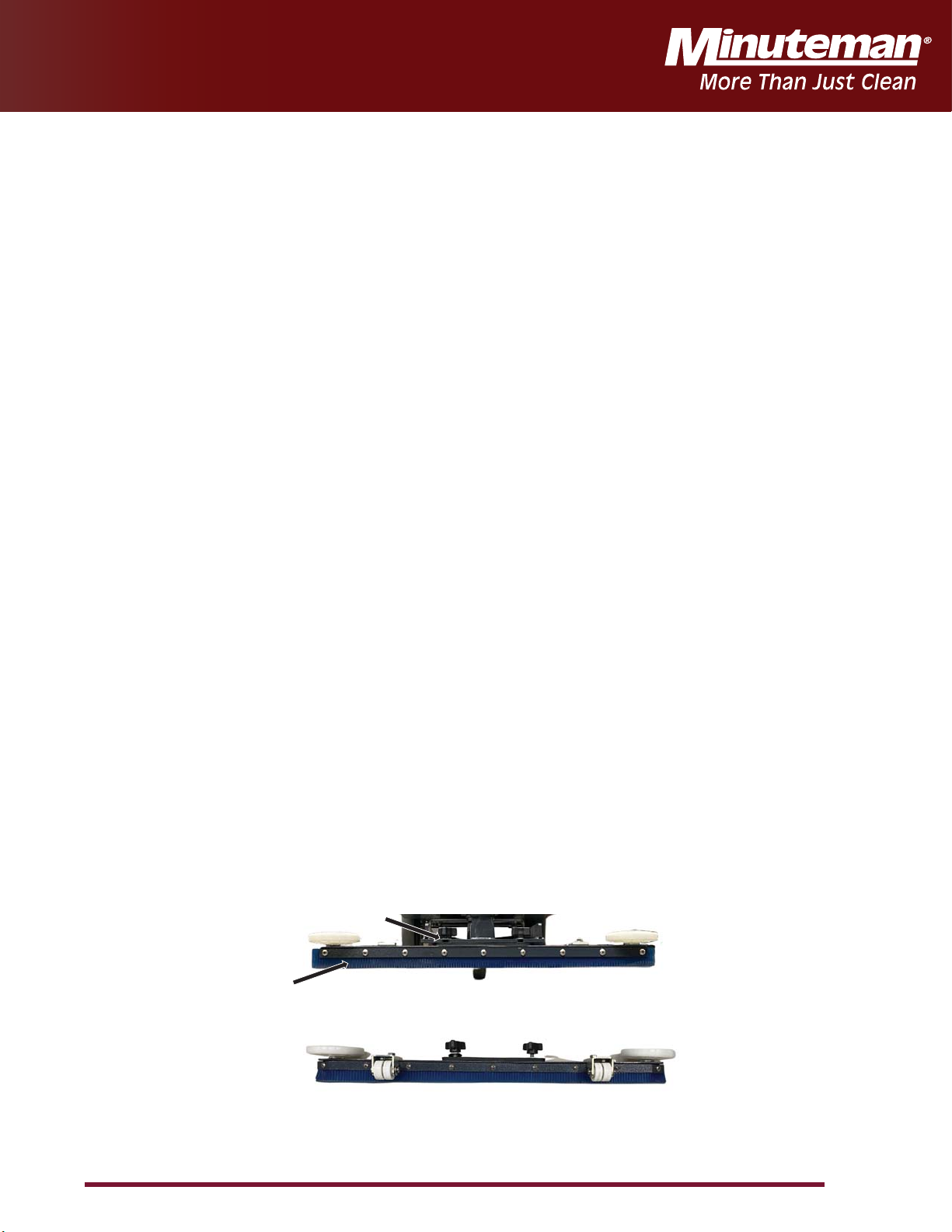

Squeegee Blade Replacement
Operating Instructions
WASHER
SQUEEGEE BLADE
(RIDGES FACING OUT)
FRONT
BACK
WET VACUUM
1. Remove cloth/paper bag from recovery tank.
2. Turn on main power switch.
3. Lower the squeegee using the squeegee lift pedal.
4. When recovery tank is full, move the unit to a drain and drain the tank using the dump hose.
DRY VACUUM
1. Install cloth/paper bag in recovery tank.
2. Disconnect solution hose, and install remote tool kit wand to the quick disconnect.
3. Turn on main power switch.
1. Turn off main power switch.
2. Use squeegee lift pedal to lift squeegee assembly.
3. Hand-loosen 3-sided knobs on squeegee assembly.
4. Slide squeegee assembly off the squeegee plate.
5. Remove screws from the front and back of the squeegee assembly.
6. Slide old blades off , and slide new ones on. (Ridges should be facing outward)
7. Replace screws.
8. Slide squeegee assembly back onto the squeegee plate.(Ensure that the washers are on TOP of
the squeegee plate).
9. Hand-tighten 3-sided knobs.

Page 10 Tsunami 988792 Rev A 01/23

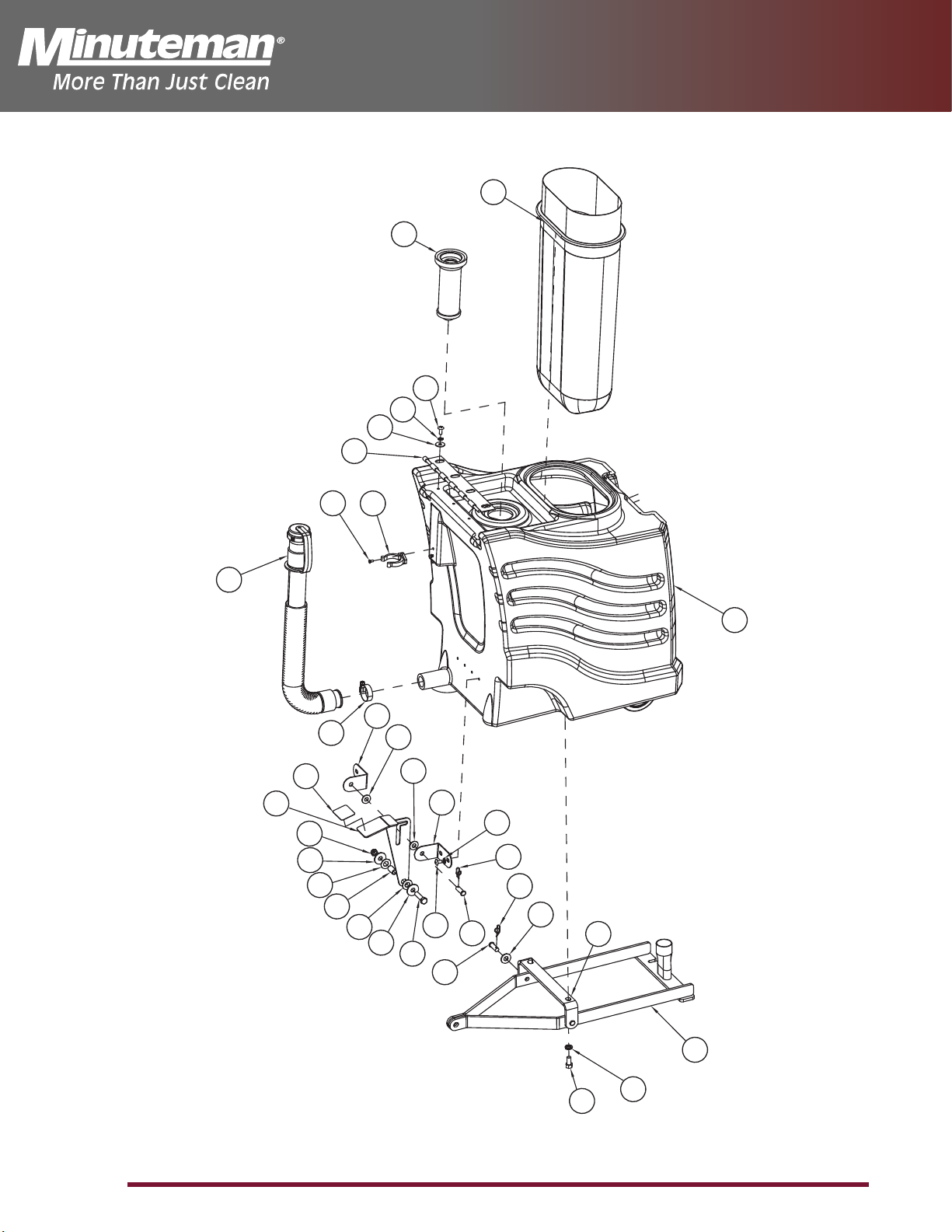

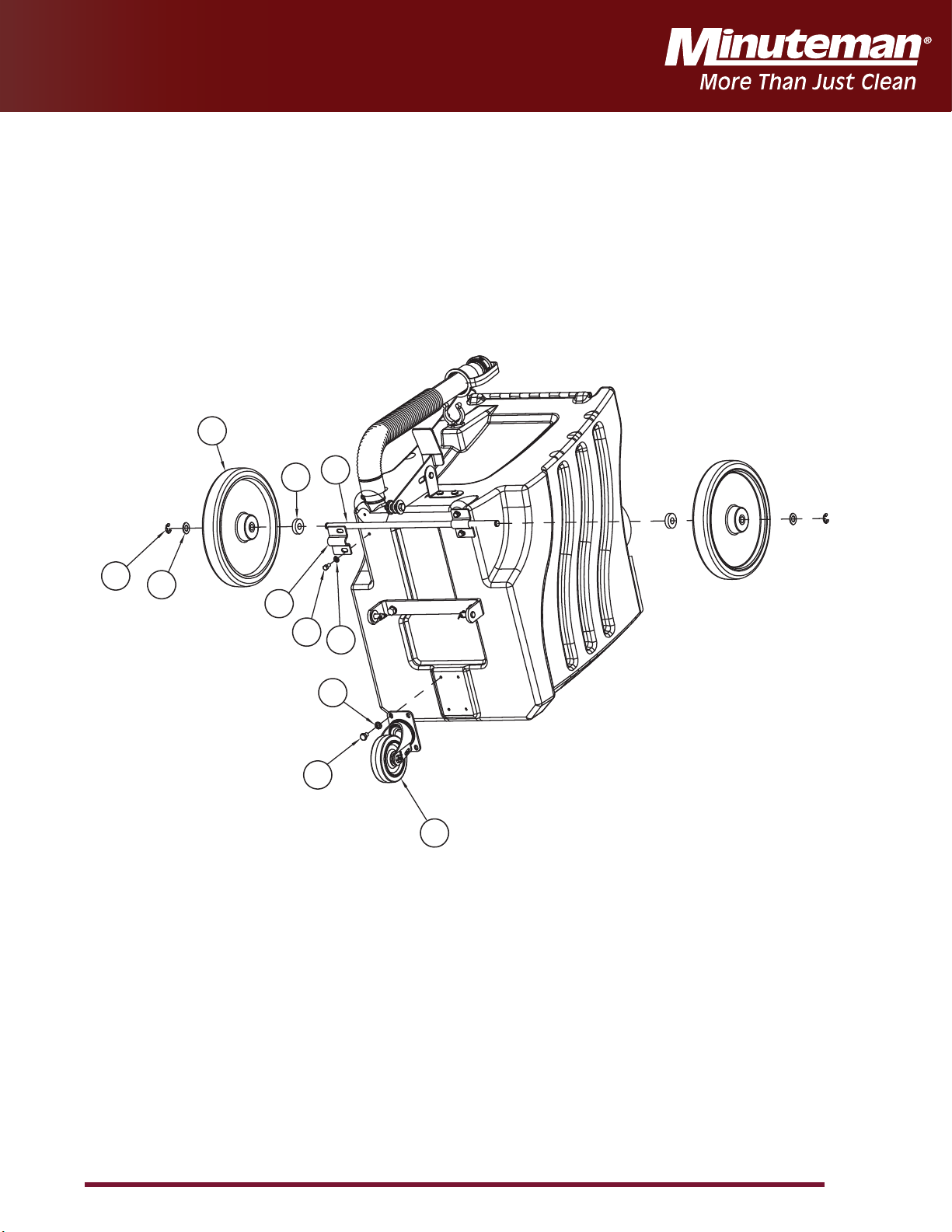

Recovery Tank Group
Exploded Views







 













 












Page 11
Tsunami 988792 Rev A 01/23




 
 



Page 12 Tsunami 988792 Rev A 01/23
Recovery Tank Group BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION
1 172132 1 FLOAT, SCREENED
2 173080 4 WASHER-FLAT .266 X .875 X .07 SS
3 245310 2 WASHER, NYLON, .510 B 1.00 OD .062 T
4 260579 1 CLIP-TOOL 1.5 INCH HOSE
5 511000 1 SHAFT, WHEEL
6 511001 2 BRACKET, WHEEL
7 511002 2 SPACER, SQUEEGEE
8 511003 2 WHEEL, MAIN
9 511004 1 PIVOT, SQUEEGEE
10 511005 1 CASTER, 5"
11 511009 2 SQUEEGEE, BRACKET
12 511014 1 HOSE, RECOVERY DRAIN
13 511043 1 BEARING-SLEEVE, .377 X .503 X .875
14 511046 1 PAD, ANTI-SKID, 1.50 X 2.00
15 511500 1 RECOVERY TANK, TSUNAMI
16 511501 1 WELDMENT, SQUEEGEE LIFTING BRACKET
17 511502 1 WELDMENT, PEDAL
18 511503 1 ASSEMBLY, HINGE, TOP COVER
19 511510 1 ASSEMBLY, BAG
20 710178 4 SCR-THMS 1/4-20 X .50 ZP
21 710528 2 SCR-FHMS 8-32 X .37 BRASS
22 711202 4 SCR-HH 1/4-20 X .50 ZP

Page 13
Tsunami 988792 Rev A 01/23
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION
23 711241 2 SCR-HH 3/8-16 X .75 ZP GR 5
24 711375 1 NUT-NYLOC 3/8-16 ZP
25 711508 2 WASHER-FLAT 3/8 X 1.00 X .08 ZP
26 711544 12 WASHER-LOCK 1/4 SPLIT ZP
27 711545 4 WASHER-LOCK 5/16 SPLIT ZP
28 711546 2 WASHER-LOCK 3/8 SPLIT ZP
29 711546 2 WASHER-LOCK 3/8 SPLIT ZP
30 711592 2 WASHER-FLAT .506 X .940 X .064 NYLON
31 712353 2 RING-RETAINING E-CLIP 1/2 SS
32 712565 4 SCR-THMS 1/4-20 X .62 SS
33 713044 1 SCR-HH 3/8-16 X 1.50 ZP GR 5
34 717040 2 WASHER-FLAT M10.5 X 30 X 2.5 SS
35 3303255 1 CLAMP - SCREW 1" to 2" DIA 301SS
36 3400117 3 PIN-CLEVIS 3/8 x 1.125 ZP
37 3400125 3 RING-RUE 3/8
38 3400207 4 SCR-HH 5/16-18 X 0.50 ZP GR 5

Page 14 Tsunami 988792 Rev A 01/23
Tank Cover Assembly
BACK 129
2
FRONT
7
812
10
BOTTOM
3
9
12
11
9
5
12
6
TOP 4
1

Page 15
Tsunami 988792 Rev A 01/23
Tank Cover Assembly BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION
1 711160 4 SCR-HI/LO 10 X .625 BLACK ZINC
2 511506 1 ASSEMBLY, REAR COVER
3 511505 1 ASSEMBLY, VAC MOTOR
4 511029 1 COVER, AIR VENT
5 511025 1 GASKET, COVER
6 511517 1 GASKET, FOAM
7 511024 1 ADAPTER, HOSE
8 712813 2 SCR-PHMS 10-24 X .75 ZP
9 712565 11 SCR-THMS 1/4-20 X .62 SS
10 511504 1 TOP COVER, TSUNAMI
11 173080 3 WASHER-FLAT .266 X .875 X .07 SS
12 712758 13 WASHER-LOCK 1/4 SPLIT SS

Page 16 Tsunami 988792 Rev A 01/23
Squeegee Assembly
 




















Page 17
Tsunami 988792 Rev A 01/23
Squeegee Assembly BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION
1 210118 2 KNOB-3 SIDED 5/16 NYLOC
2 430322 2 BUSHING-.435 X .625 X .50 ZINC
3 511034 2 BLADE, SQUEEGEE PRIMOTHANE
4 511035 1 BRACKET, OUTER SQUEEGEE BLADE
5 511036 1 BRACKET, INNER SQUEEGEE BLADE
6 511042 1 GASKET, SQUEEGEE TOP
7 511507 1 WELDMENT, SQUEEGEE PLATE
8 511508 2 ASSEMBLY, CASTER
9 711527 2 WASHER-FLAT .63 X 1.12 X .09 ZP
10 712140 2 WASHER-LOCK 5/16 SPLIT SS
11 712576 2 SCR-HH 5/16-18 X 1.25 SS
12 712770 18 WASHER-INT TOOTH LOCK #10 SS
13 712772 4 WASHER-FLAT .344 X .75 X .06 SS
14 712822 18 SCR-THMS 10-24 X .50 SS
15 730526 2 WASHER-FENDER M8 X 24 SS
16 3400318 2 SCR-HH 5/16-18 X 1.00 SS
17 3400384 2 WASHER-CONICAL SPRING 5/16
18 90548397 2 ROLLER - PLASTIC, 100MM DIA. (4")

Page 18 Tsunami 988792 Rev A 01/23
Wet/Dry Tool Kit
1
2
3
4
5
6
7
8

Page 19
Tsunami 988792 Rev A 01/23
Wet/Dry Tool Kit BOM
BILL OF MATERIAL
ITEM PART NO. QTY DESCRIPTION
1 282000 1 WAND 2PC S TYPE ALUM, 38MM ABS CPLNG
2 282001 1 HARD FLOOR TOOL, 38MM HORSE HAIR
3 282004 1 HAND TOOL 5" , 38MM
4 800605 1 14" SQUEE TL W/SLP-ON
5 282002 1 CARPET TOOL, 38MM
6 282005 1 CREVICE TOOL, 38MM
7 282003 1 DUST BRUSH 38MM
8 511513 1 HOSE, VACUUM 10'

14N845 U.S. Route 20, Pingree Grove, IL 60140 USA
Phone [phone] - www.minutemanintl.com
A Member of the Hako Group
“More Than Just Clean”
Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers,
for Industrial Facilities.
988792 Rev A 01/23
