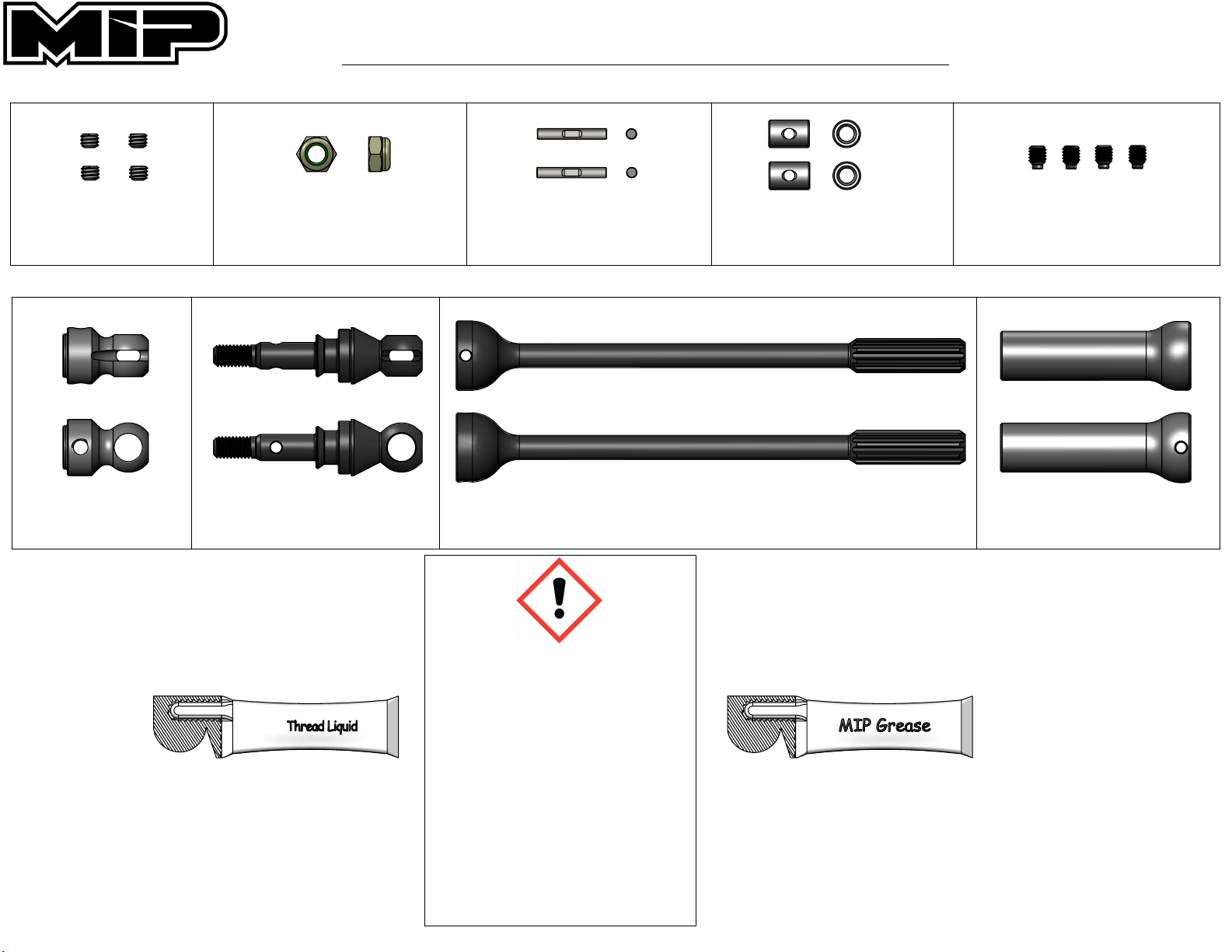

MIP X-Duty 18130 Manual

Cross Pin (x4)
#18100
8-32
Setscrew (x4)
#00-209
Drive Hub,
15mm x 6mm (x2)
#18115
X-Duty Male,
115mm (x2)
#18108
X-Duty Female,
40mm (x2)
#18101
Apply MIP Lube
Apply MIP
Thread Lock
WARNING!!!
Chemicals in tubes
may cause eye/skin
irriation and can be
harmful if
swallowed . If it
comes in contact
with skin, wash with
plenty of soap and
water. If in eyes;
Rinse with water for
fifteen miniutes. If
irritation persists get
medical advice.
For more information
& SDS please visit:
www.miponline.com/store/sds.html
17mm Axle
(x2)
#18131
M5 Locknut
(x2)
#00-148
Coupling (x4)
#18100
M4 Pin Screw
(x4)
#99060
© 2020
Moore's Ideal Products, LLC
830 W. Golden Grove Way
Covina, CA 91722
www.MIPonline.com
MIP X-Duty™ Instruction Guide
P/N: 18130

#18100
Apply MIP Lube
#18115
#18100
#00-209
#18101
Align Flat with
Set Screw Face
Apply MIP
Thread Lock
#18131
#18100
Apply MIP Lube
Align Flat with
Set Screw Face
#18100
#18108
#00-209
Apply MIP
Thread Lock
© 2020
Moore's Ideal Products, LLC
830 W. Golden Grove Way
Covina, CA 91722
www.MIPonline.com
MIP X-Duty™ Instruction Guide
P/N: 18130

45 MAX
STEERING ANGLE
35
MAX
DROOP ANGLE
Align Pin Holes!
© 2020
Moore's Ideal Products, LLC
830 W. Golden Grove Way
Covina, CA 91722
www.MIPonline.com
MIP X-Duty™ Instruction Guide
P/N: 18130

Apply MIP
Thread Lock
#99060
Drive Installation
© 2020
Moore's Ideal Products, LLC
830 W. Golden Grove Way
Covina, CA 91722
www.MIPonline.com
MIP X-Duty™ Instruction Guide
P/N: 18130
