Mira Advance ATL Thermostatic Operation manual

1
Installation & User Guide
MIRAADVANCE ATL
These instructions are to be left with the user
9.0 AND 9.8 kW
ELECTRIC SHOWER
This product is suitable for mains fed cold water only.
ADJUSTABLE TEMPERATURE LIMIT THERMOSTATIC

2
CONTENTS
To The Customer.....................................................................................3
Important Safety Information.................................................................4
BEAB CARE Requirements .................................................................5
Pack Contents .........................................................................................6
Dimensions..............................................................................................7
Accessories.............................................................................................7
Specications ..........................................................................................8
1. Plumbing ..........................................................................................8
2. Electrical...........................................................................................8
3. Standards and Approvals.................................................................8
4. Patents.............................................................................................8
Shower Performance ..............................................................................9

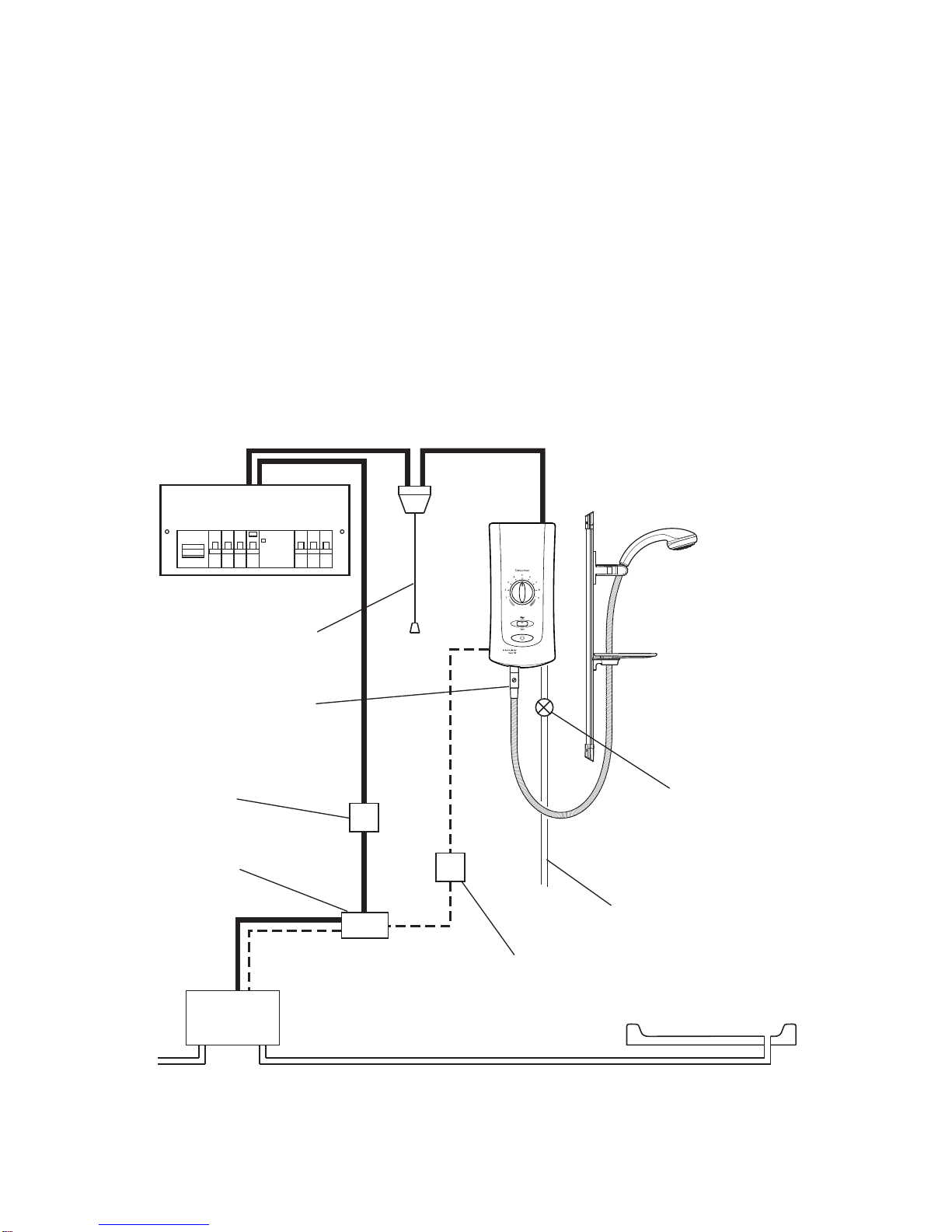

Installation Requirements ....................................................................10

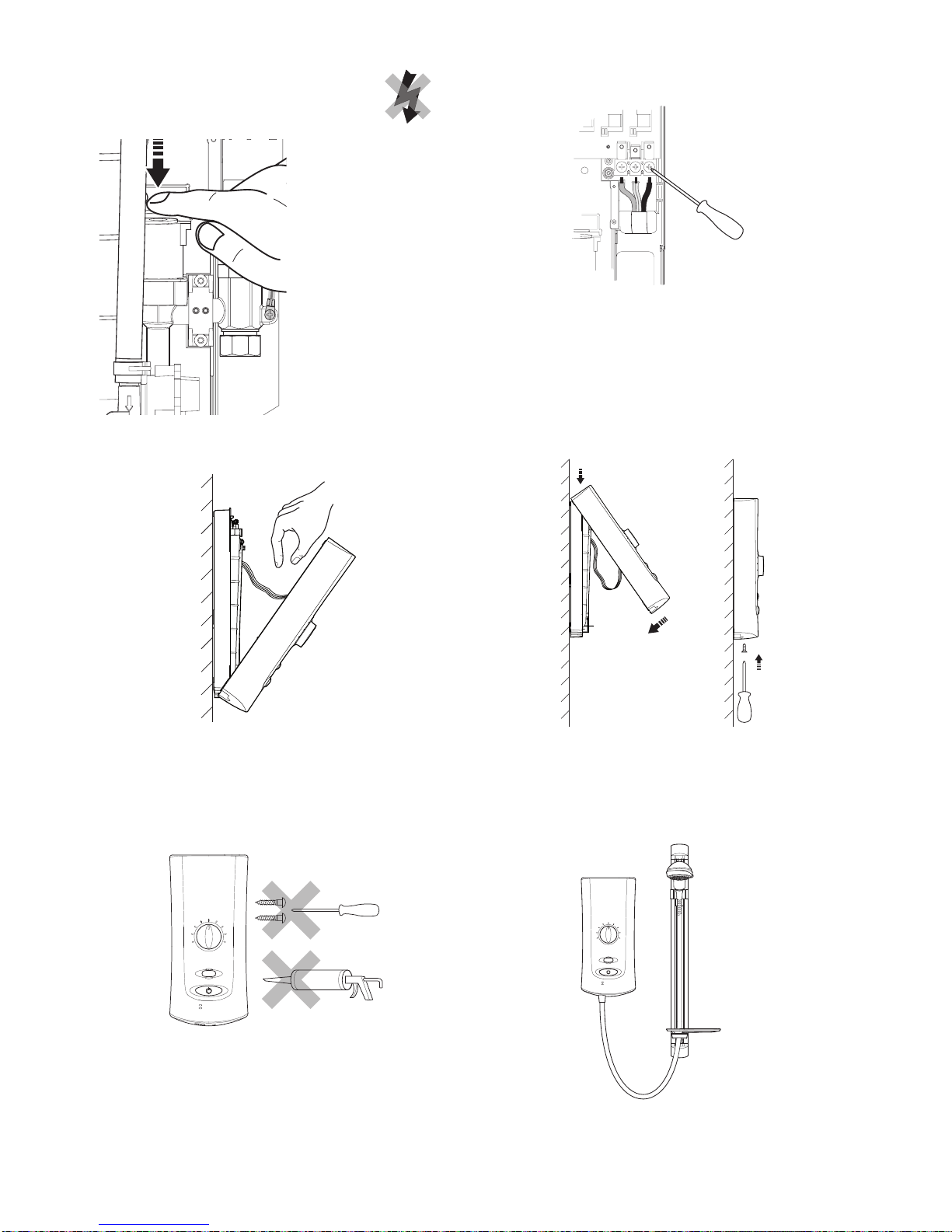

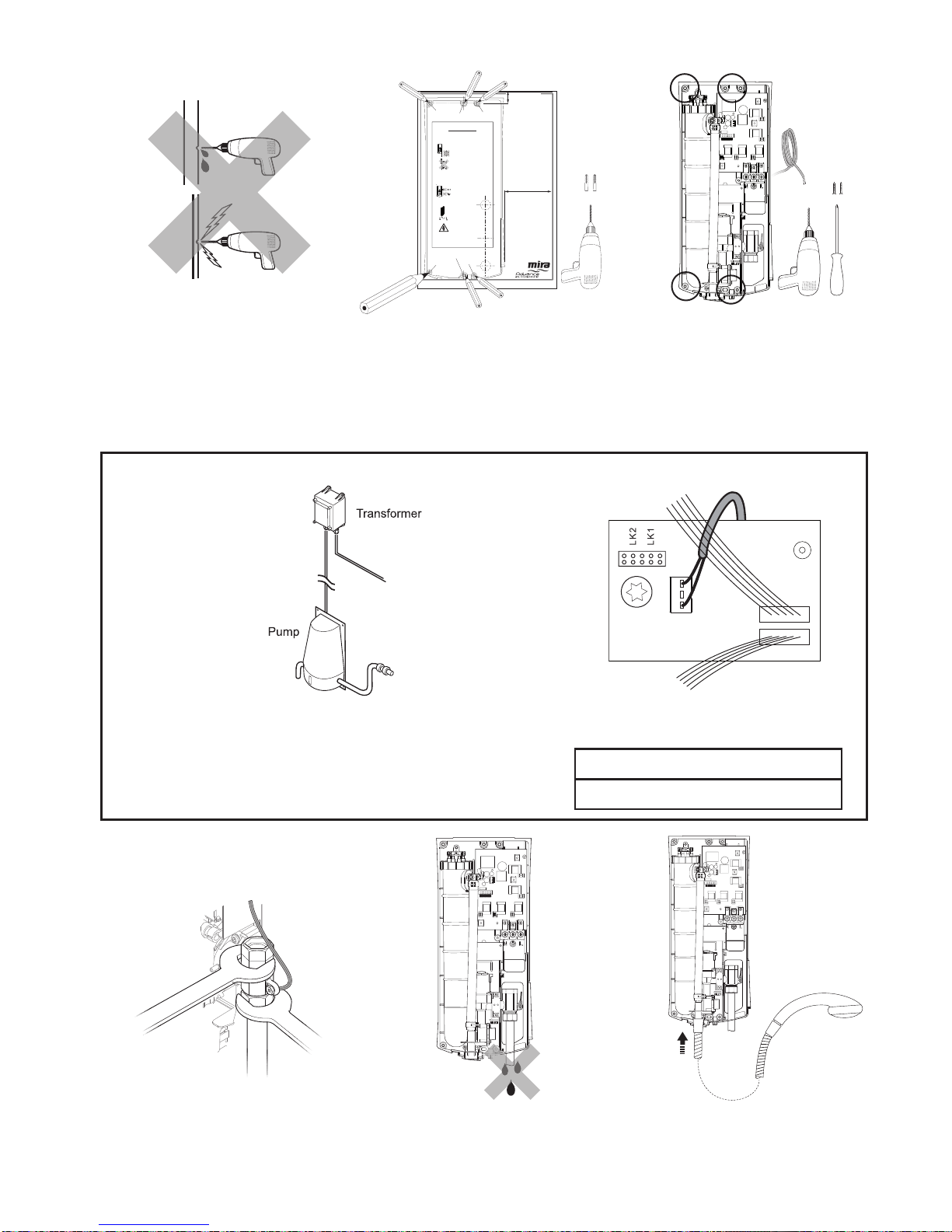

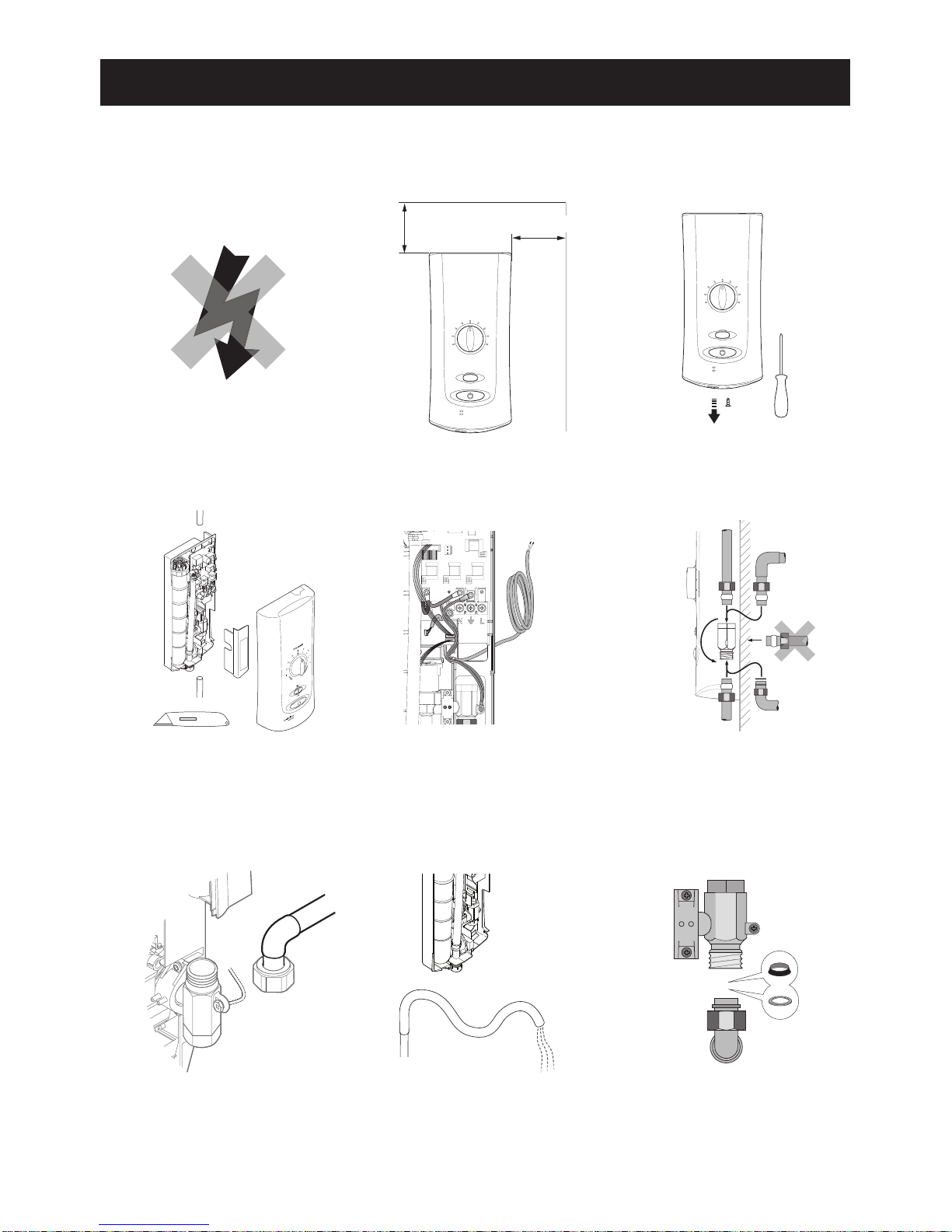

Installation .............................................................................................13
Priming the Unit..................................................................................15
Commissioning .....................................................................................16
Adjustable Maximum Temperature Limit............................................16
BEAB Care Compliance.....................................................................17

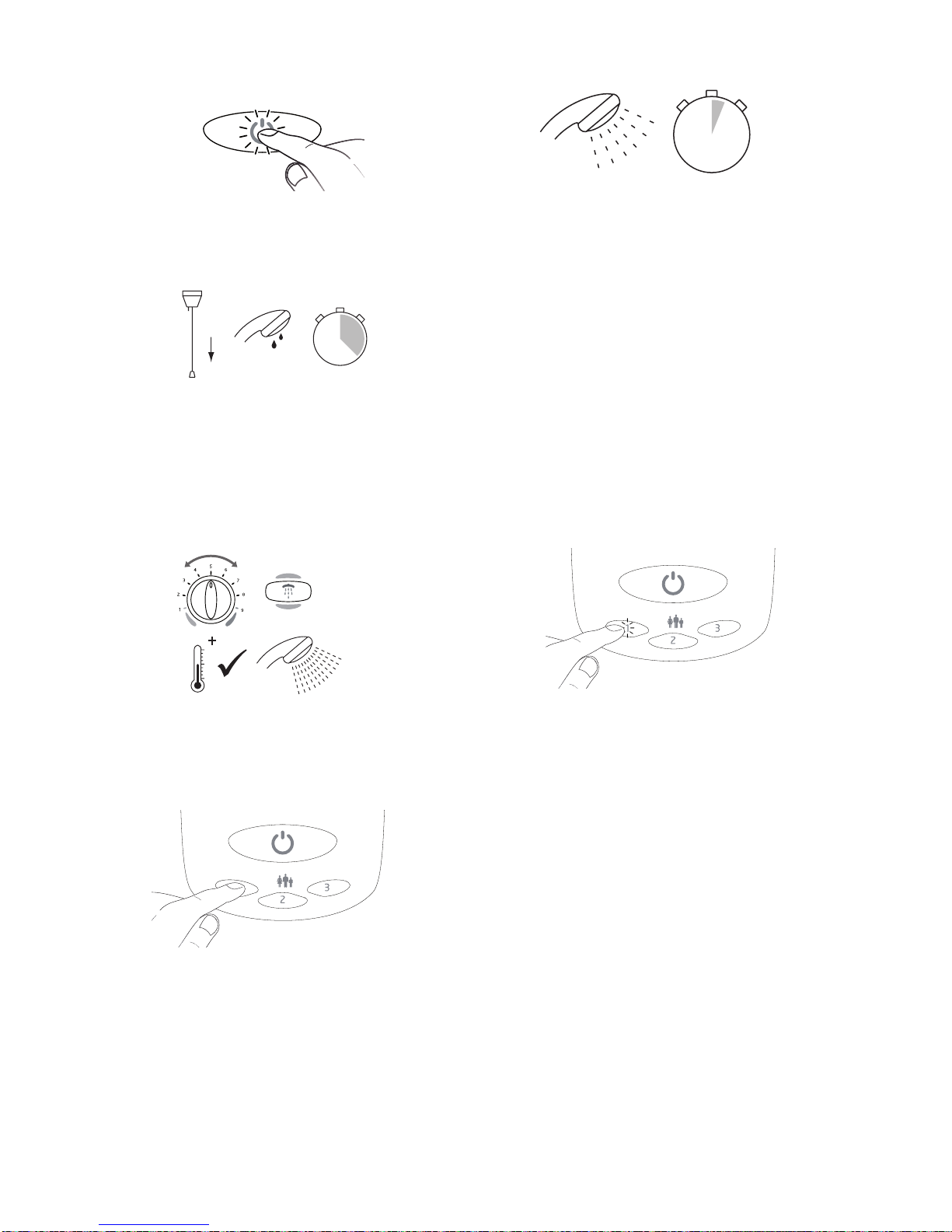

Operation ...............................................................................................18
1. How your Shower Works................................................................18
2. Using The Shower......................................................................... 19
3. Storing the Memory Presets (Memory Control Model only) ...........20
Automatic Shut Down.........................................................................20
Fault Diagnosis......................................................................................21
1. User Troubleshooting Guide...........................................................21
2. Installer Troubleshooting Guide......................................................23
Maintenance...........................................................................................26
Wiring Diagram......................................................................................27
Spare Parts ............................................................................................28
Notes ......................................................................................................29
Customer Service....................................................................Back Page

3
TO THE CUSTOMER
If you experience any difculty with the installation or operation of your new Electric
Shower, thenpleasereferto “Fault Diagnosis”,beforecontactingKohlerMiraLtd.
Our telephone and fax numbers can be found on the back cover of this guide.
Mira Advance ATL key features:
• Designed for safe and reliable control.
• Automatically adjusts to maintain constant temperature.
• Constantly monitors supply conditions.
Mira Advance ATL models covered by this guide
Product
Variant 9.0 9.8 Adjustable
Temperature
Limit
Memory
Push
Button
Feature
Extended
Lever
Control
Drain
Pump
Compatible
Standard      
Memory      
Flex      
Standard
Extra      
Flex
Extra      
• The following separate drain kits are required for the "Extra" models:
SDP124T Mira Whale Tray Kit (complete with 50 mm gully)
SDP134T Mira Whale Wet Floor Kit (complete with wet gully for vinyl)
This product must only be used with a Whale Shower Drain Pump (included in the
kits listed above).
Please pass on this guide in the event of change of ownership of the installation
site.

4
IMPORTANT SAFETY INFORMATION
1. Warning!
1.1 Products manufactured by us are safe and without risk provided they are
installed, used and maintained in good working order in accordance with our
instructions and recommendations.
1.2 THIS APPLIANCE MUST BE EARTHED. Make sure any supplementary
bonding complies with the "requirements for electrical installations" and is in
accordance with BS 7671.
1.3 DO NOT twist the individual cable cores of the live and neutral conductors, as
this will prevent them from entering the terminal block.
1.4 The shower unit must not be tted where it may be exposed to freezing
conditions. Make sure that any pipework that could become frozen is properly
insulated. If the appliance appears to be frozen, allow to thaw and then
contact your installer before using again.
DO NOT switch on the appliance if there is a possibility that the water in the
heater is frozen.
1.5 DO NOT operate this appliance if water leaks from the Case. Maintenance
may be required before the appliance can be safely used.
1.6 DO NOT t any form of outlet ow control as the outlet acts as a vent for the
tank body. Only Mira recommended outlet ttings should be used.
1.7 There are no user serviceable components beneath the cover of this
appliance. Only a competent tradesperson should remove the cover and only
genuine Mira replacement parts are to be used.
1.8 If any of the following conditions occur, isolate the electricity and water
supplies. Contact your installer or refer to 'To contact us', on the back page of
this guide:
1.8.1 If the cover is not correctly tted and water has entered the case.
1.8.2 If the case is damaged.
1.8.3 If the appliance begins to make an odd noise, smell or smoke.
1.8.4 If the appliance shows signs of a distinct change in performance,
indicating a need for maintenance.
1.9 Refer to the wiring diagram before checking any electrical connections.
1.10Make sure all electrical connections are tight, to prevent arching or
overheating.
2. Caution!
2.1 Read all of these instructions and retain this guide for later use.
2.2 Follow all warnings, cautions and instructions contained in this guide, and on
or inside the appliance.
2.3 The electrical installation must comply with the "Requirements for Electrical
Installations" commonly referred to as the IEE Wiring Regulations, or any
particular regulations and practices, specied by the local electricity supply
company in force at the time of installation.

5
The installation should be carried out by an electrician or contractor who is
registered, or is a member of, an association such as:
• Part P. (Building Regulations.)
• NICEIC approved domestic installer.
• The Electrical Contractors Association, England and Wales. (ECA.)
• The Electrical Contractors Association of Scotland. (SELECT.)
2.4 The plumbing installation must comply with the requirements of UK Water
Regulations/Bye-laws (Scotland), Building Regulations or any particular
regulations and practices, specied by the local water company or water
undertakers. The installation should be carried out by a plumber or contractor
who is registered, or is a member of, an association such as:
• Institute of Plumbing and Heating Engineering, throughout the UK.
(IPHE.)
• Association of Plumbing and Heating Contractors, England and Wales.
(APHC.)
• Scottish and Northern Ireland Plumbing Employers' Federation, Scotland
and Northern Ireland. (SNIPEF.)
2.5 Anyone who may have difculty understanding or operating the controls of
any shower should be attended whilst showering. Particular consideration
should be given to the young, the elderly, the inrm or anyone inexperienced
in the correct operation of the controls. Children must be supervised to make
sure that they do not play with the appliance.
2.6 When this appliance has reached the end of its serviceable life, it should
be disposed of in a safe manner, in accordance with current local authority
recycling, or waste disposal policy.
BEAB CARE Requirements:
RoutinemaintenanceisrequiredforallBEABCAREinstallations.TheInletFiltershall
be cleaned or replaced after the rst 6 months of use. This shall then be repeated
every 12 months. Refer to section: "Maintenance", on how to safely remove the
Filter.
Year 6 Monthly Signature 12 Monthly Signature
1
2
3
4
5
6
7
8
9
10

6
PACK CONTENTS
1 x Installation and User Guide
1 x Installer Checklist
1 x Installation Template
1 x Guarantee Card
1 x Olive
1 x Compression Nut 1 x Tap Connector Adaptor
(for tting to existing tap connector)
1 x Mira Advance ATL
Standard or Standard Extra
(Whale Shower Drain Pump
supplied separately)
2 x Wall Screws
2 x Wall Plugs
1 x Earth Sleeve
Or Or
Tick the appropriate boxes to familiarize yourself with the part names and to
conrm that the parts are included.
1 x Mira Advance ATL
Memory 1 x Mira Advance ATL Flex or Flex Extra
(Whale Shower Drain Pump
supplied separately)
1 x Case Insert Top
1 x Case Insert Bottom

7

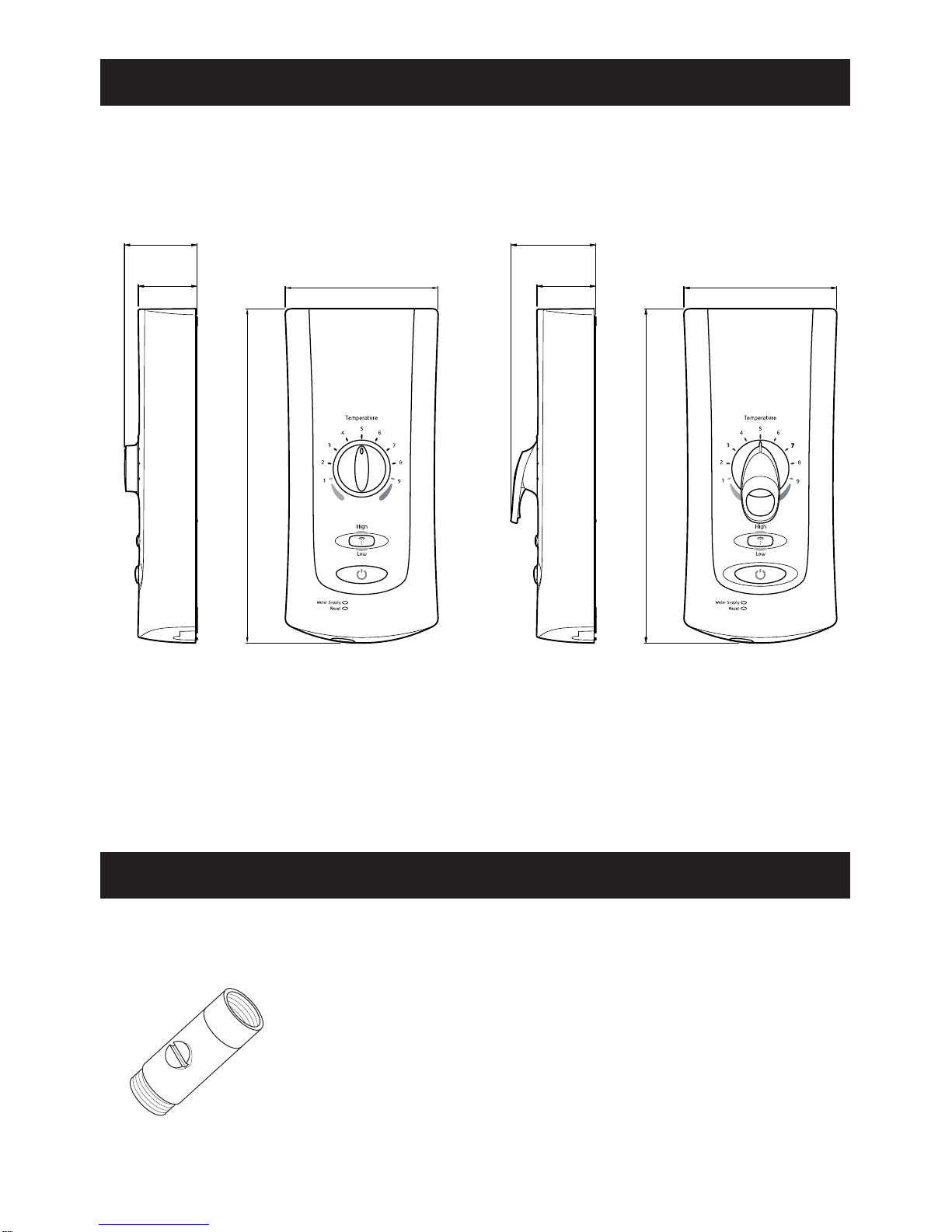

DIMENSIONS
Advance ATL
Standard/Memory Advance ATL Flex
403 mm
All dimensions are nominal
ACCESSORIES
MIRA DCV-H OUTLET DOUBLE CHECKVALVE.
Designed to prevent the backow or backsiphonage of
potentially contaminated water, through shower controls
which are tted with a exible hose as part of the outlet
shower tting. Available as an optional accessory from all
Mira Showers stockists.
184 mm
87.5 mm
71 mm
403 mm
184 mm
102 mm
71 mm

8
SPECIFICATIONS
Plumbing Supply
Supply Source Mains pressure cold water only
Minimum Dynamic Pressure* 50 kPa (0.5 bar)
Maximum Static Pressure 1000 kPa (10 bar)
Minimum Static Pressure** 20 kPa (0.2 bar)
Maximum Inlet Temperature 28°C
Minimum Inlet Temperature 2°C
Inlet Connection ½" BSP male & 15 mm
compression tting.
Outlet Connection ½" BSP male fitting
Electrical Supply
Nominal Rating at 230 V 8.2 kW 9.0 kW
Nominal Rating at 240 V 9.0 kW 9.8 kW
Supply Fuse/Circuit Breaker 9.0 kW 40 Amps
9.8 kW 45 Amps
Residual Current Device RCD
(Strongly Recommended) 30 mA
Supply Cable
No larger than 16 mm²
Note: Refer to current IEE
regulations and BS 7671 to
determine minimum cable size.
Isolation Switch 45 Amp Double pole, with 3 mm
contact separation.
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
* Recommended dynamic pressure of 100 kPa (1.0 bar) for full ow performance.
** Static pressure must never fall below 20 kPa (0.2 bar) when other draw offs are in use, e.g. ushing
toilet. This is the minimum pressure required to keep the ow valve closed.
Standards and Approvals
The Mira Advance ATL complies with the requirements of the BEAB Care Mark
Standard and the relevant directives for CE marking.
Patents and Design Registration
Design Registration: 000738141: 0003, 0006, 0007, 0009
Patents: GB: 2269466, 2270370, 2298478, 2298479, 2298481

9
SHOWER PERFORMANCE
_
+
WATER
SUPPLIER
Seasonal changes
affecting water supply
temperature. Changes of incoming
supply voltage.
Changes of incoming
supply pressure.
Mains cold water draw
off, e.g. toilet, wash
basin etc.
Changes in Flow Rate
(force of shower).
Temperature remains constant.
Heat transfer due to
position of mains cold
water pipe.
hot pipe mains cold
pipe
E.g.
Positioned next to hot•
water pipe.
Routed through•
heated area such as
loft or airing cupboard.

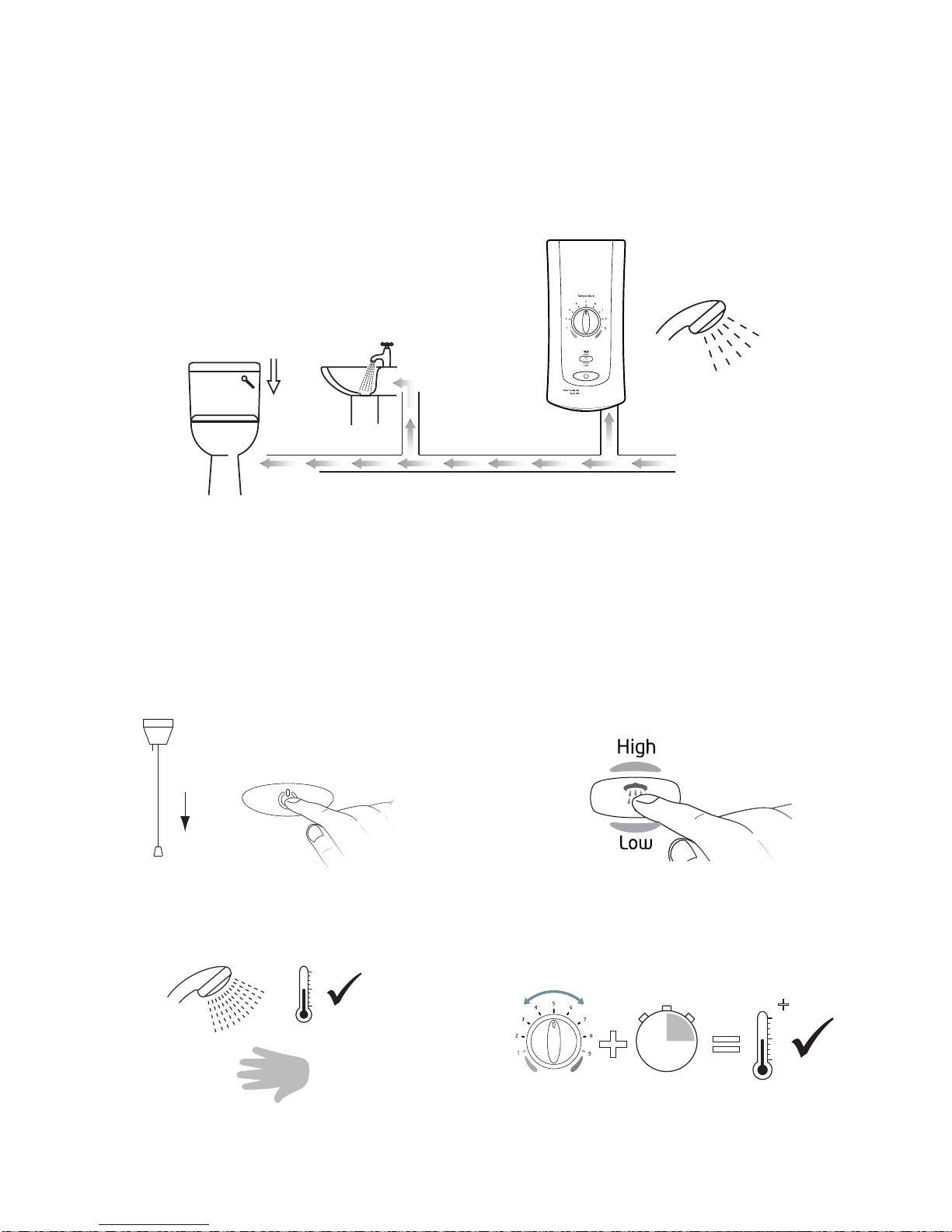

What affects shower performance?
The shower unit's top priority is to keep the desired water temperature constant.
To maintain this temperature, the shower may have to automatically change the
rate of water owing through the unit. Any of the following conditions can cause the
shower to change the ow rate (force of the shower) in order to keep the temperature
constant. Most changes are minor and will go unnoticed.

10
General Notes
This product works best when supply temperatures and pressures remain
stable and within the product specications, refer to section "Specications".
If the supply conditions fall outside the specications, the shower may go into
a safe shut down condition.
1. Plumbing Do's & Don'ts
Refer to section: "Important Safety Information" rst.
1.1 Do not use sealing compounds on any pipe ttings or joints.
1.2 Never t the unit to hot water supplies or to gravity systems of any
description. Only t the product to a mains cold water pipe.
1.3 Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
1.4 Supply pipework MUST be ushed to clear debris before connecting the
appliance. Debris will reduce the performance of the unit.
Avoid running the pipework through excessively hot or cold areas such as hot
loft spaces, airing cupboards, or in close proximity to hot water pipes. If this
cannot be avoided, we would recommend insulating the pipes.
1.5 The appliance must be tted onto the nished wall surface i.e. on top of the
tiles. DO NOT tile up to the sides of the unit or use a sealant around the
case. Failure to do this may cause product failure.
1.6 We recommend that a non-restrictive (free owing) isolating valve is tted in
the cold water supply pipe to allow maintenance of the appliance.
1.7 When installed in very hard water areas (above 200 ppm temporary
hardness) your installer may advise the installation of a water treatment
device, to reduce the effects of limescale formation.Any malfunction due to
limescale is not covered by the manufacturer's guarantee. Your local water
company will be able to advise the hardness of water in your area.
1.8 Caution! Double checkvalves, tted in the inlet supply to the appliance,
cause a pressure buildup, which could exceed the maximum static inlet
pressure for the appliance.
2. Electrical
Refer to section: "Important Safety Information" rst.
2.1 In a domestic installation, the rating of the electricity supplier’s fuse and the
consumer unit must be adequate for the additional demand. All Mira Advance
ATL electric showers are high power units. Voltage drop due to local heavy
demand will reduce the shower’s performance.
INSTALLATION REQUIREMENTS

11
2.2 The appliance must be earthed by connecting the supply-cable earth
conductor to the earth terminal.
Any supplementary bonding and supply cable size must conform to BS 7671.
2.3 As a guide only, and in accordance with BS 7671 we recommend close
circuit protection:
I.e. 9.0 kW = 40 Amp
9.8 kW = 45 Amp
A separate, permanently connected supply is taken from the consumer unit
to the appliance through a double-pole switch. The switch can be a ceiling
mounted pullcord type or a wall mounted switch in an adjacent room.
2.4 DO NOT exert strain on the terminal block, however make sure that the
electrical connections are tightly screwed down.
2.5 DO NOT turn on the electrical supply until the plumbing has been completed.
Plumbing and Electrical Schematic Diagram
Optional Outlet
Double Checkvalve
45 Amp Double-pole
Isolating Switch
Mains-fed Cold
Water Supply
Consumer Unit
Isolating
Valve
Terminal Block
Switched
Spur
Transformer/
Controller
Whale
Shower
Drain Pump
Standard Extra & Flex Extra
models only
supply cable
supply cable
signal cable

12

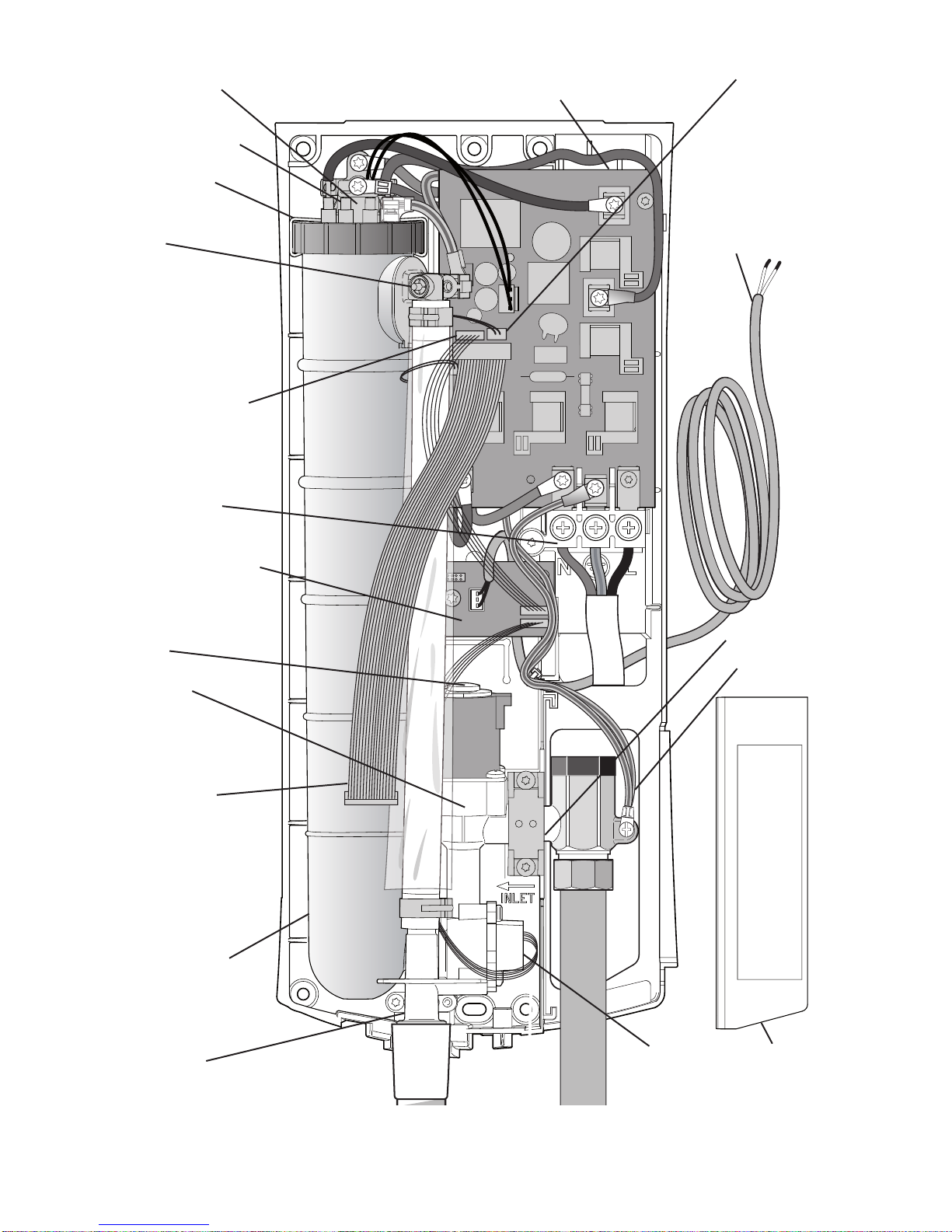

Terminal Block
Tank Assembly
Outlet
Connector Flow Valve
Turbine and
Inlet Sensor
Wire 75 Earth
Inlet Clamp
Splash Guard
Relay Board
Flow Valve
Solenoid
Connector
Lead Socket
Thermal Switch
Element Assembly
Clip (secures
thermal switch)
Outlet
Sensor
Connector Lead
Sockets for the Flow
Valve Turbine and
Inlet Sensor, and
the Tank Assembly
Sensor.
Ribbon Cable
(connect to front Cover).
Flow Valve
Air Bleed
Button
Drain Pump PCB
(Standard Extra and
Flex Extra models only)
Pump Signal
Cable
(Standard Extra
and Flex Extra
models only)
Mira Advance ATL
(Standard Extra and Flex Extra models shown)

13
INSTALLATION
1.
Refer to section: "Important Safety Information" rst.
This installation covers all models of the Mira Advance ATL Thermostatic
shower.
Electrical supply is
turned off at the mains.
2.
Determine unit position.
Leave appropriate
spaces for maintenance.
3.
Remove Cover Screw.
4.
Remove Cover and
Splash Guard. Determine
supply pipe position and
if required cut a slot in the
Case for the rising supply.
5.
Make provision for Signal
Cable to connect to Shower
Drain Pump (if applicable).
Also refer to Whale Drain
Pump instructions.
6.
Turn Inlet Connector to
suit supply pipe.
Do not trap green wire.
7.
Complete any soldering
required away from
appliance.
8.
When tting to a tap
connection, use adaptor
(supplied). Do not t bre
washer.
9.
Flush a minimum of
10 litres (2 gallons)
through pipework prior to
connection.
10 mm
100 mm

14
10.
CAUTION! Do not drill
into buried cables or
pipes.
11.
Use Template provided to
mark and drill required xing
holes. Screws and Plugs are
supplied for two required
holes only.
Mira Advance A T L
Attention Installer
IMPORTANT!The following key details should be read in
conjunction with the Installation and User Guide.
Optional
Fixing Hole Required
Fixing Hole
1083677-W7-A ©Kohler Mira Limited, May 2007
Optional
For technical support and general enquires,
spare parts and after sales service contact us on:
Telephone : [phone]
Fax : [phone]
email :[email protected]
Optional Optional
Leave minimum gap to
install and maintain
Do not install the appliance where it
may become frozen.
Do not drill into buried cables or
pipes.
Avoid dust contamination of the
product by using this template to mark
and drill into the wall. Drill appliance
case separately.
Do not use alternative screws to
secure the cover.
Do not seal any part of the appliance.
Use the correct supply cable
size. Refer to BS 7671.
Leave minimum gap
to remove cover
Required
Fixing Hole
Thoroughly fl ush the
pipework before connecting
to the appliance.
12.
13.
14. 15.
Drill holes through plastic
case as required. Route
signal cable to Shower
Drain Pump (if applicable).
Fix appliance to wall.
Connect hose and
handset, pointing into
bath or tray.
16.
Turn on water supply and
check for leaks.
Connect supply pipe.
Do not overtighten.
Find the Whale Shower Drain Pump
Transformer and identify it's type number. Jumper position for Mira Advance ATL Drain Pump PCB.
Type: 755.171 = LK1
Type: 755.299 = LK2
Mira Advance ATL Standard Extra & Flex Extra variants only!

15
17. 18.
19. 20.
21.
Do not use alternative screws
to secure Cover. This can
cause internal damage to the
appliance. Do not seal around
any part of the appliance.
22.
Install shower ttings. Refer
to separate Installation and
User Guide.
Ret Cover. Inserts are
provided to nish the top and
bottom as required.
Refit Splash Guard and
connect ribbon cable to the
inside of the Cover.
Feedcableintocase.Fitearth
sleeve and strip insulation.
Firmlyconnecttheconductors.
Donotexertstrainonterminal
block.
L = BROWN
E = GREEN
N = BLUE
Makesureelectricity
isisolated!Pushdown
andholdairbleedbutton
to prime appliance until
water appears from
showerhead.Failureto
prime will seriously
affect shower
performance! Dry off
waterbeforeconnecting/
reinstating electricity.
IMPORTANT!
Priming the unit

16
COMMISSIONING
Important! The Mira Advance ATL will adapt it's settings for the individual supply
conditions and store this information in it's main memory (during manufacture, this
informationisfactorysetusingidealconditions).Oninitialinstallation,theunit needs
to "learn" about the site conditions and does so during the commissioning cycle.
It is important that the unit is commissioned correctly otherwise an error condition
may occur. Once set, the unit constantly updates it's memory with information about
the site conditions to optimize the shower's performance. This is stored once the
Start/Stop button is pressed whilst the shower is running.
Basic Operation Checks
1. Switch on the electrical supply at the
mains and test the Shower Drain Pump
(if applicable, see separate Shower Drain
Pump instructions) before turning the
shower on. Switch on the electrical supply
at the double-pole switch. The Start/Stop
button will illuminate to indicate that the
electrical supply is connected to the
shower.

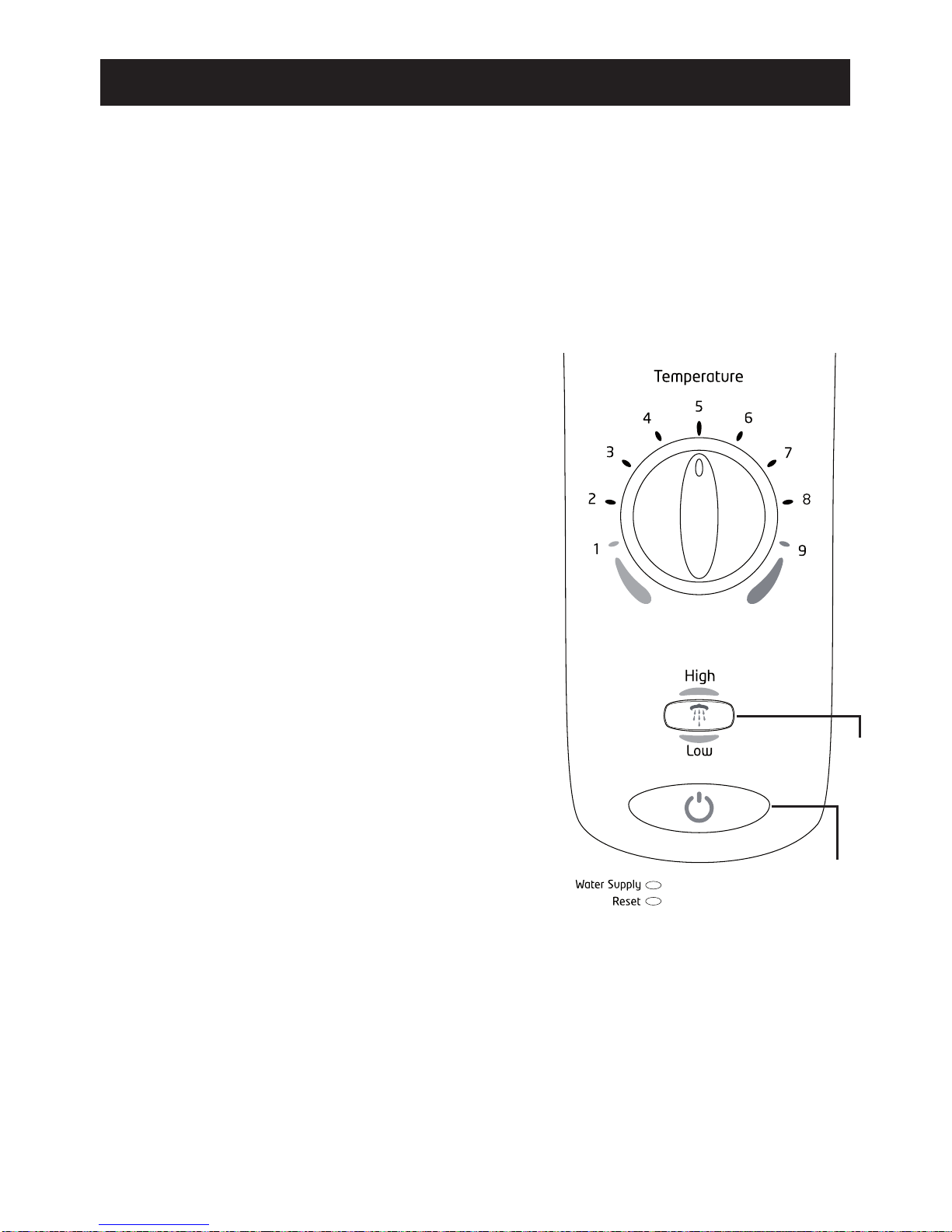

2. Turn the Temperature control dial to full
cold, the dial operates anticlockwise from
hot to cold.
3. Push the Flow or Start/Stop button and
observe the blue ow indicator with audible
beep. Check that cold water ows freely
from the shower within a few seconds.
If a delay of more than 5 seconds is
encountered, then it is likely that the unit
has not been primed.
Refer to section "Installation" for priming
the unit using the air bleed button. Should
the unit still not function then refer to the
section "Fault Diagnosis".
After a short delay, the Shower Drain Pump (if applicable) should operate and
drain the waste water, after the shower is turned on.
Adjusting Maximum Temperature Limit and Commissioning Cycle
4. Make sure the double pole switch is off.
5. Set the Temperature control dial to the position required for the correct
temperature as shown in the following table.
6. Switch on the double pole switch and check the blue Start/Stop button is lit.
Flow
Start/Stop

17
7. Within 30 seconds, push and hold down the Flow and Start/Stop buttons at
the same time.
8. On the long beep, release the Start/Stop button. On the short beep, release
the Flow button.
Following the Maximum Temperature Setting procedure, the appliance
automatically starts a Commissioning process to check and adjust to the site
conditions. The High Flow light ashes for approximately 2 minutes. Caution!
During this cycle the water temperature will reach a maximum of 44 °C.At the
end the Flow light goes off, the shower stops and goes to the normal standby mode.
The maximum temperature limit can be further reset to any temperature within the
table by repeating this process. The shower is now ready for use.
If the unit's maximum temperature is set to 41 °C or cooler, there is a clear triple
beep tone and single flash of the Start/Stop light when double pole switch is turned
back on. This is to show that the unit is in a "BEAB Care" compliant mode. If
recommissioningis requiredwhilstinthismode,waituntilbeepshavepassedbefore
starting the commissioning cycle.
Memory model: ifthe maximum temperatureisadjustedafter havingbeenstoredin
one or more of the memory buttons, then the showering temperature cannot exceed
the new maximum setting.
E.g.
Note! High cold water mains supply pressures and high shower temperatures will
cause a slight audible hissing sound to be heard from the unit whilst it is operating.
This is quite normal and does not indicate that there is a fault with the unit.
Memory 1
stored at 45°C
Maximum
temperature
adjusted to
40°C
Memory 1
automatically
cannot exceed
40°C Maximum
temperature
adjusted to
48°C
Memory 1
now back to
original stored
maximum of
45°C
Dial Position Max. Temp °C
1 37
2 38
3 39
4 40
5 41
6 42
7 45
8 48
BEAB Care
Temperature
Range

18

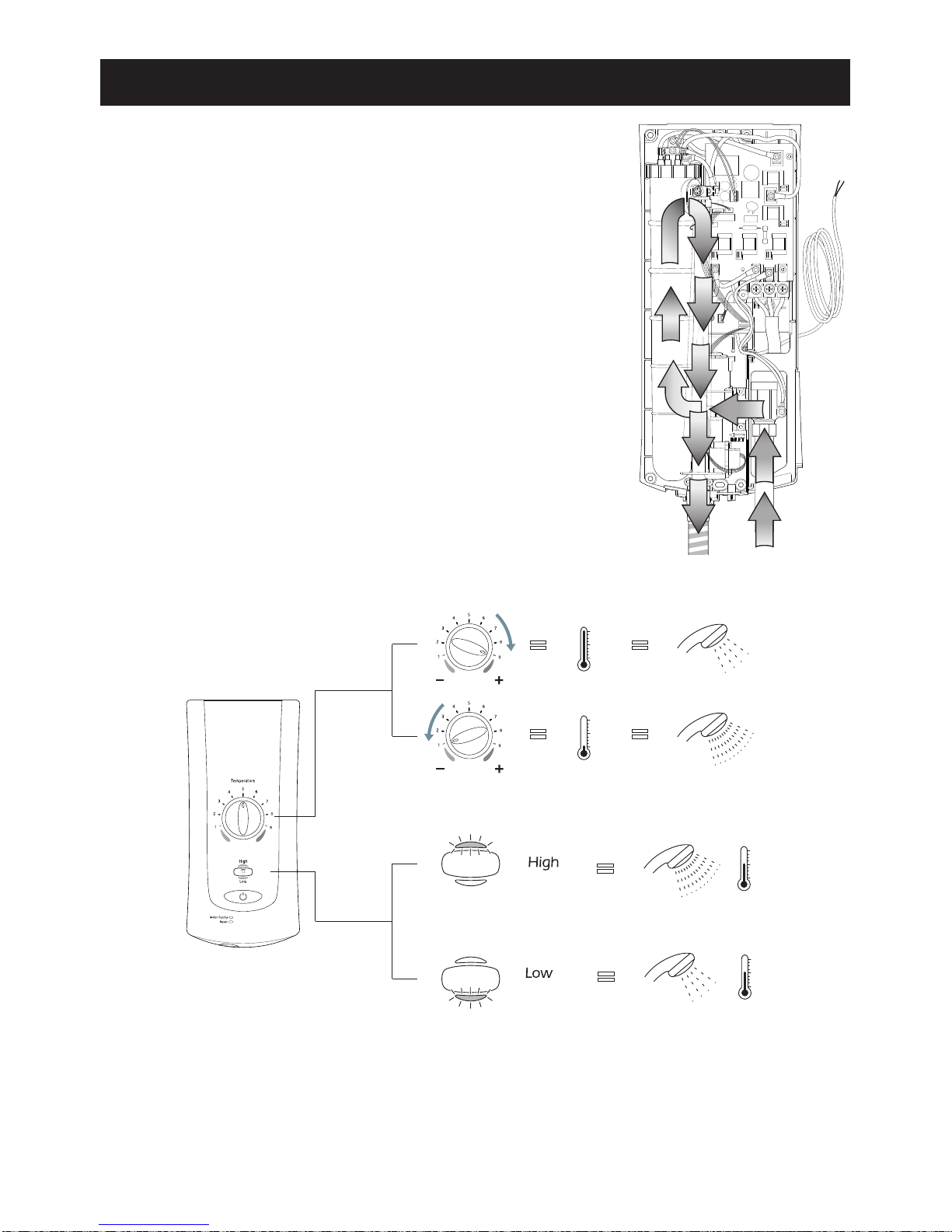

1. How your Shower Works
1.1 Hot water is produced by passing cold water through
a heating tank.
The unit constantly monitors the following conditions:
• The incoming cold water temperature.
• The outgoing shower temperature.
• The ow rate of water.
• The current user settings.
The ow rate may automatically adjust to maintain
the current temperature setting. As part of this
process, a series of "clicks" may be heard, this is a
normal part of the operation when the shower is in
use.
The showering temperature is adjusted by turning the Temperature Control Dial,
which varies the ow of cold water passing over the elements. The slower the rate
of ow, the warmer the shower and vice versa.
OPERATION
_
+
_
+
_
+
_
+

19
1.
Turn on electrical supply
and push Start/Stop.
2.
Select the desired ow by
pushing either once or twice.
_
+
3.
Check water temperature
before entering shower.
_
+
4.
Allow 10-15 seconds for any temperature
adjustments to reach the handset.
As outlined in section "Shower Performance", certain conditions can cause the
shower's performance to vary. The most common of these conditions is detailed
below:
1.2 The Effect of Other Water Devices
Temporary changes in supply conditions can cause reduced ow performance. The
selected ow setting may not be available until supply returns to normal.
Thermostatic Performance
To maintain thermostatic performance, the unit may override the selected ow
condition. The selected ow indicated does NOT change.
2. Using the Shower
Refer to section: "Important Safety Information" rst.

20
6.
Push Start/Stop BEFORE isolating
the electricity. The ashing light
indicates the shower is shutting down.
5.
Residual water may drain
over a few minutes
The shower will purge water from
its tank for a few seconds.
7.
3. Storing the Memory Presets (Memory Control Model only)
_
+
1.
Set the shower to the desired
temperature and ow.
2.
Pushandholddownthedesiredmemory
button. A "beep" and ashing light will
indicate the setting has been stored
successfully.
3.
To retrieve a stored setting, push
the desired memory button when
the shower is either on or off.
Note! The unit has a built in "Shower Stop" timer function to protect from accidental
unattended operation. This feature automatically switches the unit off after
40 minutes of continuous use. Normal operation is restored by re-selecting the
Start/Stop button.
Any light ashing rapidly will indicate the button pushed is stuck.
