Mira Vision Dual User manual

1
These instructions are to be left with the user
Installation Guide
Mira Vision

2
CONTENTS
Introduction................................................................................................3
Products Covered by this Guide...........................................................3
Guarantee ............................................................................................3
Patents and Design Registration..........................................................3
Important Safety Information.....................................................................4
Pack Contents...........................................................................................6
Specications ............................................................................................9
Standards and Approvals.....................................................................9
Installation...............................................................................................11
General...............................................................................................11
Important Information Regarding Radio Controlled Devices..............11
Use of Flow Regulators with Combination Boilers ............................13

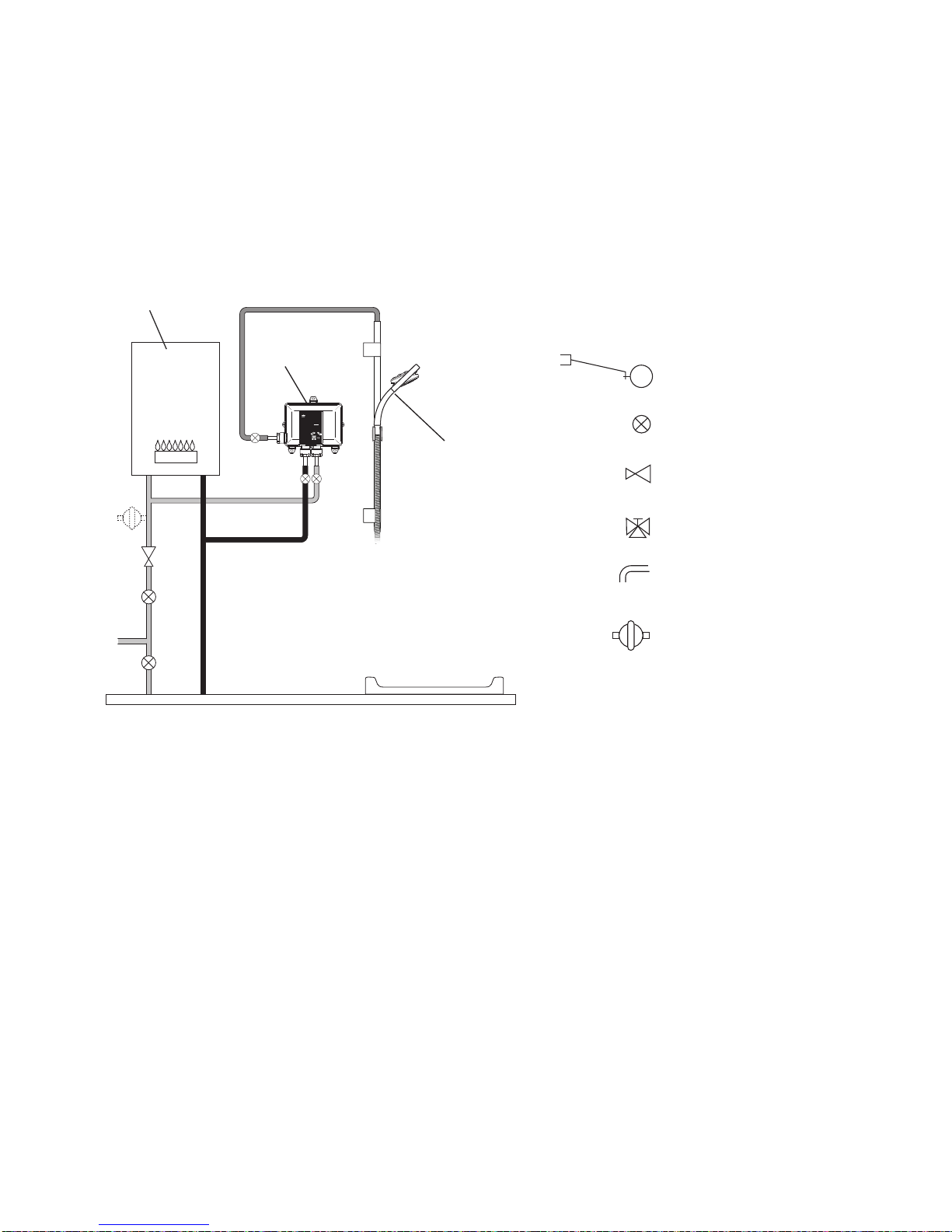

Installation Schematic ........................................................................16
Position and Signal Test.....................................................................18
Shower Fittings - Ceiling Fed.............................................................22
Shower Fittings - Rear Fed ................................................................25
Wireless Controller ............................................................................29
Commissioning........................................................................................30
Re-Registering ........................................................................................32
Fault Diagnosis........................................................................................33
Maintenance............................................................................................37
Spare Parts .............................................................................................38
Accessories.............................................................................................41
Dimensions..............................................................................................42
Disposal and Recycling...........................................................................43
Customer Service....................................................................................44
If you experience any difculty with the installation or operation
of your new shower, then please refer to the Fault Diagnosis section,
before contacting Kohler Mira Ltd.
Our telephone and fax numbers can be found in the back of this guide.

3
Thank you for purchasing a quality Mira product. To enjoy the full potential of your
new product, please take time to read this guide thoroughly. Having done so, keep
it handy for future reference.
TheMira VisionMixerValveis designed tobeused with theMiraVisionshowerhead
and ttings.
Products Covered by this Guide
Mira Vision Digital Mixer - High Pressure/Combi Valve
Mira Vision Digital Mixer - Pumped Valve.
Mira Vision Wireless Controller.
Mira 360 Fittings (Ceiling Fed or Rear Fed).
Guarantee
Fordomesticinstallations,MiraShowers guaranteetheMiraVisionagainstanydefect
in materials or workmanship for a period of ve years from the date of purchase
(shower ttings for one year).
Fornon-domestic installations. MiraShowersguarantee the MiraVisionagainst any
defectin materials or workmanship for a periodofoneyearfromthedateofpurchase.
For terms and conditions refer to the back cover of this guide.
Recommended Usage
Domestic 
Light Commercial 
Heavy Commercial 
Healthcare 
Patents and Design Registration
Design Registration 001295935
Patents GB: 2 421 297
USA: 7 669 776
Patent Applications WO: 2009/022112
EUROPE: 2 227 647
USA: US-2010 - 0282 326 - A1
CHINA: CNI01918743A
INDIA: 1306/MUMNP/2010
INTRODUCTION

4
IMPORTANT SAFETY INFORMATION
Warning!
Follow all warnings, cautions and instructions contained in this guide, and
on or inside the appliance.
1. THIS APPLIANCE MUST BE EARTHED. ENSURE SUPPLEMENTARY
BONDING COMPLIES WITH THE “REQUIREMENTS FOR ELECTRICAL
INSTALLATIONS”.
The Mira Digital Mixer Valve is intended to be permanently connected to the
xed electrical wiring of the mains system. A means for electrical isolation of the
appliance shall be provided in the xed wiring in accordance with local wiring
regulations.
2. Products manufactured by us are safe and risk-free, provided that they are
installed, used and maintained in good working order, in accordance with our
instructions and recommendations.
3. Isolate the electrical and water supplies before connecting to the appliance.
4. Mains connections are exposed when the cover of the Digital Mixer Valve is
removed.
5. The Digital Mixer Valve must not be installed where it can become frozen
6. Make sure that any pipework that could become frozen is properly insulated.
7. A 30mA Residual Current Device (RCD) MUST be included in the electrical
circuit. This may be part of the consumer unit or a separate unit.
8. All pipework must be checked for leaks before the product installation is
completed.Theproduct should bepressurisedandbothinlet&outlet connections
inspected.
9. Having completed the installation, make sure that the user is familiar with the
operation of the appliance.
10. Make sure that this guide is left with the user.
11. DO NOT commission this appliance if water leaks from the unit.
12. Only Mira recommended outlet ttings should be used.
13. Ensure all electrical connections are tight, to prevent overheating.
14. This product is not suitable for areas with high humidity (i.e steam rooms).
Please consult your installer.
15. The water supplies to this product must be isolated if the product is not to be
used for a long period of time. If the product or pipework is at risk of freezing
during this period they should also be drained of water.
Installation must be carried out in accordance with these instructions and by
designated, qualied and competent personnel.

5
Caution!
1. Read all of these instructions and retain this guide for later use.
2. Theelectricalinstallation must comply to“BS7671 (commonly referred to asthe
IEE Wiring Regulations) and all relevant regulations, or any particular regulation
or practice specied by the local electricity supply company.
3. The plumbing installation must comply with the requirements of UK Water
Regulations/Bye-laws (Scotland), Building Regulations or any particular
regulations and practices, specified by the local water company or water
undertakers.
4. Make sure that you fully understand how to operate this shower and make sure
that it is properly maintained in accordance with the instructions given in this
manual.
5. DO NOT turn-on the electrical supply until the plumbing has been completed.
6. Theapplianceisnotintended forusebypersons(including children)withreduced
physical,sensoryormentalcapabilities, unless they are supervised or have been
given instruction concerning the use of the appliance by a person responsible
for their safety.
7. Sunburn or skin conditions can increase your sensitivity to hot water. Make sure
that you set the shower to a cooler temperature.
8. If any of the following conditions occur, isolate the electricity and water supplies
and refer to section ”To contact us”, in the back cover of this guide.
• If the cover is not correctly tted and water has entered the appliance case.
• If the case is damaged.
• If the appliance begins to make an odd noise, smell or smoke.
• Ifthe appliance shows signs of a distinctchangeinperformance,indicating
a need for maintenance.
• DO NOT operate if water leaks from the appliance.
• DO NOT operatethisappliance if itisfrozen. If suspected ofbeingfrozen,
isolate and contact us for advice.

6
Digital Mixer Valve
Wireless Controller
1 x Orange
Flow Regulator
3 x Fixing Screws
2 x Fixing Screws
2 x Wall Plugs
Digital Mixer -
High Pressure/Combi Valve Digital Mixer - Pumped Valve
2 x Push-Fit Isolators
3 x Wall Plugs 1 x Green
Flow Regulator
1 x Outlet
Connector
1 x Wireless
Controller
1 x Wall Plate
3 x AA Batteries
OR
PACK CONTENTS
Tick the appropriate boxes to familiarise yourself with the part names and to conrm
that the parts are included.
Documentation
1 x Wireless Controller User Guide
1 x Showerhead User Guide
1 x Customer Support Brochure
1 x Battery Cover

7
Ceiling Fed Fittings
1 x Installation Template
1 x Ceiling Plate
1 x Showerhead
1 x Extension
1 x Slide Bar
Assembly
2 x Brackets
2 x Hex Screws
2 x Wall Plugs
2 x 45mm Screws
2 x 70mm Screws
1 x Hex Key
1 x Elbow Kit
2 x Spacers
2 x Rubber Washers
1 x Hose
1 x Plastic Pipe

8
2 x Hex Screws
2 x Wall Plugs
2 x 45mm Screws
1 x Hex Key 1 x Installation Template
2 x Rubber Washers
1 x Right Angle
Connector (RAC) Kit
1 x Right Angle
Connector Shroud
1 x Hose
2 x Brackets
1 x Slide Bar
Assembly
2 x End Plugs
1 x Showerhead
Rear Fed Fittings

9
SPECIFICATIONS
Standards and Approvals
The Mira Vision complies with all relevant directives for CE marking. The Mira
Vision is a type 1 electronic, independently mounted control for surface mounting.
The Mira Vision is in compliance with the essential requirements of the R&TTE
directive 1999/5/EC. A copy of the declaration of conformity may be obtained by
contacting Kohler Mira Limited, U.K customer services department.
General
Pollution Degree 2
Rated Impulse Voltage 2.5 kV
Suitable for Drinking Not Suitable
Connections 15 mm Compression/Pusht
Mira Digital Mixer Valve High Pressure
Pressures
Maximum Static Pressure 1000 kPa (10 bar) = 100 m max. total head
Maximum Maintained Pressure 500 kPa (5 bar) = 50 m max. total head
Minimum Maintained Pressure 50 kPa (0.5 bar) = 5 m max. total head
Supply Pressure Differential Nominally Equal
Temperatures
Maximum Temperature (factory preset) 45 °C
Maximum Temperature (setting range) 35 °C - 48 °C
Minimum Temperature Thermostatic control down to 30 °C
Hot Water Range 55 °C - 65 °C
Cold Water Range 1 °C - 20 °C
Temperature Stability ± 1 °C at recommended supply conditions
Ambient Temperature 1 °C - 40 °C
Maximum Relative Humidity 95% non-condensing
Flow Rates and Times
Nominal Flow Rates (will vary depending
on inlet maintained pressure and spray
mode)
Max @ 1.0 bar = 16l/min
Min @ 1.0 bar = 5l/min
Electrical
Supply Voltage 230V
Maximum Load 20W
Radio Frequency 433.05 MHz to 434.79 MHz Class 1 Radio Device

10
Mira Digital Mixer Valve Pumped
Pressures
Maximum Static Pressure 100 kPa (1 bar) = 10 m max. total head
Maximum Maintained Pressure 100 kPa (1 bar) = 10 m max. total head
Minimum Maintained Pressure 1 kPa (0.01 bar) = 0.1 m min. total head
Supply Pressure Differential Nominally Equal
Temperatures
Maximum Temperature (factory preset) 45 °C
Maximum Temperature (settable range) 35 °C - 48 °C
Minimum Temperature Thermostatic control down to 30 °C
Full Cold also selectable
Hot Water Range 50°C - 65°C
Cold Water Range 1°C - 20°C
Temperature Stability ± 1°C at recommended supply conditions
Ambient Temperature 1°C - 40°C
Maximum Relative Humidity 95% non-condensing at 30 °C
Flow Rates and Times
Flow Rates (will vary depending on inlet
maintained pressure and spray mode) Max @ 0.01 bar = 16 l/min Min @ 0.01 bar = 6 l/min
Electrical
Supply Voltage 230V
Maximum Load 200W
Radio Frequency 433.05 MHz to 434.79 MHz Class 1 Radio Device

11
INSTALLATION
General
The installation must be carried out in accordance with these instructions, and
must be conducted by designated, qualied and competent personnel.
The plumbing installation must comply with the requirements of the U.K water
regulations/Bye-laws (Scotland), or any particular regulations and practices,
specied by the local water company or water undertakers.

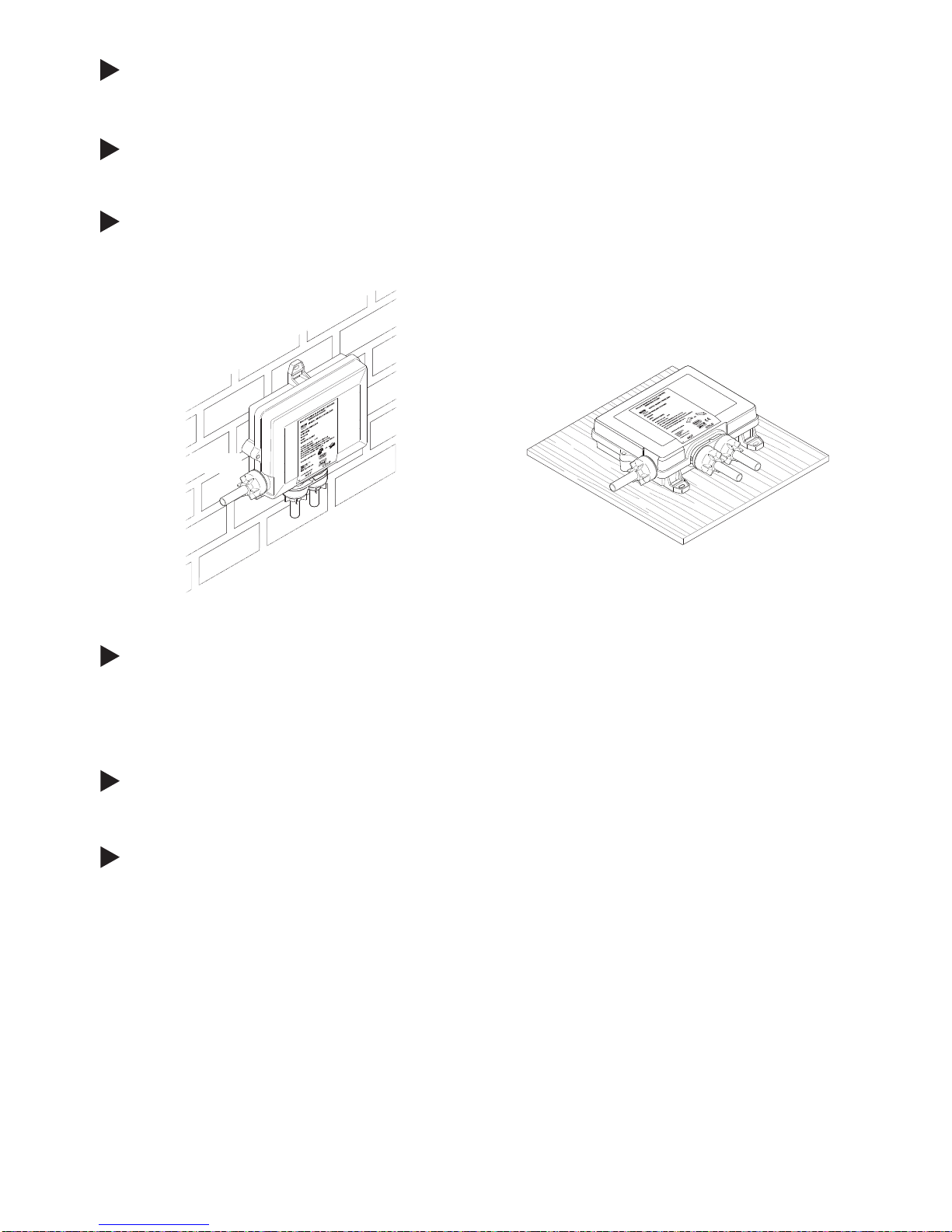

The Digital Mixer Valve may be installed in a loft space, under the bath
or in a convenient cupboard space provided there is enough room for
maintenance (e.g. Removal of Digital Mixer Valve lid). Failure to do so may
result in an inability to carry out any maintenance. Safe and easy access to
the product should be available at all times.
When installing a mixer valve in an area not regularly accessed,
consideration for potential leaks must be taken into account. While such
events are unlikely, it is advisable to periodically check the installation
for traces of water on or around the product. If possible, site the valve in
a location where any leak would be contained or routed to avoid areas
sensitive to water damage.
Isolating valves must be installed to both inlets (supplied) and outlet, close to the
Digital Mixer Valve for ease of maintenance.
Caution! Risk of product damage. The Digital Mixer Valve must be installed
in a dry, ventilated area where it will not freeze.
Important Information Regarding Radio Controlled Devices
• Metal objects such as steel baths or sinks, cold water storage tanks, hot
water cylinders, foil lined plaster board walls, radiators and even thick brick
walls, can all dramatically reduce the radio operational range of any radio
controlled product.
• Interference from other radio signals can dramatically reduce the ability of the
Mira Vision User Interface / digital mixer to register or communicate. This may
include; mobile phones, radio control boiler thermostats, wireless broadband
routers, radio control toys, cordless phones, remote outdoor weather stations
etc.
• If you encounter difculty registering the user interface and digital mixer
ensure all other radio interference is temporarily switched off.
• Note! Failure to follow these guidelines can result in poor, intermittent or
complete failure to communicate with the digital mixer.

12
MIRADM2 WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230 V AC 20W
PROTECTION:IP24
MIN.SUPPLYPRESSURE: 50 kPa (0.5 bar)
MAX.WORKING PRESSURE: 500 kPa (5 bar)
MAX.STATICPRESSURE: 1000 kPa (10 bar) (WRAS)
MAX.SUPPLYWATER TEMP: 65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINS ELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER 2 WIRELESS
cold
warm
hot
Only install the High Pressure Digital Mixer Valve with a multipoint gas water
heater or combination boiler of a fully modulating design (i.e. where the water
draw-off rate indirectly controls the gas ow rate to the burner).
Typical Suitable Installations:
Mira Vision
Shower Fittings
Digital Mixer
Valve (HP) Float Valve
Key to Symbols
Isolating Valve
Tempering Valve
Overow Indicator
Mini Expansion Vessel
Pressure Reducing
Valve
COLD HOT
An expansion vessel must be tted (and regularly maintained) if any form of
backow prevention device is tted, e.g. non-return valve or PRV. This will ensure
that excess expansion or pulse pressures do not damage the product or plumbing
system. The expansion vessel may already be tted within the boiler (check
with the manufacturer) and is in addition to the normally larger central heating
expansion vessel.
Combination
Boiler
1. Instantaneous Multipoint Water Heaters and Combination Boilers
Caution!Riskofproductdamage.DonotttheMiraDigitalMixer-PUMPED
VALVE with Instantaneous Multipoint Water Heaters or Combination Boilers.

13
Use of Flow Regulators with Combination Boilers
The Mira Digital Mixer Valve can demand hot water quicker than some
instantaneous water heaters/combination boilers can provide, especially in winter
when the mains water is colder. A ow regulator may need to be used to ensure
that the Digital Mixer Valve can deliver a full range of water temperatures. The
table indicates the ow regulator to be tted in the hot water inlet of the Mira
Digital Mixer Valve.
Boiler Rating 24 kW (80,000 Btu/h) 30 kW (100,000 Btu/h) 36 kW (120,000 Btu/h)
Flow Regulator 7 litres/min 9 litres/min Not required
Colour White Green White/Orange -
Use of Warm-up Feature with Combination Boilers
When using the warm-up feature (see User Guide) with the Digital Mixer Valve
supplied via an instantaneous water heater/combination boiler, the user may
experience a brief temperature uctuation. This is caused by the normal operation
of a standard instantaneous water heater/combination boiler whereby the boiler
will turn off when the ow is stopped (as happens after the warm-up sequence
has been completed). Upon restart of the shower, a cold shot will be ushed
through followed by a brief hot shot until the hot water supply has stabilised.
Unscrew hot inlet plastic nuts and remove pipe and seal to gain access to the
checkvalve cartridge and lter.
Use at blade screwdriver to carefully lever cartridge out.
Fit ow regulator in checkvalve cartridge behind lter as shown.
Ret seal, pipe and plastic nut. Plastic nuts require hand tightening only.
Green
Orange

14
MIRADM2WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230V AC 20 W
PROTECTION:IP24
MIN.SUPPLYPRESSURE:50 kPa (0.5 bar)
MAX.WORKINGPRESSURE: 500 kPa (5 bar)
MAX.STATICPRESSURE:1000 kPa (10 bar) (WRAS)
MAX.SUPPLYWATERTEMP: 65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
cold
warm
hot
MIRADM2WIRELESS HP/COMBI 1666.009 N85A MANUFACTURED KOHLERMIRALTD. CHELTENHAM GL525EP TEL:[phone] www.mirashowers.com
HOT COLD
POWER:230V AC 20W PROTECTION:IP24 MIN.SUPPLYPRESSURE: 50 kPa (0.5 bar) MAX.WORKINGPRESSURE: 500 kPa (5 bar) MAX.STATICPRESSURE:1000 kPa (10 bar) (WRAS) MAX.SUPPLYWATERTEMP: 65 °C POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
cold
coldcold
warm
hot
hot
MIRADM2WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRALTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOT COLD
POWER:230V AC 20W
PROTECTION:IP24
MIN.SUPPLYPRESSURE: 50 kPa (0.5 bar)
MAX.WORKINGPRESSURE: 500 kPa (5 bar)
MAX.STATICPRESSURE:1000 kPa (10 bar) (WRAS)
MAX.SUPPLYWATERTEMP: 65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINSELECTRICITY BEFORE
REMOVINGCOVER!
F9001
DIGITALMIXER2 WIRELESS
1.0 metre minimum
100 mm from the lowest level of
water in the tank
Cistern
Minimum 230 litres
90°
30° - 60°
Digital Mixer
Valve (HP)
COLD
HOT
Mira Vision
Shower Fittings
Air Separation
Packages of this type, tted with a tempering valve can be used. A drop type
pressure reducing valve must be tted (and regularly maintained) if any form
of backow prevention device is tted, e.g. non-return valve, PRV, then an
expansion vessel should also be tted. This will ensure that excess expansion
or pulse pressures do not damage the product or the plumbing system. The
expansion vessel may already be tted externally or internally within the thermal
store (check with thermal store manufacturer).
2. Mains Pressurised Instantaneous Hot Water Shower, Heated
from a Thermal Store
Caution!Riskofproductdamage.DonotttheMiraDigitalMixer-PUMPED
VALVE with Mains Pressurised Systems.
3. Gravity Fed Showers
Caution!Riskofproductdamage.DonotttheMiraDigitalMixer-HIGH
PRESSURE/COMBIVALVEwithGravityFedSystems.
Digital Mixer
Valve (Pumped)
The shower control must be fed from a cold water storage cistern and a hot
water cylinder providing nominally equal pressures. Pipework layouts and
connections must be such that other draw-offs will not effect water supplies to the
shower, shared supplies may lead to airlocking or water starvation. It is therefore
best practice to have independent hot and cold supplies to the Low Pressure
(pumped) Digital Mixer Valve.
Mira Vision Shower
Fittings

15
Typical Examples of Poor Plumbing and Installation Practices
DO NOT:
• Install the Digital Mixer Valve where it can become frozen
• Position the Digital Mixer Valve where maintenance access is poor
• Install into a system where the cold water cistern holds less than 230 litres
• Install into a system where air locking could occur
• Install the user interface in a position where communication with the Digital
Mixer Valve is poor e.g. mixer valve installed under metal bath, in front of
metal cistern, more than the recommended distance away etc.
• Install the Digital Mixer Valve onto shared water supplies
• Install the Digital Mixer Valve less than 100 mm from the lowest level of water
in the cistern
• Fit plastic pipework unless rigidly supported
Shower Installation
Bath Installation
Affected by Metal
Bath / Poor or no
Communication
Shared
Supplies No
Access
Steel / Cast
Bath
Less than
230 Litres
Incorrect
Cold
Take-off
Incorrect
Hot
Take-off
Air-locking
Pipework
Distance Too Far /
Poor or No
Communication
Less than
230 Litres
Incorrect
Cold
Take-off
Incorrect
Hot
Take-off
Plastic pipework
not rigidly
supported.

16
Digital Mixer
Valve
Outlet
Isolators
Isolator
Hot Inlet
Cold Inlet
To Mains
Power Supply
3 amp switched
fused spur
Metal pipework must
be earth bonded
Mira Vision Shower
Fittings & Wireless Controller
Installation Schematic
A separate, permanently connected supply must be taken from the ring main
to the appliance through a 3 amp double pole switched fuse spur providing a
minimum 3mm contact separation gap in each pole.
The use of supply-line or zone strainers will reduce the need to remove
debris at the Digital Mixer Valve. The recommended maximum mesh aperture
dimension for such strainers is 0.5 mm.
Pipework must be rigidly supported to avoid any strain on the connections.
A 30 mA Residual Current Device (RCD) must be included in the electrical
circuit. This may be part of the consumer unit or a separate unit.

17
Mounting on a Vertical Surface
Inlets
Outlet
Inlets
Outlet
Mounting on a Horizontal Surface
Long inlet pipework (dead-legs) should be kept to a minimum to avoid
temperature uctuations.
Supply pipework layout must be arranged to minimize the effect of other
outlet usage upon the dynamic pressures at the Digital Mixer Valve inlets.
To eliminate pipe debris it is essential that supply pipes are thoroughly
ushed through before connection to the Digital Mixer Valve.
The Digital Mixer Valve (which contains the thermostatic mixing valve) may
only be orientated in the positions shown above when mounted on a vertical
or horizontal surface. Failure to do so will compromise the ability of the unit to
fail-safe and deliver constant blend.
If the supply cords are damaged, they must be replaced by the manufacturer
or a service engineer.
Warning! Turn offtheelectricalandwater suppliesbeforeproceedingwith
the installation of the appliance. The electricity must be turned off at the
mains and the appropriate circuit fuse electrically isolated, if applicable.

18
MIRADM2 WIRELESS
HP/COMBI
1666.009
N85A
MANUFACTURED
KOHLERMIRA LTD.
CHELTENHAM
GL525EP
TEL:[phone]
www.mirashowers.com
HOTCOLD
POWER:230 V AC 20 W
PROTECTION:IP24
MIN.SUPPLY PRESSURE: 50 kPa (0.5 bar)
MAX.WORKING PRESSURE: 500 kPa (5 bar)
MAX.STATIC PRESSURE: 1000 kPa (10 bar) (WRAS)
MAX.SUPPLY WATER TEMP: 65 °C
POSITIONAPPLIANCE OR
ISOLATEMAINS ELECTRICITY BEFORE
REMOVING COVER!
F9001
DIGITAL MIXER 2 WIRELESS
Up to 10 m
3 amp switched
fused spur
Up to 3 m
Ceiling Fed
Fitting
Rear Fed
Fitting
Cold Water Inlet
Hot Water Inlet
Shower
Outlet
Wireless
Controller
Up to 4.5 m total distance to
Right Angle Connector (RAC)
Digital Mixer Valve
Position and Signal Test
Important! When choosing a position for the Digital Mixer Valve in relation to the
Wireless Controller and the Shower Fittings, consider the following points:
ThelengthofpipeworkrunningfromtheDigitalMixerValvetotheShowerFitting
will have an effect on the showering temperature and the response time when
changing the temperature using the Wireless Controller. The shorter the length
of pipework from the Digital Mixer Valve the better the shower will respond. It
is recommended that this length does not exceed 3 m (Ceiling Fed Fitting) or
4.5 m (Rear Fed Fitting).
The ambient temperature of Digital Mixer Valve site (loft space, airing cupboard
etc...) can have an effect on showering temperature. Insulate all pipework as
required, particularly from the Digital Mixer Valve to the Shower Fitting.
Important! Insulate pipework only. Do not attempt to insulate or cover the
Digital Mixer Valve.
The Wireless Controller can be sited up to 10 m from the Digital Mixer Valve.
However, wall thicknesses and construction types may affect the remote signal
strength and thereby reduce the range. The Controller range should be tested
on site prior to installation to ensure shower’s reliability.
Refer to Section -INSTALLATION “Important Information Regarding Radio
Controlled Devices”.

19
Switch on the electrical supply to the Digital Mixer Valve.
The Wireless Controller will make 6 short beeps and the clock will change to
’10:00’ as it registers itself to the Digital Mixer Valve. During this 30 second
process, a water droplet symbol will also appear on the screen.
Note! DO NOT remove the batteries or switch off the Digital Mixer Valve until
the droplet symbol disappears – this will indicate that the Digital Mixer Valve
and the Wireless Controller have been assigned to each other.
Place the Digital Mixer Valve in the required location, no more than 10 m from
the nal position of the Wireless Controller.
Connect the Digital Mixer Valve to the electrical supply via a 3 amp fused
spur switch. Do not switch Digital Mixer on!
Bring Wireless Controller to within approximately 1 m of the
Digital Mixer Valve. Fit 3 x AA batteries supplied.
The following procedure details how to assign the Wireless Controller to the Digital
Mixer Valve and test the remote signal strength.
Note! No plumbing connections are required for this test.
Note! Other radio signals from sources such as mobile phones, radio controlled
boiler thermostats, wireless broadband etc. can dramatically reduce the ability of
the Digital Mixer Valve to register.
It is recommended that such items are switched off during this process.
The wireless controller display will indicate the software version for 5 seconds
before displaying the clock default time of ‘4:00’.

20
Place Wireless Controller in approximate nal position (no
more than 10 m from Digital Mixer Valve) and test wireless
signal by pressing the “ ” and adjusting the temperature. If
temperature display remains unchanged and “out of range”
symbol is displayed, units are unable to communicate with each
other.
If test fails, reposition unit(s) and
repeat test until satised shower will
work reliably.
Caution! Risk of product damage.
Do not run Pumped Valve (low
pressure version) without a water
supply for longer than 15 minutes
during test.
Isolate electrical supply to Digital
Mixer Valve.
Fixing Screw x 3
Mark the xing holes in the required positions.
