Mira GO 8.5 Owner's manual

1
Maintenance Guide
Operation &B
Installation
ELECTRIC SHOWERS
THESE INSTRUCTIONS ARE TO BE LEFT WITH THE USER
8.5 kW
Temperature
Start
Stop

2
Contents
Section Page
1 ..... Introduction ................................................................... 3
2 ..... Important Safety Information ........................................... 4
3 ..... Pack Contents Checklist.................................................. 7
4 ..... Dimensions ................................................................... 8
5 ..... Wiring Diagram ................................................................. 9
6 ..... Specifications ................................................................. 10
7 ..... Installation Requirements .............................................. 10
8 ..... Installation ................................................................. 14
9 ..... Commissioning............................................................... 17
10 ... Maintenance .................................................................... 19
11 ... Operation ......................................................................... 24
12 ... Fault Diagnosis ............................................................... 28
13 ... Notes ............................................................................... 33
14 ... Spare Parts ...................................................................... 34
Guarantee, Customer Care Policy, and How to contact us
.................................................................................... Backcover

3
Section
1Introduction
If you experience any difficulty with the installation or operation of your new shower
control, then please refer to the Maintenance and Fault Diagnosis section, before
contacting Mira Showers. Our telephone and fax numbers can be found on the back
cover of this guide.
Thank you for purchasing a quality Mira product. To enjoy the full potential of your new
product, please take time to read this guide thoroughly, having done so, keep it handy
for future reference.
A range of electric showers having separate controls for power selection and
temperature/flow adjustment. A unique flow regulator stabilises temperature changes
caused by water pressure fluctuations. These can result from taps being turned on or
off or toilets being flushed.
Mira Go 8.5 - A 8.5 kW 240 V AC heater with a Mira React adjustable spray handset
with three different spray actions (Start, Soothe and Force). Supplied complete with
flexible hose, adjustable clamp bracket assembly, soap dish, slide bar and supports
and hose retaining ring. Available in all white finish.

4
1.9. In the unlikely event of any of the following conditions occurring, turn off the
electricity and water supplies and refer to “To contact us”, on the back page
of this guide.
1.9.1. If the cover is not correctly fitted and water has entered the appliance
case.
1.9.2. If the case or cover is damaged.
1.9.3. If the appliance begins to make an odd noise, smell or smoke.
1.9.4. If the appliance shows signs of a distinct change in performance,
indicating a need for maintenance.
1.9.5. If the appliance is frozen.
Section
2Important Safety Information
1. Warning!
1.1. Products manufactured by us are safe and without risk provided they are
installed, used and maintained in good working order in accordance with our
instructions and recommendations.
1.2. THIS APPLIANCE MUST BE EARTHED. ENSURE SUPPLEMENTARY
BONDING COMPLIES WITH THE "REQUIREMENTS FOR ELECTRICAL
INSTALLATIONS".
In accordance with the current edition of ‘The Plugs and Sockets etc. (Safety)
Regulations' in force at the time of installation, this appliance is intended to be
permanently connected to the fixed electrical wiring of the mains system.
1.3. DO NOT twist the individual cable cores of the live and neutral conductors, as
this will prevent them from entering the terminal block.
1.4. The shower unit must not be fitted where it may be exposed to freezing
conditions. Make sure that any pipework that could become frozen is properly
insulated.
1.5. DO NOT operate this appliance if it is frozen. Allow the appliance to thaw before
using again.
1.6. DO NOT operate this appliance if water leaks from the pressure relief valve
located on the heater tank. A service exchange heater tank will be required
before the appliance can be safely used.
1.7. DO NOT fit any form of outlet flow control as the outlet acts as a vent for the
heater tank body. Only Mira recommended outlet fittings should be used.
1.8. There are no user serviceable components beneath the cover of the Mira Go.
Only a competent tradesperson should remove the cover.

5
2.6.1. Institute of Plumbing (IOP), throughout the UK.
2.6.2. National Association of Plumbing, Heating and Mechanical Services
Contractors (NAPH & MSC), England and Wales.
2.6.3. Scottish and Northern Ireland Plumbing Employers’ Federation (SNIPEF),
Scotland and Northern Ireland.
2. Caution!
2.1. Read all of these instructions and retain this guide for later use.
2.2. Pass on this guide in the event of change of ownership of the installation site.
2.3. Follow all warnings, cautions and instructions contained in this guide, and on
or inside the appliance.
2.4. The electrical installation must comply with the “Requirements for Electrical
Installations” (refer to Section 7) commonly referred to as the IEE Wiring
Regulations, or any particular regulations and practices, specified by the local
electricity supply company in force at the time of installation. The installation
should be carried out by an electrician or contractor who is registered, or is a
member of, an association such as:
2.5. This is a high power unit; it is essential to contact your electricity supply
company to ensure that the electricity supply is adequate for the purpose.
2.6. The plumbing installation must comply with UK Water Regulations/Bye-laws
(Scotland), Building Regulations or any particular regulations and practices,
specified by the local water company or water undertakers. The installation
should be carried out by a plumber or contractor who is registered, or is a
member of, an association such as:
2.4.1. National Inspection Council for Electrical Installation and Contracting
(NICEIC), throughout the UK.
2.4.2. The Electrical Contractors Association (ECA), England and Wales.
2.4.3. The Electrical Contractors Association of Scotland (ECAS).
1.10. Turn off the electrical and water supplies before removing the cover. The
electricity must be turned off at the mains and the appropriate circuit fuse
removed, if applicable.
Caution! Mains connections are exposed when the cover is removed.
1.11. Refer to the wiring diagram before making any electrical connections (refer to
Section 5).
1.12. Ensure all electrical connections are tight, to prevent overheating.

6
2.7. Anyone who may have difficulty understanding or operating the controls of any
shower should be attended whilst showering. Particular consideration should be
given to the young, the elderly, the infirm, or anyone inexperienced in the correct
operation of the controls.
2.8. When this appliance has reached the end of its serviceable life, it should be
disposed of in a safe manner, in accordance with current local authority
recycling, or waste disposal policy.

7

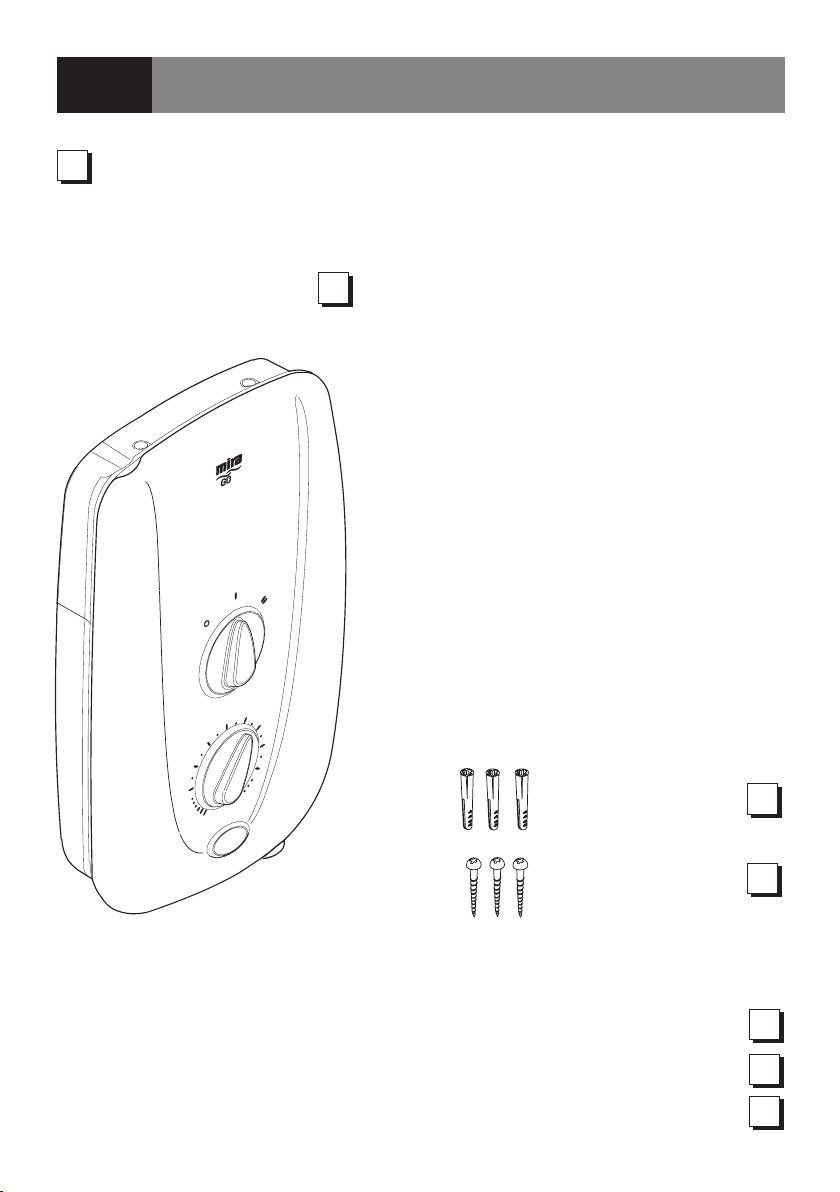

Tick the appropriate boxes to familiarize yourself with the part names and to
confirm that the parts are included.
2. Documentation
1 x Installation, Operation and Maintenance Guide
1 x Installation Template
1 x Customer Support Brochure
Section
3Pack Contents Checklist
1. Mira Go 8.5
1 x Mira Go 8.5
ü
Temperature
Start
Stop
3 x Wall Plug
3 x Fixing Screws

8
Section

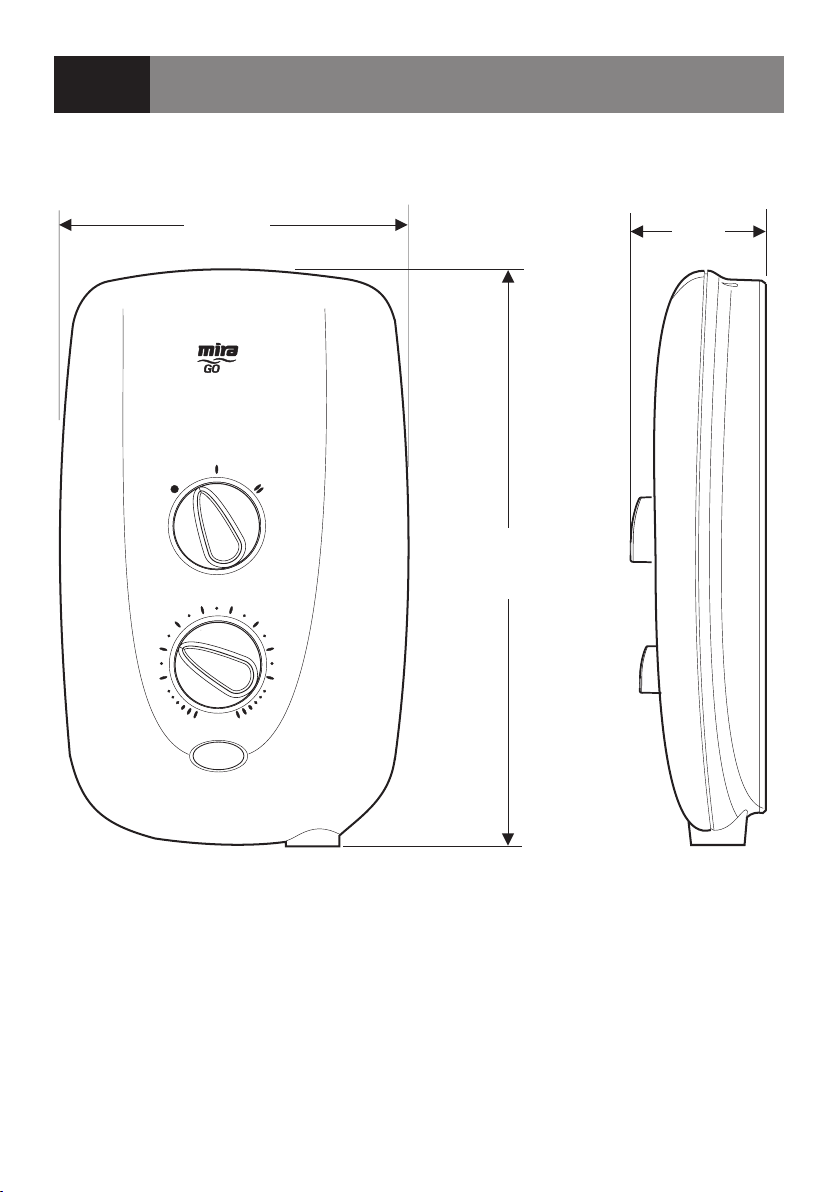

4Dimensions
Temperature
Start
Stop
342 mm
203.5 mm 79 mm

9
Thermal Cutout
Dual Disc
L
Solenoid
Valve

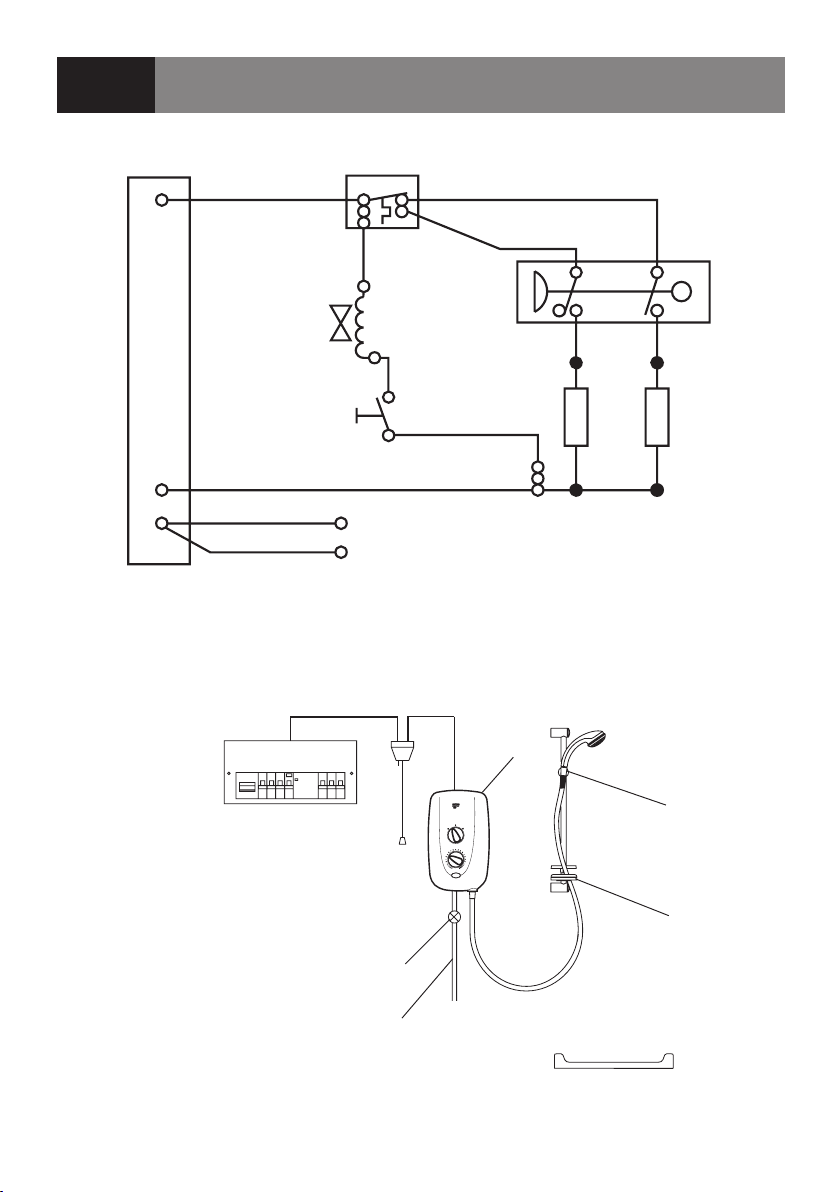

Wiring Diagram
Section
5
89 Brown 96 Red
86 Brown 88 Red
Internal Wiring Diagram
Temperature
Start Stop
Electrical Schematic Diagram
Isolating Valve
Double-pole
Isolating Switch
Mains-fed Cold
Water Supply
Hose
Retaining
Ring
Mira Go
Clamp
Bracket
Shower Tray
Tank Connection
Load
Inlet Connector
92 Green
91 Green
90 Blue
97 Brown
99 Brown
94 Blue
On/Off
N
E
Pressure/Power
Selector Switch

10
Section
7Installation Requirements
Section
6Specifications
1. Plumbing
1.1. Minimum maintained inlet pressure 0.7 bar for satisfactory operation.
1.2. Maximum static inlet pressure 10 bar.
1.3. Minimum static pressure 0.2 bar to maintain product shut-off.
2. Electrical
2.1. The Mira Go requires a 40 Amp fuse in the consumer unit.
2.2. The terminal block will not accept cable larger than 10 mm2 .
3. Standards and Approvals
3.1. This Mira Go complies with all relevant directives for CE marking.
1. Plumbing
1.1. The Mira Go is designed to operate with a minimum maintained inlet pressure
of 0.7 bar up to a maximum static inlet pressure of 10 bar.
1.2. The Mira Go is normally connected to the cold water mains-fed supply.
However, the water supply can be taken from a cold water storage cistern,
provided there is a minimum maintained inlet head of water of 7 metres (the
vertical distance from the base of the cold water storage cistern to the shower
fitting handset). To reduce pressure losses and fluctuations, the cistern-fed
water supply must be independent from other supply draw-offs, and should
avoid long horizontal pipe runs and use swept bends rather than 90 ° elbows.
If you can only cistern feed your shower and you do not have a 7 metre head
required for correct operation, Mira produce a pumped electric shower (Elite 2)
designed for this particular application.
1.3. The Mira Go is suitable for installation within the shower area. It is fitted with
a pressure relief device and must be positioned over a water catchment area
with the controls at a convenient height for the user.

11
1.4. The Mira Go is fitted with a plastic inlet connector intended to connect to a
15 mm compression fitting (not supplied) from the top, bottom or back.
1.5. Do not fit the Mira Go to the wall and tile up to the case. The Mira Go must be
fitted on to a finished flat and even wall surface (this wall surface should be tiled
or waterproofed). This is important as difficulty may be encountered when fitting
the cover and subsequent operation of the unit could be impaired (Small pillars
moulded on to the back of the case allow air circulation).
1.6. Refrain from applying excessive force when making any connections. Always
provide mechanical support when making the plumbing connections.
1.7. Do not install the Mira Go in a position where it may become frozen. The
shower unit must not be fitted where it may be exposed to freezing conditions.
Do not operate the unit if suspected of being frozen.
1.8. We recommend that a non-restrictive (free flowing) isolating valve is fitted in the
cold water supply pipe to allow the complete maintenance of the Mira Go. Do not
use a valve with a loose washer plate (jumper) as this can lead to a build up of
static pressures.
1.9. To avoid damage to the case when soldered fittings are used, pre-solder the
pipework and fittings before connecting them to the inlet connector assembly.
1.10. The Mira Go is fitted with a ½ " BSP male outlet thread, to accept a Mira shower
hose.
1.11. Supply pipework MUST be flushed to clear debris before connecting the Mira
Go. Debris will reduce the performance of the unit.
1.12. When installed in very hard water areas (above 200 ppm temporary hardness)
your installer may advise the installation of a water treatment device, to reduce
the effects of limescale formation. Mira Go malfunction due to excessive
limescale formation is not covered by the manufacturer’s guarantee. Your local
water company will be able to advise the hardness of water in your area.

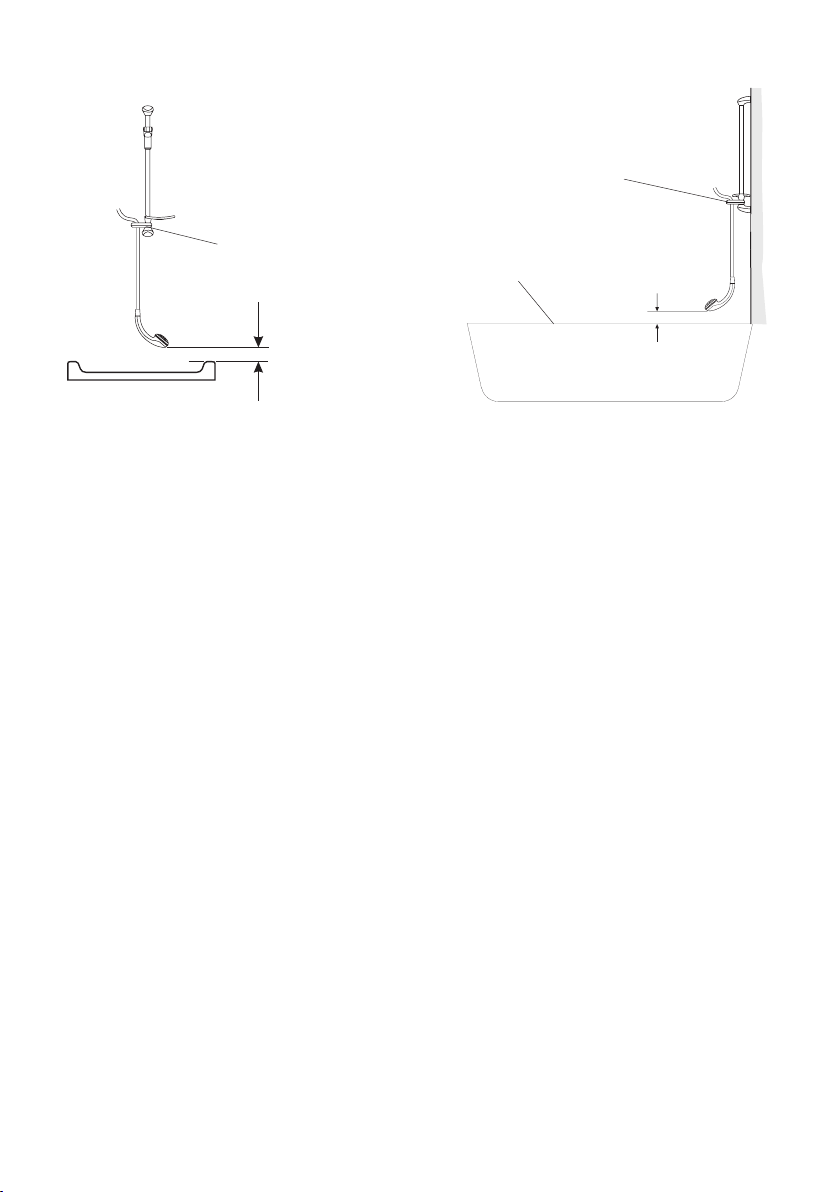

1.13. A hose retaining ring is supplied to prevent the handset from dropping below the
spillover level of the bath or shower, which could lead to contamination from
back-siphonage (refer to Figure 1). The supplied hose retaining ring should meet
the great majority of user requirements for shower installations with flexible
outlet fittings. However, there will be occasions when the hose retaining ring will
not provide a suitable solution. In these instances an outlet double checkvalve,
e.g. the Mira DCV-H, must be fitted. The inclusion of the Mira DCV-H will
increase the required supply pressure typically by 0.1 bar.
Double checkvalves, fitted in the inlet supply to the appliance, cause a pressure
build-up, which could exceed the maximum static inlet pressure for the
appliance.

12
1.14. Avoid layouts where the shower hose will be sharply kinked. This may reduce
the life of the hose.
Hose Retaining
Ring
25 mm Minimum
Spill-over
Level
2. Electrical
Read the section "Important Safety Information" first.
2.1. In a domestic installation, the rating of the electricity supply fuse and the
consumer unit must be adequate for the additional demand. As this Mira Go is
a high power unit, it is essential to contact your electricity supply company to
ensure that the supply is adequate for the Mira Go. Voltage drop due to local
heavy demand will reduce the shower's performance.
2.2. The Mira Go must be earthed by connecting the supply-cable earth conductor
to the earth terminal.
Supplementary bonding: Within the bathroom or shower room, all accessible
conductive parts of electrical equipment and extraneous conductive parts
(metal parts) that are likely to introduce earth potential, must be electrically
bonded to earth using a minimum cable size of 4.0 mm2 if the cable is not
mechanically protected (2.5 mm2if mechanically protected).
2.3. The minimum cable size (cross-sectional area) required is 6 mm2under normal
conditions of installation.
Important! The shower circuit should be separated from other circuits by at
least twice the diameter of the cable or conduit and it should not be run through
thermally insulating material or in locations where the ambient temperature is
likely to exceed 30 °C. If any of these conditions are unavoidable it is necessary
to determine the cable size which will prevent damage to the cable caused by
overheating.
Figure 1
Hose Retaining
Ring
25 mm Minimum
Spill-over
Level
Bath
Shower Tray

13
Temperature
Start
Stop
2.4. To obtain full advantage of the power provided by this unit the shortest possible
cable route from the consumer unit to the shower should be used. The maximum
permissible circuit length is dependent on current demand, voltage drop and
cable size, refer to the IEE Wiring Regulations for further information.
As a guide only, the following maximum permissible lengths are given for 6
mm2cable protected by a 40A MCB type B and allowing for a 5 Volt drop:
Mira Go 8.5 kW (240 V AC) at 240 V - 19 Metres
2.5. A 30 mA residual current device (RCD) should be fitted. This may be part of the
consumer unit or a separate unit.
2.6. A separate, permanently connected electrical supply must be taken from the
consumer unit to the Mira Go through a double-pole switch, which has at least
3 mm contact separation. The switch can be a ceiling mounted pull-cord type
within the shower room or a wall mounted switch in an adjacent room.
2.7. DO NOT twist the individual cable cores of the live and neutral conductors, as
this will prevent them from entering the terminal block.
2.8. DO NOT exert strain on the terminal block.
2.9. DO NOT turn-on the electrical supply until the plumbing has been completed and
the cover replaced.

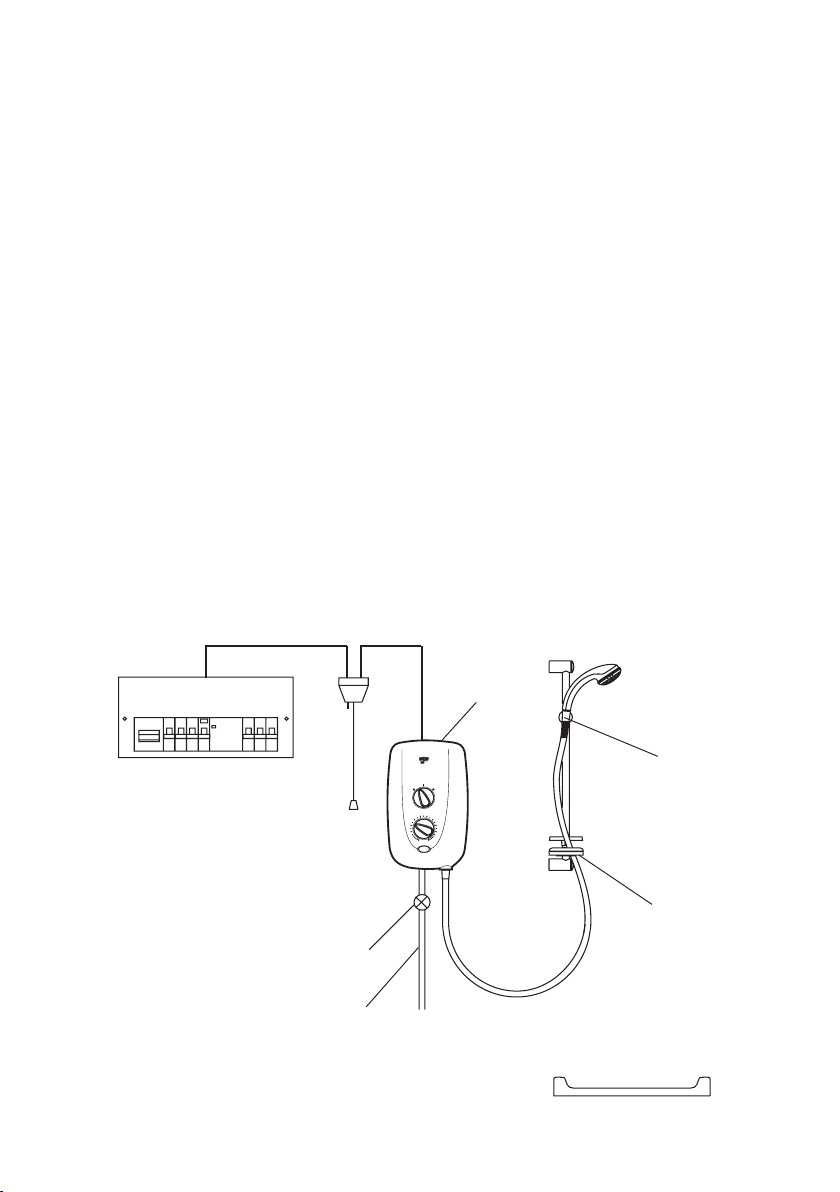

Plumbing and Electrical Schematic Diagram
Isolating Valve
Double-pole
Isolating Switch
Mains-fed Cold
Water Supply
Hose
Retaining
Ring
Mira Go
Clamp
Bracket
Shower Tray

14
Section
8Installation
1. Mira Go
Warning! Turn off the electrical and water supplies before proceeding with the
installation of the Mira Go. The electricity must be turned off at the mains and the
appropriate circuit fuse removed, if applicable.
Note! An installation template is supplied to help you install the Mira Go.
1.1. Decide on a suitable position for the Mira Go (minimum distance of 200 mm
from the ceiling to allow for cover fit and removal). The position of the Mira
Go and the shower fittings must provide a minimum gap of 25 mm between
the spill-over level of the shower tray/bath and the handset. This is to prevent
backsiphonage (refer to Figure 1, Section 7).
1.2. Remove the three cover retaining screws.
1.3. Remove the cover.
1.4. Remove the service tunnel.
1.5. Determine the direction of the inlet water supply: top (falling), bottom (rising),
or back inlet .
1.6. Swivel the inlet connector assembly to suit. Remove the inlet blanking cap.
1.7. Remove as appropriate, the thinned sections of the Mira Go case, to allow the
supplies to enter the product.
1.8. Thoroughly flush the mains-fed cold water supply pipe. The supply
must be clean and free from debris BEFORE connecting the Mira Go.
To flush the pipework, turn on the water supply and drain a minimum of
10 litres (2 gallons) of water into a bucket or catchment area. Turn off the water
supply.
1.9. Put the installation template on the wall and mark through the positions of the
fixing holes. Ensure the position of these holes do not come in line with any
buried cables or pipework. Make sure that sufficient electrical supply cable
is available for connection to the terminal block.
Warning! To avoid damage to the case when soldered fittings are used,
pre-solder the pipework and fittings before connecting them to the inlet
connector assembly.
Note! Make sure that the back inlet does not go directly back into the wall.
Use a soldered elbow.

15
1.10. Drill and plug the top two fixing holes. Secure the Mira Go to the wall with the
screws provided. Drill the bottom fixing hole with the product in place.
Alternative fixings (not supplied) may be necessary for some wall structures.
Avoid drilling into any supply cable/pipe.
1.11. Install the mains-fed cold water supply pipe.

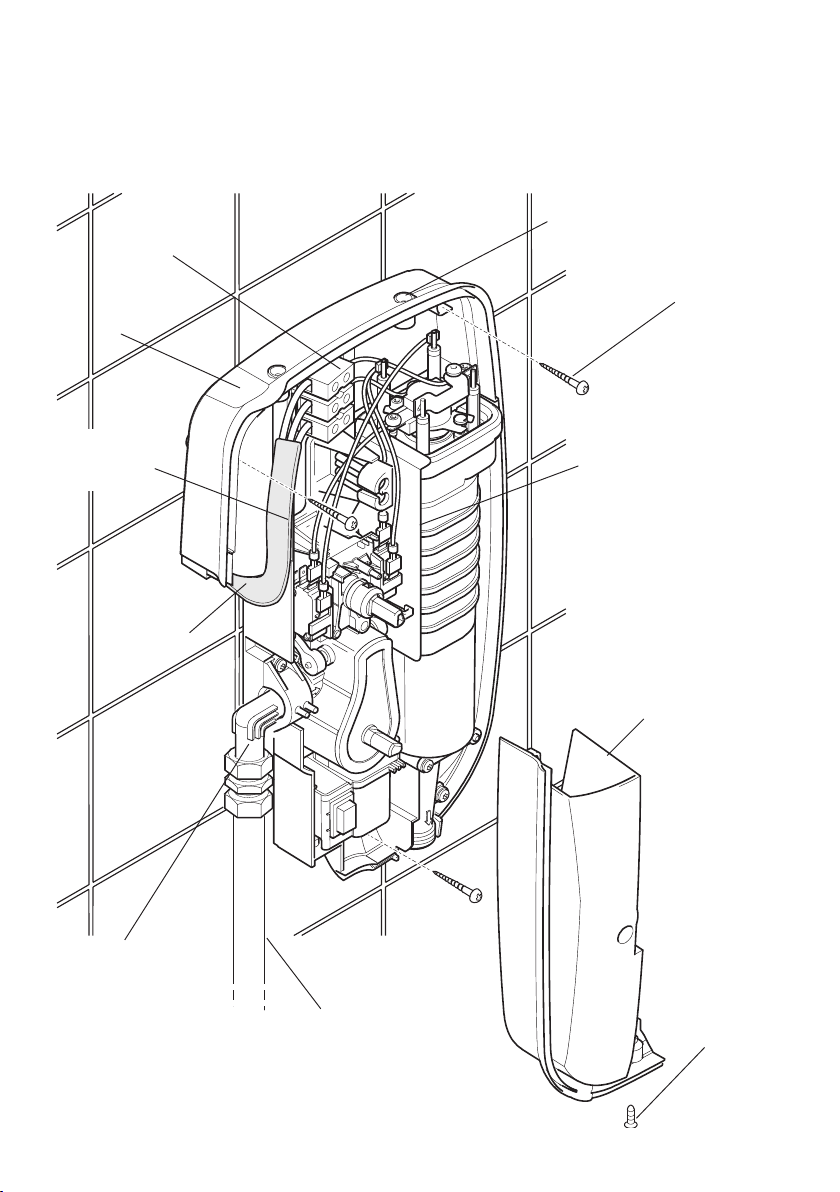

Installation of the Mira Go
Service Tunnel
Inlet Connector
Assembly
Cold Water
Supply Pipe
Bottom Entry
Terminal Block
Cover Retaining
Screw
Holes For Cover
Retaining Screws
(The inlet
connector
assembly can be
swivelled to suit the
supply)
Do not fit the Mira Go to the
wall and tile up to the case.
The Mira Go must be fitted
on to a finished flat and
even wall surface (small
pillars moulded on to the
back of the case allow air
circulation).
(The service tunnel
or case may be
trimmed to suit
rising or falling
supply)
Fixing Screw
Splash Guard
(Make sure that it is
secured before operating
the shower).
Electrical Supply
Cable
Electrical
Rear Entry
Cold Water
Top Entry

16
1.12. Make the connection to the mains-fed cold water supply pipe.
1.13. Bring the electrical supply cable into the case through one of the cable entry
points.
1.14. Strip back sufficient of the outer cable insulation to enable routing to terminal
block.
1.15. Fit an earth sleeve to the earth conductor. Connect the conductors firmly into
the terminal block. Make sure that the bare cores of each conductor are
securely trapped within each conductor clamp.
L = Red wire
N = Black wire
E = Yellow/Green sleeved wire.
1.16. Re-tighten the terminal block screws.
1.17. If necessary, fit an earth bonding clamp to the copper supply pipe and ensure
bonding complies with the relevant regulations in force at the time of
installation.
1.18. Refit the cover. Fit and tighten the three cover retaining screws.
1.19. Fit the shower fittings. Refer to separate instructions.

17
1. Pre-testing Your Mira Go
If you are unsure how electric showers work, please read through, Section 11,
Operation before continuing.
Section
9Commissioning

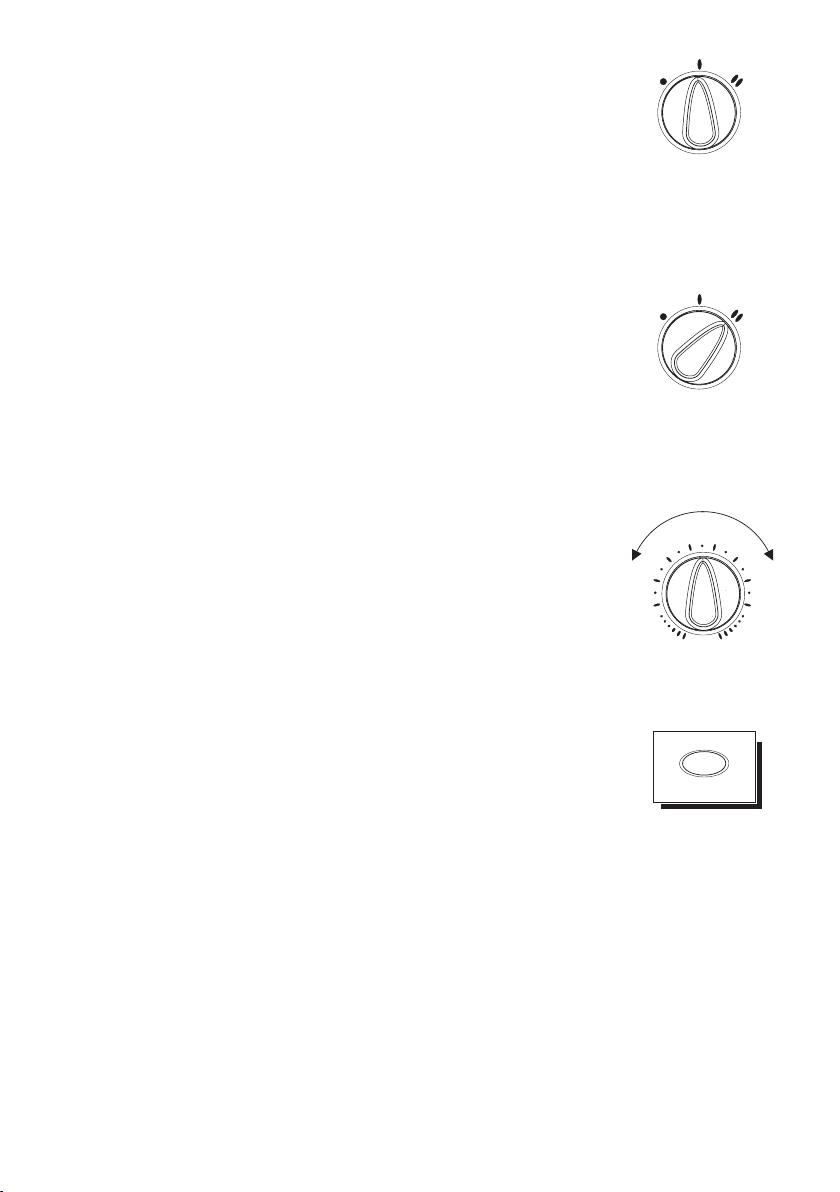

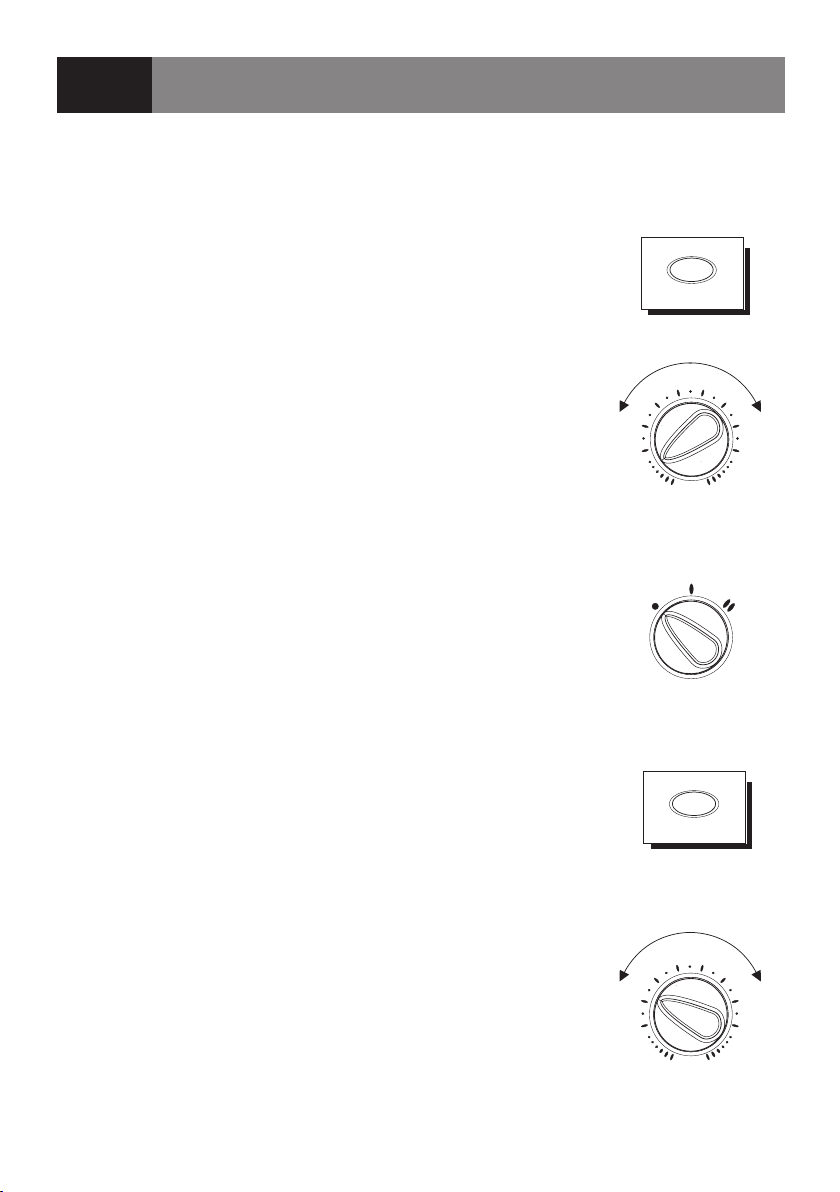

1.1. Make sure that the electrical supply is turned off at the
mains.
1.2. Turn the BOTTOM control knob fully anticlockwise to
the full cold position.
1.3. Turn the water supply fully on at the isolating valve,
check that water is not leaking from the bottom of the
case.
1.4. Turn the TOP control knob to the low position.
1.5. Switch on the electrical supply at the double pole
isolation switch.
1.6. Press the START button. Check that water flows freely
from the shower within a few seconds. If not refer to
Section 10, Maintenance. The water from the handset
will be at full force and at a cool temperature.
1.7. Turn the BOTTOM knob slowly clockwise. As the
knob is rotated the flow will be reduced and the
temperature will remain cool - this shows that the flow
regulator assembly is operating correctly. Return the
knob anticlockwise to full cold position.
Temperature
Temperature
Start
Start
Stop
Stop

18
Note! A slight hissing sound may be heard from the Mira Go during operation.
High mains water pressure and high shower temperatures will effect the
tone. This is quite normal in use.
1.11. When the required temperature is reached, push the
STOP button to stop the flow. Water will continue to
flow from the handset for a few seconds, as water is
purged from the tank. Isolate the power at the double
pole switch.
1.8. Turn the TOP knob to the medium position. The
temperature of the water should rise slightly. Allow a
few seconds for the warm water to reach the handset
- this shows that the MEDIUM power setting is
operating correctly.
1.9. TurntheTOPknobtothehighposition.Thetemperature
of the water will rise further - this shows that the full
power setting is operating correctly.
1.10. Set the shower temperature by rotating the BOTTOM
knob as necessary. Turn the knob clockwise for
hotter water and anticlockwise for cooler water.
Note! When the temperature is changed the flow
rate will change.
Temperature
Temperature
Start
Stop

19
Section
10 Maintenance
2. Cleaning
Many household cleaners contain abrasives and chemical substances, and should not
be used for cleaning plated or plastic fittings. These finishes should be cleaned with
a mild washing up detergent or soap solution, and then wiped dry using a soft cloth.
1. General
Read the section “Important Safety Information” first.
Providing the shower has been correctly installed and is operated in accordance with
the instructions contained in this guide, difficulties should not arise. If any maintenance
is required then it must be carried out by a competent tradesperson for whom the
maintenance instructions are provided. Before replacing any parts ensure that the
underlying cause of the malfunction has been resolved.
WARNING! There are no user serviceable components beneath the cover of the
appliance. Only a competent tradesperson should remove the cover.
3. Flow Valve and Switch Assembly - Removal and Installation
WARNING! Make sure that the electrical supply is turned off at the mains and the
appropriate circuit fuse is removed. Mains electrical connections are exposed when
the cover is removed. Turn off inlet water supply.
3.1. Remove the three cover retaining screws, the cover and the service tunnel.
3.2. Remove the hose from the outlet connector and loosen the connection to the
inlet connector assembly.
3.3. Remove the screw that holds the terminal block in position. This will give you
sufficient room to carry out the procedure without disconnecting any mains
electrical wiring.
3.4. Remove the screws that hold the inlet clamp bracket in position and remove the
clamp bracket.
3.5. Remove the screws that hold the flow valve, switch assembly and heater tank
in position.
3.6. Carefully pull the flow valve, switch assembly and heater tank away from the
case. Make sure that you ease the inlet connector assembly off the inlet supply
pipe.
3.7. Remove the outlet connector from the heater tank.

20
3.8. Remove the heater tank and the inlet connector assembly from the flow valve
and switch assembly.
3.9. Remove the microswitches from the flow valve and switch assembly.
3.10. Make a note of the positions of the solenoid wires on top of the heater tank.
Remove the solenoid wires.
3.11. Remove the flow valve and switch assembly.
3.12. Refit the components in reverse order. Make sure that the electrical wires are
installed in the correct positions.
Flow Valve and Switch Assembly - Removal and Installation
Terminal Block
Inlet Supply
Pipe
Inlet Connector
Flow Valve
Clamp Bracket
Heater
Tank
Microswitch
Microswitch
Clamp Bracket
Retaining Screws
Heater Tank
Retaining
Screws
Outlet Connector
Splash Guard
Switch
Assembly
15mm compression
straight connector
(not supplied)
