Mira Azora User manual

11062243-W2-N
These instructions must be left with the user
Mira Azora
9.8 kW
Installation and User Guide
For SPARES,
ADVICE or REPAIRS
please call us free
on 0800 001 4040
(UK only)

21062243-W2-N
WARNING - This shower can deliver scalding temperatures, cause
re, electric shock or other personal injury if not operated, or
maintained in accordance with the instructions, warnings and
cautions contained in this guide and on the appliance.
Please read the important safety information and the operation section
of this guide before using the shower. Failure to follow the instructions
provided with this shower will invalidate the guarantee.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. This appliance can be used by all children and persons with reduced
physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved.
2. Children shall not be allowed to play with the shower.
3. Cleaning and user maintenance shall not be made by children
without supervision.
4. The appliance is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction.
5. Theoutletmustnotbeconnectedtoanytaporttingotherthan
thosespecied.
6. The showerhead must be descaled regularly. Any blockage of the
showerhead or hose can cause damage to the shower.
7. Warning! Do not switch on if there is a possibility that the water
in the heater is frozen.
8. The shower must be provided with means for local disconnection
from the supply mains having a contact separation in all poles
that provide full disconnection under over voltage category III,
the instructions state that means for disconnection must be
incorporatedinthexedwiringinaccordancewiththewiringrules.
Important Safety Information

31062243-W2-N
9. Installation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
10.DO NOT switch the shower on if water starts leaking from the shower
case. Isolate the electrical supply to the shower immediately.
11.DO NOT switch the shower on if the case appears to be damaged
or incorrectly tted. Isolate the electrical supply to the shower
immediately.
12.DO NOT increase the power setting or adjust the temperature
control rapidly while using the shower.
13.DO NOTswitchtheshowero󰀨andbackonwhilestandinginthe
waterow.
14.DO NOT change the handset model. Fit only shower heads
recommendedbyMiraanddonotanyadditionaldevicetorestrict
thewateroutletow.
15.When adjusting the handset mode, point handset away from body
and make sure that the water temperature has stabilised before
continuing to shower.
16.Use caution when altering the water temperature, always check
the temperature before continuing to shower.
17.Switchtheshowero󰀨attheelectricalisolatingswitchwhennotin
use. This is recommended with all electrical appliances.
18.Installation of the shower must be carried out in accordance with
these instructions by qualied, competent personnel. Read all
instructions before installing the shower.
19.Isolate the electrical and water supplies before commencing
installation. The electricity must be isolated at the consumer unit
and the appropriate circuit fuse removed, if applicable. Mains
connections are exposed when the cover is removed.
20.DO NOT install the shower in areas with high humidity and
temperature (i.e. Steam rooms and saunas).
21.DO NOT install the shower where it may be exposed to freezing
conditions. Ensure that any pipework that could become frozen is
properly insulated.

41062243-W2-N
22.DO NOT connect the outlet of the shower to any tap, control valve,
triggeroperatedhandsetorshowerheadotherthanthosespecied
for use with this shower as the outlet acts as a vent for the tank
body. Only Kohler Mira recommended accessories should be used.
23.DO NOTperformanyunspeciedmodications,ordrillorcutholes
in the product other than instructed by this guide. When servicing
only use genuine Kohler Mira replacement parts.
24.Always check the water temperature is safe before entering the
shower.
25.The water supplies to this product must be isolated if the product is
not to be used for a long period of time. If the product or pipework
is at risk of freezing during this period they should also be drained
of water.
26.If the shower is dismantled during installation or servicing then,
upon completion, an inspection must be made to ensure all
electrical connections are tight and that there are no leaks.
27.This appliance is intended to be permanently connected to the
water mains and not connected by a hose set.
28.Maximum Static Pressure is 1000 kPa (10 bar).
29.Minimum Dynamic Pressure is 70kPa (0.7 bar) 9.8 kW.
Decommissioning and Recycling
When this appliance has reached the end of its serviceable life, it
should be disposed of in a safe manner, in accordance with current
local authority recycling, or waste disposal policy. For more information
aboutrecycling,pleasecontactyourlocalcouncilo󰀩ce.

51062243-W2-N
Pack Contents
Ticktheappropriateboxestofamiliarizeyourselfwiththepartnamesandtoconrm
that the parts are included.
Wiring Diagram
Internal Wiring Diagram
1 x Olive
1 x Compression Nut
1 x Mira Azora
Documentation
1 x Installation and User Guide 1 x Installation Template
1xGuaranteeandRegistrationDocument
BROWN
BROWN
BROWN
BROWN
RED
RED
RED
BROWN
BROWN
GREEN BLUE
BLUE
BLACK
BLACK
BLACK
GREEN
Thermal Cutout
Disc
Tank Connection
Load
Inlet Connector
Pressure/Power
Selector Switch
Solenoid
Valve
Start/Stop
L.E.D.
START/STOP
L
E
N

61062243-W2-N
DesignRegistration: 000578463-001-002
Patents: GB: 2341667,2404000,2428286,2427460
Ireland:82835,85128,85163
Thank you for purchasing a quality Mira product. To enjoy the full potential of your
new product, please take time to read this guide thoroughly. Having done so, keep
it handy for future reference.

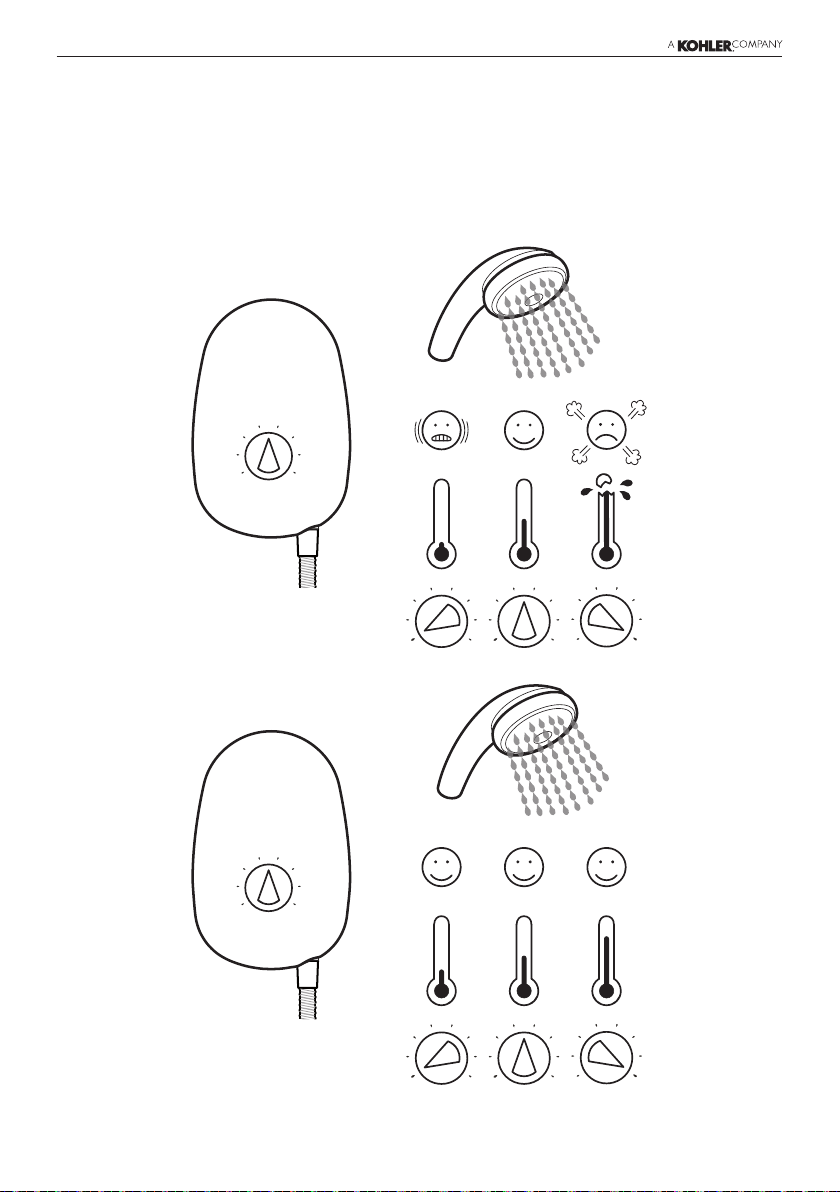

The Mira Azora is a thermostatic electric shower with separate controls for power
selectionandtemperature/owadjustment.Auniquethermostaticvalvestabilises
temperaturechangescausedbywaterpressureuctuations.Thesecanresultfrom
tapsbeingturnedonoro󰀨,oratoiletbeingushed.Anindividuallightindicates
“START/STOP”.
The Mira Azora comes complete with a set of Mira Energise Shower Fittings.
A 9.8 kW 240 V AC (9.0 kW 230 V AC) heater with Mira Energise adjustable spray
handsetwithfourdi󰀨erentsprayactions(start,soothe,forceandeco*).Supplied
complete with exible hose, clamp bracket assembly, slide bar, supports, hose
retaining ring and soap dish.
*The ‘eco’ setting will have no eect, and will give the same spray action as the
‘start’ setting.
MiraElectricShowerscoveredbythisguide:
Domestic Light Commercial 
Heavy Commercial Healthcare 
Product Kw Model Number Colour
Azora 9.8 J95L
Frosted Glass
Azora Dual 9.8 J95Lm
Introduction
Mira Azora 9.8 kW
Recommended Usage
Patents and Design Registration

71062243-W2-N
Specications
Dimensions
Height 367 mm
Width 233 mm
Depth 100 mm
Electrical Variant
Azora 9.8
Nominal Power at 230 V ac 9.0 kW
Nominal Power at 240 V ac 9.8 kW
RecommendedMCBRating 45 A
Maximum Supply Cable Size 16 mm²
RecommendedRCDRating 30 mA tripping current
RecommendedIsolatorSwitch 45 A double-pole with 3 mm contact separation
ApplianceSealingRating IP X4 - Suitable for installation in Zone 1
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
Plumbing
Variant
Azora 9.8
Minimum Dynamic Pressure 70 kPa (0.7 bar)
Maximum Dynamic Pressure 500 kPa (5 bar)
Maximum Static Pressure 1000 kPa (10 bar)
Minimum Static Pressure 20 kPa (0.2 bar)
Maximum Inlet Temperature 30°C
Minimum Inlet Temperature 2°C
Inlet Connection 1/2”BSPMale/15mmCompressionFitting
Maximum Water Hardness 200 ppm CaCO3
Outlet Connection 1/2”BSPMale

81062243-W2-N
European Conformity Information
For domestic installations, Mira Showers guarantee the Mira Azora 9.8 kW against
any defect in materials or workmanship for a period of two years from the date of
purchase(showerttingsforoneyear).
For non-domestic installations, Mira Showers guarantee the Mira Azora 9.8 kW
against any defect in materials or workmanship for a period of one year from the
date of purchase. For terms and conditions refer to section “Customer Services”.
Guarantee
TheMiraAzorashowercomplieswiththefollowingEuropeandirectives:
2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive.
The Mira Azora shower is a high power appliance and is subject to conditional
connection. If the main electrical supply fuse is rated less than 80 Amps, the local
electricitysupplycompanymustbecontactedtoconrmiftheelectricalsupplyis
adequate.
The Mira Azora shower complies with the requirements of the UK’s water regulations.

91062243-W2-N
Installation Requirements
Plumbing
1. The plumbing installation must comply with all national or local water regulations
and all relevant building regulations, or any particular regulation or practice
speciedbythelocalwatersupplycompany.
2. DO NOT install the product in a position in which service access is limited.
3. Decide on a suitable position for the shower (minimum distance of 200 mm from
theceilingtoallowforcovertandremoval).

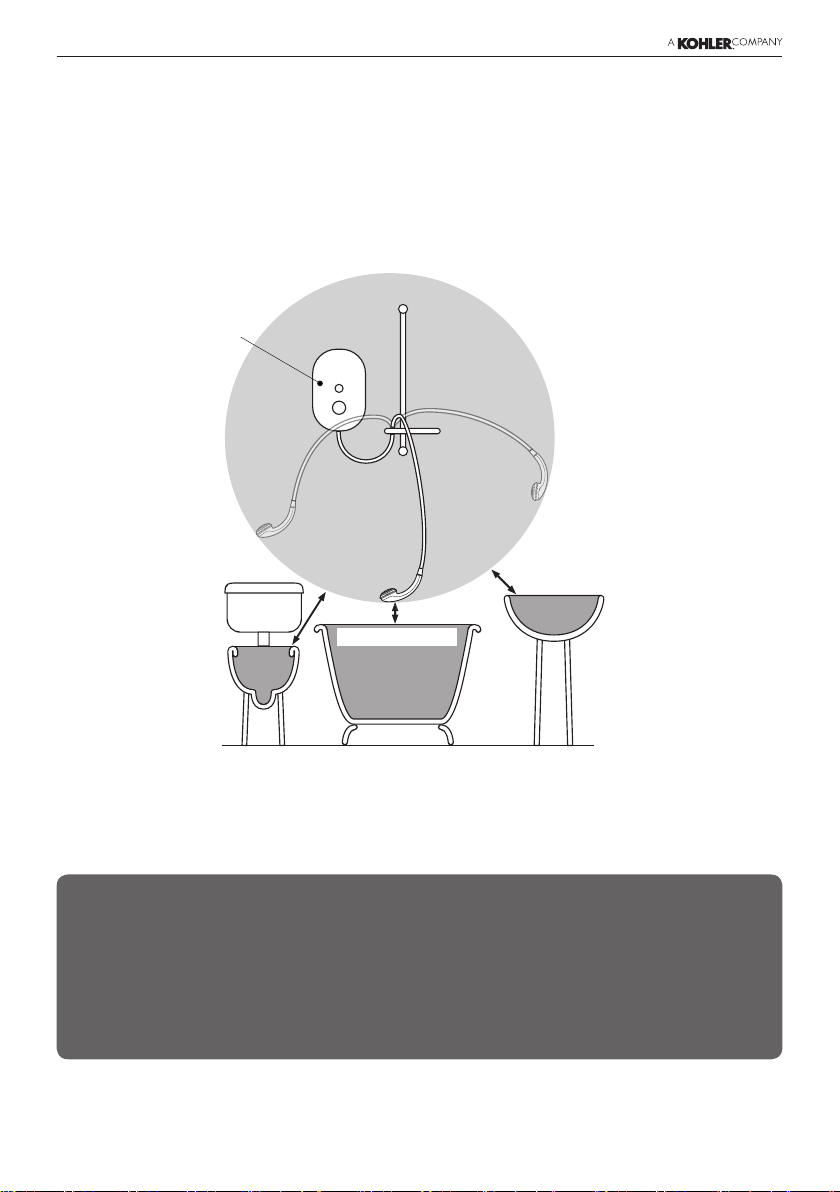

4. Thepositionoftheshowerandshowerttingsmustprovideaminimumgapof
25 mm between the showerhead and the spill over level of any bath, shower
tray or basin and a minimum gap of 30 mm between the showerhead and the
spill over level of any toilet, bidet or other appliance with a Fluid Category 5
backowrisk(seediagramonpage10).
5. Theshowerissuitableforinstallationwithintheshowerareaandisttedwith
a pressure relief valve. It must be positioned over a water catchment area with
the controls at a convenient height for the user.
6. Theshowermustbettedtoawaterproofatandevenwallsurface.
7. DO NOTttheshowertothewallandtileuptothecase.
8. DO NOT seal the gap between the shower and the wall surface.
9. The showerhead should be positioned so that it discharges down the centre
line of the bath or across the opening of a shower cubicle.
10. The showerhead must be directed away from the shower unit, during normal
use the showerhead must not spray directly on to the shower unit.
11. DO NOT apply excessive force to plumbing connections; always provide
mechanical support when making plumbing connections. Any soldered joints
should be made before connecting the shower.
12. This shower is not designed to be plumbed directly from the rear. For rear-entry
supply, add an elbow to the supply pipe and connect as a rising or a falling
supply.
13. If pipework and/or electrical cables enter the shower from the rear through a
hole in the wall provision must be made to prevent water ingress back into the
wall structure.
14. Only use the inlet connector supplied with the shower. DO NOT use any other
typeoftting.
15.Afullbore/nonrestrictiveservicingvalvemustbettedinareadilyaccessible
position adjacent to the shower to facilitate maintenance of the shower.
DO NOT use a valve with a loose washer plate (jumper) as this can lead to a
build up of static pressure.

101062243-W2-N
Zone of
BackflowRisk
30 mm
Minimum
Toilet or Bidet
FC5
Hand Basin
FC3
Bath or Shower
Tray FC3
Electric
Shower
25 mm
Minimum
25 mm Minimum
16. A water treatment device should be installed where the water hardness may
exceed 200 ppm. Malfunctions caused by excessive limescale formation are
not covered by this shower’s guarantee (see back page for details).
17. The installation must not cause the hose to be sharply kinked during normal
use.
18. DO NOT perform the electrical installation until the plumbing has been completed
and checked for leaks.
Hose retaining ring tted and shower ttings xed at a suitable height
preventing dirty water backow
Note: There will be occasions when the hose retaining ring will not provide
a suitable solution for Fluid Category 3 installations, in these instances
an outlet double check valve must be tted, this will increase the required
supply pressure typically by 10kPa (0.1 bar). Double check valves tted in
the inlet supply to the appliance cause a pressure build up, which a󰀨ect
the maximum static inlet pressure for the appliance and must not be tted.
For Fluid category 5 double check valves are not suitable.

11 1062243-W2-N
Plumbing and Electrical Schematic
Electrical
1. The electrical installation must comply with BS 7671 (commonly referred to as
theIEEWiringRegulations)andallrelevantbuildingregulations,oranyparticular
regulationorpracticespeciedbythelocalelectricitysupplycompany.
2. Ensure that all circuit protection devices, switches and cabling is adequate
for the rated current of the shower and that the rating of the electricity supply
company fuse and the consumer unit are adequate for the additional demand.
3. The shower must be earthed. Ensure any supplementary bonding complies
with the relevant regulations.
4. Thisshowerisintendedtobepermanentlyconnectedtothexedelectricalwiring
of the mains system. A separate supply must be provided from the consumer
unit to the shower.
5. DO NOT supply any other electrical equipment including extractor fans or pumps
via this product.
6. This shower must be provided with means for local disconnection that is
incorporatedintothexedwiringinaccordancewiththerelevantlocalwiring
regulations. This must be a double pole switch, which has at least 3 mm contact
separation in each pole. The switch can be a ceiling mounted pull-cord type
withintheshowerroomorawallmountedswitchttedintheapplicablezone
area.
7. A30mAResidualCurrentDevice(RCD)mustbeincorporatedintotheelectrical
supply to this shower in accordance with wiring regulations.
8. DO NOT apply excessive force to the terminal block.
9. All electrical connections should be checked for tightness to prevent overheating
before switching on the electrical supply.
10. DO NOT switch on the electrical supply until the plumbing has been completed
and checked for leaks.
Double-pole
Isolating Switch
Consumer Unit

121062243-W2-N
Determine the direction and route
of the incoming water supply:
falling (entering the shower from
the top), or rising (entering the
shower from the bottom).
Note: - DO NOT use an incoming
supply entering the shower directly
from the back. Add an elbow to the
supply pipe and connect it as a
rising or falling supply.
Swivel the inlet connector assembly
tosuit.Removetheinletblanking
cap. Avoid trapping the green earth
bonding wire.
Warning! Turn o󰀨 the electrical and water supplies before proceeding with
the installation of the shower. The electricity must be turned o󰀨 at the mains
and the appropriate circuit fuse removed, if applicable.
Note: An installation template is supplied to help you install the shower.
Removethethreecoverretaining
screws, the cover and the service
tunnel.
Caution! Handle the glass
cover assembly with care.
Installation of Mira Azora
Wall xings are not supplied. For solid wall structures a red rawl plug and a
no.8x1½”countersunkbrassorstainlesssteelscrewshouldbeused.Forother
wallstructuressuchaspanelsalternativexingsmayberequired.Aminimumof3
xingscrewsshouldbeused.
Note: - DO NOT use an
incoming supply entering the
shower directly from the back.
Add an elbow to the supply
pipe and connect it as a rising
or falling supply.
Cover
CoverRetaining
Screw
Inlet
Connector
Installation

13 1062243-W2-N
Beforettingthecover,makesurethattheappropriatecutoutshavebeenremoved
to suit the supply entering the product.
Thoroughly ush the mains-fed cold water supply pipe. The supply must be
clean and free from debris BEFORE connecting the appliance.
Toushthepipework,turnonthewatersupplyanddrainaminimumof10litres
(2gallons)ofwaterintoabucketorcatchmentarea.Turno󰀨thewatersupply.
An installation template is supplied to help you install the Mira Azora.
Puttheinstallationtemplateonthewallandmarkthroughthepositionsofthexing
holes. Make sure that the position of these holes do not come in line with any buried
cablesorpipework.Makesurethatsu󰀩cientelectricalsupplycableisavailablefor
connection to the terminal block.
Drillandplugthetoptwoxingholes.Securetheappliancetothewallwithappropriate
screws.Drillthebottomxingholewiththeproductinplace.Alternativexings(not
supplied) may be necessary for some wall structures. Avoid drilling into any supply
cable/pipe.

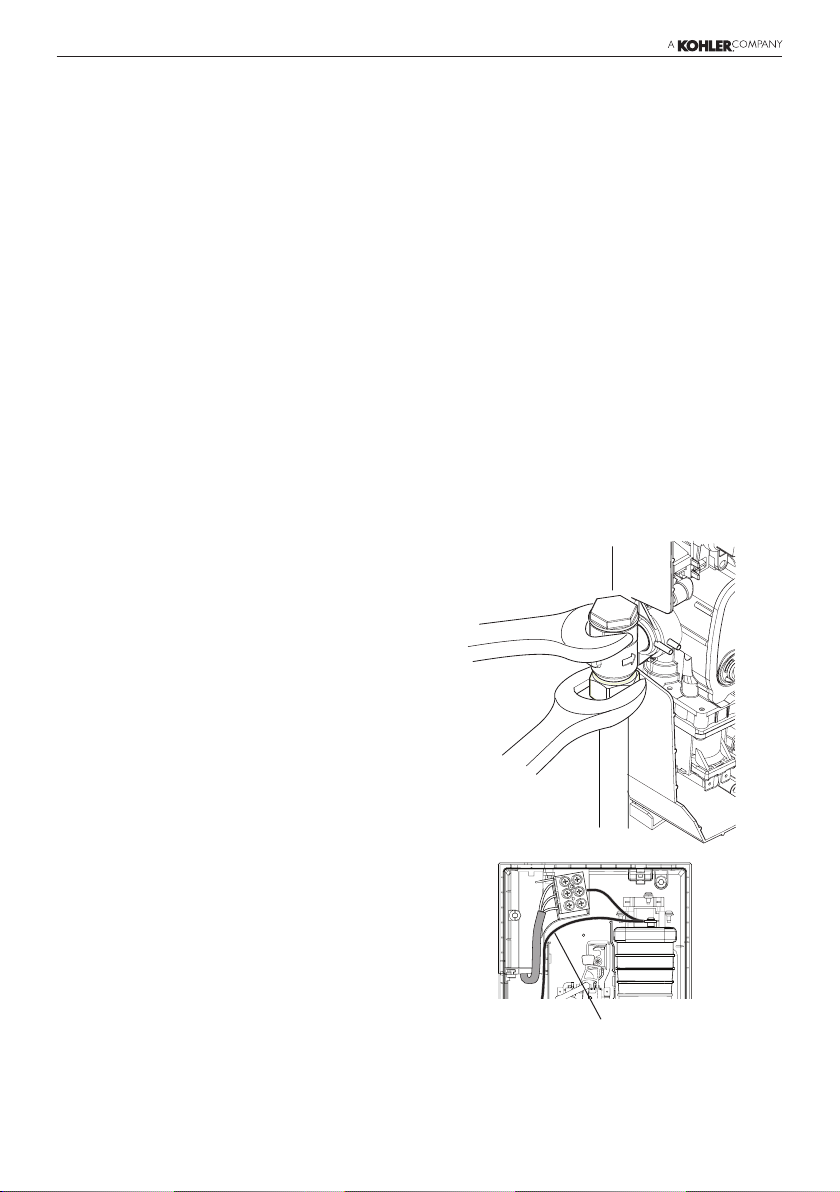

Install the mains-fed cold water supply
pipe. Do not overtighten.
(SeePlumbingInstallationRequirements).
Feed cable into Case. Fit Earth sleeve (not
supplied) and strip insulation.
Do not twist cable cores.
Important! Make sure
that the inlet earth wire is
routed as shown. Failure
to do so may cause
product malfunction.

141062243-W2-N
Firmly connect the conductors. Do not
exert strain on the terminal block.
L=BROWN
E=GREEN/YELLOW
N = BLUE
Refit the cover, making sure it is
correctly located. Do not overtighten
screws.
Caution! Handle the glass cover
assembly with care.
Do not use alternative screws to
secure the cover. This can cause
internal damage to the appliance.
Do not seal around the back of
appliance.
When tting the cover, position the
controls to correspond with the internal
drive features as shown.
Caution! Handle the glass cover
assembly with care.
Cover
CoverRetaining
Screw

15 1062243-W2-N
Cold Water Supply
Pipe (Bottom Entry)
Fixing Screw
Holes For Cover
RetainingScrews
Terminal
Block
Inlet Connector
Assembly
Heater Tank

161062243-W2-N
Commissioning
Before carrying out the commissioning procedure install the Shower Fittings,
refer to the Shower Fittings Installation and User Guide.
If you are unsure how an electric shower works, please read through the section
“User Instructions” before continuing.
Turn control to full cold. Turn the water supply
fully on.
Check for water leaks. Set control to ‘I’. Switch on electrical supply.
Press the ‘Start/Stop’
button.
Water will be at full force
and at a cool temperature.
Turn the control slowly.
Temperature remains cool
andowisreduced
Electrical supply is turned
o󰀨atthemains.
0 - 5 Secs
1.
4.
3.2.
6.5.
9.8.7.

17 1062243-W2-N
Note: A slight hissing sound may be heard from the Mira Escape during
operation. High mains water pressure and high shower temperatures will
a󰀨ect the tone. This is quite normal in use.

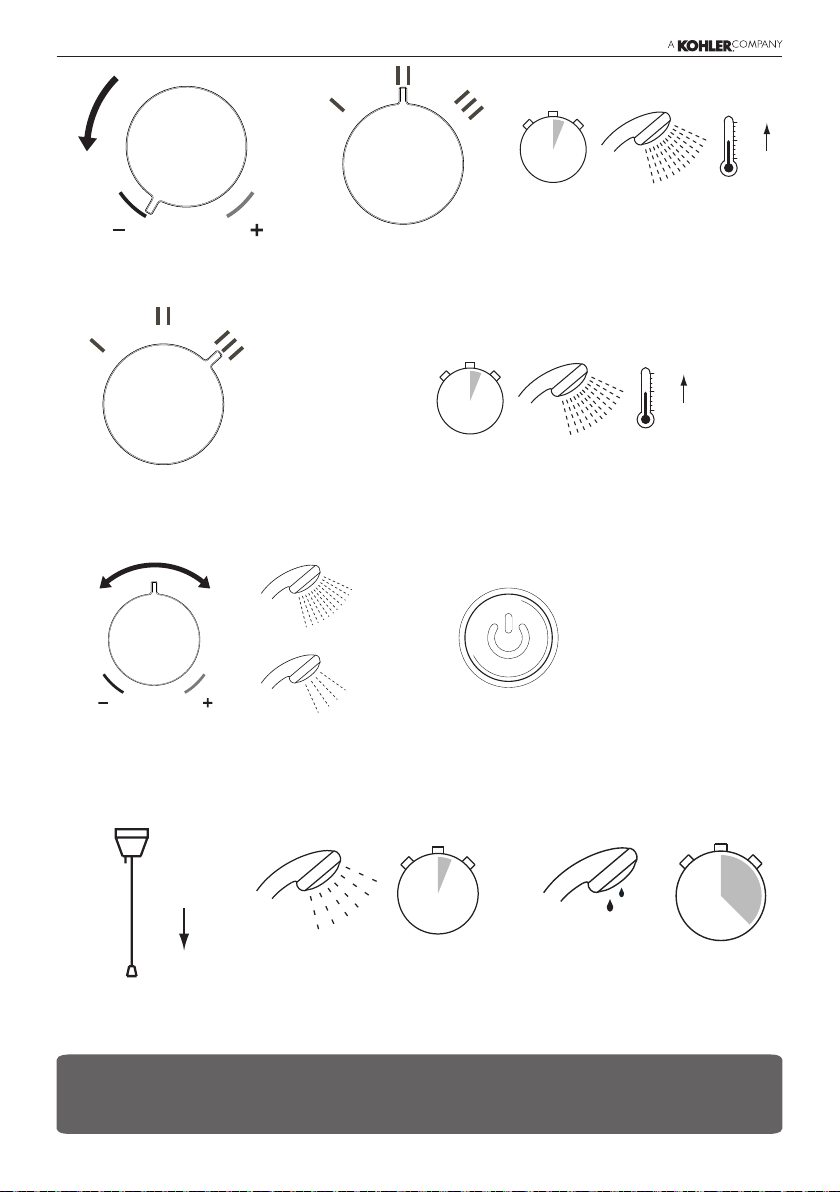

Turn control to full cold. The temperature will rise
slightly.
Set control to ‘II’.
0 - 10 Secs
12.11.10.
The temperature will rise further.
Adjust temperature as required.
Flow rate will adjust automatically.
The shower will purge
water from its tank for a
few seconds.
Residualwatermaydrain
over a few minutes.
Set control to ‘III’.
5 - 10 Secs
0 - 5 Secs
13.
15.
14.
16.
Press STOP.
18. 19.17.
Isolate power.
_
+
_
+

181062243-W2-N

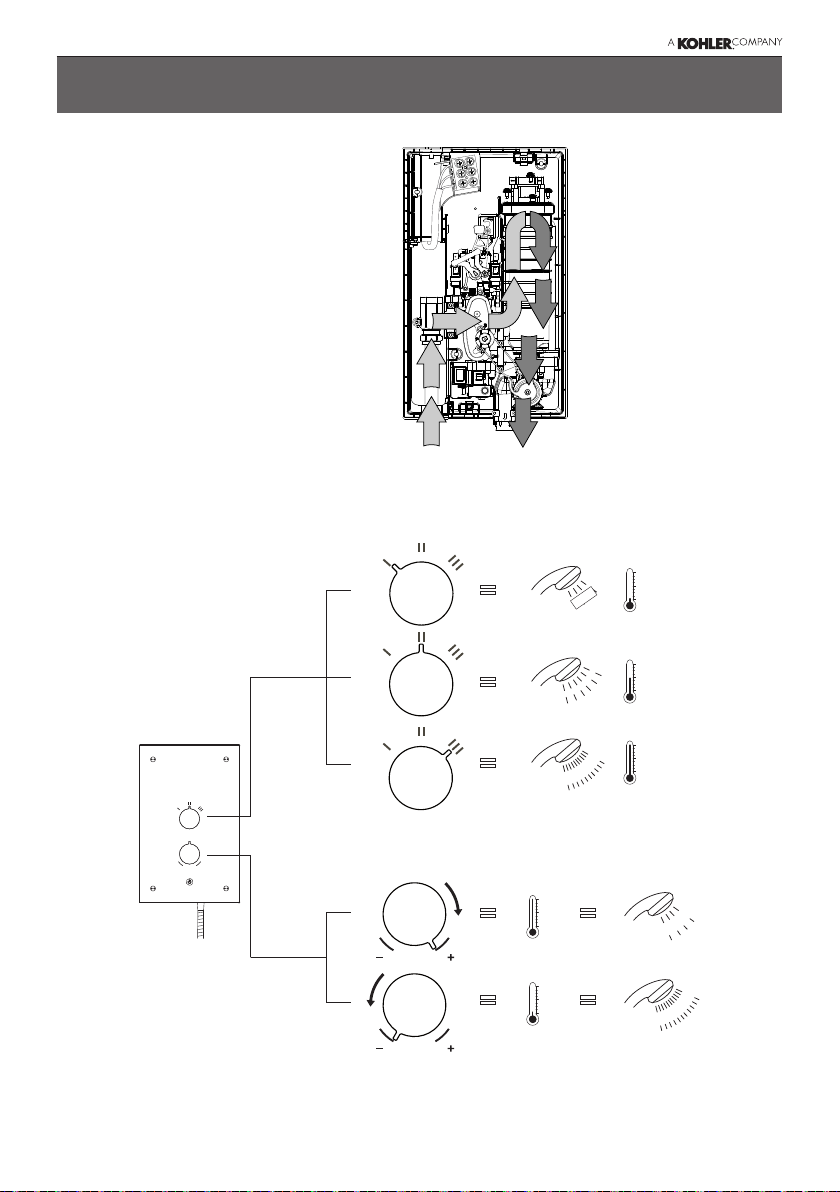

User Instructions
How Your Electric Shower Works
Thewarmertheshower,thelowertheow
rate and vice versa.
Heatedwaterisproducedbyadjustingtheow
of cold water passed through a heater tank.
The shower has three heater settings.
_
+
COLD
_
+
_
+

19 1062243-W2-N
The shower's top priority is to keep the desired water temperature constant. Electric
showers with thermostatic control are able to keep a stable temperature across the
rangefromhottocold,whilstalsodealingwithuctuationsinelectricalandwater
supplies. As a result, there is a temperature limit the shower cannot go beyond. For
safety, this temperature is factory set and cannot be adjusted to make the shower
hotter or colder.
Thermostatic (Temperature-Stable)
THERMOSTAT IC
ELECTRIC
SHOWER
ORDINARY
ELECTRIC
SHOWER

201062243-W2-N
Using your Shower
Readthesection“UserSafetyInformation”rst.
Note: At the end of every shower make sure that the shower head points
into the catchment area. A small amount of water may be retained in the
shower handset after the shower has been turned o󰀨. This may drain over
a few minutes.
Press the ‘Start/Stop’ button.
2.
Switch on electrical supply.
1.
Set to desired position.
3.
Residualwatermaydrain
over a few minutes.
8.
4.
Check water temperature before
entering shower.
5.
Allow 10 - 15 seconds for any temperature adjustments to reach the handset.
6.
Press STOP button.
Shower will continue to run
for a few seconds before
stopping.
7.
Isolate power.
_
+
_
+
