Mira Flight Shower Tray User manual

1
Mira Flight Shower Tray
Riser and Non-Riser
These instructions must be left with the user
Installation and User Guide

2
INTRODUCTION
Thank you for purchasing a quality product. To enjoy the full potential of your new
shower tray, please take time to read this guide thoroughly, and keep it handy for
future reference.
Important! The shower trays featured in this manual are available for use as riser
and non-riser products.
Mira Flight Shower Trays - areavailableinvariousshapes and sizeswith or without
upstands and are all supplied with an 85 mm top access waste and trap.
Mira Flight Riser Conversion Kit - comprises of adjustable legs, panels, panel
securing clips, corners and optional end pieces. Riser Conversion Kits are available
to purchase separately.
Mira Flight Offset Leg Adaptor Fittings Kit - for use with the Mira Flight Riser
ConversionKit,the OffsetLegAdaptorallowsthe installation of pipework behind the
adjustablelegs. OffsetLegAdaptor FittingsKitsare available topurchase separately
(refer to section: ‘Accessories’).
Mira Flight Upstand Tiling Strip - Upstand Tiling Strips are available to purchase
separately (refer to section: ‘Accessories’).
Place the shower tray on a at surface and using a spirit level check that it
is straight and at and that the shower cubicle will sit on its surface correctly
when tted.
Once the waste pipe has been connected pour water into the tray to check the
tray and pipe connection for correct drainage prior to nal x and tiling.
Carefully remove all of the blue protective lm from the tray for inspection.
Caution! Additional protective coverings such as a dust sheet should then be
used to protect the tray from damage from falling objects.
IMPORTANT INFORMATION
Important! The shower trays featured in this manual are available for use as
riser and non-riser products.
The shower waste can cope with a ow rate of up to 25 L/min, with a pipe length
of 3 m for 40 mm pipe and 4 m for 50 mm pipe, with a fall of between 18 and
90 mm/m. The ow rate will be reduced with the introduction of bends or T ttings
in the waste outlet pipe.
Carefully unpack and check the tray for colour, size, general acceptability and
compatibility with the shower enclosure and other bathroom furniture.
Check for transit damage and report any faults immediately to your supplier.
No claims for the above will be considered after installation.

3
Notication to designers, installers and users:
The majority of all shower trays will show an increase in the potential for
slipping, when the surface is wet. This is particularly the case when soap,
shampoo, bath oil etc. are used. The Construction Products Directive (89/106/
EEC).
Due to the physical nature of water, small pockets of water may remain on
the shower tray after showering. We recommend that both the tray and the
enclosure are wiped down with a dry cloth after use.
We recommend this tray is tted as part of a fully enclosed cubical. If this tray
is tted as a walk-in installation, it is expected that an amount of water will spill
onto the open area of the oor. We would therefore advise xing a threshold
strip to minimize this.
Fitting this product is acceptance of quality.
Guarantee
Mira Showers guarantee the Mira Flight Tray against any defect in materials or
workmanship for a period of ten years from the date of purchase.
For terms and conditions refer to the back cover of this guide.
Recommended Usage
Domestic ü
Light Commercial ü
Heavy Commercial 
Healthcare ü
Kohler Mira Limited, Cromwell Road, Cheltenham,
Gloucestershire, GL52 5EP, UK
12
EN 14527 - CL1 + CL2
Patents
Patent Applications GB: 0526168
Euro: 1667562
Warning! The Mira Flight 760 and 800 variants weigh less than 25 kg and are
a ‘one‑person‑lift’. All other Mira Flight tray variants weigh in excess of 25 kg
and will require a ‘two‑person‑lift’.

4
PACK CONTENTS
Tick the appropriate boxes to familiarise yourself with the part names and to
conrm that the parts are included.
1 x Square or Rectangular Shower Tray
1 x 85 mm Waste
Square/Rectangular Riser Conversion Kit (if purchased)
Square or Rectangular Shower Tray
Description Quantity
Square
or 900 x 760 rectangle
Quantity
Rectangle
all other rectangles
Adjustable Legs 4 6
Clips 4 6
Locators 4 6
Sticky Pads 5 7
90° Corner 1 1
Panels 2 2

5

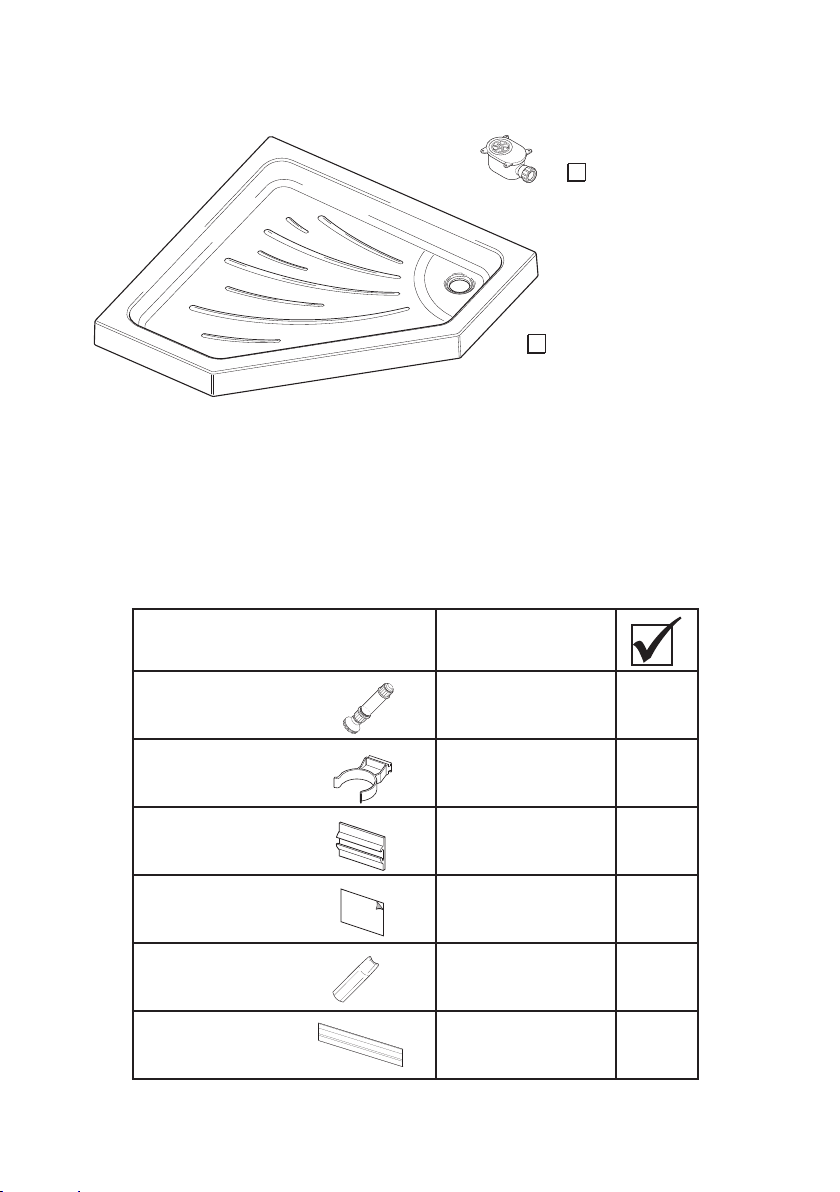

Pentangle Riser Conversion Kit (if purchased)
Pentangle Shower Tray
1 x 85 mm Waste
1 x Pentangle Shower Tray
Description Quantity
Adjustable Legs 5
Clips 5
Locators 5
Sticky Pads 6
135° Corner 2
Panels 3

6

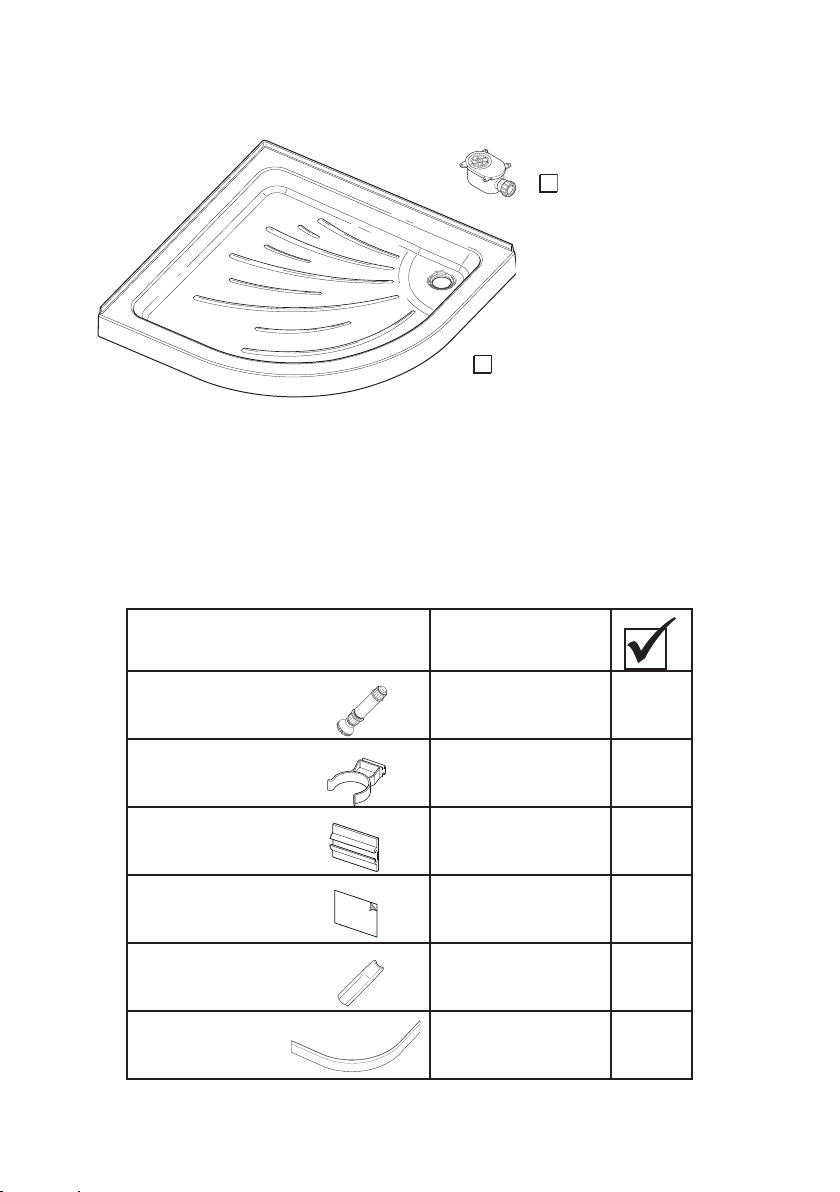

Quadrant Shower Tray
1 x 85 mm Waste
1 x Quadrant Shower Tray
Description Quantity
Adjustable Legs 4
Clips 4
Locators 4
Sticky Pads 5
90° Corner 1 Not
Used
Panels 1

7

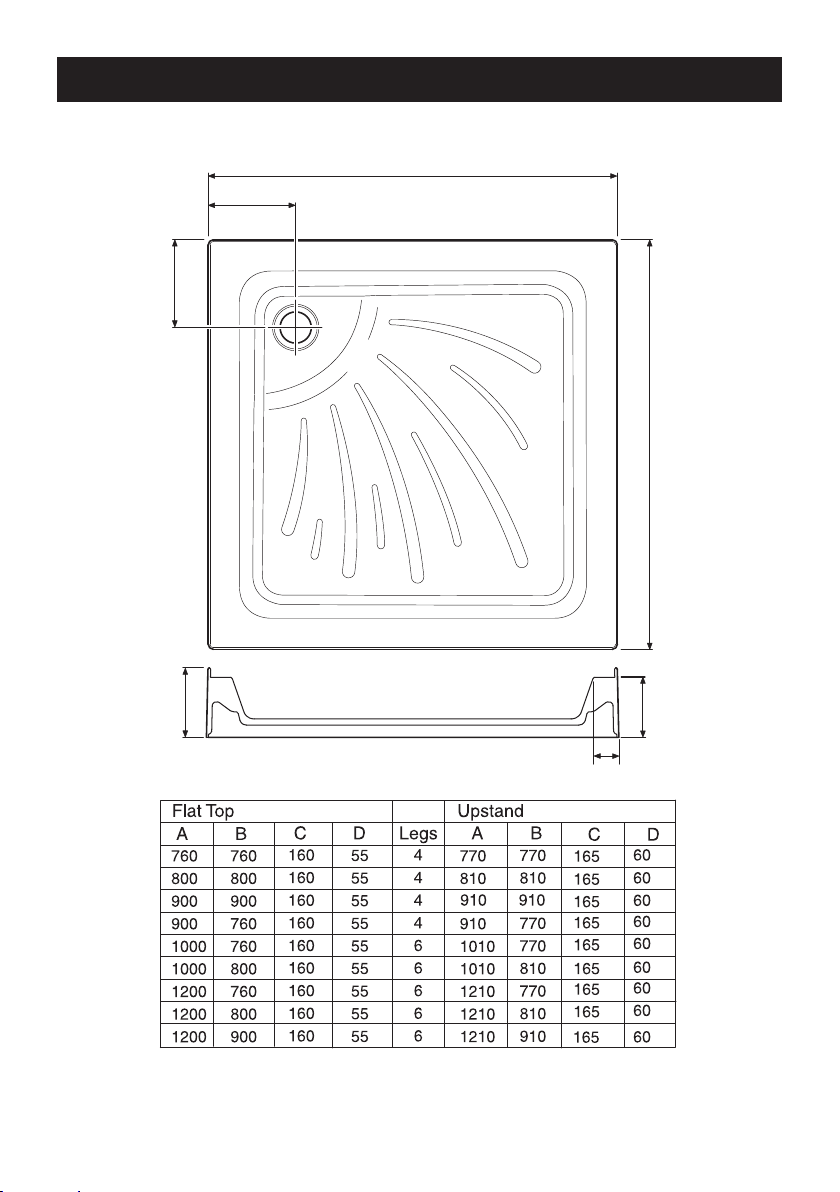

DIMENSIONS
Square or Rectangular Shower Tray
90
B
A
C
C
112
D
All Dimensions in mm

8
90
Radius 550
D
112
B
C
C
A
90
D
112
707
410
410
B
A
C
C

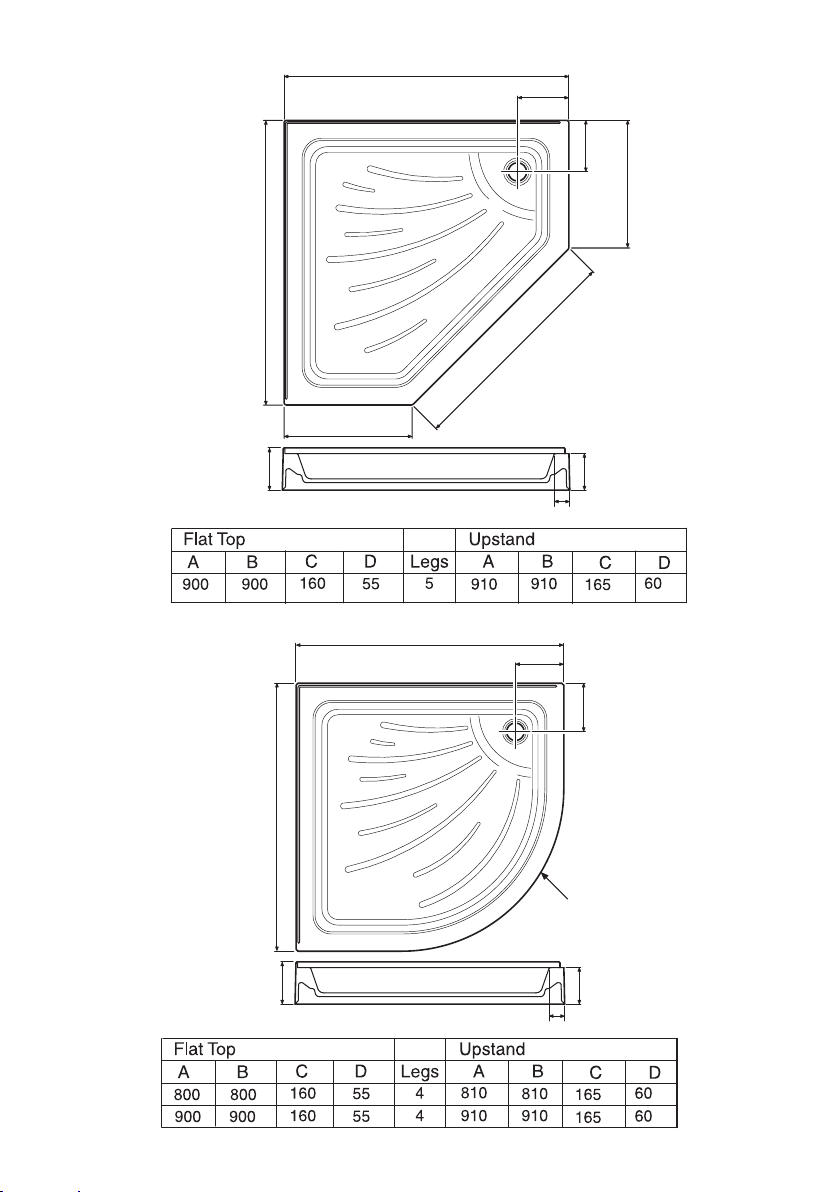

Pentangle Shower Tray
Quadrant Shower Tray
All Dimensions in mm

9
INSTALLATION
Please read these instructions carefully before starting the installation
procedure.
Important Notes
1. It is recommended that the shower tray is installed before tiling. This will make
sure that the tray is rebated into the plaster behind where the tile face will be,
thus helping to achieve a watertight joint.
2. Witharebate or partialrebate the amount ofadjustment on the enclosurecould
be affected. Therefore make sure that the enclosure to be tted has sufcient
adjustment to mate with the shower tray.
3. A waste with an 85 mm diameter ange must be used with these shower trays
as supplied.
The rst step of the installation is to decide whether you need a non-riser or riser
installation for your tray. To nd out answer these simple questions.
YES NO
Follow Non‑Riser
Installation Procedure Follow Riser Installation
Procedure and Purchase a
Riser Conversion Kit
1. If the oor is out of level by 1/4” (6 mm) or more across the
tray length the installation of a riser tray is recommended
2. Can a hole be made to t the waste into
the oor/timber/between the joists

10
Figure 1
Install the Tray Waste
Non‑Riser Installation
1. Carefully remove all of the blue protective lm from the tray for inspection.
Caution! Additional protective coverings such as a dust sheet should then be
used to protect the tray from damage from falling objects.
2. Fitthe 85 mmtopaccess waste(supplied)to the traybefore setting downbeing
careful not to overtighten. Make sure that the seal is in place.Additional beads
of silicone sealant must be used (refer to Figure 1).
Note! To tighten, remove the Shower Grid from the Flange and turn it upside
down. Locate it into the slots on the ange and tighten in a clockwise direction.
Remove and ret the Shower Grid to it’s original position.
Seal
Bead of
Silicone Sealant
Shower Grid
(invert to
tighten ange)
Flange
For Non-Riser
Installations coat the
underside of the tray with
silicone sealant, a tiling
cement or a weak mix of
sand and cement (5:1)
3. Position the tray up to the walls and rebate into the plaster as required, refer
to section: ‘Installation, Rebating the Shower Tray’. Remove the tray from
its position.
4. Make sure that the oor is clean, dry, rm and level. Coat the ribbed underside
of the tray with silicone sealant, a tiling cement or a weak mix of sand and
cement (5:1). Then press down into place ensuring the tray is positioned into
rebates.
Note! Where the tray comes into contact with the wall or plaster board surface,
applya liberalamount ofsilicone sealantbeforeinstallation.Thiswillhelpsecure
the tray in position and reduce any rubbing of the surfaces.

11
5. Make sure that the tray is level.
Note! The bottom of the shower tray has a built in fall to allow for correct
drainage. Therefore check the edges of the tray with a spirit level (refer to
Figure 2).
6. Connect the waste pipe.
7. Seal the joint between the shower tray and adjoining wall with silicone sealant
to provide a secondary seal.
8. The area is now ready for tiling.
9. The 3 mm gap between the tiling and the shower tray must be lled with a
bead of silicone sealant, refer to section: ‘Installation, Rebating the Shower
Tray’.
Figure 2
Level the Shower Tray
Make sure that the
shower tray is level

12

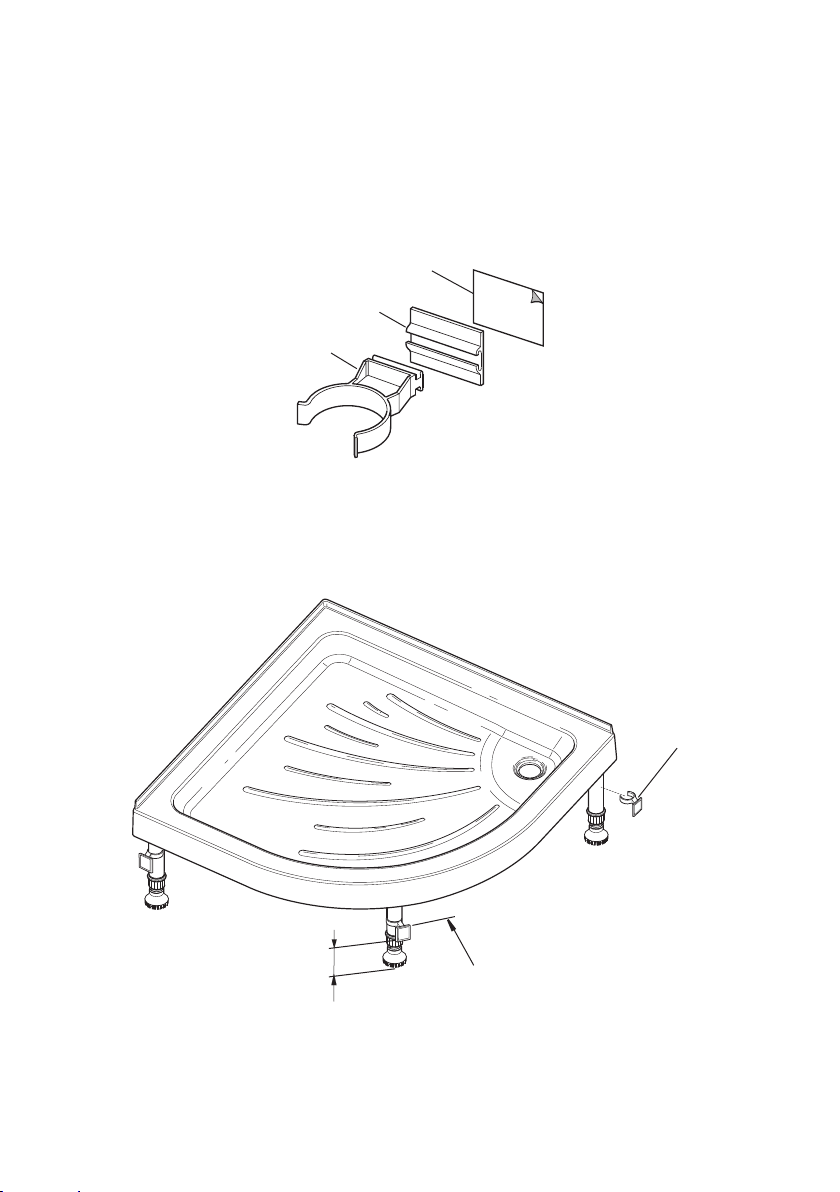

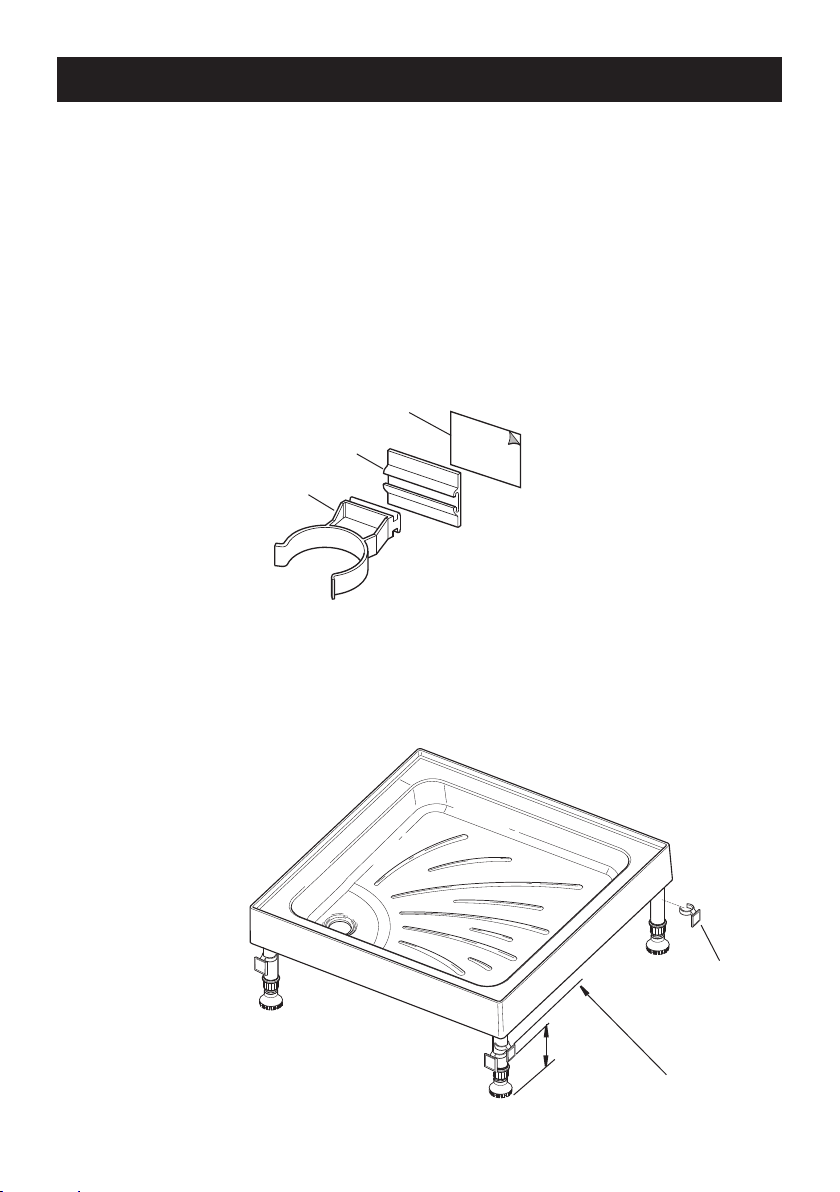

Riser Installation
1. Carefully remove all of the blue protective lm from the tray for inspection.
Attention should then be paid to effectively cover the tray to protect from
damage.
2. Spots on the adjustable leg mouldings are provided to help set equal heights.
Set the adjustable legs to the third spot from the bottom, this will give the initial
clearance for the waste supplied.
Note! Do not adjust the legs above the fourth spot as this will be too high to
accommodate the riser panel.
3. Fit the adjustable legs into the holes on the back of the tray.
Note! A soft faced mallet can be used to aid installation.
4. Temporarily t the waste outlet pipework and the trap to the tray. Adjust the
height of the feet to give the required clearance.
Note! The feet must be adjusted so that the shower tray does not rock.
5. Positionthe trayupto thewallsand rebatethe trayintothe plaster(asrequired),
refer to section: ‘Installation, Rebating the Shower Tray’.
Note! Where the tray comes into contact with the wall or plaster board surface,
applya liberalamount ofsilicone sealantbeforeinstallation.Thiswillhelp secure
the tray in position and reduce any rubbing of the surfaces.
6. Make sure that the tray is level.
Note! The bottom of the shower tray has a built in fall to allow for correct
drainage, therefore check the edges of the tray with a spirit level (refer to
Figure 2). If necessary adjust the height of the feet so that the tray is level in
all directions.
7. Oncethetray is level -tightenthe individual lock nutsonthe leg sets andcheck
the tray is rm and secure.
8. Tighten the waste being careful not to overtighten. Make sure that the seal is in
place, additional beads of silicone sealant must be used (refer to Figure 1).
9. Connect the waste pipe.
10. Seal the joint between the shower tray and adjoining wall with silicone sealant
to provide a secondary seal.
11. The area is now ready for tiling.
12. The 3 mm gap between the tiling and the shower tray must be lled with a
bead of silicone sealant, refer to section: ‘Installation, Rebating the Shower
Tray’.

13
Grout
2 mm Thick
Plasterboard
9.5 mm Thick Tile
5 mm Thick
D
Plasterboard
9.5 mm Thick
B
F
Tile
5 mm Thick
Grout
2 mm Thick
Plasterboard
9.5 mm Thick
16.5 mm
E
Tile
5 mm Thick
Grout
2 mm Thick
Plasterboard
9.5 mm Thick
Plasterboard
9.5 mm Thick
Grout
2 mm Thick
Tile
5 mm Thick
C
16.5 mm
A
Grout
2 mm Thick
Tile
5 mm Thick
Clear Area
Plasterboard
9.5 mm Thick
Note:- The amount of rebate affects the enclosure size.
3 mm
Gap
3 mm
Gap
3 mm
Gap
3 mm
Gap
3 mm
Gap
3 mm
Gap THIS SIDE SHOWN
WITH STUD PARTITION
THIS SIDE SHOWN
WITH SOLID WALL
Tile
5 mm Thick
Grout
2 mm Thick
Silicone Sealant
Clear Area
Silicone Sealant
Clear Area
Silicone Sealant
16.5 mm
Clear Area
Silicone Sealant
Clear Area
Silicone Sealant
Clear Area
Silicone Sealant
16.5 mm
16.5 mm
16.5 mm
Figure 3
Rebating the Shower Tray
Rebating the Shower Tray
The gures below provide an indication of the type of typical recommended
installationmethods. Itdoesnot providea fullydetaileddescription forALLinstallation
methods / procedures.
To aid installation, optional accessories are available, refer to section
‘Accessories’.

14
BASIC PANEL INSTALLATION
Figure 4
Assemble the Panel Fixings
Square/Rectangle
1. Cut the panel to length.
Note! When cuttingtolength,make sure that you take intoaccounttheamount
of panel that goes into the corner connector.
Note! The panel can be cut or shaped to suit the wall prole e.g. skirting
board.
2. Remove the backing from one side of each of the pads and stick the pads to
back of locators.
3. Slide the locators onto the clips (refer to Figure 4).
4. Slide the clips onto the legs until the bottom edge of the pad is 55 mm from the
oor. Where two clips are tted on one leg, one of the clips can be inverted to
allow both pads to be located at the same height.
Note! Make sure that they are parallel to the tray edge (refer to Figure 5).
Pad
Clip
Locator
Make sure that the
top edge of the clip is
parallel to the tray
Locator and Clip
(with adhesive
pad attached)
55 mm
Figure 5
Install the Locators and Clips

15
Panel
Wooden
Block or
Baton
5. Offer up the panel to the tray with the horizontal grooves nearest the oor and
make sure that the panel is the correct length.
Note! If extra panel stability is required, secure wooden blocks or batons to the
oor along the rear edge of the panel as shown.
6. Remove the backing paper from the sticky pads and remove the protective lm
from the panel.
7. Starting at the wall end. Offer the panel up to the locator and press rmly.
Continue along the panel making sure that it sticks correctly (refer to Figure
6).
8. Fit the corner to the other panel.
9. Fit the corner onto the xed panel and continue along pressing rmly.
10. Seal the top edge of the panel to the tray wall using a line of silicone sealant.

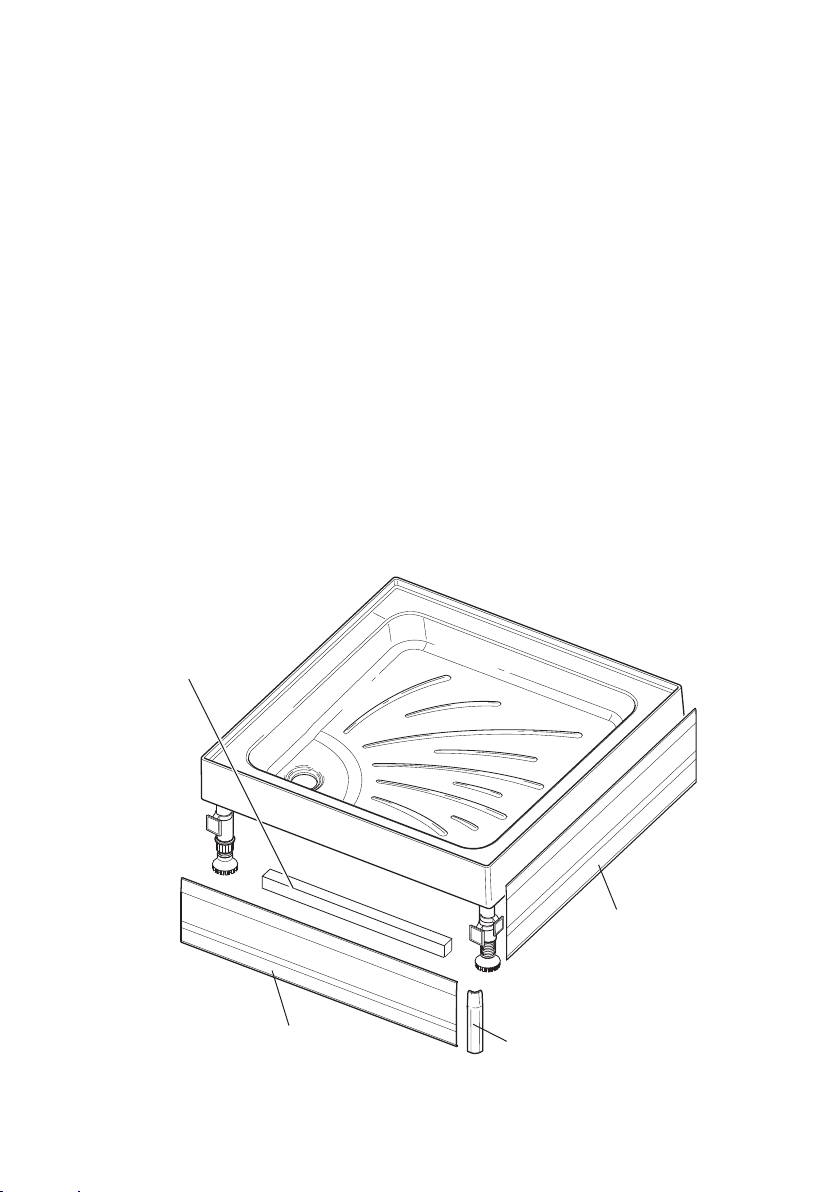

Figure 6
Install the Panels
Corner
Panel

16
Make sure that the
top edge of the clip
is parallel to the
tray.
Locator and Clip
(with adhesive
pad attached)
55 mm
Pentangle
1. Cut the panel to length.
Note! When cuttingtolength,make sure that you take intoaccounttheamount
of panel that goes into the corner connector.
Note! The panel can be cut or shaped to suit the wall prole e.g. skirting
board.
2. Remove the backing from one side of each of the pads and stick the pads to
back of locators.
3. Slide the locators onto the clips (refer to Figure 7).
Figure 8
Install the Locators and Clips
4. Slide the clips onto the legs until the bottom edge of the pad is 55 mm from the
oor.
Note! Make sure that they are parallel to the tray edge (refer to Figure 8).
Figure 7
Assemble the Panel Fixings
Pad
Clip
Locator

17
Wooden
Block or
Baton
Panel
Corner
5. Offer up the panel to the tray with the horizontal grooves nearest the oor and
make sure that the panel is the correct length.
Note! If extra panel stability is required, secure wooden blocks or batons to the
oor along the rear edge of the panel as shown.
6. Remove the backing paper from the sticky pads and remove the protective lm
from the panel.
7. Starting at the wall end. Offer the panel up to the locator and press rmly (refer
to Figure 9).
8. Fit the corner onto one end of the larger panel (710 mm) so that it ts onto the
tted panel.
9. Locate onto the tted panel (410 mm) and rmly press onto the pads.
10. Fit the second corner onto one end of the panel (410 mm) so that it ts onto
the tted panel (710 mm).
11. Press the panel rmly onto the locators.
12. Seal the top edge of the panel to the tray wall using a line of silicone sealant.
Figure 9
Install the Panels
Corner

18
Quadrant
1. Cut the panel to length.
Note! Cut each end equally to maintain the correct t of the curved panel.
The panel can be cut or shaped to suit the wall prole e.g. skirting board.
2. Remove the backing from one side of each of the pads and stick the pads to
back of locators.
3. Slide the locators onto the clips (refer to Figure 10).
Figure 10
Assemble the Panel Fixings
Pad
Clip
Locator
Figure 11
Install the Locators and Clips
4. Slide the clips onto the legs until the bottom edge of the pad is 55 mm from the
oor. Make sure that they are parallel to the oor (refer to Figure 11).
Locator and Clip
(with adhesive
pad attached)
55 mm
Make sure that
the top edge of
the clip is parallel
to the tray.

19
Panel
Wooden
Block or
Baton
5. Offer up the panel to the tray and make sure that the panel is the correct
length.
Note! If extra panel stability is required, secure wooden blocks or batons to the
oor along the rear edge of the panel as shown.
6. Remove the backing paper from the sticky pads and remove the protective lm
from the panel.
7. Put the panel in position and press rmly. Continue along the panel making
sure that it sticks correctly (refer to Figure 12).
8. Seal the top edge of the panel to the tray wall using a line of silicone sealant.

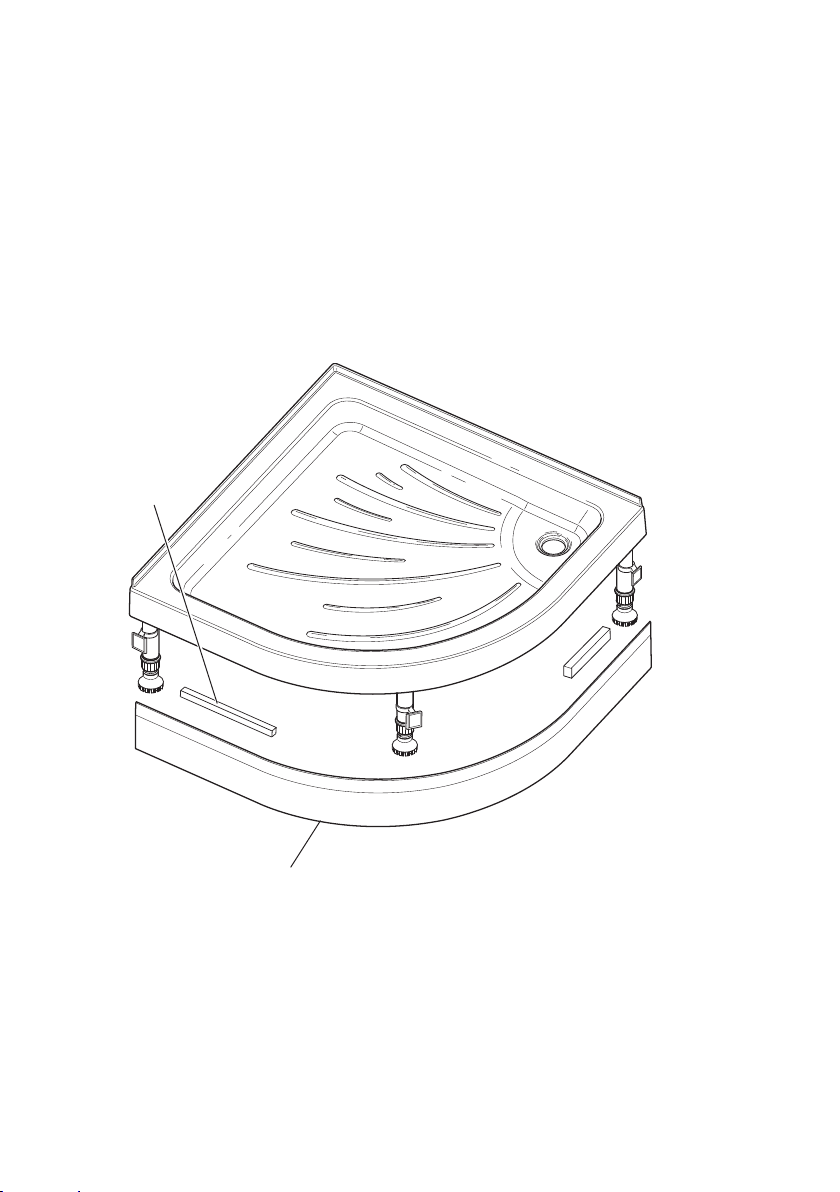

Figure 12
Install the Panels

20
MAINTENANCE
General
Providing the shower tray has been correctly installed in accordance with the
instructions contained in this guide, difculties should not arise. If any maintenance
is required then it must be carried out by a competent tradesperson for whom the
maintenance instructions are provided.
Cleaning
It is advised that the shower tray is cleaned immediately after use, to remove any
insoluble products. Hot soapy water should be used and then the tray should be
wiped. Cleaners of gritty or abrasive nature should never be used.
The acrylicABS surface of this shower tray has good resistance properties to acids
but should not come into contact with alkalis or organic solvents, such as caustic
soda, dry cleaning agents and paint strippers.
