Mirion Technologies BIODEX ECONO 058-726 User manual

ECONO ULTRASOUND TABLE
OPERATION MANUAL
058-726
058-727
7 Vreeland Road, Florham Park, NJ 07932
[phone] | [phone] | www.biodex.com
FN: 10-038 Rev E 5/23

ECONO ULTRASOUND TABLE
This manual covers operation procedures for the following products:
058-726 Table, Econo Ultrasound, 115 VAC
058-727 Table, Econo Ultrasound, 230 VAC
Contact Information
Manufactured by:
Mirion Technologies (Capintec), Inc.
7 Vreeland Road, Florham Park, NJ 07932
[phone] | [phone] | Fax: [phone]
email: [email protected]om | www.biodex.com

TABLE OF CONTENTS
Definition of Symbols .....................................................….. .…………………………………………4
Before Proceeding…………………………………………………………………………………………………5
Important Safety Information .................................................................................................... 7
Chapter 1: Introduction ............................................................................................................8
Table Parts and Adjustments ................................................................................................... 9
Chapter 2: Assembly and Table Operation ............................................................................... 10
Relocating the Table ................................................................................................................ 10
Height Adjustment .................................................................................................................. 10
Fowler Back Adjustment .......................................................................................................... 10
Installing and Using Optional Accessories................................................................................ 11
Articulating Scanning Arm Board ............................................................................................. 11
Side Rails................................................................................................................................. 12
Headrest Extension.................................................................................................................. 13
Paper Dispenser....................................................................................................................... 14
I.V. Pole ................................................................................................................................... 15
Retractable Stirrups……………………………………………………………………………………………..16
Appendix A –Specifications..................................................................................................... 17

4
Symbol
Definition
Carefully read these instructions prior to use
Operating Instructions
Caution
General Warning
General Mandatory Action
Dangerous Voltage
“On” Power
“Off” Power
Pinch Point
Earth (ground)
Alternating Current
Fuse
USB Connector/Cable
Non-Ionizing Electromagnetic Radiation
Waste in Electrical Equipment
Disposal Classification and Identification of Equipment
Date of Manufacture
Manufactured By
Type B Applied Part
Medical Device
Contains Lead

5
Before Proceeding
NOTE: The warnings, cautions and instructions provided in this manual must be read,
followed, and kept available for consultation at all times. Observing the information,
instructions and procedures presented throughout this manual is essential for using this
product both properly and safely.
SPECIFIC CAUTIONS
• Allow only qualified, trained personnel to operate or service this product.
• If the equipment is used in a manner other than specified in this operation manual,
the protection provided by the equipment may be impaired and results could be
compromised.
• Never leave patient unattended on table.
CAUTION: Unauthorized modifications to this product are not permitted and will void
the manufacturer’s warranty. Unauthorized modification of the product may result in a
hazard to the user and/or patient. Do not modify this equipment without authorization
from the manufacturer.
CAUTION: Before moving the table with a patient, make sure side rails are in the up
position and body straps are in place to secure the patient.

6
Training
This operation manual includes assembly and operating instructions.
Operating/assembly questions can be directed to the service department
during business hours.
User Profile
Patient
The product (without accessories) shall accommodate patients fitting the following profile:
Height: From infant to 74 inches (6ft - 2in)
Weight: Up to 500 lbs.
Age: No limits
Operator
The operator is a trained and certified sonographer, ultrasound technician, or ultrasound
technologist.
Product Certifications and Classifications
The Econo Ultrasound Table has received the following certifications, and falls within the following
classifications:
•IEC 60601-1-2:2014+A1:2020 (ed 4.1) Medical Electrical Equipment –Part 1-2: General
requirements for basic safety and essential performance - Collateral Standard:
Electromagnetic disturbances - Requirements and tests
•IEC 60601-1:2005+A1:2012+A2:2020 Ed 3.2 Medical Electrical Equipment. Part 1. General
Requirements for Basic Safety and Performance.
•ANSI/AAMI ES60601-1:2005+A1:2012+A2:2020 Issued: 2020 Medical electrical equipment –
Part 1: General requirements for basic safety and essential performance.
•CAN/CSA-C22.2 No. 60601-1:14/A2-2022: (2022) –Medical electrical equipment –Part 1:
General requirements for basic safety and essential performance
Authorized European Community Representative:
Atlantico Systems Ltd.
34 Oldfield, Kingston, Galaway, Republic of Ireland

7
Important Safety Information
CAUTION: Federal Law restricts this device to sale by or on the order of a physician,
sonographer or other licensed professional.
Follow the unpacking and assembly instructions document.
Before using this equipment, read the entire operation manual carefully. Failure to read
the manual may result in user error or injury. Be sure to save all provided documents for
future reference.
Make certain to understand all warning and caution labels as explained in the Before
Proceeding section of this manual.
This product should be used only as specified in the operation manual.
Biodex Ultrasound Tables are designed for use in a patient environment.
For product specifications, refer to the Table of Contents.
This medical electrical equipment requires special precautions regarding EMC and must
be assembled and placed into service according to EMC information provided in this
manual. For electromagnetic compliance definition, refer to the Table of Contents.
Reference Cleaning and Maintenance instructions in Table of Contents.
CAUTION: Operation for 058-726: 120 VAC, 60 Hz; 058-727 230 VAC, 50 Hz.
WARNING: Only use approved power supplies.
CAUTION: To avoid risk of electric shock, this equipment must only be connected to
supply mains with protective earth.
CAUTION: The plug is considered the method of disconnecting the product from main
power. Do not place the product in a position where the plug is not easily accessible.
CAUTION: This product is intended to remain in one location during operation. The
product is provided with wheels for relocation and should be used when performing this
operation. Once positioned, engage the locking system levers to ensure stability.

8
1. INTRODUCTION
Intended Use
The Econo Ultrasound Table is designed to provide a safe ergonomic environment for the
sonographer and patient. The design features are intended to relieve musculoskeletal stress on
the sonographer while scanning, and to provide the utmost patient comfort.
Indications For Use
The Econo Ultrasound Table is typically used in radiology departments, cardiovascular facilities,
diagnostic imaging centers and private practice clinics to achieve quality images for a variety of
procedures and patient applications.
Incident Reporting
Any serious incidents occurring with the use of this device should be reported to the
manufacturer and appropriate local regulatory agency by end user, operator, or patient. Examples
of local regulatory agency are USFDA, EU competent authority, or country specific Health Agency.
End of Life
LIFETIME (END OF LIFE) The Family of Ultrasound Tables lifetime (End of Life) is considered to be
ten years after date of shipment. Service, support, and spare parts will be provided for this time.
After ten years, the system is no longer considered “state of the art” and should be replaced.
General Cleaning and Maintenance
1. As required, cleanse all exterior surfaces and tabletop pads with a mild detergent solution,
such as Parker Laboratories Protex Disinfectant or any one-step disinfectant that does not contain
bleach.
2. Keep wheel assemblies free of foreign materials and dirt accumulation.
3. Periodically inspect all welds.
4. Periodically check bolts on table, tighten if necessary.
5. Periodically inspect all strap holders. Any holder that feels loose should be removed and
reattached after adding a spot of Loctite®Threadlocker (Blue #242) to the bolt threads. This
should ensure that the bolt will not loosen again in the future.

9
Table Parts and Adjustments
Figure 1. The Biodex Econo Ultrasound Table parts and adjustment include:
Standard Parts and Adjustments:
1. Fowler Back
2. Restraining Straps
3. Extra-Wide Tabletop With 500-lb Patient Capacity
4. 5" Locking Swivel Casters
5. Hand Controller
Optional:
058-633 Side Rails, Folding
058-736 Arm Board, Vascular Scanning
058-737 I.V. Pole
058-611 Dispenser, Paper, With Cutter Strap
058-738 Headrest Extension
1
2
3
4
5

10
2. ASSEMBLY AND TABLE OPERATION
Relocating the Table
CAUTION: Before moving the table with a patient, make sure side rails are in the UP
position and restraining straps are in place to secure the patient.
This table can be easily moved across smooth surfaces.
To move the table, release the wheel lock lever on each swivel caster by lifting
each lever up with your foot for each caster.
Once positioned, depress the wheel lock lever for each swivel caster to lock the table in place and
ensure stability.
NOTE: In addition to the central locking system, each wheel can be locked individually by stepping down
on the individual wheel lock lever.
Height Adjustment
Table height is conveniently adjusted with the hand-held controller. D-ring
holders are provided on the end of the straps at each side of the table frame to
hold the hand controller when it is not in use. The hand controller can be
moved to either side of the table. A power light on the controller indicates that
power from the control box is on.
• To raise the table: press and hold down the table UP button.
• To lower the table: press and hold down the table DOWN button.
NOTE: The control box, located underneath the tabletop, is labeled with
controller-specific information.
Fowler Back Adjustment
The motorized Fowler back is infinitely adjustable to 80° via the hand-held
controller.

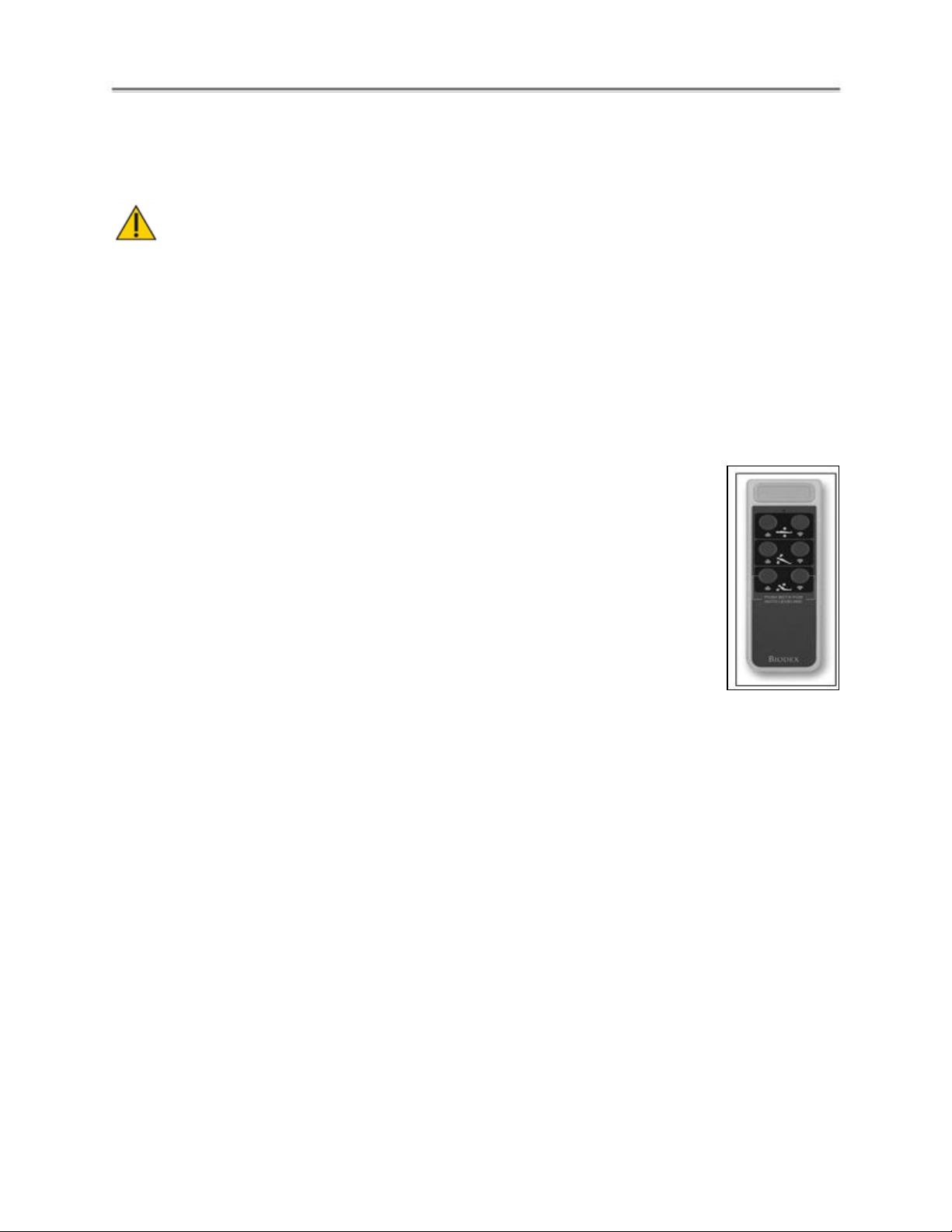

Figure 2.
Hand-held
Controller
activates table
positions.

11
Installing and Using Optional Accessories
NOTE: The tools needed to install all table accessories are provided with the table. These include a
7/16" wrench, 9/16" wrench and a Phillips screwdriver.
Articulating Scanning Arm Board, (058-736)
The optional Articulating Scanning Arm Board is installed by inserting the arm board tube into
the receiving tube located on each side of the table. The arm board tube compensator, located
toward the end of the tube, may need to be adjusted before inserting the arm board tube into
the receiving tube or for any slack that may occur over time. To adjust the compensator, use
the Allen key that is provided to either expand or retract the compensator for proper fit.
The arm board pivot is adjustable at any point along its 130° arc. To adjust, press the yellow
button on the arm board and move to the desired location, and then release the yellow button.
To remove the arm board, press the release button beneath the receiving tube and pull to remove.
Compensator
Allen Key
Adjustment Screw Adjustment Screw
Figure 3. Figure 4. The Articulating Scanning Arm Board.
Receiving Tube Arm Board Tube Angle Adjustment Knob
Release Button
Figure 5. Figure 6.

12
Side Rails (058-633)
The optional side rails can be installed on both sides of the table. Each rail pivots individually to
either the raised or lowered position. Two rails are supplied: one for each side of the table.
To install the side rails:
1. Using a 7/16" wrench, remove the four 1/4-20" hex head screws from under the abdominal
cushion (toward the rear of the cushion) on the side of the table to which the side rail will be
installed. Remove the strap bracket and save the screws to reinstall in step 3.
2. Position the side rail support bracket against the bottom of the cushion so the four pre-drilled
screw holes in the bracket align with the screw holes under the seat cushion.
3. Using a 7/16" wrench install the four screws removed in step 1 through the side rail support
bracket. Tighten securely.
4. Press the small piece of vinyl trim bumper onto the lower frame edge beneath the mid-point of
the seat.
5. Install the straps into the side rails strap brackets.
Using the side rails:
1. To raise either side rail, pull out the side rail pull pin and gently swing the rail upward so that it
locks fully into position.
2. To lower either side rail, pull out the side rail pull pin and, while supporting the side rail, allow it
to gently swing down and under the table until the rail locks in place.
Figure 7. Installing the optional side rails.

13
Headrest Extension (058-738)
The optional headrest is removable and adjustable. To install the headrest, simply
slide it into the receiving tube at the head end of the table until it clicks into place.
Push to adjust angle.
Push to release.
Figure 8. Installing the headrest extension.

14
Paper Dispenser (058-611)
Manufactured to accommodate a roll of hygienic table paper (sold separately),
The optional dispenser is mounted to the head end of the table.
Installing the paper dispenser:
1. Raise the Fowler back section of the table completely.
2. Using a 7/16" wrench, remove the two 1/4-20" hex head screws from under one side of the head
end of the Fowler back cushion.
3. Position the appropriate paper dispenser mounting bracket on the bottom of the Fowler back
cushion as shown below. Ensure the pre-drilled screw holes align with the screw holes from step 2.
4. Using a 7/16" wrench, install the two 1/4-20" hex head screws removed in step 1 through
the dispenser mounting bracket and tighten to secure the paper dispenser bracket in place.
5. Repeat steps 1 - 4 for the opposite side.
6. Place a role of paper on the paper dispenser rod and install the rod between the brackets. Press
in on either spring-loaded end of the paper dispenser bar in order to slide it into the brackets.
7. Pull the paper over the cushions.
8. Pull unused paper through the cutter strap which mounts at the foot end of the table.
9. After use, cut the paper and dispose of used portions.
Mounting bracket
Mounting bracket
Figure 9. Using a 7/16" wrench, install
the two 1/4-20" hex head screws removed
in step 1 through the dispenser mounting
bracket and tighten to secure the paper
dispenser bracket in place. Repeat steps 1
- 4 for the opposite side.
Figure 10. Place a role of paper on the
paper dispenser rod and install the rod
between the brackets. Press in on either
spring-loaded end of the paper dispenser
bar in order to slide it into the brackets.

15
I.V. Pole (058-737)
The optional I. V. pole must be installed on the patient's right side of the table.
Installing the I.V. pole:
1. Using a 7/16" wrench, remove the two 1/4-20" hex head screws from the end of the tabletop
frame on the side of the table to which the I.V. pole will be installed.
2. Position the I.V. pole support bracket against the side frame so the two pre-drilled screw holes
in the bracket align with the screw holes on the tabletop frame. The I.V. pole should face up and
toward the head end of the table.
3. Using a 7/16" wrench, install the two screws removed in step 1 through the I.V. pole mount-ing
bracket. Tighten the screws to secure.
4. Insert the I.V. pole into the I.V. pole mounting bracket. Ensure that the I.V. pole passes through
both the top and bottom holes in the mounting bracket to ensure I.V. pole stability.
Figure 11. Installing the I.V. pole.

16
Retractable Stirrups (058-652)
A set of sturdy retractable stirrups can be neatly concealed in the table frame beneath the
abdominal (seat) cushion. The two stirrups are interchangeable and can be mounted in either
stirrup housing.
To access the stirrups:
1. Lower the foot end cushion.
2. Lift up slightly on the stirrups and then slide them fully out from the table frame. The Stirrups
can be used in various positions and do not have to be fully extended for use. The stirrups also
pivot from side to side.
3. Unfold the stirrups’heel cups for use.
To retract the stirrups:
1. Fold the stirrups’heel cups.
2. Lift up slightly on the stirrups and slide them fully back into the table frame.
Note: The stirrups must be fully retracted before raising the foot end cushion to avoid the stirrups
damaging the cushion.

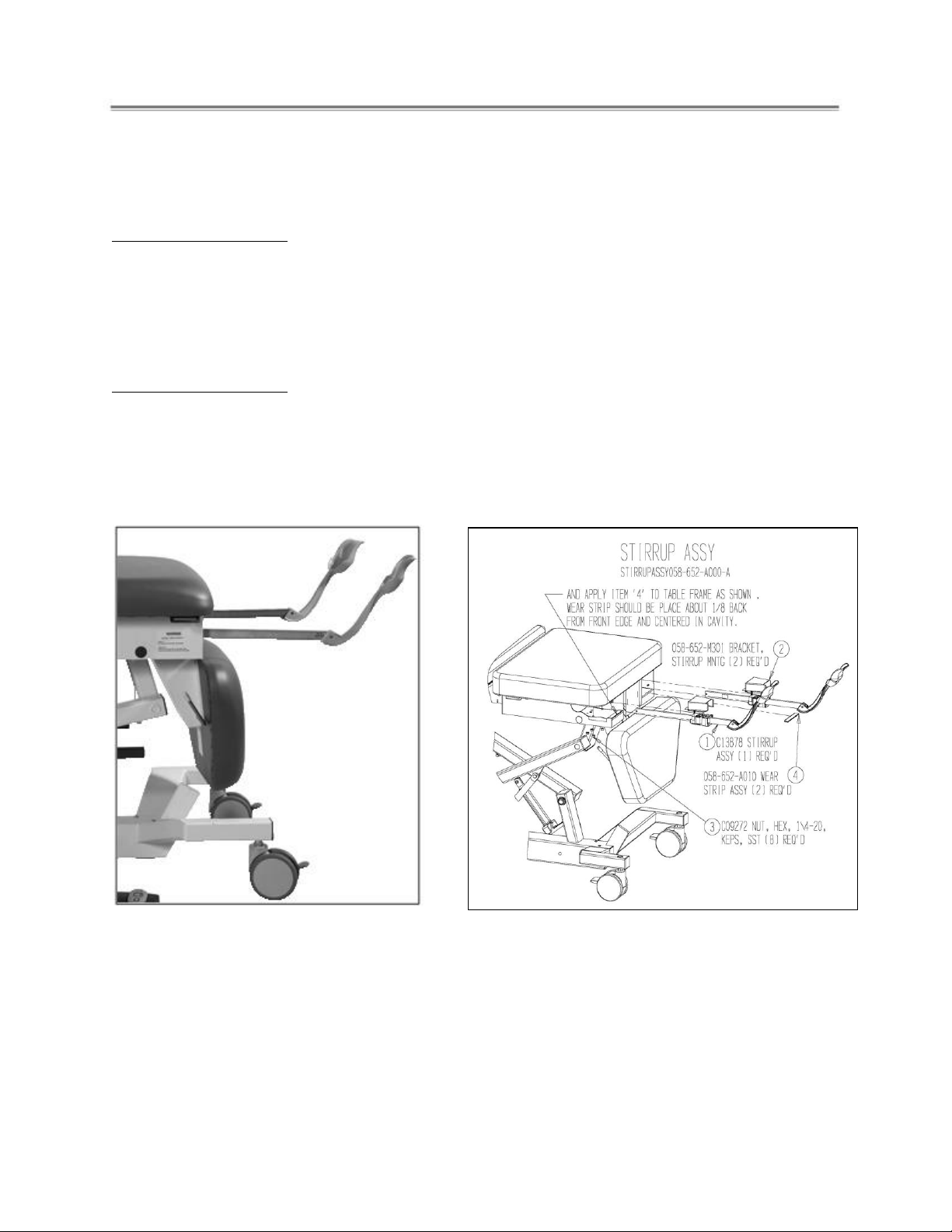

Figure 12. Retractable stirrups.

17
APPENDIX A - SPECIFICATIONS
Dimensions:
Overall: 70" l x 30" w (177.8 x 76.2 cm); 35" w (88.9 cm) with optional side rails
Drop-Down Leg Section: 12.6" l (32 cm)
Motions:
Height Adjustable: 23" to 39" (58.4 to 99 cm)
Fowler Back: 0° to 80° infinitely adjustable
Controls:
Hand Control: Activates height and Fowler positioning motions.
Wheels: 5" (12.7 cm) individual locking swivel casters
Tabletop: Three primary sections: torso section with Fowler positioning, center section remains
fixed and leg section drops down to 40° and 80° for stirrup access
Mattress: Torso section 2" (5 cm) thick, center and leg sections 3" (8 cm) thick; Naugahyde®,
antimicrobial mattress cover with advanced BeautyGard®provides protection against bacteria
Upholstery Color: Graphite
Patient Restraints : Two body straps
Finish: Powder coat
Patient Capacity: 500 lb. (227 kg); weight tested to four times the patient load rating.
Weight: 335 lb. (152 kg)
Power: 115 VAC or 230 VAC

7 Vreeland Road, Florham Park, NJ 07932
[phone] | [phone] | www.biodex.com
