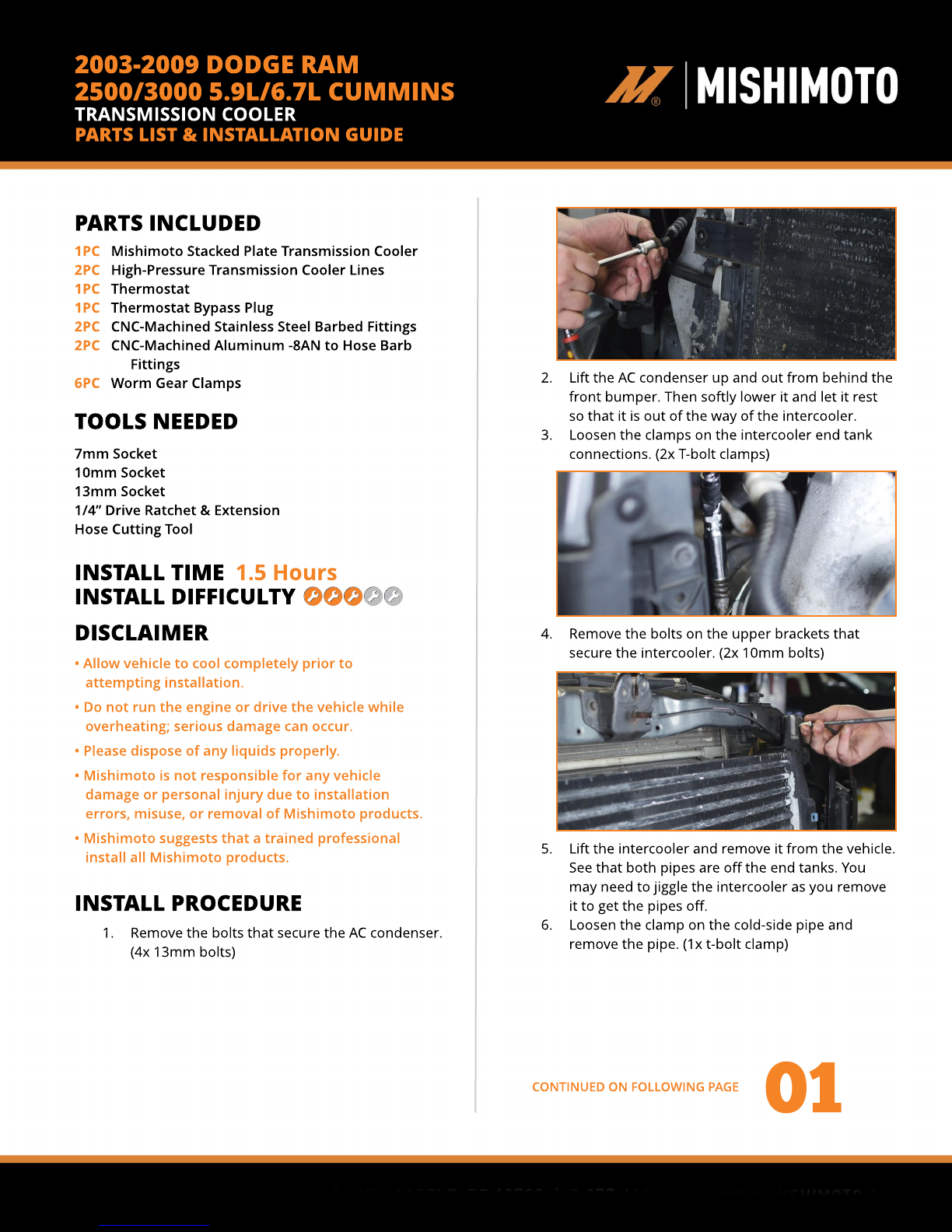

Mishimoto MMTC-RAM-03SL User manual

01
PARTSINCLUDED
1PC Mishimoto Stacked Plate Transmission Cooler
2PC High-Pressure Transmission Cooler Lines
1PC Thermostat
1PC Thermostat Bypass Plug
2PC CNC-Machined Stainless Steel Barbed Fittings
2PC CNC-Machined Aluminum -8AN to Hose Barb
Fittings
6PC Worm Gear Clamps
TOOLSNEEDED
7mm Socket
10mm Socket
13mm Socket
1/4?Drive Ratchet & Extension
Hose Cutting Tool
INSTALL TIME 1.5 Hours
INSTALL DIFFICULTY
DISCLAIMER
- Allow vehicle to cool completely prior to
attempting installation.
- Do not run the engine or drive the vehicle while
overheating; serious damage can occur.
- Please dispose of any liquids properly.
- Mishimoto is not responsible for any vehicle
damage or personal injury due to installation
errors, misuse, or removal of Mishimoto products.
- Mishimoto suggests that a trained professional
install all Mishimoto products.
INSTALL PROCEDURE
1. Remove the bolts that secure the ACcondenser.
(4x 13mm bolts)
2. Lift the ACcondenser up and out from behind the
front bumper. Then softly lower it and let it rest
so that it is out of the way of the intercooler.
3. Loosen the clamps on the intercooler end tank
connections. (2x T-bolt clamps)
4. Remove the bolts on the upper brackets that
secure the intercooler. (2x 10mm bolts)
5. Lift the intercooler and remove it from the vehicle.
See that both pipes are off the end tanks. You
may need to jiggle the intercooler as you remove
it to get the pipes off.
6. Loosen the clamp on the cold-side pipe and
remove the pipe. (1x t-bolt clamp)
2003-2009 DODGERAM
2500/3000 5.9L/6.7L CUMMINS
TRANSMISSION COOLER
PARTSLIST & INSTALLATION GUIDE
CONTINUED ON FOLLOWING PAGE

02
7. Mark the transmission cooler hoses. It?s
recommended that the mark be five inches back
from the hump. Once done, cut the hoses on
your mark.
8. Remove the bolts that secure the transmission
cooler. Then remove the cooler. You will need to
lift it slightly to clear the brackets on the bottom.
(2x 13mm bolts)
9. Install the stainless steel hose barbs provided in
your kit to the transmission cooler hoses.
(2x worm gear clamps)
10. Install your Mishimoto transmission cooler.
Engage the tabs at the bottom with the brackets
on the radiator. (2x 13mm bolts)
11. Install one of the provided hoses to the feed (top)
line. (1x worm gear clamp)
12. Connect the feed line to the transmission cooler?s
top port. (1x worm gear clamp)
13. Install the other provided hose to the second
transmission cooler line. (1x worm gear clamp)
14. Then connect the hose to the transmission
cooler?s bottom port. (1x worm gear clamp)
15. Reinstall the cold-side pipe. (1x t-bolt clamp)
16. Reinstall the intercooler and reattach the pipes to
the end tanks. (2x T-bolt clamps)
17. Secure the top brackets on the intercooler.
(2x 10mm bolts)
18. Put the ACcondenser back into position. Secure
the brackets on both sides.
(4x 13mm bolts)
19. Check the transmission fluid level. Add fluid
as needed.
Congratulations! You have finished
installing the Mishimoto 2003-2009 Dodge
Ram 2500/3000 5.9L/6.7L Cummins
Transmission Cooler.
2003-2009 DODGERAM
2500/3000 5.9L/6.7L CUMMINS
TRANSMISSION COOLER
INSTALLATION GUIDE
