Mitsubishi Electric MA-E100R-E User manual

AIR PURIFIER
INSTRUCTION MANUAL
MODEL
MA-E100R-E Table of Contents Page
lFeatures ··················································2
lTips on Use ·············································3
lSafety Precautions··································4
lAttentions················································6
lInstallation··············································7
lNames and Functions of Parts················8
lMain Unit lControl Panel
lPreparation ···········································10
lOperation ··············································11
lAbout i-see Sensor, AUTO TURN, and
Louvre ···················································12
lDetailed Knowledge······························14
lCleaning
lWhen Dirty ············································14
lApproximately Once a Month ····················15
lApproximately Once Every Six Months········16
lWhen There is an Odor Coming Out of
the Air Outlet··········································16
lReplacement of Filters and Disposal ···17
lTroubleshooting ····································18
lSpecifications ·······································20
l Before use, please read this instruction manual carefully to
ensure proper and safe use.
l Make sure you receive the warranty card from your dealer
and ensure that it contains all the information such as your
purchase date and the name of the dealer, etc.
l Please keep the instruction manual and warranty card.
Before Use
Operation
Maintenance
Troubleshooting
IT
Italiano
ES E
Español
English
ma-e100r-e_cs55.indb 1 2020/08/28 11:28:14

2
i-see Sensor and AUTO TURN Ensure that the Air Around
People and All Over the Room is Purified.
The Air Purifier Actively Purifies Air by Moving Itself.
l i-see Sensor P.12–13
i-see Sensor detects a person’s location while turning
left and right.
l AUTO TURN P.12–13
The air inlet and outlet are moved to the optimal
direction depending on a person’s location.
l PM2.5 Sensor
Improved small particle detection speed and accuracy.
It can even detect 0.5-μm particles.
l Large Air Volume
The maximum air volume of 600 m3/h facilitates quick suction
of a large amount of pollen and dust.
l Support for PM2.5
Catches 99%* of particles from 0.1 to 2.5 μm.
Consideration is not given to new particles entering from outdoors due to, for example, ventilation.
l PM2.5 is a generic term for fine particulate matter of 2.5 μm or less.
l The removal of fine particulate matter less than 0.1 μm with this air purifier has not been verified.
Also, this air purifier is not capable of removing all harmful substances from the air.
l This is the effect achieved in a 30-m3enclosed space, and is not the result of verification in a space that is in actual use.
* <Testing laboratory> SHANGHAI ENTRY-EXIT INSPECTION AND QUARANTINE BUREAU MECHANICAL & ELECTRICAL PRODUCTS
TESTING CENTER
<Test method> Performed by regulating the initial concentration of particulate matter within the range of (5.0 ± 1.0) mg/m3in a 30-m3test
space
<Test results> 99% eliminated in 20 minutes
l Two-layer HEPA Filter
Comes equipped with a HEPA filter that catches 99.97% of 0.3-μm pollen and house dust.
l Reduction of Airborne Viruses*
* This is the effect on airborne viruses achieved after operation for 10 minutes in a test space of a 25 m3, and is not the result of verification
in a space that is in actual use.
Manual operation (High) (600 m3/h)
<Testing body> Virus Research Center, Sendai Medical Center, National Hospital Organization
<Test method> The performance evaluation test of the voluntary standard (JEM1467) issued by The Japan Electrical Manufacturers’
Association was performed in a 25-m3test space.
<Test object> 1 type of airborne virus
<Test result> 99% reduction in 10 minutes
Features
What will happen if cleaning is not performed?
If a lot of dust adheres to the pre-filter and HEPA filter, performance may deteriorate remarkably.
Will all cigarette smoke be removed?
The air purifier can remove nicotine and other particles, but the room needs to be ventilated occasionally
because carbon monoxide (CO), a harmful substance contained in cigarette smoke, cannot be removed.
Furthermore, when a lot of cigarettes are smoked, cigarette odor may be emitted from the unit.
Frequently Asked Questions
ma-e100r-e_cs55.indb 2 2020/08/28 11:28:14

3
Before Use E
Tips on Use
Recommended operations for various situations Operation P.11
For quick and powerful removal of contamination and odor from the air
<MANUAL>
High
lOperation is performed with maximum air volume.
lA person is located by i-see Sensor and then efficient air flow is created by AUTO TURN.
lThe louvre stops at the optimal angle. P.13
When smoking cigarettes, cleaning, and making beds
For quiet operation
<AUTO>
Night
lOperation is performed automatically while keeping the air volume low.
lThe control panel lamps, the clean monitors, and i-see Sensor lamp are dimmed slightly.
li-see Sensor and AUTO TURN do not operate.
lThe louvre stops at the optimal angle. P.13
When sleeping or a baby is in the room
<MANUAL>
Low
lOperation is performed continuously with low air volume.
lA person is located by i-see Sensor and then efficient air flow is created by AUTO TURN.
lAUTO TURN turns the unit slowly and quietly compared with other operation modes.
lThe louvre stops at the optimal angle. P.13
When sleeping or a baby is in the room
For automatic removal of contamination and odor from the air
<AUTO>
Normal
lThis is the standard automatic operation. The air volume is changed automatically depending on the
amount of contamination and odor.
lA person is located by i-see Sensor and then efficient air flow is created by AUTO TURN.
lThe louvre operates according to the person’s location detected.
For continuous operation
<MANUAL>
Low
Middle
High
lOperation is performed continuously with a constant air volume.
lA person is located by i-see Sensor and then efficient air flow is created by AUTO TURN.
lThe louvre stops at the optimal angle. P.13
ma-e100r-e_cs55.indb 3 2020/08/28 11:28:14

4
WARNING
Do not use a damaged
power cord and plug,
or a loose power outlet.
This may cause electric shock, short
circuit, or fire.
Do not damage the power cord and
plug.
Do not unnecessarily bend, pull, twist, or bind the
power cord, place it close to a hot object, place a heavy
object on it, trap it between objects, or modify it.
• If the power cord is damaged, it must be replaced by
the manufacturer, its service agents, or a similarly
qualified person to avoid hazards.
This may cause damage, resulting in fire or electric
shock.
(Also take care that a pet does not bite the power cord.)
Do not repair, disassemble,
or modify the unit.
This may cause fire or electric
shock.
For repairs, contact the retail store
where you purchased the product.
Do not put a wire, pole, other foreign
object or a finger into an air inlet,
outlet, AUTO TURN units or any other
opening into the unit.
This may cause electric shock or injury.
Use a 220-240 V AC power outlet.
220-240 V AC
Using other than a 220-240 V AC power outlet may
cause electric shock, short circuit, or fire.
Remove the power plug before
cleaning. Also, do not remove the
power plug with a wet hand.
This may cause electric shock or injury.
Remove dust from the power plug
regularly.
If dust accumulates, humidity, etc. may
cause an insulation failure, resulting in
fire.
If the unit is operating abnormally or
fails, stop using it immediately.
• The unit does not operate when the power switch
is turned ON.
• The unit, power cord, or plug is abnormally hot.
• There is an abnormal noise or vibration during
operation.
• There is a burning smell.
• The operating sound is abnormally loud.
• Mounting screws are corroded or loose.
• The earth leakage circuit breaker trips frequently.
• There is another abnormality or failure.
Failure to do so may cause fire, electric shock, or
injury.
Immediately turn OFF the power switch and disconnect
the power plug, and then contact the retail store.

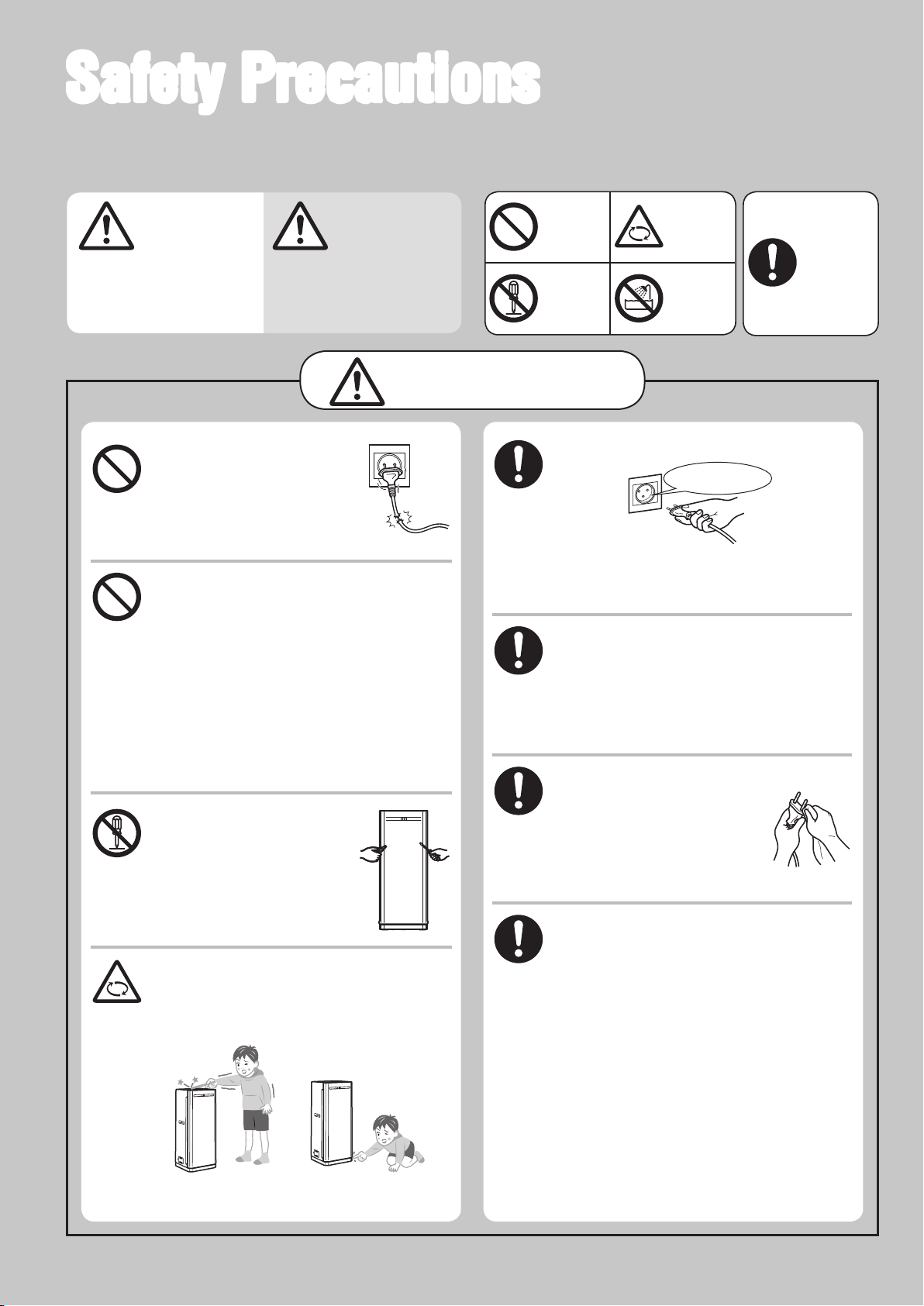

Safety Precautions
 To prevent personal injury, injury to others, or property damage, the following precautions must be observed.
WARNING
Indicates a hazard caused by
mishandling that may result in
death or serious injury.
CAUTION
Indicates a hazard caused by
mishandling that may result in
a minor injury or damage to the
home and its contents.
 The following categories describe hazards caused by mishandling
and their levels.
Prohibited
Beware of
rotating
device
Do not
disassemble
Do not
use near
water
 The meanings of the graphic symbols used in this manual and on the
unit are as follows.
Observe
instructions
ma-e100r-e_cs55.indb 4 2020/08/28 11:28:16

5
Before Use E
Do not allow flammable gas to be
sucked inside or use the unit where
flammable gas accumulates.
(Factory, beauty salon, etc.)
This may cause fire.
Do not use the unit in a location with the
oily smoke of machine oil or other oil.
This may cause cracking, resulting in electric shock.
Do not place the unit close to flammable
objects or objects lit with fire, such as
cigarettes or incense sticks.
This may cause a fire.
Do not stand on, sit on, or lean on the
unit, or place objects on it. Do not pull
the louvre with your fingers. Do not
place in an unstable location.
This may cause the unit to topple or fall and cause injury.
Do not wipe the unit
with benzene or thinner
or spray insecticide or
other chemicals onto it.
This may cause electric shock,
fire, or cracking and cause injury.
Do not operate the unit when using an
insecticide that produces smoke.
An accumulation of chemical components may be
released from the air outlet, and be harmful to health.
After using an insecticide, ventilate the area sufficiently
prior to operating the unit.
Do not move the unit except by holding
the handles.
This may cause the unit to topple and fall, or pinch
fingers, causing injury.
Do not install the unit where water may
be spilt onto it or where there is a lot
of humidity such as in a bathroom.
This may cause electric shock.
Should water or other liquid be spilt onto the unit, stop
operation and remove the power plug, and then contact
the retail store where you purchased the product.
Insecticide
Do not lay the unit
horizontally when
removing a filter.
This may cause dust to enter inside,
resulting in fire or electric shock.
Do not use a damaged filter
or operate the unit while a
filter is removed.
This may cause dust to enter inside,
resulting in fire or electric shock.
Do not come close to the main unit
while the AUTO TURN is rotating.
In particular take care regarding children.
If you are sandwiched between the wall while rotating,
it may cause an injury.
Place the unit in a location where it
will not bump into a wall or furniture
while the AUTO TURN is rotating.
This may cause damage to the wall or furniture.
Hold the bottom of the inlet panel when
installing the inlet panel.
If the top of the inlet panel is held, your hand can be
trapped causing injury.
When using the unit in combination
with a combustion appliance, ventilate
the room occasionally.
Carbon monoxide cannot be removed from the air,
so not ventilating the room may cause carbon
monoxide poisoning.
When disconnecting the power plug, pull
it out straight while holding not the cord
but the power plug.
Failure to do so may cause
electric shock or a short
circuit resulting in fire.
When the unit will not be used for a
long time, disconnect the power plug.
Failure to do so may cause the insulation to deteriorate,
resulting in fire from a short circuit or an electric shock.
CAUTION
ma-e100r-e_cs55.indb 5 2020/08/28 11:28:17

6
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Do not block the air inlet or
outlet.
This may cause a malfunction.
Do not use this unit instead
of an exhaust fan or exhaust
hood (there is no ventilation
function).
This may cause the filter life to become
shorter and cause deformation,
discoloration, or malfunction.
Do not insert a finger or
foreign object into the PM2.5
Sensor.
This may cause a malfunction.
Do not use the unit while
the inlet panel, HEPA filter,
activated charcoal filter is
removed.
This may cause a malfunction.
Do not use the unit while it is
laid horizontally.
This may cause a malfunction.
Do not move the louvre, AUTO
TURN, or i-see Sensor by
hand.
This may cause a malfunction.
Do not touch the i-see Sensor.
lThis may cause a malfunction.
lIf the i-see Sensor is soiled, it cannot detect correctly.
If it is soiled, clean it in accordance with “Cleaning”. P14
This air purifier is designed for household use. Do not use it for commercial use.
Attentions
lWHEN MOVING THE MAIN UNIT
Turn OFF the power switch and disconnect the power plug,
and then move the main unit by holding the two handles with
both hands.
In some cases the blower fan makes a sound when the main unit is moved or tilted
while it is operating.
CAUTION
Do not move the unit except by holding
the handles.
This may cause the unit to topple and fall, or
pinch fingers, causing injury.
ma-e100r-e_cs55.indb 6 2020/08/28 11:28:19

7
Before Use E
lInstall with space around this unit
lIf this unit is installed in a place that is not level, or a place that is
unstable (on a carpet or tatami mat, etc.), it may vibrate.
lThe main unit is rotated by the AUTO TURN, so install with 20
cm or more of space around this unit.
lBefore Installation
The air inlet, outlet, PM2.5 Sensor, and odor sensor are
located as shown in the figure on the right.
Take care regarding the following points.
Do not obstruct or place objects in front of the air inlet or outlet.
→ The air purification function will be impaired.
Do not obstruct the odor sensor.
→ It will not be possible to detect odors.
Do not obstruct the PM2.5 Sensor.
→ It will not be possible to detect dirt.
This unit cannot be used hanging from a wall.
Odor sensor
(inside inlet panel)
PM2.5 Sensor
Outlet
Inlet
Inlet
lInstallation Procedure
lInstall in a location with good air circulation.
lTake care regarding the following points
during installation.
If installed facing an air-
conditioner, the circulation
effect is increased.
60 cm or more
20 cm or more
20 cm
or more
20 cm
or more
20 cm
or more
Do not place hot items such as a stove near
or on top of this unit.
This may cause a malfunction,
deformation, or discoloration.
Do not use in a place
subject to direct sunlight.
This may cause deformation
or discoloration.
Install this unit 1 m or more away from
television, cordless telephone, air
conditioners, personal computers,
fluorescent light fittings, etc.
This may cause radio wave
interference with the other
equipment.
Do not place on soil or sand.
Do not place on a floor with
much soil or sand.
This may cause a malfunction.
Installation
ma-e100r-e_cs55.indb 7 2020/08/28 11:28:20

8
Main Unit
Front
Rear
Odor sensor P.15
Detects cigarette odor and other odors.
Control
panel i-see Sensor P.12–13
Special washable activated
charcoal filter
(Activated charcoal filter) <×2>
Consumable part P.17
Pre-filter <×2>
P.10, 15
Blower fan
AUTO TURN
P.12–13
Two-layer HEPA filter
Consumable part P.17
Inlet panel
Handles (on left and right) P.6
Used when moving the unit.
Air inlet
PM2.5 Sensor P.14–16
Detects air contamination from cigarette smoke, dust, and pollen.
Filter replacement sticker
P.10, 17
Write the filter use start date.
This will serve as a rough guide for filter replacement.
Power cord
<High Efficiency Particulate Air filter>
A highly efficient filter capable of filtering at least 99.97% of
particles with a diameter of 0.3 μm (micrometer).
What is a HEPA filter?
Names and Functions of Parts
Air outlet/Louvre P.13
ma-e100r-e_cs55.indb 8 2020/08/28 11:28:21

9
Before Use E
Odor monitor
The state of air contamination
from cigarette odor and other
odors is detected by the odor
sensor and then indicated.
PM2.5 monitor
The state of air contamination from
PM2.5 and other small particles is
detected by the PM2.5 Sensor and then
indicated.
Dust monitor
The state of air contamination from pollen,
dead bodies of mites, and other large
particles is detected by the PM2.5 Sensor
and then indicated.
PM2.5 Sensor
This optical sensor detects the
number of particles.
The monitor indications are divided
into “PM2.5” and “Dust” according
to the size of the particles.
* Particles less than 0.5 μm are not
detected.
Adjusting the Sensitivity of
the PM2.5 Sensor P.14
l Operation mode lamps (white)
P.11
Indicate the current operation mode.
l Power switch P.11
Turns ON/OFF the power.
l Auto switch P.11
Switches the operation mode
between Normal and Night.
l Manual switch P.11
Switches the operation mode
between Low, Middle, and High.
l Operation switch lamps (white) P.11
Lights when the power switch is turned ON.
Control Panel
l Clean monitors (orange/red)
The state of air contamination detected with the
odor sensor and PM2.5 Sensor is indicated by
lamps lighting in three steps.
<How to read the clean monitors>
l Replace Filter lamp (red) P.17
Lights to notify you when it becomes time to replace
the HEPA filter.
Odor sensor
This semiconducting sensor
detects odors and other gases. It
also responds to wind from air
conditioners, electric fans, and
other appliances, odorless gases,
and perfumes.
Air is
contaminated
Air is clean
Lit in
red
Lit in
orange
Off
l Reset button P.17
(The button is located at top right of the unit and
accessible by removing the inlet panel.)
Cancels the Replace Filter lamp.
l i-see Sensor lamp (green/orange)
lLights according to the clean monitors.
(
When clean monitor lamps are lit: Orange
)
When clean monitor lamps are off: Green
lFlashes in green during the i-see Sensor detection operation.
<Size of dirt particles>
Viruses
Dust, particles harmful to the lungs
Feces and dead bodies of mites
Cigarette smoke particles
PM2.5 monitor
Dust monitor
Pollen
0.01 0.1 0.5 2.51 10 100 (μm)
PM2.5
Mainly particles of 2.5 μm or less
Mainly particles greater than 1 μm
ma-e100r-e_cs55.indb 9 2020/08/28 11:28:22

10
Take the activated charcoal filter out of its plastic bag and then install it.
1Remove the inlet panel.
Pull the inlet panel toward you while pressing the levers at the
bottom.
2Remove the filters.
1Pre-filter ( × 2)
2HEPA filter
3 Remove the activated charcoal filters and
then take them out of its plastic bag.
The distribution of charcoal may be uneven and there may be
black charcoal powder in the plastic bag, but this will not affect the
performance.
Remove the filter while
holding the tabs.
Remove the filter while
holding the tab.
4Attach the filters to the main unit.
1 Activated charcoal filter (×2)
Push the filter all the way
in.
2HEPA filter
Confirm the installation orientation
and then push the filter all the way
in.
3Pre-filter (×2)
Insert the eight tabs at the left and right of
the filter into the eight holes in the main
unit. (There is no top and bottom.)
5 Attach the inlet
panel to the main unit.
Align the inlet panel with both edges of the main unit and then
hook the two tabs at the top of the inlet panel onto the main unit
and firmly push in the bottom.
Tabs at top (2
places on back
side)
Write the filter use start date on the filter replacement sticker on
the right side of the main unit.
Position the tab at
the top so that it
is protruding out
toward you.
Do not push this surface downward.
This may cause deformation.
Position the tab so that it is
protruding out toward you.
Hole in the main unit
Preparation
ma-e100r-e_cs55.indb 10 2020/08/28 11:28:24

11
Before Use E
Select from Manual operation (three air volume levels) and Auto operation (Normal and Night).
1Insert the power plug into the power outlet.
When the power plug is inserted, the i-see Sensor operates and then stops when it faces forward. Furthermore, the main unit turns to face
forward.
2Start the operation.
3Change the operation.
 For operation with a constant air volume
(Manual)
Press
l Each press changes the
operation mode, and the
lamp for the selected
operation mode lights up.
 For automatic operation according to level of
contamination (Auto)
l Each press changes the
operation mode, and the
lamp for the selected
operation mode lights up.
Press
Air volume (Low/Middle/High)
Low
High
l A person is located by i-see Sensor and then efficient
air flow is created by AUTO TURN.
l The louvre stops at the optimal angle.
Normal Night
l This is the standard
automatic operation.
The air volume is
changed automatically.
l A person is located
by i-see Sensor and
then efficient air flow
is created by AUTO
TURN.
l The louvre operates
according to the person’s
location detected.
l Operation is performed
automatically while
keeping the air volume
low.
l The control panel lamps
and the clean monitors
are dimmed slightly.
l The i-see Sensor and
AUTO TURN do not
operate.
l The louvre stops at the
optimal angle.
When dust or odor is detected, the air volume and sound change.
NOTE
4End the operation.
Operation
l All of the lamps flash twice.
l Operation switch lamps light up.
l An operation mode lamp lights up.
l The louvre opens and blowing starts.
Blip
Press
Press the power switch after i-see Sensor and AUTO TURN
stop. (If operation does not start after pressing the power
switch, press it again.)
ATTENTION
Response will be slow for a few minutes after the power switch
is turned ON because the PM2.5 Sensor and odor sensor are
performing the preparation operation.
l The operation switch lamps go out.
l The operation mode lamp goes out.
l The louvre closes.
Bleep
Press
lThe i-see Sensor and the main unit automatically face forward.
lThe operation mode is remembered even if the power switch is
turned OFF or the power plug is disconnected.
Operation
ma-e100r-e_cs55.indb 11 2020/08/28 11:28:25

12
Features
Operations (when Normal Operation Mode is Selected)
The direction to a person’s location is detected by the i-see Sensor. The air inlet and outlet are moved by the AUTO TURN and the optimal air
flow is created by the louvre according to the person’s location.
When operation is started, the i-see Sensor begins detection. The i-see Sensor turns left and right while
the main unit remains facing forward. After completing one left and right movement (takes approx. two
minutes), the i-see Sensor determines the direction to a person’s location.
<When a person is present>
1 The main unit is turned toward the person’s location automatically and then stopped by the
AUTO TURN.
2 The louvre controls the air-flow direction so that air does not blow directly at the person.
3 Contamination is monitored while removing the dust in the area around the person.
4 When contamination in the room is detected by the PM2.5 Sensor and odor sensor, the air
volume is changed automatically.
After approx. 15 minutes, the main unit is turned to face forward and then stopped by the
AUTO TURN.
The i-see Sensor turns left and right again to detect the direction to a person’s location.
l If more than one person is detected, the AUTO TURN stop position is determined
automatically depending on the number of persons and the direction to the
persons.
<When a person is not present>
1 The louvre controls the air-flow direction so that air is blown over the entire room while the
main unit remains facing forward.
2 Contamination is monitored while removing the dust in the entire room.
3 When contamination in the room is detected by the PM2.5 Sensor and odor sensor, the air
volume is changed automatically.
After approx. three minutes, the i-see Sensor turns left and right again to detect the
direction to a person’s location.
About i-see Sensor, AUTO TURN,
The i-see Sensor turns approx. 150 degrees in the left and right
directions to detect the direction to a person’s location.
The air inlet and outlet are moved by the AUTO TURN which
moves the main unit according to the person’s location.
The optimal air flow is created by the louvre in order to clean the
area around the person.
Air flow is controlled so that air is not
blown directly at a person.
Air is blown over the entire room.
ma-e100r-e_cs55.indb 12 2020/08/28 11:28:26

13
Operation E
<AUTO TURN operation range>
The AUTO TURN automatically turns the main unit according to the person’s location detected by the
i-see Sensor. The main unit is stopped at any of 1to 5in the figure on the right.
lThe operation range is approx. 90 degrees. It differs from the detection range of the i-see Sensor.
lThe main unit may not turn to face a person when, for example, the i-see Sensor has detected
multiple persons.
lWhen the i-see Sensor detects a person directly in front of the main unit, the main unit is not
moved and remains facing forward.
lThe AUTO TURN will not operate when the main unit hits a wall or other object because at
least 20 cm of space was not provided around it, when the main unit hits an object nearby that
prevents turning, or when the main unit is restrained from moving.
<Louvre operation range>
The louvre is stopped at any of 1to 3in the figure on the right.
1 When a person is not detected by the i-see Sensor while Normal operation mode is selected
→Air is blown all over the room including far away locations.
2 When a person is detected by the i-see Sensor while Normal operation mode is selected
→Air flow is controlled so that air is not blown directly at a person.
3 When manual operation is selected
→Air flow is controlled so that sufficient air-flow volume is maintained.
i-see Sensor detection
l The i-see Sensor detects a person’s location within a range of approx. 150 degrees while turning left and right.
(The i-see Sensor lamp flashes green while the i-see Sensor is performing the detection operation.)
l The i-see Sensor measures the indoor temperature in the room and determines the direction to a person’s location from variations in the
temperature.
l The i-see Sensor operates only when the main unit is stopped and faces forward.
(The i-see Sensor does not operate when the AUTO TURN is operating or the main unit faces a direction other than the forward direction.)
 A person cannot be detected in locations such as the following.
l Outside of the detection area l Where there is an obstacle (furniture or other object) to the main unit
 A person cannot be detected correctly in cases such as the following.
l When there is something that changes the temperature
significantly within a short period of time (e.g., television, air
conditioner, refrigerator)
l When the room temperature or the temperature of the floor and
walls is high (rough guide: 30°C or more)
l When the room temperature or the temperature of the floor and
walls is low (rough guide: 8°C or less)
l When skin is not exposed because the person is under a blanket
or wearing a lot of clothes
l When the heat source cannot be detected such as when there is a
small child or pet or a person wearing a lot clothes
l When the distance to the person is short (rough guide: 0.5 m or
less)
l When the distance to the person is long (rough guide: 6 m or
more)
l When the person is not moving much
<When the i-see Sensor cannot detect a person>
l When the i-see Sensor cannot detect a person and none of the above apply, perform the check
described in the following procedure.
(Perform the check when the room temperature is 15 to 28°C.)
1 Turn ON the power switch and stand in the position indicated by “A” in the figure on the right.
2 When the i-see Sensor turns right and passes you, move to the position indicated by “B”
in the figure on the right.
→Operation is normal if the main unit is moved to face you (position indicated by “B”) by
the AUTO TURN.
<Turning off the i-see Sensor> P.14
and Louvre
<Rough guide on detection area>
Approx. 6 m Approx. 150 degrees
(When room temperature is 24°C)
Move
A B
1 to 2 m 20 to 50
degrees
1
234
5
Approx. 90
degrees
1
23
ma-e100r-e_cs55.indb 13 2020/08/28 11:28:26

14
Main Unit
Wipe with a soft cloth.
When the unit is very dirty, wipe it with a damp
cloth.
i-see Sensor
Gently wipe with a dry
cotton bud.
i-see Sensor
Do not wipe with water, alcohol, cleaning
agent, etc. This may cause a malfunction.
Detailed Knowledge Cleaning
Adjusting the Sensitivity of the PM2.5 Sensor
The sensitivity of the PM2.5 Sensor can be adjusted.
Switch it when the clean monitor is reacting even though the air in the
room is clean.
Switch it when the operation is turned OFF.
Press the AUTO
switch 3 times
within 2 seconds
l When the PM2.5 Sensor switches to standard sensitivity
The unit makes a “blip” sound and the PM2.5 lamp flashes.
l When the PM2.5 Sensor switches to high sensitivity
The unit makes a “blip blip” sound and the PM2.5 lamp lights up.
* The default sensitivity setting is high sensitivity.
* The settings are stored even when operation is turned OFF and the power
plug is pulled out.
Turning OFF the i-see Sensor and AUTO TURN
Set to OFF when the sound of the AUTO TURN is bothering you or when
you want to clean the air regardless of the position of people.
Set it when the operation is turned OFF.
Press the Manual
switch 3 times
within 2 seconds
l When the i-see Sensor and AUTO TURN are switched OFF
The unit makes a “blip” sound and the Dust lamp flashes.
l When the i-see Sensor and AUTO TURN are switched ON
The unit makes a “blip blip” sound and the Dust lamp lights up.
* The default setting is ON.
* The settings are stored even when operation is turned OFF and the power
plug is pulled out.
When Dirty
Perform periodic care and cleaning to maintain the
performance of this unit. Perform care and cleaning
after turning OFF the power switch, pulling out the
power plug, and checking that the blower fan has
stopped.
Changing the orientation of the main unit (AUTO TURN)
The orientation of the main unit (AUTO TURN) can be changed as desired.
Set it when the operation is turned ON.
Press the Manual
switch and the
Auto switch
simultaneously for
3 seconds or more
While pressing continuously, the AUTO TURN rotates.
When the unit has rotated to your preferred position, take your fingers
from the switches.
*
After setting the position, the i-see Sensor and AUTO TURN do not operate.
* When operation is turned OFF, the setting is deleted.
ma-e100r-e_cs55.indb 14 2020/08/28 11:28:28

15
Operation E
HEPA filter, Pre-filter
1Remove the inlet panel. P10
2 Remove and clean the pre-filters (x2).
Suck up the dust with a vacuum
cleaner using a nozzle with a
brush.
<When the dirt is severe>
Wash with water using a soft
sponge, etc., and dry thoroughly.
3Clean the HEPA filter.
Suck up the dust with a
vacuum cleaner using a
nozzle with a brush.
lThe material on the reverse side of the HEPA
filter is weak, so do not apply suction to it
with a vacuum cleaner.
lDo not wash it with water.
4Install the pre-filters and inlet panel
onto the main unit. P10
Odor sensor, PM2.5 Sensor
1Remove the inlet panel. P.10
2Suck up the dust with a vacuum
cleaner using a nozzle.
Odor sensor
PM2.5 Sensor
Located on the right side of the main unit.
3Attach the inlet panel to the main
unit. P.10
Approximately Once a Month
Do not use detergent, scouring powder, chemically-treated
cleaning cloth, gasoline, benzene, thinner, etc. This may
damage the main unit.
When Dirty
WARNING
Remove the power plug before
cleaning.
This may cause electric shock or
injury.
Maintenance
ma-e100r-e_cs55.indb 15 2020/08/28 11:28:29

16
Lens of PM2.5 Sensor
1Remove the cover of the PM2.5
Sensor.
2 Clean the lens with a dry cotton swab.
Do not use water, alcohol, detergent, etc.
This may cause a malfunction.
3Attach the cover of the PM2.5
Sensor.
Cleaning (Cont.)
Approximately Once Every Six Months When There is an Odor Coming Out of the Air Outlet
Activated charcoal filter
1Remove the inlet panel, pre-filter,
and HEPA filter. P.10
2 Remove the activate charcoal filter.
P.10
3Soak and wash the activated
charcoal filter.
Soak in cold or
lukewarm water for
approximately one
hour and then wash
in water.
Do not use detergent. Also, do not scrub it.
This may cause the activated charcoal filter to become
damaged.
4Allow the activated charcoal filter to
dry.
Allow them to dry properly in a well-ventilated place in the
shade for approximately six hours (the drying time differs
depending on the season and climate).
l Do not use them while they are still wet.
Water drops may be blown from the air outlet and an
odor may be created.
l Soaking and washing will not completely restore the
deodorizing performance of the activated charcoal
filter. Replace this filter when the time for replacement
is reached.
5Attach the activated charcoal filter
to the main unit. P.8
6Attach the HEPA filter, pre-filter, and
inlet panel to the main unit. P.8
ma-e100r-e_cs55.indb 16 2020/08/28 11:28:30

17
Maintenance E
Replace the filters with new ones when the time for replacement is reached.
Replacement of Filters and Disposal
Replacing the HEPA filter and activated
charcoal filter
Rough guide on replacement timing
l When the Replace Filter lamp lights up
The lamp lights up after approximately 4.5 years with “Low”
operation or approximately 8 months with “High” operation.
l When the HEPA filter becomes very dirty and omits
bad odors
l When odors cannot be removed from the activated
charcoal filter after soaking and washing it
Turn OFF the power switch, disconnect the power plug,
and check that the blower fan is stopped before replacing
filters.
1Remove the HEPA filter and
activated charcoal filter and then
install new ones. P.10
2Insert the power plug and then reset
the Replace Filter lamp.
Press until you hear the
“blip, blip blip” sounds
(approx. 3 seconds).
l The Replace Filter lamp goes out.
(The lamp is reset.)
l The life of the HEPA filter and activated charcoal
filter differs depending on operating environment and
conditions of use.
l When replacing the HEPA filter, also replace the
activated charcoal filter at the same time.
l
The HEPA filter cannot be reused even if it is washed.
When it becomes dirty, be sure to replace it with a new one.
l In the following cases, odors may adhere to the HEPA filter
and main unit. Clean the main unit and replace the HEPA filter.
•When a lot of cigarettes are smoked
•When there are a lot of odors in the room
Dispose of the filters and main unit in accordance with the
local regulations on disposal.
l HEPA filter
Materials: PP (polypropylene), rayon, and PET
(polyethylene terephthalate)
l Activated charcoal filter
Materials: Activated charcoal, PET (polyethylene
terephthalate), and PS (polystyrene)
l Main unit
Dispose of the main unit in accordance with the local
regulations on disposal without disassembling it.
Disposal
Consumable parts
l Replacement filter set
•Two-layer HEPA filter
•Special washable activated charcoal filter (x2)
lModel MAPR-865HFT
lModel code 5D4 820
Purchase from the retail store where you purchased the product.
<When you wish to purchase a filter separately>
When only one of the filters is dirty or damaged or odor cannot be
removed from it
l Replacement two-layer HEPA filter
lService part number M25 409 349
l Replacement special washable activated
charcoal filter (x2)
lService part number M25 409 349K
Purchase from the retail store where you purchased the product.
* The sales channels differ so the price of just one filter is
relatively high.
ma-e100r-e_cs55.indb 17 2020/08/28 11:28:30

18
Troubleshooting
Cause and Remedy
l Did you install the main unit on a surface that is not flat or stable?
→Install the main unit on a table or other surface that is flat and stable. P.7
l The i-see Sensor may erroneously detect heat from television, air conditioner,
refrigerator, etc., and cannot correctly detect a person. P.13
l Is there an object within the range of rotation of the main unit?
→Install the main unit with 20 cm or more of empty space around it, then
press the power switch again to turn the operation ON. P.11
l Is the pre-filter dirty?
→Clean the pre-filter. P.15
l Are the filters dirty?
→Replace the filters. P.17
l Is there dust on the PM2.5 Sensor and odor sensor?
→Clean the PM2.5 Sensor and odor sensor.
P.15–16
l Are the i-see Sensor and AUTO TURN set to OFF?
→Set them to ON. P.14
l Is the room temperature high?
→When the room temperature is high, a person may not be correctly
detected. P.13
l Is there an obstruction (furniture, etc.) between the main unit and the person?
→If there is an obstruction (furniture, etc.) between the main unit and the
person, the person cannot be correctly detected. P.13
l Is the unit being operated in the Auto operation “Night”?
→
The i-see Sensor and AUTO TURN do not operate in the Auto operation
“Night”. Operate the unit in a mode other than Auto operation “Night”. P.11
l Refer to <When the i-see Sensor cannot detect a person>. P.13
l Are the i-see Sensor and AUTO TURN set to OFF?
→Set them to ON. P.14
l Is the unit being operated in the Auto operation “Night”?
→
The i-see Sensor and AUTO TURN do not operate in the Auto operation
“Night”. Operate the unit in a mode other than Auto operation “Night”. P.11
l Is the unit being operated in the Manual operation “High”?
→The sound is louder for operation with a high air volume. If the sound
bothers you, select an operation mode with a low air volume. P11
l Is the pre-filter dirty?
→Clean the pre-filter. P.15
l Are the filters dirty?
→Replace the filters. P.17
l Is the activated charcoal filter installed in the main unit still inside the plastic bag?
→Take it out of its plastic bag and then attach it again. P.10
The main unit vibrates a lot.
The unit faces towards a direction
where there is no person.
l Unit does not face to the front
l The position of the front deviates
from the standard
Odor and smoke are difficult to
remove.
The unit does not face towards
the direction where there is a
person.
(i-see Sensor does not detect the
presence of a person)
AUTO TURN does not move.
There are strong operational
noise or vibrations.
Symptom
l Has the power plug become disconnected?
→Firmly insert the power plug into the power outlet. P.11
l Is an operation mode lamp lit?
(Is the power switch ON?)
→Turn ON the power switch. P.11
The air purifier does not operate.
Before requesting repairs, thoroughly read this Instruction Manual, and check the following points.
ma-e100r-e_cs55.indb 18 2020/08/28 11:28:30

19
Troubleshooting
E
l Are you moving the air purifier while it is operating?
→If the main unit is suddenly moved or tilted, sound may be emitted. P.6
The main unit makes a sound
when being moved.
Cause and Remedy
l This is not a problem as long as there is no abnormal noise or abnormal vibration.
l It is time to replace the HEPA filter and activated charcoal filter.
→Replace the HEPA filter and activated charcoal filter. P.17
l If the room is large, the air may take a while to become clean.
l If there is a lot of dust and odor, the air may take a while to become clean.
l Perform “Adjusting the Sensitivity of the PM2.5 Sensor” to see if it helps. P.14
<How to check monitor operation>
l Rub tissue paper near the PM2.5 Sensor so as to create dust.
l Place perfume, hair tonic, or the like on tissue paper and then place the tissue paper in front of the main
unit so that the fragrance is sucked into it.
l Is there dust on the PM2.5 Sensor and odor sensor?
→Clean the PM2.5 Sensor and odor sensor.
P.15–16
l Response will be slow for a few minutes after the power switch is turned ON
because the PM2.5 Sensor and odor sensor are performing the preparation
operation. P.11
l Is the PM2.5 Sensor on standard sensitivity?
→Switch to high sensitivity. P.14
l The monitor indication may not change sometimes because the sensitivity of the
sensor differs depending on the components of the odor.
l The monitor may sometimes respond to the wind from an air conditioner in the
room or gas that is difficult for a human nose to sense. P.9
l Is there dust floating in the air?
If there is even a small amount of dust floating in the air, the monitor may respond.
l Perform “Adjusting the Sensitivity of the PM2.5 Sensor” to see if it helps. P.14
l Did you disconnect the power plug while the power switch is ON?
→Turn OFF the power switch before disconnecting the power plug.
When looked through the air
outlet during operation, the
blower fan is vibrating.
When the power plug is
disconnected, sometimes a bleep
or buzzing sound can be heard.
The Replace Filter lamp is lit.
The monitor indications are
slow to change.
The monitors respond very
infrequently.
The monitor indication
does not change despite
the existence of an odor.
The monitor responds even
though the air in the room
is clean.
If the symptoms persist even after trying the remedies above, stop using the air purifier and disconnect the power plug, and then
contact the retail store where you purchased the product.
Symptom
Clean monitor
l This is the sound of the AUTO TURN rocking. Install the main unit with 20 cm or more of
empty space around it, then press the power switch again to turn the operation ON.
P.7, 11
l This is the sound when the AUTO TURN operates. It is not abnormal.
If it bothers you, turn the AUTO TURN OFF. P.14
l This is the sound when the i-see Sensor moves left and right. It is not abnormal.
l During automatic operation “Night”, the lamp of the control panel and the lamp of
the clean monitor and i-see Sensor become darker. P.11
There is a “ticking” sound.
There is a “boon” sound.
There is a “whin-whin” “ku ku”
sound.
The lamp on the control panel or
the clean monitor become darker
ma-e100r-e_cs55.indb 19 2020/08/28 11:28:30

20
Specifications
Model MA-E100R-E
Power supply 220-240 V AC, 50 Hz
Manual operation High Middle Low
Power consumption 82 W 119 W 7 W
Air volume 600 m3/h 300 m3/h 84 m3/h
Weight 13.2 kg
Dimensions 800 (H) × 320 (W) × 270 (D) mm
Cord length 1.8 m
Fill in the following for your future reference.
Place of purchase: Telephone number:
Authorised service centre: Telephone number:
Date of purchase: Day Month Year
This symbol mark is
for EU countries only.
This symbol mark
is according to the
directive 2012/19/EU
Article 14 Information
for users and Annex
IX.
NOTE Your MITSUBISHI ELECTRIC product is designed
and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed of
separately from your household waste.
Please, dispose of this equipment at your local
community waste collection/recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic product.
Please, help us to conserve the environment we live in!
ma-e100r-e_cs55.indb 20 2020/08/28 11:28:30
