Tion SP320 User manual

USER MANUAL
Air quality monitoring Module СО2+ MagicAir
Model: Tion SP320

2
User Manual
CONTENTS
GENERAL INFORMATION
PACKAGE CONTENTS
SAFETY MEASURES
SPECIFICATIONS
PREPARATION TO OPERATION
ARRANGEMENT AND OPERATING PRINCIPLE
MAINTENANCE
STORAGE, TRANSPORTATION AND DECOMMISSIONING
WARRANTY
1.
2.
3.
4.
5.
6.
7.
8.
9.
3
4
4
6
7
9
13
14
15

3
Module СО2+ MagicAir
Air quality monitoring Module СО2+ MagicAir, model: Tion SP320 (hereinafter referred
to as module or device) is a compact device designed to monitor air quality in a room
where the MagicAir Base Station (hereinafter referred to base station) is not installed.
The module operates within the MagicAir system if the base station is connected.
Basic functions:
• measurement of air parameters (carbon dioxide concentration, humidity
and temperature) using a sensor system;
• collection and transmission of air condition data to the base station;
• display of air quality in the operating mode using the light indication.
Before using the device, carefully read the User Manual, warranty conditions and
check the completeness and appearance.
The device meets the requirements:
• ТU 4257-004-66248641-2016;
• directive 2014/30/EU EMC;
• directive 2014/35/EU LVD;
• directive 2014/53-EU RED;
• directive 2011/65/EU and amendment directive 2015/863/EU RoHS.
The Certificate of Conformity is available on tion.global/doc
Developed and manufactured by Tion Smart microclimate JSC.
112, 20, Inzhenernaya str., Novosibirsk, 630090, Russia.
Factory: Tion Smart microclimate, JSC 112, 20 Inzhenernaya st., 630090,
Novosibirsk, Russia
tion.global
1. GENERAL INFORMATION
Dear Customer!
Thank you for purchasing Air quality monitoring Module СО2+ MagicAir, model: Tion
SP320! This Manual contains full information about the device, adjustment proce-
dures and maintenance rules.

4
User Manual
The full package contents are shown in Table 2.1.
The following notations are used in this User Manual:
Table 2.1 — Package contents
2. PACKAGE CONTENTS
3. SAFETY MEASURES
List of items and accessories Quantity, pcs
Device 1
Power supply unit 100–240 V~, 50/60 Hz 1
Quick Start Guide 1
Warranty card 1
DANGER! Requirements, non-observance of which may result
in failure of the device or dangerous conditions for health and life.
CAUTION! Requirements, non-observance of which may result
in failure of the device or dangerous conditions for health and life.
The device is not intended for use by children and people with special
physical, sensory or mental development, except when the operation is
carried out under the control of persons responsible for their safety.
Do not leave the power cord in the reach of children or pets, even when the
device is turned off.
Do not repair or modernize design of the module. If you find any damage or
signs of abnormal operation, contact the service organization of the seller
for advice on the possibility of further operation of the device.
Do not operate the device if the insulation of the power cord or the parts
is damaged.
Do not use power supplies with an output voltage exceeding value
indicated on power unit included into scope of supply. Excessive voltage
or current supply to the module can lead to a fire hazard.
To prevent fire or electric shock, do not expose the device to atmospheric
precipitation, vapors and liquids, open flames or direct heat radiation from
heating devices.

5
Module СО2+ MagicAir
The device is intended for use at temperatures from 0 to +45 °C, relative
humidity from 0 to 95% and for storage at temperatures from -20 to +45 °C.
Do not cover or subject the module to shock: this may lead to incorrect
measurements of air parameters and damage to the device.
Do not connect the device to power using the USB port of a personal
computer: this can result in unstable operation of the module.
Do not install the module in places where animals and humans are
permanently located: near a computer, on a desktop, or in a recreation
area. This can lead to excessively high readings of the device of carbon
dioxide concentrations an increase in the load on controlled climate
devices.
It is necessary to turn off and disconnect the device from the power
supply during a thunderstorm.
The device is designed for indoor use only. Do not use it in rooms
with sources of water and steam: pools, baths, saunas, bathrooms or
sanitary rooms.

6
User Manual
Specifications of the module are shown in Table 4.1.
Table 4.1 — Specifications
4. SPECIFICATIONS
Parameter Value
Overall dimensions (H×W×D) 100×100×27 mm
Weight (net) (128±3) g
Power voltage (5±0,1) V
Current consumption NMT 1 А
Concentration of carbon dioxide measurement range 0–5000 ppm1
Concentration of carbon dioxide measurement accuracy ±(50 ppm + 5% of measured
value)
Temperature measurement range 0–45 °С
Temperature measurement accuracy ±1,5 °С
Relative humidity measurement range 0–95% (free of condensate
formation)
Relative humidity measurement accuracy2±4%
Compatibility with Wireless Technology Standards TIONMA-868 (proprietory pro-
tocol for RF channel 868 MHz)
RF-module frequency band 868.8-869.1 MHz
RF-module maximum ERP 25 mW
Warranty operating life 1 year
Lifetime 10 years
1ppm (parts per million) — is measurement unit for carbon dioxide concentration.
2 Measurement accuracy is indicated in absolute values (%). For example, at relative humidity of 80%, the actual
humidity is in the range of 76–84% or (80 ± 4)%.

7
Module СО2+ MagicAir
5.1 Unpacking and pre-examination
Remove the device from the packaging bag, carefully inspect it and make sure that
there is no damage. Possible defects include the following: scratches, chips, uneven
color of plastic on the device’s case, as well as similar damage to the power supply unit
and violation of the integrity of the USB cable. If you find any defects, ask the supplier
to provide written confirmation of the damage.
If the device has been stored or transported at an air temperature below +10 °C, let it
stay in the packaging bag in the room for 2 hours to warm it to the room temperature.
It is required for eliminating condensation, damage of plastic parts while assembling
and malfunction of the device.
5.2 Installation
The device is designed for indoor use only. When choosing place of installation, make
sure that all the safety requirements specified in section 3 of this User Manual are met.
The device can be located on any horizontal surface or on a wall. Eyelet designed for
hanging on the bottom side is used for this purpose.
The module should be protected from exposure to liquids, steam or other abundant
moisture. Do not place the device in bathrooms or sanitary rooms. Do not use the
device in the immediate vicinity of a cooking place or humidifier.
Do not install the device near any heat sources such as radiators, heaters, or stoves.
Do not place it near radiators of household appliances (for example, acoustic devices,
refrigerators, etc.).
Place USB-cable so that it does not twist, jam or bend excessively. Do not leave it in
places accessible for children or pets.
5.3 Set up
To ensure operation of Smart Microclimate Control System MagicAir, you should first
connect the base station on MagicAir mobile application
The application is developed for mobile devices based on iOS (10.0 and later) and
Android (4.4 and later) operating systems. For installation, it is necessary to have
smartphone, which ensures access to the Internet. The application is available free at
and .
5. PREPARATION TO OPERATION

8
User Manual
Choose any way to install the application:
1.Scan the QR code below to proceed with downloading the application.
Then click Install.
2.Follow the direct link on your smartphone:
https://play.google.com/store/apps/details?id=com.tion.magicair
https://apps.apple.com/us/app/magicair/id1111104830
Once the base station is connected, press the button on the application’s main screen
to add the module, or go to “Home Settings” → Add. Follow further instructions in
the application to connect the device.

9
Module СО2+ MagicAir
6. ARRANGEMENT AND OPERATING PRINCIPLE
6.1 Arrangement
Module СО2+ is a solid block (Fig. 6.1, p. 1), which contains the following:
• sensors (temperature, humidity, concentration of carbon dioxide);
• microprocessor;
• RF-channel module for connection with the base station;
• light indicating system.
The light indication (Fig. 6.1, p. 2) helps to evaluate the state of connection to the
MagicAir system and the level of CO2 concentration in the room where the base station
is not installed.
The brightness of the light indication is automatically adjusted
depending on the illumination of the room. In the daytime, the
brightness level is maximum, and at night it is minimal. You can
turn off the light indication only in the MagicAir application in the
settings of the module.
The device is equipped with a built-in power cable (Fig. 6.1, p. 3) with a standard USB-A
output. Power supply unit (Fig. 6.1, p. 4), which is included in the delivery package, is
used to connect the module to a power supply network of 230 V, 50 Hz.

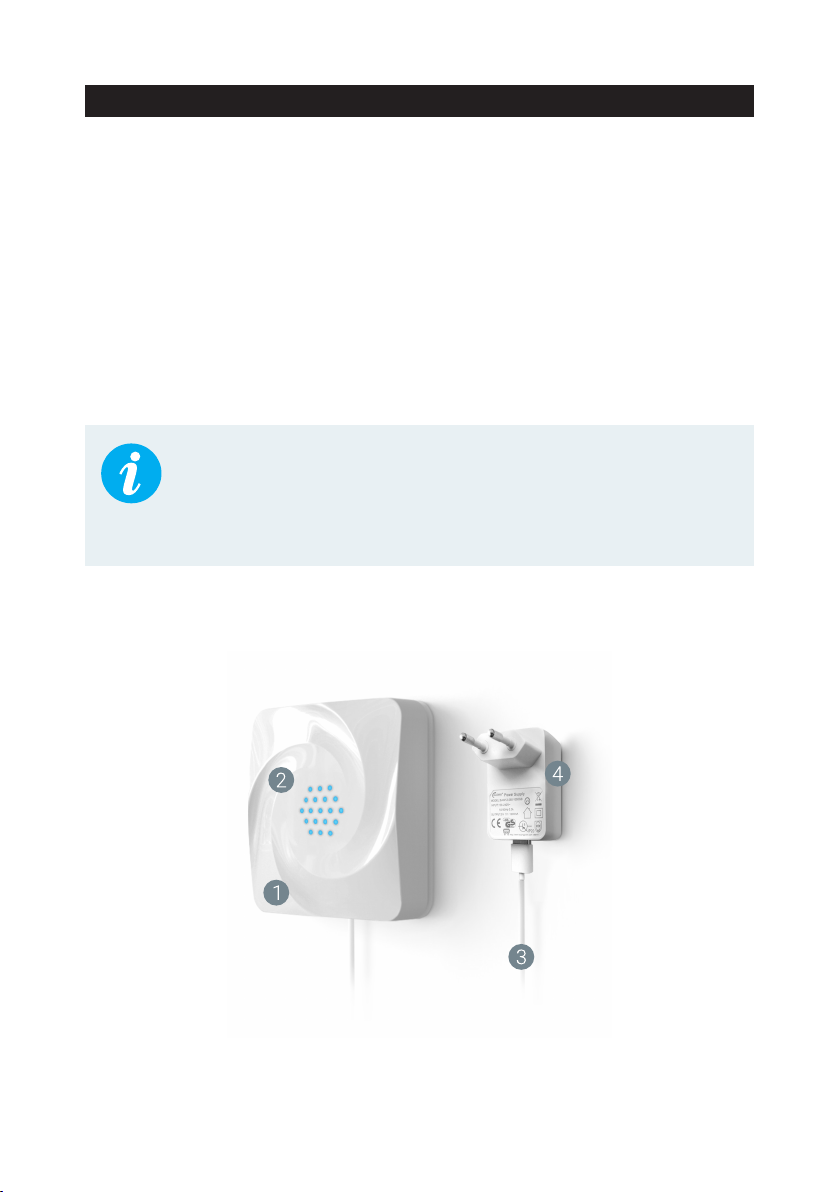

Figure 6.1 — The device kit
1 — module CO2+ (front side); 2 — light indication; 3 — power cable;
4 — power supply unit.

10
User Manual

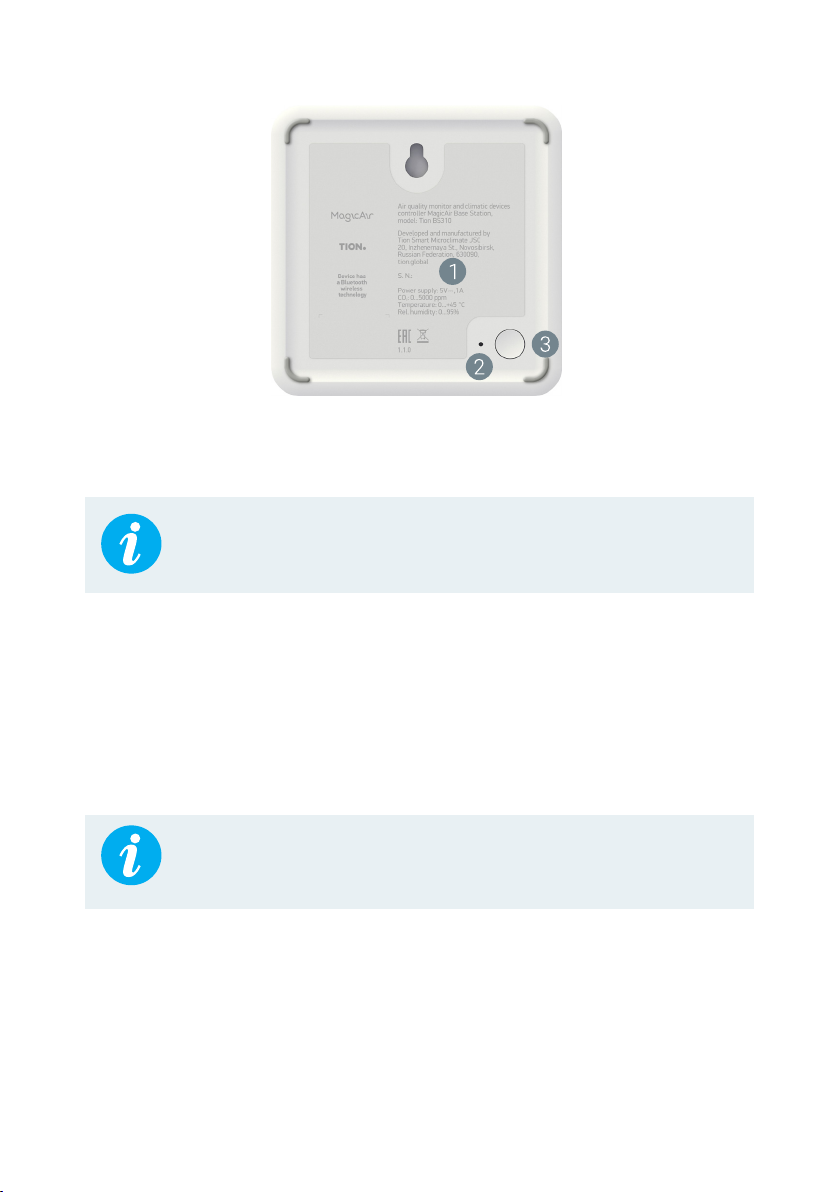

Figure 6.2 — The bottom side of the module
1 — serial number; 2 — “Reset” button; 3 — “Mode” button.
When contacting an authorized service center or service organization
of the seller, please be ready to tell serial number of the device. It is
located on the bottom side of the module (Fig. 6.2, p. 1).
“Mode” button (Fig. 6.2, p. 3) is used to activate the module when connecting to the
MagicAir system. Press “Reset” button to return to default settings (Fig. 6.2, p. 2).
6.2 Operating principle
Module СО2+ is a part of the MagicAir system (Fig. 6.3). It acts as a controlled device
and connects to the base station. Using sensors, the module measures the CO2
concentration level, temperature and air humidity in the room where the base station is
not installed, and transmits the data to the base station via RF-channel.
The devices (breezer, air purifier, infrared module and conditioner
etc.) can be controlled via the MagicAir system after they are
connected to the base station.
Using MagicAir mobile application you can monitor and control microclimate anytime
from anywhere in the world via the Internet.

11
Module СО2+ MagicAir
Figure 6.3 — Smart Microclimate Control System MagicAir
Automatic calibration of CO2sensor
Every 1-2weeks3 sensor detects the lowest level of CO2 over the past period. It
determines this level as the baseline and assigns a concentration of 400 ppm, which is
the equivalent of fresh air in the street. To obtain the correct CO2 data, it is necessary
to ventilate the room at least once during the period.
This function allows you to adjust the CO2 level after transportation, as well as during
long-term operation of the module.
3The range of period varies depending on type of built-in sensor and batch of devices.

12
User Manual
№Indication type Description Meaning
Connection
1
One central LED is
on and the second
one blinks
The module is reloading to
prepare for work.
The procedure is necessary in
case of repeated unsuccessful
connection. If such a reset is
required, press and hold the
“Reset” button on the bottom of
the module until the indication
appears.
2
LEDs are on and
off alternatively in
random order
The module has already reload-
ed and is ready for connection.
3
LEDs diverge wave
from the center and
go back
The module is connecting to the
base station.
Operation in MagicAir system
4
LEDs are on one af-
ter another from the
center in a circle
The CO2 sensor is under prepa-
ration process.
The process occurs automatical-
ly after successful connection of
the module. It may take several
minutes.
Light indication
All types of the module light indication and their values are shown in Table 6.1.
Table 6.1 — Indication of the module

13
Module СО2+ MagicAir
№Indication type Description Meaning
5One LED is on while
the other one is off
The module steadily works and
displays air quality.
The more LEDs are on, the high-
er the air quality.
6
One central LED is
on and the second
one blinks
Carbon dioxide concentration
is exceeded in the room (more
than 4000 ppm).
Connection problems
7
LEDs are on at the
corners of external
hexagon
Error in the operation of temper-
ature, humidity or CO2 sensors.
Try to turn the device power off
and reconnect it. If the error re-
peats, please contact the service
department.
7. MAINTENANCE
The module does not require special service.
Periodically clean the surface only with a dry cloth.
The device does not contain parts available for self-replacement or repair by the
user. In case of malfunction, contact only authorized service centers or the service
organization of the seller.
When contacting an authorized service center or service
organization of the seller, please be ready to tell serial number
of the device. It is located on the bottom side of the module
(Fig. 6.2, p. 1).

14
User Manual
8. STORAGE, TRANSPORTATION AND DECOMMISSIONING
Before being decommissioned, the device and all items from the package contents
should be stored and transported in the factory packaging. Storage conditions:
• air temperature: -25°С min, +50°С max;
• relative air humidity: 80% max;
• no possibility of packing being exposed to direct sunlight;
• distance away from heaters and other sources of heat: at least 1 m;
• no substances and materials with intense adverse odors present
in the premises.
The shelf life of the device is at least 1 year provided the above requirements are met.
During transportation, the device should be protected against sharp shocks, falls and
the impact of climatic factors.
Upon expiration of the planned service life, please discontinue using the device and
contact the Vendor’s Service Center regarding further operation of the device or its
disposal.
The device may not be disposed of as common waste but must be taken to an
appropriate disposal site for electric and electronic equipment for subsequent recycling
or disposal according to federal or local legislation. Most of the elements used in the
device and package contents are marked with an appropriate recycling code and are
subject to recycling.
Figure 8.1 — Recycling codes of device and package contents
Detailed information about disposal sites for this product can be obtained from local
authorities or sanitation enterprises.

15
Module СО2+ MagicAir
9. WARRANTY
Tion Smart microclimate JSC expresses gratitude for your choice.
Tion Smart microclimate JSC establishes the fixed 10-year service life for the device, in
case of observing the installation and operation conditions set forth in this document.
Tion Smart microclimate JSC establishes a 1-year warranty period4 for the operation
of the device. These periods are valid in case of observance of the installation and
operation rules set forth in this document.
Before using the device, read thoroughly the User Manual, warranty conditions, as well
as completeness and appearance of the device.
All claims as regards appearance and completeness of the device shall be presented
to the seller when purchasing.
In case of damage to the packaging during the transportation, unpack immediately the
device and check for visual defects. Damage to the device shall be confirmed in writing
by the carrier, otherwise compensation claims may not be satisfied.
Warranty conditions
In order to quickly enable the seller to fulfill his warranty obligations, the buyer shall
present either a completed warranty card, or a sales receipt or a cash receipt, or
another document certifying the fact and date of purchase of the device.
Warranty is not provided in the following cases:
• there are traces of repair, disassembly, assembly, modification or
repair of the device not at the authorized service centers;
• it is impossible to identify the date of manufacture / sale of
the device as a result of absence, destruction or damage of
identification information;
• the device has been damaged as a result of events or as a result
of actions of third parties that the seller (manufacturer) cannot
influence, including: natural disasters, actions of utility service
providers (including voltage jumps) and others;
• there are mechanical damages on the device (chips, cracks, etc.)
that have appeared as a result of exposure to excessive force,
chemically aggressive substances, or temperatures exceeding the
permissible values that entailed malfunction of the device;
4Unless otherwise provided by the legislation of the country in which the warranty is performed.

16
User Manual
• malfunction has occurred while connecting the device to the
electric network in violation of the rules set forth in this document;
• malfunction and defects have appeared as a result of ingress
into the device of foreign objects, liquids, insects and their waste
products, etc.;
• storage and transportation rules of the device set forth in this
document have been violated.
Dear Customers!
As regards issues related to the fulfillment of warranty obligations, please contact the
company in which the device has been purchased.
Contacts of Tion Service Department
e-mail: [email protected]
tion.global
1.5.1
