Mitsubishi Electric AE-200A User manual

Contents
Safety precautions....................................................................2
1. Introduction .........................................................................4
1-1. Screen images used in this manual............................................4
1-2. PC requirements.........................................................................4
1-3. Connection method.....................................................................5
2. Setting the Operating Environment.....................................6
2-1. Setting the IP address of the PC.................................................6
2-2. Disabling a proxy server .............................................................8
2-3. Installing .NET Framework..........................................................9
3. Installation and uninstallation of BACnet®Setting Tool.....10
3-1. Installation.................................................................................10
3-2. Uninstallation ............................................................................13
4. Connecting and starting up the BACnet®Setting Tool ......14
4-1. Connecting the BACnet®Setting Tool .......................................14
4-2. Starting up the BACnet®Setting Tool........................................15
4-3. Exiting the BACnet®Setting Tool ..............................................16
5. BACnet®Setting Tool screens and setting items ..............17
5-1. Screen configuration.................................................................17
5-2. Menu bar configuration .............................................................18
5-3. Setting tab configuration ...........................................................19
5-4. Initial setting procedure.............................................................20
6. Saving settings data .........................................................23
6-1. Settings data flow .....................................................................23
6-2. Backing up settings data...........................................................23
7. Menu bar...........................................................................24
7-1. File ............................................................................................24
7-2. AE-200/AE-50/EW-50 ...............................................................25
7-3. Help ..........................................................................................28
8. Setting screens .................................................................29
8-1. Explanation of Screen Buttons .................................................29
8-2. System Settings........................................................................31
8-3. Group Settings..........................................................................34
8-4. BACnet®Settings......................................................................35
Attachment 1 BACnet®network configuration and settings
examples ................................................................................57
Air Conditioning Control System
Centralized Controller
AE-200A/AE-50A/EW-50A
AE-200E/AE-50E/EW-50E
Before using the controller,
please read this Instruction
Book carefully to ensure proper
operation.
Retain this manual for future
reference.
Instruction Book
–BACnet®Setting Tool–

2
WT07921X01
Safety precautions
►Observe these precautions carefully to ensure safety.
►After reading this manual, pass the manual on to the end user to retain for future
reference.
►The user should keep this manual for future reference and refer to it as necessary. This
manual should be made available to those who repair or relocate the units. Make sure
that the manual is passed on to any future air conditioning system user.
: indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
: indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
: addresses practices not related to personal injury, such as product
and/or property damage.
General precautions
Do not install the controller in areas where large amounts of oil, steam, organic solvents,
or corrosive gases (such as ammonia, sulfuric compounds, or acids), or areas where
acidic/alkaline solutions or special chemical sprays are used frequently. These substances
may significantly reduce the performance and corrode the internal parts, resulting in
electric shock, malfunction, smoke, or fire.
To reduce the risk of short circuits, current leakage, electric shock, malfunction, smoke, or
fire, do not wash the controller with water or any other liquid.
To reduce the risk of electric shock, malfunction, smoke, or fire, do not touch the electrical
parts, USB memory, or touch panel with wet fingers.
To reduce the risk of injury or electric shock, before spraying a chemical around the
controller, stop the operation and cover the controller.
To reduce the risk of injury, keep children away while installing, inspecting, or repairing the
controller.
If you notice any abnormality (e.g., burning smell), stop the operation, turn off the
controller, and consult your dealer. Continuing the operation may result in electric shock,
malfunction, or fire.
Properly install all required covers to keep moisture and dust out of the controller. Dust
accumulation and the presence of water may result in electric shock, smoke, or fire.
To reduce the risk of fire or explosion, do not place flammable materials or use flammable
sprays around the controller.
To reduce the risk of electric shock or malfunction, do not touch the touch panel, switches,
or buttons with a sharp object.
To avoid injury from broken glass, do not apply excessive force to the glass parts.
To reduce the risk of injury, electric shock, or malfunction, avoid contact with the sharp
edges of certain parts.

3
WT07921X01
Consult your dealer for the proper disposal of the controller. Improper disposal will pose a
risk of environmental pollution.
Precautions for relocating or repairing the unit
The controller must be repaired or moved only by qualified personnel. Do not disassemble
or modify the controller. Improper installation or repair may result in injury, electric shock,
or fire.
Additional precautions
To avoid discoloration, do not use benzene, thinner, or chemical rag to clean the controller.
When the controller is heavily soiled, wipe the controller with a well-wrung cloth that has
been soaked in water with mild detergent, and then wipe off with a dry cloth.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.

4
WT07921X01
1. Introduction
This manual is the Instruction Book for AE-200/AE-50/EW-50 (hereinafter referred to as “AE-200”) BACnet®
Setting Tool. The BACnet ®Setting Tool is dedicated software to set network settings and settings related to
BACnet®communication (also including object selection and COV/Event notification) and then set the settings to
the AE-200. This manual describes the setting procedures for those settings.
1-1. Screen images used in this manual
Screen images used in this manual are from Microsoft®Windows®7. The layout of screens for software other
than the BACnet®Setting Tool (e.g., installation screens) that are displayed in this Instruction Book may differ
depending on factors such as the settings of the PC used.
Registered trademarks
Windows®is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
Excel®is a registered trademark or trademark of Microsoft Corporation in the United States and other countries.
BACnet®is a registered trade mark of ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning
Engineers, INC.). (“BACnet” is indicated for screens of the BACnet®Setting Tool.)
Other company names and product names appearing in this manual are trademarks or registered trademarks of their
respective companies.
1-2. PC requirements
The BACnet®Setting Tool runs on a PC.
The PC used for the BACnet®Setting Tool requires the following environment.
Item Requirement Remarks
CPU 1 GHz or higher
Memory 1 GB or more
HDD space 100 MB or more C drive
Screen resolution 1024 x 768 or higher
LAN 1 port (100 BASE-TX)
OS
Microsoft®Windows®7 32-bit/64-bit
Microsoft®Windows®8.1 32-bit/64-bit
* Not compatible to Windows Vista®.
Execution environment Microsoft®.NET Framework 4.5 or later
Others
Pointing device such as a mouse
Internet connection environment (required when
installing .NET Framework)

5
WT07921X01

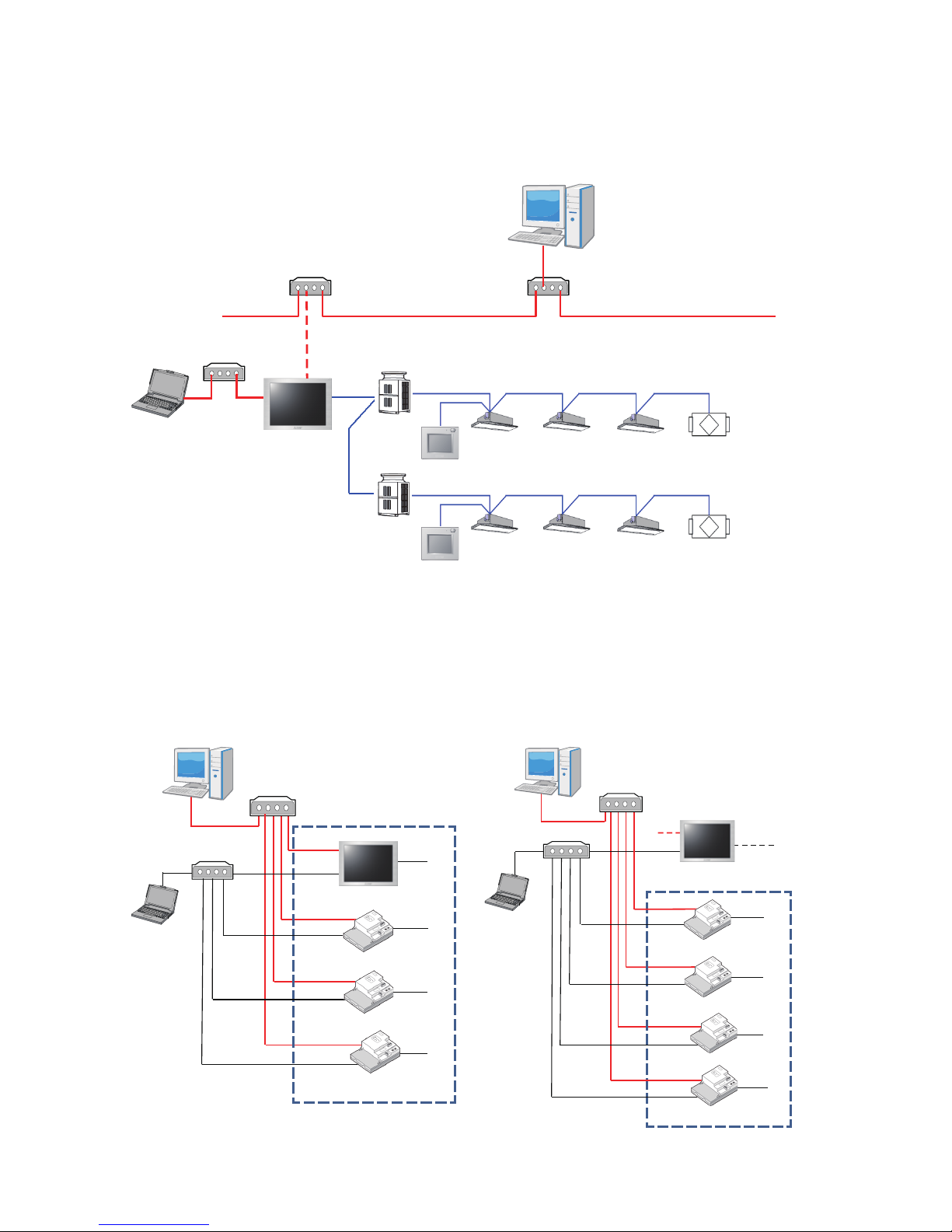

1-3. Connection method
The BACnet®Setting Tool connects with the AE-200 using a LAN. *1
Connect the PC with the BACnet®Setting Tool installed to the LAN1 connector of the AE-200 via a HUB (refer to
the figure below). For the LAN cable, use a cable that is compatible with category 5 or higher.
*1 Connect the BACnet®Setting Tool with the AE-200 using IPv4.
Before performing BACnet®settings for the AE-200 using the BACnet®Setting Tool, it is necessary to set indoor
unit group settings on the AE-200 Initial Setting Tool. Refer to section 5-4 “Initial setting procedure” for details.
For systems that use multiple AE-200, set all AE-200 connected to BACnet®individually using the BACnet ®
Setting Tool.
After completion of AE-200 BACnet ®settings, connect the AE-200 LAN2 and BACnet®.
(A) When controlling more than 50 units of equipment
and not using an apportioned electricity billing
function
(B) When using an apportioned electricity billing
function
×
×
BACnet®
Setting Tool
Outdoor unit
HUB
Outdoor unit
ME remote controller
ME remote controller
Indoor unit
LAN1
Indoor unit
M-NET
LOSSNAY
M-NET
LOSSNAY
BACnet®
M-NET
HUB
AE-200
Building management system
LAN2
BACnet®
Building management system
HUB
BACnet®
Setting Tool
LAN2
LAN1
LAN2
LAN1
AE-200
LAN2
LAN1
AE-50/EW-50
M-NET
LAN2
M-NET
AE-50/EW-50
LAN1
M-NET
AE-50/EW-50
BACnet®
Setting Tool
BACnet®setting target
M-NET
BACnet®
Building management system
HUB
LAN2
LAN1
LAN2
LAN1
LAN2
LAN1
AE-200
LAN2
LAN1
AE-50/EW-50
LAN2
AE-50/EW-50
LAN1
NOT connect to
M-NET
AE-50/EW-50
M-NET
M-NET
BACnet®setting target
AE-50/EW-50
M-NET
M-NET
HUB
HUB

6
WT07921X01
2. Setting the Operating Environment
Set the operating environment of the PC to be used for the BACnet®Setting Tool.
2-1. Setting the IP address of the PC
Set the IP address of the PC to be used for the BACnet®Setting Tool. Set an IP address for the PC that does
not duplicate the IP address of LAN1 of each AE-200 (initial value: 192.168.1.1) but is an IP address of the same
network.
For example, when the IP address of LAN1 of the AE-200 is the default value [192.168.1.1] and the subnet mask
is the default value [255.255.255.0], set [192.168.1.101] for the IP address of the PC to be used for the BACnet®
Setting Tool. In this case, [192.168.1] is the network address.

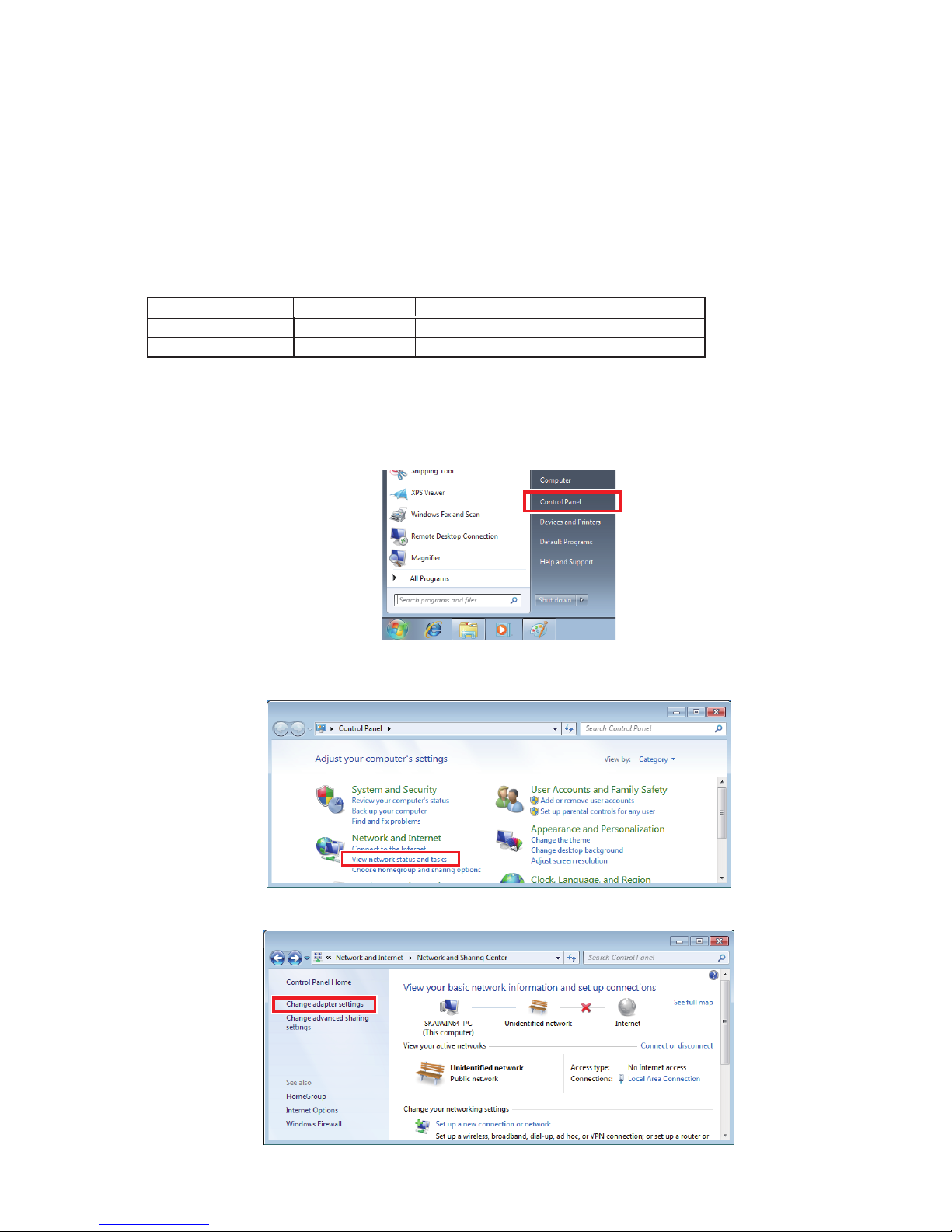

Connecting terminal Default value Remarks
LAN1 192.168.1.1 (Used for air conditioning system)
LAN2 192.168.2.1 (Used for BACnet®communication)
The following describes the procedure to change the IP address for a PC running Windows 7®. Note that the
following screens may differ depending on the PC.
(1) Click [Control Panel] in the Start menu.
(2) In the [Control Panel] window, click [View network status and tasks].
* Select “Category” in “View by.”
(3) In the [Network and Sharing Center] window, click [Change adapter settings].

7
WT07921X01

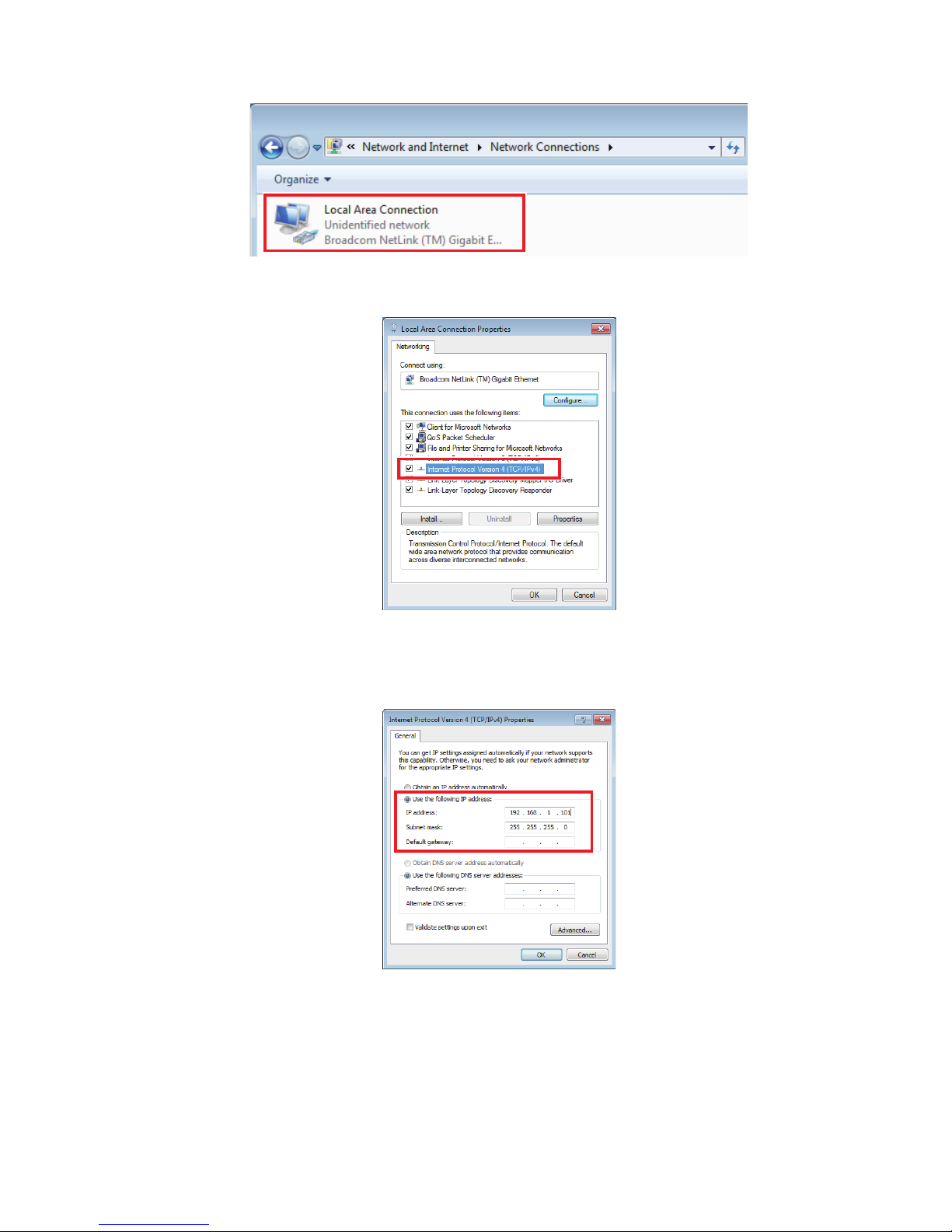

(4) In the [Network Connections] window, click [Local Area Connection].
(5) In the [Local Area Connection Properties] window, click [Internet Protocol Version 4 (TCP/IPv4)] to select it,
and click [Properties].
(6) In the [Internet Protocol Version 4 (TCP/IPv4) Properties] window, check the radio button next to [Use the
following IP address].
Enter the IP address (e.g., [192.168.1.101]) in the [IP address] field, and enter the subnet mask (e.g.,
[255.255.255.0]) in the [Subnet mask] field.
(7) Keep clicking [OK] or [Close] to close all windows.

8
WT07921X01
2-2. Disabling a proxy server
Configure the settings for the IP connection environment of the PC (disable a proxy server).
(The screens and setting examples are when using Internet Explorer®8.)

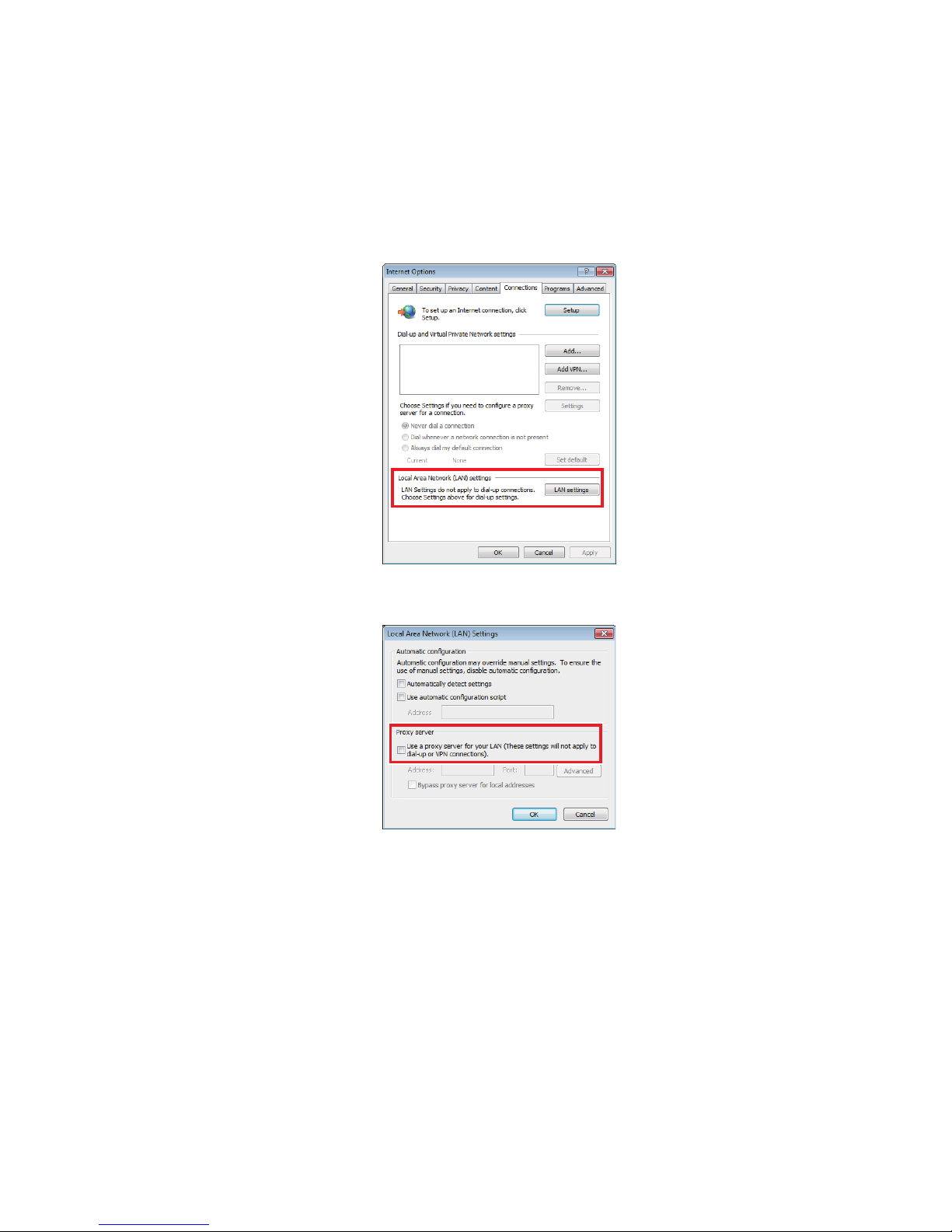

(1) Start up the Web browser (Internet Explorer®8).
(2) Click [Tools] in the menu bar, then click [Internet options].
(3) In the [Internet Options] window, click the [Connections] tab.
Check the radio button next to [Never dial a connection] in the middle of the window, and click [LAN
settings] under [Local Area Network (LAN) settings].
(4) In the [Local Area Network (LAN) Settings] window, remove the check from the checkbox next to [Use a
proxy server for your LAN] under [Proxy server].
(5) Keep clicking [OK] or [Close] to close all windows.

9
WT07921X01
2-3. Installing .NET Framework
(1) Click [Control Panel] in the Start menu, click [Programs and Features], and check the version of the
Microsoft®.NET Framework.
(2) If the version of the Microsoft®.NET Framework is before 4.5, install Microsoft®.NET Framework 4.5 from
the URL below.
URL:
http://www.microsoft.com/en-US/download/details.aspx?id=42642

10
WT07921X01
3. Installation and uninstallation of BACnet®Setting
Tool
This chapter explains how to install the BACnet®Setting Tool (SetBACnet) to a PC and how to uninstall it.
If you click [Cancel] in any of the steps during the installation or uninstallation, the installation or uninstallation will
be canceled. Also, to return to the previous screen, click [Back].
3-1. Installation

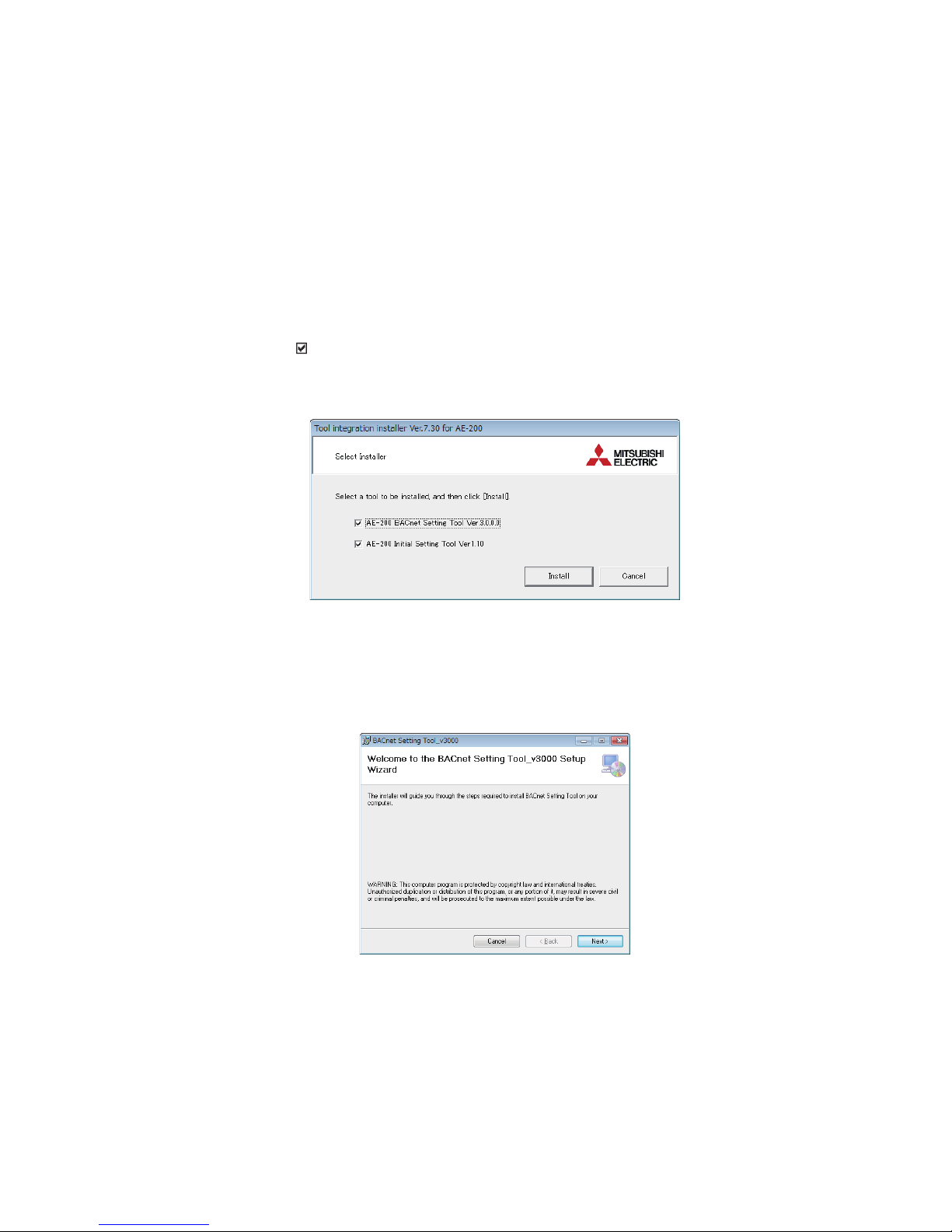

(1) Starting the setup program
Double click the Integration Installer for AE-200 *1. When setting the AE-200 BACnet®functions, the
following two types of setting tool are required.
•AE-200 BACnet®Setting Tool
•AE-200 Initial Setting Tool
Select the check box ( ) for the setting tool to install, then click [Install].
Clicking [Install] will run the installer for the selected setting tool.
*1 The name of the installer for North America is “AE-200AToolInstaller_V730.exe”, and for Europe is “AE-200EToolInstaller_V730.
exe”.
The following details the BACnet®Setting Tool installer. Refer to the AE-200 Instruction Book (Initial
Settings) for how to set up the AE-200 Initial Setting Tool.
(2) Starting the BACnet®Setting Tool setup program
Read the displayed information, and click [Next] to proceed.

11
WT07921X01

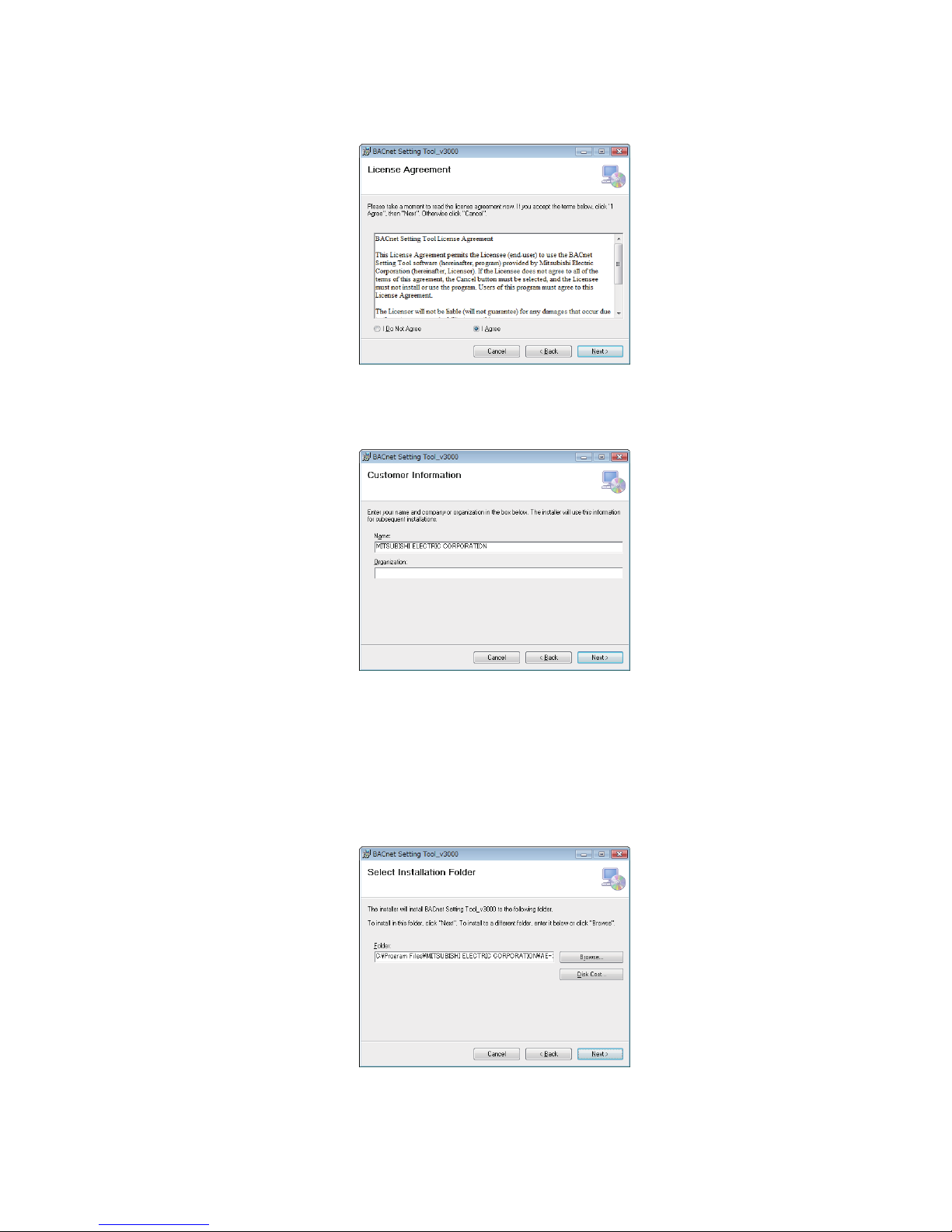

(3) License agreement
Read the license agreement, select [I Agree] to accept the terms, and click [Next].
* If you do not agree to the terms of the license, click [Cancel] to cancel the installation.
(4) User information
Enter the user name and the company name, and click [Next].
(5) Selecting the installation destination folder
Select the folder in which to install the program.
Click [Browse...] to select a different installation destination folder.
When done selecting the folder, click [Next] to proceed.
The default installation destination folder location is [C:\Program Files\MITSUBISHI ELECTRIC
CORPORATION\AE-200 BACnet Setting Tool\Ver.****]. *1
Clicking [Disk Cost...] will display the disk capacity of each drive of the PC.
*1 “Ver.****” indicates the version number of the BACnet®Setting Tool.

12
WT07921X01

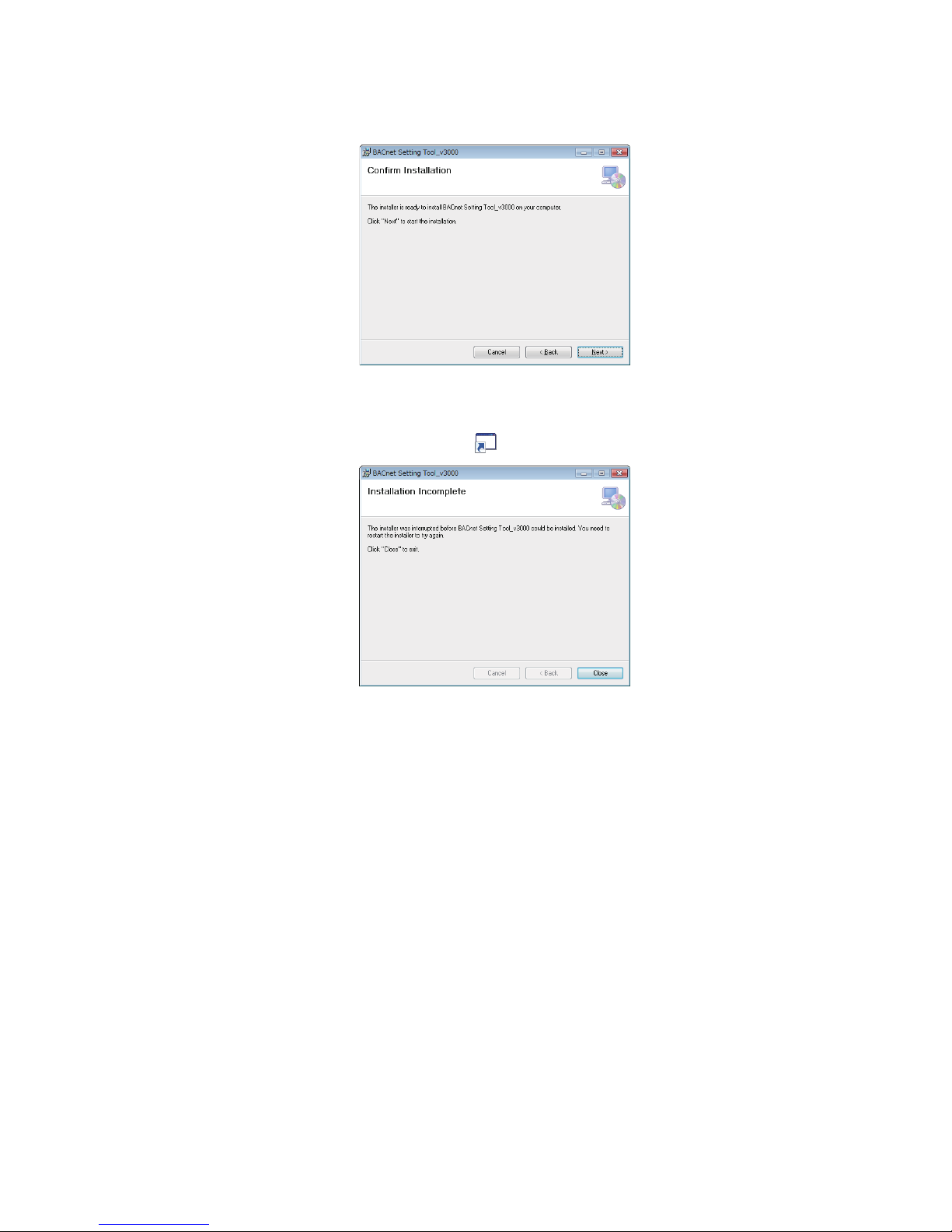

(6) Executing the installation program
Click [Next] to execute the installation program.
Click [Cancel] to cancel the installation.
(7) Confirming completion of installation
Click [Close] on the window to complete the installation process.
Check that the “AE-200_SetBACnet_v3000” icon ( ) is displayed in the start menu.

13
WT07921X01
3-2. Uninstallation
Take the following steps to uninstall the BACnet®Setting Tool (SetBACnet).
(Uninstallation is usually not necessary.)
(1) Ensure that the BACnet®Setting Tool (SetBACnet) is not running.
Quit the program if it is.

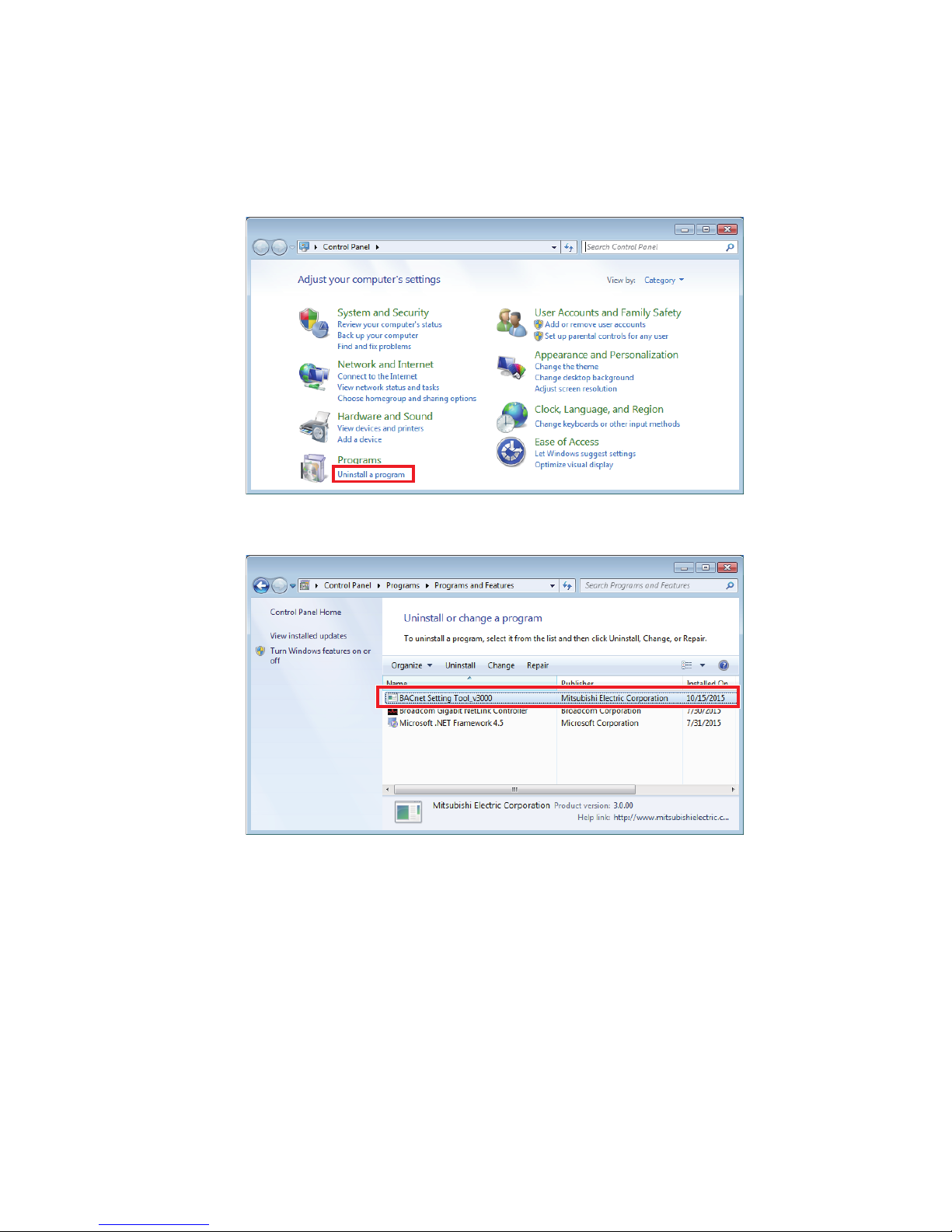

(2) Click [Control Panel] in the Start menu, and click [Uninstall a program].
(3) In the [Programs and Features] window, click [BACnet Setting Tool_v3000] to uninstall it. Or, click [BACnet
Setting Tool_v3000], right-click, and select [Uninstall].

14
WT07921X01
4. Connecting and starting up the BACnet®Setting
Tool
4-1. Connecting the BACnet®Setting Tool
The BACnet®Setting Tool communicates with the AE-200 using a LAN.
Before connecting the BACnet®Setting Tool to the AE-200, first disconnect the AE-200 from BACnet®(check
that a cable is not connected to LAN2). Then, connect LAN1 and the PC with the BACnet®Setting Tool installed
using a LAN cable.
The BACnet®Setting Tool can only be connected to a single AE-200 at a time. Accordingly, when using a
configuration that connects multiple AE-200 units, configure BACnet ®settings for each AE-200.
•Before configuring the settings of the BACnet®function, configure the group settings and the
apportioned electricity billing function settings (only when used) with the Initial Setting Tool of the
AE-200 unit.
•When the IP address of AE-200 overlaps the IP address of another machine inside the network, not only
can AE-200 not carry out BACnet®communication normally but other devices also cannot carry out
BACnet®communication normally. Check that the IP address used on AE-200 is configured correctly
before connecting AE-200 to BACnet®.
•When the settings are changed with the BACnet®Setting Tool, if the AE-200 BACnet®connection
mode is changed to [Offline], the monitoring and operation of the AE-200 with the central monitoring
device may become no longer possible and a communication error or other alarm may be detected by
the central monitoring device so contact the system administrator in advance.

15
WT07921X01

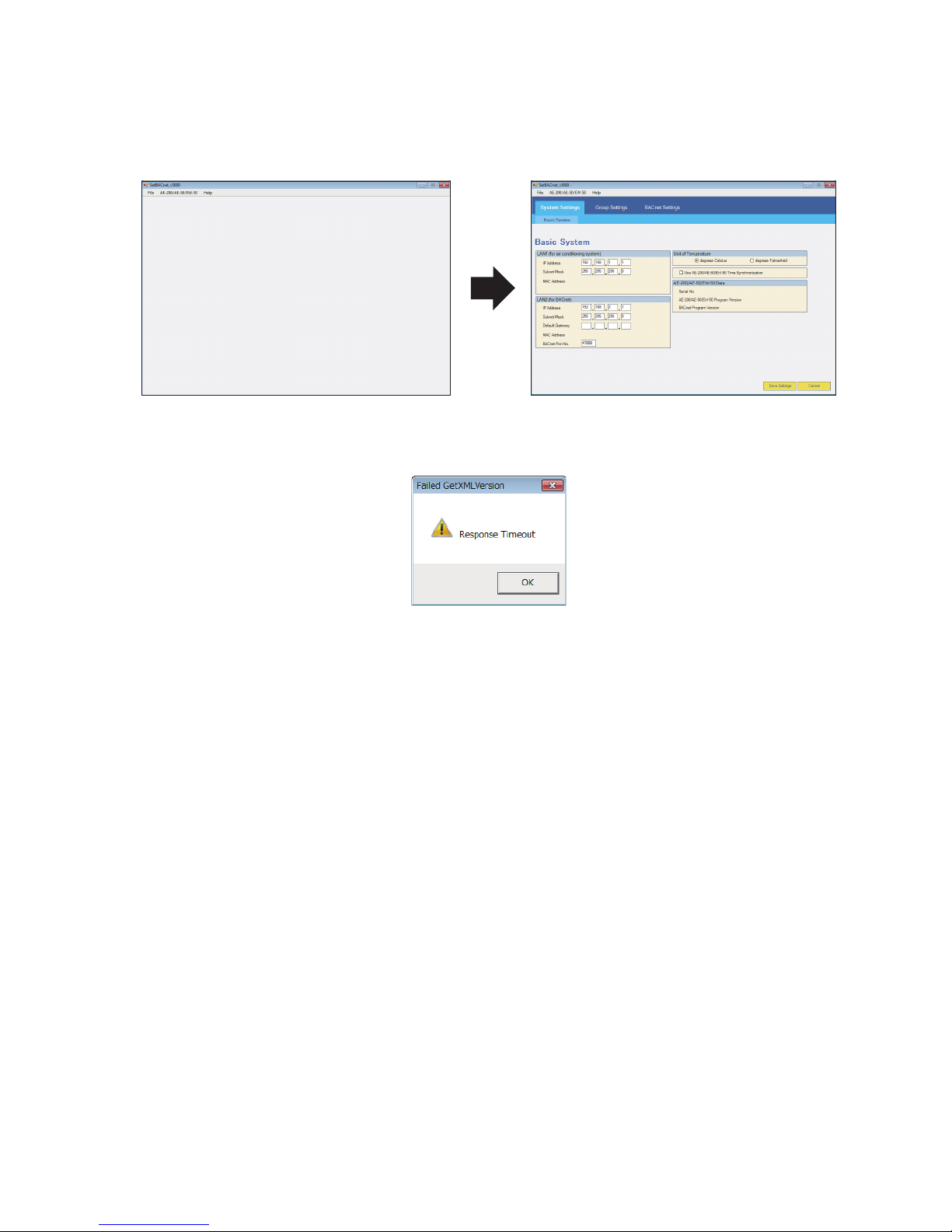

4-2. Starting up the BACnet®Setting Tool
Double-click the BACnet®Setting Tool icon (AE-200_SetBACnet_v****) to start up the BACnet®Setting Tool
shown in the figure on the left below.
Select [New Settings] from [File] in the menu bar or select [Acquire Settings] from [AE-200/AE-50/EW-50] in the
menu bar to display the screen shown in the figure on the right below.
If [Acquire Settings] is selected when the BACnet®Setting Tool (PC) is not connected with the AE-200 unit or
when a connection is not established, a communication error pop-up screen as shown below appears after
approximately 30 seconds.
If a communication error occurs, check the following.
•Is the AE-200 running (about 10 minutes is required to complete the start-up process of AE-200)?
•Is the cable between the PC and AE-200 (LAN1) connected correctly?
•Is the IP address of the PC set to an IP address of the same network as LAN1 of the AE-200? (Refer to 2-1
“Setting the IP address of the PC” for details.)
•Does the destination IP address setting of the BACnet®Setting Tool match the IP address of LAN1 of the
AE-200? (Refer to 7-2-1 “Property” for details.)

16
WT07921X01

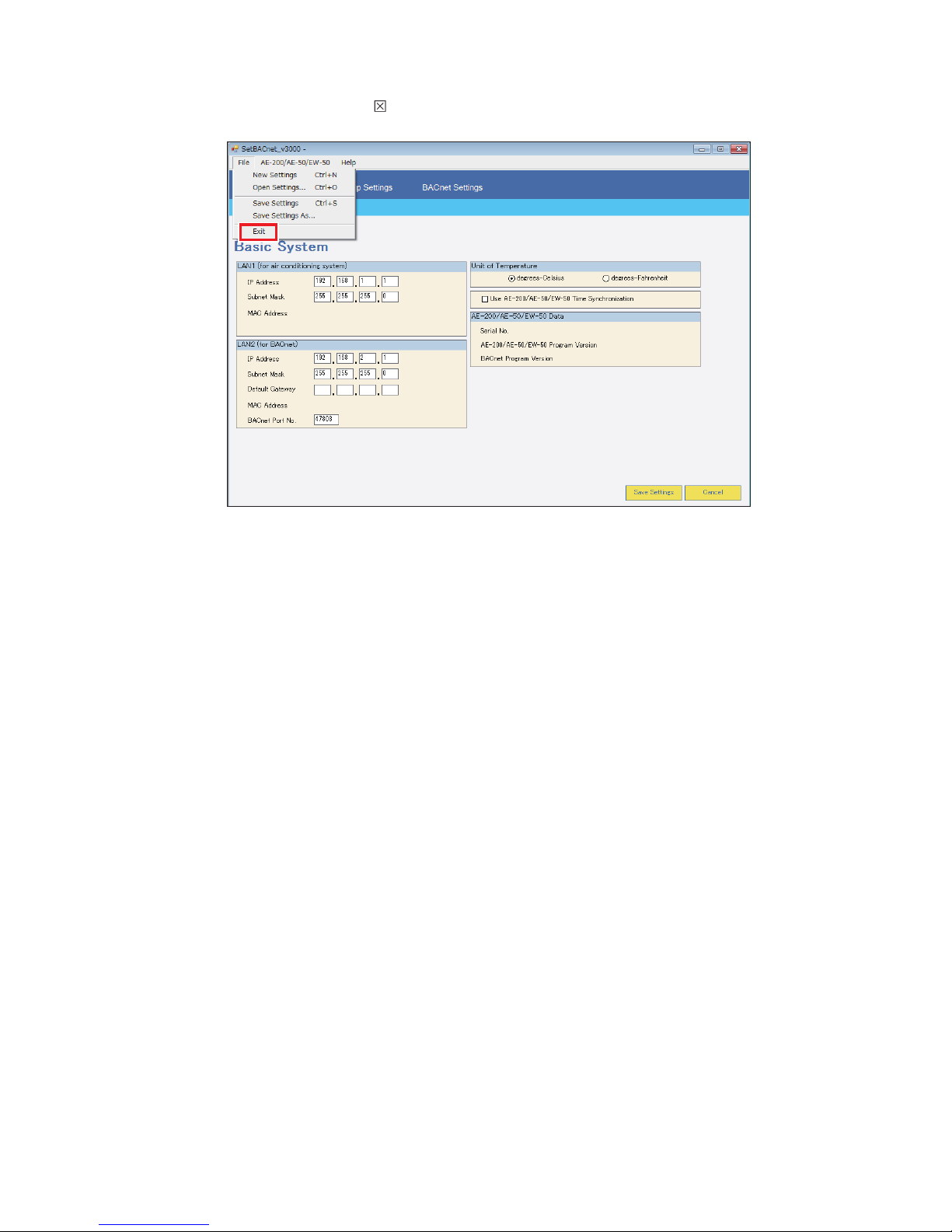

4-3. Exiting the BACnet®Setting Tool
To exit the BACnet®Setting Tool, click at the top right of the BACnet®Setting Tool screen or select [Exit] from
[File] in the menu bar.

17
WT07921X01
5. BACnet®Setting Tool screens and setting items

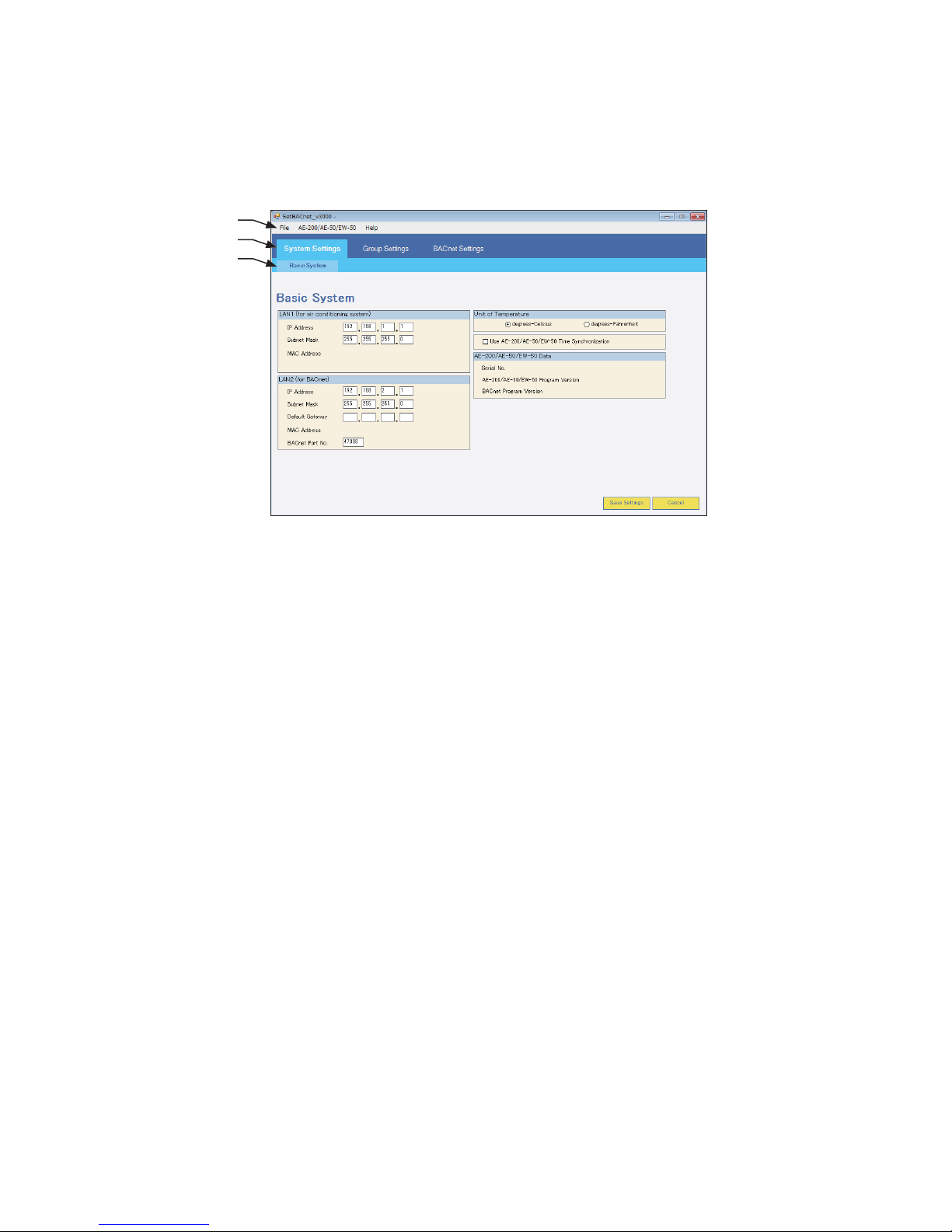

5-1. Screen configuration
The screen configuration of the BACnet®Setting Tool is shown below. Switch between settings screens by
selecting the menu bar, main tab, and sub tab.
Menu bar
Main tab
Sub tab

18
WT07921X01
5-2. Menu bar configuration
Setting and operation items available from the menu bar are shown below.
Menu Sub menu Setting and operation items
Displays the settings screen for when making new settings.
Opens a saved settings data file, and reflects this settings data in
the BACnet®Setting Tool.
Saves BACnet®Setting Tool settings data by overwriting the file
opened in [Open Settings...].
Alternatively, for new settings, does the same as [Save Settings
As...].
Saves BACnet®Setting Tool settings data after first specifying the
save folder and file name.
Exits the BACnet®Setting Tool.
Sets the LAN1 IP address for the AE-200 to communicate with.
Acquires the settings data from the AE-200.
Sends the settings data to the AE-200.
Sets the BACnet®connection mode (Online/Offline).
Sets the current date and time in the AE-200.
Displays the version number of the BACnet®Setting Tool.
Opens the BACnet®Setting Tool Instruction Book (this manual) in
PDF format.
New Settings
Exit
Open Settings...
File
Save Settings
Save Settings As...
Send Settings...
AE-200/AE-50/
EW-50
Mode Setting
Acquire Settings...
Date and Time
Property
Help About
Instruction Book <PDF>

19
WT07921X01
5-3. Setting tab configuration
Settings screens that are selected in the main tab and sub tab are as follows, and the items that can be set on
each settings screen are as below.
Main tab Sub tab Setting items
Sets IP address information for AE-200 LAN1 (for air conditioning)
and LAN2 (for BACnet®connection), and time synchronization for air
conditioning unit to connect.
This also displays the AE-200 serial number, AE-200 program version, and
the BACnet®program version.
Displays group settings for the air conditioning unit, remote controller, and
system controller.
Group information cannot be changed from the BACnet®Setting
Tool. Configure group settings from the AE-200 Initial Setting Tool.
Refer to the Instruction Book (BACnet®Setting Tool) for the setting
method.
Sets BACnet®settings including AE-200 device numbers, APDU settings,
I-Am transmission periods; air conditioning unit settings including dry mode
usage Y/N, fan speed Mid1/Mid2 usage Y/N, and operation mode status
automatic display Y/N.
Registers notification destination devices for COV and EVENT notifications.
Registers device number, process ID, and notification type (with
confirmation, without confirmation) for COV Notification destinations.
Registers device number, process ID, and notification type (with
confirmation, without confirmation) for Event Notification destinations.
Selects the object to use, the requirement for COV/Event Notification and
the notification destination, and sets the Event Notification (Event_Enable,
Notify_Type).
Set the notification destination at reset.
Used when using the Settings Tool to cancel an AE-200 emergency stop
originating from the central monitoring device (BACnet®). Settings not
required.
Basic System
System Settings
Group
Group Settings
Network and
Device
Object
Event Notification
COV Notification
BACnet Settings
Other
BACnet
ForcedOff Reset

20
WT07921X01
5-4. Initial setting procedure
Initial settings procedures for the AE-200 are shown below.
First, from procedures ①, ②, and onwards in the work flow below, make the basic settings for AE-200 and air
conditioning system unit settings using the AE-200 Initial Setting Tool, AE-200’s LCD, or Web browser for Initial
Settings. For details, refer to Table 5-4 below and AE-200 Instruction Book (Initial Settings).
Carry out initial settings for BACnet®functions from ③onwards in the work flow below. For initial settings for
BACnet®functions from ③onwards, refer to 5-4-1 “BACnet®function initial settings flow” and 5-4-2 “Initial
settings procedure using the BACnet®Setting Tool”.
*1 When changing existing AE-200 settings, ensure that you save the settings details (xml file) before the change is done.
*2 After acquiring the settings data using the BACnet®Setting Tool and making changes to the settings, do not change settings from the
AE-200 Initial Setting Tool, the AE-200’s LCD, or the web browser until sending of the changed data has completed.
*3 Settings data created using the BACnet®Setting Tool cannot be written to, or read from the AE-200 using USB memory.
*4 Ensure that you store the settings file (settings data before and after changes) configured using the BACnet®Setting Tool.
Work operation in
the workplace can
be reduced.
*2
Sending the settings to AE-200 *3
Saving settings data after changes
*4
Example: 20160401B.xml
Entering the settings
Saving settings data before changes *1
Example: 20160401A.xml
Acquiring the settings from AE-200 *3
②(For specifying
initial settings in the
workplace)
Saving settings data
Creating settings data
①(For specifying
initial settings outside
the workplace)
Sending the settings to AE-200 *3
Creating settings data
Saving settings data
Checking workplace system
By day before
trial run (office)
Day of trial run
(workplace)
③ When making initial settings for BACnet®
function and changing AE-200 settings
Initial (for new registration)
