Mitsubishi Electric MXZ-2F33VF4-E1 User manual

HFC
utilized
R32
SERVICE MANUAL No. OBH790
REVISED EDITION-L
OUTDOOR UNIT
PARTS CATALOG (OBB790)
Indoor unit service manual
MSZ-LN•VG Series (OBH766)
MSZ-LN•VG2 Series (OBH766)
MSZ-EF•VG Series (OBH589)
MSZ-AP•VF Series (OBH799)
MSZ-AP•VG Series (OBH788)
MSZ-BT•VG Series (OBH849)
MSZ-AY•VG Series (OBH930, 932)
MLZ-KP•VF Series (OBH801)
MFZ-KT•VG Series (OBH843)
MLZ-KY•VG Series (OBH921)
SLZ-M•FA Series (OCH522)
SEZ-M•DA Series (HWE17040)
CONTENTS
• INDOOR / OUTDOOR UNIT
COMPATIBILITY TABLE ·······················4
1. TECHNICAL CHANGES ······························7
2. SAFETY PRECAUTION·······························9
3. PART NAMES AND FUNCTIONS················19
4. SPECIFICATION ······································21
5. NOISE CRITERIA CURVES························58
6. OUTLINES AND DIMENSIONS···················62
7. WIRING DIAGRAM··································· 70
8. REFRIGERANT SYSTEM DIAGRAM ··········111
9. PERFORMANCE CURVES······················· 122
10. ACTUATOR CONTROL ··························· 171
11. SERVICE FUNCTIONS ···························· 172
12. TROUBLESHOOTING····························· 179
13. DISASSEMBLY INSTRUCTIONS··············· 214
MXZ-2F33VF2
MXZ-2F42VF2
MXZ-2F53VF2
MXZ-2F53VFH2
MXZ-2F33VF3
MXZ-2F42VF3
MXZ-2F53VF3
MXZ-2F53VFH3
MXZ-2F33VF4
MXZ-2F42VF4
MXZ-2F53VF4
MXZ-2F53VFH4
OBH790 REVISED EDITION-K is void.
MXZ-2F33VF
MXZ-2F42VF
MXZ-2F53VF
MXZ-2F53VFH
Models
MXZ-2F33VF -E1 , ET1 MXZ-3F68VF -E1 , ET1 , E2 , ET2
MXZ-2F33VF2 -E1 , ET1 MXZ-3F68VF2 -E1 , ET1
MXZ-2F33VF3 -E1 , ET1 , ER1 , E2 MXZ-3F68VF3 -E1 , ET1 , ER1
MXZ-2F33VF4 -E1 , ET1 MXZ-3F68VF4 -E1 , ET1
MXZ-2F42VF -E1 , ET1 MXZ-4F72VF -E1 , ET1 , E2 , ET2
MXZ-2F42VF2 -E1 , ET1 MXZ-4F72VF2 -E1 , ET1
MXZ-2F42VF3 -E1 , ET1 , ER1 , E2 MXZ-4F72VF3 -E1 , ET1 , ER1
MXZ-2F42VF4 -E1 , ET1 MXZ-4F72VF4 -E1 , ET1
MXZ-2F53VF -E1 , ET1 MXZ-4F80VF2 -E1 , ET1
MXZ-2F53VF2 -E1 , ET1 MXZ-4F80VF3 -E1 , ET1
MXZ-2F53VF3 -E1 , ET1 , ER1 , E2 MXZ-4F80VF4 -E1 , ET1
MXZ-2F53VF4 -E1 , ET1 MXZ-4F83VF -E1 , ET1 , ER1
MXZ-2F53VFH -E1 MXZ-4F83VF2 -E1 , ET1
MXZ-2F53VFH2 -E1 MXZ-5F102VF -E1 , ET1 , ER1
MXZ-2F53VFH3 -E1 , E2 MXZ-5F102VF2 -E1 , ET1
MXZ-2F53VFH4 -E1 MXZ-6F120VF2 -E1 , ET1
MXZ-3F54VF -E1 , ET1 , E2 , ET2 MXZ-6F122VF -E1 , ET1 , ER1
MXZ-3F54VF2 -E1 , ET1 MXZ-2F53VFHZ -E1 , ER1
MXZ-3F54VF3 -E1 , ET1 , ER1 , E2 , ET2 , ER2 MXZ-2F53VFHZ2 -E1
MXZ-3F54VF4 -E1 , ET1 MXZ-4F83VFHZ -E1 , ER1
MXZ-4F83VFHZ2-E1
Revision L:
• MXZ-2F33/42/53VF4- E1 , ET1 ,
MXZ-2F53VFH4- E1 , MXZ-3F54/68VF4- E1 , ET1 ,
MXZ-4F72/80VF4- E1 , ET1 , MXZ-4F83VF2- E1 , ET1 ,
MXZ-5F102VF2- E1 , ET1 , MXZ-6F120VF2- E1 , ET1 ,
MXZ-2F53VFHZ2- E1 and MXZ-4F83VFHZ2- E1
have been added.
SFZ-M•VA Series (HWE19090)
PCA-M•KA Series (OCH659)
PEAD-M•JA(L) Series (HWE16130)
PEAD-M•JA(L)2 Series (HWE21070)

2

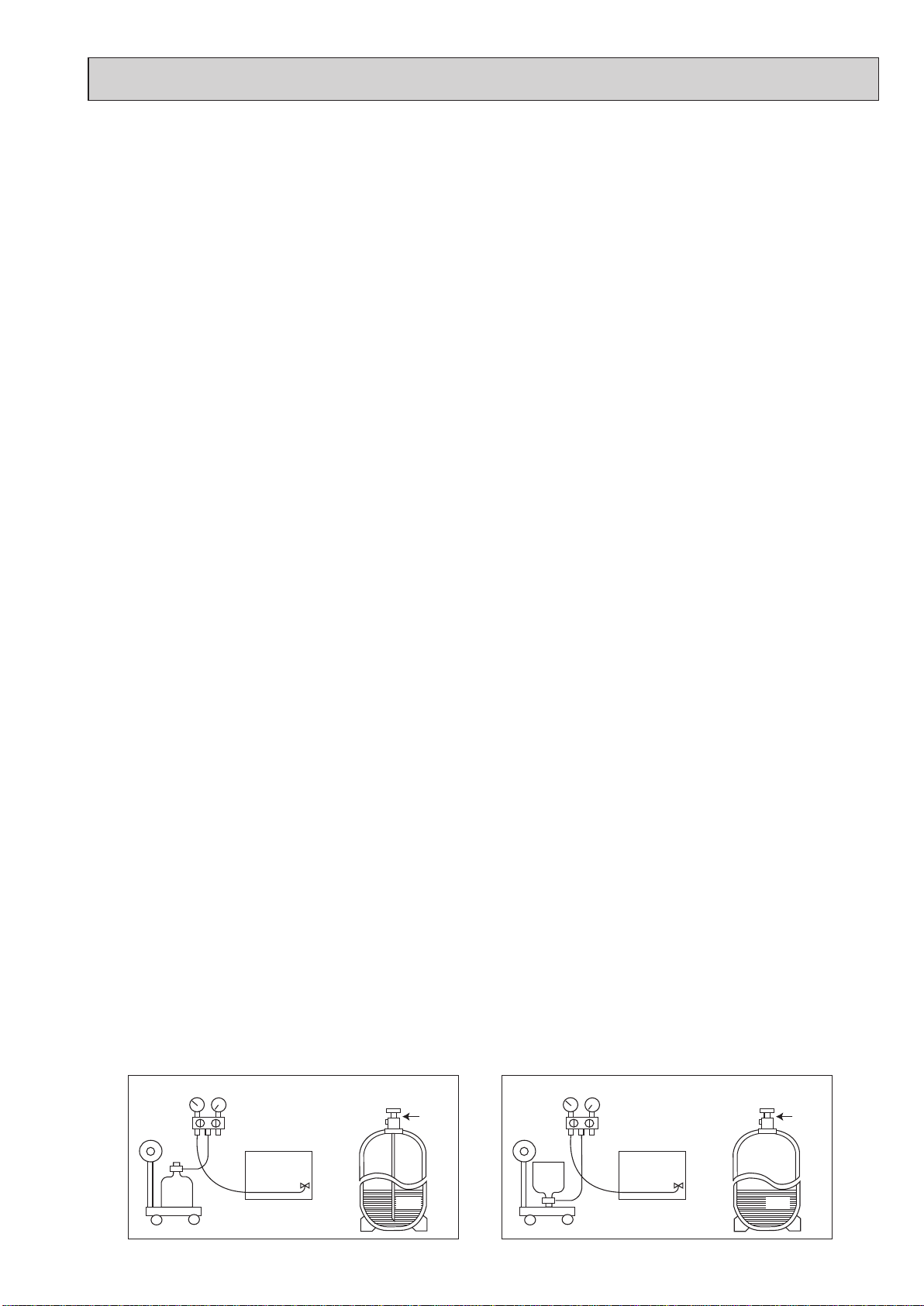

Use the specied refrigerant only
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the spec labels provided with our products.
We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused by failure to
follow the instructions.
<Preparation before the repair service>
Prepare the proper tools.
Prepare the proper protectors.
Provide adequate ventilation.
After stopping the operation of the air conditioner, turn off the power-supply breaker and pull the power plug.
Discharge the capacitor before the work involving the electric parts.
<Precautions during the repair service>
Do not perform the work involving the electric parts with wet hands.
Do not pour water into the electric parts.
Do not touch the refrigerant.
Do not touch the hot or cold areas in the refrigeration cycle.
When the repair or the inspection of the circuit needs to be done without turning off the power, exercise great caution not to
touch the live parts.
WARNING
• When the refrigeration circuit has a leak, do not execute pump down with the compressor.
• When pumping down the refrigerant, stop the compressor before disconnecting the refrigerant pipes.
The compressor may burst if air etc. get into it.
• When opening or closing the valve below freezing temperatures, refrigerant may spurt out from the gap
between the valve stem and the valve body, resulting in injuries.
OBH790L

3
Revision A:
• MXZ-3F54VF - E2 , ET2 , MXZ-3F68VF - E2 , ET2 and MXZ-4F72VF - E2 , ET2 have been added.
Revision B:
• MXZ-3F54VF2 - E1 , ET1 , MXZ-3F68VF2- E1 , ET1 , MXZ-4F72VF2 - E1 , ET1 and MXZ-4F80VF2 - E1 , ET1 have been
added.
Revision C:
• MXZ-2F33VF2 - E1 , ET1 , MXZ-2F42VF2 - E1 , ET1 , MXZ-2F53VF2 - E1 , ET1 and MXZ-2F53VFH2 - E1 have been added.
Revision D:
• MXZ-2F33VF3 - E1 , ET1 , MXZ-2F42VF3 - E1 , ET1 , MXZ-2F53VF3 - E1 , ET1 , MXZ-2F53VFH3- E1 , MXZ-3F54VF3 - E1 ,
ET1 , MXZ-3F68VF3 - E1 , ET1 , MXZ-4F72VF3 - E1 , ET1 and MXZ-4F80VF3- E1 , ET1 have been added.
Revision E:
• MXZ-4F83VF - E1 , ET1 , MXZ-5F102VF - E1 , ET1 , MXZ-6F122VF - E1 , ET1 , MXZ-2F53VFHZ - E1 and
MXZ-4F83VFHZ - E1 have been added.
Revision G:
• MXZ-2F33/42/53VF3 - E2 and MXZ-2F53VFH3 - E2 have been added.
Revision F:
• Chart of heating capacity and total input for MXZ-4F83VFHZ - E1 have been added.
• Outdoor unit power supply for MXZ-4F83VF - ET1 and MXZ-5F102VF - ET1 have been added.
Revision H:
• MXZ-2F33/42/53VF3- ER1 , MXZ-3F54/68VF3- ER1 , MXZ-4F72VF3- ER1 , MXZ-4F83VF- ER1, MXZ-5F102VF- ER1 ,
MXZ-6F122VF- ER1, MXZ-2F53VFHZ- ER1 and MXZ-4F83VFHZ- ER1 have been added.
Revision J:
• MXZ-3F54VF3 - E2 , ET2 , ER2 have been added.
Revision K:
• INDOOR / OUTDOOR UNIT COMPATIBILITY TABLE has been modied.
Revision L:
• MXZ-2F33/42/53VF4- E1 , ET1 , MXZ-2F53VFH4- E1 , MXZ-3F54/68VF4- E1 , ET1 , MXZ-4F72/80VF4- E1 , ET1 ,
MXZ-4F83VF2- E1 , ET1 , MXZ-5F102VF2- E1 , ET1 , MXZ-6F120VF2- E1 , ET1 , MXZ-2F53VFHZ2- E1 and
MXZ-4F83VFHZ2- E1 have been added.
OBH790L

4
INDOOR / OUTDOOR UNIT COMPATIBILITY TABLE
<MXZ-2F33VF>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••
MSZ-EF**VE3 ••••••
MSZ-AP**VG ••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••
4way
cassette SLZ-M**FA ••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••
Ceiling
suspended PCA-M**KA
<MXZ-2F42VF>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-EF**VE3 ••••••••
MSZ-AP**VG ••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••
4way
cassette SLZ-M**FA ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F33VF2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••
MSZ-EF**VE3 ••••••
MSZ-EF**VG ••••••
MSZ-AP**VG ••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••
Floor
standing MFZ-KT**VG ••
4way
cassette SLZ-M**FA ••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••
Ceiling
suspended PCA-M**KA
<MXZ-2F42VF2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-EF**VE3 ••••••••
MSZ-EF**VG ••••••••
MSZ-AP**VG ••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••
Floor
standing MFZ-KT**VG ••••
4way
cassette SLZ-M**FA ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F33VF3>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG
MSZ-LN**VG2 ••••
MSZ-RW**VG ••
MSZ-BT**VG ••••
MSZ-EF**VE3 ••••••
MSZ-EF**VG ••••••
MSZ-AP**VG ••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••
1way
cassette MLZ-KP**VF ••
Floor
standing MFZ-KT**VG ••
4way
cassette SLZ-M**FA ••••
SLZ-M**FA2 ••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••
SEZ-M**DA(L)2 ••
Ceiling
suspended PCA-M**KA
<MXZ-2F42VF3>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG
MSZ-LN**VG2 ••••••
MSZ-RW**VG ••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••
MSZ-EF**VG ••••••••
MSZ-AP**VG ••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••
1way
cassette MLZ-KP**VF ••••
Floor
standing MFZ-KT**VG ••••
4way
cassette SLZ-M**FA ••••••
SLZ-M**FA2 ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
SEZ-M**DA(L)2 ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F33VF4>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG
MSZ-LN**VG2 ••••
MSZ-RW**VG ••
MSZ-BT**VG ••••
MSZ-EF**VE3 ••••••
MSZ-EF**VG ••••••
MSZ-AP**VG ••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••
1way
cassette MLZ-KP**VF ••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••
SFZ-M**VA ••
4way
cassette SLZ-M**FA ••••
SLZ-M**FA2 ••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••
SEZ-M**DA(L)2 ••
Ceiling
suspended PCA-M**KA
<MXZ-2F42VF4>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG
MSZ-LN**VG2 ••••••
MSZ-RW**VG ••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••
MSZ-EF**VG ••••••••
MSZ-AP**VG ••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••
1way
cassette MLZ-KP**VF ••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••
SFZ-M**VA ••••
4way
cassette SLZ-M**FA ••••••
SLZ-M**FA2 ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
SEZ-M**DA(L)2 ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F53VF4 / MXZ-2F53VFH4>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG
MSZ-LN**VG2 ••••••
MSZ-RW**VG ••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••
SFZ-M**VA ••••
4way
cassette SLZ-M**FA ••••••
SLZ-M**FA2 ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
SEZ-M**DA(L)2 ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F53VF / MXZ-2F53VFH>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-AP**VG ••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••
4way
cassette SLZ-M**FA ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F53VF2 / MXZ-2F53VFH2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••
Floor
standing MFZ-KT**VG ••••
4way
cassette SLZ-M**FA ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
Ceiling
suspended PCA-M**KA
<MXZ-2F53VF3 / MXZ-2F53VFH3>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG
MSZ-LN**VG2 ••••••
MSZ-RW**VG ••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••
Floor
standing MFZ-KT**VG ••••
4way
cassette SLZ-M**FA ••••••
SLZ-M**FA2 ••••••
Ceiling
concealed
PEAD-M**JA(L)
SEZ-M**DA(L) ••••
SEZ-M**DA(L)2 ••••
Ceiling
suspended PCA-M**KA
OBH790L

5
<MXZ-3F54VF4>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••••
SFZ-M**VA ••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
PEAD-M**JA(L)2 ••••
SEZ-M**DA(L) ••••••
SEZ-M**DA(L)2 ••••••
Ceiling
suspended PCA-M**KA ••
<MXZ-3F54VF>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 *1
MSZ-EF**VE3 ••••••••••••
MSZ-AP**VG ••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••••
4way
cassette SLZ-M**FA ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
SEZ-M**DA(L) ••••••
Ceiling
suspended PCA-M**KA ••
*1: Models with service sub number - E2 / ET2 are connectable.
<MXZ-3F54VF2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 ••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••••
Floor
tanding MFZ-KT**VG ••••••
4way
cassette SLZ-M**FA ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
SEZ-M**DA(L) ••••••
Ceiling
suspended PCA-M**KA ••
<MXZ-3F54VF3>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••••
Floor
standing MFZ-KT**VG ••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
SEZ-M**DA(L) ••••••
SEZ-M**DA(L)2 ••••••
Ceiling
suspended PCA-M**KA ••
<MXZ-3F68VF / MXZ-4F72VF>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 *1
MSZ-EF**VE3 ••••••••••••
MSZ-AP**VG ••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••••
4way
cassette SLZ-M**FA ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
SEZ-M**DA(L) ••••••••
Ceiling
suspended PCA-M**KA ••••
*1: Models with service sub number - E2 / ET2 are connectable.
<MXZ-3F68VF2 / MXZ-4F72VF2 / MXZ-4F80VF2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 ••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AP**VF ••••
1way
cassette MLZ-KP**VF ••••••
Floor
standing MFZ-KT**VG ••••••
4way
cassette SLZ-M**FA ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
SEZ-M**DA(L) ••••••••
Ceiling
suspended PCA-M**KA ••••
<MXZ-3F68VF3 / MXZ-4F72VF3 / MXZ-4F80VF3>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••••
Floor
standing MFZ-KT**VG ••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
SEZ-M**DA(L) ••••••••
SEZ-M**DA(L)2 ••••••••
Ceiling
suspended PCA-M**KA ••••
<MXZ-3F68VF4 / MXZ-4F72VF4 / MXZ-4F80VF4>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG ••••••
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VE3 ••••••••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••••
MSZ-AP**VF ••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••••
SFZ-M**VA ••••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed
PEAD-M**JA(L) ••
PEAD-M**JA(L)2 ••••
SEZ-M**DA(L) ••••••••
SEZ-M**DA(L)2 ••••••••
Ceiling
suspended PCA-M**KA ••••
<MXZ-4F83VF / MXZ-5F102VF / MXZ-6F122VF>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••••
Floor
standing MFZ-KT**VG ••••••
SFZ-M**VA ••••••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed SEZ-M**DA(L) ••••••••••
SEZ-M**DA(L)2 ••••••••••
<MXZ-4F83VF2 / MXZ-5F102VF2 / MXZ-6F120VF2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••••••
MSZ-AY**VG ••••••••
1way
cassette MLZ-KP**VF ••••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••••
SFZ-M**VA ••••••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed
SEZ-M**DA(L) ••••••••••
SEZ-M**DA(L)2 ••••••••••
PEAD-M**JA(L)2 ••••••••
OBH790L

6
<MXZ-2F53VFHZ>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG2 ••••••
MSZ-RW**VG ••••
MSZ-BT**VG ••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AY**VG ••••••••
MSZ-FT**VG ••••
1way
cassette MLZ-KP**VF ••••
Floor
standing MFZ-KT**VG ••••
SFZ-M**VA ••••
4way
cassette SLZ-M**FA ••••••
SLZ-M**FA2 ••••••
Ceiling
concealed SEZ-M**DA(L) ••••
SEZ-M**DA(L)2 ••••
<MXZ-4F83VFHZ>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••••••
MSZ-AY**VG ••••••••
MSZ-FT**VG ••••
1way
cassette MLZ-KP**VF ••••••
Floor
standing MFZ-KT**VG ••••••
SFZ-M**VA ••••••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed SEZ-M**DA(L) ••••••••••
SEZ-M**DA(L)2 ••••••••••
<MXZ-2F53VFHZ2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG2 ••••••
MSZ-RW**VG ••••
MSZ-BT**VG ••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••
MSZ-AY**VG ••••••••
MSZ-FT**VG ••••
1way
cassette MLZ-KP**VF ••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••
SFZ-M**VA ••••
4way
cassette SLZ-M**FA ••••••
SLZ-M**FA2 ••••••
Ceiling
concealed SEZ-M**DA(L) ••••
SEZ-M**DA(L)2 ••••
<MXZ-4F83VFHZ2>
Connectable indoor unit lineups (Heat pump inverter type)
Model type Model name Capacity class [kW/h]
15 18 20 22 25 35 42 50 60 71
Wall
mounted
MSZ-LN**VG2 ••••••••
MSZ-RW**VG ••••••
MSZ-BT**VG ••••••
MSZ-EF**VG ••••••••••••
MSZ-AP**VG ••••••••••••••••
MSZ-AY**VG ••••••••
MSZ-FT**VG ••••
1way
cassette MLZ-KP**VF ••••••
MLZ-KY**VG ••
Floor
standing MFZ-KT**VG ••••••
SFZ-M**VA ••••••••••
4way
cassette SLZ-M**FA ••••••••
SLZ-M**FA2 ••••••••
Ceiling
concealed
SEZ-M**DA(L) ••••••••••
SEZ-M**DA(L)2 ••••••••••
PEAD-M**JA(L)2 ••••••••
OBH790L

7
TECHNICAL CHANGES1
MXZ-2F33VF- E1 , ET1
MXZ-2F42VF- E1 , ET1
MXZ-2F53VF- E1 , ET1
MXZ-2F53VFH- E1
MXZ-3F54VF- E1 , ET1
MXZ-3F68VF- E1 , ET1
MXZ-4F72VF- E1 , ET1
MXZ-4F83VF- E1 , ET1 , ER1
MXZ-5F102VF- E1 , ET1 , ER1
MXZ-6F122VF- E1 , ET1 , ER1
MXZ-2F53VFHZ- E1 , ER1
MXZ-4F83VFHZ- E1 , ER1
1. New model
MXZ-3F54VF- E1 , ET1 MXZ-3F54VF- E2 , ET2
MXZ-3F68VF- E1 , ET1 MXZ-3F68VF- E2 , ET2
MXZ-4F72VF- E1 , ET1 MXZ-4F72VF- E2 , ET2
1. LEV-R has been changed.
2. Outdoor control P. C. board has been changed.
MXZ-3F54VF- E2 , ET2 MXZ-3F54VF2- E1 , ET1
MXZ-3F68VF- E2 , ET2 MXZ-3F68VF2- E1 , ET1
MXZ-4F72VF- E2 , ET2 MXZ-4F72VF2- E1 , ET1
1. Pre charged refrigerant amount and additional refrigerant amount have been changed.
2. Outdoor control P.C. board has been changed.
3. Power board has been changed.
4. LEV R has been changed.
MXZ-4F80VF2- E1 , ET1
1. New model
MXZ-2F33VF- E1 , ET1 MXZ-2F33VF2- E1 , ET1
MXZ-2F42VF- E1 , ET1 MXZ-2F42VF2- E1 , ET1
MXZ-2F53VF- E1 , ET1 MXZ-2F53VF2- E1 , ET1
MXZ-2F53VFH- E1 MXZ-2F53VFH2- E1 , ET1
1. Outdoor control P.C. board has been changed.
2. Outdoor fan motor has been changed.
MXZ-2F33VF2- E1 , ET1 MXZ-2F33VF3- E1 , ET1
MXZ-2F42VF2- E1 , ET1 MXZ-2F42VF3- E1 , ET1
MXZ-2F53VF2- E1 , ET1 MXZ-2F53VF3- E1 , ET1
MXZ-2F53VFH2- E1 MXZ-2F53VFH3- E1
MXZ-3F54VF2- E1 , ET1 MXZ-3F54VF3- E1 , ET1
MXZ-3F68VF2- E1 , ET1 MXZ-3F68VF3- E1 , ET1
MXZ-4F72VF2- E1 , ET1 MXZ-4F72VF3- E1 , ET1
MXZ-4F80VF2- E1 , ET1 MXZ-4F80VF3- E1 , ET1
MXZ-2F33VF3- E1 MXZ-2F33VF3- E2
MXZ-2F42VF3- E1 MXZ-2F42VF3- E2
MXZ-2F53VF3- E1 MXZ-2F53VF3- E2
MXZ-2F53VFH3- E1 MXZ-2F53VFH3- E2
1. Model name has been changed.
OBH790L

8
MXZ-2F33VF3- ER1
MXZ-2F42VF3- ER1
MXZ-2F53VF3- ER1
MXZ-3F54VF3- ER1
MXZ-3F68VF3- ER1
MXZ-4F72VF3- ER1
1. New model
MXZ-3F54VF3- E1 , ET1 , ER1 MXZ-3F54VF3- E2 , ET2 , ER2
1. Outdoor control P.C. board has been changed.
2. Outdoor fan motor has been changed.
MXZ-2F33VF3- E1 , ET1 MXZ-2F33VF4- E1 , ET1
MXZ-2F42VF3- E1 , ET1 MXZ-2F42VF4- E1 , ET1
MXZ-2F53VF3- E1 , ET1 MXZ-2F53VF4- E1 , ET1
MXZ-2F53VFH3- E1 MXZ-2F53VFH4- E1
MXZ-3F54VF3- E1 , ET1 MXZ-3F54VF4- E1 , ET1
MXZ-3F68VF3- E1 , ET1 MXZ-3F68VF4- E1 , ET1
MXZ-4F72VF3- E1 , ET1 MXZ-4F72VF4- E1 , ET1
MXZ-4F80VF3- E1 , ET1 MXZ-4F80VF4- E1 , ET1
MXZ-4F83VF- E1 , ET1 MXZ-4F83VF2- E1 , ET1
MXZ-5F102VF- E1 , ET1 MXZ-5F102VF2- E1 , ET1
MXZ-6F122VF- E1 , ET1 MXZ-6F120VF2- E1 , ET1
MXZ-2F53VFHZ- E1 MXZ-2F53VFHZ2- E1
MXZ-4F83VFHZ- E1 MXZ-4F83VFHZ2- E1
1. New model
OBH790L

9
SAFETY PRECAUTION2
2-1. ALWAYS OBSERVE FOR SAFETY
Before obtaining access to terminal, all supply circuits must be disconnected.
2-2. CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R32
Preparation before the repair service.
• Prepare the proper tools.
• Prepare the proper protectors.
• Provide adequate ventilation.
• After stopping the operation of the air conditioner, turn off
the power-supply breaker.
• Discharge the condenser before the work involving the
electric parts.
Precautions during the repair service.
• Do not perform the work involving the electric parts
with wet hands.
• Do not pour water into the electric parts.
• Do not touch the refrigerant.
• Do not touch the hot or cold areas in the refrigerating cycle.
• When the repair or the inspection of the circuit needs to be
done without turning off the power, exercise great caution
not to touch the live parts.
• When opening or closing the valve below freezing
temperatures, refrigerant may spurt out from the valve gap,
resulting in injuries.
Use new refrigerant pipes.
In case of using the existing pipes for R22, be careful with
the following.
· Be sure to clean the pipes and make sure that the insides
of the pipes are clean.
· Change flare nut to the one provided with this product.
Use a newly flared pipe.
· Avoid using thin pipes.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil, etc.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contaminants
such as sulfur, oxides, dirt, shaving particles, etc,
which are hazard to refrigerant cycle.
In addition, use pipes with specified thickness.
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil, etc.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Use the following tools specifically designed for
use with R32 refrigerant.
The following tools are necessary to use R32 refrigerant.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R32
MEANINGS OF SYMBOLS DISPLAYED ON THE UNIT
WARNING This mark is for R32 refrigerant only. Refrigerant type is written on nameplate of outdoor unit.
Read the OPERATION MANUAL carefully before operation.
Service personnel are required to carefully read the OPERATION MANUAL and INSTALLATION MANUAL before operation.
Further information is available in the OPERATION MANUAL, INSTALLATION MANUAL, and the like.
OBH790L

10
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil, etc.
Do not use refrigerant other than R32.
If other refrigerant (R22, etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil, etc. Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
OBH790L

11
[1] Warning for service
(1) Do not alter the unit.
(2) For installation and relocation work, follow the instructions in the Installation Manual and use tools and pipe components
specifically made for use with refrigerant specified in the outdoor unit installation manual.
(3) Ask a dealer or an authorized technician to install, relocate and repair the unit.
For appliances not accessible to the general public.
(4) Refrigerant pipes connection shall be accessible for maintenance purposes.
(5) If the air conditioner is installed in a small room or closed room, measures must be taken to prevent the refrigerant concentra-
tion in the room from exceeding the safety limit in the event of refrigerant leakage. Should the refrigerant leak and cause the
concentration limit to be exceeded, hazards due to lack of oxygen in the room may result.
(6) Keep gas-burning appliances, electric heaters, and other fire sources (ignition sources) away from the location where
installation, repair, and other air conditioner work will be performed.
If refrigerant comes into contact with a flame, poisonous gases will be released.
(7) When installing or relocating, or servicing the air conditioner, use only the specified refrigerant (R32) to charge the refriger-
ant lines.
Do not mix it with any other refrigerant and do not allow air to remain in the lines.
If air is mixed with the refrigerant, then it can be the cause of abnormal high pressure in the refrigerant line, and may result
in an explosion and other hazards.
(8) After installation has been completed, check for refrigerant leaks. If refrigerant leaks into the room and comes into contact
with the flame of a heater or portable cooking range, poisonous gases will be released.
(9) Do not use low temperature solder alloy in case of brazing the refrigerant pipes.
(10) When performing brazing work, be sure to ventilate the room sufficiently. Make sure that there are no hazardous or flam-
mable materials nearby.
When performing the work in a closed room, small room, or similar location, make sure that there are no refrigerant leaks
before performing the work.
If refrigerant leaks and accumulates, it may ignite or poisonous gases may be released.

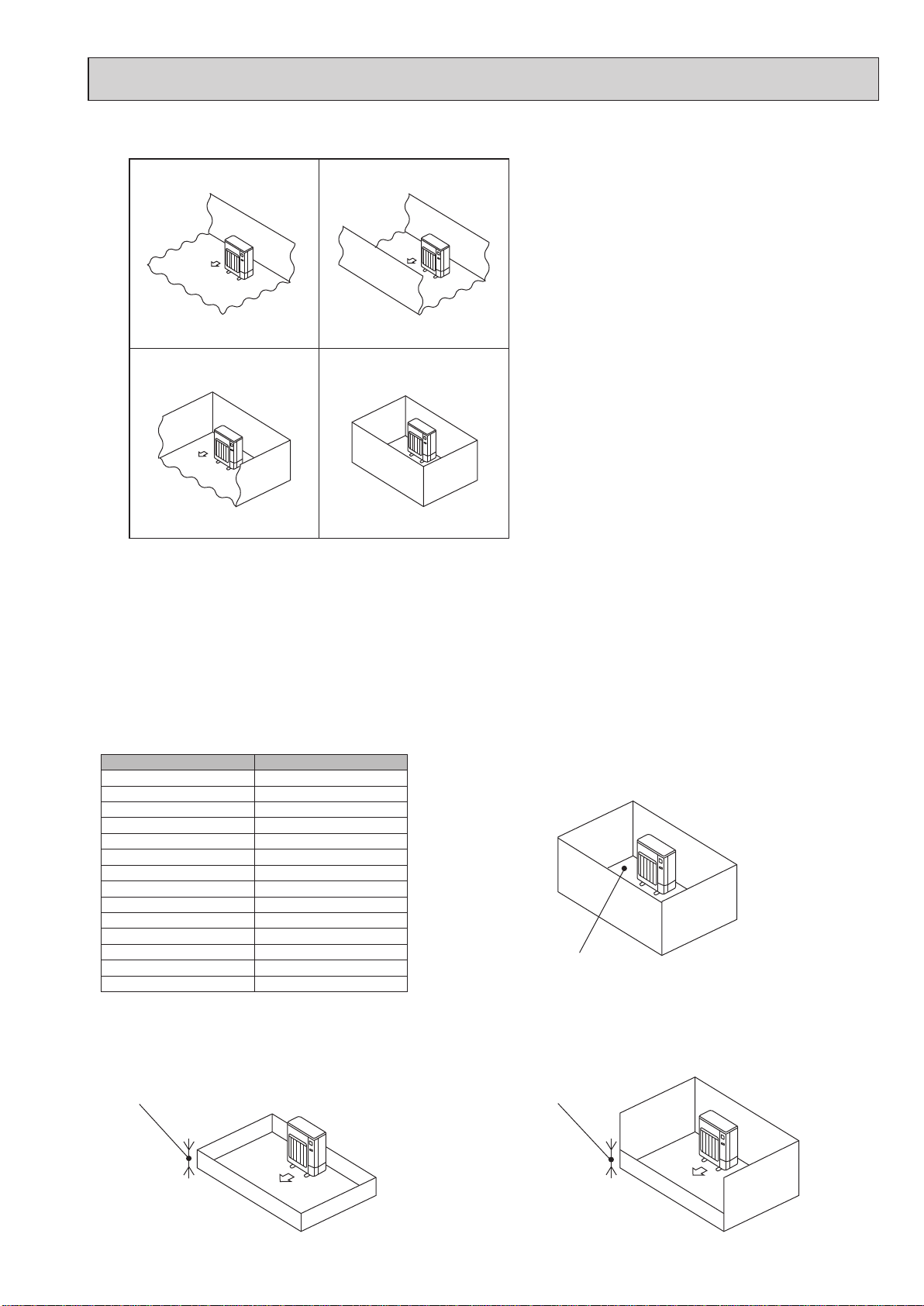

(11) Do not install the unit in places where refrigerant may build-up or places with poor ventilation such as a semi-basement or a
sunken place in outdoor: Refrigerant is heavier than air, and inclined to fall away from the leak source.
(12) Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
(13) The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an
operating gas appliance or an operating electric heater).
(14) Do not pierce or burn.
(15) Be aware that refrigerants may not contain an odour.
(16) Pipe-work shall be protected from physical damage.
(17) The installation of pipe-work shall be kept to a minimum.
(18) Compliance with national gas regulations shall be observed.
(19) Keep any required ventilation openings clear of obstruction.
(20) Servicing shall be performed only as recommended by the manufacturer.
(21) The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for
operation.
(22) Maintenance, service and repair operations shall be performed by authorized technician with required qualification.
(23) Be sure to have appropriate ventilation in order to prevent ignition. Furthermore, be sure to carry out fire prevention mea-
sures that there are no dangerous or flammable objects in the surrounding area.
[2] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[3] Additional refrigerant charge
When charging directly from cylinder
R32 is a single refrigerant and its composition does not change. Therefore, both liquid charging and gas charging are pos-
sible. Liquid charging of refrigerant all at once from the low-pressure side may cause the compressor malfunction.
Accordingly, make sure that charging is gradual.
< Cylinder without a siphon tube >
< Cylinder with a siphon tube >
Charging liquid refrigerant
Charging gas refrigerant
Cylinder
Cylinder
Liquid
Valve
Liquid
Valve
OBH790L

12
[4] Cautions for unit using R32 refrigerant
Basic work procedures are the same as those for conventional units using refrigerant R410A. However, pay careful
attention to the following points.
(1) Information on servicing
(1-1) Checks on the Area
Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the
risk of ignition is minimized.
For repair to the refrigerating systems, (1-3) to (1-7) shall be completed prior to conducting work on the systems.
(1-2) Work Procedure
Work shall be undertaken under a controlled procedure so as to minimize the risk of a flammable gas or vapor being
present while the work is being performed.
(1-3) General WorkArea
All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the condi-
tions within the area have been made safe by control of flammable material.
(1-4) Checking for Presence of Refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is
aware of potentially toxic or flammable atmospheres. Ensure that the leak detection equipment being used is suitable for
use with all applicable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
(1-5) Presence of Fire Extinguisher
If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing
equipment shall be available to hand.
Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
(1-6) No Ignition Sources
No person carrying out work in relation to a refrigeration system which involves exposing any pipe work shall use any
sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including
cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal,
during which refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around
the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking” signs
shall be displayed.
(1-7) Ventilated Area
Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any
hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely
disperse any released refrigerant and preferably expel it externally into the atmosphere.
(1-8) Checks on the Refrigeration Equipment
Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all
times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt, consult the manufacturer’s
technical department for assistance.
The following checks shall be applied to installations using flammable refrigerants:
• The charge size is in accordance with the room size within which the refrigerant containing parts are installed.
• The ventilation machinery and outlets are operating adequately and are not obstructed.
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected.
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance
which may corrode refrigerant containing components, unless the components are constructed of materials which are
inherently resistant to being corroded or are suitably protected against being corroded.
(1-9) Checks on Electrical Devices
Repair and maintenance to electrical components shall include initial safety checks and component inspection proce-
dures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is
satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an ade-
quate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include that:
• capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• no live electrical components and wiring are exposed while charging, recovering or purging the system;
• there is continuity of earth bonding
(2) Repairs to Sealed Components
(2-1) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked
upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment
during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of
a potentially hazardous situation.
(2-2) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not
altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of
connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.
Ensure that the apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded to the point that they no longer serve the purpose of preventing
the ingress of flammable atmospheres.
Replacement parts shall be in accordance with the manufacturer’s specifications.
OBH790L

13
(3) Repair to intrinsically Safe Components
Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the per-
missible voltage and current permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmo-
sphere. The test apparatus shall be at the correct rating.
Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in
the atmosphere from a leak.
(4) Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse
environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such
as compressors or fans.
(5) Detection of Flammable Refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks.
A halide torch (or any other detector using a naked flame) shall not be used.
(6) Leak Detection Methods
Electronic leak detectors may be used to detect refrigerant leaks but, in the case of flammable refrigerants, the sensitivity
may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.)
Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equip-
ment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed, and the
appropriate percentage of gas (25% maximum) is confirmed.
Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be
avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
If a leak is suspected, all naked flames shall be removed/extinguished.
If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or iso-
lated (by means of shut off valves) in a part of the system remote from the leak. For appliances containing flammable
refrigerants, oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing
process.
(7) Removal and Evacuation
When breaking into the refrigerant circuit to make repairs – or for any other purpose conventional procedures shall be
used. However, for flammable refrigerants it is important that best practice is followed since flammability is a consideration.
The following procedure shall be adhered to:
• remove refrigerant
• purge the circuit with inert gas
• evacuate
• purge again with inert gas
• open the circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. For appliances containing flammable refrig-
erants, the system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several
times.
Compressed air or oxygen shall not be used for purging refrigerant systems.
For appliances containing flammable refrigerants, flushing shall be achieved by breaking the vacuum in the system with
OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a
vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the
system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if
brazing operations on the pipe-work are to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and that ventilation is available.
(8) Charging Procedures
In addition to conventional charging procedures, the following requirements shall be followed:
• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall
be as short as possible to minimize the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system, it shall be pressure-tested with the appropriate purging gas. The system shall be leak-
tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the
site.
(9) Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its
detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil
and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that
electrical power is available before the task is commenced.
(9-1) Become familiar with the equipment and its operation.
OBH790L

14
(9-2) Isolate system electrically.
(9-3) Before attempting the procedure, ensure that:
• mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• all personal protective equipment is available and being used correctly;
• the recovery process is supervised at all times by a competent person;
• recovery equipment and cylinders conform to the appropriate standards.
(9-4) Pump down refrigerant system, if possible.
(9-5) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
(9-6) Make sure that cylinder is situated on the scales before recovery takes place.
(9-7) Start the recovery machine and operate in accordance with manufacturer’s instructions.
(9-8) Do not overfill cylinders. (No more than 80 % volume liquid charge).
(9-9) Do not exceed the maximum working pressure of the cylinder, even temporarily.
(9-10) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equip-
ment are removed from site promptly and all isolation valves on the equipment are closed off.
(9-11) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
(10) Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated
and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the
equipment contains flammable refrigerant.
(11) Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that
all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are
available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special
cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-off
valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand
and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, flammable refrigerants. In
addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with
leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory
working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition
in the event of a refrigerant release. Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant
waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or
compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that
flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning
the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this pro-
cess. When oil is drained from a system, it shall be carried out safely.
OBH790L

15
2-3. PRECAUTIONS WHEN REUSING EXISTING R22/R410a REFRIGERANT PIPES
(1) Flowchart
• Refer to the owchart below to determine if the existing pipes can be used and if it is necessary to use a lter dryer.
• If the diameter of the existing pipes is di󰀨erent from the specied diameter, refer to technological data materials to conrm if the
pipes can be used.
[5] Service tools
Use the below service tools as exclusive tools for R32 refrigerant.
No. Tool name Specifications
Gauge manifold · Only for R32
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
Charge hose · Only for R32
· Use pressure performance of 5.09MPa·G or over.
Electronic scale —
Gas leak detector · Use the detector for R134a, R407C, R410a or R32.
Adaptor for reverse flow check · Attach on vacuum pump.
Refrigerant charge base —
Refrigerant cylinder · Only for R32
· Cylinder with syphon
Refrigerant recovery equipment —
Perform the airtight test, vacuum air purging,
additional refrigerant charging (if necessary),
and gas leak check.
Measure the existing pipe thickness and
check for damage.
The existing pipe thickness meets
specications and the pipes are not damaged.
Check if the existing air conditioner can operate.
After operating the cooling system for about 30
minutes, perform pump down work.
Disconnect the existing air conditioner from the
pipes.
Connect the new air conditioner.
Test run The existing pipes cannot be reused.
Use new pipes.
Note:
If the existing air conditioner cannot operate, use a
refrigerant recovery device to collect the refrigerant.
Use new piping for following models.
MXZ-3F54VF - E1 , ET1
MXZ-3F68VF - E1 , ET1
MXZ-4F72VF - E1 , ET1
The existing pipe thickness does not meet
specications or the pipes are damaged.
OBH790L

16
(2) Cautions for refrigerant piping work
New refrigerant R32 is adopted for replacement inverter series. Although the refrigerant piping work for R32 is same as for
R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working pressure of
R32 is 1.6 times higher than that of R22, their sizes of flared sections and flare nuts are different.
Thickness of pipes
Because the working pressure of R32 is higher compared to R22, be sure to use refrigerant piping with thickness shown
below. (Never use pipes of 0.7 mm or below.)
Dimensions of flare cutting and flare nut
The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that, R32 is
a refrigerant, which has higher risk of leakage because its working pressure is higher than that of other refrigerants.
Therefore, to enhance airtightness and strength, flare cutting dimension of copper pipe for R32 has been specified sepa-
rately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R32 also has partly
been changed to increase strength as shown below. Set copper pipe correctly referring to copper pipe flaring dimensions
for R32 below. For 1/2 and 5/8 inch pipes, the dimension B changes.
Use torque wrench corresponding to each dimension.
Tools for R32 (The following table shows whether conventional tools can be used or not.)
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
0.8
0.8
0.8
1.0
—
0.8
0.8
0.8
1.0
1.0
Nominal
dimensions(inch)
Diagram below: Piping diameter and thickness
Outside
diameter (mm)
Thickness (mm)
R32/R410a R22
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
9.1
13.2
16.6
19.7
—
9.0
13.0
16.2
19.4
23.3
Nominal
dimensions(inch)
Flare cutting dimensions
Outside
diameter(mm) R32/R410a R22
Dimension A ( )
+0
-0.4 (mm)
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
17.0
22.0
26.0
29.0 *
—
17.0
22.0
24.0
27.0
36.0
Nominal
dimensions(inch)
Flare nut dimensions Outside
diameter(mm) Dimension B
R32/R410a
* 36.0mm for
indoor unit
of RP100,
125 and 140
R22
(mm)
Dimension A
Dimension B
Tools and materials Use R32 tools Can R22 tools be used? Can R407C tools be used? Can R410a tools be used?
Gauge manifold Air purge, refrigerant
charge and operation
check
Tool exclusive for R32
Charge hose Tool exclusive for R32
Gas leak detector Gas leak check Tool for HFC refrigerant
Refrigerant recovery
equipment Refrigerant recovery Tool exclusive for R32
Refrigerant cylinder Refrigerant charge Tool exclusive for R32
Safety charger Prevent compressor malfunction
when charging refrigerant by
spraying liquid refrigerant
Tool exclusive for R32
Charge valve Prevent gas from blowing out
when detaching charge hose
Tool exclusive for R32
Vacuum pump Vacuum drying and air
purge
Tools for other refrigerants
can be used if equipped
with adapter for reverse
ow check
(Usable if equipped with
adapter for reverse
ow)
(Usable if equipped with
adapter for reverse
ow)
(Usable if equipped with
adapter for reverse
ow)
Flare tool Flaring work of piping Tools for other refrigerants
can be used by adjusting
aring dimension
(Usable by adjusting
aring dimension) (Usable by adjusting aring dimension) (Usable by adjusting aring dimension)
Bender Bend the pipes Tools for other refrigerants
can be used
Pipe cutter Cut the pipes Tools for other refrigerants
can be used
Welder and nitrogen
gas cylinder Weld the pipes Tools for other refrigerants can be used
Refrigerant charging
scale Refrigerant charge Tools for other refrigerants can be used
Vacuum gauge or
thermistor vacuum
gauge and vacuum
valve
Check the degree of vacuum.
(Vacuum valve prevents back
ow of oil and refrigerant to
thermistor vacuum gauge)
Tools for other refrigerants
can be used
Charging cylinder Refrigerant charge Tool exclusive for R32 –
: Prepare a new tool. (Use the new tool as the tool exclusive for R32.)
: Tools for other refrigerants can be used under certain conditions.
: Tools for other refrigerants can be used.
OBH790L

17
2-4. CHOOSING THE OUTDOOR UNIT INSTALLATION LOCATION
R32 is heavier than air—as well as other refrigerants—
so tends to accumulate at the base (in the vicinity of the
floor). If R32 accumulates around base, it may reach a
flammable concentration in case room is small. To avoid
ignition, maintaining a safe work environment is required
by ensuring appropriate ventilation. If a refrigerant leak is
confirmed in a room or an area where there is insufficient
ventilation, refrain from using of flames until the work
environment can be improved by ensuring appropriate
ventilation.
Install outdoor unit in a place where at least one of the
four sides is open, and in a sufficiently large space with-
out depressions.
2-5. MINIMUM INSTALLATION AREA
If you unavoidably install a unit in a space where all four sides are blocked or there are depressions, confirm that one of
these situations (A, B or C) is satisfied.
Note: These countermeasures are for keeping safety not for specification guarantee.
A) Secure sufficient installation space (minimum installation areaAmin).
Install in a space with an installation area of Amin or more, corresponding to refrigerant quantity M (factory-charged
refrigerant + locally added refrigerant).
B) Install in a space with a depression height of 0.125 [m] or less.
OK OK
OK NG
Amin
Height from the bottom of
0.125 [m] or less Height from the bottom of 0.125 [m] or less
M [kg] Amin [m²]
1.0 12
1.5 17
2.0 23
2.5 28
3.0 34
3.5 39
4.0 45
4.5 50
5.0 56
5.5 62
6.0 67
6.5 73
7.0 78
7.5 84
OBH790L

18
C) Create an appropriate ventilation open area.
Make sure that the width of the open area is 0.9 [m] or more and the height of the open area is 0.15 [m] or more.
However, the height from the bottom of the installation space to the bottom edge of the open area should be 0.125 [m]
or less.
Open area should be 75% or more opening.
■ Indoor units
Install in a room with a floor area of A min or more, corresponding to refrigerant quantity M (factory-charged refriger-
ant + locally added refrigerant).
* For the factory-charged refrigerant amount, refer to the spec nameplate or installation manual.
For the amount to be added locally, refer to the installation manual.
Install the indoor unit so that the height from the floor to the bottom of the indoor unit is h0;
for wall mounted: 1.8 m or more;
for ceiling suspended, cassette and ceiling concealed: 2.2 m or more.
When installing floor standing, refer to indoor unit Installation manual.
There are restrictions in installation height for each model, so read the installation manual for the particular unit.
Case 1: for wall mounted, ceiling suspended, cassette and concealed
75% or more opening
Width W 0.9 [m] or more Height from the bottom
0.125 [m] or less
Height H 0.15 [m] or more
M [kg] Amin [m²]
1.0 3
1.5 4.5
2.0 6
2.5 7.5
3.0 9
3.5 12
4.0 15.5
4.5 20
5.0 24
5.5 29
6.0 35
6.5 41
7.0 47
7.5 54 Wall mounted
h0 1.8 [m]
Ceiling concealedCassetteCeiling suspended
h0 2.2 [m]h0 2.2 [m]h0 2.2 [m]
OBH790L

19
PART NAMES AND FUNCTIONS3
ACCESSORIES
Model
MXZ-2F33VF MXZ-2F33VF3
MXZ-2F42VF MXZ-2F42VF3
MXZ-2F53VF MXZ-2F53VF3
MXZ-2F33VF2 MXZ-2F33VF4
MXZ-2F42VF2 MXZ-2F42VF4
MXZ-2F53VF2 MXZ-2F53VF4
MXZ-3F54VF MXZ-3F54VF2
MXZ-3F68VF MXZ-3F68VF2
MXZ-4F72VF MXZ-4F72VF2
MXZ-4F80VF2
MXZ-3F54VF3 MXZ-4F54VF4
MXZ-3F54VF3 MXZ-4F68VF4
MXZ-3F54VF3 MXZ-4F72VF4
MXZ-3F54VF3 MXZ-4F80VF4
Drain socket 1 1
Drain cap - 2
Air outlet
Drain outlet
Air inlet
(Back and side)
MXZ-3F54VF MXZ-3F54VF2 MXZ-3F54VF3 MXZ-3F54VF4
MXZ-3F68VF MXZ-3F68VF2 MXZ-3F68VF3 MXZ-3F68VF4
MXZ-4F72VF MXZ-4F72VF2 MXZ-4F72VF3 MXZ-4F72VF4
MXZ-4F80VF2 MXZ-4F80VF3 MXZ-4F80VF4
MXZ-2F33VF MXZ-2F33VF2 MXZ-2F33VF3 MXZ-2F33VF4
MXZ-2F42VF MXZ-2F42VF2 MXZ-2F42VF3 MXZ-2F42VF4
MXZ-2F53VF MXZ-2F53VF2 MXZ-2F53VF3 MXZ-2F53VF4
MXZ-2F53VFH MXZ-2F53VFH2 MXZ-2F53VFH3 MXZ-2F53VFH4
Air inlet
Air outlet
Drain outlet
Piping
Drain hose
(Back and side)
OBH790L

20
Model MXZ-4F83VF MXZ-5F102VF MXZ-6F120VF2
MXZ-4F83VF2 MXZ-5F102VF2 MXZ-6F122VF
Drain socket 1
Drain cap 5
ACCESSORIES
MXZ-4F83VF
MXZ-5F102VF
MXZ-2F53VFHZ
Air outlet
Drain outlet
Air inlet
(Back and side)
Air outlet
Drain outlet
Air inlet
(Back and side)
MXZ-4F83VFHZ
MXZ-6F120VF2
MXZ-4F83VF2
MXZ-5F102VF2
MXZ-2F53VFHZ2
MXZ-4F83VFHZ2
MXZ-6F122VF
OBH790L
