Mitsubishi Electric DD-6000 User manual

MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
9351JeronimoRd.Irvine,CA92618
Copyright©2000MitsubishiDigitalElectronicsAmerica,Inc.
AllRightsReserved
Operating conditions: Temperature:5°Cto 35°C
Operationstatus: Horizontal
Video output: 1.0V(p-p),75Ω,negative
sync., pin jack x 1
S Video output: (Y) 1.0V(p-p),75Ω,nega-
tive sync., Mini DIN 4-pin x 1
(C) 0.286 V (p-p), 75Ω
ColorDifference outputs: (Y) 1.0 V (p-p), 75Ω,
(1 Interlaced) negative sync., pin jack x 1
(1Progressive) (Cr,Pr)/(Cb,Pb) 0.7 V(p-p),
75Ω, pin jack x 2
Digital Audio output: (Bitstream/PCM)0.5V (p-p),
75Ω, pin jack x 1,
Optical connector x 1
Analog Audio output: 2.0 V (rms), 220Ω, pin jack
2 CH L R x 2,
5.1CHSURROUND x6
CAUTION
Before servicing this chassis, it is important that the service person reads all SAFETY PRECAUTIONS and the
SAFETYNOTICEin thismanual.
SPECIFICATIONS
Power Supply: 120V AC, 60 Hz
Power Consumption: 19W
Weight: 6.8 lb.
External Dimensions: 17"x3-1/4"x12-1/4"
(W/H/D)
Signal System: StandardNTSC
Laser: Semiconductorlaser,
wavelength650nm
Frequency Range: (DigitalAudio)
AudioCD: 4 Hz to 20 kHz
DVDLinear-
48kHZSampling: 4 Hz to 22 kHz
96kHZSampling: 4 Hz to 44 kHz
Signal-To-Noise Ratio: Morethan112dB (EIAJ)
Audio Dynamic Range: Morethan106 dB(EIAJ)
HarmonicDistortion: Less than 0.001%
Wow and flutter: Belowmeasurable level
(less than ± 0.001%
(W.PEAK))(EIAJ)
Service
Manual
2000
MITSUBISHELECTRIC
Model
DD-6000
DVD Player
OPEN/CLOSE
STOP PLAY PAUSE/STEP
POWER
DD-6000
STANDBY
SKIP
REV FWD
/
CDVD
TITLETRK CHP TOTAL REMAIN MEMORY
HDCD
Thisservicemanualcontainsthedifferencesbetween modelsDD-5000 andDD-6000.
Italsoincludes informationforthe DD-6000thatis identicalto theDD-5000.

SAFETY PRECAUTIONS
LEAKAGECURRENTCHECK
Plug the AC line cord directly into a 120V AC outlet (do
not use an isolation transformer for this check). Use an
AC voltmeter, having 5000 Ωper volt or more sensitivity.
Connect a 1500 Ω10 W resistor, paralleled by a 0.15 µF
150V AC capacitor between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of
the cabinet (antennas, handle bracket, metal cabinet
screwheads, metal overlays, control shafts, etc.).
Measure the AC voltage across the 1500 Ωresistor.
The test must be conducted with the AC switch on and
then repeated with the AC switch off. The AC voltage
indicated by the meter may not exceed 0.3 V. A reading
exceeding 0.3 V indicates that a dangerous potential
exists, the fault must be located and corrected.
Repeat the above test with the DVD VIDEO PLAYER
power plug reversed.
NEVER RETURN A DVD VIDEO PLAYER TO THE
CUSTOMER WITHOUT TAKING NECESSARY
CORRECTIVE ACTION.
READING SHOULD NOT EXCEED 0.3V
DVD VIDEO PLAYER AC VOLTMETER
(5000 W per volt
or more sensitivity)
Good earth ground
such as a water pipe,
conduit, etc.
1500 W
10 W
0.15 µF 150V AC
AC OUTLET
Test all exposed metal.

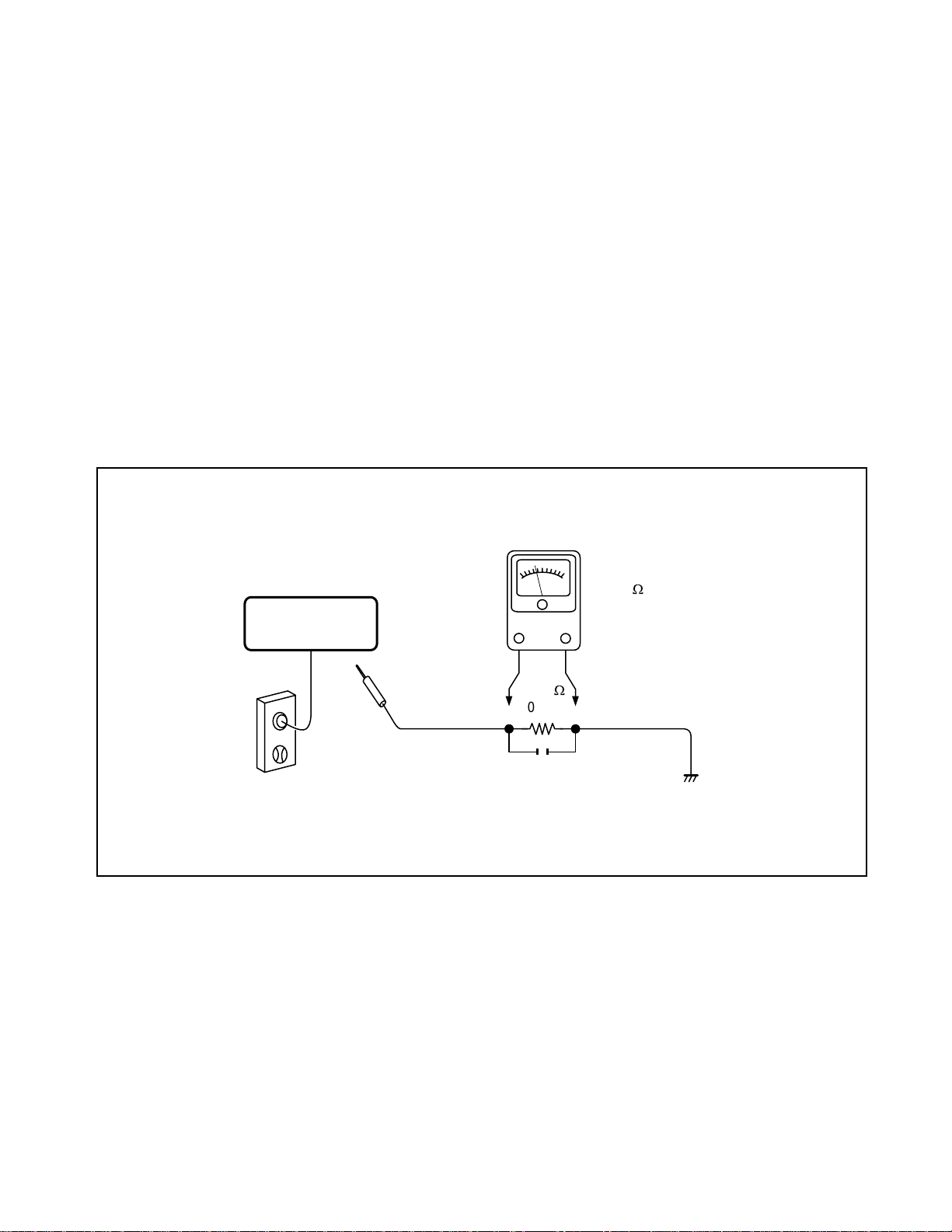

Voltmeter Hook-up for Leakage Current Check

LASER BEAM CAUTION LABEL
When the power supply is on, do not remove this laser caution label. If it is removed, laser radiation may be recceived.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
SAFETY NOTICE

SECTION 2
PART REPLACEMENT AND ADJUSTMENT PROCEDURES
SECTION 3
SERVICING DIAGRAMS
1. CIRCUIT SYMBOLS AND
SUPPLEMENTARY EXPLANATION
1-1. Precautions for Part Replacement
1-2. Solid Resistor Indication
1-3. Capacitance Indication
1-4. Inductor Indication
1-5. Waveform and Voltage Measurement
1-6. Others
1-7. When Replaced ROM ICs or Upgraded Firmwareo
2. PRINTED WIRING BOARD AND
SCHEMATIC DIAGRAM
3. BLOCK DIAGRAMS
3-1. Overall Block Diagram
3-2. Main Block Diagram
3-2-1. Logical System Block Diagram
3-3. Output Block Diagram
4. CIRCUIT DIAGRAMS
4-1. Output Circuit Diagram
4-2. Sub Video Circuit Diagram
CONTENTS
SECTION 1
GENERAL DESCRIPTIONS
SECTION 4
PARTS LIST
SAFETY PRECAUTION
NOTICE
ABBREVIATIONS
1. Integrated Circuit (IC)
2. Capacitor (Cap)
3. Resistor (Res)
4. EXPLODED VIEWS
4-1. Packing Assembly
4-2. Chassis Assembly
4-3. Mechanism Assembly
5. PARTS LIST

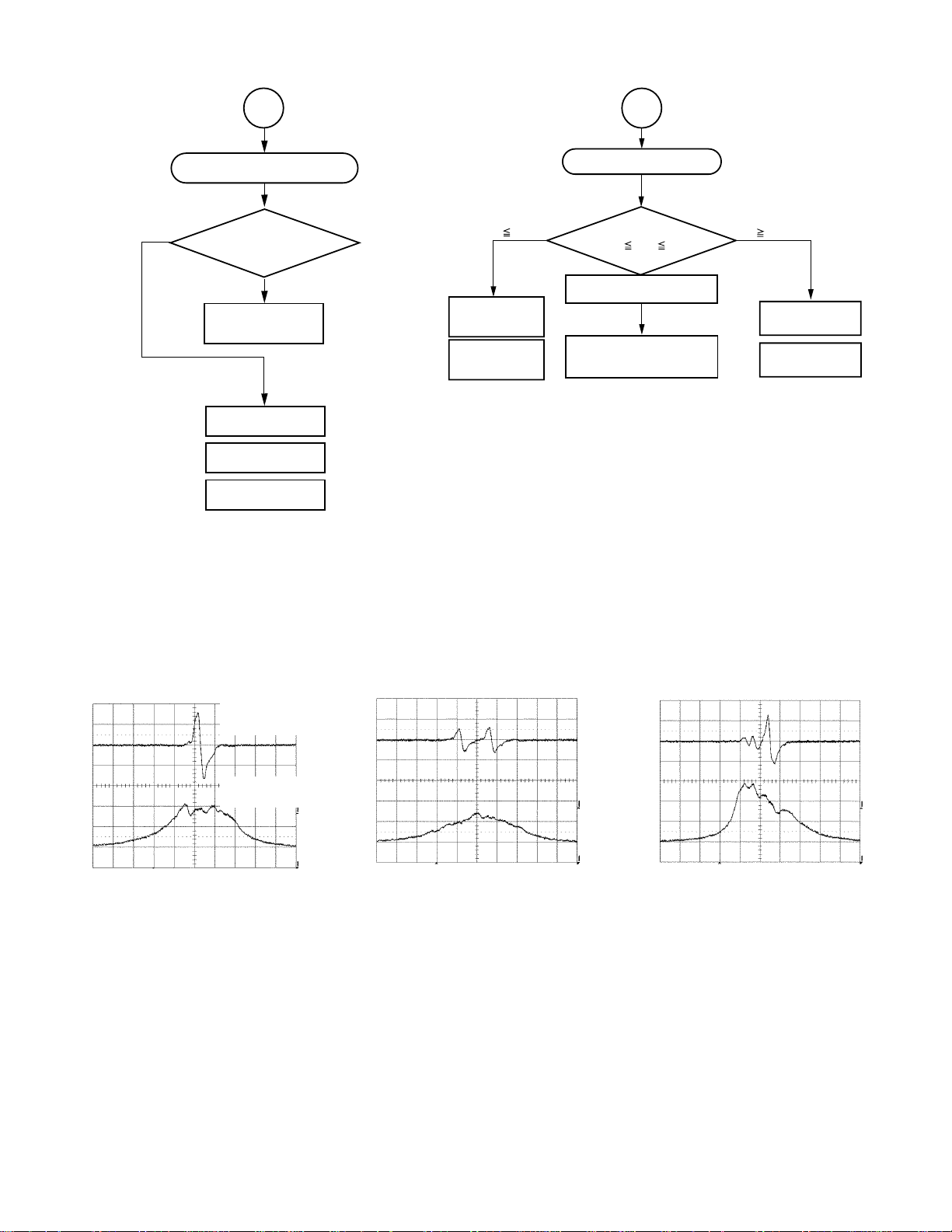

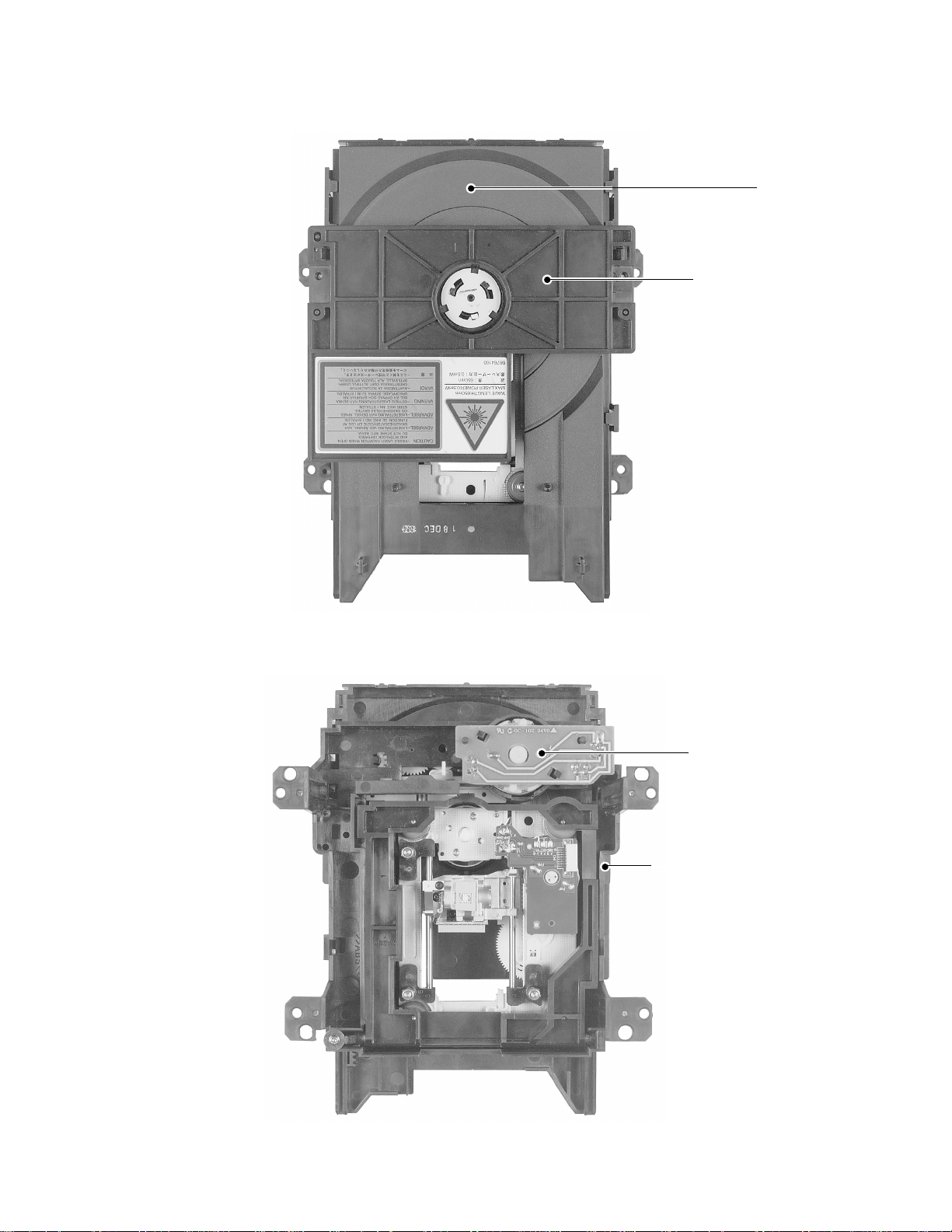

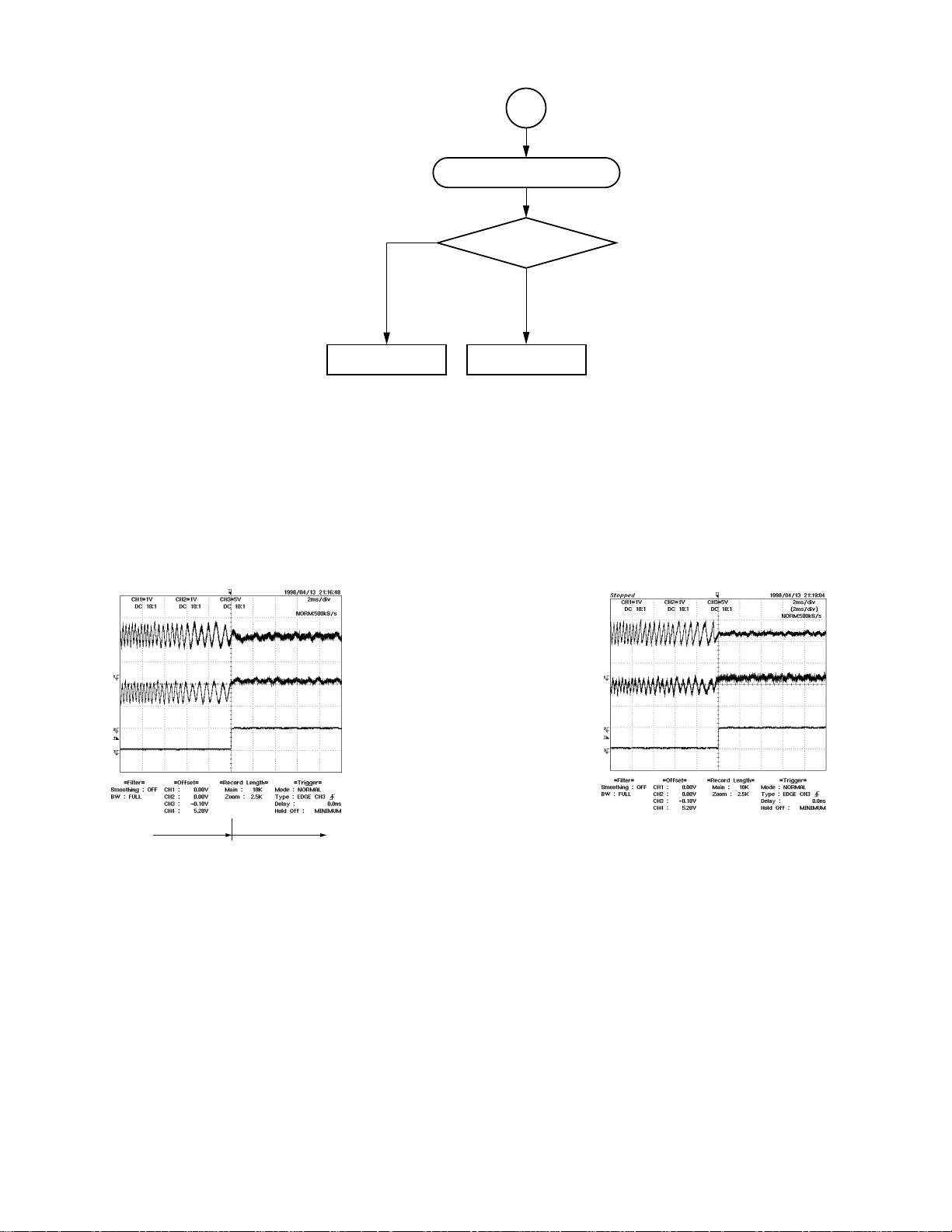

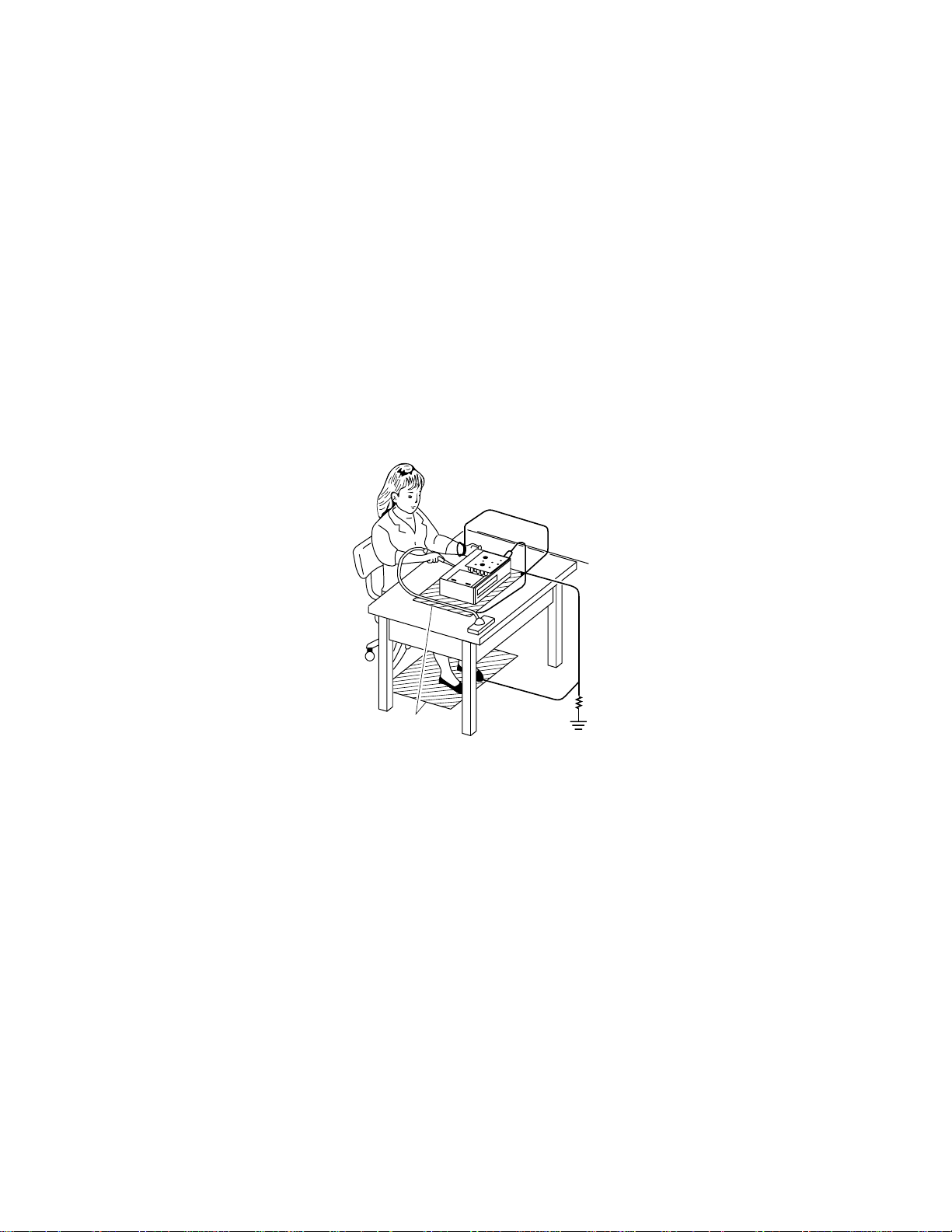

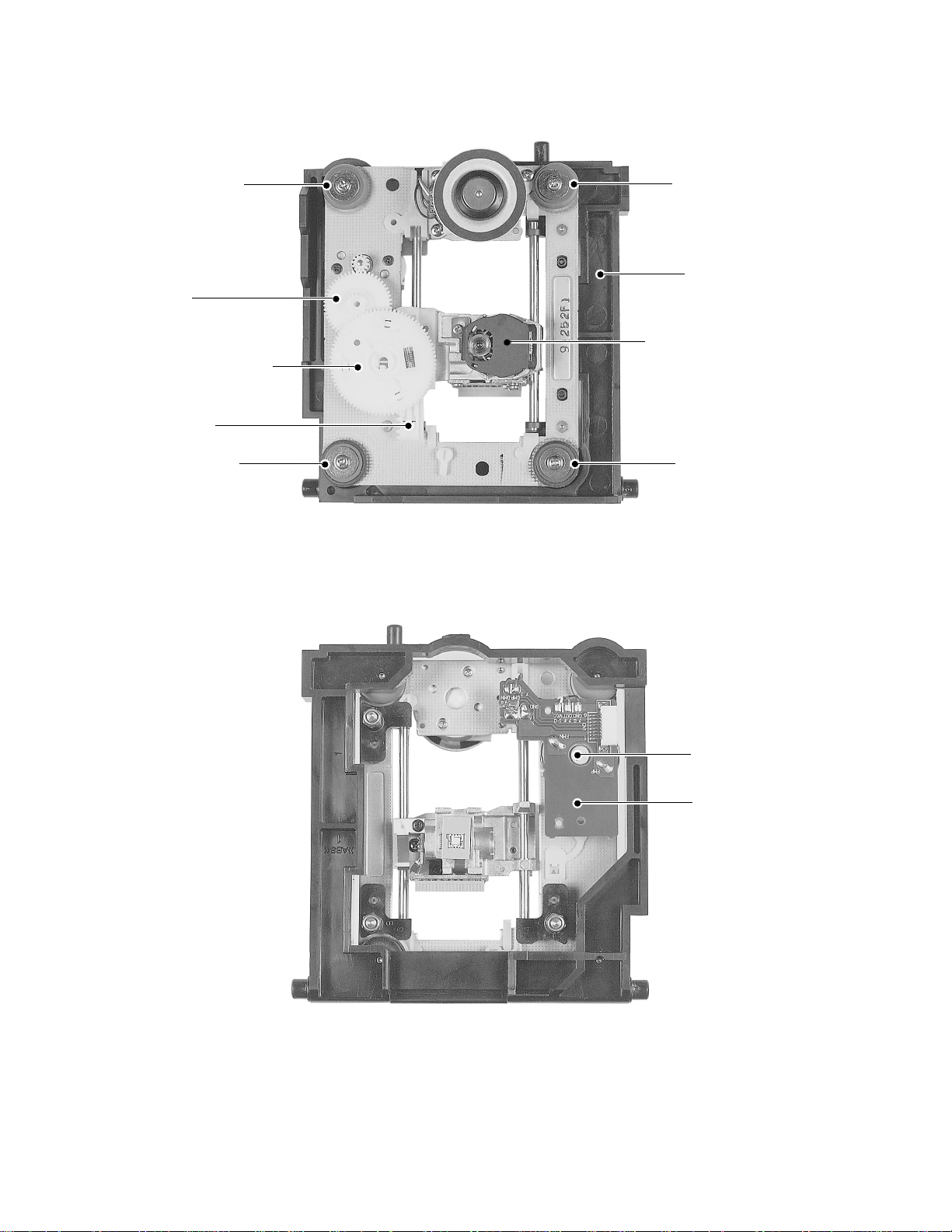

General descriptions such as preparation for servicing, location of mechanical parts and troubleshooting are the same as
model DD-5000.
The pages from model DD-5000, Section 1, are included in this text.

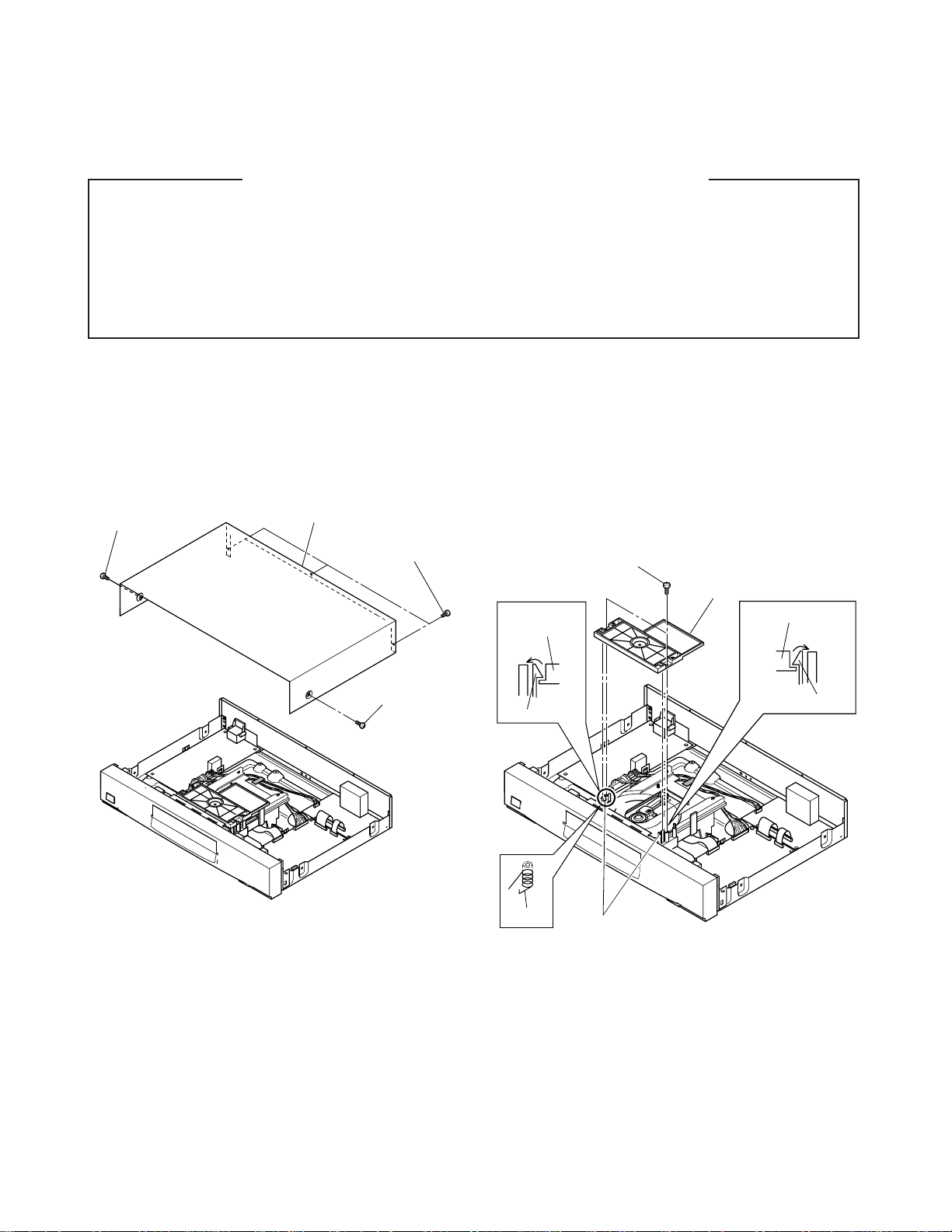

Part replacement and adjustment procedures are the same as DD-5000.
The pages from model DD-5000, Section 2, are included in this text.
