Mitsubishi Electric FR-A8AR User manual

INVERTER
Plug-in option
INSTRUCTION MANUAL
PRE-OPERATION INSTRUCTIONS 1
INSTALLATION 2
RELAY OUTPUT 3
FR-A8AR
Relay output function

2
Thank you for choosing this Mitsubishi inverter plug-in option.
This Instruction Manual provides handling information and precautions for use of this product. Incorrect handling might cause an unexpected
fault. Before using this product, always read this Instruction Manual carefully to use this product correctly.
Please forward this Instruction Manual to the end user.
Electric Shock Prevention
Injury Prevention
Safety instructions
Do not attempt to install, operate, maintain or inspect the product until you have read through this Instruction Manual and appended
documents carefully and can use the equipment correctly. Do not use this product until you have a full knowledge of the equipment, safety
information and instructions. In this Instruction Manual, the safety instruction levels are classified into "Warning" and "Caution".
Incorrect handling may cause hazardous conditions, resulting in death or severe injury.
Incorrect handling may cause hazardous conditions, resulting in medium or slight injury, or may cause only material
damage.
The level may even lead to a serious consequence according to conditions. Both instruction levels must be followed
because these are important to personal safety.
Warning
While the inverter power is ON, do not open the front cover or the wiring cover. Do not run the inverter with the front cover or the wiring cover removed. Otherwise
you may access the exposed high voltage terminals or the charging part of the circuitry and get an electric shock.
Do not remove the inverter front cover even if the power supply is disconnected. The only exception for this would be when performing wiring and periodic
inspection. You may accidentally touch the charged inverter circuits and get an electric shock.
Before wiring or inspection, LED indication of the inverter unit operation panel must be switched OFF. Any person who is involved in wiring or inspection shall wait
for at least 10 minutes after the power supply has been switched OFF and check that there is no residual voltage using a tester or the like. For some time after the
power-OFF, a high voltage remains in the smoothing capacitor, and it is dangerous.
Any person who is involved in wiring or inspection of this equipment shall be fully competent to do the work.
The plug-in option must be installed before wiring. Otherwise you may get an electric shock or be injured.
Do not touch the plug-in option or handle the cables with wet hands. Otherwise you may get an electric shock.
Do not subject the cables to scratches, excessive stress, heavy loads or pinching. Otherwise you may get an electric shock.
Caution
The voltage applied to each terminal must be the ones specified in the Instruction Manual. Otherwise a burst, damage, etc. may occur.
The cables must be connected to the correct terminals. Otherwise a burst, damage, etc. may occur.
The polarity (+ and -) must be correct. Otherwise a burst or damage may occur.
While power is ON or for some time after power OFF, do not touch the inverter as it will be extremely hot. Touching these devices may cause a burn.
Warning
Caution
Caution

3
Additional Instructions
The following instructions must be also followed. If the product is handled incorrectly, it may cause unexpected fault, an injury, or an electric
shock.
Caution
Transportation and mounting
Do not install or operate the plug-in option if it is damaged or has parts missing.
Do not stand or rest heavy objects on the product.
The mounting orientation must be correct.
Foreign conductive objects must be prevented from entering the inverter. That includes screws and metal fragments or other flammable substance such as oil.
If halogen-based materials (fluorine, chlorine, bromine, iodine, etc.) infiltrate into a Mitsubishi product, the product will be damaged. Halogen-based materials are
often included in fumigant, which is used to sterilize or disinfest wooden packages. When packaging, prevent residual fumigant components from being infiltrated
into Mitsubishi products, or use an alternative sterilization or disinfection method (heat disinfection, etc.) for packaging. Sterilization of disinfection of wooden
package should also be performed before packaging the product.
Trial run
Before starting operation, each parameter must be confirmed and adjusted. A failure to do so may cause some machines to make unexpected motions.
Warning
Usage
Do not modify the equipment.
Do not perform parts removal which is not instructed in this manual. Doing so may lead to fault or damage of the product.
Caution
Usage
When parameter clear or all parameter clear is performed, the required parameters must be set again before starting operations. Because all parameters return to
their initial values.
Static electricity in your body must be discharged before you touch the product.
Maintenance, inspection and parts replacement
Do not carry out a megger (insulation resistance) test.
Disposal
The inverter must be treated as industrial waste.
General instruction
Many of the diagrams and drawings in this Instruction Manual show the inverter without a cover or partially open for explanation. Never operate the inverter in this
manner. The cover must be reinstalled and the instructions in the Instruction Manual must be followed when operating the inverter.

4
─CONTENTS ─
1 PRE-OPERATION INSTRUCTIONS 5
1.1 Unpacking and checking the product.......................................................................................................5
1.1.1 Product confirmation.......................................................................................................................................5
1.2 Component names .....................................................................................................................................6
1.3 Specifications .............................................................................................................................................7
2INSTALLATION 8
2.1 Pre-installation instructions ......................................................................................................................8
2.2 Installation procedure ................................................................................................................................8
2.3 Wiring ........................................................................................................................................................11
3 RELAY OUTPUT 15
3.1 Internal block diagram .............................................................................................................................15
3.2 Terminals...................................................................................................................................................16
3.3 Parameter list............................................................................................................................................16
3.4 Parameter setting .....................................................................................................................................17

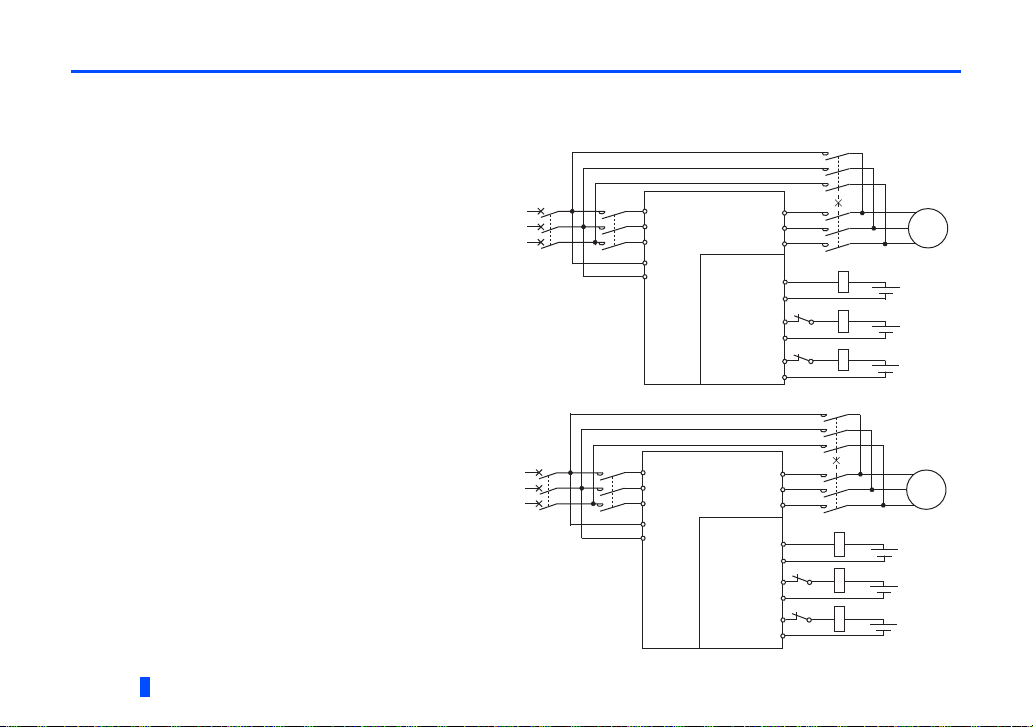

3.5 Connection diagram when using electronic bypass sequence function ............................................18

PRE-OPERATION INSTRUCTIONS 5
1
1PRE-OPERATION INSTRUCTIONS
1.1 Unpacking and checking the product
Take the plug-in option out of the package, check the product name, and confirm that the product is as you ordered and intact.
The product is a plug-in option for the FR-A800/F800 series.
1.1.1 Product confirmation

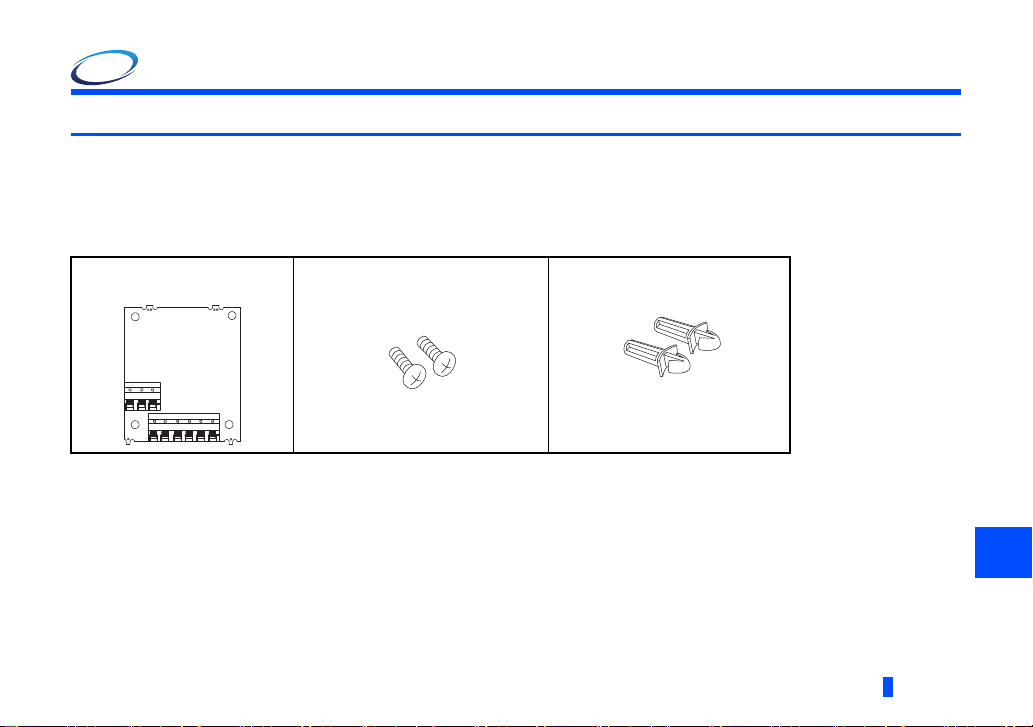

Check the enclosed items.
Plug-in option
................................................1
Mounting screw (M3 8 mm)
.........................2 (Refer to page 8.)
Spacer
....................2 (Refer to page 8.)

6PRE-OPERATION INSTRUCTIONS

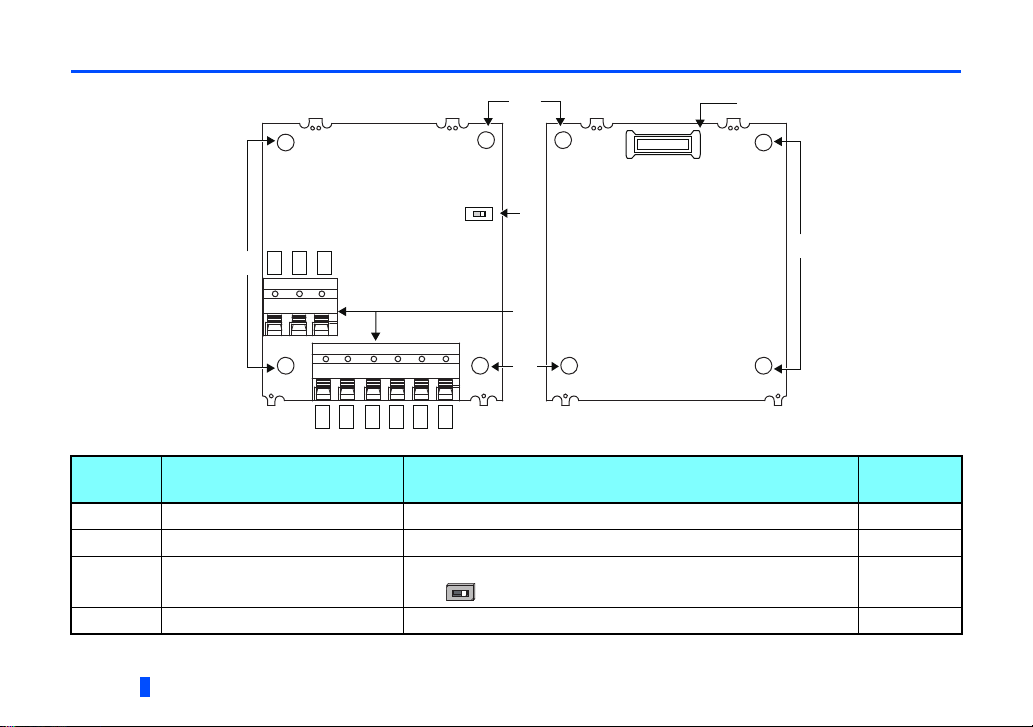

1.2 Component names
Symbol Name Description Refer to
page
a Mounting hole Fixes the option to the inverter with screws, or installs spacers. 8
b Terminal block Connects to devices that receive signals from the inverter. 11
cSwitch for manufacturer setting
(SW1)
Switch for manufacturer setting. Do not change the initial setting.
(OFF )
―
d Connector Connects to the option connector of the inverter. 8
Front view Rear view
(a) (d)
SW1
1A
1B
1C
2A
2B
2C
3A
3B
3C
(a)
O
N
(a)
(a)
(c)
(b)
O
N

PRE-OPERATION INSTRUCTIONS 7
1
1.3 Specifications
Type of output signal
1 changeover contact output (three relays provided)
Contact capacity
230 VAC...0.3 A
30 VDC...0.3 A
NOTE
• Use contacts within the rated capacity. Failure to do so may cause contacts to wear out quickly or to be welded.

8INSTALLATION
2INSTALLATION
2.1 Pre-installation instructions
Check that the inverter's input power and the control circuit power are both OFF.
2.2 Installation procedure
Caution
With input power ON, do not install or remove the plug-in option. Otherwise, the inverter and plug-in option may be damaged.
To avoid damage due to static electricity, static electricity in your body must be discharged before you touch the product.
(1) Remove the inverter front cover. (Refer to Chapter 2 of
the Instruction Manual (Detailed) of the inverter for details
on how to remove the front cover.)
(2) For the two mounting holes (as shown in the next page)
that will not be tightened with mounting screws, insert
spacers.
(3) Fit the connector of the plug-in option to the guide of the
connector on the inverter unit side, and insert the plug-in
option as far as it goes. (Insert it to the inverter option
connector 1 or 2.)
(4) Fit the two locations, the left and right, of the plug-in
option securely to the inverter unit by screwing in the
supplied mounting screws. (tightening torque 0.33 N·m to
0.40 N·m) If the screw holes do not line up, the connector
may not be inserted deep enough. Check the connector.
Spacer
Spacer
Inverter side
option connector
Example of installation to connector 1

INSTALLATION 9
2
Spacer
Spacer
Mounting screw
Do not insert the plug-in option to the connector 3.
(When the option is connected to the connector 3,
it may interfere with the front cover and the inverter
or the option may be damaged.)
Mounting screw
Spacer
Spacer
Mounting screw
Connector 1Connector 2
Connector 3

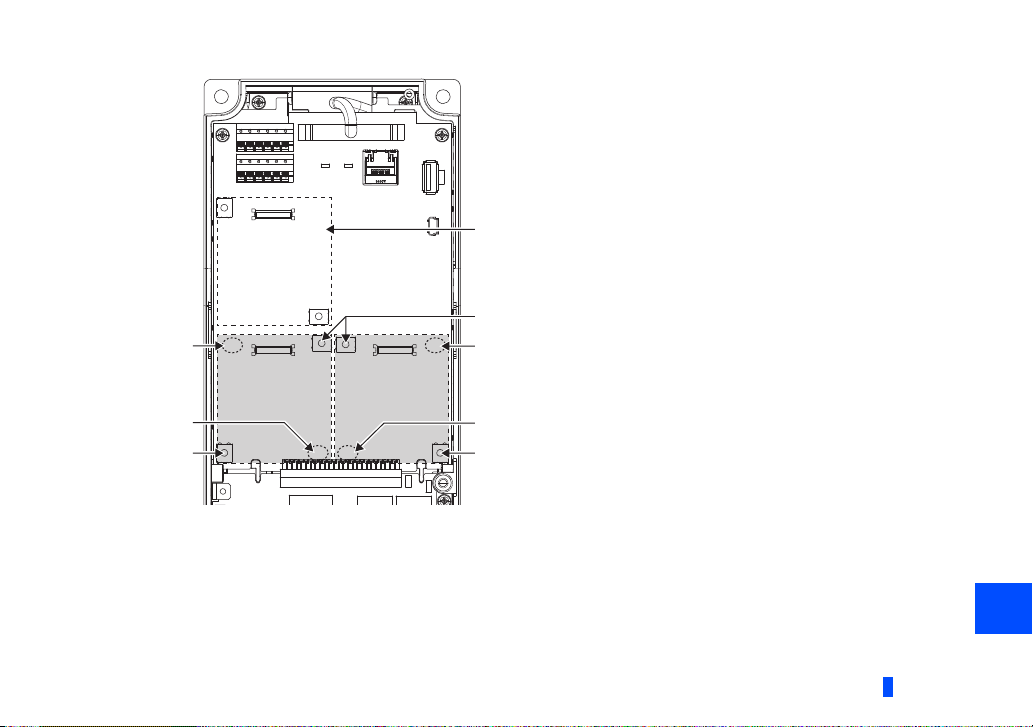

Insertion positions for screws and spacers

10 INSTALLATION
NOTE
• When mounting/removing the plug-in option, hold the sides of the option. Do not press on the parts on the option
circuit board. Stress applied to the parts by pressing, etc. may cause a failure.
• Caution must be applied to mounting screws falling off when removing and mounting the plug-in option.
• Only one option can be used. When multiple options are mounted, priority is given to option connectors 1, 2 and 3 on
the inverter in this order, and options having a lower priority do not function.
• When the inverter cannot recognize that the option unit is mounted due to improper installation, etc., the protective
function (E.1 to E.3) is activated. A different indication will appear according to the mounted position (option connector
1 to 3).
• When removing the plug-in option, remove the two screws on the left and right, then pull it straight out. Pressure
applied to the connector and to the option board may break the option.

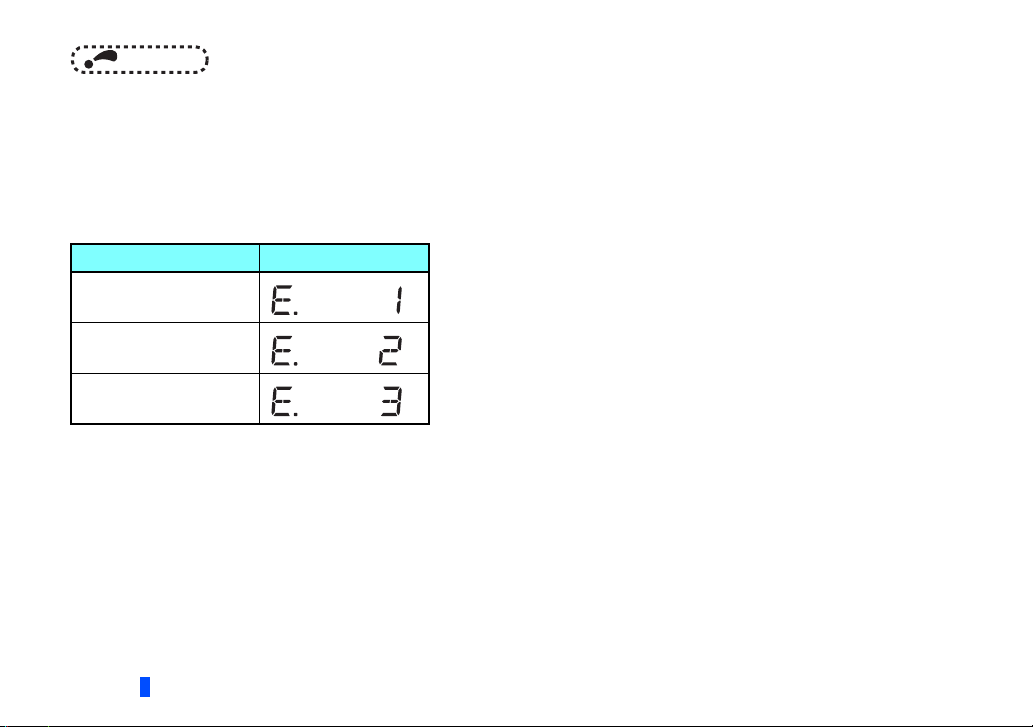

Mounted position Fault indication
Option connector 1
Option connector 2
Option connector 3

INSTALLATION 11
2
2.3 Wiring

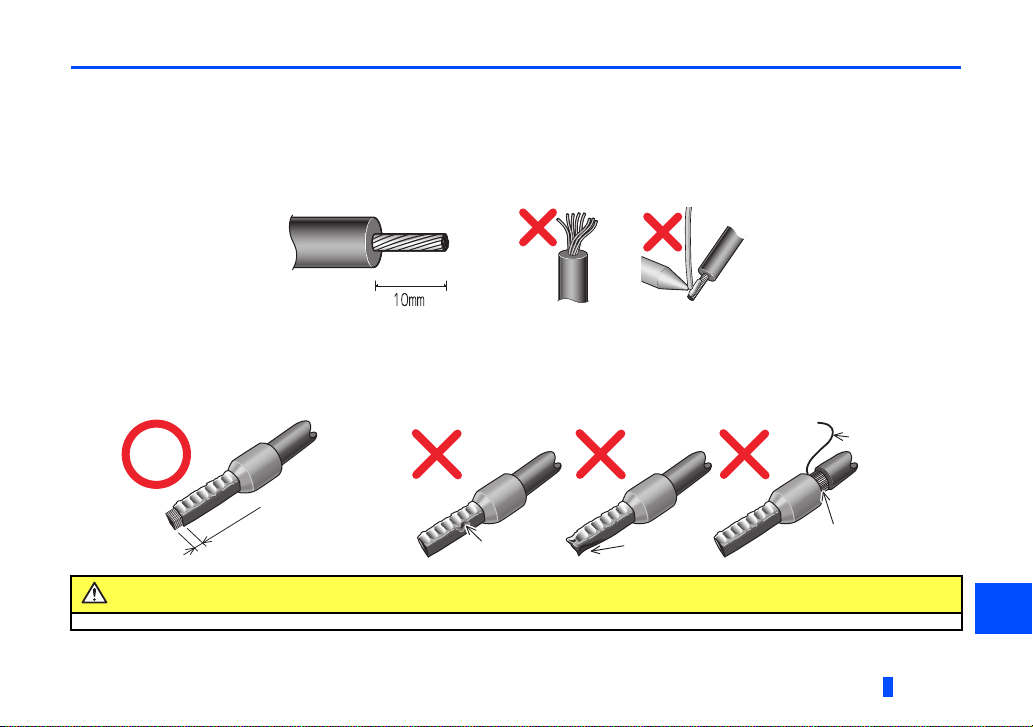

(1) For the wiring, strip off the sheath of a cable, and use it with a blade terminal. For a single wire, strip off the sheath of the
wire and apply directly. Insert the blade terminal or the single wire into a socket of the terminal.
Strip off the sheath for the below length. If the length of the sheath peeled is too long, a short circuit may occur with neighboring
wires. If the length is too short, wires might come off.
Wire the stripped cable after twisting it to prevent it from becoming loose. In addition, do not solder it.
Crimp the blade terminal.
Insert wires to a blade terminal, and check that the wires come out for about 0 to 0.5 mm.
Check the condition of the blade terminal after crimping. Do not use a blade terminal of which the crimping is inappropriate, or
the face is damaged.
Cable sheath stripping length
Caution
After wiring, wire offcuts must not be left in the inverter. They may cause a fault, failure or malfunction.
Crumpled tip
Wires are not inserted
into the sleeve
Unstranded
wires
Damaged
WireWire
SleeveSleeve
0 to 0.5mm0 to 0.5mm

12 INSTALLATION
Blade terminals commercially available (as of February 2012. The product may be changed without notice.)
 A ferrule terminal with an insulation sleeve compatible with the MTW wire which has a thick wire insulation.
Cable gauge
(mm2)
Ferrule terminal model
Manufacturer Crimping tool
name
With
insulation sleeve
Without
insulation sleeve For UL wire 
0.3 AI 0,5-10WH — —
Phoenix Contact
Co., Ltd. CRIMPFOX 6
0.5 AI 0,5-10WH — AI 0,5-10WH-GB
0.75 AI 0,75-10GY A 0,75-10 AI 0,75-10GY-GB
1 AI 1-10RD A 1-10 AI 1-10RD/1000GB
1.25, 1.5 AI 1,5-10BK A 1,5-10 —
0.75
(for two cables) AI-TWIN 2 0,75-10GY — —
Cable gauge (mm2)Blade terminal
product number
Insulation
product number Manufacturer Crimping tool product number
0.3 to 0.75 BT 0.75-11 VC 0.75 NICHIFU Co.,Ltd. NH 69

INSTALLATION 13
2
•Wireremoval
Pull the wire while pushing the open/close button all the way down firmly with a flathead screwdriver.
(2) Insert the cable into a socket.
When using a single wire or stranded wires without a blade terminal, push the
open/close button all the way down with a flathead screwdriver, and insert the
wire.
Flathead screwdriver
Open/close button
Flathead screwdriver
Open/close button

14 INSTALLATION
NOTE
• When using stranded wires without a blade terminal, twist enough to avoid short circuit with a nearby terminals or
wires.
• Pulling out the wire forcefully without pushing the open/close button all the way down may damage the terminal block.
• Use a small flathead screwdriver (tip thickness: 0.4 mm/tip width: 2.5 mm). If a flathead screwdriver with a narrow tip
is used, terminal block may be damaged.
Commercially available product (as of February 2012. The product may be changed without notice.)
• Place the flathead screwdriver vertical to the open/close button. In case the blade tip slips, it may cause an inverter
damage or injury.
• When wiring cables to the inverter's RS-485 terminals while a plug-in option is mounted, take caution not to let the
cables touch the circuit board of the option or of the inverter. Otherwise, electromagnetic noises may cause
malfunctions.
Name Model Manufacturer
Driver SZF 0- 0,4 2,5 Phoenix Contact Co., Ltd.

RELAY OUTPUT 15 3
3RELAY OUTPUT
3.1 Internal block diagram
Three signals can be selected among inverter's standard signals (RUN, SU, FU, etc.) to be output as relay contact (1C)
signals.
The following figure is the internal block diagram of the FR-A8AR.
1C
ControllerConnector
RA1 1B
1A
2C
RA2 2B
2A
3C
RA3 3B
3A

16 RELAY OUTPUT

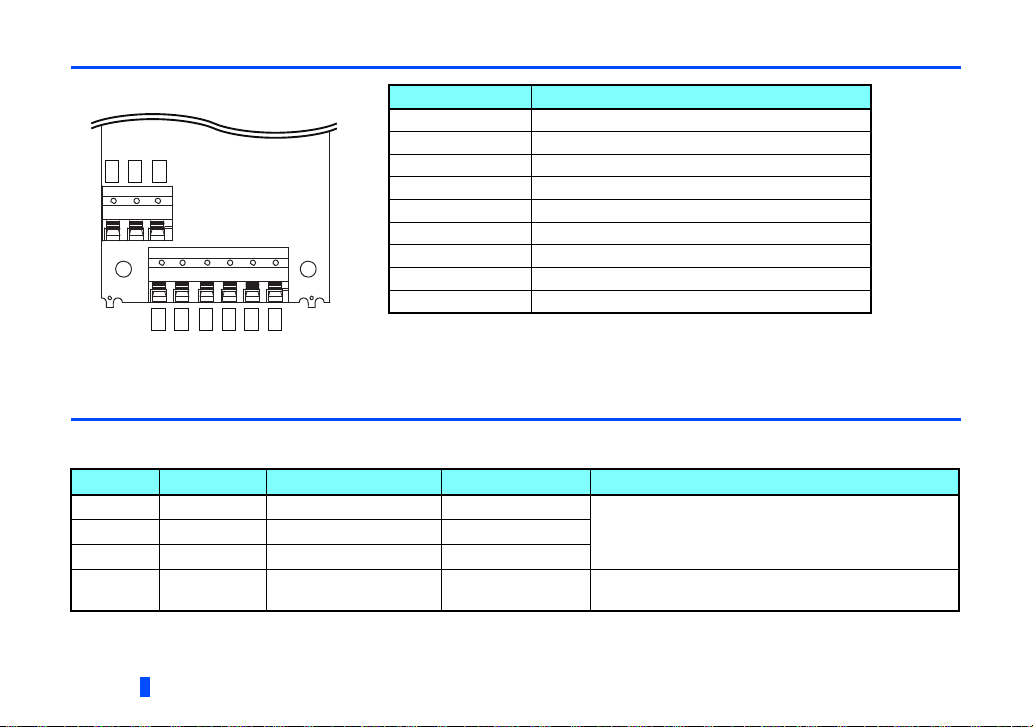

3.2 Terminals
 The operation of each relay depends on the output signal selected.
3.3 Parameter list
When the FR-A8AR is mounted on the inverter, the following parameters are extended.
Perform the settings as required.
Terminal symbol Description
1A Normally open contact terminal of relay RA1
1B Normally closed contact terminal of relay RA1
1C Common contact terminal for relay RA1
2A Normally open contact terminal of relay RA2
2B Normally closed contact terminal of relay RA2
2C Common contact terminal for relay RA2
3A Normally open contact terminal of relay RA3
3B Normally closed contact terminal of relay RA3
3C Common contact terminal for relay RA3
Pr. Pr. Group Name Initial value Setting range
320 M420 RA1 output selection 0 The setting range depends on the inverter. For details,
refer to Pr.190 to Pr.196 (output terminal function
selection) in the Instruction Manual (Detailed) of the
inverter.
321 M421 RA2 output selection 1
322 M422 RA3 output selection 2
418 M432 Extension output terminal
filter 9999 5 to 50 ms, 9999
2A
2B
2C
1A
1B
1C
3A
3B
3C

RELAY OUTPUT 17 3
3.4 Parameter setting
Setting output signals
Use Pr.320 to Pr.322 to assign signals to the terminals ABC (1 to 3). The settings of Pr.320 to Pr.322 are the same as those of
Pr.190 to Pr.196 (output terminal function selection). For the details of Pr.190 to Pr.196, refer to the Instruction Manual
(Detailed) of the inverter.
NOTE
• All the outputs are shut off when the protective functions (E.1 to E.3) are activated.
• Negative logic cannot be set.
Adjusting the output terminal response level (Pr.418)
• The response level of the output terminals can be delayed in a range of 5 to 50 ms. (Operation example for the RUN signal.)
NOTE
• The response level is not adjusted while Pr.418 = "9999".
•WhenPr.157 OL signal output timer is set for the Overload warning (OL) signal output, the OL signal is output when
the set time of (Pr.157 + Pr.418) elapses.

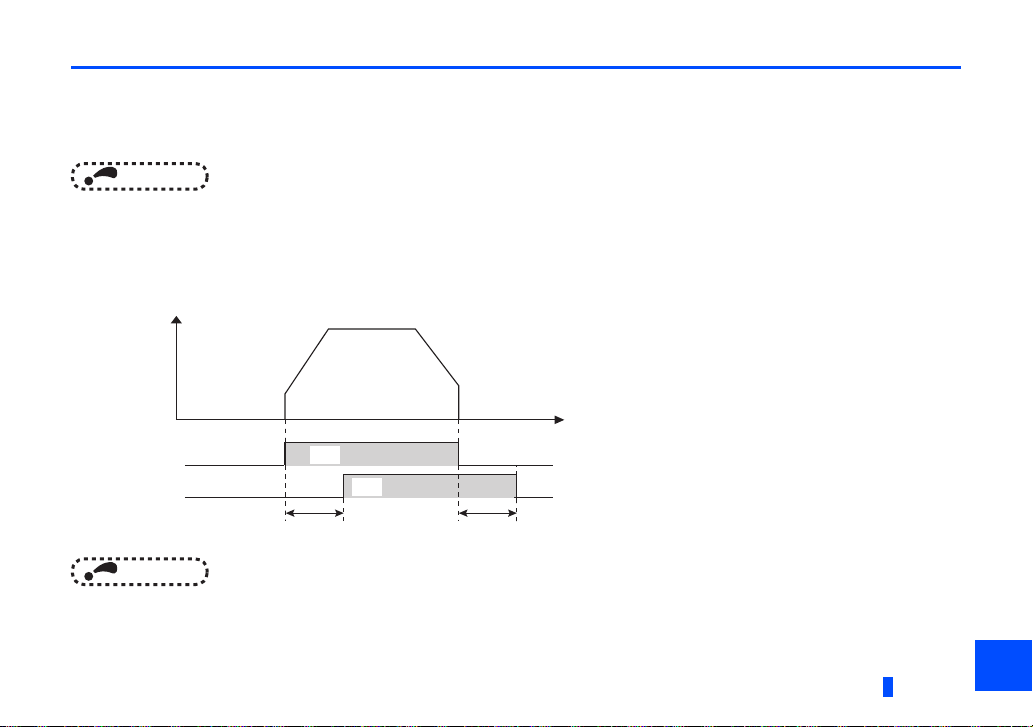

Time
RUN
Pr.418 = 9999
ON OFF
RUN
Pr.418 ≠ 9999
ON OFF
Pr.418 Pr.418
Output frequency

18 RELAY OUTPUT
3.5 Connection diagram when using electronic bypass sequence function
When using the electronic bypass sequence function with the FR-A8AR mounted to the FR-A800/F800 series inverter, the
following connections are recommended.
• Recommended connection diagram 1
• Recommended connection diagram 2
When using the relay output of the FR-A8AR,
instead of the MC1 signal, set the output signal to
fault output signal (ALM) and output it from contacts
B and C.
M
MCCB
S1
R1
T
S
R
MC1
MC2
W
V
UMC3
MC1
MC1
MC2
MC3
FR-A8AR
A
C
A
C
Power
supply
Motor
Inverter
MC2
A
C
MC3
MC3
MC2
M
MCCB
S1
R1
T
S
R
MC1
MC2
W
V
UMC3
ALM
MC1
FR-A8AR
Power
supply
Motor
Inverter
MC2
CMC2
MC3
A
CMC3
B
A
C
MC3
MC2

19
REVISIONS
*The manual number is given on the bottom left of the back cover.
Print Date *Manual Number Revision
Aug. 2013 IB(NA)-0600499ENG-A First edition
Oct. 2014 IB(NA)-0600499ENG-B Addition
• Compatibility with the FR-F800 series

INVERTER
HEAD OFFICE: TOKYO BUILDING 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
IB(NA)-0600499ENG-B(1410) MEE Printed in Japan Specifications subject to change without notice.
