Mitsubishi Electric FR-A7AY User manual

INVERTER
Plug-in option
INSTRUCTION MANUAL
1
2
3
4
5
FR-A7AY
Analog output function
Digital output function INSTALLATION AND WIRING
PARAMETER LIST
EXTENSION ANALOG OUTPUT
PRE-OPERATION INSTRUCTIONS
DIGITAL OUTPUT

A-1
Thank you for choosing this Mitsubishi Inverter plug-in option.
This instruction manual gives handling information and
precautions for use of this equipment. Incorrect handling might
cause an unexpected fault. Before using the equipment, please
read this manual carefully to use the equipment to its optimum.
Please forward this manual to the end user.
1. Electric Shock Prevention
This section is specifically about
safety matters
Do not attempt to install, operate, maintain or inspect this
product until you have read through this instruction manual and
appended documents carefully and can use the equipment
correctly. Do not use this product until you have a full
knowledge of the equipment, safety information and
instructions.
In this instruction manual, the safety instruction levels are
classified into "WARNING" and "CAUTION".
Assumes that incorrect handling may
cause hazardous conditions, resulting
in death or severe injury.
Assumes that incorrect handling may
cause hazardous conditions, resulting
in medium or slight injury, or may
cause physical damage only.
Note that even the level may lead to a serious
consequence according to conditions. Please follow the
instructions of both levels because they are important to
personnel safety.
WARNING
CAUTION
CAUTION
SAFETY INSTRUCTIONS
WARNING
•While power is on or when the inverter is running, do not
open the front cover. You may get an electric shock.
•Do not run the inverter with the front cover or wiring cover
removed. Otherwise, you may access the exposed high-
voltage terminals and charging part and get an electric shock.
•If power is off, do not remove the front cover except for wiring
or periodic inspection. You may access the charged inverter
circuits and get an electric shock.
•Before starting wiring or inspection, check to make sure that
the inverter power indicator lamp is off, wait for at least 10
minutes after the power supply has been switched off, and
check that there are no residual voltage using a tester or the
like. The capacitor is charged with high voltage for some time
after power off and it is dangerous.
•Any person who is involved in the wiring or inspection of this
equipment should be fully competent to do the work.
•Always install the plug-in option before wiring. Otherwise,
you may get an electric shock or be injured.
•Do not touch the plug-in option with wet hands. Otherwise
you may get an electric shock.
•Do not subject the cables to scratches, excessive stress,
heavy loads or pinching. Otherwise you may get an electric
shock.

A-2
2. Injury Prevention
3. Additional Instructions
Also note the following points to prevent an accidental failure,
injury, electric shock, etc.
1) Transportation and mounting
2) Trial run
3) Usage
4) Maintenance, inspection and parts replacement
5) Disposal
6) General instruction
CAUTION
•Apply only the voltage specified in the instruction manual to
each terminal. Otherwise, burst, damage, etc. may occur.
•Ensure that the cables are connected to the correct terminals.
Otherwise, burst, damage, etc. may occur.
•Always make sure that polarity is correct to prevent damage, etc.
Otherwise, burst, damage may occur.
•While power is on or for some time after power-off, do not touch
the inverter as it is hot and you may get burnt.
CAUTION
•Do not install or operate the plug-in option if it is damaged or
has parts missing.
•Do not stand or rest heavy objects on the product.
•Check that the mounting orientation is correct.
•Prevent other conductive bodies such as screws and metal
fragments or other flammable substance such as oil from
entering the inverter.
CAUTION
•Before starting operation, confirm and adjust the parameters.
A failure to do so may cause some machines to make
unexpected motions.
WARNING
•Do not modify the equipment.
•Do not perform parts removal which is not instructed in this
manual. Doing so may lead to fault or damage of the inverter.
CAUTION
•When parameter clear or all parameter clear is performed,
reset the required parameters before starting operations.
Each parameter returns to the initial value.
•For prevention of damage due to static electricity, touch
nearby metal before touching this product to eliminate static
electricity from your body.
CAUTION
•Do not test the equipment with a megger (measure insulation
resistance).
CAUTION
•Treat as industrial waste.
All illustrations given in this manual may have been drawn with
covers or safety guards removed to provide in-depth
description. Before starting operation of the product, always
return the covers and guards into original positions as specified
and operate the equipment in accordance with the manual.

I
CONTENTS 
1PRE-OPERATION INSTRUCTIONS 1
1.1 Unpacking and Product Confirmation .............................................................................................1
1.1.1 Packing confirmation......................................................................................................................................1
1.1.2 Parts...............................................................................................................................................................2
1.1.3 Specifications .................................................................................................................................................3
2INSTALLATION AND WIRING 5
2.1 Pre-Installation Instructions .............................................................................................................5
2.2 Installation Procedure.......................................................................................................................6
2.3 Wiring..................................................................................................................................................7
3PARAMETER LIST 9
4EXTENSION ANALOG OUTPUT 11

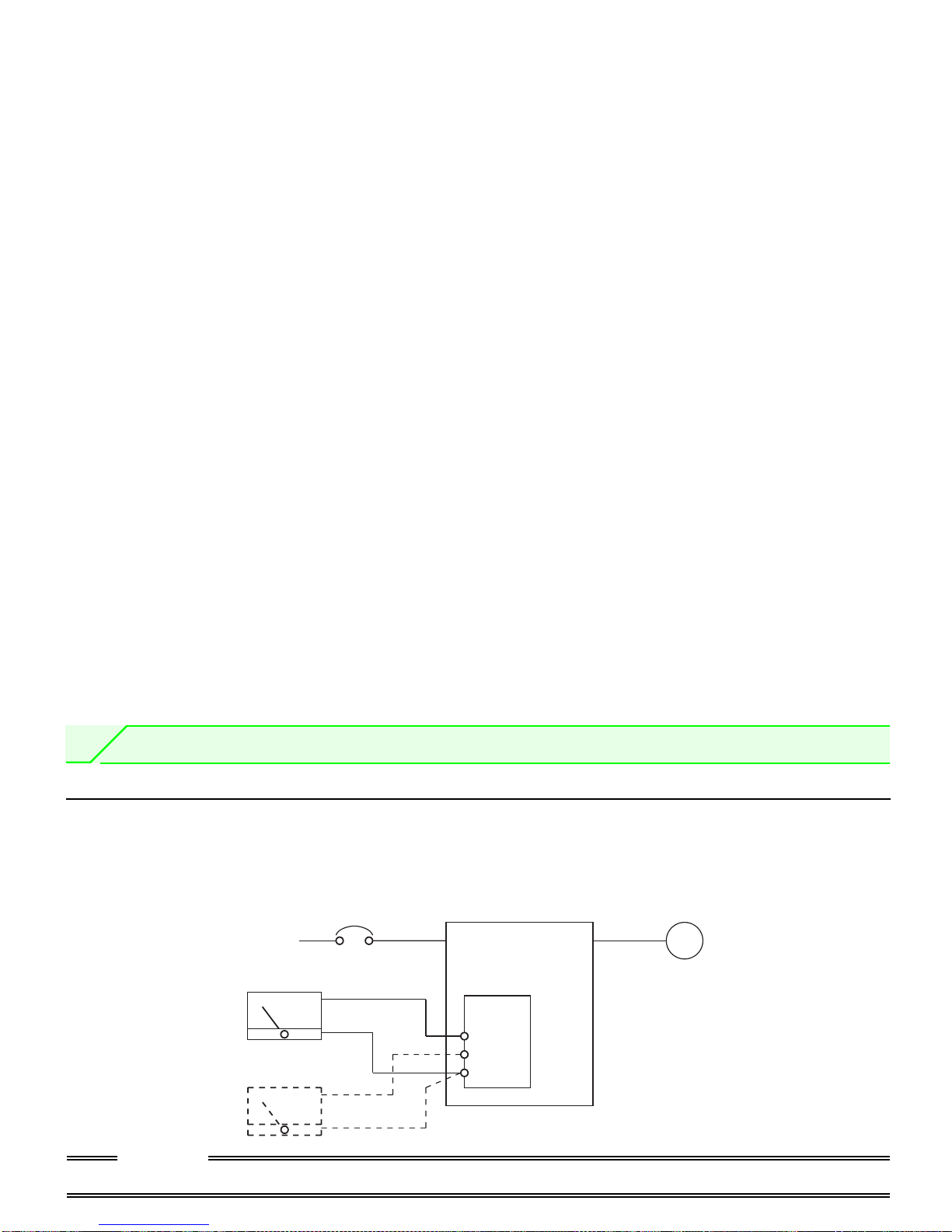

4.1 Wiring Example................................................................................................................................11
4.2 Internal Block Diagram....................................................................................................................12

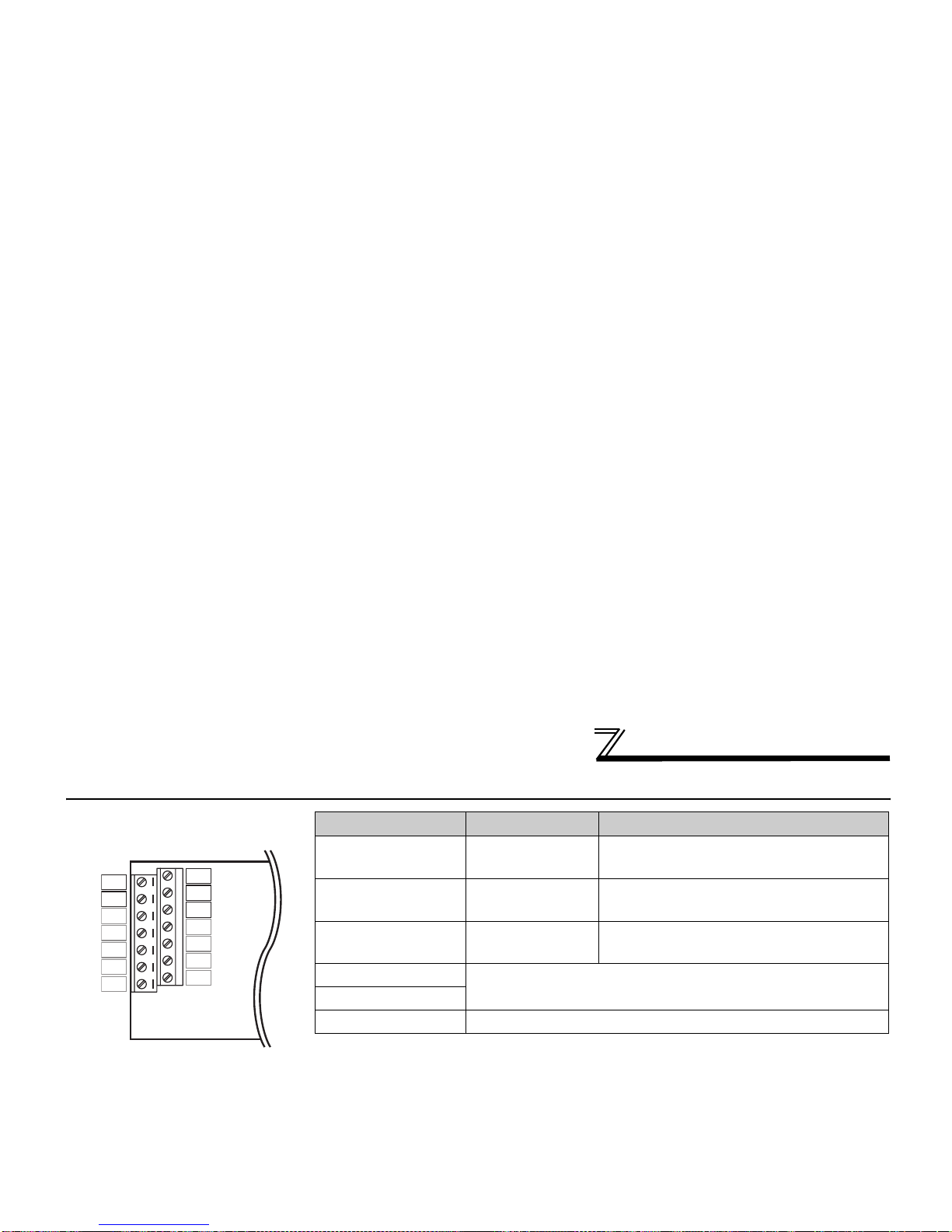

4.3 Terminals..........................................................................................................................................13
4.4 Extension Analog Output Function Parameter List......................................................................14
4.5 Adjustment Procedure ....................................................................................................................15
4.5.1 Setting of analog output signal voltage/current switchover (Pr. 309)...........................................................15
4.5.2 Calibration of meter......................................................................................................................................16
4.5.3 Output signal setting.....................................................................................................................................18
4.5.4 Analog signal adjustment [Pr. 307, Pr. 308, Pr. 311, Pr. 312]......................................................................19
4.6 Instructions ......................................................................................................................................20

II
5DIGITAL OUTPUT 21

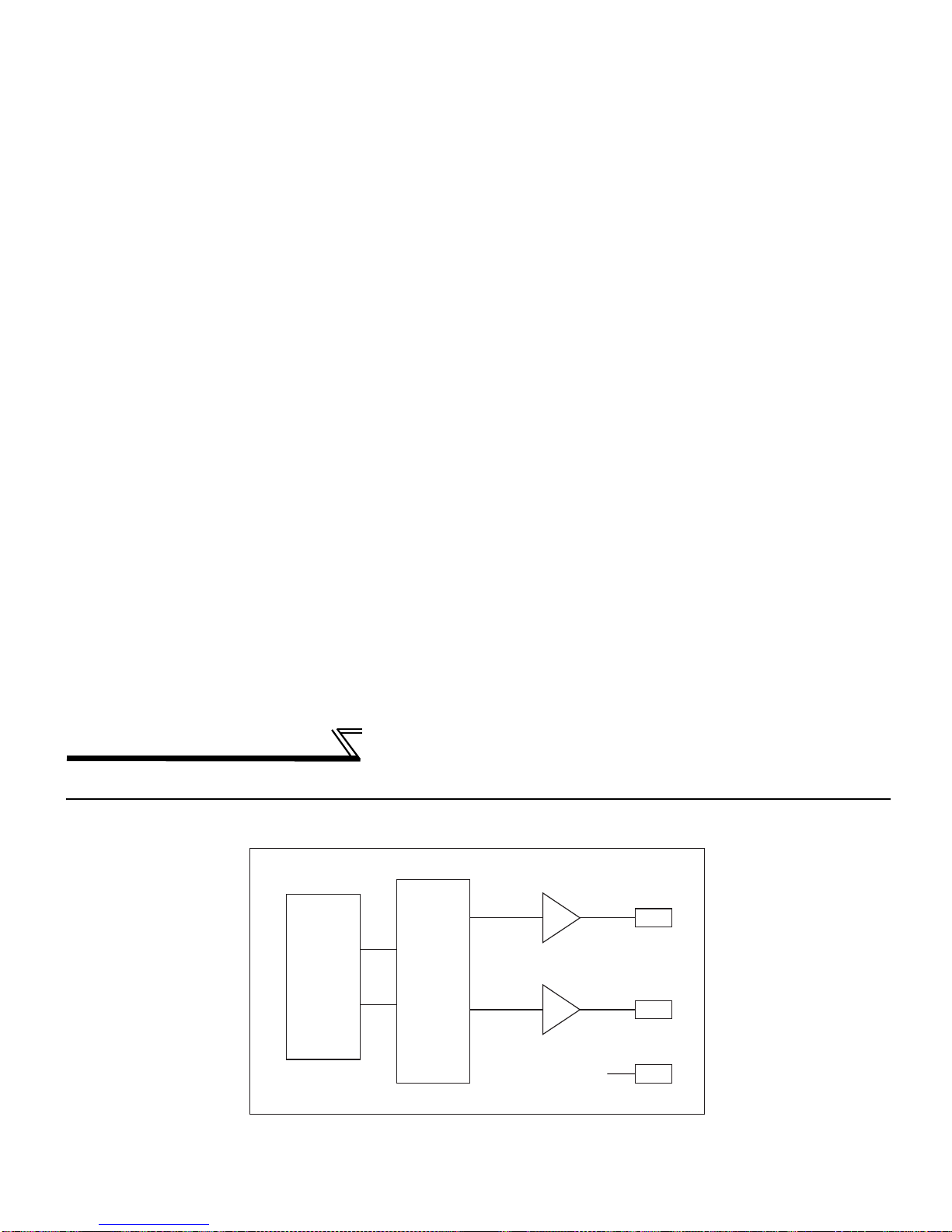

5.1 Internal Block Diagram....................................................................................................................21
5.2 Terminals..........................................................................................................................................22
5.3 Digital Output Function Parameter List.........................................................................................23
5.4 Output Signal List............................................................................................................................24

1
1
1PRE-OPERATION INSTRUCTIONS
1.1 Unpacking and Product Confirmation
Take the plug-in option out of the package, check the unit name, and confirm that the product is as you
ordered and intact.
This product is a plug-in option dedicated for the FR-F700 series.
1.1.1 Packing confirmation

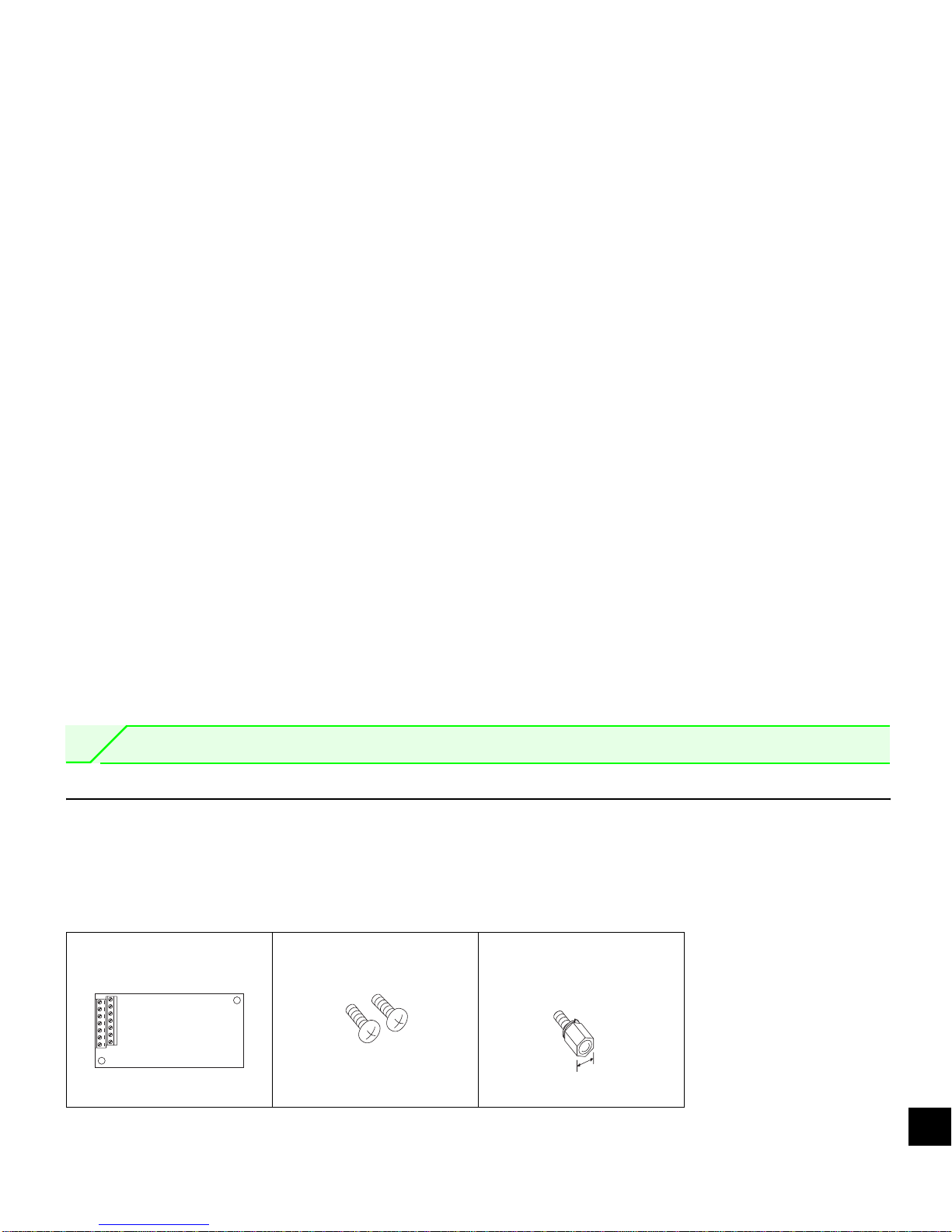

Check the enclosed items.
Plug-in option
.........................................1 Mounting screw (M3 ×6mm) .............. 2 (Refer to page 6.) Hex-head screw for option mounting (5.5mm)
...............1 (Refer to page 6.)
5.5mm

2
PRE-OPERATION INSTRUCTIONS

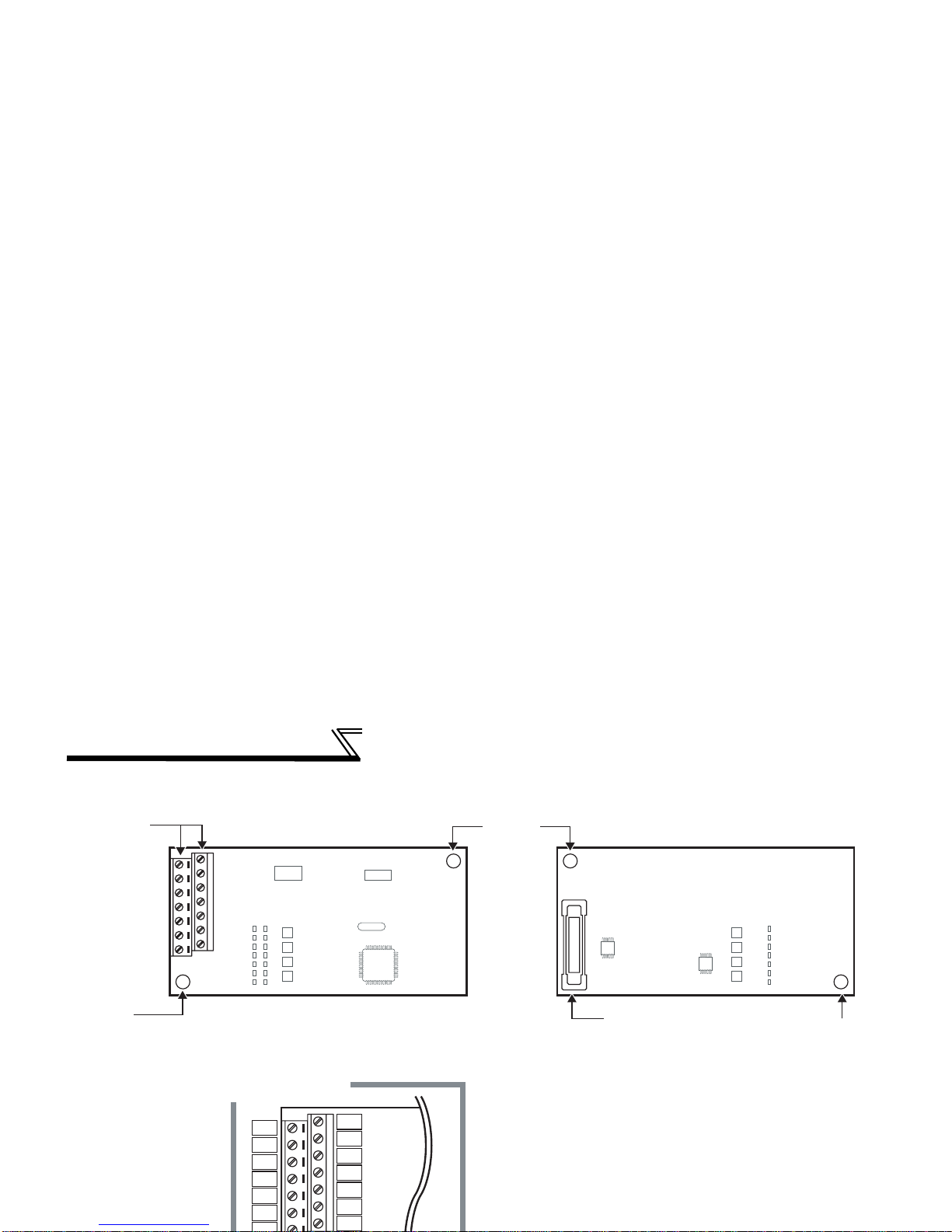

1.1.2 Parts
AMC
NC
SE
Y3
Y4
Y5
Y6
AM0
AM1
NC
SE
Y0
Y1
Y2
Front view
Terminal layout
Rear view
Mounting
hole
Mounting hole
Mounting
hole
Terminal
block
Connector
Connect to the inverter
option slot
(Refer to page 6.)

3
PRE-OPERATION INSTRUCTIONS
1
1.1.3 Specifications
(1) Output signals
Voltage output (across terminals AM0-AMC) 0 to 10VMAXDC
Current output (across terminals AM1-AMC) 0 to 20mADC
(2) Output resolution
Voltage output 3mV
Current output 10µA
(3) Output accuracy (reference value)
±10% of the full-scale output value
Depends on the output signal type.
(4) Meters used
•Voltmeter
DC voltmeter Full-scale 10V (internal impedance 10kΩor more)
•Ammeter
DC ammeter Full-scale 20mA (internal impedance 300Ωor less)
•Wiring length
Maximum 10m

4
MEMO

5
2
2INSTALLATION AND WIRING
2.1 Pre-Installation Instructions
Make sure that the input power of the inverter is off.
CAUTION
With input power on, do not install or remove the plug-in option. Otherwise, the inverter and
plug-in option may be damaged.

6
INSTALLATION AND WIRING

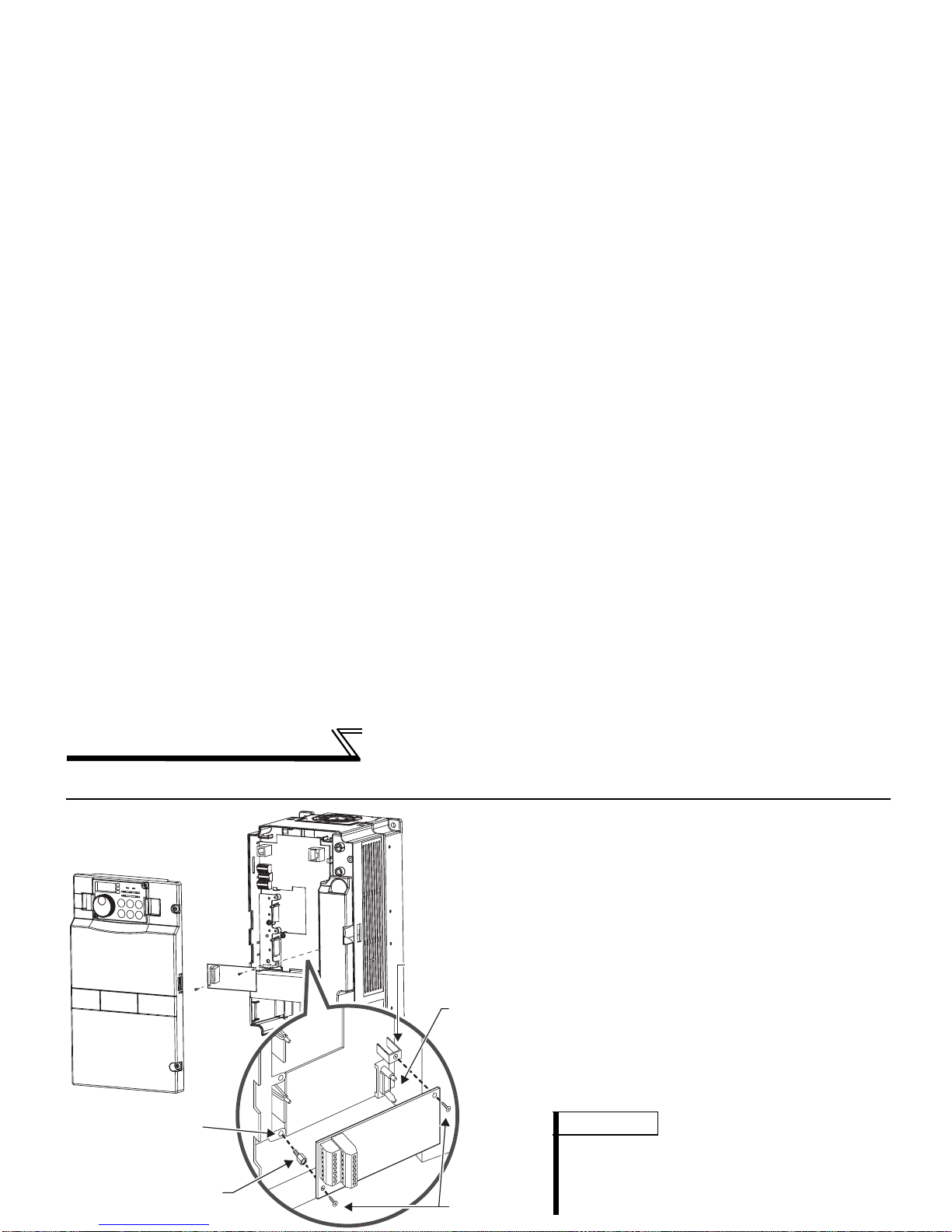

2.2 Installation Procedure
1) Remove the inverter front cover.
2) Mount the hex-head screw for option
mounting into the inverter screw hole (on
earth plate). (size 5.5mm, tightening
torque 0.56N⋅m to 0.75N⋅m)
3) Securely fit the connector of the plug-in
optiontotheinverterconnector alongthe
guides.
4) Securely fix the both right and left sides
of the plug-in option to the inverter with
the accessory mounting screws. If the
screwholes donotline-up,theconnector
may not have been plugged snugly.
Check for loose plugging.
REMARKS
After removing two screws on the right and left
places, remove the plug-in option.
(The plug-in option is easily removed if the
control circuit terminal block is removed before.)
CAUTION
1. When the inverter can not recognize that the option unit is mounted due to improper installation, etc.,
" " (option alarm) is displayed.
2. Note that a hex-head screw for option mounting or mounting screw may drop during mounting and removal.
4) Mounting
screws
Inverter side
option
connector
Screw hole for
option mounting
Screw hole for
option mounting
(on earth plate)
Hex-head screw
for option mounting
1)
2)
3)

7
INSTALLATION AND WIRING
2
2.3 Wiring

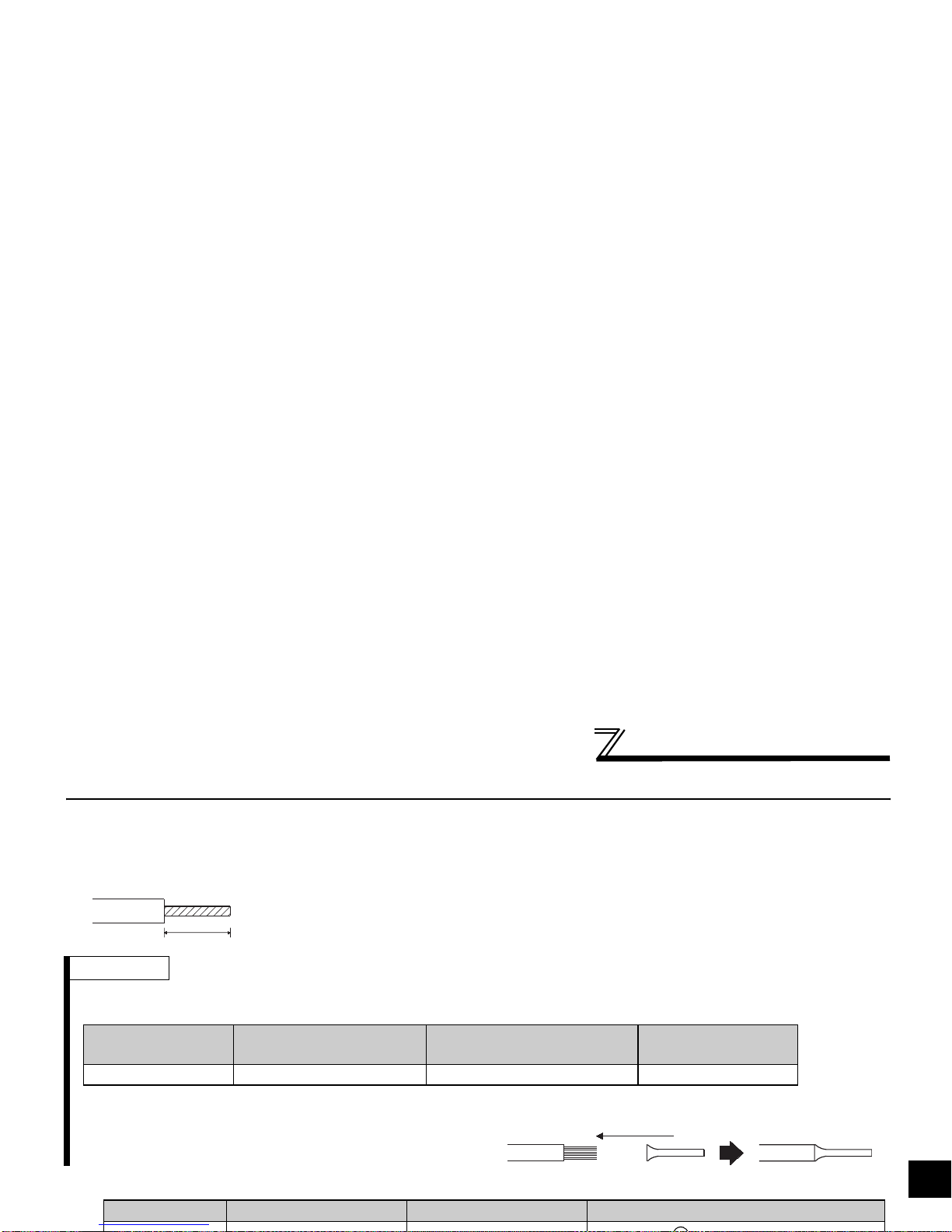

(1) Strip off the sheath of the cable to wire.
Strip off the sheath about the size below. If the length of the sheath pealed is too long, a short circuit
may occur among neighboring wires. If the length is too short, wires might come off.
(2) Loosen the terminal screw and insert the cable into the terminal.
REMARKS
Information on bar terminals
Introduced products (as of October, 2003): Phoenix Contact Co.,Ltd.
Screw Size Tightening Torque Cable Size Screwdriver
M2 0.22N⋅m to 0.25N⋅m0.3mm2to 0.75mm2Small flat-blade screwdriver
(Tip thickness: 0.4mm/tip width: 2.5mm )
CAUTION
Undertightening can cause cable disconnection or malfunction. Overtightening can cause a short circuit or
malfunction due to damage to the screw or unit.
Cable stripping size Wire the stripped cable after twisting it to prevent it from becoming loose.
In addition, do not solder it.
Use a bar type terminal as required.
5mm
⋅Bar terminal crimping tool: CRIMPFOX ZA3 (Phoenix Contact Co., Ltd.)
Terminal Screw
Size Bar Terminal Model (with insulation sleeve) Bar Terminal Model (without insulation sleeve) Wire Size (mm2)
M2 Al 0.5-6WH A 0.5-6 0.3 to 0.5
When using the bar terminal (without insulation sleeve),
use care so that the twisted wires do not come out.

8
INSTALLATION AND WIRING

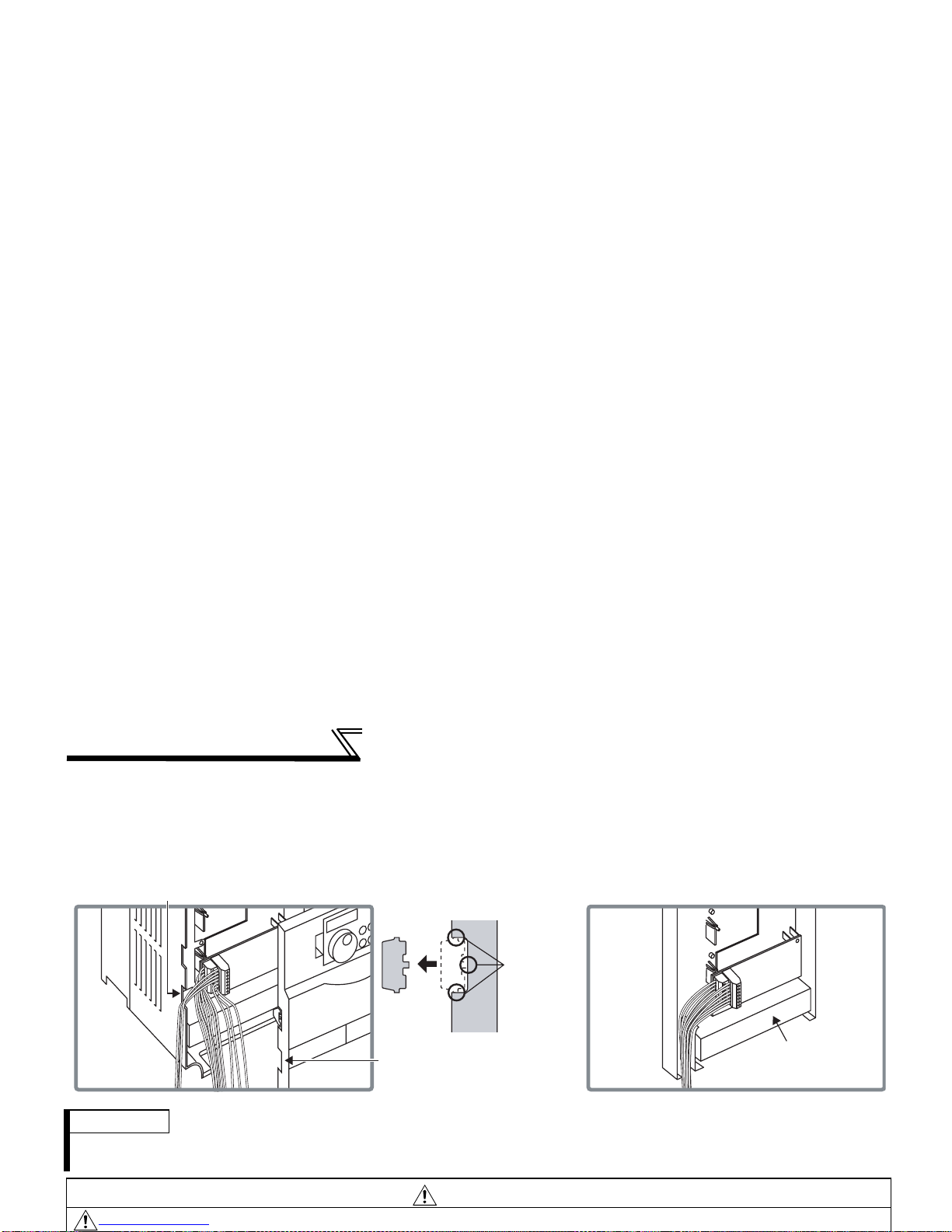

(3) For wiring of the 30K(00620 (EC Version)) or less, route wires between the control circuit terminal block
and front cover. If cables can not be routed between the control circuit terminal block and front cover due
to the increased number of cables, remove a hook of the front cover and use a space become available.
For wiring of the 37K(00770 (EC Version)) or more, use the space on the left side of the control circuit
terminal block.
REMARKS
When wires can not be connected to the terminal block due to parallel connection or will not fit in the wiring space due
to large gauge or the increased number of cables, perform wiring by using a junction terminal block, etc.
Do not use empty terminals as junction terminals because they are used in the option unit. If
they are used as the junction terminals, the option unit may be damaged.
When installing the inverter front cover, the cables to the inverter's control circuit terminals and
option unit terminals should be routed properly in the wiring space to prevent them from being
caught between the inverter and its cover.
After wiring, wire offcuts must not be left in the inverter. They may cause a fault, failure or
malfunction.
Cut off a hook on the inverter
front cover side surface.
(Cut off so that no portion is left.)
Cut off
with a
nipper,
etc.
Control circuit
terminal block
Wiring can be also performed using a cable
groove in the inverter side surface
30K or less 37K or more
C
AUTI
O
N

9
3
3PARAMETER LIST
When the FR-A7AY is mounted on the inverter, the following parameters are extended.
Parameter
Number Name Setting Range Minimum Increments Initial
Value Refer to
Page
EXTENSION ANALOG OUTPUT
306 Analog output signal selection 1 to 3, 5, 6, 8,(9), 10 to14,17, 21, 24, 50,
52, 53 12
11 and
later
307 Setting for zero analog output 0 to100% 0.1 0%
308 Setting for maximum analog output 0 to100% 0.1 100%
309 Analog output signal voltage/current
switchover 0, 1, 10, 11 1 0
310 Analog meter voltage output
selection
1 to 3, 5, 6, 8, (9),
10 to14, 17, 21, 24, 50,
52, 53 12
311 Setting for zero analog meter
voltage output 0 to100% 0.1 0%
312 Setting for maximum analog meter
voltage output 0 to100% 0.1 100%
323 AM0 0V adjustment 900 to1100% 1 1000%
324 AM1 0mA adjustment 900 to 1100% 1 1000%
C0(900) FM(CA) terminal calibration 
C1(901) AM terminal calibration 

10
PARAMETER LIST
DIGITAL OUTPUT
313 DO0 output selection 0 to 5, (7), 8, 10 to 19,
25, 26, 45 to 47, 64, 70,
(71 to 78), 86 to 96, 98,
99, 100 to 105, (107),
108, 110 to 116, 125,
126, 145 to 147, 164,
170, 186 to 196, 198,
199, 9999
1 9999 21 and
later
314 DO1 output selection
315 DO2 output selection
316 DO3 output selection
317 DO4 output selection
318 DO5 output selection
319 DO6 output selection
Parameter
Number Name Setting Range Minimum Increments Initial
Value Refer to
Page

11
4
4EXTENSION ANALOG OUTPUT
4.1 Wiring Example
By setting the Pr. 306 to Pr. 312 values, analog signals such as the output frequency and output current can
be output from the voltage output terminal (AM0) and current output terminal (AM1).
Connect the voltmeter or ammeter as shown below:
CAUTION
The wiring length between the FR-A7AY and the voltmeter/ammeter should be 10m maximum.
Power
supply
+
-
+
-
(Voltmeter)
(Ammeter)
FR-A7AY
0 to 10VDC
0 to 20 mADC
AM0
AM1
AMC
Inverter
IM
Motor
MCCB

12
EXTENSION ANALOG OUTPUT
4.2 Internal Block Diagram
The following is the internal block diagram about the FR-A7AY analog output function.
Controller
Connector
AM0
AM1
AMC
Current amplifier
Voltage amplifier
Common to
AM0/AM1

13
EXTENSION ANALOG OUTPUT
4
4.3 Terminals
Terminal Symbol Terminal Name Description
AM0 Voltage output
terminal Connect a DC voltmeter (10VDC).
AM1 Current output
terminal Connect a DC ammeter (20mADC).
AMC Common
terminal Common to AM0 and AM1
Y0 to Y6 Used for analog output function. (Refer to page 21 )
SE
NC (empty) Do not use.
NC NC
AMC
SE
Y3
Y4
Y5
Y6
AM0
AM1
SE
Y0
Y1
Y2

14
EXTENSION ANALOG OUTPUT
4.4 Extension Analog Output Function Parameter List
Parameter
Number Name Setting Range Minimum Increments Initial Value
306 Analog output signal selection 1 to 3, 5, 6, 8, (9), 10 to 14, 17,
21, 24, 50, 52, 53 12
307 Setting for zero analog output 0 to 100% 0.1 0%
308 Setting for maximum analog output 0 to 100% 0.1 100%
309 Analog output signal voltage/current
switchover 0, 1, 10, 11 1 0
310 Analog meter voltage output 1 to 3 , 5, 6, 8, (9), 10 to 14, 17,
21, 24, 50, 52, 53 12
311 Setting for zero analog meter
voltage output 0 to 100% 0.1 0%
312 Setting for maximum analog meter
voltage output 0 to 100% 0.1 100%
323 AM0 0V adjustment 900 to 1100% 1 1000%
324 AM1 0mA adjustment 900 to 1100% 1 1000%
C0(900) FM terminal calibration 
C1(901) AM terminal calibration 
REMARKS
For Pr. 306 and Pr. 310, write is enabled even when "0" is set in Pr. 77.

15
EXTENSION ANALOG OUTPUT
4
4.5 Adjustment Procedure
4.5.1 Setting of analog output signal voltage/current switchover (Pr. 309)
Use Pr. 309 Analog output signal voltage/current switchover to select whether to output the same signal or
different signals from terminal AM0 (voltage output) and terminal AM1(current output).
Pr. 309
Setting Parameters for Setting
Parameters
for
Adjustment
Description
Terminal
0
(initial
value)
Same select signals are output
from the voltage output terminal
(AM0) and current output
terminal (AM1). The signal set in
Pr. 306 Analog output signal
selection is made valid. (The
setting of Pr. 310 is made invalid.)
AM0 Pr. 306 : Select the output signal.
Pr. 307 : Output signal value for zero analog output
Pr. 308 : Output signal value for maximum analog output Pr. 323
Pr. 324
C1 (Pr. 901)
AM1
10 AM0 Pr. 306 : Select the output signal.
Pr. 307 : Analog output value for zero output signal
Pr. 308 : Analog output value for maximum output signal
AM1
1
Different select signals are
output from voltage output
terminal (AM0) and current
output terminal (AM1).
AM0 Pr. 310 : Select the output signal.
Pr. 311 : Output signal value for zero analog output
Pr. 312 : Output signal value for maximum analog output
Pr. 323
C0 (Pr. 900)
AM1 Pr. 306 : Select the output signal.
Pr. 307 : Output signal value for zero analog output
Pr. 308 : Output signal value for maximum analog output
Pr. 324
C1 (Pr. 901)
11
AM0 Pr. 310 : Select the output signal.
Pr. 311 : Analog output value for zero output signal
Pr. 312 : Analog output value for maximum output signal
Pr. 323
C0 (Pr. 900)
AM1 Pr. 306 : Select the output signal.
Pr. 307 : Analog output value for zero output signal
Pr. 308 : Analog output value for maximum output signal
Pr. 324
C1 (Pr. 901)
REMARKS
Analog output means voltage (0 to 10 V) and current (0 to 20mA) output from terminal AM0 and AM1, and output
signal means the monitor signal (refer to page 18) set in Pr. 306 and Pr. 310.
