Mitsubishi Electric MIM-A01 User manual

Mitsubishi MIM series
Industrial Modems
Instructions Manual
MIM-G01
MIM-A01
INDUSTRIAL AUTOMATION
MIT
SU
BI
S
HI ELE
C
TRI
C
Art.-No.: 165584
27 10 2005
Version A
MIT
SU
BI
S
HI ELE
C
TRI
C
Draft

About this Manual
The texts, illustrations, diagrams and examples in this manual are only
intended as aids to help explain the functioning, operation, use and
programming of the Mitsubishi Industrial Modems (MIM).
If you have any questions regarding the installation and operation of the
software described in this manual, please do not hesitate to contact your
sales office or one of your Mitsubishi distribution partners.
You can also obtain information and answers to frequently
asked questions from our Mitsubishi website under
www.mitsubishi-automation.com.
MITSUBISHI ELECTRIC reserves the right to change the specifications of
its products and/or the contents of this manual at any time and without
prior notice.
©10/2005

Mitsubishi Industrial Modem i
Instruction Manual
Industrial Modems MIM-A01 and MIM-G0
Art-No.: 165584
Version Changes / Additions / Corrections
A 10/2005 pdp-ck First Edition

II MITSUBISHI ELECTRIC

Security Advice
Intended Target Audience
This manual is aimed exclusively at suitably qualified electrical engineering specialists that are
familiar with the safety standards required for electrical engineering and automation. The engi-
neering, installation, commissioning, maintenance and testing of devices must only be carried
out by qualified electrical technicians. Unless otherwise stated in this manual or other manuals,
any intervention in the hardware and software of products must only be carried out by special-
ists.
Proper use
Mitsubishi Industrial Modems are only designed for use in the application fields described in this
manual. Ensure that all the specifications stated in this manual are observed. Unqualified inter-
ventions in the hardware or software, and failure to observe the warnings stated in this manual or
on the product may lead to serious injury or material damage. No liability is accepted in such
cases and any warranty claims become invalid.
Safety instructions
The safety and accident prevention regulations specified for the application concerned must be
observed during the engineering, installation, maintenance and testing of devices.
This manual contains special instructions that are important for the safe and proper handling of
the device. The warning symbols of the individual instructions have the following meaning:
PDANGER:
Means that there is a danger to the life and health of the user if the relevant safety
measures are not taken.
EATTENTION:
Is a warning of possible damage to the device, software or other material damage if
the relevant safety measures are not taken.
Mitsubishi Industrial Modem III

IV MITSUBISHI ELECTRIC

Contents
Mitsubishi Industrial Modem V
1 Mitsubishi Industrial Modems at a glance
1.1 Mitsubishi Normal Modem GSM (MIM-G01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
1.2 Mitsubishi Super Modem 56k (MIM-A01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
2 Equipment Versions
2.1 Modem Typ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
2.2 Teleservice via PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
3 Mounting and Installation
3.1 Normal Modem GSM (MIM-G01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
3.1.1 Interfaces and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
3.1.2 Meaning of the LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
3.1.3 Connecting the GSM antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
3.1.4 Inserting the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
3.2 Super Modem 56k (MIM-A01) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
3.2.1 Interfaces and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
3.2.2 Meaning of the LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
3.2.3 Connection to the Telephone Network . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
3.2.4 Testing the Telephone Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
3.2.5 Telephone Exchange System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
3.3 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
4 Power supply
5 Operation
5.1 MIM-G01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
5.2 MIM-A01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1

Contents
VI MITSUBISHI ELECTRIC
6 Configuration
6.1 MIM and Mitsubishi ALPHA XL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.1.1 Project Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
6.1.2 Function Block SMS send . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
6.1.3 PLC Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
6.2 MIM and Mitsubishi MELSEC FX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5
6.2.1 MIM-G01 and FX Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5
6.2.2 MIM for FX Remote Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-5
6.3 Connection to other Mitsubishi Products. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
6.4 RS 232-Transparent-Mode (TransMode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.4.1 Time delays during modem transmissions . . . . . . . . . . . . . . . . . . . . . . . 6-6
6.4.2 TransMode Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
6.4.3 TransMode Login Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
7 Technical Data
7.1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
7.1.1 MIM-G01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3
7.1.2 MIM-A01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4
8 Appendix
8.1 AT Commands MIM-G01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
8.1.1 Important AT Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
8.1.2 Overview of AT-Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5
8.2 AT Commands MIM-A01 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
8.2.1 Overview of AT Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9
8.2.2 AT Command Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
8.2.3 Overview of S-Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-12
8.2.4 Message Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-13
8.2.5 AT+T Send - Sending SMS, E-Mail,
Fax and Express E-Mail Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
8.2.6 Message Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-19
8.2.7 Modem Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-21

1 Mitsubishi Industrial Modems at a glance
1.1 Mitsubishi Normal Modem GSM (MIM-G01)
The Mitsubishi Normal Modem GSM is a generic modem for industrial usage, e.g. for remote
maintenance of PLCs. It needs a SIM card and logs on the mobile network like mobile phone.
The Mitsubishi controller Alpha XL can - using this modem and a special functional block – sent
the content of the text display as an SMS or e-mail. This modem has no memory for user data nor
any automatic functions. It may be used for remotely accessing and maintaining the PLC, too.
This manual describes mounting and installation of this modem.
1.2 Mitsubishi Super Modem 56k (MIM-A01)
The Mitsubishi Super Modem 56K for analogue fixed network 11Bit-Industrial-Modem is an
industrial modem with a little memory for user data, providing - besides generic modem func-
tions - the capability to transmit text messages over fixed network controlled by AT command.
쎲SMS
inside of the PSTN network and into the mobile network (carrier dependent)
쎲Express E-Mail
E-mail without the Internet, but directly via Telephone lines,
e.g. PLCs can exchange data using this way
쎲E-Mail
send and receive internet-E-Mail (SMTP/POP3)
쎲Fax
send text messages to fax machines
Command Target Text or data
AT+T SEND = "EMAIL; To:[email protected] " Tank 17 in house 5 empty!
AT+T SEND = "EXPRESS; To: Taskforce+49-30-123456789" Burner in house 6 defective!
AT+T SEND = "SMS; To: 0177-3456678" Cool storage temperature too high!
AT+T SEND = "FAX; To: 0891-98745561" Air conditioning system fan 17 defective!
AT+T HELP Lists all Tixi message commands
Additionally you can use a Mitsubishi Super Modem 56k for remotely accessing and maintaining
the PLC.
Mitsubishi Industrial Modems at a glance Mitsubishi Normal Modem GSM (MIM-G01)
Mitsubishi Industrial Modem 1-1

2 Equipment Versions
2.1 Modem Typ
The Mitsubishi Normal Modem GSM requires, like any conventional modem, a software in the
PC like a program for dial-up connection or for tje sending and receiving of fax messages. A
Mitsubishi Super Modem however sends all data by using simple AT commands. No additionally
software is required in this case.
2.2 Teleservice via PC
A Mitsubishi Industrial Modem (MIM-A01, MIM-G01) can be used to handle the remote mainte-
nance of several controllers via a telephone line or via the Internet. Program up-
and download may be carried out via the Mitsubishi programming software (e.g.
GX IEC Developer), while the connection therefore may be established via the
Mitsubishi programming software
Modem Typ Equipment Versions
2-2 MITSUBISHI ELECTRIC
Normal Modem GSM Super Modem 56k
Telephone network GSM Analogue fixed network/56K
Memory — 30 – 100 kB SRAM
Sending of
SMS
E-Mail (SMS-to-E-Mail-Gateway)
Fax (Fax-to-Fax-Gatewy)
SMS
E-Mail
Fax
Express E-Mail
Triggered by AT command AT command
Modem functions
Teleservice Yes Yes
Automatically Alarming ——
Remote switching ——
Available models MIM-G01 MIM-A01
Tab. 1-1 Mitsubishi Industrial Modems at a glance

3 Mounting and Installation
3.1 Normal Modem GSM (MIM-G01)
The MIM-G01 is a GSM/GPRS mobile modem intended for transmission of data, SMS, e-mail
and fax messages within the 900 MHz and 1800 MHz GSM mobile networks and complies to the
high speed standard of GPRS Class 10. It is suitable for DIN-Rail mounting inside control boxes.
3.1.1 Interfaces and Connectors
NOTE For connecting the modem to a PC, a 1:1 serial standard cable is to be used. For information
to connect a PLC, refer to the PLC documentation.
Mounting and Installation Normal Modem GSM (MIM-G01)
Mitsubishi Industrial Modem 3-3
Status GSM
Fig. 3-1: Overview of all connectors of the Normal Modem GSM



Nr. Description Meaning
Antenna Plug (FME) for Antenna cable (impendance: 50 Ω)
10...40VDC Power supply (2 screw terminals) and power supply jack
LEDs 2 LEDs (Power and Line)
SIM-Karte Power supply (2 screw terminals)
RS232 Interface 9 pin D-Sub jack
Tab. 3-2: Description of the connectors of the modems

3.1.2 Meaning of the LEDs
The MIM-G01 presents two LEDs, which indicate the devices current operating mode. After the
power supply has been switched on, a self test will be executed. The end of this test is indicated
by a acoustic signal (short beep). After the test, the device tries to make a connection to the GSM
network. The green LED will flash slowly when the log in was successful.
Normal Modem GSM (MIM-G01) Mounting and Installation
3-4 MITSUBISHI ELECTRIC
-+
COM1 (RS 232)
Antenna
10...40 V DC
Powe r
Status GSM
N
GSM
ORMAL MODEM
SIM-Card Push
-+
10...40 V DC
Power
Status GSM
SIM-Card Push
Fig. 3-2: LEDs on the MIM-G01
LED Status Meaning
Power
(yellow)
Off Device is switched off (power supply disabled
On Device is switched on(power supply enabled)
Status GSM
(green)
On Device is not logged onto the GSM network
Slowly flashing Device is logged onto the GSM network
Rapidly flashing Device is logged onto the GSM network, and active connection is
established
Tab. 3-3: Two LEDs are used to show the state of the modem

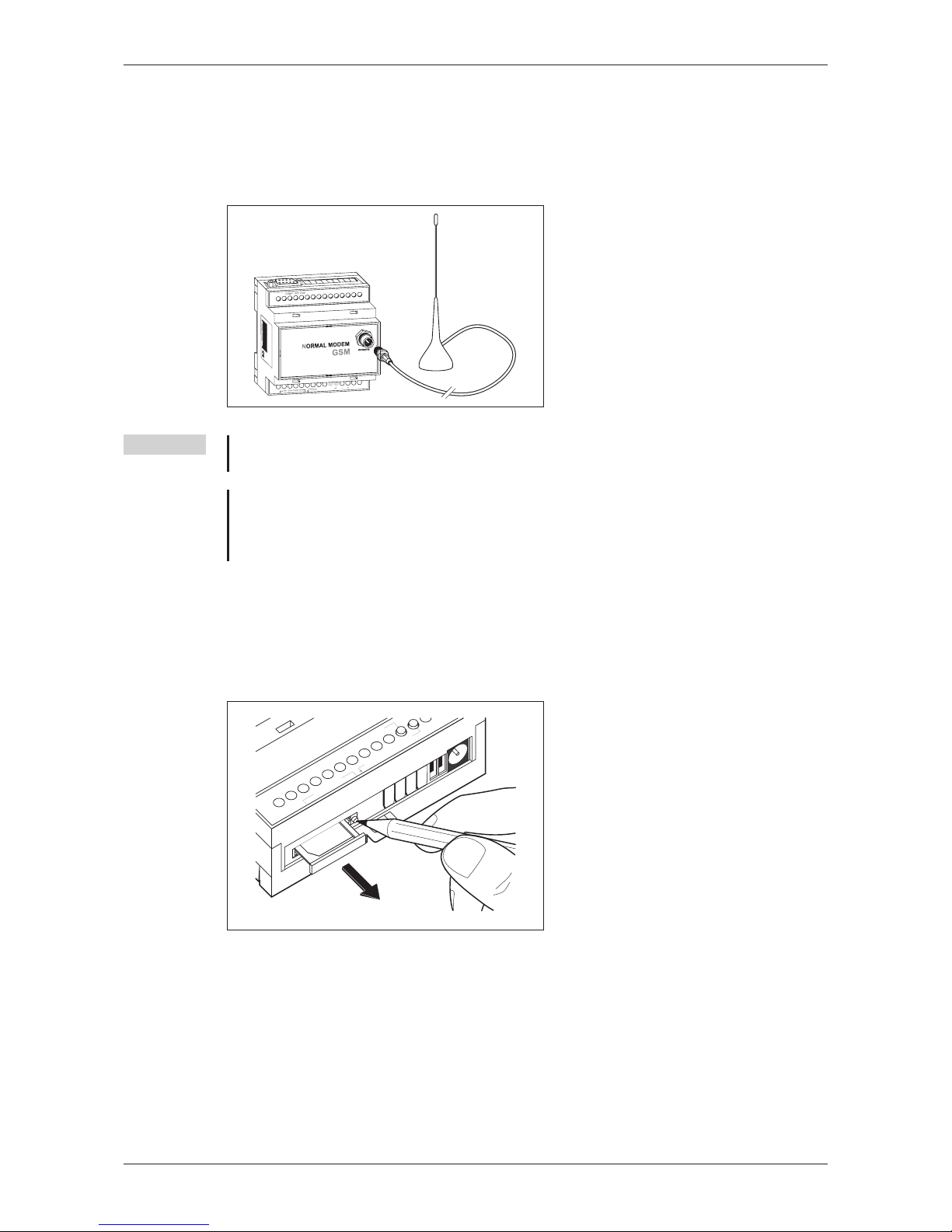

3.1.3 Connecting the GSM antenna
First of all find a suitable location for mounting the GSM antenna outside of the control cabinet.
Screw the antenna plug into the antenna socket on the front of the modem.
NOTES Standard GSM antennas with an FME plug can be used. The GSM antenna is not supplied
with the modem and can be ordered separately.
If the length of the antenna cable is not sufficient for your requirements you can use a suit-
able extension cable purchased as an accessory from a GSM outlet. Take into account the
attenuation of these cables that will reduce the antenna gain and observe the relevant speci-
fications of the manufacturer.
3.1.4 Inserting the SIM card
The SIM card of an mobile phone provider is necessary for the use of a GSM Modem.
To insert the SIM card in the modem, open the SIM card holder on the Mitsubishi Alarm Modem
by pressing the small button on the right of the holder with a pen or a pointed object.
You can now carefully pull out the card holder and insert your SIM card. Then push the SIM card
holder back into the modem until it snaps into position.
Mounting and Installation Normal Modem GSM (MIM-G01)
Mitsubishi Industrial Modem 3-5
-
SIM-Card
Push
Status GSM
Power
Fig. 3-3:
Push down the button until the card
holder is released
Status GSM
Fig. 3-4:
When fitting the antenna plug ensure
that it is seated correctly. It should be
possible to turn the threaded nut easily.

NOTE If you plan to dial into your PLC via GSM, you will possibly need a SIM card and account with
data service enabled. However, in some cases the modem may be capable of accepting
data calls on a voice number after using the AT+CICB=0 command. For detailed information,
contact your mobile service provider.
EATTENTION:
The SIM card should only be removed when the modem is in power-off state.
The SIM card may become unusable if this warning is not observed.
Normal Modem GSM (MIM-G01) Mounting and Installation
3-6 MITSUBISHI ELECTRIC
SIM-Card
Antenna
027954 541034
-+
10...40 V DC
SIM-Card Push
Status GSM
Power
Fig. 3-5:
Insert the SIM card with the contact side
facing upwards and ensure that the card
is seated correctly in the recess.
Then push the SIM card holder back into
the modem until it snaps into position.

3.2 Super Modem 56k (MIM-A01)
The MIM-A01 is a PSTN modem intended for transmission of data, SMS, e-mail and fax mes-
sages by analog telephone networks and complies to the high speed standard of V.90 and 56k.
It is suitable for DIN-Rail mounting inside control boxes.
3.2.1 Interfaces and Connectors
NOTE For connecting the modem to a PC, a 1:1 serial standard cable is to be used.For information
to connect a PLC, refer to the PLC documentation.
Mounting and Installation Super Modem 56k (MIM-A01)
Mitsubishi Industrial Modem 3-7




SUPER MODEM
Power Line
Fig. 3-6: Overview of all connectors of the Super Modems 56k


Nr. Description Meaning
Line Telephone jack RJ11
10...30VDC Power supply (2 screw terminals) and power supply jack
Service Button
LEDs LEDs (Power, Mail in, Line, Mail out und Modem Mode)
RS232 Interface 9pin D-Sub jack
Tab. 3-4: Description of the connectors of the Modems

3.2.2 Meaning of the LEDs
The MIM-A01 got five LEDs, which display the modems operating status. After the power supply
has been switched on, a self test will be executed. The end of this test is indicated by a acoustic
signal (short beep).
Super Modem 56k (MIM-A01) Mounting and Installation
3-8 MITSUBISHI ELECTRIC
COM1 (RS232)
-+
DC 10...30V
Service
Powe r Line
Mail in
Mail out Modem Mode
SUPER MODEM
56k
COM1 (RS232)
-+
DC 10...30V
Service
Line
Mail in
Mail out Modem Mode
SUPER MODEM
56k
COM1 (RS232)
-+
DC 10...30V
Service
Power Line
Mail in
Mail out Modem Mode
COM1 (RS232)
-+
DC 10...30V
Service
Line
Mail in
Mail out Modem Mode
Fig. 3-7: LEDs on the MIM-A01
LED Status Meaning
Power
(yellow)
Off No power supply, device switched off
On Power supply active, device switched on
Mail in
(red)
Off No received message in memory
On Received message in memory
Line
(green)
Off No telephone connection active
Flashes Telephone connection becomes established
On Telephone connection successfully established
Mail out
(yellow)
Off No outgoing messages in memory
On Outgoing messages in memory
Modem Mode
(red)
Off Device is in Message Mode
On Device is in Modem Mode
Tab. 3-5: Five LEDs are used to show the state of the modem

3.2.3 Connection to the Telephone Network
Connection to telephone network (PSTN) is established via the included telephone cable and
the "Line" jack of the MAM.
To get access to your Mitsubishi Super Modem 56k, the telephone number of the connection
used must be known.
3.2.4 Testing the Telephone Connection
In order to check the telephone number of the connection used, plug an usual telephone into the
appropriate socket and dial the number by another telephone, or from a mobile. If the telephone
at the appropriate socket rings, the number is correct.
In order to check if the telephone connection supports the CLIP feature, dial from the appropriate
connection to another telephone. If the calling number is shown at the called party end, the CLIP
feature is supported.
If calls were successful in both directions, you can connect your Mitsubishi Super Modem. The
modem is now ready to be called and receive messages.
3.2.5 Telephone Exchange System
When connecting to a telephone exchange (PABX), take care if an outside line prefix is neces-
sary.
Mounting and Installation Super Modem 56k (MIM-A01)
Mitsubishi Industrial Modem 3-9
123456
1-b2
2-W
3-a
4-b
5-E
6-a2
Fig. 3-8
The Mitsubishi Super
Modem 56k supports the
a/b leads (3 and 4).

3.3 Mounting
Mount the modem by pushing or snap fitting it onto a DIN rail (top-hat rail 35 mm).
EATTENTION
:
PDANGER:
Mounting Mounting and Installation
3-10 MITSUBISHI ELECTRIC
Antenna
027954 541034
-+
10...40 V DC
SIM-Card Push
Status GSM
Power
Fig. 3-9:
Pull out the black tab on the device using
a screwdriver and so the device can
snap fit to the DIN rail. You can remove
thedevicefromtherailinthesameway.
Ensure that the retaining mechanism of
the modem snaps cleanly and securely
into the DIN rail.
Fig. 3-10:
Modem mounted on the DIN rail
쎲
The device must only be used in rooms that are dry and clean. Protect the devi-
ce from humidity, water splashes or heat.
쎲
Do not subject the device to severe vibration.
쎲
The device must not be used in environments containing flammable gases,
fumes or dust.
