SCREEN DISTANCE FROM SCREEN (L) Hd
IMAGE HEIGHTIMAGE HEIGHT
Diagonal Size Width Height Max.Zoom Min.Zoom
©2006 Mitsubishi Digital Electronics America, Inc. Standard features,
options and specifications subject to change without notice. The
DLP™ logo and DLP™ medallion are trademarks of Texas Instruments.
Microsoft, Windows, and the Windows logo are registered trademarks
of Microsoft Corporation. Mac and the Mac logo are trademarks of
Apple Computer, Inc, registered in the U.S. and other countries. All
other trademarks are the property of their respective holders.
*The projector lamp contains mercury. Please dispose of properly.
PP6038-08/06-15M-LITHD1000U
Canada
Mitsubishi Electric Sales Canada Inc.
Information Technologies Group
Phone: 905.475.7728
www.mitsubishielectric.ca
MITSUBISHI DIGITAL ELECTRONICS AMERICA, INC.
Presentation Products Division
Toll Free: 888.307.0349
www.mitsubishi-presentations.com
Unit measured in inches
0.034"
9.64"
12.20"
3.93"
2.20"
0.19"
• User Manual
• User Manual CD
• Safety Manual
inch cm inch cm inch cm inch m inch m inch cm
40 102 35 89 20 50 56 1.4 68 1.7 -6.6 -17
60 152 52 133 29 75 85 2.2 103 2.6 -9.9 -25
70 178 61 155 34 87 100 2.5 121 3.1 -11.5 -29
80 203 70 177 39 100 114 2.9 139 3.5 -13.2 -33
90 229 78 199 44 112 129 3.3 156 4.0 -14.8 -38
100 254 87 221 49 125 143 3.6 174 4.4 -16.5 -42
110 279 96 244 54 137 158 4.0 191 4.9 -18.1 -46
120 305 105 266 59 149 173 4.4 209 5.3 -19.8 -50
150 381 131 332 74 187 216 5.5 262 6.6 -24.7 -63
200 508 174 443 98 249 289 7.3 349 8.9 -32.9 -84
250 635 218 553 123 311 362 9.2 - - -41.2 -105
275 699 240 609 135 342 398 10.1 - - -45.3 -115

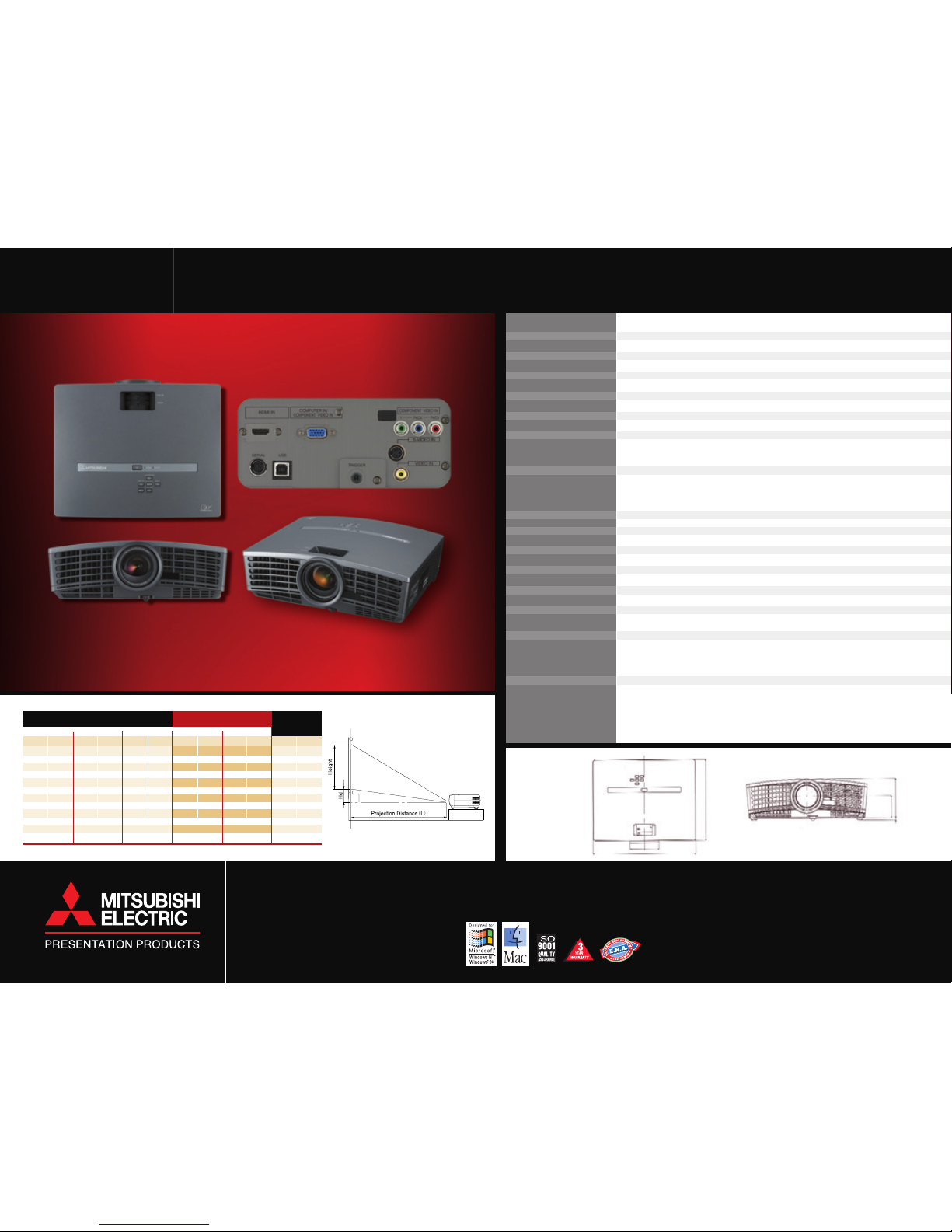

HD1000U HOME THEATER DLP™ PROJECTOR
0.62" 1-Chip DMD, 12deg.LVDS, DarkChip2(TM) with DDP3020
1280 x 720 (Total 921,600 pixels), 600 Video lines
1500 lumens
2500 : 1 (on/off)
Manual Focus & Zoom Lens
F= 2.4-2.6
1.6-2.0
4 : -1 up (Digital lens shift)
40-275 inches diagonal
200W (Shut Off Time 2000Hrs) with Low Mode (160W:Shut Off Time 3000Hrs)
Resolution ; 640 x480 - 1280 x 720 + Compressed 1280 x 1024 Sync on Green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video ; 480i/p(525i/p), 576i/p(625i/p), 720p(750p 50/60Hz), 1080i(1125i
60Hz), 1080i (1125i 50Hz), SCART (RGB + 1V sync)
RGB: Mini D-sub 15pin x 1, HDMI x 1
Audio: N/A
Video: RCA x 1 + S-VIDEO x 1, RCA (Y,CB,CR) x 1
Audio: N/A
RGB: 12V Trigger Out
RS-232C (8pin) x 1 (Direct command is available), USB (Only for service)
[H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot Clock] max 110 MHz
N/A
One Push Rear leg ( -1 to 7 dergree variable )
1) Projector Fully Control, 2) Back light key, 3)Direct functions with AV memory
280 W / 2.9 A
12.2" x 3.9" x 9.6" (310 x 100 x 245 mm) (W x H x D)
6.5 lbs. (3.0 kg.)
AC 100-240V, 50/60 Hz
31 dBA (Low mode: 25 dBA)
• AC Power Cable
• RGB cable
• RS-232C cable
• Remote Unit ( incl. Battery )
Replacement Lamp (VLT-HC910LP), Learning Remote Control (R-SC1), Hard Shell Rolling
Case (DKT1-ATAC), Ceiling Mount (PROJ-UCM), Soft Carrying Case (XL1-SSCC)
1-Year Parts and Labor
DISPLAY TECHNOLOGY
RESOLUTION
BRIGHTNESS
CONTRAST RATIO
ZOOM/FOCUS
PROJECTION LENS
THROW RATIO
OFF SET AXIS
PICTURE SIZE
SOURCE LAMP
PC COMPATIBILITY
VIDEO COMPATIBILITY
INPUT TERMINALS
OUTPUT TERMINAL
COMMUNICATION TERMINAL
SCANNING RATE
AUDIO SPEAKER
HEIGHT ADJUSTER
HAND REMOTE UNIT
POWER CONSUMPTION
DIMENSION
WEIGHT
POWER REQUIREMENTS
FAN NOISE
SUPPLIED ACCESSORIES
OPTIONAL ACCESSORIES
WARRANTY
