Mitsubishi Heavy Industries FDE40ZMXVG User manual

(Split system, air to air heat pump type)
CEILING SUSPENDED TYPE
Single type Twin type
FDE40ZMXVG FDE71VNXPVG
50ZMXVG 100VNXPVG
60ZMXVG 100VSXPVG
71VNXVG 125VNXPVG
100VNXVG 125VSXPVG
100VSXVG 140VNXPVG
125VNXVG 140VSXPVG
125VSXVG Triple Type
140VNXVG FDE140VNXTVG
140VSXVG 140VSXTVG
V Multi System
(OUTDOOR UNIT) (INDOOR UNIT)
FDC71VNX FDE40VG
100VNX 50VG
100VSX 60VG
125VNX 71VG
125VSX
140VNX
140VSX
CEILING SUSPENDED TYPE
Single type Twin type Triple type
FDE71VNPVG FDE100VNPVG FDE140VNTVG
90VNPVG 100VSPVG 140VSTVG
100VNVG 125VNPVG 200VSATVG
100VSVG 125VSPVG
125VNVG 140VNPVG Double twin type
125VSVG 140VSPVG FDE200VSADVG
140VNVG 200VSAPVG 250VSADVG
140VSVG 250VSAPVG
V Multi System
(OUTDOOR UNIT) (INDOOR UNIT)
FDC100VN FDE50VG
100VS 60VG
125VN 71VG
125VS 100VG
140VN 125VG
140VS
FDC200VSA
250VSA
Manual No.'15•PAC-T-236
updated May 20, 2016
Model Changes
FDC100VN Blank A B C D L M
FDC125VN Blank A B C D L M
FDC140VN Blank A B C D L M
FDC100VS Blank A B C D L M
FDC125VS Blank A B C D L M
FDC140VS Blank A B C D L M
History of service code
Blank→A：Expanded operation temperature range down to
-20℃in heating
A→B：Expanded diameter of half punched hole for pipesto
be drawn in from behind
B→C：Replaced with new compressor and PCB,
Complied with Lot10
C→D：Connector discontinue countermeasure
D→L：Complied with LVD (changing fan guard)
L→M：Connector discontinue countermeasure
Model Changes
FDC71VNX 1 A B L M
1
→
A
：
Complied with Lot10
A→B：Change of control unit (PWB)
B→L：Complied with LVD (changing fan guard)
L
→
M
：
Change of control unit (PWB)
FDC100VNX 1 A B L M
FDC125VNX 1 A B L M
FDC140VNX 1 A B L M
FDC100VSX 1 A B L M
FDC125VSX 1 A B L M
FDC140VSX 1 A B L M
1→A：Complied with Lot10
A→B：Connectordiscontinue countermeasure
B→L：Complied with LVD (changing fan guard)
L→M：Connectordiscontinue countermeasure
History of service code
Service code Service code
TECHNICAL MANUAL

'15 • PAC-T-236
TABLE OF CONTENTS
1. HYPER INVERTER PACKAGED AIR-CONDITIONERS ....................................... 2
2. MICRO INVERTER PACKAGED AIR-CONDITIONERS .......................................278
3. V MULTI SYSTEM .................................................................................................408
4. OPTION PARTS .....................................................................................................444
#
GENERAL INFORMATION .............................................................................. 1

-
1
-
'1• 1"$-5-
.-JOFVQ
)'(9*
 /PDIBOHFJOFYUFSJPSEFTJHO
 ,FFQUIFDVSSFOUMJOFVQ
4QMJU 
 *NQSPWFEFGGJDJFODZ
 *NQSPWFE/PJTFMFWFM
 8JSFESFNPUFDPOUSPMMFSDPOOFDUJPO
XJMMCFEFGBVMUGSPNGBDUPSZ'%&7(
 *NQSPWFETFSWJDFBCJMJUZ
'4FSJFT (4FSJFT
'%&/7' '%&7(
'%&/7' '%&7(
'%&/7' '%&7(
'%&/7' '%&7(
'%&/7' '%&7(
'%&/7' '%&7(
'%&/7' '%&7(
GENERAL INFORMATION
1. New Features
#

-
1 - 1
-
'1• 1"$-5-
3. Specification
F Series G Series
FDEN40VF
210 × 1,070 × 690
FDE40VG
210 × 1,070 × 690
FDEN50VF FDE50VG
FDEN60VF
210 × 1,320 × 690
FDE60VG
210 × 1,320 × 690
FDEN71VF1 FDE71VG
FDEN100VF1
250 × 1,620 × 690
FDE100VG
250 × 1,620 × 690
FDEN125VF FDE125VG
FDEN140VF FDE140VG
Unit size
- Keep same platform for each capacity range
40 50 60 71 100VNX100VSX
VF 3.81 3.81 3.80 3.80 3.80 3.80
VG 3.93 3.92 4.08 4.00 4.18 4.17
2.00
2.50
3.00
3.50
4.00
4.50
SCOP (Hyper)
40 50 60 71 100VNX100VSX
VF 6.14 5.83 5.72 4.67 5.15 5.12
VG 6.46 6.10 6.72 4.87 5.89 5.84
0.00
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
SEER (Hyper)
Improved SEER/SCOP
A -> A+
A -> A+ A -> A+
A -> A+ A -> A+
A -> A+
A+ -> A++ A+ -> A++ B
A++
A
A
#


2

'1• 1"$-5-
Improved SEER/SCOP
Lower Noise
#
100VN 100VS
VF 5.13 5.10
VG 5.43 5.39
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00 SEER (Micro)
71VNP 90VNP
VF 5.70 6.18
VG 6.35 6.63
2.00
3.00
4.00
5.00
6.00
7.00 SEER (Popular)
A + -> A++ A++
71VNP 90VNP
VF 4.00 4.10
VG 4.22 4.25
2.00
2.50
3.00
3.50
4.00
4.50 SCOP (Popular)
a
r
)
A+ A+
100VN 100VS
VF 3.80 3.80
VG 3.91 3.90
2.00
2.50
3.00
3.50
4.00
4.50
SCOP (Micro)
)
A
A
A
A
37 37 38 38 39 43 43
31 31 32 32 34 35 36
0
10
20
30
40
50
40 50 60 71 100 125 140
VF VG
37 37
32
38
32
38
43
36
43

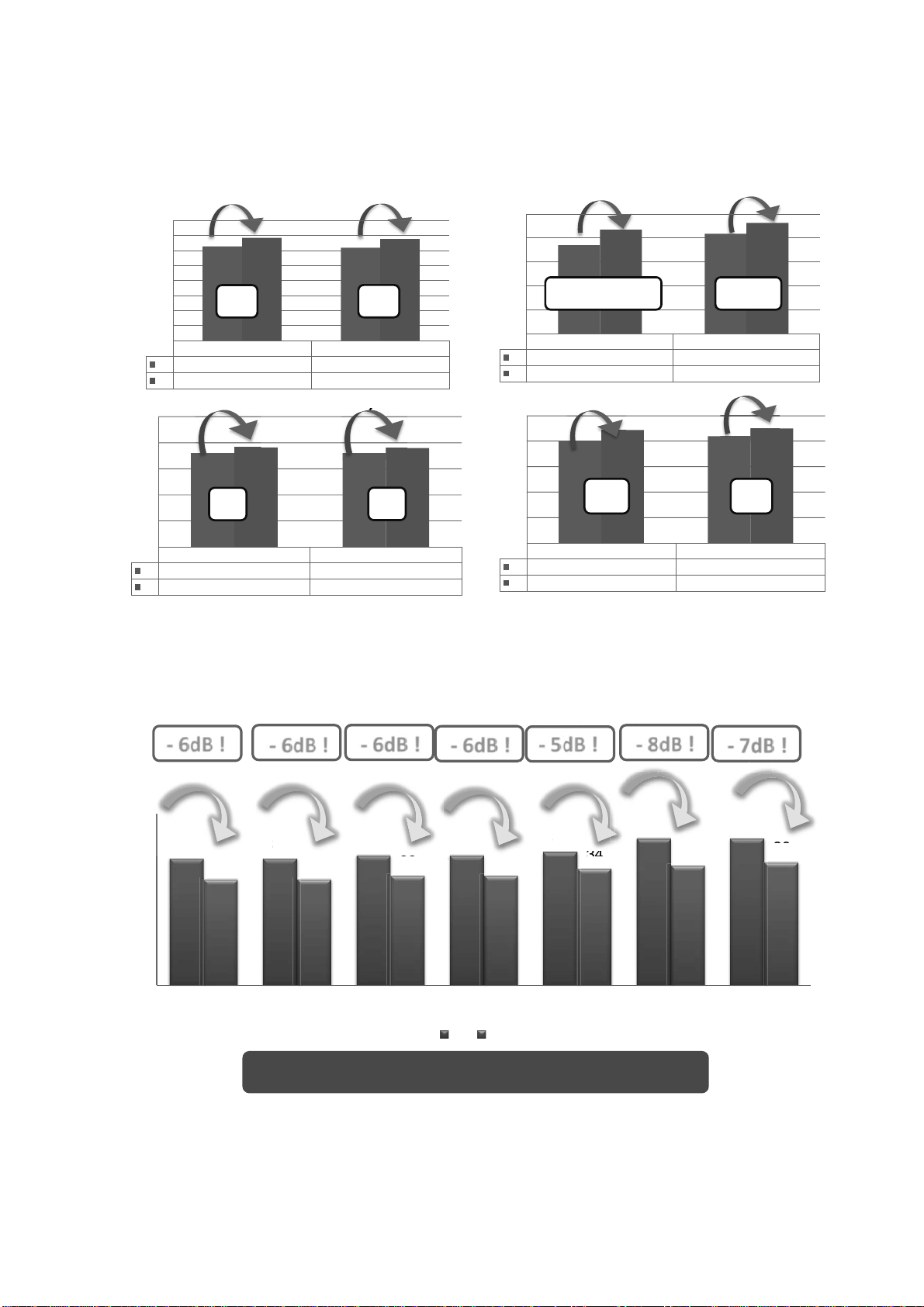

Dramatically decreased noise
34
39
34


3

'1• 1"$-5-
Lower Noise
#
-Keep lower or same level in P-Hi,Hi-tap
-Dramatically lower level in Me,Lo tap
46 39 38 37
46
38 36 31
0
20
40
60
P-Hi Hi Me Lo
VF VG
40,50
48 41 39 38
47 41 37 32
0
20
40
60
P-Hi Hi Me Lo
VF VG
60
50
41 39 38
47 41 37 32
0
20
40
60
P-Hi Hi Me Lo
VF VG
71
46 44 41 39
48 43 38 34
0
20
40
60
P-Hi Hi Me Lo
VF VG
100
50 46 44 43
48 45 40 35
0
20
40
60
P-Hi Hi Me Lo
VF VG
125
50 46 44 43
49 45 40 36
0
20
40
60
P-Hi Hi Me Lo
VF VG
140
FDEN-VF FDE-VG
-Factory default = Wired
-Wireless Kit is needed for wireless
remote
+
----------------------------------------------------------------------------------

'1• 1"$-5-

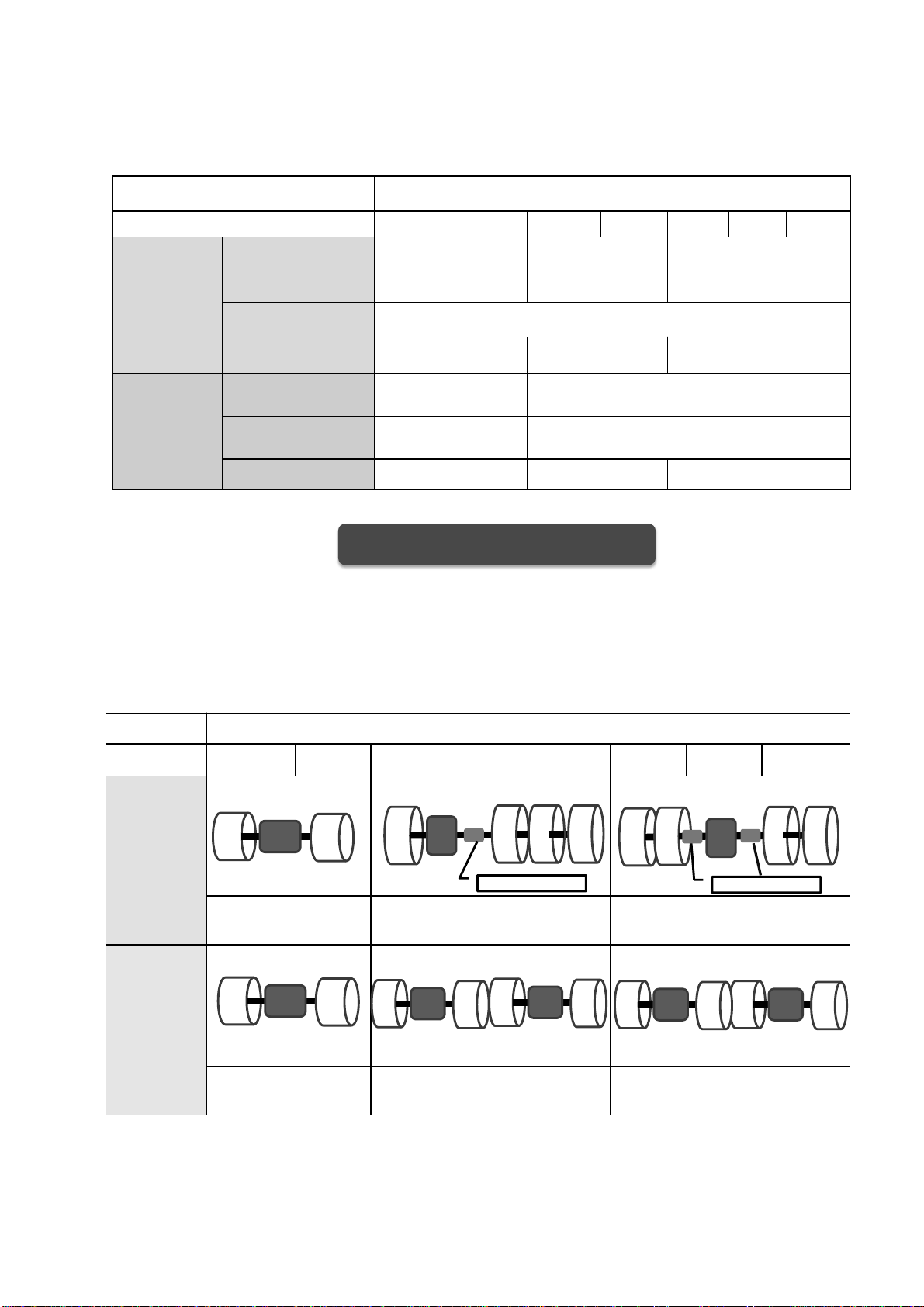

4.Technical Detail

Series FDE
Size 40 50 60 71 100 125 140
FDE-VG
Fan motor no.
DC 30W DC50W DC 80W (100,125)
DC 90W (140)
Connector CNM1 (White)
Impeller 2
4 4
FDE-VF
Fan motor no. AC X 1 AC x 2
Connector CNM3 CNM3
Impeller 2
4 4
DC motor adapted.
Series FDE
Size 40 50 60, 71 100 125 140
FDE-VG
Motor x 1
Impeller x 2
Motor x 1
Impeller x 4
Motor x 1
Impeller x 4
FDE-VF
Motor x 1
Impeller x 2
Motor x 2
Impeller x 4
Motor x 2
Impeller x 4
Motor & Impeller structure
Motor Motor
Coupling Coupling
Motor
Motor Motor Motor Motor Motor

4





'1• 1"$-5-
&MFDUSJDBMXJSJOH
Improved TFSWJDFBCJMJUZ
#
$POUSPM1$#
1PXFS
1$#
0OF%$
'BO.PUPS
$/5"
4-BEBQUFSDBOCF
JOTUBMMFEJOTJEFUIF
DPOUSPMCPY
$POUSPMCPYDBOCFQVMMFE
EPXOGPSFBTZJOTQFDUJPO

-
2
-
'15 • PAC-T-236
CONTENTS
1.1 SPECIFICATIONS ........................................................................................... 5
1.2 EXTERIOR DIMENSIONS ............................................................................... 24
(1) Indoor units .................................................................................................. 24
(2) Outdoor units ............................................................................................... 27
1.4 NOISE LEVEL
1.6 PIPING SYSTEM
1.5 TEMPERATURE AND VELOCITY DISTRIBUTION
1.3 ELECTRICAL WIRING .................................................................................... 33
1.7 RANGE OF USAGE & LIMITATIONS
(1) Indoor units .................................................................................................. 33
(2) Outdoor units ............................................................................................... 34
(3) Remote control (Option parts) ..................................................................... 30
1.8 SELECTION CHART
1.8.1 Capacity tables
1.8.2
Correction of cooling and heating capacity in relation to air flow rate control (fan speed)
1.8.3 Correction of cooling and heating capacity in relation to one way length of refrigerant piping
1.8.4 Height difference between the indoor unit and outdoor unit
1.9 APPLICATION DATA
1.9.1 Installation of indoor unit ........................................................................ 67
...................................................................................... 67
........................................................................................ 52
.......... 65
..... 65
.............. 65
................................................................................................. 38
........................................ 41
............................................................................................. 45
............................................................. 48
....................................................................................... 52
1. HYPER INVERTER PACKAGED AIR-CONDITIONERS
...................................................................................... 97
1.9.4 Installation of outdoor unit ...................................................................... 89
(1) Models SRC40－60ZMX-S ......................................................................... 89
(2) Model FDC71VNX
(3) Models FDC100－140VNX, 100－140VSX ...............................................105
1.9.2 Electric wiring work installation ............................................................. 71
.............113
1.9.3 Installation of wired remote control (Option) ......................................... 75
1.10 OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER ..................116
1.10.1 Remote control .........................................................................................116
1.10.2 Operation control function by the wired remote control
1.10.3 Operation control function by the indoor control .................................122
......................119
(1) Auto operation ...........................................................................................122
(2) Operations of functional items during cooling/heating ..............................123
(4) Timer operation .........................................................................................124
(5) Remote control display during the operation stop ....................................125
(6) Hot start (Cold draft prevention at heating) ...............................................125
(7) Hot keep ....................................................................................................125
(8) Auto swing control .....................................................................................126
(3) Dehumidifying operation ...........................................................................123
1.9.5 Instructions for branching pipe set (DIS-WA1,WB1,TA1,TB1)

-
3
-
'15 • PAC-T-236
CONTENTS
1.1 SPECIFICATIONS ........................................................................................... 5
1.2 EXTERIOR DIMENSIONS ............................................................................... 24
(1) Indoor units .................................................................................................. 24
(2) Outdoor units ............................................................................................... 27
1.4 NOISE LEVEL
1.6 PIPING SYSTEM
1.5 TEMPERATURE AND VELOCITY DISTRIBUTION
1.3 ELECTRICAL WIRING .................................................................................... 33
1.7 RANGE OF USAGE & LIMITATIONS
(1) Indoor units .................................................................................................. 33
(2) Outdoor units ............................................................................................... 34
(3) Remote control (Option parts) ..................................................................... 30
1.8 SELECTION CHART
1.8.1 Capacity tables
1.8.2
Correction of cooling and heating capacity in relation to air flow rate control (fan speed)
1.8.3 Correction of cooling and heating capacity in relation to one way length of refrigerant piping
1.8.4 Height difference between the indoor unit and outdoor unit
1.9 APPLICATION DATA
1.9.1 Installation of indoor unit ........................................................................ 67
...................................................................................... 67
........................................................................................ 52
.......... 65
..... 65
.............. 65
................................................................................................. 38
........................................ 41
............................................................................................. 45
............................................................. 48
....................................................................................... 52
1. HYPER INVERTER PACKAGED AIR-CONDITIONERS
...................................................................................... 97
1.9.4 Installation of outdoor unit ...................................................................... 89
(1) Models SRC40－60ZMX-S ......................................................................... 89
(2) Model FDC71VNX
(3) Models FDC100－140VNX, 100－140VSX ...............................................105
1.9.2 Electric wiring work installation ............................................................. 71
.............113
1.9.3 Installation of wired remote control (Option) ......................................... 75
1.10 OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER ..................116
1.10.1 Remote control .........................................................................................116
1.10.2 Operation control function by the wired remote control
1.10.3 Operation control function by the indoor control .................................122
......................119
(1) Auto operation ...........................................................................................122
(2) Operations of functional items during cooling/heating ..............................123
(4) Timer operation .........................................................................................124
(5) Remote control display during the operation stop ....................................125
(6) Hot start (Cold draft prevention at heating) ...............................................125
(7) Hot keep ....................................................................................................125
(8) Auto swing control .....................................................................................126
(3) Dehumidifying operation ...........................................................................123
1.9.5 Instructions for branching pipe set (DIS-WA1,WB1,TA1,TB1)
(9) Thermostat operation ................................................................................127
(10) Filter sign ...................................................................................................128
....................................................128(11) Compressor inching prevention control
......................................................................129
.............................................................................129
(14) Heating overload protection
(12) Operation check mode
(13) Cooling, dehumidifying frost protection .....................................................129
...................................................................................130
...............................................................................130
(17) High ceiling control
(15) Anomalous fan motor
(16)
Plural unit control - Control of 16 units group by one remote control ..................130
.........131
............................................131(19) External input/output control (CnT or CnTA)
(18)
Abnormal temperature thermistor (return air/indoor heat exchanger) wire/short-circuit detection
(20) Operation permission/prohibition ..............................................................133
(21) Selection of cooling/heating external input function ..................................134
(26) Energy-saving operation (RC-EX1A only)
(27) Warm-up control (RC-EX1A only)
................................................136
............................................................136
...................................................................135(22) Fan control at heating startup
......................................................135(24) Return air temperature compensation
....................................................135(25) High power operation (RC-EX1A only)
(23)
Room temperature detection temperature compensation during heating ............135
(32) Auto fan speed control (RC-EX1A only)
(33) IU overload alarm (RC-EX1A only)
..................................................136
..........................................................136
(34) Peak-cut time (RC-EX1A only) ................................................................137
.........................................................136(28) Home leave mode (RC-EX1A only)
.................................................136(30) Fan circulator operation (RC-EX1A only)
...(31) The operation judgment is executed every 5 minutes (RC-EX1A only)
(29) Auto temp. setting (RC-EX1A only) ..........................................................136
136
(1) Defrost operation
(2) Cooling overload protective control
(3) Cooling high pressure control
(4) Cooling low outdoor temperature protective control
(5) Heating high pressure control
(6) Heating overload protective control
(7) Heating low outdoor temperature protective control
(8) Compressor overheat protection
(9) Current safe
(10) Current cut
(11) Outdoor unit failure
1.10.4 Operation control function by the outdoor control
(Ⅰ)Models SRC40－60
......................................................................................138
...........................................................138
...................................................................139
.................................139
...................................................................140
..........................................................140
.................................140
...............................................................141
..............................................................................................141
................................................................................................141
...................................................................................141
..............................138
..................................................................................138
(12) Serial signal transmission error protection ................................................141
(13) Rotor lock ..................................................................................................141

-
4
-
'15 • PAC-T-236
(1) List of troubles
(2) Troubleshooting
(7) Inverter checker for diagnosis of inverter output
1.11.2 Troubleshooting flow
(8) Outdoor unit control failure diagnosis circuit diagram
................................................................................196
...........................................................................................196
.........................................................................................199
(1) Selfdiagnosis function
(2) Troubleshooting procedure
1.11.1 Diagnosing of microcomputer circuit ......................................................154
1.11 MAINTENANCE DATA .......................................................................................154
................................................................................154
........................................................................159
(3) Troubleshooting at the indoor unit
(4) Troubleshooting at the outdoor unit
.............................................................159
...........................................................163
(5) Check of anomalous operation data with the remote control
(6)
Power transistor module (including the driver PCB) inspection procedure
....................178
...........181
.......................................183
................................185
1.12 TECHNICAL INFORMATION .............................................................................269
(15) Outdoor fan control at low outdoor temperature
(16) Refrigeration cycle system protection
.......................................142
.......................................................142
(1) Determination of comressor speed (Frequency)
(2) Compressor start control
........................................143
...........................................................................143
(3) Compressor soft start control
(4) Outdoor unit fan control
....................................................................144
.............................................................................145
(5) Defrost operation
(6)
Protective control/anomalous stop control by compressor,s number of revolutions
.......................................................................................147
...........148
(7) Silent mode
(8) Test run
...............................................................................................152
......................................................................................................152
(9) Pump-down control
(10) Base heater ON/OFF output control (Option)
...................................................................................152
............................................153
(Ⅱ)Models FDC71－140 .................................................................................143
(14) Outdoor fan motor protection ....................................................................141
■How to read the model name
Example: FDE 40 Z MXVG
Series code
Inverter type
Product capacity
Model name
Example: FDE 100 VNX P VG
Series code
P : Twin type
: Single type
T : Triple type
Applicable power source...See the specification
Product capacity
Model name
(blank)
SRC : Outdoor unit
FDE : Ceiling suspended type
FDC : Outdoor unit
FDE : Ceiling suspended type

-
5
-
'15 • PAC-T-236
Model
Item
FDE40ZMXVG
Indoor unit FDE40VG Outdoor unit SRC40ZMX-S
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 4.0 [ 1.1(Min.)-4.7(Max.)]
Nominal heating capacity (range) kW 4.5 [ 0.6(Min.)-5.4(Max.)]
Power consumption Cooling
kW
1.02
Heating 1.10
Max power consumption 2.60
Running current Cooling
A
4.8 / 5.0
Heating 5.1 / 5.4
Inrush current, max current 5 , 12
Power factor Cooling %92
Heating 93
EER Cooling 3.92
COP Heating 4.09
Sound power level Cooling
dB(A)
60 63
Heating
Sound pressure level Cooling P-Hi : 46 Hi : 38 Me : 36 Lo : 31 50
Heating
Silent mode sound pressure level — Cooling : 45 / Heating : 45
Exterior dimensions (Height x Width x Depth) mm 210 × 1,070 × 690 640×800(+71)×290
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 ) near equivalent
Stucco white
( 4.2Y7.5/1.1 ) near equivalent
Net weight kg 28 45
Compressor type & Q'ty — RMT5113MCE2 ( Twin rotary type )×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.45 MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 1.5kg in outdoor unit (incl. the amount for the piping of : 15m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Capillary tubes + Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×2 Propeller fan ×1
Fan motor (Starting method) W 30 < Direct line start > 34 < Direct line start >
Air flow Cooling
m3/min P-Hi : 13 Hi : 10 Me : 9 Lo : 7 36
Heating 33
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — —
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") Pipeφ6.35(1/4")x0.8 O/Uφ6.35 (1/4")
Gas line: φ12.7 (1/2") φ12.7(1/2")x0.8 φ12.7 (1/2")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.30m
Vertical height diff. between O.U. and I.U. m Max.20m (Outdoor unit is higher) Max.20m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 5pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.3
Interconnecting wires Size x Core number 1.5mm2×4 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IPX4
Standard accessories Mounting kit, Drain hose Drain elbow, Drain hole grommet
Option parts —
1.1 SPECIFICATIONS
(1) Single type
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
6
-
'15 • PAC-T-236
Model
Item
FDE50ZMXVG
Indoor unit FDE50VG Outdoor unit SRC50ZMX-S
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 5.0 [ 1.1(Min.)-5.6(Max.)]
Nominal heating capacity (range) kW 5.4 [ 0.6(Min.)-6.3(Max.)]
Power consumption Cooling
kW
1.52
Heating 1.46
Max power consumption 2.90
Running current Cooling
A
7.0 / 7.4
Heating 7.0 / 7.3
Inrush current, max current 5 , 15
Power factor Cooling %94
Heating 91
EER Cooling 3.29
COP Heating 3.70
Sound power level Cooling
dB(A)
60 63
Heating
Sound pressure level Cooling P-Hi : 46 Hi : 38 Me : 36 Lo : 31 54
Heating 50
Silent mode sound pressure level — Cooling : 45 / Heating : 45
Exterior dimensions (Height x Width x Depth) mm 210 × 1,070 × 690 640×800(+71)×290
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 28 45
Compressor type & Q'ty — RMT5113MCE2 ( Twin rotary type )×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.45 MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 1.5kg in outdoor unit (incl. the amount for the piping of : 15m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Capillary tubes + Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×2 Propeller fan ×1
Fan motor (Starting method) W 30 < Direct line start > 34 < Direct line start >
Air flow Cooling
m3/min P-Hi : 13 Hi : 10 Me : 9 Lo : 7 40
Heating 33
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — —
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") Pipeφ6.35(1/4")x0.8 O/Uφ6.35 (1/4")
Gas line: φ12.7 (1/2") φ12.7(1/2")x0.8 φ12.7 (1/2")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.30m
Vertical height diff. between O.U. and I.U. m Max.20m (Outdoor unit is higher) Max.20m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 5pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 6.2
Interconnecting wires Size x Core number 1.5mm2×4 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IPX4
Standard accessories Mounting kit, Drain hose Drain elbow, Drain hole grommet
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
7
-
'15 • PAC-T-236
Model
Item
FDE60ZMXVG
Indoor unit FDE60VG Outdoor unit SRC60ZMX-S
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 5.6 [ 1.1(Min.)-6.3(Max.)]
Nominal heating capacity (range) kW 6.7 [ 0.6(Min.)-7.1(Max.)]
Power consumption Cooling
kW
1.75
Heating 1.86
Max power consumption 2.90
Running current Cooling
A
8.0 / 8.4
Heating 8.7 / 9.1
Inrush current, max current 5 , 15
Power factor Cooling %95
Heating 93
EER Cooling 3.20
COP Heating 3.60
Sound power level Cooling
dB(A)
60 64
Heating
Sound pressure level Cooling P-Hi : 47 Hi : 41 Me : 37 Lo : 32 54
Heating
Silent mode sound pressure level — Cooling : 45 / Heating : 45
Exterior dimensions (Height x Width x Depth) mm 210 × 1,320 × 690 640×800(+71)×290
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 33 45
Compressor type & Q'ty — RMT5113MCE2 ( Twin rotary type )×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.45 MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 1.5kg in outdoor unit (incl. the amount for the piping of : 15m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Capillary tubes + Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×1
Fan motor (Starting method) W 50 < Direct line start > 34 < Direct line start >
Air flow Cooling
m3/min P-Hi : 20 Hi : 16 Me : 13 Lo : 10 41.5
Heating 39
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — —
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ6.35 (1/4") Pipeφ6.35(1/4")x0.8 O/Uφ6.35 (1/4")
Gas line: φ12.7 (1/2") φ12.7(1/2")x0.8 φ12.7 (1/2")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.30m
Vertical height diff. between O.U. and I.U. m Max.20m (Outdoor unit is higher) Max.20m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 5pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 8.5
Interconnecting wires Size x Core number 1.5mm2×4 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IPX4
Standard accessories Mounting kit, Drain hose Drain elbow, Drain hole grommet
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
8
-
'15 • PAC-T-236
Model
Item
FDE71VNXVG
Indoor unit FDE71VG Outdoor unit FDC71VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 7.1 [ 3.2(Min.)-8.0(Max.)]
Nominal heating capacity (range) kW 8.0 [ 3.6(Min.)-9.0(Max.)]
Power consumption Cooling
kW
2.11
Heating 2.11
Max power consumption 3.38
Running current Cooling
A
9.7 / 10.1
Heating 9.3 / 9.7
Inrush current, max current 5 , 17
Power factor Cooling %95
Heating 99
EER Cooling 3.36
COP Heating 3.79
Sound power level Cooling
dB(A)
60 66
Heating
Sound pressure level Cooling P-Hi : 47 Hi : 41 Me : 37 Lo : 32 51
Heating 48
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 210 × 1,320 × 690 750×880(+88)×340
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 33 60
Compressor type & Q'ty — RMT5118MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.675 M-MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 2.95kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×1
Fan motor (Starting method) W 50 < Direct line start > 86 < Direct line start >
Air flow Cooling
m3/min P-Hi : 20 Hi : 16 Me : 13 Lo : 10 60
Heating 50
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — 20(Crank case heater)
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ9.52 (3/8") Pipeφ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: φ15.88 (5/8") φ15.88(5/8")x1.0 φ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.50m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Drain hose —
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
9
-
'15 • PAC-T-236
Model
Item
FDE100VNXVG
Indoor unit FDE100VG Outdoor unit FDC100VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 10.0 [ 4.0(Min.)-11.2(Max.)]
Nominal heating capacity (range) kW 11.2 [ 4.0(Min.)-12.5(Max.)]
Power consumption Cooling
kW
2.55
Heating 2.68
Max power consumption 4.61
Running current Cooling
A
11.3 / 11.8
Heating 11.8 / 12.3
Inrush current, max current 5 , 24
Power factor Cooling %98
Heating 99
EER Cooling 3.92
COP Heating 4.18
Sound power level Cooling
dB(A)
64 70
Heating
Sound pressure level Cooling P-Hi : 48 Hi : 43 Me : 38 Lo : 34 48
Heating 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 250 × 1,620 × 690 1,300×970×370
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 43 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 M-MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×2
Fan motor (Starting method) W 80 < Direct line start > 86 ×2 < Direct line start >
Air flow Cooling
m3/min P-Hi : 32 Hi : 26 Me : 21 Lo : 16.5 100
Heating
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — 20(Crank case heater)
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ9.52 (3/8") Pipeφ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: φ15.88 (5/8") φ15.88(5/8")x1.0 φ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Drain hose Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
10
-
'15 • PAC-T-236
Model
Item
FDE100VSXVG
Indoor unit FDE100VG Outdoor unit FDC100VSX
Power source 3 Phase 380-415V 50Hz / 380V 60Hz
Operation
data
Nominal cooling capacity (range) kW 10.0 [ 4.0(Min.)-11.2(Max.)]
Nominal heating capacity (range) kW 11.2 [ 4.0(Min.)-16.0(Max.)]
Power consumption Cooling
kW
2.55
Heating 2.68
Max power consumption 5.76
Running current Cooling
A
3.8 / 4.0
Heating 3.9 / 4.1
Inrush current, max current 5 , 15
Power factor Cooling %98
Heating 99
EER Cooling 3.92
COP Heating 4.18
Sound power level Cooling
dB(A)
64 70
Heating
Sound pressure level Cooling P-Hi : 48 Hi : 43 Me : 38 Lo : 34 48
Heating 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 250 × 1,620 × 690 1,300×970×370
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 43 105
Compressor type & Q'ty — RMT5134MDE3×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 M-MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×2
Fan motor (Starting method) W 80 < Direct line start > 86 ×2 < Direct line start >
Air flow Cooling
m3/min P-Hi : 32 Hi : 26 Me : 21 Lo : 16.5 100
Heating
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — 20(Crank case heater)
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ9.52 (3/8") Pipeφ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: φ15.88 (5/8") φ15.88(5/8")x1.0 φ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Drain hose Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 400V 50Hz or 380V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
11
-
'15 • PAC-T-236
Model
Item
FDE125VNXVG
Indoor unit FDE125VG Outdoor unit FDC125VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 12.5 [ 5.0(Min.)-14.0(Max.)]
Nominal heating capacity (range) kW 14.0 [ 4.0(Min.)-17.0(Max.)]
Power consumption Cooling
kW
3.50
Heating 3.77
Max power consumption 6.18
Running current Cooling
A
15.4 / 16.1
Heating 16.6 / 17.3
Inrush current, max current 5 , 26
Power factor Cooling %99
Heating 99
EER Cooling 3.57
COP Heating 3.71
Sound power level Cooling
dB(A)
64 70
Heating
Sound pressure level Cooling P-Hi : 48 Hi : 45 Me : 40 Lo : 35 48
Heating 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 250 × 1,620 × 690 1,300×970×370
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 43 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 M-MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×2
Fan motor (Starting method) W 80 < Direct line start > 86 ×2 < Direct line start >
Air flow Cooling
m3/min P-Hi : 32 Hi : 29 Me : 23 Lo : 17 100
Heating
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — 20(Crank case heater)
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ9.52 (3/8") Pipeφ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: φ15.88 (5/8") φ15.88(5/8")x1.0 φ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Drain hose Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
12
-
'15 • PAC-T-236
Model
Item
FDE125VSXVG
Indoor unit FDE125VG Outdoor unit FDC125VSX
Power source 3 Phase 380-415V 50Hz / 380V 60Hz
Operation
data
Nominal cooling capacity (range) kW 12.5 [ 5.0(Min.)-14.0(Max.)]
Nominal heating capacity (range) kW 14.0 [ 4.0(Min.)-18.0(Max.)]
Power consumption Cooling
kW
3.50
Heating 3.77
Max power consumption 7.72
Running current Cooling
A
5.1 / 5.4
Heating 5.5 / 5.8
Inrush current, max current 5 , 15
Power factor Cooling %99
Heating 99
EER Cooling 3.57
COP Heating 3.71
Sound power level Cooling
dB(A)
64 70
Heating
Sound pressure level Cooling P-Hi : 48 Hi : 45 Me : 40 Lo : 35 48
Heating 50
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 250 × 1,620 × 690 1,300×970×370
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 43 105
Compressor type & Q'ty — RMT5134MDE3×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 M-MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×2
Fan motor (Starting method) W 80 < Direct line start > 86 ×2 < Direct line start >
Air flow Cooling
m3/min P-Hi : 32 Hi : 29 Me : 23 Lo : 17 100
Heating
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — 20(Crank case heater)
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ9.52 (3/8") Pipeφ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: φ15.88 (5/8") φ15.88(5/8")x1.0 φ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Drain hose Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 400V 50Hz or 380V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#

-
13
-
'15 • PAC-T-236
Model
Item
FDE140VNXVG
Indoor unit FDE140VG Outdoor unit FDC140VNX
Power source 1 Phase 220-240V 50Hz / 220V 60Hz
Operation
data
Nominal cooling capacity (range) kW 14.0 [ 5.0(Min.)-16.0(Max.)]
Nominal heating capacity (range) kW 16.0 [ 4.0(Min.)-18.0(Max.)]
Power consumption Cooling
kW
4.40
Heating 4.69
Max power consumption 6.97
Running current Cooling
A
19.3 / 20.2
Heating 20.6 / 21.5
Inrush current, max current 5 , 26
Power factor Cooling %99
Heating 99
EER Cooling 3.18
COP Heating 3.41
Sound power level Cooling
dB(A)
65 72
Heating
Sound pressure level Cooling P-Hi : 49 Hi : 45 Me : 40 Lo : 36 49
Heating 52
Silent mode sound pressure level — —
Exterior dimensions (Height x Width x Depth) mm 250 × 1,620 × 690 1,300×970×370
Exterior appearance
( Munsell color )
Plaster white
( 6.8Y8.9/0.2 )near equivalent
Stucco white
( 4.2Y7.5/1.1 )near equivalent
Net weight kg 43 105
Compressor type & Q'ty — RMT5134MDE2×1
Compressor motor (Starting method) kW — Direct line start
Refrigerant oil (Amount, type) — 0.9 M-MA68
Refrigerant (Type, amount, pre-charge length) kg R410A 4.5kg in outdoor unit (incl. the amount for the piping of : 30m)
Heat exchanger Louver fin & inner grooved tubing M shape fin & inner grooved tubing
Refrigerant control Electronic expansion valve
Fan type & Q'ty Centrifugal fan ×4 Propeller fan ×2
Fan motor (Starting method) W 90 < Direct line start > 86 ×2 < Direct line start >
Air flow Cooling
m3/min P-Hi : 34 Hi : 29 Me : 23 Lo : 18 100
Heating
Available external static pressure Pa 0 —
Outside air intake Not possible —
Air filter, Quality / Quantity Pocket plastic net ×2(Washable) —
Shock & vibration absorber Rubber sleeve(for fan motor) Rubber sleeve(for compressor )
Electric heater W — 20(Crank case heater)
Operation
control
Remote control (option) wired : RC-EX1A , RC-E5 , RCH-E3 wireless : RCN-E-E
Room temperature control Thermostat by electronics
Operation display
Safety equipments
Internal thermostat for fan motor
Frost protection thermostat
Internal thermostat for fan motor
Abnormal discharge temperature protection.
Installation
data
Refrigerant piping size ( O.D. ) mm Liquid line: I/Uφ9.52 (3/8") Pipeφ9.52(3/8")x0.8 O/Uφ9.52 (3/8")
Gas line: φ15.88 (5/8") φ15.88(5/8")x1.0 φ15.88 (5/8")
Connecting method Flare piping Flare piping
Attached length of piping m — —
Insulation for piping Necessary (both Liquid & Gas lines)
Refrigerant line (one way) length m Max.100m
Vertical height diff. between O.U. and I.U. m Max.30m (Outdoor unit is higher) Max.15m (Outdoor unit is lower)
Drain hose Hose connectable with VP20(O.D.26) Holes size φ20 x 3pcs
Drain pump, max lift height mm — —
Recommended breaker size A —
L.R.A. (Locked rotor ampere) A 5.0
Interconnecting wires Size x Core number φ1.6mm×3 cores (Including earth cable) / Termainal block (Screw fixing type)
IP number IPX0 IP24
Standard accessories Mounting kit, Drain hose Edging
Option parts —
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) Sound level indicates the value in an anechoic chamber. During operation these values are somewhat
higher due to ambient conditions.
(4) Select the breaker size according to the own national standard.
(5) When wireless remote control is used, fan is 3 speed setting (Hi-Me-Lo) only.
(6) The operation data indicate when the air-conditioner is operated at 230V 50Hz or 220V 60Hz.
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO5151-T1
Heating 20˚C — 7˚C 6˚C
The pipe length is 7.5m.
PFA004Z024 C
—
#
