Mitsubishi Heavy Industries SRC50HE-S1 User manual

This air conditioner complies with EMC Directive 89/336/EEC, LV
Directive 73/23/EEC.
Ce climatiseur est conforme à la Directive EMC: 89/336/EEC, LV
Directive 73/23/EEC.
Dieses Kimagerät erfüllt die EMC Direktiven 89/336/EEC, LV
Direktiven 73/23/EEC.
Questo condizionatore d’aria è conforme alla Direttiva EMC: 89/
336/EEC, LV Direttiva 73/23/EEC.
Deze airconditioner voldoet aan EMC Directive 89/336/EEC, LV
Directive 73/23/EEC.
Este acondicionador de aire cumple con la directiva EMC: 89/
336/EEC, LV Directiva 73/23/EEC.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 88/336/CEE e a Directiva LV 72/23/CEE.
∞˘Ùfi ÙÔ ÎÏÈÌ·ÙÈÛÙÈÎfi Â›Ó·È Û‡ÌʈÓÔ Ì ÙȘ ÚԉȷÁڷʤ˜ Ù˘
√‰ËÁ›·˜ EMC 88/396 Î·È Ù˘ √‰ËÁ›·˜ V 73/23 Ù˘ ∂√∫.
AIR-CONDITIONING & REFRIGERATION SYSTEMS HEADQUARTERS
16-5, 2-Chome, Kounan, Minato-ku, Tokyo, 108-8215, Japan
Fax: [phone]
MITSUBISHI HEAVY INDUSTRIES EUROPE, LTD.
AIR-CONDITIONER DIVISION
3rd Floor Thavies Inn House 3-4 Holborn Circus London EC1N 2HA, ENGLAND
Phone: [phone]
Fax: [phone]
USER’S MANUAL
AIR CONDITIONER
RKT012A754
ENGLISH
SRK50HE-S1
SRK56HE-S1
SRK50CE-S1
SRK56CE-S1
MANUEL DE L’UTILISATEUR
CLIMATISEUR
ANWENDERHANDBUCH
KLIMAGERA
¨T
DEUTSCH
ISTRUZIONI PER L’USO
CONDIZIONATORE D’ARIA
ITALIANO
MANUAL DEL PROPIETARIO
ACONDICIONADOR DE AIRE
ESPAN
˜OL
GEBRUIKERSHANDLEIDING
AIRCONDITIONING
NEDERLANDS
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO
PORTUGUÊS
√¢∏°π∂™ Ã∏™∏™
∫§πª∞∆π™∆π∫√
∂§§∏¡π∫∞
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
КОНДИЦИОНЕР ВОЗДУХА
РУССКИЙ
KULLANIM KILAVUZU
SPL‹T KL‹MA
TÜRKÇE
FRANÇAIS
RKT012A754_Cover.p65 05.9.15, 10:16 AM1

–1–
Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To
get the best long-lasting performance, read and follow this User’s Manual carefully before
using your air-conditioner. After reading, please store the Manual in a safe place and refer
to it for operational questions or in the event of any irregularities.
This air-conditioner is intended for domestic use.
An alternative refrigerant (R410A) is used in this air-conditioner. When asking the
dealer for service or inspection and maintenance, explain the dealer about this matter.
Contents
Safety precautions......................................................................................................................... 2
Choice of operations and features ................................................................................................ 4

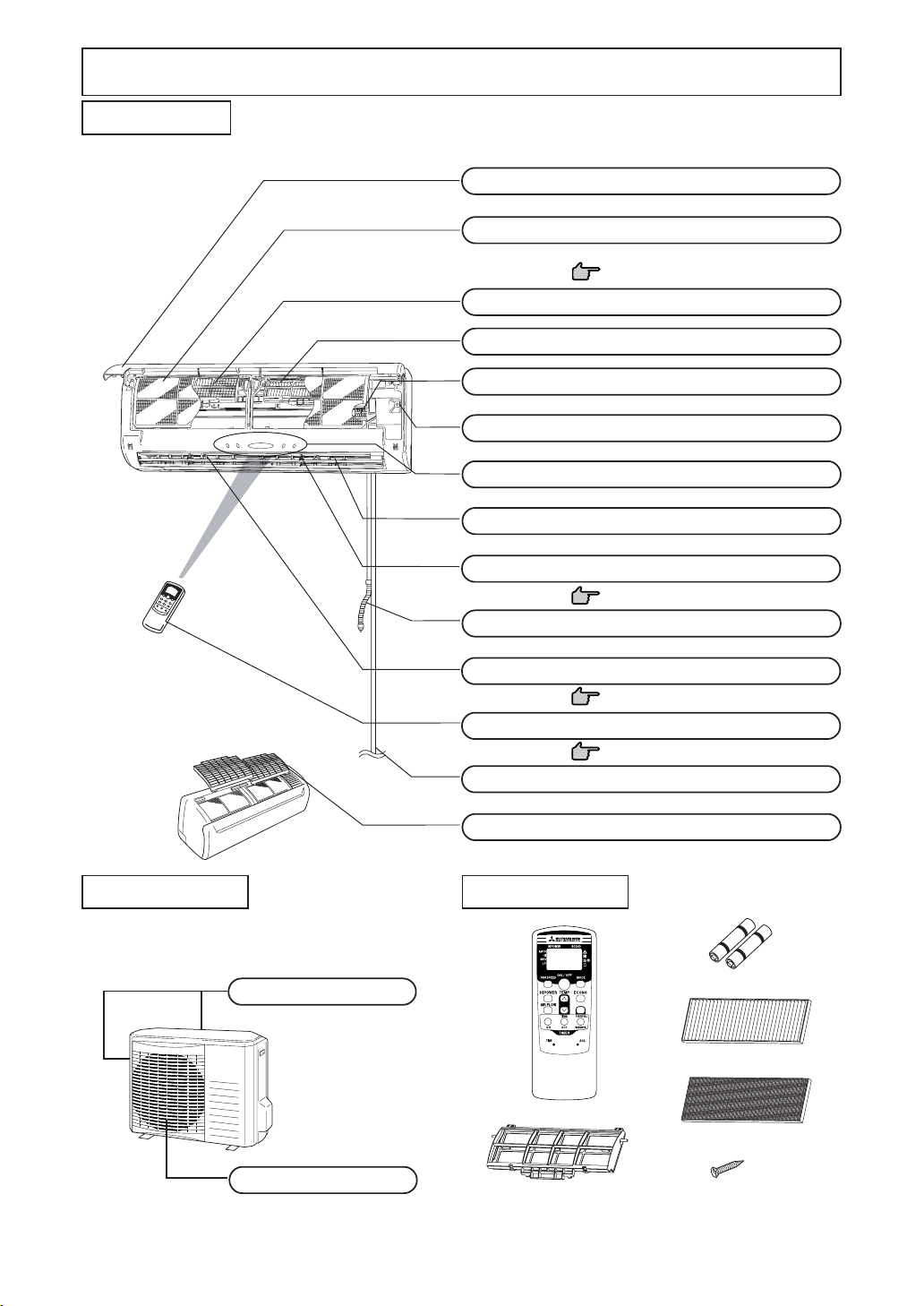

Name of each part and its function ............................................................................................... 5

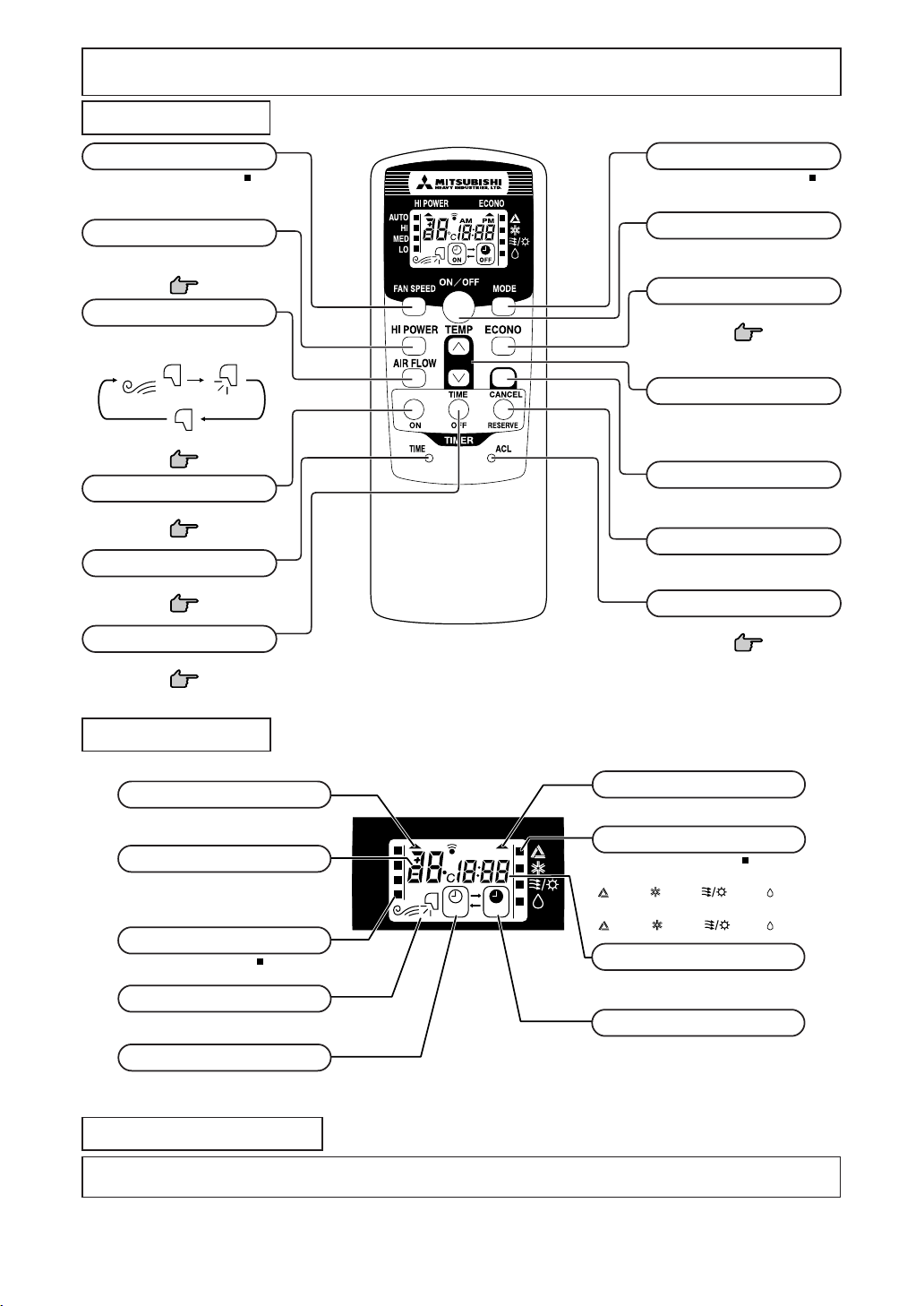

Operation and indication section for remote control .................................................................... 7
AUTO mode operation procedure ................................................................................................ 8
Temperature adjustment during AUTO ........................................................................................ 8
COOL/HEAT/DRY/FAN mode operation procedure .................................................................. 9
Concerning HIGH POWER operation ......................................................................................... 9
Concerning ECONOMY operation .............................................................................................. 9

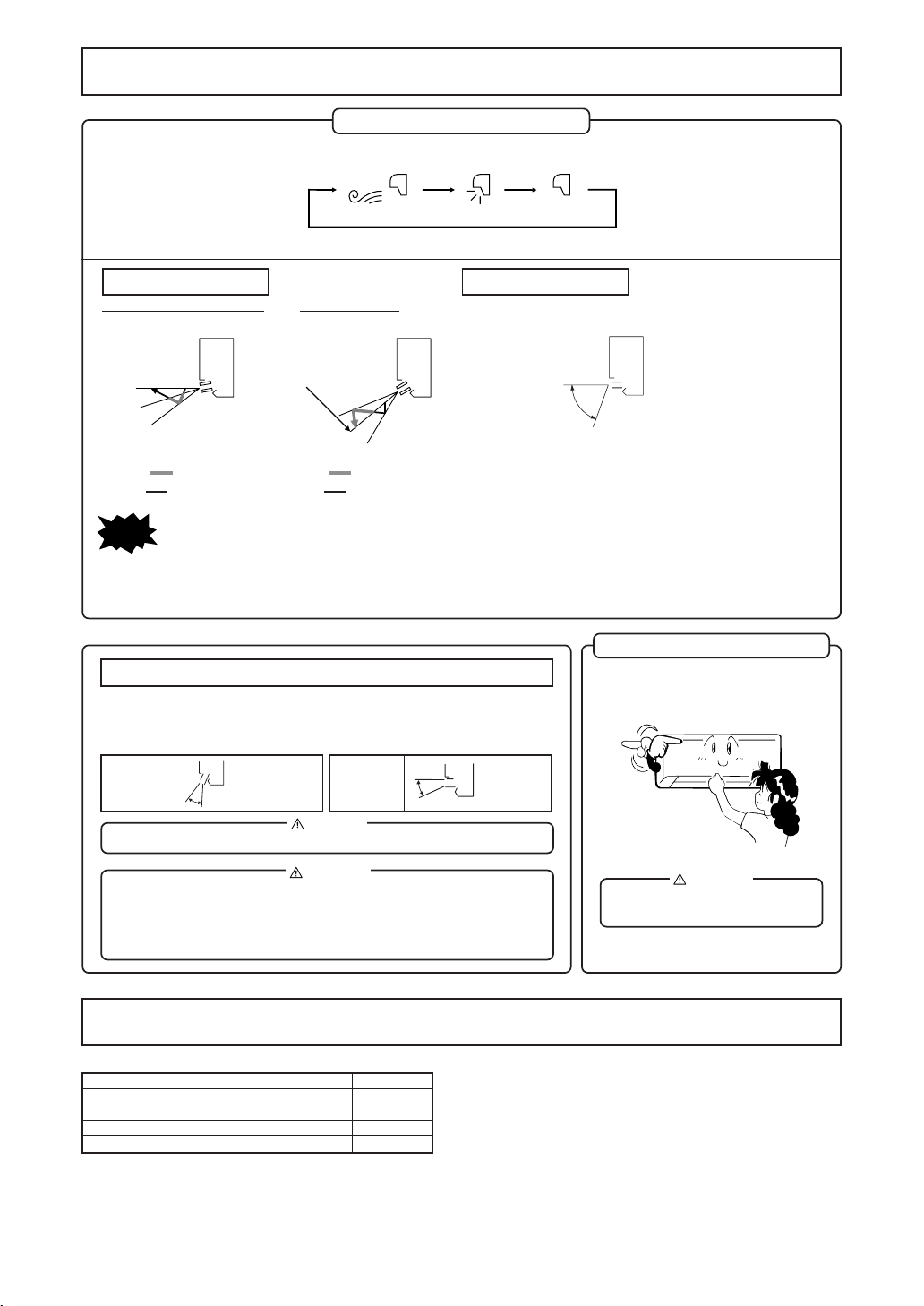

Air flow direction adjustment procedure .................................................................................... 10
About FAN SPEED .................................................................................................................... 10
OFF-TIMER operation procedure .............................................................................................. 11
ON-TIMER operation procedure................................................................................................ 11
PROGRAM TIMER operation procedure .................................................................................. 12
About TIMER operation............................................................................................................. 12
Present time setting procedure .................................................................................................... 12
Emergency run operation............................................................................................................ 13

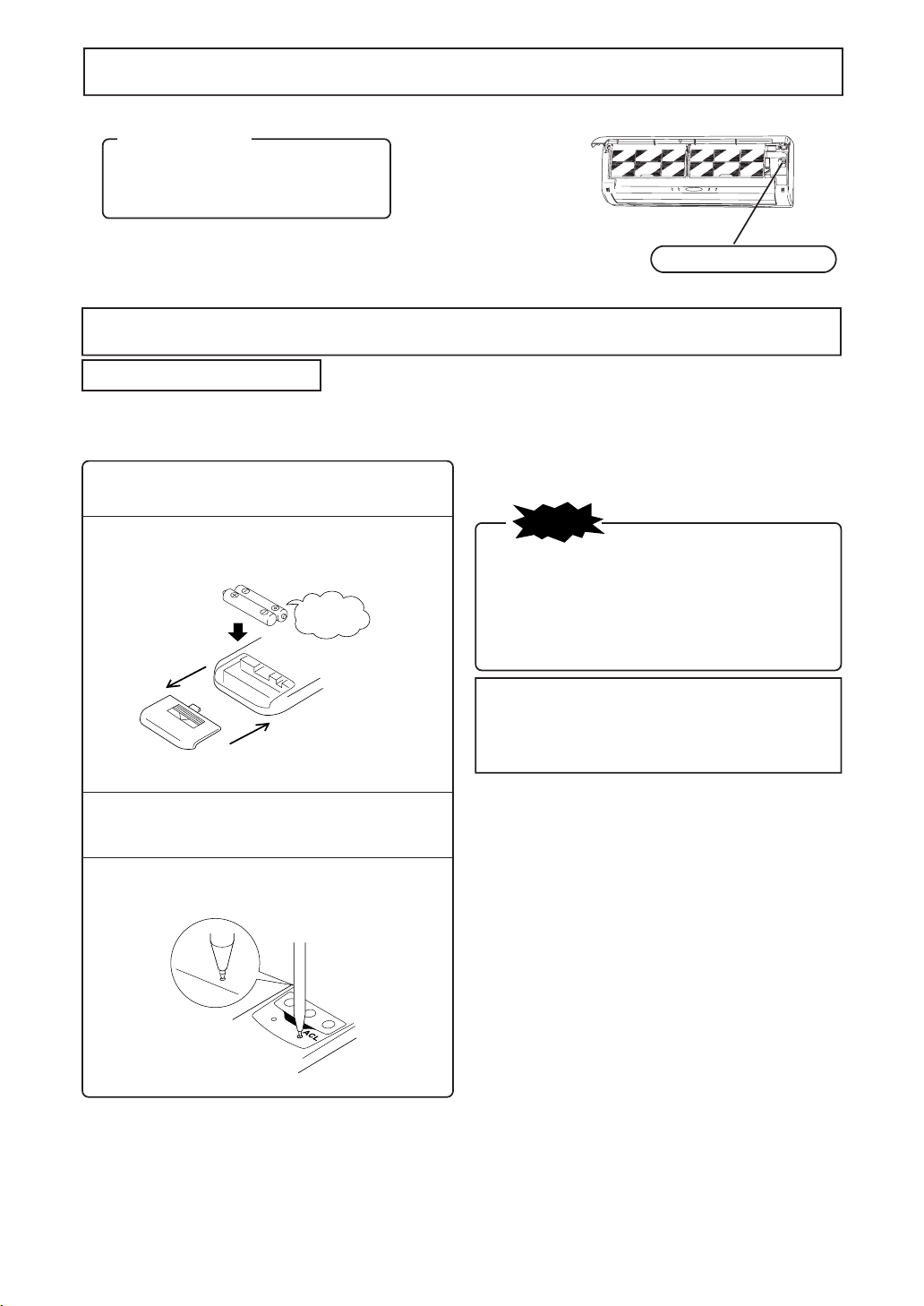

Remote control handling procedure ........................................................................................... 13
When the operation fails with the remote control ...................................................................... 14
Operating hints ........................................................................................................................... 14
Maintenance................................................................................................................................ 15
Has the unit been installed correctly? ......................................................................................... 16
Troubleshooting .......................................................................................................................... 17
Please remember! ....................................................................................................................... 17
When to contact your distributor without delay ......................................................................... 18
Air-conditioner operating conditions.......................................................................................... 19
Power Blackout Auto Restart Function ...................................................................................... 19
Characteristics of HEAT mode operation .................................................................................. 19
Self diagnosis function ............................................................................................................... 20
ENGLISH
This instruction manual contains the explanation of the heatpump air-conditioner.
That of cooling-only air-conditioner shall be referred to the same explanation , with
neglecting the information on heating-operation mode.
RKT012A754_En.p65 05.9.14, 1:42 PM1

–2–
Safety precautions
•Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the system.
•The safety precautions are classified as “ DANGER” and “ CAUTION”. Precautions as shown in the column “ DANGER” indicate that
improper handling could have dramatic consequences like death, serious injury, etc. Nevertheless, even precautions as shown in the column
“CAUTION” might pose a serious problem, depending on the circumstances. Please observe these precautions with great care, since they are
essential to your safety.
•Symbols which appear frequently in the text have the following meaning:
•When you have read the instruction manual, please keep it near at hand for consultation. If someone else takes over as operator, make certain that the
manual is also passed on to the new operator.
Strictly prohibited Provide positive earthing
Do not expose yourself to the cooling
air for prolonged periods.
This could affect your physical condition and cause
health problems.
Make sure that the system has been properly earthed.
Earth cables should never be connected to a gas pipe, municipal water pipe, light-
ning conductor or telephone earth cable. Incorrect installation of the earth cable
may produce an electric shock.
Depending on the place of installation, a circuit breaker may
be necessary.
If you don’t fit a circuit breaker, you may cause an electric shock.
Do not install near places where inflammable gas may leak.
Gas leaks may cause fire.
Make sure that you drain the hose properly, so that all the
water has dripped out.
Negligence may cause flooding in the room resulting in wet furniture.
Observe instructions with
great care
❚INSTALLATION PRECAUTIONS
DANGER
CAUTION
❚OPERATION PRECAUTIONS
DANGER
LPG
The system is meant for domestic, residential etc. use.
If used in inferior environments, such as an engineering workplace, the equipment
may function poorly.
The system must be installed by your dealer or a qualified pro-
fessional.
It is not advisable to install the system yourself, as faulty handling may cause leak-
age of water, electric shock or fire.
Store the remote controller out of
reach of infants.
Failure to observe this may result in the batteries
being swallowed or other accidents.
Don’t swing from the system.
If the system falls down,
you may get injured.
Only use approved fuses.
Use of steel or copper wire instead of an approved
fuse is strictly forbidden, as it may cause a breakdown
or fire.
CAUTION
Do not handle the switches with wet
hands.
This may cause an electric shock.
Do not insert anything into the air inlet.
This may cause injury, as the internal fan rotates at
high speed.
RKT012A754_En.p65 05.9.14, 1:42 PM2

–3–
Stand firmly on a stepladder or other
stable object when removing the inlet
panel and filters.
Failure to observe this may result in injury through
insecure objects toppling over.
Consult your dealer for repairs to the
system.
Wrong repairs could cause an electric shock, fire, etc.
If you notice anything abnormal (smell of
burning, etc.), stop the system, turn off the
power switch and consult your dealer.
Continued use of the system in abnormal circum-
stances may result in malfunctioning, electric shock,
fire, etc.
If the air-conditioner is moved else-
where, contact your dealer or a pro-
fessional fitter.
Faulty installation may cause water leakage, elec-
tric shock, fire, etc.
❚PRECAUTIONS FOR TRANSFER OR REPAIRS
DANGER
Safety precautions
CAUTION
Do not place objects near the outdoor
unit or allow leaves to gather around the
unit.
If there are objects or leaves around the outdoor unit,
small animals may enter unit and contact electrical
parts resulting in break down, emission of smoke or
flame.
Do not wash the air-conditioner with wa-
ter.
This could cause an electric shock.
You should not expose any combus-
tion appliance directly to the air
stream of the air-conditioner.
The appliance may then work inadequately.
Do not place a combustible insecticide
or paint spray near the blower, nor aim it
directly at the system.
This may result in a fire.
Do not place anything containing wa-
ter, like vases, on top of the unit.
Water entering the unit could damage the insula-
tion and therefore cause an electric shock.
The system should only be used for its original purpose
and not for anything else like, for instance, preservation of
food, plants or animals, precision devices or works of art.
The system is only intended for use in ordinary domestic rooms.
Any other use of the system may damage the quality of food, etc.
Do not install the system at a place
where the air stream of the blower is
aimed directly at plants or animals.
This will damage their health.
Do not sit on the outdoor unit nor put
anything on it.
If the unit falls down or things drop off it, people
could get hurt.
After a long period of use, check the unit's
support structure from time to time.
If you don't repair any damage straightaway, the
unit may fall down and cause personal injury.
Do not touch the aluminum fins on the
air heat exchanger.
Failure to observe this may result in injury.
If you operate the system together with
a combustion appliance, you must regu-
larly ventilate the indoor air.
Insufficient ventilation may cause accidents due to
oxygen deficiency.
When you clean the system, stop the
unit and turn off the power switch.
Never clean the unit while the internal fan is rotating.
RKT012A754_En.p65 05.9.14, 1:42 PM3

–4–
Choice of operations and features
Choice of operations
Page 9
Drying by extracting damp from the room.
Page 9
Cooling by extracting heat from the room.
COOL DRY
Page 9
The unit draws in heat from the outside air,
transfers it inside and heats the room.
HEAT
Functioning of micro-computer depends on
setting and room temperatures. It dehumidi-
fies while keeping room temperature almost
constant.
Page 8
Automatic selection of operating mode.
Page 9
Fanning by circulating room air.
The Auto mode automatically selects the
operation mode (HEAT, COOL or DRY),
depending on the room temperature when
switched on.
Characteristics
Amenity facility TIMER procedure HI POWER mode
Page 12
When using the timer to switch on, the sys-
tem become operational shortly before the
set time, depending on the room tempera-
ture so that the desired temperature is
reached at the set time.
Page 11,12
There are two timers, for ON and OFF.
They can be set as desired.
Page 9
Turning up the power operates the air-condi-
tioner in the power cooling and heating
mode.
Page 10
Adjustment of
airflow
•AIR SCROLL
This function sets the unit at the most suitable angle
for blowing, imitating a natural breeze.
•MEMORY FLAP
Once the flap position has been set, the unit will
memorise it and continue in the same position the
next time.
Page 9
This is an economic and healthy level of op-
eration.
ECONOMY mode
AUTOFAN
RKT012A754_En.p65 05.9.14, 1:42 PM4

–5–
Name of each part and its function
INDOOR UNIT
SRK50HE-S1
SRK56HE-S1
SRK50CE-S1
SRK56CE-S1
OUTDOOR UNIT
SRC50HE-S1 SRC50CE-S1
SRC56HE-S1 SRC56CE-S1
Air outlet
Air inlet
(on side & rear surface)
Air inlet panel
Draws in the indoor air.
Air filter
Removes dust or dirt from the inlet air.
Page 15
Unit operation switch
Room temperature detector
Photocatalytic washable deodorizing filter
Natural enzyme filter
Refrigerant piping connection electric flex
Up/down air flow direction adjustment flap
Page 10
Wireless remote control
Page 7
Drain hose
Drains water from the dehumidified air.
Left/right air flow adjustment fin
Page 10
Air outlet
Air blows out of here.
Unit indication section and remote control signal receiver
Accessories
Wireless remote control
Battery (RO3×2)
Natural enzyme filter (green)
Photocatalytic washable
deodorizing filter (orange)
Filter holder (Quantity: 2) Wood screw
(for remote control mounting)
Air inlet top panel
RKT012A754_En.p65 05.9.14, 1:42 PM5

–6–
Unit indication section
How to open the air inlet panel
How to close the air inlet panel
Push both sides evenly and press further lightly at the center.
Place fingers at the recesses on both sides of the panel and pull up the panel
to this side so that it will be opened by about 60 degrees.
Unit ON/OFF button
Secure either the upper or lower edge of the air inlet panel by lightly pushing
it in, and then close the panel.
When removing the air inlet panel for internal cleaning or others, open the
panel by 65 degrees and then pull it to this side.
In emergencies, this button can be used for turning on/off the unit when re-
mote control is not available. Page 13
Removal, installation of air inlet panel
ECONOMY light (orange)
Illuminates during ECONOMY operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
RUN (HOT KEEP) light (green)
•Illuminates during operation.
•Blinks at air flow stop due to the ‘HOT KEEP’.
Page 17
TIMER light (yellow)
Illuminates during TIMER operation.
Unit ON/OFF button
Installation
Align the air inlet top panel with the rail and slide the panel in towards
the back unitl it strikes the end. Push the panel in until you hear a click
and the tabs lock into place and the tabs lock into place.
(To install the air inlet top panel, follow the opposite of the removal
procedure.)
Removal
Remove the air inlet panel. 1Grasp the handle of the air inlet top panel and lift up
until you hear a click and the tabs come out. 2Pull the panel towards you.
Removal, installation of air inlet top panel
RKT012A754_En.p65 05.9.14, 1:42 PM6

–7–
LO
MED
HI
AUTO
HI POWER ECONO
ON OFF
AM PM
Operation and indication section for remote control
Operation section
FAN SPEED button
Each time the button is pushed, the indi-
cator is switched over in turn.
•The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button is pushed, the indi-
cator is switched over in turn.
AIR FLOW button
This button changes the flap mode. When
pressed, this button changes the mode in the
following order:
Page 10
ON/OFF button
Press for starting operation, press again for
stopping.
HI POWER button
This button changes the HIGH POWER
mode.
Page 9 ECONO button
This button changes the ECONOMY mode.
Page 9
RESET switch
Switch for resetting microcomputer.
Page 13
ON TIMER button
This button selects ON TIMER operation.
Page 11
TIME switch
This switch for setting the time.
Page 12
OFF TIMER button
This button selects OFF TIMER operation.
Page 11
TEMPERATURE button
This button sets the room temperature.
(This button changes the present time and
TIMER time.)
CANCEL button
This button cancels the ON timer and OFF
timer.
RESERVE button
This button sets the present time and
TIMER time.
Indication section
TEMPERATURE indicator
Indicates set temperature.
(Does not indicate temperature when operation
mode is on AUTO)
FAN SPEED indicator
Indicates set air flow rate with lamp.
AIR FLOW indicator
Shows selected flap mode.
HIGH POWER MODE indicator
Indicates during high power mode operation.
ECONOMY MODE indicator
Indicates during economy mode operation.
ON TIMER indicator
Indicates during ON TIMER operation.
TIME indicator
Indicates present time or timer setting time.
OFF TIMER indicator
Indicates during OFF TIMER operation.
Transmission procedure
When each button on the remote control is pressed –with the remote control pointing towards the air-conditioner unit –a signal is transmitted.
When the signal is received correctly, the unit will beep.
(Air scroll) (Swing)
OPERATION MODE indicator
Indicates selected operation with lamp.
HE type:
[ (Auto) •(Cool) •(Heat) •(Dry)]
CE type:
[ (Auto) •(Cool) •(Fan) •(Dry)]
(Flap stopped)
RKT012A754_En.p65 05.9.14, 1:42 PM7

–8–

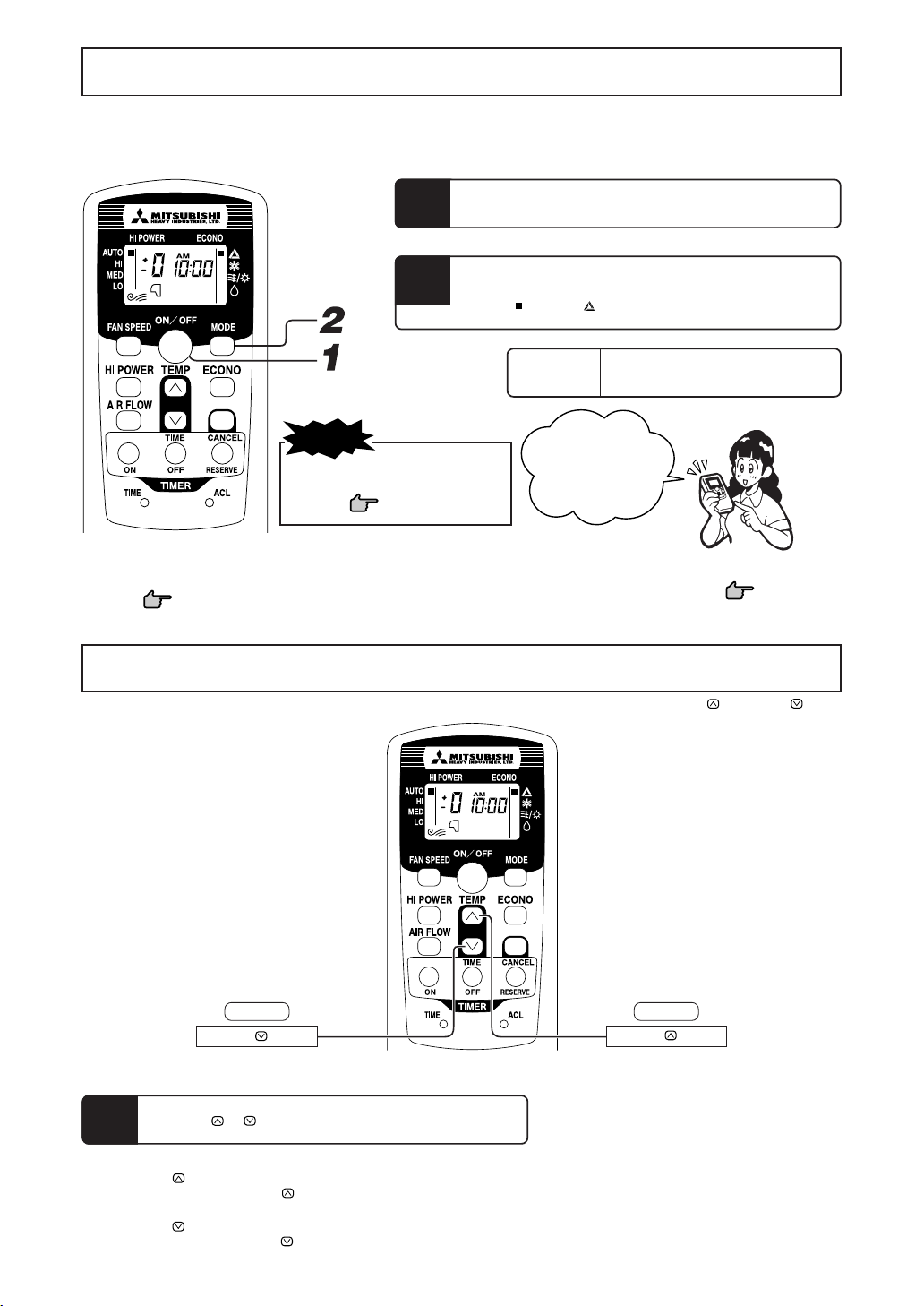

Aim the remote control at the air-conditioner.
Press the ON/OFF button.
When the unit is not in AUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Temperature adjustment during AUTO
Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button.
1
AUTO mode operation procedure
■ Automatically selects the operation mode (HE type: HEAT, DRY, COOL, CE type: COOL, DRY) depending on the room temperature when switched on.
2
Air flow direction adjustment
procedure. Page 10
NOTE
WARM
Press the button.
COOL
Press the button.
1
When a change in temperature is desired.
Press the or button.
•Air is not blowing out during the op-
eration.
Page 17
•If you don’t want the AUTO mode programme, change to
HEAT, DRY or COOL instead of AUTO.
Page 9
AUTO mode can be
operated by simply
pressing the ON/OFF
button.
To stop: Press the ON/OFF button.
■Each time the button is pushed, the switch over occurs in the following order –6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicatored, even if the button is pushed, the indicator does not change.
■Each time the button is pushed, the switch over occurs in the following order +6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicatored, even if the button is pushed, the indicator does not change.
RKT012A754_En.p65 05.9.14, 1:42 PM8

–9–
1
2
COOL/HEAT/DRY/FAN mode operation procedure
Air flow direction adjustment procedure. Page 10
Program changing procedure
Set the new program.
•The operation program can also be set or changed when
the air-conditioner is not in operation.
Aim the remote control at the air-conditioner.
Press the ON/OFF button.
Press the MODE select button.
Move the [ mark] to the desirable operation position.
HE type: (Cool), (Heat), (Dry)
CE type: (Cool), (Fan), (Dry)
Press the TEMP button.
Press or button for the desired temperature.
Standard
Press the FAN SPEED button
Set the air flow rate as desired.
4
3
COOL
DRY
HEAT
26°C~28°C21°C~24°C
FAN
22°C~24°C
To stop: Press the ON/OFF button.
•
The air is not blown out during the operation.
Page 17
NOTE
Concerning HIGH POWER operation
Pressing the HI POWER button intensifies the operating power and initiates a powerful cooling or heating operation for 15 minutes continuously.
The remote controller illuminates but the wind capacity display is erased.
Concerning ECONOMY operation
Pressing the ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling or heating. The unit operates
1.5°C higher than the setting temperature for the weak wind capacity during cooling or 2.5°C lower than that during heating. A message is
displayed on the remote controller. The wind capacity display is erased.
NOTE
NOTE
•During the HIGH POWER operation, the room temperature is not
controlled. When it causes an excessive cooling or heating, press
the HI POWER button once more to cancel the HIGH POWER
operation.
•HIGH POWER operation is not available during the dehumidify-
ing operation.
•During ON timer operation, HIGH POWER operation will start
when the ON time is reached.
“HI POWER”
▲
“ECONO”
▲
•When the following operations are conducted HIGH POWER op-
eration will be canceled.
1When the HI POWER button is pressed again.
2When the operation mode is changed.
3When ECONOMY operation is conducted.
•When the following operations are conducted ECONOMY operation will be canceled.
1When the ECONO button is pressed again.
2When HIGH POWER operation is selected.
RKT012A754_En.p65 05.9.14, 1:43 PM9

–10 –
Air scroll
Flap moves up and down
continuously.
•If the room temperature control (thermostat) switches to the heating mode or if the defrosting operation is on, the blow flap changes automatically to a horizontal
position.
•If the heating operation has just started and the room temperature is still low, it may take a while before the flap moves to the above sway operation angle.
•The flap may stop at the tilted down-blow position during the “sway operation”in the heating mode.
NOTE
MEMORY FLAP (FLAP STOPPED)
Adjusting left/right air flow direction
CAUTION
Please stop the air-conditioner when
adjusting the air flow direction.
When you press the AIRFLOW button once while the flap is operating, it stops swinging at an
angle.Since this angle is memorized in the micro-computer, the flap will automatically be set at this
angle when the next operation is started.
•Recommended angle of the flap when stopping
DANGER
•Avoid constant airflow to the body for hours on end.
CAUTION
•When in COOL or DRY operation, do not operate for hours on end with the air
flow blowing straight down. Otherwise, condensation may appear on the outlet
grill and drip down.
•Do not try to adjust the flaps by hand, as the control angle may change or the flap
may not close properly.
Air flow direction adjustment procedure
HEAT (Horizontal
blowing)
(Slant forward
blowing)
COOL, DRY
Adjust the direction by moving the left/right
air flow fin by hand.
SWING FLAP
Thick line : moves quickly
Thin line : moves slowly
Thick line : moves quickly
Thin line : moves slowly
Stops at this position
for 5 seconds.
Stops at this position
for 5 seconds.
In COOL, DRY and FAN operation In HEAT operation
Adjusting up/down air flow direction
■Up/down direction can be adjusted with the AIRFLOW button on the remote control. Each time when you press this button the mode changes
as follows:
Change to AIRFLOW mode.
(Air scroll) (Swing) (Flap stopped)
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
About FAN SPEED
■You can choose the capacity of your air-conditioner when heating or cooling.
RKT012A754_En.p65 05.9.14, 1:43 PM10

–11 –
1
2
OFF-TIMER operation procedure
■The unit stops automatically at the end of the set period of time.
3
Example: You wish it to stop PM 10:30.
If the air-conditioner is not operating, aim the remote control at the air-conditioner.
Press the ON/OFF button.
Press the OFF TIMER button.
OFF TIMER indicator
OFF
is blinking.
Press the “or ”button.
Each time the button is pressed, the indicator is switched in the order of:
AM
0:00
AM
0:10
AM
0:20
... ...
AM
1:00
AM
1:10
Each time the button is pressed, the indicator is switched in the order of:
AM
0:00
PM
11:50
PM
11:40
... ...
PM
11:00
PM
10:50
Set at PM 10:30.
Press the RESERVE button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
⇓
•The unit stops at the end of the set period of time.
4
Changing of set time
Set a new time by using the OFF TIMER button.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
ON-TIMER operation procedure
1
2
Changing of set time
Set a new time by using the ON TIMER button.
Example: In the case you wish to bring the temperature to nearly set temperature in at AM 8:00.
Press the ON TIMER button.
ON TIMER indicator
ON
is blinking.
Press the “or ”button.
Each time the button is pressed, the indicator is switched in the order of:
AM
0:00
AM
0:10
AM
0:20
... ...
AM
1:00
AM
1:10
Each time the button is pressed, the indicator is switched in the order of:
AM
0:00
PM
11:50
PM
11:40
... ...
PM
11:00
PM
10:50
Set at AM 8:00.
Press the RESERVE button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
⇓
•Operation starts 5 to 60 minutes before the set time.
•The TIMER light goes out at the set time.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
3
■If the room temperature is at near optimum temperature at the set time, the operation starts 5 to 60 minutes before the set time. Page 12
RKT012A754_En.p65 05.9.14, 1:43 PM11

–12 –
PROGRAM TIMER operation procedure
■The timer operations that consist of the combination of the timer being set at both on and off. Once this has been set and operations started,
operations will commence and end at the same time every day as long as the ON/OFF button is not pressed.
Example: When it is desired to stop at 10:30 PM, and then start operation at 8:00 AM,
near the set temperature.
Press the ON/OFF button.
■OFF TIMER operation setting
Set by the procedures on page 11.
Set to
OFF
PM
.
■ON TIMER operation setting
Set by the procedures on page 11.
Set to
ON
AM
.
The setting of the lighting of the timer light (yellow) of this unit is complete.
The time will be displayed on the remote control unit. The display will change
depending on the operational status.
ON OFF ON OFF
1
(Stopped) (Operating)
Changing of set time
Set a new time by using the OFF TIMER or ON TIMER button.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
About TIMER operation
About Amenity facilities
Amenity facilities enable to start the operation a little earlier, so that the room approaches optimum tempera-
ture at ON time when the operation is started by ON-TIMER.
•Mechanism
The room temperature is checked 60 minutes before the timer is at ON. Depending on the temperature at that
time, the operation starts 5 to 60 minutes before the timer is at ON.
•The Amenity facility only functions for COOL and HEAT operation mode (including AUTO). It does not
work for DRY mode.
In COOL operation
(Stop) Operation starts
▼
Set temperature
Check the room temp.
60 mins. in advance.
Set time
▼
(Operation)
2
Present time setting procedure
■When inserting the batteries, the present time is automatically set to PM 1:00.
Example: Set to AM 10:30.
Press the TIME switch.
Press with the tip of a ball pen, etc.
The time indicator blinks and can be set to the current time.
Press the “or ”button.
(Set to AM 10:30)
Press the RESERVE button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer is set on the basis of the present time, so please set it correctly.
1
3
NOTE
Press within
15 sec.!
RKT012A754_En.p65 05.9.14, 1:43 PM12

–13 –
Remote control handling procedure
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Indicator fades away.
•On the battery is printed its expected life. This may be shorter
than that of the air-conditioner, depending on the date of manu-
facture.
•However, the battery may still be in working order after expiry
of its nominal life.
NOTE
•Don't use old and new batteries together.
•Remove the batteries when the remote control is not used for a
long period.
•The life of a battery conforming to JIS or IEC is 6 to 12 months
with normal use. If used longer, or when an unspecified battery
is used, liquid may leak from the battery, causing the remote
control to malfunction.
Remove back lid and take out old batteries.
Insert new batteries. (SUM-4 or R03x2)
Close back lid.
■
When the indicator shows any abnormal condition, Press the reset
switch with the tip of a ballpoint pen.
1
2
3
Attention to
the ,and .
marks
Emergency run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press the button again.
Press the reset switch with the tip of a ballpoint pen.
4
Unit ON/OFF button
RKT012A754_En.p65 05.9.14, 1:43 PM13

–14 –

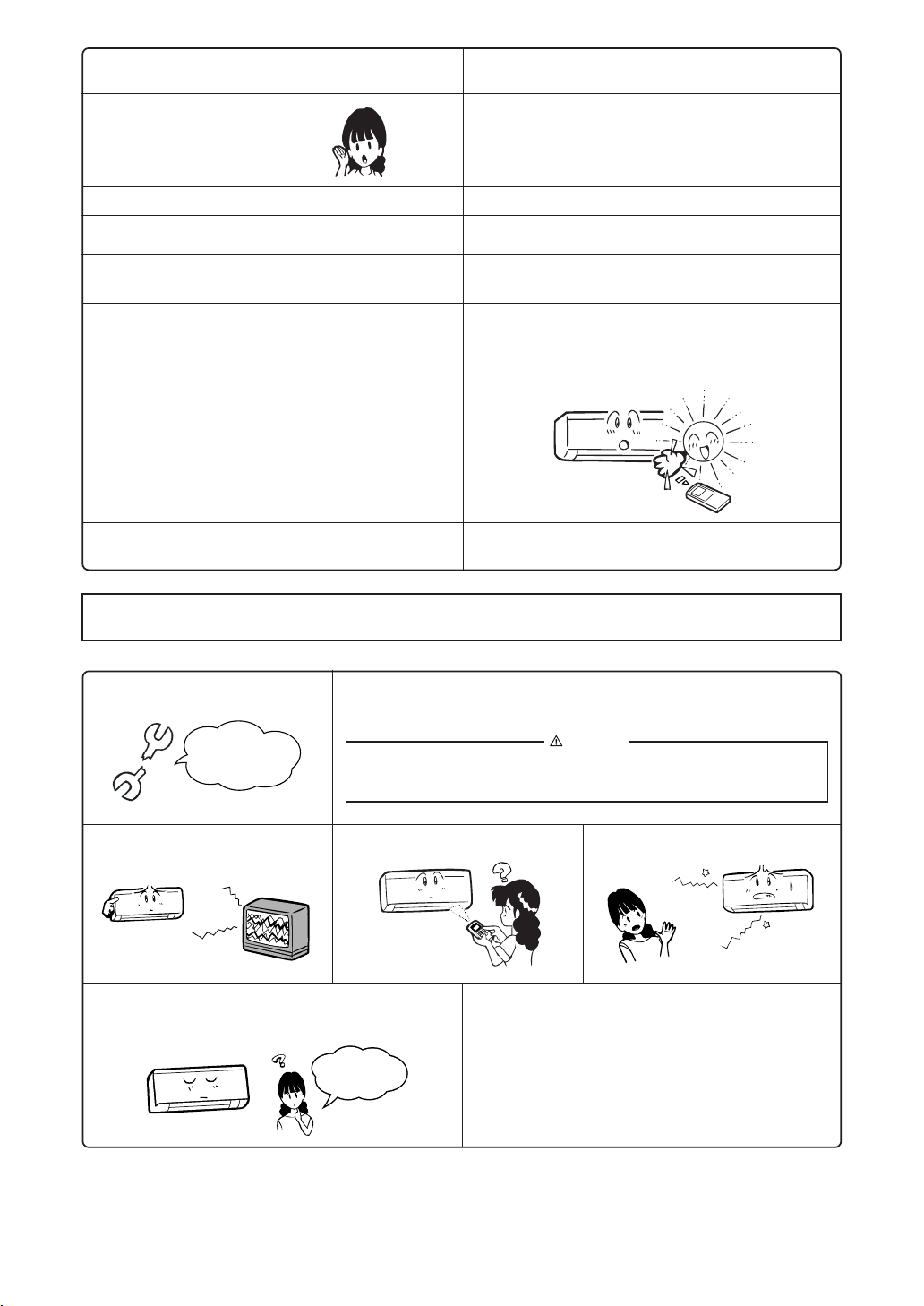

•Are the batteries running down? Page 13
Replace the batteries with new ones and repeat the operation.
Operating hints
■Please observe the following for the most economic and comfortable use of your unit.
Set a suitable room temperature.
Excessively high or low temperatures are not
good for your health and waste electricity.
Avoid direct sunlight and draught.
Cut out direct sunlight by drawing the cur-
tains or blinds when cooling. Keep windows
and doors shut, except when ventilating.
Operate the unit only when needed.
Use the timer properly to operate the unit
only when needed.
•Don’t drop the remote control.
Handle with care.
Clean the filters frequently.
Clogged filters may block the air flow and
cause less efficient operation.
•Don’t go near high temperature
places, such as an electric carpet
or stove.
Adjust the airflow direction properly.
Adjust the up/down and left/right airflow to
ensure a steady room temperature.
•Do not place heavy objects on the
remote controller, or step on it.
Warning note for remote control handling
•Don’t put any obstructing obsta-
cles between the remote control
and the unit.
•Don’t spill water etc on the remote
control.
•Don’t leave the remote control ex-
posed to direct sunlight or other
strong lighting.
Generate little heat when cooling.
Keep heat sources out of the room as much as
possible.
When the operation fails with the remote control
•If the operation still fails, handle as per emergency
run operation.
Contact your dealer.
Page 13
suitable
temperature
RKT012A754_En.p65 05.9.14, 1:43 PM14

–15 –

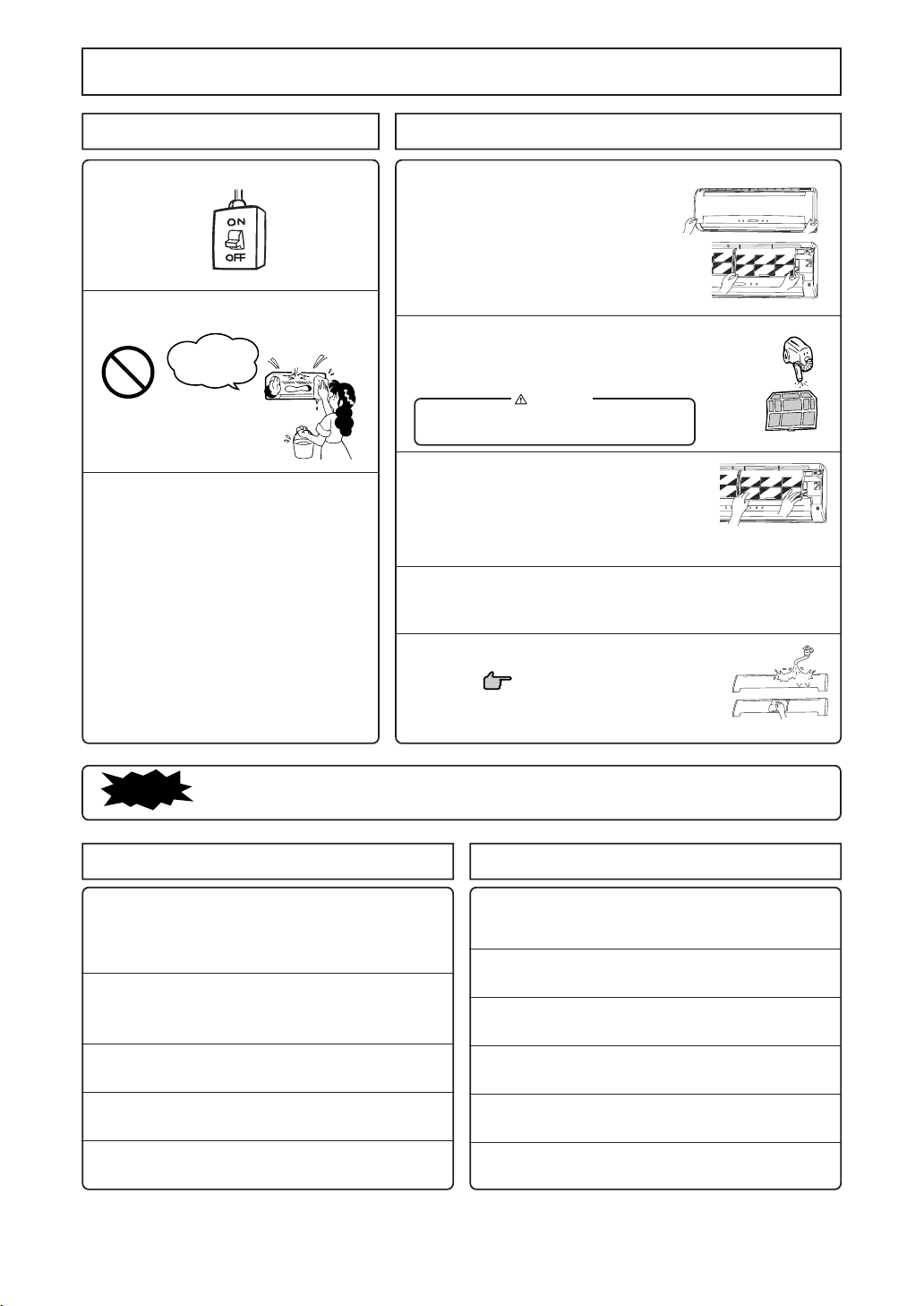

Turn off the power switch.
Remove the air filter
1Pull up to this side the air inlet panel.
2
Lightly hold the knobs at both sides and
lift a little to remove the panel to this
side.
Maintenance
At the end of the season
Stop the unit and turn off the power switch.
The unit uses appr. 2W even when the power switch has been turned
off during the off-season for safety or for saving energy.
At the beginning of the season
Ensure that nothing has snapped and that the
earthed flex is not disconnected.
Make certain that there are no obstacles blocking the
air flow around the air intake and outlet openings of
the indoor and outdoor units.
NOTE
Cleaning the air filter Standard interval is once every two week
Cooling/heating is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It may also
use extra electricity. Please clean the air filter at appropriate intervals.
Don’t use the following articles:
•Hot water (40°C or more)
It may deform or discolour the unit.
•Petrol, paint thinner, benzine or polishing agents,
etc.
They may deform or scratch the unit.
Don’t spill water.
Wipe the unit with a soft,
dry cloth.
There's a danger
of electric shock.
Cleaning
If the filter is very dirty, clean it with warm water
(approx. 30°C), and dry it thoroughly.
CAUTION
•Don’t clean the filters with boiling water.
•Don’t dry them over an open flame.
•Pull them out gently.
Cleaning the unit
•Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
•If the unit is very dirty, wipe it with a cloth soaked in warm water.
1
2
1
2
3
Remove batteries from the remote control.
Clean both the indoor and outdoor units.
Clean and reinstall the air filters.
Set the temperature setting for approximately a half
day at 30°C and perform the cooling operation.
Dry the inside of the unit.
3
4
5
Check the installation base for corrosion or rust.
Insert batteries in the remote control.
Turn on the power switch.
Ensure that the air filters are clean.
1
2
3
4
5
6
Before maintenance During the operational season
Reinstall the air filter
•Holding firmly the filter at both sides as shown at right
and insert securely.
•Operating without putting back the air filters will make
the unit dusty, and may cause damage.
Cleaning the air inlet panel and the air inlet top panel
•Removal, installation of air inlet panel and the air inlet
top panel. Page 6
•The panel can be washed with water. After washing with
water, wipe any moisture off the panel and dry out of
direct sunlight.
RKT012A754_En.p65 05.9.14, 1:43 PM15

–16 –
Has the unit been installed correctly?
Pay attention to operating noises!
•When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the operating noise
or vibration. If there is any likelihood that vibration may be transmitted through the house, fix the unit with the aid of vibration-proof pads
between the unit and the fittings.
•Select a place where cold or hot air and operation noises from the indoor and outdoor units do not cause any inconvenience to your neighbours.
•Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating noise.
•If you hear an irregular noise during operation, contact your dealer.
Inspection and maintenance
Dependent upon service conditions and operating environment, the inside of the air-conditioner may become dirty after a number of seasons'
service (3 to 5 years). This will reduce performance. In addition to normal cleaning, we would recommend inspection and maintenance. (The air-
conditioner has a longer life without any trouble.)
•Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).
•We would recommend inspection and maintenance to be carried out during the off-season.
•If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special
purpose tools are required.
Suitable installation position
•Is there any obstruction in front of the indoor unit, preventing proper ventilation and functioning?
•Don’t install the unit in any of the following places:
•Where there is a danger of leaking inflammable gases.
•Where there is substantial splashing of oil.
•Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort exposed to
sea breezes. Contact your dealer.
•The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.
•Drain the dehumidified liquid from the indoor unit into a spot that drains well.

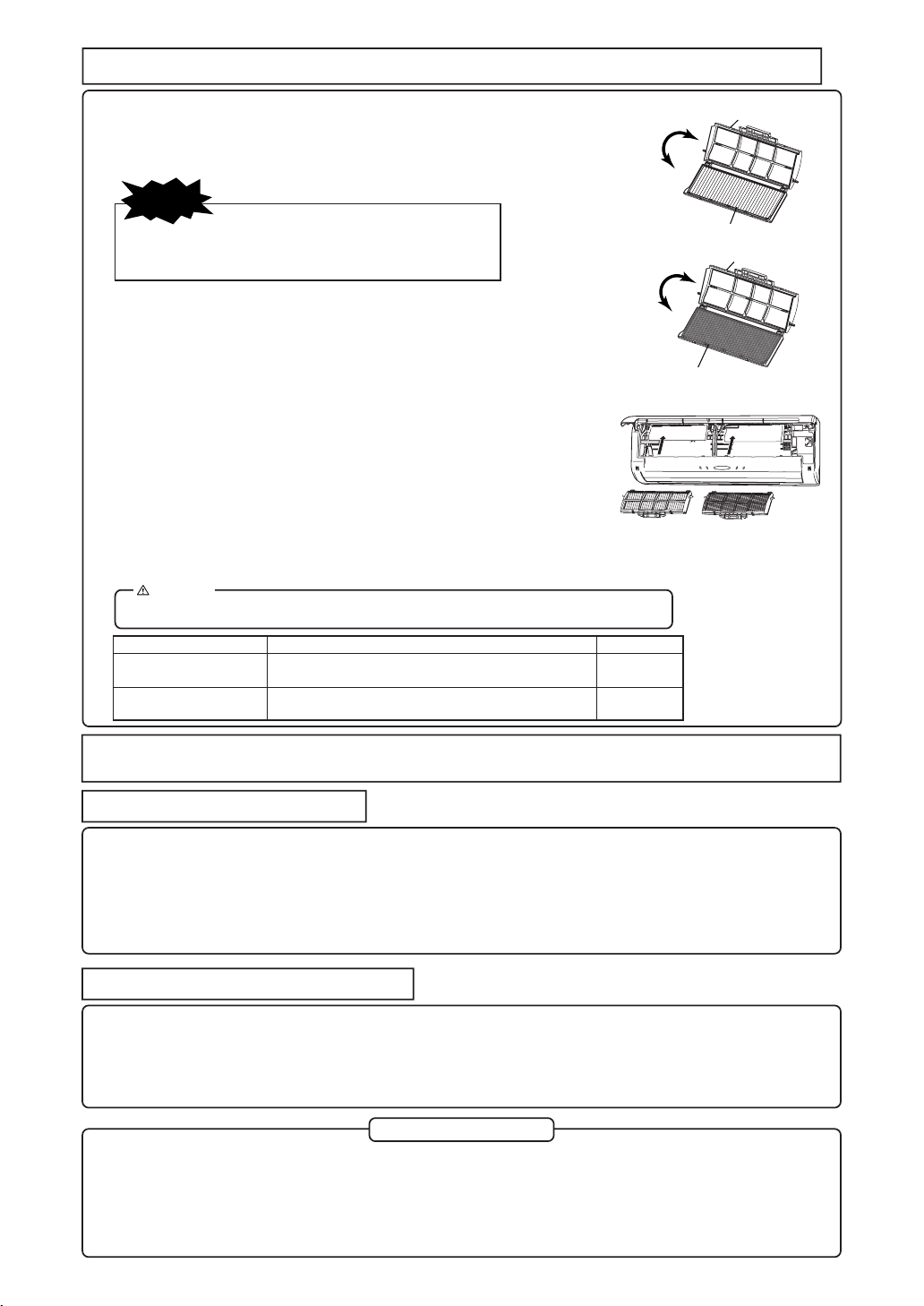

Installing, inspecting, and replacing the natural enzyme filter and the photocatalytic washable deodorizing filter
• Inspecting and replacing the natural enzyme filter and the photocatalytic washable deodorizing filter
1. Open the air inlet panel and remove the air filters.
2. Remove the filter holders, with the natural enzyme filter and the photocatalytic washable
deodorizing filter installed in the holders, from the air-conditioner.
3. Remove the natural enzyme filter from the filter holder and inspect the filter. Use a vacuum
cleaner to remove any dust or dirt from the natural enzyme filter. Replace the natural enzyme
filter if it cannot be cleaned or if it has been used for about 1 year.
(The natural enzyme filter should be replaced after about 1 year of use. However, the actual
replacement period may vary depending on the conditions in which the filter is used.)
Remove the photocatalytic washable deodorizing filter from the filter holder and inspect the
filter. Periodically, remove any dust or dirt from the photocatalytic washable deodorizing
filter. If the photocatalytic washable deodorizing filter is particularly dirty, it may be washed
with water. However, the filter is fragile so be sure to wash it installed in the filter holder to
avoid damaging it. After washing the filter, place it in sunlight to dry. Placing the filter in
sunlight revitalizes the deodorizing effect.
(Do not dispose of the filter holders. They are reused.)
4. Install the natural enzyme filter and the photocatalytic washable deodorizing filter in the filter
holders, and then install the filter holders in the air-conditioner.
5. Install the air filters and close the air inlet panel.
NOTE
The natural enzyme filter and the photocatalytic washable
deodorizing filter may be installed on either the right or left side of
the air-conditioner.
CAUTION
Do not expose natural enzyme filters to direct sunlight for an extended period. The bacteriolytic effect will be lost.
Install Install
•Installing the natural enzyme filter and the photocatalytic washable deodorizing filter
1. Open the air inlet panel and remove the air filters.
2. Install the filter holders, with the natural enzyme filter and the photocatalytic washable
deodorizing filter installed in the holders, in the air-conditioner.
3. Install the air filters and close the air inlet panel.
Natural enzyme filter
Filter holder
Photocatalytic washable
deodorizing filter
Filter holder
Item Feature Color
Natural enzyme filter Green
Orange
By using the work of oxygen, mold and bacteria on the filter are
destroyed and the room air is kept clean.
Sources of odors on the filter are broken up, resulting in a deo-
dorizing effect.
Photocatalytic washable
deodorizing filter
For replacement natural enzyme filters and photocatalytic washable deodorizing filters, contact your dealer.
RKT012A754_En.p65 05.9.14, 1:43 PM16

–17 –
The air-conditioner does not work at all.
Has the timer been set in the
"ON" position?
Has the power switch been
turned off?
Is there a power failure or a
blown fuse?
Troubleshooting
Please carry out the following checks before making a service call.
Poor cooling
Poor cooling or heating
Did you leave any doors or
windows open?
Have you set the thermostat at a
suitable temperature?
Is there a heat source in the
room?
Are there too many people in
the room?
Is the air filter clean? (Not
clogged?)
suitable
temperature
Is there any direct sunlight en-
tering the room?
If the air-conditioner does not oper-
ate properly after you have checked
the left points, or if any doubt still
exists after you have consulted page
17, or if things happen as shown on
page 18, switch off the power and
contact your dealer.
An alternative refrigerant (R410A) is used in this air-conditioner. When asking the
dealer for service or inspection and maintenance, explain the dealer about this matter.
Please remember!
You cannot restart the unit immediately after you have
stopped it.
(RUN light is on)
Not
operating?
Air is not blown out when starting the HEATING operation.
RUN light blinks slowly
(1.5 sec ON, 0.5 sec OFF)
Air flow has stopped to prevent blowing out of cold air until the indoor
heat exchanger has warmed up. (2 to 5 min.) (HOT KEEP)
Air is not blown out for 5 to 10 min. at HEATING operation.
RUN light blinks slowly
(1.5 sec ON, 0.5 sec OFF)
When outdoor temperature is low and humidity is high, the unit some-
times performs defrosting automatically. Please wait. During defrost-
ing, water or steam may escape from the outdoor unit.
Air is not blown out when starting the DRY operation.
(RUN light is on)
The indoor fan may stop to prevent re-evaporation of dehumified
moisture and to save energy.
Some steam escapes during COOL operation. This may occur if the room's temperature and humidity are very high.
It disappears as soon as the temperature and humidity decrease.
Restarting has been blocked for 3 minutes after you have stopped or
after switching off the power during operation, to protect the unit.
The three-minute protection timer in the microcomputer automatically
starts up again.
Please wait for
three minutes.
RKT012A754_En.p65 05.9.14, 1:43 PM17

–18 –
When to contact your distributor without delay
Turn off the power switch immediately and inform your dealer in any of the following situations:
The fuse or switch blows continu-
ously.
The cable becomes extremely hot.
The covering of the cable is cracked.
The TV, radio or other equipment
starts to malfunction.
When faulty movement is observed when the ON/OFF but-
ton is pressed, even after pulling out the power plug and
restarting the operation after 3 minutes, the faulty move-
ment does not disappear.
A switch does not activate properly. You hear a strange noise during opera-
tion.
3 minutes go
by, but, why ...
Fuse often blows.
The RUN and TIMER lights on the unit indication section
blink quickly (0.5 sec. ON; 0.5 sec. OFF) and don’t work.
CAUTION
If the power cord becomes damaged, ask your dealer or a qualified engineer to install the
replacement to avoid accidents.
If the unit is operated for a long time in high humidity, moisture may
form on the air outlet grilles and start dripping.
You hear a slight gurgling sound. This is caused by refrigerating liquid moving within the unit.
You hear a slight cracking sound. This is caused by heat expansion or contraction.
Remote control signals may not be received if the signal receiver on
the air-conditioner is exposed to direct sunlight or other bright light.
If so, cut out the sunlight or reduce the other light.
After a power cut, you cannot re-start, even if power has been re-
stored, unless you have the power blackout auto restart function.
The memory circuit of the microcomputer has been wiped out. Use the
remote control to start the operation again.
Remote control signals are not received.
Moisture may form on the air outlet grilles.
There is a slight smell. Air blown out during operation may smell. This is caused by tobacco
or cosmetics sticking to the unit.
You hear a hissing or clicking sound. This is caused by the operation of the refrigerant control valves or
electric components.
RKT012A754_En.p65 05.9.14, 1:43 PM18

–19 –
Characteristics of HEAT mode operation
Mechanism and capacity of HEAT mode operation
■Mechanism
•The unit draws in heat from the cold outside air, transfers it indoors and heats the room. The heating capacity of the heat pump mechanism decreases
when the outside air temperature gets colder.
•The hot air circulation system takes a while before warming up the room temperature.
•If the outside temperature becomes extremely low, it would be better to use an additional source of heating.
Defrosting
If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents efficient heating.
If this happens, the automatic defroster is activated and during defrosting the heating operation stops for 5 to 10 minutes.
•Both indoor and outdoor fans stop and the RUN light (green) blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.
•The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect.
•The HEAT operation resumes as soon as defrosting has been completed.
Air-conditioner operating conditions
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the
unit from working.
Cooling operation Heating operation
Outside temperature Approximately 21 to 43 °C Below approximately -5 to 21 °C
Inside temperature Approximately 21 to 32 °C Approximately 15 to 30 °C
Below approximately 80%
The long-term use of the unit with a humidity level
Inside humidity exceeding 80% may result in condensation forming on the —
surface of the indoor unit, leading to water drips.
Power Blackout Auto Restart Function
■What is power blackout auto restart function?
•Power blackout auto restart function is a function that records the operational status of the air-conditioner immediately prior to it being switched off
by a power cut, and then automatically resumes operations at that point after the power has been restored.
•The following settings will be cancelled:
1Timer settings
2HIGH POWER operations
•Ther power blackout auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this
function needs to be switched off.
•When power failure ocurrs, the timer setting is cancelled. Once power is resumed, reset the timer.
NOTE
RKT012A754_En.p65 05.9.14, 1:43 PM19
