Mitsubishi FDCVA302HENR User manual

Collection data
Manual No. '06 •PAC-T-109
PACKAGED AIR-CONDITIONER
Air-Conditioning & Refrigeration Systems Headquarters
16-5, 2-chome, Kounan, Minato-ku, Tokyo, 108-8215, Japan
Fax : [phone]
PACKAGED AIR-CONDITIONER
(Split system, Air to air heat pump type)
MULTI-TYPE (V-MULTI)
PACKAGED AIR-CONDITIONER
CEILING RECESSED TYPE
FDTVA302HEN1R
CEILING SUSPENDED TYPE
FDENVA302HEN1R
SATELLITE DUCTED TYPE
FDUMVA302HEN2R
(OUTDOOR UNIT)
FDCVA302HENR
(INDOOR UNIT)
FDTCA151R
FDTA151R
FDENA151R
FDKNA151R

-
1
-
TABLE OF CONTENTS
1. PACKAGED AIR-CONDITIONER ......................................................................................... 2
2. MULTI-TYPE (V MULTI) PACKAGED AIR-CONDITIONER ............................................ 122
3. WIRELESS KIT (OPTIONAL PARTS) .............................................................................. 190

-
2
-
1. PACKAGED AIR-CONDITIONER
CONTENTS
1.1 GENERAL INFORMATION............................................................................... 4
1.1.1 Specific features .......................................................................................... 4
1.1.2 How to read the model name....................................................................... 4
1.2 SELECTION DATA ........................................................................................... 5
1.2.1 Specifications ............................................................................................... 5
(1) Ceiling recessed type (FDT) ......................................................................... 5
(2) Ceiling suspended type (FDEN) ................................................................... 6
(3) Satellite ducted type (FDUM)........................................................................ 7
1.2.2 Range of usage & limitations ....................................................................... 8
1.2.3 Exterior dimensions ..................................................................................... 9

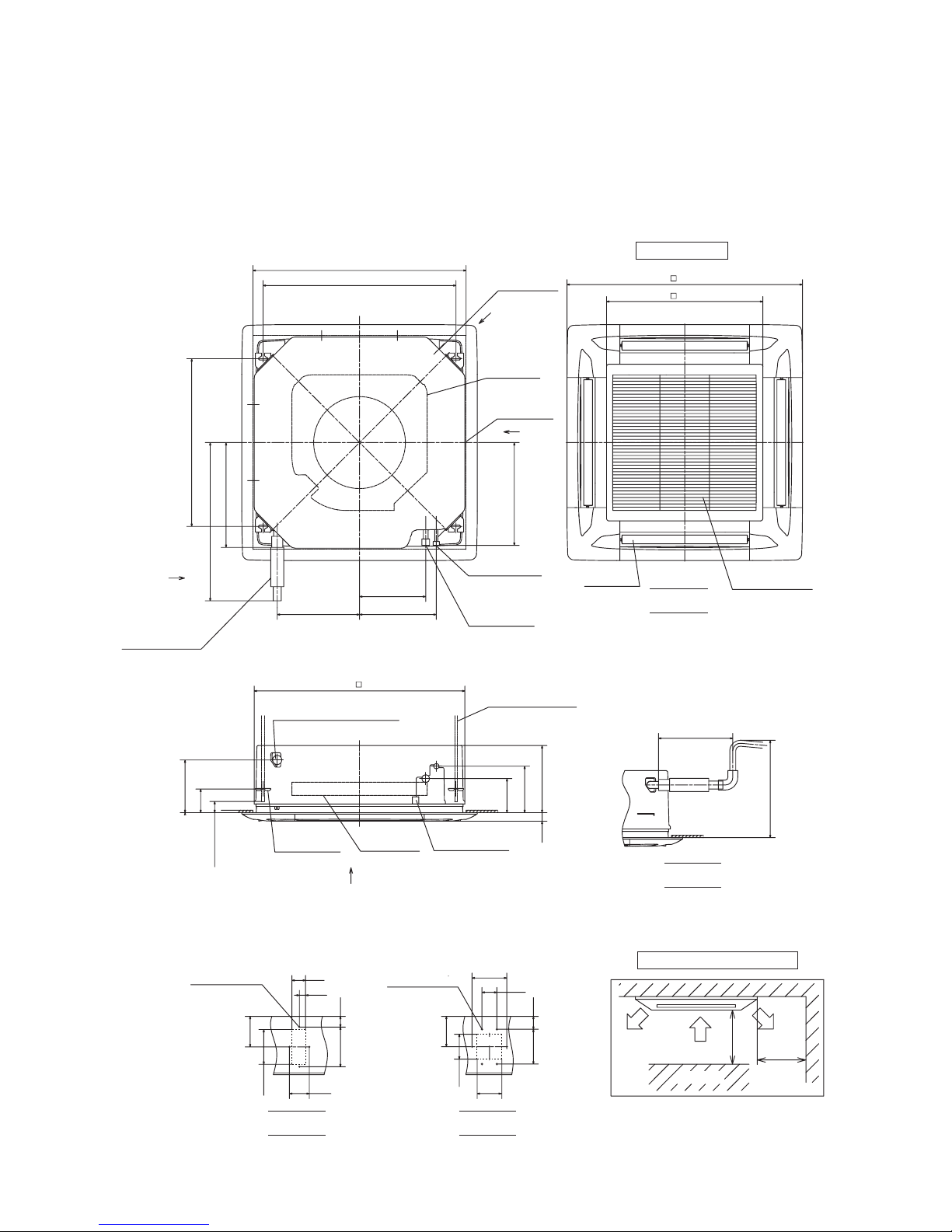

(1) Indoor unit ..................................................................................................... 9

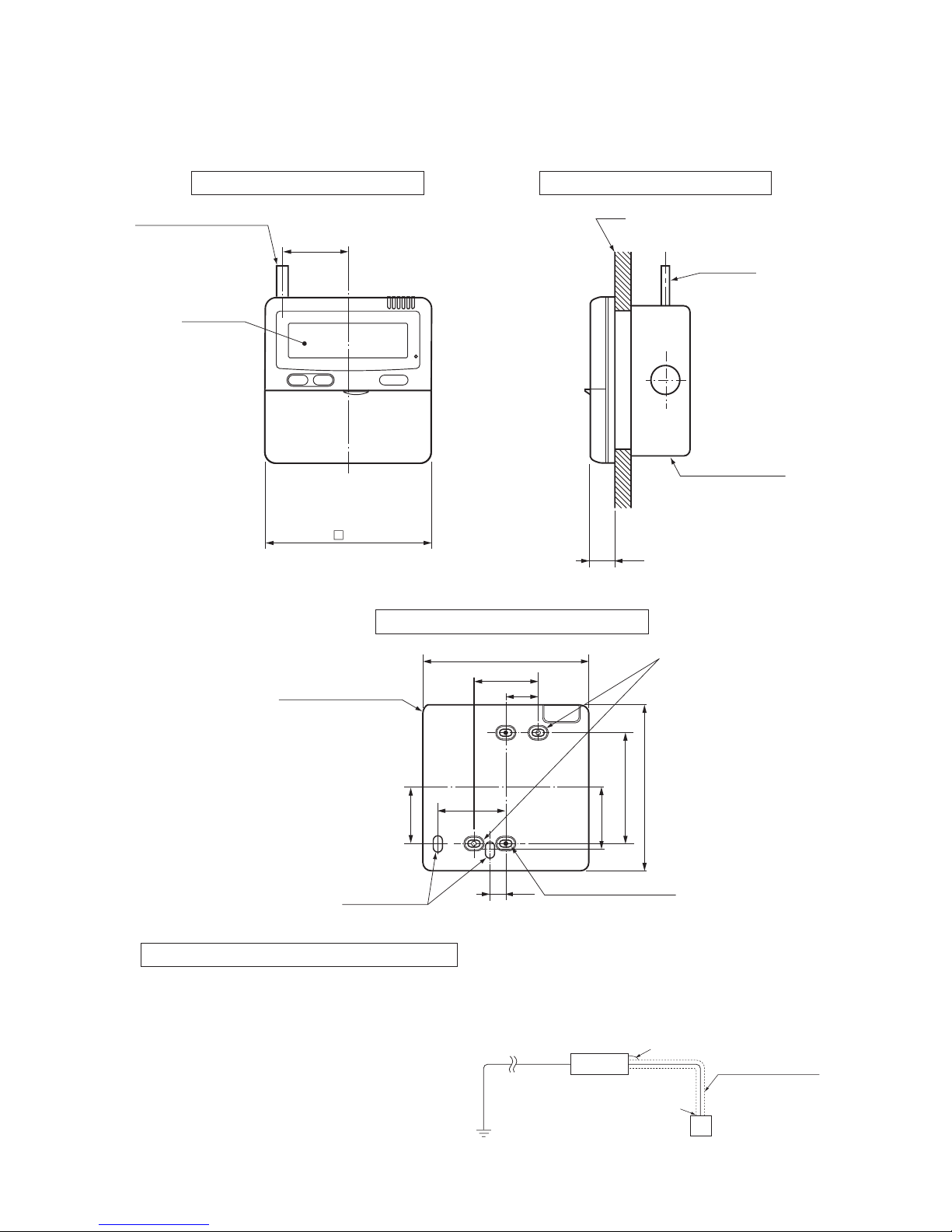

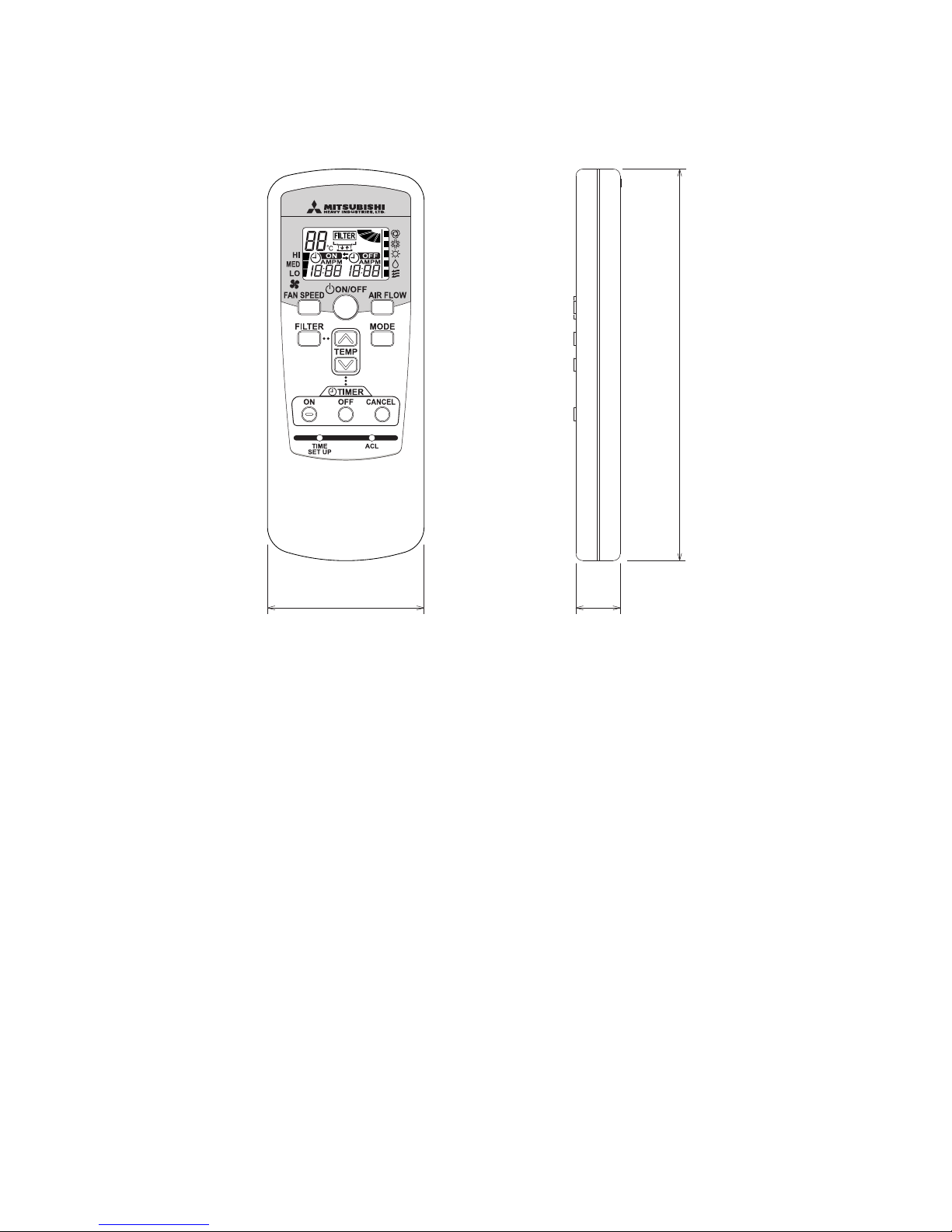

(2) Remote controller (Optional parts) ............................................................. 12

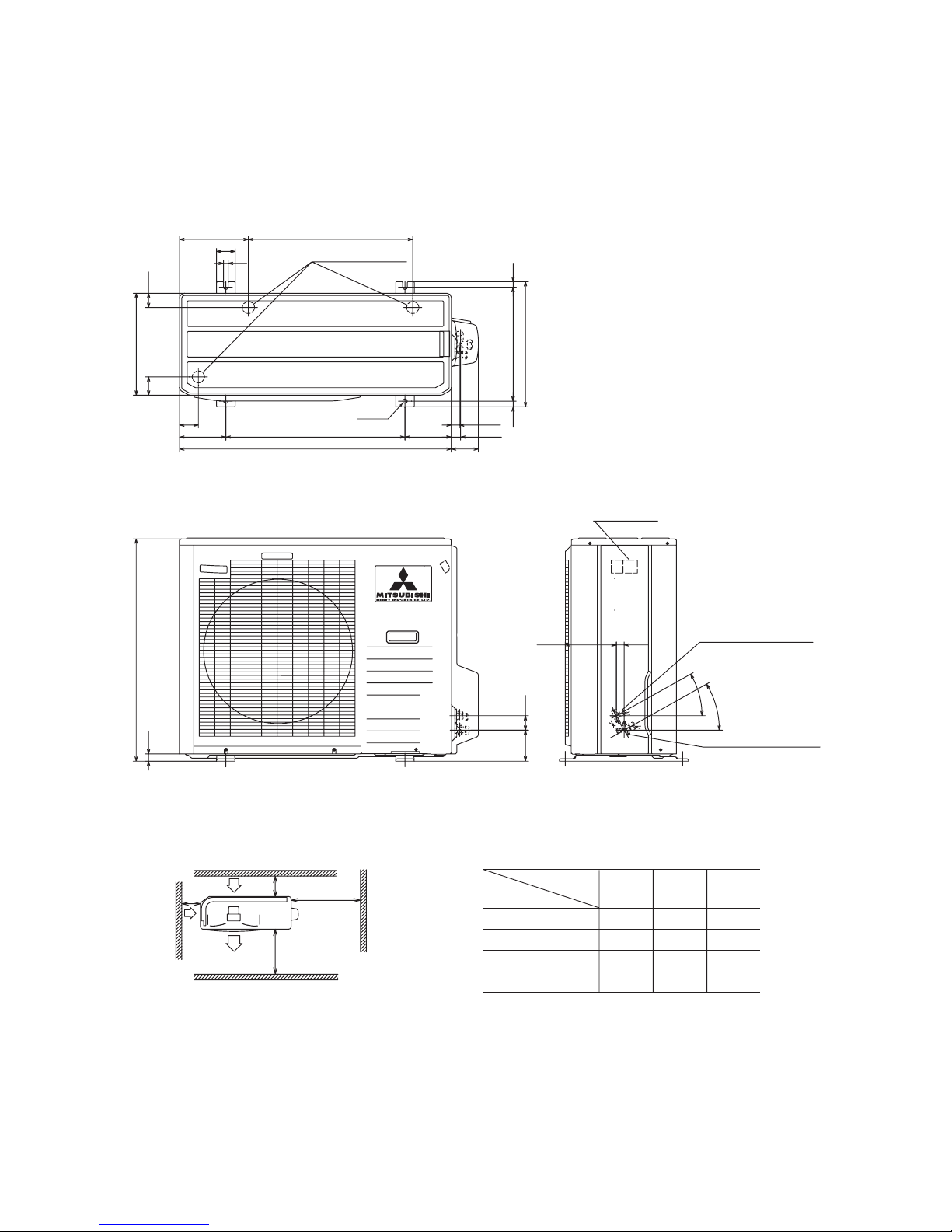

(3) Outdoor unit ................................................................................................ 14

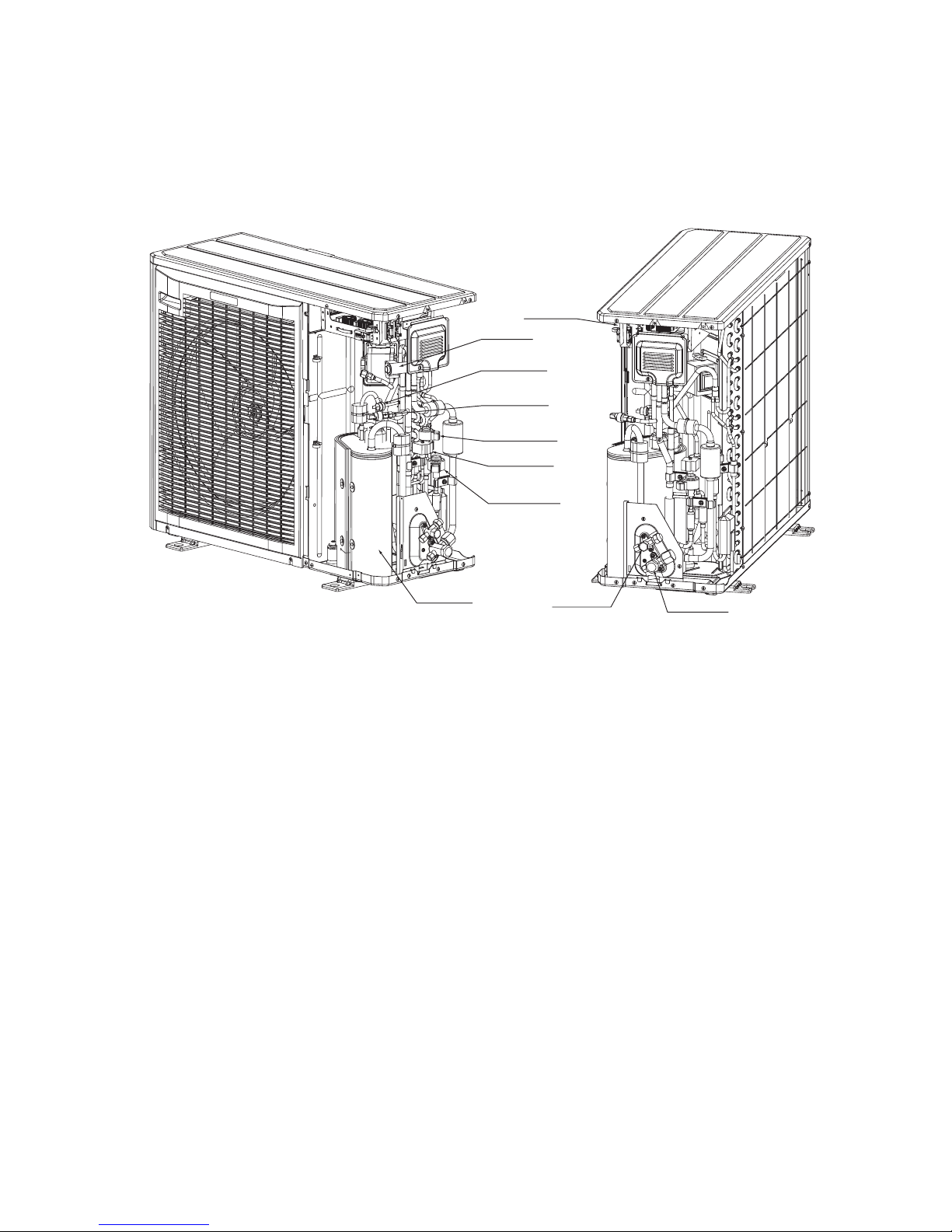

1.2.4 Inside view ................................................................................................. 15
1.2.5 Exterior appearance .................................................................................. 16
1.2.6 Piping system ............................................................................................ 17
1.2.7 Selection chart ........................................................................................... 18
1.2.8 Characteristics of fan ................................................................................. 23
1.2.9 Noise level ................................................................................................. 23
(1) Indoor unit ................................................................................................... 23
(2) Outdoor unit ................................................................................................ 24
1.3 ELECTRICAL DATA ....................................................................................... 25
1.3.1 Electrical wiring .......................................................................................... 25
(1) Indoor unit ................................................................................................... 25
(2) Outdoor unit ................................................................................................ 28
1.4 OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER .................. 29
(1) Remote controller ....................................................................................... 29
(2) Operation control function by the indoor unit controller .............................. 31
(3) Operation control function by the wired remote controller .......................... 38
(4) Operation control function by the outdoor unit controller ............................ 39

-
3
-
1.5 APPLICATION DATA ...................................................................................... 49
1.5.1 Installation of indoor unit ........................................................................... 50
(1) Ceiling recessed type (FDT) ....................................................................... 50
(2) Ceiling suspended type (FDEN) ................................................................. 56
(3) Satellite ducted type (FDUM)...................................................................... 61
1.5.2 Installation of wired remote controller ....................................................... 68
1.5.3 Installation of outdoor unit ......................................................................... 69
(1) Installation................................................................................................... 69
(2) Refrigerant piping work ............................................................................... 71
(3) Air tightness test and air purge ................................................................... 72
(4) Refrigerant quantity .................................................................................... 73
(5) Drain piping work ........................................................................................ 73
(6) Electrical wiring........................................................................................... 74
(7) Setting functions using the wired remote controller .................................... 76
(8) Checking operation data ............................................................................. 80
(9) Test run ....................................................................................................... 81
1.6 MAINTENANCE DATA ................................................................................... 82
1.6.1 Servicing ................................................................................................... 82
1.6.2 Trouble shooting for refrigerant circuit ....................................................... 83
1.6.3 Diagnosing of microcomputer circuit ......................................................... 84
(1) Selfdiagnosis function ................................................................................. 84
(2) Procedures of trouble diagnosis ................................................................. 87
(3) Error diagnosis procedures at the indoor unit side ..................................... 87
(4) Error diagnosis procedures at the outdoor unit side ................................. 104
(5)
Check method in the case of the failure display in the remote controller .............. 119
(6)
Check abnormal operation data with the wired remote controller ......................... 120
1.6.4
Check display on wireless specification models (FDEN · FDT).................... 121

-
4
-
Example: FDT V A 30 2 H EN 1 R
1.1 GENERAL INFORMATION
1.1.1 Specific features
(1) A new refrigerant, R410A, which causes no damage to the earth’s ozone layer, is used. R410A is a pseudoazeotropic refrigerant, so
there is little formation of separate vapor and liquid layers, and it is possible to add refrigerant on-site.
(2) Less refrigerant charge amount due to use of double phase refrigerant flow system. The total refrigerant charge amount has been
reduced by more than 50%.
(3) The microcomputer chip is installed in the indoor unit and outdoor unit. There is no need for the unit to communicate between the
outdoor and indoor units so the unit is more resistant to electromagnetic noise thus the incidence of microcomputer malfunction
has been reduced. The compressor in the outdoor unit has its own self protection function, that reacts according to abnormal high
pressure and excessive high temperature.
(4) There are only three power lines between the outdoor and indoor unit. One cabtyre cable with 3 wires encased in one sheath is
enough for conducting the wiring work between the outdoor unit and the indoor unit. This contributes to simpler wiring work in the
field.
(5) All air supply ports have auto swing louvers. (Only case of FDT and FDEN models). The indoor fan motor has three speeds of
high, medium and low.
(6) All models have service valves protruding from the outdoor unit for faster flare connection work in the field.
(7) The size and weight of the outdoor units in the FDCVA 302 series have been greatly reduced. Use of an inverter has also improved
energy conservation and economy.
1.1.2 How to read the model name
RoHS specification
Applicable power source ... See the specifications
Heat pump type
Series No.
Product capacity
R410A models
V:Inverter specification
Model name FDT :
FDEN :
FDUM :
FDC :
Ceiling recessed type unit with wired
remote controller
Ceiling suspended type unit with
wireless remote controller
Satellite ducted type unit with wired
remote controller
Outdoor unit

-
5
-
Item
Model
FDTA301R FDCVA302HENR
Nominal cooling capacity(1) kW 7.1[3.9~8.0]
Nominal heating capacity(1) kW 8.0[4.0~9.0]
Power source 1 Phase, 220/230/240V 50Hz
Cooling power consumption kW 1.90
Running current (Cooling) A 8.3
Power factor (Cooling) % 99
Heating power consumption kW 2.07
Running current (Heating) A 9.0
Power factor (Heating) % 99
Inrush current (L.R.A) A 5
Noise level dB(A)
35 52
Exterior dimensions mm Unit 270 ×840 ×840 750 ×880 (+88) ×340
Height ×Width ×Depth Panel 30 ×950 ×950
Net weight kg 31 (Unit:24 Panel:7) 60
Refrigerant equipment –2YC45DXD 1
Compressor type & Q’ty
Starting method – Direct line start
Heat exchanger Louver fin & inner grooved tubing Straight fin & inner grooved tubing
Refrigerant control – Electronic expansion valve
Refrigerant R410A
Quantity kg – 2.95 [Pre-charged up to the piping length of 30m]
Refrigerant oil r–0.65 (FVC50K)
Defrost control Microcomputer controlled de-icer
Air handling equipment
Fan type & Q’ty Turbo fan ×1 Propeller fan ×1
Motor W 20 ×1120 ×1
Starting method Direct line start
Air flow CMM Cooling:60 Heating:48.5
Outside air intake Available –
Air filter, Q’ty Long life filter ×1(washable) –
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber mount (for compressor)
Electric heater W – 20 (Crank case heater)
Operation control Wired remote control switch (Optional : RC-E1R)
Operation switch Wireless remote control switch (Optional : RCN-T-35W-ER)
– (Indoor unit side)
Room temperature control Thermostat by electronics –
Safety equipment Internal thermostat for fan motor. Internal thermostat for fan motor.
Frost protection thermostat. Abnormal discharge temperature protection.
Installation data mm Liquid line: φ9.52 (3/8″) Gas line: φ15.88 (5/8″)
Refrigerant piping size (in)
Connecting method Flare piping
Drain hose Connectable with VP25 (I.D.25mm, O.D.32mm) –
Insulation for piping Necessary (both Liquid & Gas lines)
Accessories Mounting kit. Drain hose
Optional parts Decorative Panel
Operation data
(3)
(2) This packaged air-conditioner is manufactured and tested in conformity with the following standard. ISO-T1 “UNITARY AIR-CONDITIONERS”
(3) The operation data indicate when the air-conditioner is operated at 230V 50Hz.
Notes (1) The data are measured at the following conditions.
Item Indoor air temperature Outdoor air temperature Standards
Operation DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C
Heating 20˚C – 7˚C 6˚C
ISO-T1
FDTVA302HEN1R
Model FDTVA302HEN1R
Powerful mode Hi:38 Me:35 Lo:33
Mild mode Hi:35 Me:33 Lo:31
Powerful mode Hi:20 Me:17 Lo:15
Mild mode Hi:17 Me:15 Lo:13
48
(1) Ceiling recessed type (FDT)
1.2 SELECTION DATA
1.2.1 Specifications

-
6
-
Item
Model
FDENA301R FDCVA302HENR
Nominal cooling capacity(1) kW 7.1[3.5~8.0]
Nominal heating capacity(1) kW 8.0[4.0~9.0]
Power source 1 Phase, 220/230/240V 50Hz
Cooling power consumption kW 2.06
Running current (Cooling) A 9.1
Power factor (Cooling) % 98
Heating power consumption kW 2.21
Running current (Heating) A 9.8
Power factor (Heating) % 98
Inrush current (L.R.A) A 5
Noise level dB(A)
Exterior dimensions mm 210 ×1320 ×690 750 ×880 (+88) ×340
Height ×Width ×Depth
Net weight kg 36 60
Refrigerant equipment –2YC45DXD 1
Compressor type & Q’ty
Starting method – Direct line start
Heat exchanger Louver fin & inner grooved tubing Straight fin & inner grooved tubing
Refrigerant control – Electronic expansion valve
Refrigerant R410A
Quantity kg – 2.95 [Pre-charged up to the piping length of 30m]
Refrigerant oil r–0.65 (FVC50K)
Defrost control Microcomputer controlled de-icer
Air handling equipment
Fan type & Q’ty Multiblade centrifugal fan ×4 Propeller fan ×1
Motor W 25 ×2120 ×1
Starting method Direct line start
Air flow CMM Cooling:60 Heating:48.5
Outside air intake Unavailable –
Air filter, Q’ty Polypropylene net ×2(washable) –
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber mount (for compressor)
Electric heater W – 20 (Crank case heater)
Operation control
Wireless remote control switch (Optional: RCN-E1R)
Operation switch Wired remote control switch (Optional: RC-E1R) – (Indoor unit side)
Room temperature control Thermostat by electronics –
Safety equipment Internal thermostat for fan motor. Internal thermostat for fan motor.
Frost protection thermostat. Abnormal discharge temperature protection.
Installation data mm Liquid line: φ9.52 (3/8″) Gas line: φ15.88 (5/8″)
Refrigerant piping size (in)
Connecting method Flare piping
Drain hose Connectable with VP20 (I.D.20mm, O.D.26mm) –
Insulation for piping Necessary (both Liquid & Gas lines)
Accessories Mounting kit. Drain hose
Optional parts –
Model FDENVA302HEN1R
Operation data
(3)
(2) This packaged air-conditioner is manufactured and tested in conformity with the following standard. ISO-T1 “UNITARY AIR-CONDITIONERS”
(3) The operation data indicate when the air-conditioner is operated at 230V 50Hz.
Notes (1) The data are measured at the following conditions.
Item Indoor air temperature Outdoor air temperature Standards
Operation DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C
Heating 20˚C – 7˚C 6˚C
ISO-T1
FDENVA302HEN1R-SB
48
Powerful mode Hi:44 Me:41 Lo:39
Mild mode Hi:41 Me:39 Lo:38
Powerful mode Hi:20 Me:18 Lo:14
Mild mode Hi:18 Me:14 Lo:12
(2) Ceiling suspended type (FDEN)

-
7
-
Model FDUMVA302HEN2R
Item
Model
FDUMA302R FDCVA302HENR
Nominal cooling capacity(1) kW 7.1[3.5~8.0]
Nominal heating capacity(1) kW 8.0[4.0~9.0]
Power source 1 Phase, 220/230/240V, 50Hz
Cooling power consumption kW 2.08
Running current (Cooling) A 9.2
Power factor (Cooling) % 98
Heating power consumption kW 2.21
Running current (Heating) A 10.2
Power factor (Heating) % 94
Inrush current (L.R.A) A 5
Noise level dB(A) Hi:35 Me:32 Lo:29
Exterior dimensions mm 299 ×950 ×635 750×880 (+88)×340
Height ×Width ×Depth
Net weight kg 40 60
Refrigerant equipment –2YC45DXD ×1
Compressor type & Q’ty
Starting method – Direct line start
Heat exchanger Louver fin & inner grooved tubing Straight fin & inner grooved tubing
Refrigerant control – Electronic expansion valve
Refrigerant R410A
Quantity kg – 2.95 [Pre-charged up to the piping length of 30m]
Refrigerant oil r–0.48 (BR68A)
Defrost control Microcomputer controlled de-icer
Air handling equipment
Fan type & Q’ty Multiblade centrifugal fan ×2 Propeller fan ×1
Motor W 100 ×1 120 ×1
Starting method Direct line start
Air flow CMM Hi: 20 Me:18 Lo:15 Cooling:60 Heating:48.5
Available static pressure Pa Standard: 50, Max: 85 –
Outside air intake – –
Air filter, Q’ty – –
Shock & vibration absorber Rubber sleeve (for fan motor) Rubber mount (for compressor)
Electric heater W – 20(Crank case heater)
Operation control Wired remote control switch (Optional: RC-E1R)
Operation switch Wireless kit (Optional: RCND-KIT-HER) – (Indoor unit side)
Room temperature control Thermostat by electronics –
Safety equipment Internal thermostat for fan motor. Internal thermostat for fan motor.
Frost protection thermostat. Abnormal discharge temperature protection.
Installation data mm Liquid line: φ9.52 (3/8″) Gas line: φ15.88 (5/8″)
Refrigerant piping size (in)
Connecting method Flare piping
Drain hose Connectable with VP25 (I.D.25mm, O.D.32mm) –
Insulation for piping Necessary (both Liquid & Gas lines)
Accessories Mounting kit. Drain hose
Optional parts Filter kit (UM-FL2E)
(2) This packaged air-conditioner is manufactured and tested in conformity with the following standard.
ISO-T1 “UNITARY AIR-CONDITIONERS”
(3) The operation data indicate when the air-conditioner is operated at 230V 50Hz.
Notes (1) The data are measured at the following conditions.
Item Indoor air temperature Outdoor air temperature Standards
Operation DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C
Heating 20˚C – 7˚C 6˚C
ISO-T1
Operation data
(3)
FDUMVA302HEN2R
48
(3) Satellite ducted type (FDUM)

-
8
-
1.2.2 Range of usage & limitations
Model
302 series
Item
Limitations
Return air temp
Indoor unit atmosphere (behind ceiling)
temperature and humidity
Refrigerant line (one way) length
Vertical height difference between
outdoor unit and indoor unit
Power source voltage
Voltage at starting
Cycle Time
Stop Time
Dew point temperature: 28˚C or less, relative humidity: 80% or less
Indoor unit:18~30˚CD.B Outdoor unit:-15~43˚CD.B
Max. 50m
7 minutes or more (4 minutes or more from start to stop) or (3 minutes or more from stop to start)
3 minutes or more
Min. 85% of rating
Rating ±10%
Compressor
stop/start
Frequency
Max. 30m (Outdoor unit is higher)
Max. 15m (Outdoor unit is lower)
Cooling
Heating Indoor unit:18~30˚CD.B Outdoor unit:-10~24˚CD.B

-
9
-
Air supply Air return grille
VIEW A
VIEW B
VIEW C VIEW D
Decorative Panel
700 or less
(Max. Drain up)
Drain hose piece
(Accessory)
(Installed at site)
Hole for wiring
840
212
95
45
35 270
187
137
332
637
422
420
310
267
950
630
295~325
122
100
25
55
123
140
80 100
160 43
60
140
140 52
ø15.88(5/8")
A
6-ø4
4-ø4
860~890(Ceiling hole size)
780(Suspension bolts pitch)
675(Suspension bolts pitch)
Control box
Outside air
opening for
ducting
Exhaust air
opening for
ducting
Control box
Gas piping
ø9.52(3/8")
Liquid piping
or more
Lug for
suspension bolts
Space for installation and service
If you are mounting units close together,
leave a space of 4000 or greater between unit.
Obstacle
Holes for
tapping screws
Holes for
tapping screws
Holes
Holes
Suspension bolts
B
D
C
Drain
(Connectable with VP25)
1000
or more
2500 or more
Model FDTA301R unit : mm
1.2.3 Exterior dimensions
(1) Indoor unit
(a) Ceiling recessed type (FDT)

-
10
-
(b) Ceiling suspended type (FDEN)
Model FDENA301R
100
300or more
150
5
75
110
135
308
4040 1240
1320
173
210 5
215
2424
690
195
235
271
53
109
5268
410135
10
53
145
76
1272(Suspension bolts pitch)
290(Suspension bolts pitch)
Air supply
Indication board
ø9.52(3/8")
ø15.88(5/8")
Holes for suspension bolts
(M8 to M10
× 4pcs.Not included)
Liquid piping
Gas piping
Liquid piping
Gas piping
Space for installation and service
or more
or more
or more
Obstacles
Air ireturn grille
Drain hose piece
connection
(1)
Drain hose piece
connection
(1)
Drain hose piece
connection
(1)
(VP20)
(VP20)
(VP20)
Note(1) The slope of drain piping inside the unit is
able to take incline of 10mm.
Unit : mm
If you are mounting units close together,
leave a space of 4500 or greater between unit.

-
11
-
(C) Satellite ducted type (FDUM)
Model FDUMA302R
69
Space for installation and service
620
100 600
1300
45 860 45
59 200
130
165 285
950
285 215
465
510
80 635
405
460
35
149
274
299
199
VIEW B
295~325
(Gravity drainage)
(M10×4pcs.)
600 or less
Suspension bolts
Air return duct
Drain(VP20)
Hole for wiring
Inspection
space
ø200
80.5
18
213205
59
71
950
18
45118
284
986 (Suspension bolts pitch)
Unit : mm
VIEW A
Liquid piping
ø9.52(3/8")
472
(Suspension bolts pitch)
Drain hose piece
(Accessory)
(Installed at site)
Gas piping
ø15.88(5/8")
Fresh air opening
for ducting
(Knock out)
Exhaust air opening for ducting
(Knock out)
A
90
Control box
Air supply duct
B
4-ø4
Holes of
tapping screws
ø149
ø170 ø170
Max.Drain up
Drain
(Connectable
with VP20)
(Duct flange inner dimeter)
(Duct flange inner dimeter)

-
12
-
(2) Remote controller (Optional parts)
(a) Wired remote controller
Unit : mm
0.3mm2, 3cores (O.D.ø5.6)
LCD display
120
Wall
Wire
(Recessed)
Electrical box
(Locally Purchased)
19
23
46
11.5
44
Remote controller
outline
120
45
83.5
42
120
Remote controller mounting dimensions
For the passage
after wiring Attachment hole
12×7 Long hole 9×4.5 Long hole(4 pcs.)
48
Installation with wiring exposed Installation with wiring recessed
Cut off with a knife or the
like thin walled parts intend-
ed for screw holes, and then
fix it with screws.
(This side is not grounded)
Earth wiring
Remote control switch
Remote control cord
(Shielded wire)
Precation in Extending the Remote control cord
The cord should be a shielded wire.
● For all types : 0.3mm
2 
3 cores
Note: (1) Use cables up to 0.5mm
2
(maximum) for those laid inside the remote control unit casing and connect to a different size
cable at a vicinity point outside the remote control unit, if necessary.
● The shielded wire should be grounded at one side only.
Maximum total extension 600m.
Within 100-200m…………
Within 300m…………
Within 400m…………
Within 600m…………
0.5 mm2
0.75 mm2
1.25 mm2
2.0 mm2
 3 cores
 3 cores
 3 cores
 3 cores
▼
Indoor unit

-
13
-
(b) Wireless remote controller
60 17
150

-
14
-
(3) Outdoor unit
Model FDCVA302HENR
Unit: mm
Terminal block
Gas piping ø15.88 (5/8")
Liquid piping ø9.52(3/8")
(Flare connecting)
(Flare connecting)
25.1165.5
30°
30°
48.5103.3
750
24.1
Holes for drain
2-ø15 25.8
29.8
87.9
880
150580150
61
532
223
60
15
340
61 47.5
19 380 19
418
Required space for maintenance and air flow Minimum allowable space to the obstacles
Unit:mm
Mark
123
L1 Open Open 500
L2 300 250 Open
L3 100 150 100
L4 250 250 250
Installation
type
Notes
(1) It is prohibited to install in a space enclosed with walls
at four sides.
(2) Unit must be secured with anchor bolts.
Anchor bolt should not protrude more than 15 mm above
the surface.
(3) Where strong winds blow,the blow outlet must be
oriented at right angle against the wind direction.
(4) Secure a space of 1 m or more above the unit.
(5) Barrier standing in front of the blow outlet mustbe lower
than the height of unit.
L2
L1
L3 L4
Air inlet
Air outlet
Maintenance
space
( )
Air
inlet
(ø20×3 pcs.)

-
15
-
1.2.4 Inside view
Outdoor unit
Control box
4way valve
High pressure
switch
(63H1)
Low pressure
sensor
(PSL)
Electronic
expansion valve
(EEVH)
Electronic
expansion valve
(EEVC)
Solenoid valve
(SV1)
Compressor Service valve
(Liquid side) Service valve
(Gas side)

-
16
-
1.2.5 Exterior appearance
(1) Indoor unit
(a) Ceiling recessed type (FDT)
Plaster white
Plaster white
Plaster white
Plaster white
(Front panel)
(Front panel)
(Side panel)
(Vertical louver)
(Horizontal louver)
Light gray
Light gray
(Air return grille)
Plaster white
(b) Ceiling suspended type (FDEN)
(c) Satellite ducted type (FDUM)……Zinc steel plate
(2) Outdoor unit
Stucco white

-
17
-
1.2.6 Piping system
Model 302 series
Cooling cycle Heating cycle
Thermistor
(Th
I -R2)
Thermistor
(Th
I -R1)
Thermistor
(Th
O -D)
Thermistor
(Th
O -S)
Thermistor
(Th
O -A)
Service valve
(Flare connecting)
Service valve
(Flare connecting)
High pressure
switch
Low pressure
sensor
(63H1)
(LPT)
(SV1)
Thermistor
(Th
O -R)
(EEVH)
Thermistor
(Th
I -A)
Heat exchanger
Heat
exchanger
Solenoid
valve
Strainer
Strainer
Strainer Strainer
Liquid line
(ø9.52)
Gas line
(ø15.88)
4way valve
Muffler
Muffler
Compressor
Compressor
accumlator
Check joint
Check joint
Check valve
Indoor unit Outdoor unit
Electronic
expansion valve Electronic
expansion valve
(EEVC)
Strainer Strainer
Receiver
Parts name Mark
Thermistor
(for protection over-
loading in heating)
Thermistor
(for frost prevention)
Thermistor
(for detecting dis-
charge pipe temp.)
High pressure switch
(for protection)
OFF 63℃
ON 56℃
Equipped
unit
Th
I -R
Tho-D
63H1
Indoor unit
Outdoor unit
Outdoor unit
OFF 1.0℃
ON 10℃
302 series
OFF 4.15MPa
ON 3.15MPa
Low pressure sensor
(for protection) LPT Outdoor unit OFF 0.227MPa
ON 0.079MPa
OFF 115℃
ON 85℃
Preset point of the protective devices
Note(1) A FDEN type strainer only should be used for the indoor unit

-
18
-
1.2.7 Selection chart
Correct the cooling and heating capacity in accordance with the conditions as follows. The net cooling and heating capacity can be
obtained in the following way.
Net capacity = Capacity shown on specification ×Correction factors as follows.
(1) Coefficient of cooling and heating capacity in relation to temperatures
(a) Capacity compensation coeffcient
1) Cooling
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.40
- 15 - 10 - 50 51015202530354043
Outdoor air temperature ( DB)
Capacity compensation coeffcient
Indoor air
temperture 24 ℃ W.B
Indoor air
temperture 19
℃ W.B
Indoor air
temperture 12
℃ W.B
Indoor air
temperture 16
℃ W.B
2) Heating
15 16 17 18 19 20 21 22 2423 25
Indoor air temperature ( DB)
Capacity compensation coeffcient
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.40
1.30
1.50
Outdoor air
temperture 18.5℃W.B
Outdoor air
temperture 6℃W.B
Outdoor air
temperture 10℃W.B
Outdoor air
temperture 1℃W.B
Outdoor air
temperture -10℃W.B
Outdoor air
temperture 0℃W.B
If a cooling operation is done when the outdoor air temperature is -5˚C or lower, as much as possible, the outdoor unit should be
installed in a condition where it is not going to be influenced by natural wind. If it is hit by the wind, the compressor stop
frequency will be high because of the drop in the low pressure, the capacity will drop even further and it could cause the unit to
break down.
Caution:

-
19
-
(b) Power consumption correction factor
1) Cooling
2) Heating
Outdoor air temperature ( DB)
Power consumption correction factor
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.30
1.40
- 15 - 10 - 50 51015202530354043
Indoor air
temperture 24
℃ W.B
Indoor air
temperture 19
℃ W.B
Indoor air
temperture 12
℃ W.B
Indoor air
temperture 16
℃ W.B
Indoor air temperature ( DB)
Power consumption correction factor
0.50
0.60
0.70
0.80
0.90
1.00
1.10
1.20
1.40
1.30
1.50
15 16 18 20 22 2417 19 21 23 25
Outdoor air
temperture 18.5℃W.B
Outdoor air
temperture 6℃W.B
Outdoor air
temperture 10℃W.B
Outdoor air
temperture 1℃W.B
Outdoor air
temperture -10℃W.B
Outdoor air
temperture 0℃W.B
