MSZ-GE06NA MSZ-GE09NA MSZ-GE12NA MSZ-GE15NA
MSY-GE09NA MSY-GE12NA MSY-GE15NA MSY-GE18NA

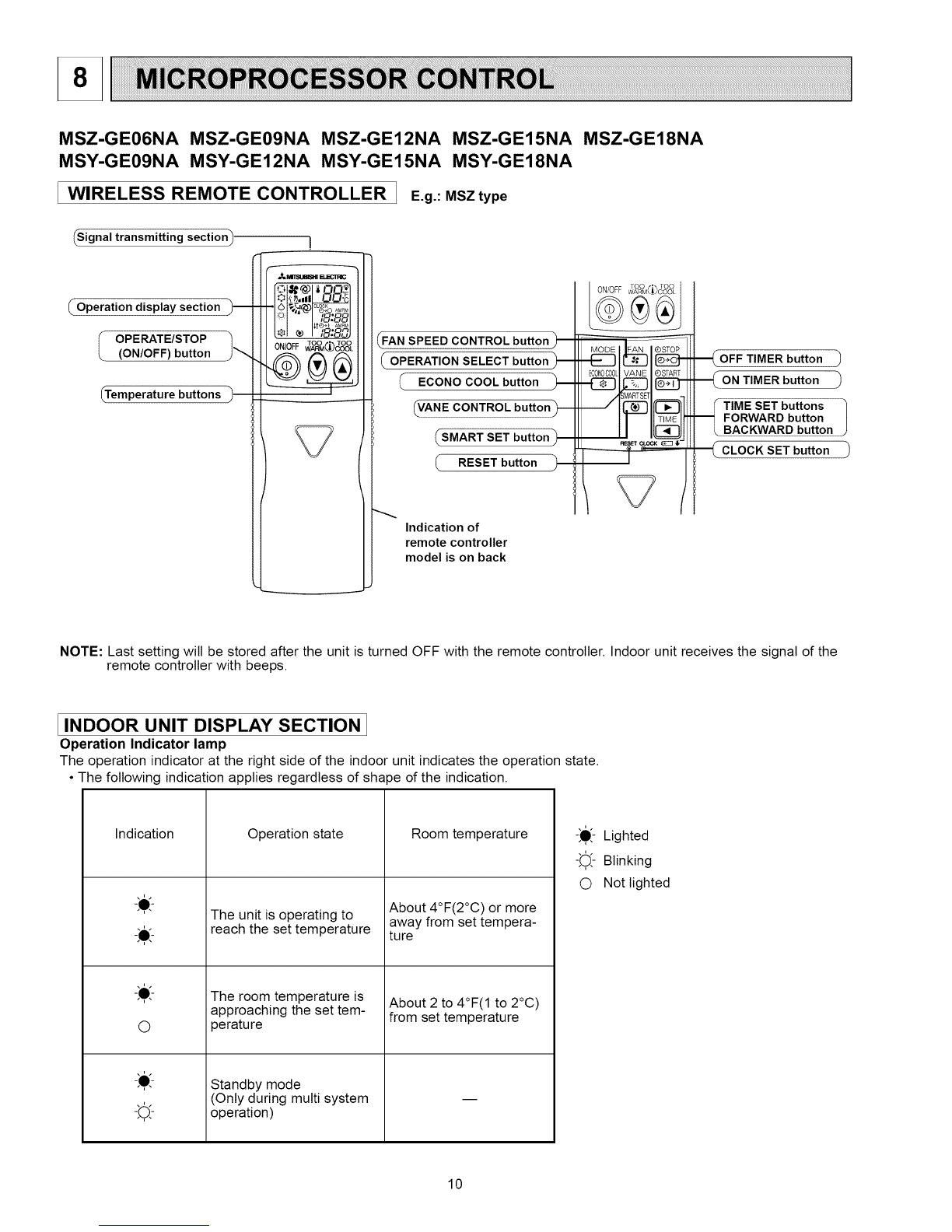

[WIRELESS REMOTE CONTROLLER IE.g.:MSZtype
_Signal transmitting section'_
Operation display section _--
_ OPERATE/STOP _
(ON/OFF) button
ITemperature buttons .)
!
r
,,_.m EL_CnaC
Ok_,,dl O0-EI
, _,TJ c_o_ AMPM
l*i ® I-/_gJ
TOO _i'j TOO
ON/OFF W_ML_OOOL
MSZ-GE18NA
TOO ('i_ TOO
ON!OFF WARM _I}COOL
©®®
"FAN_ SPEED -
ECONO COOL button .
(VANECONTROL
RESET button
Indication of
remote controller
model is on back
_OFF TIMERbutton
ONT,MERbutton
____TIME SET buttons 1
FORWARD button
BACKWARDbutton
CLOCKSEtbutton
NOTE: Last setting wilt be stored after the unit is turned OFF with the remote controller. Indoor unit receives the signal of the
remote controller with beeps.
[INDOOR UNIT DISPLAY SECTION 1
Operation Indicator lamp
The operation indicator at the right side of the indoor unit indicates the operation state.
•The following indication applies regardless of sha)e of the indication.
Indication
0
÷
Operation state
The unit is operating to
reach the set temperature
The room temperature is
approaching the set tem-
perature
Standby mode
(Only during multi system
operation)
Room temperature
About 4°F(2°C) or more
away from set tempera-
ture
About 2 to 4°F(1 to 2°C)
from set temperature
",_- Lighted
"O,'_- Blinking
© Not lighted
10

8-1. COOL (0 ) OPERATION
(1) Press OPERATE/STOP (ON/OFF) button.
OPERATION INDICATOR lamp of the indoor unit turns ON with a beep tone.
(2) Select COOL mode with OPERATION SELECT button.
(3) Press TEMPERATURE buttons (TO0 WARM or TOO COOL button) to select the desired temperature.
The setting range is 61 ~ 88°F (16 ~ 31°C).
1. Coil frost prevention
The compressor operational frequency is controlled by the temperature of the indoor heat exchanger to prevent the coil from
frosting.
When the temperature of indoor heat exchanger becomes too low, the coil frost prevention mode works.
The indoor fan operates at the set speed and the compressor stops. This mode continues until the temperature of indoor
heat exchanger rises.
2. Low outside temperature operation
When the outside temperature is lower, low outside temperature operation starts, and the outdoor fan slows or stops.
8-2. DRY ( 6) OPERATION
(1) Press OPERATE/STOP (ON/OFF) button.
OPERATION INDICATOR tamp of the indoor unit turns ON with a beep tone.
(2) Select DRY mode with OPERATION SELECT button.
(3) The set temperature is determined from the initial room temperature.
1. Coil frost prevention
Coil frost prevention is as same as COOL mode. (8-1.1 .)
2. Low outside temperature operation
Low outside temperature operation is as same as COOL mode. (8-1.2.)
8-3. HEAT ( ,@) OPERATION (MSZ)
(1) Press OPERATE/STOP (ON/OFF) button.
OPERATION INDICATOR lamp of the indoor unit turns ON with a beep tone.
(2) Select HEAT mode with OPERATION SELECT button.
(3) Press TEMPERATURE buttons (TO0 WARM or TOO COOL button) to select the desired temperature.
The setting range is 61 ~ 88°F (16 ~ 31°C).
1. Cold air prevention control
When the compressor is not operating or is starting, and the temperature of indoor heat exchanger and/or the room tem-
perature is tow or when defrosting is being done, the indoor fan will stop or rotate in Very Low speed.
2. High pressure protection
The compressor operational frequency is controlled by the temperature of the indoor heat exchanger to prevent the con-
densing pressure from increasing excessively.
When the temperature of indoor heat exchanger becomes too high, the high pressure protection works.
The indoor fan operates following the cold air prevention control. This mode continues until the temperature of indoor heat
exchanger falls.
3. Defrosting
Defrosting starts when the temperature of outdoor heat exchanger becomes too tow.
The compressor stops once, the indoor/outdoor fans stop, the 4-way valve reverses and the compressor re-starts.
This mode continues until the temperature of outdoor heat exchanger rises or the fixed time passes.
8-4. FAN( ®)OPERATION (MSY)
(1) Press OPERATE/STOP (ON/OFF) button.
OPERATION INDICATOR lamp of the indoor unit turns ON with a beep tone.
(2) Select FAN mode with OPERATION SELECT button.
(3) Select the desired fan speed. When AUTO, it becomes Low.
Only indoor fan operates. Outdoor unit does not operate.
8-5. "1 FEEL CONTROL" ( c_ ) OPERATION (MSY)
(1) Press OPERATE/STOP (ON/OFF) button on the remote controller. OPERATION INDICATOR lamp of the indoor unit
turns ON with a beep tone.
(2) Select "1FEEL CONTROL" mode with OPERATION SELECT button.
(3) The operation mode is determined by the room temperature at start-up of the operation.
• Once the mode is fixed, the mode does not change by room temperature afterwards.
• Under the ON TIMER ( (_ 1) operation, mode is determined according to the room temperature at the start-up of
operation.
11

(4)Theinitialsettemperatureisdecidedbytheinitialroomtemperature.
Initialroomtemperature
79°F(26°C)ormore
Model
COOLmodeof
"1FEELCONTROL"
Initialsettemperature
75°F(24°C)
77to79°F(25to26°C) Initialroomtemperatureminus4°F(2°C)
DRYmodeof
Lessthan79°F(25°C) "1FEELCONTROL" Initialroomtemperatureminus4°F(2°C)
(5)TEMPERATUREbuttons
In"1FEELCONTROL"(i:._)mode,settemperatureisdecidedbythemicroprocessorbasedontheroomtemperature.
Inaddition,settemperaturecanbecontrolledbyTOOWARMorTOOCOOLbuttonswhenyoufeeltoocoolortoo
warm.
EachtimetheTOOWARMorTOOCOOLbuttonispressed,theindoorunitreceivesthesignalandemitsabeeptone.
• Fuzzy control
When the TOO COOL or TOO WARM button is pressed, the microprocessor changes the set temperature, consider-
ing the room temperature, the frequency of pressing TOO COOL or TOO WARM button and the user's preference to
heat or cool. So this is called "Fuzzy control", and works only in "1FEEL CONTROL" mode.
In DRY mode of "1 FEEL CONTROL", the set temperature does not change.
TOO TOO
COOL WARM
"T° raise the set temperature 2~4°F (1~2°C) _ "T° l°wer the set temperature 2~4°F (1~2°C)
8-6. AUTO CHANGE OVER ... AUTO MODE OPERATION (MSZ)
Once desired temperature is set, unit operation is switched automatically between COOL and HEAT operation.
Mode selection
(1) Initial mode
When unit starts the operation with AUTO operation from OFF:
• If the room temperature is higher than the set temperature, operation starts in COOL mode.
• If the room temperature is equal to or lower than the set temperature, operation starts in HEAT mode.
(2) Mode change
COOL mode changes to HEAT mode when about 15 minutes have passed with the room temperature 2°F (1°C) below
the set temperature.
HEAT mode changes to COOL mode when about 15 minutes have passed with the room temperature 2°F (1°C) above
the set temperature.
NOTE1
If two or more indoor units are operating in multi system, there might be a case that the indoor unit, which is operating in i--_
(AUTO), cannot change over to the other operating mode (COOL _ HEAT(MSZ)) and becomes a state of standby.
Refer to NOTE2 "FOR MULTI SYSTEM AIR CONDITIONER".
NOTE2
FOR MULTI SYSTEM AIR CONDITIONER
OUTDOOR UNIT: MXZ series
Multi system air conditioner can connect two or more indoor units with one outdoor unit.
• When you try to operate two or more indoor units with one outdoor unit simultaneously, one for the cooling and
the others for heating, the operation mode of the indoor unit that operates first is selected. Other indoor units
cannot operate, and operation indicator lamp flashes as shown in the figure below. In this case, please set all the
indoor units to the same operation mode.
<Operation indicator lamp>
O O Lighted
Blinking
O Not lighted
• When indoor unit starts the operation while the defrosting of outdoor unit is being done, it takes a few minutes (max.
10 minutes) to blow out the warm air.
• In the heating operation, though indoor unit that does not operate may get warm or the sound of refrigerant flow-
ing may be heard, they are not malfunction. The reason is that the refrigerant continuously flows into it.
12

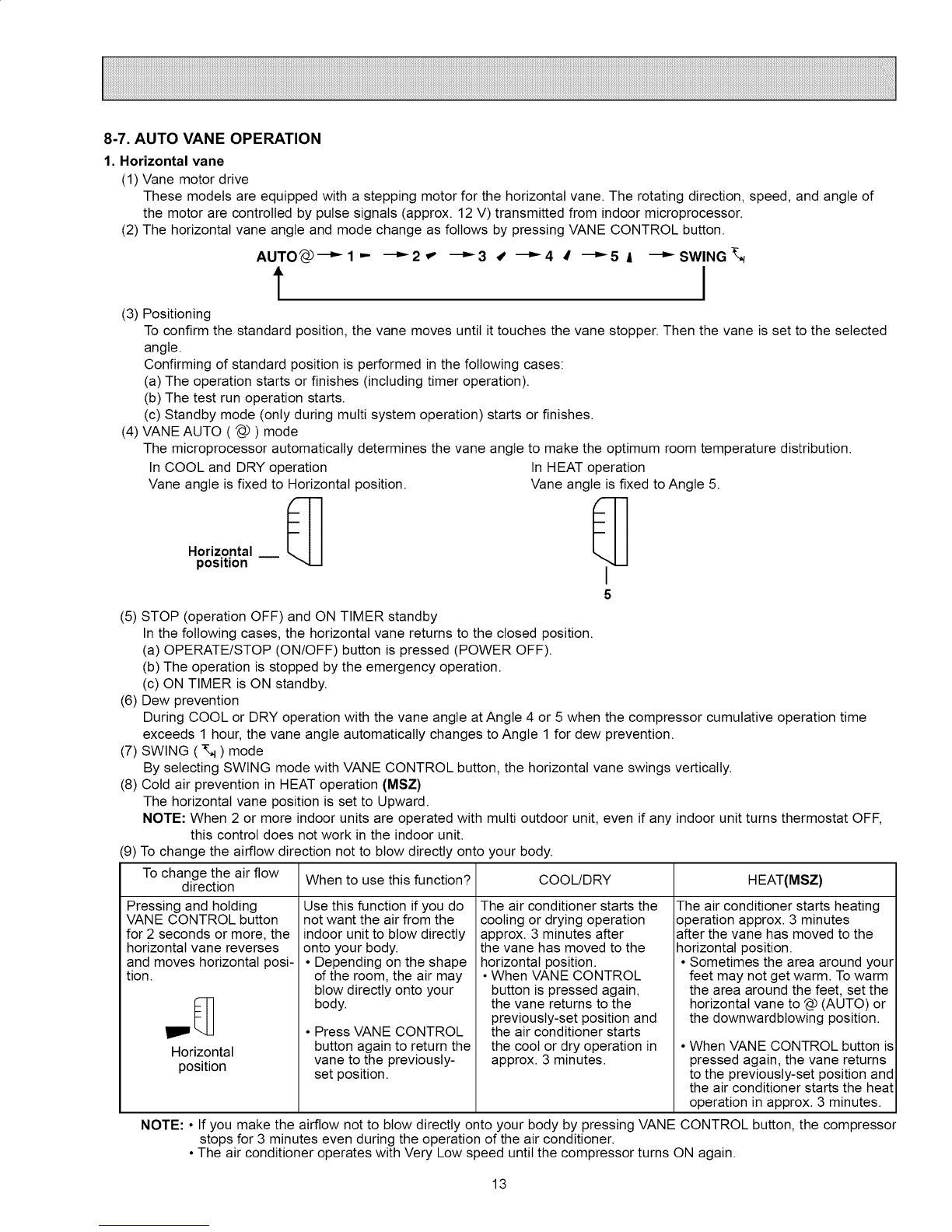

8-7. AUTO VANE OPERATION
1. Horizontal vane
(1) Vane motor drive
These models are equipped with a stepping motor for the horizontal vane. The rotating direction, speed, and angle of
the motor are controlled by pulse signals (approx. 12 V) transmitted from indoor microprocessor.
(2) The horizontal vane angle and mode change as follows by pressing VANE CONTROL button.
AUTO_ --_ 1 "" --=" 2_---_ 3#---_ 44 ---_ 5I---=" SWING _'_
(3) Positioning
To confirm the standard position, the vane moves until it touches the vane stopper. Then the vane is set to the selected
angle.
Confirming of standard position is performed in the following cases:
(a) The operation starts or finishes (including timer operation).
(b) The test run operation starts.
(c) Standby mode (only during multi system operation) starts or finishes.
(4) VANE AUTO ( I_ ) mode
The microprocessor automatically determines the vane angle to make the optimum room temperature distribution.
In COOL and DRY operation
Vane angle is fixed to Horizontal position.
Horizontal
position
(5) STOP (operation OFF) and ON TIMER standby
In HEAT operation
Vane angle isfixed to Angle 5.
I
5
In the following cases, the horizontal vane returns to the closed position.
(a) OPERATE/STOP (ON/OFF) button is pressed (POWER OFF).
(b) The operation is stopped by the emergency operation.
(c) ON TIMER is ON standby.
(6) Dew prevention
During COOL or DRY operation with the vane angle at Angle 4 or 5 when the compressor cumulative operation time
exceeds 1 hour, the vane angle automatically changes to Angle 1 for dew prevention.
(7) SWING ( _ ) mode
By selecting SWING mode with VANE CONTROL button, the horizontal vane swings vertically.
(8) Cold air prevention in HEAT operation (MSZ)
The horizontal vane position is set to Upward.
NOTE: When 2 or more indoor units are operated with multi outdoor unit, even if any indoor unit turns thermostat OFF,
this control does not work in the indoor unit.
(9) To change the airflow direction not to blow directly onto your body.
To change the air flow
direction When to use this function? COOL/DRY HEAT(MSZ)
Pressing and holding
VANE CONTROL button
for 2 seconds or more, the
horizontal vane reverses
and moves horizontal posi-
tion.
Horizontal
position
Use this function if you do
not want the air from the
indoor unit to blow directly
onto your body.
• Depending on the shape
of the room, the air may
blow directly onto your
body.
• Press VANE CONTROL
button again to return the
vane to the previously-
set position.
The air conditioner starts the
cooling or drying operation
approx. 3 minutes after
the vane has moved to the
horizontal position.
• When VANE CONTROL
button is pressed again,
the vane returns to the
previously-set position and
the air conditioner starts
the cool or dry operation in
approx. 3 minutes.
The air conditioner starts heating
operation approx. 3 minutes
after the vane has moved to the
horizontal position.
• Sometimes the area around your
feet may not get warm. To warm
the area around the feet, set the
horizontal vane to !)5 (AUTO) or
the downwardblowing position.
• When VANE CONTROL button is
pressed again, the vane returns
to the previously-set position and
the air conditioner starts the heat
operation in approx. 3 minutes.
NOTE: • If you make the airflow not to blow directly onto your body by pressing VANE CONTROL button, the compressor
stops for 3 minutes even during the operation of the air conditioner.
• The air conditioner operates with Very Low speed until the compressor turns ON again.
13

(10)ECONOCOOL(_) operation(ECONOmicaloperation)
WhenECONOCOOLbuttonispressedinCOOLmode,settemperatureisautomaticallyset4°F(2°C)higher.
Alsothehorizontalvaneswingsinvariouscycle.
SWINGoperationmakesyoufeelcoolerthansettemperature.So,eventhoughthesettemperatureishigher,theair
conditionercankeepcomfort.Asaresult,energycanbesaved.
ECONOCOOLoperationiscancelledwhenECONOCOOLbuttonispressedonceagainorVANECONTROLbutton
ispressedorchangedtootheroperationmode.
8-8.TIMEROPERATION
1.Howtosetthetime
(1)Checkthatthecurrenttimeissetcorrectly.
NOTE:Timeroperationwiltnotworkwithoutsettingthecurrenttime.Initially"0:00AM"blinksatthecurrenttimedisplay
ofTIMEMONITOR,sosetthecurrenttimecorrectlywithCLOCKSETbutton.
Howtosetthecurrenttime
(a)PresstheCLOCKsetbutton.
(b)PresstheTIMESETbuttons([3E3andE_C])tosetthecurrenttime.
•EachtimeFORWARDbutton([3E:])ispressed,thesettimeincreasesby1minute,andeachtimeBACK-
WARDbutton(C_3)ispressed,thesettimedecreasesby1minute.
•Pressingthosebuttonslonger,thesettimeincreases/decreasesby10minutes.
(c)PresstheCLOCKsetbutton.
(2)PressOPERATE/STOP(ON/OFF)buttontostarttheairconditioner.
(3)Setthetimeoftimer.
ONtimersetting
(a)PressONTIMERbutton(_ )duringoperation.
(b)SetthetimeofthetimerusingTIMESETbuttons(E3E:]and_ ).._
OFF timer setting _) STOP
(a) Press OFF TIMER button ( _ ) during operation.
(b) Set the time of the timer using TIME SET buttons ( [3E3 and [2_C]).._
•_Each time FORWARD button ( [_E3 ) is pressed, the set time increases by 10 minutes: each time BACKWARD
button ( [2_C]) is pressed, the set time decreases by 10 minutes.
2. To release the timer
To release ON timer, press ON TIMER button ( _ ).
To release OFF timer, press OFF TIMER button ( _ ).
TIMER is cancelled and the display of set time disappears.
PROGRAM TIMER
• OFF timer and ON timer can be used in combination. The timer of the set time that is reached first will operate first.
• "_ " and "t " display shows the order of OFF timer and ON timer operation.
(Example 1) The current time is 8:00 PM.
The unit turns OFF at 11:00 PM, and ON at 6:00
AM.
Current
(Example 2) The current time is 11:00 AM.
The unit turns ON at 5:00 PM, and OFF at 9:00
PM.
Current
ON
OFF F F_
Q÷O PM
i I.FIFI
I I" I_lLI
C. mn
Iil" IiIl_l
ON IOFF
b 9@
@_0 PM
i-I .FI FI
"L,J
t @,_. PM
L.FIFI
_1" LILI
NOTE: If the main power is turned OFF or a power failure occurs while ON/OFF timer is active, the timer setting is can-
celled. As these models are equipped with an auto restart function, the air conditioner starts operating with timer
cancelled when power is restored.
14

8-9. SMART SET (_) OPERATION
1. How to SET SMART SET operation
(1) Press OPERATE/STOP (ON/OFF) button.
(2) Select COOL, HEAT(MSZ) or ECONO COOL mode.
(3) Press SMART SET button.
(4) Set the temperature, fan speed, and airflow direction for SMART SET operation.
NOTE: • SMART SET operation cannot be selected during DRY or AUTO mode operation.
• The setting range of HEAT mode in SMART SET operation is 50°F (10°C) and 61 - 87°F (16 - 31°C). (MSZ)
• 2 groups of setting can be saved. (One for COOL/ECONO COOL, one for HEAT) (MSZ)
• 1group of setting can be saved. (MSY)
2. How to cancel operation
• Press SMART SET button again.
• SMART SET operation can also be cancelled by pressing OPERATION SELECT button to change the operation mode.
The same setting is select from the next time by simply pressing SMART SET button.
8-10. EMERGENCY/TEST OPERATION
In case of test run operation or emergency operation, use EMERGENCY OPERATIONswitch on the right side of the
indoor unit. Emergency operation is available when the remote
controller is missing, has failed or the batteries of the remote con-
troller run down. The unit will start and OPERATION INDICATOR
lamp wilt light.
The first 30 minutes of operation is the test run operation. This
operation is for servicing. The indoor fan runs at High speed and
the system is in continuous operation (The thermostat does not
work).
After 30 minutes of test run operation, the system shifts to
EMERGENCY COOL/HEAT(MSZ) MODE with a set temperature of
75°F (24°C). The fan speed shifts to Med.
In the test run or emergency operation, the horizontal vane oper-
ates in VANE AUTO (/_) mode.
Emergency operation continues until EMERGENCY OPERATION
switch is pressed once or twice or the unit receives any signal from
the remote controller. In case of latter, normal operation will start.
NOTE: Do not press EMERGENCY OPERATION switch during
normal operation.
Operation mode COOL HEAT (MSZ)
Set temperature 75°F(24°C) 75°F(24°C)
Fan speed Med. Med.
Horizontal vane Auto Auto
The operation mode is indicated by the Operation
Indicator lamp as following
MSZ
EMERGENCY
COOL
EMERGENCY
HEAT
STOP
0
0
-to-
o
0 -
MSY
EMERGENCYm 1
COOL O
O
STOP O
41_ Lighted
O Not lighted
8-11.3-MINUTE TIME DELAY OPERATION
When the system turns OFF, compressor will not restart for 3 minutes as 3-minute time delay function operates to protect
compressor from overload.
8-12. Changing temperature indication (°F/°C)
• The preset unit is °F.
• °F -_ °C: Press RESET button while the temperature
buttons are pressed.
• °C _ °F: Press RESET button or remove the batteries.
Press RESET button gently using
a thin instrument.
15
