Mitsubishi Mr.Slim PLH-3AAK Operating manual

TECHNICAL & SERVICE MANUAL
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
No. OC360
NOTE:
• This manual does not
cover outdoor units.
When servicing outdoor
units, please refer to the
outdoor unit`s service
manual together with this
manual.
CONTENTS
1. REFERENCE MANUAL······································2
2. PART NAMES AND FUNCTIONS ···················3
3. SPECIFICATIONS············································6
4. DATA ······························································14
5. OUTLINES AND DIMENSIONS ·····················28
6. WIRING DIAGRAM ········································31
7. REFRIGERANT SYSTEM DIAGRAM············32
8. TROUBLESHOOTING ···································34
9. FUNCTION SETTING·····································50
10. 4-WAY AIR FLOW SYSTEM ··························57
11. SYSTEM CONTROL ······································62
12. DISASSEMBLY PROCEDURE ······················76
13. PARTS LIST···················································79
14. OPTIONAL PARTS ········································84
Indoor unit
[Model names] [Service Ref.]
PLH-3AAK PLH-3AAK
PLH-4AAK PLH-4AAK
PLH-5AAK PLH-5AAK
PLH-6AAK PLH-6AAK
PLH-3AAKH PLH-3AAKH
PLH-4AAKH PLH-4AAKH
PLH-5AAKH PLH-5AAKH
PLH-6AAKH PLH-6AAKH
February 2006
INDOOR UNIT
WIRED REMOTE
CONTROLLER
WIRELESS REMOTE
CONTROLLER
ON/OFF TEMP
ON/OFF
TEMP.
Model name
indication
OC360--1.qxp 06.2.24 1:56 PM Page 1

2
1REFERENCE MANUAL
Service Ref. Service Manual No.
PUH-3VKA2.TH-A
PUH-3YKA1.TH-A
PUH-4YKSA1.TH-A
PUH-5/6YKSA3.TH-A
PUH-3VKA.TH
PUH-3YKA.TH
PUH-4/5/6YKSA.TH
PUH-3NKA.TH
PUH-4/5/6TKSA.TH
OC156
OC354
OC325
1-1. OUTDOOR UNIT’S SERVICE MANUAL
OC360--1.qxp 06.2.24 1:56 PM Page 2

3

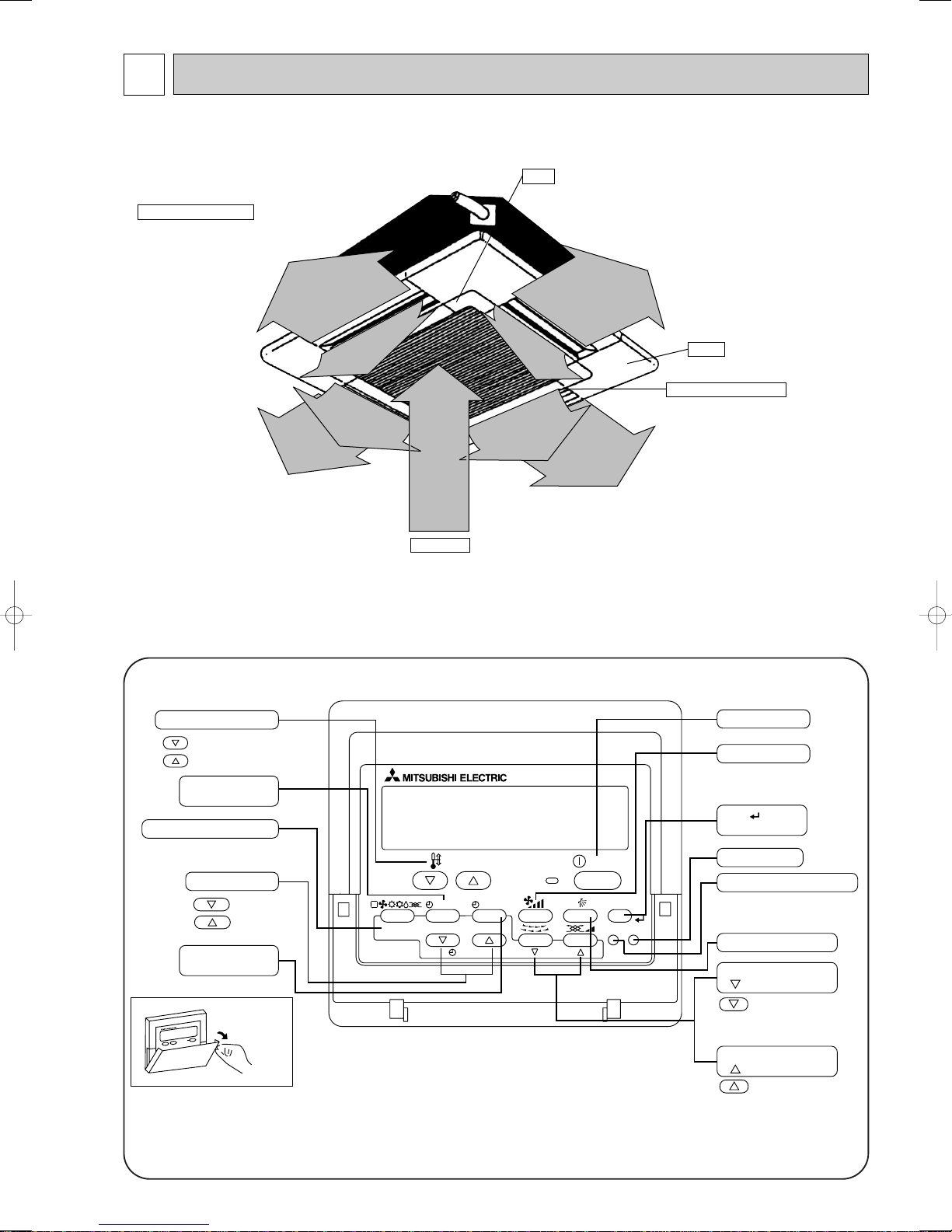

2PART NAMES AND FUNCTIONS
● Operation buttons
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
Set Temperature buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
door.
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
( Operation button)
To preceding operation
number.
Ventilation button
(Operation button)
To next operation number.
On the controls are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
Auto Air Swing Vane
Disperses airflow up and
down and adjusts the angle
of airflow direction.
Grille
Filter
Removes dust and pollutants
from intake air
Horizontal Air Outlet
Sets airflow of horizontal automatically
during cooling or dehumidifying.
Air Intake
Intakes air from room.
● Indoor Unit
● Wired remote controller
OC360--1.qxp 06.2.24 1:56 PM Page 3

4

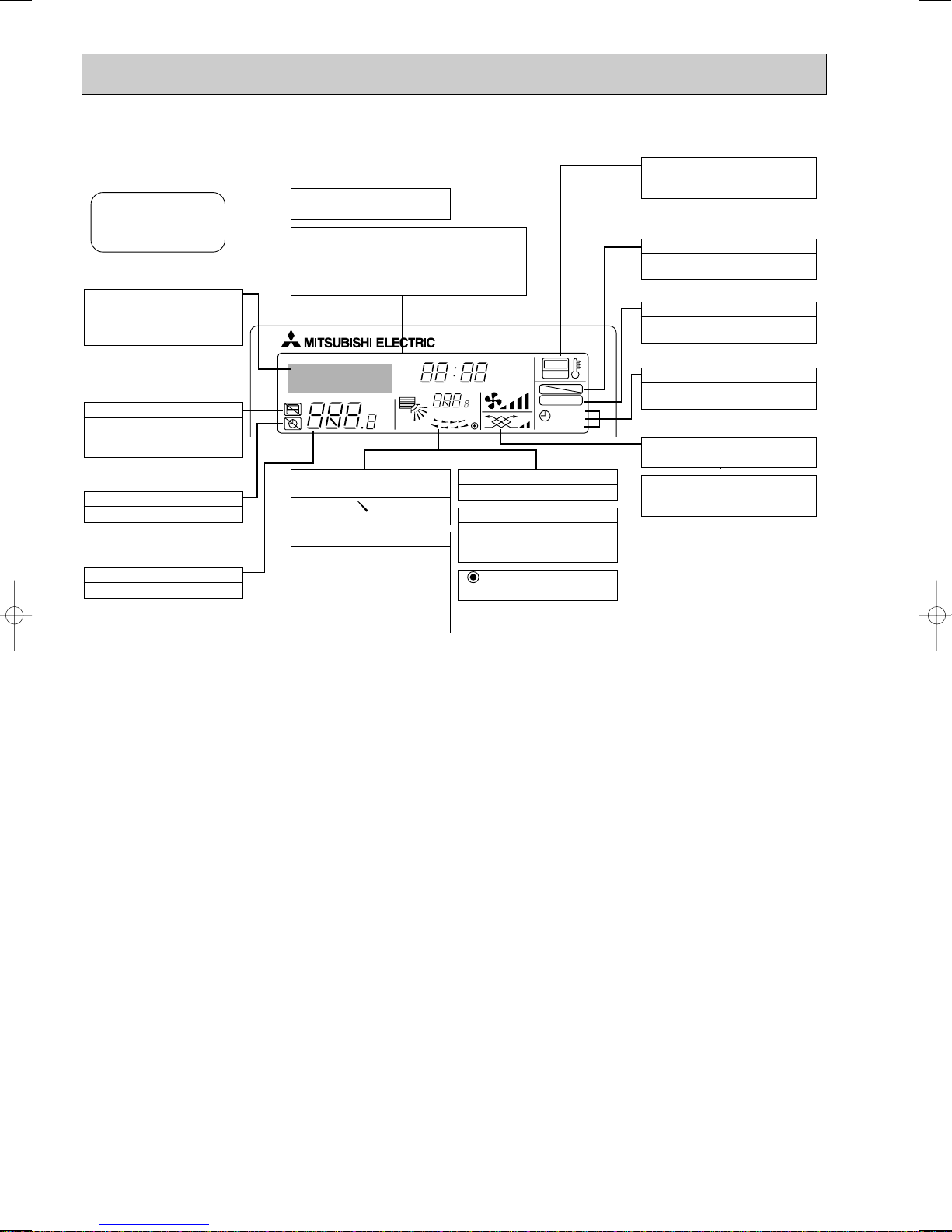

●Display
For purposes of this explanation,
all parts of the display are shown
as lit. During actual operation, only
the relevant items will be lit.
˚F˚C
˚F˚C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
Identifies the current operation
Shows the operating mode, etc.
* Multilanguage display is sup-
ported.
“Centrally Controlled” indicator
Indicates that operation of the re-
mote controller has been prohib-
ited by a master controller.
“Timer Is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, shows the time
remaining.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
Comes on when it is time to clean the
filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Displayed if the airflow is set to
weak and downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off after one
hour, at which time the airflow di-
rection also changes.
Room Temperature display
Shows the room temperature.
Louver display
Indicates the action of the swing
louver. Does not appear if the
louver is stationary.
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Caution
●Only the Power on indicator lights when the unit is stopped and power supplied to the unit.
●If you press a button for a feature that is not installed at the indoor unit, the remote controller will display the “Not Available”
message.
If you are using the remote controller to drive multiple indoor units, this message will appear only if he feature is not
present at the parent unit.
●When power is turned ON for the first time, it is normal that “PLEASE WAIT” is displayed on the room temperature indica-
tion (For max. 2minutes). Please wait until this “PLEASE WAIT” indication disappear then start the operation.
OC360--1.qxp 06.2.24 1:56 PM Page 4

5
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL SELECT
NOT AVAILABLE
CHECK TEST RUN
˚C
AMPM
AMPM
VANE CONTROL button
Used to change the air flow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
LOUVER button
This switch the horizontal fan motion ON
and OFF.
(Not available for this model.)
MODE SELECT button
Used to switch the operation mode between
cooling, drying, blowing, heating and auto
mode.
CHECK-TEST RUN button
Only press this button to perform an inspec-
tion check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Used to change the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
button
SET TEMPERATURE button sets any desired
room temperature.
CLOCK display
Displays the current time.
“” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
wIn case the outdoor unit is cool only type,
the heating mode is not available.
Buttons used to set the “hour and minute” of
the current time and timer settings.
h and min buttons
display
SET TEMP. display indicates desired temper-
ature set.
display
FAN SPEED display indicates which fan
speed has been selected.
display
The vertical direction of air flow is indicated.
display
Blinks when model is selected.
display
Lights up while transmission to the indoor
unit is mode using switches.
display
CHECK&TEST RUN display indicates that
the unit is being checked or test-run.
display
OPERATION MODE display
Operation mode display indicates which op-
eration mode is in effect.
TIMER CONTROL buttons
AUTO STOP (OFF timer): when this switch
is set, the air conditioner will be au-
tomatically stopped at the preset time.
AUTO START (ON timer): when this switch
is set, the air conditioner will be automatical-
ly started at the preset time.
MODEL SELECT
CHECK TEST RUN
● Wireless remote controller
OC360--1.qxp 06.2.24 1:56 PM Page 5

6
SPECIFICATIONS
3
PLH-3AAK(H)
Cooling
26,300
7,700
3.32
0.17
0.81
1.00
UNIT : 840(33-1/6)
UNIT : 840(33-1/6)
UNIT : 258(10-1/8)
UNIT : 24(53) [26(57)]
3.15
13.82/5.16
58/37
Heating
28,700[35,800]
8,400[10,500]
3.11[5.21]
0.17[2.27]
0.81[9.47]
1.00[9.7]
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL : 5(11)
2.94
12.89/4.81
58/37
PLH-3AAK(H)
Single, 50Hz, 220-240V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.07
15-20(530-705)
0(direct blow)
[2.1]
Remote controller & built-in
28-34
32(1-1/4)
PUH-3VKA.TH, PUH-3VKA2.TH-A/PUH-3YKA.TH, PUH-3YKA1.TH-A
Single, 50Hz, 220-240V/3, 50Hz, 380-415V(4wires)
Munsell 5Y 7/1
Capillary tube
Hermetic
NH52VNHT/NH52YDAT
2.2/2.4
Line start
w1
Plate fin coil
Propeller (direct) x1
0.085
50(1764)
Reverse cycle
52
870(34-1/4)
295+24 (11-5/8 add 1)
850(33-1/4)
75(165)
R-22
3.2(7.1)
1.6<MS-32>
9.52 (3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Max. 50m
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
w1 V …Internal Thermostat, HP switch
Y…Anti-phase protector, thermal relay, thermal switch, HP switch
Notes: Rating condition (ISO T1<JIS B8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor : D.B. 35°C, W.B. 24°C
Heating: Indoor : D.B. 20°C
Outdoor : D.B. 7°C, W.B. 6°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 6

7
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-3AAK
Cooling w1/w2
23,200/27,300
6,800/8,000
4.29/3.68
0.16
0.77
1.00
UNIT : 840(33-1/6)
UNIT : 840(33-1/6)
UNIT : 258(10-1/8)
UNIT : 24(53)
4.13/3.52
18.77/16.49
80
Heating w1
31,700
9,300
3.49
0.16
0.77
1.00
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL : 5(11)
3.33
15.6
80
PLH-3AAK
Single, 60Hz, 220V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.07
15-20(530-705)
0(direct blow)
—
Remote controller & built-in
28-34
32(1-1/4)
PUH-3NKA.TH
Single, 60Hz, 220V
Munsell 5Y 7/1
Capillary tube
Hermetic
NHJ47NADT
2.2
Line start
Internal thermostat, HP switch
Plate fin coil
Propeller (direct) x1
0.085
50(1764)
Reverse cycle
52
870(34-1/4)
295+24 (11-5/8 add 1)
850(33-1/4)
78(172)
R-22
3.2(7.1)
1.6<MS-32>
9.52 (3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Max. 50m
Notes : w1.Rating condition (SSA 385)
Cooling: Indoor : D.B. 29°C, W.B. 19°C
Outdoor: D.B. 46°C, W.B. 24°C
Heating: Indoor : D.B. 21°C
Outdoor: D.B. 7°C, W.B. 6°C
w2.Rating condition (ISO T1<JIS 8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor: D.B. 35°C, W.B. 24°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 7

8
Cooling
33,100
9,700
3.46
0.26
1.25
2.0
UNIT : 840(33-1/6)
UNIT : 840(33-1/6)
UNIT : 298(11-3/4)
UNIT : 30(66)[32(71)]
3.20
5.24
40
Heating
35,500[44,400]
10,400[13,000]
3.45[6.05]
0.26[2.86]
1.25[11.93]
2.0[12.7]
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL : 5(11)
3.19
5.22
40
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-4AAK(H)
PLH-4AAK(H)
Single, 50Hz, 220-240V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.120
20-28(705-990)
0(direct blow)
[2.6]
Remote controller & built-in
33-41
32(1-1/4)
PUH-4YKSA.TH, PUH-4YKSA1.TH-A
3, 50Hz, 380V-415V(4wire)
Munsell 5Y 7/1
Capillary tube
Hermetic
NH56YDAT
2.7
Line start
Anti-phase protector, Thermal relay, Thermal switch, HP switch
Plate fin coil
Propeller (direct) x2
0.065+0.065
95(3550)
Reverse cycle
54
870(34-1/4)
295+24(11-5/8 add 1)
1258(49-1/2)
94(207)
R-22
4.2(9.2)
1.6<MS-32>
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes: Rating condition (ISO T1<JIS B8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor : D.B. 35°C, W.B. 24°C
Heating: Indoor : D.B. 20°C
Outdoor : D.B. 7°C, W.B. 6°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 8

9
Cooling w1/w2
33,800/37,400
9,900/10,950
5.26/4.93
0.25
1.19
2.0
UNIT : 840(33-1/6)
UNIT : 840(33-1/6)
UNIT : 298(11-3/4)
UNIT : 30(66)
5.01/4.14
14.14/11.81
69
Heating w1
41,300
12,100
4.21
0.25
1.19
2.0
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL : 5(11)
3.96
11.3
69
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-4AAK
PLH-4AAK
Single, 60Hz, 220V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.120
20-28(705-990)
0(direct blow)
—
Remote controller & built-in
33-41
32(1-1/4)
PUH-4TKSA.TH
3, 60Hz, 220V
Munsell 5Y 7/1
Capillary tube
Hermetic
NHJ56TKAT
2.7
Line start
Anti-phase protector, Thermal relay, Thermal switch, HP switch
Plate fin coil
Propeller (direct) x2
0.065+0.065
95(3550)
Reverse cycle
55
870(34-1/4)
295+24(11-5/8 add 1)
1258(49-1/2)
94(207)
R-22
4.7(10.4)
1.6<MS-32>
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes: w1.Rating condition (SSA 385)
Cooling: Indoor : D.B. 29°C, W.B. 19°C
Outdoor: D.B. 46°C, W.B. 24°C
Heating: Indoor : D.B. 21°C
Outdoor: D.B. 7°C, W.B. 6°C
w2.Rating condition (ISO T1<JIS 8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor: D.B. 35°C, W.B. 24°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 9

10
Cooling
42,300
12,400
4.51
0.30
1.43
2.0
UNIT : 840(33-1/16)
UNIT : 840(33-1/16)
UNIT : 298(11-3/4)
UNIT : 30(66) [32(71)]
4.21
6.89
53
Heating
47,800[58,000]
14,000[17,000]
4.46[7.46]
0.30[3.30]
1.43[13.77]
2.0[14.3]
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL : 5(11)
4.16
6.81
53
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-5AAK(H)
PLH-5AAK(H)
Single, 50Hz, 220-240V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.120
22-30(775-1,060)
0(direct blow)
[3.0]
Remote controller & built-in
35-43
32(1-1/4)
PUH-5YKSA.TH, PUH-5YKSA3.TH-A
3, 50Hz, 380-415V(4wire)
Munsell 5Y 7/1
Capillary tube
Hermetic
ZR61KC-TFD
3.5
Line start
Internal thermostat, Anti-phase protector, Thermal switch, HP switch
Plate fin coil
Propeller (direct) x2
0.085+0.085
95(3550)
Reverse cycle
55
970(38-3/16)
345+24(13-9/16 add 1)
1258(49-1/2)
114(251)
R-22
5.4(11.9)
2.130<SONTEX-200LT>
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes: Rating condition (ISO T1<JIS B8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor : D.B. 35°C, W.B. 24°C
Heating: Indoor : D.B. 20°C
Outdoor : D.B. 7°C, W.B. 6°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 10

11
Cooling w1/w2
37,500/44,400
11,000/13,000
6.78/5.58
0.26
1.24
2.0
UNIT : 840(33-1/16)
UNIT : 840(33-1/16)
UNIT : 298(11-3/4)
UNIT : 30(66)
6.52/5.32
19.23/16.23
135
Heating w1
56,300
16,500
6.02
0.26
1.24
2.0
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL :5(11)
5.76
17.38
135
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-5AAK
PLH-5AAK
Single, 60Hz, 220V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.120
22-30(775-1,060)
0(direct blow)
—
Remote controller & built-in
35-43
32(1-1/4)
PUH-5TKSA.TH
3, 60Hz, 220V
Munsell 5Y 7/1
Capillary tube
Hermetic
ZR61KC-TF5
3.5
Line start
Internal thermostat, Anti-phase protector, Thermal switch, HP switch
Plate fin coil
Propeller (direct) x2
0.100+0.100
100(3500)
Reverse cycle
55
970(38-3/16)
345+24(13-9/16 add 1)
1258(49-1/2)
114(251)
R-22
5.4(11.9)
2.13<SONTEX-200LT>
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes: w1.Rating condition (SSA 385)
Cooling: Indoor : D.B. 29°C, W.B. 19°C
Outdoor: D.B. 46°C, W.B. 24°C
Heating: Indoor : D.B. 21°C
Outdoor: D.B. 7°C, W.B. 6°C
w2.Rating condition (ISO T1<JIS 8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor: D.B. 35°C, W.B. 24°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 11

12
PLH-6AAK(H)
Cooling
47,800
14,000
5.07
0.34
1.64
2.0
UNIT : 840(33-1/16)
UNIT : 840(33-1/16)
UNIT : 298(11-3/4)
UNIT : 32(71)[34(75)]
4.73
7.74
74
Heating
54,900[65,200]
16,100[19,100]
4.92[7.92]
0.34[3.34]
1.64[13.94]
2.0[14.3]
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL : 5(11)
4.58
7.50
74
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-6AAK(H)
Single, 50Hz, 220-240V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.120
22-30(775-1,060)
0(direct blow)
[3.0]
Remote controller & built-in
37-45
32(1-1/4)
PUH-6YKSA.TH, PUH-6YKSA3.TH-A
3, 50Hz, 380-415V(4wire)
Munsell 5Y 7/1
Capillary tube
Hermetic
ZR68KC-TFD
4.0
Line start
Internal thermostat, Anti-phase protector, Thermal switch, HP switch
Plate fin coil
Propeller (direct) x2
0.10+0.10
100(3530)
Reverse cycle
56
970(38-3/16)
345+24(13-9/16 add 1)
1258(49-1/2)
117(258)
R-22
5.0(11.0)
1.774<SONTEX-200LT>
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes: Rating condition (ISO T1<JIS B8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor : D.B. 35°C, W.B. 24°C
Heating: Indoor : D.B. 20°C
Outdoor : D.B. 7°C, W.B. 6°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 12

13
PLH-6AAK
Cooling w1/w2
45,700/51,900
13,400/15,200
7.32/6.15
0.28
1.34
2.0
UNIT : 840(33-1/16)
UNIT : 840(33-1/16)
UNIT : 298(11-3/4)
UNIT : 32(71)
7.04/5.87
20.3/17.31
140
Heating w1
59,700
17,500
6.7
0.28
1.34
2.0
PANEL : 950(37-3/8)
PANEL : 950(37-3/8)
PANEL : 30(1-3/16)
PANEL :5(11)
6.42
18.51
140
Service Ref.
Power supply(phase, cycle,voltage)
External finish
Heat exchanger
Fan
Booster heater
Operation control & Thermostat
Noise level(Low-High)
Unit drain pipe O.D.
Dimensions
Weight
Service Ref.
Power supply (phase, cycle, voltage)
External finish
Refrigerant control
Compressor
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor units
Input
Running current
Starting current
Fan(drive) x No.
Fan motor output
Airflow(Low-High)
External static pressure
Input
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive) x No.
Fan motor output
Airflow
Charge
Oil<Model>
W
D
H
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Function
Capacity
Total input
INDOOR UNITOUTDOOR UNIT
REFRIGERANT
PIPING
Item Service Ref.
Btu/h
W
kW
kW
A
A
kW
K/ min (CFM)
Pa
kW
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kW
A
A
kW
kW
K/ min (CFM)
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
PLH-6AAK
Single, 60Hz, 220V
Grille : Munsell 0.70Y 8.59/0.97
Plate fin coil
Turbo fan (direct) x 1
0.120
22-30(775-1,060)
0(direct blow)
—
Remote controller & built-in
37-45
32(1-1/4)
PUH-6TKSA.TH
3, 60Hz, 220V
Munsell 5Y 7/1
Capillary tube
Hermetic
ZR68KC-TF5
4.0
Line start
Internal thermostat, Anti-phase protector, Thermal switch, HP switch
Plate fin coil
Propeller (direct) x2
0.10+0.10
100(3530)
Reverse cycle
56
970(38-3/16)
345+24(13-9/16 add 1)
1258(49-1/2)
117(258)
R-22
5.0(11.0)
1.774<SONTEX-200LT>
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes: w1.Rating condition (SSA 385)
Cooling: Indoor : D.B. 29°C, W.B. 19°C
Outdoor: D.B. 46°C, W.B. 24°C
Heating: Indoor : D.B. 21°C
Outdoor: D.B. 7°C, W.B. 6°C
w2.Rating condition (ISO T1<JIS 8616>)
Cooling: Indoor : D.B. 27°C, W.B. 19°C
Outdoor: D.B. 35°C, W.B. 24°C
Refrigerant piping length(one way):5m(16ft)
OC360--1.qxp 06.2.24 1:56 PM Page 13

14
4DATA
1. PERFORMANCE DATA [50Hz]
1) COOLING CAPACITY(1)
PLH-3AAK(H)
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
7768
8271
7768
8271
8779
7768
8271
8779
9293
7768
8271
8779
9293
7768
8271
8779
9293
7768
8271
8779
9293
7768
8271
8779
9293
7768
8271
8779
9293
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
4972
4301
5593
4963
4214
6214
5624
4916
4089
6836
6286
5619
4832
7147
6617
5970
5204
7457
6948
6321
5576
7768
7609
7023
6319
7768
8271
7726
7063
0.64
0.52
0.72
0.60
0.48
0.80
0.68
0.56
0.44
0.88
0.76
0.64
0.52
0.92
0.80
0.68
0.56
0.96
0.84
0.72
0.60
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
0.64
0.52
0.72
0.60
0.48
0.80
0.68
0.56
0.44
0.88
0.76
0.64
0.52
0.92
0.80
0.68
0.56
0.96
0.84
0.72
0.60
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
0.64
0.52
0.72
0.60
0.48
0.80
0.68
0.56
0.44
0.88
0.76
0.64
0.52
0.92
0.80
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
2.66
2.71
2.66
2.71
2.77
2.66
2.71
2.77
2.82
2.66
2.71
2.77
2.82
2.66
2.71
2.77
2.82
2.66
2.71
2.77
2.82
2.66
2.71
2.77
2.82
2.66
2.71
2.77
2.82
7555
8053
7555
8053
8573
7555
8053
8573
9115
7555
8053
8573
9115
7555
8053
8573
9115
7555
8053
8573
9115
7555
8053
8573
9115
7555
8053
8573
9115
4835
4188
5440
4832
4115
6044
5476
4801
4011
6649
6120
5487
4740
6951
6443
5830
5104
7253
6765
6173
5469
7555
7409
6858
6198
7555
8053
7544
6927
2.77
2.83
2.77
2.83
2.89
2.77
2.83
2.89
2.94
2.77
2.83
2.89
2.94
2.77
2.83
2.89
2.94
2.77
2.83
2.89
2.94
2.77
2.83
2.89
2.94
2.77
2.83
2.89
2.94
7278
7760
7278
7760
8267
7278
7760
8267
8799
7278
7760
8267
8799
7278
7760
8267
8799
7278
7760
8267
8799
7278
7760
8267
8799
7278
7760
8267
8799
4658
4035
5240
4656
3968
5822
5277
4630
3872
6404
5898
5291
4576
6696
6208
5622
4928
6987
6518
5952
5279
7278
7139
6614
5983
7278
7760
7275
6687
2.99
3.06
2.99
3.06
3.12
2.99
3.06
3.12
3.19
2.99
3.06
3.12
3.19
2.99
3.06
3.12
3.19
2.99
3.06
3.12
3.19
2.99
3.06
3.12
3.19
2.99
3.06
3.12
3.19
OC360--1.qxp 06.2.24 1:56 PM Page 14

15
COOLING CAPACITY(2)
PLH-3AAK(H)
Outdoor intake air D.B.(°C)
35 40 45
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
6983
7452
6983
7452
7948
6983
7452
7948
8470
6983
7452
7948
8470
6983
7452
7948
8470
6983
7452
7948
8470
6983
7452
7948
8470
6983
7452
7948
8470
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
4469
3875
5028
4471
3815
5586
5067
4451
3727
6145
5664
5087
4405
6424
5962
5405
4743
6704
6260
5722
5082
6983
6856
6358
5760
6983
7452
6994
6437
0.64
0.52
0.72
0.60
0.48
0.80
0.68
0.56
0.44
0.88
0.76
0.64
0.52
0.92
0.80
0.68
0.56
0.96
0.84
0.72
0.60
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
0.64
0.52
0.72
0.60
0.48
0.80
0.68
0.56
0.44
0.88
0.76
0.64
0.52
0.92
0.80
0.68
0.56
0.96
0.84
0.72
0.60
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
0.64
0.52
0.72
0.60
0.48
0.80
0.68
0.56
0.44
0.88
0.76
0.64
0.52
0.92
0.80
0.64
0.52
0.96
0.84
0.72
0.60
1.00
0.92
0.80
0.68
1.00
1.00
0.88
0.76
3.20
3.28
3.20
3.28
3.36
3.20
3.28
3.36
3.44
3.20
3.28
3.36
3.44
3.20
3.28
3.36
3.44
3.20
3.28
3.36
3.44
3.20
3.28
3.36
3.44
3.20
3.28
3.36
3.44
6671
7130
6671
7130
7616
6671
7130
7616
8128
6671
7130
7616
8128
6671
7130
7616
8128
6671
7130
7616
8128
6671
7130
7616
8128
6671
7130
7616
8128
4269
3708
4803
4278
3656
5337
4848
4265
3576
5870
5419
4874
4227
6137
5704
5179
4552
6404
5989
5483
4877
6671
6559
6093
5527
6671
7130
6702
6178
3.42
3.51
3.42
3.51
3.60
3.42
3.51
3.60
3.70
3.42
3.51
3.60
3.70
3.42
3.51
3.60
3.70
3.42
3.51
3.60
3.70
3.42
3.51
3.60
3.70
3.42
3.51
3.60
3.70
6342
6793
6342
6793
7270
6342
6793
7270
7773
6342
6793
7270
7773
6342
6793
7270
7773
6342
6793
7270
7773
6342
6793
7270
7773
6342
6793
7270
7773
4059
3532
4566
4076
3490
5073
4619
4071
3420
5581
5163
4653
4042
5834
5434
4944
4353
6088
5706
5235
4664
6342
6250
5816
5286
6342
6793
6398
5908
3.64
3.73
3.64
3.73
3.84
3.64
3.73
3.84
3.97
3.64
3.73
3.84
3.97
3.64
3.73
3.84
3.97
3.64
3.73
3.84
3.97
3.64
3.73
3.84
3.97
3.64
3.73
3.84
3.97
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
OC360--1.qxp 06.2.24 1:56 PM Page 15

16
COOLING CAPACITY(3)
PLH-4AAK(H)
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
9786
10419
9786
10419
11060
9786
10419
11060
11707
9786
10419
11060
11707
9786
10419
11060
11707
9786
10419
11060
11707
9786
10419
11060
11707
9786
10419
11060
11707
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
6752
5939
7535
6773
5862
8318
7606
6746
5736
9101
8440
7631
6673
9492
8856
8073
7141
9786
9273
8516
7609
9786
10107
9401
8546
9786
10419
10285
9483
0.69
0.57
0.77
0.65
0.53
0.85
0.73
0.61
0.49
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
1.00
1.00
0.93
0.81
0.69
0.57
0.77
0.65
0.53
0.85
0.73
0.61
0.49
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
1.00
1.00
0.93
0.81
0.69
0.57
0.77
0.65
0.53
0.85
0.73
0.61
0.49
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
1.00
1.00
0.93
0.81
2.77
2.83
2.77
2.83
2.88
2.77
2.83
2.88
2.94
2.77
2.83
2.88
2.94
2.77
2.83
2.88
2.94
2.77
2.83
2.88
2.94
2.77
2.83
2.88
2.94
2.77
2.83
2.88
2.94
9518
10145
9518
10145
10800
9518
10145
10800
11482
9518
10145
10800
11482
9518
10145
10800
11482
9518
10145
10800
11482
9518
10145
10800
11482
9518
10145
10800
11482
6567
5783
7329
6594
5724
8090
7406
6588
5626
8852
8217
7452
6545
9232
8623
7884
7004
9518
9029
8316
7464
9518
9841
9180
8382
9518
10145
10044
9301
2.89
2.95
2.89
2.95
3.01
2.89
2.95
3.01
3.07
2.89
2.95
3.01
3.07
2.89
2.95
3.01
3.07
2.89
2.95
3.01
3.07
2.89
2.95
3.01
3.07
2.89
2.95
3.01
3.07
9168
9775
9168
9775
10414
9168
9775
10414
11085
9168
9775
10414
11085
9168
9775
10414
11085
9168
9775
10414
11085
9168
9775
10414
11085
9168
9775
10414
11085
6326
5572
7059
6354
5520
7793
7136
6353
5431
8526
7918
7186
6318
8893
8309
7602
6762
9168
8700
8019
7205
.9168
9482
8852
8092
9168
9775
9685
8979
3.11
3.18
3.11
3.18
3.25
3.11
3.18
3.25
3.32
3.11
3.18
3.25
3.32
3.11
3.18
3.25
3.32
3.11
3.18
3.25
3.32
3.11
3.18
3.25
3.32
3.11
3.18
3.25
3.32
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
OC360--1.qxp 06.2.24 1:56 PM Page 16

17
COOLING CAPACITY(4)
PLH-4AAK(H)
Outdoor intake air D.B.(°C)
35 40 45
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
6070
5351
6773
6102
5307
7477
6853
6107
5228
8181
7604
6908
6082
8533
7980
7309
6509
8797
8355
7709
6936
8797
9106
8510
7789
8797
9388
9311
8643
0.69
0.57
0.77
0.65
0.53
0.85
0.73
0.61
0.49
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
1.00
1.00
0.93
0.81
0.69
0.57
0.77
0.65
0.53
0.85
0.73
0.61
0.49
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
1.00
1.00
0.93
0.81
0.69
0.57
0.77
0.65
0.53
0.85
0.73
0.61
0.49
0.93
0.81
0.69
0.57
0.97
0.85
0.73
0.61
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
1.00
1.00
0.93
0.81
3.34
3.42
3.34
3.42
3.50
3.34
3.42
3.50
3.59
3.34
3.42
3.50
3.59
3.34
3.42
3.50
3.59
3.34
3.42
3.50
3.59
3.34
3.42
3.50
3.59
3.34
3.42
3.50
3.59
8404
8982
8404
8982
9594
8404
8982
9594
10240
8404
8982
9594
10240
8404
8982
9594
10240
8404
8982
9594
10240
8404
8982
9594
10240
8404
8982
9594
10240
8797
9388
8797
9388
10012
8797
9388
10012
10670
8797
9388
10012
10670
8797
9388
10012
10670
8797
9388
10012
10670
8797
9388
10012
10670
8797
9388
10012
10670
5798
5120
6471
5838
5085
7143
6557
5852
5017
7815
7275
6620
5837
8151
7634
7003
6246
8404
7994
7387
6656
8404
8712
8155
7475
8404
8982
8922
8294
3.56
3.65
3.56
3.65
3.75
3.56
3.65
3.75
3.86
3.56
3.65
3.75
3.86
3.56
3.65
3.75
3.86
3.56
3.65
3.75
3.86
3.56
3.65
3.75
3.86
3.56
3.65
3.75
3.86
7989
8558
7989
8558
9159
7989
8558
9159
9792
7989
8558
9159
9792
7989
8558
9159
9792
7989
8558
9159
9792
7989
8558
9159
9792
7989
8558
9159
9792
5512
4878
6151
5562
4854
6790
6247
5587
4798
7430
6932
6320
5582
7749
7274
6686
5973
7989
7616
7052
6365
7989
8301
7785
7148
7989
8558
8518
7932
3.79
3.89
3.79
3.89
4.00
3.79
3.89
4.00
4.14
3.79
3.89
4.00
4.14
3.79
3.89
4.00
4.14
3.79
3.89
4.00
4.14
3.79
3.89
4.00
4.14
3.79
3.89
4.00
4.14
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
OC360--1.qxp 06.2.24 1:56 PM Page 17

18
COOLING CAPACITY(5)
PLH-5AAK(H)
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
12510
13319
12510
13319
14138
12510
13319
14138
14965
12510
13319
14138
14965
12510
13319
14138
14965
12510
13319
14138
14965
12510
13319
14138
14965
12510
13319
14138
14965
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
7881
6793
8882
7858
6645
9883
8924
7776
6435
10883
9990
8907
7632
11384
10522
9472
8231
11884
11055
10038
8830
12510
12121
11169
10027
12510
13186
12300
11224
0.63
0.51
0.71
0.59
0.47
0.79
0.67
0.55
0.43
0.87
0.75
0.63
0.51
0.91
0.79
0.67
0.55
0.95
0.83
0.71
0.59
1.00
0.91
0.79
0.67
1.00
0.99
0.87
0.75
0.63
0.51
0.71
0.59
0.47
0.79
0.67
0.55
0.43
0.87
0.75
0.63
0.51
0.91
0.79
0.67
0.55
0.95
0.83
0.71
0.59
1.00
0.91
0.79
0.67
1.00
0.99
0.87
0.75
0.63
0.51
0.71
0.59
0.47
0.79
0.67
0.55
0.43
0.87
0.75
0.63
0.51
0.91
0.79
0.67
0.55
0.95
0.83
0.71
0.59
1.00
0.91
0.79
0.67
1.00
0.99
0.87
0.75
3.61
3.69
3.61
3.69
3.76
3.61
3.69
3.76
3.83
3.61
3.69
3.76
3.83
3.61
3.69
3.76
3.83
3.61
3.69
3.76
3.83
3.61
3.69
3.76
3.83
3.61
3.69
3.76
3.83
12167
12969
12167
12969
13806
12167
12969
13806
14679
12167
12969
13806
14679
12167
12969
13806
14679
12167
12969
13806
14679
12167
12969
13806
14679
12167
12969
13806
14679
7665
6614
8639
7652
6489
9612
8689
7593
6312
10585
9727
8698
7486
11072
10245
9250
8073
11559
10764
9802
8660
12167
11802
10907
9835
12167
12839
12011
11009
3.77
3.85
3.77
3.85
3.92
3.77
3.85
3.92
4.00
3.77
3.85
3.92
4.00
3.77
3.85
3.92
4.00
3.77
3.85
3.92
4.00
3.77
3.85
3.92
4.00
3.77
3.85
3.92
4.00
11720
12496
11720
12496
13313
11720
12496
13313
14170
11720
12496
13313
14170
11720
12496
13313
14170
11720
12496
13313
14170
11720
12496
13313
14170
11720
12496
13313
14170
7384
6373
8321
7373
6257
9259
8373
7322
6093
10196
9372
8387
7227
10665
9872
8920
7794
11134
10372
9452
8360
11720
11372
10517
9494
11720
12371
11582
10628
4.06
4.15
4.06
4.15
4.24
4.06
4.15
4.24
4.33
4.06
4.15
4.24
4.33
4.06
4.15
4.24
4.33
4.06
4.15
4.24
4.33
4.06
4.15
4.24
4.33
4.06
4.15
4.24
4.33
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
OC360--1.qxp 06.2.24 1:56 PM Page 18

19
COOLING CAPACITY(6)
PLH-5AAK(H)
Outdoor intake air D.B.(°C)
35 40 45
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
11245
12001
11245
12001
12799
11245
12001
12799
13640
11245
12001
12799
13640
11245
12001
12799
13640
11245
12001
12799
13640
11245
12001
12799
13640
11245
12001
12799
13640
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
7085
6120
7984
7080
6016
8884
8041
7040
5865
9783
9001
8064
6957
10233
9481
8575
7502
10683
9961
9087
8048
11245
10921
10111
9139
11245
11881
11135
10230
0.63
0.51
0.71
0.59
0.47
0.79
0.67
0.55
0.43
0.87
0.75
0.63
0.51
0.91
0.79
0.67
0.55
0.95
0.83
0.71
0.59
1.00
0.91
0.79
0.67
1.00
0.99
0.87
0.75
0.63
0.51
0.71
0.59
0.47
0.79
0.67
0.55
0.43
0.87
0.75
0.63
0.51
0.91
0.79
0.67
0.55
0.95
0.83
0.71
0.59
1.00
0.91
0.79
0.67
1.00
0.99
0.87
0.75
0.63
0.51
0.71
0.59
0.47
0.79
0.67
0.55
0.43
0.87
0.75
0.63
0.51
0.91
0.79
0.67
0.55
0.95
0.83
0.71
0.59
1.00
0.91
0.79
0.67
1.00
0.99
0.87
0.75
4.35
4.46
4.35
4.46
4.56
4.35
4.46
4.56
4.67
4.35
4.46
4.56
4.67
4.35
4.46
4.56
4.67
4.35
4.46
4.56
4.67
4.35
4.46
4.56
4.67
4.35
4.46
4.56
4.67
10743
11482
10743
11482
12264
10743
11482
12264
13090
10743
11482
12264
13090
10743
11482
12264
13090
10743
11482
12264
13090
10743
11482
12264
13090
10743
11482
12264
13090
6768
5856
7627
6774
5764
8487
7693
6745
5629
9346
8611
7726
6676
9776
9071
8217
7199
10206
9530
8708
7723
10743
10448
9689
8770
10743
11367
10670
9817
4.64
4.76
4.64
4.76
4.89
4.64
4.76
4.89
5.03
4.64
4.76
4.89
5.03
4.64
4.76
4.89
5.03
4.64
4.76
4.89
5.03
4.64
4.76
4.89
5.03
4.64
4.76
4.89
5.03
10212
10939
10212
10939
11708
10212
10939
11708
12518
10212
10939
11708
12518
10212
10939
11708
12518
10212
10939
11708
12518
10212
10939
11708
12518
10212
10939
11708
12518
6434
5579
7251
6454
5503
8068
7329
6439
5383
8885
8205
7376
6384
9293
8642
7844
6885
9702
9080
8313
7386
10212
9955
9249
8387
10212
10830
10186
9389
4.94
5.07
4.94
5.07
5.22
4.94
5.07
5.22
5.39
4.94
5.07
5.22
5.39
4.94
5.07
5.22
5.39
4.94
5.07
5.22
5.39
4.94
5.07
5.22
5.39
4.94
5.07
5.22
5.39
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
OC360--1.qxp 06.2.24 1:56 PM Page 19

20
COOLING CAPACITY(7)
PLH-6AAK(H)
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
22
22
22
24
24
24
24
26
26
26
26
27
27
27
27
28
28
28
28
30
30
30
30
32
32
32
32
16
18
16
18
20
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
16
18
20
22
14124
15038
14124
15038
15962
14124
15038
15962
16896
14124
15038
15962
16896
14124
15038
15962
16896
14124
15038
15962
16896
14124
15038
15962
16896
14124
15038
15962
16896
CA SHC SHF P.C. CA SHC SHF P.C. CA SHC SHF P.C.
8616
7369
9745
8572
7183
10875
9775
8460
6928
12005
10978
9737
8279
12570
11579
10375
8955
13135
12181
11014
9631
14124
13384
12291
10983
14124
14587
13568
12334
0.61
0.49
0.69
0.57
0.45
0.77
0.65
0.53
0.41
0.85
0.73
0.61
0.49
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
0.61
0.49
0.69
0.57
0.45
0.77
0.65
0.53
0.41
0.85
0.73
0.61
0.49
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
0.61
0.49
0.69
0.57
0.45
0.77
0.65
0.53
0.41
0.85
0.73
0.61
0.49
0.89
0.77
0.65
0.53
0.93
0.81
0.69
0.57
1.00
0.89
0.77
0.65
1.00
0.97
0.85
0.73
4.06
4.15
4.06
4.15
4.22
4.06
4.15
4.22
4.30
4.06
4.15
4.22
4.30
4.06
4.15
4.22
4.30
4.06
4.15
4.22
4.30
4.06
4.15
4.22
4.30
4.06
4.15
4.22
4.30
13737
14642
13737
14642
15587
13737
14642
15587
16573
13737
14642
15587
16573
13737
14642
15587
16573
13737
14642
15587
16573
13737
14642
15587
16573
13737
14642
15587
16573
8380
7175
9479
8346
7014
10578
9517
8261
6795
11677
10689
9508
8121
12226
11274
10132
8783
12776
11860
10755
9446
13737
13031
12002
10772
13737
14203
13249
12098
4.24
4.32
4.24
4.32
4.41
4.24
4.32
4.41
4.50
4.24
4.32
4.41
4.50
4.24
4.32
4.41
4.50
4.24
4.32
4.41
4.50
4.24
4.32
4.41
4.50
4.24
4.32
4.41
4.50
13232
14109
13232
14109
15031
13232
14109
15031
15998
13232
14109
15031
15998
13232
14109
15031
15998
13232
14109
15031
15998
13232
14109
15031
15998
13232
14109
15031
15998
8072
6913
9130
8042
6764
10189
9171
7966
6559
11247
10299
9169
7839
11777
10864
9770
8479
12306
11428
10371
9119
13232
12557
11574
10399
13232
13686
12776
11679
4.56
4.67
4.56
4.67
4.77
4.56
4.67
4.77
4.87
4.56
4.67
4.77
4.87
4.56
4.67
4.77
4.87
4.56
4.67
4.77
4.87
4.56
4.67
4.77
4.87
4.56
4.67
4.77
4.87
CA : Capacity (W) SHC : Sensible heat capacity (W)
P.C. : Power consumption (kW) SHF : Sensible heat factor
OC360--1.qxp 06.2.24 1:56 PM Page 20
