Mitsubishi Q6TA32 User manual

User's Manual
Q6TA32
Thank you for purchasing the Mitsubishi programmable controller
MELSEC-Q series.
© 2002 MITSUBISHI ELECTRIC CORPORATION
Insulation Displacement Connector for
MELSEC-Q Series 32-Point I/O Module
Prior to use, please read this and relevant manuals thorougly to fully
understand the product.
MODEL Q6TA32-U-JE
MODEL
CODE 13JT92
IB(NA)-0800228-F(1806)MEE

A-1
SAFETY PRECAUTIONS
(Read these precautions before using this product.)
Before using this product, please read this manual and the relevant manuals
carefully and pay full attention to safety to handle the product correctly.
In this manual, the safety precautions are classified into two levels:
" WARNING" and " CAUTION".
Under some circumstances, failure to observe the precautions given under
" CAUTION" may lead to serious consequences.
Observe the precautions of both levels because they are important for personal
and system safety.
Make sure that the end users read this manual and then keep the manual in a safe
place for future reference.
[DESIGN PRECAUTIONS]
CAUTION
●Do not bunch the control wires or communication cables with the main circuit
or power line, or install them close to each other.
They should be installed 100 mm (3.94 inch) or more from each other.
Otherwise, noise may occur and result in malfunction.
WARNING
Indicates that incorrect handling may cause
hazardous conditions, resulting in death or severe
injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in minor or moderate
injury or property damage.
CAUTION

A-2
[INSTALLATION PRECAUTIONS]
[WIRING PRECAUTIONS]
CAUTION
●Use the programmable controller in an environment that meets the general
specifications given in the user's manual for the CPU module used.
Failure to do so may result in electric shock, fire, malfunction, or damage to or
deterioration of the product.
●When installing this product on an I/O module, securely install it using 2 fixing
screws (M2.6).
Incorrect installation may cause this product to fall out, the I/O module to
malfunction or similar problems to occur.
●Shut off the external power supply for the system in all phases before
mounting or removing this product.
Otherwise, the I/O module may go down or malfunction.
WARNING
●Shut off the external power supply for the system in all phases before wiring.
Otherwise, an electric shock may occur or this product may be damaged.
CAUTION
●When wiring this product, be sure that the terminal layout is correct and the I/
O module's rated voltage is used. Connecting a power supply out of the rating
or miswiring could result in fire or damage.
●Make sure that the applicable wires are crimped onto the terminal conductors
before using this product.
●Be careful not to let foreign matters such as sawdust or wire chips get inside
this product or the I/O module. These may cause fire, damage, or malfunction.

A-3
[STARTING AND MAINTENANCE PRECAUTIONS]
[DISPOSAL PRECAUTIONS]
WARNING
●Do not insert or pull out the wires when power is on.
It may cause a malfunction or electric shock.
●Always clean or retighten fixing screws after switching power off externally in
all phases.
Otherwise, the I/O module may malfunction.
CAUTION
●Do not disassemble or rebuild this product.
It may cause accidents, malfunction, injury, or fire.
●Shut off the external power supply for the system in all phases before
mounting or removing this product.
Otherwise, the I/O module may go down or malfunction.
●Before handling the connector, touch a grounded metal object to discharge
the static electricity form the human body.
Failure to do so may cause the module to fail or malfunction.
CAUTION
●When disposing this product, handle it as industrial waste.

A-4
CONDITIONS OF USE FOR THE PRODUCT
(1) Mitsubishi programmable controller ("the PRODUCT") shall be used in
conditions;
i) where any problem, fault or failure occurring in the PRODUCT, if any,
shall not lead to any major or serious accident; and
ii) where the backup and fail-safe function are systematically or
automatically provided outside of the PRODUCT for the case of any
problem, fault or failure occurring in the PRODUCT.
(2) The PRODUCT has been designed and manufactured for the purpose of
being used in general industries.
MITSUBISHI SHALL HAVE NO RESPONSIBILITY OR LIABILITY
(INCLUDING, BUT NOT LIMITED TO ANY AND ALL RESPONSIBILITY
OR LIABILITY BASED ON CONTRACT, WARRANTY, TORT, PRODUCT
LIABILITY) FOR ANY INJURY OR DEATH TO PERSONS OR LOSS OR
DAMAGE TO PROPERTY CAUSED BY the PRODUCT THAT ARE
OPERATED OR USED IN APPLICATION NOT INTENDED OR
EXCLUDED BY INSTRUCTIONS, PRECAUTIONS, OR WARNING
CONTAINED IN MITSUBISHI'S USER, INSTRUCTION AND/OR SAFETY
MANUALS, TECHNICAL BULLETINS AND GUIDELINES FOR the
PRODUCT.
("Prohibited Application")
Prohibited Applications include, but not limited to, the use of the PRODUCT
in;
• Nuclear Power Plants and any other power plants operated by Power
companies, and/or any other cases in which the public could be
affected if any problem or fault occurs in the PRODUCT.
• Railway companies or Public service purposes, and/or any other cases
in which establishment of a special quality assurance system is
required by the Purchaser or End User.
• Aircraft or Aerospace, Medical applications, Train equipment, transport
equipment such as Elevator and Escalator, Incineration and Fuel
devices, Vehicles, Manned transportation, Equipment for Recreation
and Amusement, and Safety devices, handling of Nuclear or
Hazardous Materials or Chemicals, Mining and Drilling, and/or other
applications where there is a significant risk of injury to the public or
property.

A-5
Notwithstanding the above, restrictions Mitsubishi may in its sole discretion,
authorize use of the PRODUCT in one or more of the Prohibited
Applications, provided that the usage of the PRODUCT is limited only for
the specific applications agreed to by Mitsubishi and provided further that
no special quality assurance or fail-safe, redundant or other safety features
which exceed the general specifications of the PRODUCTs are required.
For details, please contact the Mitsubishi representative in your region.

A-6
REVISIONS
* The manual number is given on the bottom right of the top cover.
Print Date *Manual Number Revision
Feb., 2002 IB(NA)-0800228-A First edition
Jan., 2003 IB(NA)-0800228-B Manual title change
Pressure-Displacement Terminal Block Adaptor for
MELSEC-Q Series 32-Point I/O Module
Sep., 2009 IB(NA)-0800228-C SAFETY PRECAUTIONS, Chapter 1, 2, 3,4,
Section 5.2
Oct., 2011 IB(NA)-0800228-D SAFETY PRECAUTIONS (Chinese)
May, 2015 IB(NA)-0800228-E Model addition
Jun, 2018 IB(NA)-0800228-F Descriptions are revised due to compliance with the
Chinese standardized law.
This manual confers no industrial property rights or any rights of any other kind, nor does it
confer any patent licenses. Mitsubishi electric Corporation cannot be held responsible for any
problems involving industrial property rights which may occur as a result of using the contents
noted in this manual.

A-7
CONTENTS
1. OVERVIEW .................................................................................................... 1
2. PERFORMANCE SPECIFICATIONS ............................................................. 2
3. NAMES OF PARTS ........................................................................................ 3
4. HANDLING INSTRUCTIONS ......................................................................... 5
5. WIRING ......................................................................................................... 6
5.1 Wiring Instructions .................................................................................... 6
5.2 External Wiring ......................................................................................... 7
5.3 Wiring Procedure...................................................................................... 8
6. EXTERNAL DIMENSIONS ........................................................................... 10

A-8
MANUALS
The following manual is related to this product.
Please order it if necessary.
Related manual
Manual Name Manual Number
(Model Code)
I/O Module Type Building Block User's Manual SH-080042
(13JL99)

A-9
Memo

1
1. OVERVIEW
This manual describes the specifications, handling, part names and
others of the Q6TA32 insulation displacement connector for MELSEC-Q
series 32-point I/O module (hereinafter referred to as the Q6TA32).
The Q6TA32 is to be connected to the connector of the Q Series 40-pin
connector type 32-point I/O module in order to convert the module
connector into an insulation displacement connector.
Packing list
Type Product
Q6TA32 32-point insulation displacement connector
Q6TA32-TOL Wiring tool (sold separately)
Q Series I/O module
Q6TA32

2
2. PERFORMANCE SPECIFICATIONS
The following table lists the performance specifications of the Q6TA32.

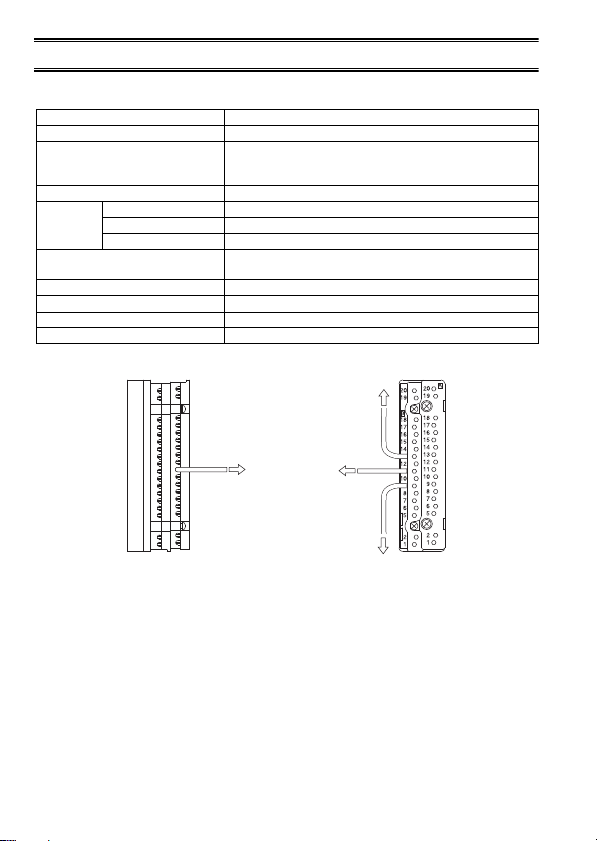

*1 Direction of tensile strength of wire
*2 Use the "UL STYLE 1007" or "CSA TYPE TR-64" type cable.
Item Specifications
Applicable model QX41, QX41-S1, QX41-S2, QX71, QY41P, QY41H, QY71
Applicable wire *2 Polyvinyl chloride wire (twisted wire) Nominal 0.5 mm2 (20AWG) max. insulation diameter:
1.9 mm (0.07 inch)
Number of connectable wire 1
Tensile
strength *1
of wire
To the left 35N
Forward 22N
Upward or downward 60N
Number of wire insertion/
disconnection times 30
Max. allowable voltage 250VAC
Max. allowable current 3ADC
Contact resistance 100m (327.8 feet) or less
Weight 0.08 kg (0.18 lb.)
Downward
Upward
LeftForward

3

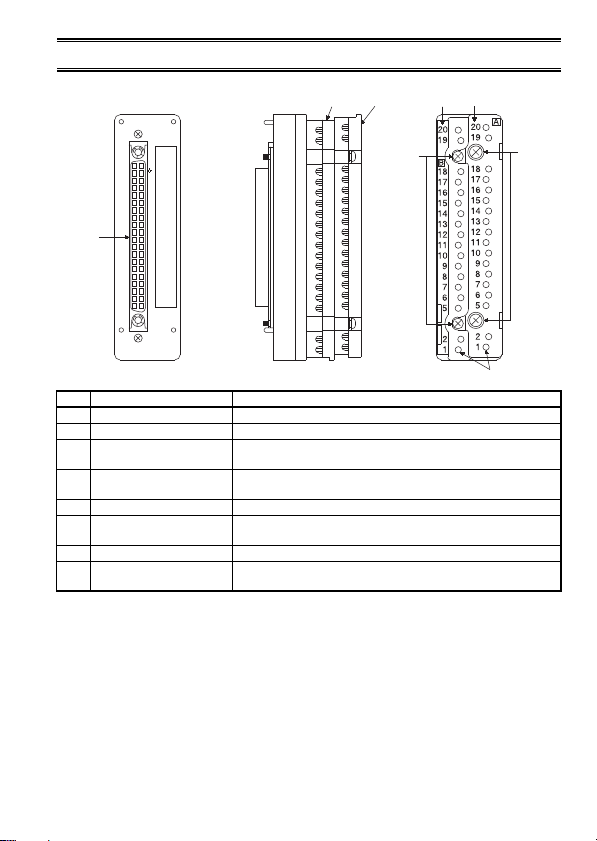

3. NAMES OF PARTS
No. Name Description
1) Line A cover Cover for the insulation displacement connector line A
2) Line B cover Cover for the insulation displacement connector line B
3) Terminal number (Line A) Indicate the I/O module pin number A1 to A20 corresponding
to the insulation displacement terminals.
4) Terminal number (Line B) Indicate the I/O module pin number B1 to B20 corresponding
to the insulation displacement terminals.
5) Cover fixing screw Screw for fixing the cover (M2.6 screw)
6) Insulation displacement
connector fixing screw
Screw for fixing the Q6TA32 to the I/O module connector
(M2.6 screw)
7) Connector Connector for connection to the I/O module.
8) Tester lead-in port Hole through which a tester lead is drawn for continuity
check.
2) 3)4)
5) 6)
7)
8)
1)

4
Memo

5
4. HANDLING INSTRUCTIONS
(1) Do not use solid wires with this connector.
(2) Do not drop the connector case and wiring tool or give them high
impact since they are made of resin.
(3) Do not disassemble the connector case.
It may cause a failure.
(4) Tighten the fixing screws and cover fixing screws within the
following ranges.
(5) When the Q6TA32 is installed to the I/O module, it is 9 mm (0.35
inch) out of the I/O module bottom. (Refer to "6. OUTLINE
DRAWING".)
Pay attention to the installation position.
(6) The Q6TA32 cannot be used with any model that is not mentioned
as the applicable model in the performance specifications.
Screw Tightening Torque Range
Insulation displacement connector fixing screw (M2.6 screw) 0.21 to 0.28 N • m
Cover fixing screw (M2.6 screw) 0.21 to 0.28 N • m

6
5. WIRING
5.1 Wiring Instructions
(1) Do not strip the insulation of the connectable wire before wiring.
(2) The number of connectable wire per terminal is 1.
(3) Wire the far side line B terminals first.
(4) To prevent the wires from pushing the adjacent modules, connect
them after pulling them toward you within the wire's tensile
strength range given in the performance specifications.
(5) During and after wiring, do not apply loads larger than the wire's
tensile strength given in the performance specifications to the
wires.
(6) When reusing the wire that has been connected to this connector
once, cut off its insulation displacement end face in advance.
I/O module Forward

7
5.2 External Wiring
The following table indicates the terminal number and the
corresponding signal name.
(When the head I/O number of the I/O module is set to 0)
*1 B1 and B2 of the QY71 are used at 5/12VDC.
*2 The Q6TA32 does not have the terminal number A3, A4, B3 and B4.
*3 B1 and B2 of the QY41H are empty.
Input Module (QX41, QX41-S1, QX41-S2,
QX71) Output Module (QY41P, QY41H, QY71 *1)
Terminal
number
Signal
name
Terminal
number
Signal
name
Terminal
number
Signal
name
Terminal
number
Signal
name
B20 X00 A20 X10 B20 Y00 A20 Y10
B19 X01 A19 X11 B19 Y01 A19 Y11
B18 X02 A18 X12 B18 Y02 A18 Y12
B17 X03 A17 X13 B17 Y03 A17 Y13
B16 X04 A16 X14 B16 Y04 A16 Y14
B15 X05 A15 X15 B15 Y05 A15 Y15
B14 X06 A14 X16 B14 Y06 A14 Y16
B13 X07 A13 X17 B13 Y07 A13 Y17
B12 X08 A12 X18 B12 Y08 A12 Y18
B11 X09 A11 X19 B11 Y09 A11 Y19
B10 X0A A10 X1A B10 Y0A A10 Y1A
B9 X0B A9 X1B B9 Y0B A9 Y1B
B8 X0C A8 X1C B8 Y0C A8 Y1C
B7 X0D A7 X1D B7 Y0D A7 Y1D
B6 X0E A6 X1E B6 Y0E A6 Y1E
B5 X0F A5 X1F B5 Y0F A5 Y1F
B4 *2 -A4
*2 -B4 *2 -A4 *2 -
B3 *2 -A3
*2 -B3 *2 -A3 *2 -
B2 COM A2 Empty B2 12/24VDC *1*3 A2 COM
B1 COM A1 Empty B1 12/24VDC *1*3 A1 COM

8
5.3 Wiring Procedure
(1) Wire connection
1) Install the Q6TA32 to the I/O module with the insulation
displacement connector fixing screws, loosen the cover
fixing screws, and remove the covers.
2) Insert the wire along the guide inside the Q6TA32 without a
gap, push it in gently with your finger to temporarily hold it,
and push it far enough with the wiring tool.
When wiring Line A (right side), check the numeral of Line
B (left side) to confirm the terminal number to be wired.
Cover fixing screw
I/O module
Covers
Q6TA32
Q6TA32
Wiring tool
I/O moduleI/O module
20
Wiring tool
Front view
Wire
Wire
13
14
15
16
17
18
B
19
Wire Wire
Q6TA32 Q6TA32
Wire

9

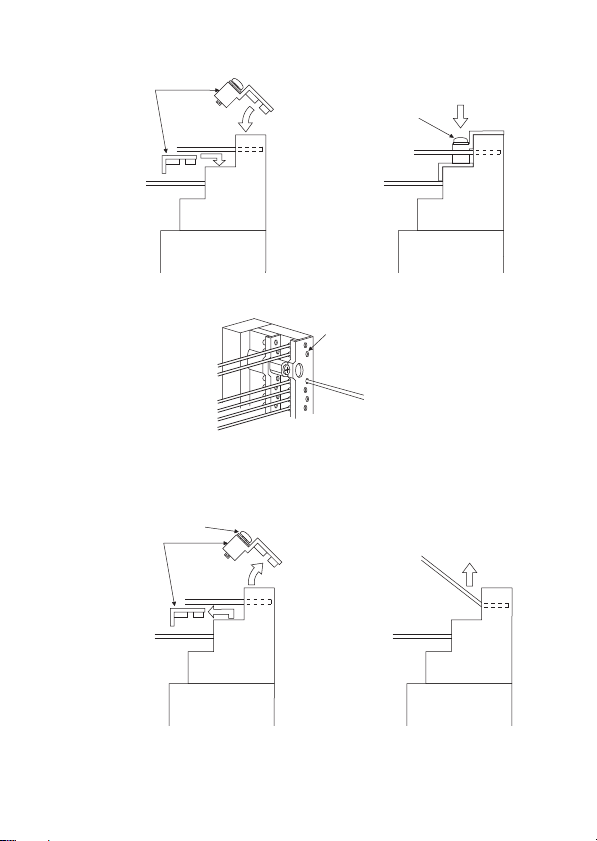

3) Install the covers to the Q6TA32 and tighten the cover
fixing screws.
4) Using a tester, make a continuity check.

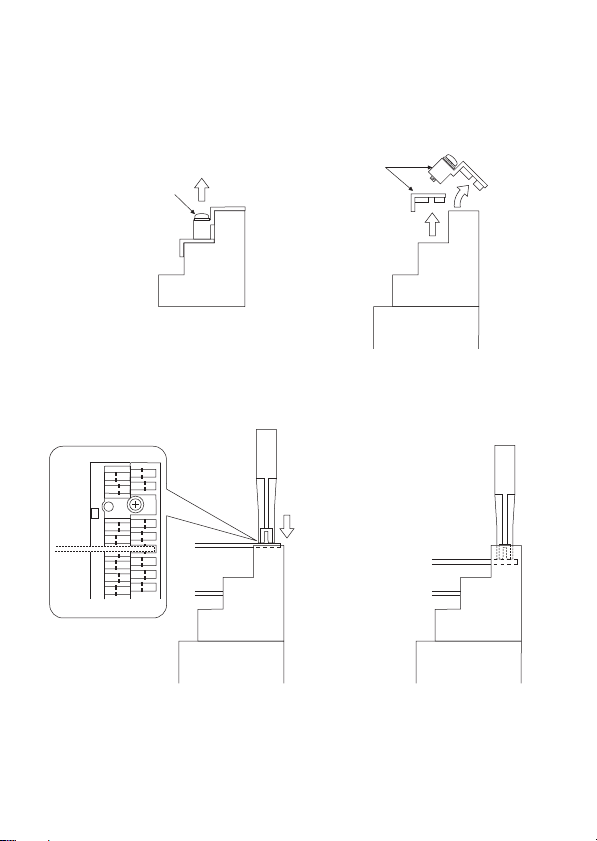

(2) Disconnecting the wire
Loosen the cover fixing screws, remove the covers, and pull the
wire toward you.
Cover fixing screw
I/O moduleI/O module
Wire
Wire
Covers
Q6TA32
Wire
Q6TA32
Wire
Tester lead
Tester lead-in port
Wire
I/O moduleI/O module
Cover fixing screw
WireWire
Covers
Q6TA32
Wire
Q6TA32
Wire

10

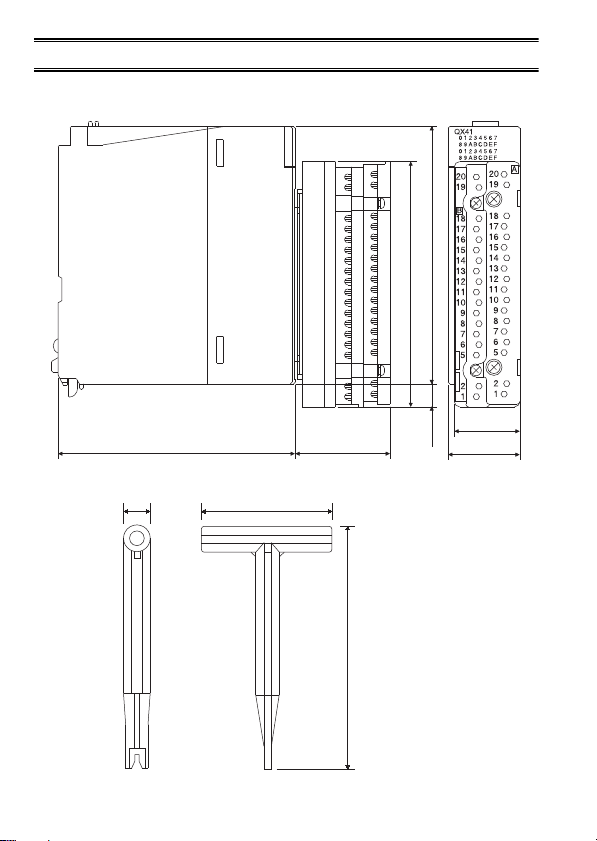

6. EXTERNAL DIMENSIONS
(1) Q6TA32 (When mounted on an I/O module)
(2) Q6TA32-TOL
]
98 (3.86)
93.5 (3.68)
27.4 (1.08)
25 (0.99)
37 (1.46)90 (3.55)
9 (0.35)
Unit: mm (inch)
93 (3.66)
50 (1.97)
9.5
(0.37)
