geratech EGE-UHD-5HDB-1431 User manual

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
3
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate.
Geratech assumes no responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Geratech assumes no responsibility for any inaccuracies that may be contained in
this document. Geratech also makes no commitment to update or to keep current the
information contained in this document.
Geratech reserves the right to make improvements to this document and/or product at any
time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval
system, or any of its part translated into any language or computer le, in any form or by
any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—
without express written permission and consent from Geratech.
© Copyright 2011 by Geratech.
All Rights Reserved.
Version 1.0 September 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the
companies with which they are associated.

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment
and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re, electrical shock and
injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots
in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed
upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit
housing that provide ventilation and allow for sufcient space for air to circulate around
the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 14/01/14 Preliminary Release

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
5
CONTENTS
1. Introduction.................................................................................... 1
2. Applications ................................................................................... 1
3. Package Contents ......................................................................... 1
4. System Requirements................................................................... 1
5. Features.......................................................................................... 2
6. Operation Controls and Functions .............................................. 3
6.1 Front Panel................................................................................. 3
6.2 Rear Panel.................................................................................. 4
6.3 IR Cable Pin Assignment............................................................ 4
7. Connection Diagram .................................................................... 5
8. Specications ................................................................................ 6
8.1 CAT5e/6/7 Cable Specication................................................... 7
9. Acronyms ....................................................................................... 7

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
1
1. INTRODUCTION
The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI
input, 2-way IR control and LAN serving to up to three CAT5e/6/7 outputs and includes a
simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K
timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD,
Dolby Digital Plus and DTS-HD). The HDMI bypass output can be connected to an HDMI
display or cascaded to another splitter. The three CAT5e/6/7 outputs can be connected
to CAT5e/6/7 to HDMI Receivers to extend the operating distance up to 100 meters.
Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart
TVs or games consoles. The Power over Ethernet (PoE) function can power compatible
Receivers, providing greater exibility in installations.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Splitter
• IR Receiver x 1
• IR Blaster x 1
• 24V DC Power Adaptor
• Power Cord
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
2
5. FEATURES
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
• Simultaneous HDMI and CAT5e/6/7 outputs
• Supports data rate from 250Mbps up to 3Gbps
• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up
to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz)
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
transmission (32~192kHz sample rate)
• Supports distances up to 100 meters through CAT5e/6/7 cables
• Supports Ethernet network rates up to 100Mbps
• Supports selection of Standard or TV EDID settings
• Supports USB service port
• The 3D signal display follow by display TV’s EDID
• Supports PoE with compatible Receiver units
• Supports Bidirectional IR control
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with cables of a
different specication.
2. The PoE function is designed for powering compatible Receiver
units only non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display
in order for proper image displaying.

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SYNC LINK EDID SERVICE
HDMI IN POWER
HDMI OUT
DC 24V
STDTV
1 2 3 4 5 6 87
1HDMI IN: Connect with source equipment such as DVD/Blu-ray or PS3 player.
2SYNC: This LED will illuminate when the HDMI input port connected to an active
source.
3HDMI OUT: Connect to HDMI display for instant image display or cascade with another
family type Transmitter.
4HDMI LINK: This LED will illuminate when HDMI output is connected to TV or display
monitor.
5EDID STD/TV: The default factory setting is on TV, leave as it is when the display is
properly. The unit will detect the 1st CAT5e/6/7 output’s EDID when it obtain a 4Kx2K
EDID and send out the signal accordingly to other output ports. If the 1st CAT5e/6/7
output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the
signal that all outputs can accept.
This device obtain the last memory function therefore, the device will use the last
output port 1's EDID when output port 1 is not connected to a display after power cycling
or switch in between the EDID setting.
Switch to STD to use build-in EDID if the display has problem. STD EDID's video at
1080p@60Hz and audio at LPCM 2CH.
6SERVICE: This slot is reserved for factory service only.
7POWER LED: Once the power supply is connected the LED will illuminate
8DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC
outlet.

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
4
6.2 Rear Panel
MODE LINK MODE LINK MODE LINK
IR IN IR OUT LAN
23
1
CAT5e/6/7 OUT
1 2 3 4
1IR IN: Connect with IR Extender to receive IR signal from Transmitter side and blast out
at Receiver side. Ensure that remote controller being used is within he direct line-of-
sight of the IR Extender.
2IR OUT: Connect with IR Blaster to blast out the IR signal received from the Receiver
side. Place the IR Baster in direct line-of-sight of the equipment to be controlled.
3LAN: Connect to intranet or internet service system for a total sharing rate of 100Mbps
within the link of Transmitter.
Warning: DO NOT connect this slot with any of the CAT5e/6/7 port, doing so may
trigger a power shot down and ruin the device.
4CAT5e/6/7 OUT 1~3: Connect these ports to CAT5e/6/7 to HDMI Receivers (with or
without PoE function) with CAT5e/6/7 cable to extend the signal up to 100m.
6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power 3.3 V
IR Blaster Signal
NC
IR Signal
Power 3.3 V
Grounding
IR Extender
IR Blaster

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
5

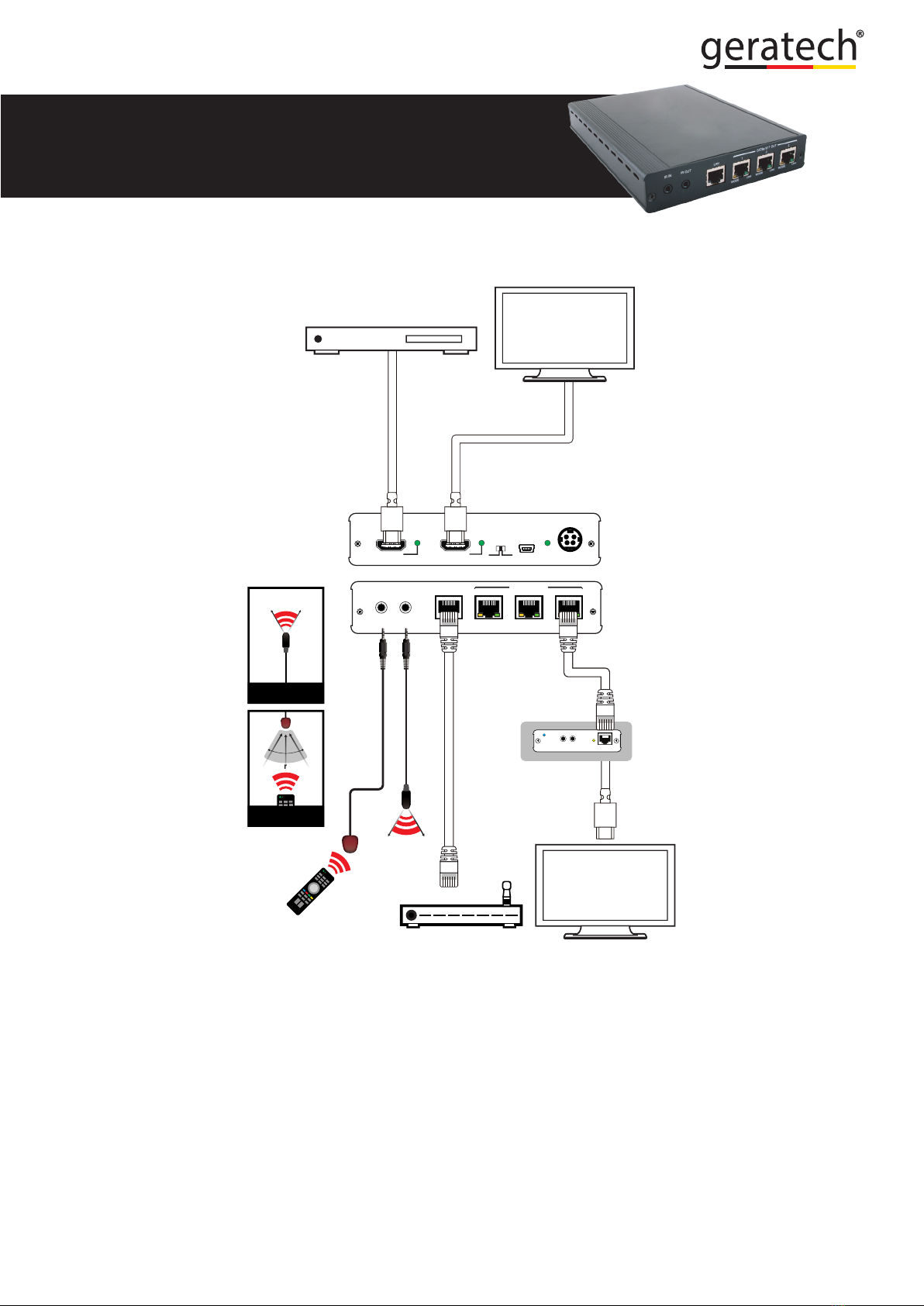

7. CONNECTION DIAGRAM
MODE LINK MODE LINK MODE LINK
IR IN IR OUT LAN 231
CAT5e/6/7 OUT
SYNC LINKEDID SERVICE
HDMI IN POWER
HDMI OUT
DC 24V
STD TV
IR BLASTER
1.5m
60°
IR RECEIVER
7m
3m 3m
60°
m
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
Blu-ray or PS3 Player
3D TV/Display
HDMI
Router (with
Internet
Connection)
HDMI

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
6
8. SPECIFICATIONS
Video Bandwidth 340Mbps/10.2Gbps
Input ports 1 x HDMI,
1 x IR IN, 1 x LAN,
1 x USB (Service only)
Output ports 1 x HDMI,
3 x CAT5e/6/7
1 x IR OUT,
Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x2
160@24Hz)
HDMI Input & Output
Cable Distance
Up to 10m@1080p 8/12-bit
CAT5e/6/7 Output Cable
Distance
Up to 100m
IR Frequency 30~50kHz
Power Supply 24V / 2.7A DC (US/EU standards, CE/FCC/UL
certied)
Dimensions 145 mm(W) x 190 mm(D) x 30 mm(H)/
Jacks Excluded
145 mm(W) x 199 mm(D) x 30 mm(H)/
Jacks Included
Weight 590 g
Chassis Material Metal
Silkscreen Color Black
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 36W

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
7
8.1 CAT5e/6/7 Cable Specication
Cable
Type
Range Pixel clock
rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz,
36 bits, 3D (data rates
lower than 5.3 Gbps or
below 225 MHz TMDS
clock).
70 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
CAT6A/7 100 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840x2160 / 4096x2160
DTS Digital Theater System
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television

EGE-UHD-5HDB-1431
1×4 HDMI over 1 HDMI and 3 CAT5e/6/7 Splitter,
100m with IR,PoC, LAN Serving(not include 507RX)
8
