Mitsubishi 290p106010 User manual

290P106010
Remote Control
Operating
Manual



Part IV: Operation
Remote Control Functions: Overview
Overview
(Following page, gur e 1)
1
Slide Switch: S elect A /V product to be
controlled by the remote control.
2
Numbers: Individually select channels or
enter information into T V menus.
3
POWER: Turns power on and off for T V
and other A /V products.

SQV (Super Quick View™): S can
through a memorized list of favorite
channels.

QV (Quick View™): Switch to last chan-
nel viewed.

GUIDE: D isplay program guide for sat-
ellite receiver, some cable boxes, or
DV D D isc M enu. D isplay D igital C han-
nel G uide for Ant-DT V and other digital
devices. D isplay Track List for AV D isc.

SLEEP: Set the T V to turn off within 2
hours. See Sleep Timer, page 62, for
setup instructions.

VIDEO: S elect the video settings.

AUDIO: S elect the audio settings.

MUTE: Turn sound on or off.

DEVICE: D isplays the D evice S election
M enu to select the device to view (Ant-A,
Ant-B, Ant-DT V, devices connected to
the T V ’s inputs, or IEEE 1394 devices).

CHANNEL: Scroll up or down through
memorized channels.

VOLUME: C hange sound level. Volume
on-screen displays are separate for
analog devices and digital devices.

ENTER/EXCH: Select a channel number
or menu item. E xchange PIP or PO P
and main T V picture.

MENU: D isplay on-screen menu
system.

ADJUST: N avigate menus, change set-
tings, and move the PIP on-screen
location. Also operates many N etC om-
mand™ functions. See the N etC om -
mand™ G uide for details.

CANCEL/SUB: Clear S Q V and some
menu entries. Add separator between
major and minor Ant-DT V channels.

DEVICE MENU: D isplay menus for
devices connected to T V. S ee the N et-
C om mand™ G uide for details.

HOME: Exit on-screen menus and return
to T V viewing.

INFO: D isplay on-screen summary of
the current device used and any broad-
cast information available (including cur-
rent V-C hip information).

V-CHIP: Turns O n or O ff the V-C hip
Lock.

FORMAT: Change the shape and size of
the main T V picture.

PIP/POP: C ycle through PIP and PO P
display choices.

PIP DEVICE: D isplays PIP S election
M enu to select the PIP or P O P device
source.

PIP CH: S croll up or down through
memorized channels in PIP or PO P.

REC/CONNECT: R ecord with your
VCR , setup recordings for VCR or
1394 devices, initiate 1394 peer-to-peer
connections. S ee the N etC ommand™
G uide for details.

STOP: Stop your VCR , DVD, or AV
D isc. See the N etC ommand™ G uide
for details.

PAUSE: Pause your VCR , DV D, AV D isc,
or freeze the PIP or PO P image. S ee
the NetCommand™ G uide for details.

REW/REV: Rewind or reverse search
with your VC R , reverse scan with your
DV D or AV D isc. See the N etC om -
mand™ G uide for details.

PLAY: Play your VC R , DV D, or AV
D isc. See the N etC ommand™ G uide
for details.

FF/FWD: Fast forward or forward search
with your VCR , fast play with your DV D.
See the NetCommand™
Overview
32



Part IV: Operation
Remote Control Functions: Channel Selection and Sleep Timer
Channel Selection
For Ant-A or Ant-B Channels:
Enter three numbers (for channel 2,
press 0 02 ).
or
P ress the channel num ber and EN TER
(for channel 2, press 2, then EN TER ).
or
Enter the channel number and wait four
seconds. T he T V will change automati-
cally.
Sleep Timer
Setting the Sleep Timer:
Press S LEEP on the remote control.
A message indicating the length of time
the sleep timer is to be set for is dis-
played on the T V screen.
Each press of SLEEP will increase
the time displayed by 30 minutes, until
the maximum value of 120 minutes is
reached.
After 5 seconds of inactivity, the mes-
sage will disappear.
Press SLEEP to view the remaining time
before the timer turns the T V off.
Canceling the Sleep Timer:
Press SLEEP to display the on-screen
message.
Press SLEEP repeatedly until O FF is
displayed.
After 5 seconds of inactivity, the mes-
sage box will disappear.
Channel Selection, Sleep Timer, Operation of PIP and POP
For Ant-DTV Channels
(When Ant-DTV is the current device):

Enter two or three numbers for the
major channel number. If three num-
bers are pressed, the separator is
automatically added and you may pro-
ceed to step 2. If two numbers are
pressed, you must add the separator
by pressing the SUB button on the
remote control.

Enter a 1-digit sub-channel number
and wait four seconds. Enter a
1-digit sub-channel number and press
EN TER . O r enter 2 digits and the T V
will automatically switch channels.
Remote Control Functions: Operation of PIP and POP
P icture -In-P icture (P IP ) and P icture -O utside -
P icture ( P O P ) feature s allow you to view
Programming in different ways. W hile watch-
ing the main screen, you can display pro-
grams from other channels and other inputs.
You can display a single P IP, side -by-side
pictures, three P O P s, or nine P O P s.
Activating the PIP and POP
Figures 1-5 on following page
P ress P IP / P O P to activate the P IP / P O P
option. W ith each press of the P IP /P O P
button on the T V remote control (within 3
se conds of each other), the P IP /P O P will
cycle through the following display options.
1
POP: side-by-side pictures
2
POP: thre e P O P s
3
POP: nine P O P s

PIP: PIP

PIP/POP: off
To turn PIP /P O P off, wait at least 10 sec-
onds, and press PIP /P O P. T he next time
you activate P IP /P O P, the last used PIP /
P O P option will be displaye d rst .



Figure 1. Programming the remote to control your Net-
Command™ A/V devices.
Part IV: Operation
Programming Remote Control
Programming the Remote Control to Control NetCommand™A/V
Products
To Program the Remote to Control
NetCommand A/V Products:
(See NetCommand Supported Devices, page 16, for
the list of A/V products supported by the NetCom-
mand System.)
1
M ove the slide switch at the top of the
remote to the T V layer.
2
Press and hold the P O W ER button on
the remote control.
3
Enter the three digit code of 935, and
then release the P O W ER button on the
remote control.

The remote control is now programmed
to send N etCommand™ signals to the
T V so the T V can control the IEEE
1394 devices and selected older Net-
C om mand™ supported IR devices. S ee
the NetCommand™ guide for details.



Figure 1. Programming the remote to control your cable
box.
Figure 3. Programming the remote to control your VCR.
Figure 2. Programming the remote to control your satel-
lite receiver.
If you cannot turn the cable box ON
by pressing POWER, try pressing CHAN-
NEL or the number buttons.
When the switch is set to TV, the PLAY,
STOP, REW/REV, and FF/FWD buttons
will operate the VCR after the VCR codes
have been properly programmed into
the remote control.
Part IV: Operation
Programming the Remote Control to Control Non-NetCommand™
A/V Products
To Program the Remote to Control
Other Brands of Audio and Video
Products:
(Figures 1-5 )
1
M ove the slide switch at the top of
the remote to the product you want to
control.
2
Press and hold the P O W ER button on
the remote control.
3
Enter the rst thr ee di gi t code li st ed for
your equipment, and then release the
P O W ER button on the remote control.

Point the remote control at the equip-
ment and pre ss the P O W ER button.
If the equipment responds, the remote
control is properly programmed to oper-
ate the equipment. If the equipment
does not respond, repeat steps 2-4 with
the next three digit code listed in step 3
for your equipment.
Programming the Remote Control to Control Non-NetCommand™



Figure 4. Programming the remote to control your DVD/
LDP.
Figure 5. Programming the remote to control your A/V
receiver.
If the remote control has not been
programmed to operate NetCommand ™
and slide switch is set to TV when you
enter an A/V receiver code, VOLUME
and MUTE will control the A/V receiver
rather than the TV. To return volume
and mute control to the TV, set the slide
switch to TV, press and hold POWER
and enter 000.
Some manufacturers may change their
products, or they may use more than
one remote control system. If this is the
case, your remote control may not be
able to operate your VCR, DVD, cable
box, satellite receiver, or A/V receiver.
Part IV: Operation
Programming the Remote Control to Control Non-NetCommand™
A/V Products After entering the correct codes in each posi-
tion of the remote control, use the slide
switch to select which product will respond
when an operational button is pressed. If
the T V position has not been programmed
to control N e tC ommand™and you enter a
code from the A /V R eceiver chart while the
slide switch is set to T V, the volume and
mute functions change to match the A/V
receiver. T his is useful when using an A/V
receiver with the T V all the time. In all
other cases, only one of the below devices
is allowed for each slide switch position.
T V position (when the remote has not been
programmed to operate N etC ommand™):
T V
A /V re ceiver (volume and m ute only)
C able /D BS /DT V position:
C able box
S ate llite re ceive r
DT V re ceiver
VCR position:
V CR D V D LD P laye r
DV D position:
D V D LD P laye r
C able box VC R
Audio position:
A /V rece ive r C able box
M itsubishi CD player [If you have a M itsubishi A /V
re ce ive r, the audio position m ay be used in conjunction with
sele cte d M itsubishi C D players. Your audio position m ust be
progra m m e d to 010 ].
Programming the Remote Control to Control Non-NetCommand™



The remote control may return to its
initial setting when the batteries are
changed. You may need to reprogram.
VCR
Cable Boxes and Satellite Receivers
A/V Receivers
Mitsubishi CD Players (not all functions for all models)
Mitsubishi A/V Receivers
DVD and Laser Disc Players (not all functions for all models)
Mitsubishi Satellite Receiver
POWER
POWER
CHANNEL up/down
ENTER (on some models)
STOPPAUSE
MENU
REW/REVPLAY FF/FWD
ADJUST up/down/left/right
(on some models)
VOLUME MUTE
GUIDE (on some models)
CANCEL (on some models)
POWER PLAY
REC STOP
PAUSE FF/FWD
REW/REVCHANNEL up/down
Mitsubishi VCRs will be compatible with additional buttons
0-9 Number Buttons (on some models)
POWER
STOP
PAUSE
REW/REV ENTER
PLAY ARROW up/down/left/right
(on some models)
CANCEL (on some models)
0-9 Number Buttons (on some models)
ENTER
POWER
CHANNEL up/down
QV
INFO HOME (exit)
SUB (-) MENU (ACTION)
GUIDE 0-9 Number Buttons SQV (FAV)
ADJUST up/down/left/right
Direct Input Selection Buttons -use number buttons, SQV, and QV (on some models)
Part IV: Operation
Remote Control Functions: Special Functions
W hen your remote control has been P ro-
grammed to operate another manufacturer’s
product, the function performed on each
layer can vary. T he most common functions
are :
Special Functions




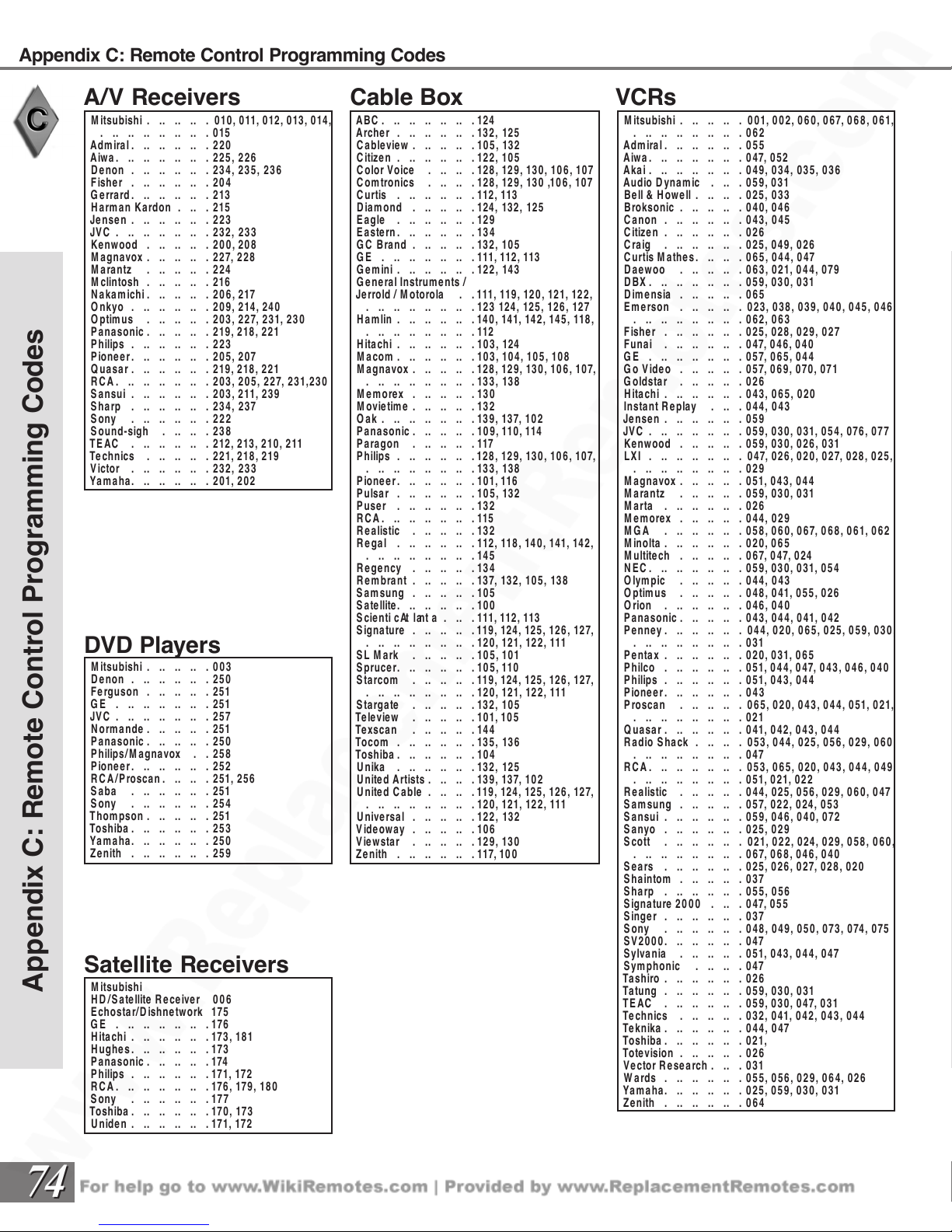

Appendix C: Remote Control Programming Codes
M itsubishi . .. .. .. . 0 10 , 011, 012 , 013, 014,
. .. .. .. .. .. .. . 015
Admira l . .. .. .. .. . 2 2 0
Aiwa . .. .. .. .. .. . 2 2 5, 226
D enon . .. .. .. .. . 2 3 4, 235, 23 6
F ishe r . .. .. .. .. . 2 0 4
G errard . .. .. .. .. . 213
H a rm an Kardon . .. . 215
Jensen . .. .. .. .. . 2 2 3
JVC . .. .. .. .. .. . 232 , 233
Kenwood . .. .. .. . 2 0 0 , 2 0 8
M agnavox . .. .. .. . 2 2 7, 228
M arantz . .. .. .. . 2 2 4
M clintosh . .. .. .. . 216
N a ka m ichi . .. .. .. . 2 0 6 , 217
O nkyo . .. .. .. .. . 209, 214 , 24 0
O ptimus . .. .. .. . 2 0 3 , 2 27, 2 31, 230
P a naso nic . .. .. .. . 219, 218 , 2 21
P hilips . .. .. .. .. . 2 2 3
P ione e r . .. .. .. .. . 2 0 5 , 2 07
Q uasar . .. .. .. .. . 219 , 218 , 2 21
RCA. .. .. .. .. .. . 2 0 3 , 2 0 5 , 2 27, 231,230
S a nsui . .. .. .. .. . 203, 211, 239
S ha rp . .. .. .. .. . 2 3 4, 237
S ony . .. .. .. .. . 2 2 2
S ound-sigh . .. .. . 2 3 8
TE AC . .. .. .. .. . 212, 213 , 210 , 211
Te chnics . .. .. .. . 2 21, 218, 219
V ictor . .. .. .. .. . 2 32, 2 3 3
Yamaha. .. .. .. .. . 2 01, 202
A/V Receivers Cable Box
Satellite Receivers
DVD Players
M itsubishi . .. .. .. . 0 03
D enon . .. .. .. .. . 2 5 0
F e rguson . .. .. .. . 251
GE . .. .. .. .. .. . 251
JVC . .. .. .. .. .. . 257
N ormande . .. .. .. . 251
P a naso nic . .. .. .. . 25 0
P hilip s/ M a gna vox . . 2 5 8
P ione e r . .. .. .. .. . 252
R C A / P rosca n . .. .. . 251, 25 6
S aba . .. .. .. .. . 251
S ony . .. .. .. .. . 2 5 4
T hom pson . .. .. .. . 251
Toshiba . .. .. .. .. . 2 5 3
Yamaha. .. .. .. .. . 2 5 0
Zenith . .. .. .. .. . 259
M itsubishi
H D / S a tellite R e ce ive r 0 0 6
Echostar/D ishne twork 175
GE . .. .. .. .. .. . 176
H itachi . .. .. .. .. . 173, 181
H ughe s . .. .. .. .. . 173
P a naso nic . .. .. .. . 174
P hilips . .. .. .. .. . 171, 172
RCA. .. .. .. .. .. . 176, 179, 18 0
S ony . .. .. .. .. . 177
Toshiba . .. .. .. .. . 170, 173
U nide n . .. .. .. .. . 171, 172
ABC . .. .. .. .. .. . 124
Archer . .. .. .. .. . 132, 125
C ableview . .. .. .. . 1 0 5, 132
C itize n . .. .. .. .. . 12 2 , 10 5
C olor V oice . .. .. . 128, 129, 13 0, 10 6, 107
C om tronics . .. .. . 128, 129, 130 ,10 6 , 107
C urtis . .. .. .. .. . 112, 113
D ia m ond . .. .. .. . 124, 132, 125
E a gle . .. .. .. .. . 129
E a ste rn . .. .. .. .. . 13 4
G C Brand . .. .. .. . 13 2, 10 5
GE . .. .. .. .. .. . 111, 112 , 113
G emini . .. .. .. .. . 12 2, 143
G ene ral Instrum ents /
Jerrold / M otorola . . 111, 119, 120, 121, 122 ,
. .. .. .. .. .. .. . 123 124 , 125, 126 , 127
H am lin . .. .. .. .. . 140, 141, 142, 145, 118,
. .. .. .. .. .. .. . 112
H itachi . .. .. .. .. . 103, 124
M acom . .. .. .. .. . 103, 10 4, 10 5, 10 8
M agnavox . .. .. .. . 128, 129, 13 0 , 10 6 , 107,
. .. .. .. .. .. .. . 133, 138
M emorex . .. .. .. . 13 0
M ovietim e . .. .. .. . 13 2
O ak . .. .. .. .. .. . 13 9, 137, 10 2
P a naso nic . .. .. .. . 10 9, 110, 114
P a ra gon . .. .. .. . 117
P hilips . .. .. .. .. . 128 , 129, 13 0 , 10 6 , 10 7,
. .. .. .. .. .. .. . 133, 138
P ione e r . .. .. .. .. . 10 1, 116
P ulsa r . .. .. .. .. . 1 0 5, 132
P use r . .. .. .. .. . 13 2
RCA. .. .. .. .. .. . 115
R e alistic . .. .. .. . 13 2
R e ga l . .. .. .. .. . 112, 118 , 14 0 , 141, 142,
. .. .. .. .. .. .. . 14 5
R e ge n cy . .. .. .. . 13 4
R e mbra nt . .. .. .. . 137, 132, 105, 138
S amsung . .. .. .. . 105
S a tellite . .. .. .. .. . 10 0
S cie nti cAt lant a . .. . 111, 112, 113
S igna ture . .. .. .. . 119, 124, 125 , 126, 127,
. .. .. .. .. .. .. . 12 0 , 121, 122, 111
S L M a rk . .. .. .. . 10 5 , 1 01
S pruce r. .. .. .. .. . 10 5 , 110
S ta rcom . .. .. .. . 119, 124, 12 5, 126, 127,
. .. .. .. .. .. .. . 12 0 , 121, 122, 111
S ta rgate . .. .. .. . 132 , 10 5
Televie w . .. .. .. . 10 1, 1 0 5
Texsca n . .. .. .. . 14 4
Tocom . .. .. .. .. . 13 5, 136
Toshiba . .. .. .. .. . 104
U nika . .. .. .. .. . 132, 125
U nite d Artists . .. .. . 139, 137, 102
U nite d C a ble . .. .. . 119, 124, 125, 126, 127,
. .. .. .. .. .. .. . 12 0 , 121, 122, 111
U nive rsa l . .. .. .. . 12 2, 132
V ide owa y . .. .. .. . 10 6
V iewstar . .. .. .. . 12 9 , 13 0
Zenith . .. .. .. .. . 117, 10 0
M itsubishi . .. .. .. . 0 01, 0 0 2 , 0 6 0, 0 6 7, 06 8 , 0 61,
. .. .. .. .. .. .. . 0 6 2
Admira l . .. .. .. .. . 0 5 5
Aiwa . .. .. .. .. .. . 0 47, 0 5 2
Akai . .. .. .. .. .. . 0 49, 034, 0 3 5, 03 6
Audio D yna mic . .. . 0 5 9 , 0 31
Bell & H owell . .. .. . 025 , 0 33
Broksonic . .. .. .. . 0 4 0 , 0 4 6
C anon . .. .. .. .. . 0 4 3, 0 4 5
C itize n . .. .. .. .. . 0 2 6
C ra ig . .. .. .. .. . 0 2 5, 0 49, 026
C urtis M a thes . .. .. . 0 6 5 , 0 4 4, 0 47
D aewoo . .. .. .. . 0 63, 021, 044, 079
D BX . .. .. .. .. .. . 059, 0 3 0, 031
D im e nsia . .. .. .. . 0 6 5
Eme rson . .. .. .. . 023, 038, 039, 0 4 0, 045, 046,
. .. .. .. .. .. .. . 0 6 2, 0 6 3
F ishe r . .. .. .. .. . 0 25, 028, 029, 0 27
Funai . .. .. .. .. . 0 47, 0 4 6 , 0 4 0
GE . .. .. .. .. .. . 0 57, 0 6 5 , 0 4 4
G o V ideo . .. .. .. . 057, 0 69, 070, 071
G oldstar . .. .. .. . 0 2 6
H itachi . .. .. .. .. . 0 43, 0 6 5, 020
Instant R e play . .. . 0 4 4, 0 4 3
Jensen . .. .. .. .. . 0 59
JVC . .. .. .. .. .. . 0 5 9, 030, 031, 0 5 4 , 076 , 077
Kenwood . .. .. .. . 059, 0 3 0 , 0 26, 031
LX I . .. .. .. .. .. . 0 47, 026, 02 0, 027, 028, 025 ,
. .. .. .. .. .. .. . 0 2 9
M agnavox . .. .. .. . 0 51, 0 4 3, 0 4 4
M arantz . .. .. .. . 0 59, 0 3 0 , 0 31
M arta . .. .. .. .. . 026
M emorex . .. .. .. . 0 4 4, 0 2 9
M G A . .. .. .. .. . 058, 0 6 0 , 0 6 7, 0 6 8 , 0 6 1, 0 6 2
M inolta . .. .. .. .. . 020, 0 6 5
M ultitech . .. .. .. . 0 6 7, 0 47, 0 24
N EC . .. .. .. .. .. . 0 59, 030, 031, 0 5 4
O lym pic . .. .. .. . 0 4 4, 0 4 3
O ptimus . .. .. .. . 0 48, 0 41, 0 5 5 , 0 2 6
O rion . .. .. .. .. . 0 4 6, 0 4 0
P a naso nic . .. .. .. . 0 4 3, 0 4 4, 0 41 , 0 4 2
P e nney . .. .. .. .. . 0 4 4, 020, 0 6 5, 025, 0 59, 0 3 0,
. .. .. .. .. .. .. . 0 31
P e nta x . .. .. .. .. . 020, 031, 0 6 5
P hilco . .. .. .. .. . 0 51, 0 4 4, 0 4 7, 0 4 3 , 0 4 6 , 0 4 0
P hilips . .. .. .. .. . 0 51, 0 4 3, 0 4 4
P ione e r . .. .. .. .. . 0 4 3
P rosca n . .. .. .. . 0 6 5, 020, 043, 0 44, 051, 0 21,
. .. .. .. .. .. .. . 0 21
Q uasar . .. .. .. .. . 0 41, 0 4 2, 0 4 3 , 0 4 4
R a dio S ha ck . .. .. . 0 5 3 , 0 4 4 , 0 25, 056, 029, 0 6 0 ,
. .. .. .. .. .. .. . 0 4 7
RCA. .. .. .. .. .. . 0 5 3 , 0 6 5 , 0 2 0, 0 43, 0 4 4, 0 49 ,
. .. .. .. .. .. .. . 0 51, 0 21, 022
R e alistic . .. .. .. . 044, 025 , 0 5 6 , 0 2 9, 0 6 0, 047
S amsung . .. .. .. . 0 57, 0 2 2, 024, 053
S a nsui . .. .. .. .. . 059, 046, 04 0, 072
S anyo . .. .. .. .. . 025, 0 2 9
S cott . .. .. .. .. . 0 21, 022, 024, 0 2 9 , 0 5 8 , 0 6 0 ,
. .. .. .. .. .. .. . 0 67, 0 6 8 , 0 4 6 , 0 4 0
S e ars . .. .. .. .. . 0 2 5, 026, 027, 028, 020
S ha intom . .. .. .. . 0 37
S ha rp . .. .. .. .. . 0 5 5, 0 5 6
S ignature 2 0 0 0 . .. . 0 47, 0 5 5
S inge r . .. .. .. .. . 0 3 7
S ony . .. .. .. .. . 0 4 8 , 049, 050, 073, 074, 075
S V20 0 0 . .. .. .. .. . 0 47
Sylvania . .. .. .. . 0 51, 0 4 3 , 0 4 4, 0 4 7
S ym pho nic . .. .. . 0 47
Tashiro . .. .. .. .. . 026
Tatung . .. .. .. .. . 0 59, 0 3 0 , 0 31
TE AC . .. .. .. .. . 0 59, 0 3 0 , 0 47, 031
Te chnics . .. .. .. . 0 3 2, 0 41, 0 4 2, 0 4 3, 0 4 4
Teknika . .. .. .. .. . 0 4 4 , 0 47
Toshiba . .. .. .. .. . 02 1,
Totevision . .. .. .. . 0 2 6
Vector R e se a rch . .. . 031
W ards . .. .. .. .. . 0 5 5, 0 56, 029, 0 6 4, 026
Yamaha. .. .. .. .. . 0 25, 059, 0 3 0 , 0 31
Zenith . .. .. .. .. . 0 6 4
VCRs
Appendix C: Remote Control Programming Codes



Part III: Setup
Passcode Screen
(Figure 2)
To view a V-C hip blocked program or to
watch the program during a scheduled lock
time, you must enter your 4-digit passcode
or change the channel to an unlocked pro-
gram. O nce you have entered the passcode,
the V-Chip block or Lock by Time will remain
released until the T V is powered off and
then on again.
V-Chip Lock
If you forget your four-digit passcode,
see Appendix A, page 71.
V-Chip Lock Menu: Passcode
V-Chip
(Figure 3 )
V-C hip allows you to Block or Allow pro-
grams based upon rating signals sent by the
broadcasting station. The T V comes from
the factory with the V-C hip in the O ff setting.
You can turn the V-Chip on within the V-C hip
M enu or you can use the V-CHIP button
on the remote control to conveniently turn
the V-C hip on or off. The factory preset is
T V-PG for T V ratings or P G for movie ratings,
allowing only programs rated T V-PG /P G or
lower. You can change the blocking level
to various T V ratings and lettered categories
or movie ratings. After changing channels
or devices, there may be up to a 5 second
delay before the V-C hip lock takes effect.
Entry
(Figures 1)
The rst time you sel ect V- Ch i pLock f rom
the M AIN menu, or after you have canceled
your passcode you will see the screen
shown in gur e 1. Af ter set ting a passcode,
the next time you select V-Chip Lock from
the M AIN menu, you will see “a new”
replaced by “your.” U se the number buttons
on the remote control to input a four-digit
passcode, then press EN TER . You can
delete a number and move back one space
by pressing C AN C EL. You can exit without
inputting a passcode by pre ssing M E N U or
H O M E.
Figure 1. V-Chip Entry Screen
Figure 3. V-Chip menu
V-Chip Start Time and V-Chip Stop
Time
(Figure 2)
Select the times you would like the V-C hip to
be Active. By setting the V-Chip Start Time
and V-C hip Stop Time to the same time, the
V-C hip will be active 24 hours a day.
Press or to slowly adjust the time.
Press and hold or to quickly adjust the
time.
Figure 2. V-Chip Blocked Channel passcode screen



Lock By Time
(Figure 1)
LO CK BY TIM E will allow you to lock the
entire T V during speci chour s.
Use AD JUST or to select O N or O FF
then use ADJUST to move to the “Lock
Time” option box.
Lock by Time, Lock Time, and
Unlock Time
(Figure 1)
Lock by Time locks the entire T V based
upon the Lock Time and Unlock Time. You
must input your 4-digit passcode to use the
T V when it is locked. By setting the Lock
Time and Unlock T ime to the same time, the
Lock by Time will be active 24 hours a day.
Use AD JUST or to select Lock by Time.
Use AD JUS T or to select the time
the lock will start. T hen use AD JUS T to
move to the U nlock Time option box. Use
ADJU ST or to select the time the lock
will stop.
Figure 1. Lock by Time menu
Front Button Lock
(Figure 2)
Front Button Lock lets you disable controls
on the front panel to prevent young children
from changing settings by accident.
Select O N to lock out the operations of the
front panel button and select O FF to restore
the operations of the front panel buttons. If
the front panel buttons have been locked
and you misplace the remote control, you
can restore the function of the front panel
buttons by pressing and holding the M EN U
button on the front panel for more than 8
seconds. If the T V is already on, a message
will be displayed to con rmt he r el ease of
the Front Button Lock.
Figure 2. V-Chip Lock menu
Part III: Setup
Lock By Time and Front Button Lock
V-Chip Menu: Lock By Time and Front Button Lock



 

When changing or deleting your
passcode, you must use the remote
control included with this TV. You
cannot use a Mitsubishi remote control
from another component or a “universal”
remote.
Cut along the dotted line and le bypass
instructions in a safe place for future
reference.
Appendix A: Bypassing the V-Chip Lock
Bypassing the V-Chip Lock
After you set the lock, you need your
passcode to view a V-C hip locked pro-
gram, view the locked T V, cancel the
lock, or enter the V-C hip Lock menus.
If you forget your passcode, you can
view the locked T V without entering your
passcode. T his is done by pressing the
number 9 and QV buttons on the remote
T V control at the same time, when your
passcode is requested. T his process
temporarily unlocks the T V.
W hen entering the V-Chip Lock menu,
this process deletes your old passcode
and prompts you to enter a new
passcode. P ressing H O M E at this time
will cancel the entire passcode.
Appendix A: Bypassing the V-Chip Lock
Appendix A: Bypassing the V-Chip Lock
Lock Bypass Instructions Have Been
Filed for Future Reference
Appendix A: Bypassing the V-Chip Lock
Bypassing Front Button Lock
If you have misplaced the remote control,
you can bypass the front button lock by
pressing and holding the M EN U button
on the front panel for more than 8 sec-
onds.
